USER MANUAL RTHD790S Royal Sovereign

Metallic cylindrical device with a base and spout, labeled 'RS' on the top (no other text or symbols visible)

RTHD-790S

Royal Sovereign International, Inc.

Please read and retain these instructions. To register your product, please go to www.royalsovereign.com

Thank you for purchasing the Royal Sovereign Personal Automatic Hand Dryer, RTHD-790S. This manual will provide you with safety information, instructions for optimal use, and proper care and maintenance for your product. Please read this manual carefully before operating.

CONTENTS

SAFETY INSTRUCTIONS ...... 2

PRODUCT VIEW 3

QUICK START GUIDE 4

INSTALLATION OPTIONS .... 5

MAINTENANCE AND CLEANING....5

TROUBLESHOOTING 6

SPECIFICATIONS 6

WARRANTY 7

When using this machine follow these basic safety precautions to reduce risk of fire, electric shock, or injury.

! WARNING

1. Only use the power cord that comes with the machine. Using a different power cord may result in electric shock, fire, or cause serious damage to the machine.
2. Plug the power cord into a properly grounded wall outlet. If the electrical outlet you intend to use is not adequately grounded, you should have a qualified electrician install the proper outlet.
3. Do not use this unit with any extension cords or adapter plugs.
4. Do not use the machine if the power cord is damaged. This may result in electric shock, fire, or other hazards.
5. To reduce the risk of electrical shock, do not take apart the machine. When service or repair is needed bring to a qualified service repair technician.
6. When unplugging the power plug, grip the plug to pull it out. Pulling the cord may result in electric shock, fire, or damage to themachine.
7. Do not place objects on the power cord and do not bend it excessively. This may result in electric shock, fire, or other hazards.

! CAUTION

1. Do not remove non-reflective base pad. Removal of this will result in the dryer not working properly and will void product warranty.
2. Improper installation, alteration, service and use of this hand dryer can result in serious personal injury or damage to the unit.
3. Do not allow the hand dryer to be used for any purpose other than drying hands; use this unit only in the manner intended.
4. When not using the machine for long periods of time, unplug from wall.
5. The hand dryer is designed for indoor use only.
6. Do not block air outlets or intake withobstacles.
7. Do not insert any objects into the hand dryer.

Read & Fully Understand This Owner's Manual Before Using This Machine.

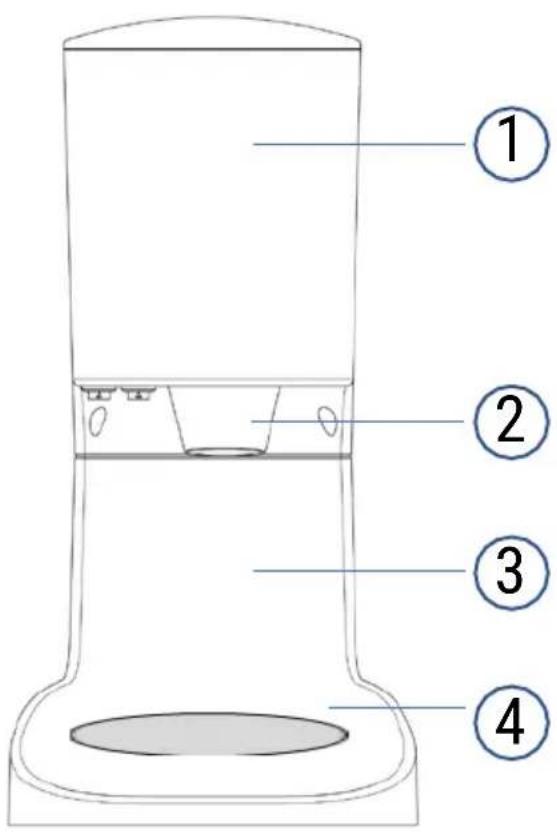

PRODUCT VIEW

1. Main Unit (wall mount unit)
2. Drying Nozzle
3. Base (removable for wallmounting)
4. Non-Reflective Base Pad

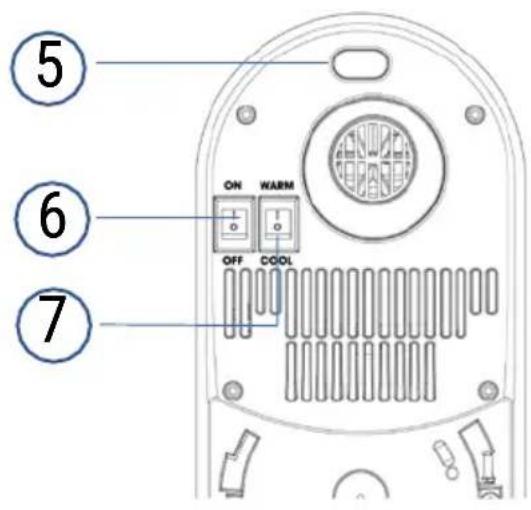

5. Drying Sensor
6. Power Switch (On/Off)
7. Temperature Switch(Warm/Cool)

5 6 7 ON WARM OFF COOL

Diagram of a device with numbered parts labeled 1 to 4, showing internal structure and components.

QUICK START GUIDE

1. Plug the power cable into a wall power outlet.
2. Select temperature option(Warm/Cool).
3. Turn power switch to ON.

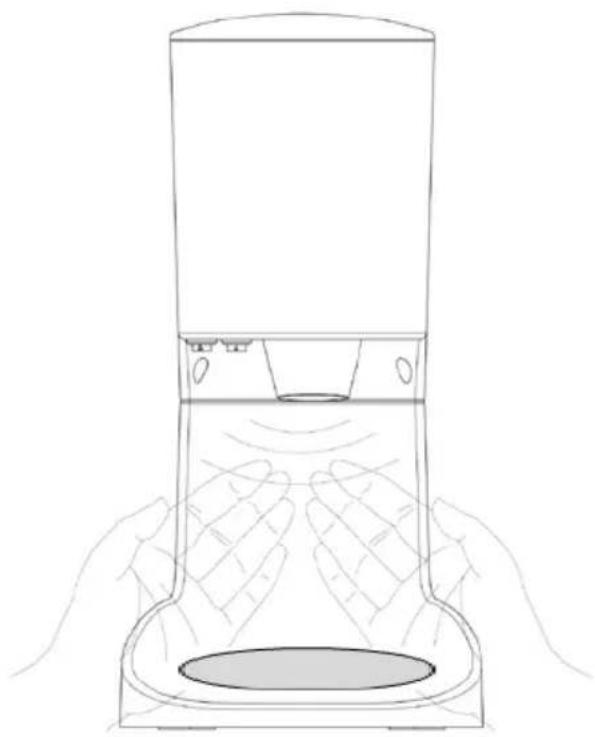

4. Insert hands under open space to engage the dryer.
5. Removal of hands will deactivate the dryer.

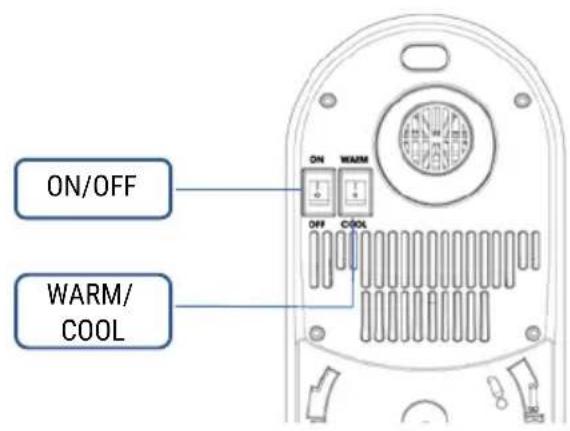

ON/OFF WARM/ COOL

Line drawing of a hand holding a transparent cylindrical device with a circular base and sensor waves, no text or symbols present.

INSTALLATION OPTIONS

Table-top: Place unit on a level, flat surface and plug into a wall outlet.

Wall-mount:

1. Select the ideal mounting location based on power source and height of users.
2. Drill two level holes 106mm with the expansion screw extending 6mm (see image below).
3. Remove main unit from base by rotating the unit clockwise; hand on expansion screws.
4. Turn select temperature option (WARM/COOL) and turn power selector "ON".
5. Store removed base in safe place for future usageoption.

6.00mm 106.00mm

MAINTENANCE OF MACHINE

WARNING: Before cleaning, turn the power switch off and disconnect the power cord from the wall.

Clean the housing with a soft cloth. Do not use abrasive cleaning materials, as it may scratch the unit. Use of alcohol based cleaning products should be avoided; this will negatively affect the non-reflective base pad. Do not spray cleaning liquids or water directly into the handdryer.

TROUBLESHOOTING

Problem Reason Solution
Hand Dryer is not warm	Temperature option setto COOLDefective heatingelement	Modify temperature switch to WARM (see page 3)Call Royal Sovereign customer service for a replacement heating element.
Hand Dryer does not start	No Power to the Unit.Defective SensorDefective Sensor	Check that unit is plugged in and power switch is set to the ON position (see page 3)Call Royal Sovereign customer service for replacement sensor and/or replacement motor.
Hand Dryer does not stop	Sensor is dirtyThere is a reflection under the sensor	Clean the sensor with a soft cloth (see page 5).Remove or block reflection that is causing the sensor to activateCheck that the non-reflective base pad has not been damaged.

SPECIFICATIONS

MODEL RTHD-790S
Voltage/Frequency 120V, 60HZ
IP Rating IP24
MotorRate/Type 20,000 RPM Brush Motor
Power Switch ON/OFF
Heat Setting WARM/COOL
Dimensions (WxDxH)	25 x 21 x38 cm
Weight 2.0 kg

ONE YEAR LIMITED WARRANTY

Royal Sovereign International, Inc. warranties this product to be free from defects in material and workmanship for a period of one (1) year. This warranty is extended to the original purchaser only.

This warranty only covers products that are properly installed, properly maintained, and properly operated in accordance with the instructions provided. This limited warranty does not cover any failures or operating difficulties due to normal wear and tear, accident, abuse, misuse, alteration, misapplication, improper installation, or improper maintenance and service by you or any third party.

Returned product will not be accepted without a Return Authorization number. To request a Return Authorization number, please visit us at www.royalsovereign.com. All transportation costs for the return of damaged product or parts will be the responsibility of the purchaser. Return defective product, in original packaging, to the address below.

Royal Sovereign International, Inc. requires reasonable proof of your date of purchase from an authorized retailer or distributor. Therefore, you should keep your receipt, invoice, or canceled check from the original purchase. The limited warranty shall be limited to the repair or replacement of parts which prove defective under normal use and service within the warranty period.

Royal Sovereign International, Inc. (and its affiliated companies) SHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages so the above exclusion and limitations may not apply to you.

ROYAL SOVEREIGN INTERNATIONAL, INC.

2 Volvo Dr., Rockleigh, NJ 07647 USA

Email: [e-mail]

RS INTERNATIONAL CANADA INC.

5610 Timberlea Blvd, Mississauga Ontario L4W 4M6 CANADA

TEL: [phone] TF #: [phone]

FAX : [phone]

www.royalsovereign.ca

Guide d'utilisation

RS Royal Sovereign®

SÈCHE-MAIN AUTOMATIQUE PERSONNEL

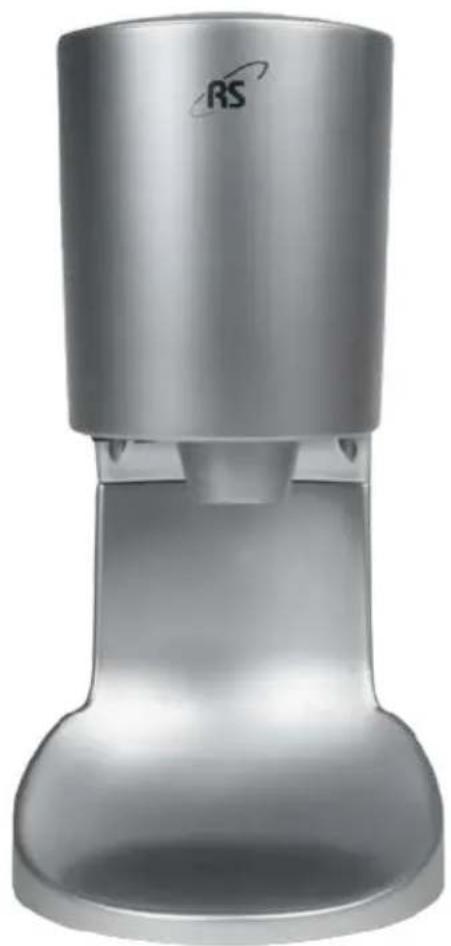

Metallic stainless steel showerhead with a base and top, no visible text or symbols

RTHD-790S

Royal Sovereign International, Inc.

VISIONNEMENT DU PRODUIT....11

GUIDE DE DÉPART RAPIDE....12

OPTIONS D'INSTALLATION....13

ENTRETIEN ET NETTOYAGE....13

DÉPANNAGE....14

SPÉCIFICATIONS 14

GARANTIE 15

INSTRUCTIONS DE SÉCURITÉ

Diagram of a device with numbered parts labeled 1 to 4, showing internal structure and base plate.

GUIDE DE DÉPART RAPIDE

OPTIONS D'INSTALLATION

6.00mm 106.00mm FII

GARANTIE LIMITÉE D'UN AN

Courriel : [e-mail]

RS INTERNATIONAL CANADA INC.

5610 Timberlea Blvd, Mississauga Ontario L4W 4M6 CANADA

TÉL.: [phone] TF #: [phone]

FAX : [phone]

www.royalsovereign.ca
