Product Type	Touchless automatic hand dryer
Brand	Royal Sovereign
Model	RTHD636SS
Dimensions (W x D x H)	21 x 19 x 32.5 cm
Weight	4.7 kg
Power Supply	120 V, 60 Hz
Protection Rating	IP24
Motor	Brushed motor, 25,000 RPM
Adjustable Speed	Yes, two speeds (HI and LOW)
Heating	Adjustable ON/OFF
Activation	Automatic via infrared sensor (max. distance 12 cm)
Auto Shut-off	Yes, when hands are removed
Housing	Stainless steel
Filter	Removable filter
Noise Level	Varies by speed (higher in HI)
Installation	Wall-mounted, recommended height per user (46-50 in for men, etc.)
Maintenance and Cleaning	Clean the housing with a soft, non-abrasive cloth. Do not spray liquid directly.
Safety	Grounding required. Do not use with an extension cord. Cut power before maintenance.
Spare Parts	IR sensor, motor, filter, printed circuit board
Repairability	Repair by a qualified electrician recommended
Warranty	5-year limited (motor 3 years)
Intended Use	Indoor, hand drying only
Included Accessories	Mounting bracket, tamper-proof screws
Customer Service	USA: 800-397-1025, Canada: 866-961-6673

Frequently Asked Questions - RTHD636SS Royal Sovereign

Why is my hand dryer not heating?

Check that the heating option is set to ON. If it is on OFF, switch to hot mode. If the problem persists, the heating system may be defective and needs to be replaced. Contact Royal Sovereign customer service.

Airflow is weak, what should I do?

Make sure the motor is set to HI speed. The LOW function reduces airflow. Switch to HI for faster drying.

My hand dryer is making a lot of noise, is this normal?

Noise depends on motor speed. In HI position, the noise level is higher but drying is faster. To reduce noise, switch to LOW (minimum speed), but drying time will be longer.

The hand dryer does not start at all.

First check the power supply: the outlet must be functional and the switch set to ON. If that does not work, the IR sensor or motor may be defective. Contact customer service for replacement.

The hand dryer does not stop after removing hands.

The IR sensor may be dirty or there may be reflection. Clean the sensor with a soft cloth and ensure no reflective objects are nearby.

At what height should I install the hand dryer?

Recommended height varies by user: 117-122 cm for women's restrooms, 122-127 cm for men, 81 cm for kindergarten, 91.5-96.5 cm for disabled. Refer to the manual for details.

Can I use an extension cord?

No, using an extension cord or adapter is prohibited. Plug the device directly into a grounded wall outlet.

What does the 5-year warranty cover?

The 5-year limited warranty covers defects in material or workmanship. The motor is warranted for 3 years. Damage caused by misuse or natural disasters is not covered. Contact Royal Sovereign for a return with authorization.

How to clean the hand dryer?

Use a soft cloth to clean the stainless steel housing. Do not use abrasive products. Avoid spraying water or liquids directly on the device. The filter should be cleaned regularly.

Should I clean the filter?

Yes, the filter should be cleaned periodically to maintain good airflow. Remove the filter and clean it with warm soapy water. Make sure it is completely dry before reinstalling.

USER MANUAL RTHD636SS Royal Sovereign

Please read and retain these instructions.

USA: www.royalsovereign.com Canada: www.royalsovereign.ca

Royal Sovereign International, Inc.

TOUCHLESS AUTOMATIC HAND DRYER

Model RTHD-636SS

INTRODUCTION

Thank you for choosing Royal Sovereign Touchless Automatic Hand Dryer. Please read and retain these instructions. This manual will provide you with valuable information necessary for the proper instructions, care and maintenance of your hand dryer. Installation should be done by a qualified electrician. Improper installation, alteration, service and use of this hand dryer can result in serious personal injury or damage to the unit.

If you have questions regarding the installation, use or operation of the hand dryer, please call Royal Sovereign customer service.

Because our products are subject to continuous improvement, Royal Sovereign reserves the right to modify product design and specifications without notice and without incurring any obligation. E&OE

CONTENTS

IMPORTANT SAFETY INFORMATION 4

DESCRIPTION 5

GENERAL USAGE 6

MOUNTING THE UNIT 6

HEATING CONTROL 7

INSTALLATION INSTRUCTION 7

TROUBLESHOOTING 8

SPECIFICATIONS 9

LIMITED FIVE YEAR WARRANTY 10

PAGE EN FRANCAIS 12

PAGINA EN ESPANOL 23

IMPORTANT SAFETY INFORMATION

Please read this manual thoroughly prior to installation to reduce the risk of fire, electric shock, or personal injury.

PLEASE NOTE THE FOLLOWING PRECAUTIONS:

1. Do not allow the hand dryer to be used for any purpose other than drying hands. Use this unit only in the manner intended.
2. If service is required, turn the power OFF.
3. Any metallic items in contact with the hand dryer must be grounded.
4. The hand dryer is designed for indoor use only.
5. If the electrical outlet you intend to use is not adequately grounded, you should have a qualified electrician install the proper outlet.
6. Do not use this unit with any extension cords or adapter plugs.
7. If the cord or plug is damaged in any way, please call the Royal Sovereign Service Department.
8. Do not plug this cord into a loose electrical outlet.
9. Do not block air outlets or intake with obstacles.
10. Do not insert any objects into the hand dryer.
11. To clean the housing, use a soft cloth. Do not use any abrasive cleaning material as it may scratch the unit. Do not spray any cleaning liquids or water in the direction of the hand dryer.

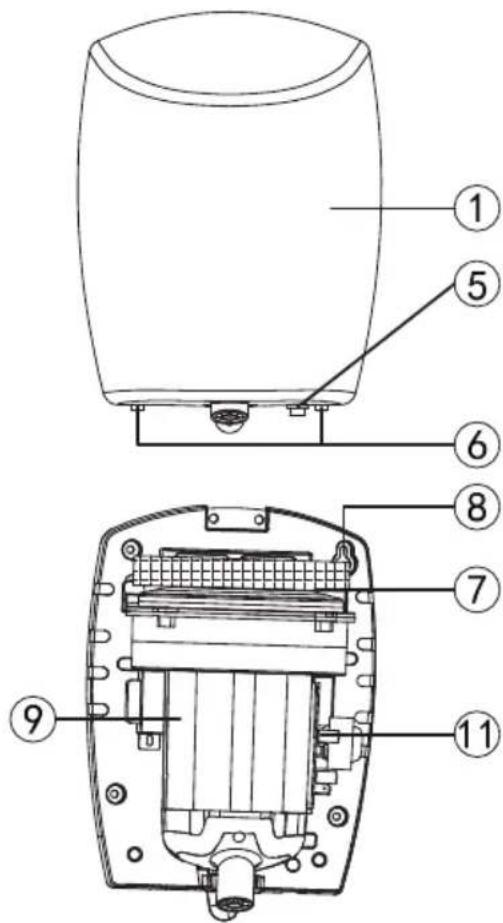

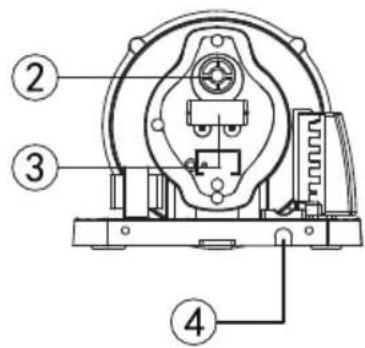

DESCRIPTION

1. Stainless Steel Cover
2. Nozzle
3. Sensor
4. Power Supply hole
5. Heat ON/OFF
6. Tamper proof screws
   7.Filter
7. Drill Holes
8. Motor
9. Circuit board Cover
10. Circuit board

GENERAL USAGE

The hand dryer will automatically be activated when placing hands underneath - maximum distance 12cm (4.7 in.)

To stop, remove hands

MOUNTING THE UNIT

Recommended Mounting Heights

Men's Restroom 122-127 cm (48-50 in.)
Women's Restroom 117-122cm (46-48 in.)
Kindergarten (Ages 3-6) 81cm (32 in.)
Elementary School (Ages 7-10) 91cm (36 in.)
Middle School (Ages 10-13) 102 cm (40 in.)
High School (Ages 14-18) 114-120cm (45-47 in.)
Handicap Mounting 91.5-96.5cm (36-38 in.)

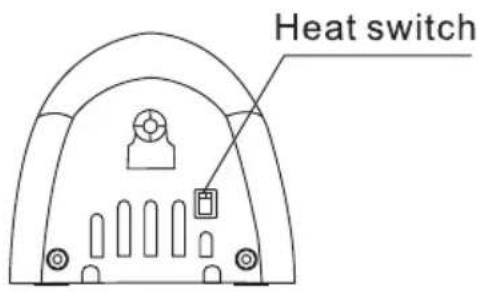

HEATING CONTROL

The hand dryer provides two different heat options to allow you to set the comfort setting.

Set to "ON" for warm dry of the hand.

Set to "OFF" for cool dry of the hands.

Note: The Heating Control is set to "ON" or Warm Dry mode.

INSTALLATION INSTRUCTION

1. During installation, ensure the unit is turned 'OFF'.

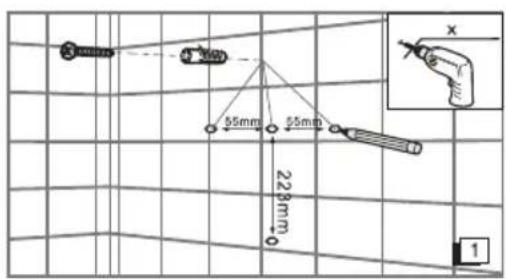

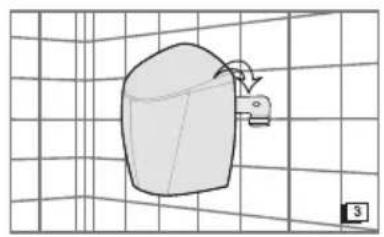

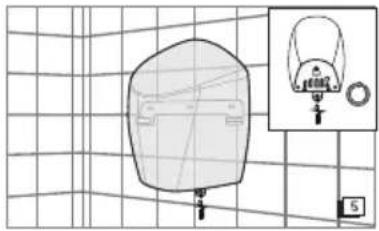

2. Use the supplied Mounting bracket and mount the hand dryer at the ideal location (refer to Mounting the Unit - Recommended Mounting Heights) for placement.
3. Run the power cable to the electrical outlet. Ensure that the power cable is not exposed.
4. On the hand dryer turn the Power button 'ON'. Set the Heat Control button to the desired heat setting.

TROUBLESHOOTING

Hand Dryer is not warm	·Possible defective heat element. Needs to be replaced. Call Royal Sovereign customer service.
Hand Dryer air output is slow	·Motor setting is set to LOW. Change setting to HI.
Hand Dryer is loud	·There are two motor settings. HI setting allows for faster hand drying, but the decibel (dB) sound is slightly higher. To reduce the decibel sound, set the motor setting to LOW (it will take longer for the user to dry the hands).
Hand Dryer does not start	·No power to the unit. Check the power to the unit (both power supply and ON/OFF switch). ·Defective sensor - Replace the IR sensor. ·Defective motor - Replace the motor. Call Royal Sovereign customer service.
Hand Dryer will not shut off	·The sensor is dirty or there is a reflection. Clean the IR Sensor. Ensure that there is no possible reflection from another object.

SPECIFICATIONS

Model RTHD-636SS
Voltage/Frequency 120 V, 60 Hz
IP Rating IP24
Motor Rate/Type 25,000 RPM Brush Motor
Dimensions (w x d x h) 21 x 19 x 32.5 cm (8.2 x 7.4 x 12.8 in.)
Weight 4.7 kg (10.5 lb.)

NEED HELP WITH INSTALLATION?

Royal Sovereign can help arrange professional certified installation of your hand dryer.

For more information:

USA:800-397-1025

Canada: 866-961-6673

LIMITED FIVE YEAR WARRANTY

This warranty applies to repair or replacement of product found to be defective in material or workmanship for five years from the date of the original purchase (3 Year Motor). This warranty is extended only to the original purchaser.

This warranty does not apply to damage resulting from abuse, misuse, or improper maintenance of damage that is attributable to acts of nature. Royal Sovereign International, Inc. (and its affiliated companies) is not liable for incidental or consequential damages of any nature. This limitation would not apply if you live in those areas that do not permit the exclusion or limitation of incidental or consequential damages.

Defective products for warranty repair or replacement cannot be returned without a Return Authorization number. Please go to www.royalsovereign.com USA-Customer Support Tab to make a request for an Office Product Return Authorization.

Defective products must be returned to Royal Sovereign International Consumer Return Department, freight prepaid, with proof of purchase and Return Shipping and Handling payment (check or money order). Upon repair or replacement the product will be returned to the customer.

ROYAL SOVEREIGN INTERNATIONAL, INC.

2 Volvo Drive Rockleigh, NJ 07647 USA

www.royalsovereign.com

RS INTERNATIONAL CANADA INC.

5610 Timberlea Blvd, Mississauga Ontario L4W 4M6 CANADA

TEL: [phone] TF: [phone]

FAX: [phone]

www.royalsovereign.ca
