PPO12X3S - Oven Avanti - Free user manual and instructions

Product Type	Pizza Oven
Brand	Avanti
Model	PPO12X3S
Power	1000 W
Voltage	120 V ~ 60 Hz
Timer	Up to 60 minutes with auto shut-off and audible signal
Capacity	Pizza up to 12 inches in diameter
Included Accessories	Pizza pan, crumb tray
Clear Window	Yes
Power Indicator	Yes (red indicator light)
Dimensions (approx.)	35 x 30 x 25 cm (L x W x H)
Weight (approx.)	4.5 kg
Cleaning	Interior with damp cloth and mild detergent; exterior with mild detergent
Safety	Do not immerse, use oven mitts, do not use non-recommended accessories
Spare Parts	Order at 800-220-5570
Warranty	1 year comprehensive, 30 days on glass parts and finish

Frequently Asked Questions - PPO12X3S Avanti

What to do if the oven does not turn on?

Check that the oven is plugged into a 120 V AC outlet. Make sure the circuit breaker is not tripped or no fuse has blown. If the problem persists, contact customer service.

Why are the heating elements not heating?

The heating elements cycle automatically to maintain the temperature. This operation is normal. If heat is insufficient, check the timer setting and make sure the door is properly closed.

How to clean the inside of the oven?

Unplug the appliance and let it cool. Remove the crumb tray and rack. Clean the interior with a damp cloth and mild detergent. Do not use abrasive cleaners or metal scouring pads.

Why does a burning smell come out?

During first use, the smell is normal: it is necessary to burn off the protective coating on the heating elements by running the oven empty at maximum temperature for 15 minutes. Later, a burning smell may come from excess grease or food debris. Clean the appliance regularly.

Can I use metal utensils in this oven?

No, oversized foods or metal utensils should not be inserted as they may create a risk of fire or electric shock. Only use the provided accessories or those recommended by the manufacturer.

How to set the timer?

Turn the timer knob to the desired cooking time (max 60 minutes). The oven will automatically shut off at the end of the time and an audible signal will sound. To turn off manually, turn the knob to '0'.

What to do if the pizza is overcooked or undercooked?

Cooking times vary depending on the pizza. Monitor cooking to avoid burning. For a crispier crust, place the pizza directly on the pizza pan. For a softer crust, use a sheet of aluminum foil.

Does the power indicator stay on after cooking?

The red indicator turns off automatically when the timer returns to the '0' position. If it stays on, check that the timer is at '0'. Unplug the appliance if necessary.

How to order spare parts?

Call Avanti customer service at 800-220-5570 to order parts and accessories. Payment can be made by check, money order, MasterCard or Visa.

Where to find the serial number?

The model number and serial number are on a label located on the back of the appliance. Write them down for any correspondence or service call.

USER MANUAL PPO12X3S Avanti

Model of a stainless steel toaster with control knob and side legs (no visible text or symbols on the device itself)

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products LLC

P.O. Box 520604 - Miami, Florida 33152

www.avantiproducts.com

TABLE OF CONTENTS

Important Safety Instructions	3
Help Us Help You	4
Parts and Features	5
Installation Instructions	6
Before Using Your Appliance	6
Installation of Your Appliance	6
Electrical Connection	6
Operating Your Appliance	7
Care and Maintenance	7
Cleaning Your Appliance	7
Storing Your Appliance	7
Troubleshooting Guide	8
Service for Your Appliance	8
Your Avanti Products Warranty	9
Instrucciones en Español	10 – 11
Instructions aux Français	12 - 19
Registration Information	Last Page

IMPORTANT SAFETY INSTRUCTIONS

~ WARNING ~

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

When using electrical appliances, basic safety precautions should always be followed including the following:READ ALL INSTRUCTIONS, PRODUCT LABELS AND WARNINGS BEFORE USING THE APPLIANCE.Do not touch hot surfaces, use handles or knobs. Always use oven mitts when handling hot materials and allow metal parts to cool before cleaning. Allow the unit to cool thoroughly before putting in or taking off parts.When the unit is not in use and before cleaning, unplug the appliance from the wall outlet. Make sure the appliance is turned off before unplugging.To protect against risk of electrical shock, do not immerse the appliance in water or any other liquids.Don't leave children alone or unattended where the appliance is hot or in operation. This appliance is not designed to be used by children.Never use your appliance for heating the room. Your oven is not designed to heat your kitchen.Do not operate this or any appliance with a frayed or damaged cord or plug, after the appliance malfunctions, is dropped or has been damaged in any manner.Do not use attachments not recommended by the manufacturer; they may cause fire, electric shock or personal injury.Do not use outdoors or for commercial purposes.Do not use this appliance for other than its intended use.Do not let the cord dangle over the edge of a tabletop, countertop or to touch hot surfaces.Do not place the appliance near a hot gas, electric burner or in a heated oven.Extreme caution should be used when using containers constructed of other than metal or glass.A fire may occur if the appliance is covered or touching flammable materials, including curtains, draperies, walls, etc., when in operation. Do not store any items on top of the appliance when in operation.Do not store any materials, other than manufacturer's recommended accessories in this unit when not in use.Do not place any flammable materials in the appliance, such as paper, cardboard, plastic or any materials that may catch fire or melt.Never clean the appliance with flammable liquids. The fumes can create a fire hazard or explosion.Do not cover the appliance with metal foil. This will cause overheating of the appliance.Oversized foods or metal utensils must not be inserted in the appliance as they may create a fire or risk of electrical shock.Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electrical shock.When broiling, use extreme caution when removing tray or disposing of hot grease.To turn this appliance off, return control to the “0” position, then remove the plug from wall outlet.Cooked food can be very hot, especially pastry filling. Handle with care.Never pick up a flaming pan. Turns the controls off. Smother a flaming pan on a surface unit by covering the pan completely with a well-fitting lid.Do not use water on grease fires. Flaming grease outside a pan can be put out by covering it with baking soda, multipurpose dry chemical, or fire extinguisher. Flame in the oven can be smothered completely by closing the oven door and turning the oven off or by using baking soda, multipurpose dry chemical, or fire extinguisher.This Unit Is For Household Use Only- SAVE THESE INSTRUCTIONS -

Read this guide carefully.

It is intended to help you operate and maintain your new appliance properly.

Keep it handy to answer your questions.

If you don't understand something or you need more assistance, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

Write down the model and serial numbers.

You'll find them on a label located on the back side of the unit.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your appliance.

If you received a damaged appliance, immediately contact the dealer (or builder) that sold you the appliance.

Save time and money. Before you call for service, check the Problem Solver Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason, you are not happy with the service you receive, here are some steps to follow for further assistance.

FIRST, contact the people who serviced your appliance. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Avanti Products

10880 NW 30 Street

Miami, FL 33172 USA

PARTS AND FEATURES

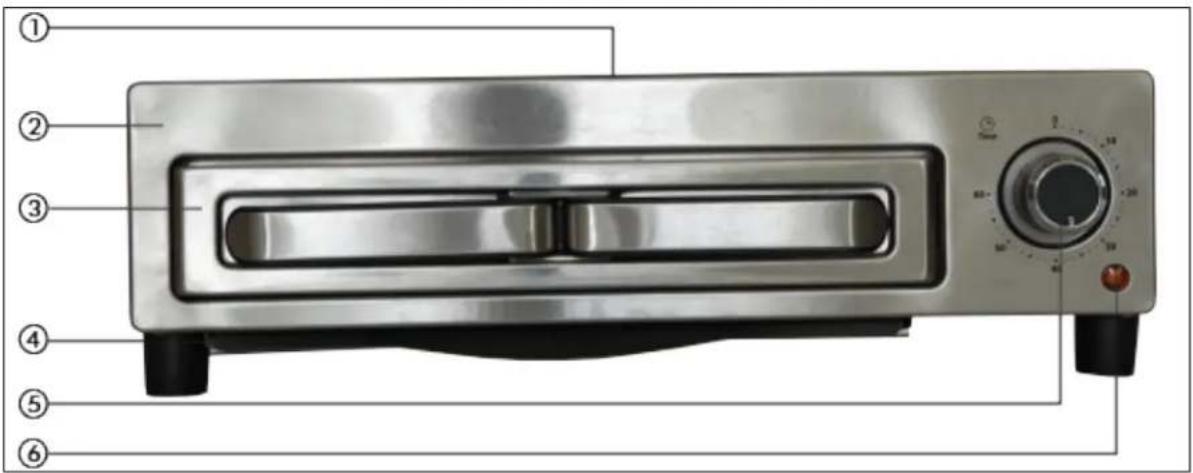

Labeled diagram of a stainless steel toaster with numbered parts and control knob

1	See-Through Window
2	Cabinet
3	Pizza Tray with Integrated Handles
4	Crumb Tray
5	Timer Knob
6	Indicator Light

INSTALLATION INSTRUCTIONS

ÿ Before Using Your Appliance

• Remove the exterior and interior packing.

• Check to be sure you have all of the following parts:

• 1 Pizza Tray

• 1 Crumb Tray
  • 1 Instruction Manual

• Remove all the items inside your oven and clean the interior surface with lukewarm water using a soft cloth.

• Do not attempt to repair or replace any part of your oven unless it is specially recommended in this manual.
  • This appliance requires 1000W and should be the only appliance operating on the circuit.

NOTICE

BEFORE YOU USE THIS OVEN FOR THE FIRST TIME: THE HEATING ELEMENTS HAVE A PROTECTIVE COATING, WHICH MUST BE BURNED OFF BEFORE USE. TO DO THIS, OPEN THE OVEN DOOR AND SET THE TEMPERATURE TO MAX. LEAVE THE APPLIANCE SWITCHED ON FOR APPROXIMATELY 30 MINUTES. IT IS IMPORTANT TO ENSURE ADEQUATE VENTILATION DURING THIS PERIOD AS A BURNING SMELL IS NORMAL DURING THIS PROCESS.

Installation of Your Appliance

THIS PRODUCT IS NOT DESIGNED FOR ANYTYPE OF BUILT-IN INSTALLATION

Select a location for the appliance. The location should be in an open area on a flat counter where the plug will reach an outlet.

• When positioning the appliance, it should be set on a flat, steady surface.
• Do not block air vents. If they are blocked during operation, the oven may overheat and eventually cause the appliance failure.
• Keep the appliance away from hot air, steam or splashing liquids when choosing a place to locate it, otherwise, the unit's operation may be adversely affected, causing it to break down.
• Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
• Plug the appliance into an exclusive properly installed grounded wall outlet. Any questions concerning power should be directed toward a certified electrician or an authorized Avanti Products service center.
• Do not place anything on the top of the broiler oven and automatic toaster.
• Keep the appliance at least 5 inches away from rear wall to ensure the proper ventilation.

ÿ Electrical Connection

• The appliance has a polarized plug (One blade is wider than the other), to reduce the risk of electric shock, this plug is intended to fit into the polarized outlet only one way. If the plug does not fit fully into the outlet, reserve the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• A short power cord is provided to reduce the hazards resulting from entanglement or tripping over a longer cord. An extension cord may be used with care, however, be sure the marked electrical rating is at least as great as the rating of this appliance. The extension cord should be positioned such that it does not drape over the counter or tabletop where it can be pulled on by children or tripped over. The electrical rating of this appliance is listed on the back panel of the appliance.

OPERATING YOUR APPLIANCE

TIMER SELECTOR KNOB

You can set cooking time up to 60 minutes. It will automatically turn the oven OFF at the end of the cooking time selected with the sound of a bell signal.

To switch off the oven turn the timer selector to the "0" setting position.

CAUTION:

DO NOT LEAVE THE UNIT ATTENDED FOOD AND/OR BAKING TRAY WILL BE VERY HOT, HANDLE WITH CARE

PIZZA OVEN INDICATOR LIGHT

The indicator will come ON when the oven is in use.

The RED indicator light located at the bottom right of the unit will turn on and stay on while the PIZZA oven section is being used.

The light will turn off automatically once the timer knob is returned to the "0" position.

To Use the PIZZA OVEN Function

As the pizza oven operates by direct heat; baking times will vary, follow the instructions from the pizza manufacturer and check the pizza during cooking to avoid burning or overdone pizza.

For a crispier crust place the pizza directly on the pizza tray, if you prefer a softer crust you can place the pizza on a sheet of aluminum foil.

Extend the integrated handles of the pizza tray and keep them extended during use to prevent any accidents or possible burns as the tray will be hot.

Place the pizza on the in the center of the pizza tray.

Turn the timer knob to the desired cooking time (max 60 minutes).

At the end of the cooking time a bell signal sounds and the oven will turn OFF automatically

CARE AND MAINTENANCE

ÿ Cleaning Your Appliance

Before cleaning your appliance, unplug it and allow it to cool.

Remove the crumb tray, wire rack and drip/baking pan.

Use a damp cloth to wash the inside with warm water and a mild detergent. Do not Immerse in Water! Abrasive cleaners, scrubbing brushes and chemical cleaners may damage the continuous clean coating on this unit.

Wash the crumb tray, wire rack, drip/baking pan and metal handling tool with a mild detergent solution. The glass oven door should be cleaned regularly with a non-abrasive liquid cleaner.

Rinse with a damp cloth and then a dry one.

The outside of the appliance should be cleaned with mild detergent and warm water.

CAUTION

Failure to unplug the appliance could result in electrical shock or personal injury.

ÿ Storing Your Appliance

Allow the appliance to cool completely before storing. If storing the appliance for long periods of time, make certain that the appliance is clean and free of food particles. Store the appliance in a dry location such as on a table or countertop or in a cupboard shelf. Other than the recommended cleaning, no further user maintenance should be necessary.

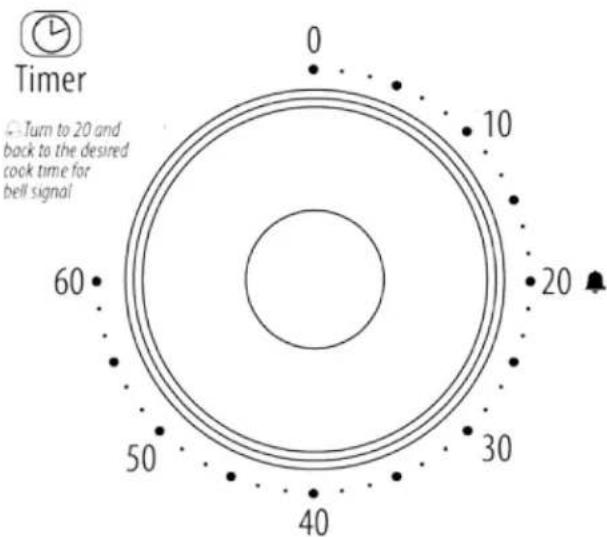

Timer Turn to 20 and back to the desired cook time for bell signal

PROBLEMS WITH YOUR APPLIANCE?

You can solve many common appliance problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEMS	POSSIBLE CAUSES/SOLUTIONS
• Appliance does not operate.	• Unit not plugged in. Plug the unit into a 120V AC electrical outlet.• The circuit breaker tripped or a blown fuse.• Be sure that the temperature, function and timer selectors are set.
• Heating elements are not heating up.	• Heating elements will cycle ON and OFF to maintain proper heat. Make sure function selector is positioned to the desired cooking setting.
• Burnt Smell	• Food build-up inside appliance, on heating elements or in drip/baking pan. Refer to “Cleaning Your Appliance”

SERVICE FOR YOUR APPLIANCE

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti appliances. With the purchase of your Avanti appliance, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your appliance inside and out.

YOUR AVANTI WARRANTY
LENGTH OF WARRANTY WE WILL PAY FOR

FULL ONE YEAR WARRANTY FROM DATE OF PURCHASE ON ALL PARTS EXCEPT GLASS PARTS, AND/OR PARTS DAMAGED AS A RESULT OF MISUSE OR LACK OF REASONABLE CARE.	REPLACEMENT PARTS AND REPAIR LABOR TO CORRECT DEFECTS IN MATERIALS OR WORKMANSHIP. SERVICE MUST BE PROVIDED BY AN AUTHORIZED SERVICE COMPANY.
FULL 30-DAY WARRANTY FROM DATE OF PURCHASE ON GLASS PARTS AND FINISH OF PORCELAIN ENAMEL, PAINTED OR BRIGHT METAL FINISHED PARTS	REPLACEMENT PARTS AND REPAIR LABOR TO CORRECT DEFECTS IN MATERIAL OR WORKMANSHIP. SERVICE MUST BE PROVIDED BY AN AUTHORIZED SERVICE COMPANY.

CARRY IN SERVICE ONLY.

CUSTOMER WILL BE RESPONSIBLE FOR ALL TRANSPORTATION CHARGES TO AND FROM THE AUTHORIZED SERVICE COMPANY, ALSO MAKE SURE TO SEND A COPY OF PROOF OF PURCHASE WHEN SENDING THE UNIT FOR SERVICE REPAIRS.

AVANTI PRODUCTS SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

This warranty is not valid outside the Continental United States.

Labeled diagram of a microwave oven with numbered parts for identification

PROBLÈMES AVEC VOTRE APPAREIL?

AVANTI PRODUCTS NE SERA PAS RESPONSABLE DES DOMMAGES DIRECTS OU INDIRECTS.

Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits:

Avanti Products, LLC.

P.O.Box 520604 – Miami, Florida 33152

ÿ Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

ÿ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

(detach here)

Avanti Registration Card

Name			Model # Serial #
Address			Date Purchased Store / Dealer Name
City	State	Zip	E-mail Address
Area Code	Phone Number		Occupation
Did You Purchase An Additional Warranty			As your Primary Residence, Do You:
£ Extended			£ Own £ Rent
£ None			Your Age:
Reason for Choosing This Avanti Product: Please indicate the most important factors That influenced your decision to purchase this product:			£ under 18 £ 18-25 £ 26-30£ 31-35 £ 36-50 £ over 50Marital Status:£ Married £ Single
£ Price			Is This Product Used In The:£ Home £ Business
£ Product Features
£ Avanti Reputation
£ Product Quality
£ Salesperson Recommendation			How Did You Learn About This Product:£ Advertising£ In-Store Demo£ Personal Demo
£ Friend / Relative Recommendation
£ Warranty
£ Other:

Comments:

PPO12X3S - 11012017

PRINTED IN CHINA
