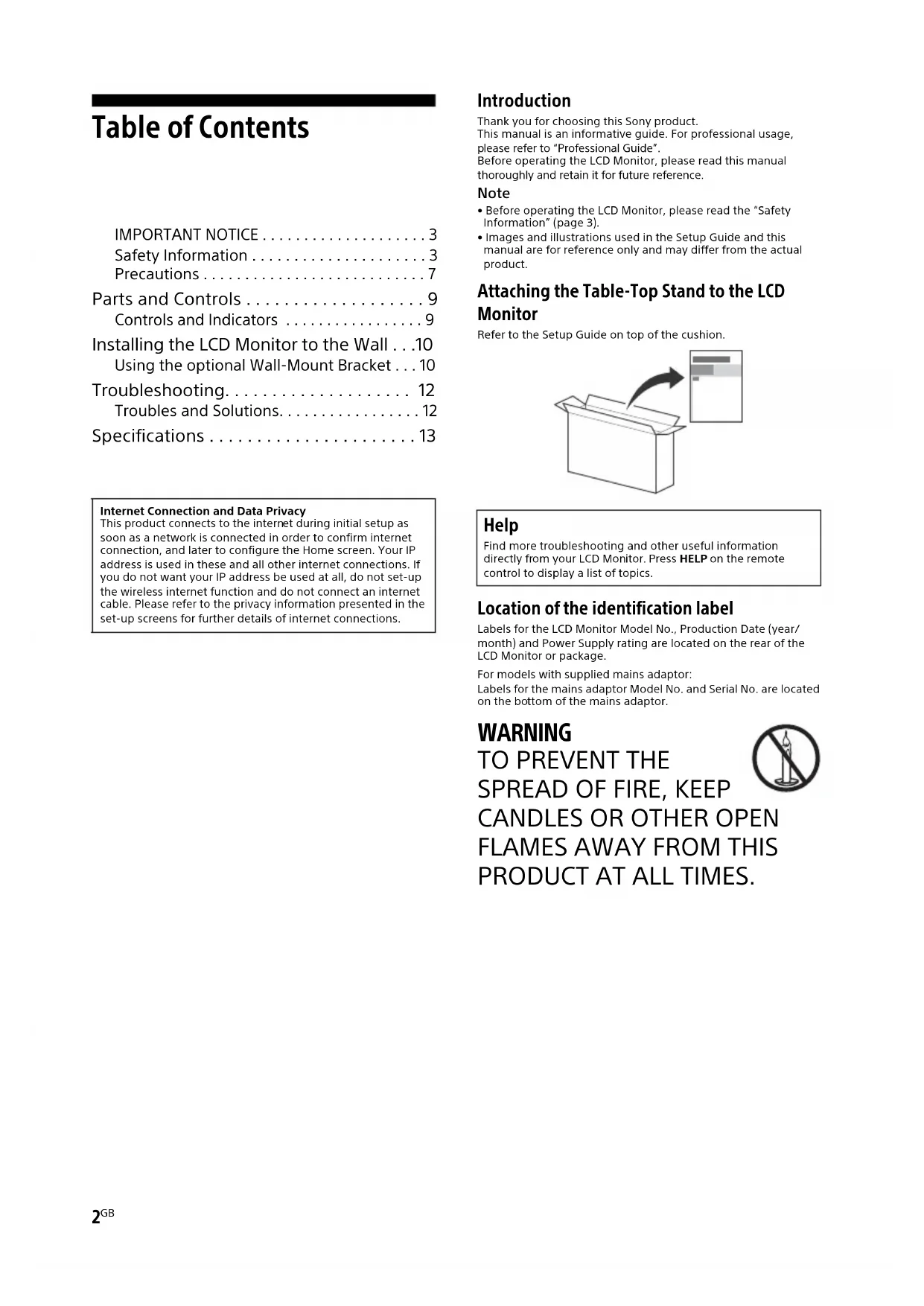

• Before operating the LCD Monitor, please read the “Safety Information” (page 3).• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product. Attaching the Table-Top Stand to the LCD Monitor Refer to the Setup Guide on top of the cushion. Location of the identification label Labels for the LCD Monitor Model No., Production Date (year/month) and Power Supply rating are located on the rear of the LCD Monitor or package.For models with supplied mains adaptor:Labels for the mains adaptor Model No. and Serial No. are located on the bottom of the mains adaptor. WARNING

SPREAD OF FIRE, KEEP

CANDLES OR OTHER OPEN

FLAMES AWAY FROM THIS

PRODUCT AT ALL TIMES. Internet Connection and Data PrivacyThis product connects to the internet during initial setup as soon as a network is connected in order to confirm internet connection, and later to configure the Home screen. Your IP address is used in these and all other internet connections. If you do not want your IP address be used at all, do not set-up the wireless internet function and do not connect an internet cable. Please refer to the privacy information presented in the set-up screens for further details of internet connections. Help Find more troubleshooting and other useful information directly from your LCD Monitor. Press HELP on the remote control to display a list of topics.D:\SONY TV\SY18_CHHB_EU_RG141\4735226141\01GB\4735226141_01GB.fm master page: Right FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F 4-735-226-14(1)

KINGDOM A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience. Should the fuse in the plug supplied need to be replaced with the same r ating of fuse approved by ASTA or BSI to BS 1362 (i.e., marked with or ) must be used. If the plug supplied with this equipment has a detachable fuse

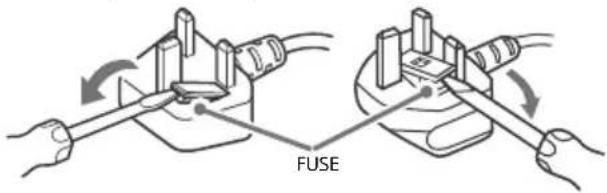

over, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station. How to replace the fuse Open the fuse compartment with a blade screwdriver, and replace the fuse. Please refer to the illustration that actually equipped with the

oduct. IMPORTANT NOTICE Notice for Radio Equipment Hereby, Sony Visual Products Inc. declares that the radio equipment types FW-85BZ35F, FW-75BZ35F, FW-65BZ35F, FW-55BZ35F, FW-49BZ35F, FW-43BZ35F are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is

ailable at the following internet address: http://www.compliance.sony.de/ This radio equipment can be operated in the EU without inf ringing applicable requirements on the use of radio spectrum. Safety Information WARNING Caution Risk of explosion if the battery is replaced by an incorrect type. Batteries must not be exposed to excessive heat such as

unshine, fire or the like or extremely low air pressure that can result in an explosion or leakage of flammable liquid or gas. Stability Hazard The LCD Monitor may fall, causing serious personal injury or death. Never place a LCD Monitor in an unstable location. A LCD Monitor may f all, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the LCD Monitor.

• Only using furniture that can safely support the LCD Monitor.

• Ensuring the LCD Monitor is not overhanging the edge of the supporting furniture.

• Not placing the LCD Monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the LCD Monitor to a suitable support.

• Not placing the LCD Monitor on cloth or other materials that may be located between the LCD Monitor and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the LCD Monitor or its controls. If your existing LCD Monitor is being retained and relocated, the

ame considerations as above should be applied. Installation/Set-up Install and use the LCD Monitor in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries. Installation

• The LCD Monitor should be installed near an easily accessible mains socket.

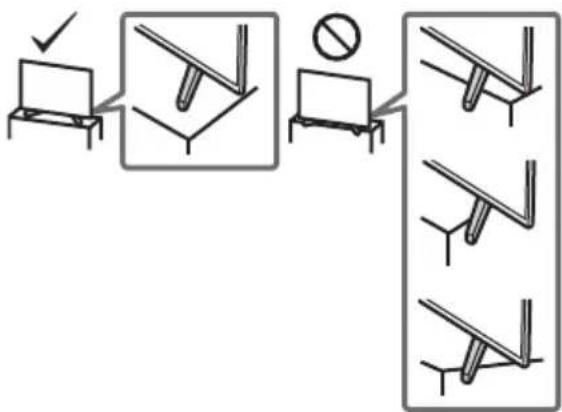

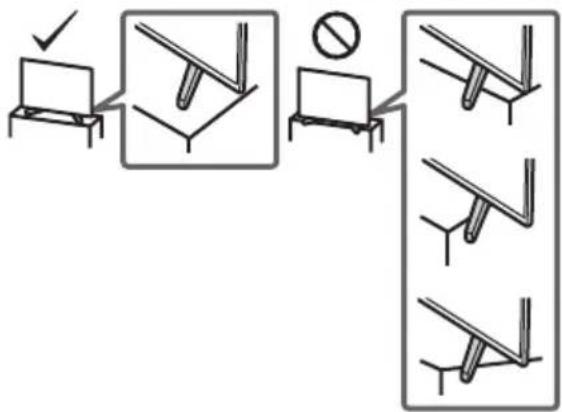

• Place the LCD Monitor on a stable, level surface to prevent it from falling over and causing personal injury or property damage.

• Install the LCD Monitor where it cannot be pulled, pushed, or knocked over.

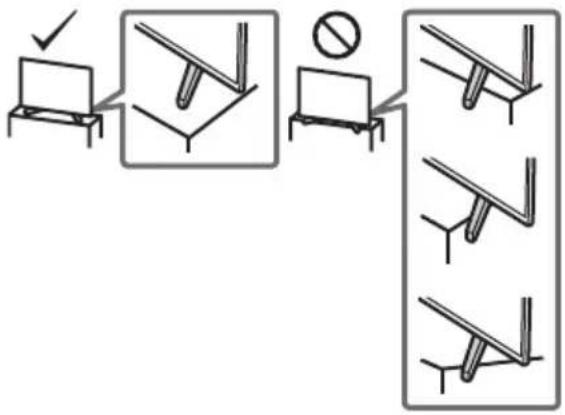

• Install the LCD Monitor so that the LCD Monitor’s Table-Top Stand does not protrude out from the LCD Monitor stand (not supplied). If the Table-Top Stand protrudes out from the LCD Monitor stand, it may cause LCD Monitor set to topple over, fall down, and cause personal injury or damage to the LCD Monitor. This product has been manufactured by or on behalf of Sony Visua l Products Inc. EU and UK Importer: Sony Europe B.V. Inquiries to the EU Importer or related to product compliance

Europe should be sent to the manufacturer’s authorized representative, Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, Belgium. Inquiries to the UK Importer or related to product compliance

n the UK should be sent to the manufacturer’s authorized representative, Sony Europe B.V., The Heights, Brooklands, Weybridge, Surrey KT13 0XW, United Kingdom. FUSE GBD:\SONY TV\SY18_CHHB_EU_RG141\4735226141\01GB\4735226141_01GB.fm master page: Left FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F 4-735-226-14(1)

• Only qualified service personnel should carry out wall-mount installations.

• For safety reasons, it is strongly recommended that you use Sony accessories, including: Wall-Mount Bracket SU-WL500 (FW-85/75BZ35F only) Wall-Mount Bracket SU-WL450 (Except FW-85/75BZ35F)

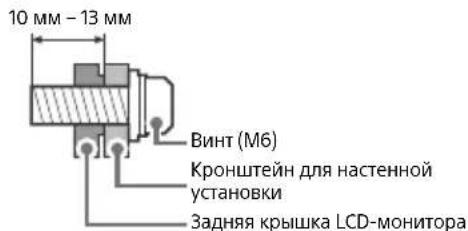

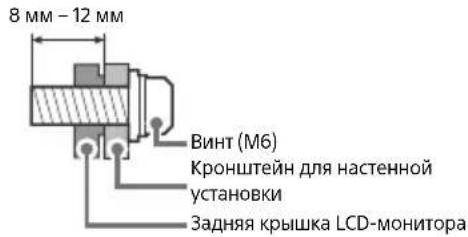

• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the LCD Monitor. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the LCD Monitor or cause it to fall, etc. FW-85/49/43BZ35F FW-75/65/55BZ35F Transporting

• Before transporting the LCD Monitor, disconnect all cables.

• Two or more people (three or more people for FW-85BZ35F) are needed to transport a large LCD Monitor.

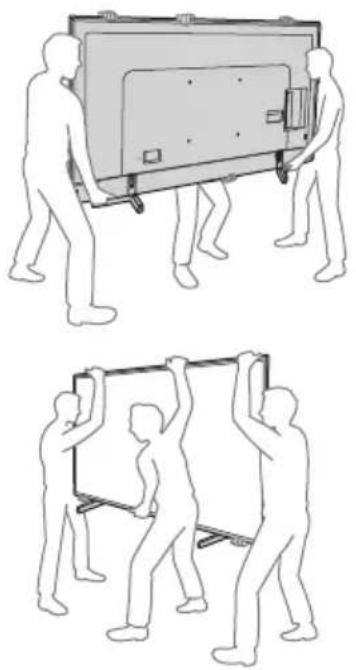

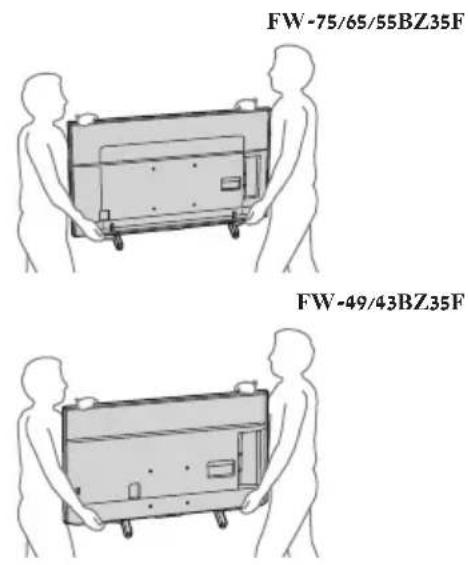

• When transporting the LCD Monitor by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.

• When lifting or moving the LCD Monitor, hold it firmly from the bottom. FW-85BZ35F FW-75/65/55BZ35F FW-49/43BZ35F

• When transporting the LCD Monitor, do not subject it to jolts or excessive vibration.

• When transporting the LCD Monitor for repairs or when moving, pack it using the original carton and packing material. Screw (M6) Wall-Mount Bracket LCD Monitor’s rear cover 8 mm – 12 mm Screw (M6) Wall-Mount Bracket LCD Monitor’s rear cover 10 mm – 13 mmD:\SONY TV\SY18_CHHB_EU_RG141\4735226141\01GB\4735226141_01GB.fm master page: Right FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F 4-735-226-14(1)

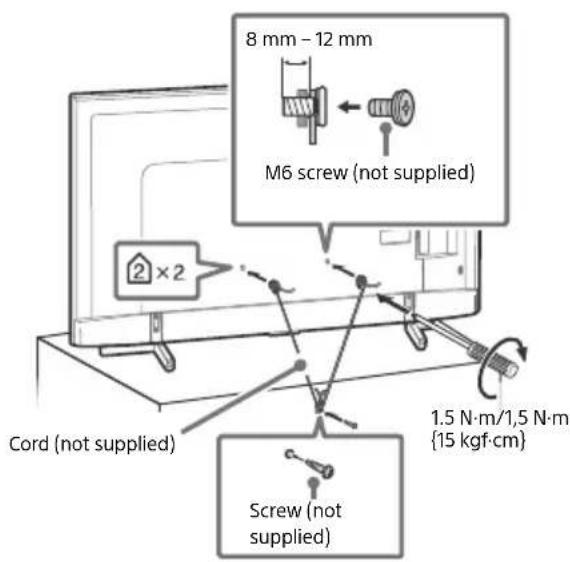

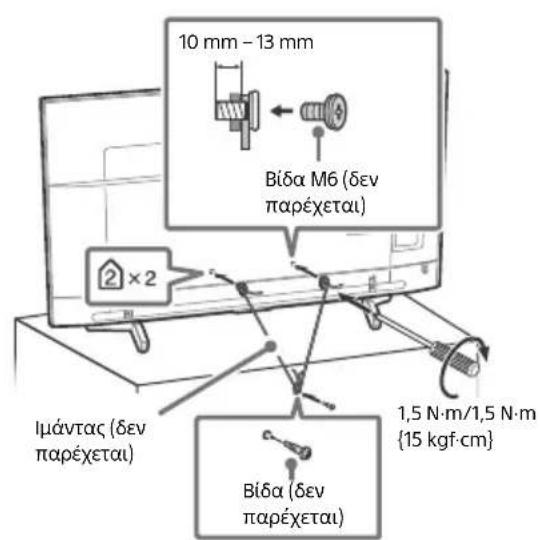

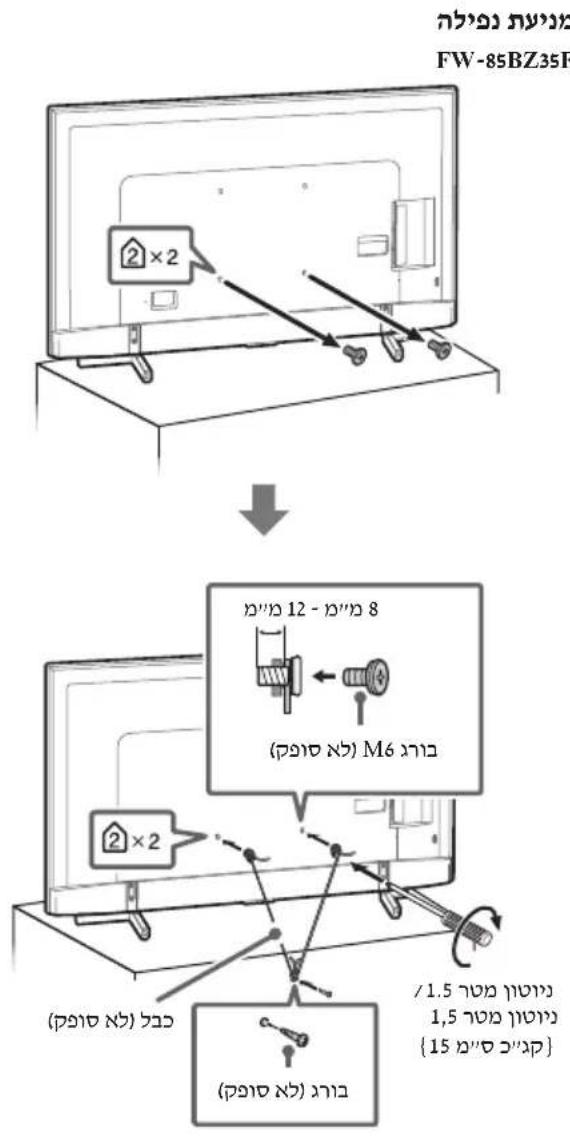

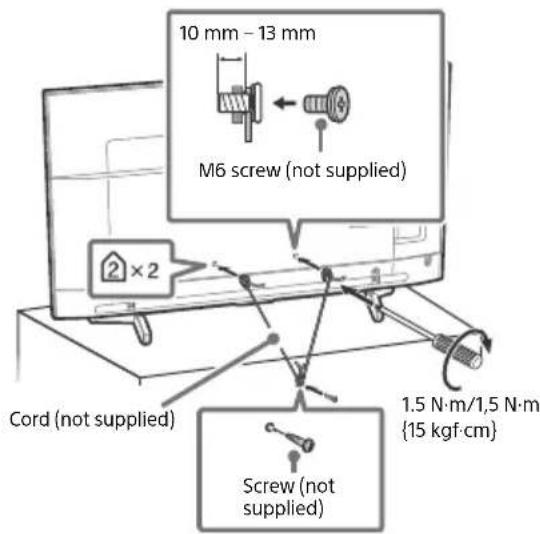

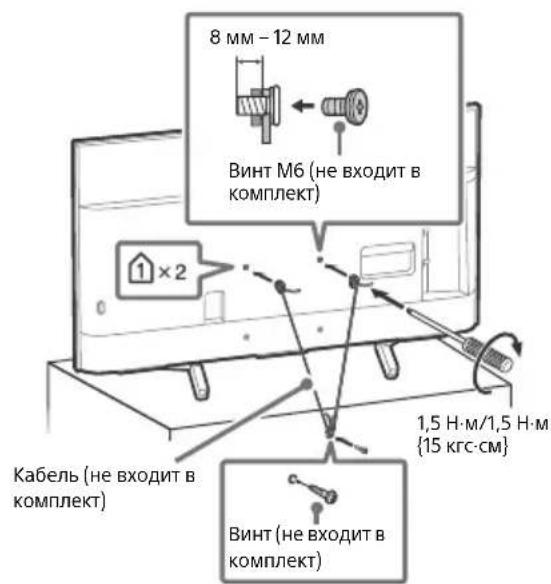

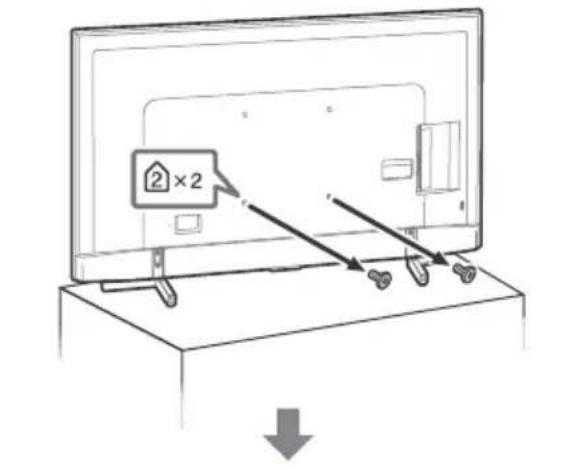

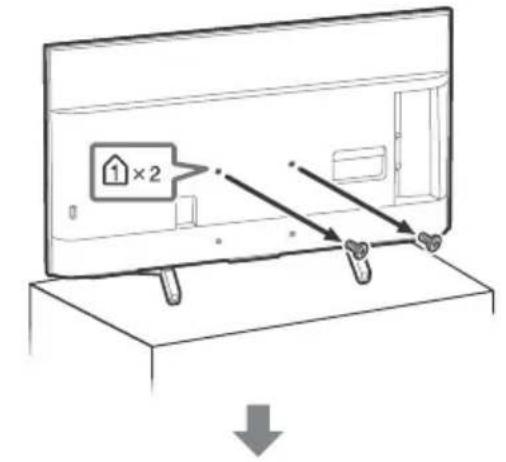

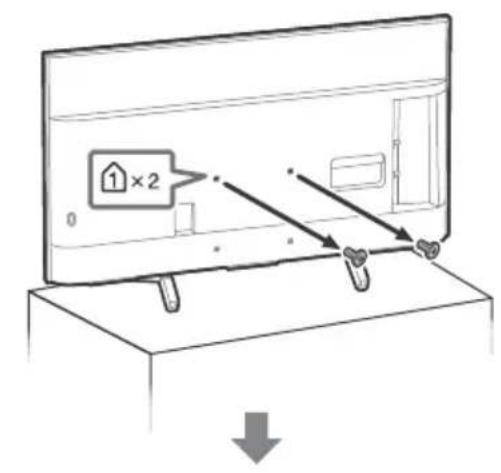

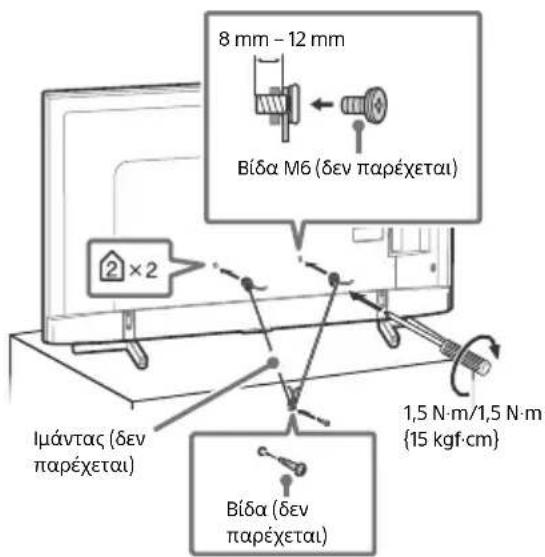

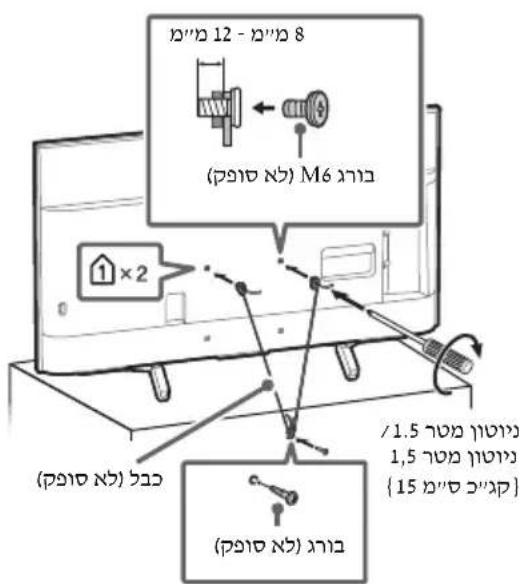

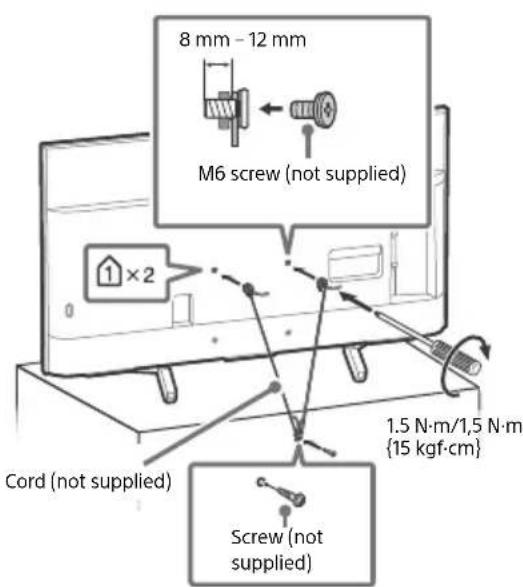

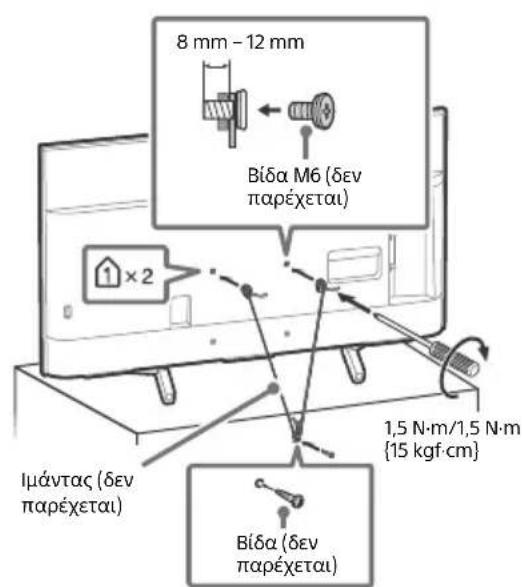

Topple prevention FW-85BZ35F 8 mm – 12 mm M6 screw (not supplied) Screw (not supplied) Cord (not supplied)

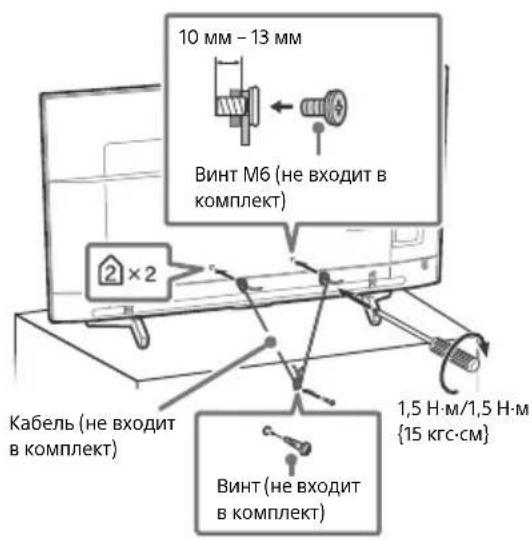

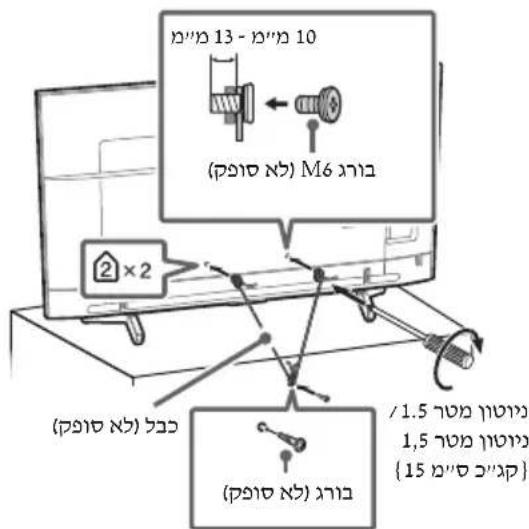

{15 kgf·cm} FW-75/65/55BZ35F 10 mm – 13 mm M6 screw (not supplied) Screw (not supplied) Cord (not supplied)

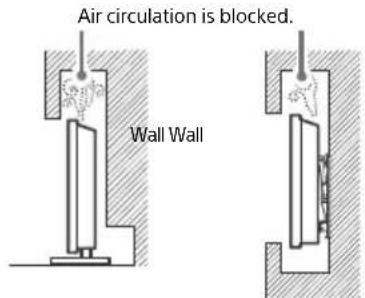

• Never cover the ventilation holes or insert anything in the cabinet.

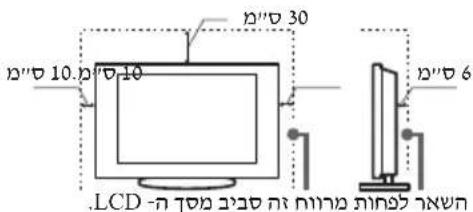

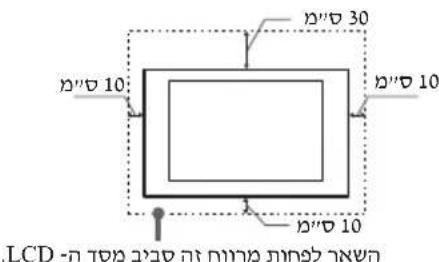

• Leave space around the LCD Monitor as shown below.

• It is strongly recommended that you use a Sony Wall-Mount Bracket in order to provide adequate air circulation. Installed on the wall Installed with stand

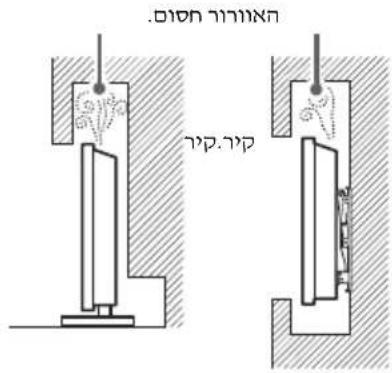

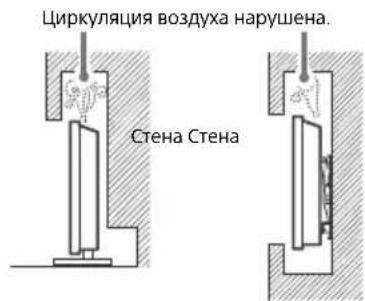

• To ensure proper ventilation and prevent the collection of dirt or dust: Do not lay the LCD Monitor flat, install upside down, backwards, or sideways. Do not place the LCD Monitor on a shelf, rug, bed or in a closet. Do not cover the LCD Monitor with a cloth, such as curtains, or items such as newspapers, etc. Do not install the LCD Monitor as shown below. Mains lead Handle the mains lead and socket as follows in order to avoid any risk of fire, electric shock or damage and/or injuries:

• Use only mains leads supplied by Sony, not other suppliers.

Insert the plug fully into the mains socket.

• Operate the LCD Monitor on a 220 V – 240 V AC supply only.

• When wiring cables, be sure to unplug the mains lead for your safety and take care not to catch your feet on the cables.

• Disconnect the mains lead from the mains socket before working on or moving the LCD Monitor.

• Keep the mains lead away from heat sources.

• Unplug the mains plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire. Note

• Do not use the supplied mains lead on any other equipment.

• Do not pinch, bend, or twist the mains lead excessively. The core conductors may be exposed or broken.

• Do not modify the mains lead.

• Do not put anything heavy on the mains lead.

• Do not pull on the mains lead itself when disconnecting the mains lead.

• Do not connect too many appliances to the same mains socket.

• Do not use a poor fitting mains socket. NOTE ON MAINS ADAPTOR (models with supplied mains adaptor only) Warning To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. Do not install this equipment in a confined space, such as a bookshelf or similar unit.

• Please ensure that the mains sock et is installed near the equipment and shall be easily accessible.

• Be sure to use the supplied mains adaptor and mains lead.

• Do not use any other mains adaptor. It may cause a malfunction.

• Connect the mains adaptor to an easily accessible mains socket.

• Do not coil the mains lead around the mains adaptor. The core wire may be cut and/or it may cause a malfunction of the media receiver.

• Do not touch the mains adaptor with wet hands.

• If you notice an abnormality in the mains adaptor, disconnect it from the mains socket immediately.

• The set is not disconnected from the mains source as long as it is connected to the mains socket, even if the set itself has been turned off.

• As the mains adaptor will become warm when it is used for a long time, you may feel hot when touching it by hand. FW-49/43BZ35F 8 mm – 12 mm M6 screw (not supplied) Screw (not supplied) Cord (not supplied)

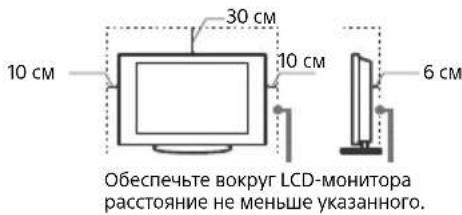

{15 kgf·cm} 30 cm 10 cm 10 cm Leave at least this space around the set. 10 cm Leave at least this space around the set. 30 cm 10 cm 10 cm 6 cm Air circulation is blocked. Wall WallD:\SONY TV\SY18_CHHB_EU_RG141\4735226141\01GB\4735226141_01GB.fm master page: Right FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F 4-735-226-14(1)

Prohibited Usage Do not install/use the LCD Monitor in locations, environments or situations such as those listed below, or the LCD Monitor may malfunction and cause a fire, electric shock, damage and/or injuries. Locations:

• Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke. Environments:

• Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc.). The LCD Monitor shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the LCD Monitor. Situations:

• Use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the LCD Monitor from mains socket and aerial during lightning storms.

• Install the LCD Monitor so that it sticks out into an open space. Injury or damage from a person or object bumping into the LCD Monitor may result.

• Place the LCD Monitor in a humid or dusty space, or in a room with oily smoke or steam (near cooking tables or humidifiers). Fire, electric shock, or warping may result.

• Install the LCD Monitor in places subject to extreme temperature such as in direct sunlight, near a radiator or a heating vent. The LCD Monitor may overheat in such condition which can cause deformation of the enclosure and/or LCD Monitor malfunction.

• If the LCD Monitor is placed in the changing room of a public bath or hot spring, the LCD Monitor may be damaged by airborne sulfur, etc.

• For best picture quality, do not expose the screen to direct illumination or sunlight.

• Avoid moving the LCD Monitor from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the LCD Monitor to show poor picture and/or poor colour. Should this occur, allow moisture to evaporate completely before powering the LCD Monitor on. Broken pieces:

• Do not throw anything at the LCD Monitor. The screen glass may break by the impact and cause serious injury.

• If the surface of the LCD Monitor cracks, do not touch it until you have unplugged the mains lead. Otherwise this may cause an electric shock. When not in use

• If you will not be using the LCD Monitor for several days, the LCD Monitor should be disconnected from the mains for environmental and safety reasons.

• As the LCD Monitor is not disconnected from the mains when the LCD Monitor is just turned off, pull the plug from the mains socket to disconnect the LCD Monitor completely.

• Some LCD Monitor may have features that require the LCD Monitor to be left in standby to work correctly. For children

• Do not allow children to climb on the LCD Monitor.

• Keep small accessories out of the reach of children, so that they are not mistakenly swallowed. If the following problems occur... Turn off the LCD Monitor and unplug the mains lead immediately if any of the following problems occur. Ask your dealer or Sony service centre to have it checked by

• Mains lead is damaged.

• Poor fitting of mains socket.

• LCD Monitor is damaged by being dropped, hit or having something thrown at it.

• Any liquid or solid object falls through openings in the cabinet. About LCD Monitor Temperature When the LCD Monitor is used for an extended period, the panel surrounds become warm. You may feel hot when touching there by the hand. Precautions Viewing the LCD Monitor

• View the LCD Monitor in moderate light, as viewing the LCD Monitor in poor light or during long period of time, strains your eyes.

• When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result. LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99 % or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.

• Do not push or scratch the front filter, or place objects on top of this LCD Monitor. The image may be uneven or the LCD screen may be damaged.

• If this LCD Monitor is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.

• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.

• The screen and cabinet get warm when this LCD Monitor is in use. This is not a malfunction.

• The LCD screen contains a small amount of liquid crystal. Follow your local ordinances and regulations for disposal. Handling and cleaning the screen surface/ cabinet of the LCD Monitor Be sure to unplug the mains lead connected to the LCD Monitor from mains socket before cleaning. To avoid material degradation or screen coating degradation, obser ve the following precautions.

• To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.

• Never spray water or detergent directly on the LCD Monitor. It may drip to the bottom of the screen or exterior parts and enter the LCD Monitor, and may cause damage to the LCD Monitor.

• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.

• Do not touch the LCD Monitor if your hand is covered in any chemical substance such as hand cream or sunblock.

• Periodic vacuuming of the ventilation openings is recommended to ensure proper ventilation.

• When adjusting the angle of the LCD Monitor, move it slowly so as to prevent the LCD Monitor from moving or slipping off from its table stand. GBD:\SONY TV\SY18_CHHB_EU_RG141\4735226141\01GB\4735226141_01GB.fm master page: Left FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F 4-735-226-14(1)

• Keep optional components or any equipment emitting electromagnetic radiation away from the LCD Monitor. Otherwise picture distortion and/or noisy sound may occur.

• This equipment has been tested and found to comply with the limits set out in the EMC Directive using a connection signal cable shorter than 3 meters. Wireless Function of the unit

• Do not operate this unit near medical equipment (pacemaker, etc.), as this may result in the malfunction of the medical equipment.

• Although this unit transmits/receives scrambled signals, be careful of unauthorised interception. We cannot be responsible for any trouble as a result.

• This equipment should be installed and operated keeping a separation distance of 20 cm or more between the antenna of this device and a person’s body. Caution about handling the remote control

• Observe the correct polarity when inserting batteries.

• Do not use different types of batteries together or mix old and new batteries.

• Dispose of batteries in an environmentally friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority.

• Handle the remote control with care. Do not drop or step on it, or spill liquid of any kind onto it.

• Do not place the remote control in a location near a heat source, a place subject to direct sunlight, or a damp room. Disposal of the LCD Monitor Disposal of old electrical & electronic equipment (applicable in

e European Union and other countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring that this product is disposed of correctly, you will help to prevent potential negative consequences for the environment and human health, which could be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. Disposal of waste batteries (applicable in the European Union

d other countries with separate collection systems) This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbol for lead (Pb) is added if the battery contains more than 0.004 % lead. By ensu ring that these batteries are disposed of correctly, you will help to prevent potentially negative consequences for the environment and human health which could be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the appropriate collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the appropriate collection point for the recycling of waste batteries. For more detailed information about recycling of this battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery.D:\SONY TV\SY18_CHHB_EU_RG141\4735226141\01GB\4735226141_01GB.fm master page: Right FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F 4-735-226-14(1)

Parts and Controls Controls and Indicators

FW-85/75/65/55BZ35FFW-49/43BZ35F

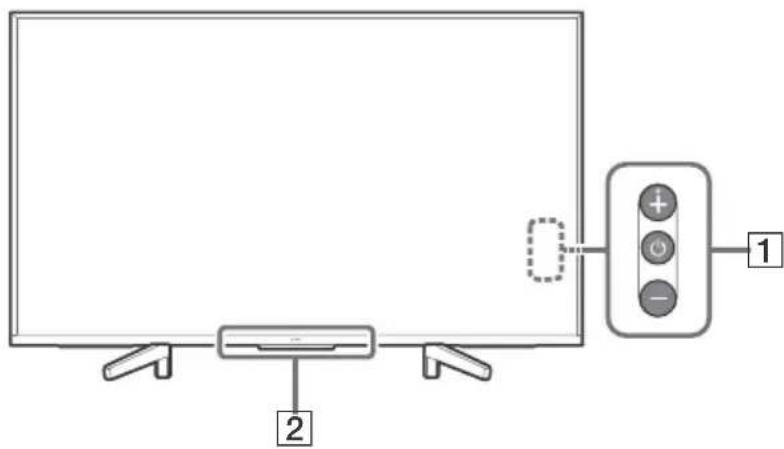

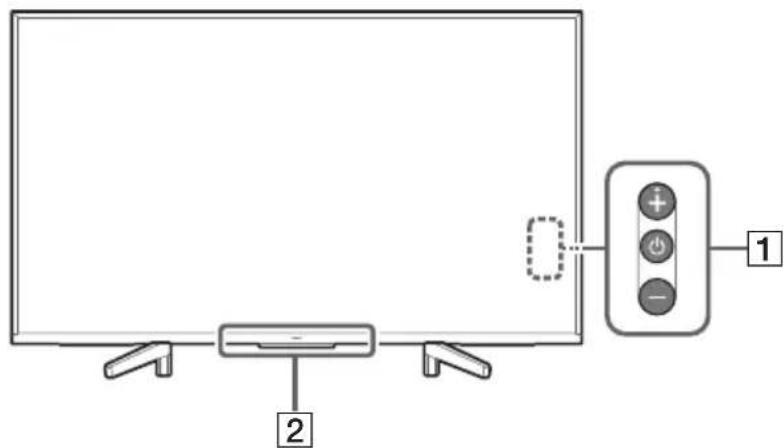

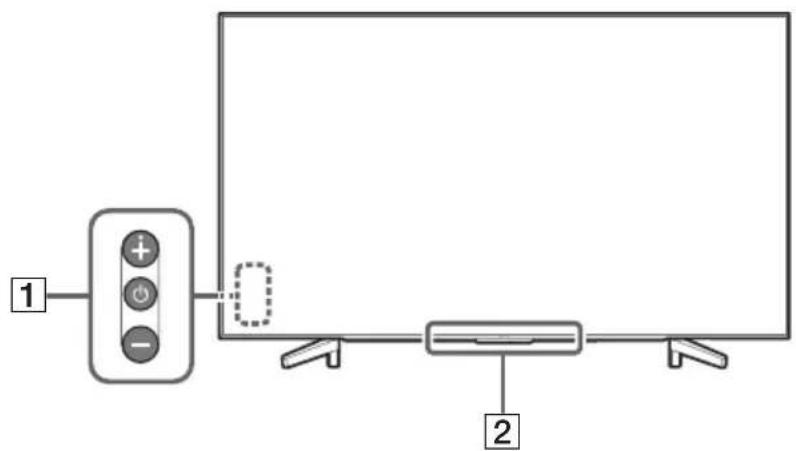

(Power) /+/– When the TV is off, Press to power on. When the TV is on, Press and hold to power off. Press repeatedly to change the function, then press + or – button to:

• Adjust the volume.• Select the channel.• Select the input source of TV. Remote Control sensor* / Light sensor* / Illumination LED The illumination LED lights up or blinks according to the status of the TV.For more information, refer to the Help Guide.* Do not place anything near the sensor.

Installing the LCD Monitor to the Wall Using the optional Wall-Mount Bracket This LCD Monitor’s instruction manual only provides the steps to prepare the LCD Monitor for Wall-Mount installation before it is installed on the wall. To Customers: For product protection and safety reasons, Sony strongly recommends that installation of your LCD Monitor be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself. To Sony Dealers and Contractors: Provide full attention to safety during the installation, periodic maintenance and examination of this product. Use the Wall-Mount Bracket SU-WL500 (not supplied) (FW-85/75BZ35F only) or SU-WL450 (not supplied) (Except FW-85/75BZ35F) to install the LCD Monitor to the wall. When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket. Note

• Be sure to store the removed screws in a safe place, keeping them away from children.

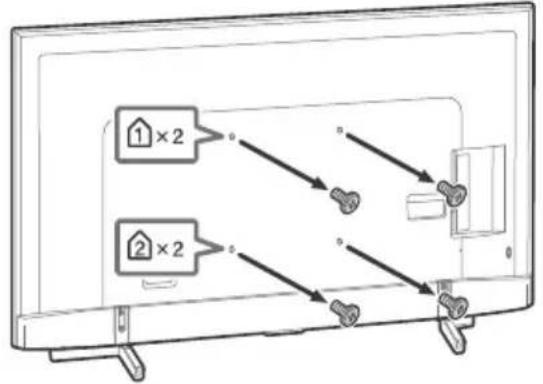

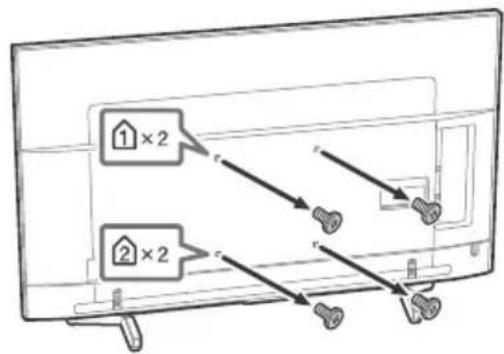

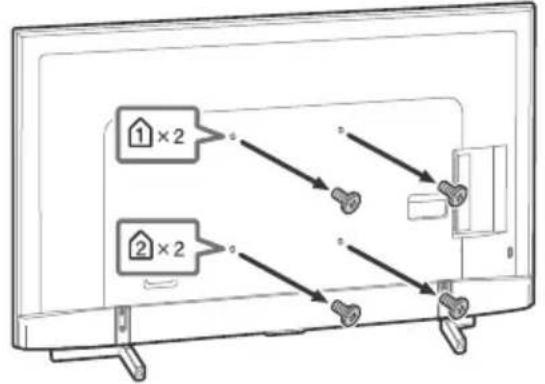

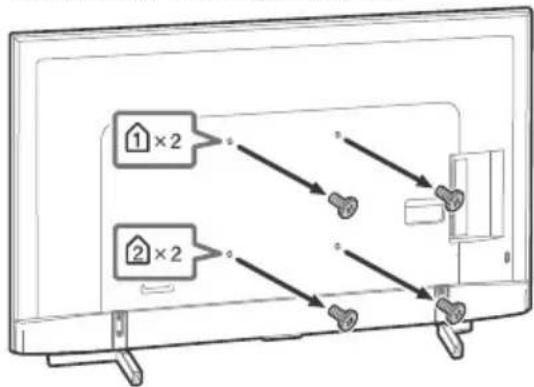

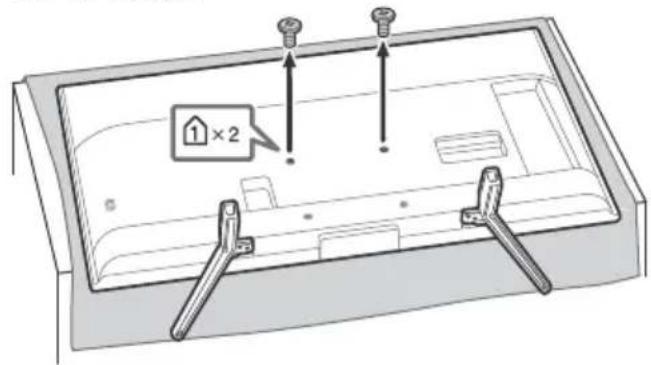

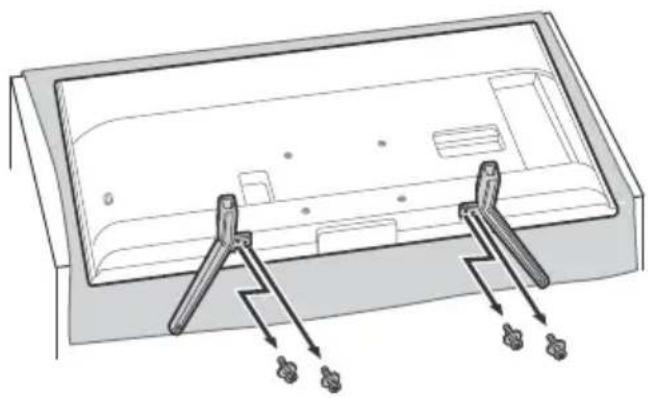

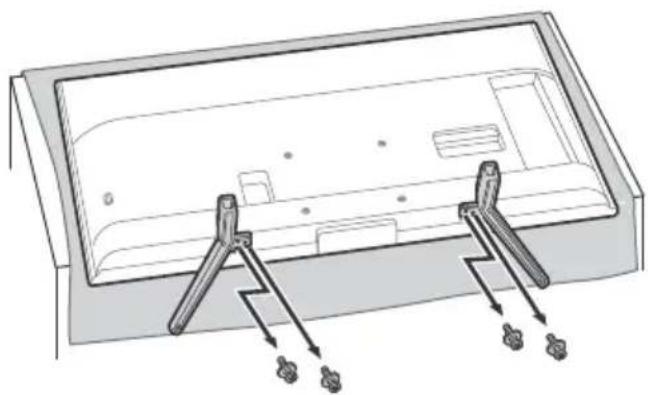

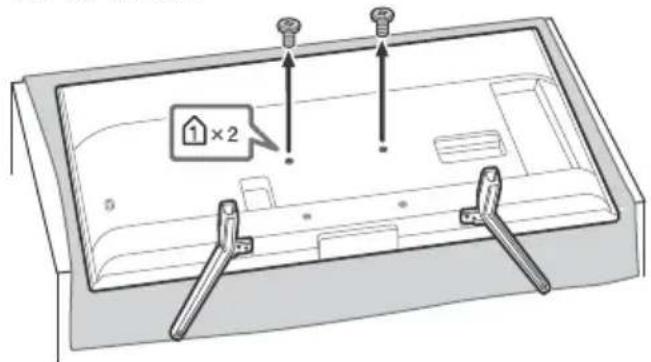

• Place the LCD Monitor with its screen facing down on a level and stable surface covered with a thick and soft cloth when removing the Table-Top Stand from the LCD Monitor to prevent damaging the surface of the LCD display. (FW-49/43BZ35F only) Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the LCD Monitor’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.D:\SONY TV\SY18_CHHB_EU_RG141\4735226141\01GB\4735226141_01GB.fm master page: Right FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F 4-735-226-14(1)

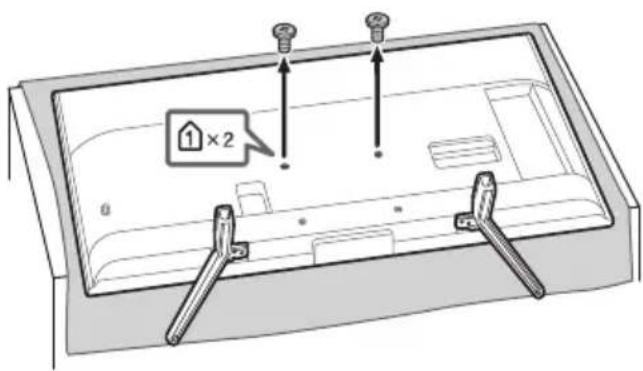

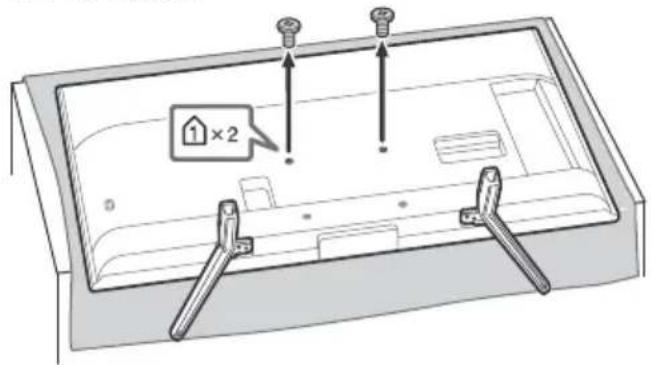

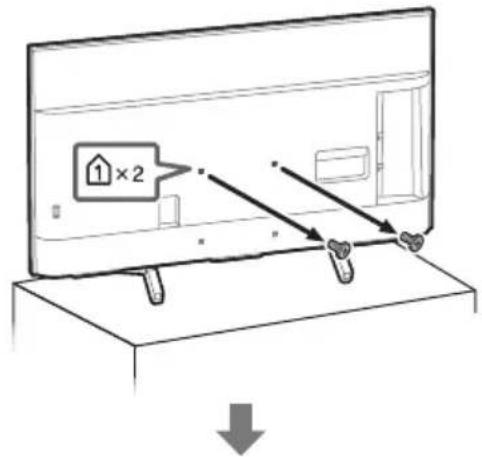

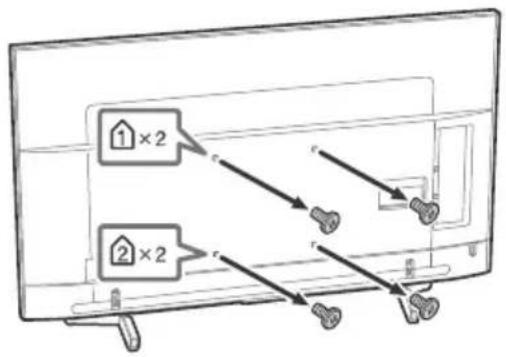

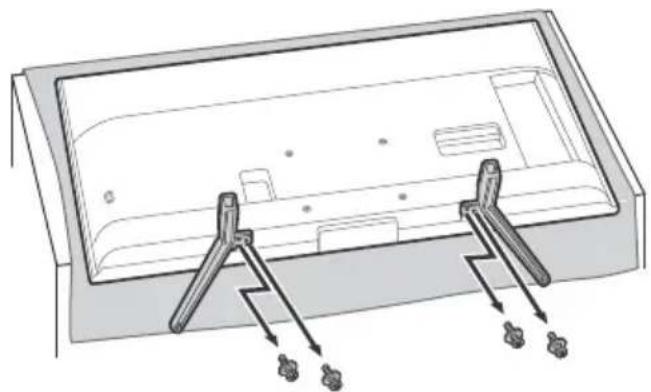

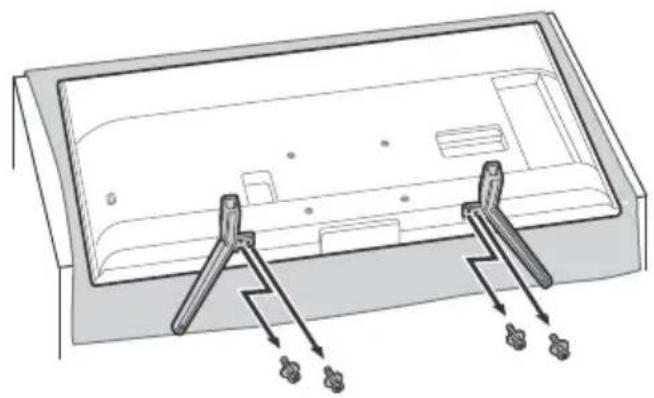

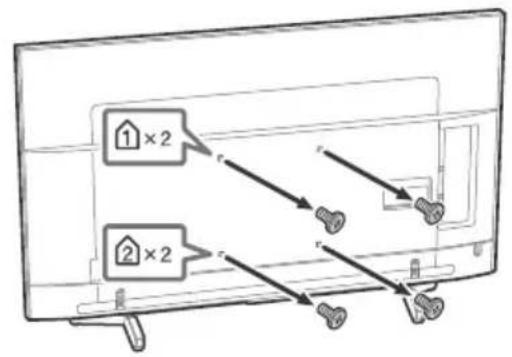

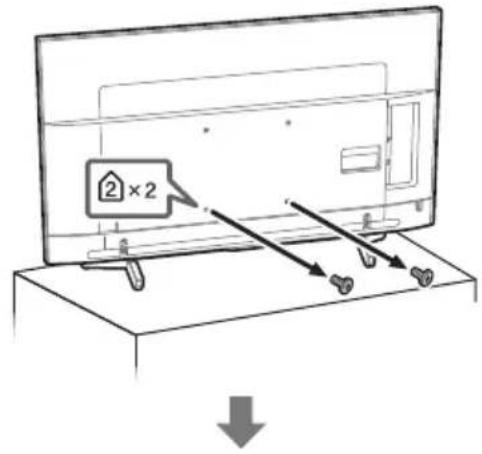

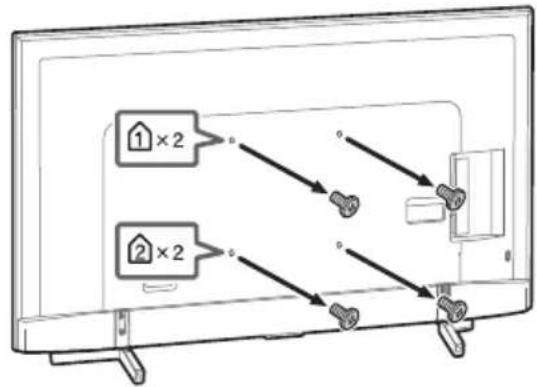

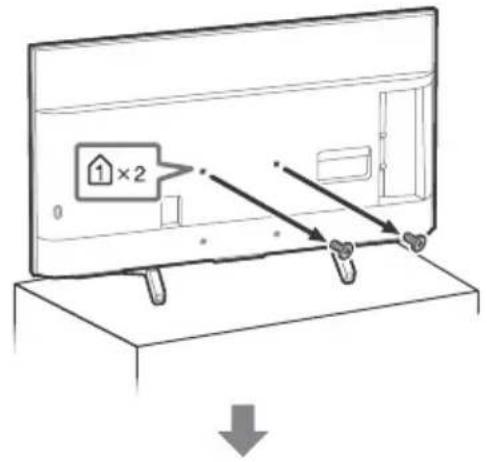

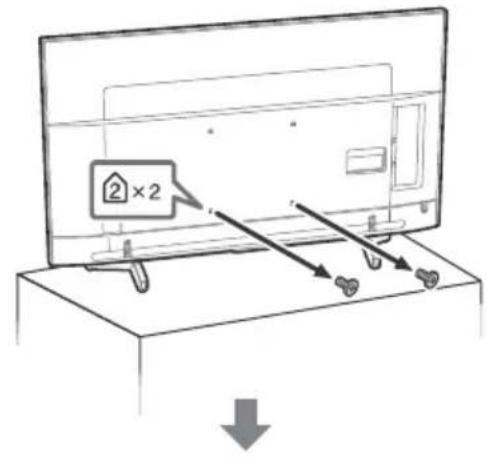

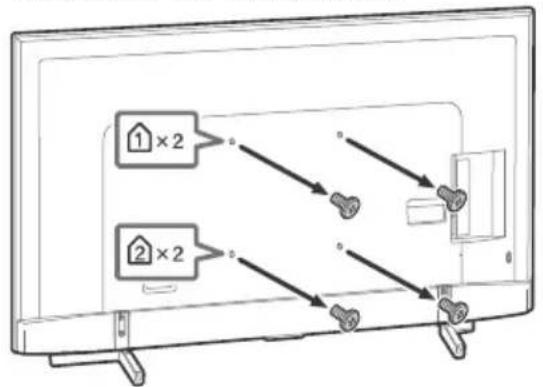

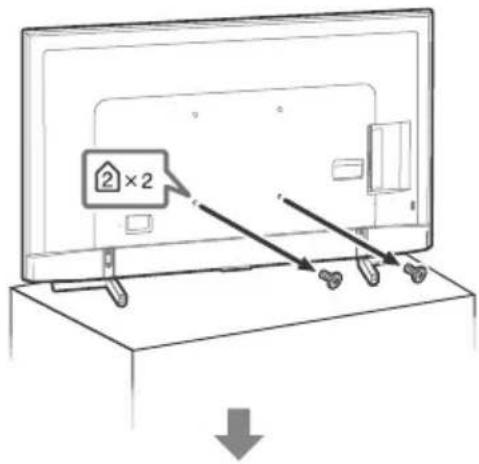

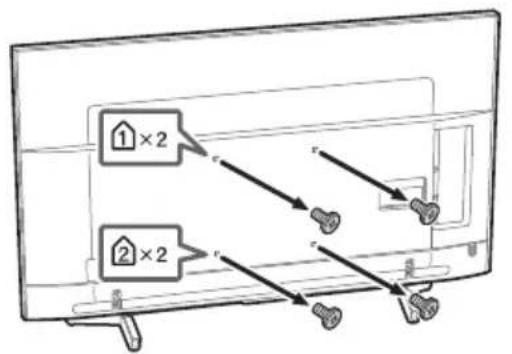

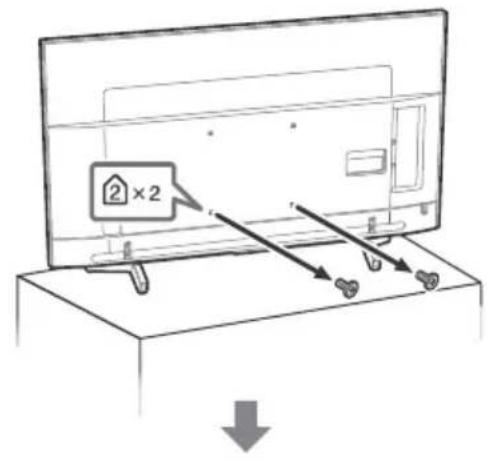

Remove the screws from the rear of the LCD Monitor. To detach the Table-Top Stand from the LCD Monitor (FW-49/43BZ35F only) FW-85BZ35F FW-75/65/55BZ35F FW-49/43BZ35F GBD:\SONY TV\SY18_CHHB_EU_RG141\4735226141\01GB\4735226141_01GB.fm master page: Left FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F 4-735-226-14(1)

Troubleshooting General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps. 1 Restart your TV by pressing the power button on the remote control until a message appears. The TV will restart. If the TV does not recover, try unplugging the TV from the mains lead for two minutes and then plug it in again. 2 Refer to the Help menu by pressing HELP on the remote control. 3 Connect your TV to the Internet and perform a software update. When [A new TV system software update is available...] message is displayed. Sony strongly recommends you to update the TV software by selecting [Update Now]. These software updates improve your TV performance or add new features. The following screen with [Updating...] will appear and the illumination LED flashes white while software is updating. Do not unplug the mains lead during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 15 minutes. When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV. It takes time to initialize the system. Wait for about one minute, then operate it again. Troubles and Solutions When the illumination LED is flashing in red.

• Count how many times it flashes (interval time is three seconds). Reboot the TV by disconnecting the mains lead for two minutes, then turn on the TV. If the problem persists, disconnect the mains lead, and contact your dealer or Sony service centre with the number of times the illumination LED flashes. The remote control does not function.

• Replace the batteries. The TV surrounds become warm.

• When the TV is used for an extended period, the TV surrounds become warm. You may feel hot when touching there by the hand. Updating...D:\SONY TV\SY18_CHHB_EU_RG141\4735226141\01GB\4735226141_01GB.fm master page: Right FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F 4-735-226-14(1)

Specifications System Panel system LCD (Liquid Crystal Display) Panel, LED Backlight Colour system PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only) Sound output 10 W + 10 W Wireless technology Protocol IEEE802.11b/g/n Bluetooth Version 4.1 Frequency band(s) Software version PKG_.____.____EUA Press HELP on the remote control to know the software version. Any updates of software/firmware for this equipment/accessories/components will never affect its conformity to Directive 2014/53/EU in future. Input/Output jacks / COMPONENT IN YPBPR (Component Video): 1080p (50, 60 Hz), 1080i (50, 60 Hz), 720p (50, 60 Hz), 576p, 576i, 480p, 480i Audio input (phono jacks) AV IN Video input (common phono pin with Y input) HDMI IN 1/2/3/4 (support 4K resolution, HDCP 2.3-compatible) Video: 4096 × 2160p (50, 60 Hz)*

*1 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p. To display 4096 × 2160p, set [Wide mode] setting to [Full 1] or [Full 2]. *2 HDMI IN 2/3 only. To support 18 Gbps, set [HDMI signal format] to [Enhanced format]. *3 Refer to the Help Guide for details. Audio:

5.1 channel linear PCM: 32/44.1/48/88.2/96/

176.4/192 kHz 16/20/24 bits, Dolby Digital, Dolby Digital Plus and DTS ARC (Audio Return Channel) (HDMI IN 3 only) (Two channel linear PCM: 48 kHz 16 bits, Dolby Digital, Dolby Digital Plus, DTS) DIGITAL AUDIO OUT (OPTICAL) Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Digital, DTS)

Analogue audio input (Stereo mini jack) AUDIO OUT / (Stereo mini jack) Headphone, Audio output, Subwoofer 1, 2, 3 USB port 1 and 2 support High Speed USB (USB 2.0) USB port 3 supports Super Speed USB (USB 3.1 Gen 1) LAN 10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/ 100BASE-TX communication rate and communication quality are not guaranteed for this TV.) DC IN 19.5 V (models with supplied mains adaptor only) Mains adaptor input REMOTE RS-232C, mini jack This jack is for receiving the external control signal. Others Optional accessories Wall-Mount Bracket: SU-WL500 (FW-85/75BZ35F only) Wall-Mount Bracket: SU-WL450 (Except FW-85/75BZ35F) Operating temperature 0 ºC – 40 ºC Operating humidity 10 % – 80 % RH (non-condensing) Wireless LAN (IEEE802.11b/g/n) Frequency range Output Power 2400-2473 MHz < 20.0 dBm Bluetooth Frequency range Output Power 2400-2483.5 MHz < 10.0 dBm GBD:\SONY TV\SY18_CHHB_EU_RG141\4735226141\01GB\4735226141_01GB.fm master page: Left FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F 4-735-226-14(1)

Power, Product Fiche and others Power requirements except models with supplied mains adaptor 220 V – 240 V AC, 50 Hz models with supplied mains adaptor only

19.5 V DC with mains adaptor

Rating: Input 220 V – 240 V AC, 50 Hz Energy Efficiency Class FW-85BZ35F: A FW-75BZ35F: A+ FW-65BZ35F: A+ FW-55BZ35F: A FW-49BZ35F: A FW-43BZ35F: B Screen size (measured diagonally) (Approx.) FW-85BZ35F: 214.8 cm / 85 inches FW-75BZ35F: 189.3 cm / 75 inches FW-65BZ35F: 163.9 cm / 65 inches FW-55BZ35F: 138.8 cm / 55 inches FW-49BZ35F: 123.2 cm / 49 inches FW-43BZ35F: 108.0 cm / 43 inches Power consumption In [Standard] mode FW-85BZ35F: 233 W FW-75BZ35F: 149 W FW-65BZ35F: 120 W FW-55BZ35F: 103 W FW-49BZ35F: 88 W FW-43BZ35F: 76 W In [Vivid] mode FW-85BZ35F: 378 W FW-75BZ35F: 250 W FW-65BZ35F: 196 W FW-55BZ35F: 170 W FW-49BZ35F: 145 W FW-43BZ35F: 120 W Average annual energy consumption*

FW-85BZ35F: 323 kWh FW-75BZ35F: 207 kWh FW-65BZ35F: 166 kWh FW-55BZ35F: 143 kWh FW-49BZ35F: 122 kWh FW-43BZ35F: 105 kWh Standby power consumption*

0.50 W (25 W in software/EPG update mode)

Display resolution 3,840 dots (horizontal) × 2,160 lines (vertical) Output Rating USB 1/2 5 V , 500 mA MAX USB 3 5 V , 900 mA MAX Dimensions (Approx.) (w × h × d) with Table-Top Stand FW-85BZ35F: 191.1 × 117.6 × 42.9 cm FW-75BZ35F: 167.3 × 103.1 × 37.1 cm FW-65BZ35F: 145.0 × 90.0 × 31.5 cm FW-55BZ35F: 123.1 × 77.6 × 31.5 cm FW-49BZ35F: 109.8 × 70.3 × 27.9 cm FW-43BZ35F: 96.5 × 62.8 × 27.9 cm without Table-Top Stand FW-85BZ35F: 191.1 × 109.8 × 7.3 cm FW-75BZ35F: 167.3 × 96.3 × 5.4 cm FW-65BZ35F: 145.0 × 83.6 × 5.2 cm FW-55BZ35F: 123.1 × 71.3 × 5.2 cm FW-49BZ35F: 109.8 × 64.4 × 5.8 cm FW-43BZ35F: 96.5 × 56.9 × 5.8 cm Mass (Approx.) with Table-Top Stand FW-85BZ35F: 46.2 kg FW-75BZ35F: 40.1 kg FW-65BZ35F: 26.5 kg FW-55BZ35F: 20 kg FW-49BZ35F: 13.7 kg FW-43BZ35F: 11.3 kg without Table-Top Stand FW-85BZ35F: 44.1 kg FW-75BZ35F: 38.9 kg FW-65BZ35F: 25.6 kg FW-55BZ35F: 19.1 kg FW-49BZ35F: 13.2 kg FW-43BZ35F: 10.8 kg *1 Energy consumption per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2 Specified standby power is reached after the TV finishes necessary internal processes.*3 Standby power consumption will increase when your TV is connected to the network. Note

• Optional accessories availability depends on countries/region/TV model/stock.• Design and specifications are subject to change without notice. Trademark information

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.D:\SONY TV\SY18_CHHB_EU_RG141\4735226141\01GB\4735226141_01GB.fm master page: Right FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F 4-735-226-14(1)

• “BRAVIA”, and BRAVIA Sync are trademarks or registered marks of Sony Corporation.

• Vewd® Core. Copyright 1995-2017 Vewd Software AS. All rights reserved.

• Google, Android TV, Google Play, Chromecast built-in, YouTube and other related marks and logos are trademarks of Google LLC.

• Wi-Fi®, Wi-Fi Alliance®, Wi-Fi Direct® and Miracast® are registered trademarks of Wi-Fi Alliance.

• Wi-Fi Protected Setup™ is a trademark of Wi-Fi Alliance.

• The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance.

• For DTS patents, see http:// patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

• USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc.

• All other trademarks are the property of their respective owners. GBD:\SONY TV\SY18_CHHB_EU_RG141\4735226141\02FR\4735226141_02FR.fm master page: Left FW-85BZ35F / 75BZ35F / 65BZ35F / 55BZ35F / 49BZ35F / 43BZ35F 4-735-226-14(1)
