USER MANUAL Tone Platinum Alpha HBS930 LG

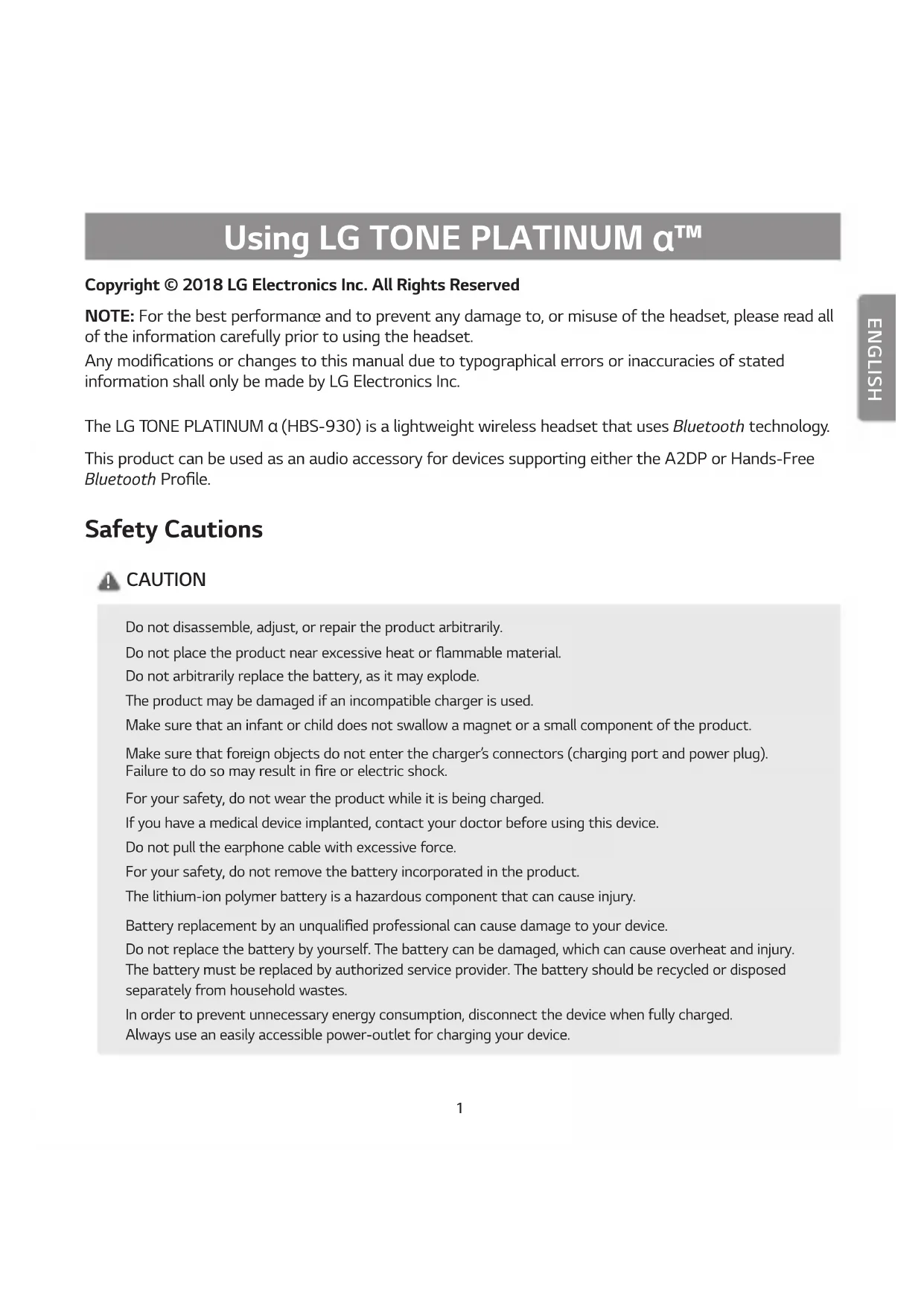

Rev 2.0 EU HBS-930 www.lg.com User Manual Bluetooth® Wireless Stereo Headset English Français Deutsch Italiano Español Türkçe 繁體中文Using LG TONE PLATINUM α™ Utilisation du LG TONE PLATINUM α™ LG TONE PLATINUM α™ verwenden Utilizzo di LG TONE PLATINUM α™ Uso de LG TONE PLATINUM α™ LG TONE PLATINUM α™’nun kullanımı 使用 LG TONE PLATINUM α™ LG TONE PLATINUM α™ Contact ofce for compliance of this product : LG Electronics Inc. EU Representative, Krijgsman 1, 1186 DM, Amstelveen, The Netherlands1 ENGLISH Using LG TONE PLATINUM α™ Copyright © 2018 LG Electronics Inc. All Rights Reserved NOTE: For the best performance and to prevent any damage to, or misuse of the headset, please read all of the information carefully prior to using the headset. Any modications or changes to this manual due to typographical errors or inaccuracies of stated information shall only be made by LG Electronics Inc. The LG TONE PLATINUM α (HBS-930) is a lightweight wireless headset that uses Bluetooth technology. This product can be used as an audio accessory for devices supporting either the A2DP or Hands-Free Bluetooth Prole. Safety Cautions

CAUTION Do not disassemble, adjust, or repair the product arbitrarily.Do not place the product near excessive heat or ammable material.Do not arbitrarily replace the battery, as it may explode.The product may be damaged if an incompatible charger is used.Make sure that an infant or child does not swallow a magnet or a small component of the product. Make sure that foreign objects do not enter the charger’s connectors (charging port and power plug). Failure to do so may result in re or electric shock.For your safety, do not wear the product while it is being charged.If you have a medical device implanted, contact your doctor before using this device.Do not pull the earphone cable with excessive force.For your safety, do not remove the battery incorporated in the product.The lithium-ion polymer battery is a hazardous component that can cause injury.Battery replacement by an unqualied professional can cause damage to your device.Do not replace the battery by yourself. The battery can be damaged, which can cause overheat and injury. The battery must be replaced by authorized service provider. The battery should be recycled or disposed separately from household wastes.In order to prevent unnecessary energy consumption, disconnect the device when fully charged. Always use an easily accessible power-outlet for charging your device.2

WARNING Do not drop the product from a high place.Make sure there is no water, alcohol, or benzene in contact with the product.Do not store the product in a wet or dusty place.Do not place heavy objects on the product.This product is not waterproof. Avoid humidity and water.

NOTE If the product is exposed to excessive sweat, clean the product.Keep the earbuds clean. HD Speaker If the communication network of the device you are connecting to supports HD Voice Calling, you can enjoy making voice calls and listening to music in high denition.3 Product Components LG TONE PLATINUM α HBS-930 (medium ear gels installed) Extra Ear Gels (small & large) Micro USB Charging Cable Reference guide User Manual WEEE Card (Europe Only) NOTE: Actual product design may differ from images shown in manual. Make sure authentic LG Electronics components are used. Using a non-authentic component may damage the product and thus void the warranty.

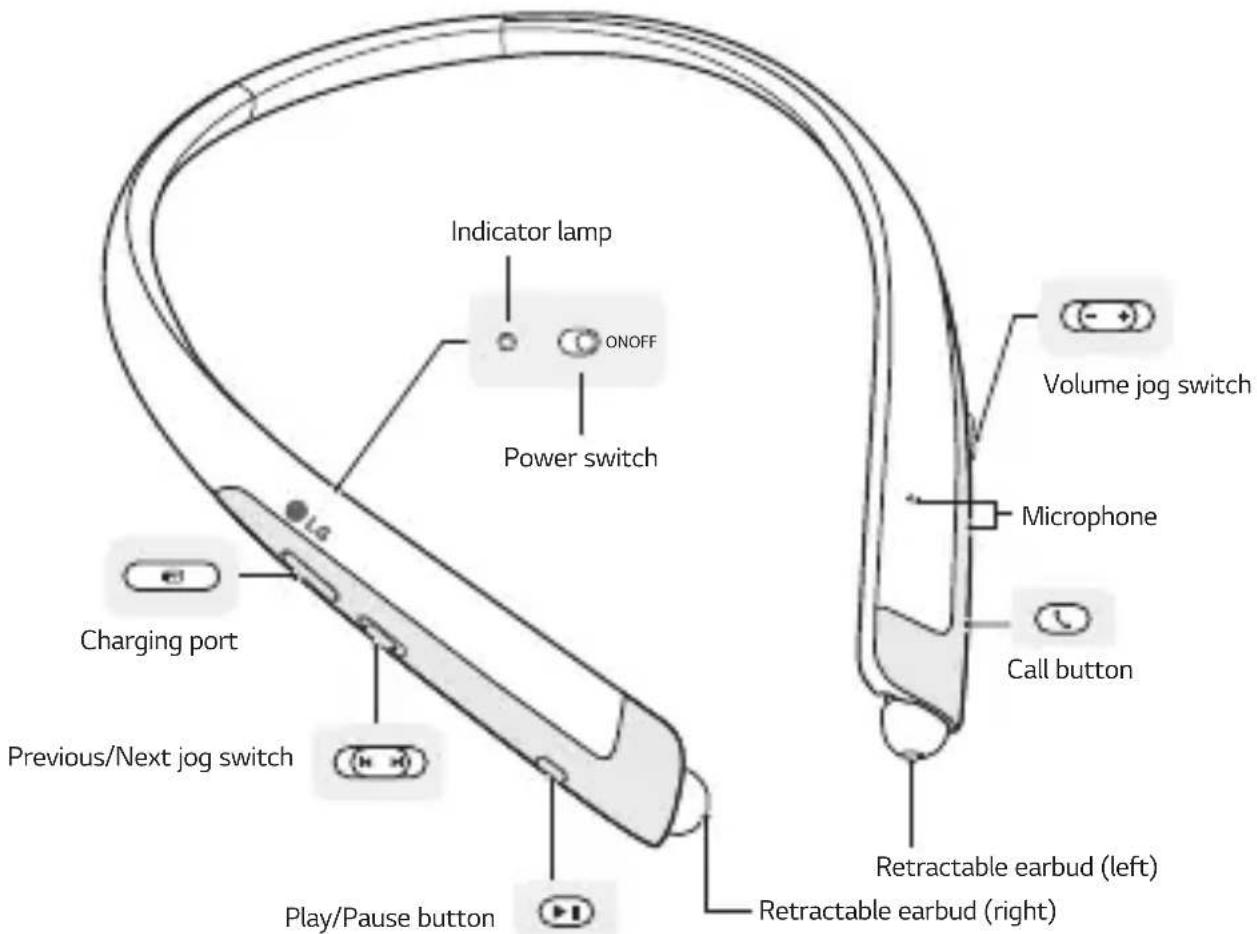

CAUTION4 Product Description ONOFF *The appearance and specications of the actual product may differ depending on the model. NOTE: To prevent hearing loss, a control sound is played twice or at length when controlling the volume at high volumes. Indicator lamp Power switch Volume jog switch Previous/Next jog switch Play/Pause button Retractable earbud (left) Retractable earbud (right) Charging port Call button Microphone5 Pairing and Connecting Put in your earbuds to easily pair and connect by following the voice prompts. NOTE: If you are prompted for the authorization code (PIN code), type 0000. If you hear that the battery is insufcient, recharge the battery before proceeding with pairing. If pairing is not completed within three minutes, the power automatically turns off. When the power automatically turns off, slide the Power switch from the OFF to the ON position to turn the power on. Connecting Quickly LG HBSXXX

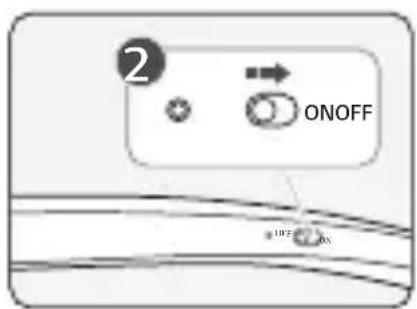

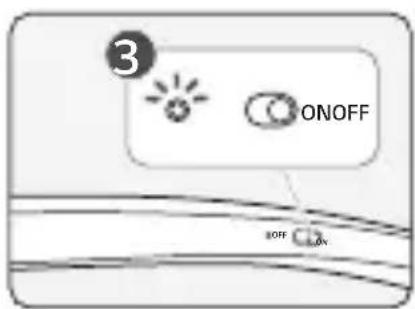

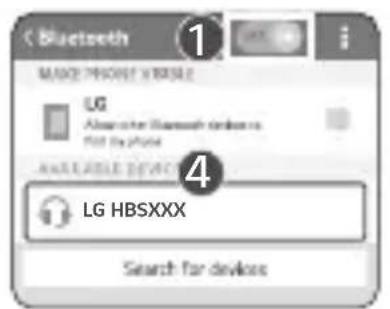

1 From the mobile phone’s Settings menu, turn on Bluetooth. 2 On the headset, slide the Power switch towards the ON position to turn on the power. 3 The blue Indicator lamp turns on, and the headset enters Search mode. 4 From the mobile phone or device, select [LG HBSXXX] to connect. NOTE: In the above, HBSXXX is a model number unique to the product and may differ depending on the model (For example, in the case of a HBS-930 model, LG HBS930 is displayed). 5 A voice message will indicate that the connection is completed.6 Fast Pair 1 From the mobile phone’s Settings menu, turn on Bluetooth. 2 On the headset, slide the Power switch towards the ON position to turn on the power. 3 The blue Indicator lamp turns on, and the headset enters Search mode. 4 Please place the mobile phone whose screen is unlocked or a device to be connected nearby and connect it to the headset according to the instructions on the screen. 5 A voice message will indicate that the connection is completed. NOTE: It only supports Android

Before connecting the headset, congure the mobile device or the device to be connected to use the location information. Connecting Manually (pairing with another phone or re-pairing) OFFON 1 Press and hold the Call button and slide the Power switch to the ON position to turn it on. 2 The blue Indicator lamp turns on and the headset switches to Search mode. 3 From the mobile phone or device, select [LG HBSXXX] to connect. NOTE: In the above, HBSXXX is a model number unique to the product and may differ depending on the model (For example, in the case of a HBS-930 model, LG HBS930 is displayed). Multiple Connections The headset can be connected to two devices, such as a mobile phone and a PC, simultaneously. The headset can be connected to an additional device while it is already connected to a device. 1 Press and hold the Call button and slide the Power switch to the ON position to turn it on. 2 The blue Indicator lamp turns on, and the headset enters Search mode. 3 From the mobile phone or device, select [LG HBSXXX] to connect. NOTE: In the above, HBSXXX is a model number unique to the product and may differ depending on the model (For example, in the case of a HBS-930 model, LG HBS930 is displayed).7 4 A voice message will indicate that the connection is completed. This device becomes the “Main Connected Device.” 5 Try to connect to headset using a previously connected device. This device becomes the “Sub Connected Device.” NOTE: If the headset is simultaneously connected to two devices, the device that was connected most recently (or in the example above, a new connection versus a previous connection) is the “Main Connected Device.” The main functions work based on the “Main Connected Device.” Automatic Reconnection If you turn on the headset, it will automatically connect to the most recent device it was connected to. (If a device cannot be found, Search mode will be activated.) If the product does not automatically connect to the device you want, search for your product in the device you want to connect to and connect it manually. Indicator Lamp Status Description Power On/Power Off The blue Indicator lamp ashes. Search Mode The blue Indicator lamp is on. Headset/Hands-free Prole Connected/ Call Connected The blue Indicator lamp ashes every ve seconds.8 Mobile Calling Functions Function Status Description Answering a Call Ringing Briey press the Call button. NOTE: The headset will not vibrate if the Vibration function has been turned off. Making a Call Idle If you make a call using a mobile phone, the call is automatically connected to the headset. Switching Calls Talking Briey press the Play/Pause button twice. Redial Idle Press and hold the Call button for more than one second to place a call to the last number dialed. Voice Dial Idle/ Music on Briey press the Call button to active your headset’s voice. Receiving a Call While on the Phone Talking You can receive another call while on the phone by pressing and holding the Call button for one second. The existing call switches to a call waiting status. Press and hold the Call button again for one second to switch back to the previous call. Briey press the Call button to end the existing call; briey press it again to end the second call. (Performance may differ depending on the mobile phone settings.) Rejecting a Call Ringing Press and hold the Call button for two seconds. Enabling/Disabling Mute Talking During a call, slide and hold the Volume jog switch to the volume up ( ) direction, and slide and hold the Previous/Next jog switch to the Previous ( ) position for one second. CAUTION: Do not disable/enable the mute function while driving, as you need to use both hands. NOTE: The Voice Dial and Redial functions work on the Main Connected Device or on the device on which you made the last call. (The Voice Dial and Redial functions may work differently depending on the mobile phone being used.)9 Playing Music Function Status Description Play Idle Briey press the Play/Pause button. Pause Music on Briey press the Play/Pause button. Play Previous/Next Song Music on Slide the Previous/Next jog switch to the Previous ( ) or Next ( ) position. Fast Rewind/Forward Music on Slide the Previous/Next jog switch to the Previous ( ) or Next ( ) position until you reach the desired part. Switching Music Players If you stop in the middle of playback and then play music on either of the two connected devices, the headset’s music playback and control change to that device.10 Battery Charging and Alerts Open the Charging port cover and connect the charger to the Charging port. Indicator Lamp Red Purple Blue Battery Status Charging 80% Completed If the charging cable is removed while the Power switch is ON, the power turns on and the product automatically connects to the device whose connection settings have been completed. Slide and hold the Volume jog switch in the volume down ( ) direction for one second to check the Indicator lamp and battery level by voice. Battery Status Sufcient Normal Insufcient Indicator Lamp Blue ashes Purple ashes Red ashes Vibration Alert Settings The vibration alert is automatically set to the ON position when you turn on the power. To activate or deactivate the vibration setting, slide and hold the Volume jog switch in the volume up ( ) direction for two seconds. NOTE: If you turn off the vibration alerts, it will not vibrate even when a call is being received or you are out of communication range. Out of Range If the device connected to the product is out of effective communication range (33 feet/10 meters), the communication signal becomes weak and the communication is lost. If the device comes back within effective communication range, the product automatically reconnects to the device. If the device is not automatically reconnected, press the Call button on the product to connect to it manually.11 If a device that is not in use goes out of communication range when multiple devices are connected, the product vibrates and a voice message will indicate that the connection is lost. In this case, the automatic reconnection function is not supported. LG Tone & Talk™ Tone & Talk supports various functions, including text & voice directions and calling. Search for “LG Tone & Talk” in the Google Play store (Android™ OS) or in the App Store® (iOS) to install Tone & Talk. You can scan the QR code on the right to install Tone & Talk. NOTE: Some features in Tone & Talk may not be activated on iOS devices. Function Description Voice Notication If you set Voice Notication to On, it reads the SMS, MMS, and social media messages with voice. Vibration Notication You can set the vibration notication to ON/OFF in Notication Setting. Current Time Alert It tells you the current time with a voice through the earphone. Voice Memo It allows you to record your voice. Caller ID Notication Android™: Set Caller ID Notication to On in the headset settings to receive caller ID information with voice through your headset. iOS: In iOS v10.0 or higher, select [Settings] > [Phone] > [Notify Caller ID] and set the function. Check Headset Battery You can check the headset battery amount through the app screen. Change Equalizer Mode In the EQ menu, you can change the equalizer mode. Software Update When there is a software update for the headset, it noties you of the update and allows you to update the software. Setting Make a Call Using Favorites to Make a Call: You can make a phone call by selecting the favorite contact in LG Tone & Talk. Using Speed Dial to Make a Call: You can make a phone call by selecting the designated contact in LG Tone & Talk. Using Call History to Make a Call: You can make a phone call by selecting the recent call record in LG Tone & Talk. NOTE: The Current Time Alert and the Voice Memo features cannot be used at the same time. You can only use one function at a time when you make selections in the Tone & Talk app. Google Play App Store12 Troubleshooting Problem Solution The power does not turn on Check the battery level and charge it. Cannot make a call with the headset If the mobile phone does not support headset and hands-free functions, you cannot use the calling features. Check the battery level and charge it. Cannot register the headset to the mobile phone Check whether the headset is turned on. Check whether the headset is in Search mode. - Simultaneously press and hold the Call button and slide the Power switch to the ON position and the headset switches to Search mode. The sound is low Control the sound level of the device connected to the headset.13 Specications and Features Item Comments Bluetooth Specications V 5.0 (Headset/Hands-Free/A2DP/AVRCP) Battery Battery 3.7 V/ 220 mAh, lithium-ion polymer Standby Time Up to 440 hours* Talk Time Up to 14 hours* Music Play Time Up to 14 hours* Charging Time Less than 2 hours Rated Input Voltage DC 4.75 V ~ 5.3 V, 400 mA Operating Temperature -10 °C (+14 °F) ~ +50 °C (+122 °F) Dimensions/Weight 155 mm (W) X 179 mm (L) X 12.8 (H) / 53 g Operating Frequency 2402 MHz to 2480 MHz Target Power 10 dBm *Duration of use may vary depending on the connected mobile device, features being used, settings, signal strength, operating temperature, frequency band, and other methods of use.14 FRANÇAIS Utilisation du LG TONE PLATINUM α™ Copyright © 2018 LG Electronics Inc. Tous droits réservés REMARQUE: An d'obtenir les meilleures performances et éviter toute détérioration ou mauvaise utilisation du casque, veuillez lire attentivement toutes les informations avant de l'utiliser. LGElectronics Inc. se réserve le droit d'apporter toute modication ou correction à ce manuel en cas d'erreurs typographiques ou d'inexactitudes. Le LG TONE PLATINUM α (HBS-930) est un casque sans l léger qui utilise la technologie Bluetooth. Ce produit peut être utilisé comme accessoire audio avec les appareils prenant en charge les prols Bluetooth A2DP ou Mains libres. Consignes de sécurité

LG Tone & Talk™ Tone & Talk

Reference guide Manuel de référence Referenzhandbuch Guida di riferimento Guía de referencia Referans Kılavuzu 參考指南1 Declaration of Conrmation DECLARATION OF CONFORMITY: Hereby, LG Electronics declares that this headset is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. A copy of the Declaration of Conformity can be found at http://www.lg.com/global/declaration Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide. Google, Android, Google Play, the Google Play logo and other related marks and logos are trademarks of Google LLC. Additional Information

1. Radio frequency exposure

This Bluetooth Wireless Stereo Headset is a radio transmitter and receiver. When in operation it communicates with a Bluetooth equipped mobile device by receiving and transmitting radio frequency (RF) electromagnetic elds (microwaves) in the frequency range 2.4 to 2.4835 GHz. Your Bluetooth headset is designed to operate in compliance with the RF exposure guidelines and limits set by national authorities and international health agencies when used with any compatible LG Electronics mobile phone.

Bluetooth Connection Precautions The following environments affect the range and reception of Bluetooth signals: - When walls, metal, human bodies, or other obstacles exist between the Bluetooth device and the connected device - When equipment that uses 2.4 GHz frequency signals (Wireless LANs, wireless phones, microwave ovens, etc.) is placed near the devices being used ENGLISH Reference Guide2

3. Potentially explosive atmosphere

Turn off your electronic device when in any area with a potentially explosive atmosphere. It is rare, but your electronic device could generate sparks. Sparks in such areas could cause an explosion or re resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, clearly marked.

4. Battery information

A rechargeable battery has a long service life if treated properly. A new battery or one that has not been used for a long period of time could have reduced capacity the rst few times it is used. Do not expose the battery to extreme temperatures, never above +50° or below -10°. For maximum battery capacity, use the battery in room temperature. If the battery is used in low temperatures, the battery capacity will be reduced. The battery can only be charged in temperatures between +10° and +45°. Removal of waste batteries and accumulators (Product with embedded battery ONLY) - In case this product contains a battery incorporated within the product which cannot be readily removed by end-users, LG recommends that only qualied professionals remove the battery, either for replacement or for recycling at the end of this product’s working life. To prevent damage to the product, and for their own safety, users should not attempt to remove the battery and should contact LG Service Helpline, or other independent service providers for advice. - Removal of the battery will involve dismantling of the product case, disconnection of the electrical cables/contacts, and careful extraction of the battery cell using specialized tools. If you need the instructions for qualied professionals on how to remove the battery safely, please visit http://www.lge.com/global/sustainability/environment/take-back-recycling.

5. Recycling the battery in your

Bluetooth Headset The battery in your Bluetooth Headset must be disposed of properly and should never be placed in municipal waste. Disposal of waste batteries/accumulators 1 This symbol may be combined with chemical symbols for mercury(Hg), cadmium(Cd) or lead(Pb) if the battery Contains more that 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead. 2 All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.3 3 The correct disposal of Your old batteries/accumulators will help to prevent potential negative consequences for the environment, animal and human health. 4 For more detailed information about disposal of Your old batteries/accumulators, please contact Your city ofce, waste disposal service or the shop where You purchased the product. (http://www.lg.com/global/sustainability/environment/ take-back-recycling/global-network-europe)

- The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying the date of purchase and serial number, is presented with the product to be repaired or replaced. LG Electronics reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the product from the dealer. - If LG Electronics repairs or replaces the product, the repaired or replaced product shall be warranted for the remaining time of the original warranty period or for ninety (90) days from the date of repair, whichever is longer. Repair or replacement may involve the use of functionally equivalent reconditioned units. Replaced parts or components will become the property of LG Electronics. - This Warranty does not cover any failure of the product due to normal wear and tear, or due to misuse, including but not limited to use in other than the normal and customary manner, in accordance with instructions for use and maintenance of the product. Nor does this warranty cover any failure of the product due to accident, modication or adjustment, acts of God or damage resulting from liquid. - This warranty does not cover product failures due to improper repair installations, modications or service performed by a non-LG Electronics authorized person. Tampering with any of the seals on the product will void the warranty. Limited Warranty SUBJECT TO THE CONDITIONS OF THIS LIMITED WARRANTY, LG ELECTRONICS WARRANTS THIS PRODUCT TO BE FREE FROM DEFECTS IN DESIGN, MATERIAL AND WORKMANSHIP AT THE TIME OF ITS ORIGINAL PURCHASE BY A CONSUMER, AND FOR A SUBSEQUENT PERIOD OF ONE (1) YEAR. SHOULD YOUR PRODUCT NEED WARRANTY SERVICE, PLEASE RETURN IT TO THE DEALER FROM WHOM IT WAS PURCHASED OR CONTACT YOUR LOCAL LG ELECTRONICS CONTACT CENTER TO

GET FURTHER INFORMATION.4

Important Safety Information Avoiding hearing damage Permanent hearing loss may occur if you use your Handsfree car kit at a high volume. Set the volume to a safe level. You can adapt over time to a higher volume of sound that may sound normal but can be damaging to your hearing. If you experience ringing in your ears or mufed speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected. Hearing experts suggest that to protect your hearing:

• Limit the amount of time you use Headset at high volume.

• Avoid turning up the volume to block out noisy surroundings.

LG Electronics [For Saudi Arabia] 1 All batteries should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 2 The correct disposal of your old batteries will help to prevent potential negative consequences for the environment, animal and human health.

For more detail information about disposal of your old batteries, please contact your city ofce, waste disposal service or the shop where you purchased the product. Also You can contact our LG Support Representative Call center from below Link https://www.lg.com/sa_en/support/contact/telephone38

English Disposal of your old appliance 1 This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream. 2 Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources. 3 You can take your appliance either to the shop where you purchased the product, or contact your local government waste ofce for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www.lg.com/global/recycling.
