Product Type	Bluetooth Wireless Earbuds
Brand	LG
Model	Tone Free FP5W (TONE-FP5)
Dimensions (earbud)	21.2 x 28.3 x 23.2 mm
Dimensions (case)	54.5 x 54.5 x 30 mm
Weight (earbud)	5.2 g
Weight (case)	35.4 g
Power (earbud)	Lithium-ion battery 55 mAh, 3.7 V
Power (case)	Lithium-ion battery 390 mAh, 3.7 V
Playback time (ANC off)	Up to 8 h (earbuds) + 22 h (with case)
Playback time (ANC on)	Up to 5 h (earbuds) + 13 h (with case)
Charging time (earbud)	Approximately 1 h
Charging time (case)	Approximately 2 h
Fast charging	5 min for 60 min of playback
Bluetooth version	5.2
Water resistance	IPX4 (earbuds only)
Active noise cancellation	Yes (ANC)
Ambient sound listening	Yes (LAS)
Touch controls	Play/pause, volume, call, ANC/LAS
Dedicated app	LG TONE Free (Android/iOS)
Charging connector	USB Type-C
Included accessories	Gel earbuds (S, M, L), USB-C cable, case
Maintenance	Clean the earbuds regularly with a dry cloth
Warranty	2 years

Frequently Asked Questions - Tone Free FP5W LG

How to pair the LG Tone Free FP5W earbuds with my smartphone?

Open the charging case lid with the earbuds inside. Press and hold the touchpad on the left or right earbud for 3 to 5 seconds until the LED flashes blue. Enable Bluetooth on your smartphone and select LG-TONE-FP5 from the list (without "LE"). For Android 6.0+, a quick pairing pop-up may appear.

What to do if the earbuds do not connect automatically?

Check that the earbuds are in the case and the lid is closed, then open it again. If the connection does not restore, tap once the left or right earbud to force reconnection. Make sure Bluetooth is enabled on your device and you are within 10 meters.

How to enable noise reduction (ANC) on the earbuds?

Touch and hold the left or right earbud to switch between ANC (active noise cancellation) and LAS (ambient sound listening) modes. You can also configure these modes in the LG TONE Free app.

What is the battery life of the Tone Free FP5W earbuds?

With ANC off, the earbuds offer up to 8 hours of playback, and the case provides an additional 22 hours. With ANC on, the battery life is 5 hours for the earbuds and 13 hours with the case.

How to charge the earbuds and case?

Place the earbuds in the charging case; they will charge automatically. Plug the included USB Type-C cable into the case to recharge the set. The red LED indicates charging, green when fully charged. A 5-minute quick charge provides up to 60 minutes of playback.

Are the LG Tone Free FP5W earbuds water-resistant?

Yes, the earbuds have an IPX4 rating, which protects against splashes and sweat. The charging case is not waterproof. Do not immerse the earbuds in water.

How to clean the earbuds?

Use a soft, dry cloth to clean the earbuds. Avoid alcohol, benzene, or any chemicals. Regularly clean the speaker grilles and charging contacts to prevent connection issues.

What to do if one earbud stops working or does not turn on?

Check the battery level by placing the earbud in the case. If the case LED does not light up, recharge the case. Perform a reset: place the earbuds in the case, press and hold the touchpad for 10 seconds until the LED flashes red, then re-pair.

Can I use a single earbud at a time?

Yes, you can use one earbud in mono mode. Remove one earbud from the case and it will connect automatically. For calls, the earbud used functions as a microphone. Note that some functions like ANC may require both earbuds.

How to reset the earbuds to factory settings?

Place both earbuds in the charging case. Press and hold the touchpad on the left or right earbud for at least 10 seconds. The case LED will flash red, indicating a reset. Then delete the device from your smartphone's Bluetooth list and re-pair.

USER MANUAL Tone Free FP5W LG

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Google Play App Store

Rev 2.0 EUF

www.lg.com

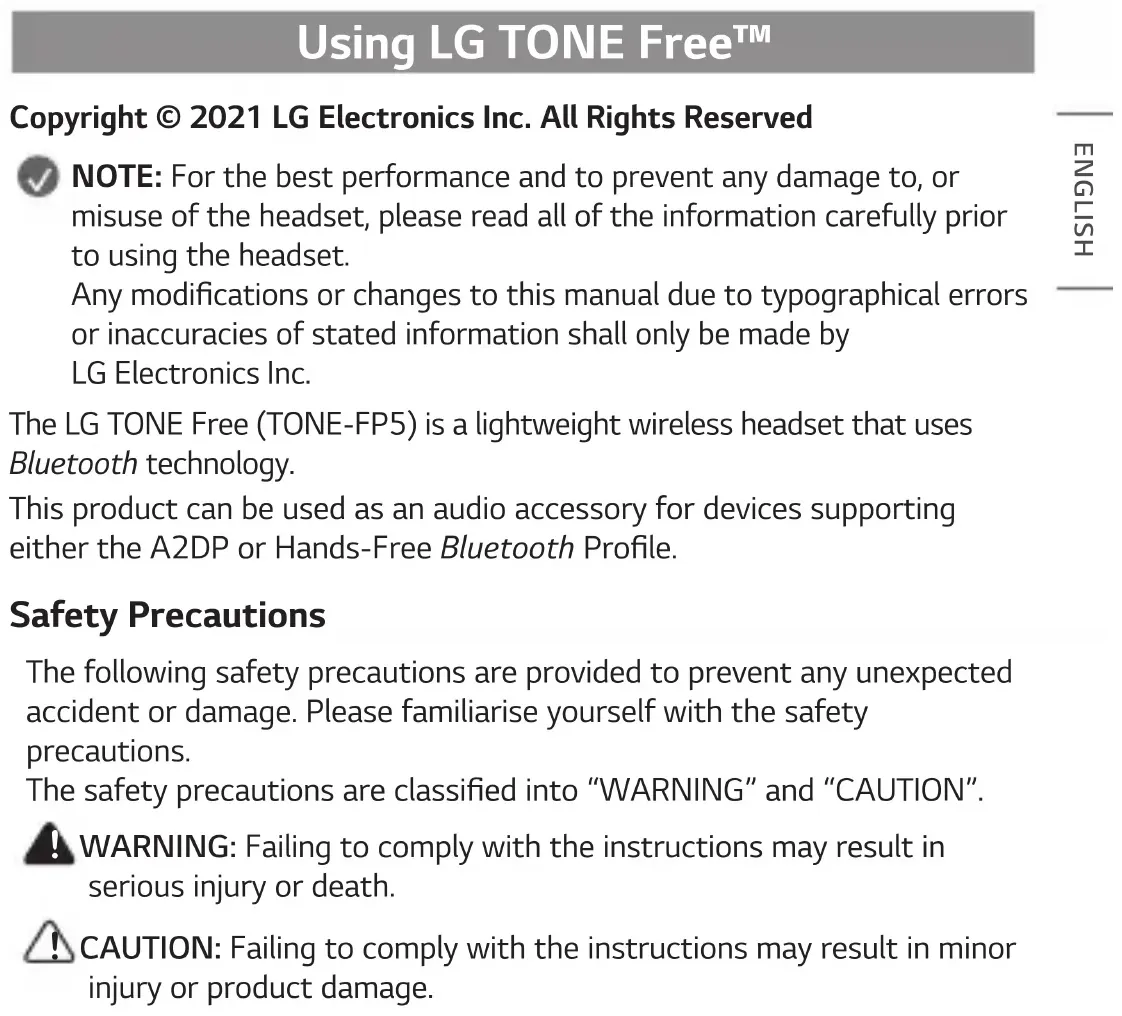

Using LG TONE Free™

Copyright © 2021 LG Electronics Inc. All Rights Reserved

NOTE: For the best performance and to prevent any damage to, or misuse of the headset, please read all of the information carefully prior to using the headset.

Any modifications or changes to this manual due to typographical errors or inaccuracies of stated information shall only be made by LG Electronics Inc.

The LG TONE Free (TONE-FP5) is a lightweight wireless headset that uses Bluetooth technology.

This product can be used as an audio accessory for devices supporting either the A2DP or Hands-Free Bluetooth Profile.

Safety Precautions

The following safety precautions are provided to prevent any unexpected accident or damage. Please familiarise yourself with the safety precautions.

The safety precautions are classified into "WARNING" and "CAUTION".

WARNING: Failing to comply with the instructions may result in serious injury or death.

CAUTION: Failing to comply with the instructions may result in minor injury or product damage.

WARNING

Do not drop the product from a high place.

Make sure there is no water, alcohol, or benzene in contact with the product.

Do not store the product in a wet or dusty place.

Do not place heavy objects on the product.

This product is waterproof to the IPX4 level (daily life waterproof).

(The IPX4 waterproof rating applies to the earbud product only.)

Do not put the product under the water or use it in a humid location such as a bathroom.

CAUTION

Do not disassemble, adjust, or repair the product arbitrarily.

Do not place the product near excessive heat or flammable material.

The product may be damaged if an incompatible charger is used.

Make sure that an infant or child does not swallow a magnet or a small component of the product.

Make sure that foreign objects do not enter the charger's connectors (charging port and power plug). Failure to do so may result in fire or electric shock.

If you have a medical device implanted, contact your doctor before using this device.

This product has a built-in battery, and the battery cannot be removed or replaced arbitrarily.

For your safety, do not remove the battery incorporated in the product. If you arbitrarily replace the battery or don't replace it correctly, it may explode.

The lithium-ion battery is a hazardous component that can cause injury. Battery replacement by an unqualified professional can cause damage to your device.

Do not replace the battery by yourself. The battery can be damaged, which can cause overheat and injury. The battery must be replaced by authorised service provider. The battery should be recycled or disposed separately from household wastes.

Do not discard the battery arbitrarily. Follow the local procedure for discarding batteries.

In order to prevent unnecessary energy consumption, disconnect the device when fully charged. Always use an easily accessible power outlet for charging your device.

Risk of fire or explosion if the battery is replaced by an incorrect type.

Do not store or transport at pressures lower than 11.6 kPa and at above 15000 m altitude.

Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types).

Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.

Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.

A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

Do not carelessly throw away old batteries. It can cause an explosion or fire. The disposal method may vary by country and region. Dispose of it in an appropriate manner.

NOTE

If the product is exposed to excessive sweat, clean the product.

Keep the earbuds clean.

Wearing earbuds for a long time may cause pain, and if humidity inside ears continues for a long time, it may cause skin trouble.

HD Speaker

If the communication network of the device you are connecting to supports HD Voice Calling, you can enjoy making voice calls and listening to music in high definition.

Product Components

Simple line drawing of an open pocket with two small objects inside (no text or symbols)

LG TONE Free™ Earbuds (medium eargels installed) Charging Case

Four identical circles arranged in a 2x2 grid, no text or symbols present

Extra Ear Gels (small & large)

Simple line drawing of a coiled cable with connectors (no text or symbols)

USB Type C™ Charging Cable

@ LG — LG TONE —

LG — LG TONE.com

Scanned document page with placeholder text and a small symbol '8' in the top-left corner

Reference guide Simple Owner's Manual WEEE Card

(Europe Only)

NOTE: Actual product design may differ from images shown in manual.

CAUTION

Make sure authentic LG Electronics components are used. Using a non-authentic component may damage the product and thus void the warranty.

Use the USB Type C ^TM cable provided with the product.

Overview

Charging Case

Charging port Charging terminals Battery Status Indicator

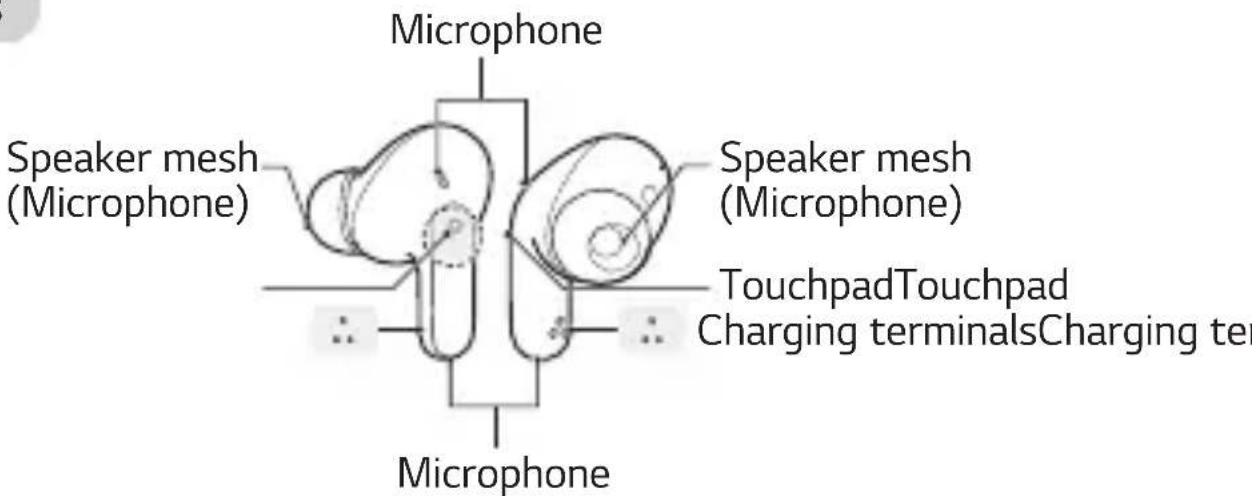

Earbuds

Microphone Speaker mesh (Microphone) Speaker mesh (Microphone) TouchpadTouchpad Charging terminalsCharging term Microphone

*Make sure that the charging terminal is not soiled with foreign substance.

*The appearance and specifications of the actual product may differ depending on the model.

Pairing and Connecting

Fast Pair

1 Turn on the Bluetooth function on the mobile phone or the device to be connected.
2 Open the cover of the charging case with the earbuds mounted on the case. Press and hold the touchpad of the left or right earbud for 3 to 5 seconds until the battery status indicator blinks in blue.

3 When the Fast Pair connection pop-up appears on the top area of the mobile phone screen, tap it to connect. (It only supports Android™ 6.0 or higher, and requires configuring Bluetooth and location information settings of the mobile device.)

4 If the pop-up does not appear, select [LG-TONE-FP5] from the Bluetooth menu on the mobile phone and connect it (for users of iOS or Android 5.0 or lower versions).

CAUTION: In the list of Bluetooth connected devices, LG-TONE-FP5_LE is not the correct model name for connection. Check the model name in use and connect with the model name without "LE". If the earbud model name is abnormally displayed on the Android device, change the model name in the Bluetooth menu of Connected Device Settings.

NOTE: To connect with another device, perform the above procedure again.

Automatic Reconnection

The earbuds are connected automatically when you open the cover of the charging case. If you close the cover of the charging case with both earbuds mounted in the charging case, the earbuds are disconnected.

Wearing Earbuds

1 Separate the earbuds from the charging case and adjust them so that they fit comfortably in your ears.

NOTE: You can use ear gels that fit your ears to improve Active Noise Canceling (ANC) performance and enjoy rich music sound.

Medical illustration showing ear anatomy procedure: before and after ear insertion, with directional arrows indicating movement.

2 When you wear the earbuds, you will hear a wearing detection alarm.

Illustration of a human ear with a sensor and sound wave icon (no text or symbols)

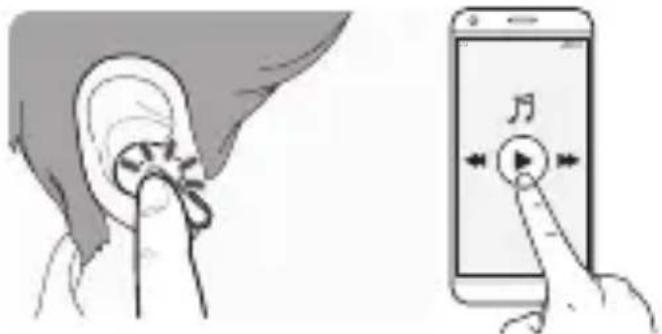

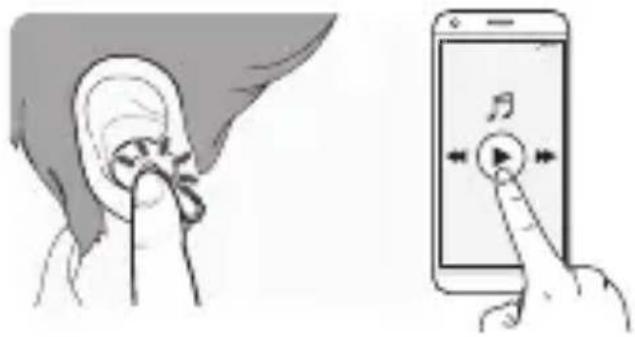

Playing Music

Illustration showing ear ear being pushed by a finger to press the ear, while the smartphone displays a musical note with bidirectional arrows.

Function Description
Play / Pause	: Touch the left or right earbud once.
Adjusting the Volume	: Touch the left(Decrease volume) or right(Increase volume) earbud twice.
Play Next	: Touch the left or right earbud three times.

NOTE: You can change the operation method of the function in the touchpad settings of the LG TONE Free app.

Mobile Calling Functions

Illustration showing facial recognition and symptom reduction steps with magnified views of the object being removed.

Function Status	Description
Answering Calls	Ringing Touch the left or right earbud once.
Ending Calls	Talking	Touch the left or right earbud twice.
Making Calls Idle		If you make a call using a mobile phone, the call is automatically connected to the headset.
Receiving Calls while on the Phone	Talking	If you touch the left or right earbud once, the current call will go on hold, and you will be able to answer an incoming call.If the previous call is on hold, you can finish the current call on the mobile phone.(It works differently depending on the mobile phone settings.)
Rejecting Calls	Ringing Touch and hold the left or right earbud.

Listen to the Ambient Sound (LAS) / Active Noise Cancellation (ANC)

Listen to the Ambient Sound (LAS)

Illustration showing ear manipulation technique: before ear compression, after ear retraction with sound waves (no text or symbols)

The Listen to the Ambient Sound (LAS) function allows you to listen to the ambient sound so that you can recognize the surrounding situation and any potential risks.

Active Noise Cancellation (ANC)

Illustration showing a hand performing a finger manipulation technique, with a separate line drawing of a person's head in profile (no text or symbols)

The Active Noise Cancellation (ANC) function blocks any ambient sound. So, you can use the function to listen to the music or watch a video without interference.

Touch and hold the left or right earbud to switch between the ANC mode and the LAS mode.

You can set the LAS and ANC functions in the LG TONE Free app.

You can configure the Listen to the Ambient Sound mode and Conversation mode using the LG TONE Free app.

If you use the LAS or ANC function, the battery consumes faster, reducing the time you can use the product.

You can use the LAS and ANC functions while being idle, listening to music, or being on the phone.

*ANC is an acronym for Active Noise Cancellation.

CAUTION: When the LAS mode is enabled, you may hear the ambient sound become loud suddenly.

When using the ANC function outdoors, pay attention to the surrounding environment for safety.

Charging

Wired Charging

Diagram illustrating the procedure of inserting a device into an earbell, with labeled parts and directional arrows.

When the charging cable is connected, the charging status is displayed in the charging case.

NOTE: The earbuds and the charging case are charged at the same time. The charging port on the charging case cannot be used to supply power to mobile phones, etc.

Checking the Battery Status

If earbuds are mounted in the charging case, the earbuds' battery status is displayed. Otherwise, the charging case's battery status is displayed.

Simple line drawing of an open pill with internal compartments (no text or symbols)

Battery Status Indicator	Remaining Battery (charger not connected)	Charging State (charger connected)
Red 20% or lower Charging
Yellow 20% - 80% -
Green 80% or higher Fully charged

NOTE: When the charging case lid is closed, charging case battery status is displayed. If the charging case has no remaining charge, there will be no display and it cannot function. We recommend you keep the charging case charged at all times as the earbuds are not able to be turned on and turned off independently.

Battery Status Indicator

Status Description
Bluetooth Search Mode	The battery status indicator flashes in blue.
Battery below 20%	The battery status indicator turns on and off in red.
Battery 20% - 80%	The battery status indicator turns on and off in yellow.
Battery 80% or more	The battery status indicator turns on and off in green.
When there is a problem while charging	The battery status indicator flashes in red.
Charging (charger connected)	The battery status indicator turns on in red.
Charging complete (charger connected)	The battery status indicator turns on in green.

Out of Range

If the device connected to the product is out of effective communication range, the communication signal becomes weak and the communication is lost. The effective communication range may vary depending on surrounding and other conditions.

If the device comes back within effective communication range, the product automatically reconnects to the device. If the device is not automatically reconnected, touch the left or right earbud once to connect them.

LG TONE Free App

If you install the "LG TONE Free" app, you can use Check Earbud Battery, Voice Alert, Change Equalizer Mode, Check Last Connected Location Information, and Find My Earbuds functions. Check out the app for more details.

To install the "LG TONE Free" app, search LG TONE Free in the Google Play Store or App Store or scan the QR code below.

It supports Android 7.0 or higher and iOS 11 or higher.

QR code image containing encoded data, no visible human-readable text

Google Play App Store

QR code image containing encoded data, no visible human-readable text

Troubleshooting

If you see any of the following symptoms while using the product, make sure to recheck it. It may not be a malfunction.

Symptom Cause and Solution
The power does not turn on	Check the battery level and charge it.
If unable to make a call with earbuds	If the mobile phone does not support headset and hands-free functions, you cannot use the calling features.Check the battery level and charge it.
If unable to register earbuds to mobile phone	Check whether earbuds are turned on.Check if the earbuds have entered the search mode.- While the earbuds are inserted in the charging case, press and hold the touch pad on the left or right earbud for 3 to 5 seconds to switch to the search mode.
If you replaced the earbuds or there is a problem with the operation (Factory reset)	While the earbuds are inserted in the charging case, press and hold the touch pad on the left or right earbud for 10 seconds or more.- The battery status indicator of the charging case flashes red and the initialization to the factory status is carried out. After initialization to the factory status, reconnect the earbuds.

Specifications and Features

Item Comments
Bluetooth Specifications	V 5.2 (Headset/Hands-Free/A2DP/AVRCP)
Battery	Earbud : 3.7 V / 55 mAh, Lithium-ionCharging case : 3.7 V / 390 mAh, Lithium-ion
Music Play TimeEarbuds & With Charging case	ANC Off : Up to 8 & Up to 22 hours*ANC On : Up to 5 & Up to 13 hours*
Charging Time	Earbud : within an hour / Charging case : within 2 hoursFast Charging : 5 min charge for up to 60 min playtime*※ When charging wired at room temperature
Rated Input Voltage	Earbud : 5 V --- 110 mACharging case : 5 V --- 500 mA
Operating Temperature	0 °C ~ +40 °C
Operating Humidity	5 % ~ 60 %
Dimensions (mm) / Weight (g)	Earbud : 21.2 mm (W) X 28.3 mm (L) X 23.2 mm (H) / 5.2 g (One earbud)Charging case : 54.5 mm (W) X 54.5 mm (L) X 30 mm (H) / 35.4 g
Frequency range Output Power (Max)
2402 MHz to 2480 MHz 11.5 dBm

*Duration of use may vary depending on the connected mobile device, features being used, settings, signal strength, operating temperature, frequency band, and other methods of use.

Simple line drawing of an open pill blister pack with two cutouts (no text or symbols)

Four identical circles arranged in a 2x2 grid, no text or symbols present

Simple line drawing of a coiled cable with connectors (no text or symbols)

Scanned document page with a grid of rectangular blocks and a small labeled item '1' in the top left corner.

Karta WEEE (pouze Evropa)

Medical illustration showing ear anatomy before and after ear stimulation, with labeled anatomical changes.

Illustration of an ear with a sensor inserted, accompanied by a speaker icon (no text or symbols)

Přehrávání hudby

Illustration showing ear ear being pointed to touch a microphone while the smartphone displays a musical note with playback control buttons.

Diagram illustrating facial recognition and symptom reduction, showing finger pointing to a phone call with error bars and a warning sign.

Illustration showing ear anatomy and ear profile changes (no text or symbols)

Illustration showing ear anatomy and ear profile (no text or symbols)

Diagram illustrating the procedure of inserting a device into a device, showing step-by-step insertion and connection.

Simple line drawing of an open pill with internal tissue (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Google Play App Store

QR code image containing encoded data, no visible human-readable text

Řešení potíží

Simple line drawing of an open cushion with two small objects inside (no text or symbols)

Four identical circles arranged in a 2x2 grid, each with a smaller inner circle (no text or symbols)

Simple line drawing of a coiled cable or hose with two connectors (no text or symbols)

Scanned document page with placeholder text and a small logo, likely a form or template sheet.

Medical illustration showing ear anatomy before and after ear stimulation, with labeled anatomical structures and directional arrows.

Illustration of a human ear with a sensor and sound wave icons (no text or symbols)

Illustration showing ear ear insertion technique and smartphone usage with musical note icon

Diagram illustrating hand gesture and symptom reduction, showing finger positioning and facial recognition with checkmarks and X marks.

Illustration showing ear ear anatomy before and after ear manipulation, with a close-up of the ear (no text or symbols)

Illustration showing a hand performing a finger manipulation technique, with a close-up of the ear and head (no text or symbols)

Diagram illustrating the procedure of inserting a device into an earbell, with magnified view showing internal components.

Simple line drawing of an open pill with a bulb inside (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Google Play App Store

QR code image containing encoded data, no visible human-readable text

Dépannage

Simple line drawing of an open closed button with two small objects inside (no text or symbols)

Four identical circles arranged in a 2x2 grid, no text or symbols present

Simple line drawing of a coiled cable or hose with two connectors (no text or symbols)

USB Type C™ Ladekabel

LG LG TONE

Scanned document page with placeholder text and a small icon, likely a form or template sheet.

WEEE-Karte (nur Europa)

Medical illustration showing ear anatomy procedure: before and after ear insertion, with directional arrows indicating movement.

Illustration of a human ear with an earpiece inserted, accompanied by a speaker icon (no text or symbols)

Musik wiedergeben

Illustration showing ear ear being pointed to touch a microphone while the smartphone displays a musical note with playback control.

Diagram illustrating facial recognition and symptom reduction, showing finger pointing to a phone call with X marks and a hand holding a nose with a plus sign.

Illustration showing a finger pressing down on a wrist with motion arrows and a close-up of the ear (no text or symbols)

Illustration showing a hand performing a finger massage technique on the ear, with a close-up of the ear profile (no text or symbols)

Diagram illustrating the procedure of inserting a device into a device, showing step-by-step insertion and connection.

Simple line drawing of an open pill with a label showing '5' and a small mark, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

Google Play App Store

QR code image containing encoded data, no visible human-readable text

Fehlerbehebung

Simple line drawing of an open cylindrical device with two internal components (no text or symbols)

Four identical circles arranged in a 2x2 grid, each with a small inner circle (no text or symbols)

Simple line drawing of a coiled cable or hose with two connectors (no text or symbols)

Scanned document with faint text and a small symbol 'x' in the top-left corner

Medical illustration showing ear anatomy before and after ear stimulation, with labeled anatomical structures and directional arrows.

Illustration of an ear with a dental implant, showing ear and ear with sound waves (no text or symbols)

Zene lejátszása

Illustration showing ear ear being pointed to touch a microphone while the smartphone displays a musical note with playback control buttons.

Diagram illustrating facial recognition and symptom reduction, showing finger pointing to phone call and crossbones with error bars

Medical illustration showing ear anatomy procedure with magnified view and corresponding ear profile sketch

Illustration showing a hand performing a finger manipulation technique, with a close-up of the ear and head (no text or symbols)

Diagram illustrating the procedure of inserting a device into an earbell, with magnified view showing the cable being inserted.

Simple line drawing of an open pill with a lid and internal cavity (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Google Play App Store

QR code image containing encoded data, no visible human-readable text

Hibaelhárítás

Copyright © 2021 LG Electronics Inc. All Rights Reserved

Simple line drawing of an open pocket with two small objects inside (no text or symbols)

Four identical circles arranged in a 2x2 grid, no text or symbols present

Simple line drawing of a coiled cable or hose with connectors (no text or symbols)

Scanned document page with placeholder text and a small icon, likely a form or template sheet.

Diagram of an open compact powder case with internal compartments and a labeled part 'Ind' (no text or symbols on the diagram itself)

Medical illustration showing ear anatomy procedure: before and after ear stimulation with magnified view

Illustration of a human ear with an earbell and sound wave icons, no text or symbols present

Illustration showing ear ear being pointed to touch a finger while the smartphone displays a musical note with bidirectional arrow.

Illustration showing a hand holding a tool with a magnified view of the tool, alongside a person observing the action.

Medical illustration showing ear anatomy procedure with magnified view of ear and ear profile

Illustration showing ear anatomy and ear profile changes (no text or symbols)

Diagram illustrating the procedure of inserting a device into an earbell, with labeled parts and directional arrows.

Simple line drawing of an open pill with internal compartments (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Google Play App Store

QR code image containing encoded data, no visible human-readable text

Simple line drawing of an open air cushion with two small objects inside (no text or symbols)

Four identical circles arranged in a 2x2 grid, no text or symbols present

Simple line drawing of a coiled cable or hose with two connectors (no text or symbols)

USB Type C™-laadkabel

LG — LG TONE 100

Scanned document page with placeholder text and a small icon, likely a form or template sheet

Medical illustration showing ear anatomy procedure: before ear insertion, after insertion, and post-ear insertion with a dental implant.

Illustration of a human ear with a dental implant, accompanied by a speaker icon (no text or symbols)

Muziek afspelen

Illustration showing ear ear being pointed at a finger while interacting with a smartphone displaying music playback controls

Illustration showing ear protection and facial recognition steps with icons for ear, ear mask, and eye.

Illustration showing ear ear stimulation technique with magnified ear profile (no text or symbols)

Illustration showing a hand performing a medical or ergonomic procedure with ear and earlobe (no text or symbols)

Diagram illustrating the procedure of inserting a device into an earbell, with labeled parts and directional arrows.

Simple line drawing of an open pill case with internal compartments (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Google Play App Store

QR code image containing encoded data, no visible human-readable text

Probleemoplossing

Simple line drawing of an open pocket with two small objects inside (no text or symbols)

Four identical circles arranged in a 2x2 grid, no text or symbols present

Simple line drawing of a coiled cable or hose with two connectors (no text or symbols)

Scanned document page with placeholder text and a small symbol 'x' in the top-left corner

Medical illustration showing ear anatomy procedure: before and after ear insertion, with directional arrows indicating movement.

Illustration of an ear with a microphone and sound wave icons, no text or symbols present

Odtwarzanie muzyki

Illustration showing ear ear being pointed at a music note on a smartphone screen, with directional arrows indicating sound and playback controls.

Illustration showing facial massage technique with correct and incorrect eye movements, plus a person's head view

Illustration showing ear ear anatomy with magnified view of ear and ear (no text or symbols)

Illustration showing a hand performing a finger manipulation technique, with a close-up of the ear and head (no text or symbols)

Diagram illustrating the procedure of inserting a device into a device, showing step-by-step insertion and cable connection.

Simple line drawing of an open pill with a lid and internal cavity (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Google Play App Store

QR code image containing encoded data, no visible human-readable text

Simple line drawing of an open pill case with internal cavities (no text or symbols)

Four identical circles arranged in a 2x2 grid, each with a smaller inner circle (no text or symbols)

Simple line drawing of a coiled cable or hose with connectors (no text or symbols)

Scanned document page with placeholder text and a small logo, likely a form or template sheet.

Tarjeta RAEE (solo en Europa)

Illustration of a closed cosmetic device with open lid and internal components (no text or symbols)

Terminales de carga

Medical illustration showing ear anatomy procedure: before and after insertion, with magnified view of ear structure

Illustration of a human ear with a speaker icon, no text or symbols present

Illustration showing ear ear being pointed at a button on the phone screen, with musical note and play buttons visible

Illustration showing ear protection and ear removal steps with icons for ear, ear mask, and earbell.

Illustration showing ear manipulation technique: hand press, ear with sound waves, and ear with earbell (no text or symbols)

Illustration showing a hand performing a finger massage technique on the ear, with a close-up of the person's head (no text or symbols present)

Diagram illustrating the procedure of inserting a device into an earbell, with labeled parts and directional arrows.

Simple line drawing of an open pill with internal tissue (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Google Play App Store

QR code image containing encoded data, no visible human-readable text

Simple line drawing of an open pill case with internal tubing (no text or symbols)

Four identical circles arranged in a 2x2 grid, each with a smaller inner circle (no text or symbols)

Simple line drawing of a coiled cable or hose with connectors (no text or symbols)

Scanned document with a header and a grid of horizontal lines, likely a form or template with Chinese characters.

Karta WEEE (iba Európa)

Medical illustration showing ear anatomy procedure: before and after ear insertion, with magnified view of the ear being inserted.

Illustration of an ear with a speaker icon and sound waves (no text or symbols)

Prehrávanie hudby

Illustration showing ear ear insertion and smartphone playback control with musical note icons

Illustration showing ear protection and facial recognition steps with icons for ear, ear mask, and eye.

Diagram illustrating ear ear ear manipulation technique with magnified view and corresponding illustration

Illustration showing ear anatomy procedure: before and after ear manipulation (no text or symbols)

Diagram illustrating the procedure of inserting a device into a bulb, with an arrow indicating the process.

Simple line drawing of an open pill with internal tubing (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Google Play App Store

QR code image containing encoded data, no visible human-readable text

Riešenie problémov

Declaration of Confirmation

DECLARATION OF CONFORMITY:

Hereby, LG Electronics declares that the radio equipment type this headset is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.lg.com/global/support/cedoc/cedoc#

Bluetooth ^® is a registered trademark of Bluetooth SIG, Inc. worldwide.

Android, Google Play, the Google Play logo, and other related marks and logos are trademarks of Google LLC.

Bluetooth®

CE

Additional Information

1. Radio frequency exposure

This Bluetooth LG Stereo Headset is a radio transmitter and receiver. When in operation it communicates with a Bluetooth equipped mobile device by receiving and transmitting radio frequency (RF) electromagnetic fields (microwaves) in the frequency range 2402 to 2480 MHz. Your Bluetooth headset is designed to operate in compliance with the RF exposure guidelines and limits set by national authorities and international health agencies when used with any compatible LG Electronics mobile phone.

2. Bluetooth Connection Precautions

The following environments affect the range and reception of Bluetooth signals:

- When walls, metal, human bodies, or other obstacles exist between the Bluetooth device and the connected device

- When equipment that uses 2.4 GHz frequency signals (Wireless LANs, wireless phones, microwave ovens, etc.) is placed near the devices being used

- When using a Bluetooth device (TV, laptop, etc.) other than the mobile phone, the sound quality may be affected by the specifications and performance of the device

3. Potentially explosive atmosphere

Turn off your electronic device when in any area with a potentially explosive atmosphere. It is rare, but your electronic device could generate sparks. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, clearly marked.

4. Battery information

A rechargeable battery has a long service life if treated properly. A new battery or one that has not been used for a long period of time could have reduced capacity the first few times it is used. Do not expose the battery to extreme temperatures, never above +50° or below -10°. For maximum battery capacity, use the battery in room temperature. If the battery is used in low temperatures, the battery capacity will be reduced. The battery can only be charged in temperatures between 0° and +45°.

5. Recycling the battery in your Bluetooth Headset

The battery in your Bluetooth Headset must be disposed of properly and should never be placed in municipal waste.

6. Conditions

- The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying the date of purchase and serial number, is presented with the product to be repaired or replaced. LG Electronics reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the product from the dealer.

- This Warranty does not cover any failure of the product due to normal wear and tear, or due to misuse, including but not limited to use in other than the normal and customary manner, in accordance with instructions for use and maintenance of the product. Nor does this warranty cover any failure of the product due to accident, modification or adjustment, acts of God or damage resulting from liquid.

- This warranty does not cover product failures due to improper repair installations, modifications or service performed by a non-LG Electronics authorised person. Tampering with any of the seals on the product will void the warranty.

Limited Warranty

SUBJECT TO THE CONDITIONS OF THIS LIMITED WARRANTY, LG ELECTRONICS WARRANTS THIS PRODUCT TO BE FREE FROM DEFECTS IN DESIGN, MATERIAL AND WORKMANSHIP AT THE TIME OF ITS ORIGINAL PURCHASE BY A CONSUMER, AND FOR A SUBSEQUENT PERIOD OF TWO (2) YEAR. SHOULD YOUR PRODUCT NEED WARRANTY SERVICE, PLEASE RETURN IT TO THE DEALER FROM WHOM IT WAS PURCHASED OR CONTACT YOUR LOCAL LG ELECTRONICS CONTACT CENTER TO GET FURTHER INFORMATION.

Important Safety Information

Avoiding hearing damage

Permanent hearing loss may occur if you use your Headset at a high volume. Set the volume to a safe level. You can adapt over time to a higher volume of sound that may sound normal but can be damaging to your hearing.

If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected. Hearing experts suggest that to protect your hearing:

• Limit the amount of time you use Headset at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can't hear people speaking near you.

Warning symbol with a triangle containing a stylized ear and sound waves (no text or numbers)

Please refer to your handset user guide for more information on how to adjust listening levels on your handset.

Using headsets safely

Use of Headset to listen to music while operating a vehicle is not recommended and is illegal in some areas. Be careful and attentive while driving. Stop using this device if you find it disruptive or distracting while operating any type of vehicle or performing any other activity that requires your full attention.

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit https://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail].

This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

The output level shall automatically return to an output level not exceeding RS1 when the power is switched off.

Referenční příručka

Prohlášení o shodě

PROHLÁŠENÍ O SHODĚ:

Warning symbol with a sine wave inside a triangle (no text or numbers)

Warning symbol with a sine wave inside a triangle (no text or numbers)

Warning symbol with a sine wave inside a triangle (no text or numbers)

Warning symbol with a sine wave inside a triangle, indicating sound or hearing hazard.

Warning symbol with a triangle containing a stylized ear and sound waves (no text or numbers)

Warning symbol with a triangle containing a stylized ear and sound waves (no text or numbers)

Warning symbol with a triangle containing a stylized ear and sound waves (no text or numbers)

Warning symbol with a sine wave inside a triangle (no text or numbers)

Warning symbol with a triangle containing an ear and sound waves (no text or numbers)

Disposal of waste batteries/accumulators

1 This symbol may be combined with chemical symbols for mercury (Hg), cadmium (Cd) or lead (Pb) if the battery contains more than 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead.
2 All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3 The correct disposal of your old batteries/accumulators will help to prevent potential negative consequences for the environment, animal and human health.
4 For more detailed information about disposal of your old batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the product. (http://www.lg.com/global/sustainability/environment/take-back-recycling/global-network-europe)

Removal of waste batteries and accumulators

(Product with embedded battery ONLY)

-In case this product contains a battery incorporated within the product which cannot be readily removed by endusers, LG recommends that only qualified professionals remove the battery, either for replacement or for recycling at the end of this product's working life. To prevent damage to the product, and for their own safety, users should not

attempt to remove the battery and should contact LG Service Helpline, or other independent service providers for advice.

-Removal of the battery will involve dismantling of the product case, disconnection of the electrical cables/contacts, and careful extraction of the battery cell using specialized tools. If you need the instructions for qualified professionals on how to remove the battery safely, please visit http://www.lge.com/global/sustainability/environment/take-back-recycling.

- ČESKY

(http://www.lg.com/global/sustainability/environment/take-back-recycling/global-network-europe)

Nederigo bateriju un akumulatoru iznemšana

Disposal of your old appliance

1 This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.
2 Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.
3 You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www.lg.com/global/recycling

• ČESKY

www.lg.com/global/recycling

- HRVATSKI

Zbrinjavanje starog uređaja

1 Ovaj simbol prekrižene kante za smeće na kotačićima označava kako se otpadni električni i električni proizvodi (WEEE) moraju zbrinjavati odvojeno od komunalnog otpada.

~	Refers to alternating current (AC).
---	Refers to direct current (DC).
	Refers to class II equipment.
	Refers to stand-by.
	Refers to “ON” (power).
	Refers to dangerous voltage.

• ČESKY
