USER MANUAL 32LF6329 LG

OWNER'S MANUAL Safety and Reference

Please read this manual carefully before operating your set and retain it for future reference.

www/lg.com

P/NO:MFL68702212(1501-REV00)

Printed in Korea

Safety instructions

Please read these safety precautions carefully before using the product.

WARNING

Do not place the TV and/or remote control in the following environments:

produce heat

exposed to steam or oil

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust. This may cause a fire hazard.

Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

Insert power cable plug completely into wall socket otherwise if not secured completely into socket, fire ignition may break out.

Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.

Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock.

When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock / fire hazard.

Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.

Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries.

Do not insert any metal objects/conductors (like a metal chopstick/ cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)

Do not put or store inflammable substances near the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.

Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.

Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.

If any of the following occur, unplug the product immediately and contact your local service centre.

This may result in fire or electric shock.

Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.

If water or another substance enters the product (like a AC adapter, power cord, TV), disconnect the power cord and contact the service centre immediately. Otherwise, this may result in fire or electric shock.

Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Never Disassemble the AC adapter or power cord. This may result in fire or electric shock.

CAUTION

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery. This could cause damage to the remote control.

Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

Batteries should not be exposed to excessive heat. For example, keep away from direct Sunlight, open fireplace and electric heaters.

Do not place non-rechargeable batteries in charging device.

Make sure there are no objects between the remote control and its sensor.

Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

Please follow the installation instructions below to prevent the product from overheating.

than 10cm

bookshelf or in a cupboard).

Otherwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.

Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.

When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it, by pulling at the plug.

Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.

When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.

Contact the service centre once a year to clean the internal parts of the product.

Accumulated dust can cause mechanical failure.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with product.

The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

You may find different brightness and color of the panel depending on your viewing position(left/right/top/down).

This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

* LG LED TVs are LCD TVs with LED backlighting.

Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking.

Avoid displaying a fixed image on your television's screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma). Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

Generated sound

"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing:

A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

Do not use high voltage electrical goods near the TV(e.g. electric mosquito-swatter). This may result in product malfunction.

Viewing 3D imaging (Only 3D models)

WARNING

Viewing environment

• When watching 3D contents, take 5-15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness

when they are exposed to a flashing light or particular pattern from 3D contents.

have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc.

blindness or stereo anomaly. Double images or discomfort in viewing may be experienced.

astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.

eyesight prior to watching 3D contents.

Symptoms which require discontinuation or refraining from watching 3D contents

overwork or drinking.

contents and get enough rest until the symptom subsides.

• Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

CAUTION

Viewing environment

• Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV.

Viewing age

Usage! Viewing 3D contents for children under the age of 6 are prohibited.
Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D contents.

• Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than that of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.

• Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contents for a long time when they are tired.

• The elderly may perceive less 3D effect compared to the young. Do not sit closer to the TV than the recommended distance.

Cautions when using the 3D glasses

view 3D videos properly.

protective goggles.

distortion.

temperatures. It will cause deformation.

soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.

Preparing

NOTE

factory, initialization of the TV may take a few minutes.

shown in this manual.

or product model that you are using.

consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.

level of brightness of the picture is reduced, and this will reduce the overall running cost.

model.

without prior notice due to upgrade of product functions.

have bezels less than 10mm thick and 18mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

cable, the screen may not display or a connection error may occur. (Recommended HDMI Cable Types)
- High-Speed HDMI™ Cable
- High-Speed HDMI™ Cable with Ethernet

CAUTION

life span.

covered by the warranty.

must not be removed.

Separate purchase

Separate purchase items can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items. These devices only work with certain models.

The model name or design may be changed depending on the upgrade of product functions, manufacturer's circumstances or policies.

Depending on model)

AG-F*** Cinema 3D Glasses	AN-MR600 Magic Remote	AN-VC550 Smart Camera
AG-F***DP Dual Play Glasses	LG Audio Device

Maintenance

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

all other cables first.

disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

to the screen.

sharp object, as this may result in scratches and image distortions.

result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

that the TV originally came in.

all cables.

avoid damage.

hold the transparent part, speaker, or speaker grill area.

following illustration.

excessive vibration.

on its side or tilt towards the left or right.

chassis as it may damage screen.

joystick button.

CAUTION

to the screen.

holders may break, and injuries and damage to the TV may occur.

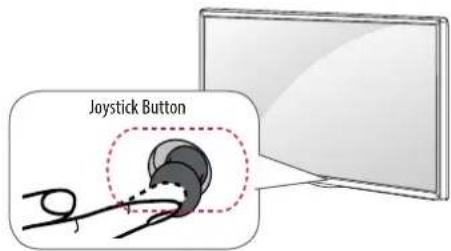

Using the joystick button

You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right.

Basic functions

	Power On	When the TV is turned off, place your finger on the joystick button and press it once and release it.
	Power Off	When the TV is turned on, place your finger on the joystick button and press it once for a few seconds and release it.
	Volume Control	If you place your finger over the joystick button and move it left or right, you can adjust the volume level you want.
	Programmes Control	If you place your finger over the joystick button and move it up or down, you can scrolls through the saved programmes you want.

Adjusting the menu

When the TV is turned on, press the joystick button one time. You can adjust the Menu items moving the joystick button up, down, left or right.

	Turns the power off.
×	Clears on-screen displays and returns to TV viewing.
	Changes the input source.
	Accesses the quick settings.

NOTE

down, left or right, be careful not to press the joystick button. If you press the joystick button first, you may not be able to adjust the volume level and saved programmes.

Mounting on a table

Depending on model)

1 Lift and tilt the TV into its upright position on a table.

ventilation.

2 Connect the power cord to a wall outlet.

CAUTION

fire or other damage.

Using the kensington security system

(This is not available for all models.)

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com. Connect the Kensington security system cable between the TV and a table.

Securing the TV to a wall

(This feature is not available for all models.)

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.

bolts first.

2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface.

CAUTION

NOTE

support the TV securely.

additional accessories from your local dealer.

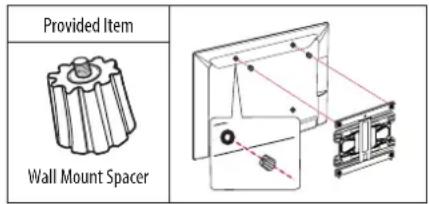

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG's wall mount bracket. When you do not use LG's wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall mounting bracket)

Model 32/40/43LF63**	49/55LF63**
VESA (A x B) 200 x 200	300 x 300
Standard screw M6 M6
Number of screws 44
Wall mount bracket	LSW240B	LSW350B
	MSW240	MSW240
Model 32LF65** 42/50/55LF65**
VESA (A x B) 200 x 200	400 x 400
Standard screw M6 M6
Number of screws 44
Wall mount bracket	LSW240B	LSW440B
	MSW240	MSW240

CAUTION

Otherwise electric shock may occur.

performing the stand attachment in reverse.

result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.

and void your warranty.

damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

specifications.

parts.

accessories from your local dealer.

Make sure to use the proper length.

mount.

Label. The Adhesive Label will protect the opening from accumulating dust and dirt. (Only when the item of the following form is provided)

mount spacers into the TV wall mount holes to adjust the vertical angle of the TV. (Only when the item of the following form is provided)

Connections (notifications)

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

TV port.

connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.

instructions.

with the gaming device.

vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.

depending on the graphics card.

Antenna connection

Connect the TV to a wall antenna socket with an RF cable (75Ω).

improve the image quality.

realign the antenna in the correct direction.

HE-AAC

Satellite dish connection

(Only satellite models)

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75Ω).

CI module connection

Depending on model)

View the encrypted (pay) services in digital TV mode.

NOTE

right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.

connected, please contact to the Terrestrial/Cable/Satellite Service Operator.

Euro scart connection

Depending on model)

Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable as shown.

Current Type	Output Type
	AV1 (TV Out')
Digital TV	Digital TV
Analogue TV, AV	Analogue TV
Component
HDMI

1 TV Out: Outputs Analogue TV or Digital TV signals.

can be output through the SCART cable. (Only 3D models)

signals cannot be output through the SCART cable. (Only 3D models)

Other connections

Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Some separate cable is not provided.

Remote control

Depending on model)

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and gods to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

CAUTION

control.

Make sure to point the remote control toward the remote control sensor on the TV.

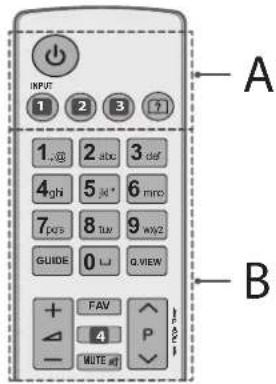

A

(POWER) Turns the TV on or off.
1 CHINRAT the input source. (Depending on model)
1-Change the input source. (Depending on model)
2.0. Menetings) Accesses the Quick Settings. (Depending on model)
2 SETTINGs the Quick Settings. (Depending on model)
□ RAMAN image. (Depending on model)
3 Inovat the information of the current programme and screen. (Depending on model)
2 (User Guide) Sees user-guide.

B

Number buttons Enters numbers.
GUIDE Shows programme guide.
(Space) Opens an empty space on the screen keyboard.
Q.VIEW Returns to the previously viewed programme.
+ - Adjusts the volume level.
FAV Accesses your favourite programme list.
4 Inovd the information of the current programme and screen. (Depending on model)
4 3Dsd for viewing 3D video. (Depending on model)
MUTE Mutes all sounds.
Scrol1s through the saved programmes.
PAGE Moves to the previous or next screen.

Magic remote functions

(Depending on model)

When the message "Magic remote battery is low. Change the battery." is displayed, replace the battery.

To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching the and ends to the label inside the compartment, and close the battery cover. Be sure to point the magic remote toward the remote control sensor on the TV. To remove the batteries, perform the installation actions in reverse.

CAUTION

control.

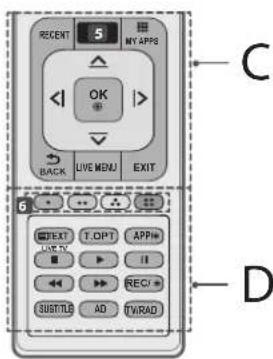

C

RECENT Shows the previous history.

5 (HOME) Accesses the Home menu. (Depending on model)
5 CmABTheHome menu.(Depending on model)
MY APPS Shows the list of Apps.

Navigation buttons (up/down/left/right) Scrolls through menus or options.

OK Selects menus or options and confirms your input.

BACK Returns to the previous level.

LIVE MENU Shows the list of Recommended, Programmes, Search and Recorded. (Depending on model)

EXIT Clears on-screen displays and returns to TV viewing.

D

6 Coloured buttons These access special functions in some menus.

Red:Green:Yellow,Blue

TELETEXT buttons TEXT T.OPT These buttons are used for teletext.

LIVE TV Returns to LIVE TV.

APP/* Selects the MHP TV menu source. (Only Italy) (Depending on model)

Control buttons Control theorem

contents, Time Machine ^e\&d or SmartShare menus or the SIMPLINK compatible devices (USB or SIMPLINK or Time Machine ^e\&d ).

REC* Starts to record and displays record menu. (Only Time Machine*supported model)

SUBTITLE Recalls your preferred subtitle in digital mode.

AD By Pressing AD button, audio descriptions function will be enabled.

TV/RAD Selects Radio, TV and DTV programme.

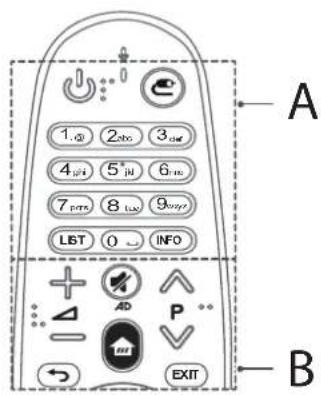

A

(POWER) Turns the TV on or off.

(INPUT) Changes the input source.

Number buttons Enters numbers.

LIST Accesses the saved programme list.

L(Space) Opens an empty space on the screen keyboard.

INFO Views the information of the current programme and screen.

B

+Adjusts the volume level.

APYsrolls through the saved programmes.

(MUTE) Mutes all sounds.

• By pressing and holding the button, audio descriptions function will be enabled. (Depending on model)

(HOME) Accesses the Home menu.

(BACK) Returns to the previous level.

EXIT Clears on-screen displays and return to TV viewing.

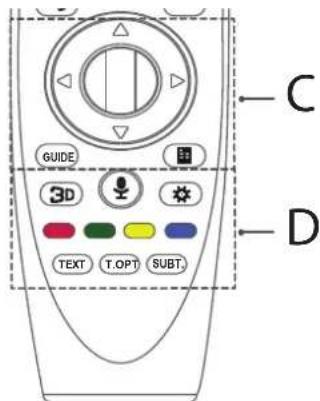

C

① Wheel (OK) Press the center of the Wheel button to select a menu. You can change programmes by using the wheel button.

(\triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle

Press the up, down, left or right button to scroll the menu.

If you press (\triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle \triangle

To display the pointer on the screen again, shake Magic Remote to the left and right.

GUIDE Shows programme guide.

Screen Remote) Displays the Screen Remote.

*Accesses the Universal Control Menu. (Depending on model)

D

3D Used for viewing 3D video. (Only 3D models)

Voice recognition)

Network connection is required to use the voice recognition function.

1. Press the voice recognition button.
2. Speak when the voice display window appears on the left of the TV screen.

slowly.

characteristics (voice, pronunciation, intonation, and speed) and the environment (noise and TV volume).

Q. Settings) Accesses the Quick Settings.

Coloured buttons These access special functions in some menus.

TELETEXT buttons(TEXT T.OPT These buttons are used for teletext.

SUBT. Recalls your preferred subtitle in digital mode.

Registering magic remote

How to register the magic remote

To use the Magic Remote, first pair it with your TV.

1 Put batteries into the Magic Remote and turn the TV on.
2 Point the Magic Remote at your TV and press the Wheel (OK) on
the remote control.
* If the TV fails to register the Magic Remote, try again after turning the TV off and back on.

How to deregister the magic remote

Press the BACK) and (HOME) buttons at the same time, for five seconds, to unpair the Magic Remote with your TV.
* Pressing and holding the EXIT button will let you cancel and re-register Magic Remote at once.

How to use magic remote

• Shake the Magic Remote slightly to the right and left or press (HOME), (INPUT), but it's up to make the pointer appear on the screen.
  (In some TV models, the pointer will appear when you turn the Wheel (OK) button.)
• If the pointer has not been used for a certain period of time or Magic Remote is placed on a flat surface, then the pointer will disappear.
• If the pointer is not responding smoothly, you can reset the pointer by moving it to the edge of the screen.
• The Magic Remote depletes batteries faster than a normal remote due to the additional features.

Precautions to take when using the magic remote

You may experience communication failures when using the device outside the coverage area or if there are obstacles within the coverage area.

accessories.

Devices such as a microwave oven and wireless LAN operate in the same frequency band (2.4 GHz) as the Magic Remote. This may cause communication failures.

is within 1 meter of the TV.

Your wireless router should be more than 1 m away from the TV.

Licenses

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

DOLBY. DIGITAL PLUS

HOMI

Open source software notice information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource. lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

Troubleshooting

Cannot control the TV with the remote control.

control.

to+to-.

No image display and no sound is produced.

products.

The TV turns off suddenly.

interrupted

Automatic Standby(Depending on model) / Sleep

Timer / Timer Power Off is activated in the TIMERS settings.

automatically after 15 minutes of inactivity.

When connecting to the PC (HDMI), 'No signal' or 'Invalid Format' is displayed.

Specifications

Wirelessmodule specification

Because band channel used by the country could be different, the user can not change or adjust the operating frequency and this product is set for the regional frequency table.
- This device should be installed and operated with minimum distance 20cm between the device and your body. And this phrase is for the general statement for consideration of user environment.

(Only LF63, LF65)

Wireless module (LGSBW41) Specification
Wireless LAN Bluetooth
Standard	IEEE 802.11a/b/g/n Standard	Bluetooth Version 4.0
Frequency Range	2400 to 2483.5 MHz5150 to 5250 MHz5725 to 5850 MHz (for Non EU)	Frequency Range	2400 to 2483.5 MHz
Output Power (Max.)	802.11a: 13 dBm802.11b: 15 dBm802.11g: 14 dBm802.11n - 2.4GHz: 16 dBm802.11n - 5GHz: 16 dBm	Output Power (Max.)	10 dBm or Lower

---

• -

BENUTZERHANDBUCH

conecte Others products.

La TV se apaga repentinamente.

PpoulaEicKaTaTnXphon yuaIwv 3D

aipolete npwta tic bidec.

2 TEpeWOTe ME TIC BIDc Ta unootnpiyata otov toiox. Eubuypauiote n th ean tnc emtoixac baonk kai twkipow avaptnong oTo niow npoc nTneAopaoNC.
3 SuVbTeKaToucKpIKoCavapTnOncKaiTa unootnpiyata Toixou eEvavBekTIKOkiVl.

BeBaeite ot to oxovi Bioketai oepovia eon npoc nV enineb enupaveia.

NPOEOXH

Kpeaotov anTnTnLepoan.

ZHMEIΩEH

Meyako KaovBekTKo yia Tnv oopAan tonoetonnTnc TLsopaocnC.

anokthoe emnloev aegouap ano tov tonko npouheut.

Enitoixia tooθεtnon

SUVBETE NPOAETKIA JNAPOAETIK ENITOIXIA BAOI OTNIPECOTIO NIEOPE TNC TNIAEOPAON KAI TONOBTHTOE TNY ENTIOIA BAON OTNIPECNEEAV OTEPEO ToX KOEBETA NPOC TO DANEO. AV THEVA TONOBETNEETNVT NTV TNIEPAON OE AALADOKUuLKA, ANEUBVBEITE OE EEEIDKEUVEPOPOWNIKO.

H LG ouviata tyn npayatonaoinon tnc enitioixac tonotheionc am o Eeidekeupevo enayylambda.

Sigmaatai npnnp nTc entoiaic baon otpienc nC LG.
Otav 6ev xpoionoiie Tnv entioia baoan otpnc nC LG,
xpoionoiie nE emoia baon otnpcn n OTOIA eITPenei tv
katalanl otepeaow nTc oukeucnt oTov toko kai apnevi EApkn Xopo
yia tn ovdeon eoWtepkow ouakeuw.

Xpnoonoeite Biede kai entoiiexc Baeic otpiene nov nnpov to npotuno VESA. O Kavovikc biataeic twk tntioiaoc otpiene nepipapovtaotovnapakawivaka.

Pnoaipetika eapntmuata (Enitoixia aon stnpiEnc)

Movéλo 32/40/43LF63** 49/55LF63**
VESA (A x B) 200 x 200	300 x 300
Kavovikni βδa M6 M6
Apθμός βιδων 4 4
Entroixia βαση	LSW240B	LSW350B
στήρεικε	MSW240	MSW240
Movéλo 32LF65** 42/50/55LF65**
VESA (A x B) 200 x 200	400 x 400
Kavovikni βδa M6 M6
Apθμός βιδων 4 4
Entroixia βαση	LSW240B	LSW440B
στήρεικε	MSW240	MSW240

\PPO\xOxH

mEATAKWATEN EYKATAOTNE TNY INLEOPaON, DIAAPOPETIKA, UNPXEN KIVDuvoc NkEePtonlAc.

OtnipEnc, apaipoeTn Baaekkewvtacavntopopa Ta nmuata tonoBtnc.

unapxie kivovoc va noei kai va npokaleoi oobapopaujatiog Xpnoonoiote jiauyekepuvi ENIOTIOXbaon tpiicn LC KAI EIKIOVWNTOE JI TOV TOnIOK AVTINPOOSNOH N E EIEIDKEVE Pnpoukwi.

Onytnleopaaan kai va akupomegai eyywnon.

Kavonoiov to npotuno VESA. Heyunon dev kaunnte cniuic n tpaunatouoc nou opelovtae kaikxpiion n otn xpon akataaawv eapntmuatow.

ZHMEIO2EH

SUVBETN TNIJA EOPUPOIKK KEPAI, MEAU HAO BOPUPOIKC UMOOCHI EDEPOUPPOIKKO AALDBIO (75Ω).

Σύνδεση μονάδας Κ

{Avloya to oovrEo}

Napakoouthe Kpountypaqnevec (ovbpoontikec) unnpoeic otn leitoupyia npiaaknc tnaeopaanc. Autn n laeioupyia dev eivai diaoetoune o dac Tixwpec.

EHMEIΩSH

PCMCAIE 出 TOWOTKATEOUBVON.AV DEVEXETONOTBEIOWOTA, mOpoei vnpokakaei Cnua OTNtE6paon KAI OTNV unooxni KapTAC PCMCA.

Cl+ CAM, EMKoovvnoTe eTov npoxo Kepaia/ Koawiaikw/
deltaopopikw unpeoiw.

Σύνδεοη Euro scart

{Avaoya to oovrElo}

Metadide ta ojmu t Eikovac kai niov ano mua Eeotepkioukeun otnv Tneopaon. Luvdeote tny eotepkioukeun kai tv neopaon me to kalwio Euro Scart, otwc qaivetan otnv napakatw ekova.

xnpouomoiovrtai yia to teletext.

LIVE TV Emptponon tN Aetoupyia LIVE TV.

APP/* EmoynTnc npoeAeuoc touevou MHP TV. (Movo yia Tnv laiia) (Avovaoya me tooovtelo)

KoumuiaeLeyoyou (Peyoyocoyou

Premium, tou Time Machine*nd twv meovu SmartShare nTwv oubetaow oovekuv SIMPLINK (USB n SIMPLINK n Time Machine*ndy).

REC/ExkivnnyevpapncknpoBnTouevoEvppa.（moTO voTeLo Time MachineBrdy)

SUBTITLE Enavaopopa Tuv unotitawou nou npotiate otivpsiakai kertoupyia.

AD Nataovracto koumi AD, evepyonoeitra n hertoupyia nepypapic nyou.

TV/RAD DuvatotnTa Emloync npoypaatoc padioowou, nIeopaan.DTV.

GUIDE Prikaze spored.

CI Module (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm
Environment condition	Operating Temperature	0 °C to 40 °C
	Operating Humidity Less than 80 %
	Storage Temperature -20 °C to 60 °C
	Storage Humidity Less than 85 %

	Digital TV Analogue TV
Television system	DVB-T/T2* DVB-C DVB-S*/S2*	PAL/SECAM B/G/I/D/K, SECAM L/L'
Programme coverage VHF, UHF, C-Band*, Ku-Band*		VHF: E2 to E12 UHF: E21 to E69 CATV: S1 to S20 HYPER: S21 to S47
Maximum number of storable programmes	6,000 1,500
External antenna impedance 75 Ω

*Only DVB-T2/C/S/S2 support models.

Regulatory

LG Recycling Policy (Only EU)

LG Electronics offers a customized e-waste take-back & recycling service that meets local needs and requirements in the countries where e-waste regulations are in place, and also provides product and packaging take-back & recycling service voluntarily in some countries. LG Electronics evaluates products' recyclability at the design step using LG's recyclability evaluation tool, with the goal of improving recyclability where practicable. Through these activities, LG seeks to contribute to conserving natural resources and protecting the environment.

For more information about the LG Recycling Policy, please visit our global site at http://www/lg.com/global/sustainability/environment/take-back-recycling

Energy Saving

Energy efficiency cuts energy consumption and thus saves money by reducing electricity bills. The following indications allow to reduce power consumption when the television is not being watched:

television is not being used for a long time, e.g. when on holiday,

Disposal of waste batteries (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste.

By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only.

To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local authority, your household waste disposal service or the shop where you purchased the product.

Isolator (Only Sweden, Norway)

a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)"

vissa fall medforarisk for brand.

Better for the environment...

... better for you.

EU Ecolabel:PL/22/004

LGE announced the 'LG Declaration for a Cleaner Environment' in 1994, and this ideal has served as a Guiding managerial principle ever since. The Declaration is a foundation that has allowed us to undertake environmentally friendly activities in careful consideration of economic, environmental, and social aspects. We promote activities for environmental preservation, and we specifically develop our products to embrace the Concept of environment- friendly through whole process from getting raw materials, production, transportation, usage and end-of-life. These environmental characteristics are endorsed by the award of the European Commission as approval of the product environmental status for energy saving. Facilities for recycling and a host of other features.

The full list of criteria and more information on the eco label can be found at the web-site address : http://www.ecolabel.eu

Restriction of Hazardous Substances (Only Ukraine) O6mexeHHa KpaHn Ha HaeBHicTb He6e3neHnx peoBHN

electrical and electronic equipment.

eNeKtpOnHmOy oBlaHaHnHi.

Packing Information (Only Russia, Kazakhstan, Belarus)

Pycckn

CMMBOI《HeIINUEBOINpOdyKUIMNIPMMEHETCBCOOTBCTBNECTXHHUECKHMPERNAHEMTOAMOXEHHOROco3A0630NAACHOYnAKOBKM005/2011YNk3blyaeHaTo,TOyynAKOBKaDaHHORIOPOyKTHepeDHA3HaeHaIINOBtPHOrIOcNOB3OBAHmNIOJNEKMT yTHIN3aUM. YnAKOBKY DaHHORIO pOdyKTzAnPeeAeTcNcNb3OBAtBnIxApaEHnIINUEBOINpOdyKUIM

Ka3aKawa

CmBON Keendnok OndkHb005/2011 TexnKanbIpe rarnentHe cKeck KOnDaHbnaDbXe He OcbEhIMHi KaTAMacBH EkiHpi Pet naDanahyra apnAmaraHbH XeHe XoHa JxataBbHkepcTeDi. Ocb EHMHI KaTAMacBH a3bK-TyNik EHmepi CakTay yHn naDanahyf TaBbIM caJIbHaDbI.

Pycckn

CMMBOI NNTRA M6myca yka3bMaet ha BO3MOXHOCTb yTmH3aunn ynakOBKn. CMMBOI MOKET 6bTb DOnonHeN 0603HaueHMe MaTePmAna ypaOKBKN B INe UPOBOrO m/nn 6yKBHeHOrO 0603HaueHn.

Ka3aKawa

CmBON KANTAMHbI XIO MymKINdRiH KepcTeedi.CmBON caHdbIK KOJ XaHE/Hemece apin 6nirinepi TyipDi eri KaNTAM MaTepMaNbIHbH BnEriCIMeH TObnkTbipbly MyMKH.

LG

Life's Good

Please contact LG First.

If you have any inquiries or comments,

please contact LG customer information centre.

LG Customer Information Centre
Country	LGService	Country	LG Service
Österreich	0810 144 131	Nederland	0900 543 5454
Belgien 015	200 255 Norge 800	187 40
Luxembourg	0032 15 200255	Polska 801 54	54 54
Бulgaria	07001 54 54 Portugal	808 78 5	1 54
Česka Rep.	810 555 810 Romania	031 228	3542
Danmark 80	88 5758 Slovensko	0850 111 154
Suomi 0800	054 54 España 96	3 05 05 00
France	3220 dits LG au lappa S	Sverige	0770 54 54 54
Deutschland	01806 11 54 11 (0,20E pro Annu aus dem Festnetz der DTAG Mobilfunk max. 0,60C pro Annu.)	Schweiz	0848 543 543
Ελλάσα	801 11 200 900, 210 4800 564	United Kingdom	0344 847 5454
		Rocsnja	8 800 200 7676
Magyarország	06 40 54 54 54	Eesti	800 9990
Eire	01 686 9454	Уkraine	0 800 303 000
Italia	199600099	Казахстан	8 8000 805 805, 2255(GSM)
Беларcsy	8 820 0071 1111
Latvia 8020	0201	УзEKINSTAN	8 800 120 2222
Lietuva	880008081	Кырьліstан	8 0000 710 005
Türkije	444 6 543

Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

Digital Video Broadcasting

www.lg.com
