Cyclonic Vision Airfryer 182270 - Deep fryer PRINCESS - Free user manual and instructions

USER MANUAL Cyclonic Vision Airfryer 182270 PRINCESS

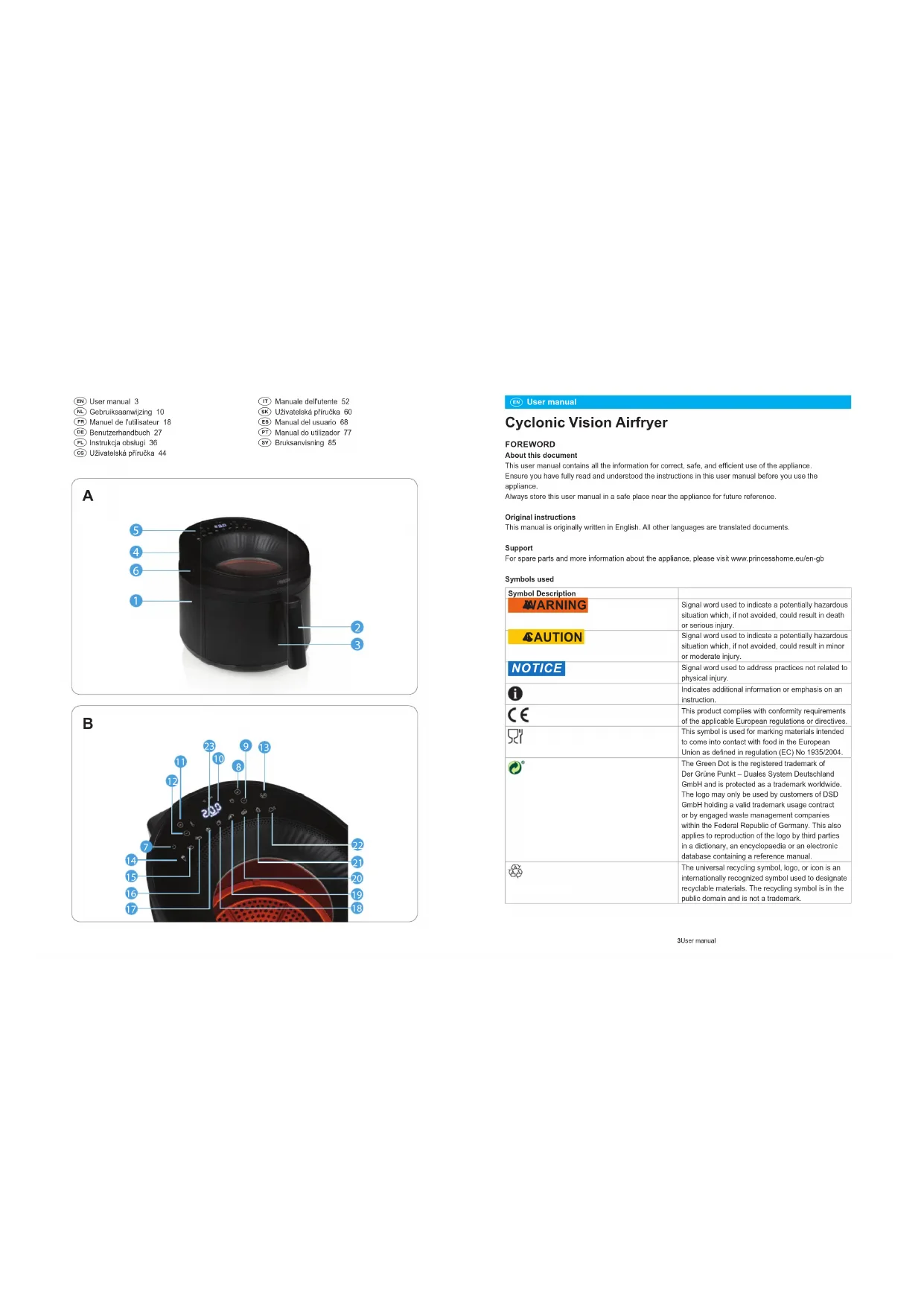

User manual Cyclonic Vision Airfryer FOREWORDAbout this documentThis user manual contains all the information for correct, safe, and efficient use of the appliance.Ensure you have fully read and understood the instructions in this user manual before you use the appliance.Always store this user manual in a safe place near the appliance for future reference.Original instructionsThis manual is originally written in English. All other languages are translated documents.SupportFor spare parts and more information about the appliance, please visit www.princesshome.eu/en-gbSymbols usedSymbol Description 6 WARNING Signal word used to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury. 6 CAUTION Signal word used to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Signal word used to address practices not related to physical injury.Indicates additional information or emphasis on an instruction.This product complies with conformity requirements of the applicable European regulations or directives.This symbol is used for marking materials intended to come into contact with food in the European Union as dened in regulation (EC) No 1935/2004.The Green Dot is the registered trademark of Der Grüne Punkt – Duales System Deutschland GmbH and is protected as a trademark worldwide. The logo may only be used by customers of DSD GmbH holding a valid trademark usage contract or by engaged waste management companies within the Federal Republic of Germany. This also applies to reproduction of the logo by third parties in a dictionary, an encyclopaedia or an electronic database containing a reference manual.The universal recycling symbol, logo, or icon is an internationally recognized symbol used to designate recyclable materials. The recycling symbol is in the public domain and is not a trademark.4 5© Princess 2023 | Cyclonic Vision Airfryer | 01.182270.01.001 User manual Applicable in France: The product or packaging can be recycled and components must be disposed of separately. Follow the local regulations. Applicable in Italy: The product or packaging can be recycled and components must be disposed of separately. Follow the local regulations. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling advice. APPLIANCE DESCRIPTION About this appliance The Princess 01.182270.01.001 is an air fryer for grilling, baking, and roasting food using hot air without the use of oil. Intended use This appliance is intended for indoor use only. This appliance is intended exclusively for domestic, non-commercial use. This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels, and other residential type environments; - bed and breakfast type environments. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised. The appliance is not intended to be operated by means of an external timer or a separate remote-control system. Any use of the appliance other than described in this user manual is regarded as misuse and may cause injury or damage to the appliance and void the warranty. Technical specications Appliance name Digital Aerofryer Article number 01.182270.01.001 Power supply 220 – 240 V~ 50/60Hz Power consumption in use 1500 W Main parts (see image A)

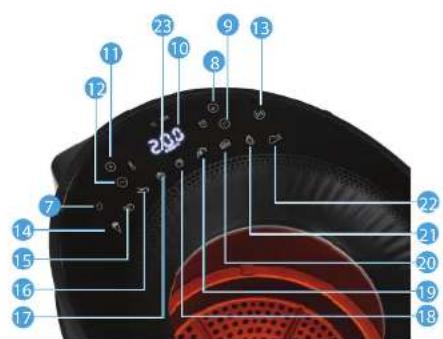

Air outlet Control panel (see image B)

Shake indicator SAFETY Safety symbols Symbol Description Indication for a hot surface. Contact may cause burns. Do not touch. Safety precautions

WARNING Safety hazard due to unintended use:

• Only use the appliance as described in this user manual.

• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.

• Never use the appliance if there are visible signs of damage or defects. Always replace a damaged or defective appliance immediately.

• Never make any adjustments to the appliance. Adjustments may affect safety, warranty and proper operation. Electric shock hazard due to short-circuiting:

• Never use the appliance if there are visible signs of damage or defects to the appliance or power cable. Always replace a damaged or defective appliance or power cable immediately or contact customer service.

• Always avoid spillage on the power cable.

• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.

• Never open the appliance. The appliance may only be6 7© Princess 2023 | Cyclonic Vision Airfryer | 01.182270.01.001 User manual opened for maintenance by an authorised technician.

• Never replace the power cable yourself. Always let the manufacturer, its service agent or a similarly qualified person replace the power cable.

• Never lift the appliance by the power cable. Lifting the appliance by the power cable may damage the power cable. Only lift the appliance by holding the base.

• Always unplug the power cable when the appliance is not in use or unattended, and before cleaning.

• Always check if the voltage stated on the type plate of your appliance matches your mains voltage before use.

• Never insert any objects into the air vent openings.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Never move the appliance by pulling the cord and make sure the cord cannot become entangled. Fire hazard due to overheating:

• Never leave the appliance unattended when in use. Only use the appliance under supervision. Switch off the appliance and remove the power cable from the power outlet when you leave the room.

• Never use the appliance with a programmer, timer, separate remote control system or any other device that switches the appliance on automatically.

• Never place the appliance directly underneath a power outlet. The appliance may become hot during use. Always keep the back of the appliance clear of any objects.

• In order to prevent disruptions of the airflow do not put anything on top of the appliance and make sure there is always 10 centimeter of free space around the appliance.

• Never place the appliance near a heat source.

• Never fill the pan with oil. Fire hazard due to short-circuiting:

• Never drop the appliance and avoid bumping. Excessive vibrations can lead to loosened connections and can influence proper functioning of the appliance. Stop using the appliance if the appliance has been dropped.

• Never use the appliance with an extension cable.

• Never connect any other appliance with high power consumption to the same group. Fire hazard due to burnt food:

• Always clean all parts that come into contact with food after use.

• Never exceed the maximum level indicated on the inside of the pan to avoid contact with the heating element. Burning hazard due to hot liquids:

• Never use the appliance on recreational vehicles or boats. Hot liquid may spill out of the appliance.

• Always ensure the basket is fully closed. Hot liquid may splatter out of the appliance.

• Never move the appliance during use. Hot liquid may spill out of the appliance. Choking hazard due to plastic packaging:

• Never let children play with the packaging material. Always keep the packaging material out of the reach of children.

CAUTION Burning hazard due to heat:

• Children should be supervised to ensure that they do not play with the appliance.

• Never touch the hot surfaces during or shortly after use. The hot surfaces may be subject to residual heat. Let the appliance cool down completely before handling the appliance. Tripping hazard due to loose cables:

• Never leave the power cable hanging out in a way that someone might trip over it or accidentally pull it. NOTICE Risk of damaging the appliance:

• The appliance must be placed on a stable, level surface.

• Never use aggressive chemical cleaning agents that can damage the appliance when cleaning the appliance.

• Only use the appliance with the provided accessories or accessories recommended by Princess.

• Never fill the pan above the maximum capacity marking to8 9© Princess 2023 | Cyclonic Vision Airfryer | 01.182270.01.001 User manual prevent overflowing.

• Never place the appliance near the edge of a countertop during use. Vibrations may occur during use which may cause the appliance to move. Always place the appliance on a stable, flat, heat, and moisture resistant surface.

• Never use metal utensils to remove food from the pan. Metal utensils may damage the non-stick coating.

1. Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the

2. Wipe the inside and outside of the appliance with a moist cloth.

3. Place the appliance on a stable, horizontal and level surface, do not place the appliance on non-heat-

4. When the device is turned on for the first time, a slight odour will occur. This is normal, ensure adequate

ventilation. This fragrance is only temporary and will disappear soon. USE Using the appliance

• Put the main plug in an earthed wall socket.

• Put the ingredients into the basket A

• Select a program or manually adjust the desired temperature and time of cooking.

• The appliance features an automatic shake reminder when ingredients need shaking during the cooking process. This feature ensures optimal results by prompting timely intervention, ensuring thorough mixing and even cooking.

• When you hear the timer beep, the set preparation time has elapsed. The device will shut off after 20 seconds. Pull the basket A

out of the appliance and place it on a heat-resistant surface.

• Check if the ingredients are ready. If the ingredients are not ready yet, simply slide the pan back into the appliance and set the timer to a few extra minutes.

• The appliance features a memory function that will remember the last-used function within 2 hours of being powered off. MANUAL SETTING:

to decrease the temperature.

to increase the temperature.

• The temperature can be set between 80°C and 200°C.

icon to set the desired cooking time. The time will increase or decrease in 5-minute increments.

• The timer can be set between 1 and 60 minutes.

• Note: It is not necessary to preheat the device. PROGRAM SETTING:

• Activate the desired program by touching the program symbol B

, it’s activated when the symbol starts flashing.

• See for presetting information the table below: Program Icon Default temperature/time Airfryer fries 200°C / 20 minutes Chicken 180°C / 25 minutes Roast 180°C / 15 minutes Bake 160°C / 40 minutes Shellsh 180°C / 12 minutes Meat 180°C / 15 minutes Vegetables 180°C / 10 minutes Fish 200°C / 20 minutes After the cooking time has elapsed, the appliance will beep 2 times before it switches off automatically. The fan will continue running for about 30 seconds to cool down the unit. SHAKE FUNCTION When a program is halfway, the appliance will show the shake reminder icon.

2. Shake the basket a few times. Be careful to not shake too hard so that the hot ingredients will not fall

4. For the Fries program B

, the device will suggest to shake the fries every 5 minutes. Tips

• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you've added the oil.

• Do not prepare extremely greasy ingredients such as sausages in the air fryer.

• Place the baking tin in the basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients.

• You can also use the air fryer to reheat ingredients. To reheat ingredients, set the temperature to 150°C for up to 10 minutes.

CLEANING AND MAINTENANCE

Clean the appliance after each use.

1. Unplug the power cable from the power outlet.

2. Let the appliance cool down.

3. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the appliance.

4. Wash the basket and grill with hot water, detergent and a non-abrasive sponge. You can use a degreaser

to wash away any remaining dirt.

5. Clean the inside of the product with hot water and a non-abrasive sponge.

6. Dry all parts with a soft, dry cloth.

does not light up. The power cable is not properly connected to a working power outlet. Plug the power cable into a working power outlet. The appliance is switched off. Press the on/off button B

switch on the appliance. The food got burned. The food is left in the appliance after the cooking time is done. Immediately remove the food from the appliance when the cooking time is done. The food is not crispy. The food is not evenly spread out. Cook the food according to the instructions on the packaging of the food. The temperature is set too low. E1 The temperature sensor is malfunctioning Unplug the appliance and wait for 30 minutes. If you still get the E-code, please contact customer service. E2 The temperature sensor short- circuited and has to get repaired. Unplug the appliance and wait for 30 minutes. If you still get the E-code, please contact customer service. DISPOSAL Follow the local regulations when you need to dispose the appliance. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources.

4. When the device is turned on for the first time, a slight odour will occur. This is normal, ensure adequate
