USER MANUAL Starck 700339000000090 Duravit

Installation instructions

Tiled bathtub (alcove, corner, back-to-wall)

Notice de montage

Baignoir, carrelée (alcove, coin, contre-cloison)

About these instructions

The installation instructions come as part of the Duravit product and must be read carefully prior to installation.

Target readership and qualifications

This is a professional grade product. A working knowledge of construction techniques and code compliant plumbing installation are required for proper installation and user satisfaction. We recommend the product be installed by a licensed plumber.

Explanation of the key words and symbols

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

NOTICE

Is used to address practices not related to physical injury.

Inspection (e.g. for scratches)

Inspect for leaks and that all connections have a watertight seal

Indication of the length of time (e.g. 10 minutes)

Action required

Safety instructions

Product and/or property damage

The breach of local and country-specific regulations and standards can cause damage to the product and/or property damage.

Observe the local installation regulations and any country-specific standards at all times.

Prior to the installation

Please read the specifications sheets prior to the installation. Specification sheets are available for download at pro.duravit.us.

Products are in compliance with the following codes:

Uniform Plumbing Code (UPC)
National Plumbing Code of Canada

Products are in compliance with the following standards:

CSAB45.5-17/IAPMOZ124-2017

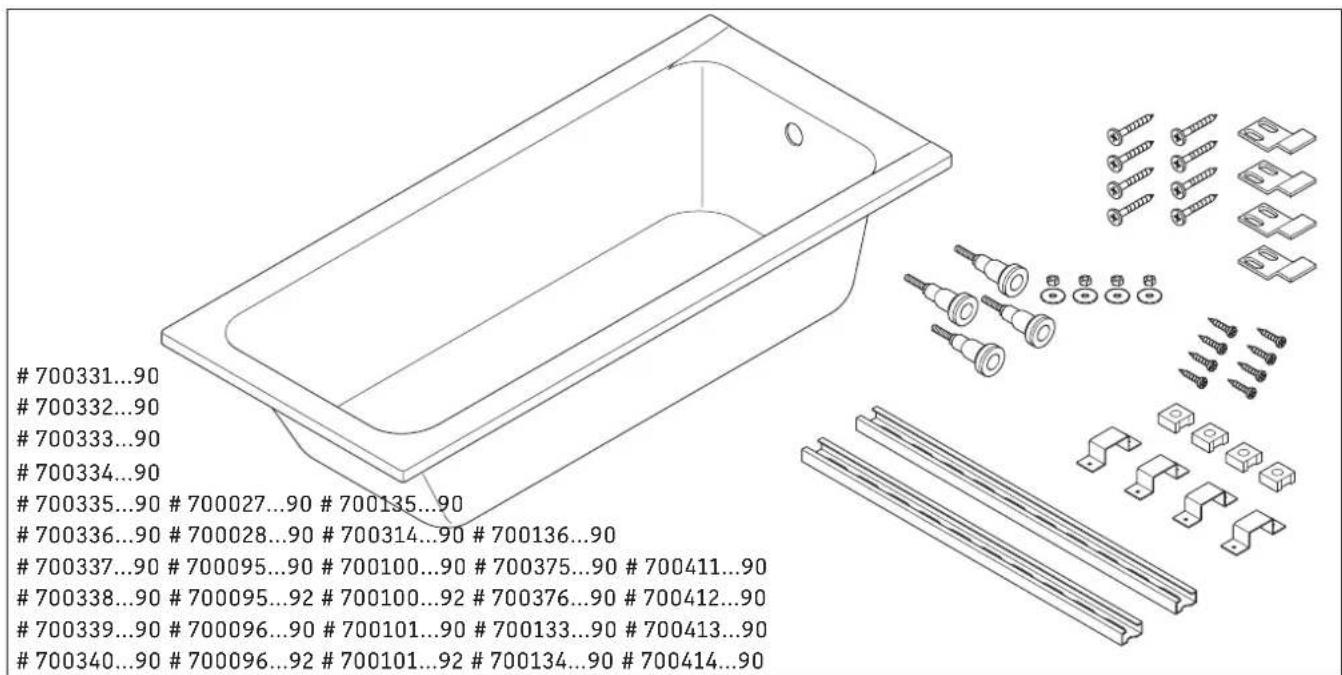

Optional accessories (not included)

791224

791212

790252

790220

790219

791264

791255

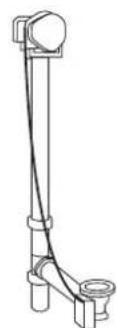

790250

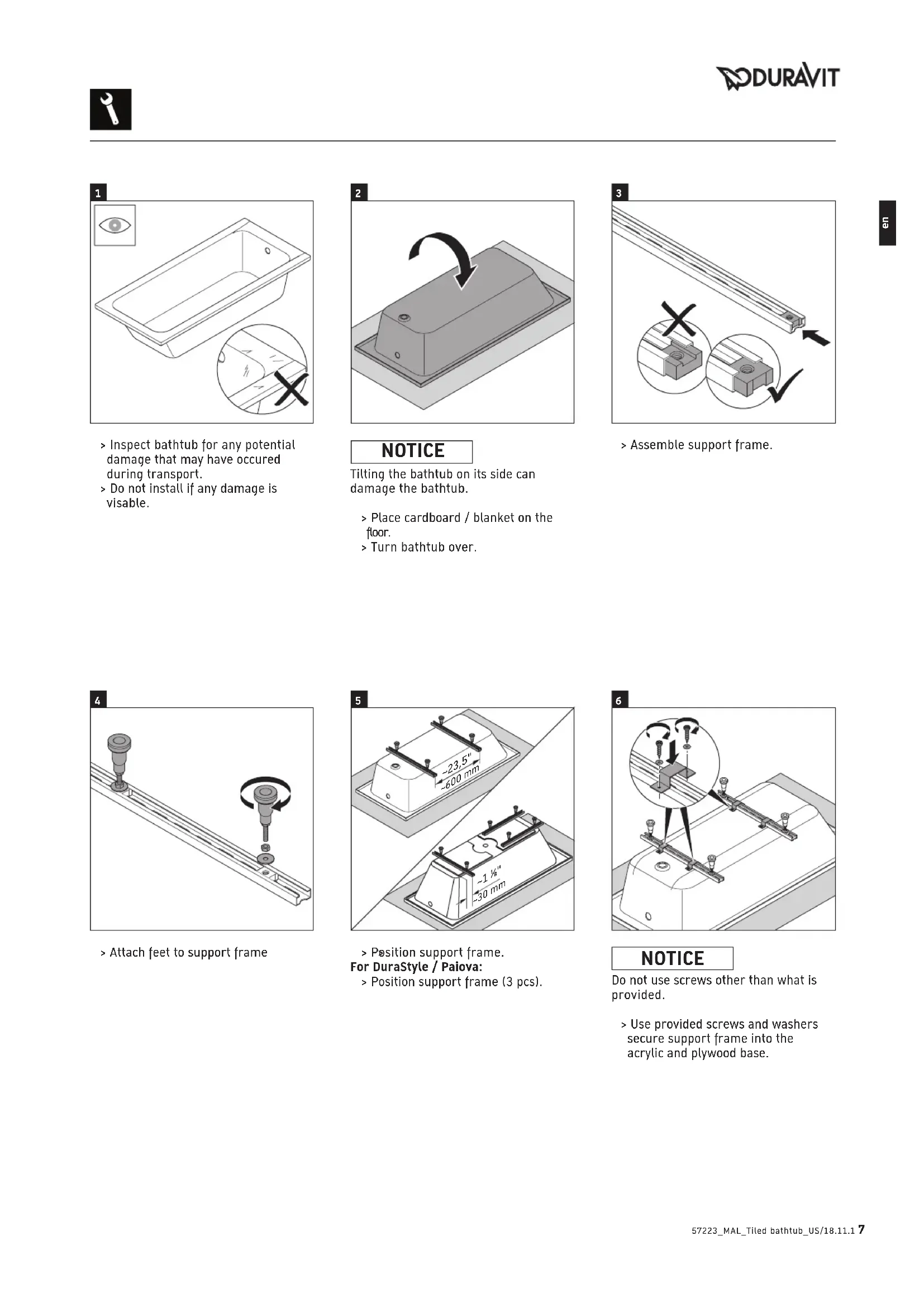

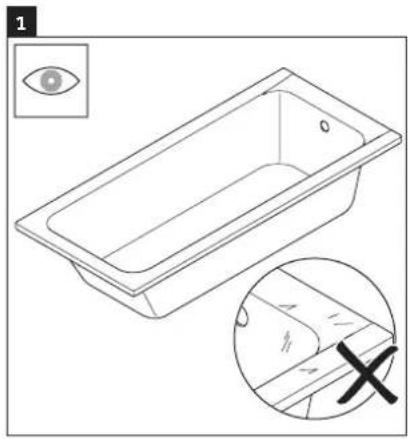

Inspect bathtub for any potential damage that may have occurred during transport.
Do not install if any damage is visible.

NOTICE

Tilting the bathtub on its side can damage the bathtub.

Place cardboard / blanket on the floor.

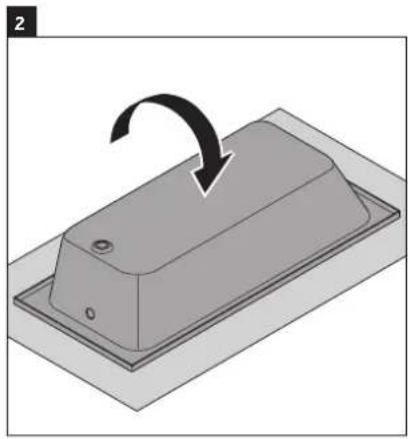

Turn bathtub over.

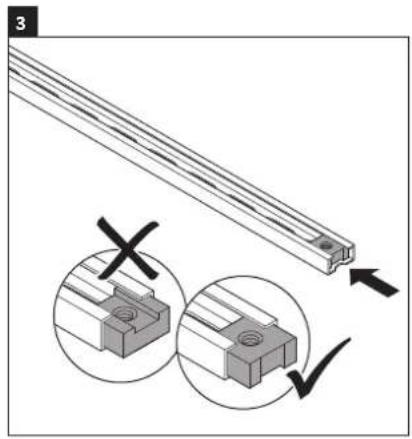

Assemble support frame.

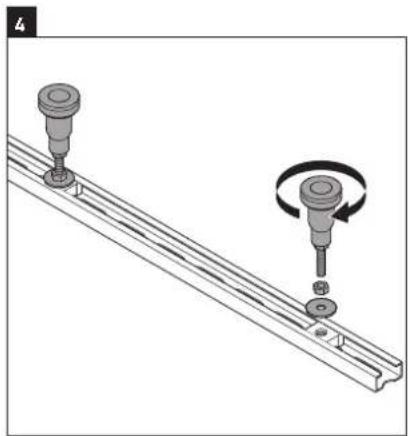

Attach feet to support frame

Position support frame.

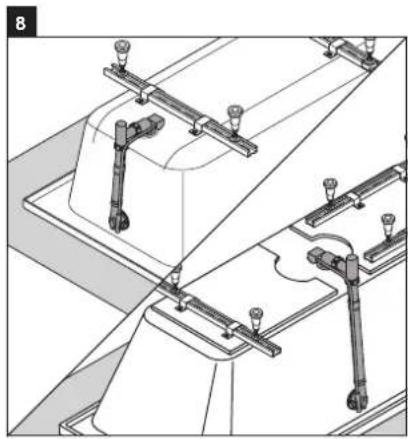

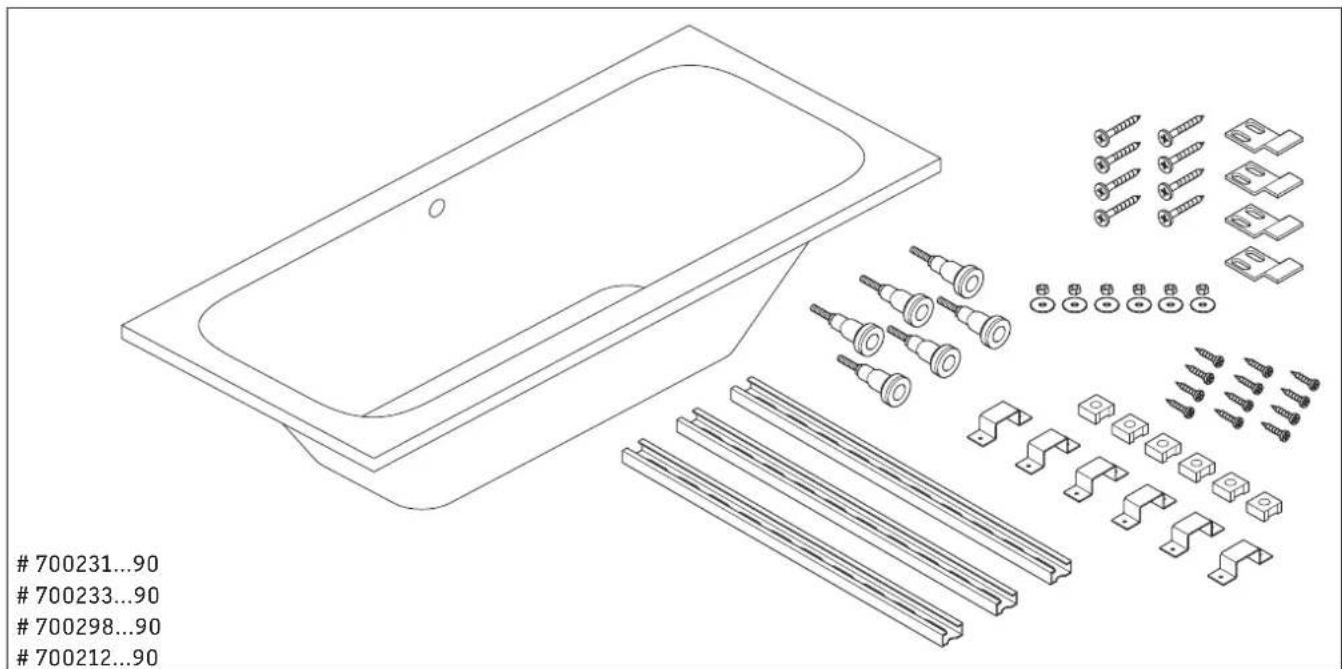

For DuraStyle / Paiova:
Position support frame (3 pcs).

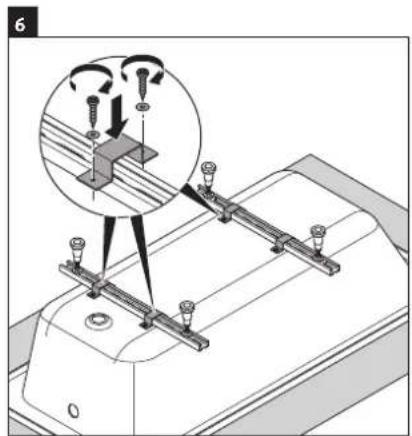

NOTICE Do not use screws other than what is provided.

Use provided screws and washers secure support frame into the acrylic and plywood base.

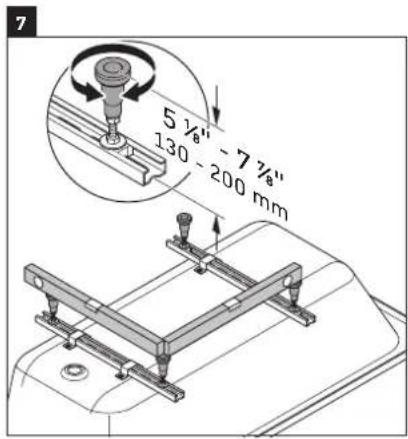

Level feet before setting the bathtub.

Connect waste and overflow (not included).

Place the bathtub on its feet.
Make sure the bathtub is level.
Adjust feet if necessary.

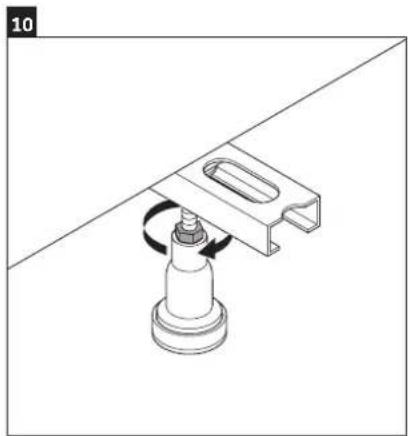

Tighten the lock nut to secure feet.

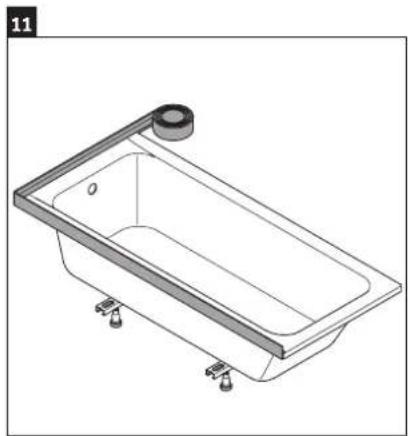

Attach tile flange (not included).

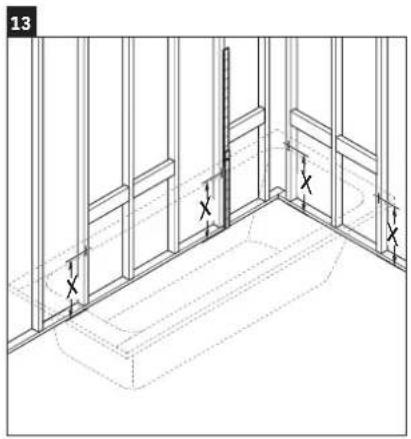

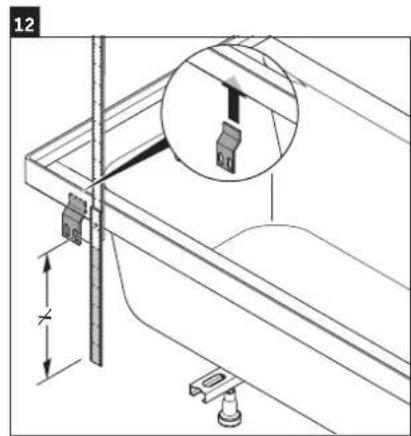

Measure height for brackets.

Mark the holes for the brackets on the wall frame.

WARNING

Fatal injury by electric shock! Contact with electrical wiring can lead to electrical shock.

Make sure that there are no electrical wires or heating running under wall or floor which could be affected by the installation.

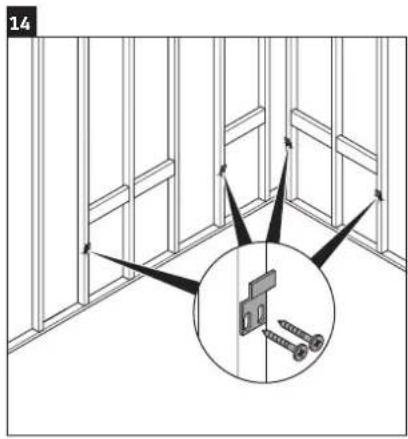

Affix 4 brackets to the wall frame for side support of the bathtub.

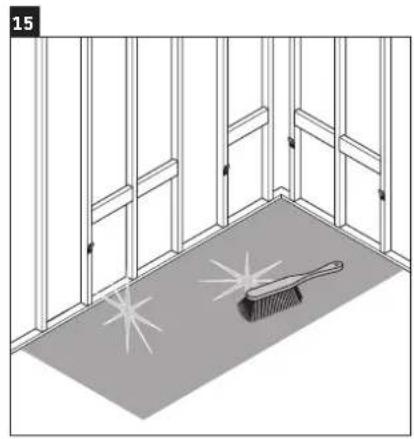

Clean area under bathtub.

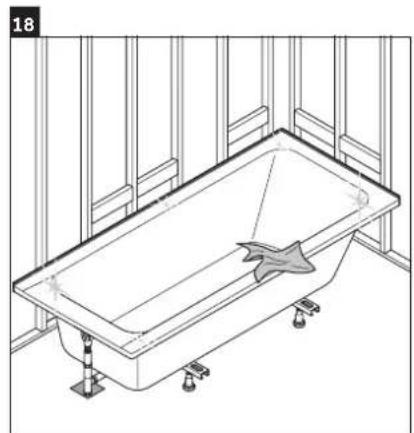

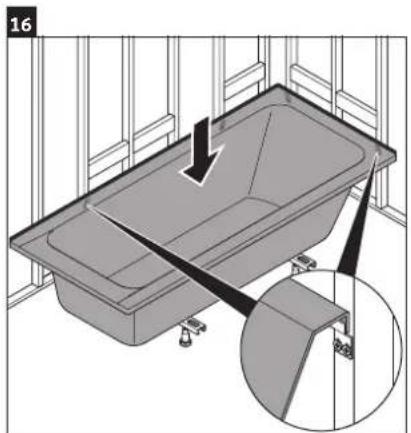

Set bathtub into designated frame area.

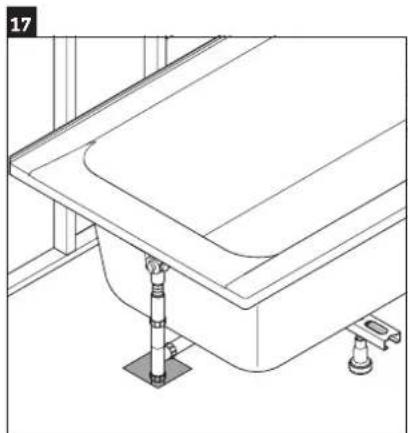

Secure bathtub by setting it onto the wall brackets.

Connect waste and overflow to the drain system.

Clean the bathtub.

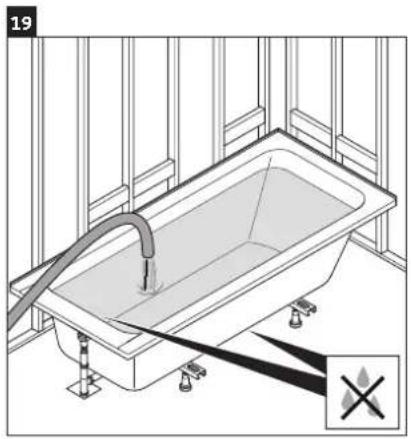

Fill the bathtub with water.
Inspect for potential leaks.

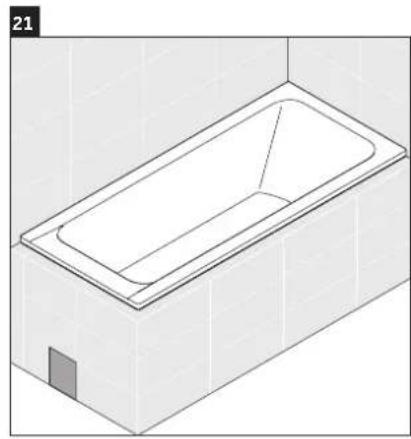

Finish wall and tiles.

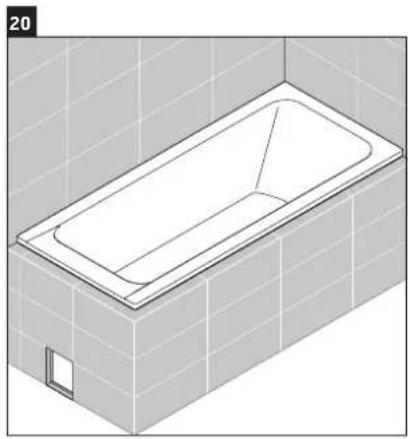

Provide access panel 7% × 7% in (200 × 200 ~mm) in the area of the drain and overflow.

Close access panel.
Seal to avoid spray water.
Open only with a tool.

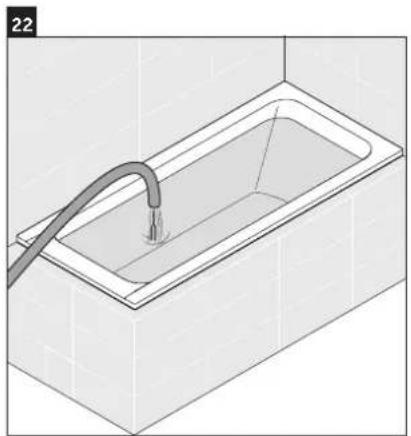

Fill the bathtub with water.

NOTICE

Silicone with acetic acid can damage the bathtub.

Use alkoxy based silicone.

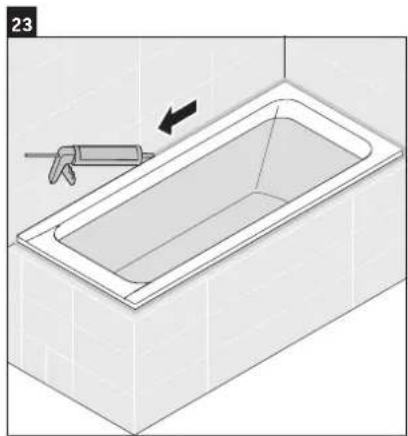

Apply silicone as needed.

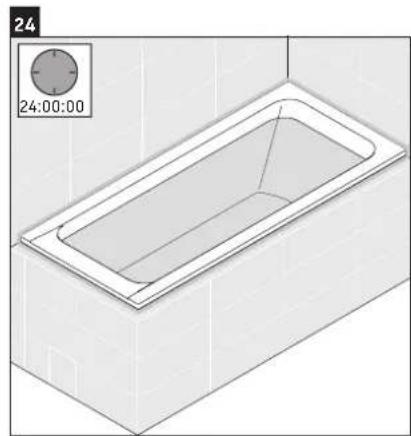

Let it sit for 24 h before draining.
