Product Type	Fireproof safe with water protection
Brand	Master Lock
Model	STW082GTCML
Lock Type	Electronic with numeric keypad and backup key lock
Power Supply	4 AAA alkaline batteries (not included)
Fire Protection	2 hours at 1010°C (UL standard)
Water Protection	24 hours in 20 cm of water (ETL certified)
Number of Codes	1 permanent factory code + 2 programmable user codes
Light Function	Interior LED with adjustable duration (off, 30s, 60s)
Sound Function	Enable/disable tones
Bolting	Floor bolting kit included (screws, washers, anchors)
Manual Pages	48 pages (French, English, Spanish)
Customer Service	1-800-828-1438
Warranty	Limited lifetime warranty after online registration within 30 days
Security	Delayed mode after 3 incorrect attempts
Material	High strength steel
Handle	Unlocking handle with forced entry protection mechanism

Frequently Asked Questions - STW082GTCML Master Lock

How to open the safe with the factory code?

Enter the 5-digit code found on the back of the owner's manual. A green light indicates the code is correct, then turn the handle down within 4 seconds.

What if I forget my user code?

Use the factory code which cannot be deleted. To reset, reprogram the user code.

How to program a personal user code?

Press the 'P' key, enter the factory code, then enter your new 5-digit code within 5 seconds.

Why does the red light flash 3 times?

This means you entered an incorrect code. Check and try again. If the user code does not work, use the factory code.

What to do if locked out after 3 wrong codes?

The safe enters delayed mode for 2 minutes. Wait and do not remove the batteries, as this would extend the wait.

How to change the batteries?

Slide open the battery drawer on the side of the numeric keypad. Insert 4 new AAA alkaline batteries, then close.

How to enable or disable keypad beeps?

To enable, press 0, then P, then 1. To disable, press 0, P, then 2.

How to adjust the interior light duration?

Press 0, then P. To turn off, press 3; for 30s, press 4; for 60s, press 5.

Is the safe water resistant?

Yes, it is certified to withstand water for 24 hours up to 20 cm.

How to bolt the safe to the floor?

Use the included kit. Drill holes in the feet only, then secure with lag screws. Do not drill through walls or the back.

USER MANUAL STW082GTCML Master Lock

If you experience any problems or challenges with your safe, please contact us. Many issues can be resolved quickly.

IMPORTANT

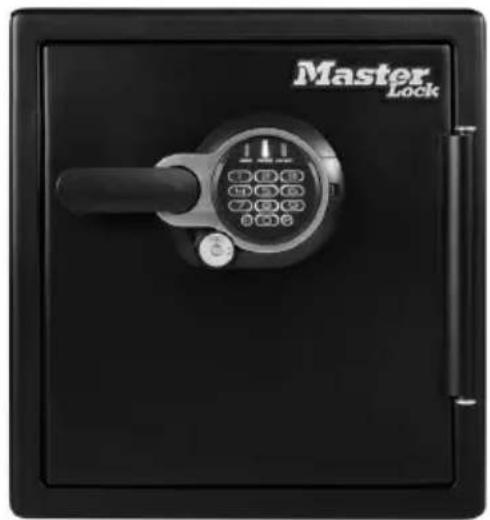

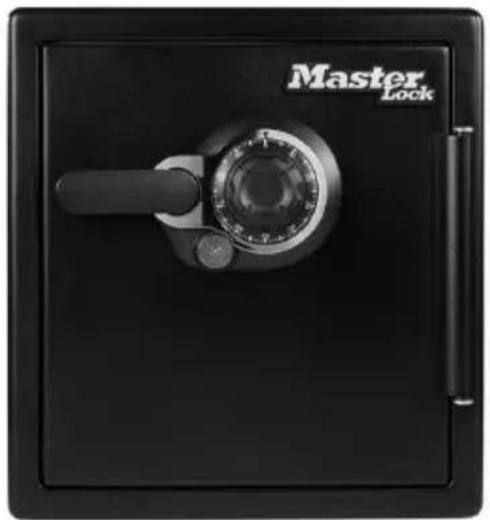

2 Hour Fire-Safe® Owner's Manual

WARNING

Gun warning

This product is not intended for the secure storage of all materials. Items such as firearms, other weapons, combustible materials, or medication should NOT be stored in this unit.

NOTICE

Do NOT store delicate items directly in your safe.

Master Lock products which offer fire protection have a proprietary insulation that has a high moisture content. In addition, the Master Lock advanced safes close airtight to offer water resistance, which may also cause moisture to accumulate inside your safe. The desiccant packet included in your safe during shipment should be left in your safe. DO NOT DISCARD IT. It is intended to help absorb moisture which may accumulate inside your safe. Please open your unit once every two weeks to avoid moisture accumulation.

If you choose to store delicate items such as jewelry with working parts, watches, stamps, or photos in your safe, we recommend putting them in an air-tight container, prior to placing them in the safe for storage.

NOTE: Master Lock will not be responsible for any damage or loss of items placed in the unit due to moisture.

Do NOT store pearls in this safe.

In the event of a fire, potential damage to delicate pearls occurs at temperatures much lower than the 350^ interior performance measure which the UL classification performance standard indicated guarantees. Therefore, DO NOT store pearls in your Master Lock product.

Do NOT store computer disks, audio-visual cassettes or photo negatives.

This product is not intended to protect computer floppy or diskettes, cartridges and tapes, audio or video cassettes or photo negatives.

Your safe is only part of your total security protection.

Master Lock recommends that you store your safe in closets, offices, basements, bedrooms and any other locations that are convenient for you but out of direct line of sight from prying eyes. The location of the safe does not affect the safe's ability to protect your valuables inside.

Table of Contents

English

Warnings 2
Registration 3

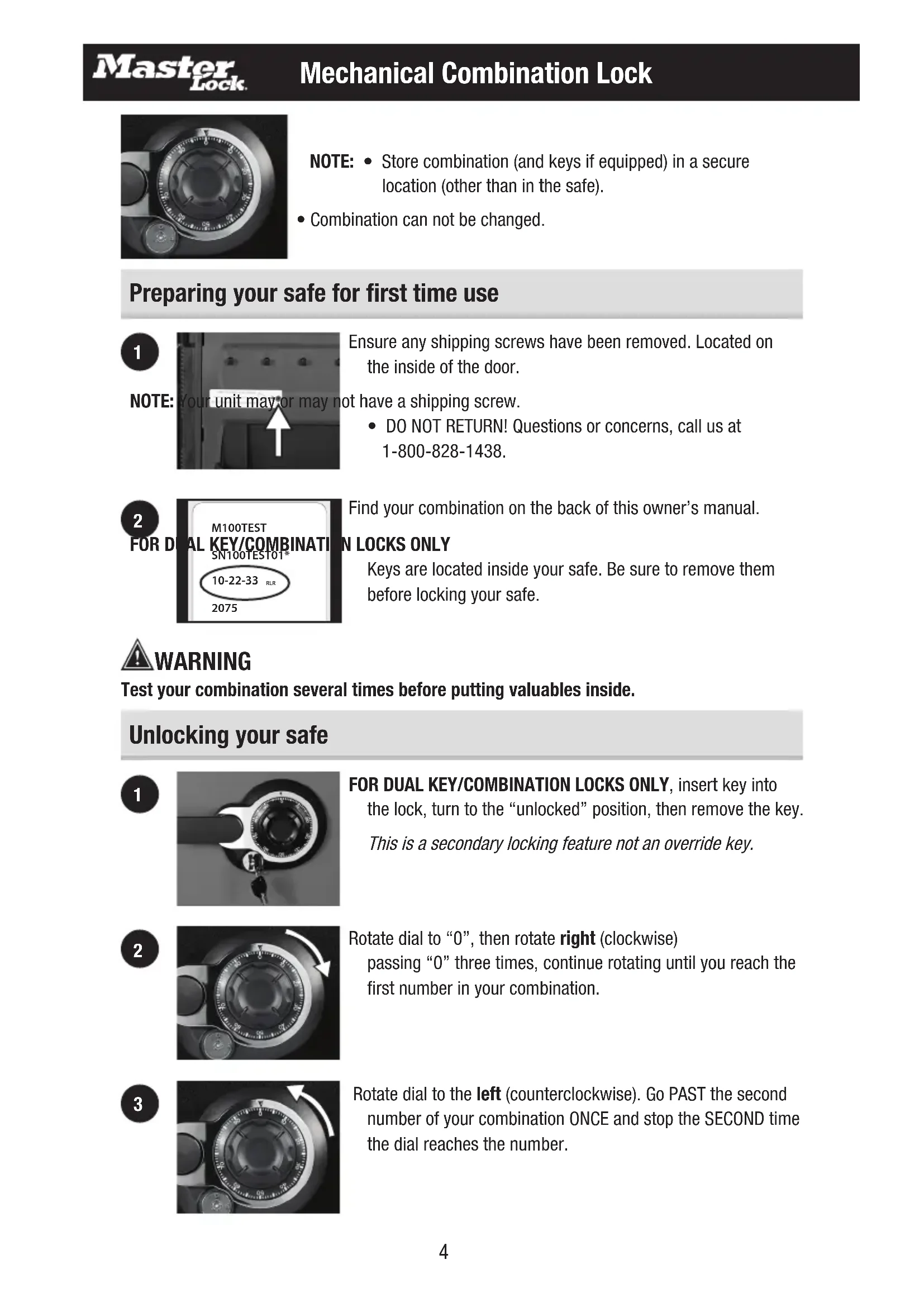

Mechanical Combination Lock 4-5
Programmable Electronic Lock 6-9
Operating the Light 9
Operating Sound Features. 10
Bolting Down Your Safe. 11-12
Troubleshooting 13
Limited Lifetime Warranty 14
Fire/Water Specifications & Customer Service 15
Francais 17
Espanol. 33

IMPORTANT

If you experience any problems or challenges with your safe, please contact us.

Many issues can be resolved quickly without the product being returned.

Our customer care team is available at 1-800-828-1438 to answer your questions.

Registration:

www.registmysafe.com

Reasons to register

By registering your Master Lock product you can easily retrieve forgotten codes and combinations.

By registering your Master Lock product you can be sure that in the unfortunate circumstance of a fire you will be guaranteed your replacement safe (provided official paperwork).

NOTE: • Store combination (and keys if equipped) in a secure location (other than in the safe).

• Combination can not be changed.

Preparing your safe for first time use

Ensure any shipping screws have been removed. Located on the inside of the door.

ot have a shipping screw.

DO NOT RETURN! Questions or concerns, call us at 1-800-828-1438.

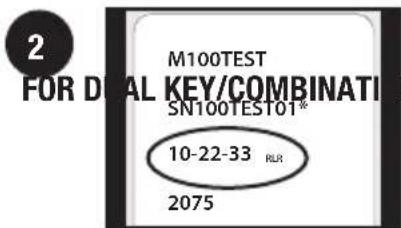

Find your combination on the back of this owner's manual.

N LOCKS ONLY

Keys are located inside your safe. Be sure to remove them before locking your safe.

WARNING

Test your combination several times before putting valuables inside.

Unlocking your safe

FOR DUAL KEY/COMBINATION LOCKS ONLY, insert key into the lock, turn to the "unlocked" position, then remove the key. This is a secondary locking feature not an override key.

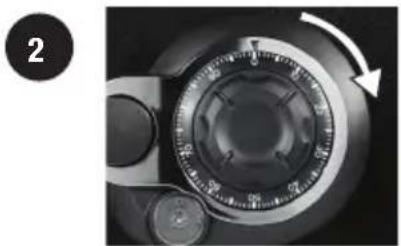

Rotate dial to "0", then rotate right (clockwise) passing "0" three times, continue rotating until you reach the first number in your combination.

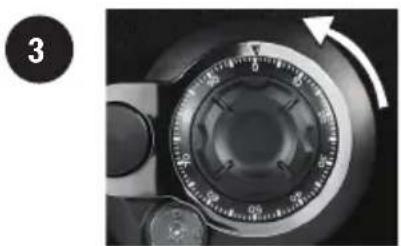

Rotate dial to the left (counterclockwise). Go PAST the second number of your combination ONCE and stop the SECOND time the dial reaches the number.

Rotate the dial to the right (clockwise), stop when you reach the third number in your combination.

Rotate the handle downward to open the door.

This may take a limited amount of force if you have a water-resistant safe.

NOTE: - Make sure the handle is rotated all the way up in the horizontal position before unlocking the safe.

• If the door does not open easily, repeat steps 1-5.
• If you exert too much force on the handle, the handle will move without moving the bolts. If this happens, you will hear a "click". DO NOT be alarmed. This feature is designed to protect the bolts from being overpowered by force. If this occurs, simply exert force in the opposite direction (lifting up) until the handles " clicks" back into place and repeat steps 1-5 to open your safe.

Locking your safe

Close the door and pull the handle upward until the handle is horizontal.

For water-resistant units, additional pressure to the front, left side of the door may need to be applied prior to rotating the handle.

Spin the dial at least 2x to the right (clockwise).

FOR DUAL KEY/COMBINATION LOCKS ONLY, insert key into the lock, turn to the "locked" position, then remove the key.

NOTE: • Store code (and keys if equipped) in a secure location (other than in the safe).

Preparing your safe for first time use

Ensure any shipping screws have been removed. Located on the inside of the door.

NOTE: Your unit may or may not have a shipping screw.
DO NOT RETURN PROBLEMS or concerns, call us at 1-800-828-1438.

Slide out the battery drawer on the side of the keypad.
Insert 4 AAA alkaline batteries (not included).

NOTE:

ble batteries or any other type of non-alkaline battery. Do not mix old and new batteries. Do not mix alkaline and standard batteries.

Slide battery drawer back into keypad.

3

FOR D

Find your code on the back of this owner's manual.

N LOCKS ONLY

Keys are located inside your safe. Be sure to remove them before locking your safe.

WARNING

Test your combination several times before putting valuables inside.

Unlocking your safe

1

FOR DUAL KEY/ELECTRONIC LOCKS ONLY, insert key into the lock, turn to the "unlocked" position to open the safe, then remove the key.

This is a secondary locking feature not an override key.

NOTE:

Enter the 5 digit factory code found on the back of the owner's manual.

handle while entering the combination.

A green light will indicate the code is correct. You will have 4 seconds to turn the handle to unlock your safe.

Rotate the handle downward to open the door.

This may take a limited amount of force if you have a water-resistant safe.

NOTE: - Make sure the handle is rotated all the way up in the horizontal position before unlocking the safe.

• If you exert too much force on the handle, the handle will move without moving the bolts. If not when this happens, you will hear a "click". DO NOT be alarmed. This feature is designed to protect the bolts from being over powered by force. If this occurs, simply exert force in the opposite direction (lifting up) until the handles " clicks" back into place and repeat steps 1-3 to open your safe.
• Delay mode will occur if three consecutive invalid entries have been tried. Red LED will blink on and off to let you know the safe is in delay mode. This will cause the system to shutdown for two minutes. DO NOT remove the batteries to restart the system it will only increase the length of time for the system shutdown.

Locking your safe

Close the door and pull the handle upward until the handle is horizontal.

For water-resistant units, additional pressure to the front, left side of the door may need to be applied prior to rotating the handle.

NOTE:

FOR DUAL KEY/ELECTRONIC LOCKS ONLY, insert key into the lock, turn to the "locked" position, then remove the key.

appear to be working

properly, please check to make sure you are using NEW alkaline batteries before contacting Customer Service.

Programming information

Three code options:

Factory code: The safe will ALWAYS unlock using this 5 digit code (found on the back of the owner's manual). This code cannot be deleted.

User code: A 5 digit programmable code of your choosing that can be changed or deleted.

Secondary code: A second 5 digit programmable code of your choosing that can be changed or deleted. Can only be programmed after a user code has been activated.

NOTE: The "C" key is a clear key. This can be used at anytime to clear the system and return to standby mode - unless you are in delay mode (3 consecutive invalid entries).

• The 5 digit factory code cannot be deleted. However, you may add and delete additional codes.

This safe can store up to three codes at one time. One factory code and two additional programmable codes.

Programming the user code

To ADD a user code:

Press the "P" key.
Enter the 5 digit factory code found on the back of your owner's manual.
The light will flash green and then you will have five seconds to enter your own personal 5 digit user code.

To DELETE a user code:

Press the "P" key.
Enter the 5 digit factory code.
3 Enter 0,0,0,0,0.

NOTE: The electronic lock will NOT indicate that it has deleted the user code - please test the code to make sure it has been deleted.

Programming the secondary code

To ADD a secondary code:

Press the "P" key two times.
Enter the 5 digit user code previously programmed.

The light will flash green and then you will have five seconds to enter your own personal 5 digit secondary code.

To DELETE a secondary code:

Press the "P" key two times.
Enter the 5 digit user code.
3 Enter 0,0,0,0,0.

NOTE: The electronic lock will NOT indicate that it has deleted the secondary code - please test the code to make sure it has been deleted.

How to operate the light

The safe you have purchased may include a light. This is a long-lasting LED light. Not all safes include a light.

The batteries that operate the keypad are the same batteries that operate the light. If the light in your unit does not turn on, please change your batteries. Refer to page 6 to change the batteries.

The light will turn on every time you enter your code and will remain on for 30 seconds. The light duration has three options - off, 30 seconds, and 60 seconds.

To turn the light off:

Press the "0" button.
Press the "P" button.
Press the "3" button.

To turn the light on for 30 seconds:

Press the "0" button.
Press the "P" button.
Press the "4" button.

To turn the light on for 60 seconds:

Press the "0" button.
Press the "P" button.
Press the "5" button.

NOTE: If the light duration is 60 seconds, the battery life will be reduced at a faster rate.

Operating sound features

For Programmable Electronic Lock Only

The tones of the key pad may be turned on and off depending on user preference.

Turn sound on:

Press "0".
Press "P" key.
Press "1".

Turn sound off:

Press "0".
Press "P" key.
Press "2".

Bolt-down instructions

Bolt-down kit contents (in select models only):

• 2 lag screws
  2 gasket washers
• 2 masonry anchors

Tools needed to bolt safe to the floor:

• Drill
  Wrench

7 / 6 (11 mm) drill bit - for drilling into the safe
9 132 (7 mm) drill bit - for drilling into a wood floor
1 / 2 (13 mm) drill bit - for drilling into a masonry floor

Warning: DO NOT drill from any location inside the safe.

DO NOT bolt through the walls.

Tip the safe onto its right side (door hinges horizontal with the floor).
Unlock the safe and open the door. Look to the bottom of the safe for two indentations on the feet in opposite corners. Using the 116 (11 mm) bit; drill a hole through each indentation perpendicular to the bottom of the safe. DO NOT drill from any location inside the safe.
Tip the safe upright, place the safe in the desired location and open the door.
Use a screw or pencil to mark the floor through both holes.

Bolt-down instructions... continued

5

Move the safe aside to clear both marked spots for drilling.

6

Drill into the floor:

For wood: Using the 9 / 32 drill bit, drill a hole 2 12 (64 mm) deep in each marked spot.
For masonry: Using the 1/2 drill bit, drill a hole 212 (60 mm) deep in each marked spot. Install a masonry anchor in each hole.

7

Replace the safe in the desired position, with the holes in safe aligned with those in the floor.

8

Securing the safe:

For wood: Pass each lag screw through a washer, then through the safe and into a hole. Tighten with the wrench.
For masonry: Pass each lag screw through a washer, then through the safe and into a masonry anchor. Tighten with the wrench. Place masonry anchors into the holes in the floor.

NOTE: The safe should not be bolted to a wall, this will compromise the fire rating. Drill holes through the feet only. DO NOT drill through the back or sides.

• Bolting/unbolting the unit is at the consumer's expense and discretion.
• SentrySafe / Master Lock is not responsible for any costs incurred if the unit is to be replaced.

When bolting down, ensure the gasket washer is facing down.
If rubber pads are in place, remove them before drilling.

Not all products come with a bolt-down kit.

Please go to www/masterlock.com to learn more about the recommended hardware for your safe.

The Problem: Why it is Happening: The Solution:
The door will not lock. 1.	Shipping screw is in place. 2. Confirm that there is no obstruction in the door. 3. Bolted down incorrectly.	1. Remove the screw on the back inside of the door. 2. Remove all items and accessories from inside the safe. If this resolves the issue, re-set the accessories and organize items to properly fit. 3. See pages 11 for proper bolt-down instructions.
The handle is not in the horizontal position when the safe is locked.	The clutch mechanism has been engaged.	Rotate the handle up or down until it clicks into the horizontal position.
Cannot open door after inputting the combination or electronic code.	1. Safe doors equipped with a water-resistant gasket may initially be tight. 2. Key lock is in the locked position. (select models only)	1. Hold the handle up while inputting the code or dialing the combination and then pull down on the handle.. 2. If your safe is equipped with a key lock ensure that the key is in the unlocked position. (select models only)
The dial does not turn.	1. Shipping screw is still in place. 2. Locking bolts are not fully extended.	1. Remove the screw from the back of the door. 2. Ensure the handle is in the horizontal position.
Red indicator light blinks three times and there are three beeps.	An incorrect code has been entered.	Verify code and re-enter. If the programmable code you are using doesn’t work then use the factory code. If successful re-program your programmable code.
Red indicator light blinks five times and there are five beeps.	Keypad communication error. Please call our Customer Service center.
Red indicator light blinks once and there is one beep.	Program button is pressed out of sequence. -or- 5 seconds has lapsed between button entries.	Start over.
Red indicator light is blinking.	An incorrect code has been entered three times and system has entered delay mode.	Wait two minutes and start over.
Yellow indicator light is on.	Battery power is low. -or- Battery may be the wrong type.	Replace with new alkaline batteries.

Limited Lifetime Warranty

If this product or any part of the product fails due to a defect in materials or workmanship at any time during the life of the product, Master Lock will, at its own discretion, repair or replace the product or part free of charge. Simply contact Master Lock for instructions on obtaining repair or replacement. Return of the defective product or part at the customer's expense, along with proof of purchase, may be required. This warranty applies only to defects in materials and workmanship, and does not cover products which have been abused, altered, damaged, misused, cut, or excessively worn. THIS WARRANTY IS LIMITED TO REPAIR OR REPLACEMENT ONLY. This warranty does not cover labor for removing, reinstalling, or refinishing the product or part, or other materials removed, reinstalled, or refinished in order to repair or replace the Product or part. This warranty does not cover reimbursement for locksmith or any other paid service to open your product. TO THE EXTENT PERMITTED BY LAW, MASTER LOCK DISCLAIMS ALL OTHER IMPLIED OR EXPRESS WARRANTY INCLUDING ALL WARRANTYES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT THAT ANY IMPLIED WARRANTYES MAY NONETHELESS EXIST BY OPERATION OF LAW, SUCH WARRANTYES ARE LIMITED TO THE DURATION PROVIDED BY LAW.

To be eligible for this warranty the original owner of the product must register their safe within the first 30 days of purchase, online at www.registermysafe.com. Do not ship your product back to Master Lock. If you do not register your product within the first 30 days after the purchase window, your product will fall under the limited 1-year warranty.

LIMITATION OF LIABILITY: This Warranty is your sole and exclusive remedy against Master Lock and Master Lock shall not be liable for any damages, whether direct, indirect, incidental, special, consequential, exemplary, or otherwise, including property damage, lost revenues, and lost profits, arising out of any theory of recovery, including statutory, contract or tort. Notwithstanding the term of any limited or implied warranty, or in the event that this warranty fails of its essential purpose, in no event will Master Lock's entire liability exceed the purchase price of this product. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages so the above limitations or exclusions may not apply to you. Some states and provinces do not allow limitation on how long a limited warranty lasts, so the above limitation may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state and province to province.

Products purchased in the EU are governed by consumer laws which provide statutory guaranty rights in addition to the warranty stated on any packaging or website associated with this product.

Any warranty stated on any packaging or website associated with this product is not valid in Australia. Product sold in Australia is governed by the consumer warranty contained in the Australian Consumer Law.

Fire/Water Specifications

Fire Endurance:

Advanced fire protection (UL Classified protection) subjected to temperatures up to 1850^ (1010^) , for a duration of 2 hours to protect documents, records and valuables against catastrophic loss due to fire.

Fire Impact:

(ETL Verified) After being heated to 1850^ (1010^) the safe is dropped 30 ft. (9.1m) into rubble, then cooled, inverted and reheated to 1850^ (1010^) for 45 minutes..

Data Protection:

(ETL Verified) 2 hour fire protection of CDs, DVDs, memory sticks and USB drives up to 1850^ (1010^) .

Water Protection:

(ETL Verified) 24 hour water protection for valuables in up to 8 inches of water.

Customer Service

Master Lock and SentrySafe Customer Service

www.sentrysafe.com

Customer Service: 1-800-828-1438

How to order replacement key/combo

To order replacement keys and/or combinations, we must have the correct model and serial number of your safe. Find your safe's Serial Number on the small label located on the outside of your safe and on the original owner's manual. Once you locate this information, please visit www.sentrysafe.com or call customer service at 1-800-828-1438.

How to order accessories

To optimize your safe's organization consider purchasing Master Lock accessories for your safe. Available accessories include a locking drawer, tray, shelf, and file rack. For more items please go to www.sentrysafe.com or call our customer service number 1-800-828-1438.

Master Lock.

www.registmysafe.com

REMARQUE: • Store combination (and keys if equipped) in a secure location (other than in the safe).

• Combination can not be changed.

To order replacement keys and/or combinations, we must have the correct model and serial number of your safe. Find your safe's Serial Number on the small label located on the outside of your safe and on the original owner's manual. Once you locate this information, please visit www.sentrysafe.com or call customer service at 1-800-828-1438.

Commander des accessoires

To optimize your safe's organization consider purchasing Master Lock accessories for your safe. Available accessories include a locking drawer, tray, shelf, and file rack. For more items please go to www.sentrysafe.com or call our customer service number 1-800-828-1438.

Master Lock.

www.registmysafe.com

Razones para registrar
