Pool Ladders

MODEL:PSSL-ALPO-01

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: PSSL-ALPO-01

Line drawing of a ladder with two curved pipes and two feet at the top (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

SAFETY INSTRUCTIONS:

• Install ladder per manufacturer's instructions.
- Locate LADDER on solid base.
- Ladder is designed for use by one person at a time.
- This ladder is intended for use as a swimming pool ladder only.
- Face ladder when entering and exiting the pool.
• No jumping, no diving from ladder.
- Do not swim through, behind or around the ladder.

Part List
NO.	Name	Picture	QTY.
A	Ladder Body		1
B	Handrails		2
C	Deck Flange		2
D	Screws ST4.8*19		4
E	Screws ST4.8*25		6

Installation Procedure

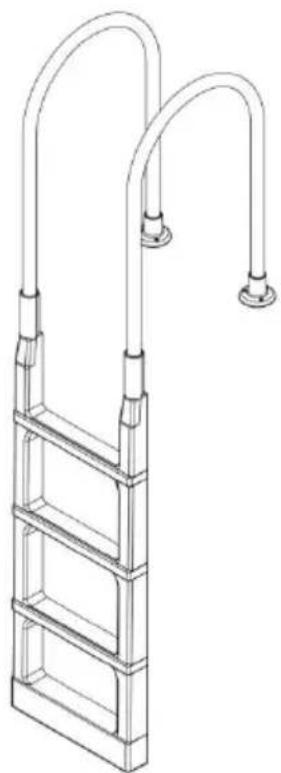

Shorter Shorter Longer Longer A B

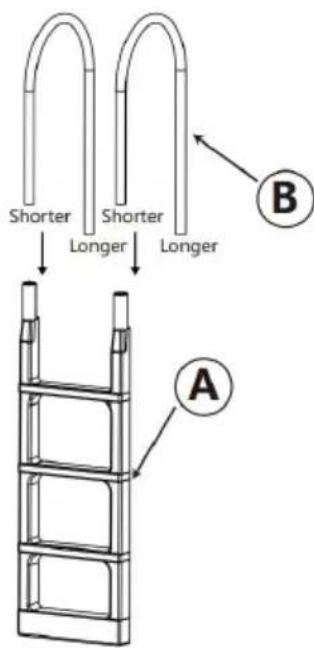

Step 1: Secure two handrails B to the ladder body A, the short the handrail at the ladder body and the longer end through t

120-150mm Pool Wall

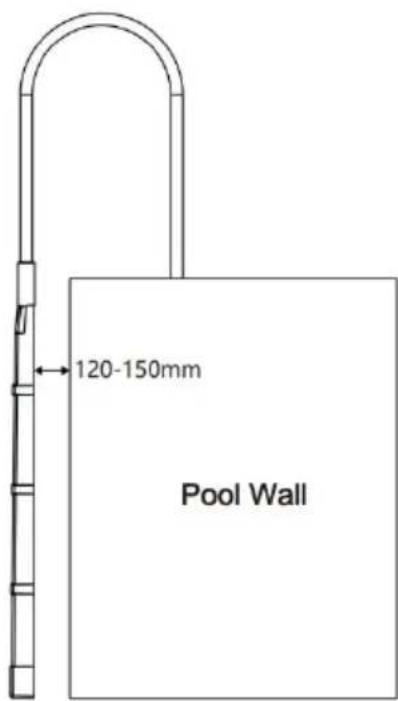

Step 2: Place the ladder at a position of 120-150mm away from wall. The bottom of the ladder is tightly attached to the bottom swimming pool.

Technical line drawing of a mechanical component with a ladder and two curved supports, no text or symbols present.

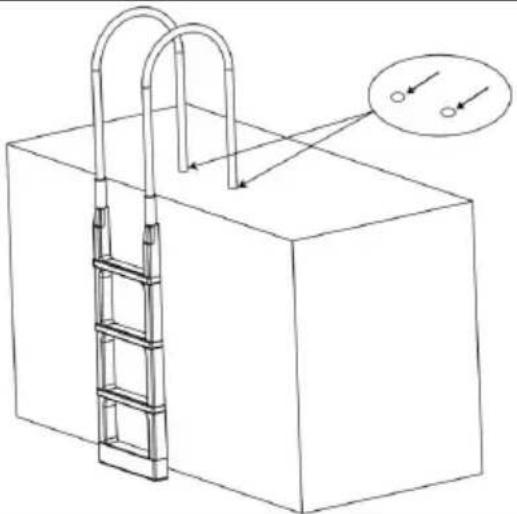

Step 3: Using the 1-1/2" hole saw, drill two holes through the d as final desired position.

Locate the final desired position of the in-deck ladder. Insure the bottom will rest flat and level on the bottom of the pool. Position handrails on the deck and mark their final desired position with and set them aside. Using the 1-1/2" hole saw, drill two holes deck boards that will support the in-pool ladder.

Line drawing of a ladder with attached components and a circular symbol labeled 'C' (no text or symbols present)

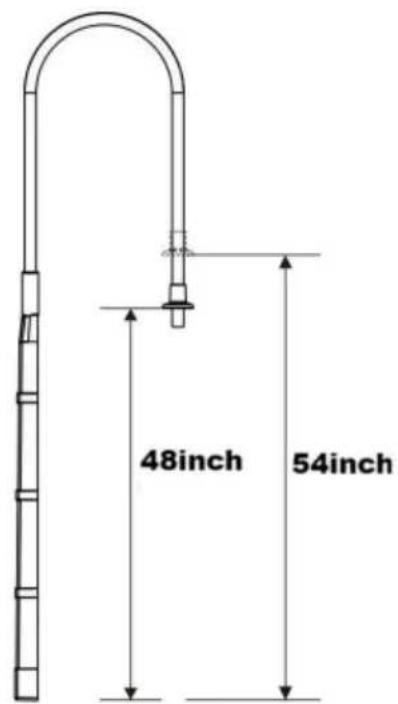

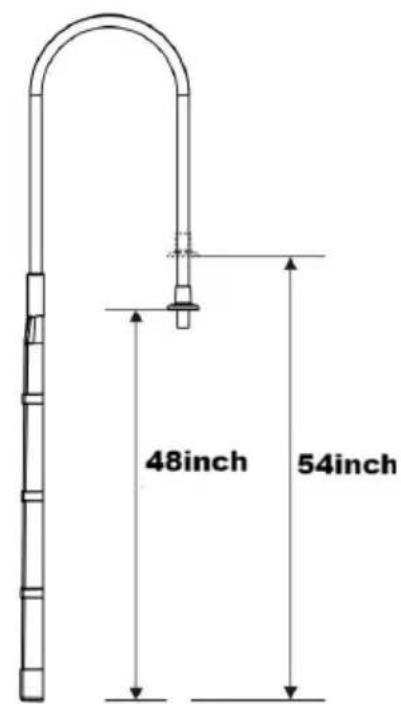

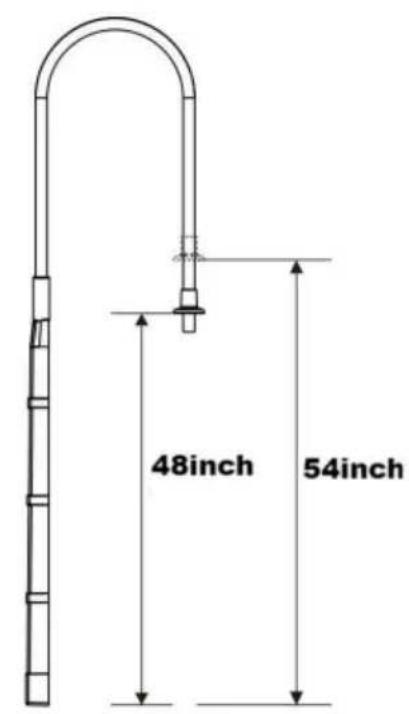

48inch 54inch

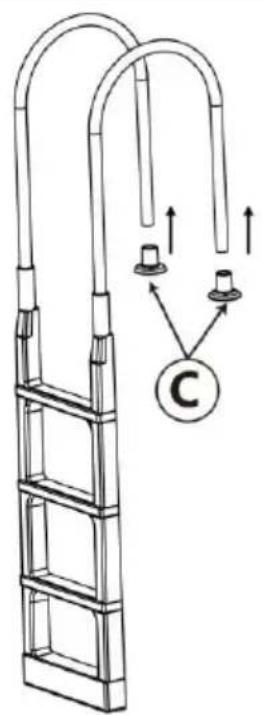

Step 4: Place the deck flange C around each handrail. On the and insert the handrails through the holes in the deck until the rests flat and level on the bottom of pool.

Technical diagram showing a ladder attached to a rectangular block with labeled component E and support points marked 'T'.

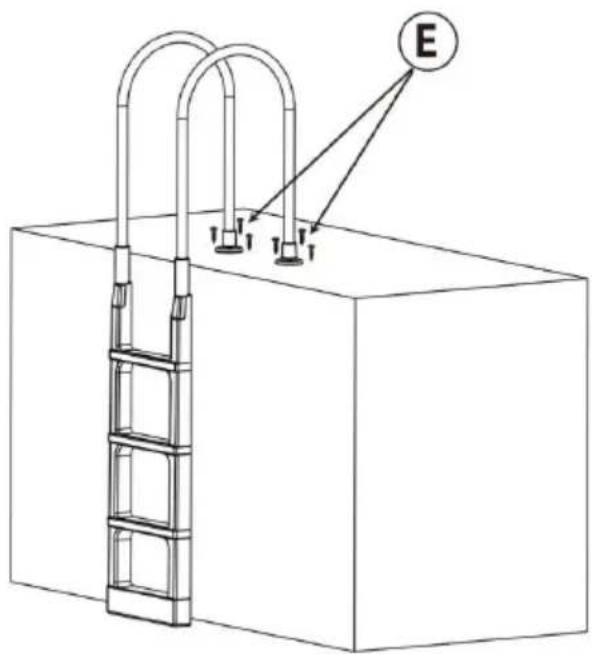

Step 5: Secure each deck flange to the deck with three screws (E).

Technical diagram of a mechanical or electrical component with labeled component D and internal structure features

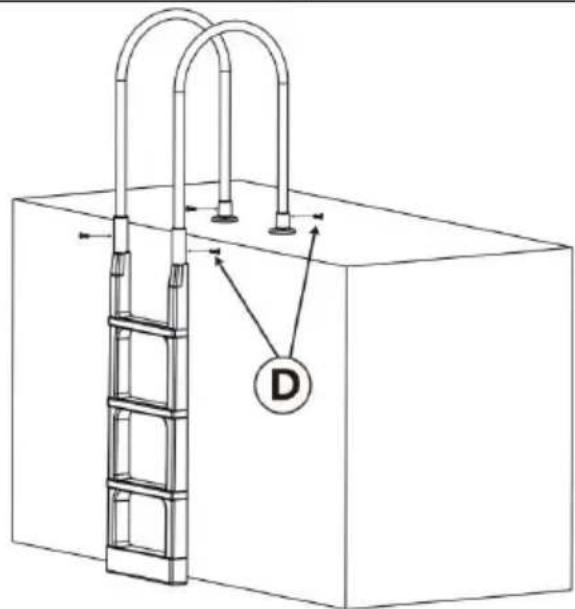

Step 6: Secure the handrail to each deck flange by once again set screw ST4.8*19 (D) to act as a set screw to secure the the final desired position. Be sure to fully insert the handrail ladder socker and secure with one set screw ST4.8*19 (D). Scr be secured through outside of each ladder socket into the hand as a set screw to secure the handrail to the ladder bo
