PC814 - Roof panels Vevor - Free user manual and instructions

Product Type	Polycarbonate Roof Panel
Model	PC814 (PC8-14)
Material	Polycarbonate
Thickness	8 mm
Dimensions per Panel	1210 × 605 mm
Number of Panels	14
Estimated Weight per Panel	Approximately 7 kg
Structure	Hollow panel (cellular)
Intended Use	Roofing, skylight, roof window
Minimum Slope for Horizontal Installation	5 degrees
UV Protection	Marked side facing up for UV resistance
Protective Film	Present on both sides, remove after installation
Cutting	Possible with a sharp knife
Drilling	With regular drill bit, hole diameter 150% of screw diameter
Minimum Drilling Distance from Edge	40 mm
Compatible Sealing Materials	Neoprene, EPDM, window silicone, acrylic resin
Cleaning	Neutral detergent (ethanol, butylcellulose), sponge or soft cloth
Large Area Cleaning	Low-pressure machine with clean water
Prohibited Cleaning Products	Benzene, gasoline, acetone, carbon monoxide, alkaline products
Safety Instructions	Gloves mandatory, do not stand on panels, installation by an adult
Warranty	Electronic warranty certificate available at www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
Importer (USA)	Sanven Technology Ltd., Rancho Cucamonga, CA
Importer (Australia)	SIHAO PTY LTD., Eastwood NSW
Representative (UK)	VEVOR, 60329 Frankfurt am Main

Frequently Asked Questions - PC814 Vevor

What is the minimum recommended slope for installing PC814 panels?

The minimum slope is 5 degrees to ensure proper drainage and prevent water accumulation.

How to cut the roof panels?

Use a sharp knife while holding the panel firmly to avoid vibrations. Remove debris after cutting.

What drilling diameter to allow for screws?

The hole diameter should be 150% of the screw diameter to allow for thermal expansion. Do not drill within 40 mm of the edge.

How to clean the panels without damaging them?

Use a neutral detergent (ethanol or butylcellulose) with a sponge or soft cloth. For large areas, a low-pressure machine with clean water is recommended. Avoid alkaline products or benzene.

Which sealing materials are compatible?

Compatible materials are neoprene (CR), EPDM, window silicone, and acrylic resin. Always check chemical compatibility.

How to protect the panels from UV?

Install the panel with the marked side facing up, as this side is treated to resist UV rays. The protective film must be removed after installation.

What is the approximate weight of a PC814 panel?

Each panel weighs approximately 7 kg, giving a total of about 98 kg for the 14 panels.

Can I walk on the panels during installation?

No, it is forbidden to stand on the panels, whether during installation or after, as this could cause serious damage.

How to maintain the panels long-term?

Clean regularly with mild products, avoid hard tools. Check joint sealing and replace sealing materials if necessary. Consult the manual for details.

Where can I get technical support or warranty?

Visit www.vevor.com/support for technical support and the electronic warranty certificate. You can also contact customer service through the site.

USER MANUAL PC814 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

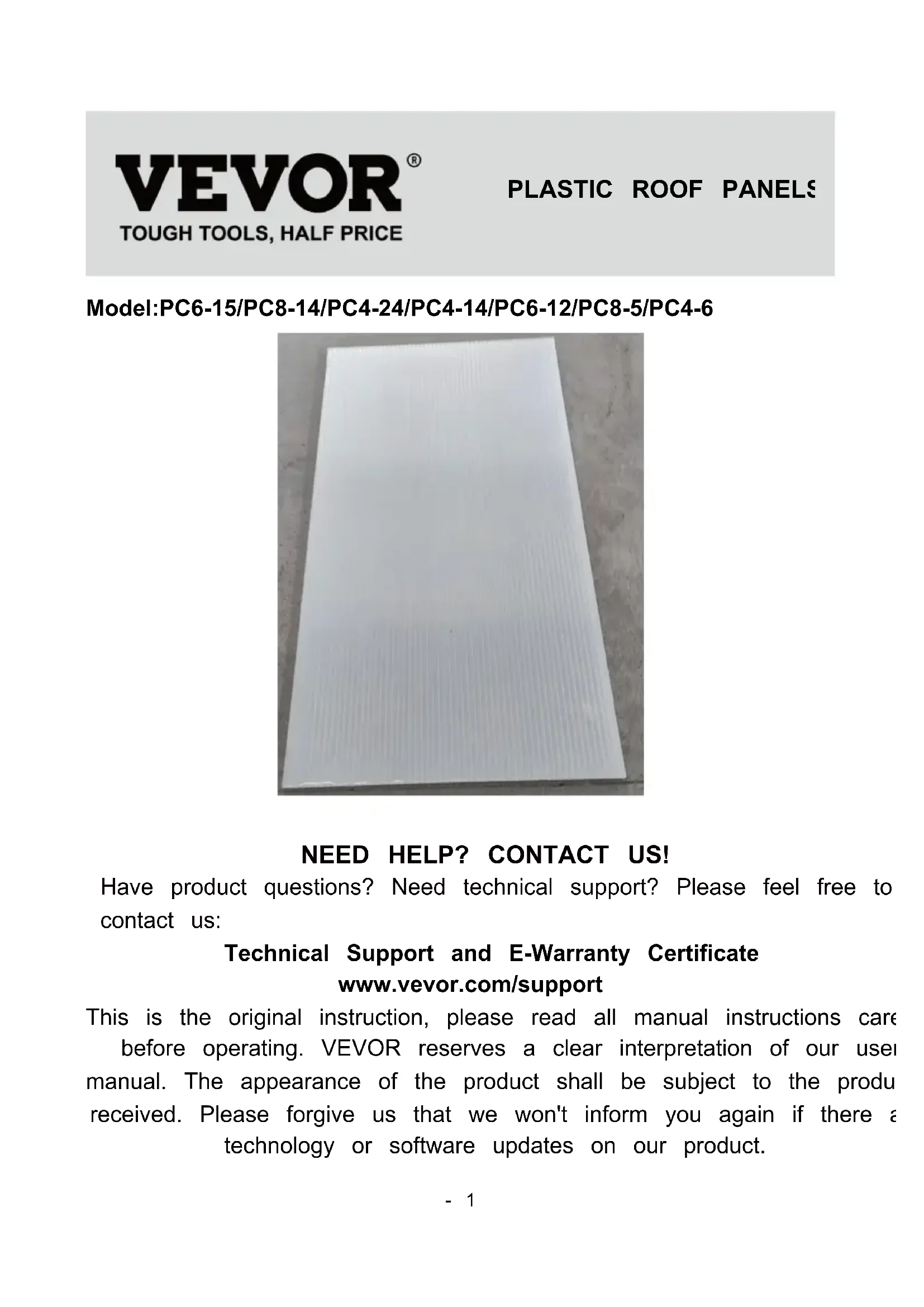

PLASTIC ROOF PANELS

MODEL:PC6-15/PC8-14/PC4-24/PC4-14/PC6-12/PC8-5/PC4-6

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

Model:PC6-15/PC8-14/PC4-24/PC4-14/PC6-12/PC8-5/PC4-6

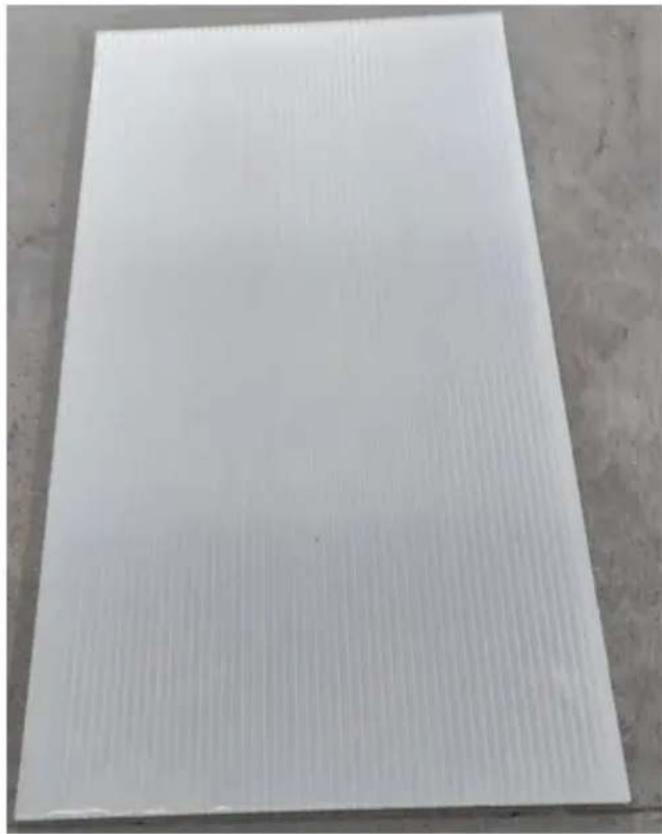

Plain white rectangular panel with vertical striations, placed on a concrete surface (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

SAFETY INSTRUCTIONS

1. Please read and understand this manual carefully before using the Plastic Roof Panels.
2. The installation should be done by an adult, and children should not it without supervision.
3. Please do not stand on the installed Plastic Roof Panels, which may cause serious harm to people.
4. Please wear gloves and install the plastic roof panels to avoid cuts installation.

PARAMETER LIST

Model	Material Quality	Thickness	Size	Quantity
PC6-15	polycarbonate	6mm	1210×605mm	15
PC8-14	polycarbonate	8mm	1210×605mm	14
PC4-24	polycarbonate	4mm	1210×605mm	24
PC4-14	polycarbonate	4mm	1210×605mm	14
PC6-12	polycarbonate	6mm	1210×605mm	12
PC8-5	polycarbonate	8mm	1210×605mm	5
PC4-6	polycarbonate	4mm	1210×605mm	6

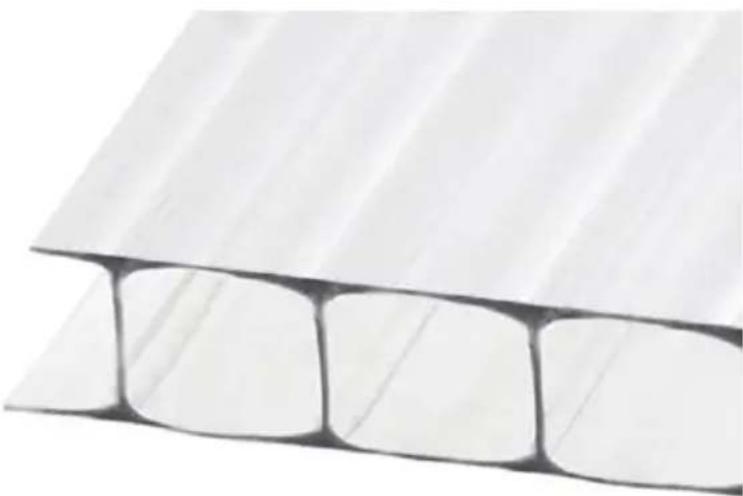

Plastic roof board is a hollow board.

Close-up of a white corrugated metal structure with four rounded rectangular cutouts (no text or symbols visible)

Installation considerations

1. According to the use scenario, you need to buy the fixed bracket t meets the strength requirements.

2. During transportation, do not put heavy objects on the plastic roof p and do not contact the plastic roof panels with sharp objects.

3. Before installation, it is recommended to seal all open ends of the roof plate with aluminum seals (additional purchase) to prevent dust a insects from entering the plate and affect the light transmittance.

4. Both sides of the middle cavity plate are provided with a protective To keep the panel surface clean, do not damage the film before inst

5. During installation, the protective film of the edge part can be stripped about 5cm as required and completely removed after installation.

6. When installation, follow the instructions on the surface of the produce and install the marked upward side to face ultraviolet light.

7. The plastic roof plate should be installed with the grille facing down which reduces the internal dust accumulation and makes the condense water easy to be discharged.

8. For horizontal installation (roof, lighting window, etc.), the minimum ti Angle is 5 degrees; Steep installation facilitates drainage and self-cleaning and prevents hardware fasteners from rusting.

9. You cannot stand directly on the panel during the installation process.

10. After installation, remove dirt from the chamber plate.

Cleaning and Care

If the plastic roof plate has a small surface area, the product can be cleaned with a neutral detergent (such as ethanol or butylcellulose).

The surface can be cleaned with a sponge or soft cloth and then rises with water.

If the area is large, it is recommended to use a low-pressure cleanir machine to wash the plastic roof board with clean water.

Avoid rubbing the surface of the cavity plastic roof plate with a hard Plastic roof panels should not be cleaned using alkaline materials or cleaners incompatible with polycarbonate (for example, benzene, gasoline acetone, carbon oxide, etc.).

Avoid direct contact with incompatible chemicals.

Product cutting

Plastic roof panels can be cut with a sharp knife. The tes shall be fire avoid vibration which may cause human injury.

Remove dirt after cutting to keep the plastic roof slab clean.

Product drilling

The Plastic roof panels can be drilled with a common drill bit. The c of the drill hole shall be 150% of the screw diameter for the thermal expansion and shrinkage of the absorption plate.

Do not drill holes at 40 mm below the edge of the plate.

sealing material

Plastic roof panels can be sealed with neoprene (CR), EPDM (EPDM) window silicone or acrylic resin. When using other materials, the chem

compatibility with the plastic roof board material should be considered, addition, the thermal expansion and aging resistance of the material s also be compatible with the plastic roof board.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support
