USER MANUAL CTR15SSLLF2LHD Summit

Write Model and Serial Numbers here: Model _________________________ Serial No. ______________________ Felix Storch, Inc. An ISO 9001:2015 registered company 770 Garrison Ave Bronx, New York 10474 www.summitappliance.com User Manual BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Models:Thank you for choosing this product. This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this user manual before using your appliance and keep this book for future reference. Icon Type Meaning WARNING Serious injury or death risk RISK OF ELECTRIC SHOCK Dangerous voltage risk FIRE Warning; Risk of fire / flammable materials CAUTION Injury or property damage risk IMPORTANT Operating the system correctly This product uses eco-friendly hydrocarbon refrigerant and fully complies with California CARB regulations. However, we are required by California Law to provide the following disclosure statement in every product sold in California. "This equipment is prohibited from use in California with any refrigerants on the 'List of Prohibited Substances' for that specific end-use, in accordance with California Code of Regulations, title 17,

section 95374. This disclosure statement has been reviewed and approved by Felix Storch, Inc. and

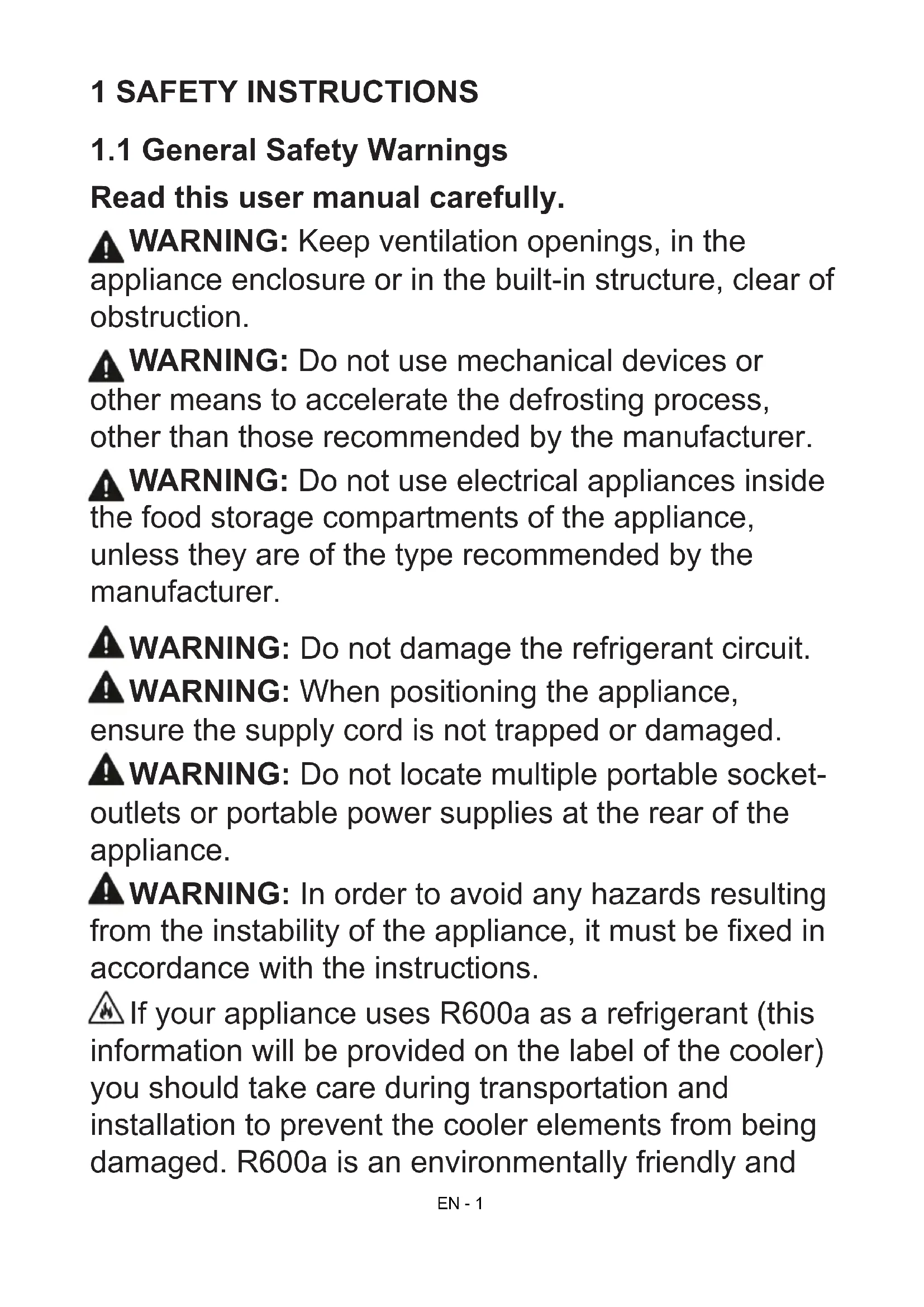

1.1 General Safety Warnings

Read this user manual carefully.

WARNING: Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or

other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside

the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance,

ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-

outlets or portable power supplies at the rear of the appliance.

WARNING: In order to avoid any hazards resulting

from the instability of the appliance, it must be fixed in accordance with the instructions. If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and EN - 1natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance is intended to be used in household and domestic applications such as: – staff kitchen areas in shops, offices and other working environments. – farm houses and by clients in hotels, motels and other residential type environments. – bed and breakfast type environments; – catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 10 amperes. If there is no such socket in your house, please have one installed by an authorized electrician. EN - 2• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.

• This appliance is not intended for use at altitudes exceeding 6500 ft. EN - 3• WARNING: The refrigeration system is under high pressure. Do not tamper with it. Contact qualified service personal before disposal.

• CAUTION: To Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of Freezer Or Refrigerator.

• WARNING: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

• * Take off the doors.

• * Leave the shelves in place so that children may not easily climb inside.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. EN - 4To prevent food contamination, please follow these instructions:

• Keeping the door open for extended periods can significantly raise the temperature inside the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• Store raw meat and fish in suitable containers in the refrigerator to prevent them from coming into contact with or dripping onto other foods.

• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

One-, two- and three-star compartments are not suitable for the freezing of fresh food.

If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry , and leave the door open to prevent mold growth. EN - 5• Clearance of at least 6 inches is required at the top of your appliance. Do not place anything on top of your appliance.

Do not place heavy items on the appliance.

• Clean the appliance thoroughly before use (see Cleaning and Maintenance).

• Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge freezer after cleaning.

• Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This must be done before placing food in the appliance.

• When the product is operating, the side panels may become noticeably warm. This is normal.

• In order for the product to work efficiently, there must be some gap around it for air circulation. If you are going to place the product in a recessed area on the wall, make sure that the gap should be 4 inches between top surface and ceiling, 2 inches between walls and side panels. The distance between the appliance and back wall must be a maximum of 3 inches.

Warnings Before using your fridge freezer for the first time, please consider the following points:

• The operating voltage for your fridge freezer is 115-127 V at 60Hz.

• The plug must be accessible after installation.

• Your fridge freezer may emit an odor when first operated. This is normal, and the odor will fade as it cools.

• Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches the mains electricity supply. If in doubt, consult a qualified electrician.

• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.

• The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).

• We do not accept responsibility for any damages that occur due to ungrounded usage.

• Place your fridge freezer where it will not be exposed to direct sunlight.

• Your fridge freezer must never be used outdoors or exposed to rain.

• Your appliance must be at least 20 inches away from stoves, gas ovens and heater cores, and at least 2 inches away from electrical ovens.

• If your fridge freezer is placed next to a deep freezer, there must be at least 1 inch between them to prevent humidity forming on the outer surface.

• Do not cover the body or top of fridge freezer with lace. This will affect the performance of your fridge freezer. EN - 6Old and Out-of-Order Fridges

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm the environment when you are discarding your old fridges. Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used

homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred.

This appliance is produced to be used

houses and it is only suitable for cooling / storing foods. It is not suitable for commercial use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance.

• Do not connect your fridge freezer to the mains electricity supply using an extension lead.

• Do not use damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

• Do not use plug adapter.

• This appliance is intended for adult use only. Do not allow children to play with the appliance or hang from the door.

• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.

• Do not place glass bottles or cans in the ice-making compartment, as they may burst when the contents freeze.

• Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.

• When removing ice from the ice-making compartment, do not touch it, as it may cause frostbite or cuts.

• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment.

• Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning.

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model. A) Freezer compartment B) Refrigerator compartment

3 USING THE APPLIANCE

3.1 Information about New Generation

Cooling Technology Fridges with new-generation cooling technology have a different operating system to static fridges. Other (static) fridges may experience a build up of ice in the freezer compartment due to door openings and humidity in the food. In such fridges, regular defrosting is required; the fridge must be switched off, the frozen food moved to a suitable container and the ice which has formed in the freezer compartment removed. In fridges with new-generation cooling technology, a fan blows dry cold air evenly throughout the fridge and freezer compartments. The cold air cools your food evenly and uniformly, preventing humidity and ice build-up. In the refrigerator compartment, air blown by the fan, located at the top of the refrigerator compartment, is cooled while passing through the gap behind the air duct. At the same time, the air is blown out through the holes in the air duct, evenly spreading cool air throughout the refrigerator compartment. There is no air passage between the freezer and refrigerator compartments, therefore preventing the mixing of odors. As a result, your fridge, with new-generation cooling technology, provides you with ease of use as well as a huge volume and aesthetic appearance. EN - 83.2 Display and Control Panel

Using the Control Panel

1. Enables the setting of the freezer.

2. Enables the setting of the refrigerator.

3.3 Operating your Fridge Freezer

Lighting (If available) When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests. Once you have plugged in the product, all symbols will be displayed for 2 seconds and the initial values will be shown as 0°F on the freezer adjustment indicator, and 39°F on the fridge adjustment indicator.

3.3.1 Freezer Temperature Settings

• The initial temperature value for the freezer setting indicator is 0°F.

• Press the freezer set button once. When you first press the button, the previous value will blink on the screen.

• Whenever you press the same button, a lower temperature will be set (3°F, 0°F, -4°F -8°F or -11°F).

• If you continue to press the button, it will restart from 3°F. NOTE: Eco mode gets activated automatically when the temperature of the freezer compartment is set to 0°F.

• The initial temperature value for the refrigerator setting indicator is 39°F.

• Press the cooler button once.

• Whenever you press the button, a lower temperature will be set (46°F, 43°F, 41° F, 39°F, or 36°F).

• If you continue to press the button, it will restart from 46°F.

3.3.3 Super Freeze Mode

• To freeze a large quantity of food that cannot fit on the fast freeze shelf.

• To freeze prepared foods.

• To freeze fresh food quickly to retain freshness. How to Use To enable the Super Freeze mode, press and hold the freezer temperature setting button for 3 seconds. Once the super freeze mode has been set, the super freeze symbol on the indicator will be lit and the machine will beep to confirm the mode has been switched on. During Super Freeze Mode:

• The temperature of the refrigerator may be adjusted. In this case, Super Freeze mode will continue.

• Economy mode cannot be selected.

• Super Freeze mode can be canceled in the same way it is selected. Notes:

• For optimal appliance performance in maximum freezer capacity, activate super freeze mode 3 hours before you put fresh food into the freezer. Super freeze mode will automatically cancel after 24 hours, depending on the environmental temperature or when the freezer sensor reaches a sufficiently low temperature. EN - 9

3.3.2 Refrigerator Temperature SettingsRecommended Settings for the

Freezer and Refrigerator Compartment Temperature Freezer Compartment Refrigerator Compartment Remarks

For regular use and best performance.

Recommended when environmental temperature exceeds 86°F. Super Freeze mode

Must be used when you wish to freeze food in a short period of time.

These temperature settings must be used when the environmental temperature is high or if you think the refrigerator compartment is not cool enough becuse the door is being opened frequently.

3.3.4 Door Open Alarm Function

If fridge door is opened for more than 2 minutes, appliance will start beeping.

3.4 Temperature Settings Warnings

• A 5-minute delay function is implemented to protect the compressor when connecting or disconnecting from the main, or during a power interruption. The appliance will resume normal operation after this delay.

Visual and text descriptions in the accessories section may vary according to the model of your appliance.

3.5.1 Ice Tray (In some models)

• Fill the ice tray with water and place in the freezer compartment.

• After the water has completely frozen, you can twist the tray as shown below to remove the ice cubes.

3.5.2 The Icematic (In some models)

(The images are representative)

• Pull the lever towards you and remove the ice maker tray

• Fill with water to the marked level

• Hold the left end of the lever and set the ice-tray on the icebox

• When ice cubes have formed, twist the lever to drop the ice cubes into the icebox.

• Your appliance is designed to operate within the ambient temperature ranges specified by the climate class on the information label. Operating your fridge outside these temperature ranges may reduce cooling efficiency.

• Adjust the temperature based on the frequency of door openings, the amount of food stored inside, and the ambient temperature of the location.

• When the appliance is first turned on, allow it to run for 24 hours to reach the optimal operating temperature. During this period, do not open the door or place a large quantity of food inside. EN - 10Note: Do not fill the icebox with water in order to make ice. It can be broken. The movement of the ice maker may be difficult while the refrigerator is running. In such a case should be cleaned by removing the glass shelves. Removing the icemaker

• Take out of the freezer glass shelves.

• Remove the ice maker by dragging left or right on the shelf. You can remove the icemaker to use a larger volume of the freezer compartment.

3.5.3 The Chill Drawer (In some models)

Chill drawer (The images are representative) Storing food in the chill drawer, rather than in the freezer or refrigerator compartments, helps maintain freshness and flavor while preserving its appearance. When the chill drawer tray becomes dirty, remove it and wash it with water. Note: Water freezes at 32°F, but foods containing salt or sugar may freeze at lower temperatures. The chill drawer is typically used for storing items such as raw fish, lightly pickled foods, rice, and similar items. Do not put food you want to freeze or ice trays (to make ice) in the chill drawer. To Remove the Chill Drawer: (The images are representative)

• Pull the chill drawer towards you by sliding it off the rails.

• Pull the chill drawer up from the rail and remove it from the fridge.

3.5.4 The Fresh Dial (In some models)

(The images are representative)

(The images are representative) If the crisper is full, open the fresh dial located at the front of the crisper. This allows for better control of air circulation and humidity levels, helping to extend the life of the food inside. If you notice any condensation on the glass shelf, ensure that the dial located behind the shelf is also opened. This glass shelf with humidity control has a maximum load capacity of 32 lbs.

EN - 114 FOOD STORAGE

4.1 Refrigerator Compartment

For normal operating conditions, set the temperature of the refrigerator compartment to 39

• To reduce humidity and prevent frost formation, always store liquids in sealed containers in the refrigerator. Frost tends to accumulate in the coldest areas of the evaporator, which will require more frequent defrosting over time.

• Cooked dishes should remain covered while stored in the fridge. Do not place warm foods in the refrigerator; allow them to cool first to avoid increasing the temperature and humidity, which can reduce the fridge's efficiency.

• Ensure that no items are in direct contact with the rear wall of the appliance, as frost can develop and packaging may stick to it. Minimize frequent openings of the refrigerator door.

• For optimal storage conditions, we recommend loosely wrapping meat and clean fish and placing them on the glass shelf just above the vegetable bin, where the air is cooler.

• Store loose fruits and vegetable items in the crisper containers.

• Keeping fruits and vegetables separate helps prevent ethylene-sensitive vegetables (such as leafy greens, broccoli, and carrots) from being affected by ethylene-releasing fruits (like bananas, peaches, and figs).

• Do not put wet vegetables into the refrigerator.

• The storage time for all food products depends on the initial quality of the food and the maintenance of an uninterrupted refrigeration cycle.

• Water leaking from meat can contaminate other products in the refrigerator. Always package meat products properly and clean any spills on the shelves.

• Do not obstruct the air flow passage by placing food items in front of it.

• Consume packaged foods before the recommended expiration date.

• Do not allow food to come into contact with the temperature sensor, which is located in the refrigerator compartment, in order to keep the refrigerator compartment at optimum temperature.

• For normal working conditions, it will be sufficient to adjust the temperature setting of your refrigerator to 39°F.

• The ideal temperature for the refrigerator should range from 32°F to 46°F. Fresh foods stored below 32°F might freeze and spoil. When temperatures exceed 46°F, bacterial growth accelerates and will cause food to spoil.

• Do not put hot food in the refrigerator immediately, wait for the temperature to decrease outside. Hot foods increase the temperature of your refrigerator and may cause food poisoning and unnecessary spoiling of the food.

• Meat and fish should be stored in the refrigerator compartment, and the vegetables should go in the crisper (if available).

• To prevent cross contamination, do not store meat products and fruit vegetables together.

• Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors. IMPORTANT NOTES: Potatoes, onions and garlic should not be stored in the refrigerator. Cooked dishes must remain covered when they are kept in the fridge. Place them in the fridge when they are at room temperature, otherwise the temperature/ humidity inside the fridge will increase, reducing the fridge’s efficiency. Covering food and drink also preserves their flavor and aroma. EN - 12Do not allow food to come into contact with the temperature sensor, which is located in the refrigerator compartment, in order to keep the refrigerator compartment at optimum temperature. Temperature sensor area (The images are representative) The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment. Food Maximum storage time How and where to store Vegetables and fruits 1 week Vegetable bin Meat and fish

Wrap in plastic foil, bags, or in a meat container and store on the glass shelf Fresh cheese

On the designated door shelf Butter and margarine 1 week On the designated door shelf Bottled products e.g. milk and yogurt Until the expiry date recommended by the producer On the designated door shelf Eggs 1 month On the designated egg shelf Cooked food 2 days All shelves NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

4.2 Freezer Compartment

For normal operating conditions, set the temperature of the freezer compartment to 0° or -4

• The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.

• Food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags. For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn’t leak. Special freezer bags, aluminum foil polythene bags and plastic containers are ideal.

• Do not store fresh food next to frozen food, as this can cause the frozen items to thaw.

• Before freezing fresh food, divide it into portions that can be consumed in one sitting.

• Consume thawed frozen food within a short period of time after defrosting

• Always follow the manufacturer's instructions on food packaging when storing frozen items. If no guidance is provided, do not store food for more than three months from the date of purchase.

• When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged.

• Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible.

• Do not purchase frozen food if the packaging shows abnormal swelling, as this may indicate it has been stored at an unsuitable temperature and the contents could be spoiled. EN - 13• The storage life of frozen food depends on room temperature, thermostat settings, how often the door is opened, the type of food, and the time taken to transport it from the store to your home. Always follow the instructions on the packaging and do not exceed the maximum storage time indicated.

• If the freezer door has been left open for a long time or not closed properly, frost will form and can prevent efficient air circulation. In this case, unplug the freezer and allow it to defrost completely. Clean the freezer once it has fully defrosted.

• The freezer volume stated on the label is the capacity without baskets, covers, or other accessories.

• Do not refreeze thawed food, as it may pose health risks, such as food poisoning. NOTE: If you attempt to open the freezer door immediately after closing it, you will find that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily. If the lower shelf of the freezer door is removed and food obstructs the air suction hole, the efficiency of your fridge will decrease.Therefore, take care while loading the freezer compartment and make sure not to cover the air suction hole. In some models: While loading the freezer compartment, do not fill above the guidelines otherwise the door will not close properly. If the freezer compartment door does not close properly, excess ice will form in the freezer compartment. To prevent the problem from recurring, clear the ice and make sure the door is fully closed. Also, not closing the freezer and/or fridge compartment doors will increase your energy consumption. EN - 14The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment. Meat and fish Preparation Maximum storage time (months) Steak Wrap in foil 6 - 8 Lamb meat Wrap in foil 6 - 8 Veal roast Wrap in foil 6 - 8 Veal cubes In small pieces 6 - 8 Lamb cubes In pieces 4 - 8 Minced meat In packaging without using spices 1 - 3 Giblets (pieces) In pieces 1 - 3 Bologna sausage/salami Should be kept packaged even if it has a membrane 1 - 3 Chicken and turkey Wrap in foil 4 - 6 Goose and duck Wrap in foil 4 - 6 Deer, rabbit, wild boar In 5.5 Ibs portions or as fillets 6 - 8 Freshwater fish (Salmon, Carp, Crane, Catfish) After cleaning the bowels and scales of the fish, wash and dry it. If necessary, remove the tail and head.

Lean fish (Bass, Turbot, Flounder)

Fatty fishes (Tuna, Mackerel, Bluefish, Anchovy)

Shellfish Clean and in a bag 4 - 6 Caviar In its packaging, or in an aluminium or plastic container

Snails In salty water, or in an aluminium or plastic container 3 NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen. Vegetables and Fruits Preparation Maximum storage time (months) String beans and beans Wash, cut into small pieces and boil in water 10 - 13 Beans Hull, wash and boil in water 12 Cabbage Clean and boil in water 6 - 8 Carrot Clean, cut into slices and boil in water 12 Pepper Cut the stem, cut into two pieces, remove the core and boil in water

Spinach Wash and boil in water 6 - 9 Cauliflower Remove the leaves, cut the heart into pieces and leave it in water with a little lemon juice for a while

Eggplant Cut into pieces of 1 inch after washing 10 - 12 Corn Clean and pack with its stem or as sweet corn 12 Apple and pear Peel and slice 8 - 10 Apricot and Peach Cut into two pieces and remove the stone 4 - 6 EN - 15Vegetables and Fruits Preparation Maximum storage time (months) Strawberry and Blackberry Wash and hull 8 - 12 Cooked fruits Add 10 % of sugar to the container 12 Plum, cherry, sourberry Wash and hull the stems 8 - 12 Maximum storage time (months) Thawing time at room temperature (hours) Thawing time in oven (minutes) Bread 4 - 6 2 - 3 4-5 (428-437 °F) Biscuits 3 - 6 1 - 1.5 5-8 (374-392 °F) Pastry 1 - 3 2 - 3 5-10 (392-437 °F) Pie 1 - 1.5 3 - 4 5-8 (374-392 °F) Phyllo dough 2 - 3 1 - 1.5 5-8 (374-392 °F) Pizza 2 - 3 2 - 4 15-20 (392 °F) Dairy products Preparation Maximum storage time (months) Storage conditions Packet (Homogenized) Milk In its own packet 2 - 3 Pure Milk – in its own packet Cheese - excluding white cheese In slices 6 - 8 Original packaging may be used for short-term storage. Keep wrapped in foil for longer periods. Butter, margarine In its packaging 6

EN - 165 CLEANING AND

MAINTENANCE Disconnect the unit from the power supply before cleaning. Do not wash your appliance by pouring water on it. Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the main supply with dry hands.

• Make sure that no water enters the lamp housing and other electrical components.

• The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.

• Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.

• Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity. The power supply must be disconnected during cleaning. Replacing LED Lighting To replace any of the LEDs, please contact the nearest Authorized Service Center. Note: The numbers and location of the LED strips may change according to the model. 6 SHIPMENT AND REPOSITIONING

6.1 Transportation and Changing

• The original packaging and foam may be kept for re-transportation (optional).

• Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.

• Remove all movable parts or fix them into the appliance against shocks using bands when re-positioning or transporting. Always carry your appliance in the upright position.

6.2 Reversing the Door

Swing Front Handles: You cannot reverse the door if the handles are installed on the front of the appliance. Side Handles or No Handles: You can reverse the door on models that have side handles or no handles at all. Non-Reversible Doors: If your appliance’s door is not reversible, please contact the nearest Authorized Service Center for assistance. EN - 171. Remove the top hinge cover from the freezer compartment.

2. Unscrew the top hinge.

3. Remove and set it aside.

6.3 Instructions for Reversing the Door Swing

EN - 184. Lift the freezer door up and forward to detach it from the pin.

5. Unscrew the middle hinge.

6. Lift the refrigerator door up and

hinge and move it to the opposite hole.

9. Relocate the bottom hinge to the opposite side.

EN - 2010. Switch the top fridge door pin cover and the door insert to the opposite side.

11. Reattach the middle hinge to the

top fridge door by inserting the pin.

12. Move the bottom fridge door hinge and insert to the

opposite side of the door. Ensure the hinge is flipped. EN - 2113. Unscrew the bottom freezer door hinge to the opposite side.

14. Ensure the hinge is flipped.

it is properly seated on the pin, then reposition the top hinge cover.

17. Attach the freezer door by

inserting it onto the pin, pushing down and toward the unit.18. Secure the top hinge to the top of the freezer.

19. Reattach the hinge cover.

Ensure it snaps into place.

EN - 247 TIPS FOR SAVING ENERGY

• Install the appliance in a cool, well- ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.

• Allow warm food and drinks to cool down before placing them inside the appliance.

• Thaw frozen food in the refrigerator compartment. The cold from the food will help maintain a cool temperature in the fridge to conserving energy. Thawing outside the appliance can waste energy.

• Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.

• Avoid keeping the doors open for extended periods or opening them too frequently. Doing so allows warm air to enter the appliance, causing the compressor to activate more often than necessary.

• Keep the covers of the different temperature compartments (such as the crisper and chiller if available) closed.

• The door gasket must be clean and pliable. In case of wear, replace the gasket.

• The product can be used without ice maker flap. Energy consumption is declared according to this option. Recommendations

• If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor.

If you will not use your appliance for a long time (e.g. in summer holidays) unplug it. Clean your appliance according to chapter cleaning and leave the door open to prevent humidity and smell.

• The appliance you have purchased is designed for domestic use only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with this, we emphasis that the manufacturer and the dealer will not be responsible for any repair and failure within the guarantee period.

EN - 258 ERROR CODES

Errors Your fridge will warn you if the temperatures for the cooler and freezer are at improper levels or if a problem occurs with the appliance. Warning codes are displayed in the freezer and cooler indicators. ERROR TYPE MEANING WHY WHAT TO DO E01 Sensor warning Call Service for assistance as soon as possible. E02 Sensor warning Call Service for assistance as soon as possible. E03 Sensor warning Call Service for assistance as soon as possible. E06 Sensor warning Call Service for assistance as soon as possible. E07 Sensor warning Call Service for assistance as soon as possible. E09 Freezer compartment is not cold enough Likely to occur after long term power failure.

1. Set the freezer temperature

to a colder value or set to Super Freeze. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.

2. Remove any products which

have thawed/defrosted during this error. They must be used within a short period of time.

3. Do not add any fresh produce

to the freezer compartment until the correct temperature has been reached and the error is no longer. If this warning continues an authorized technician needs to be contacted. E10 Fridge compartment is not cold enough Likely to occur after: - Long term power failure. - Hot food has been left in the fridge.

1. Set the fridge temperature to

a colder value or set Super Cool. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.

2. Please empty the location

at the front area of air duct channel holes and avoid putting food close to the sensor. If this warning continues an authorised technician needs to be contacted. EN - 26ERROR TYPE MEANING WHY WHAT TO DO E11 Fridge compartment is too cold Various

1. Check is Super Cool mode is

2. Reduce the fridge

compartment temperature

3. Check to see if vents are clear

and not clogged If this warning continues an authorised technician needs to be contacted. If you have checked the information above and you still need help with your appliance, call our Customer Service facility at 800-932-4267 (Ext. 513) between 9:00 AM and 5:00 PM ET or visit our website summitappliance.com/support at any time. We will do our best to answer your questions.

EN - 27PROBLEM POSSIBLE CAUSES SOLUTION

Your appliance is not operating There is no power. Verify that the power supply to the building is active. Contact your utility provider if there are outages. The plug is not correctly placed in the socket. Carefully unplug the device and then plug it back in, ensuring it's fully seated in the socket. The socket is defective. Try plugging another working appliance into the same socket. The plug fuse or the mains fuse has blown. If issues persist or if you’re unsure about any step, contact a qualified electrician for further diagnosis and repair. The appliance performs poorly The appliance is overloaded. Remove items that are not essential. Ensure there’s enough space for air to circulate around the food. The appliance door is not closed properly. Make sure there are no food items or containers blocking the door from closing fully. Examine the rubber gasket around the door for any tears, dirt, or damage. Clean it with warm, soapy water, and ensure its sealing tightly against the fridge. There is dust on the condenser. Use a vacuum with a brush attachment to gently remove dust and debris from the coils. Be careful not to damage the coils. Always unplug the fridge before cleaning the condenser. There is not enough space near the rear and side walls. Refer to your fridge’s manual for recommended clearance distances. Remove any furniture, appliances, or items that may be blocking the fridge’s ventilation. Your appliance is operating noisily. Some common noises inclue: It’s normal for the appliance to make noise. If the sounds persist or seem abnormal, consider contacting technical support for a thorough inspection. Cracking noise During automatic defrosting. Or when the appliance is cooled or warmed (due to expansion of appliance material). Short cracking noise When the thermostat switches the compressor on/off. Motor noise Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated. Bubbling noise and splash occur Due to the flow of the refrigerant in the tubes of the system. Water flowing noise Due to water flowing to the evaporation container. This noise is normal during defrosting. Air blowing noise In some models during normal operation of the system due to the circulation of air. The edges of the appliance in contact with the door joint are warm Especially during summer (warm seasons), the surfaces in contact with the door joint may become warmer during the operation of the compressor, this is normal. This is normal. If the issue persists, consider contacting technical support to check for potential insulation issues or other underlying problems. There is a build-up of humidity inside the appliance The appliance door is opened frequently. Humidity of the room enters the appliance when the doors are opened. Humidity increases faster when the doors are opened more frequently, especially if the humidity of the room is high. Limit the number of times the door is opened and ensure it is closed securely each time. Make sure all food is packed securely, and ensure containers are dry before placing them in the appliance. The door does not open or close properly There is food or packaging preventing the door from closing. Check for any food or packaging blocking the door and rearrange or remove items to ensure it closes securely. Regularly organize the fridge to prevent future obstructions. The door joints are broken or torn. Replace any broken or torn door joints to ensure a proper seal and maintain refrigerator efficiency. Your appliance is not on a level surface. Adjust the appliance's feet to ensure it is on a level surface for optimal performance. 9 GENERAL TROUBLESHOOTING If you are experiencing a problem with your appliance, please check the following before contacting the after-sales service. If you have checked the information above and you still need help with your appliance, call our Customer Service facility at 800-932-4267 (Ext. 513) between 9:00 AM and 5:00 PM ET or visit our website summitappliance.com/support at any time. We will do our best to answer your questions.

Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company. Outside the 48 states, all parts are warranted for one year from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured to commercially acceptable standards, and are not covered from damage during handling or breakage.

compressor is covered for 5 years.

2. Replacement does not include labor.

s to correct the installation

replac e or repair fuses or to correct wiring or plumbing.

2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such

as filters) are excluded from warranty coverage.

3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper

installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.

4. Replacement parts or repair labor costs for units operated outside the United States.

5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

6. The removal and re installation of your appliance if it is installed in an inaccessible location or is not

installed in accordance with published installation instructions. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. Felix Storch, Inc. An ISO 9001:2015 registered company 770 Garrison Ave Bronx, New York 10474 www.summitappliance.com For parts and accessory ordering, troubleshooting and helpful hints, visit: www.summitappliance.com/support

WARNING: This product can expose you to chemicals including Diisononyl phthalate (DINP) which

is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
