USER MANUAL OCEAVC78CMB3 OCEANIC

Consommation electrode: 40 W

1 2 3 Oscillation+Réglable

Important safety instructions:

Please read this instruction manual fully before using this device and keep it safe for future reference.

This appliance is for home use only.

Any use other than that intended for this device, or for an application other than the one intended (e.g. commercial use), is prohibited.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

The fan should only be used according to the rated voltage.

When using the fan, do not handle or push objects into the grille.

Before moving the fan, turn off the power supply first.

This appliance can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, but only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance should not be made by children without supervision

Always place the device on a stable surface when using it.

Do not let the power cord hang over the edge of a table or counter top.

Make sure that the power cable never comes into contact with a hot surface.

Water and other liquids should not be allowed to enter the motor.

Do not cover the fan when in use.

Unplug the fan before leaving home.

Unplug the cord before moving.

Do not unplug the fan by pulling on the power cable. Grasp the plug and pull it out to disconnect it.

The fan is not designed for outdoor use. The fan is for indoor use only. Do not use outdoors.

Do not try to repair this fan yourself.

Any repair operation must be carried out by the manufacturer, its after-sales service or a repair agent qualified so as to avoid danger.

Appliance specifications

Operating voltage: 220-240 V\~, 50-60 Hz

Power consumption: 40 W

Tower Fan model TX-TF29DT, reference OCEAVC78CMW3/ OCEAVC78CMB3
Description	Symbol	Value	Unit
Maximum fan flow rate	F	21,05	m³/min
Fan power input	P	37,0	W
Service value	Sv	0,57	(m³/min)/W
Off mode power consumption	Poff	0	W
Fan sound power level	LWA	56,91	dB (A)
Maximum air velocity	C	2,45	meters/sec
Measurement standard for service value	EN IEC 60879: 2019
Contact details for obtaining more information	OCEANIC 120-126 Quai de Bacalan CS 11584 33000 Bordeaux

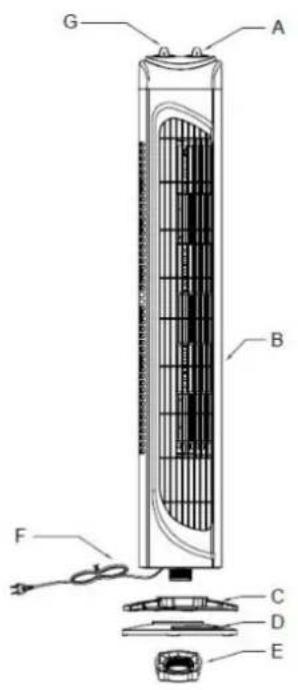

1) Parts Identification:

A. Speed Knob
B. Body
C. Back base
D. Front base
E. Nut
F. Power cord
G. Timer Knob

3) assembly:

Picture 1

Picture 2

Picture 3

Picture 4

Picture 5

Picture 6

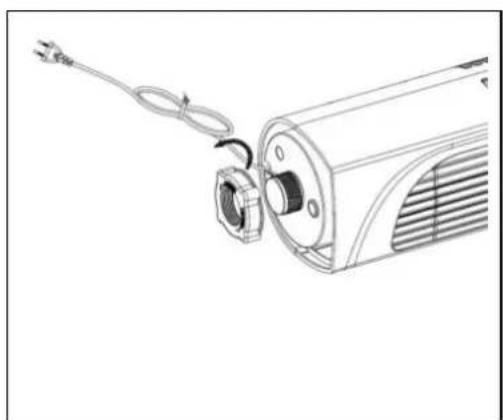

1. Screw the plastic nut out from the thread. (Picture 1)

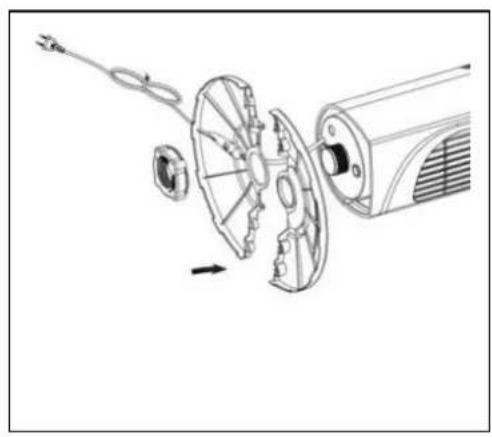

2. Twist four screws out. (Picture 2)

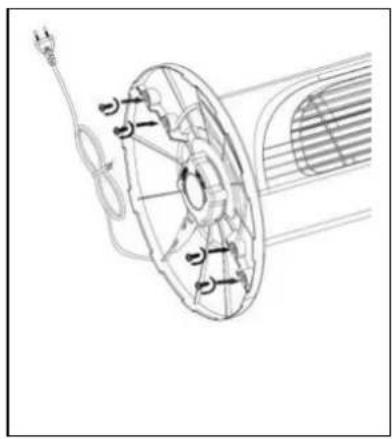

3. The power cord is stuck in the slot of the base (Picture 3)

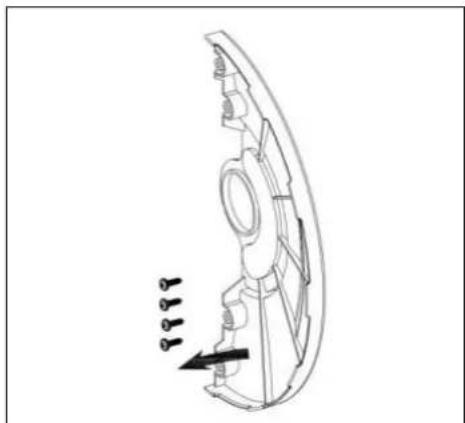

4. Fasten the back base and front base each other. (Picture 4)

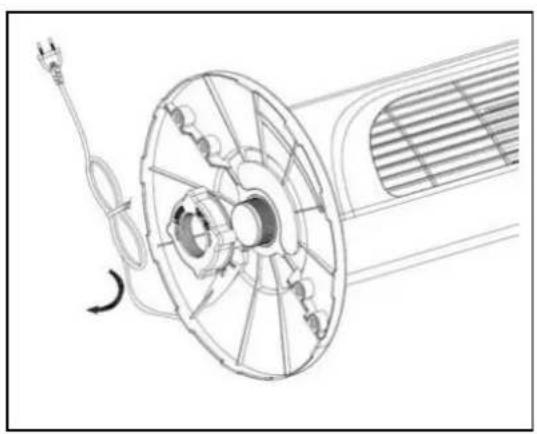

5. Screw the plastic nut into the thread. (Picture 5)

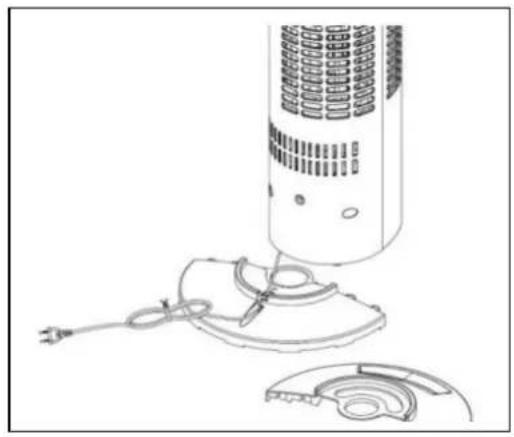

6. Screw the four screws into the base. (Picture 6)

Operating instructions / Drawings

Manual control

1. Adjustment

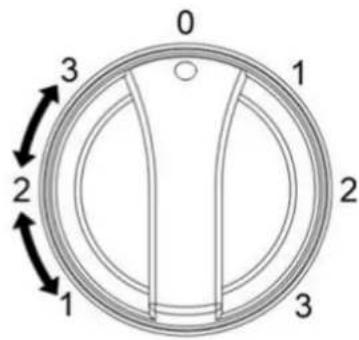

Set the left rotary knob to "l": Select the desired speed (see above from 0 to 3, on the right). The fan works but does not oscillate. If you select speeds 1 to 3 with the arrows, on the left, the fan will oscillate.

0 Stop
1 Low
2 Med
3 High

1 2 3 Oscillation+Adjustable

1. Oscillation angle: ≤slant 70^
2. Timer function:

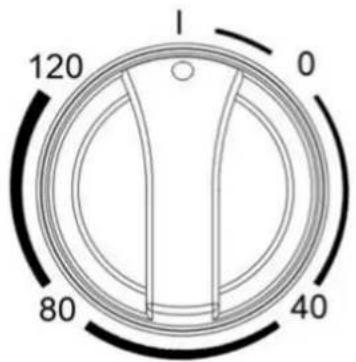

When the fan is in operation (Speed and/or Oscillation Selection), you can activate the timer function, for a time range between 0 and 120 minutes via the left rotary knob.

In the "I" position the timer function is inactive.

By selecting a duration between 0 and 120 minutes, the timer function starts working. When the selected time has elapsed, the fan turns off automatically (blower and oscillation).

Maintenance / Cleaning

1. Always remove the plug from the socket-outlet and allow the fan to stop before cleaning it.
2. Clean the external surfaces of the fan with a soft damp (not dripping wet cloth)

WARNING:

Do not immerse the fan in water.

Do not use any cleaning chemicals such as detergents and abrasives. Do not allow the interior to get wet as this could create a hazard.

1. When the unit is not in use, make sure that it is unplugged from the wall socket. To store the fan, you may pack it in the original carton and store it in a cool and dry place.
2. In case of malfunction or doubt, do not try to repair the fan yourself, it may result in a fire hazard or electric shock.

After sale service

This electric product is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts. Otherwise, this may result in considerable danger to the user. Please contact the store which you bought the product for after sale services if any.

DISPOSAL OF WASTE

As a responsible distributor, we attach great importance to environmental protection.

We encourage you to follow the correct disposal procedures for your device, batteries and packaging elements. This will help preserve natural resources and ensure that it is recycled in a way that respects health and the environment.

You must dispose of this product and its packaging according to local laws and rules.

Since this product contains electronic components and sometimes batteries, the product and its accessories must be disposed of separately from household waste when the product is at the end of its life.

For more information on disposal and recycling procedures, contact the authorities of your municipality.
