USER MANUAL Thermopinie 4 Sonnenkönig

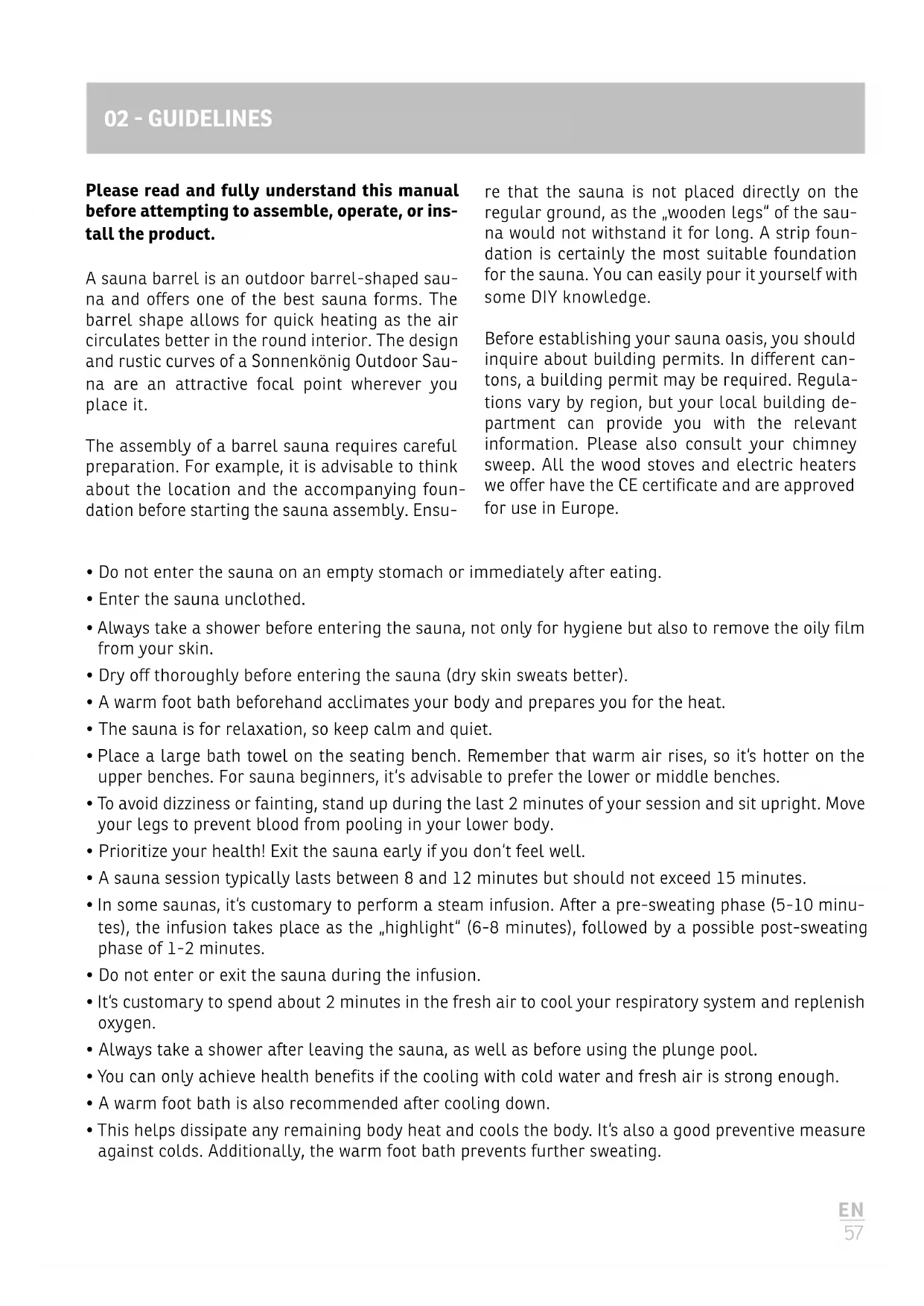

• Do not enter the sauna on an empty stomach or immediately after eating.

• Enter the sauna unclothed.

• Always take a shower before entering the sauna, not only for hygiene but also to remove the oily film from your skin.

• Dry off thoroughly before entering the sauna (dry skin sweats better).

• A warm foot bath beforehand acclimates your body and prepares you for the heat.

• The sauna is for relaxation, so keep calm and quiet.

• Place a large bath towel on the seating bench. Remember that warm air rises, so it‘s hotter on the upper benches. For sauna beginners, it‘s advisable to prefer the lower or middle benches.

• To avoid dizziness or fainting, stand up during the last minutes of your session and sit upright. Move your legs to prevent blood from pooling in your lower body.

• Prioritize your health! Exit the sauna early if you don‘t feel well.

• A sauna session typically lasts between and minutes but should not exceed minutes.

• In some saunas, it‘s customary to perform a steam infusion. After a pre-sweating phase (- minu- tes), the infusion takes place as the „highlight“ (- minutes), followed by a possible post-sweating phase of - minutes.

• Do not enter or exit the sauna during the infusion.

• It‘s customary to spend about minutes in the fresh air to cool your respiratory system and replenish oxygen.

• Always take a shower after leaving the sauna, as well as before using the plunge pool.

• You can only achieve health benefits if the cooling with cold water and fresh air is strong enough.

• A warm foot bath is also recommended after cooling down.

• This helps dissipate any remaining body heat and cools the body. It‘s also a good preventive measure against colds. Additionally, the warm foot bath prevents further sweating. 02 GUIDELINES Please read and fully understand this manual before attempting to assemble, operate, or ins- tall the product. A sauna barrel is an outdoor barrel-shaped sau- na and offers one of the best sauna forms. The barrel shape allows for quick heating as the air circulates better in the round interior. The design and rustic curves of a Sonnenkönig Outdoor Sau- na are an attractive focal point wherever you place it. The assembly of a barrel sauna requires careful preparation. For example, it is advisable to think about the location and the accompanying foun- dation before starting the sauna assembly. Ensu- re that the sauna is not placed directly on the regular ground, as the „wooden legs“ of the sau- na would not withstand it for long. A strip foun- dation is certainly the most suitable foundation for the sauna. You can easily pour it yourself with some DIY knowledge. Before establishing your sauna oasis, you should inquire about building permits. In different can- tons, a building permit may be required. Regula- tions vary by region, but your local building de- partment can provide you with the relevant information. Please also consult your chimney sweep. All the wood stoves and electric heaters we offer have the CE certificate and are approved for use in Europe.EN

• If you want to relax, you can retreat to a relaxation room.

• Only start drinking again after your last sauna session. No alcohol! Recommended beverages are calcium- and magnesium-rich mineral water or diluted fruit juices (at least liter).

• Children under years should definitely not use the sauna. Even for children over years, the tem- perature should be significantly lower to avoid health problems. As the material of the sauna is made from natural Canadian cedar wood and thermo-wood, plea- se observe the following care and assembly instructions:

• During the first two years, closely monitor the wood‘s drying behavior. To do this, periodically relax the barrel sauna.

• In colder seasons, the barrel should be relaxed using the adjustment device. To do this, loosen the nuts slightly. If the door becomes stuck, you can gently tap the outer planks outward with a hammer and a piece of wood.

• In warmer seasons, the sauna should be tensioned as the wood expands. You can lightly tighten the nuts for this purpose. (Caution: place a piece of wood in the middle of the door frame when tightening the nuts to prevent it from being pressed in.)

• The round exterior covers attached externally should have a clearance of approximately mm at the joints. Please check this during re-tensioning. It may be necessary to release the covers in the case of extreme tensioning.

• If the door becomes stuck, you must relax your barrel sauna using the tensioning device.

• Certain areas inside your sauna may darken over time. These are normal signs of use and a result of sweating. Improvement is possible, but complete removal is not. Clean the interior of your sauna with baking soda and water.

• Always place towels on the sauna benches before using them.

• We recommend placing a filled bucket of water in the sauna after each use to maintain some humidi- ty inside.

• Treat the exterior surface of the sauna with wood preservatives or wood antiseptics at least every two years. The minimum temperature for applying these substances is +°C.

• To protect the ends of the wooden planks from cracking, treat them with special products. If you use the same product for the ends as you did for the entire sauna, apply it in three layers.

• To protect your sauna from fungi, mold, or wood pests, treat all interior surfaces with special products at least once a year.EN

Tightening the Stainless Steel Bands After transportation, tighten the stainless steel bands. Ensure that the bands are tightened du- ring spring, autumn, and rainy weather (avoid excessive tension). In hot weather, slight sag- ging of the bands is permissible. You can tighten the stainless steel bands as needed, but it‘s not urgently required. It‘s essential to monitor the tension of the bands and adjust them according to weather conditions. Only regulate the bands when necessary, as premature adjustments can lead to door sagging or damage to the sauna profiles. Once you have securely installed the sauna in its designated location, seal the gaps between the sauna walls and the profiles with appropriate silicone. If your sauna has a glass door with a roller lock, adjust the lock before using the sauna. This can be easily done by turning the adjustment screw of the roller lock. The lock should move freely and securely lock the door.EN

The stove is used for heating sauna cabins to sauna temperature. Its use for other purposes is prohibited. Stacking Sauna Heater Stones The suitable stones for an electric sauna heater have a diameter of - cm. Specifically desig- ned solid, well-known sauna heater stones should be used. The use of lightweight, porous, and uniformly sized ceramic stones is prohibited as they can overheat and damage the resistors. Soft pot stones should not be used as sauna hea- ter stones. The stones should be free of dust be- fore stacking. The stones are placed on the grid in the sauna heater in the gaps between the hea- ting elements so that they support each other. The weight of the stones should not be borne by the heating elements. The stones should not be placed too close together to avoid obstructing airflow. Also, the stones should not be tightly wedged between the heating elements; they should be loosely stacked. Very small stones should not be placed in the sauna heater. The stones should cover the heating elements com- pletely but should not protrude significantly ab- ove the top of the sauna heater. See Fig. . During use, the stones become brittle. For this reason, the stones should be restacked at least once a year, more frequently with heavy use. During this process, please also remove dust and rock splinters from the lower part of the sauna heater and replace damaged stones. The warranty does not cover damage caused by the use of sauna heater stones other than those recommended by the factory. The warranty also does not cover da- mage to the sauna heater caused by blockage of airflow due to brittle stones or stones that are too small. No objects or devices that change the quantity or direction of the airflow through the sauna heater and thereby cause overheating of the resistors and a fire hazard to the wall surfa- ces should be placed in the stone chamber or near the sauna heater! Infusion Sauna air dries out when heated, so water should be poured onto the hot stones of the sauna hea- ter to achieve a pleasant humidity level. The amount of water regulates the desired infusion humidity. When the humidity level is appropriate, the bather‘s skin sweats, and breathing in the sauna becomes easier. It is advisable to start by pouring only small amounts of water on the sto- nes to test the effect of moisture on the skin. Ex- cessive temperatures and humidity can be un- comfortable. Prolonged stays in a hot sauna can lead to an increase in body temperature, which can be dangerous. The capacity of the sauna lad- le should not exceed . liters. Large quantities of water should not be poured onto the stones at once, as boiling hot water could splash onto the bathers when it evaporates. Also, be careful not to pour water onto the stones when someone is nearby, as the hot steam could cause burns.EN

Water for infusion Only water that meets the quality standards for household water should be used as infusion wa- ter. Key factors affecting water quality include:

• Hardness level; the main substances are manga- nese (Mn) and calcium (Ca) or lime: Recommen- ded for manganese below . mg/l and for cal- cium below mg/l. When using water with a high calcium content, a light, creamy layer remains on the sauna heater stones and metal surfaces. The calcification of the stones weakens their infusion properties. When using water with high iron content, a rusty layer remains on the heater‘s surface and resis- tors, causing corrosion. The use of water contai- ning humus, chlorine, or seawater is prohibited. Only fragrances designated for this purpose should be used in infusion water. Follow the ins- tructions on the packaging. Temperature and Humidity in the Sauna Cabin There are instruments suitable for use in a sauna to measure temperature and humidity. However, it is impossible to specify universally and preci- sely the temperatures or humidity percentages suitable for sauna use, as the effect of infusion in the sauna is perceived differently by each indivi- dual. Your own perception is the best thermome- ter! Proper ventilation in the sauna is essential because sauna air must be rich in oxygen and easy to breathe. See „Ventilation in the Sauna Cabin“ on page . People find sauna bathing to be healthy and refreshing. Sauna bathing cleanses, warms, relaxes, soothes, alleviates mental stress, and provides a peaceful place for reflec- tion.EN

*) Keep pressed so that the values change more quickly. Turning On and Off the Sauna Heater When the heater is connected to the power source, and the power switch (located at the front of the control panel behind the protective cover at the bottom of the front of the heater) is in the „On“ position (Position ), the heater is in standby mode (the indicator light on the I/O switch is lit). Press the I/O button on the control panel to turn on the heater. You will hear a clicking sound to indicate that the safety switch is activated. Once the heater is tur- ned on, signal light will flash, and the display will show the set temperature. After five seconds, the display will show the current temperature in- side the sauna. When the desired temperature in the sauna has been reached, the heating ele- ments will automatically turn off. To maintain the desired temperature, the control unit will pe- riodically turn the heating elements on and off. The last decimal point on the display will light up when the heating elements are on. The heater will turn off when you press the I/O button again, when the set timer has expired, or if an error oc- curs. Sauna Heater Control Through the control panel of the heater, sauna temperature and operating time can be individu- ally adjusted by each user as desired (see Fig. ). The heater can also be programmed to turn on at a specific time using a button on the control pa- nel. The factory settings for the heater are as follows:

• Operating Time: hours

Basic Mode (Heater On) The display shows the temperature inside the sauna cabin. Basic Mode (Countdown Timer, Oven Off) The decreasing preheat time is displayed until it reaches zero, and then the oven is turned on. Open the settings menu by pressing the MENU button. Sauna Cabin Temperature The display shows the temperature setting for the sauna cabin. The indicator light is blinking.

• Change the setting using the - and + buttons to the desired tempera- ture. The adjustment range is – °C. Proceed to the next setting by pressing the MENU button. Remaining switch-on time Set the remaining on-time using the - and + buttons. Example: The sauna heater will run for 3 hours and 30 minutes. Preset time (time-controlled switch-on)

• Press the + button until the maximum preheat time is exceeded. The indicator light will blink.

• Use the - and + buttons to select the desired preheat time. The time can be set for up to hours in -minute increments, and from to hours in -hour increments. Example: The sauna heater will start in 10 minutes. Press the MENU button to exit the settings. Fig. 3a Basic settingsEN

Heater Standby Interrupt the power supply to the oven‘s electronics (see Fig. ). Press and hold the MENU button, then turn the power supply back on. Wait for the program version number to appear on the display.

• Press + to change the maximum on-time setting.

• Press – to change the sensor value setting. Maximum on-time The maximum on-time can be changed using the – and + buttons. Ad- justment range: Family saunas – hours, public saunas in apartment buildings – hours. Example: The sauna stove will run for 4 hours from the beginning. (The remaining on-time can be changed, see Fig. 3a.) Setting the sensor value The measured values can be corrected by - units. The setting does not directly affect the measured temperature value but changes the measurement curve. Press the MENU button. The oven switches to standby mode. 06 WARNINGS

• Sea and humid climates can cause the metal surfaces of the sauna oven to rust.

• Do not use the sauna for drying clothes or laundry due to the risk of fire, and high humidity can da- mage electrical appliances.

• Caution should be exercised around the hot sauna oven. The stones and the housing become very hot and can burn the skin.

• Do not pour too much water onto the stones at once, as the water evaporating on the hot stones can cause burns to the skin.

• Children, individuals with mobility limitations, the sick, and the weak should not be left alone in the sauna.

• Health restrictions related to sauna use should be discussed with a doctor.

• Parents should not allow their children near the sauna oven.

• Regarding the sauna use by infants, it is advisable to seek advice from a maternal health clinic. Con- sider the child‘s age, sauna temperature, and duration of sauna exposure.

• Exercise caution when moving around in the sauna, as the benches and the floor may be slippery.

• Do not enter the sauna if you are under the influence of narcotics (alcohol, medications, drugs, etc.). Fig. b Further settingsEN

If the sauna oven is not heating up, please check the following:

• Ensure that the power is turned on.

• Check that the thermostat is set to a higher temperature than the current temperature in the sauna.

• Verify that all three fuses of the sauna oven are intact.

• Ensure that the temperature protection has not been unlocked (refer to Figure ).

• Make sure the timer switch is set to the range where the sauna oven heats up. If a malfunction occurs, the oven will shut off, and an error message in the format „E (number)“ will be displayed on the control panel, providing guidance on how to troubleshoot the issue. IMPORTANT: All maintenance procedures should be carried out by qualified technical personnel. Description Remedy ER 1 The temperature sensor circuit is inter- rupted. Check the red and yellow wires to the tempera- ture sensor and their connections (see Figure

ER 2 Short circuit in the temperature sensor circuit. Inspect the red and yellow wires leading to the temperature sensor and their connections (refer to Figure 11) for any faults. Table 1 Error messagesEN

Before assembly Before installing the sauna heater, make sure to read the installation instructions and check the following:

• Is the sauna heater you are installing suitable in power and type for the sauna cabin? The room volume values in Table 2 should not be exceeded or undershot.

• Do you have enough good-quality sauna heater stones?

• Is the electrical supply voltage compatible with the sauna heater?

• If the house is electrically heated, the control circuit (contactor) of the heating system will require an intermediate relay to set the control function to potential-free, as the sauna heater transmits voltage control during use.

• Ensure that the installation location of the heater complies with the safety minimum distances specified in Figure 5 and Table 2. These clearances must be strictly adhered to, as deviating from them can pose a fire hazard. Only one sauna heater should be installed in a sauna. 70mm 30 mm 60mm Fig. 5 Safety Minimum Distances for the Sauna Heater Fig. 7 Attachment of the Connection Cable Fig. 6 Safety Minimum Distances for the Sauna Heater Electric Switch On/Off Connection cable Sensor Cable sensor Data cableEN

Table 2. Installation Information for the Sauna Heater Attachment of the connection cable to the sau- na heater Attachment of the connection cable to the sauna heater is easiest when the sauna heater is not yet firmly mounted. See Figure . Connect the conduc- tors of the data cable to the cable clamp () of the data cable based on the color-matching principle. Attachment of the sauna heater to the wall The mounting frame of the sauna heater is atta- ched to the sauna heater. Remove the locking screw of the mounting frame and remove the frame from the sauna heater. . Attach the mounting frame to the wall using the supplied screws, and observe the safety minimum distan- ces indicated in Figure and Table . The attach- ment of the mounting frame is shown in Figure . WARNING! Behind the panels where the attach- ment screws are placed, there should be a sup- port, such as a board, where the screws can se- curely sit. If there are no boards behind the panels, they can also be attached in front of the panels. . Lift the sauna heater onto the frame on the wall so that the attachment hooks at the bottom of the frame go behind the edge of the sauna heater body, and the groove at the upper part of the heater is pressed against the mounting frame. . Tighten the upper edge of the sauna heater onto the mounting frame. Installation of the sauna heater in a recess The sauna heater can be installed in a wall re- cess with a minimum height of mm. See Figure . Protective railing If a protective railing is built around the sauna heater, it must be done in consideration of the minimum safety distances indicated in Figure and Table . Electrical connections The connection of the sauna heater to the power network must only be carried out by an authori- zed electrician in accordance with the applicable regulations. See the chapter „Attachment of the connection cable to the sauna heater.“ The ca- bles from the sauna heater to the heat control and signal light must have a cross-sectional area that corresponds to the power cable of the sauna heater. The sauna heater is semi-permanently at- tached to the terminal box on the sauna wall. See Figure . A rubber cable of type HRN-F or an equivalent cable is used as the connection cable. WARNING! PVC-insulated cables should not be used as the connection cable for the sauna hea- ter due to their poor heat resistance. The termi- nal box must be splashproof and may be moun- ted no more than 50 cm above the floor. If the connection or mounting cables lead into the sauna or sauna walls at a height above cm from the floor, they must withstand a load of at least °C (e.g., SSJ). Electrical appliances that are installed higher than cm from the sauna floor must be approved for use at an am- bient temperature of °C (designation T). In addition to the power connection, VE sauna heaters (excluding the V, -phase model) are equipped with a terminal (P) that provides the possibility of controlling the electric heating. See Figure a. The control cable for electric heating is run directly to the terminal box of the sauna heater, and from there, a rubber cable of the same thickness continues to the terminal block of the sauna heater. Heater Output Sauna room Minimum distances Connection cable Model und Dimension Cubic vol. hight A min.

refer to page 68 «Sauna Heater Performance» See Fig. 5. See Fig. 10. The measurements exclusively refer to the connection cable (2)! min

V80E-1 8,0 7 12 1900 70 30 60 1100 150 3 x 6,0 1 x 35 *) from the side surface to the wall or the upper bench **) from the front surface to the upper bench or the upper railingEN

70 mm Fig. 8 Location of the mounting rack of the heater Fig. 10 Connection of the heater Fig. 9 Installation of the heater in a recess 145 mmEN

Fig. 10 Connection of the heater Fig. 11a 3-Phase Electrical Connections of the Sauna Heater Fig. 11b 1/3-Phase Electrical Connections of the Sauna Heater Installation of the temperature sensor Install the sensor as shown in Fig. 5. Connect the sensor cable color to color with the connector in the heater. CAUTION! The temperature sensor must not be installed closer than 1000 mm to a multi-directio- nal air vent or closer than 500 mm to an air vent pointing away from the sensor. See Figure 6. The draft near air vents cools the sensor, leading to inaccurate temperature measurements at the control unit. This can result in overheating of the heater.EN

Resetting the Overheating Protection The sensor housing contains a temperature sen- sor and an overheating protection system. If the temperature in the vicinity of the temperature sensor rises too high, the overheating protection system will cut off the power supply. Resetting the overheating protection is shown in Figure . WARNING! Before pressing the button, you must identify the cause of the overheating protection activation. Mounting the Control Panel The low-voltage control panel is splash-proof and can be freely mounted. If the control panel is installed in the sauna room, it must maintain a minimum safety distance from the sauna heater and should not be mounted higher than one me- ter ( m). In the sauna room, it can be attached, for example, to the sauna heater‘s protective rai- ling, the wall, or a sturdy part of the sauna bench. The control panel can also be mounted in the washroom, changing room, or living room. The control panel comes with a data cable that is approximately meters long and can be shorte- ned if needed. There are also -meter and -meter cables available. With the VE sauna heater‘s control panel, three wooden cover strips for the data cable are included, as well as a mounting collar with two screws to secure the control panel at the desired height. Using cable ducts in wall structures allows you to route the cable discreetly to the control panel‘s mounting location; otherwise, surface installation should be done. See Figure . The data cable‘s signals are low-voltage signals, allowing the control pa- nel to be securely mounted on various materials. Installation Instructions for the VE Sauna Hea- ter‘s Control Panel . The control panel‘s mounting collar is atta- ched to a suitable location for the control panel, with the data cable passed through it so that it runs through the slot made in the collar. The ca- ble remains between the mounting base and the collar. Two mounting screws for securing the control panel come in the packaging. . The control panel is attached to the collar by pulling an additional cable loop through the col- lar. The control panel locks into the mounting collar using the side spring clips. . If necessary, the data cable can be covered with wooden strips ( pieces). The free end of the data cable is connected to the control panel‘s data cable terminal (Figure : ). IMPORTANT! The color-coded conductors of the cable should be connected according to the ins- tructions in the section „Attachment of the Con- nection Cable to the Sauna Heater.“ Insulation Resistance of the Electric Sauna Heater During the final checks of the electrical installa- tions, a „leak“ may occur when measuring the insulation resistance, which is due to moisture entering the insulation material of the heating resistors (during storage and transport). The moisture dissipates from the resistors after two heatings. Do not switch on the mains power of the electric sauna heater through the residual current protection device!EN

Changing Heating Elements Screw
