USER MANUAL VT6005 V-TAC

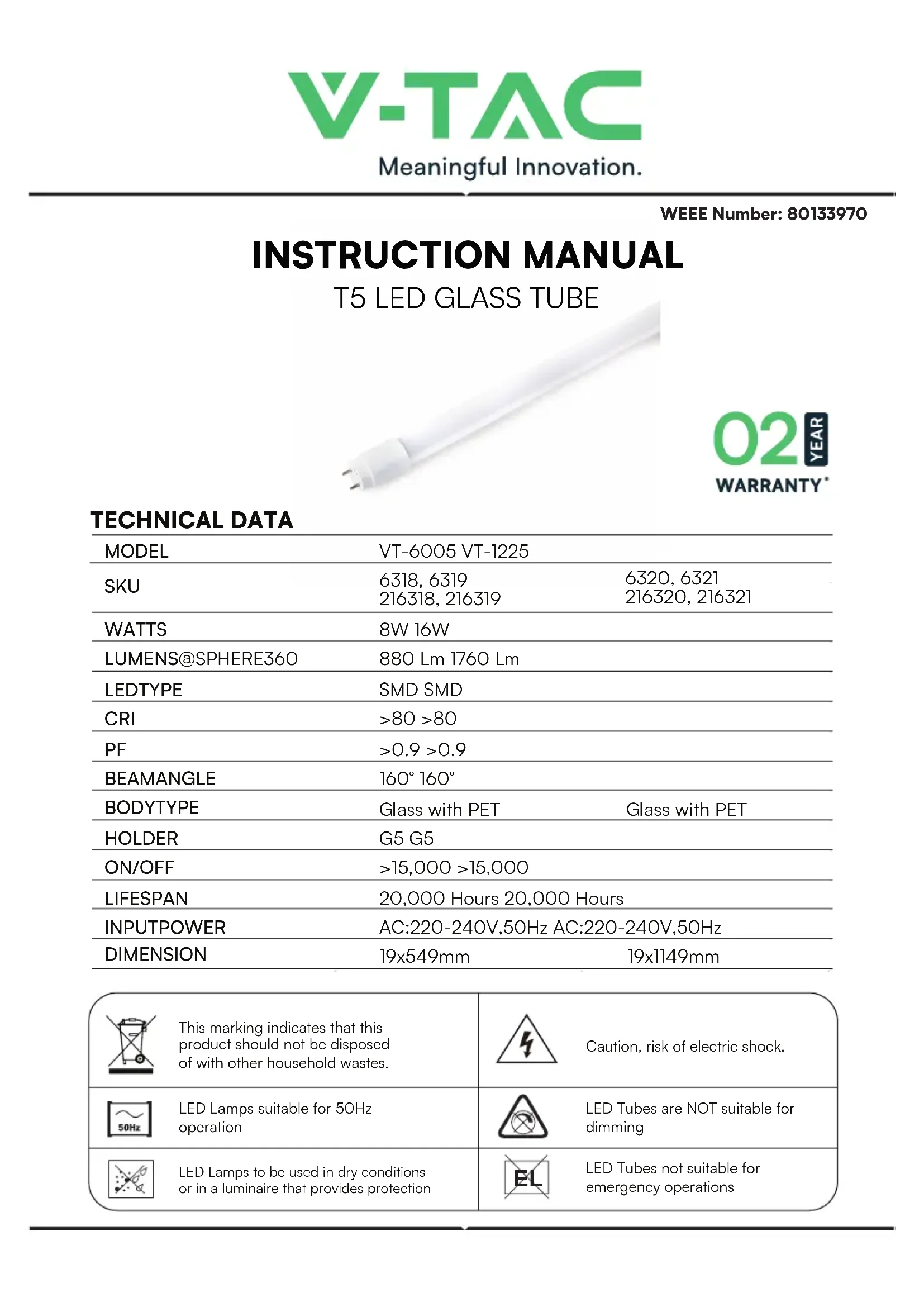

LED Tubes not suitable for emergency operationsLED Tubes are NOT suitable for dimmingLED Lamps suitable for 50Hz operationLED Lamps to be used in dry conditionsor in a luminaire that provides protectionThis marking indicates that this product should not be disposed of with other household wastes.Caution, risk of electric shock. INSTRUCTION MANUAL

T5 LED GLASS TUBEINTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC LED Glass Tube. V-TAC will serve you the best. Please read these instructions carefully before starting the installing and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 hours daily operation. Usage of product for 24 hours a day would void the warranty. This product is warranted for manufacturing defects only. PRODUCT INTRODUCTION Thank you for selecting and buying V-TAC LED Glass Tube, which is equipped with the most advanced lighting technology today, oering the most significant energy saving, environmental protection, long life span with no maintenance required. It has 100% better eciency and significantly better brightness than any other old fixtures. PRODUCT OVERVIEW Power saving, no maintenance, easy to install, high eciency, low energy consumption, long life span, low temperature and no bad glare.

APPLICATION AND USES

The LED glass tube can be used in hotels, oces, factories, conference rooms, meeting rooms, commercial complexes, residential buildings, schools, colleges, universities, hospitals, etc. INSTALLATION REQUIREMENTS

• Installation should only be done by a certified electrician

• Operation environment temperature: from -20°C to +45°C

• Do not use DC electricity

• Do not use with electronic ballasts and magnetic ballasts

• Do not modify the fitting to be used with the LED Tube.

• This lamp is not suitable to be used in emergency luminaires designed for double-capped fluorescent lamp(s). WIRING DIAGRAM

1. Switch o the power before starting the installation.

2 & 3. To remove the old tube from the fitting, rotate the tube (90°) counterclockwise. [Ensure that electronic ballast and starter are removed from the fittings].

4. Replace the conventional lamp into the fitting with the LED Lamp.

5. Rotate the LED Tube by 90° clockwise to secure the position of the LED Tube.

6. Switch on the power to test the light.

Right (L) (N) V-TAC INPUT LED TUBE AC:220-240V 50Hz (L) (N) PACKING:

INTRODUCTION RELATIVE AU PRODUIT

(L) (N) V-TAC VSTUP LED trubice AC:220-240V 50HzSPANISH In case of any query/issue with the product, please reach out to us at: support@v-tac.euFor More products range, inquiry please contact our distributor or nearest dealers. V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
