USER MANUAL VT5117 V-TAC

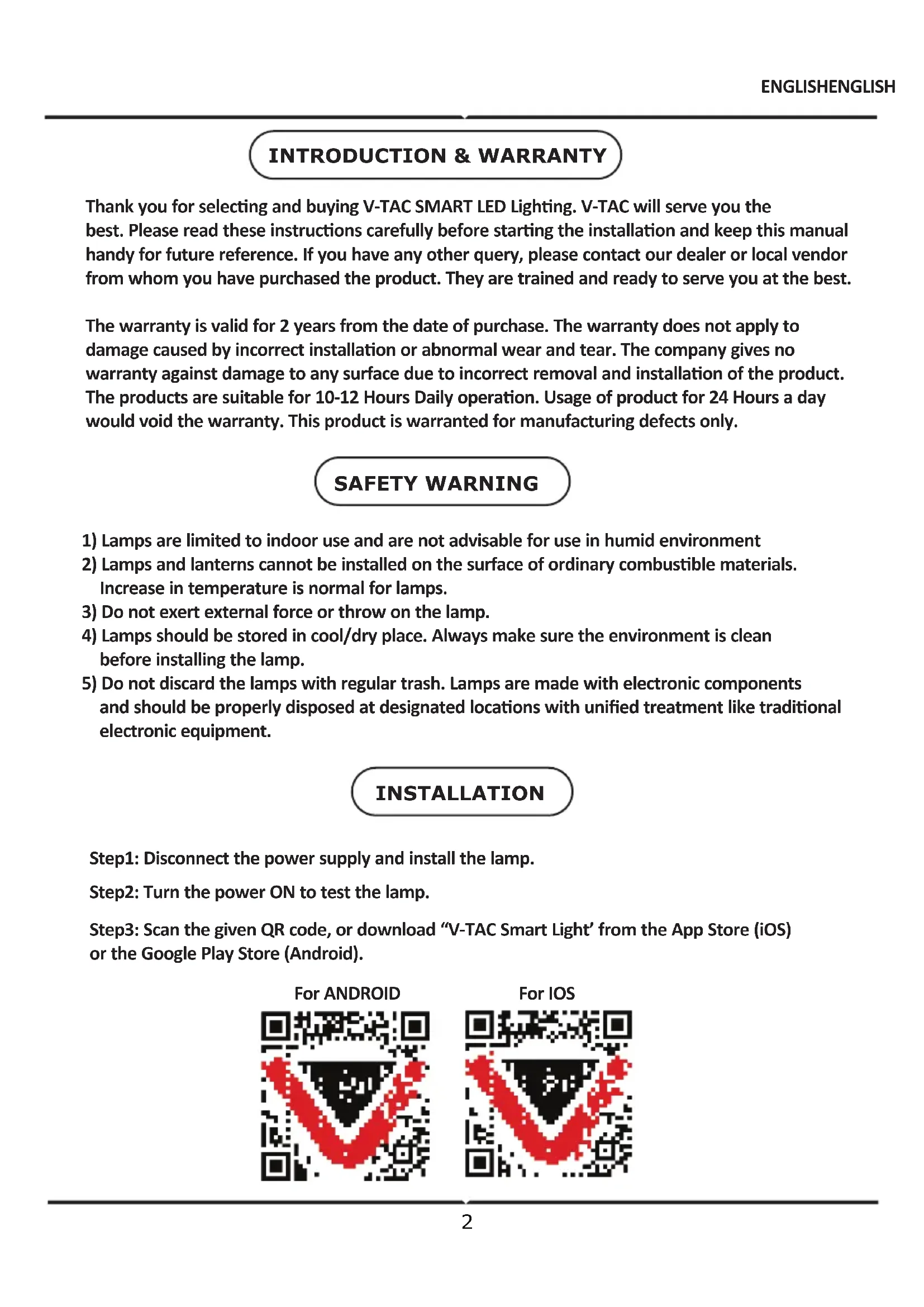

ENGLISH 1SAFETY WARNING

1) Lamps are limited to indoor use and are not advisable for use in humid environment

2) Lamps and lanterns cannot be installed on the surface of ordinary combusble materials.

Increase in temperature is normal for lamps.

3) Do not exert external force or throw on the lamp.

4) Lamps should be stored in cool/dry place. Always make sure the environment is clean

before installing the lamp.

5) Do not discard the lamps with regular trash. Lamps are made with electronic components

and should be properly disposed at designated locaons with unified treatment like tradional electronic equipment. INTRODUCTION & WARRANTY Thank you for selecng and buying V-TAC SMART LED Lighng. V-TAC will serve you the best. Please read these instrucons carefully before starng the installaon and keep this manual handy for future reference. If you have any other query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installaon or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installaon of the product. The products are suitable for 10-12 Hours Daily operaon. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.

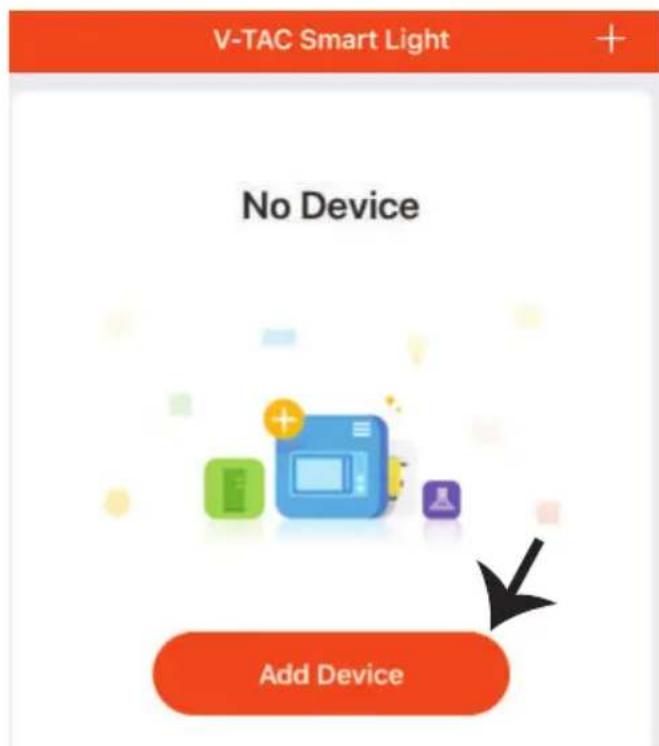

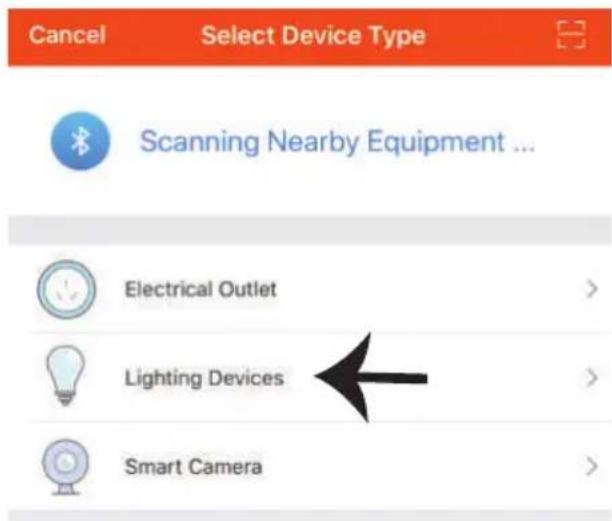

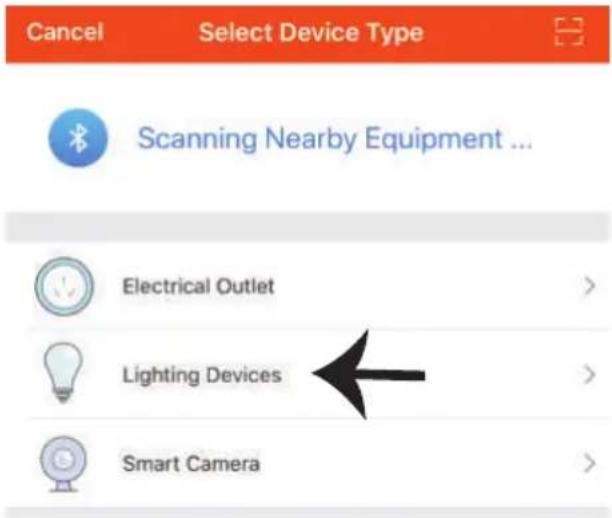

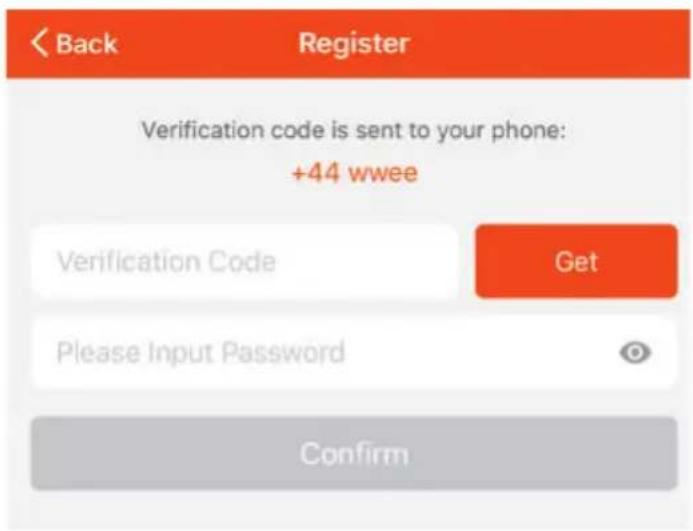

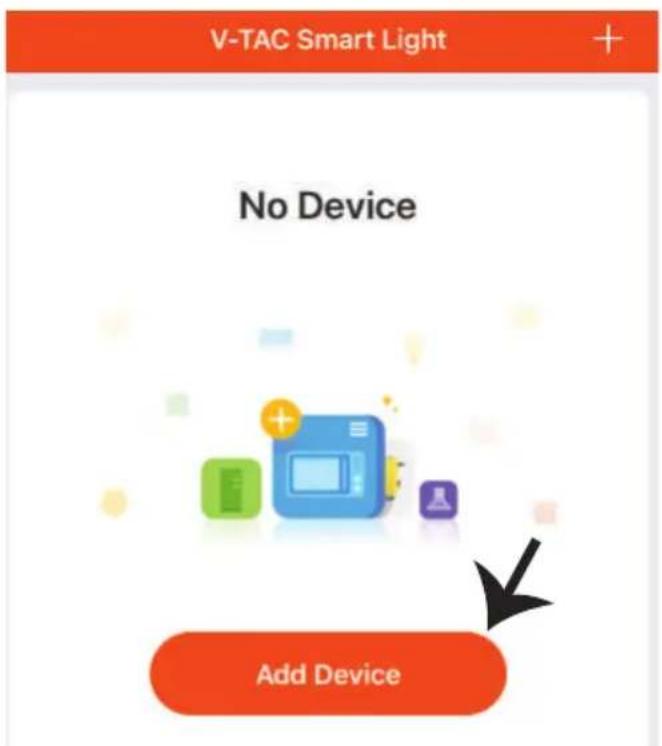

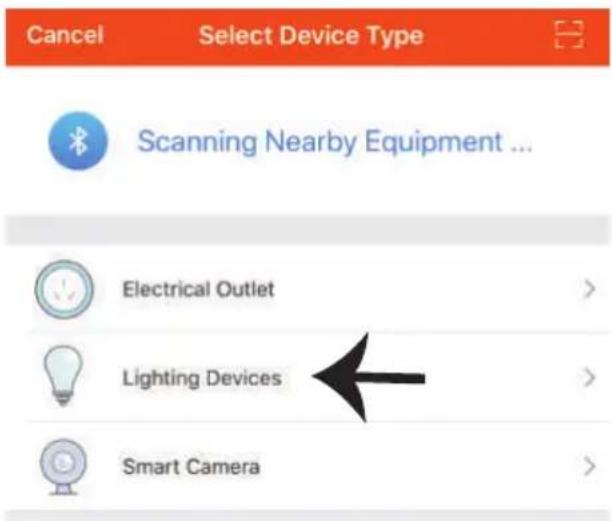

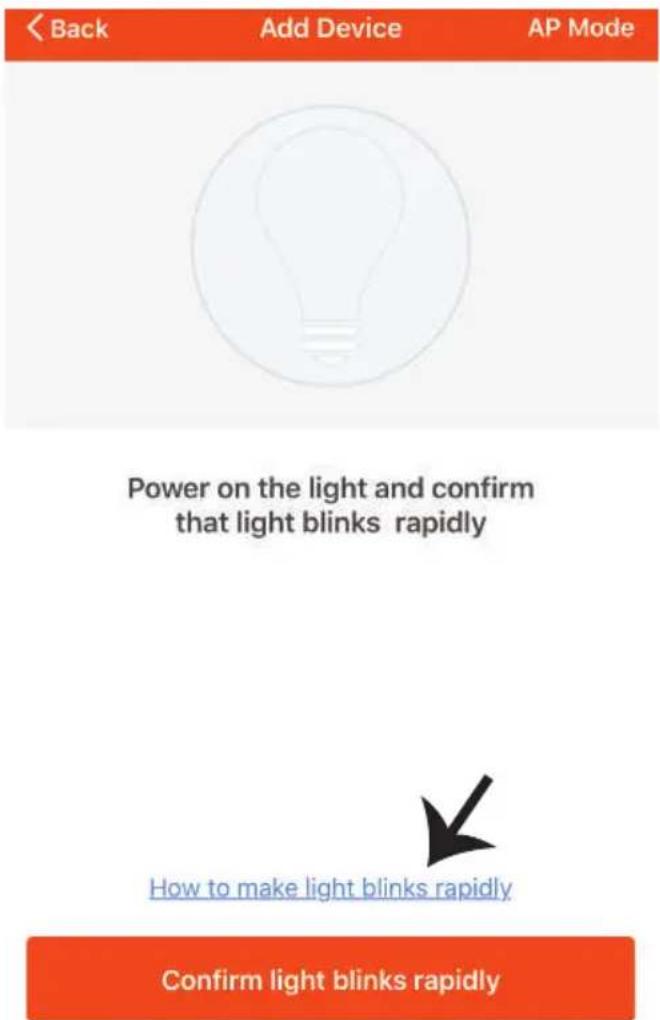

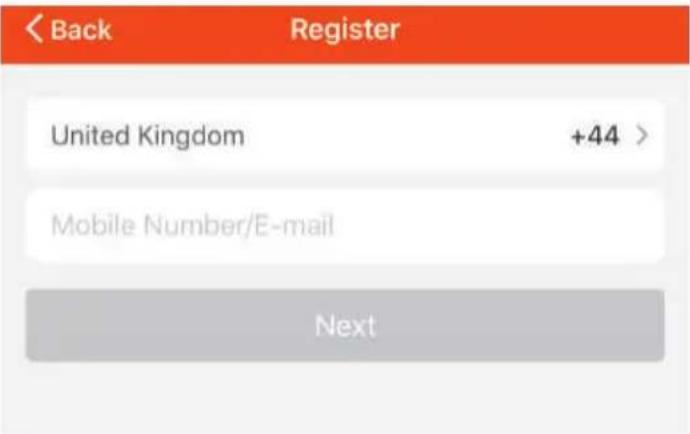

Step5: A) Mobile Number: Select the country, then enter your mobile number. Once done, tap ‘Next’. B) E-Mail: Enter your email id and tap on ‘Next’. Step6: Enter the verificaon code which will be sent to your mobile number/emai id, then assign a new password to your account and tap on “Confirm”. Step7: Tap on ‘Add Device’ or the + sign. Make sure the lamp is switched on. ENGLISH 3Step8: Choose ‘Lighng Devices’ to start pairing the lamp to the app. Step9: To pair the device with lamp make sure the light is blinks rapidly. Once the light blinks rapidly, the lamp is in pairing mode. If the bulb is not blinking rapidly, you can do one of the following steps: A. Switch the bulb on & off repeatedly for 3 mes, with short intervals of less than 2 seconds. B. Tap the ‘How to make light blink rapidly’ link (as shown on the image to the righ) Network Modes:

1) EZ Mode: Light flashes twice per second

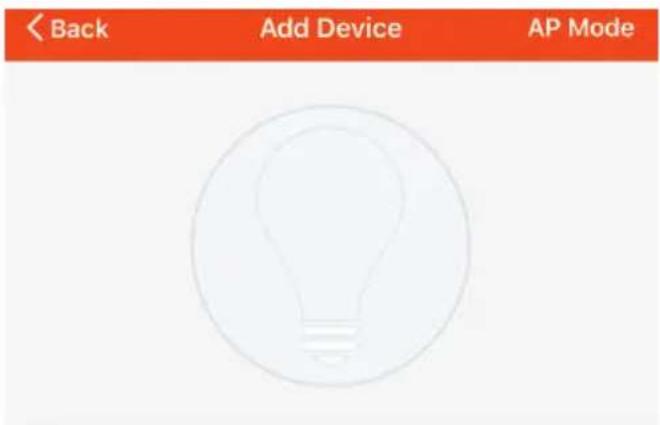

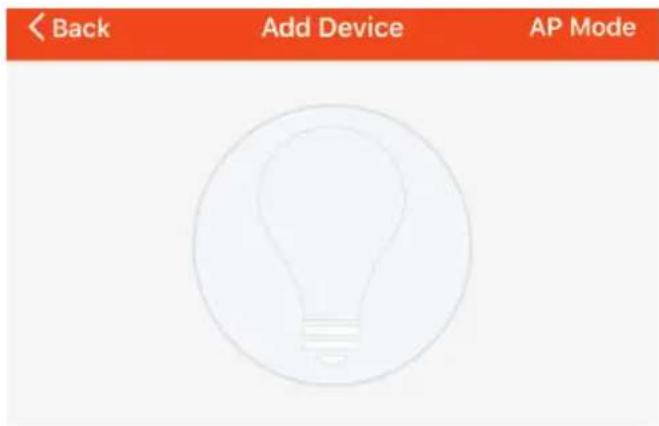

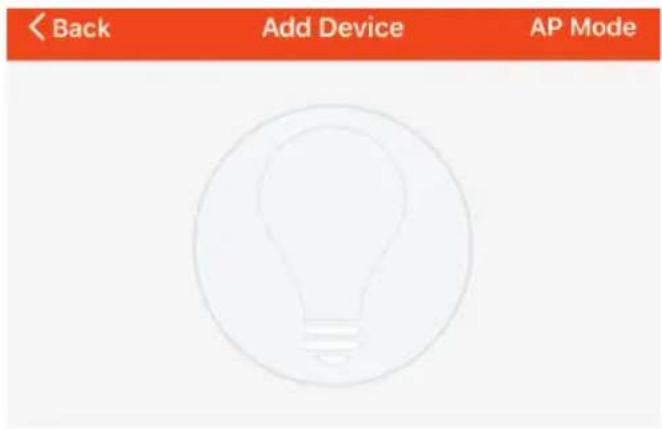

2) AP mode: Slow flash, once every 2 second

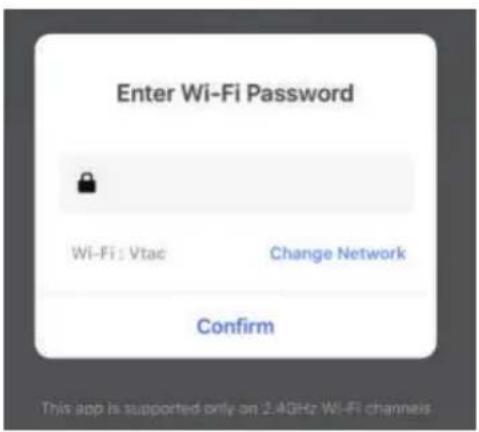

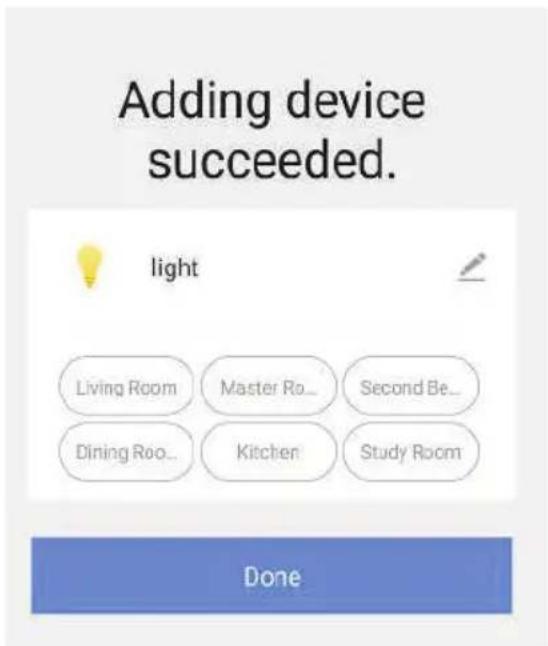

Confirm if the light blinks rapidly, select the WiFi network, and enter the password. ENGLISH

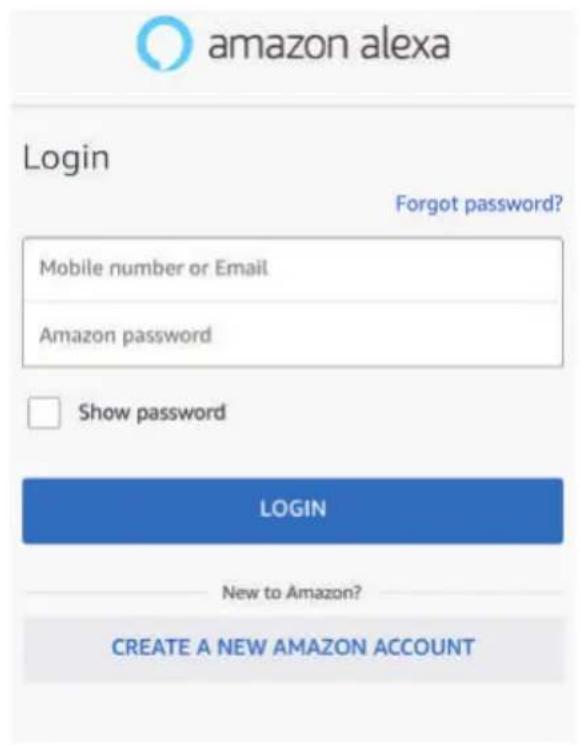

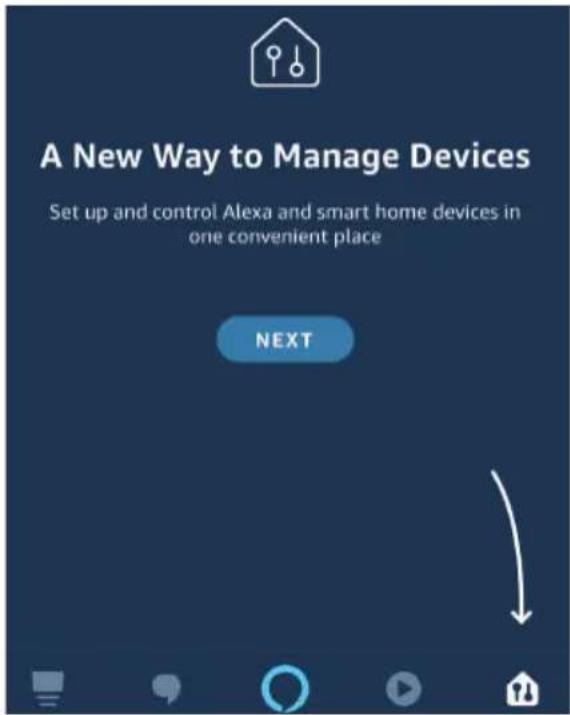

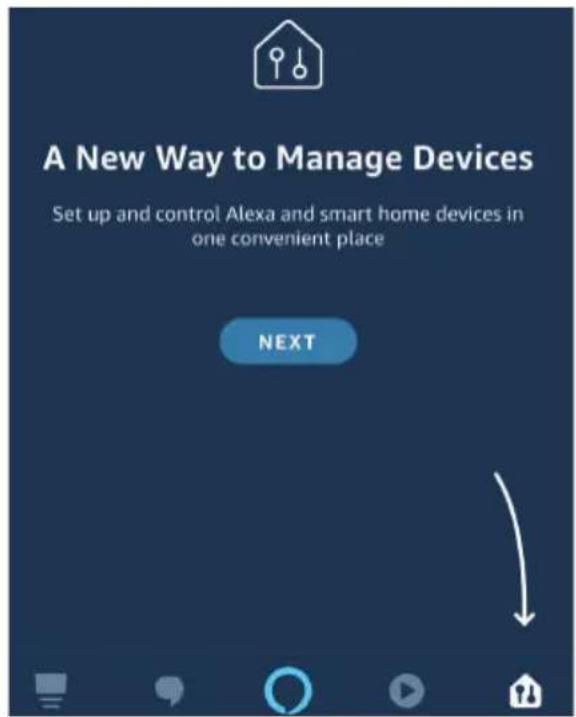

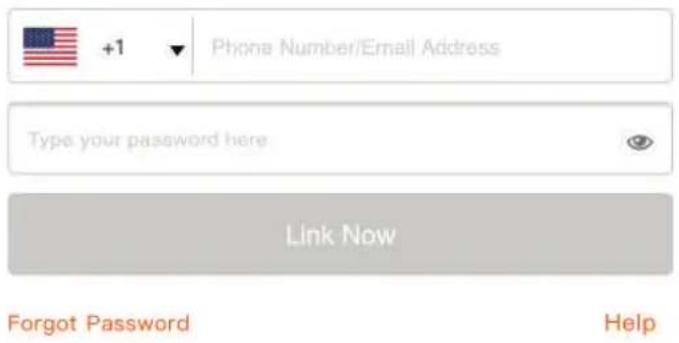

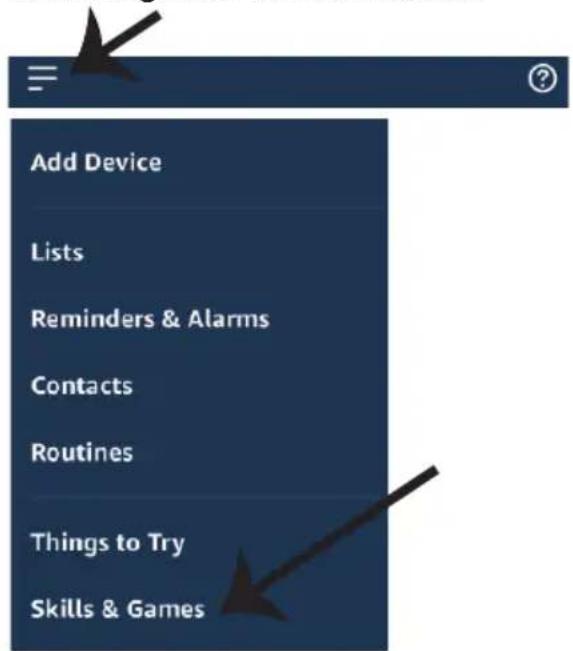

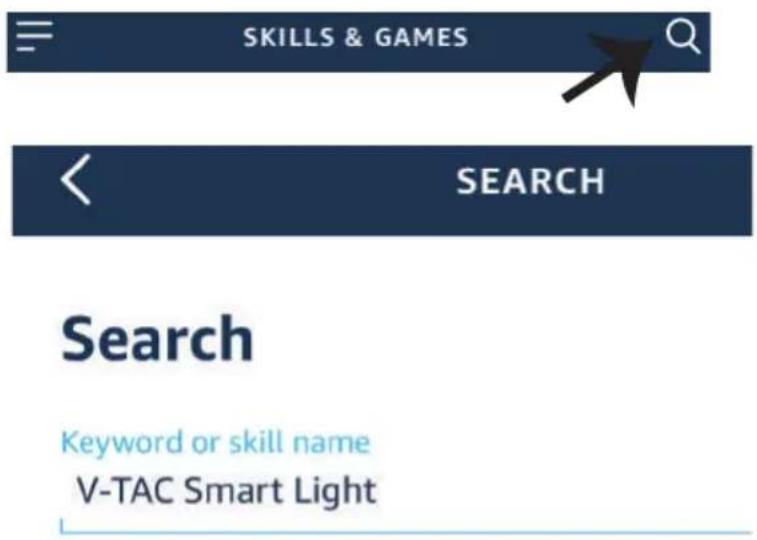

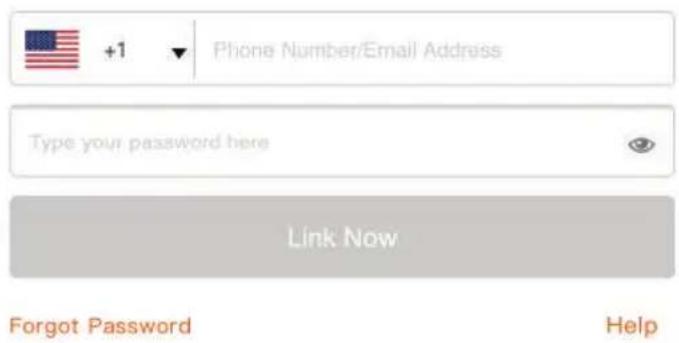

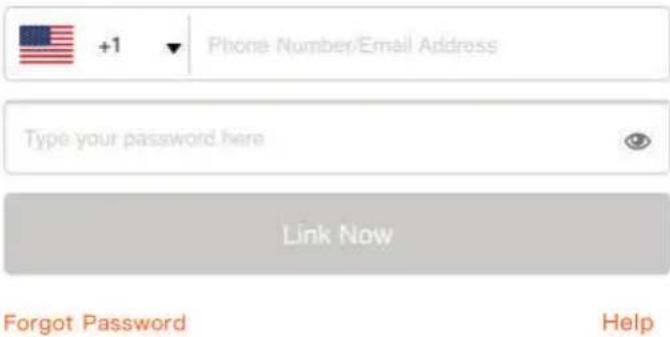

ALEXA SETTINGS ENGLISH14 Step5: Enable the Skill. Step6: Enter your V-TAC Smart Light login ID and password and tap on “Link Now” Step7: Once you tap on Link Now, you will be redirected to a new page requesng for authorizaon(Ref Image below). Tap on “Authorize” Step8: You will receive confirmaon of the account being linked successfully (Ref Image below) ENGLISHNow, you can control your smart device using voice commands on Alexa. Below are a few commands you can use: Note: Discovering the device must be done every time the device’s name is changed on the app.

! Alexa, turn on/off bedroom light. ! Alexa, set bedroom light to 50 percent. ! Alexa, set bedroom light to green. ! Alexa, set bedroom light to warm white.

2. Make sure you have Amazon Alexa Device(including Echo, Echo Tap, or Echo Dot)

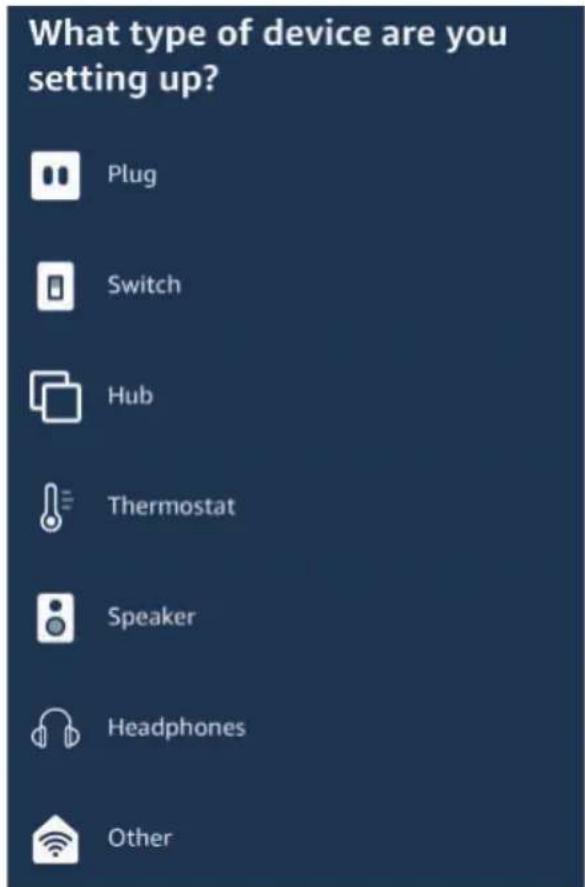

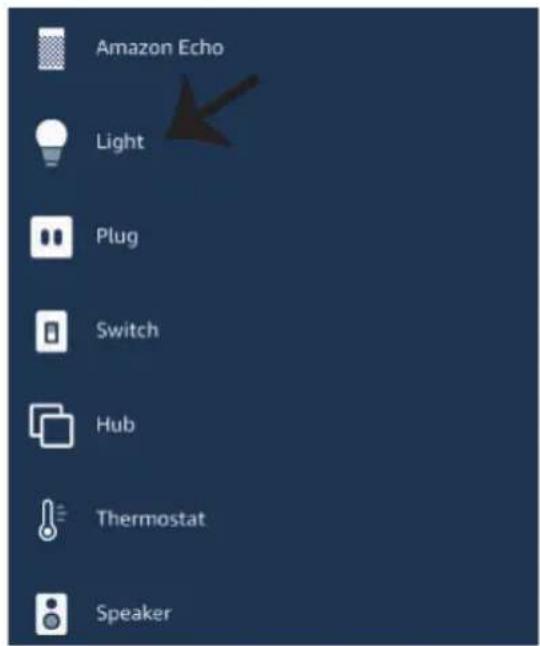

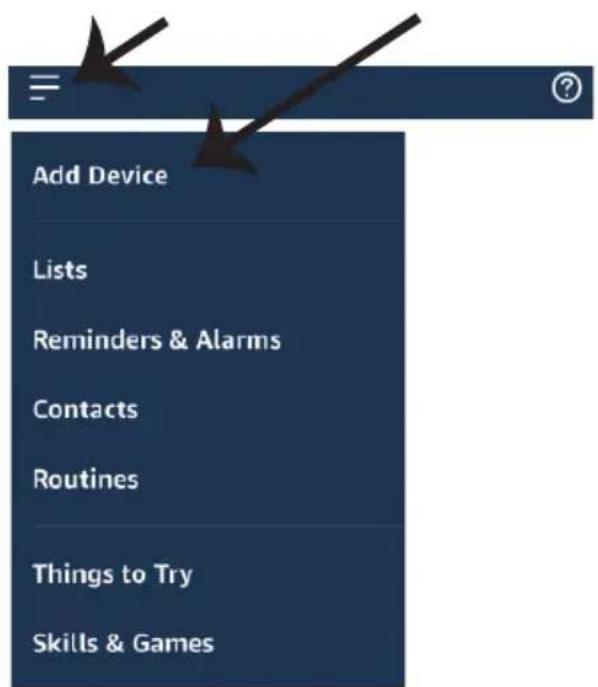

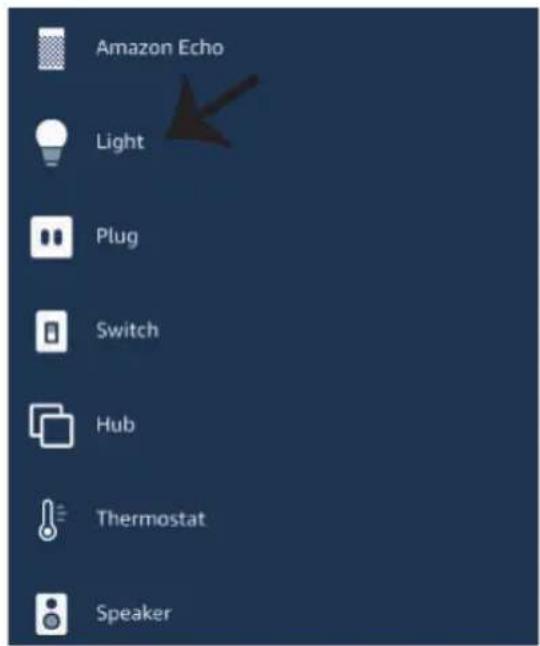

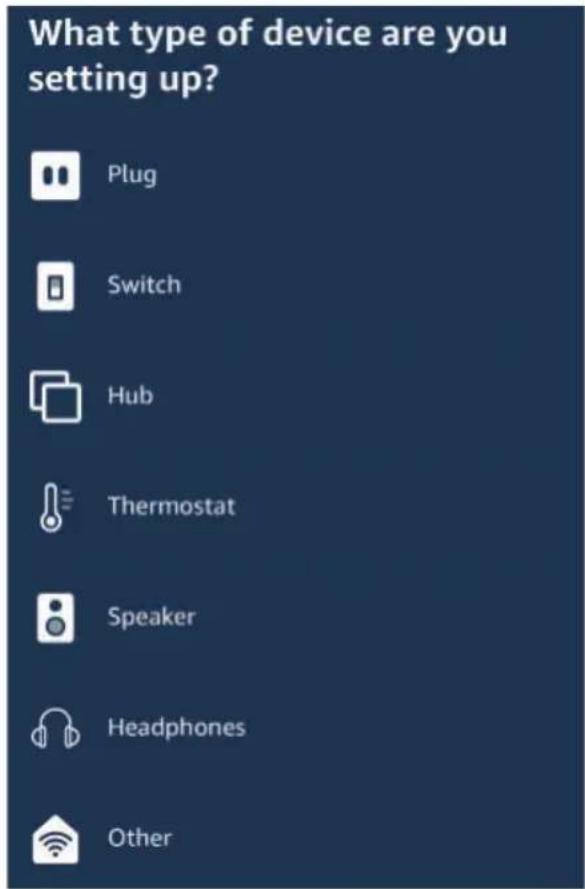

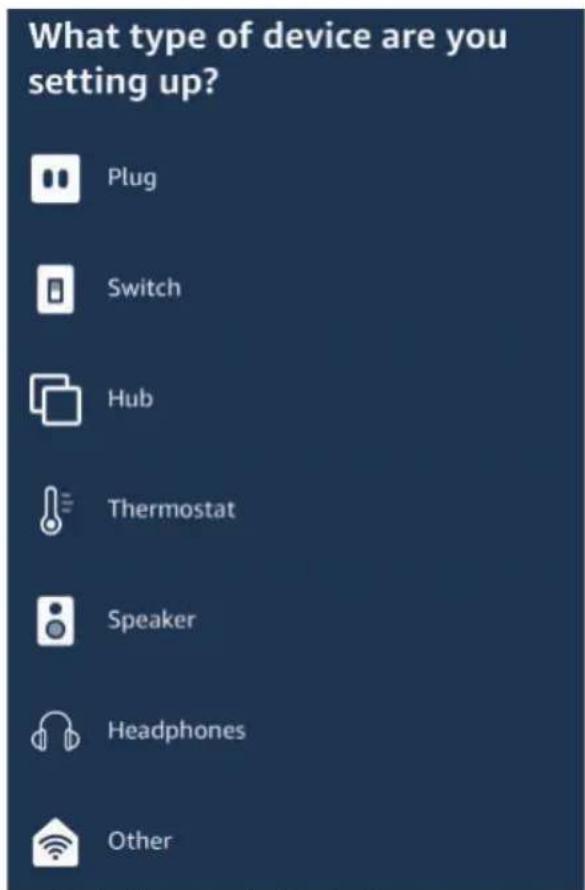

Step8: Discover your smart device on Alexa. Once you have enabled the skill A) You can use voice command ”Alexa discover devices” to the Alexa device which you have. B) To add device manually on home page tap on and tap on Add device , select the device which you are adding and tap on discover device. ENGLISHStep2: Once you are on the Google home page, tap on the Add “+” icon– to add a new device and skill. And then tap on Set up device as shown in below image.

GOOGLE HOME SETTINGS

Step1: a&b) Install the Google Home app via the App Store (iOS) or the Play Store (Android) and register. If you already have an exisng account with Google Home, please proceed to logging in. c) Create a New Home/Choose from the exisng home if any. d) Power ON the Google Home device and connect it to the App.(Then Proceed to step 2)

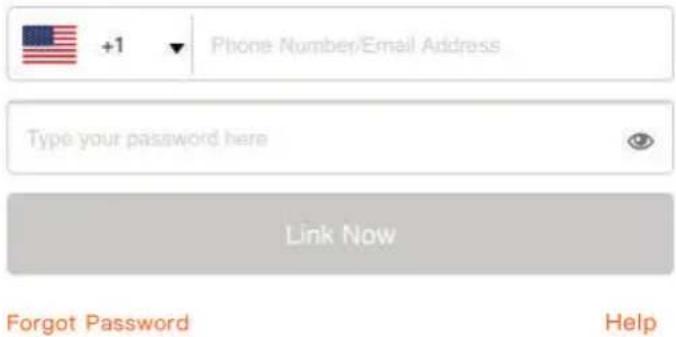

ENGLISH 9Step3: Make sure the Smart Bulb is paired with V-TAC Smart Light app before starng step 3. Tap on the arrow secon as highlighted in the below image. Step5: Sign In with your V-TAC Smart Light Login credenals to Link the Smart Light device Step6: Tap on Authorize in order to proceed to linking the device. ENGLISH

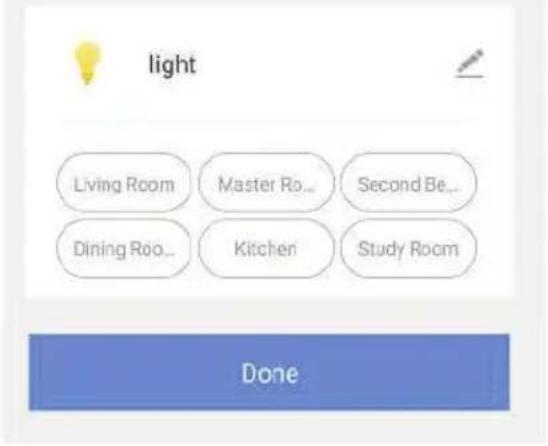

Step4: Type “V-TAC Smart Light” on the search bar and tap on the icon of “V-TAC Smart Light”Step7 a. Account will now be linked, please stay on the page you will be redirected in few seconds to select the device to add to your home. b. Select the device and tap on Next as show in image b. Step8: Select the Home where you would like to add the Smart Light under. (Or) you can create a New home in order to add the Smart Light to it. Step9: You have succesfully added Smart Light device to your Google home App. Account is now Linked

ENGLISH 11Now, you can control your smart device using voice commands on Google Home. Below are a few commands you can use: ! OK Google, turn on/off bedroom lightt. ! OK Google, set bedroom light to 50 percent. ! OK Google, set bedroom light to green. ! OK Google, set bedroom light to warm white.

2. Make sure you have Google Home Device

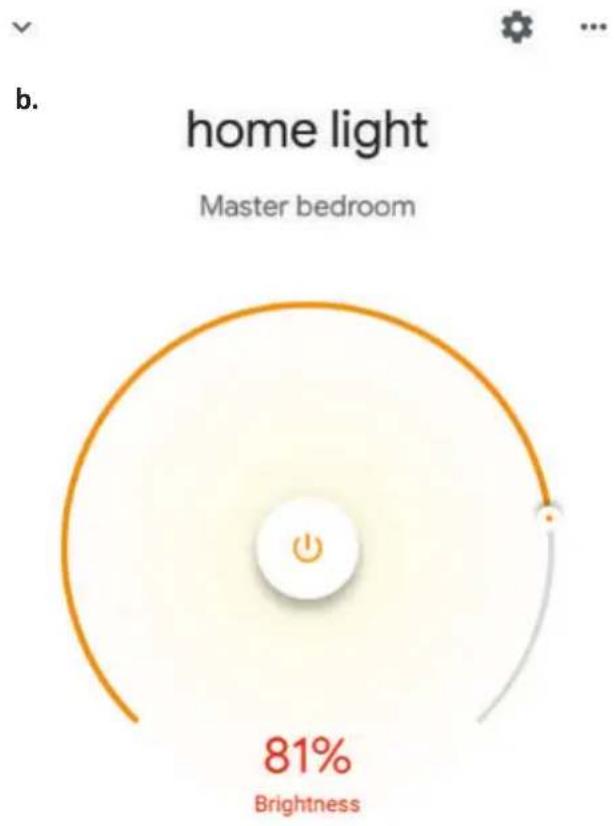

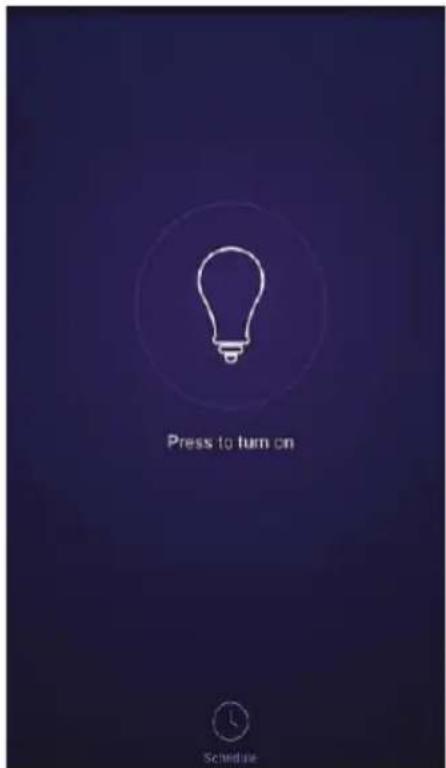

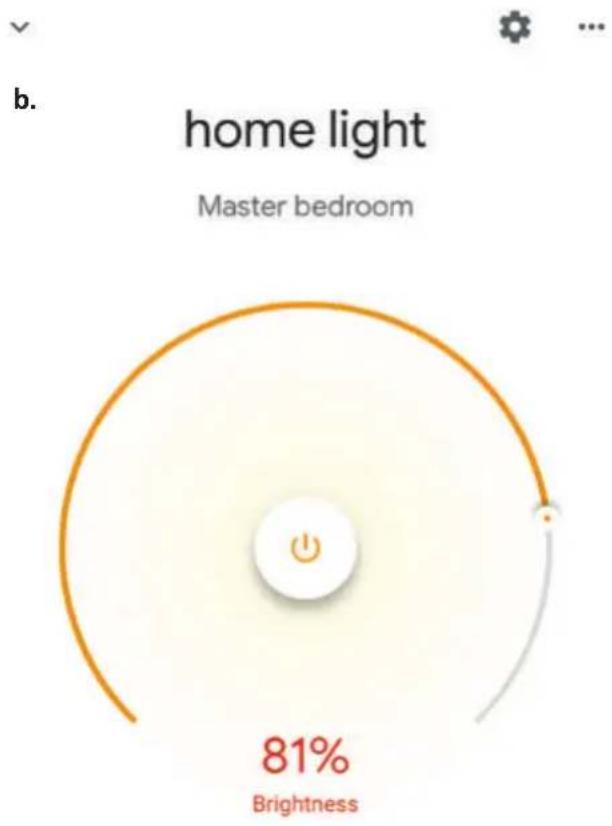

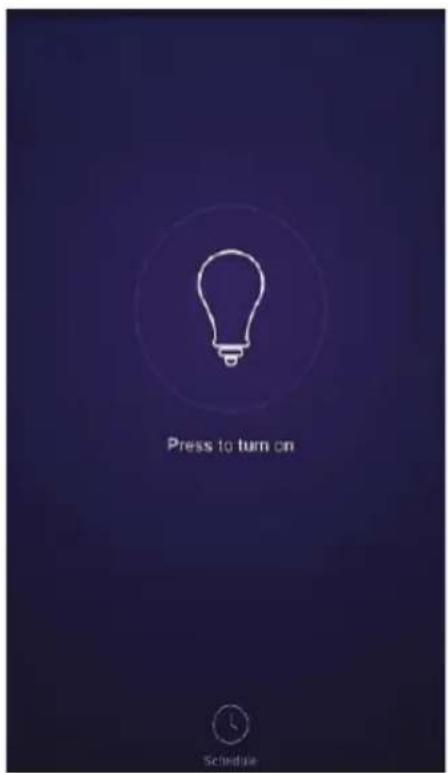

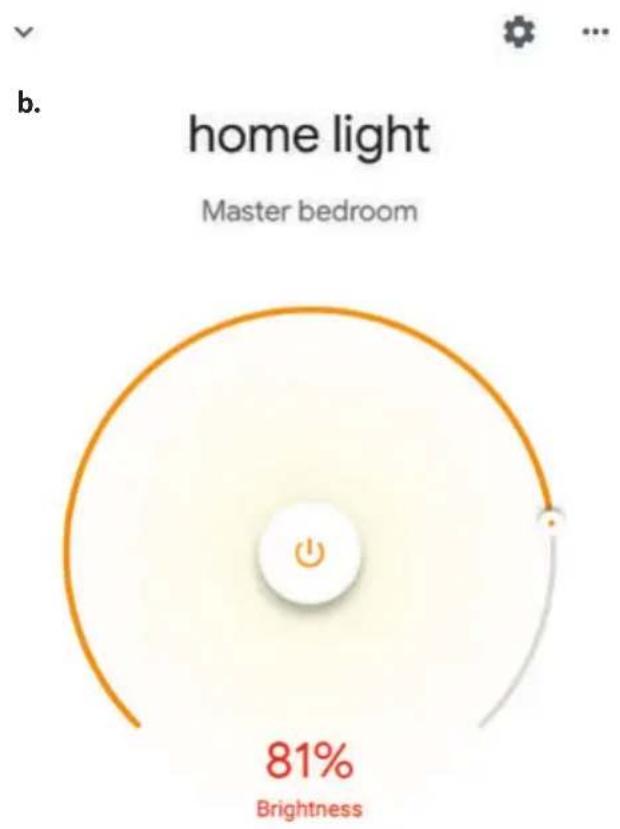

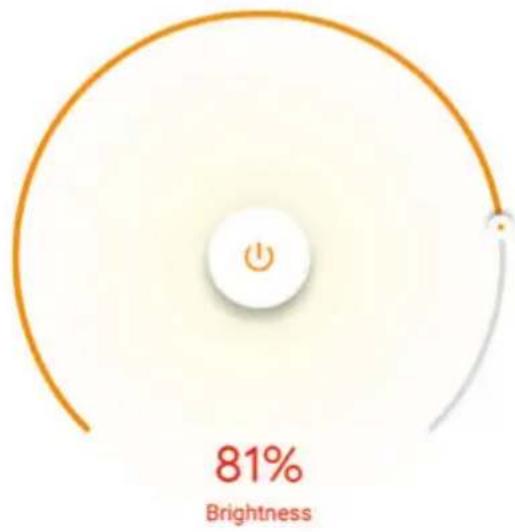

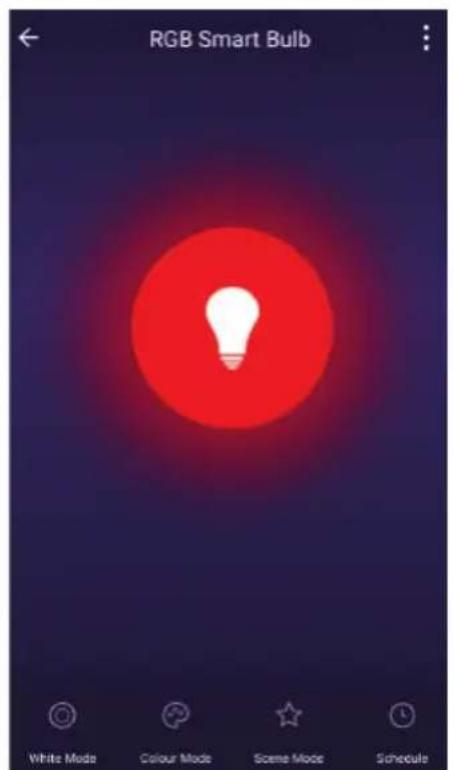

Google Commands: THINGS TO REMEMBER BEFORE STARTING INSTALLATION: Step10: a. You can turn the Lamp On/OFF by taping on On/Off opons as shown below. (OR) You can tap on the Smart Lamp. b. You will be redirected to page(as shown in image b) where you can control the lights “Power and Dimmingfunconality”.

INTRODUCTION & GARANTIE

! Alexa, turn on/off bedroom light. ! Alexa, set bedroom light to 50 percent. ! Alexa, set bedroom light to green. ! Alexa, set bedroom light to warm white.

! Alexa, turn on/off bedroom light. ! Alexa, set bedroom light to 50 percent. ! Alexa, set bedroom light to green. ! Alexa, set bedroom light to warm white.

OK Google, set bedroom light to 50 percent.

OK Google, set bedroom light to green.

OK Google, set bedroom light to warm white.

98Account is now Linked

109Account is now Linked

In case of any query/issue with the product please reach out to us at support@vtacexports.com V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
