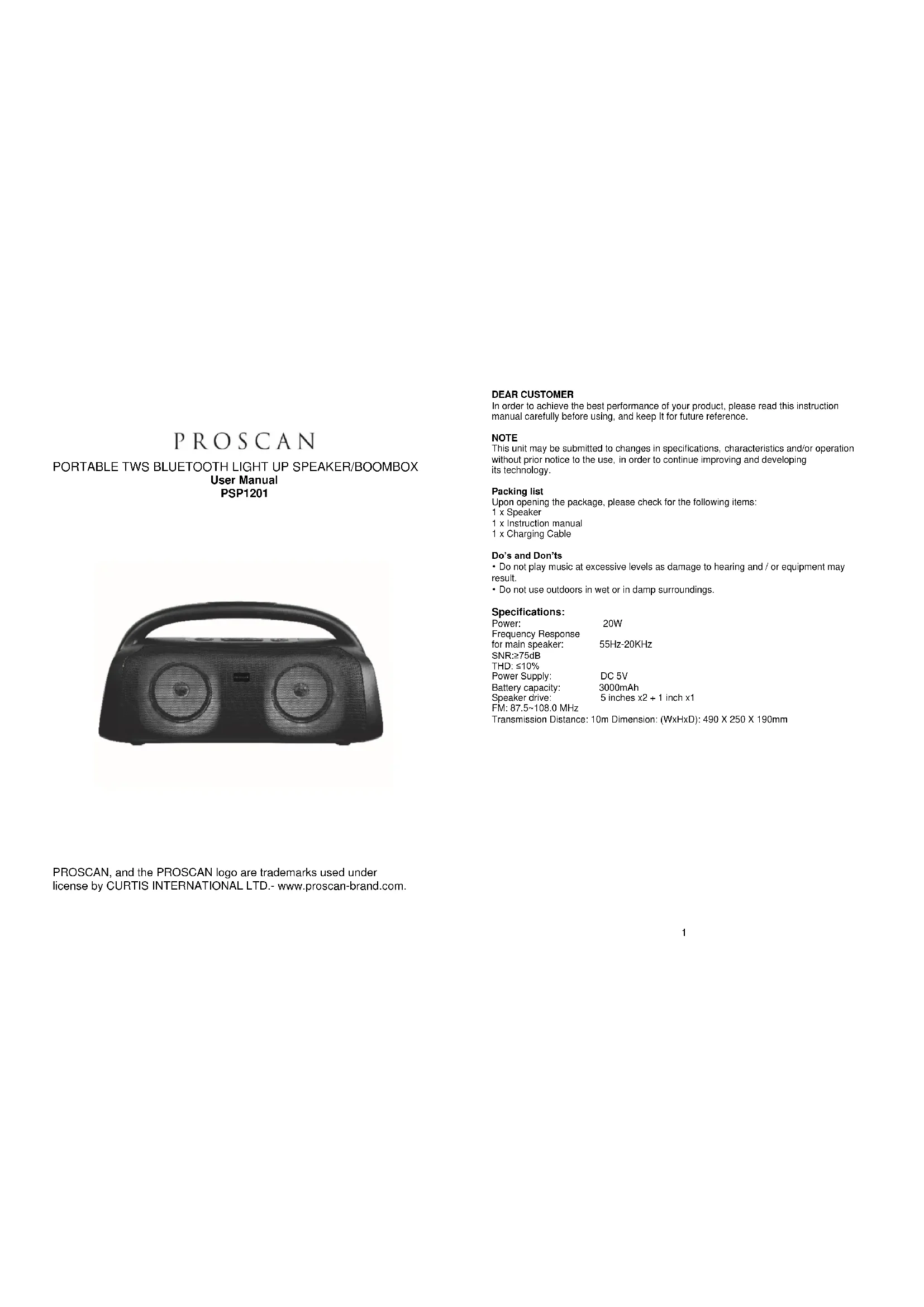

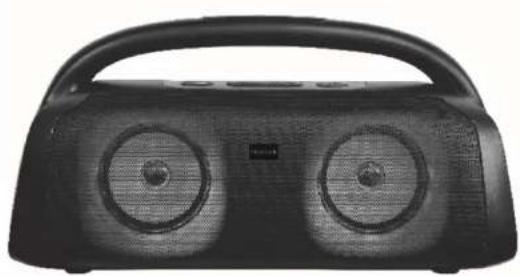

USER MANUAL PSP1201 Proscan

PROSCAN, and the PROSCAN logo are trademarks used under license by CURTIS INTERNATIONAL LTD.- www.proscan-brand.com.

DEAR CUSTOMER In order to achieve the best performance of your product, please read this instruction manual carefully before using, and keep It for future reference. NOTE This unit may be submitted to changes in specifications, characteristics and/or operation without prior notice to the use, in order to continue improving and developing its technology. Packing list Upon opening the package, please check for the following items: 1 x Speaker 1 x Instruction manual 1 x Charging Cable Do’s and Don’ts

• Do not play music at excessive levels as damage to hearing and / or equipment may result.

• Do not use outdoors in wet or in damp surroundings. Specifications: Power: 20W Frequency Response for main speaker: 55Hz-20KHz SNR:≥75dB THD: ≤10% Power Supply: DC 5V Battery capacity: 3000mAh Speaker drive: 5 inches x2 + 1 inch x1 FM: 87.5~108.0 MHz Transmission Distance: 10m Dimension: (WxHxD): 490 X 250 X 190mm

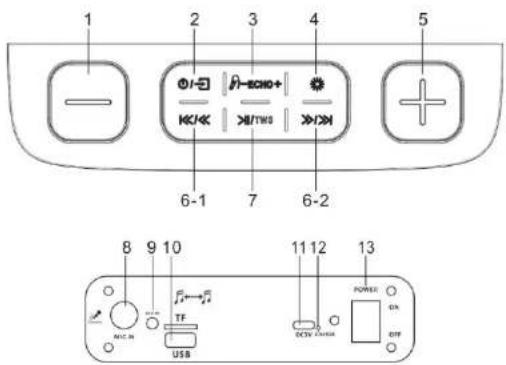

1.Volume - 2.Long press to power on or power off this unit 3.Echo sound, press this button to change the echo sound. (Di= lower echo, di di= Middle echo, di di di =Maximum echo). Total have 4 mode for echo, Di>Di Di>Di Di Di>Off. 4.Light mode switch: Press repeatedly to switch light mode of speaker light and switch light to OFF.Total 7 effects. 5.Volume +, Du du du” sound for maximum volume 6-1. Previous track / Mic volume -. Press once to previous song. Long press to decrease microphone volume. 6-2. Next track/ Mic volume +. Press once to next song. Long press to increase microphone volume. 7.Play/Pause&TWS (Wireless Bluetooth Connection: under bluetooth mode, press TWS button for around 3 seconds to pairing another TWS speaker. Under FM mode, lightly press Play/Pause&TWS to enter into automatic scan and all the scanned radio stations will be saved automatically.) 8.Microphone input 9.AUX input 10.USB/TF Jack 11.DC interface (5V) 12.Charging Status RED=Charging Light off = Fully Charged 13.Power switch

Operating instructions

Push the switch to power on, and adjust the main volume to proper place. Then you can enjoy the wonderful & professional glamour brought by the product

2. Karaoke performance

Plug in the microphone, and then turn the knobs to adjust microphone volume and reverberation for optimizing the performance. FM Operation Lightly press INPUT button to switch to FM mode, short press PLAY/PAUSE button to automatically scan radio station, by pressing PREVIOUS or NEXT you can select a previous or next radio station. Bluetooth: Press the INPUT button from the control panel to enter to Bluetooth mode. Simultaneously turn on the Bluetooth setting on your phone, tablet or any other Bluetooth enabled audio device and select "Pro PSP1201" then tap to connect it. TWS pairing mode: a. It needs two speakers and are powered on in Bluetooth mode and not connected to any Bluetooth devices. b. Press and hold the TWS button for three seconds to enter to TWS pairing mode. It will have a tone coming out, there will have double tone coming out when both units are pai red. c. Turn on the Bluetooth device, select the Pro PSP1201 and tap to connect, and now you ca n play music. AUX INJACK 1.Connect an audio cable to the AUX IlN JACK of the speaker and to the audio outputsocket on the external audio devices such as MP3 player, discman, etc,then selectAUX by pressing the MODE button on the control panel . 2.Play from an external audio device.

Insert USB/TF card directly for playing.

3FCC STATEMENT NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer- ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi- sion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that maycause undesired operation.

To make a warranty claim, please email [e-mail] or call 1-800-968-9853. 90 DAY WARRANTY This product is warranted to be free from defects in material and workmanship for a period of ninety (90) days from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us. If the product or component is no longer available, we will replace with a similar one of equal or greater value. Prior to a replacement being sent, the product must be rendered inoperable or returned to us. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions., or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as on the specified rating on the label (e.g., 120V~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such. warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. For faster service, locate the model, type, and serial numbers on your appliance. For service assistance and product information, please call: 1-800-968-9853. Curtis International Ltd. 7045 BECKETT DRIVE, UNIT 15, MISSISSAUGA, ON, L5S 2A3 www.curtisint.com ATTACH YOUR PROOF OF PURCHASE HERE, PROOF OF

PURCHASE IS REQUIRED TO OBTAIN WARRANTY

SERVICE. Please have the following information available when you contact the Support Team:

• Name, address and telephone number.

• Model number and serial number.

• A clear, detailed description of the problem.

• Proof of purchase including dealer or retailer name, address and date of purchase.
