Product type	Indoor window cleaning tool
Brand	Unger
Model	Stingray SRKB5
Intended use	Professional indoor window cleaning
Device dimensions	51 cm (20 inches)
Cleaning head dimensions	26 x 23 cm (10.25 x 9 inches)
Short extension length	0.5 m (1.5 feet)
Long extension length	1.1 m (3.5 feet)
Maximum length with extensions	3.7 m (12 feet) max. 1 short + 3 long
Power supply	2 AA batteries (LR06), 3 V, 40 mA
Bottle capacity	130 ml (5 oz)
Head materials	Microfiber pad or adapter plate with QuikPad
Main functions	Integrated spray, modular system with extensions, manual or telescopic use
Maintenance and cleaning	Clean the housing and extensions with a microfiber cloth. Microfiber pad machine washable up to 200 times. Do not clean under running water.
Safety	Keep at least 3 m away from power lines. Do not use on LED/plasma screens. Use PPE. Working temperature 5-40 degrees C.
Spare parts and repairability	Refillable bottle, microfiber pads, QuikPad adapter plate, extensions, replaceable batteries. Standard Unger warranty except for installation errors or improper use.
Environmental information	Packaging recyclable. Device and extensions recyclable. Batteries to be disposed of according to local regulations.
Storage conditions	Temperature 5-40 degrees C. Vertical storage recommended. Remove batteries for long periods.

Frequently Asked Questions - Stingray SRKB5 Unger

How do I install the cleaning solution bottle?

Slide the green button back and remove the cover. Remove the bottle, unscrew the cap, fill (max 130 ml), screw the cap back on and put the bottle back in the compartment with the Unger logo facing up. Push forward and down, then close the cover.

What types of cleaning solutions can I use?

Use only glass cleaner or a conventional multisurface solution. Never use concentrates, creams, gels, abrasive products, bleach, flammable liquids, or hazardous solutions (carcinogenic, mutagenic, toxic to reproduction).

How do I assemble the microfiber pad?

Place the triangular microfiber pad on the pad holder and secure it with the elastic bands at the corners. For the QuikPad, align the adapter plate on the pad holder and snap it into place, then press the QuikPad onto the plate.

What is the maximum allowed length with extensions?

Do not use more than one short extension and three long extensions, for a maximum length of 3.7 meters (12 feet). Make sure the locking buttons engage properly.

How do I replace the batteries?

Remove the bottle from the compartment. Unscrew the battery compartment cover. Replace the batteries with two new AA (LR06) batteries, respecting polarity. Do not mix old and new batteries or different types. Screw the cover back on and replace the bottle.

What safety precautions should I follow?

Keep at least 3 meters (10 feet) away from power lines. Do not spray toward eyes. Avoid breathing vapors. Use with adequate ventilation. Wear PPE. Do not use on LCD, LED, or plasma screens.

How do I maintain the device after use?

Wipe off any solution drips on the housing and extensions with a microfiber cloth. Do not clean under running water. Machine wash the microfiber pad (up to 200 times) according to the label instructions.

What are the recommended storage conditions?

Store the device vertically, head up, in a dry place between 5 and 40 degrees C. For prolonged storage, remove the batteries. Do not store below 0 degrees C.

Can I use the device to clean surfaces other than windows?

The device is designed exclusively for cleaning indoor windows. Do not use on screens (LED, plasma, etc.), abraded surfaces, or with non-recommended products.

What does the Unger warranty cover?

The standard Unger warranty applies, but it does not cover installation/usage errors, unauthorized opening of the housing (except for batteries and bottle), use of non-compliant parts, unauthorized technical modifications, use of unauthorized additives or products, or non-compliance with safety instructions.

USER MANUAL Stingray SRKB5 Unger

1.0 Safety Information....3

1.1 General Warnings....3
1.2 Intended Use....3
1.3 Cleaning Solution - Warning.... 3
2.0 System Overview 4
3.0 Installation....4
3.1 Installing the Bottle....4
3.2a Assembly of the Microfiber Pad 5
3.2b Assembly of the Adapter Plate & QuikPad™ 5
3.3 Extension Poles....5
3.4 Battery Change....6
4.0 Use....6
5.0 Maintenance....7
6.0 Technical Data....7
7.0 Environmental Information....7
8.0 Storage....7

WARNING

READ AND FOLLOW USER MANUAL BEFORE USING PRODUCT.

THIS EXTENSION POLE CONDUCTS

ELECTRICITY. HAZARD OF ELECTRICAL

SHOCK OR BURN. AVOID POWER LINES.

Keep at least 10 feet (3 meters)

away from any power lines.

READ AND FOLLOW THE SHINGAT INSTRUCTION MANUAL BEFORE

USING THIS PRODUCT.

BEWARE OF FALLING OBJECTS

Improper use or abuse could result in serious injury or death. Read and follow ANSI Standard IWCA 1-14.1 (Window Cleaning Safety). Care must be taken when adding or removing pole sections. Make sure that locking pin locks securely into the locking hole. Do not drop or impact pole. Do not use with more than one short and three long poles, for a maximum length of 12 ft (3.7m).

Warranty

The general terms and conditions of Unger's standard warranty apply.

The warranty does not cover:

• Operating and installation errors.
• Opening/disassembly of housing other than by Unger (except battery change as described in section 3.4 and bottle change as described in section 3.1).

• Replacing connections and hoses, other than by Unger.

• Replacing spare parts or components that are not recommended by Unger.

• Performing unauthorized modifications to the design.
• Use of unauthorized chemical additives, chemicals, or refilling pouches.
  • Non-compliance with safety and maintenance instructions.

The manufacturer is not liable for the function of the device:

• When use is not in accordance with product instructions.
• When used for applications not in accordance with product instructions.
• When failing to comply with safety instructions.

To reduce risk and injury, read entire manual before use.

Thank you for your purchase of the Unger Stingray® Refillable System.

This manual will help you get set up and begin using your system right away.

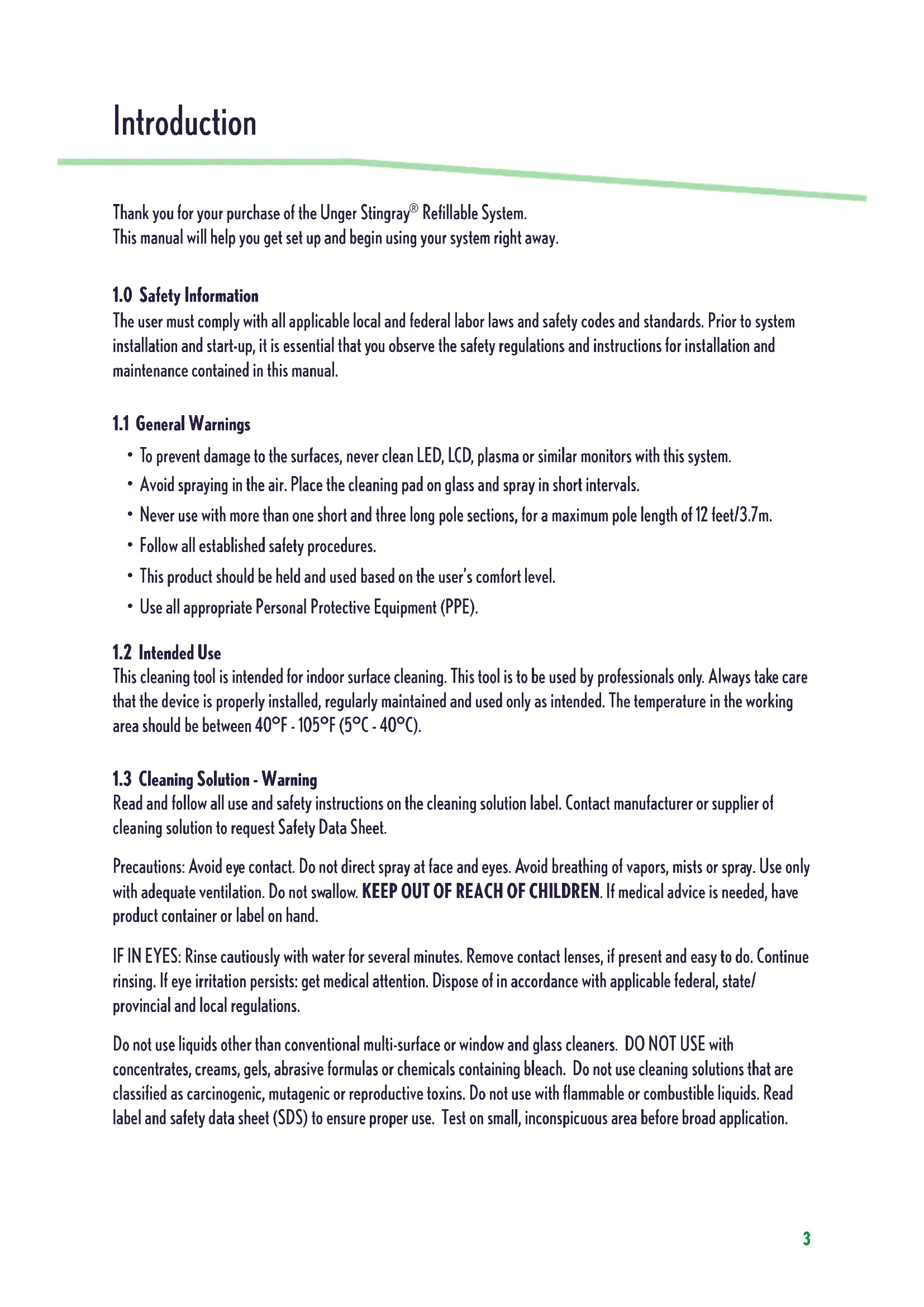

1.0 Safety Information

The user must comply with all applicable local and federal labor laws and safety codes and standards. Prior to system installation and start-up, it is essential that you observe the safety regulations and instructions for installation and maintenance contained in this manual.

1.1 General Warnings

• To prevent damage to the surfaces, never clean LED, LCD, plasma or similar monitors with this system.
- Avoid spraying in the air. Place the cleaning pad on glass and spray in short intervals.
- Never use with more than one short and three long pole sections, for a maximum pole length of 12 feet/3.7m.
- Follow all established safety procedures.
- This product should be held and used based on the user's comfort level.
- Use all appropriate Personal Protective Equipment (PPE).

1.2 Intended Use

This cleaning tool is intended for indoor surface cleaning. This tool is to be used by professionals only. Always take care that the device is properly installed, regularly maintained and used only as intended. The temperature in the working area should be between 40^ F - 105^ F ( 5^ C - 40^ C).

1.3 Cleaning Solution - Warning

Read and follow all use and safety instructions on the cleaning solution label. Contact manufacturer or supplier of cleaning solution to request Safety Data Sheet.

Precautions: Avoid eye contact. Do not direct spray at face and eyes. Avoid breathing of vapors, mists or spray. Use only with adequate ventilation. Do not swallow. KEEP OUT OF REACH OF CHILDREN. If medical advice is needed, have product container or label on hand.

IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. If eye irritation persists: get medical attention. Dispose of in accordance with applicable federal, state/provincial and local regulations.

Do not use liquids other than conventional multi-surface or window and glass cleaners. DO NOT USE with concentrates, creams, gels, abrasive formulas or chemicals containing bleach. Do not use cleaning solutions that are classified as carcinogenic, mutagenic or reproductive toxins. Do not use with flammable or combustible liquids. Read label and safety data sheet (SDS) to ensure proper use. Test on small, inconspicuous area before broad application.

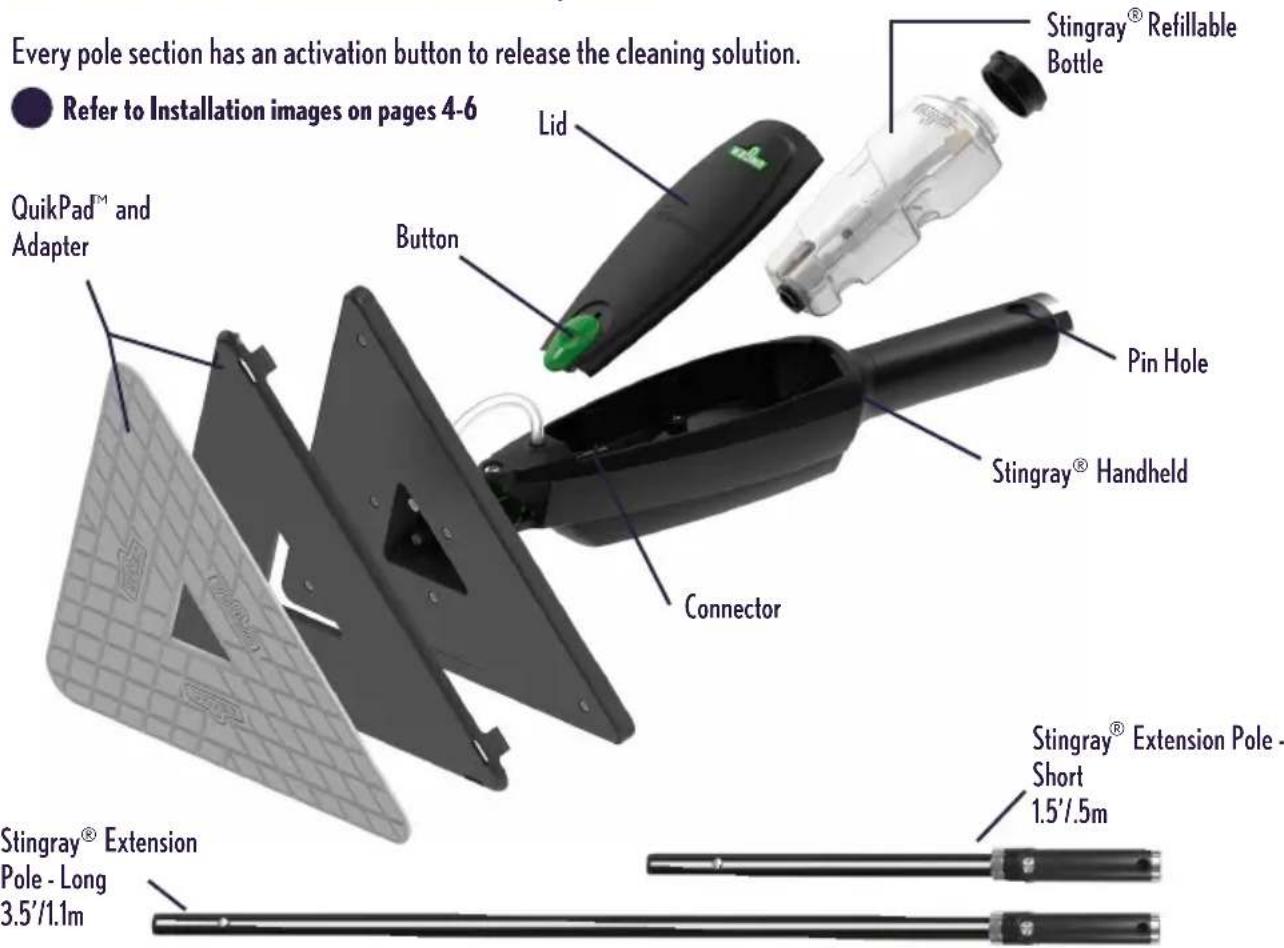

2.0 System Overview

Stingray ^® is a modular system. The handheld cleaning unit consists of the triangular cleaning head equipped with either a microfiber pad or adapter plate and QuikPad ^™ , depending on the kit purchased. The head is flexible and has an embedded spray jet in the center. The body of the unit can be opened to change the bottle and to change batteries.

The handheld unit can be used as a hand tool or can be extended/collapsed with extension poles. The activation button on the back of the unit is used to release the cleaning solution.

Every pole section has an activation button to release the cleaning solution. Refer to Installation images on pages 4-6 QuikPad™ and Adapter Lid Button Pin Hole Stingray® Handheld Connector Stingray® Extension Pole - Short 1.5'/1.5m Stingray® Extension Pole - Long 3.5'/1.1m

3.0 Installation

3.1 Installing the Bottle

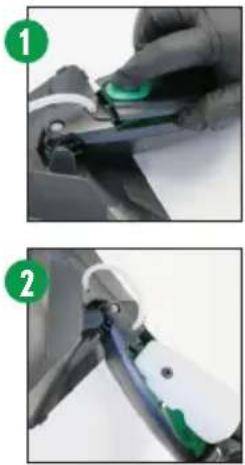

• Open the compartment on the handheld unit by sliding the green button back and removing the lid (picture 1).
• Remove bottle from unit and unscrew cap (picture 2). Fill with desired cleaning solution and replace the cap (picture 3).
• Do not fill bottle inside handheld unit.
  • Maximum of 5 oz of liquid. Do not squeeze or overfill the bottle.
• Cap should have a tight seal prior to placing inside unit.
• Do not use liquids other than conventional window and glass cleaners. DO NOT USE with concentrates, creams, gels, abrasive formulas or chemicals containing bleach.

Read label and safety data sheet (SDS) for each cleaning solution to ensure proper use, including recommended surfaces.

• Push the bottle onto the connector at the top of the compartment with Unger logo side facing up. Push the bottle forward and down so that it fits into the compartment (picture 4).
• Replace the lid and confirm that the green button is locked into place (picture 5).
  • Test on small inconspicuous area before broad application.

3.2a Assembly of the Microfiber Pad

• The system is equipped with a triangular shaped microfiber pad.
• Put the microfiber pad onto the padholder. Fix it in place with the elastic bands in each corner.
• When the pad is dirty, take it off and wash it. Please see care label on pad.
• The area that can be cleaned with one pad will vary depending on the condition of the surface being cleaned.

3.2b Assembly of the Adapter Plate & QuikPad™

• The system is compatible with the triangular shaped adapter plate and QuikPads™.
• Align the triangular adapter plate to the pad holder and press to lock into place.
• Align the QuikPad™ with the corners of the adapter plate and press down to secure.
• When the pad is dirty, remove and dispose.
• The area that can be cleaned with one QuikPad™ will vary depending on the condition of the surface being cleaned.

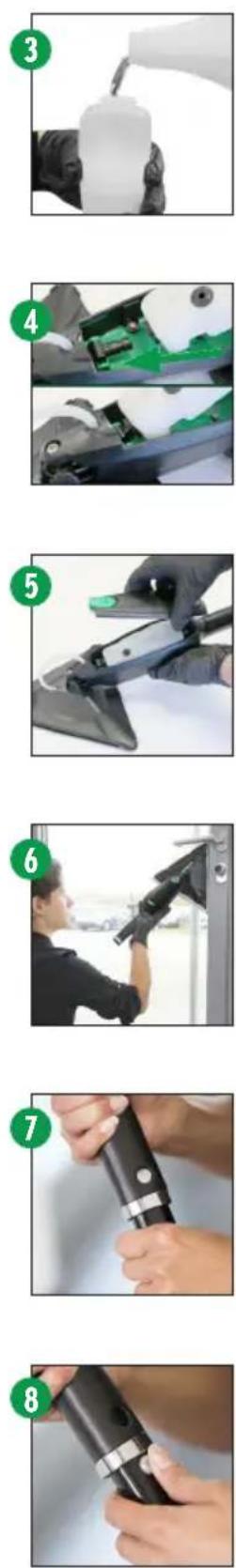

3.3 Extension Poles

• The handheld unit can be used as a hand tool for easy to reach surfaces (picture 6).
• The handheld unit can be extended to reach higher or hard to reach surfaces using the available short (1.5'/.5m) or long (3.5'/1.1m) extension poles (see page 4).
• The system is designed to use a maximum of three long and one short extension poles. Never exceed maximum recommended length. Unger is not liable for any damages or injuries resulting from the failure to follow these instructions.
• When adding extension poles, be sure locking pins are locked into corresponding pin holes (picture 7).
  • To unlock, press the locking pin and separate the extension poles (picture 8).

Installation/Use

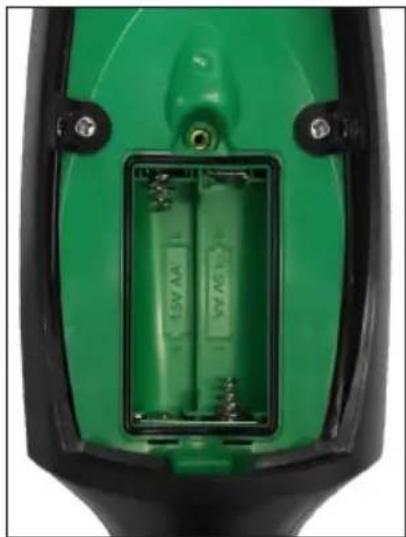

3.4 Battery Change

• Two AA batteries are required.
  • The battery compartment is located under the bottle.
• Remove the bottle from the compartment during battery change.

- Unscrew the battery lid.

- Remove old batteries and dispose of in accordance with applicable federal, state/provincial and local regulations.

- Do not mix old and new batteries. Do not mix different types of batteries such as non-rechargeable and rechargeable.

- Replace with new batteries. Pay attention to the correct orientation of each battery.

- Close the compartment and secure the lid with the screw.

- Do not expose batteries to direct sunlight, heat or fire.

Close-up of a green industrial battery pack with visible internal components and mounting screws (no text or symbols)

4.0 Use

Every pole section has its own activation button to start the pump.

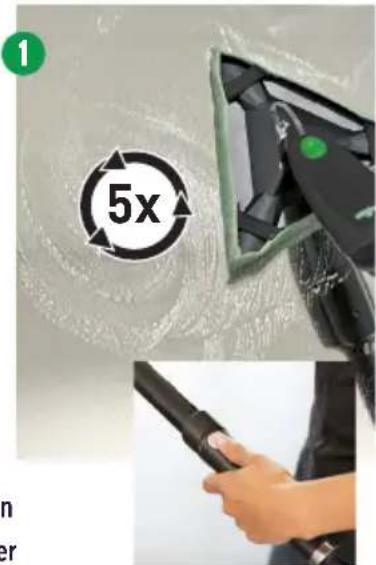

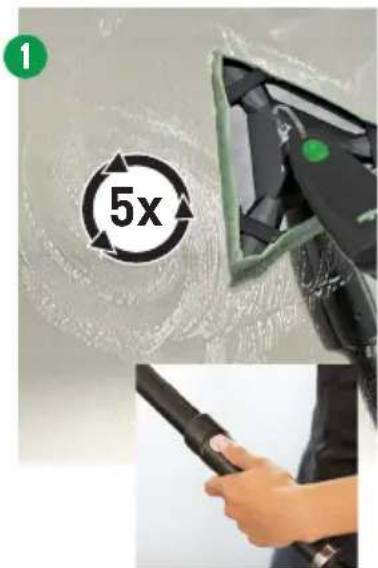

1. Before beginning a new cleaning job or when using a new pad, press the pad flat against the window and press the activation button for a maximum of five seconds to pre-moisten the pad. Use circular motions to dampen the entire surface of the pad. During the cleaning process, use as little liquid as possible. If you need to re-moisten the pad, hold the activation button for about one second.

Pad only needs to be damp to achieve the best cleaning results.

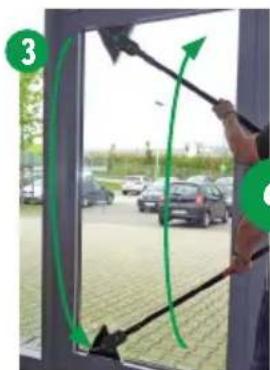

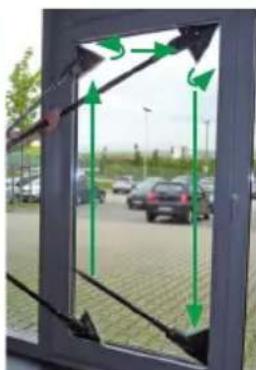

1. When window cleaning, start by cleaning the window frames. Beginning in one corner, clean the outer edge of the window being sure to keep contact with the frame.

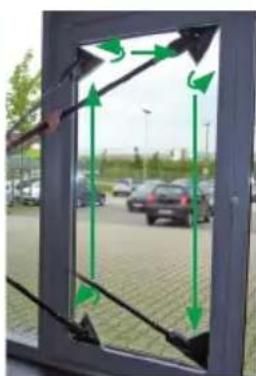

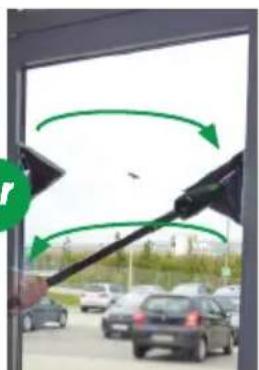

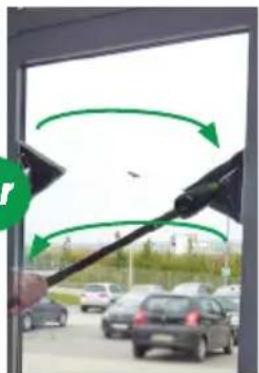

2. Once outer area is cleaned, in all four corners and along all four edges, clean inner area of window.

1 5x

Exterior view of a modern building with green directional arrows indicating airflow or movement (no text or symbols)

Exterior view of a modern office building (no signage)

Person cleaning a window with brush and angle markers, showing car exterior view (no text or symbols)

Exterior view of a car being charged at an outdoor checkpoint with green arrows indicating motion (no text or symbols visible)

Additional Information

5.0 Maintenance

Wipe up any cleaning solution that has dripped/leaked from the bottle into the unit. After use, clean and dry the handheld unit and all extension poles with a microfiber cloth. Do not clean the handheld unit or poles under running water. Read and follow the washing instructions on the pad. Store the system safely. Do not lean extended poles against a wall. An upright position with cleaning head up is recommended. The Stingray® Refillable System fits into standard toolholders that are mounted to a wall.

The temperature in the storage room should be in the range of 40^ F - 105^ F ( 5^ C - 40^ C) max.

Length of main unit 20 inches/51 cm
Length of short extension pole 1.5 feet/.5 meters
Length of long extension pole 3.5 feet/1.1 meters
Max. Product Length 3x long, 1x short extension pole	(Approx. 12 feet/3.7 meters)
Dimension cleaning head / pads 10.25 x 9 inches/26 x 23 cm
Batteries needed 2x AA, 3V, 40 mA

7.0 Environmental Information

• The outer packing material (except the bottle and QuikPads™) can be recycled.
• Handheld unit, poles, and adapter plate contain valuable materials that can be recycled. Please arrange for the proper recycling of old units.
• Batteries contain substances that can contaminate the environment. Please dispose of your old batteries in accordance with applicable federal, state/provincial and local regulations.

8.0 Storage

After using the Stingray ^® , remove the cleaning pad and wipe off any access liquid from the main unit and extension poles, using a soft cloth. Store the unit and extension poles in a dry place.

Store Stingray ^® upright. If storing the Stingray ^® for a long period of time, remove batteries to prevent corrosion.

Do not store below 32^ F/0°C. The Stingray ^® can be stored on the Unger Hang Up (sold separately).

Microfiber pads are machine washable up to 200 times. Follow the instructions on the pad tag for proper washing instructions.

Pure electrical circuit lines without any symbols

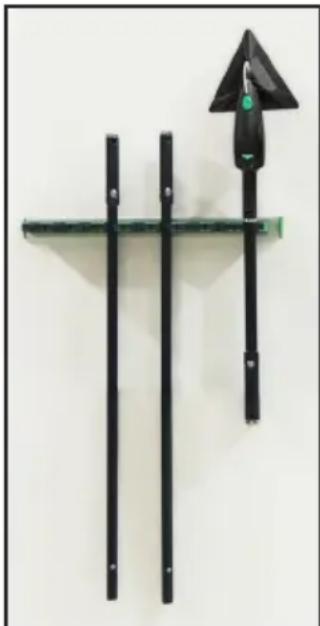

The Unger Hang Up is sold separately.
