GVC390 - Steam cleaner Goodway - Free user manual and instructions

Product type	Steam cleaner
Brand	Goodway
Model	GVC390
Power supply	120 V, 60 Hz, 1700 W
Boiler pressure	3.9 bar
Water tank capacity	2 L
Dimensions (H x W x D)	26.5 x 28 x 44 cm
Power cord length	4 m
Body material	Plastic
Boiler material	Stainless steel 304
Steam adjustment	3 levels (via switches)
Indicator lights	Power on (yellow), service pressure (green), water shortage (red)
Maximum steam temperature	Approximately 130 °C at the lance
Maximum continuous use time	3 hours
Included accessories	Flexible hose, extension tubes, lance, rectangular brush, triangular brush, circular brush (∅30 and 60 mm), window squeegee, cloths, filling bottle
Main functions	Steam cleaning of floors, windows, carpets, delicate surfaces, sanitary facilities, kitchen, joints, radiators
Maintenance	Descaling the boiler every 3-4 weeks
Safety	Locking device for the pressure cap, thermal protection, automatic shutdown in case of water shortage
Spare parts and repairability	Original parts recommended, repair by authorized center
General information	Use only with tap water. Do not use detergents. Unplug before filling or maintenance.

Frequently Asked Questions - GVC390 Goodway

Can I use detergent in the water tank?

No, use only tap water. Never add detergent or chemicals, as this could damage the appliance.

How long can I use the appliance continuously?

The appliance should not be used for more than 3 hours without interruption.

How to clean windows with this steam cleaner?

Use the provided squeegee. Set the steam to position 1-2, run the squeegee over the window, then remove stubborn dirt with the rubber spatula. In winter, preheat the window by holding the squeegee about 10 cm away.

Can I clean a parquet floor with steam?

No, parquet is sensitive to heat and humidity. Do not use on surfaces that are not heat-resistant.

What to do if the red water shortage light comes on?

Turn off the boiler heating, continue using the remaining steam until exhausted, then turn off the appliance, unplug it, let it cool, unscrew the cap, and fill with tap water.

How often should I descale the boiler?

Every 3 to 4 weeks. Fill with tap water, shake vigorously, then drain through the lower plug. Rinse with clean water.

Can I use demineralized water?

It is recommended to use tap water. Demineralized water can be used but may reduce the effectiveness of automatic descaling.

How to adjust the steam power?

Use the switches on the handle (orange and red). Combinations: 0 (off), 1 (low), 2 (medium), 1+2=3 (high). The recommended normal position is 2.

Can I clean a fabric sofa with steam?

Yes, but first test on a hidden area to check color fastness. Set the steam to position 1 for delicate fabrics.

What to do if the safety cap does not open?

Let the steam escape completely by holding the steam switch open until the pressure drops. Never force the cap while under pressure.

USER MANUAL GVC390 Goodway

CONTENTS:

Steam - The NEW way to clean ....3

Safety Precautions.... 3-5

Accessories & Main Components 6

Controls 7

Setting up 8-8

How to fill the Water Tank 8

How to connect 8

How to start up 9

Using the accessories 9

Steam hose with handle 9

Steam Nozzle 10

Round brushes 10

Cleaning brush 10

Extensions, universal joint and window cleaner 10

Applications 11

Cleaning with the steam nozzle 11

Cleaning floors 12

Cleaning windows 12

Cleaning carpets 12

Refilling during use.... 13

Maintenance ....13

General Information 14

Electrical Specifications.... 14

After Cleaning 14

Thank you for purchasing Goodway's GVC-390 Portable Dry-Steam Cleaner. We appreciate your business and look forward to serving you in the future. As with all Goodway products, you can be assured that the finest quality components and workmanship have gone into this machine.

Please take a few minutes to read the following Operating and Maintenance Instructions. By carefully following the instructions, you will obtain years of trouble free service from this product. Please pay particular attention to the safety instructions and exercise caution when using this machine.

GOODWAY® TECHNOLOGIES CORPORATION

HVAC & FACILITY MAINTENANCE SOLUTIONS

For Sales Call: 1-800-333-7467

For Service Call: 1-800-370-2855

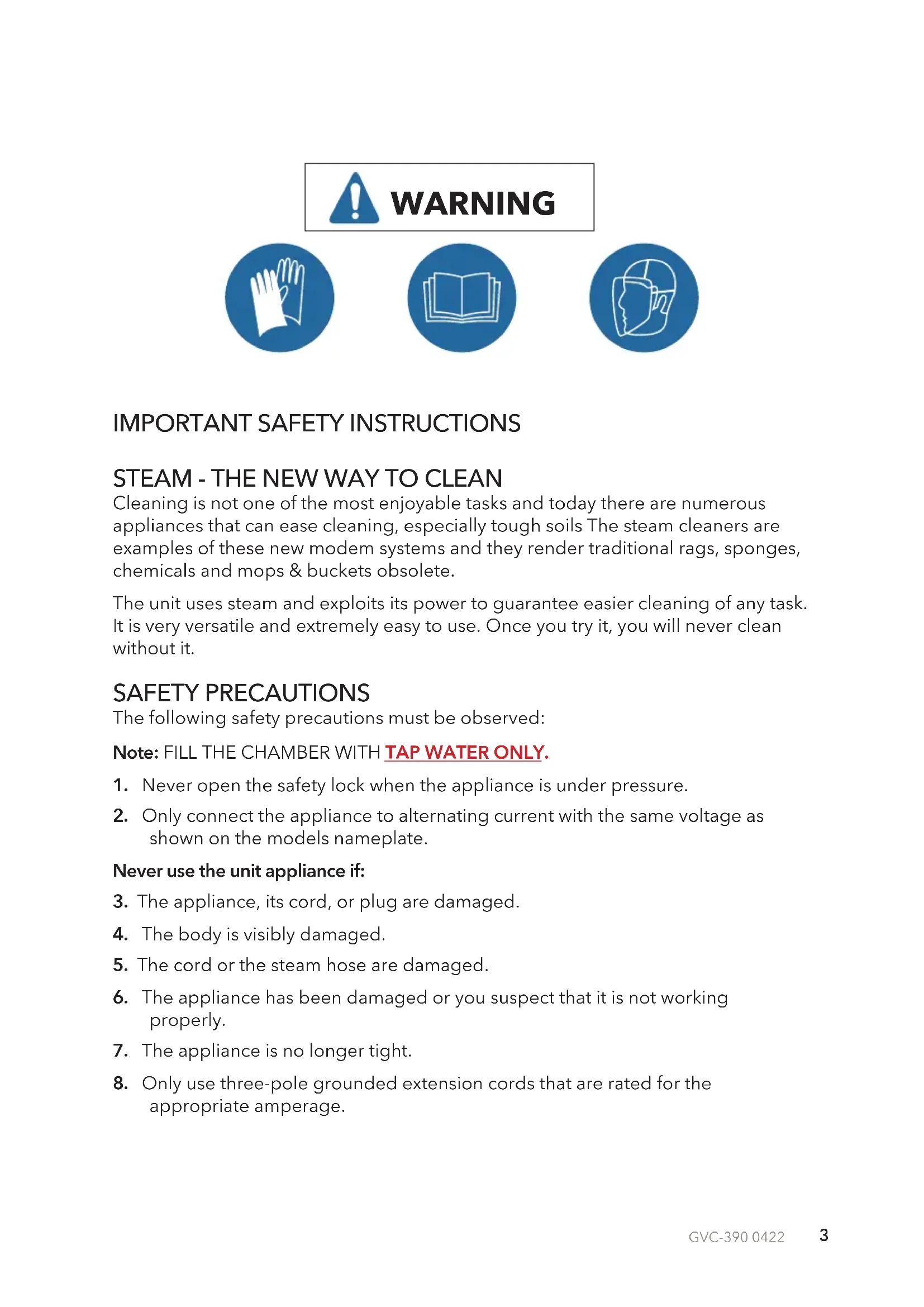

WARNING

Blue circular icon with white line drawing of two gloves (no text or symbols)

Blue circular icon with a white open book symbol (no text or symbols)

Blue circular icon with a white line drawing of a human head profile (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

STEAM - THE NEW WAY TO CLEAN

Cleaning is not one of the most enjoyable tasks and today there are numerous appliances that can ease cleaning, especially tough soils The steam cleaners are examples of these new modem systems and they render traditional rags, sponges, chemicals and mops & buckets obsolete.

The unit uses steam and exploits its power to guarantee easier cleaning of any task. It is very versatile and extremely easy to use. Once you try it, you will never clean without it.

SAFETY PRECAUTIONS

The following safety precautions must be observed:

Note: FILL THE CHAMBER WITH TAP WATER ONLY.

1. Never open the safety lock when the appliance is under pressure.
2. Only connect the appliance to alternating current with the same voltage as shown on the models nameplate.

Never use the unit appliance if:

1. The appliance, its cord, or plug are damaged.

2. The body is visibly damaged.

3. The cord or the steam hose are damaged.

4. The appliance has been damaged or you suspect that it is not working properly.

5. The appliance is no longer tight.

6. Only use three-pole grounded extension cords that are rated for the appropriate amperage.

7. When in use, the appliance can reach high temperatures and there is the risk of burning yourself or others. Always be aware of your surroundings and in which direction the steam wands or tools are facing while the steam is in use.

Never: Point the steam in the direction of another person or pets

1. Always disconnect the machine (unplug):
2. Before filling or emptying the water tank.
3. When the appliance is not in use, even for short periods.
4. When cleaning or servicing.
5. Before leaving the room even for short periods.
6. Never unplug by pulling on the cord or unplug when your hands are wet.
7. Never move the appliance by pulling or lifting the cord or hose.
8. Never allow the cord or hose to rub against sharp corners or let it get caught on obstacles.
9. Protect the cord from heat sources, steam and oil.
10. Always check that the cord and hose are in good condition.
11. Never leave the appliance unattended while on.
12. Keep out of the reach of young children.
13. Do not allow children to operate this appliance.
14. Always have the appliance repaired by technicians using only original equipment.
15. Never place the appliance in the rain or in areas in proximity to standing water.
16. Wipe down with a damp towel to clean the unit, never with running water or steam.
17. Store it in a dry place.

SAFETY PRECAUTIONS

1. Do not use this appliance in volatile areas or areas with dangers of explosion or combustible atmospheres.
2. Do not use the appliance within walking distance of toxic substances.
3. Do not use the appliance on heat sensitive surfaces or objects.
4. Do not expose the appliance to outdoor weather conditions.
5. Do not place the appliance near open flame, electric heaters or near heat sources.
6. Electric devices such as televisions, radios, lamps, etc. should not be cleaned with steam, even when they are not connected to electricity.
7. Do not allow children to operate this appliance.
8. Do not press the buttons with excessive force and avoid using sharp objects to activate switches or buttons.
9. Always place the appliance on level and stable ground.
10. If the appliance is dropped and/or damaged, do not use it and contact service department.
11. In case of damage turn off the appliance.
12. Never attempt repairs by yourself. Contact Goodway Technologies. During repairs use only genuine factory parts.
13. Do not direct the steam jet in or towards electrical appliances.
14. Before cleaning the appliance always remove the plug from the socket.
15. Always wait the appliance to cool down before storing.
16. Please empty the water tank if the appliance is not used more than three weeks.
17. This appliance is available with several safety systems that can be changed only by the service department.
18. Never place your hand or other body parts in front of the steam jet.
19. Never fill this appliance with detergents or use any other additives/chemicals in the tank. Use only tap water.
20. This appliance is not suitable for use by people (including children) with reduced physical, sensory or mental disabilities or who have no experience or knowledge of the use of the device.
21. This machine cannot be used for more than 3 hours continuously.
22. Not for space heating purposes.

▲ATTENTION: The manufacturer and distributors decline all liability for damage arising from improper or incorrect use of this appliance.

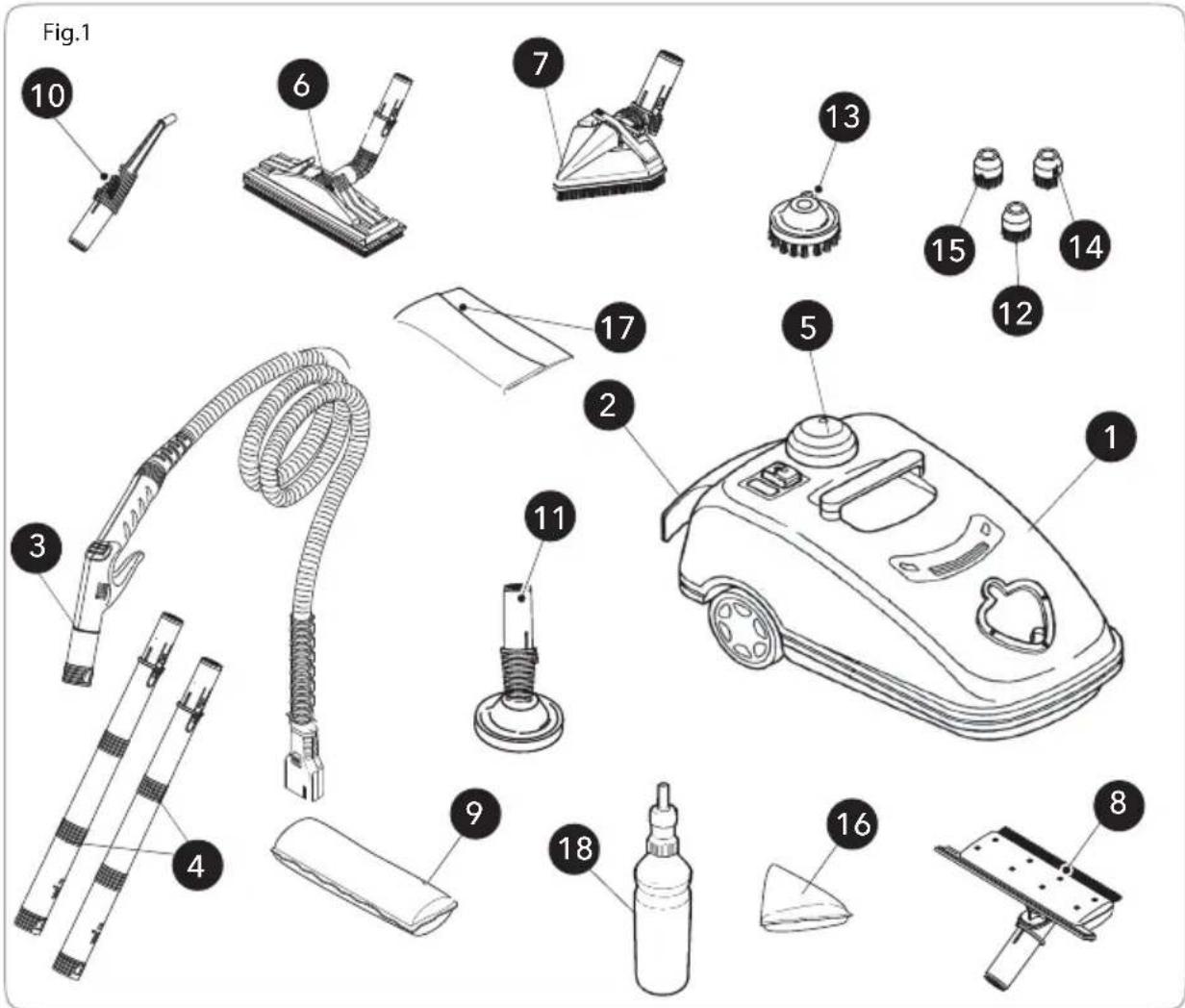

ACCESSORIES & MAIN COMPONENTS

This manual includes optional accessories some of which are not included in the basic kit with each this machine. Contact your local dealer to purchase additional items or accessories

1.TheAPX390
2.Cablewrap
3. Flexible hose
4. Extension tubes
5. Safety/Filler cap
6.Multi-functionbrush
7. Triangle brush for padded products (sofas, carpets, car seats, etc.)
8. Squeegee
9. Rectangular pillow insert
10. Short black lance

1. Rubber Drain Tool
2. Circular soft brush (1")
3. Circular brush with nylon bristles (2.5")
4. Circular brush with bronze bristles (1")
5. Circular brush with nylon bristles (1")
6. Triangular pillow insert
7. Thermofiber cleaning cloth
8. Tank filler-water bottle

CONTROLS

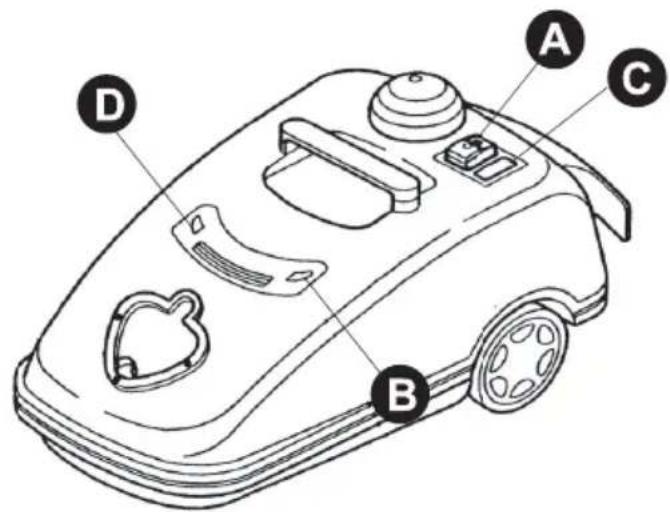

STEAM CLEANER (Fig. 2)

A: Main Switch
B: Working pressure light
C: Light indicating voltage levels
D: Light indicating no water in the boiler

Fig. 2

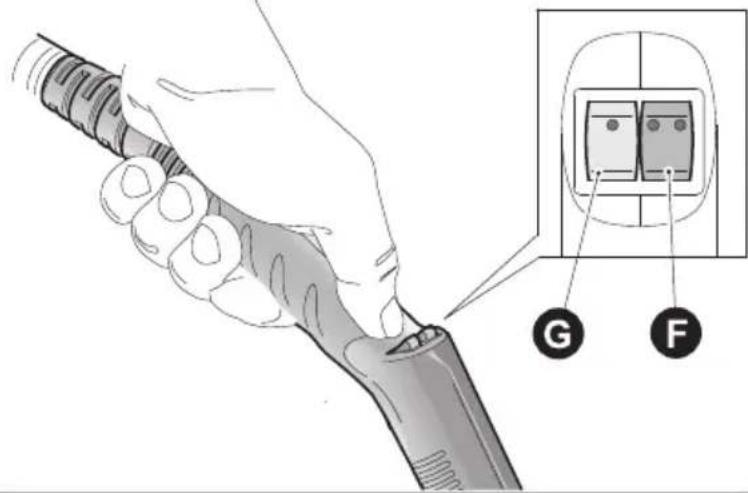

Handle controls (Fig. 3)

Steam adjustment: positions

$$ 0 - 1 - 2 1 + 2 = 3. $$

Fig. 3

Switch position chart	OFF Position Low Position Med Position High Position*
Orange Switch (G) Off	On Off On
Red Switch (F) Off Off	On On

*Not for prolonged use.

SETTING UP

HOW TO FILL THE TANK WITH WATER

• Place the appliance on a flat surface.

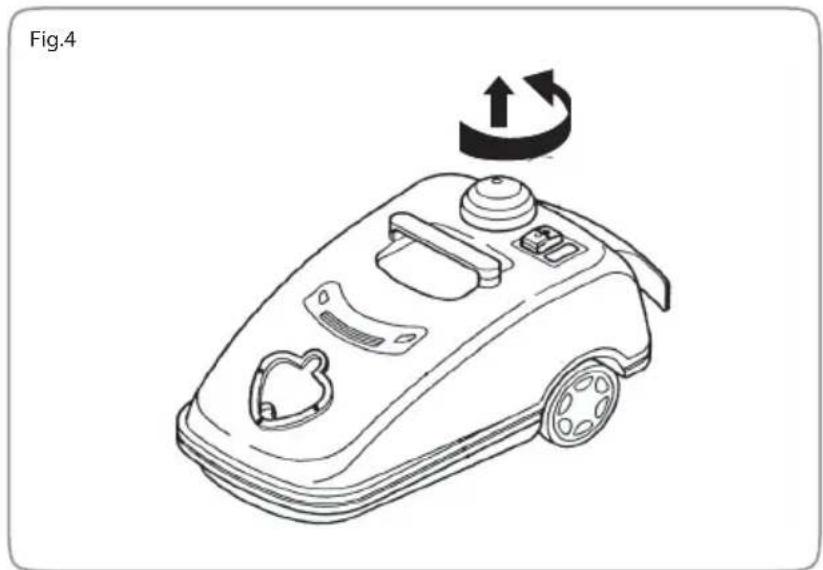

• Unscrew the safety cap (Fig.4).

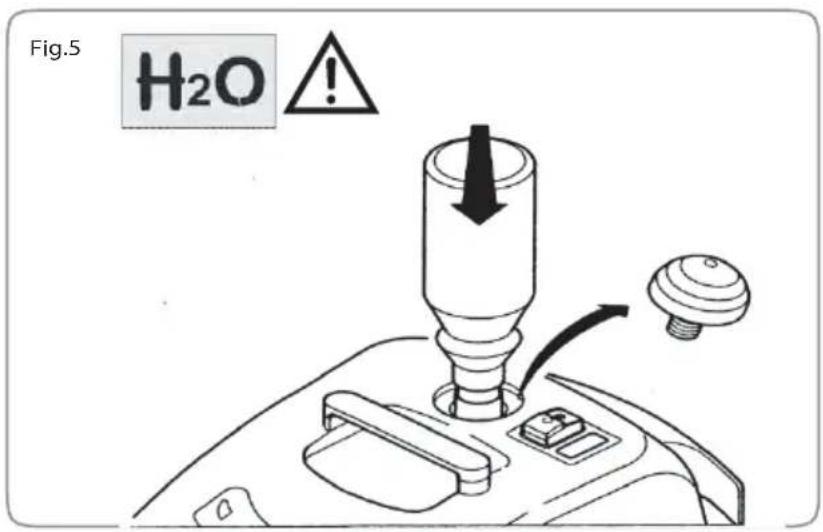

• Fill in the boiler with water using the water bottle (Fig.5).

NOTE: The boiler holds 2 liters.

ATTENTION: Only fill the boiler with tap water. Never add detergents or other chemical additives. The "safety cap valve" has a special self-locking device that cannot be opened when the appliance is under pressure.

Line drawing of a robotic vacuum cleaner with a circular arrow indicating rotational motion (no text or symbols)

HOW TO CONNECT

• Completely unwind the power cord.

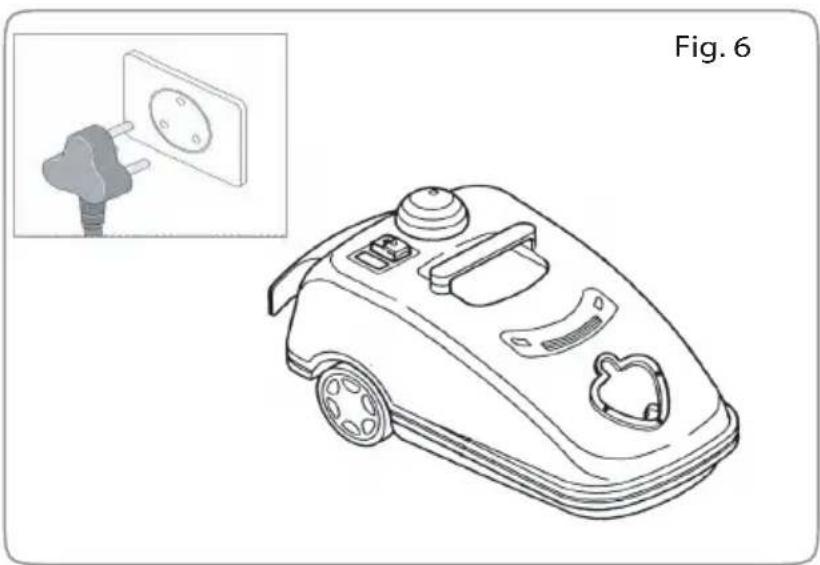

- Plug into grounded outlet. (Fig.6)

ATTENTION: This machine cannot be used for more than 3 hours continuously.

Line drawing of a vacuum cleaner with an inset showing its electrical socket (no text or symbols present)

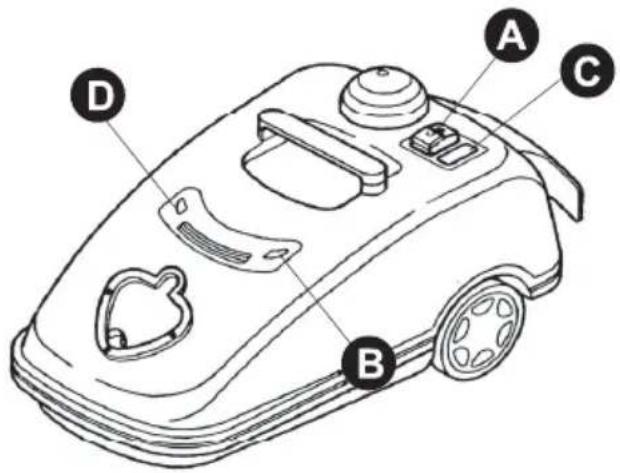

TO START UP (Fig. 7)

• Press the main switch (A). The switch will light on the main when the appliance is switch On.
• Wait for the light (B) to come On. The green light indicates that the working pressure has reached the maximum level.

Fig. 7

FTTING THE

ACCESSORIES

(Fig.s 8-9-10-11-12)

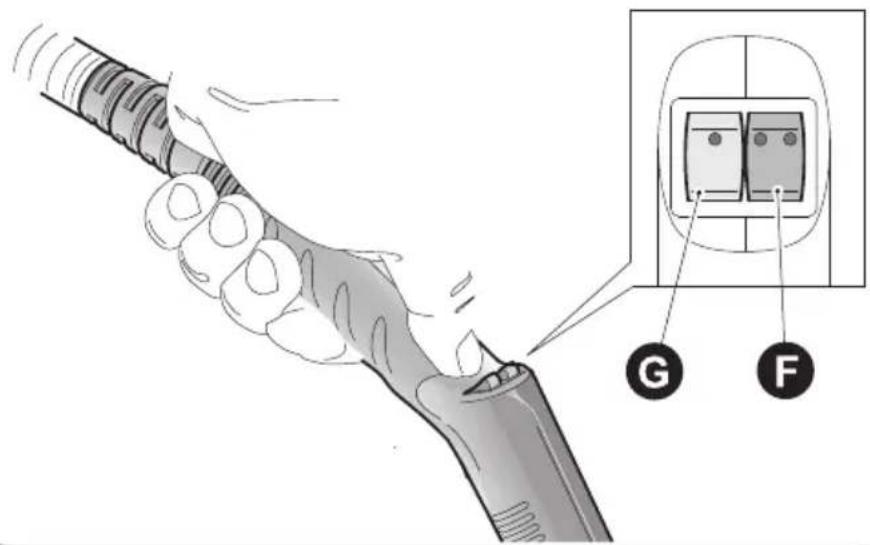

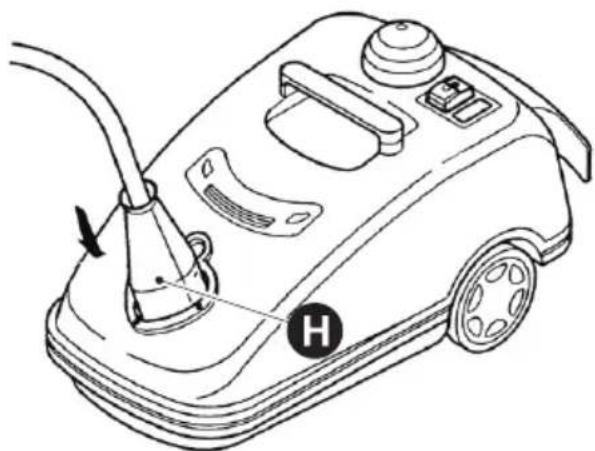

STEAM HOSE WITH GRLP (FIG. 8)

• Switch off the switch (F, G) on the steam wand to adjust the quantity of the steam required.
  • To enable the steam to pull the trigger on the handle flexible.
• Lift the socket Cover on the steam cleaner.
• Insert the plug (H) in the socket on the appliance, (Fig.9).
• Check that the plug (H) is correctly inserted (pull) (Fig.9).

Fig. 8

Fig. 9

Line drawing of a small vacuum cleaner with labeled parts and a cable, showing no text or symbols beyond the label 'H'

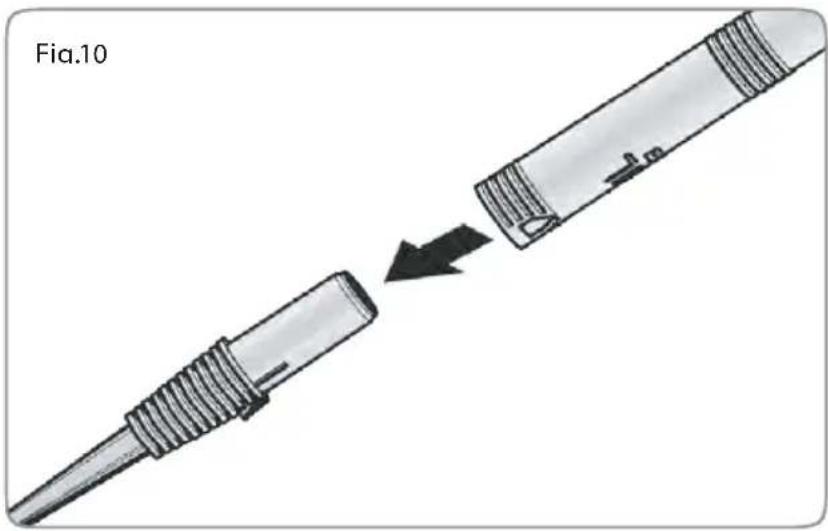

STEAM NOZZLE

(fitting directly onto the flexible grip or onto the tubes (Fig. 10) Insert the accessory into the handle or onto the tubes making sure that the locking tab is correctly inserted in the corresponding groove.

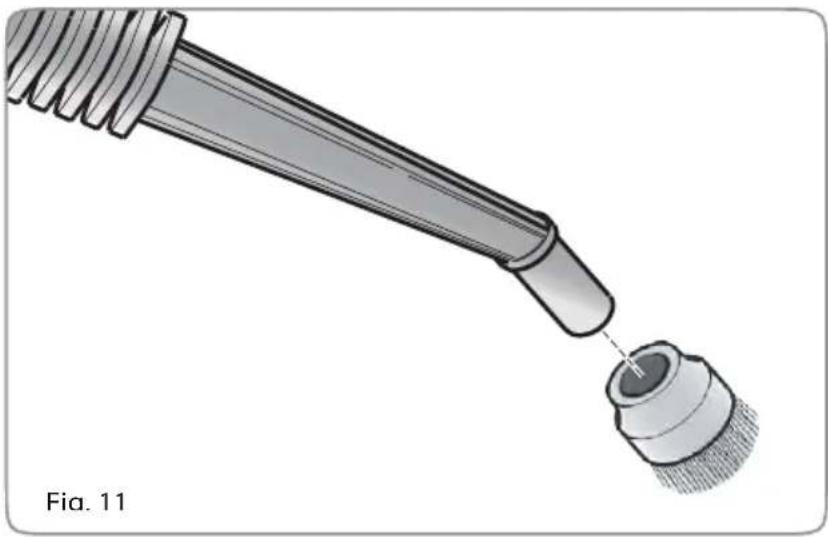

ROUND BRUSH (Fig.11) (fitting on the steam nozzle)

• Fit the brush onto the steam nozzle.

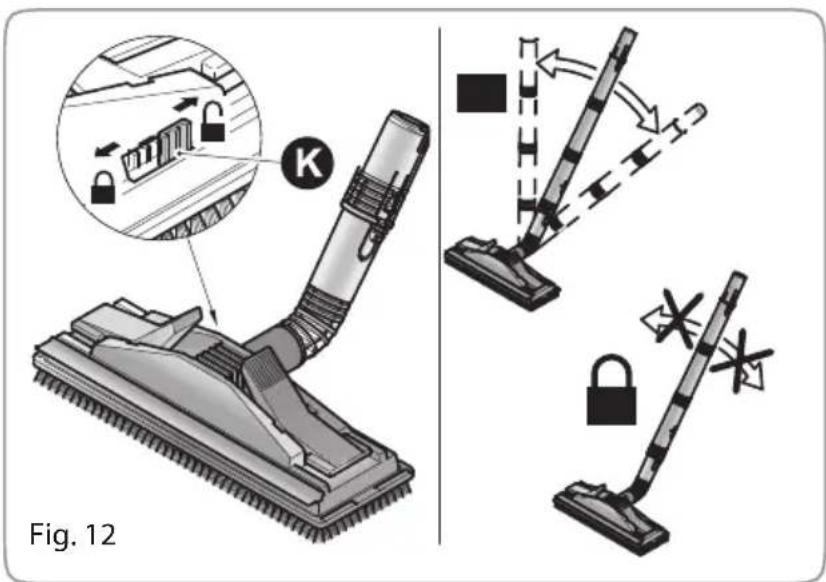

CLEANING BRUSHES

(Fig.12)

• Move the catch (K) on the brush to the midway position "unlock".
• Slide the brush onto the universal joint (curved).
• Move the catch (K) to the left, in the "unlock" position, or to the right, in the "lock" position.

Diagram showing a mechanical component being inserted into a larger cylindrical part, labeled Fig.10 (no text or symbols on the diagram itself)

Illustration of a medical or laboratory procedure showing a tool inserted into a component, labeled 'Fig. 11' (no text or symbols on the diagram itself)

NOTE: When the catch (K) is in the "unlock" position, the brush on the universal joint can swivel180°. When in the "locked" position, the brush will not move.

EXTENSIONS & TOOLS

Insert the accessory into the handle or onto the tubes making sure that the locking tab is correctly inserted in the corresponding groove.

APPLICATIONS

The APX390 is great for cleaning without the need for harsh chemical or detergents. It's ideal for cleaning:

• Joints, corners and other areas that are difficult to access.
• Tiled floors and walls.
• Windows, mirrors, glass doors and other glass surfaces.
  • Stains on carpets, upholstery and clothing.
• Kitchens and baths (faucets, sinks baths etc).
• Kitchen surfaces such as stoves, counter tops.
• Around the home: blinds, shutters, window sills.
  • Outdoor garden furniture and tools.
  • Cars (windows, hub caps, chrome Parts, etc.).

Many other applications.

ATTENTION: Never use the steam cleaner on electrical appliances and fittings.

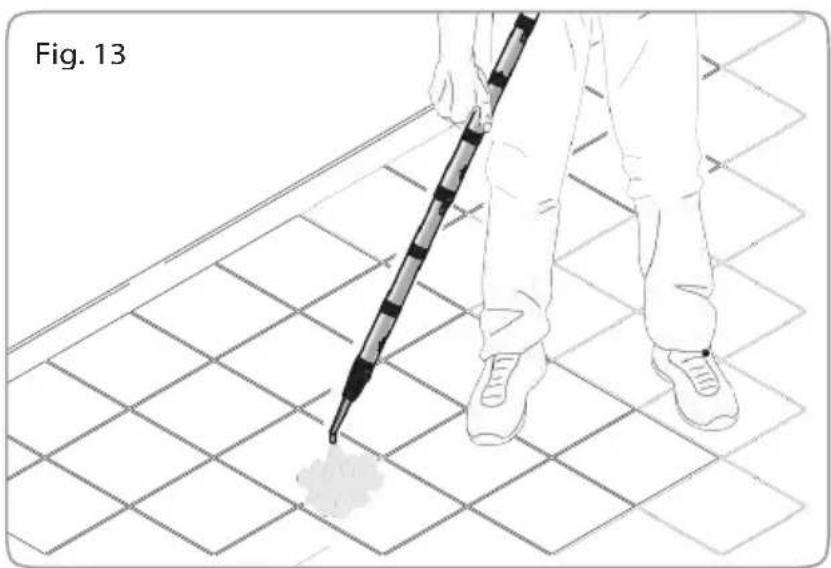

CLEANING WITH THE STEAM NOZZLE (Fig. 13)

The steam nozzle is for cleaning those areas that are difficult to access. To remove dirt from corners, joints, cracks, and gaps by steam, follow these steps:

• Press the steam pushbutton (position 2-3).
• loosen the dirt with the steam jet.
• Remove the dirt with an absorbent cloth.

NOTE: To eliminate heavy soils, we recommend using the round brush on the steam nozzle.

▲ATTENTION:The steam coming from the nozzle has a temperature of approx 266°F To clean heat-sensitive materials, hold the steam nozzle at a minimum distance of (4-6 inches) from the object.

Illustration of a person using a pipette on tiled floor, no text or symbols present

CLEANING FLOORS

PROCEDURE

• Put a clean absorbent cloth on the large rectangular brush.
• Press the steam push buttons (position 1-2).
• Clean the floor without pressing hard. To clean very dirty floors and to remove stains, use the brush without the cloth.
• No need to rub hard: the steam is enough to loosen the dirt.
• Place a cloth on the brush and remove the dirt.

NOTE: Regularly remove the cloth on the brush so that a clean part of the cloth is always used.

ATTENTION: Take special care when cleaning heat-sensitive materials***

***Parquet flooring cannot be cleaned with steam.

CLEANING WINDOWS

TO CLEAN GLASS SURFACES, USE THE SPECIAL WINDOW CLEANING

ATTACHMENT AS FOLLOWS:

• Press the steam switches (position 1-2).
• Gently place the window cleaner on the glass surface.
• Remove difficult dirt by using the grooved rubber surface on the window cleaner.
• Switch off the steam switch.
• Remove the dirty water with the soft rubber part of the window cleaner. Dry any remaining water with an absorbent cloth.

▲ ATTENTION: During the winter, you will need to pre-heat the windows before cleaning. To do so, pass the window cleaner over the window, holding it at a distance of approx. 10 cm.

CLEANING CARPETS

TO ELIMINATE STAINS:

• Use the steam nozzle.
• Direct a jet of steam (position 1-2) across the surface and hold over the stains.
• Place a cloth next to the stain and gather the dirt as this is removed.

NOTE: Immediately treat fresh stains with cold water. Attention! Stains containing egg whites can become fixed to the material due to the effect of the steam. Cleaning the carpet in the entire room.

• Fix a cotton cloth around the brush.
- Press the steam switch (position 1-2).
- Slowly move the brush crossways without pressing down.
- Regularly move the cloth on the brush so that a clean part of the cloth is always used.

▲ ATTENTION: Adjust the power of the steam to position 1 when cleaning delicate fabrics: Before cleaning, check the carpets color resistance by directing a jet of steam on a hidden corner. Take special care when cleaning velvets.

REFILLING THE WATER TANK DURING OPERATION

An indicator light will tell you when there is no more water in the cleaner (E-fig.2) If this happens the boiler stops heating automatically.

WHAT TO DO

• Switch off the boiler heating switch.
• Continue working to use up any remaining steam in the boiler. If this is not done, you will not be able to open the self-locking filler cap.
• Switch off the main switch.
• Remove the plug from a socket.
• With a towel to protect your hand carefully unscrew the self-locking cap and let any remaining steam escape.
• Remove the safety cap.
• Fill the tank with water as described in section "Setting up/How to fill the boiler" (page-9).
• Re-connect the appliance and start up as described in section "How to start up" (page-10).

MAINTENANCE

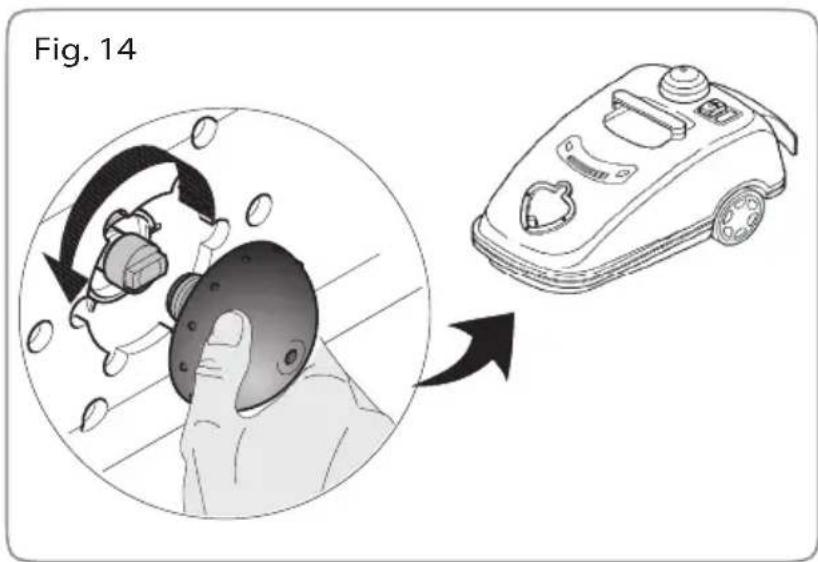

DESCALING (Fig. 14) (every 3-4 weeks)

ATTENTION: Never descale the appliance when still warm.

• Unplug.
• Fill the tank with tap water. Do not add anything other than simple tap water.
• Hold the appliance upright and shake thoroughly to loosen any scale in the boiler chamber.

- Open the drain at the bottom of the boiler (14) using the key on the safety cap.

• Collect the water coming from the boiler.

- Rinse the repeatedly with tap water (ONLY TAP WATER) until there are no further traces of scaling.

- Close the drain at the bottom of the boiler (14).

CLEANING THE APPLIANCE

Clean the appliance and accessories with a damp cloth. Never use steam or immerse in water.

GENERAL INFORMATION

- When you start up the appliance, condensation can occur in the cold accessories.

- Before cleaning, adjust the steam in position 2-3 and depress the trigger for a few seconds to drain any condensed steam that may be in the hose.

- Never use the appliance to clean materials that are not heat-resistant.

- Never leave the steam switch in position 3 for long usage. Position 2 is the standard setting, it is sufficient for most tasks and consumes less energy.

- If the soiled area is difficult to clean, it will require more time and more cloths during the cleaning process.

AFTER CLEANING

• Always switch off the heating switch.
- Let all the steam escape: the safety/refiller cap will not open otherwise.
- Switch the main switch off.
- Unplug from the outlet.
- Before storing, let the unit cool down completely.
- If you do not intend to use the appliance for 2 weeks, drain any remaining water in the unit as described in the "Descaling" instructions above.

ELECTRICAL SPECIFICATIONS

Normal Volatage 120V 60Hz
Normal Power 170 0 watts
Steam pressure 56 psi

APPLIANCE SPECIFICATIONS

Dimensions:
Height 10 inches
Width 11inches
Length 17 inches
Pover cord 13 feet
Body material Plastic
Boiler material 304 stainless steel main boiler
No. of switches 2 on the handle, multiple on unit
Steam adjustments 3 settings on the handle
No water signal Indicator light on the unit

INDEX:

Thank you for purchasing Goodway's GVC-390 Portable Dry-Steam Cleaner. We appreciate your business and look forward to serving you in the future. As with all Goodway products, you can be assured that the finest quality components and workmanship have gone into this machine.

Please take a few minutes to read the following Operating and Maintenance Instructions. By carefully following the instructions, you will obtain years of trouble free service from this product. Please pay particular attention to the safety instructions and exercise caution when using this machine.

GOODWAY® TECHNOLOGIES CORPORATION

HVAC & FACILITY MAINTENANCE SOLUTIONS

For Sales Call: 1-800-333-7467

For Service Call: 1-800-370-2855

AVERTISSEMENT

Blue circular icon with a white hand symbol (no text or numbers)

Blue circular icon with a white open book symbol (no text or symbols)

Blue circular icon with white line drawing of a human head and face shield (no text or symbols)

LA VAPEUR - AIDE VALABLE POUR NETTOYER

Line drawing of a small robotic vacuum cleaner with a circular arrow indicating rotational motion (no text or symbols)

Line drawing of a vacuum cleaner with an inset showing its electrical socket (no text or symbols present)

MISE EN MARCHE DE L'UNITE (Fig. 7)

Line drawing of a small vacuum cleaner with labeled parts and a cable, showing no text or symbols beyond the label 'H'

LANCÉ

Diagram showing a mechanical component being inserted into a larger cylindrical part, labeled Fig.10 (no text or symbols on the diagram itself)

Illustration of a medical or laboratory procedure showing a tool inserted into a component, labeled 'Fig. 11' (no text or symbols on the diagram itself)

APPLICATIONS

Illustration of a person using a pipette to clean or wash a white substance on a tiled floor (no text or symbols)

NETTOYAGE À FOND DE PLANCHERS

Provides innovative maintenance solutions for a wide variety of industries including commercial HVAC, food and beverage processing, power generation and manufacturing.

Provides innovative maintenance solutions for a wide variety of industries including commercial HVAC, food and beverage processing, power generation and manufacturing.

Call Us: [phone]

For Sales Call: 1-800-333-7467

For Service Call: 1-800-370-2855

GOODWAY® TECHNOLOGIES CORPORATION

420 West Avenue, Stamford, CT 06902 USA

Tel: [phone] · Toll-Free Tel: [phone]

Fax: [phone] · Toll-Free Fax: [phone]

Email:[e-mail]

Visit: www.goodway.com

P/N: GVC-390

©Copyright 2022 Goodway Technologies Corp., Stamford, CT USA

Effective date April 22, 2022

Goodway is a Trademark of Crossford International.

Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
