USER MANUAL Gourmet Pro OC787B ROWENTA

MANUAL MODE 1 • Description of "MANUAL" Mode 63 2 • Using "MANUAL" Mode 63 USEFUL TIPS 65

CLEANING AND MAINTENANCE

1 • Instructions 71 2 • Maintenance 72 3 • Troubleshooting guide 73 GUARANTEE 73 ENVIRONMENT 736 *selon modèle

KEEP WARMKEEP WA RM PRO GPROG

KEEP WARMK EEP WARM PROGP

KEEP WARMKEEP WA RM PRO GPROG

KEEP WARMK EEP WARM PROGP

KEEP WARMKEEP WA RM PRO GPROG

KEEP WARMK EEP WARM PROGP

KEEP WARMKEEP WA RM PRO GPROG

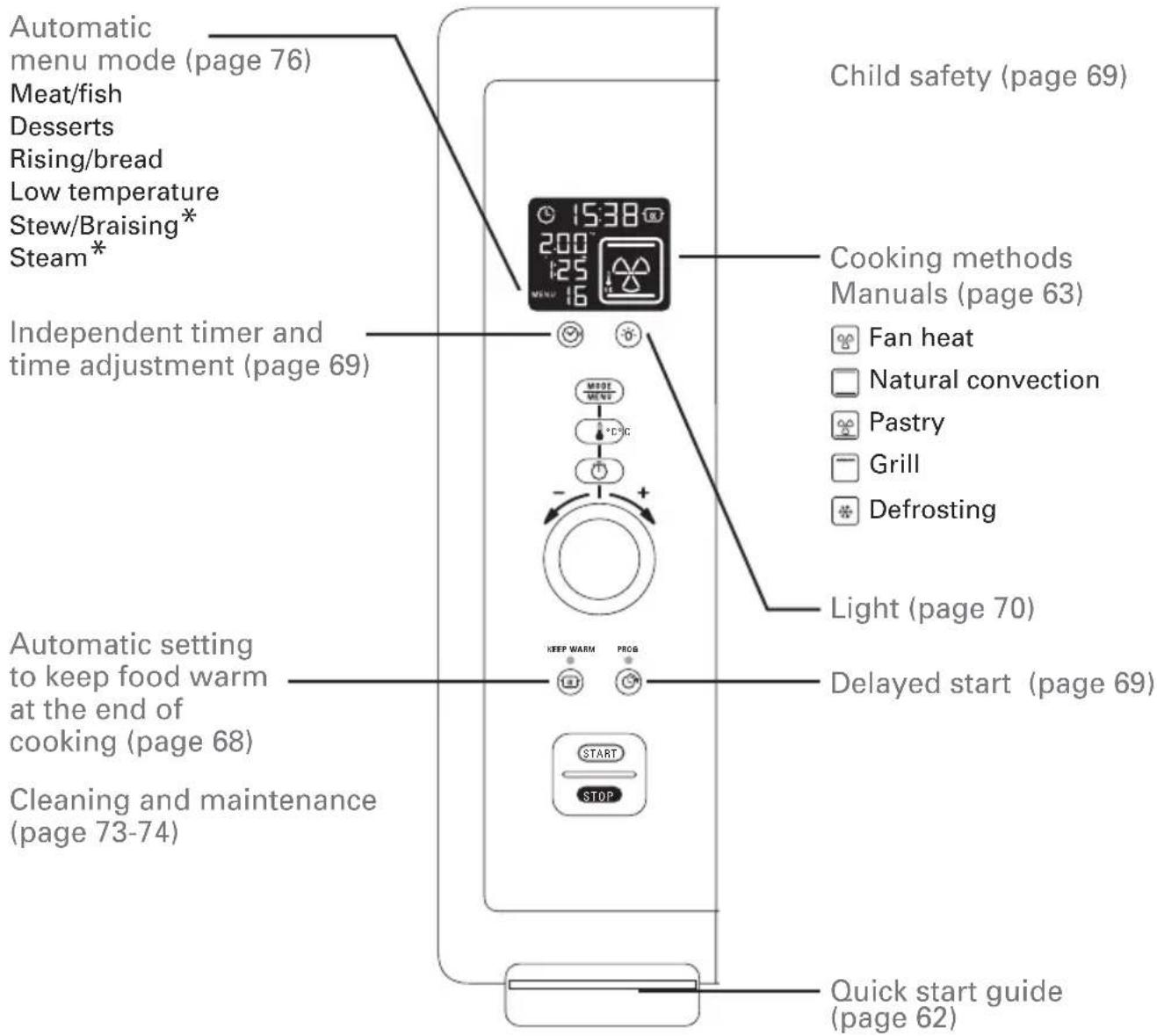

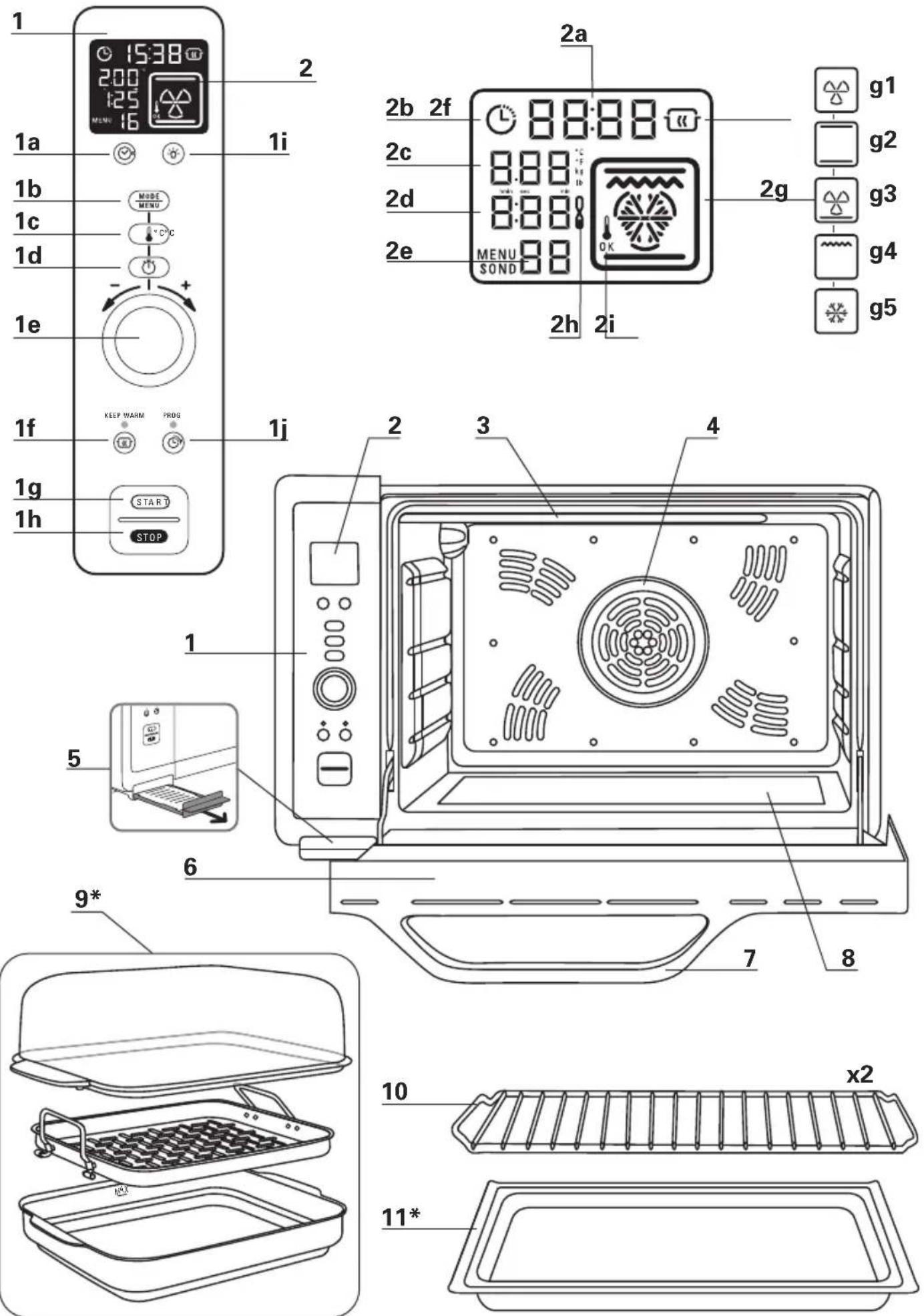

2 • My Rowenta Oven at a glance Cooking methods Manuals (page 63) Fan heat Natural convection Pastry Grill Defrosting Child safety (page 69) Automatic menu mode (page 76) Meat/fish Desserts Rising/bread Low temperature Stew/Braising* Steam* Delayed start (page 69) Automatic setting to keep food warm at the end of cooking (page 68) Cleaning and maintenance (page 73-74) Independent timer and time adjustment (page 69) Quick start guide (page 62) Light (page 70)M

*depending on model 9*FR

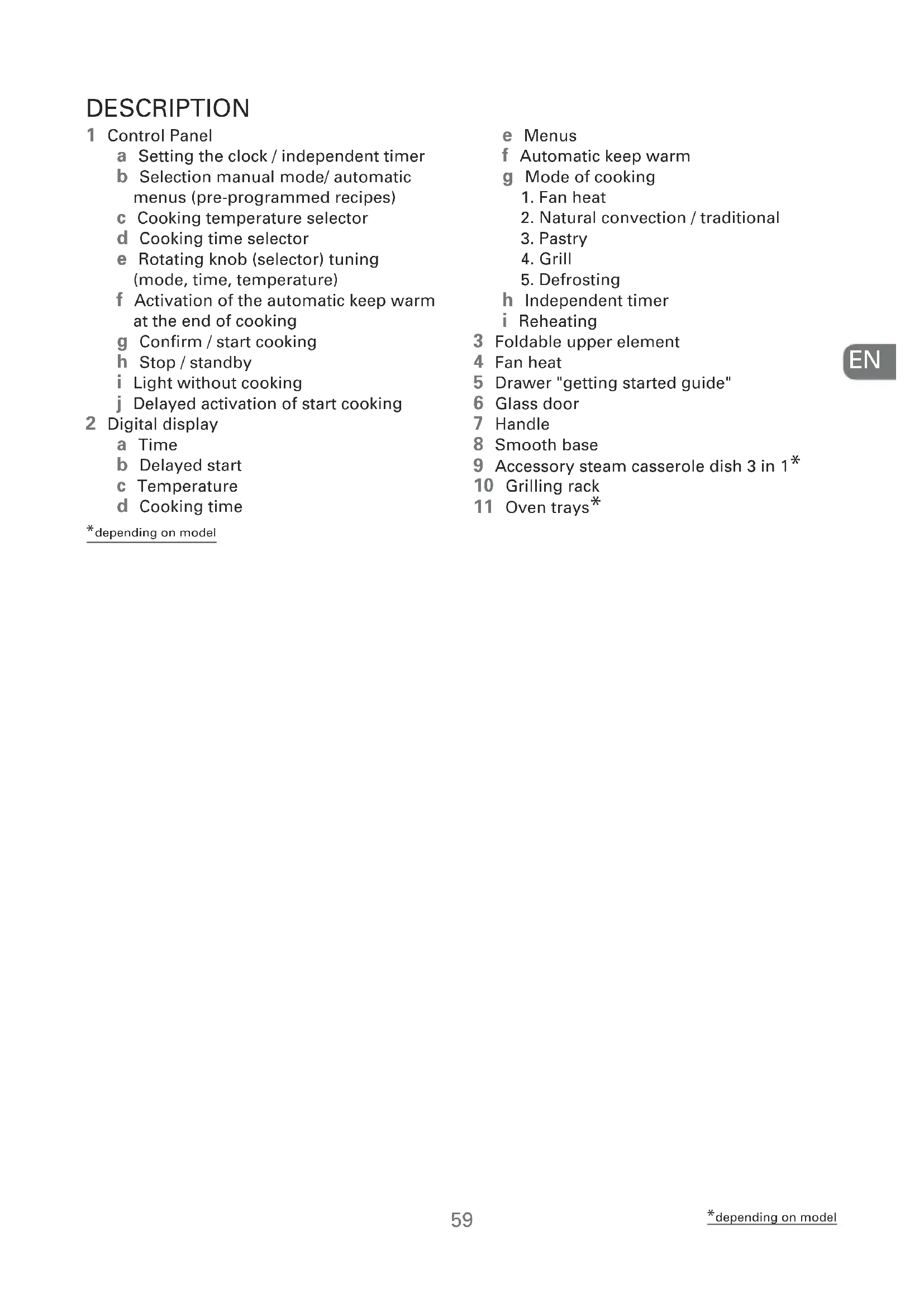

*depending on model DESCRIPTION 1 Control Panel a Setting the clock / independent timer b Selection manual mode/ automatic menus (pre-programmed recipes) c Cooking temperature selector d Cooking time selector e Rotating knob (selector) tuning (mode, time, temperature) f Activation of the automatic keep warm at the end of cooking g Confirm / start cooking h Stop / standby i Light without cooking j Delayed activation of start cooking 2 Digital display a Time b Delayed start c Temperature d Cooking time e Menus f Automatic keep warm g Mode of cooking

2. Natural convection / traditional

h Independent timer i Reheating 3 Foldable upper element 4 Fan heat 5 Drawer "getting started guide" 6 Glass door 7 Handle 8 Smooth base 9 Accessory steam casserole dish 3 in 1* 10 Grilling rack 11 Oven trays* *depending on model3 • Use Clean the door, coated or painted surfaces, accessories and transparent parts with a damp sponge and mild detergent. Dry well. Close the door. Pull down the cord. Plug into earthed power outlet.

GENERAL USE 1 • Characteristics NOTE that the net weight of the appliance is 15 kg. Place it on a surface able to support this weight. 2 • Before Use Keep your guarantee card. Read your manual and keep it carefully. Check that the appliance is not damaged. If it is, immediately contact the seller or after-sales service. Place your oven on a stable surface. Remove all stickers and protection both inside and outside of your oven. Remove all accessories from the oven (3 in 1 steam dish)*. Packaging is recyclable and it may be useful to use it to carry or return the oven to an approved service station.

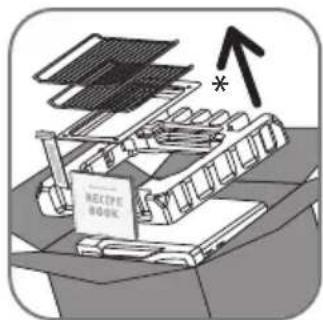

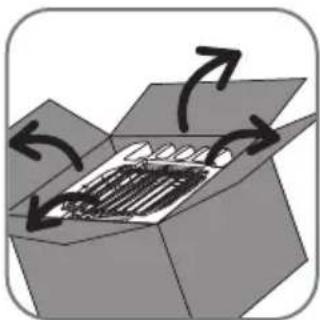

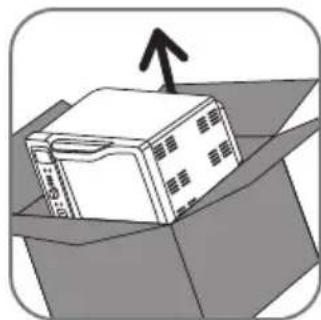

2.1 • Unpacking (Reminder)

Unpack your oven based on the following procedure: Remove the tape and open the flaps Remove the 2 grilling racks, take out the recipe book and remove the oven tray*. Remove the top section of packaging and take out the "start guide" drawer. 2 people required to remove the oven but do not pull on the handle. WARNING do not allow water to flow over the display. *depending on model

After plugging in the oven, the digital display indicates default clock "00:00" with flashing hours. Using the rotating knob (1e), turn it clockwise direction to move forward or in the opposite direction to go backward until the display of the appropriate time. Press the key to validate and move to the adjustment of the minutes. Using the rotating knob (1e), turn it clockwise direction to move forward or in the opposite direction to go backward until the display of the correct minutes. Press again key to confirm: your clock is set. Change the clock setting: press and hold the knob "clock", the digital display indicates the clock "00:00". Set the clock according to the above paragraph.

3.3 • First use empty

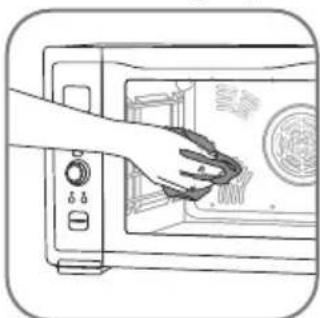

Operate your oven empty (without the accessories inside) in order to eliminate any manufacturing residue and new odours.

• Press once on key and select the mode of cooking natural convection with the help of the rotating knob (1e).

• Press once on key and set to 240 ° C with the help of the rotating knob (1e).

• Press once on key and set to 45 min (time will display hour, 0 h 45-minute).

• Press on key to start the oven. IMPORTANT A smoke may appear, this is quite normal and will disappear quickly after use.

Regardless of the mode of cooking, the oven can be stopped before the end of the cooking time. To do this, press the key. Pressing and holding the key change the oven to standby mode.

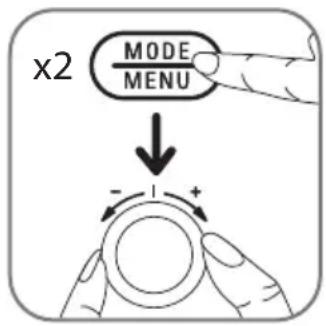

The oven has 2 modes of programming: 2 quick successive pushes on the key allows you to switch from manual to automatic modes and vice versa. REMINDER if the oven is in standby mode, pressing a key, the oven recalls the last program. *depending on model62

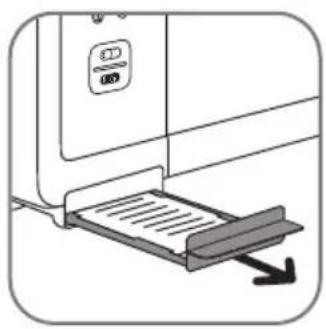

To install your start guide:

• Remove the drawer from the upper section of packaging.

• Cut out the instructions in the language of your choice.

• Slide the instructions into the drawer.

• Fit the drawer into the slot under the display (5): - on the front, you'll find instructions for cooking in manual mode. - on the back, instructions for cooking in automatic menus mode, as well as the list of programs. 4 • General Advice To choose dishes and tins: consider the internal dimensions of your oven. For a round dish, the diameter should not exceed 35 cm. For a rectangular/oval dish, it should not exceed 38 cm and can be placed diagonally.

It can vary from 1 minute to 8 hours. For safety reasons, the grill mode cannot be used for more than 1 hour and 30 minutes.

4.3 • Setting the Rotating Knob (selector)

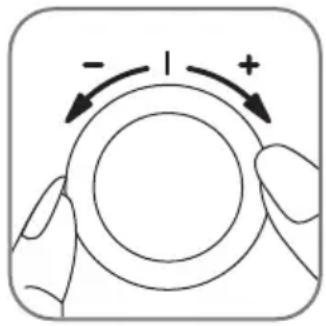

The knob may be used in both directions of rotation. This will facilitate the choice of automatic menus, cooking methods or settings (weight, temperature, timer). The selector can also determine the weight of the preparation for the automatic recipes (see paragraph "2.3 • weight selection /number of people").

4.4 • Internal lighting & sound

• During cooking or defrosting, the internal light is turned on. The remaining cooking time appears on the screen. It progresses minute by minute.

• A beep indicates the end of the cooking time. The internal light turns off after 10 minutes and the oven stops automatically.

• If you selected keeping warm option, the oven and light stay on until the end of the cycle.

4.5 • Non-scheduled operations

In the event of power failure, all programmed data are lost. If there is an anomaly in the operation or display of your oven, unplug the appliance for at least 40 seconds then plug it back in again. WARNING The glass lid on the 3 in 1 steam dish must not be used as a cooking plate. Cooking temperature: It is not possible to set the temperature in grill mode, keeping warm, automatic modes and defrosting. *depending on modelFR

DISCOVERING YOUR OVEN! Your electronic gourmet oven has two modes of programming to facilitate your daily cooking, MANUAL mode and AUTOMATIC MENUS mode.

• In manual method, you select the cooking method yourself (5 available methods of cooking), the time and the cooking temperature.

• In automatic menus method, you have up to 28 pre-programmed menus* that were developed to help you with elaborate dishes. All you need to do is to indicate the weight or the number of guests, and your Gourmet oven recommends the method, the time and the cooking temperature. As you require, the cooking time can be adjusted manually. Your Gourmet oven facilitates your daily life thanks to the comfort features that includes:

• Automatic keep warm for 10 hours at the end of cooking

• Delayed cooking programme

• Child safety SECU mode

MANUAL MODE 1 • "Manual" method Fan/circulating heat: the heat generated is circulated by a fan placed at the back of the oven, which assures an exceptional consistency of cooking in every corner. This cooking method is ideal to cook several dishes at the same time, or a large dish, the circulating air allowing cooking these dishes in a uniform way. Natural convection (or traditional oven): heat is generated by the upper and lower oven elements: this traditional way of cooking is used to cook meat, fish and desserts. Pastry baking: this particular feature combines fan heat, fan positioned at the rear of the oven and lower element, both providing excellent uniformity of cooking achieving the crispiness of the crust: particularly suited for savoury or sweet tarts. Grill (upper element): heat is generated by the upper element of the oven: it allows to grill / traditional barbecue and baking of your dishes. Defrosting: this is a special function. The fan is placed at the back of the oven in order to accelerate the time of defrosting of the ingredients that you will place in your oven, without cooking risk. The temperature is pre-set (cannot be adjusted). *depending on model64 NOTE After 30 seconds without pressing a key, the oven goes on standby mode. At any time, you can correct your programming by pressing one of the , or keys. Press and hold key, puts your oven on standby, but the program remains in the memory.

Once settings are done, press key. The oven starts up. Internal light switches on. The sign flashes in the digital screen during the preheat and becomes fixed once the desired temperature is reached and for the rest of the cooking. The countdown is done minute by minute. At the end of the scheduled time, a beep indicates the end of cooking. The oven stops heating. Internal light switches off after 10 minutes.

Regardless of the mode of cooking, the oven can be stopped before the end of cooking time. To do this, press the key:

• Stop cooking with a quick press.

• Sleep mode with an extended press. 2 • Usage of "Manual" method To choose the mode of cooking, press key. Select the mode of cooking by turning the rotating knob (1e).

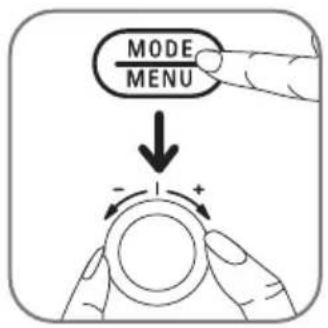

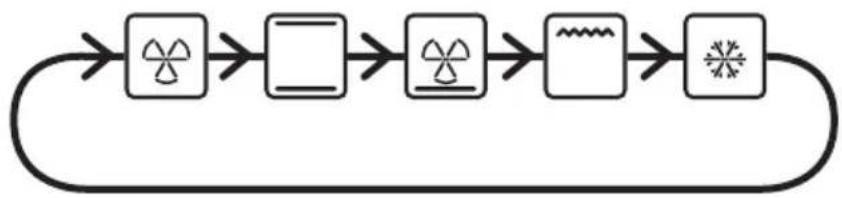

2.1 • Selection of cooking method

Press key. Set the desired temperature by turning the selector for the desired temperature from 80°C to 240°C.

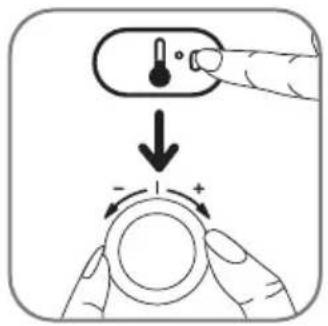

2.2 • Selection of temperature

Press key. Set the duration of cooking by turning the selector until the desired time. The digital display tells you the time in hours and minutes (e.g.: 0:45). Press key if you wish to start cooking immediately.

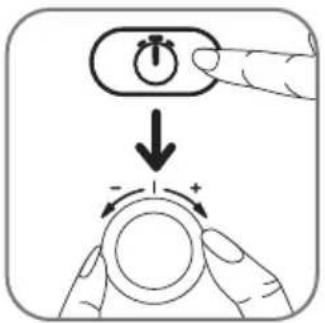

2.3 • Selection of cooking time

*depending on modelFR

• If you want to use 2 trays, place them in a way leaving a sufficient space in between preparations in order for the heat to circulate and to obtain a uniform cooking.

• Push the grill racks well to the back of the oven and place your dishes in the centre of the grill racks.

• Never place the plate directly on enameled smooth base. Grill mode

• You have a grill to hold your meat or brown the top of your dish.

• Place your dish or meat on the grill 4cm away from the grill element. No food should be in contact with the element.

• Place the oven tray* with a little water on the lower shelf to collect grease or cooking juice, close the door.

• For your meat, it is necessary to grill halfway through the cooking (sausages, pork...). Defrosting mode

• To accelerate the natural thawing of your food.

• Place the tray on the lowest shelf. Put the frozen products on a plate. Put the plate on the tray. Close the oven.

• You cannot adjust the temperature mode while defrosting (it is set automatically to 40 ° C). REMEMBER It is not possible to regulate the temperature in Grill Mode. IMPORTANT During certain types of cooking there might be steam released around the oven door : this is completely normal. Be careful as this may be hot. *depending on model66

AUTOMATIC MENUS MODE

1 • Description of "Automatic MENUS" modes Your oven has pre-programmed menus: it will automatically determine mode, time and temperature based on the weight or number of guests you are having. It also manages the keep warm cycle at the end of cooking or grilling. Meat / fish: programs 1 to 8 Pre-programmed menus to ensure fast, perfect cooking of meat and fish (rare or well done beef, roasted veal, pork, lamb, chicken, whole fish,...). Your oven will determine the mode, temperature and cooking time depending on the weight of the meat / fish. Desserts: programs 9-13 Programs tailored to delicate cooking (portion of soufflé, whole soufflé, fruit, tarts, quiches, crèmes caramel, crèmes brûlées, meringue...) and very fine precision control (from 5 to 10°), as well as an even distribution of temperature. Your oven will determine the mode, temperature and cooking time based on the number of guests. Bread mode (rising / dry heat /baking): 14-16 programs 3 programs cooking:

• Rising: menu created only for lifting the dough.

• Bread: menu combining the different phases of raising the flour, resting and baking the bread.

• Brioche: menu combining the different phases of raising, resting and baking the buns. Your oven will determine the mode, temperature and cooking depending on the weight of your ingredients. Slow cooking temperature (between 80 and 120 ° C): 17-22 programs These programs are especially recommended for meat and fish fillets, sealing in the tenderness and juices of meat and retention of flavours. These are long cooking hours - between 2h 30 and 4 hours in general and up to 7 hours for the 7 hours lamb program. Your oven will determine the mode, temperature and cooking time depending on the weight of the meat / fish. Although taking a very long time, slow cooking at low temperature consumes less energy than traditional cooking. Stew / Braising: program 23*. The Mijotage menu is for use with the 3 in 1 steam dish accessory without the steam basket. Giving you access to the preparation of dishes such as stew, braised dishes, preserves, tajines or sauces, carrots, beef dishes, beef bourguignon, clay pot cooking... Your oven will determine the mode, temperature and cooking time depending on the weight of the food. The use of any other type of cooking accessory may mean that you have to adjust the cooking time manually. Steam cooking: programs 24 to 28* The steaming menus are associated with the use of the 3 in 1 steam dish accessory adapted to traditional steaming recipes (for example: fish, thick or fragile vegetables / starches, but also fruit, white meat...). Pour in the water up to the MAX level indicated, check ingredients to be cooked on the steaming basket and select one of the 5 dedicated cooking menus.

menu 26 Weight (kg) steam: fish fillets 0menu 27 Weight (kg) steam: poultry fillets 0menu 28 Weight (kg) steam: fruits 0 Press twice consecutively on the button to change from manual mode to automatic menu mode. The digital display indicates MENU and 01 flashes. Choose the menu you want from the rotating knob (1e). Confirm your choice by pressing key once. If you want to revert to manual mode, press key twice successively.

(1) Potatoes, peppers, beans, small artichokes... (2) Broccoli, cauliflower, courgettes, carrots...

*depending on modelIMPORTANT Menu 13 (meringue), you have the choice between 3 browning modes: white "D", golden "2D" Golden or amber "3D".

COMFORT MODE 1 • Automatic Keep Warm Your oven has the function to keep food warm at the end of the cooking period: Your food will be automatically maintained at an appropriate temperature for up to 10 hours without cooking. To enable/disable keep warm function, press key. This feature may be enabled or disabled before or during cooking. The green light indicates that the feature is activated.

KEEP WARMK EEP WARM PROGP

Also the flashes during cooking and becomes fixed at the stage of keeping warm. It is possible to keep warm without prior cooking (for example to heat up), in this case press key when the oven is on standby. CAUTION Maintaining keep warm function for an extended time may dry up some dishes. IMPORTANT For the automatic meat menus and beef in particular, if the size (length is greater than the diameter) and the piece is thick, it is necessary to slightly increase the recommended cooking time. NOTES Some menus are pre-set regardless of the number of guests (menus 12, 14, 22, 23). It is, however, possible to change the cooking time according to your preference. This may vary depending on size, thickness, freshness and initial temperature of the food to be cook. Using pre-programmed menus, you have the choice to adjust the cooking time. They can be increased or reduced depending on the preference of everyone. At any time, you can, through the key:

• Stop cooking with a quick press.

• Implement pause / standby mode with an extended press.

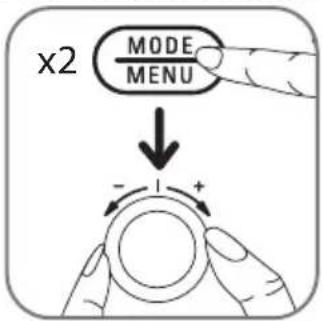

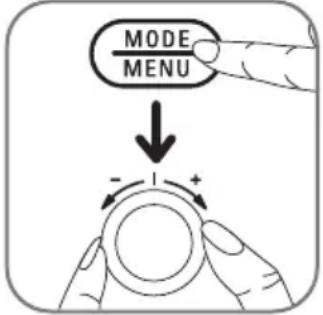

2.3 • Weight Selection/number of people/browning level

Turn the selector to set the weight, the number of people or the browning level and confirm by pressing or the button. Once confirmed, the time, temperature, and cooking method are automatically determined: you can manually change the pre-programmed cooking time. To do so, press key and specify your choice using the selector (1e)

Check by pressing again on the button . Press . The oven starts up. *depending on modelFR

2 • Start – Delayed cooking Thanks to this feature, you can choose to delay the end of your cooking time. After completing your settings (mode, temperature...), press the key. A light will appear and will appear at the top of the screen that displays the end time of set cooking time. Set the time you want your cooking ends with the rotating knob. Example: Set at 20:00, if you wish that your cooking finishes at 20:00. Then press key to confirm your setting. The oven will be on standby. sign will flash on the screen to indicate that a delayed start program has been scheduled. PROGP ROG Note for this function: - You can defer the end of cooking 24 hours maximum - When the oven is on standby and waiting to start:

• If you want to check your settings or the end of cooking, time press key: oven displays your settings for 5 seconds.

• If you want to change your settings or the end of cooking time, press key. Change your settings. You will need to press the key and set your end of cooking time again. Confirm with key. 3 • Independent timer You can use the timer that is independent of your oven. This is very useful to monitor the cooking of your pasta, rice and boiled eggs. A quick press on the clock will allow you to view the pattern on the screen indicating 0 min: 00 "cooking time" on the screen. To set the time, turn the rotating knob (1e), and start the countdown by pressing the key. At the end of the countdown, the oven will ring for 3 seconds. The sign will switch off. A quick press on the key will pause the count. An extended press will stop the independent timer. 4 • Child safety This function is an added security to prevent your children from unexpectedly operating the oven. In standby mode, the child safety keeps the oven on standby even if the keys are pressed or rotating knob turned. Activated during cooking, the function prevents the any change in settings: only the key keeps its function to stop cooking for safety reasons. To enable and disable this feature, press for 5 seconds on the lighted key until the oven sounds: "SECU" pattern will appear on the screen. When the function is active, "SECU" appears on the screen as a reminder whenever a locked key is pressed. *depending on model70 6 • 3-in-1 steam cooker accessory* With this accessory, you can use your oven for:

Traditional cooking (gratins, roasts...) in non-stick plate.

Steaming vegetables, fruit, fish and meat, in the plate with the non-stick metal steaming basket and its glass lid, for the steam menus 24 to 28*.

6.1 • Using the dish in the traditional way

Put your food on the non-stick metal plate. Place a tray on one of the oven shelves. Place the dish on the tray. Select the appropriate menu or mode. Never use the glass lid of the 3-in-1 cooker accessory for cooking in the traditional way.

6.2 • Using the plate in Stew mode

Put your food on the non-stick metal plate. Close with glass lid. Place a tray on one of the oven shelves. Place the dish in the centre of the tray and close the door. Select the menu 23 and set the weight of your preparation.

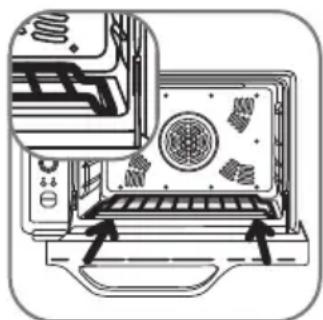

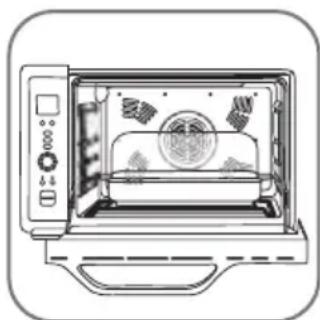

6.3 • Using steam plate mode*

Pour water at room temperature in the dish to the MAX (600 ml) level mark. Place the steam plate in the dish. Place to cook food. Close with glass lid. Place the oven tray directly on the bottom of the oven. RECOMMENDATIONS

• For cooking tasty meat, we recommend that you cover your preparation using aluminum foil which prevents evaporation.

• Never put the plate on the top cover of the oven or on the glass door.

• Never place the dish directly on the bottom of the oven. Place the dish in the centre of the tray and close the door. Select the menu (menu 24 to 28) appropriate steam and the weight of your preparation. 5 • Internal lighting To facilitate the withdrawal of your dishes and cleaning of your oven. You can turn on and turn off the oven light without cooking, by pressing the key. To turn off the lamp, press the key again. In the event that you forget, the light will automatically switch off within 15 minutes. *depending on modelFR

• Do not put more than 2.5 kg of food on the steam plate.

• For best efficiency, centre the dish in the centre of the oven.

• Do not use the dish in any other way other than prescribed (eg Do not put directly on the base of the oven, use without plate, without cover, without water...).

• The steam menus use particular temperatures and a heating mode. Do not use the 3-in-1 steam cooker accessory for steam cooking except for these automatic menus: the result of cooking will be disappointing and may damage the dish.

• Never put the plate on the top cover of the oven or on the glass door.

• Never use the dish directly on the base of the oven.

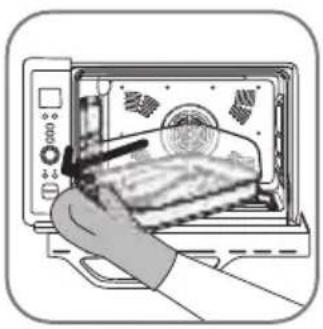

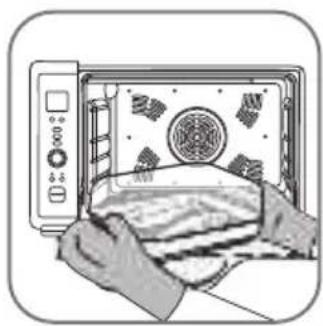

• Use oven gloves to retrieve your dish from the oven.

• The glass lid must not be used as a cooking plate.

• It is strongly recommended not to open the oven door or the lid of the 3-in-1 steam cooker while steam cooking.

• Never use alcohol for steam cooking.

• Never pour water on the glass lid when it is still hot.

• Steam can condense on the oven door while cooking in steam mode. It will disappear during the cooking.

• Do not use metal utensils on the coated plate and steaming basket.

CLEANING AND MAINTENANCE

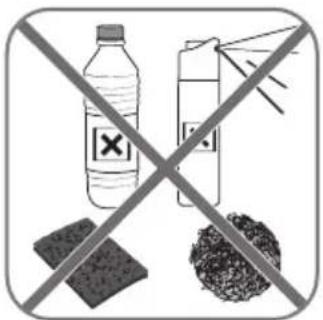

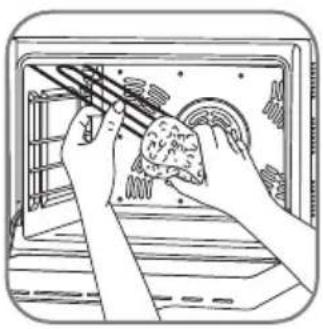

1 • Instructions We recommend you to clean the oven each time you use it so that particles of burnt grease are not left inside the oven. For easier maintenance, your oven has a smooth enamel base that covers the lower element. The wall is covered with non-stick coating, foldable grill elements. Your oven door is double layered: it was designed so as not to require special maintenance: it is however possible to dismantle the inner glass for drips between the two panes. Do not let the grease accumulate in the oven. Let the oven cool down before doing any maintenance or cleaning.

Rotate the dish 45°C to access the handle and pull on the rack with a hand up so that you have access to the second handle.

6.5 • Maintenance of the dish

• The dish and steam plate have a non-stick coating: clean with a damp sponge with mild detergent. Do not use abrasive maintenance products (including corrosive based soda) or sponge scrapers or abrasive buffers.

• The cover is made of high-strength glass: we recommend not to pour water on glass lid if it is still hot. Clean it up only after it is cool. Press the key for better visibility of the inside of the oven. Clean the outside of the oven with a simple damped sponge. Do not use specific metal based maintenance products for cleaning (copper stainless steel,...). Clean the door, enameled surfaces and translucent parts with a damp sponge and a mild detergent. Do not use abrasive maintenance products (including corrosive based soda) or scraper sponges or abrasive buffers. *depending on model72

unplug the oven and allow it to cool down for at least 1 hour,

turn the porthole quarter of a circle anti-clockwise,

clean the outside surface of the window using warm soapy water. Dry it thoroughly,

Remove the bulb and replace it (G9 – 25W 300°C),

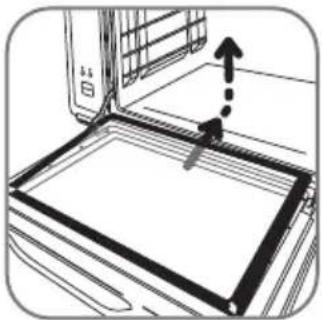

• Replace the window by rotating it through 90° in the clockwise direction. Open the door. Make sure that it is placed on a stable surface: turn your oven by 90°. Unscrew the 2 screw fixture at the door support links. Remove the two flanges. The inner glass must be lifted partly from below for a better grip. Slide the glass towards the back of the oven to release it from the notches which hold it in place. Remove the inner glass and clean it u sing soapy water. You then have access to the inner face of the external glass surface. Then clean it.

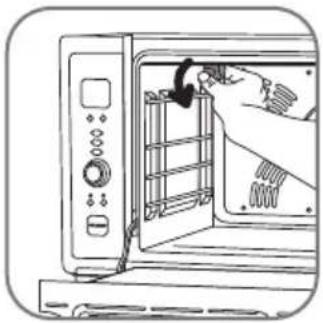

2.1 • Changing the internal bulb

The upper element is foldable but not removable. Never use force to manipulate the elements. The interior of the oven has an enamelled floor and the walls have a non-stick coating which can be cleaned easily with soapy water. All the accessories can be cleaned with water containing a little detergent. The grilling racks, the tray* and the glass panel* can be washed in the dish-washer. Replace the inner pane (check that the markings are on the inner surface of the door). Take care to position the glass correctly: the rounded corners should be on the lower side (near the door hinges). Fit the upper corners into the notches (see arrows). Replace the mounting flanges. Screw it back loosely.

depending on model NOTE When handling the window avoid any impact against the glass pane. In the event of major impact against the glass pane, the glass could break afterwards.FR

• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• Please read instructions before the first use of your oven: usage not in accordance with the instruction manual will indemnify Rowenta from liability. GUARANTEE

• In accordance with the regulations, any obsolete appliance should be rendered permanently unusable: unplug and cut the cable before disposing of the appliance.

• Environment: Directive 2002/95/EC. ENVIRONMENT Environment protection first! i Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point. If you have any product problems or queries, please contact our Customer Relations Team 0845 602 1454 - UK (01) 677 4003 - Ireland or consult our website: www.tefal.co.uk 3 • Troubleshooting guide If you are having trouble with your oven, try the following. If a problem persists, send your oven to the nearest approved Rowenta Service Centre. See the list of Rowenta authorized service centres or contact the Rowenta consumer service: www.rowenta.com Problems Possible causes Resolution Black screen display. The oven is not connected. Check the connection of the oven. The lamp does not work. The bulb is blown. Change the light bulb. The oven beeps continuously and displays “Err”. Initialisation error. Unplug the appliance for 30 seconds and plug it in again. *depending on model74
