USER MANUAL HSB 6466 TEKA

Door lock (only for pyrolytic models)

Tray supports (depending on the model)

Door lock (only for pyrolytic models)

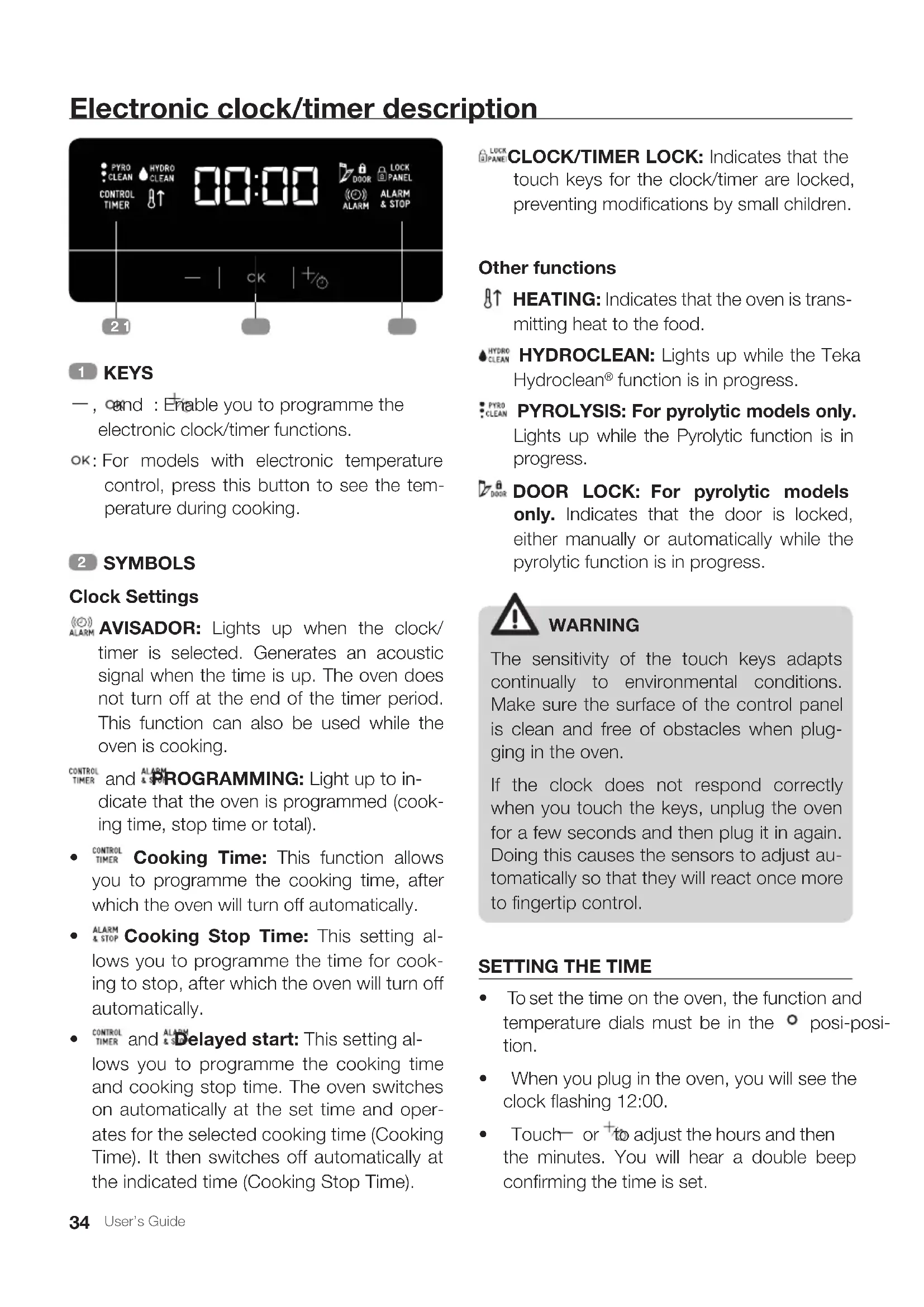

KEYS , and : Enable you to programme the electronic clock/timer functions. : For models with electronic temperature control, press this button to see the tem- perature during cooking.

SYMBOLS Clock Settings AVISADOR: Lights up when the clock/ timer is selected. Generates an acoustic signal when the time is up. The oven does not turn off at the end of the timer period. This function can also be used while the oven is cooking. and PROGRAMMING: Light up to in- dicate that the oven is programmed (cook- ing time, stop time or total).

Cooking Time: This function allows you to programme the cooking time, after which the oven will turn off automatically.

Cooking Stop Time: This setting al- lows you to programme the time for cook- ing to stop, after which the oven will turn off automatically.

and Delayed start: This setting al- lows you to programme the cooking time and cooking stop time. The oven switches on automatically at the set time and oper- ates for the selected cooking time (Cooking Time). It then switches off automatically at the indicated time (Cooking Stop Time). CLOCK/TIMER LOCK: Indicates that the touch keys for the clock/timer are locked, preventing modifications by small children. Other functions HEATING: Indicates that the oven is trans- mitting heat to the food. HYDROCLEAN: Lights up while the Teka Hydroclean

function is in progress. PYROLYSIS: For pyrolytic models only. Lights up while the Pyrolytic function is in progress. DOOR LOCK: For pyrolytic models only. Indicates that the door is locked, either manually or automatically while the pyrolytic function is in progress. WARNING The sensitivity of the touch keys adapts continually to environmental conditions. Make sure the surface of the control panel is clean and free of obstacles when plug- ging in the oven. If the clock does not respond correctly when you touch the keys, unplug the oven for a few seconds and then plug it in again. Doing this causes the sensors to adjust au- tomatically so that they will react once more to fingertip control.

• Touch or to adjust the hours and then the minutes. You will hear a double beep confirming the time is set.

• Ifyouwishtomodifythetime,touch or until the time starts flashing. Touch and and follow the instructions in the previ- ous point. NOTE The clock light has a night mode so the display light will dim between 00:00 and 6:00 hours. WARNING In the event of a power failure, your elec- tronic clock/timer settings will be erased. If this happens, turn the function and tem- perature dials to the position. The indication 12:00 will show, and you will then be able to set the time as described above. If the oven door was locked before the pow- er cut, the locked symbol will show until it is unlocked. This may take several minutes, depending on the temperature inside the oven, and during this time you cannot reset the time. Oncethedoorisunlocked,youcansetthe time as described above Oven use

• You will notice that the symbol lights up during cooking to indicate that heat is being transmitted to the food. This symbol disappears when the selected temperature has been reached.

• Setthecontrolsto to turn off the oven. INFORMATION When you start cooking, your oven will show the time the oven has been cooking MANUAL OPERATION

• Aftersettingtheclock,theovenisreadyfor use. Select a cooking function and tempera- ture. INFORMATION In models with an electronic temperature control, when the selector switch is turned, the clock display will show the temperature. After selecting the temperature, the clock display will automatically reappear. To see the temperature again during cook- ing, press the button and turn the tem-button and turn the tem- perature dial if you want to change it.36 User’s Guide

OVEN TIMER OPERATION

Programming the Buzzer

or until the symbol on the display starts flashing, then press . The indication ‘00:00’ will appear on the display.

2. Select the time after which you want the

alarm to sound by pressing or . You will hear 2 beeps to confirm that the time has been set and the clock will start counting down from the selected time. The sym- bol will flash slowly.

3. Oncethetimehasexpired,anacousticsig-

nal will sound for 90 seconds and the symbol will flash quickly. NOTE With the Buzzer function, the oven will not turn off when the time expires.

4. Touch any key to stop the alarm. The

symbol will then disappear. If you wish to modify the time on the buzzer, re- peat the steps shown. Upon entering the timer control, the time currently remaining will appear, which you will be able to adjust. NOTE With the Buzzer function, the remaining time will show permanently on the display. With this programmed function, it is not possible to view the time or the total programmed cooking time. Programming Cooking Time

or until the symbol on the display starts flashing, then press . The indication ‘00:00’ will appear on the display.

2. Select the time after which you want the

alarm to sound by pressing or . You will hear 2 beeps to confirm that the time has been set and the clock will start counting down from the selected time.The sym- bol will flash slowly.

3. Select a function and a cooking temperature

using the oven commands.

4. Oncethecookingtimeisup,the ovenwill

turn off, an alarm will sound and the symbol will flash quickly.

5. Touch any key to stop the alarm and turn off

the symbol. The oven will switch on again.

6. Set the controls to the

position to turn off the oven. You can change the remaining cooking time at any time by touching or until the symbol starts to flash quickly. Now press to change the time. NOTE With the Cooking Time function, the remain- ing time will show permanently on the dis- play. You cannot see the current time on the display when this function is set. Programming the Cooking Stop Time

or until the symbol on the display starts to flash and press . You will see the current time on the timer display.

2. Select the time after which you want the

alarm to sound by pressing or . You will hear 2 beeps to confirm that the time has been set and the clock will start count- ing down from the selected time. The symbol will flash slowly.

3. Select a cooking function and temperature.

4. When the cycle is finished, the oven will turn

itself off, a buzzer will sound and symbol will flash quickly.

5. Touch any sensor to stop the alarm and to

turn off the , symbol. The oven will switch on again.

6. Set the controls to the

position to turn off the oven.37 User’s Guide English You can change the remaining cooking time at any time by touching or until the symbol starts to flash quickly. Now press

change the time. Delayed start programming

or until the symbol on the display starts flashing, then press . The indication ‘00:00’ will appear on the display.

2. Select the cooking time by touching

. Next, a double beep will sound, the re- maining time will appear on the display and the symbol will flash slowly.

or until the symbol on the display starts flashing, then press . You will see the expected completion time on the timer display.

4. Adjust cooking completion time by touching

or . Next, a double beep will sound and the current time will be displayed on the dis- play.

5. Select a cooking function and temperature.

The oven will remain disconnected with the and symbols lit up. The oven is now programmed.

6. When it is time to start cooking, the oven will

turn on and will operate for the programmed cooking time.

7. While cooking, the cooking time remaining

will be displayed and the symbol will flash slowly.

8. When the cooking time is up, the oven will

turn off, a buzzer will sound, and the symbol will flash quickly.

9. Touch any sensor to stop the buzzer and

turn off the symbol. The oven will switch on again.

10. Set the controls to the

position to turn off the oven. You can change the remaining cooking time at any time by touching or until the symbol starts to flash quickly. Now press

change the time. Option available in models with the CHEF function. This function allows for cooking different foods through automatic programs where it is possible to adjust, the type of food, weight, and tempe- rature.

1. Turn the function selector to the position of

the function , and you will see CHEF on the display. CHEF Function38 User’s Guide

2. Press any of the icons , or , and the

screen will display the list of available recipes, from r.0 to r.9. The recipe icon will blink dur- ing the selection. Press or until you see the chosen recipe. Press to confirm the selection.

to adjust the weight value in grams. Tap to confirm the selection.

4. Next, the proposed temperature will be dis-

played. In the case of NON-PYROLYTIC ovens, select the proposed or desired tem- perature by turning the temperature selector knob. The screen will alternately display SET and the proposed temperature. Tap

to adjust the value. Tap to confirm the selection. In the case of PYROLYTIC ovens, tap

to select the temperature. Tap to confirm the selection.

5. With the temperature selection, the cooking

process starts. The screen will display the es- timated cooking time based on the entered parameters.

6. Some recipes require preheating of the oven.

In these recipes, once the cooking tempera- ture is confirmed, “Pre” will appear on the screen. When the cooking temperature is reached, an acoustic signal will sound. Tap after placing the food inside the oven, or open and close the door in pyrolytic models, and the cooking will start. The screen will dis- play the total remaining cooking time.

7. There are recipes that require turning the

food over. In these cases, an acoustic sig- nal will sound, and “turn” will appear on the screen. Tap or open and close the door in pyrolytic ovens after turning the food over. The acoustic signal will stop, and the remain- ing cooking time will be displayed again.39 User’s Guide English

8. When the time is up, the cooking will stop,

and an acoustic signal will sound while the icon blinks. Pressing , or will stop the acoustic signal.

9. The screen will alternately display CHEF and

END to indicate the completion of the cook- ing process.

During cooking with the CHEF function, it is possible to set an alarm. Tap Tap

until the icon lights up. Tap to confirm. Tap Tap or to select the desired time. Tap to confirm the selection. The icon will blink, indicating that the tim- ing displayed on the clock corresponds to the alarm. Oncethealarmisnished,theicon will blink rapidly, and an acoustic signal will sound. Tap , or to stop the alarm. At that moment, the icon will disappear from the clock display, and the remaining cooking time programmed with the CHEF function will be shown on the screen. RECIPE TABLE The following table shows the available recipes in the CHEF function, the preset values for each cooking process, as well as whether preheating the oven or turning the food is required. This information is also available on the inner glass of the oven.40 User’s Guide Safety instructions

This function can be selected at any time while using the oven. To activate the function, touch and hold key for several seconds until you hear a beep and the symbol appears on the display. The clock/timer is locked. If the oven is off and you activate the child safety function, the oven will not work even if a cooking function is selected. If this function is activated while you are cook- ing, it will only lock the electronic clock/timer settings. To disable the function, press key for several seconds until you hear a beep.

Available in pyrolytic models only. This function allows the oven door to be locked. IMPORTANT This function can only be selected when the oven command functions are set to the rest position

Once the door has been locked, you can start cooking normally. To activate/deactivate the door lock, follow these steps:

or until the symbol on the display starts flashing. The current door lock status will be dis- played:“On”ifitisactiveand“Off”ifdeacti- vated.

2. Press . You will then hear a beep and the

blockwillstarttoactivateifitwas“Off”,or deactivateifitwas“On”. Recipe Food Weight Range Temperature Range Preheating Turning Food r0 Roast Meat 1,5 - 4 140 - 155 - - r1 Small Roast 0,5 - 2 180 - 195 YES - r2 Chicken / Turkey 1 - 4 180 - 185 YES YES (50%) r3 Lamb 1 - 3 170 - 185 YES YES (50%) r4 Fish 0,5 - 2 180 - 190 YES - r5 Vegetables 0,5 - 3 185 - - r6 Lasagna 0,5 - 1 185 - - r7 Pizza - 200 YES - r8 Bread 0,5 - 1 190 YES - r9 Cake - 180 YES -41 User’s Guide English WARNING Before locking, ensure that the oven door is properly closed. If not, it will not lock and an alarm will sound. If this happens, switch off the alarm by pressing any clock button, close the door properly and lock again as per the instruc- tions above.

3. Once the door has been fully locked/un-

locked, the display will show the new door status. In the event that the locking system is active, the symbol will appear constantly lit on the display. IMPORTANT To unlock the door during cooking, turn the function dial to standby and unlock the door as described above. Oncethedoorisunlocked,turnthefunction dial back to its former position to continue cooking. Teka Hydroclean

function This function makes it easy to remove grease and other food debris that may have stuck to the sides of the oven. For easier cleaning, do not allow dirt to accu- mulate. Clean the oven frequently.

PROGRAMMING THE TEKA

WARNING Do not pour water into a hot oven as this can damage the enamel of the oven. Always run the cycle on a cold oven. The result could be affected and the varnish damaged if it is run when the oven is too hot. First remove the trays and all accessories from the oven interior, including the tray sup- ports and telescopic guide rails. To do this, follow the instructions in the installation and maintenance guide accompanying the oven.

1. With the oven cold, spread a cloth out on the

2. Gently pour 200 ml of water into the bottom

of the oven cavity. INFORMATION For best results, add a teaspoon of mild washing up detergent to the glass of water before pouring onto the cloth.

3. Turn the control dial to the

4. You will hear a beep indicating that the Teka

cycle has started. The sym-42 User’s Guide Pyrolytic self-cleaning function Function available in pyrolytic models HSB P. WARNING Before setting the pyrolytic cleaning cycle, carefully read the safety instructions, which you will find at the start of the Installation and Maintenance guide. This function allows you to carry out a pyrolytic cleaning cycle during which, due to the high temperatures reached inside the oven, ac- cumulated grease undergoes a carbonisation process. The general recommendation is to perform a pyrolytic cycle every 4-5 uses, using the most suitable programme according to the level of stains present in the oven. The more stained the oven, the longer the duration of the pro- gramme. During the pyrolytic cycle the light inside the oven will remain off. PROGRAMMING

THE PYROLYTIC FUNCTION

IMPORTANT Before carrying out the pyrolysis, you must remove all accessories and dishes from the oven, including the shelves and/or telescop- ic guide rails. To do this, follow the instruc- tions in the installation and maintenance guide accompanying the oven. bol will flash slowly and the time remaining to complete the cycle will appear on the display. IMPORTANT The duration of this cycle cannot be changed. To stop the cycle before it is finished, turn the control dial to the position.

5. When the cycle is finished, the oven will turn

itself off, an alarm will sound and the symbol will flash quickly. IMPORTANT Do not open the oven door until the Hydro- clean

function is complete. The cooling cycle is necessary for the func- tion to work properly.

6. Touch any sensor with your fingertip to stop

the alarm and turn off the symbol.

7. Turn the control dial to the

8. Any traces of dirt and excess water can now

be removed from the oven with the damp cloth. The Hydroclean

function takes place at a low temperature. However, cooling times can vary depending on the room temperature. WARNING Before touching the inside surface of the oven, make sure that it has cooled properly. If a deeper clean is required after using the Hy- droclean

function, use neutral detergents and non-abrasive sponges.43 User’s Guide English WARNING Clean any spillages or excess dirt from the inside, as these could ignite during the py- rolysis and create a fire hazard. WARNING Before running the pyrolytic function, ensure that the oven is properly closed.

1. Turn the cooking control dial to the Pyrolysis

2. TAfter a few seconds, the

symbol will light up on the clock display, reading ‘P2’ (Pyrolysis programme 2.

3. You can now change the pyrolysis pro-

gramme to P1, P2 or P3 by pressing the

lected, press . The automatic door lock will be activated immediately. WARNING If the door is not properly closed, it will not lock and an alarm will sound. If this happens, switch off the alarm by pressing any clock button, close the door properly, turn the function dial to the posi- tion and re-select the pyrolytic programme as described above.

5. Oncethedoorislocked,the

symbol will light up on the clock display and the time re- maining before the end of the pyrolysis will ap- pear. IMPORTANT At this point, the oven is programmed and the pyrolytic cleaning cycle is under way. During the cycle, none of the oven timer functions may be chosen (except the child lock). Do not try to open the oven door as this may interrupt the cleaning process.

6. When the pyrolytic cleaning cycle has fin-

ished, an alarm will sound, the symbol will flash and you will see the time ‘0:00’ on the clock display.

7. Press any of the timer’s keys to disable the

8. Turn the control dial to the

9. The oven’s heating process has finished.

However, the oven is extremely hot and can- not be used. The cooling process will continue to operate and the symbol will remain lit until the oven cools down. IMPORTANT As a result of the high temperatures inside the oven, the cooling process may vary de- pending on the room temperature.

10. Oncetheovenhascooleddown,the

symbol will turn off.

11. Open the oven door and wipe the inside

with a damp cloth, removing the ash from the cleaning cycle. Hard-to-reach areas in the oven will need to be cleaned with a non-metallic fibre scourer.

12. Once the oven is clean, do not forget to

replace the supports and accessories.

13. The oven is now ready to be used.44

User’s Guide IMPORTANT If any incident is detected in the program- ming or use of this function, consult the in- stallation and maintenance guide included with your oven.

CANCELLING THE PYROLYTIC FUNCTION

Pyrolysis is an automatic function and there- fore it can only be activated from the timer programme. To cancel a pyrolysis in progress it is necessary to reset the oven, following the instructions below:

1. Set the control dial to the

position. The timer display will appear as follows

2. Depending on the internal temperature of the

oven, either of the two following situations could arise: a) Dangerous internal temperature: In this case, the door will remain locked until the temperature reaches safe levels. b) Safe internal temperature: If the tempera- ture inside the oven is safe, the door will be unlocked immediately.

3. Oncethedoorhasbeenunlockedandcan

be opened, the time will show once again on the timer display.

POWER SUPPLY FAULT DURING PYROL-

YSIS PROCESS If there is a power cut during the pyrolysis pro- cess, when the power is restored the following is displayed on the oven screen: In this state, set the control dial in position . If the temperature of the oven is safe, it will au- tomatically unblock. However, if the oven temperature is not yet safe, the oven will cool down and unlock auto- matically after one hour. If the door has not unlocked after this time, dis- connect the oven from the main power supply, reconnect it and try to unlock it manually, fol- lowing the steps in the chapter “Manual door lock”45 Guide d’utilisation Français Description du four

kWh/cycle*kWh/cycle*
