DO808GO - Oven DOMO - Free user manual and instructions

Brand	DOMO
Model	DO808GO
Product type	Oven
Power supply voltage	220-240 V~, 50/60 Hz
Power	2000 W
Power consumption in off mode	0 W
Maximum temperature	230 °C
Timer	Up to 90 minutes, Stay On function
Cooking functions	Light, bottom heat, top heat, conventional (top+bottom), convection (fan)
Number of cooking levels	3
Accessories included	Cooking grid, baking tray
Control type	Rotary knobs (temperature, timer, function)
Indicator light	Indicates that the appliance is on
Recommended preheating	5 to 10 minutes
Care and cleaning	Clean with a damp cloth and mild detergent. Do not immerse. Do not use metal sponges.
Safety	Automatic shut-off via timer. Do not cover the grid with aluminium.
Warranty	2 years
Required clearance	10 cm on each side for air circulation
Intended use	Domestic and similar environments

Frequently Asked Questions - DO808GO DOMO

What should I do if the oven does not heat up?

Check that the temperature, timer and function knobs are correctly set. Make sure the appliance is plugged into a working outlet. If necessary, test the outlet with another appliance or have the fuse checked by a professional.

How do I set the timer for a time less than 15 minutes?

First turn the knob past 15 minutes, then turn back to the desired time. This ensures correct countdown.

Can I use aluminum foil in the oven?

No, never cover the grid with aluminum foil. This may cause the oven to overheat. Also avoid placing cardboard, plastic or paper inside.

How do I clean the inside of the oven?

After unplugging and cooling the appliance, clean the interior with a slightly damp cloth. Use warm water with mild detergent. Never immerse the appliance in water.

The oven emits smoke during first use, is this normal?

Yes, a slight smoke and odor are normal during first use. It will disappear after a few minutes.

What types of dishes can I use?

You can use metal, glass or ceramic dishes, but avoid completely metal or glass dishes if using the microwave function (not applicable here). Always use oven gloves to handle hot dishes.

How do I choose the right cooking level?

Place the grid or tray at one of the three available levels depending on the height of the dish. Ensure the dish does not touch the heating elements.

What does the Stay On symbol on the timer mean?

The 'Stay On' position (to the left) allows the oven to operate with no time limit. You must then turn off the appliance manually. The indicator light remains red.

How do I use the convection function?

Turn the function knob to the convection symbol (fan). This activates the fan for even cooking on multiple levels. Ideal for roasts and oven dishes.

Where can I find spare parts or accessories?

You can order original DOMO accessories and parts via the brand's webshop or contact customer service at [phone] ([e-mail]).

USER MANUAL DO808GO DOMO

EN Instruction booklet Oven

Read all instructions carefully. Save this instruction manual for future reference.

△PRODUCTSPECIFIEKE WAARSCHUWINGEN

Chere cliente, cher client,

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

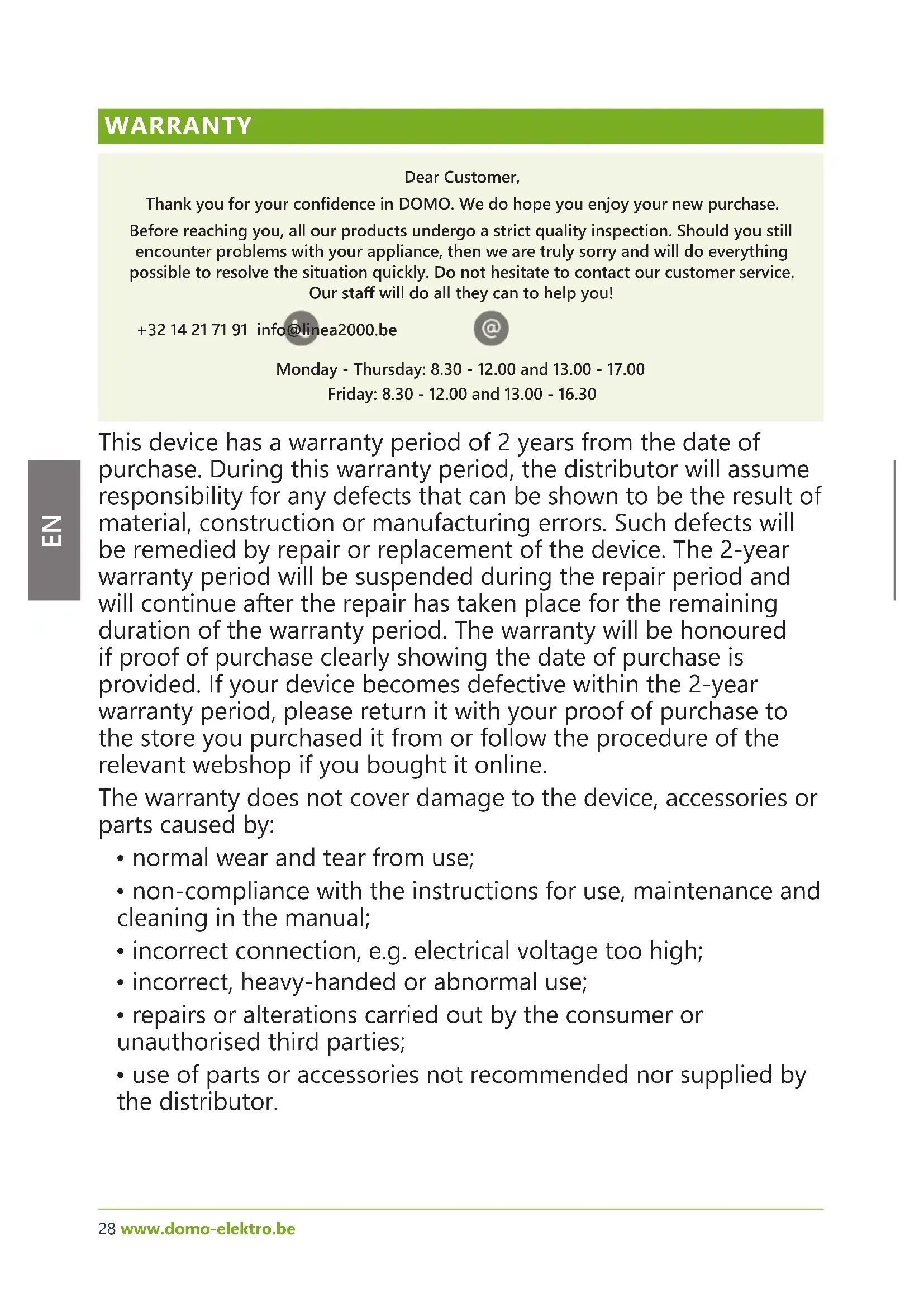

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

normal wear and tear from use;

• non-compliance with the instructions for use, maintenance and cleaning in the manual;

• incorrect connection, e.g. electrical voltage too high;

• incorrect, heavy-handed or abnormal use;

• repairs or alterations carried out by the consumer or unauthorised third parties;

• use of parts or accessories not recommended nor supplied by the distributor.

SAFETYINSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time.

• Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.
• Keep the appliance and its cord out of reach of children younger than 16 years.
• All repairs should be carried out by the manufacturer or its aftersales service.

ELECTRICALWARNINGS

• In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.
• Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.
• The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.
• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.
• Keep the power cord away from hot parts and don't cover the appliance.
• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.
• For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

INSTALLATION

• Do not place near flammable materials, gases or explosives.
• Do not use or store this appliance outdoors.
• Always use the appliance on a steady, dry and level surface.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

USE

• Do not use this appliance for other than intended use.

• Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.

• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

PRODUCTSPECIFICWARNINGS

• Do not touch any hot parts, use the handles and knobs.
• When using the oven, ensure you have a clearance of minimum 10cm around every side to allow air to circulate freely around the machine.
• The machine must not be used in an enclosed space (such as a cupboard, for example).
• Never cover the machine's grill with aluminium foil. This could cause the oven to overheat.
• Do not use metal scourers to clean the oven. Small particles of the scourer may break loose and land on the heating element.
• Do not put foods or metal accessories that are too big in the oven as they may cause fire or electrocution
• A fire may be caused if the machine comes into contact with or is covered with flammable materials during operation, such as oven gloves, curtains, wall, etc. Do not place any objects on top of the oven when it is in use.
• Take great care when using dishes made entirely of metal or glass.
• Do not place any of the following materials in the oven: cardboard, plastic, paper or similar.
• Store only oven parts in the machine when it is not in use.
• Always use oven gloves when placing or removing items in the oven.

The housing of the oven can get hot during use. Keep the electrical cord away from hot parts and do not cover the oven.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

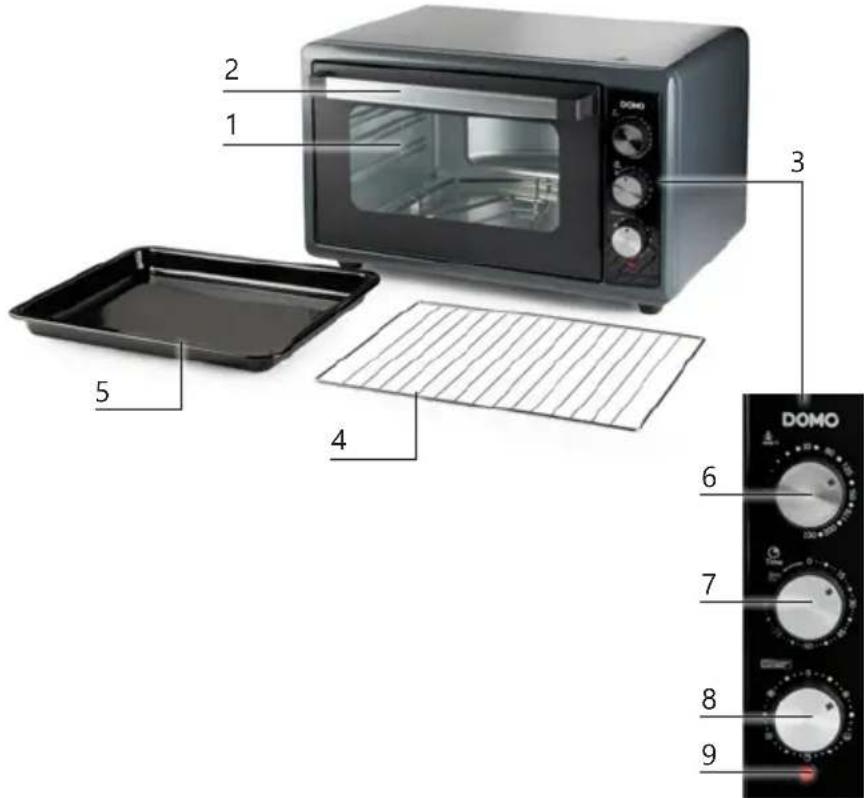

PARTS

1. Observation window
2. Handle
3. Control panel
4. Grill rack
5. Baking sheet
6. Temperature setting button
7. Timer setting button
8. Function setting button
9. Indicator light "Power on"

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
• Wipe the machine with a damp cloth. Clean the baking sheet and the grill rack in warm water using a mild detergent. Make sure that the parts are completely dry before using the machine again.

When using the appliance for the first time there may be a slight smell and light smoke. This is normal.

USE

Insert the baking tray or grill rack in the oven in one of the three available levels. This of course depends on the height of the dish. Never allow the dish to come into contact with the heating element.

SET THE TEMPERATURE (TEMP °C)

Select the required temperature by rotating the knob. The maximum temperature is 230^ . Remember to preheat the oven for 5 to 10 minutes prior to use so that the oven is at the right temperature before food is placed in the oven.

SET THE TIMER (TIME)

Set the timer by rotating the knob. If the required time is less than 15 minutes, first rotate the button past the 15 minutes and then turn the button back to the required time. The maximum amount of time that can be set is 90 minutes. A bell will ring when the time has expired. The oven will not work if the timer has not been set. If you do not want to set a timer, turn the knob to the left (Stay on). This will enable you to use the oven. The indicator light turns red to indicate that the machine is switched on.

You can always change the time during the cooking process if required.

SET FUNCTIONS (FUNCTION SELECT)

Turn this knob to the required position.

Icon Function Use Preparation
*	Light The light in the oven comes on.
☐	Bottom heating	On this setting, the heating element heats from the bottom of the oven.	For a crispy pie, pizza, or quiche crust.
☐	Top heating	On this setting, the heating element heats from the top of the oven.	Gratin, e.g. lasagne or a casserole, for baked dishes where the base has already been cooked.
☐	Top and bottom heating (Conventional)	On this setting, the heating element at both the bottom and at the top heat up to cook the dish evenly.	Pastries, cakes, bread, pizza.
	Convection (Hot air)	On this setting, the dish in the oven is cooked by hot air. As a result, the temperature in the oven is the same everywhere.	When using two levels, cooking a roast or a casserole.

Note: the machine will not begin to work until the temperature, timer and function have been set.

After use, turn all the knobs back to 0 before switching the machine off.

CLEANING AND MAINTENANCE

• Always make sure you remove the plug from the socket before cleaning the appliance.
• Let the appliance cool down before cleaning.
• Clean the inside of the appliance after every use with a slightly damp cloth.
• Clean the parts in warm water with a mild detergent.
• The door and the control panel can be cleaned with a slightly damp cloth.

Do not immerse unit, cord, or plug in water or other liquid.
Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The oven does not heat. ·Make sure that the timer, function and temperature buttons are set correctly. ·Make sure that the appliance is plugged into a working outlet. Test the outlet with other appliances and have it repaired by a professional if necessary. ·Check the fuse in the fuse box and have it repaired by a professional if necessary.
The timer is not counting down. ·If the desired time is less than 15 minutes, first turn the knob past 15 minutes and then turn the knob back to the desired time.
The food is burnt at the top. ·Next time, place the food on a lower floor and/or use just the lower heater. ·Lower the temperature setting.
Smoke is coming from the appliance. ·At first use, this is perfectly normal and it will stop after a short period of time. ·If this happens after the first use, it is probably from spilled food residue on the heating elements at the top or bottom. Allow the appliance to cool completely and clean the heating elements.
There is a burnt smell coming from the appliance.	·This is probably from spilled food residue on the heating elements at the top or bottom. Allow the appliance to cool completely and clean the heating elements.

SPECIFICATIONS

Model DO808GO
Voltage 220-240 V~ 50/60 Hz
Power 2000 W
Energy consumption off-mode 0 W

GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]
