USER MANUAL DCPS3593 DEWALT

DCPS36512, DCPS3652, DCPS3653, DCPS3655, DCPS3656

DANGER: Indicates an imminently

hazardous situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially

hazardous situation which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety related message. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

WARNING: Read all safety

warnings, instructions, illustrations, and specifications in this manual, including the battery and charger sections provided in an original tool manual or the separate Batteries and Chargers manual. Manuals can be obtained by contacting Customer Service as described elsewhere in this manual. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. English (original instructions) 2 Français (traduction de la notice d’instructions originale) 8 Español (traducido de las instrucciones originales) 151 Fig.B

cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electricshock. e ) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock. f ) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electricshock.

a ) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personalinjury. b ) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non‑skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personalinjuries. c ) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/ or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invitesaccidents. d ) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personalinjury. e ) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpectedsituations. f ) Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in movingparts. g ) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust‑relatedhazards. h ) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of asecond.

4) Power Tool Use and Care

a ) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it wasdesigned. b ) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must berepaired. c ) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power toolaccidentally. d ) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrainedusers.

WARNING: Read all safety warnings, instructions,

illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or seriousinjury.

SAVE ALL WARNINGS AND INSTRUCTIONS

FORFUTUREREFERENCE. The term "power tool" in the warnings refers to your mains‑operated (corded) power tool or battery‑operated (cordless) powertool.

a ) Keep work area clean and well lit. Cluttered or dark areas inviteaccidents. b ) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust orfumes. c ) Keep children and bystanders away while operating a power tool. Distractions can cause you to losecontrol.

2) Electrical Safety

a ) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electricshock. b ) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed orgrounded. c ) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electricshock. d ) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or propertydamage.

DANGER: Indicates an imminently hazardous situation

which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous

situation which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety relatedmessage. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage. Intended Use This POWERSHIFT™ vibrator is intended for the the internal compaction of fresh concrete when paired with a compatible DeWALT POWERSHIFT™ powerpack orbackpack. DO nOT use under wet conditions or in presence of flammable liquids orgases. DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool. English (original instructions)3 English

• Do not hold vibrator head when starting the tool or during operation. Serious personal injury mayresult.

• Ensure switch is in the off position and disconnect battery pack before cleaning the vibrator head or hose.

• Use gloves when cleaning the vibrator head. Concrete is caustic and may cause personalinjury.

• Keep hands and body parts clear of immediate workarea.

• Do not overreach. Maintain proper footing and balance at all times. This enables better control of the tool in unexpectedsituations.

• Use both hands for safe handling of this tool. This tool should not be used while standing on aladder.

• This tool is intended only for vibrating concrete. Any other use of the product may cause serious personalinjury.

• Actuating tool may result in flying debris, collation material or dust which could harm operator’s eyes. The operator and all those persons in the general area should wear approved safety glasses with permanently attached side shields. Approved safety glasses are imprinted with the characters “Z87.1”. It is the employer’s responsibility to enforce the use of eye protection equipment by the tool operator and other people in the workarea.

• Actuating tool may result in flying debris, collation material or dust which could harm operator’s eyes. To minimize risk of flying debris only operate tool while vibrator head is fully submerged in the wet, mixed, pouredconcrete.

• Do not use tool in a concrete mixer. Serious personal injury may result.

• Disconnect battery pack from the tool whenever assembling or disassembling the tool, performing any maintenance or repair, moving the tool or when the tool isunattended.

• When assembling or disassembling the hose from the power unit, the internal hose core may act like a spring. Slowly separate the hose from the power unit, while wearing eye protection and gloves to prevent personalinjury.

• Do not alter or modify the tool in anyway.

• Do not use tool in or around grain hoppers, flammable dust, gases or fumes. The tool may produce a spark that could ignite gases causing anexplosion.

• Do not contact the vibrator head to any part of your body while it isrunning.

• Do not point the tool at co-workers or yourself at any time. No horseplay! Work safe! Respect the tool as a workingimplement. e ) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained powertools. f ) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier tocontrol. g ) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardoussituation. h ) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpectedsituations.

5) Battery Tool Use and Care

a ) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another batterypack. b ) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury andfire. c ) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or afire. d ) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation orburns. e ) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk ofinjury. f ) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may causeexplosion. g ) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk offire.

a ) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool ismaintained. b ) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized serviceproviders. Additional Safety Rules for Concrete Vibrators

• The tool is designed for long period of usage, the vibration level is below 5m/s². Use gloves to provide extra cushion, take frequent rest periods, and limit daily time ofuse.

• Keep hands away from moving parts. Never place your hands near the vibratorhead. Additional Safety Information

Never modify the power tool or any part of it. Damage or personal injury couldresult.

WARNING: ALWAYS use safety glasses. Everyday eyeglasses

are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETYEQUIPMENT:

WARNING: This product contains lead, a chemical known

to the State of California to cause cancer and birth defects or other reproductive harm.

WARNING: Some dust contains chemicals known to

State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead‑based paints,

• crystalline silica from bricks and cement and other masonry products, and

• a rsenic and chromium from chemically treatedlumber.ENGLISH

do not expose to rain Shipping the DeWALT POWERSHIFT® Battery Pack Your DeWALT POWERSHIFT® battery pack of 600Wh or less has a shipping card that should be used when shipping POWERSHIFT®batteries. Attach the card to the battery pack to ready it for shipping. This converts the battery pack to three separate batteries. The three batteries have the Watt hour rating labeled “Shipping” on the battery pack for US ground shipments. If shipping without the card, the pack is one battery at the Watt hour rating labeled"Use." Example battery pack label: USE: 554 Wh SHIPPING: 3 x 184.5 Wh In this example, the battery pack is three batteries with 184.5Watt hours each when using the card. Otherwise, the battery pack is one battery with 554Watthours.

• INGESTION HAZARD: This product contains a button cell or coinbattery.

• DEATH or serious injury can occur ifingested.

• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2hours.

• KEEP new and used batteries OUT OF REACH ofCHILDREN.

• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of thebody. Remove and immediately recycle or dispose of used batteries according to local regulations and keep away from children. Do NOT dispose of batteries in household trash or incinerate. Even used batteries may cause severe injury or death. Call a local poison control center for treatment information. The Tool Connect

chip uses a CR2450 type battery of nominal 3V voltage. Non‑rechargeable batteries are not to be recharged. Do not force discharge, recharge, disassemble, heat above 140°F (60°C), or incinerate. Doing so may result in injury due to venting, leakage or explosion resulting in chemical burns. Ensure the batteries are installed correctly according to polarity (+ and ‑). Do not mix old and new batteries, different brands or types of batteries, such as alkaline, carbon‑zinc, or rechargeable batteries. Remove and immediately recycle or dispose of batteries from equipment not used for an extended period of time according to local regulations. Always completely secure

BENEFITS OF VIBRATING CONCRETE

• Increased concrete strength by removing air voids.

• Improved appearance by removing air voids.

• Increased bond between reinforcing bars and concrete.

• Provides low permeability to water and to aggressive substances contained therein.

• Reduced cold joints and honeycombing.

• Increased life cycle of concrete. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and wear approved safety equipment safety equipment, such as dust masks that are specially designed to filter out microscopicparticles.

Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or otherinjury. Always use NIOSH/OSHA approved respiratoryprotection.

WARNING: Always wear proper personal hearing

protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearingloss.

• Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmfulchemicals. Direct particles away from face andbody.

• Use the appropriate dust extractor vacuum to remove the vast majority of static and airborne dust. Failure to remove static and airborne dust could contaminate the working environment or pose an increased health risk to the operator and those in closeproximity.

• Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control andinjury.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in movingparts.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knockedover. the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep them away fromchildren.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack5 ENGLISH Vibration of Concrete

WARNING: Leaving the vibrator head in the mix too long

can cause defects. The result of the compression depends on the following factors:

• The time the vibrator head is in the concrete.

• The diameter of the vibrator head.

• The consistency of the concrete.

• Narrow spacing between the steel rods. Rubber Tipped Concrete Vibrator Heads

• Rubber tipped concrete vibrator heads help protect metal and composite forms from damage during consolidation.

• They also protect the slab in tilt‑up construction when the panels are being poured directly on the slab.

• Rubber tips extend the life of forms and improves off the form finishes. OPERATION

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start‑up can causeinjury. Attaching the POWERSHIFT™ Vibrator to the POWERSHIFT™ Powerpack or Backpack (Fig. B) (POWERSHIFT™ Powerpack and Backpack are Sold Separately)

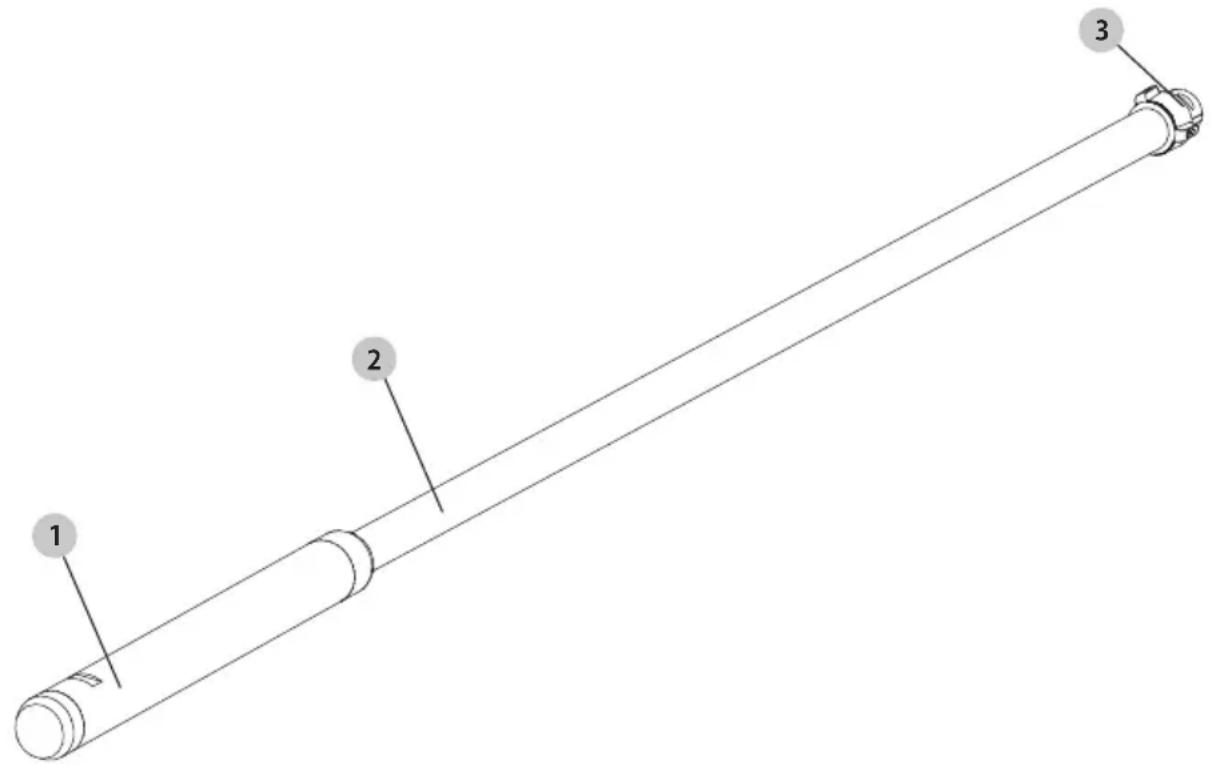

located at the end of the shaft

rotating the quick change collar

into the quick change collar

until it clicks into the locked position. NOTE: Do not use a wrench totighten the quick change collar.

3. To disconnect, rotate the quick change collar

clockwise and pull the quick change plug

from the quick change collar

SKU # DIMENSIONS - HEAD/HOSE

DCPS3389 1.5"/38 mm head ‑ 32 ft/9 m hose DCPS33812 1.5"/38 mm head ‑ 40 ft/12 m hose DCPS3459 1.75"/46 mm head ‑ 32 ft/9 m hose DCPS34512 1.75"/46 mm head ‑ 40 ft/12 m hose DCPS3509 2"/50 mm head ‑ 32 ft/9 m hose DCPS35012 2"/50 mm head ‑ 40 ft/12 m hose DCPS3599 2.25"/59 mm head ‑ 32 ft/9 m hose DCPS35912 2.25"/59 mm head ‑ 40 ft/12 m hose DCPS3659 2.5"/63 mm head ‑ 32 ft/9 m hose DCPS36512 2.5"/63 mm head ‑ 40 ft/12 m hose DCPS3652 2.5"/63 mm head ‑ 7 ft/2 m hose DCPS3653 2.5"/63 mm head ‑ 10 ft/3 m hose DCPS3655 2.5"/63 mm head ‑ 16 ft/5 m hose DCPS3656 2.5"/63 mm head ‑ 21 ft/6 m hose before making any adjustments or removing/installing attachments or accessories. An accidental start‑up can causeinjury.ENGLISH

Register Online Thank you for your purchase. Register your product nowfor:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with yourproduct.

• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct. Register online at www.dewalt.com/account-login. Repairs The charger and batteries are notserviceable. There are no serviceable parts inside the charger or batterypack. The vibrator contains no user serviceable parts.

WARNING: To assure product SAFETY and RELIABILITY,

repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a factory service center or an authorized service center. Always use identical replacementparts. Accessories

WARNING: Since accessories, other than those offered by

DeWALT, have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only DeWALT‑recommended accessories should be used with thisproduct. Recommended accessories for use with your product are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact DeWALT. Call 1-800-4-DeWALT (1-800-433-9258) or visit our website: www.dewalt.com. Shaft Lubrication Do not disassemble vibrator head. The vibrator head is sealed at the factory and contains a special high‑performance lubricant. Breaking the seal and adding incorrect lubricant will significantly decrease the performance and life of the tool. If vibrator head is damaged or needs lubricant, take the tool to a DeWALT authorized servicecenter. MAINTENANCE

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start‑up can causeinjury. Your DeWALT power tool has been designed to operate over a long period of time with minimum maintenance. Continuous satisfactory operation depends upon proper tool care and regularcleaning. After Use

WARNING: Do not let the machine run outside of the

freshly mixed (green) concrete.

WARNING: Risk of burning from hot surface.

WARNING: Damage to the machine from increased wear.

If Vibrator Head Becomes Too Hot

1. Slowly pull the vibrator head

out of the freshly mixed (green) concrete and hold it in the air.

DeWALT POWERSHIFT™ control dial

3. Wait until the vibrator head

comes to a complete stop.

4. Disconnect the shaft

from the DeWALT POWERSHIFT™. Rotate the quick change quick change collar

clockwise and pull the quick change plug

from the quick change collar

and DeWALT POWERSHIFT™ unit.

to cool down before attempting to use again. Cleaning

w dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when perform ing thisprocedure.

WARNING: Never use solvents or other harsh chemicals

for cleaning the non‑metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid.

DO NOT clean with a high pressure cleaner. Signs that the concrete has been sufficiently compacted:

• Concrete no longer settles.

• Little to no air bubbles are rising any longer. To Operate

1. Turn vibrator on.

2. Using both hands, hold the shaft

3. Immerse the vibrator head into the freshly mixed (green)

concrete allowing the weight of the vibrator head to fullypenetrate.

4. Guide the vibrator head through the freshly mixed

concrete, then slowly lift vibrator head out to avoid retrapping air. Small up and down movements will close any holes formed by the vibrator head.

5. Move the vibrator head to the next location andrepeat.

NOTE: Lift the head vertically from the mix at a rate of about 3 seconds per foot of thickness of the concrete. NOTE: For best results, it is usually best to keep the vibrator head vertical at all times and to avoid side‑to‑ sidemovement. NOTE: Compact particularly intensely within formwork corners as reinforcement density is the greatest there. NOTE: If a small diameter vibrator head is used, it must be compacted longer to achieve the same effect as with a largediameter. IMPORTANT: Do not drag the head through the mix, as this will form mortar channels (areas where there is nostone). Once the head reaches the surface, remove it quickly to avoid churning the concrete at the surface.7 ENGLISH Three‑Year Limited Warranty For warranty terms, go to www.dewalt.com/support/warranty. To request a written copy of the warranty terms, contact: Customer Service at DeWALT Industrial Tool Co., 701East Joppa Road, Towson, MD 21286or call 1-800-4- DeWALT (1-800-433-9258). LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country‑specific warranty information contained in the packaging, call the local company or see website for warrantyinformation. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-4- DeWALT (1-800-433-9258) for a freereplacement.FRAnçAis

eWALT Industrial Tool Co., 701East Joppa Road, Towson, MD 21286 Copyright © 2024, 2025 The following are trademarks for one or more D eWALT power tools: the yellow and black color scheme, the “D” shaped air intake grill, the array of pyramids on the handgrip, the kit box configuration, and the array of lozenge‑shaped humps on the surface of thetool.
