Product type	Electric deep fryer
Brand	Brandt
Model	FRI3200
Dimensions (W x D x H)	220 x 263 x 365 mm
Net weight	3.1 kg
Power supply	220-240 V ~ 50/60 Hz
Power	2200 W
Oil tank capacity	3.2 L
Maximum basket capacity	1 kg
Temperature range	Adjustable via variable control
Timer	Yes, mechanical
Viewing window	Yes
Removable tank	Yes, dishwasher safe
Removable basket	Yes, hand washable
Thermal safety	Yes, with RESTART reset button
Indicator lights	Operation and temperature rise
Carrying handles	Yes
Lid	Yes, with window
Cleaning	Tank in dishwasher; lid and basket by hand
Recommended oils	Sunflower, peanut, rapeseed, corn
Not recommended oils	Olive oil, solid fats, butter, margarine
Usage	Domestic use only

Frequently Asked Questions - FRI3200 BRANDT

How much oil should I use?

The oil level must be between the MIN and MAX marks indicated on the tank wall. Never exceed the maximum level to avoid overflow.

Can I use olive oil?

No, olive oil (any type) is not recommended. Use vegetable oils like sunflower, peanut, rapeseed or corn. Also avoid solid fats.

How to clean the deep fryer?

Unplug and let it cool down. The removable tank can go in the dishwasher. The lid and basket should be hand washed with warm soapy water. The control unit and body can be wiped with a damp cloth.

What to do if the deep fryer does not heat?

Check the wall outlet, the circuit breaker, and make sure the control unit is properly inserted. If the thermal safety has tripped, let it cool for 30 minutes, then press the RESTART button with a rod.

How to reset the thermal safety?

Unplug the appliance and let it cool for 30 minutes. Remove the control unit from its housing and press the RESTART button located on the casing with a rod.

Can I fry frozen foods?

Yes, but adapt the temperature and time. For example, frozen fries: 800 g at 190°C for 8 to 10 minutes. Shake the basket once or twice for even cooking.

What is the maximum basket capacity?

The maximum capacity is 1 kg, but for optimal results, do not exceed the recommended weights in the cooking guide (e.g., 800 g for frozen fries).

Should I preheat the oil?

Yes, wait for the temperature indicator to turn off before adding food. This indicates the oil has reached the set temperature. Never put food in cold oil.

How to store the deep fryer?

After complete cooling, remove the oil (you can filter and reuse it), clean the appliance, replace the basket, fold the handle and close the lid. Store it in a dry place.

Where to find the user manual?

The manual is available free of charge in PDF format on notice-facile.com. You can also download it from the Brandt website or request a translation by email.

USER MANUAL FRI3200 BRANDT

Black-and-white photo of a butterfly drawing flowers next to a plate of fried beans (no text or symbols)

Exterior view of a modern kitchen electricifier with black handle and control knobs (no text or symbols visible)

Chère Cliente, Cher Client,

Thank you for buying a BRANDT product and for your confidence in our company.

This product has been designed and manufactured for you considering your lifestyle and your requirements, so that it meets your expectations in the best way possible. We have invested it with our expertise, spirit of innovation and all the enthusiasm which has driven us for more than 60 years.

So that we are always able to satisfy your requirements as well as possible, our customer service is available, ready to listen and answer all your questions or suggestions

You can also visit our website www.brandt.com where you will find our latest innovations as well as additional useful information.

BRANDT is happy to support you daily and hopes you will enjoy your purchase to the full.

Important: Before starting your machine, please read this guide for installation and use carefully in order to familiarize yourself with how it operates quickly.

CONTENTS

1) FOR THE USER'S ATTENTION 16

a) Safety Instructions....16
b) Technical Data....19
c) Environmental Protection....19

a) Description of the Deep Fryer 20
b) Before Using for the First Time 20

4) LOOKING AFTER AND CLEANING YOUR MACHINE 24

a) Dismantling the Deep Fryer before Cleaning it 24
b) Cleaning the Deep Fryer 24
c) Reassembling after Cleaning....24
d) Troubleshooting....25

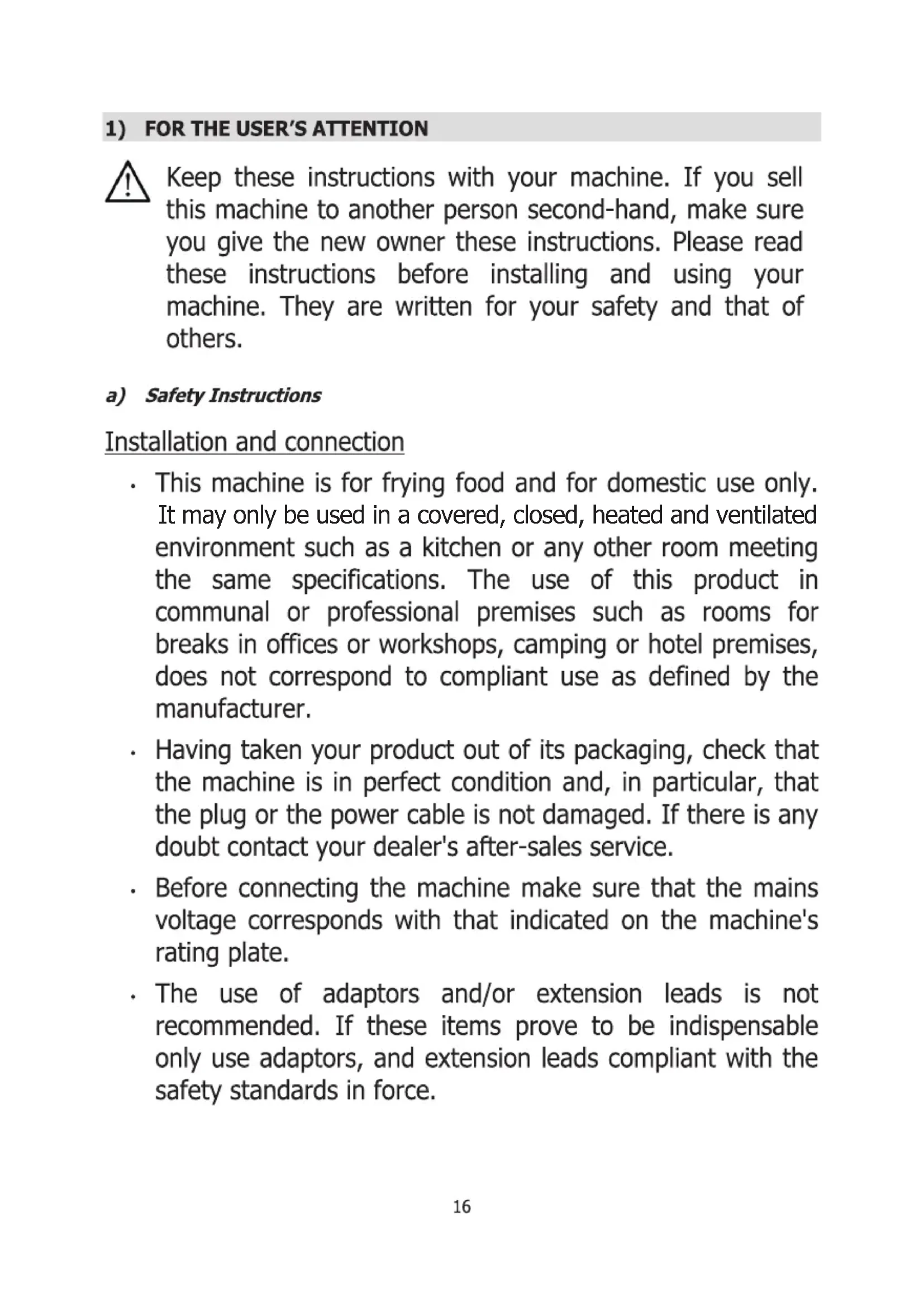

1) FOR THE USER'S ATTENTION

Keep these instructions with your machine. If you sell this machine to another person second-hand, make sure you give the new owner these instructions. Please read these instructions before installing and using your machine. They are written for your safety and that of others.

a) Safety Instructions

Installation and connection

• This machine is for frying food and for domestic use only. It may only be used in a covered, closed, heated and ventilated environment such as a kitchen or any other room meeting the same specifications. The use of this product in communal or professional premises such as rooms for breaks in offices or workshops, camping or hotel premises, does not correspond to compliant use as defined by the manufacturer.
• Having taken your product out of its packaging, check that the machine is in perfect condition and, in particular, that the plug or the power cable is not damaged. If there is any doubt contact your dealer's after-sales service.
• Before connecting the machine make sure that the mains voltage corresponds with that indicated on the machine's rating plate.
• The use of adaptors and/or extension leads is not recommended. If these items prove to be indispensable only use adaptors, and extension leads compliant with the safety standards in force.

- This machine is not intended to be put into operation using an external timer or a separate remote control system.

- Keep the machine and its power cable out of reach of children under the age of 8.

- Never let the fryer lead hang down from the worktop/table where it could be pulled by children or trip the user up.

- Before using this machine place it on a smooth, dry and stable surface in order to prevent hot liquid spilling.

- Ensure that the hot surfaces of the machine are not in contact with easily flammable materials such as curtains or tablecloths.

- Make sure that the appliance is not placed close to appliances in operation such as hobs, a hot oven, a microwave oven, etc. Do not allow the power cable come into contact with hot surfaces.

- Never pull the lead but disconnect the machine by holding the plug.

- Never unplug the power cable when the machine is heating.

• Children must not play with the machine.

During Use

- The accessible parts of this machine may become hot when it is operating. Do not touch the metal parts of the machine when it is working. Young children must be kept away or continually supervised.

- Place this appliance on a stable surface at ground level (such as a work surface) to prevent hot liquid from spilling.

- This appliance must not be used by children aged 0 to 8 years. This appliance may be used by children from the age of 8 as long as they are supervised at all times.

- This appliance may be used by persons with reduced physical, sensual or metal capacity or lacking experience or knowledge of the device, provided that they are correctly supervised or have been provided with instructions regarding the safe use of the appliance and provided that the risks present have been fully understood.

- Never leave the deep fryer working if there is no surveillance.

- Never add water to the oil.

- Do not touch the machine with wet or damp hands.

- Never use your deep fryer without oil or fat. The oil level in the deep fryer must always be between the "MIN" and "MAX" marks on the wall of the pot. For safety reasons never exceed the maximum level.

- Do not use SOLID FATS - vegetable fats, beef fat, horse fat, butter, margarine, etc.

• Make sure the fryer basket is not overloaded.

- Make sure that cooking utensils or food that is too big is not put in the fryer.

- Do not put anything above the deep fryer when it is in operation.

- The use of accessories not recommended by the manufacturer may cause a fire, electric shocks or injuries.

- It is strongly recommended to wear appropriate clothing when using the device (avoid short sleeves!).

Maintenance and cleaning

- Cleaning and maintenance of the machine should not be carried out by children.

• Before cleaning ensure that the power cable for the machine is unplugged. Allow the machine to cool before cleaning.
• Do not use chemical products, steel wool or abrasive cleaners to clean the outside of the machine. This risks damaging it.
• Before cleaning ensure that the power cable for the machine is unplugged. Allow the machine to cool before cleaning.
• If the power cord is damaged, it should be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid danger.

guaranteed by your distributor. For more details please refer to the guarantee conditions provided by the distributor.

Non-compliant use

Incorrect installation of the machine, inappropriate use or poor maintenance may cause serious burns

- Caution:

Water + hot oil = DANGER.

As the water + oil mixture is physically immiscible, the combination of the two can generate sprays that can burn severely when the oil bath is heated.

• Only use this machine for the purposes described in this manual.
• The manufacturer denies all responsibility in the event of non-compliant use.

b) Technical Data

Model	FRI3200
Power supply	220-240V
Consumption (W)	2200
Oil capacity (L)	3,2
Dimensions (mm):	220 x 263 x 365
Net weight (kg)	3.1

c) Environmental Protection

At the end of its life this product must not be discarded with household waste. It must be taken to a recycling centre or to your dealer. This makes it possible to avoid consequences resulting from inappropriate disposal that are harmful to health and the environment, and to recycle materials to save energy and significant resources.

A logo appears on the product reminding you not to discard it with household waste. For further information, contact your council offices or the shop where you bought this product.

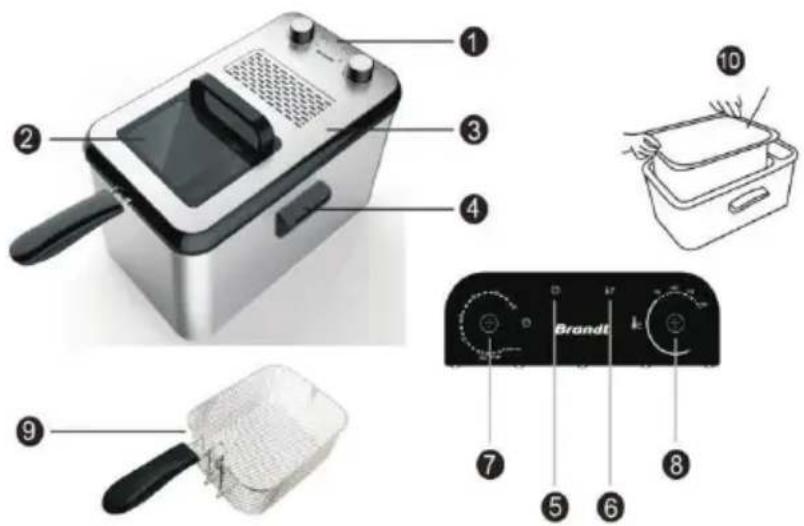

a) Description of the Deep Fryer

1. Control unit
2. Viewing window
3. Lid
4. Transport handles
5. Power on indicator light
6. Temperature rise indicator light
7. Timer
8. Temperature selector
9. Removable frying basket
10. Removable cooking tank

b) Before Using for the First Time

• Unpack the machine and remove all the paper and plastic. Make sure no pieces of packaging remain inside or outside the machine.
• Clean the lid and frying basket with hot soapy water. Clean the tank in the dishwasher.
• Only wipe the machine, the control unit and the body with a damp tea towel.
  • Always use your machine on a stable, safe, dry, horizontal surface.
• Arrange sufficient space above and around all the sides for the circulation of air.
• Do not leave the machine in contact with flammable surfaces when in use (such as curtains and wallpaper).
• Be very vigilant when using the machine on surfaces which could be damaged by heat. The use of insulated protection is recommended.

a) Use of the machine

• For frying only use good quality vegetable oil. Do not use SOLID FAT, vegetable fat for frying, beef fat, horse fat, butter, margarine or olive oil.
  • Fill the fryer pot with oil to between the MIN and MAX level indicated.

- Plug in the machine.

- Turn the temperature setting button clockwise to increase the temperature. The indicator light comes on showing that the machine is heating up to the required temperature.

- Once this temperature is reached the indicator light goes out. You can then put your food in the oil.

- In order not to alter the taste of the food, it is advisable to periodically renew the oil bath after cooking.

Caution: do not put your food in the oil until it is hot.

• Once you have finished using the fryer unplug it.
- Put the lid back on and leave the oil in the fryer to cool completely before moving or cleaning the machine. Always use the handles to move the machine. Never try to move the deep fryer holding it by its lid or the pot.

We recommend removing the oil from the fryer once it has cooled completely and cleaning the machine before putting it away.

b) Cooking Guide

The table below provides guidelines for cooking food that is normally fried. All the food is fried with the oil at MAX level.

The maximum capacity of the basket is 1 kg but for excellent results we recommend that you do not exceed the weight recommended in the table below.

INGREDIENTS	Weight/Quantities	Temperature	Approx. cooking time (minutes)	Comments
Frozen chips	800 g	190°C	8-10	Gently shake the basket once or twice during cooking to ensure that cooking is carried out properly
Frozen cod or battered haddock	2-4 portions approx. 100 g each and 1.5 cm thick	160°C	8-9	Thick portions may take longer to cook in the middle. Turn the fish in the oil occasionally using tongs
Breaded frozen scampi	340 g packet	180°C	3-4	The scampi will have a deep golden colour when cooked
Fresh and breaded prawns	140 g packet	180°C	1-2	Follow the manufacturer's instructions
Cod fillet fingers	10 fingers (300 g per packet)	160°C	4-5	Stir the sticks from time to time to ensure cooking is carried out properly
Frozen chicken - Breaded fillet	2 portions approx. 100 g each	160°C – 170°C	9-10	The chicken is cooked when it is no longer pink in the centre. Ensure that the food is boiling hot throughout.

It is important to take into account which food you want to fry in order to determine the appropriate temperature. Use the guideline information in the table below, the advice of the manufacturer and your own decision to guide you.

Do not overload the basket. This will reduce the oil temperature and your food will be greasier and less crunchy.

In addition, if you fill the basket the food will not cook evenly because all the oil cannot reach all the food. It is therefore preferable to cook in batches. Make sure the food is cooked in the centre. If the oil temperature is too high the surface of the food will brown quickly whilst the centre will not be cooked.

c) Recommendations for Use

1. Frying

• Small food items will cook faster than big items. It may be necessary to cook chicken and frozen food for longer and at a lower temperature to avoid the surfaces cooking before the inside.
• Delicate food like prawns, or indeed diced vegetables, requires cooking at a higher temperature for less time.
• Before using the fryer it should always be filled with oil to a level between the minimum and maximum marked in the tank.
• Do not expose face or hands to steam or contact with boiling oil.
• For even cooking stir or turn the food with suitable utensils, or shake the basket gently during cooking.

2. Checking that the food is hot.

Take a knife and insert it into the food. Hold it there for several seconds before taking it out. If the knife is hot when you touch it your food is hot in the middle.

You can also use a food thermometer. The chicken is cooked when its juice runs clear and the meat is no longer pink in the middle.

3. Utensils

• Choose your kitchen utensils with care. Do not use utensils that might melt (e.g. plastic).
  • Be careful not to damage your machine when you use metal utensils.
  • Use suitable gloves or utensils with insulated handles.
  • Suitable utensils are those in metal or heat-resistant plastic, skimmers and tongs.
• Unsuitable utensils are those in wood, plastic that is not resistant to heat, knives or other sharp tools.

4. Oil

Oils recommended for use in the fryer

Sunflower

Peanut

Rapeseed

Corn

Oils and fats that are not recommended

Olive oil (all types)

Quantity of oil:

Always use the quantity of oil recommended for frying. Never exceed this volume and never use the fryer without oil. Always fill the fryer with oil above the MIN before using it.

4) LOOKING AFTER AND CLEANING YOUR MACHINE

Always unplug your fryer and leave the oil and your fryer to empty completely before cleaning or dismantling it.

Never soak the control unit, the power supply lead or the plug in water or any other liquid. Never use abrasive cleaning products.

a) Dismantling the Deep Fryer before Cleaning it

• Remove the fryer lid and basket.
• Carefully remove the control unit and the element in the body. To do this hold the control unit with one hand whilst holding the body firmly with the other. Just lift the control unit upwards until it detaches from the body.
• Remove the frying pot. Grip the edge of the bowl with two hands and remove it from the body.

b) Cleaning the Deep Fryer

- Clean the lid:

Wash the lid by hand in hot soapy water. Rub using a sponge. Dry the lid completely before putting it away.

• Cleaning the removable tank:

Remove all the food residues from the pot using kitchen towel. Wash the tank in the dishwasher. Dry tank completely before putting it away.

• Cleaning the fryer basket:

Remove all the food residues from the basket using kitchen towel. Wash the basket by hand in hot soapy water. Rub using a sponge. Dry the basket completely before putting it away.

• Cleaning the control unit, the other parts and the body:

Wipe the surplus oil off the element with kitchen towel (take care not to damage the electric wires connected to the heating element). Wipe the control unit and the body with a clean cloth, either very slightly damp or dry.

c) Reassembling after Cleaning

• Place the machine body on a stable, safe, dry, horizontal surface.
• Hold the edge of the pot on both sides to lower it into the fryer.
• Reconnect the control unit to the body:

• Until the elements are correctly assembled.

Note: The fryer will not work if the control unit is not attached to the body.

• To store the fryer, replace the basket, fold back the handle and close the lid.

d) Troubleshooting

The appliance does not heat up; no indicator light comes on (only the timer works)

Check that the wall socket is workingCheck that the circuit breaker on the fuse box in your house has not trippedCheck that the control unit is correctly inserted into the housing of the appliance.Check that the temperature safety mechanism has not been triggered (see below)

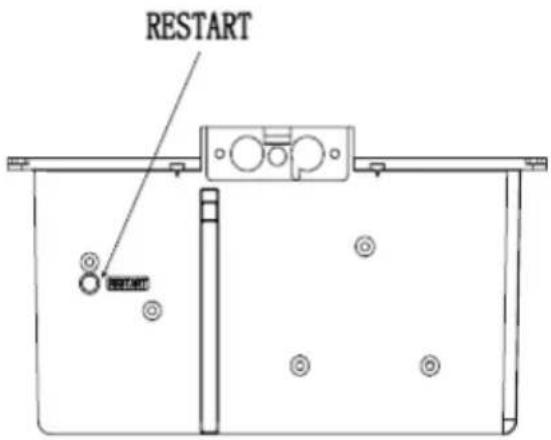

SAFETY: Your appliance is fitted with a temperature safety mechanism.

The temperature safety mechanism may turn off the appliance automatically if it overheats (use when empty, insufficient oil level, used for too long).

If the temperature safety mechanism triggers:

1- Disconnect your appliance and allow it to cool for 30 minutes

2- Take the control unit out of its housing and reset the temperature safety mechanism by using a rod to press the "RESTART" button located on the case of the unit (see the image below for the location of the button)

BRANDT FRANCE - Simplified Joint Stock Company with capital of 100,000,000 Euros 89/91 Boulevard Franklin Roosevelt - 92854 Rueil-Malmaison (France)

Technical line drawing of a mechanical assembly with no visible text or symbols

BRANDT FRANCE – SAS au capital de 1.000.000 euros 89/91 Boulevard Franklin Roosevelt – 92500 Rueil-Malmaison (France)

(أ) مواصفات القلاية

.1. وحدة التحكم
