OCEAMO23B - Microwave Oven OCEANIC - Free user manual and instructions

Product type	Countertop microwave oven
Brand	Oceanic
Model	OCEAMO23B
Capacity	23 liters
Input power (microwave)	1280 W
Frequency	2450 MHz
Power supply voltage	230 V ~ 50 Hz
Net weight	12.5 kg
Control type	Rotary knob and buttons
Display	LED
Main functions	Microwave cooking, defrosting, quick cooking, automatic cooking (8 menus), multi-stage cooking, delayed start, clock
Child safety	Yes, control panel lock
Turntable	Yes, glass
Cleaning	Do not use abrasive cleaners. Wipe with a damp cloth and mild detergent
Maintenance	Clean the door seals, cavity, and turntable regularly
Included accessories	Turntable, rotating ring
Repairability	Contact an authorized repair center for spare parts
Warranty	See the manual or retailer
General information	Household use only. Do not operate empty. Safety distance: 20 cm above, 10 cm behind

Frequently Asked Questions - OCEAMO23B OCEANIC

Can I use metal containers in my Oceanic OCEAMO23B microwave?

No, metal containers are prohibited in microwave mode because they can cause sparks and damage the appliance. Use only suitable utensils: glass, ceramic, or heat-resistant plastic.

How to clean the inside of the oven?

Unplug the appliance. Use a soft damp cloth with a little mild detergent. Never use abrasive cleaners or metal scrapers. Wipe the waveguide cover carefully. For odors, heat lemon slices in a cup of water for 2-3 minutes at high power.

Why is my microwave not heating?

Check that the door is properly closed and the lock works. Make sure the power cord is plugged in and the fuse is not blown. If the problem persists, contact an authorized repair center.

How to set the clock?

After plugging in the appliance, press and hold the Defrost/Clock button for 3 seconds. Turn the Time/Weight knob to set the hours, press the button again, then set the minutes. Wait 5 seconds to confirm.

How to use the defrost function?

Press the Defrost/Clock button to select the food type (d.1 for meat, d.2 for poultry, d.3 for seafood). Turn the Time/Weight knob to enter the weight. Press Start. At half time, turn the food over when the beep sounds.

What to do if the turntable does not rotate?

Check that the glass turntable is correctly placed on the rotating ring. Make sure the rotating shaft is not obstructed. If the problem persists, contact customer service.

How to activate child safety lock?

Press and hold the Pause/Cancel button for about 3 seconds. A beep confirms activation. All buttons become inoperative. To deactivate, repeat the operation.

Can I cook hard-boiled eggs in the microwave?

No, it is dangerous to cook eggs in their shell or whole hard-boiled eggs in the microwave because they may explode, even after cooking. Peel them or prick them first.

Why is smoke coming out of the oven?

This may be due to excess grease or overcooked food. Stop the appliance immediately, unplug it, and keep the door closed. Then clean the cavity. If smoke persists, contact a professional.

Where to find the user manual?

The manual is available for free in PDF format on notice-facile.com. You can also request a translation by selecting your language and providing your email.

USER MANUAL OCEAMO23B OCEANIC

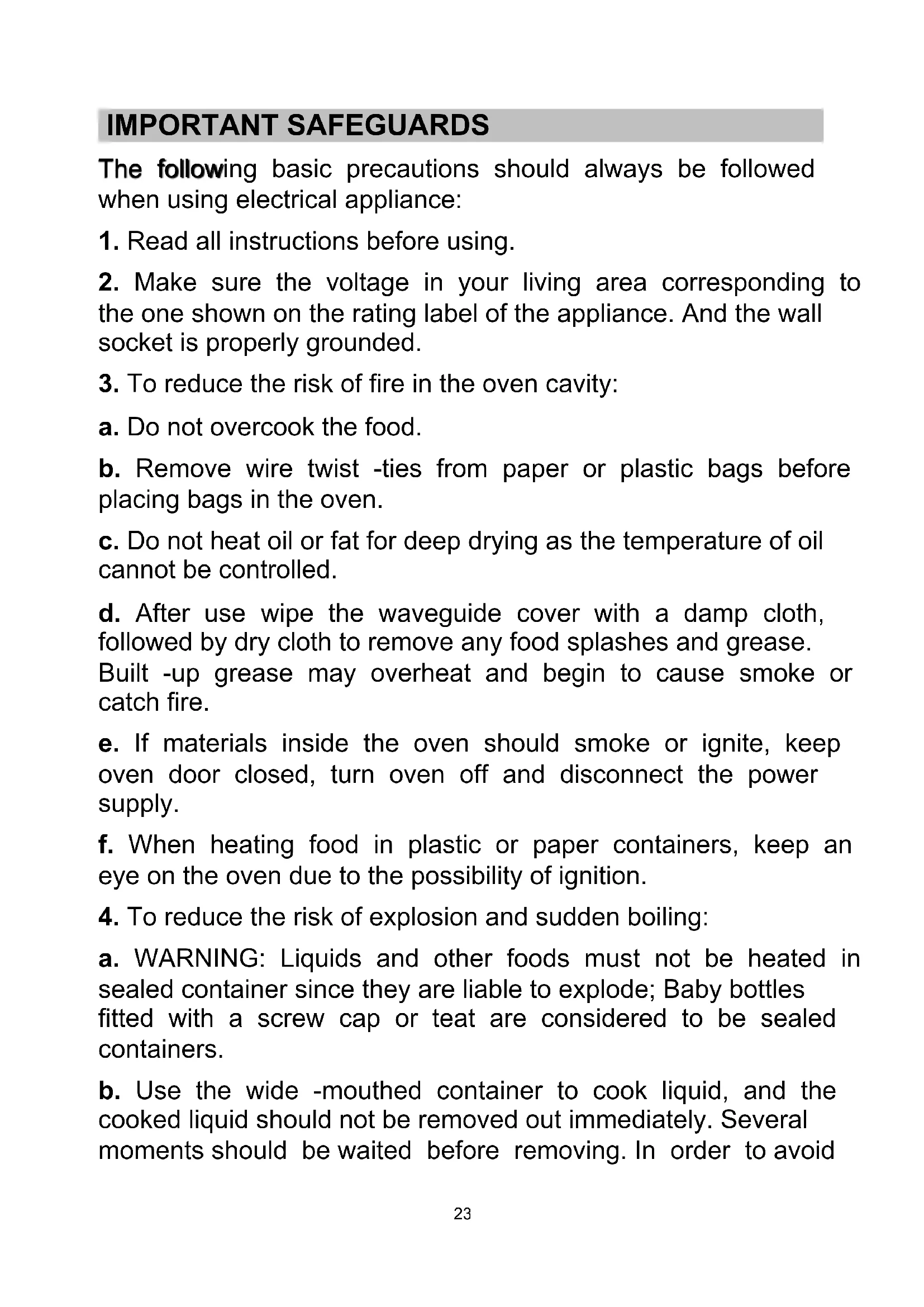

The following basic precautions should always be followed when using electrical appliance:

1. Read all instructions before using.
2. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded.
3. To reduce the risk of fire in the oven cavity:

a. Do not overcook the food.
b. Remove wire twist -ties from paper or plastic bags before placing bags in the oven.
c. Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled.
d. After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built -up grease may overheat and begin to cause smoke or catch fire.
e. If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply.
f. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
4. To reduce the risk of explosion and sudden boiling:

a. WARNING: Liquids and other foods must not be heated in sealed container since they are liable to explode; Baby bottles fitted with a screw cap or teat are considered to be sealed containers.
b. Use the wide -mouthed container to cook liquid, and the cooked liquid should not be removed out immediately. Several moments should be waited before removing. In order to avoid

possible hazards caused by delayed eruptive boiling of liquids.

c. Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, whole hard -boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
d. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a qualified technician in order to avoid a shock hazard.
6. After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.
7. Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and oven cooking bags away from the face.
8. To prevent the turntable from breaking:
a. Let the turntable cool down before cleaning.
b. Do not place hot foods or utensils on the cold turntable.
c. Do not place frozen foods or utensils on the hot turntable.
9. Make sure the utensils do not touch the interior walls during cooking.
10. Only use utensils that are suitable for use in microwave ovens.
11. Do not store food or any other things inside the oven.
12. Do not operate the oven without any liquid or food inside the oven. This would do damage the oven.
13. When the appliance is operated in the combination mode, children should only use the oven under adult supervision due

to the temperatures generated.

1. Any accessories not recommended by the manufacturer may cause injuries to persons.
2. Do not use outdoors.
3. Save these instructions.
4. WARNING: If the door or door seals are damaged or the oven is malfunctioned, the oven must not be operated until it has been repaired by a competent person;
5. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
6. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
7. Microwave heating of beverages can result in delayed eruptive boiling; therefore care must be taken when handling the container;
8. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
9. The lamp of microwave oven is not intended for other purposes.
10. The appliances are not intended to be operated by means of an external timer or separate remote -control system.

11. This appliance is intended to be used in household and similar applications, such as:

12. Staff kitchen areas in shops, offices and other working environments;

13. Farm houses;

14. By clients in hotels, motels and other residential environments;

15. Bed and breakfast type environments.

16. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

17. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.
18. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
19. Children should be supervised to ensure that they do not play with the appliance.
20. A steam cleaner is not to be used.
21. The door or the outer surface may get hot when the appliance is operating.
22. WARNING: Accessible parts may become hot during use. Young children should be kept away.
23. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
24. The surfaces are liable to get hot during use.

:CAUTION:HOT SURFACE

Household use only

INSTALLATION

1. Take out all the packing. If there is a safe film over the oven, tear it off before use. Check carefully for damage. If any, immediately notify dealer or send to the manufacturer's service center.
2. Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank.
3. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10~cm , the side to the wall should be at least 5~cm , the free distance above the top surface at least 20~cm . The distance of the microwave to the ground should be at least 85~cm .
4. The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance. The distance should be more than 5m .
5. The appliance must be positioned so that the plug is accessible, and must ensure a good grounding in case leakage, ground loop can be formed to avoid electric shock.
6. The microwave oven must be operated with the door closed.
7. The microwave oven must not be placed in a cabinet. The microwave oven is intended to be used freestanding.
8. As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually would smell the odor, even a slight smoke, It is normal case and would not occur after several times use, keep the door or window open to

ensure good ventilation. So it is strongly recommended to place a cup of water in the turntable, setting at high power and operate for several times.

CLEANING

MICROWAVE OVEN CARE

CAUTION

The oven should be cleaned regularly and any food deposits removed.

WARNING

1. Remove the power cord from the wall outlet before cleaning. Don't immerse the appliance in water or other fluids when cleaning.
2. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation
3. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance
4. Do not remove the waveguide cover
5. When the microwave oven has been used for a long time, there may be some strange odors exist in oven, Following 3 methods can get rid of them:

a. Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.
b. Place a cup of red tea in oven, then heat with high micropower.
c. Put some orange peel into oven, and then heat them with high Micro Power for 1 minute.
6. WARNING: Only allow children to use the oven without

supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;

TIPS FOR CLEANING

Details for cleaning door seals, cavity and adjacent parts:

Exterior:

Wipe the enclosure with a dampened soft cloth

Door:

Using a dampened soft cloth, wipe clean the door and window

Wipe the door seals and adjacent parts to remove any spill or spatter

Wipe the control panel with a slightly dampened soft cloth

Interior walls:

Wipe clean the cavity with a dampened soft cloth

Wipe clean the waveguide cover to remove any food splashed

Turntable/ Rotation ring/ Rotation axis:

Wash with mild soap water

Rinse with clean water and allow drying thoroughly

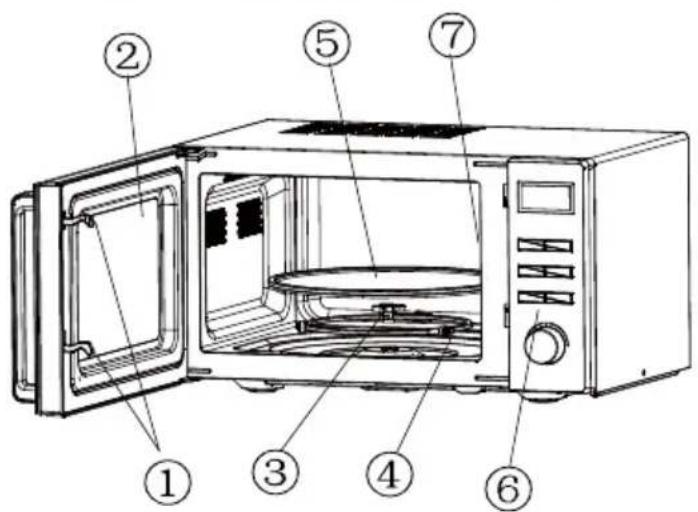

PRODUCTINSTRUCTION

1) Door lock

Microwave oven door must be properly closed in order for it to operate

2) Viewing window

Allow user to see the cooking status

3) Rotating axis

The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate

4) Rotating ring

The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating

5) Turntable

The food sits on the turntable, its rotation during operation helps to cook food evenly

CAUTION

• Place the rotating ring first

• Fit the turntable onto the rotating axis and make sure that it is geared in properly

6) Control panel

See below in details (the control panel is subject to change without prior notice)

7) Waveguide cover

It is inside the microwave oven, next to the wall of control panel.

WARNING

Never remove the waveguide cover

The LED flashes 3 times when plugged in power supply. Then it flashes “:”, prompting you to input the cooking menu and time.

2. TIME/WEIGHT KNOB

You can increase or decrease cooking time and weight during operation by turning Time/Weight knob.

3. PAUSE/CANCEL

At the initial or input stage: press once to cancel input programs and resume initial stage.

During cooking: press once to stop oven operation, press twice to cancel cooking programs.

4. AUTO REMINDER

When your preset cooking procedure have finished, the LED display will show End and three beeps sound will be heard to prompt you to take out food. If you do not press Pause/Cancel button once or open the door, the beep will be sounded at an interval of 3 minutes.

5. INSTANT COOKING

On the standby status, press Instant/Start button, the oven will start express cook with high power; the default cooking time is one minute. You can increase or decrease cooking time by turning Time/Weight knob.

6. CLOCK SETTING

Clock button make it available for you to input current or preset time when “:” flashes onto LED display after plugged in, or try to skip it over to continue if unnecessary.

Example: to set 12:30
Steps Display
1	After power-up, the colon flashes	:
2	Press and hold Defrost/Clock button for 3 seconds	00:00
3	Turn Time/Weight knob to set exact hours.	12:00
4	Press Defrost/Clock button once again.	12:00
5	Turn Time/Weight knob to set exact minutes.	12:30
6	Press Defrost/Clock button once again or wait for 5 seconds, and the numbers will go steadily.

This button is with two functions: set clock and set defrost menu. If you want to set clock, you need to press and hold this button for 3 seconds, while just press this button once to enter defrost state.

This function is for cooking and heating food. Press Micro Power button, LED cycles to show 100P — 80P — 60P — 40P — 20P.

High power	100% microwave power. Applicable for quick and thorough cooking
Medium High power	80% microwave power. Applicable for medium express cooking
Medium power	60% microwave power. Applicable for steaming food
Medium Low power	40% microwave power. Applicable for defrosting food
Low power 20% microwave power. Applicable for keeping warm

CAUTION

a. The max time which can be set is 60 minutes.
b. Never operate the oven empty.
c. If you turn the food during operation, press the Instant/Start button once and the preset cooking procedure will continue.

d. If you intend to remove the food before the preset time, you must press Pause/Cancel button once to clear the preset procedure to avoid unintended operation of next time use.

e. At the maximum microwave power, the oven will automatically lower the power after a certain time of cooking to lengthen the service life.

Example: To cook at P80 for 10 minutes.
Steps Display
1 After power-up, the colon flashes	:
2	Select the desired microwave power by pressing Micro Power button consecutively	80P
3	Set cooking time by turning Time/Weight knob.	10:00
4	Press Instant/Start button to start and LED will count down to show running time.

8. EXPRESS COOKING

Press Express button LED display will cycle to show 0:30, 1:00, 1:30.

This function will allow you to heat a cup of water or beverage conveniently, omitting the steps of setting time. Choose the proper time depending on the beverage capacity.

Example: To cook with express for 1 minute
Steps	Display
1 After power-up, the colon flashes	:
2	Press Express button consecutively to select desired menu	1:00
3	Start cooking by pressing Instant/Start button

9. DEFROST

This function is used for defrosting food. Pressing the Defrost/Clock button and the LED display will cycle to show d.1-d.2-d.3.

d.1	For defrosting meat, the weight range from 0.1 to 2.0 kg.
d.2	For defrosting poultry, the weight range from 0.2 to 3.0kg.
d.3	For defrosting seafood, the weight range from 0.1 to 0.9kg.

CAUTION

a. It is necessary to turn over the food during operation to obtain uniform effect.
b. Usually defrosting will need longer time than that of cooking the food.
c. If the food can be cut by knife, the defrosting process can be considered completed.
d. Microwave penetrates around 4cm into most food.
e. Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again.

Example: To defrost 0.4kg poultry
Steps Display
1 After power-up, the colon flashes	:
2 Press Defrost/Clock once button to set the food kind.	d.2
3 Turn Time/Weight knob to set the defrost weight	0.4
4 Start cooking by pressing Instant/Start

5	In half way during defrosting 3 beep sound will be heard two times to prompt you turn over the food. Open the door and turn over the food. Then close the door. Press Instant/start button again to continue defrosting

10. AUTO COOKING

The oven has default cooking menu for simple operation. When the LED flash colon, press the Auto Cooking button and LED will cycle to show A.1-A.2 ... A.8

Choose the appropriate menu according to the food type and weight and strictly observe the directions in below table, otherwise the cooking effect will be largely influenced.

Display Kind Method
A.1 Popcorn	Suitable for popping a bag of corn, which is available in the market, weighted 3.0 or 3.5Oz. Popcorn prior to completing, if the popping speed has been decreased to 1 time per 1-2 seconds you should press Pause/Cancel button to stop the popping process
A.2 Reheat	This setting suitable for reheating 0.2~1.0kg, which lets you reheat a dinner plate of chilled leftovers with good results.
A.3 Beverage	Heating a cup of 250 or 500ml liquid. The liquid temperature is about 5-10 °C. Use a big mouth cup and do not seal
A.4 Pizza	Warm 1 or 2 shares pizza
A.5 Potato	Cooking the potato strips, cut into 5mm width and height, length. Total weight is about 0.45 or 0.65kg. Place the strips on a large dish and cover the dish with a thin film to prevent water loss
A.6	Frozen dinner	Suitable for cooking 1 or 2 shares frozen dinner.
A.7 Rice	Suitable for cooking 0.1~0.5kg rice.
A.8 Vegetable	Suitable for cooking 0.1~0.5kg vegetable.

CAUTION

a. The temperature of food before cooking would be 20-25. ^ C Higher or lower temperature of the food before cooking would require increase or decrease of cooking time.
b. The temperature, weight and shape of food will largely influence the cooking effect. If any deviation has been found to the factor noted on above menu, you can adjust the cooking time for best result.

Example: Cook 0.5 kg rice
Steps	Display
1.	After power-up, the colon flashes	:
2.	Press Auto Cooking button to set the cooking menu	A.7
3.	Set cooking weight by turning Time/Weight knob	0.5
4.	Start cooking by pressing Instant/Start button and LED will count down to show running time.

11. AUTOMATIC STARTING (DELAYED FUNCTION)

If you do not want the menu be started immediately, you can preset the cooking menu and time and the preset menu will be automatically started at your set time. The setting will consist of 2

steps:

1. Setting the current clock;
2. Setting the cooking menu and time.

Example: Now it is 12:30 clock, if you hope that the microwave oven will automatically start cooking with 100P microwave power for 9 minutes and 30 seconds at 14:20
Steps Display
1 After power-up, the colon flashes		:
1.1	Press and hold Defrost/Clock button for 3 seconds	00:00
1.2	Set hours by turning Time/ Weight knob 12:00
1.3	Press Defrost/Clock button again to confirm hours	12:00
1.4	Set minutes by turning Time/ Weight knob	12:30
1.5	Press Defrost/Clock button once or waiting for 5 seconds, and the numbers will go steady.	12:30
2 Set	the cooking menu and time
2.1	Select cooking power by pressing Micro Power button	100P
2.2	Turn Time/Weight button to set cooking time	9:30
2.3	Press and hold Defrost/Clock button for 3 seconds to return to current clock.
3	Set the time you expect to start. Repeat the steps of 1.2, 1.3, 1.4
4	Press Defrost/Clock button to confirm the delayed menu. Now the program has been activated. And the menu will be started at 14:20.
5	You may check the preset starting time by pressing Defrost/Clock button.

12. MULTI-SEQUENCE COOKING

To obtain best cooking result, some recipes call for different cook mode and time. You may program your personalized menu as follow:

Example: You want cook food with 100P microwave for 3 minutes then grill for 9 minutes. This is 2 sequence setting.
Steps Display
1 100P microwave for 3 min
1.1	Press Micro Power button to select power level.	100P
1.2	Turn Time/Weight knob to set cooking time.	3:00
2 20P for 9min
2.1	Press Micro Power button to select desired power level	20P
2.2	Turn Time/Weight knob to set cooking time.	9:00
3	Start cooking by pressing Instant/Start

CAUTION

a. When microwave 100 power cooking is finished, it will begin next operation automatically.
b. Max 4 sequences can be set per time, repeat the steps

13. CHILD LOCK FUNCTION

Use this feature to lock the control panel when you are cleaning or so that children can not use the oven unsupervised. All the buttons are rendered inoperable in this mode.

1) Set lock---Hold Pause/Cancel button about 3 seconds.
2) Cancel lock---Hold Pause/Cancel button about 3 seconds.

UTENSILS GUIDELINE

It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Material of container	Microwave	Notes
Heat-resistant ceramic	Yes	Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant plastic	Yes	Can not be used for long time microwave cooking
Heat-resistant glass	Yes
Plastic film Yes		It should not be used when cooking meat or chops as the over-temperature may do damage to the film
Grill rack	No
Metal container	No	It should not be used in microwave oven .Microwave can not penetrate through metal.
lacquer	No	Poor heat-resistant. Can not be used for High-temperature cooking
Bamboo wood and paper	No	Poor heat-resistant. Can not be used for High-temperature cooking

COOKING TIPS

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner

Whether the food is done

Color and hardness of food help to determine if it is done, these include:

• Steam coming out from all parts of food, not just the edge
• Joints of poultry can be moved easily
• Pork or poultry shows no signs of blood
• Fish is opaque and can be sliced easily with a fork

Browning dish

When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded.

MAINTENANCE

SERVICING

Please check the following before calling for services.

1. Place one cup of water (approx.150ml) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min.
2. Does the oven lamp light?
3. Does the cooling fan work?

(Put your hand over the rear ventilation openings.)

1. Does the turntable rotate?

(The turntable can rotate clockwise or counter clockwise. This is quite normal.)

1. Is the water inside the oven hot?

If "NO" is the answer to any of the above questions, please check your wall socket and the fuse in your meter box.

If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED.

SERVICING SAFEGUARDS

Caution: MICROWAVE RADIATION

1. The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching.

2. During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.

3. Magnetron
   High voltage transformer
   High voltage capacitor
   High voltage diode
   High voltage fuse

4. The following conditions may cause undue microwave exposure during servicing.

Improper fitting of magnetron;

Improper matching of door interlock, door hinge and door;

Improper fitting of switch support;

Door, door seal or enclosure has been damaged.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment o human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

oceanic

www.oceanic.eu

CE
