Product type	Combined refrigerator with freezer compartment and variable temperature zone
Brand	Cecotec
Model	Bolero CoolMarket 4D 601 E
References	01936 (Stainless Steel), 01937 (Dark), 01938 (Black Glass)
Dimensions (H x W x D)	1775 x 905 x 730 mm
Estimated total volume	601 L
Climate class	SN / N / ST / T (from +10°C to +43°C)
Rated voltage	220-240 V ~
Rated frequency	50 / 60 Hz
Rated current	2 A
Refrigerant gas	R600a (50 g)
Insulation	Cyclopentane
Lighting	LED
Defrost	Automatic
Special functions	ECO, Fast Cooling, Fast Freezing, Dual Function Zone, Fresh Zone (vegetables/fruits/chill), Child safety, Open door alarm, Memory
Shelf material	Glass
Number of drawers	3 (including 1 Fresh Zone)
Door bins	Yes
Control panel	Touch with LED indicators
Refrigerant	Isobutane (R600a)

Frequently Asked Questions - Bolero CoolMarket 4D 601 E CECOTEC

How to set the refrigerator temperature?

Press the touch icon Fridge to browse through temperatures (5°C to 8°C, then OFF, then 2°C to 4°C). Confirm by pressing the OK icon for 5 seconds or wait 5 seconds without action.

How to activate Fast Freezing mode?

Press the FRESH ZONE icon for 3 seconds to enter the menu, then press briefly until the Fast Freezing indicator flashes. Confirm with OK. The mode deactivates automatically after 26 hours.

What to do if the open door alarm sounds?

The alarm sounds after 3 minutes of opening. Press any touch icon to stop it. Close all doors to turn it off permanently.

How to use the Fresh Zone drawer?

Press briefly (less than 3 seconds) on the FRESH ZONE icon to choose between Vegetables, Fruits or Chill (meat/fish) modes.

What do the error codes on the display mean?

Codes like E0, E1, E2, EH, EE or EC indicate a malfunction. Contact Cecotec After-Sales Service at [phone].

How to unlock the control panel?

Press the OK icon for 3 seconds to deactivate the lock function (child safety). The lock indicator turns off.

How to clean the refrigerator?

Unplug the appliance. Remove the shelves, drawers and door bins, clean them with a soft cloth and warm water. Use a neutral detergent if necessary. Dry thoroughly before reassembling.

What to do after a power outage?

Wait 5 minutes before turning the refrigerator back on to protect the compressor. The appliance restarts with previous settings (memory function). If the freezer temperature is above -10°C, a warning flashes: press an icon to clear it.

Can I change the door opening direction?

The manual does not mention door reversibility. Contact Cecotec technical service to find out if this operation is possible.

How to save energy with this refrigerator?

Let hot foods cool before placing them. Use ECO mode (refrigerator temperature 5°C, freezer -18°C). Place thawed foods in the refrigerator to help cooling. Maintain a space of 50 mm at the rear and 100 mm on the sides for good ventilation.

USER MANUAL Bolero CoolMarket 4D 601 E CECOTEC

Exterior view of modern stainless steel refrigerators arranged in a grid (no visible text or symbols)

bolero

Safety instructions 10

1. Parts and components 72
2. Before use 72
3. Installation 73
4. Operation 74
5. Instructions on food storage 79
6. Cleaning and maintenance 81
7. Troubleshooting 83
8. Technical specifications 85
9. Disposal of old electrical and electronic appliances 86
10. Technical support and warranty 86
11. Copyright 86

SOMMAIRE

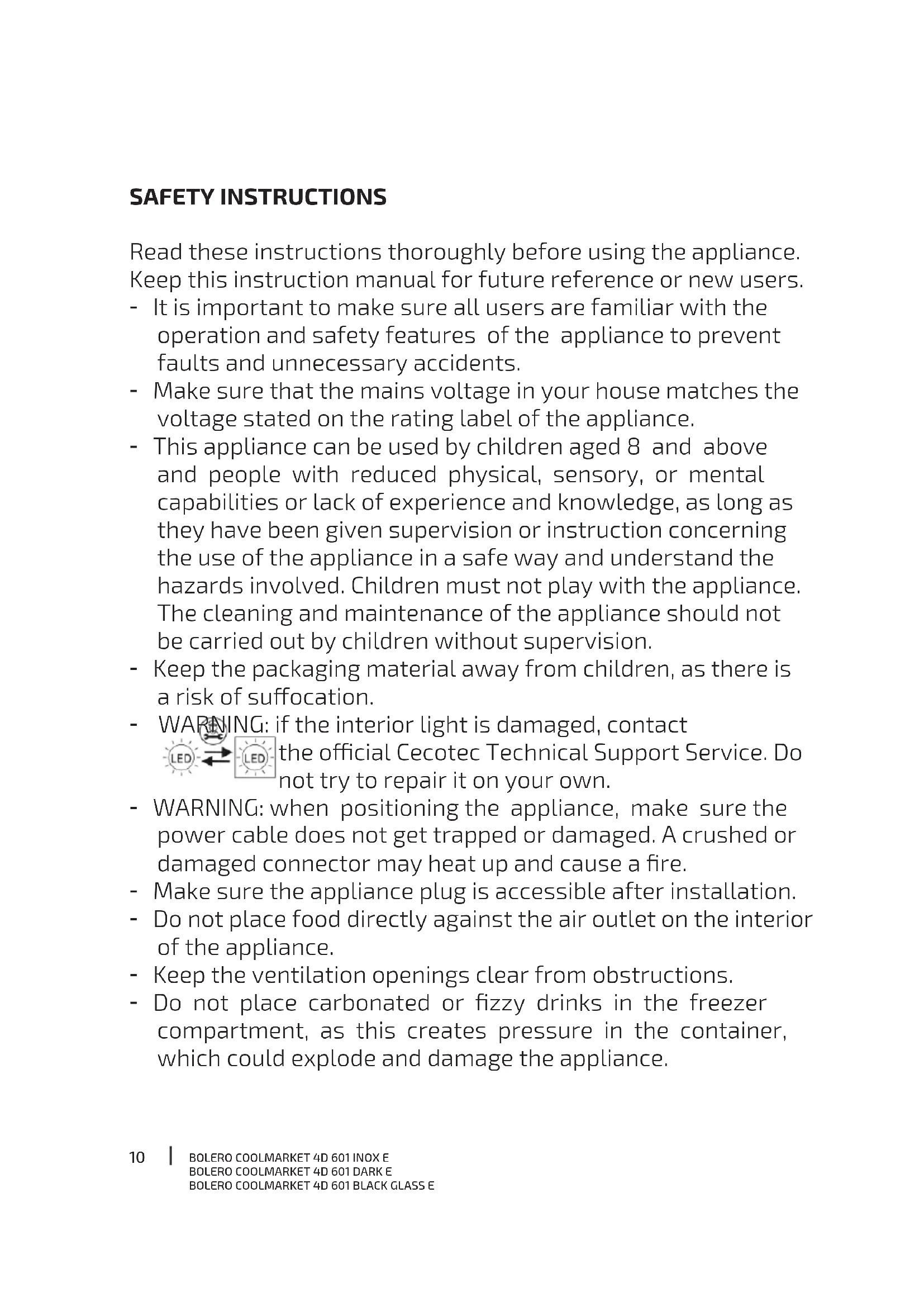

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• It is important to make sure all users are familiar with the operation and safety features of the appliance to prevent faults and unnecessary accidents.
• Make sure that the mains voltage in your house matches the voltage stated on the rating label of the appliance.
• This appliance can be used by children aged 8 and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. The cleaning and maintenance of the appliance should not be carried out by children without supervision.

- Keep the packaging material away from children, as there is a risk of suffocation.

- WARNING: if the interior light is damaged, contact the official Cecotec Technical Support Service. Do not try to repair it on your own.

- WARNING: when positioning the appliance, make sure the power cable does not get trapped or damaged. A crushed or damaged connector may heat up and cause a fire.

- Make sure the appliance plug is accessible after installation.

- Do not place food directly against the air outlet on the interior of the appliance.

- Keep the ventilation openings clear from obstructions.

- Do not place carbonated or fizzy drinks in the freezer compartment, as this creates pressure in the container, which could explode and damage the appliance.

• WARNING: do not use mechanical appliances or other means to accelerate the defrosting process other than those recommended by Cecotec.
• WARNING: do not damage the refrigeration circuit.
• If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.
• WARNING: do not use electrical appliances inside the refrigerator.
• We recommend you check the power cable regularly to detect any sign of possible damage. Do not use the appliance if the cable is damaged.
• To avoid injuries or death caused by electric shock, do not use the appliance with your hands wet or over a wet surface.
• You should never use this refrigerator with an extension lead or a multi-socket adaptor. Make sure the appliance is plugged in directly to a power supply.
• When positioning the appliance, make sure there is enough free space at the rear, as it is the main heat outlet. This will allow for adequate ventilation.
• Do not place hot food or drinks in the refrigerator, allow them to cool down to room temperature beforehand.
• Do not place any other appliance on the refrigerator and do not wet it.
• Do not store explosive substances such as aerosols or flammable propellants in this appliance.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• WARNING: to avoid any risk due to the instability of the refrigerator, you must install it according to the instructions.
• This appliance has a built-in earthed plug. Make sure the

power supply in your house is properly earthed.

- Wait 5 minutes after a power failure before turning the appliance back on. Otherwise, the compressor may get damaged.

- This appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Always handle the appliance carefully to avoid any damage on it.

- Frozen food can cause frostbites if consumed right after removing it from the freezer compartment.

- Do not remove or touch items in the freezer compartment with your hands wet, as it could cause skin abrasions or frost/freeze burns.

- Never use the base, drawers, or door as support.

- Do not overload the door shelves or place too much food on the drawers to prevent items from falling off and damaging the appliance.

- WARNING: do not attach multi-socket adaptors or multiple power supplies to the rear part of the appliance.

- To avoid food contamination, please follow the instructions below:

A. Opening the door for a long period of time may cause a significant increase in temperature in the appliance compartments.

B. Regularly clean the surfaces that come into contact with food and with the accessible draining systems.

C. Store raw meat and fish in proper containers in the freezer, so they do not come into contact with or leak on other food.

D. The two-star compartments are suitable for storing pre-frozen food, storing or making ice cream, and making ice cubes.

E. Compartments with one, two, or three stars are not suitable

for freezing fresh food.

• Before carrying out any maintenance and cleaning task, turn off the appliance and unplug it.
• It is advisable to wait for at least four hours before connecting the appliance to allow oil to flow through the compressor.
• Air must flow around the appliance. Lack of air leads to overheating. To achieve good ventilation, follow the installation instructions.
• Whenever possible, the rear part of the appliance should not be too close to the wall to prevent it from touching or reaching the hot parts (the compressor and the condenser). To avoid risk of fire, follow the installation instructions.
• Make sure that the plug is accessible after installation of the appliance.
• All electrical work required to maintain this appliance must be carried out by a qualified electrician.
• Use the appliance only for the purposes described in this manual. Incorrect or improper use can damage the appliance and be dangerous for the user.

Temperature range

The appliance temperature range information can be found on its marking. It indicates the optimum room temperature for proper operation of the appliance.

Climate range Optimum room temperature
SN From +10 °C to +32 °C
N From +16 °C to +32 °C
ST	From +16 °C to +38 °C
T	From +16 °C to +43 °C

Note:

- Taking into account the limiting values of the room temperature range for the climates for which the appliance is designed and that internal temperatures may be affected by factors such as the location of the appliance, room temperature and frequency of door opening, it may be necessary to modify the setting of any temperature control device according to these factors.

- If the appliance is operated in an environment other than the specified climate type (i.e. beyond the rated ambient temperature range), it may not be able to maintain the desired compartment temperatures.

Refrigerant

- Isobutane refrigerant (R600a), contained within the refrigeration circuit of the appliance, is a natural gas with a high level of environmental compatibility; however, it is flammable. Make sure that no components of the refrigeration circuit have been damaged during the transport and installation of the appliance.

- WARNING: the refrigerant and the insulator gas are flammable. When disposing of the appliance, only dispose of it at an authorised waste-disposal facility. Do not expose it to flames.

- WARNING: the appliance contains refrigerant and gases in the insulation. The appliance and gases must be disposed of professionally, as they may cause injuries to eyes or ignition. Make sure the refrigeration-circuit pipe is not damaged before disposing of it correctly.

- This symbol means: warning, risk of fire/flammable materials.

- If the refrigeration circuit is damaged:

A. Avoid open flames and sources of ignition.
B. Completely air the room where the appliance is located.

INSTRUCTIONS DE SÉCURITÉ

Modo ECO/Fast Cooling/Fast Freezing

Ajuste de los modos

1. Top hinge
2. Glass shelves
3. Drawers cover
4. Drawers
5. Door shelves
6. Centre hinge
7. Top drawers
8. LED light
9. Centre drawers
10. Bottom drawers
11. Feet

Control panel. Fig. 2

1. Child-lock indicator light
2. Temperature indicator
3. Eco mode indicator light
4. Fast Cooling mode indicator light
5. Fast Freezing mode indicator light
6. Refrigerator compartment icon
7. Freezer compartment icon
8. Dual Function compartment icon
9. Vegetables mode indicator light
10. Fruit mode indicator light
11. Chill mode indicator light
12. Modes icon
13. OK/Lock icon

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

To make the most out of the appliance in terms of energy efficiency, place all the shelves and drawers in their original position, that is, as shown in Figure 1.

2. BEFORE USE

- This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other

packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.

- Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

- Refrigerator

- Instruction manual

3. INSTALLATION

Installation location. Fig. 3

• The location you choose to install the refrigerator should be well ventilated.
• Do not place the refrigerator near heat sources, like a hob, and avoid direct sunlight to ensure the cooling effect and save on energy consumption.
• Do not place the refrigerator in a damp place to avoid rust or loss of power.
• The result of dividing the total space of the room in which the refrigerator is installed by the amount of refrigerant load in the refrigerator must not be less than 8 g/m^3 .
• Note: the amount of refrigerant used by the refrigerator is specified on the rating plate.

Heat dissipation space

• During operation, the refrigerator releases heat into the environment. Therefore, you should leave at least 50 mm of free space at the back, and more than 100 mm on both sides.
• The following table shows the dimensions (in mm) of figure 3.

W D H A	B C (°) E F
905	730	1775	1560	1135	125	50	100

Note: Figure 3 only illustrates the space required for the installation of the refrigerator.

Stable surface

• Place the freezer on a solid, flat surface to keep it stable, otherwise vibrations and noises will occur. When the refrigerator is placed on a carpet, straw mat, or polyvinyl chloride, solid support plates should be placed underneath the refrigerator to avoid colour change due to heat dissipation.
• The place where the refrigerator is installed must be well ventilated.

ENGLISH

Levelling

• Make sure that the refrigerator is level with the front feet. If it is not level, performance will be affected.
• After installing the refrigerator, wait four hours before using it to allow the refrigerant to stabilise.

Preparing for use

Waiting time

Once the refrigerator is properly installed and cleaned, do not switch it on immediately. Wait at least four hours before starting it up.

Cleaning

Check that all refrigerator accessories are securely in place and wipe the inside with a soft cloth.

Switch on

Connect the plug into a power socket to switch on the compressor. After one hour, open the refrigerator door. If you notice that the temperature inside the refrigerator compartment is much colder than the room temperature, it means that the refrigeration system is working normally.

Food storage

- When the refrigerator has been in operation for a considerable period of time, you can adjust the internal temperature. Once the refrigerator has cooled down completely, put the food in. It will take 2 to 3 hours for the food to cool down. In summer, when the temperature is high, it may take more than 4 hours for food to cool down completely (try to open the refrigerator door as rarely as possible).

- If the refrigerator is installed in a wet place, be sure to check if the earthed cord and the leakage breaker are working normally. If vibration noises occur due to contact of the refrigerator with the wall or if the wall turns black due to air convection around the compressor, keep the refrigerator further away from the wall. The installation of the refrigerator may cause interference in mobile phones, landline phones, radio receivers, or televisions near the refrigerator, so in this case, keep the refrigerator as far away from these objects as possible.

4. OPERATION

Functions

- This refrigerator has four zones (including the Fresh Zone drawer) with different temperatures, as shown in Figure 4.

• The top compartment is the refrigerator. The compartment at the bottom left is the freezer compartment. The compartment at the bottom right features an adjustable temperature (Dual Function compartment).
• When the cooling system is connected to the mains for the first time, all indicator lights and icons on the display will light up for 5 seconds.
• If the doors are closed, the display will automatically switch off if no operation is performed after 15 seconds.
• If the display is off, it will light up upon opening a door or pressing a icon.

Lock function

• When you activate the Lock function, you cannot change the temperature or activate any additional modes or functions.
• If 15 seconds pass without any operation being performed, the Lock function will be activated automatically.
• Press and hold the Lock icon OK for 3 seconds to deactivate the lock function.

Temperature settings

• Before changing the temperature setting, make sure that the control panel is not locked.
• If the ECO, Fast Cooling or Fast Freezing mode is activated, the first time you press
  or you Freezer not be able to set the temperature of the refrigerator or freezer compartment (a beep will sound to indicate that this operation is not possible). You will have to press these icons a second time (within 10 seconds of the first press) to deactivate the mode and therefore be able to adjust the temperature.

Setting the refrigerator compartment temperature

• Press Fridge to set the refrigerator compartment temperature. When you have selected the desired temperature, press and hold 0.15 seconds to confirm the setting (you can also wait 5 seconds without performing any operation). At this point, the temperature indicator will stop flashing.
• The temperature setting cycle of the refrigerator compartment is as follows: 5^ 6^ 7^ 8^ OF 2^ 3^ 4^ 5^
• The OF setting means that the refrigerator compartment and the Fresh Zone drawer will stop cooling. The °C indicator light will turn off.
• Make sure you remove all the food from the refrigerator compartment and Fresh Zone drawer before setting the temperature to OF.

Setting the freezer compartment temperature

- Press Freezer to set the freezer compartment temperature. When you have selected the desired temperature, press and hold 10 seconds to confirm the setting (you can also wait 5 seconds without performing any operation). At this point, the temperature indicator will stop flashing.

ENGLISH

- The freezer temperature setting cycle is as follows: -18^ -17^ -16^ -24^ -23^ -22^ -21^ -20^ -19^ -18^

Dual Function compartment temperature setting

- Press to set Dual Function temperature of the Dual Function compartment. When you

have selected the desired temperature, press and hold for 5 seconds to confirm the setting (you can also wait 5 seconds without performing any operation). At this point, the temperature indicator will stop flashing.

• The temperature setting cycle of the Dual Function compartment is as follows: -18 ^ -17 ^ -16 ^ -15 ^ -14 ^ -13 ^ -12 ^ -11 ^ -10 ^ -09 ^ -08 ^ -07 ^ -06 ^ -05 ^ -04 ^ -03 ^ -02 ^ -01 ^ 00 ^ 01 02 ^ 03 ^ 04 ^ 05 ^ 0F -20 ^ -19 ^ -18 ^
• OF means that the Dual Function compartment will stop cooling. The °C indicator light will turn off.
• Be sure to remove all food from the Dual Function compartment before setting the temperature to OF.

Fresh Zone drawer settings

• Press s FRESH (less than 3 seconds) to select the desired mode.
• The setting cycle of the selectable modes of the Fresh Zone drawer is as follows:

• Vegetables mode is suitable for leafy green vegetables and similar foods.
• Fruits mode is suitable for fruits and similar foods.
• Chill mode, a cooler one, is suitable for meat, fish, and similar products.
• When the temperature setting of the refrigerator compartment is OF, the Fresh Zone drawer will be deactivated, and it will stop cooling.
• Note: you will not be able to press FRESH ZONE when the temperature setting of the refrigerator compartment is OF.

ECO/Fast Cooling/Fast Freezing modes

Modes settings

• Press and hold for FRESH ZONE seconds to access the menu.
• If you want to exit it, press, and hold FRESH ZONE again for 3 seconds. Each time the display is switched on again (after being off), you will have to access the menu again.

ECO mode

• When this mode is activated, the refrigerator compartment temperature will be 5 °C, and the freezer compartment temperature will be -18 °C. This ensures that food is properly preserved, and that the refrigerator operates with optimum efficiency and performance.

• When ECO mode is activated, you cannot change the temperature setting of the refrigerator compartment or freezer compartment.

• Activating the ECO mode

Press and hold FRESH ZONE for 3 seconds until the ECO mode indicator light (1) starts flashing. Then, press (or wait 5 seconds without performing any operation) to confirm the setting. The ECO mode indicator light will remain lit.

1. Deactivating the ECO mode

- Press and hold FRESH ZONE for 3 seconds until the ECO mode indicator light (1) starts flashing. Then, press (or wait 5 seconds without performing any operation) to confirm the setting. The ECO mode indicator light will switch off.

- When Fast Freezing or Fast Cooling mode is activated, ECO mode will be deactivated automatically.

- You can also deactivate the ECO mode by pressing

Fast Cooling mode

- When this mode is activated, the refrigerator compartment temperature will be 2 °C. This will cause the food to cool more quickly. This mode will be automatically deactivated after 8 hours from its activation. Fast Cooling mode preserves the taste, freshness, and nutritional value of food.

- When Fast Cooling mode is activated, you cannot change the temperature setting of the refrigerator compartment.

1. Activating the Fast Cooling mode

Press and hold FRESH ZONE for 3 seconds to access the menu. Next, press FRESH ZONE shortly (less than 3 seconds) until the Fast Cooling indicator light flashes. After that, press OK to activate the mode or wait 5 seconds without performing any operation. The Fast Cooling mode indicator light will remain lit.

1. Deactivating the Fast Cooling mode

- This mode will be automatically deactivated after 8 hours from its activation. - When the Fast Cooling mode is activated, press, and hold FRESH ZONE for 3 seconds to access the menu. Next, press this icon again shortly (less than 3 seconds) until the Fast Cooling indicator light flashes. Then, press OK (or wait 5 seconds without performing any operation) to confirm the setting. The Fast Cooling mode indicator light will switch off.

- If ECO mode is activated, Fast Cooling mode will be automatically deactivated.

- You can also deactivate the Fast Cooling mode by pressing Fridge twice.

Fast Freezing mode

- When you activate Fast Freezing mode, the temperature of the freezer compartment will drop to -32 °C automatically. This mode will be automatically deactivated after 26 hours

ENGLISH

from its activation. This mode ensures that the food retains its freshness and does not lose nutrients.

- When Fast Freezing mode is activated, you cannot change the temperature setting of the freezer compartment.

1. Activating the Fast Freezing mode

Press and hold FRESH ZONE for 3 seconds to access the menu. Press FRESH ZONE shortly (less than 3 seconds) until the Fast Freezing indicator light flashes. After that, press OK to activate the mode or wait 5 seconds without performing any operation. The Fast Freezing mode indicator light will remain lit.

2. Deactivating the Fast Freezing mode

- This mode will be automatically deactivated after 26 hours from its activation.

- When the Fast Freezing mode is activated, press, and hold FRESH ZONE for 3 seconds to access the menu. Next, press FRESH ZONE shortly (less than 3 seconds) until the Fast Freezing indicator light flashes. Then, press OK (or wait 5 seconds without performing any operation) to confirm the setting. The Fast Freezing mode indicator light will switch off.

- if ECO mode is activated, Fast Freezing mode will be automatically deactivated.

- You can also deactivate the Fast Freezing mode by pressing Freezer twice.

Open door alarm

If any of the doors are left open for more than 3 minutes, an alarm will sound. To stop the beeping, press any icon. Please note that if you keep the door open for another 3 minutes, the alarm will sound again.

The alarm will stop beeping when all doors are properly closed.

Memory function

If there is a power failure, once the power is restored, the refrigerator will restart and remember the previous settings.

Delayed start-up for safety reasons

If there is a power failure lasting less than 5 minutes, the refrigerator compressor will not start immediately after switching on to prevent damage to the compressor. If the power failure lasts longer than 5 minutes, it will start immediately.

Overheating warning (only after a power failure)

When the cooling system of the appliance is turned on, if the temperature of the freezer compartment sensor is higher than -10 ^ , the temperature digits of the freezer compartment will flash on the display. You can see the temperature of the freezer compartment by pressing any icon. The display will return to its normal state when you press any icon again or if 10 seconds pass without any operation being performed.

Fault warning

If "E0", "E1", "E2", "EH", "EE" or "EC" appears on the display, it means that the refrigerator is faulty. If this happens, please contact the official Cecotec Technical Support Service.

Deactivating the heating element manually

• Press and hold the Dual Function and Fridge icons for 3 seconds to enter the "Special Programme Working State" programme. Once inside, the letters "Sd" will flash on the display. Two seconds later, the current programme setting will be displayed. Then, press
  icons for 3 seconds to enter the "Special
  Programme Working State" programme. Once inside, the letters "Sd" will flash on the display. Two seconds later, the current programme setting will be displayed. Then, press
  Fridge or do Freezare the programme. When you do so, the display will flash
  the word "on". Wait 5 seconds without performing any operation for the setting to be confirmed automatically. After this time, the refrigerator will exit this programme.
• Press and hold 📄 Fridge and 📌 FRESH ZONE for 3 seconds to access the heating element setting. By default, it will be active (the word “on” will appear on the display). Press 📄 Fridge to change from 1 (ON/active) to 0 (OFF/deactivated). When the heating element is deactivated, the anti-condensation function is also deactivated. The refrigerator will not remember this operation, so when the refrigerator system is restarted, the heating element will be activated again.
• Note: Do not access this programme while the refrigerator is running. This operation is a sampling test and should only be carried out by a qualified technician.

5. INSTRUCTIONS ON FOOD STORAGE

Use precautions

• If you select a high temperature for the freezer, the food may defrost.
• Information on the temperature range can be found on the rating plate.
• Temperature may be affected by factors such as the location of the refrigerator, room temperature and how often the door is opened.
• Do not put carbonated drinks in the freezer.

Food location

• Due to the circulation of cold air in the refrigerator, the temperature in each zone is different. This should be taken into account when placing the food.
• The refrigerator compartment is suitable to store food that does not need to be frozen, cooked food, beer, eggs, some seasonings that need to be kept cold, milk, fruit juice, etc. The crisper drawer is the best place to store fruit and vegetables.
• The freezer compartment is suitable to store ice cream, frozen foods, and foods that need to be kept for a long time.

Using the refrigerator compartment

- Shelves: to remove the shelves, first lift them up and then pull them out. To reposition them, place them in the guides and push them down. Make sure that food does not come

ENGLISH

into contact with the walls of the refrigerator. When removing and fitting shelves, hold them firmly and handle them carefully to avoid damage.

- Crisper drawer: after using or cleaning the bottom shelf of the refrigerator compartment (the drawer cover), put it back in place so that the internal temperature of the drawer is not affected.

Using the humidity regulator

The humidity regulator of the drawer is designed to keep moisture steady and the vegetable freshness. If you slide it to the right, the humidity level in the drawer will be lower. If you slide it to the left, the humidity level in the drawer will be higher.

Tips for food storage

• Clean and dry food thoroughly before placing it in the refrigerator. Before introducing food in the refrigerator, it is advisable to seal it to prevent water evaporation and thus keep fruit and vegetables fresh on the one hand, and to prevent odours on the other.
• Leave enough space between the food; if they are too close together, they will block the flow of cold air, which will affect the cooling effect. Do not store too much or too heavy food to prevent the shelves from bending. When storing food in the refrigerator compartment, do not stick it to any wall to prevent it from freezing.

Storing food by category

Place your most frequently consumed foods at the front of the shelves, so that you keep the door open as little as possible.

Energy-saving tips

Let hot food cool down to room temperature before putting it in the refrigerator. Place frozen food in the refrigerator compartment to defrost it. Frozen food helps to cool fresh food, which saves energy.

Storing fruits and vegetables

Store fruit and vegetables in the crisper drawer.

Using the freezer compartment

• Store food that you want to keep for a long period of time in the freezer drawers.
• Large fish and meat should be cut into small pieces and placed in freezer bags before placing them in the freezer-compartment drawers.
• Let hot food cool down to room temperature before putting it in the freezer compartment.
• Do not place liquids in glass or canned containers in the freezer compartment; if you do, they may explode.
• Divide food into small portions.
• It is best to package food before freezing. Make sure that the container to be used is dry.

Food should be packaged or covered with durable, non-toxic, non-polluting, tasteless, air-and water-tight materials to prevent cross-contamination and odour transfer.

Tips for buying frozen food

• When buying frozen food, pay attention to the storage instructions on the package.
• Check the temperature of the freezer of the shop where you buy them.
• Make sure that the packaging of frozen food is in perfect condition.
• When you go to the supermarket, buy frozen products last.
• Try to keep frozen foods together while shopping and on the way home, as this will keep them fresher.
• Do not buy frozen foods unless you can freeze them immediately. Isothermal bags are available in most supermarkets and department stores. In them, frozen food is kept cold for a longer period of time.
• Some foods do not require defrosting before cooking. Vegetables and pasta can be added directly to boiling water or steamed. Frozen sauces and soups can be placed in a pan and heated gently until thawed.
• Use quality foods and alter them as little as possible. When food is frozen in small quantities, it takes less time to freeze and thaw.
• Calculate the amount of food to be frozen. When freezing large quantities of food, lower the freezer compartment temperature. This way, food can be frozen quickly maintaining its freshness.

6. CLEANING AND MAINTENANCE

Before cleaning the appliance, disconnect it from the mains. Do not touch the plug with wet hands; doing so may result in electric shock. Avoid spilling water on the refrigerator, so that it does not rust or cause an accident. Do not reach into the bottom of the refrigerator, as this may cause damage.

Cleaning the interior and exterior

• Food residues in the refrigerator can cause unpleasant odours, so you should clean the refrigerator regularly. Clean the refrigerator compartment at least once a month.
• Remove all shelves and drawers, and clean them with a soft cloth or sponge dampened with lukewarm water. You can also use a little neutral detergent.
• If you have used detergent, be sure to rinse it off with clean water. Next, dry it with a dry cloth.
• Clean the dust that accumulates on the rear panel and side plates of the refrigerator regularly.
• Do not use any abrasive materials or corrosive products to clean the refrigerator.
• Carefully dry the door gasket and clean the slot with a wooden stick wrapped with cotton.

ENGLISH

To refit the gasket after cleaning, first fix the four corners and then push it into the slot a little at a time.

Power failure or cooling system fault

• If the freezer compartment stops operating for a prolonged period of time, the food may defrost.
• Try to open the appliance doors as little as possible, so that you can keep food in good condition for hours, even in summer.
• If you know that a power cut is going to occur in advance:
• Select the highest temperature one hour in advance, so that the food is completely frozen. Do not introduce new food. Adjust the temperature back to the original setting when power is restored.
• You can also place ice in an airtight container to extend the shelf life of food.

Note: it is best not to interrupt the operation of the refrigerator; this could affect its lifespan.

Defrost

This freezer includes an automatic defrost function, so there is no need to defrost it manually.

If the refrigerator will not be used for a long period of time

• Turn off the refrigerator and unplug it from the power supply.
• Remove all the food.
• Clean and dry the interior completely. To avoid mould or unpleasant odours, leave the door slightly open.
• Install the refrigerator in a dry, ventilated place away from heat sources. Place it carefully and avoid placing heavy objects on top of it.
• Keep the refrigerator out of the reach of children, so that they do not play with it.

Replacing the light bulb

The refrigerator has a LED light with low consumption and a long shelf life. In case of malfunction, contact the official Cecotec Technical Support Service.

Safety check after maintenance

Check that the power cable is not broken or damaged.

Check that the plug is correctly inserted into the socket.

Check that the plug does not overheat.

Note: if the power cord and plug are damaged or dusty, electric shock and fire may occur. If there is any malfunction, disconnect the cord and contact the official Cecotec Technical Support Service.

7. TROUBLESHOOTING

For the following minor malfunctions, please try to solve the problem yourself before contacting the official Cecotec Technical Support Service.

Fault Possible causes Possible solutions
The refrigerator does not cool	It is not plugged into the mains. Circuit breakers or fuses are damaged. There is no electricity.	Reconnect it to the mains.Open the door and check the light is on.
Abnormal noise	The refrigerator is not levelled.	Set the adjustable feet of the refrigerator.
	The refrigerator is in contact with the wall.	Separate the refrigerator from the wall.
Cooling is insufficient	The food inside is hot or there is too much food.	Store food in the refrigerator when at room temperature.
	You open the door too often.	Keep the door closed.
	The door gasket has objects that do not allow to close it completely.	Remove the objects that prevent the door from closing.
	The refrigerator receives direct sunlight or is close to a heat source.	Remove the refrigerator from the heat source.
	The place where the refrigerator is placed is not well ventilated.	Ventilate the room.
	The selected temperature is too high.	Select a suitable temperature.

ENGLISH

Unpleasant smells in the refrigerator	There is spoiled food inside.	Dispose of food which is spoiled.
	The inside of the refrigerator is dirty.	Clean the refrigerator.
	Food with a strong odour stored inside the refrigerator.	Pack the strong smelling foods.
The icons do not work	Check whether the Child lock function is activated.	Press and hold the Lock icon for 3 seconds to deactivate the lock function. For more information, see “Operation” section.
You cannot change the temperature	Check whether the ECO, Fast Cooling or Fast Freezing modes are activated.	If the ECO, Fast Cooling or Fast Freezing modes are activated, you will not be able to set the temperature of the affected compartment. Deactivate the activated mode to be able to adjust the temperature. For more information, see “Operation” section.
The temperature flashes on the display	Check if there has been a power failure.	Press any icon to make the overheating warning disappear (see “Overheating warning” section for more information). Check whether the food in the refrigerator and freezer compartment has spoiled.

Note: if none of these situations match your problem, do not attempt to disassemble or repair the refrigerator yourself. All repairs must be carried out by qualified personnel. Contact the official Cecotec Technical Support Service. Repairs must be carried out by an authorised technician and only original spare parts must be used.

When the refrigerator is not to be used for a long period of time, disconnect it from the mains, remove all food and clean it. Leave the door ajar to avoid unpleasant odours.

1. TECHNICAL SPECIFICATIONS

Product Bolero CoolMarket4D 601 Inox E	Bolero CoolMarket 4D601 Dark E	Bolero CoolMarket 4D601 Black Glass E
Reference 01936 01937 01938
QR code
Voltage 220 - 240 V~
Rated frequency	50 / 60 Hz
Rated current	2 A
Climate class (*)	SN / N / ST / T
Refrigerant R600a (50 g)
Insulator Cyclopentane

This appliance features four light sources of energy efficiency F and G.

(*) Refrigerating appliance intended for use at room temperatures between 10 °C and 43 °C. Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

Mode ECO/Fast Cooling/Fast Freezing

Réglage des modes

Mode Fast Freezing (Congélation rapide)

ECO-Modus/Fast Cooling/Fast Freezing

Modo ECO/Fast Cooling/Fast Freezing

Definição dos modos

Tryb Eco/Fast Cooling/Fast Freezing

Ustawienia trybów

ECO modu Fast Cooling/Fast Freezing

Modlari ayarlama

1 2 3 6 7 8 9 10 11 12 13 -88°C Fridge Freezer Dual Function Vegetables Fruit Chill FRESH ZONE 3s to function OK 3s to unlock

Fig./Img./Abb./Afb./Rys.2

E F F B C C A W H

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

push

Fig./Img./Abb./Afb./Rys. 5

BOLERO COOLMARKET 4D 601 INOX E

BOLERO COOLMARKET 4D 601 DARK E
