USER MANUAL JAOP14 Doyon

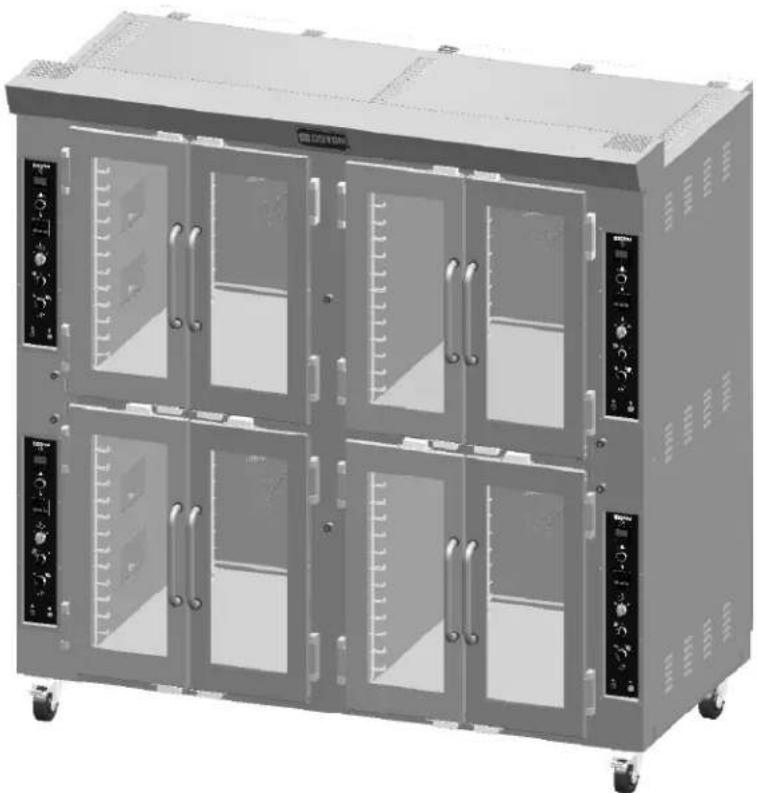

Exterior view of a modern industrial oven or drying unit with dual doors and control panels (no visible text or symbols)

Exterior view of a modern industrial oven or drying unit with multiple doors and control panels (no visible text or symbols)

JA14 - JAOP14 - JA28

Product / Produit:

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

DANGER

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK

CAREFULLY FOLLOW THESE INSTRUCTIONS

TABLE OF CONTENTS

Installation warnings A-3

Distances to respect A-3

Installation A-5

Operation of the oven A-7

Instructions for oven A-9

Operation of the proofer A-11

Power failure A-11

ECM-1 Programmable control - Operating modes A-13

Manual mode A-15

Program mode A-16

ECM-2 Programmable control - Operating modes A-27

Troubleshooting A-29

Oven maintenance and cleaning A-33

Bake chart A-35

COMPONENT PARTS B-1

JAOP14-Front view B-1

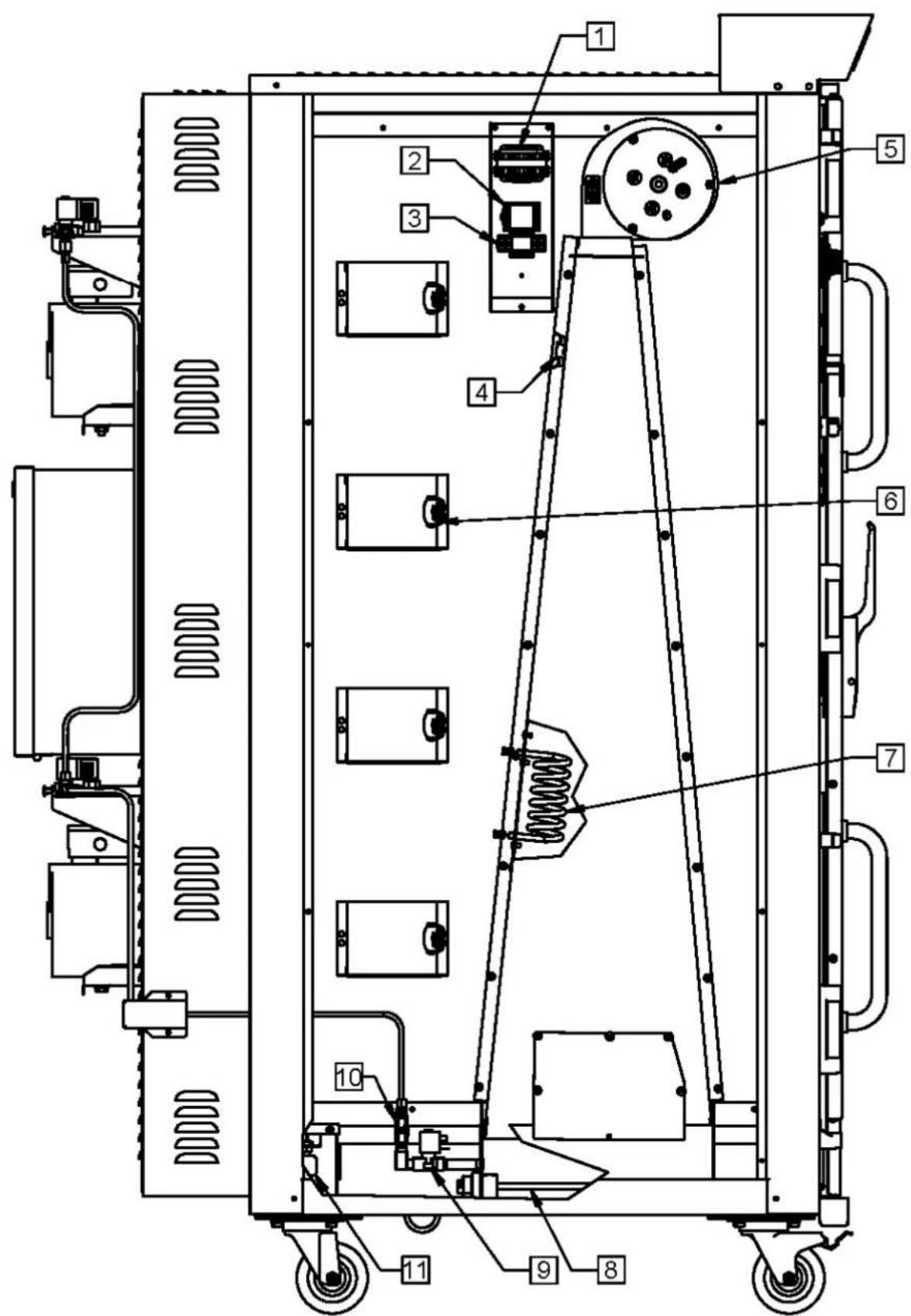

JAOP14 - Right side view B-3

JAOP14 – Left side view B-5

JAOP14 – Back view B-7

CONTROL PANELS C-1

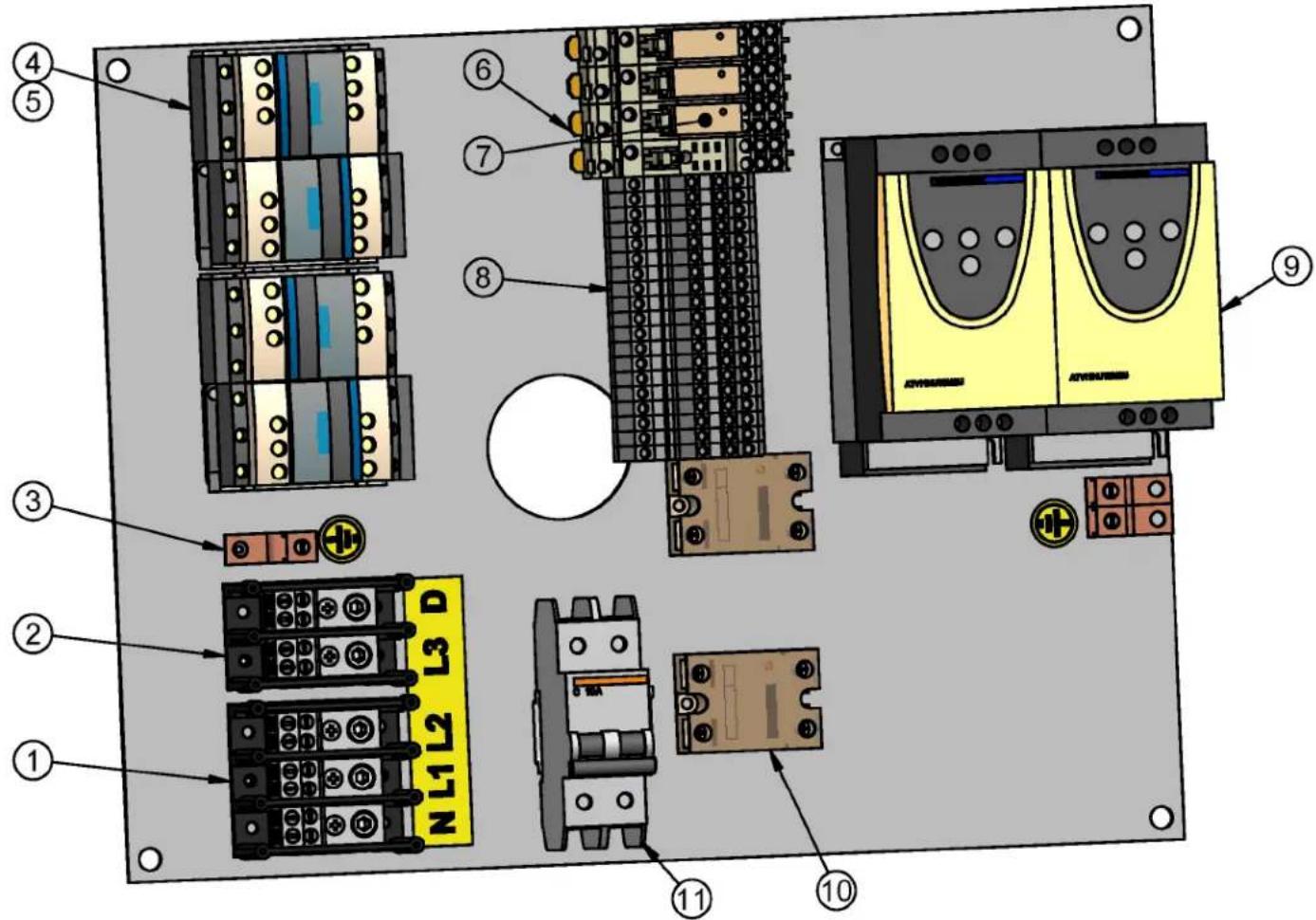

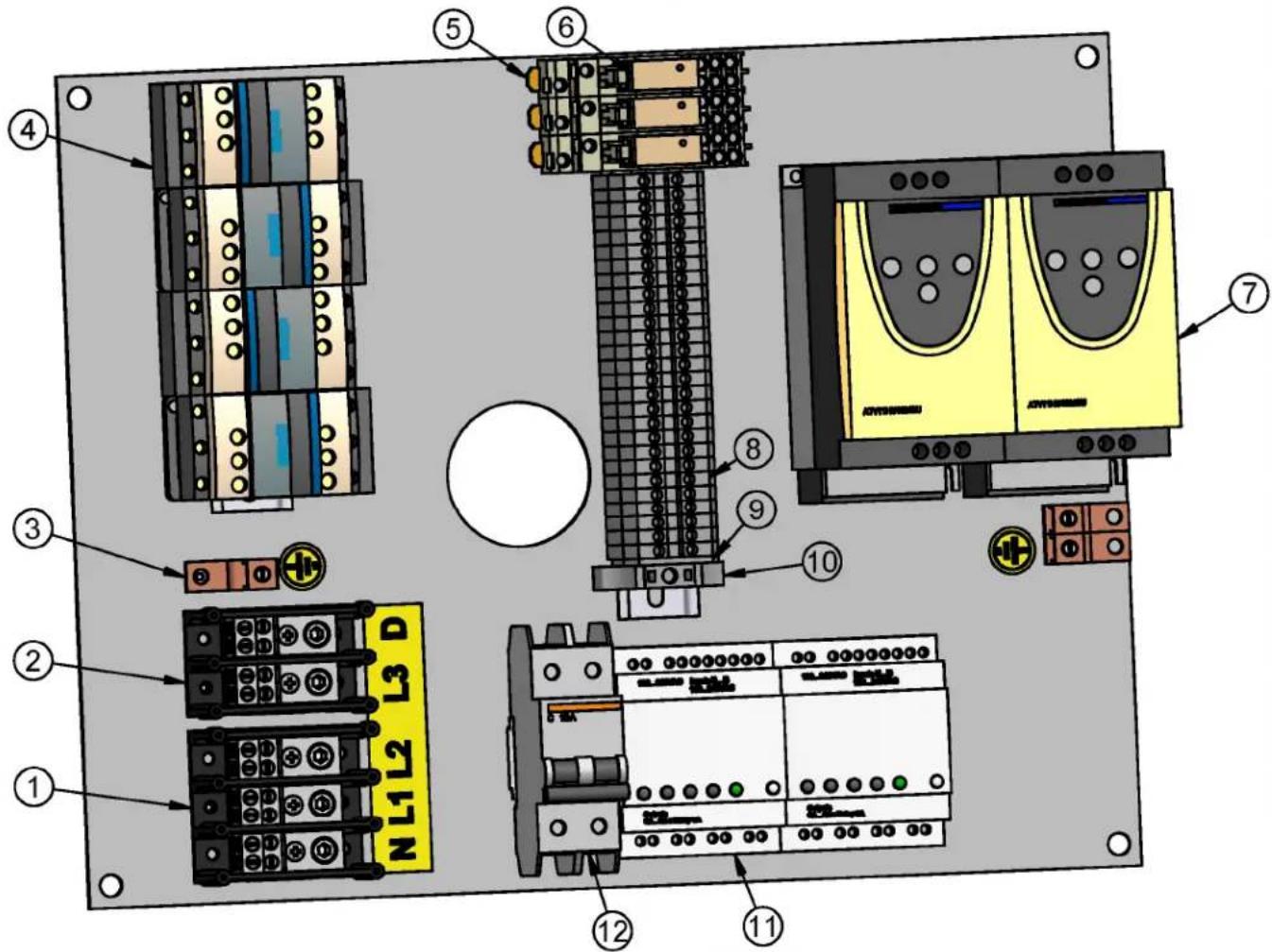

120/208-240 1&3PH with Zelio (double) C-1

120/208-240 1&3PH without Zelio (double) C-2

IMPORTANT INSTRUCTIONS DE SÉCURITÉ

CONSERVEZ CE MANUEL D'INSTRUCTIONS

DANGER

AFIN DE RÉDUIRE LES RISQUES D'INCENDIE OU D'ÉLECTROCUTION

SUIVRE CES INSTRUCTIONS AVEC SOIN

TABLE DES MATIÈRES

DESCRIPTION A-2

Introduction A-2

Construction A-2

Expédition A-2

The manufacturer suggests to read this manual carefully.

This equipment is manufactured with first quality material by experienced technicians. Proper installation and maintenance will guarantee a reliable service for years to come.

A nameplate fixed to the front or right side of the oven specifies the model number, serial number, voltage and amperage.

Drawings and replacement parts numbers are included in this manual. The electrical diagram is affixed in the control panel at the back of the oven.

ATTENTION

DOYON is not responsible for damages to the property or the equipment caused by personnel who is not certified by known organisations. The customer is responsible for finding qualified technicians in electricity and plumbing for the installation of the oven.

CONSTRUCTION

You just bought the most advanced oven in the world, "DOYON" technology at it's best. This oven is manufactured using the highest quality components and material.

The oven gives a perfect uniform baking with its unique Jet Air convection system. The DOYON oven is designed with parts that are easy to find.

SHIPPING

For your safety, this equipment has been verified by qualified technicians and carefully crated before shipment. The freight company assumes full responsibility concerning the delivery in good condition of the equipment in accepting to transport it.

IMPORTANT

RECEPTION OF THE MERCHANDISE

Take care to verify that the received equipment is not damaged before signing the delivery receipt. If a damage or a lost part is noticed, write it clearly on the receipt. If it is noticed after the carrier has left, contact immediately the freight company in order that they do their inspection.

We do not assume the responsibility for damages or losses that may occur during transportation.

INTRODUCTION

RÉCEPTION DE LA MARCHANDISE

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY APPLIANCE.

INSTALLATION AND SERVICE

WARNING

IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT.

Installation and service must be done by specialised technicians. Contact a certified electrician and plumber for set up.

The oven must be connected to the utility and electrically grounded in conformity to the effective local regulations. If these are not established, the oven must be connected according to the Canadian Electrical Code (CSA-C22.1-XX) or National Electrical Code (NFPA 70-XX). Refer to last edition year for XX. Installation must also allow proper access for service (24 inches each side and back).

The ovens must be installed with a proper ventilation according with the local building code.

DISTANCES TO RESPECT

A) Back and sides of the oven: 1 inch.
B) Top of the oven: a clearance of 12 inches to the ceiling must exist to permit adequate venting.
C) Floor: 4 inches minimum.
D) Sides of the oven: do not install other than easily removable equipment for service and maintenance (not closer than 1 inch).
E) It is recommended to have a certain length of water pipe, electric cable between oven and wall to help gain access for service.

AVERTISSEMENT LORS DE L'INSTALLATION

PANNE ÉLECTRIQUE

LORS D'UNE PANNE ÉLECTRIQUE, FERMER L'INTERRUPTEUR DU FOUR POUR PROTÉGER LES COMPOSANTES ÉLECTRONIQUES.

POUR VOTRE SÉCURITÉ

NE PAS EMMAGASINER OU UTILISER D'ESSENCE OU AUTRES VAPEURS ET LIQUIDES INFLAMMABLES À PROXIMITÉ DE CET ÉQUIPEMENT OU DE TOUT AUTRE APPAREIL.

INSTALLATION ET SERVICE

AVERTISSEMENT

UNE INSTALLATION, UN AJUSTEMENT, UNE ALTÉRATION, UN SERVICE OU UN ENTRETIEN NON CONFORME AUX NORMES PEUT CAUSER DES DOMMAGES À LA PROPRIÉTÉ, DES BLESSURES OU LA MORT. LIRE ATTENTIVEMENT LES DIRECTIVES D'INSTALLATION, D'OPÉRATION ET D'ENTRETIEN AVANT DE FAIRE L'INSTALLATION OU L'ENTRETIEN DE L'ÉQUIPEMENT.

Take off the packaging material with care. Take off all the material used for packing and accessories.

If the equipment is delivered with casters, always lock them after installation and use flexible wire. It must also be installed with restraining device (chain comes with the oven) to guard against transmission of strain to the gas supply and connectors.

1. To the electrician

Electrical supply installation must be in accordance with the electrical rating on the nameplate.

WARNING

The electrician must make sure that the supply cable does not come in contact with the oven top which becomes hot.

2. To the plumber

This equipment is to be installed to comply with the applicable federal, state or local plumbing codes.

Connect the steam system (1/4 NPT) to the cold water distribution network.

We highly recommend to use a water softener to eliminate minerals in the water.

We suggest you to use CUNO # CFS6135 (Doyon part number PLF240).

WARNING

Do not adjust the needle valves, it has been done at the factory.

INSTALLATION

EN GÉNÉRAL

1. Turn the switch to the "1" position.

•The light inside the oven must light up.

1. Adjust the thermostat at the desired setting (see THERMOSTAT INSTRUCTIONS below).

N.B. The red light must be "ON" (If not, press the breaker on the front).

1. Heat the unit until you reach the baking temperature.

When the desired temperature is reached, the red light goes out and turns green.

If the light is still "ON" and the oven does not produce heat, call for service.

1. Load the oven as fast as possible to avoid letting out too much heat.

2. Set the timer to the desired value and start it. (See page A-9.)

NOTE: The timer does not shut the oven off at the end of its cycle. It simply activates the buzzer.

1. Wait until the product is ready. Do not open the doors until the product is done.

VERY IMPORTANT

This oven has an overheat warning alarm to protect the electrical components against overheating. If the red pilot light (OVERHEAT WARNING) is lit and you hear a buzzer, see Troubleshooting.

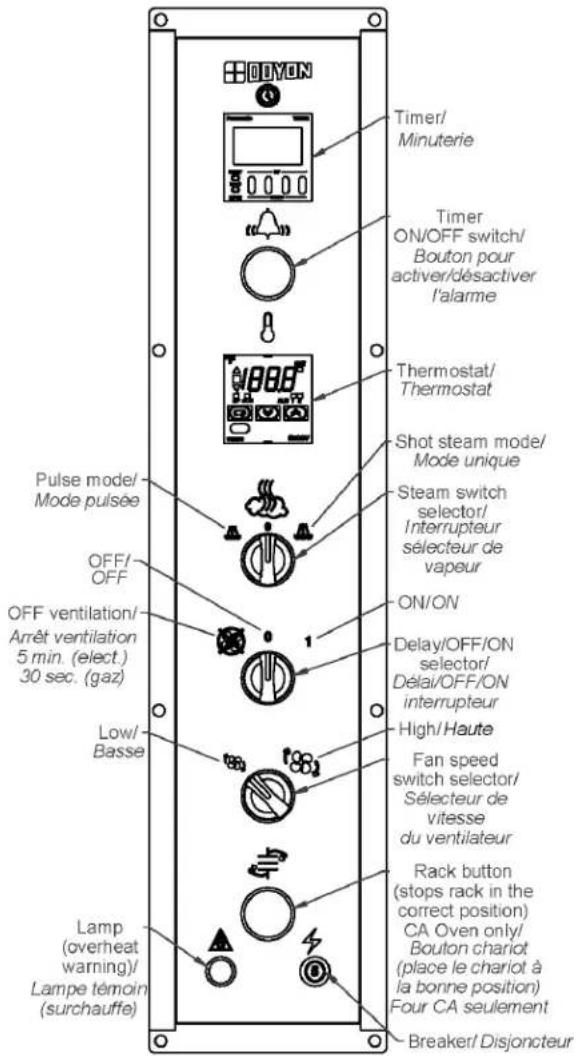

DOYON Timer/ Minuterie Timer ON/OFF switch/ Bouton pour activer/désactiver l'alarme Thermostat/ Thermostat Shot steam mode/ Mode unique Pulse mode/ Mode pulsee OFF/ OFF OFF ventilation/ Arrêt ventilation 5 min. (elect.) 30 sec. (gaz) Low/ Basse 1 ON/ON Delay/OFF/ON selector/ Délai/OFF/ON interrupteur High/Haute Fan speed switch selector/ Sélecteur de vitesse du ventilateur Rack button (stops rack in the correct position) CA Oven only/ Bouton chariot (place le chariot à la bonne position) Four CA seulement Breaker/ Disjoncteur Lamp (overheat warning)/ Lampe témoin (surchauffe)

THERMOSTAT INSTRUCTIONS

To obtain a very good thermal stability, we use a digitaltemperature controller with thermocouple. The Omron E5CS thermostat controls the heat of every element at the SP (set point).

The temperature of the oven is always shown on the display of the thermostat and an arrow indicates if the temperature is over or below the SP. When the green light is lit, it indicates that the temperature is at the SP ± 1% .

To adjust the SP (set point) value, you just have to press the key on the left and use the up and down keys to set the temperature. Press the left key to return to run mode.

OPÉRATION DU FOUR

To open the doors: Open one of the doors up to 2" and wait 2 seconds to let the fan reduce its spinning before opening them completely.

To close the doors: Close the first door completely and the second door down to 2" and wait 2 seconds before closing completely and then hold the door closed for 2 seconds.

P.S. Open the doors as little as possible. This will affect the baking.

COOKING TIMER

Set the baking time required with the small push button on the timer. The green display is the setting time and the red display is the countdown time (Ex: 25 minutes = set 2500 on green display).

After setting: Push the ▲ button, then when the time expires, the buzzer will ring.

Push the button again to stop the buzzer.

If you want to restart the time in the middle of the countdown, press on the yellow RST button on the timer.

P.S. The timer is simply a reminder for the approximate duration of the baking time.

STEAM SWITCH SELECTOR

Two steam mode are available: Shot or Pulse steam.

Shot steam mode

This mode will inject one preset time shot of steam when selected, it is recommended to be use at the beginning of the baking.

Pulse mode

This mode will pulse steam to keep moisture in the baking chamber during the baking time when selected. This is recommended for product who needs to be cooked or baked with humidity.

DELAY SWITCH SELECTOR

The oven can work without ventilation for a period of 5 min. (electric oven) or 30 sec. (gas oven)

when the fan delay is selected

FAN SPEED SWITCH SELECTOR

The oven fan can work in LOW or HIGH speed mode. With the fan speed selector switch you can select the fan velocity according to your product.

INSTRUCTIONS POUR FOUR

OUVERTURE ET FERMETURE DES PORTES

1. Switch "ON" (1).
2. Set the thermostat control at 100^ F.
3. Set the humidity control at approximately:

3 for JAOP-3 & JAOP-6

4 or 5 for JAOP-10

5 for JAOP-14

1. If there is too much fog and water drips from the glass doors, adjust humidity control to a lower number.
2. When the temperature is stabilised, put the products in the proofer. (Leave them inside until they are ready to bake.)
3. IMPORTANT: When proofing cycle is completed, turn the humidity switch to "OFF" and let the motor blower and air heat element run for 10-15 minutes to let dry the proofer. Then, turn the main switch "OFF" (0) and leave the door ajar to prevent moulding.

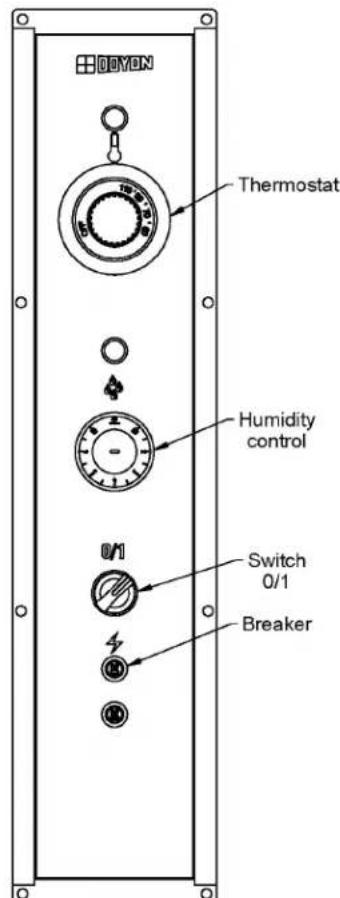

DOYON Thermostat Humidity control 0/1 Switch 0/1 Breaker

When the proofer is not in operation, open the doors to let out the humidity and to prevent mould.

P.S. The doors should not be opened unnecessarily to conserve the heat and humidity in the proofer.

Every day cleaning of the water pan under the proofer's doors should be exercised.

POWER FAILURE

When the power comes back, the proofer will start automatically. Then it's recommended to turn OFF the unit to avoid it starting without supervision.

OPÉRATION DE L'ÉTUVE

The Doyon ECM-1 controller has two operation modes Manual and Programmable.

MANUAL: to use all functions without using recipe program.

PROGRAMMABLE: to use with recipe cook program.

Program capacity

☐ Programs #1 to #99 can have up to 10 steps each (low-level programmable).
☐ Program #0 is always used as the default Manual Cook mode setting (single-step).

OFF MODE This is the default mode when the controller powers up.

Display/LED

□Display shows OFF.

□All other LEDs are off, except the

Start key LED.

Press on ← (start) when the oven is ON, the oven will run on preheat mode at the manual mode set point (except if you select a cook program referred in How to Select a Cook Program or the Manual Mode section).

To switch the oven OFF Press the RED stop button and hold it for 3 seconds. The oven will run on cool down mode until it reaches 250^ F and then switch OFF.

To change the temperature set point or timer setting press and hold for 3 sec. on ⚠ or ⏱. When

appears on the left side of the display, press on ▲ / ▼ (up / down) to select the desired temperature set point or timer setting. The new set point or time setting will be automatically saved after 3 seconds.

Display/LED

□ Display scrolls current cook program name (by default MANUAL if no program yet selected).
□2nd line shows actual oven temperature.
□Heat and Fan, LED follows output state.
□Ready LED blinks.
□Stop LED is on.

When probe temperature reaches set point, the unit beeps 5 seconds, the ready LED stays on and the oven goes into COOK MODE.

When the oven is ON, a 3 second long press of red Stop key will go to Cool Down mode if the oven temperature is over 250^ F / 120^ C before going to OFF mode. If the temperature is bellow 250^ F / 120^ C, the oven goes directly to the OFF mode.

DOOR SWITCH

□If door is opened:

○Display scrolls DOOR OPEN.
○All outputs are turned off (unless in Cool Down mode, then fan remains on).
○All timers pause until the door is closed.

□ When the door is closed, a short delay must expire before all accessories resume normal operation.

How to select a cook program or the Manual Mode

To select a recipe program, enter the recipe number with the numeric keypad and press (Start) or use the Next or Previous arrow to jump from one to an other program without having to confirm with the (Start) key.

When the recipe is selected, it will be active in the preheat mode until the set point in the first step is reached. The LED of the red Stop key will light. The recipe will start only when the LED of the key (Start) is lit.

To go back to the Manual Mode, press on the 🔗 key and then on the ← (Start) key or use the Next or Previous arrow ◀▶ to jump from one to an other program without having to confirm with the key ←(Start).

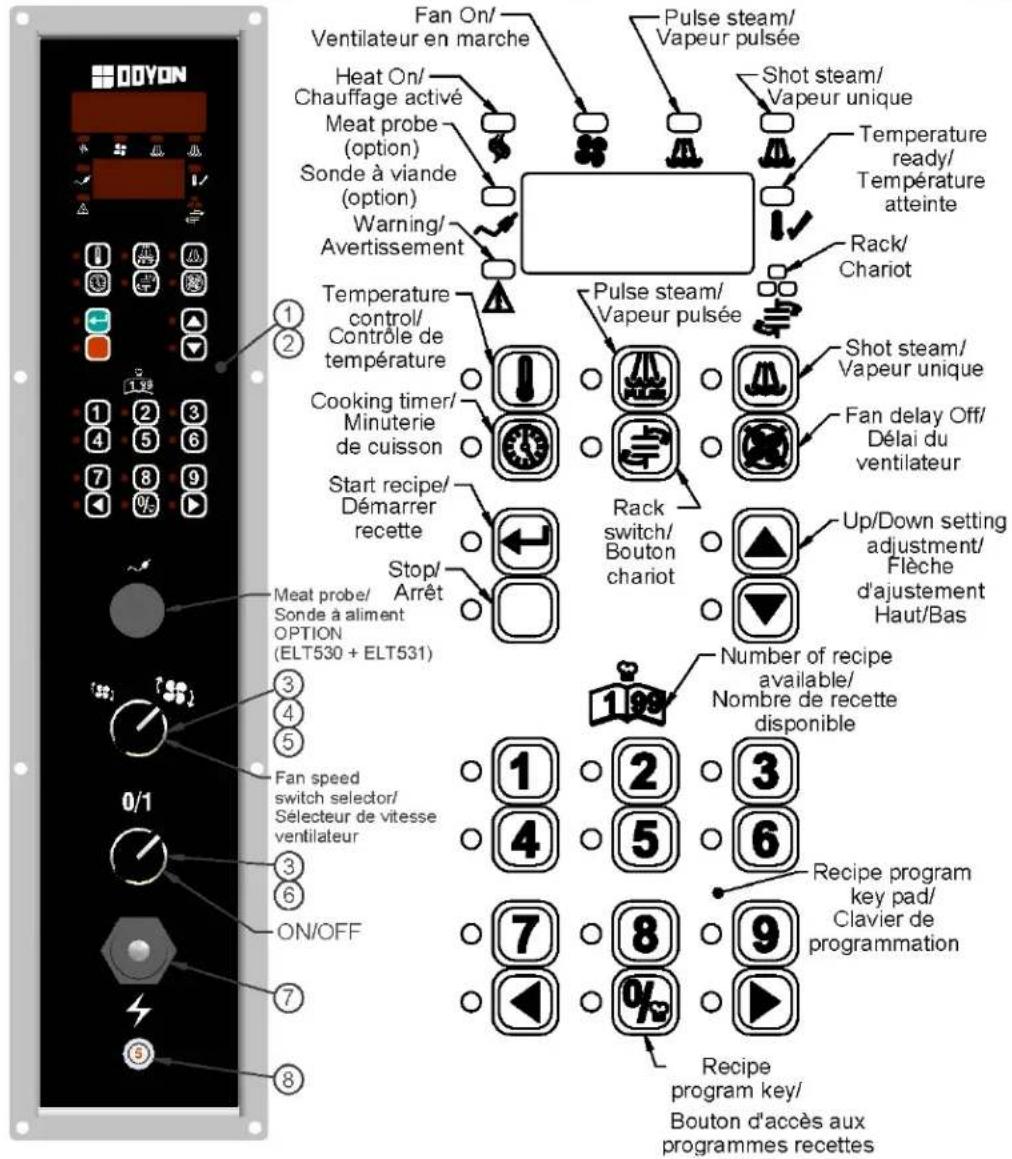

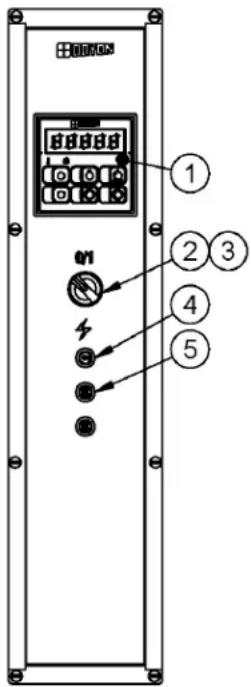

N°	CODE	DESCRIPTION FRANÇAISE	ENGLISH DESCRIPTION	QTY
1	ET204	MEMBRANE ECM-1 FOUR JA ET CA	LEXAN OVEN ECM-1	1
2	ELT539	CONTROLE PROGRAMMABLE VERTICAL ECM-1	VERTICAL PROGRAMMABLE CONTROL ECM-1	1
3	ELI402	SÉLECTEUR 2 POS. NOIR	BLACK SELECTOR 2 POS.	2
4	ELI408	BASE SANS CONTACT	MOUNTING BASE ONLY	1
5	ELI409	BLOC CONTACT NC	CONTACT BLOCK NC	1
6	ELI406	BASE AVEC 1NO	BASE WITH 1NO	1
7	ELT539-K1	PRISE ETHERNET ASSEMBLÉE	ETHERNET JACK ASSEMBLY	1
8	ELB096	DISJONCTEUR 5A	5A BREAKER	1

DOYON Fan On/ Ventilateur en marche Heat On/ Chauffage activé Meat probe (option) Sonde à viande (option) Warning/ Avertissement 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 Pulse steam/ Vapeur pulsée Shot steam/ Vapeur unique Temperature ready/ Température atteinte Rack/ Chariot Pulse steam/ Vapeur pulsée Shot steam/ Vapeur unique Fan delay Off/ Délai du ventilateur Rack switch/ Bouton chariot Up/Down setting adjustment/ Flèche d'ajustement Haut/Bas Number of recipe available/ Nombre de recette disponible 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99

MANUAL MODE

This mode is used to work one step program.

Press on ← (Start) when the oven is ON, the oven will run on preheat mode at the manual mode set point (by exception if you select a cook program referred in the PROGRAM MODE section).

TEMPERATURE FUNCTION

To change the temperature set point, press and hold for 3 sec. on ⚠️. When ▶ appears on the left side of the display, press on ▲ / ▼ (Up / Down) to select the desired temperature set point. The new set point will be automatically saved after 3 seconds.

TIMER FUNCTION

To change the time setting, press and hold for 3 sec. on 📄. When ▶ appears on the left side of the display, press on ▲ / ▼Up / Down) to select the desired time setting. The new time setting will be automatically saved after 3 seconds.

□If time is less than 60 minutes, it will be displayed as MM.SS
□If time is 60 minutes or more, it will be displayed as HH:MM

FAN DELAY FUNCTION

☐ The fan is always in function, but you can delay the fan for 5 min. (electric oven) or 30 sec. (gas oven) by pressing the Delay key ☑ After this delay, the fan will run normally.

By pressing a second time on the key before the end of the delay, the fan will remain in function.

STEAM GENERATION FUNCTION

□ Steam output can be turned on only if oven's temperature >= steam threshold (300^ / 149^) .
☐ Steam output can be turned on only if fan is on PULSE or ON.

○Pulse Steam ____ will turn on and off the steam output continuously if pressed again.

○ Shot steam 📄: steam output is turned on for duration of preset time.

□Note: Steam and Pulse-Steam in Manual Mode will force Fan On.

FUNCTION CHARIOT

This function is available only with ovens using a rotating rack. This function allows to start and stop the rack.

Food Probe in Manual Mode

When activated, the food probe temperature can only be used in mode MONITOR ONLY. This will indicate the internal food temperature, not the cooking. To control cooking, use the Programming mode.

PROGRAM MODE

This mode is used to program a Cook Recipe.

Cook Program structure

A cook program consists of a name as well as a number of steps. The name is pre-programmed into the unit (each name can have up to 30 characters). Each step has the following programmable parameters:

Oven temperature: the oven set point for this step.

Food temperature: the food temperature at which this step will end.

Time: the time duration for the current step.

Steam: the time steam is injected into the oven at the beginning of the step.

Fan: fan mode.

Aux.: on or off during step (only programmable via PC).

Rack: on or off during step.

Step End: user action needed at the end of step.

Programming

LED/Display

□1 ^st line displays currently selected parameter's value.
□2 ^nd line displays current step.

Keys

☐ To program or modify a recipe program, select the recipe name first, press and hold for 3 seconds on the Program key. This will give you access to the recipe program. If no change is made in the recipe during more than 5 seconds, the controller will exit the recipe program mode by itself and go back to standby mode.
☐All parameters can be programmed in any order within a step.

To program or modify a recipe, follow these steps :

☐ Use the parameter keys (Temperature, Time, Steam, Pulse-Steam, Fan, Rack, or Step End) to display and change its value.

- Temperature key is used twice to program 2 parameters: Oven Set Point and Food Temperature.

□Use the Up / Down keys to change the current parameter.
□ Use the Previous / Next keys to change the current step number.
□If Step End key is set to LAST, it is considered to be the last step of the program even though more steps may follow in the program.
□ After last step is programmed, hold the Program key for 3 seconds to exit programming mode.

Valid programming ranges

Temperature

□50-500°F / 10-260°C

Food Temperature

☐125-225°F / 51-107°C, must be enabled in Low-level programming to be used.

Time

□Time is programmed in HH:MM.SS
☐ Time can be programmed at any value between 00:00 minimum and 12:00 maximum.
☐Default is 00:00 for all steps / programs.

A-17

Steam

□1 ^st parameter can be: OFF, ON, PULSE.

○If OFF, steam remains off for duration of step.

○If ON, steam remains on for duration of step.

○If PULSE, pulsed steam is enabled for duration of step.

☐Default is OFF for all steps / programs (no steam).

Pulse-Steam

□Steam parameter (see above) must be set to PULSE.

☐ Pressing Pulse-Steam allows programming TON 0.02 seconds by default.

☐Pressing Pulse-Steam a 2 ^nd time allows programming TOFF 0.30 seconds by default.

☐Default is OFF for all steps / programs (no steam).

Fan

□1 ^st parameter can be: OFF, ON, PULSE.

○If OFF, fan remains off for duration of step.

○If ON, fan remains on for duration of step.

○If PULSE, pulse fan is enabled (pulse mode for duration of step).

■Pressing Fan a 2 ^nd time allows programming TON 02.30 minutes by default.

- Pressing Fan a 3 ^rd time allows programming TOFF from 0.25 seconds by default.

☐Default is PULSE for all steps/programs.

Rack

(Functional only with oven models with rotating racks).

□Rack must be enabled in low-level programming to be useable.

☐ This can be ON or OFF for each step.

☐ Default is ON for all steps / programs, if enabled in low-level programming.

Step End

☐ Step End defines what happens with the end of a Cook Program Step (Stop key is used to program Step End parameter).

○ AUTO: nothing happens, automatically move on to the next step (buzzer output remains off).

○ WARN: move on automatically to the next step, but turn on buzzer output for 5 seconds.

- MANUAL: activates buzzer output until user manually presses Start key to enable next step.

○ LAST: activate buzzer output until user manually presses Stop key to end the recipe.

☐Default is AUTO for all steps / programs.

Food Probe in Programming Mode

□ Food temperature can be programmed to the following settings OFF ON MONITOR.

ON : using food temperature's programming set point to end the current step at that temperature.

○OFF: default for all steps / programs.

○MONITOR: to ignore food probe temperature, but still display the information if requested.

COOK MODE

When a Cook Program is used, if the timer is inactive, the oven is considered idle (but it still maintains the set point). In Manual Mode, the timer is used only as a reminder, this mode can cook without using the timer.

Display/LED

☐The 1st line display depends on which view is selected:

○Time View

■Current time left in step is displayed, except in the last step, where hold time is displayed.

○Temperature View

■Cavity temperature.

Default View:

■ Current program name is displayed, except in last step, where PRODUCT READY is displayed.

☐2nd line shows current step number if oven is active.

□Heat, Fan, Steam LED follows output state.

Keys

Note: Any changes to the various oven parameters in this mode will not be stored, but will simply take effect in the current step. This allows “tweaking” recipes from time to time due to product variations or other factors. For changes to be stored, program mode must be used.

☐ Press Temperature key to toggle the current view between Default, Cavity Probe and Food Probe.

□Press Time key:

- Recipe active: toggles between default and remaining step time.

- Last Step: toggles between the default and holding time.

☐ 3-second long press of Temperature key to change set point (using Up/Down keys).

○ If enabled, a second press of the Temperature key will display the food probe setting.

□ 3-second long press of Time key to change timer's value (using Up/Down keys).

☐ Press Start key to start timer countdown (and rack rotation, if enabled).

□3-second long press of Next key to skip to next step.

☐ 3-second long press of Previous key to go back to previous step.

□Press Stop key to cancel countdown and return to idle.

□3-second long press of Stop key to go into Cool Down mode.

☐ In Manual Mode only, Fan, Rack, Steam and Auto-Steam keys can be used to toggle their respective output states.

☐ Auto-Steam key will start/stop the auto-steam according to Low-level Steam Override TON and TOFF parameters.

□If oven is idle, a 5-second long press of the 📁 Program key will enable Program Mode for the currently selected Cook Program (or Manual Program).

☐ When last step timer expires, the unit beeps 5 times and displays [PRODUCT_READY]. Pressing Stop red key will clear the message and resume idle.

SYSTEM DIAGNOSTICS

Cavity Probe Alarm

☐ Occurs when units detects a defective cavity or food temperature probe.
□ Unit goes into Off mode with error message |CAVITY PROBE ERROR| or
FOOD PROBE ERROR.

Accessory Failure

□Occurs when input signal is no longer received.

☐Unit goes into Off mode with error message:

○Accessory failure input # generates ACCESSORY 1 FAILURE.

- Accessory failure input # generates OVERHEAT FAILURE over heat alarm in control compartment (check cooling fan and filter).

LANGUAGE DISPLAY

Three languages are available. To change the language display, the controller must be at OFF mode.

Press and hold the key for 5 seconds and use

▲ / ▼ keys to select the language.

□ENGLISH, FRANCAIS, ESPANOL

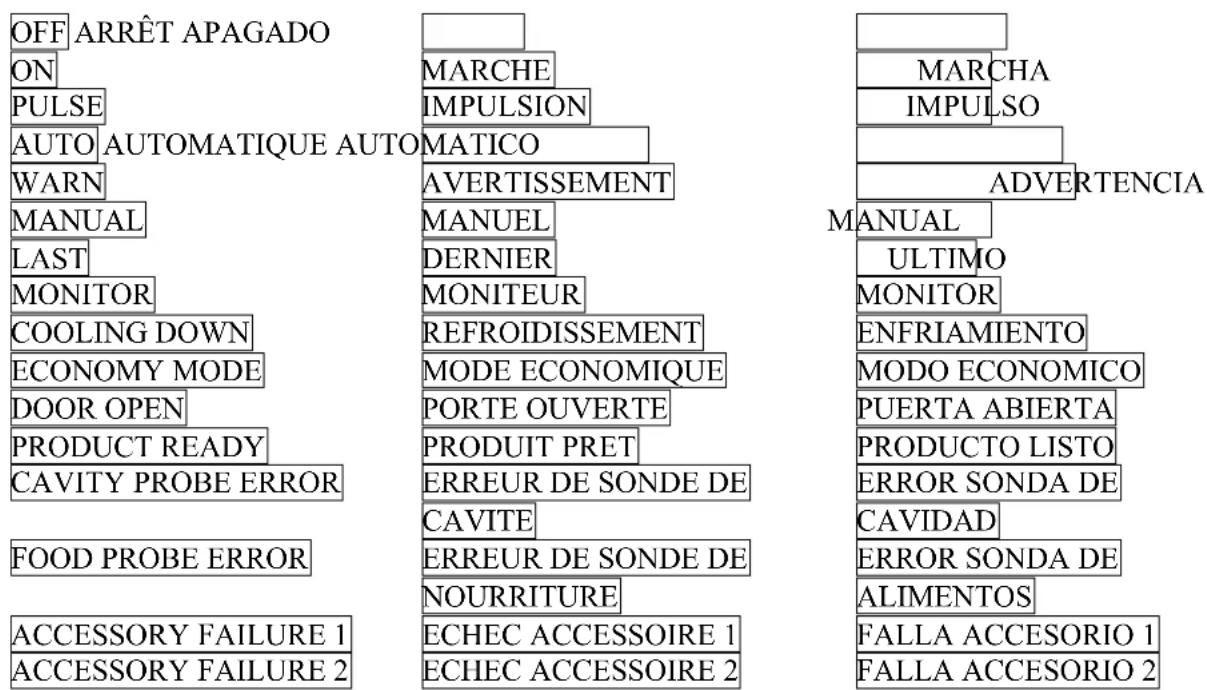

Only the following message will be changed, you can only change the recipe name by using a PC.

□English French Spanish

OFF ARRÊT APAGADO

ON

PULSE

AUTO AUTOMATIQUE AUTO

WARN

MANUAL

LAST

MONITOR

COOLING DOWN

ECONOMY MODE

DOOR OPEN

PRODUCT READY

CAVITY PROBE ERROR

FOOD PROBE ERROR

ACCESSORY FAILURE 1

ACCESSORY FAILURE 2

MARCHE

IMPULSION

MATICO

AVERTISSEMENT

MANUEL

DERNIER

MONITEUR

REFROIDISSEMENT

MODE ECONOMIQUE

PORTE OUVERTE

PRODUIT PRET

ERREUR DE SONDE DE CAVITE

ERREUR DE SONDE DE NOURRITURE

ECHEC ACCESSOIRE 1

ECHEC ACCESSOIRE 2

MARCHA

IMPULSO

ADVERTENCIA

MANUAL

ULTIMO

MONITOR

ENFRIAMIENTO

MODO ECONOMICO

PUERTA ABIERTA

PRODUCTO LISTO

ERROR SONDA DE

CAVIDAD

ERROR SONDA DE

ALIMENTOS

FALLA ACCESORIO 1

FALLA ACCESORIO 2

CONTRÔLE PROGRAMMABLE ECM-1 - MODES D'OPÉRATION

□English French Spanish

OFF ARRÊT APAGADO ON PULSE AUTO AUTOMATIQUE AUTO WARN MANUAL LAST MONITOR COOLING DOWN ECONOMY MODE DOOR OPEN PRODUCT READY CAVITY PROBE ERROR FOOD PROBE ERROR ACCESSORY FAILURE 1 ACCESSORY FAILURE 2 MARCHA IMPULSO MATICO AVERTISSEMENT MANUEL DERNIER MONITEUR REFROIDISSEMENT MODE ECONOMIQUE PORTE OUVERTE PRODUIT PRET ERREUR DE SONDE DE CAVITE ERREUR DE SONDE DE NOURRITURE ECHEC ACCESSOIRE 1 ECHEC ACCESSOIRE 2 ADVERTENCIA MANUAL ULTIMO MONITOR ENFRIAMIENTO MODO ECONOMICO PUERTA ABIERTA PRODUCTO LISTO ERROR SONDA DE CAVIDAD ERROR SONDA DE ALIMENTOS FALLA ACCESORIO 1 FALLA ACCESORIO 2

ECM-2 PROGRAMMABLE CONTROL - OPERATING MODES

1. Turn the main switch "ON" (1).
2. The light inside the proofer will turn ON and the digital control will indicate a code. Then, "PREH" will flash.
3. "PREH" will be displayed on the control until it reaches the set temperature.
4. To check and modify:

DOYON 图:8:8:8.8 AM PM C F

Temperature settings : Press and hold down for 2 seconds the temperature key and adjust with the UP and DOWN arrows. Then,

press temperature key to save data or "red exit without saving.

" to

Humidity settings : Press and hold down for 2 seconds the humidity key and adjust with the UP and DOWN arrows. Then, press

humidity key to save data or "red saving.

to exit without

1. When the control reaches the set parameters, "PREH" will disappear and the timer display will appear.

To start the timer, press "green", the timer will stop blinking and start countdown. At the end of the countdown an alarm will go off and "READY" will appear on the display.

Press "red

1. When proofing cycle is completed, turn "OFF" (0) the switch.

When the proofer is not in operation, open the doors to let out the humidity and to prevent mould.

P.S. The doors should not be opened unnecessarily to conserve the heat and humidity in the proofer.

Every day cleaning of the water pan under the proofer's doors should be exercised.

Diagram of an electrical control panel with labeled components including buttons, meters, and indicator lights

N°	CODE	FRANÇAIS	ENGLISH	QTY
1	ELT540	CONTRÔLE ÉLECTRONIQUE POUR ÉTUVE	ELECTRONIC CONTROL FOR PROOFER	1
2	ELI402	SÉLECTEUR 2 POS. NOIR	BLACK SELECTOR 2 POS.	1
3	ELI406	BASE AVEC 1NO	BASE WITH 1NO	1
4	ELB096	DISJONCTEUR 5A	5A BREAKER	1
5	ELB097	DISJONCTEUR 20A	20A BREAKER	2

CONTRÔLE PROGRAMMABLE ECM-2 - MODES D'OPÉRATION

ANSWERS TO MOST FREQUENT QUESTIONS

Always cut off the main power before replacing any parts. Take care of water and electric wire supply system when pulling the oven.

Control parts on the front and proofer control:

Remove the side panels of the oven and the proofer by screwing out the screws.

Motor system on the back of the oven:

Pull the oven and screw out the panels.

Questions Solutions
The oven does not turn on.	Check the breakers on the front panel.Check the breakers of the building.Check if the doors are tightly closed.Check the motor Breaker and the overload relays located in the electrical control panel.
Uneven baking.	Make sure that the grills do not obstruct the air flow. Do not use foil on the grills.Verify the temperature of the oven by using an oven thermometer and make sure that it is even with the thermostat setting.If the oven is baking too much on the sides, it is possible that the fan is not cycling properly. Verify if the motor turns 2.5 minutes in a direction, stops 30 seconds and starts for 2.5 minutes in the opposite direction.
The oven does not produce heat.	1. If the oven blowers are on•Make sure: the thermostat is adjusted to a temperature high enough to turn on the pilot light.2. If the oven blowers are not on•Check the overload relays located in the control compartment. If anyone of these is disengaged, call for a qualified technician.
The steam works in the oven but the light inside the steam button does not lite.	Replace the inside button bulb light.
If steam device of the oven does not work properly.	The oven must have been heating for at least half an hour before you use the steam system. If not, water will appear at the bottom of the oven.Check if the water supply valve (of the building) is open.Check if the water needle valve (of the oven) is open one eighth of a turn. Just close it and open it one eighth of a turn maximum.Check the solenoid valve.Check the preset steam timer in the back control box.Be sure to inject steam while the fan is running.The steam button light should lite during the steam injection.
If the OVERHEAT WARNING light is on, and you hear the warning buzzer.	Check if the cooling fan airflow is not obstructed. Check the cooling fan if it is running. If not, call a qualified technician to replace it.(Electrical components may be damaged if it is not repaired immediately.)
OPTIONALManual fill water pan.The warning red light in the front control panel stays on when the water pan is full.	You have no more water in the principal water pan.Check if the water line is not in air lock condition. Disconnect the water line at the inlet of the green solenoid valve and clean the strainer filter.Also clean the principal water pan and the float switch.
If there is no light in the proofer.	1. Verify every breaker in front of the proofer.2. Verify the main proofer switch and the main proofer contactor.
If there is no heat in the proofer.	1. Verify every breaker in front of the proofer.2. Verify whether the pilot light will function by raising the thermostat to a higher setting. If yes, verify element. If not, verify pilot light, thermostat or contactors.
If there is no humidity in the proofer.	Verify whether the pilot light works when you increase the humidity to the position high. If yes, verify if water comes in the reservoir and check the water level switch box and the float switch. Verify if limestone obstructs the waterfall. If the float switch is working fine, verify the contactor P1 and the immersion element. If the pilot light does not lite, verify the pilot light and the infinite switch.

DÉPANNAGE

AVANT D'APPELER LE DÉPARTEMENT DE SERVICE SOLUTION AUX PROBLÈMES LES PLUS FRÉQUENTS

• It is recommended to use a water filter and to clean or replace it regularly to avoid accumulation of minerals inside the unit.
• Once a year or as needed, clean the reservoir of the proofer (see parts description for localisation).

Questions Solutions
Clean the inside of the oven and the proofer with water and soap.Take out the grills (the grills of the oven could be cleaned with "Easy-Off").	We recommend and sell:Dirt Buster III: Action foam cleanerCHEMCOPart number: NEB201
After cleaning the inside of the oven, apply a silicone base oven protector. It avoids food from sticking to the metal.	We recommend and sell:316 Silicone base protector and lubricant for ovenDow CorningPart number: EXS400
Clean the oven windows with products like Brasso or equivalents. They are copper cleaners but good for this use	We recommend and sell:Wright's: Cream copper cleanerJ.A. Wright & Co.Part number: EXC300
Clean the oven exterior with a stainless steel cleaner.	We recommend and sell:Stainless steel cleanerSANY or CURTIS (comestible)Part number: NES201

ENTRETIEN ET NETTOYAGE DU FOUR

ENTRETIEN DE L'UNITÉ

BAKERY OVENS (Table as reference only)

Menu item	Bake Time Minutes	Bake Temp °F	Bake Temp °C
Bagels (16 per pan) 15 400 204
Dinner rolls (16 per pan) 15-18 350 177
Sub rolls 12" (10 per pan) 15-18 350 177
French Baguette (5 per pan) 20-25 350 177
Croissants (15 per pan) 12-15 350 177
9" Pies (6 per shelf) 30-35 375 190
Muffins (15 per pan) 18-22 325 163
Muffins (24 per pan) 18-22 325 163
Cakes 9" (6 per shelf) 18-22 350 177
Quiches 9" (6 per shelf) 30-35 350 177
Cookies (frozen) (18 per pan) 8-10 300 149
Danish (15 per pan) 12-15 350 177
Biscuits (fresh) (15 per pan) 8-10 350 177
Bread (4 strapped pan) 30-35 375 190
Cinnamon rolls (8/half pans)	15-18 325	163
Brownies (16.5 oz box)	12 350	177

TABLEAU DE CUISSON

Technical schematic diagram of a multi-level industrial control unit with numbered components and labeled parts

I:\Dessins\JAOP14\MANUEL\JA14\ELEC\JAOP14 DROITE.dft

B-4

Item Part Number Description Quantity
1 ELM570 DOOR SWITCH 15A 2
2 ELD081 FRAME AND LIGHT SOCKET 77-708 120V 6
OR ELD082 FRAME AND LIGHT SOCKET 77-708 230V 6
3 50010894 ASSY. FRAME,GLASS,GASKET AND SCREW FOR ELD081 & ELD082	6
4 ELS950 BUZZER 120V 3
5 ELT503 HIGH LIMIT SWITCH 140°F 1
6 ELT506 HIGH LIMIT SWITCH (500°F) 2
7 ELM760 COOLING FAN 120V 1

Item	Num. Pièce	Description	Quantité
1	ELM570	MICRO INTERRUPTEUR 15A (PORTE)	2
2	ELD081	SOCKET AVEC BOITIER DE LUMIERE 77-708 120V	6
OU	ELD082	SOCKET AVEC BOITIER DE LUMIERE 77-708 230V	6
3 50	010894 ASSY.	COUVERT,VITRE,GASKET ET VIS POUR ELD081 & ELD082	6
4	ELS950	SONNERIE 120V	3
5	ELT503	THERMODISQUE 140°F	1
6	ELT506	THERMODISQUE HAUTE TEMPÉRATURE (500°F)	2
7	ELM760	VENTILATEUR DE REFROIDISSEMENT 120V	1

Note: As of April 2010, parts ELD081, ELD082 (#2) & 50010894 (#3) will replace parts ELD050 & ELA275.
Note: À partir d'avril 2010, les pièces ELD081, ELD082 (#2) & 50010894 (#3) remplaceront les pièces ELD050 & ELA275.

B-5
JAOP14 VUE DE GAUCHE/LEFT VIEW

Technical schematic diagram of a mechanical device with numbered components for identification and assembly reference.

I:\Dessins\JAOP14\MANUEL\JAOP14 GAUCHE.dft

Item Part Number Description Quantity
1 ELC860 CONTACTOR 2P 30A 110V 1
2 ELC615 RELAY 10A 2P COIL 110V 1
AND ELC617 BASE 1
3 ELC630 CONTROL RELAY 12A COIL 120V 1
AND ELC640 CONTROL RELAY BASE 1
4 ELT505 HIGH LIMIT TEMPERATURE 300^ 1
5	ELM730	PROOFER FAN BLOWER	1
6	ELD050	INCANDESCENT LIGHT SOCKET	4
AND	ELA275	BULB 60W 130V	4
OR	ELA285	BULB 50W 240V	4
7 ELE130		COIL ELEMENT 120V 1500W 1
OR	ELE131	COIL ELEMENT 208V 1500W	1
OR	ELE132	COIL ELEMENT 240V 1500W	1
OR	ELE142	COIL ELEMENT 400V 1500W	1
OR	ELE136	COIL ELEMENT 480V 1500W	1
8 ELE165		IMMERSION ELEMENT 120V 1500W 1
OR	ELE166	IMMERSION ELEMENT 208V 1500W	1
OR	ELE167	IMMERSION ELEMENT 240V 1500W	1
OR	ELE141	IMMERSION ELEMENT 400V 1500W	1
OR	ELE171	IMMERSION ELEMENT 480V 1500W	1
9	ELS887	SOLENOID VALVE WITH DIN CON. 110/120V 50/60HZ	1
10	ELV590	NEEDLE VALVE	1
11	QUF350	ELECTRIC FLOAT	1

Item	Numéro Pièce	Description	Quantité
1 ELC860		CONTACTEUR 2P 30A 110V	1
2 ELC615		RELAIS 10A 2P BOBINE 110V	1
ET	ELC617	BASE	1
3 ELC630		RELAIS DE CONTRÔLE 12A BOBINE 120V	1
ET	ELC640	BASE POUR RELAIS	1
4	ELT505	THERMOSTAT LIMITE HAUTE TEMPÉRATURE 300°	1
5	ELM730	VENTILATEUR D'ÉTUVE	1
6 ELD050		BASE DE LUMIÈRE	4
ET	ELA275	AMPOULE INCANDESCENTE 60W 130V	4
OU	ELA285	AMPOULE INCANDESCENTE 50W 240V	4
7	ELE130	ÉLÉMENT BOUDIN 120V 1500W	1
OU	ELE131	ÉLÉMENT BOUDIN 208V 1500W	1
OU	ELE132	ÉLÉMENT BOUDIN 240V 1500W	1
OU	ELE142	ÉLÉMENT BOUDIN 400V 1500W	1
OU	ELE136	ÉLÉMENT BOUDIN 480V 1500W	1
8	ELE165	ÉLÉMENT IMMERSION 120V 1500W 1
OU	ELE166	ÉLÉMENT IMMERSION 208V 1500W 1
OU	ELE167	ÉLÉMENT IMMERSION 240V 1500W 1
OU	ELE141	ÉLÉMENT IMMERSION 400V 1500W 1
OU	ELE171	ÉLÉMENT IMMERSION 480V 1500W 1
9	ELS887	VALVE À SOLENOÏDE AVEC CON. DIN 110/120V 50/60HZ	1
10	ELV590	VALVE À POINTEAU	1
11	QUF350	INTERRUPTEUR À NIVEAU D'EAU	1

B-7
JAOP14 VUE ARRIÈRE/BACK VIEW

ELEXXXF01 ELEXXXF02 ELEXXXF04 ELEXXXF05 ELP823B (STANDARD)/ ELP824B (ECM-1) 1 2 2 2 4 3 5

I:\Dessins\JAOP14\MANUEL\JAOP14 ARRIÈRE.dft

Item	Part Number	Description Quantity
1	ELM820M MOTOR .75HP 3PH 208/230/460V 60Hz/50Hz 2
2	ELE110 STRAIGHT ELEMENT 208V 2500W 8
OR	ELE120 STRAIGHT ELEMENT 240V 2500W 8
OR	ELE118 STRAIGHT ELEMENT 400V 2500W 8
OR	ELE117 STRAIGHT ELEMENT 480V 2500W 8
3	ELV590 NEEDLE VALVE 2
4	ELS887 SOLENOID VALVE WITH DIN CONNECTION 110/120V 50/60HZ		2
AND	ELS889 JUNCTION BOX FOR ELS887 AND ELS888 2
5	PLF100	WATER FILTER	1

Item	Numéro Pièce	Description	Quantité
1	ELM820M	MOTEUR .75HP 3PH 208/230/460V 60Hz/50Hz	2
2 ELE110		ÉLÉMENT DROIT 208V 2500W	8
OU ELE120		ÉLÉMENT DROIT 240V 2500W	8
OU ELE118		ÉLÉMENT DROIT 400V 2500W	8
OU ELE117		ÉLÉMENT DROIT 480V 2500W	8
3 ELV590		VALVE À POINTEAU	2
4	ELS887	VALVE À SOLENOÏDE AVEC CONNECTION DIN 110/120V 50/60HZ	2
ET	ELS889 BOÎTE DE JONCTION POUR ELS887 ET ELS888		2
5 PLF100		FILTRE À EAU	1

C-1
PAN. CONT. DOUBLE 120/208-240V 1&3PH, AVEC ATV & ZELIO, SANS BOÎTIER CONTROL PAN. DOUBLE 120/208-240V 1&3PH, WITH ATV & ZELIO, WITHOUT BOX

Labeled diagram of an electronic control panel with numbered components and connectors

N°	CODE	DESCRIPTION FRANÇAISE	ENGLISH DESCRIPTION	QTY
1	ELB072	BORNIER 3P 175A	TERMINAL BLOCK 3P 175A	1
2	ELB071	BORNIER 2P 175A	TERMINAL BLOCK 2P 175A	1
3	ELL050	TERMINAL DE MISE À LA TERRE 70A	70A GROUND LUG	3
4	ELC915	CONTACTEUR TÉLÉMÉCANIQUE (BOBINE 120V)	CONTACTOR TELEMECANIC (COIL 120V)	4
5	ELC629	BASE POUR RELAIS ELC628	BASE PLATE FOR RELAY ELC628	3
6	ELC628	RELAIS 5A 120VAC DOUBLE CONTACT	RELAY 5A 120VAC DOUBLE CONTACT	3
7	FEV001	VARIATEUR DE VITESSE 240 V	INVERTER 240 V	2
8	ELB073	BLOC TERMINAL 30A	TERMINAL BLOCK 30A	27
9	ELB073B	BARRIÈRE ISOLANTE	INSULATING BARRIER	1
10	ELB073A	ATTACHE ÉLECTRIQUE	ELECTRIC ATTACH	1
11	ELM716	AUTOMATE PROG. ZELIO 8 ENTRÉES/ 8 SORTIES	PROG. AUTOMAT ZELIO 8 IN/8 OUT	2
12	ELB083	DISJONCTEUR 2P 15A	BREAKER 2P 15A	1

DESSINE PAR VickyG	DATE: 2008-06-28	MODELE:ELP823
APPROUVE PAR DATE: 2009-03-16
EMPLACEMENT: 1\Dessins\PANNEAU\ELP823.dft PAGE 1 DE 1

PAN. CONT. DOUBLE 120/208-240V 1&3PH, AVEC ATV, SANS BOÎTIER CONTROL PAN. DOUBLE 120/208-240V 1&3PH, WITH ATV, WITHOUT BOX

C-2

Exploded view diagram of an electronic control panel with numbered components and labeled connectors

N°	CODE	DESCRIPTION FRANÇAISE	ENGLISH DESCRIPTION	QTY
1	ELB072	BORNIER 3P 175A	TERMINAL BLOCK 3P 175A	1
2	ELB071	BORNIER 2P 175A	TERMINAL BLOCK 2P 175A	1
3	ELL050	TERMINAL DE MISE À LA TERRE 70A	70A GROUND LUG	3
4	ELC915	CONTACTEUR TÉLÉMÉCANIQUE (BOBINE 120V)	CONTACTOR TELEMECANIC (COIL 120V)	4
5	ELC498	MODULE ANTIPARASITE 110-240VAC LAD4RCU	SURGE SUPRESSOR 110-240VAC LAD4RCU	4
6	ELC629	BASE POUR RELAIS ELC628	BASE PLATE FOR RELAY ELC628	4
7	ELC628	RELAIS 5A 120VAC DOUBLE CONTACT	RELAY 5A 120VAC DOUBLE CONTACT	3
8	ELB077	BLOC TERMINAL SUPERPOSÉ 30A	STACK TERMINAL BLOCK 30A	19
9	FEV001	VARIATEUR DE VITESSE 240 V	INVERTER 240 V	2
10	ELC800	RELAIS STATIQUE POUR CONTRÔLE WATLOW	SOLID STATE RELAY FOR WATLOW CONTROL	2
11	ELB083	DISJONCTEUR 2P 15A	BREAKER 2P 15A	1

DECSPIRION: PAN. CONT. DOUBLE 120/208-240V 1&3PH, AVEC ATV, SANS BOITIER
DESSINE PAR: VickyG	DATE: 2008-06-28	MODELE: ELP824
APPROUVE PAR	DATE: 2009-03-16
EMPLACEMENT: \Dessins\PANNEAU\ELP824.dft PAGE 1 DE 1

LIMITED WARRANTY

(Continental United States Of America And Canada Only)

Doyon Equipment Inc. guarantees to the original purchaser only that its product are free of defects in material and workmanship, under normal use.

This warranty does not cover any light bulbs, thermostat calibration or defects due to or resulting from handling, abuse, misuse, nor shall it extend to any unit from which the serial number has been removed or altered, or modifications made by unauthorised service personnel or damage by flood, fire or other acts of God. Nor will this warranty apply as regards to the immersion element damaged by hard water.

The extent of the manufacturer's obligation under this warranty shall be limited to the replacement or repair of defective parts within the warranty period. The decision of the acceptance of the warranty will be made by Doyon Equipment service department, which decision will be final.

The purchaser is responsible for having the equipment properly installed, operated under normal conditions with proper supervision and to perform periodic preventive maintenance.

If any parts are proven defective during the period of one year from date of purchase, Doyon Equipment Inc. hereby guarantees to replace, without charge, F.O.B. Linière, Quebec, Canada, such part or parts.

Doyon Equipment Inc will pay the reasonable labour charges in connection with the replacement parts occurring within one year from purchase date. Travel over 50 miles, holiday or overtime charges are not covered. After one year from purchase date, all labour and transportation charges in connection with replacement parts will be the purchaser's responsibility.

Doyon Equipment Inc. does hereby exclude and shall not be liable to purchaser for any consequential or incidental damages including, but not limited to, damages to property, damages for loss of use, loss of time, loss of profits or income, resulting from any breach or warranty.

In no case, shall this warranty apply outside Canada and continental United States unless the purchaser has a written agreement from Doyon Equipment Inc.

GARANTIE LIMITÉE
