SB42 - Hand blender GIRMI - Free user manual and instructions

Brand	GIRMI
Model	SB42
Product type	Hand blender / Electric mixer
Power supply	220-240 V ~ 50/60 Hz
Power	250 W (estimated)
Number of speeds	5 speeds + Turbo function
Included accessories	2 metal beaters
Body material	Plastic
Beater material	Stainless steel
Cable length	Approximately 1.2 m
Dimensions (L x W x H)	Approximately 20 x 10 x 12 cm
Weight	Approximately 0.8 kg
Beater ejection function	Yes (push button)
On/Off switch	Yes, with speed control
Maximum continuous use time	5 minutes
Recommended pause between cycles	10 minutes
Cleaning of motor body	Damp cloth, do not immerse
Cleaning of beaters	Warm water and mild detergent
Safety	Do not use by children under 8 years; unplug before cleaning; do not operate empty
Intended use	Domestic and similar applications (staff kitchens, hotels, etc.)
Repairability	Repairs by authorized service center only; cable not user-replaceable
Warranty	In accordance with legal conditions (see full manual)

Frequently Asked Questions - SB42 GIRMI

How to use the GIRMI SB42 hand blender?

Make sure the switch is OFF, immerse the beaters into the food, then turn on at minimum speed to avoid splashes. Gradually increase speed according to the table in the manual.

What is the maximum continuous use time?

Do not exceed 5 minutes of continuous use. Respect a pause of at least 10 minutes between each cycle to avoid overheating.

How to clean the motor body and beaters?

Always unplug the appliance. Clean the motor body with a damp cloth, never immerse it. The beaters can be washed in warm water with mild dish detergent.

Can children use this appliance?

No, this product should not be used by children under 8 years. Children over 8 years can only use it under supervision. Keep the appliance out of reach of children under 8 years.

What to do if the power cord is damaged?

Do not use the appliance. Contact an authorized technical support center for repair. Do not attempt to repair it yourself.

How to safely eject the beaters?

Turn off the appliance (switch to OFF), unplug it, then press the ejection button (1) to release the beaters. Never operate this button during operation.

Can I use accessories not supplied?

No, use only original accessories and parts to ensure safety and proper operation.

Does the appliance heat up normally?

Slight heating is normal. If the appliance becomes too hot, stop it and let it cool down. Make sure not to block the ventilation slots.

Can I blend hot liquids?

It is not recommended to blend very hot liquids (above 60°C) to avoid splashes and burns. Let cool before blending.

How to dispose of the appliance at end of life?

Do not dispose of it with household waste. In accordance with the WEEE directive (2012/19/EC), take it to a municipal collection point or your retailer for appropriate recycling.

USER MANUAL SB42 GIRMI

Technical model: YDHM-049H-2

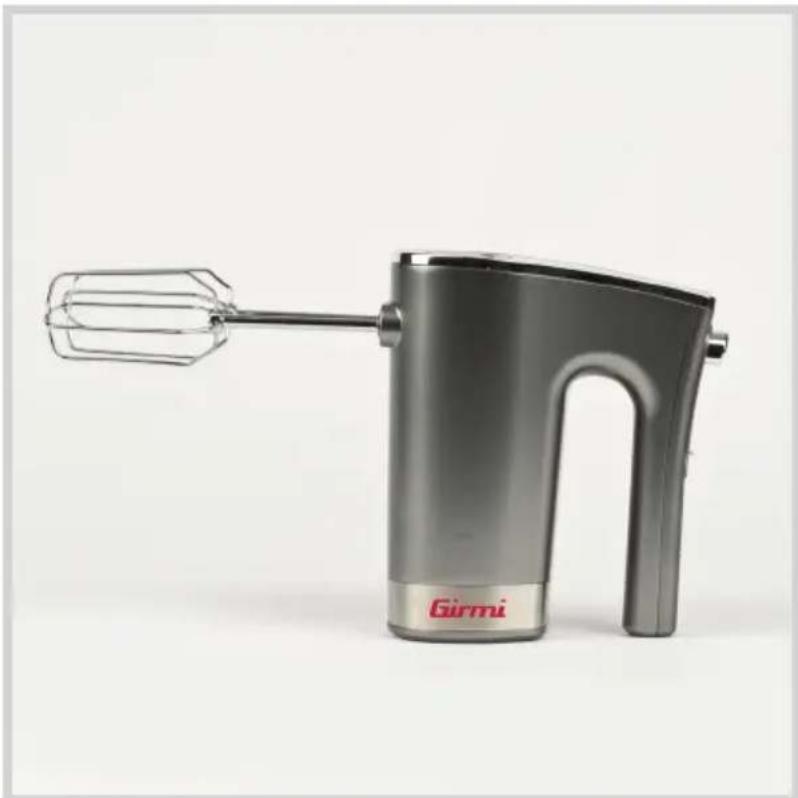

Exterior view of a Girmi electric hand mixer with a whisk (no text or symbols visible on the device body)

Mastro Mix

Sbattitore

Hand Mixer

ITA: INDICE

Simbologia.... p. 2

Safety instructions.... p. 7

General information.... p. 9

SB42.... p. 9

Operating.... p. 9

Select the accessories.... p. 10

Cleaning.... p. 10

Technical features.... p. 10

Waste of electric and electronic equipment (WEEE

Directive).... p. 28

PORTUGUES:....p. 11

ESPAÑOL......p. 15

DEUTSCH....p. 19

FRANCAIS p. 23

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

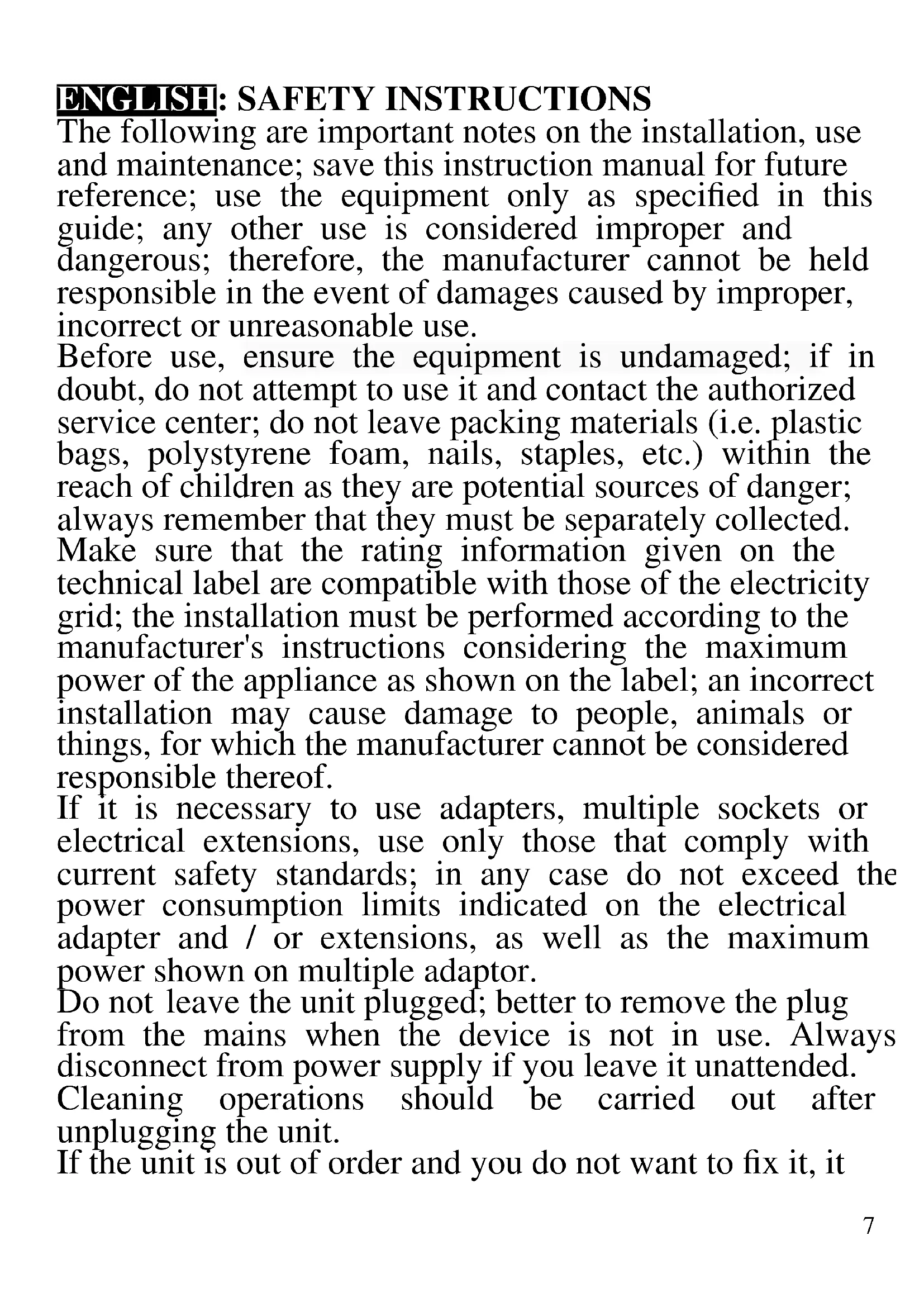

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it

must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- Children must not play with the appliance.

- Keep the appliance and its cord out of reach of children less than 8 years. This appliance cannot be used by children, even if they're more than 8 years old.

- This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of appliance in a safe way and understand the hazards involved.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

- This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Before every use, unroll the power cord.

• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INSTRUCTIONS

At the first use, wash carefully all the parts that come in touch with food such as whips and attachments.

Bring knob on "0" (OFF) position before inserting the plug in the socket.

To avoid overheating of the engine, do not use the appliance for more than 5 minutes continuously at the minimum speed or 1 minute at max speed, then rest for at least 5 minutes. Do not use the unit without food.

Do not insert fingers inside the food container while the appliance is running. Keep your hair and clothes far from the unit while it is working.

Before operating, check that all parts are well assembled. Before releasing the whips or other attachments, move the speed selector to "0". Clean the beaters after each use.

Never leave the appliance unattended while it is running.

Disconnect the electric plug from the power outlet after each use and / or before you install or remove any attachments.

Do not immerse the motor unit in water or other liquids

DESCRIPTION SB42

1. Release button

2.5 speeds selector

1. Whips / beaters

2. Handle

3. Base

4. Motor unit

5. Hooks

OPERATING

The hand mixer model SB42 is suitable for mixing, beating and mounting eggs. Thanks to 5 operation speed, it allows to obtain more or less homogeneous preparations according to the requirements.

• Fit the whips/beaters on the motor housing (6). Choose whips (3) to whip, beat and stir. Choose hooks (7) to knead. Set the speed selector (2) to speed "0" and then connect the plug to the power outlet.
• Insert the appliance in the container with the food to work (make sure to completely submerge the whips as to avoid any splashing). Select the speed from "1" up to "5" to start the operations. For a best result, work first at the lower speed and then finish with the highest one.

WARNING: not insert fingers, hair or clothes in food container while the appliance is running.

- At the end of the operations, unplug the unit first, then eject the attachments by pressing the release button (1).

Caution: to prevent the overheating of the engine, do not use the appliance for more than 5 minutes continuously at a minimum speed or for more than 1 minute at maximum speed; then make a rest for at least 5 minutes. Do not use the unit without food.

SELECT THE ATTACHMENTS

There are 2 couple of attachments included, since they have different use.

Whips for beating

The whips (3) are indicated for whipping, beating, emulsifying and must be used at higher speeds. Typical application are: mix and beat the eggs for preparing cakes and omelettes, beat the whites of eggs, prepare creams, emulsifying while preparing mayonnaise.

Hooks for kneading

The hooks for kneading (7) are suitable for cakes, pizzas or for kneading food in general. It is not recommended the use of the hooks if the dough has a heavy consistency.

CLEANING

Unplug the unit from the power outlet before starting cleaning operations.

Do not immerse the motor unit in water, but wash it with a damp cloth and non-abrasive detergent. Also avoid any infiltration of water inside the motor housing. The attachments can be washed like every day crockery with non-abrasive sponge and dishwashing liquid or in the dishwasher. Completely dry all the accessories before assembling them again.

TECHNICAL FEATURES

• Power supply: AC 230V\~50-60Hz. Power 300W
- 5 working speeds, release button
• Accessories: whips for beating and hooks for kneading

PORTUGUES: ADVERTÊNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.girmi.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
