USER MANUAL JNIPS2382FHDRHSP Japannext

1.4 1920x1080 @ 75Hz

HDMI2 NON Audio Écouteur OUI Haut-Parleur 2WX2 Alimentation Consommation (W) Max≦30W Normal≦18W Économie d'énergie≦12W Veille≦0.5W Conditions environnementales Température de fonctionnement 0 ~ 50 °C Humidité (%) 10% ~ 90% Dimensions extérieures (avec support) Hauteur : Mode Paysage 380-490 mm - Mode Portrait 555-610 mm x Longueur : 542 x Profondeur : 192 Dimensions de l'emballage Hauteur : 401 mm x Largeur : 604 mm x profondeur : 173 mm Poids du produit ~ 3.0kg Poids total de l'emballage ~4.5kg Fonction d'inclinaison -5° | +20° Réglage de la hauteur 110mm Pivot verticale R30° | L30° Pivot horizontale R 90 ° Kensington OUI Plage de puissance CA AC 100-240V 50/60Hz Témoin d'alimentation On: Blue Standby: rouge VESA/Montage 75x75mm 12Support client général TÉL: [phone] Horaires de 9h00 à 17h00 (Fermé les samedis, dimanches et jours fériés) Formulaire de contact https://japannext-eu.gorgias.help/fr-FR/contact Vous pouvez facilement accéder au formulaire de demande en scannant le code QR. JAPANNEXT Co., Ltd. Département CS 506-5 Yukikawa, ville d'Isumi, Chiba 298-0134 1375Hz FHD display - 23.8 inches LED LCD Monitor Manual Important: Please make sure to read this instruction manual before use. Please use it correctly for your safety. Once you have read it, make sure to keep it. 14Safety Please read all included instruction manuals carefully before use.

• Place the monitor on a flat, stable surface. To avoid the risk of fire or electric shock, avoid high temperatures, low temperatures, high humidity and accumulation of dust. Do not use the monitor where it may become wet or exposed to water.

• Do not open and never cover the monitor case because it contains high voltage parts inside which could cause serious injury or fire if you come into contact with them.

• If the power supply is damaged, please contact our customer service or your dealer. Never attempt to inspect or repair the product yourself.

• Before use, please ensure that all cables are properly connected and the power cord is not damaged. If you discover any damage or blurred areas, please contact your dealer immediately.

• The slots and openings on the top or back of the monitor are required ventilation holes for this product. Do not cover these holes. Do not place this product near or above a heat source such as a radiator without adequate ventilation.

• Do not insert foreign objects or spill liquids into any openings in the monitor case. This could cause damage or malfunction.

• Always operate the monitor using the type of power source indicated on the product label. If you are unsure of the type of power supply you have, please contact your local power company.

• Do not apply excessive current to sockets or extension cords. Use caution as excessive current can cause electric shock and is very dangerous.

• To protect your monitor from damage caused by power surges, turn off power to the device during long periods of inactivity or during lightning storms.

• To ensure satisfactory operation of the monitor, the computer must be equipped with a properly configured outlet marked in the AC100-240V range.

• If you experience technical problems or concerns with your monitor, please contact our customer service or authorized reseller. 15• To work safely, make sure to establish the ground connection before connecting the power plug to the power source. Also, when disconnecting the ground connection, make sure to unplug the power plug first.

• This product is not intended for continuous use for 24 hours. Please unplug the power plug when you do not use the product for a long time.

• The included AC adapter and cord are intended for this product only. Do not use it for other equipment.

• Do not use cleaners or detergents containing alcohol or acetone to clean your monitor. Make sure to use a cleaner specifically designed for LCD monitors. Do not spray liquid cleaner directly on the screen. Please note that if the cleaning fluid drips and gets inside the monitor, it is very dangerous as it may cause electric shock or fire. LCD panels are easily damaged, so do not rub it with hard objects.

• Before lifting or moving the monitor, turn off the power switch and unplug all cables and power cords. When installing the monitor, lift it using the appropriate method. When lifting or carrying the monitor, make sure to grip it by the edges. Never lift the monitor by its stand or cord. Precaution

• Using the monitor in a dark room, or using it continuously for long periods of time, may cause eye fatigue.

• Take a break of 5 to 10 minutes every hour and use the monitor in a reasonably bright room. 16Cleaning and maintaining the monitor Before cleaning the monitor, turn off the power and unplug all cables and cords. How to maintain the monitor:

• LCD panel area: Do not use tissue paper, etc., instead use a clean, soft cloth specially designed for LCD panels. Please wipe the monitor gently. For difficult-to-remove stains, use a neutral cleaner specifically designed for LCD panels.

• Monitor frame: Wipe with a soft cloth dampened with a mild cleaner. The symptoms listed below are normal conditions for the monitor

• When first used, the screen may flicker due to the nature of the backlight. If this symptom appears, please turn off the monitor and then turn it on again.

• Depending on your desktop setup, displayed colors, and brightness, brightness may appear uneven.

• Several pixels may or may not always be lit.

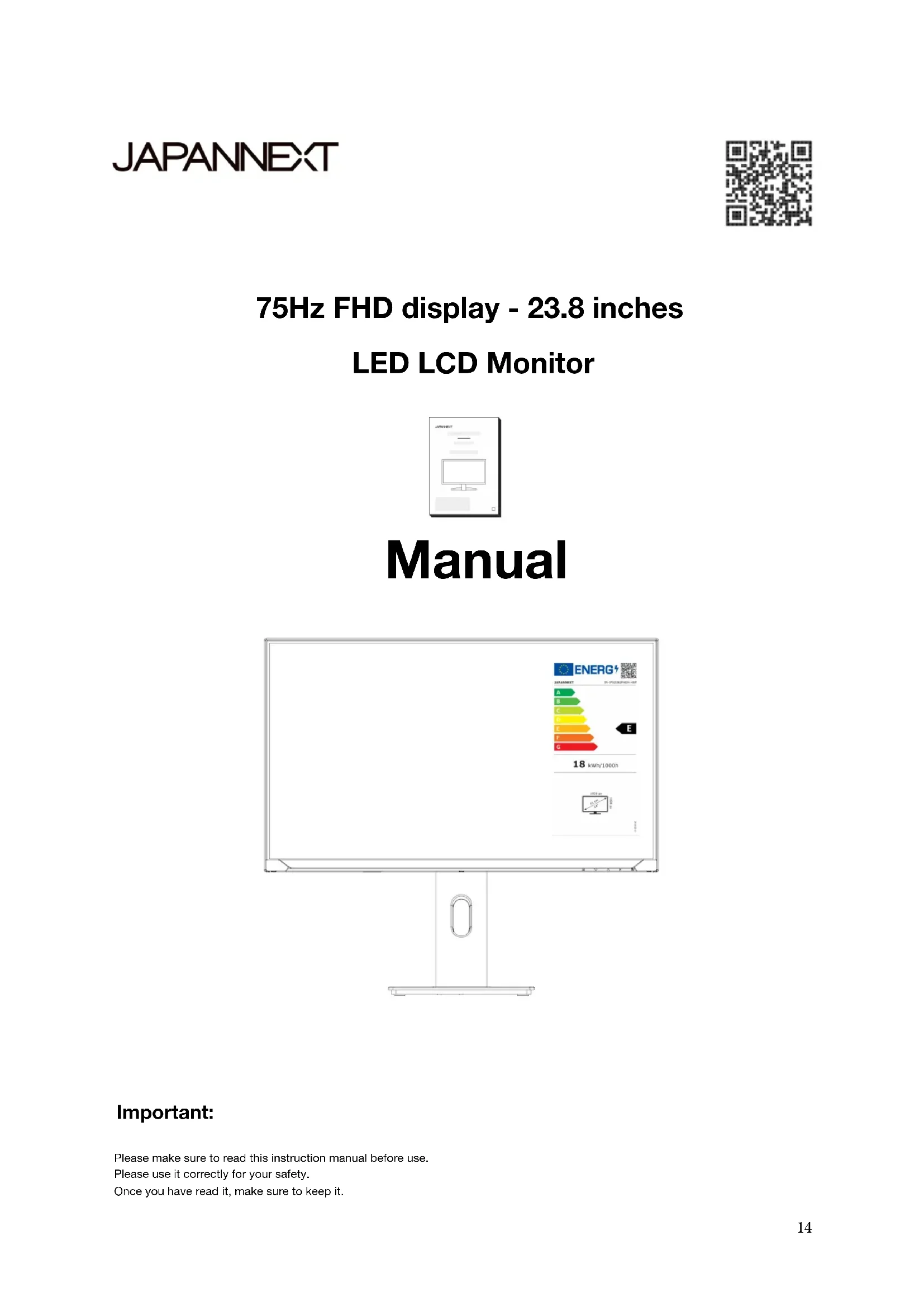

• If you display the same image for a long time, an afterimage from the previous image may persist even after switching to a different image. In this case, the screen will recover slowly. Otherwise, turn off the power for a few hours and the problem will be fixed. Instead of trying to repair the monitor yourself, contact customer service or the dealer. 17Welcome Thank you for purchasing JAPANNEXT 23.8 inch LCD Monitor. The installed panel supports FHD (1920 x 1080) resolution. We recommend using FHD resolution for best performance. If the resolution is lower than FHD, the original performance cannot be achieved. 18Quick Start Guide Assembling the Monitor Base

1. Spread a soft cloth on a flat, stable surface and place the device screen side down on it.

2. Insert the hook at the top of the stand into the mounting piece on the back of the monitor.

3. Secure the stand and base using the screws provided.

4. Make sure the monitor and stand are securely attached, then slowly raise the monitor.

*Supports tilt adjustment. When using the monitor with the screen tilted toward you, be careful not to tip it over. 19Connection with a computer

1. Make sure the monitor and computer are turned off before connecting the cable.

2. Connect the power cable and compatible cables (HDMI, VGA) to the monitor.

Also connect the cable (HDMI, VGA) to the computer.

3. Turn on the monitor and computer.

Notice : Since problems may occur, do not connect HDMI and VGA cables at the same time. Please connect only one to a computer. Accessories Manual | Power cable | HDMI cable | VESA spacer *The included power cable is intended to use only with this product. Do not use it for other equipment. 20Interface / Connectivity 1 : Port HDMI : Port compatible HDMI. 2 : Port VGA : Port compatible VGA. 3: Audio output port: Possibility of connecting headphones or speakers. 4: Power port: Used when connecting the power cable. 21Description of the display button ● When the On-Screen Menu (OSD) is not open

Press M, E to clear the display.

Show input source On Off ● When the on-screen menu (OSD) is displayed

Go down the menu or reduce the number of selected items

Go back or close the menu On Off 22On-Screen Menu (OSD) Menu Features Setting value Comment Image quality Brightness 0-100 Adjust the brightness Contrast 0-100 Adjust contrast BLACK LEVEL 0-100 Adjust the black level Picture Mode Standard Picture mode settings *If you select anything other than Standard, you will not be able to change some settings such as brightness and contrast. game movie text FPS RTS RCD ON OFF Dynamic contrast ON/OFF *If set to ON, some settings such as brightness cannot be changed. Image Horizontal Position 0-100 Set when using VGA Verticale Position 0-100 Display ratio Large/4:3 Setting the aspect ratio Energy saving On/Off Power saving on/off Color Color parameters User setting Adjust the color temperature cold color warm colour sRVB Red 0-100 Adjust when using user settings Green 0-100 Green 0-100 OSD Language English French Choose a language Position horizontale OSD 0-100 Adjust the horizontal position of the OSD Position verticale OSD 0-100 Adjust the vertical position of the OSD OSD time setting 5-60 Adjust OSD display time OSD Transparency 0-100 Adjust OSD transparency Reset Automatic adjustment Set when using VGA Whites Balance Reset Factory Reset Settings Automatic power off OFF/10/20/30/40/50/60/12 0/240 Configuring Auto Power Off MODE HDR OFF/AUTO Setting HDR mode Energy saving On/Off Power saving settings Other Source entry AUTO Select input source VGA HDMI Blue light reduction 0-100 Adjust blue light reduction in the range of 0-100 Volume 0-100 Adjust the volume Freesync ON OFF FreeSync Settings 23Dysfunction Symptoms Checkpoint Power LED does not light up

• Is the device turned on by pressing the power button?

• Make sure the power cord is securely connected to the monitor and the outlet. No image appears even though the power indicator is on

• Is the blank screensaver running? Please move your mouse or keyboard

• Make sure the brightness and contrast are not set to minimum.

• Please make sure the signal cable is properly connected to your monitor and computer.

• Check if the signal cable pins are bent or the cable is damaged.

• Is your computer turned on? If you have another monitor, try connecting it to see if the computer works properly.

• Does the computer signal timing match the monitor specifications? The image is distorted or ripples appear in the image.

• Please make sure the signal cable is well connected to your monitor and computer.

• Keep electrical devices that may cause electrical interference away from the monitor.　

• Does the computer signal timing match the monitor specifications? The image position is off-center. Image size is incorrect

• Is your computer resolution correct?

• Does the computer signal timing match the monitor specifications? The screen is too bright/too dark

• Screen (OSD): Adjust brightness and contrast settings from the menu. The image is blurry or unclear

• Set the display resolution on your PC to the same as the recommended native screen resolution for the monitor.

• Does the computer signal timing match the monitor specifications?

• Check if the signal cable pins are bent or the cable is damaged. The color of the image is incorrect

• Check if the signal cable pins are bent or the cable is damaged.

• Screen (OSD): Please adjust the red/blue/green color settings in the menu (color temperature).

• Screen (OSD): Please reset the settings from the menu.

• Does the computer signal timing match the monitor specifications? Unable to display FHD

• This product supports resolutions up to 1920 x 1080 (FHD), including HDMI and VGA. However, some graphics cards may not support 1920 x 1080 resolution. Please check with your local distributor or manufacturer for the hardware limitations of your computer. Abnormal image noise

• Are the cables correctly connected? 24Main specifications LCD display Panel Type IPS Panel Size 23,8 " Backlight HE D Brightness 300cd/m2 Contrast 1200:1 Refresh rate 60Hz Contrast Ratio (DCR) YES Pixel size 0.275mm Resolution 1920x1080 Screen format 16:9 Response time 14ms Angle of vision H:178° | V:178° Surface type Non Glossy Screen color

16.77 million colors & sRGB: 97%

Feature Freesync YES Anti-flicker YES Blue light reduction mode YES HDCP Yes 1.4 HDR Yes (HDMI) PIP/PBP

1.4 1920x1080 @ 75Hz

Audio Headphone YES Loud speaker 2WX2 Power Consumption (W) Max≦30W Normal≦18W Power Saving Mode 12W Standby.5W Environmental conditions Operating temperature 0 ~ 50 °C Humidity (%) 10% ~ 90% External dimensions (with support) Height: Landscape mode 380-490 mm - Portrait mode 555-610 mm x Length: 542 x Depth: 192 Packaging dimensions Height: 401 mm x Width: 604 mm x depth: 173 mm Product weight ~ 3.0kg Total packaging weight ~4.5kg Tilt function -5° | +20° Height adjustment 110mm Vertical pivot R30° | L30° Pivot horizontal R 90 ° Kensington YES AC power range AC 100-240V 50/60Hz Power indicator On: Blue Standby: red VESA/Mounting 75x75mm 25Customer Support TEL: [phone] Hours 9:00 a.m. to 5:00 p.m. (Closed Saturdays, Sundays and public holidays) Contact form https://japannext.fr/pages/faq?hcUrl=%2Fen-US%2Fcontact You can easily access the application form by scanning the QR code. JAPANNEXT Co., Ltd. CS Department 506-5 Yukikawa, ville d'Isumi, Chiba 298-0134
