USER MANUAL EnergySile Aero 5500 CECOTEC

Safety instructions 7

1. Parts and components 43

2. Before use 43

3. Product assembly 44

4. Operation 44

5. Wi-Fi connectivity and mobile App 46

6. Cleaning and maintenance 46

7. Technical specifications 47

8. Disposal of old electrical and electronic appliances 48

9. Technical support and warranty 48

10. Copyright 48

11. Simplified Declaration of Conformity 48

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

- Keep a minimum distance of 2.3 cm between the fan blades and the floor.

- Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.

- Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.

• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with the local regulations.
• The cable must be properly earthed to avoid possible accidents.
• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.

• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.

• Do not bend the blade-attachment system during the installation or cleaning process.

• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.

• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.

• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or size. Supervise children to prevent them from playing with batteries.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

QR code image containing encoded data, no visible human-readable text

Modelo: EnergySilence Aero 5285 WhiteTransparent Connected / EnergySilence Aero 5285 BlackTransparent Connected / EnergySilence Aero 5500 Aqua Black&Black Connected / EnergySilence Aero 5500 Aqua GoldBlack Connected / EnergySilence Aero 5500 Aqua IronBlack Connected / EnergySilence Aero 5500 Aqua Black&White Connected / EnergySilence Aero 5500 Aqua White&Black Connected / EnergySilence Aero 5500 Aqua GoldDarkWood Connected /EnergySilence Aero 5500 Aqua IronDarkWood Connected /EnergySilence Aero 5500 Aqua GoldWhite Connected /EnergySilence Aero 5500 Aqua IronWhite Connected / EnergySilence Aero 5500 Aqua Black&WhiteWood Connected / EnergySilence Aero 5500 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua IronWhiteWood Connected / EnergySilence Aero 5500 Aqua WhiteDarkWood Connected / EnergySilence Aero 5500 Aqua White&White Connected

Referencia del producto: 08496 / 08497 / 08511 / 08512 / 08513 / 08514 / 08515 / 08516 / 08517 / 08518 / 08519 / 08520 / 08521 / 08522 / 08523 / 08535

1. Mounting bracket
2. Remote control
3. Assembly kit
4. Blades
5. Motor

Fig. 2 key:

1. Mounting bracket
2. Remote control receiver
3. Main body
4. Motor
5. Blade
6. Screw

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Ceiling fan
• Remote control
• Assembly kit
• 2 x 1.5 V batteries type 3AAA
• Instruction manual

ENGLISH

3. PRODUCT ASSEMBLY

General assembly instructions

• If you wish to install the fan with a hook, the minimum weight capacity of the hook must be 100 kg.
• To prevent personal injury and damage, make sure that the location where the appliance is going to be installed allows a 2.3-metre clearance from the blades to the floor and a 76-cm clearance from the blades to any wall or object.
• Make sure that the building structure can hold the full weight of the fan.

Assembly according to the type of ceiling:

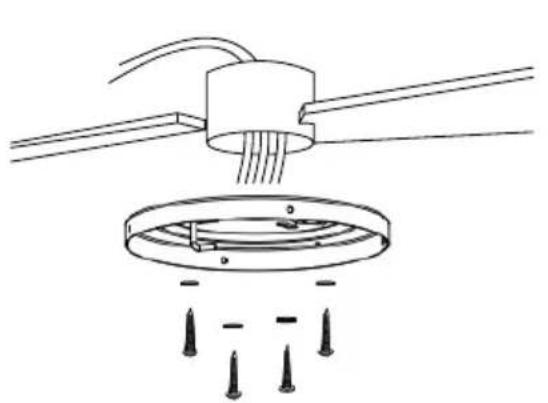

• Wooden ceiling. Fig. 3

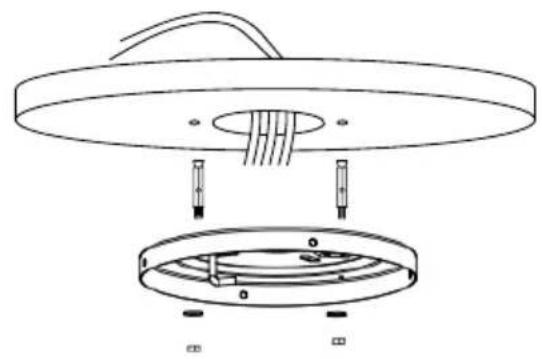

• Concrete ceiling: Drill a 8 mm hole and insert the screw. Align the bracket with the hole and tighten it with the nut. Fig. 4

To assemble this ceiling fan, follow the steps below:

1. Place the control receiver on the left engine coupling and connect the wiring as shown in the figures 5 and 6.
   Tip: To save time, place the washers on the blade screws before installing the blades.

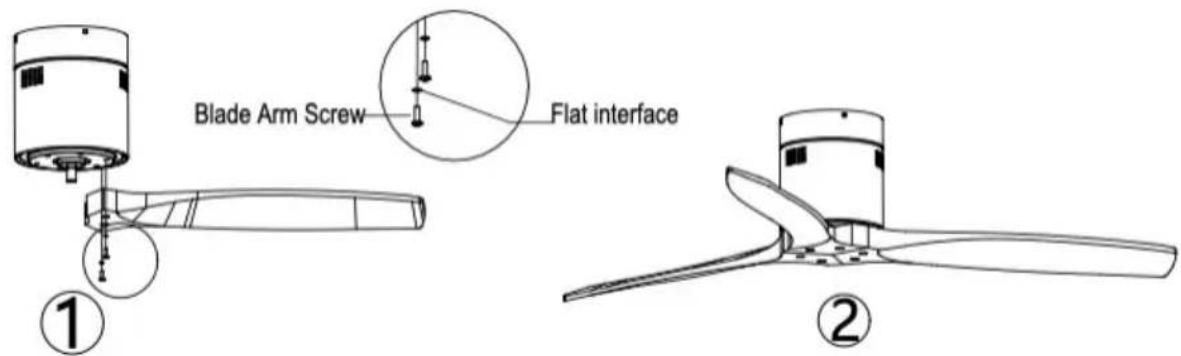

2. Align the holes in the blades with the holes in the motor. Be sure to securely fasten the screws when installing each blade. Tighten them permanently only after all blades have been installed. Fig. 7

Note: Be sure to tighten the blade screws a second time.

4. OPERATION

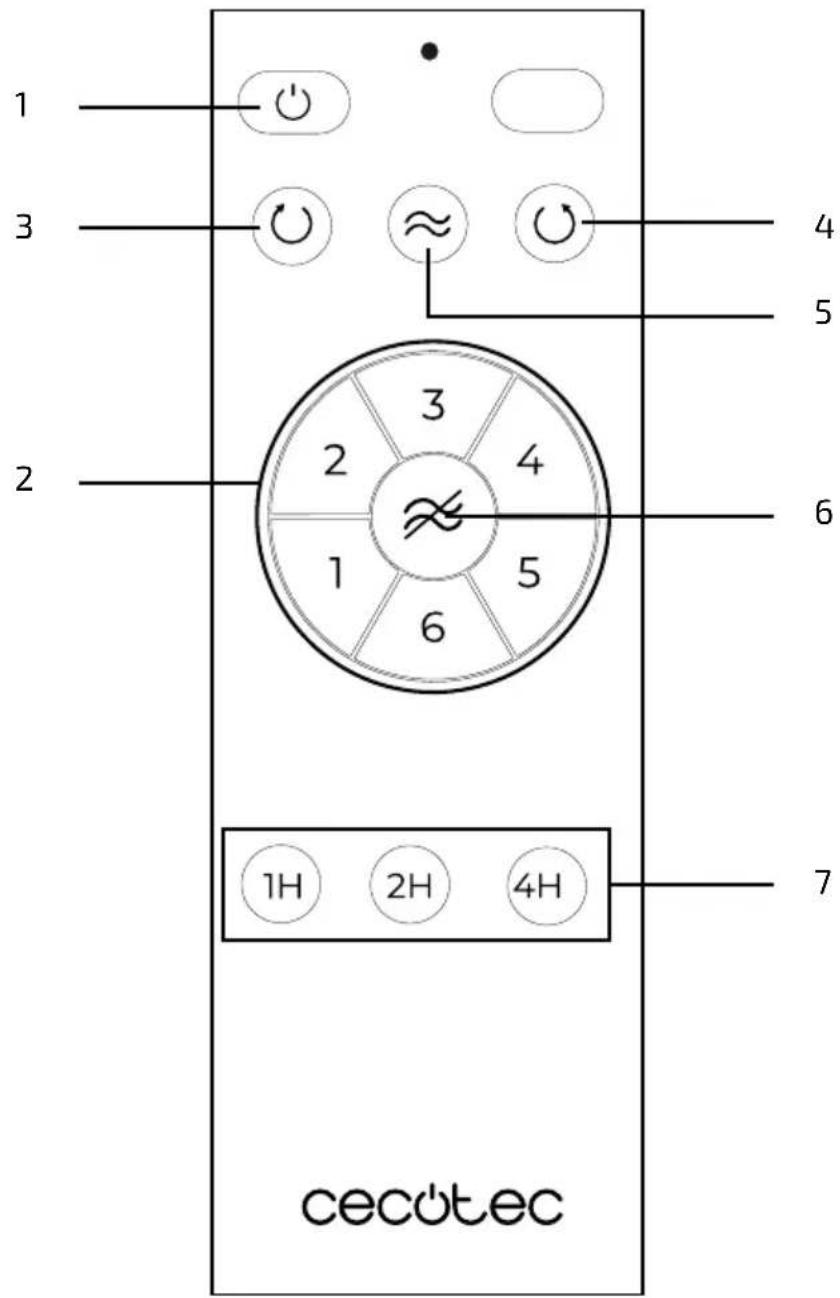

Remote control. Fig. 8

1. Power button
2. Speed control
3. Winter function
4. Summer function
5. Natural Breeze
6. Natural Breeze shut-off

7. Timer controls

8. Use the speed buttons to select the air power level.

9. Press the power button to turn the appliance off.
10. Use the timer buttons to select the fan operating time. The fan will turn off once the selected time has elapsed.
11. The remote control requires 2 x 1.5 V-3 AAA batteries.

Winter Function

Press button 3 to activate the winter function. The fan will make air flow from the bottom upwards, bringing cold air to the top of the room.

Summer Function

Press button 4 to activate the summer function. The fan will make air flow from the top downwards, bringing cold air to the bottom of the room.

Warning:

Invert the spinning direction of the fan while in operation. Hold down the button for approx. 3 seconds: the appliance will beep, and the blades will start slowing down until they stop spinning. After a few seconds, they will start spinning again in the opposite direction.

Natural breeze

Activate this mode by pressing button 5. The fan will run at different power levels in a cycle, producing a feeling of fresh air.

Pairing the remote control with the fan

Press the OFF button for 5 seconds until you hear a beep.

Wi-Fi connection

Press the 1h and 4h button simultaneously for 5 seconds until you hear a beep. Follow the instructions in section 5. Wi-Fi connectivity and mobile App.

Warnings:

- If the fan cannot be controlled through the remote control, check if the batteries in the remote control are in good conditions and if the make good contact, that the positive and negative electrodes are in the correct position, and if the batteries are charged.

- If the fan cannot be controlled through the remote control, check if there are other remote-controlled appliances in the same area and check if the transmitter buttons are pressed. Appliances with similar remote-control systems may cause interference. This does not include infrared remote controls.

- Pay attention to the appliance voltage. Too low a voltage may cause the remote control to not work. The technical specifications are indicated in this manual.

- If the remote control is not going to be used for a long time, remove the batteries.

Changing the remote control battery

The remote control requires 2 x 1.5 V-3 AAA batteries.

1. Open the battery compartment.

2. Insert the batteries into the battery compartment observing the polarity.

3. Close the compartment.

ENGLISH

5. WI-FI CONNECTIVITY AND MOBILE APP

By scanning the following QR code you will be able to access the app download option and an instruction manual explaining how to pair your appliance:

QR code image containing encoded data, no visible human-readable text

Automatic-scanning mode:

1. Download the Cecotec app from Google Play or the App Store.
2. If it is the first time you use it, register an account. If not, log in.
3. Once you have entered the App, tap "+" on the top right-hand corner and tap "Air Treatment".
4. In the upper-right corner, tap on "Auto Scan", then long press the 1h and 4h buttons on the remote control for 5 seconds until the remote control beeps.
5. The device will appear on the display—tap on it.
6. Enter the password of the Wi-Fi the mobile device is connected to and select "confirm". Remember that the network must be 2.4 GHz.
7. Wait for the connection to complete.

Manual-connection mode:

1. Download the Cecotec app from Google Play or the App Store.
2. If it is the first time you use it, register an account. If not, log in.
3. Once you have entered the App, press "+" on the top right-hand corner and tap "Aqua Connected".
4. Turn on your device, you must make sure that you do not have any mode selected by pressing the power button, the air conditioner will go into standby mode. Then press the button for about 5 seconds, the Wi-Fi indicator will start flashing. If the indicator flashes slowly, this operation must be repeated.
5. Enter your Wi-Fi password and press confirm. Remember the Wi-Fi network must be 2.4 GHz.
6. Then, pairing will start automatically.

6. CLEANING AND MAINTENANCE

• Make sure to disconnect the fan before cleaning it.

• Do not immerse any of the parts of the appliance in water or splash them with any other liquid.

• Do not use solvents or any other chemical products for cleaning.

• Use a soft, damp cloth to clean the surface of the device.

7. TECHNICAL SPECIFICATIONS

Model: EnergySilence Aero 5285 WhiteTransparent Connected / EnergySilence Aero 5285 BlackTransparent Connected / EnergySilence Aero 5500 Aqua Black&Black Connected / EnergySilence Aero 5500 Aqua GoldBlack Connected / EnergySilence Aero 5500 Aqua IronBlack Connected / EnergySilence Aero 5500 Aqua Black&White Connected / EnergySilence Aero 5500 Aqua White&Black Connected / EnergySilence Aero 5500 Aqua GoldDarkWood Connected /EnergySilence Aero 5500 Aqua IronDarkWood Connected /EnergySilence Aero 5500 Aqua GoldWhite Connected /EnergySilence Aero 5500 Aqua IronWhite Connected / EnergySilence Aero 5500 Aqua Black&WhiteWood Connected / EnergySilence Aero 5500 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua IronWhiteWood Connected / EnergySilence Aero 5500 Aqua WhiteDarkWood Connected / EnergySilence Aero 5500 Aqua White&White Connected

Product reference: 08496 / 08497 / 08511 / 08512 / 08513 / 08514 / 08515 / 08516 / 08517 / 08518 / 08519 / 08520 / 08521 / 08522 / 08523 / 08535

Voltage: 220 - 240 V

Frequency: 50 - 60 Hz

Power: 40 W

IP44

Description Symbol Value Unit
Fan maximum flow F 170.57 m			^3 /min
Fan power consumption	P	34,98	W
Service value	SV	4.88	(m ^3 /min)/W
Power consumption on standby mode	PSB	0.45	W
Fan sound power level	LWA	47.0	dB (A)
Maximum air speed	C	2.75	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos n°60, 46910, Alfafar(Valencia, Spain)

ENGLISH

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that the model ceiling fans 08496_EnergySilence Aero 5285 WhiteTransparent Connected, 08497_EnergySilence Aero 5285

BlackTransparent Connected, 08511_EnergySilence Aero 5500 Aqua Black&Black Connected, 08512_EnergySilence Aero 5500 Aqua GoldBlack Connected, 08513_EnergySilence Aero 5500

ENGLISH

Aqua IronBlack Connected, 08514_EnergySilence Aero 5500 Aqua Black&White Connected, 08515_EnergySilence Aero 5500 Aqua White&Black Connected, 08516_EnergySilence Aero 5500 Aqua GoldDarkWood Connected, 08517_EnergySilence Aero 5500 Aqua IronDarkWood Connected, 08518_EnergySilence Aero 5500 Aqua GoldWhite Connected, 08519_EnergySilence Aero 5500 Aqua IronWhite Connected, 08520_EnergySilence Aero 5500 Aqua Black&WhiteWood Connected, 08521_EnergySilence Aero 5500 Aqua GoldWhiteWood Connected, 08522_EnergySilence Aero 5500 Aqua IronWhiteWood Connected, 08523_Aero 5500 Aqua WhiteDarkWood Connected and 08535_EnergySilence Aero 5500 Aqua White&White Connected are in conformity with the Radio Equipment Directive 2014/53/EU.

The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

QR code image containing encoded data, no visible human-readable text

Modèle : EnergySilence Aero 5285 WhiteTransparent Connected / EnergySilence Aero 5285 BlackTransparent Connected / EnergySilence Aero 5500 Aqua Black&Black Connected / EnergySilence Aero 5500 Aqua GoldBlack Connected / EnergySilence Aero 5500 Aqua Black&White Connected / EnergySilence Aero 5500 Aqua IronBlack Connected / EnergySilence Aero 5500 Aqua Black&Black Connected / EnergySilence Aero 5500 Aqua GoldDarkWood Connected /EnergySilence Aero 5500 Aqua IronDarkWood Connected /EnergySilence Aero 5500 Aqua GoldWhite Connected /EnergySilence Aero 5500 Aqua IronWhite Connected / EnergySilence Aero 5500 Aqua Black&WhiteWood Connected / EnergySilence Aero 5500 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua IronWhiteWood Connected / EnergySilence Aero 5500 Aqua WhiteDarkWood Connected / EnergySilence Aero 5500 Aqua White&White Connected

Référence : 08496 / 08497 / 08511 / 08512 / 08513 / 08514 / 08515 / 08516 / 08517 / 08518 / 08519 / 08520 / 08521 / 08522 / 08523 / 08535

Voltage: 220 - 240 V

QR code image containing encoded data, no visible human-readable text

Modell: EnergySilence Aero 5285 WhiteTransparent Connected / EnergySilence Aero 5285 BlackTransparent Connected / EnergySilence Aero 5500 Aqua Black&Black Connected / EnergySilence Aero 5500 Aqua GoldBlack Connected / EnergySilence Aero 5500 Aqua IronBlack Connected / EnergySilence Aero 5500 Aqua Black&White Connected / EnergySilence Aero 5500 Aqua White&Black Connected / EnergySilence Aero 5500 Aqua GoldDarkWood Connected /EnergySilence Aero 5500 Aqua IronDarkWood Connected /EnergySilence Aero 5500 Aqua GoldWhite Connected /EnergySilence Aero 5500 Aqua IronWhite Connected / EnergySilence Aero 5500 Aqua Black&WhiteWood Connected / EnergySilence Aero 5500 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua IronWhiteWood Connected / EnergySilence Aero 5500 Aqua WhiteDarkWood Connected / EnergySilence Aero 5500 Aqua White&White Connected

Referenz des Gerätes: 08496 / 08497 / 08511 / 08512 / 08513 / 08514 / 08515 / 08516 / 08517 / 08518 / 08519 / 08520 / 08521 / 08522 / 08523 / 08535

5. CONNETTIVITÀ WI-FI E APP

QR code image containing encoded data, no visible human-readable text

Modello: EnergySilence Aero 5285 WhiteTransparent Connected / EnergySilence Aero 5285 BlackTransparent Connected / EnergySilence Aero 5500 Aqua Black&Black Connected / EnergySilence Aero 5500 Aqua GoldBlack Connected / EnergySilence Aero 5500 Aqua IronBlack Connected / EnergySilence Aero 5500 Aqua Black&White Connected / EnergySilence Aero 5500 Aqua White&Black Connected / EnergySilence Aero 5500 Aqua GoldDarkWood Connected /EnergySilence Aero 5500 Aqua IronDarkWood Connected /EnergySilence Aero 5500 Aqua GoldWhite Connected /EnergySilence Aero 5500 Aqua IronWhite Connected / EnergySilence Aero 5500 Aqua Black&WhiteWood Connected / EnergySilence Aero 5500 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua IronWhiteWood Connected / EnergySilence Aero 5500 Aqua WhiteDarkWood Connected / EnergySilence Aero 5500 Aqua White&White Connected

Codice prodotto: 08496 / 08497 / 08511 / 08512 / 08513 / 08514 / 08515 / 08516 / 08517 / 08518 / 08519 / 08520 / 08521 / 08522 / 08523 / 08535

QR code image containing encoded data, no visible human-readable text

Modelo: EnergySilence Aero 5285 WhiteTransparent Connected / EnergySilence Aero 5285 BlackTransparent Connected / EnergySilence Aero 5500 Aqua Black&Black Connected / EnergySilence Aero 5500 Aqua GoldBlack Connected / EnergySilence Aero 5500 Aqua Black&White Connected / EnergySilence Aero 5500 Aqua IronBlack Connected / EnergySilence Aero 5500 Aqua Black&Black Connected / EnergySilence Aero 5500 Aqua GoldDarkWood Connected /EnergySilence Aero 5500 Aqua IronDarkWood Connected /EnergySilence Aero 5500 Aqua GoldWhite Connected /EnergySilence Aero 5500 Aqua IronWhite Connected / EnergySilence Aero 5500 Aqua Black&WhiteWood Connected / EnergySilence Aero 5500 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua IronWhiteWood Connected / EnergySilence Aero 5500 Aqua WhiteDarkWood Connected / EnergySilence Aero 5500 Aqua White&White Connected

Referência: 08496 / 08497 / 08511 / 08512 / 08513 / 08514 / 08515 / 08516 / 08517 / 08518 / 08519 / 08520 / 08521 / 08522 / 08523 / 08535

Tensão: 220 - 240 V

QR code image containing encoded data, no visible human-readable text

Model: EnergySilence Aero 5285 WhiteTransparent Connected / EnergySilence Aero 5285 BlackTransparent Connected / EnergySilence Aero 5500 Aqua Black&Black Connected / EnergySilence Aero 5500 Aqua GoldBlack Connected / EnergySilence Aero 5500 Aqua IronBlack Connected / EnergySilence Aero 5500 Aqua Black&White Connected / EnergySilence Aero 5500 Aqua White&Black Connected / EnergySilence Aero 5500 Aqua GoldDarkWood Connected /EnergySilence Aero 5500 Aqua IronDarkWood Connected /EnergySilence Aero 5500 Aqua GoldWhite Connected /EnergySilence Aero 5500 Aqua IronWhite Connected / EnergySilence Aero 5500 Aqua Black&WhiteWood Connected / EnergySilence Aero 5500 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua IronWhiteWood Connected / EnergySilence Aero 5500 Aqua WhiteDarkWood Connected / EnergySilence Aero 5500 Aqua White&White Connected

Referentie van het product: 08496 / 08497 / 08511 / 08512 / 08513 / 08514 / 08515 / 08516 / 08517 / 08518 / 08519 / 08520 / 08521 / 08522 / 08523 / 08535

Voltage: 220 - 240 V

Frequentie: 50 – 60 Hz

Vermogen: 40 W

IP44

QR code image containing encoded data, no visible human-readable text

Model: EnergySilence Aero 5285 WhiteTransparent Connected / EnergySilence Aero 5285 BlackTransparent Connected / EnergySilence Aero 5500 Aqua Black&Black Connected / EnergySilence Aero 5500 Aqua GoldBlack Connected / EnergySilence Aero 5500 Aqua IronBlack Connected / EnergySilence Aero 5500 Aqua Black&White Connected / EnergySilence Aero 5500 Aqua White&Black Connected / EnergySilence Aero 5500 Aqua GoldDarkWood Connected /EnergySilence Aero 5500 Aqua IronDarkWood Connected /EnergySilence Aero 5500 Aqua GoldWhite Connected /EnergySilence Aero 5500 Aqua IronWhite Connected / EnergySilence Aero 5500 Aqua Black&WhiteWood Connected / EnergySilence Aero 5500 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua IronWhiteWood Connected / EnergySilence Aero 5500 Aqua WhiteDarkWood Connected / EnergySilence Aero 5500 Aqua White&White Connected

Referencja produktu: 08496 / 08497 / 08511 / 08512 / 08513 / 08514 / 08515 / 08516 / 08517 / 08518 / 08519 / 08520 / 08521 / 08522 / 08523 / 08535

QR code image containing encoded data, no visible human-readable text

Model: EnergySilence Aero 5285 WhiteTransparent Connected / EnergySilence Aero 5285 BlackTransparent Connected / EnergySilence Aero 5500 Aqua Black&Black Connected / EnergySilence Aero 5500 Aqua GoldBlack Connected / EnergySilence Aero 5500 Aqua IronBlack Connected / EnergySilence Aero 5500 Aqua Black&White Connected / EnergySilence Aero 5500 Aqua White&Black Connected / EnergySilence Aero 5500 Aqua GoldDarkWood Connected /EnergySilence Aero 5500 Aqua IronDarkWood Connected /EnergySilence Aero 5500 Aqua GoldWhite Connected /EnergySilence Aero 5500 Aqua IronWhite Connected / EnergySilence Aero 5500 Aqua Black&WhiteWood Connected / EnergySilence Aero 5500 Aqua GoldWhiteWood Connected / EnergySilence Aero 5500 Aqua IronWhiteWood Connected / EnergySilence Aero 5500 Aqua WhiteDarkWood Connected / EnergySilence Aero 5500 Aqua White&White Connected

Referenční číslo výrobku: 08496 / 08497 / 08511 / 08512 / 08513 / 08514 / 08515 / 08516 / 08517 / 08518 / 08519 / 08520 / 08521 / 08522 / 08523 / 08535

Napětí: 220–240 V

Frekvence: 50–60 Hz

Výkon: 40 W

IP44

Technical diagram of a device with numbered parts for identification

Fig./Img./Abb./Afb./Rys.2

Technical line drawing of a mechanical assembly with a circular component and four pins, no text or symbols present.

Technical diagram of a mechanical assembly with two views of a circular component (no text or symbols)

Fig./Img./Abb./Afb./Rys. 3 Fig./Img./Abb./Afb./Rys. 4


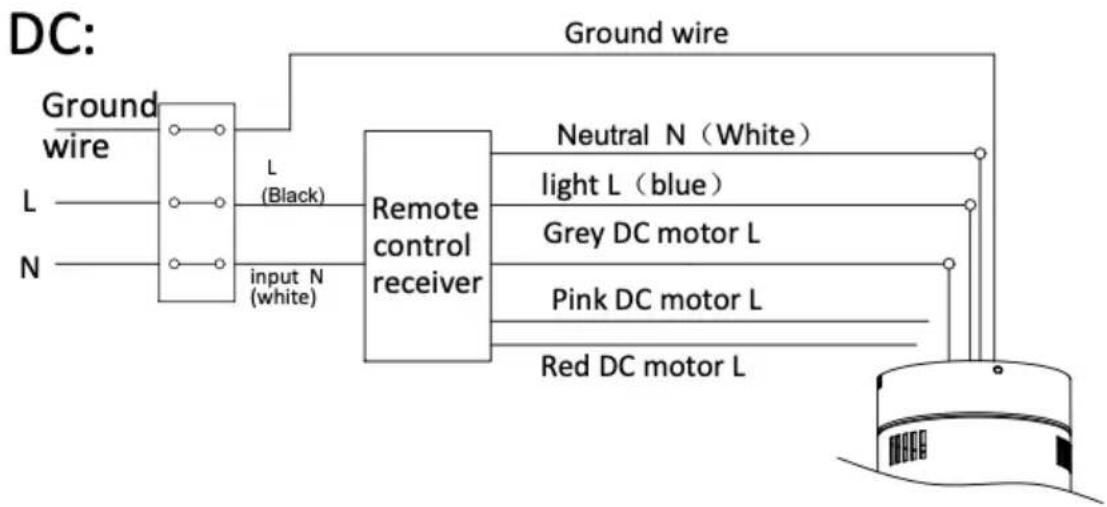

    B --> F["Pink DC motor L"]
    B --> G["Grey DC motor L"]
    B --> H["light L (blue)"]
    B --> I["Neutral N (White)"]
    J["Ground wire"] --> K["Ground wire"]

Fig./Img./Abb./Afb./Rys. 5

Technical diagram of a cylindrical device with labeled components and a numbered step indicator

Technical line drawing of a cylindrical mechanical component with a base and mounting hole (no text or symbols)

Technical line drawing of a cylindrical device with internal components and a handle, no text or symbols present

Fig./Img./Abb./Afb./Rys. 6

Blade Arm Screw Flat interface ① ②

Fig./Img./Abb./Afb./Rys. 7

1 3 2 4 5 6 7 1H 2H 4H cecotec

Fig./Img./Abb./Afb./Rys. 8

www.cecotec.es
