USER MANUAL DUH86553UC BOSCH

Register youroppliance and jointhe Bosch

family of perks:

b Bosch-home.com/us/

mybosch

Hood

DUH80553UC DUH86553UC DUHP0853UC DUHP6853UC

[en-us] Use and Care Manual Hood 2

1 IMPORTANT SAFETY INSTRUCTIONS. 3

1.1 Safety definitions 3
1.2 General information 3
1.3 Safe use 3
1.4 Child safety 5
1.5 State of California Proposition 65Warnings 5

2 Preventing material damage 6

3 Environmental protection and energy-saving 6

3.1 Disposal of packaging.. 6
3.2 Saving energy 6

4 Operating modes 6

4.1 Exhaust-air mode 6
4.2 Air recirculation mode 6

5 Familiarizing yourself with your appliance 6

5.1 Appliance 6
5.2 Touch keys 7

6 Accessories. 7

7 Basic Operation 7

7.1 For better results.. 7
7.2 Turning the appliance on or off 7
7.3 Setting the fan speed 8
7.4Turning off the fan.. 8
7.5 Turning the light on or off 8
7.6 Automatic mode 8
7.7 Clean filter reminder 8
7.8Turning the button beep on or off 8
7.9 Heat sensor 8

8 Home Connect 9

8.1 Home Connect® settings 9
8.2 Software update 9
8.3 Data Protection 9

9 Cleaning and maintenance. 10

9.1 Cleaning agents 10

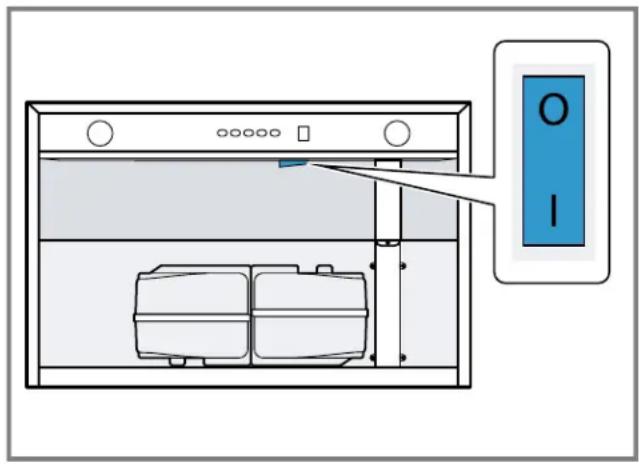

9.2 Turning off the main power switch 10

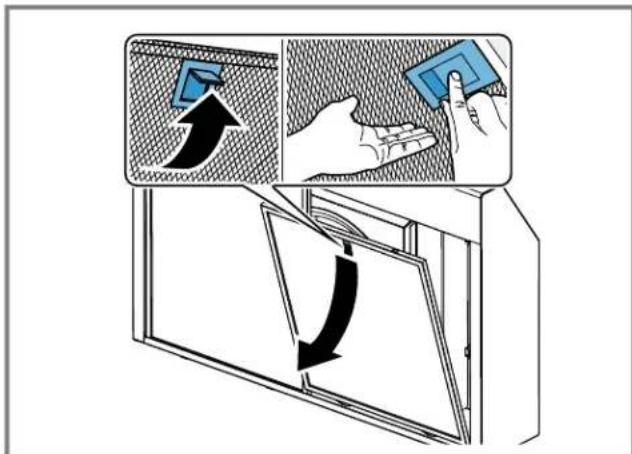

9.3 Cleaning the grease filters 10

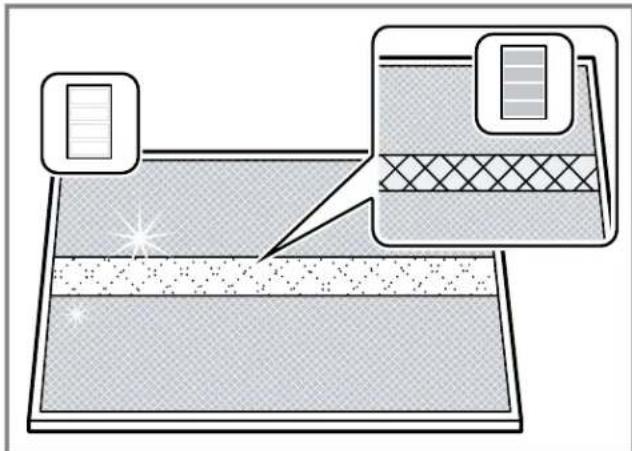

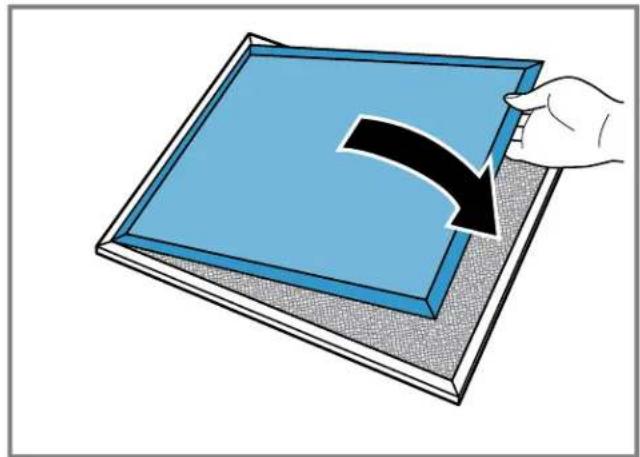

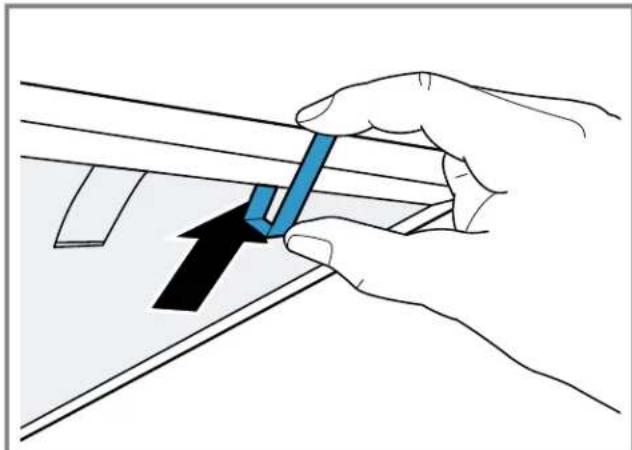

9.4 Odor filters for recirculation mode 11
9.5 Cleaning recommendations.. 12

10 Troubleshooting 13

11 Disposal 14

11.1 Disposal of your old appliance 14

12 Customer Service 14

12.1 Model number (E-Nr.) and production number (FD) 14

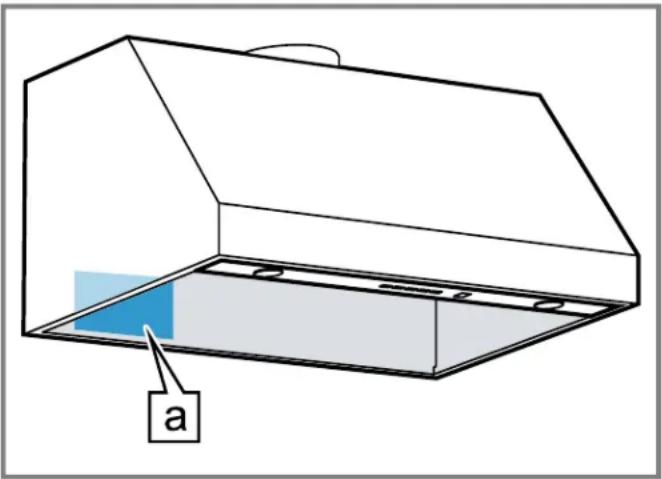

12.2 Rating plate location 14

13 STATEMENT OF LIMITED PRODUCT WARRANTY 14

13.1 What this warranty covers & Who it applies to.... 14
13.2 How long the warranty lasts 14
13.3 Repair/replace as your exclusive remedy 15
13.4 Out of warranty product.. 15
13.5 Warranty exclusions 15
13.6 Obtaining warranty service 16
13.7 Product information 16

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

Read all of the instructions carefully before using the appliance. In order to reduce the risk of fire, electric shocks and personal injuries when using the appliance, follow the basic safety precautions, including the following safety instructions.

1.1 Safety definitions

Here you can find explanations of the safety signal words used in this manual.

WARNING

This indicates that death or serious injuries may occur as a result of non-observation of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observation of this warning.

NOTICE:

This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

1.2 General information

This Use and Care Manual explains the basics of operating your appliance and those safety measures that must be followed. For complete and safe installation information, refer to the Installation Instructions included with the appliance.

All product manuals may be downloaded online at www.bosch-home.com/us/owner-support/owner-manuals. INSTALLER: Please leave these instructions with this unit for the owner.

OWNER: Please retain these instructions for future reference. Read all safety instructions before operating the appliance. Have the installer show you where the electric circuit breaker is located so you know how and where to turn off the electricity to the appliance.

1.3 Safe use

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
"Customer Service", Page 14
Before servicing or cleaning the unit, switch power off at service panel and lock service panel. This will prevent power from being switched on accidentally. When the service panel cannot be locked, securely fasten a prominent warning device, such as a tag to the service panel.

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS

DO NOT try to light any appliance.
- DO NOT touch any electrical switch.
DO NOT use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.

CAUTION

For general ventilating use only.

To avoid a fire or explosion hazard, do not use to exhaust hazardous or explosive materials and vapors.

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE

• Never Leave Surface Units Unattended at High Settings - Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
  Always turn hood ON when cooking at high heat.
• Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
• Use proper pan size. Always use cookware appropriate for the size of the surface element.
• Do not flambé under the extractor hood or work with a naked flame. When switched on, the extractor hood draws flames into the filter. There is a risk of fire due to deposits on the grease filter!

WARNING

Repairs should only be done by an authorized service provider. Improper repair of your appliance may result in risk of severe physical injury or death.

CAUTION

Grease left on filters can re-melt and move into the vent. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan, filters, or exhaust ducts.

This appliance must be properly installed and grounded by a qualified technician. Connect only to properly grounded supply. Refer to installation instructions for details.
- Have the installer show you the location of the circuit breaker or fuse. Mark it for easy reference.
This appliance is intended for normal family household use only. It is not approved for outdoor use. Use of this product in a commercial setting or if installed outdoors is not covered by the warranty. If you have any questions, contact the manufacturer.
- DO NOT store or use corrosive chemicals, vapors, flammables, or nonfood products in or near this appliance. It is specifically designed for use when heating or cooking food. The use of corrosive chemicals in heating or cleaning will damage the appliance and could result in injury.
DO NOT operate this appliance if it is not working properly or if it has been damaged. Contact a qualified service provider.
DO NOT repair or replace any part of the appliance unless specifically recommended in this manual.

• For safety reasons and to avoid potential equipment damage, do not hang cookware, fabrics, or other articles from any part of the appliance.
• Have an appropriate fire extinguisher available, nearby, highly visible and easily accessible near the cooking appliance.
  Always have a working smoke detector near the kitchen.
• Do Not Use Water on Grease Fires - Smother fire or flame or use dry chemical or foam-type extinguisher.
• Whenever possible, do not operate the ventilation system during a cooktop fire. However, do not reach through fire to turn it off.
  If your garments or hair catch fire, fall to the ground immediately and roll to extinguish the flames.
• Examine the appliance after unpacking it. In the event of transport damage, do not plug it in.

WARNING

To reduce the risk of fire, electric shock or injury to persons, do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).

WARNING

While cooking food items, small amounts of certain byproducts, such as particulate matter / soot, can be released. To minimize exposure to these substances:

Always ensure proper ventilation by using an appropriate ventilation fan or hood vented to the outside and/or an open window.
Always operate the unit according to the instructions in this manual.

WARNING

Overheated materials can cause fire or burns and may produce potentially harmful smoke or fumes.

To prevent overheating, turn ventilation hood ON when heating grease, fats or frying using medium to high heat settings.
Avoid heating empty pots and pans.
Do not allow pans to boil dry.
Do not allow aluminum foil, plastic, paper, or cloth to come in contact with a hot surface element, burner, or grate.

WARNING

To avoid risk of fire, do not leave the cooktop unattended while in use. Unattended cooking can lead to fire hazards, property damage, and injury. Always supervise cooking,

IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

especially when using high heat with oils and fats. Boilovers may cause smoking and greasy spillovers may ignite.

1.4 Child safety

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.

Children should be supervised to ensure that they do not play with the appliance.

WARNING

Do not allow children to use this appliance unless closely supervised by an adult.

Children and pets should not be left alone or unattended in the area where the appliance is in use. They should never be allowed to play in its vicinity, whether or not the appliance is in use.

Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance.

CAUTION

Do not store items of interest to children in cabinets above an appliance or on the backguard of an appliance.

Children climbing on the appliance to reach items could be seriously injured.

WARNING

Remove all tape and packaging before using the appliance.

• Dispose of packaging in an environmentally responsible manner.
• Never allow children to play with packaging material.

1.5 State of California Proposition 65Warnings

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

STATE OF CALIFORNIA PROPOSITION 65 WARNING:

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

2 Preventing material damage

NOTICE:

Condensation may cause corrosion damage.

• To prevent condensation from building up, switch on the appliance during cooking.
  If moisture gets into the controls, this may result in damage.
• Never clean controls with a wet cloth.
  Incorrect cleaning damages the surfaces.
  Follow the cleaning instructions.
  Do not use harsh or abrasive cleaning agents.
  Clean stainless steel surfaces in the grain direction only.
• Never clean controls with stainless steel cleaners. Condensation that flows back in may damage the appliance.
• To prevent condensate from returning, fit the exhaust air pipe with a 1^ gradient from the appliance.

There is a risk of surface damage if you do not peel off the protective film.

• Remove the protective film from all parts of the appliance before using for the first time.

3 Environmental protection and energy-saving

3.1 Disposal of packaging

The packaging materials are environmentally compatible and can be recycled.

• Sort the individual components by type and dispose of them separately.

3.2 Saving energy

If you follow these instructions, your appliance will use less power.

Clean or replace the filters at the specified intervals, or as frequently as needed.

The effectiveness of the filters is retained.
Switch off the lighting if you no longer require it.
- When the lighting is switched off, it does not consume any energy.
Put the cooking lid on.
The cooking vapors and condensation are reduced.
Only use the additional functions if required.
- Switching off additional functions reduces power consumption.

4 Operating modes

You can use your appliance in exhaust air mode or circulating air mode.

4.1 Exhaust-air mode

The air that is drawn in is cleaned by the grease filters and conducted to the outside via a duct system.

The air must not be discharged into a flue that is used for exhaust fumes from appliances burning gas or other fuels (not applicable for recirculation appliances).

If the exhaust air is to be conducted into a non-functioning smoke or exhaust gas flue, you must obtain the consent of the responsible area heating inspector.
If the exhaust air is conducted through the outer wall, a telescopic wall box should be used.

4.2 Air recirculation mode

The air which is drawn in is cleaned by the grease filters and an odor filter, and conveyed back into the room.

To bind odors in air recirculation mode, you must install an odor filter. The different options for operating the appliance in air recirculation mode can be found in our catalog. Alternatively, ask your dealer. The required accessories are available from specialist retailers, from Customer Service, or from the online shop.

"Accessories", Page 7

5 Familiarizing yourself with your appliance

This Use and Care Manual covers several models. Your model may have some but not all of the features listed.

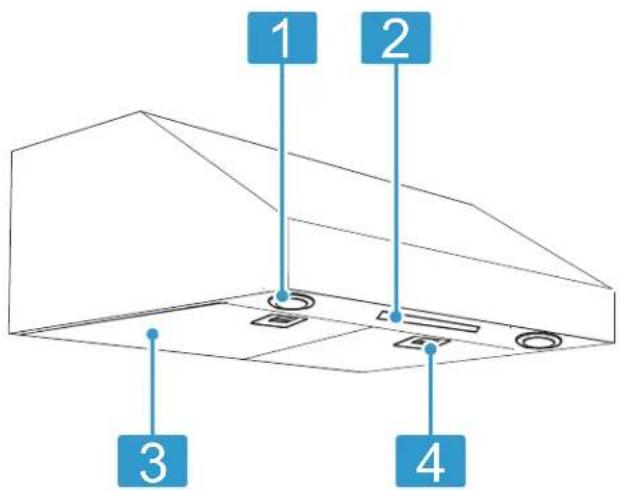

5.1 Appliance

Here you can find an overview of the parts of your appliance.

Note: The graphics are representative. Your appliance may have different graphic or design appearances.

1 LED lights (2x)
2 Control panel
3 Grease filter (2x)
4 Filter latch (2x)

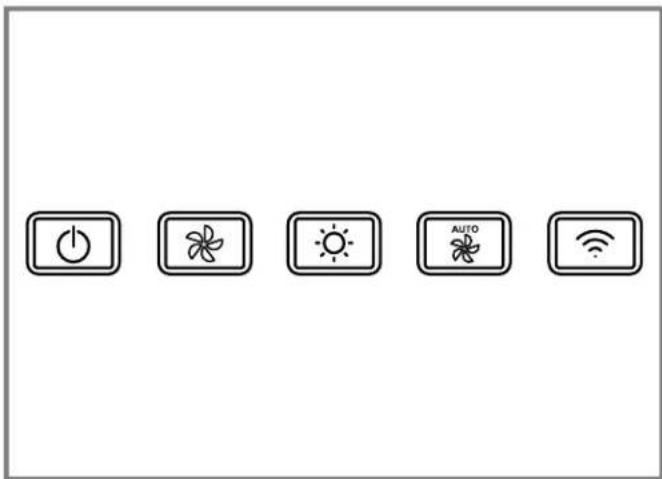

5.2 Touch keys

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

When a button is pressed a beep sounds and the button lights up.

Button Function
	Main switchTurns the appliance on or off
	Fan control4 speed levels:Low speedMedium-low speedMedium-high speedHigh
	Light control2 levels:Low

Button Function
	■ High
AUTO	Automatic mode
Home Connect®

6 Accessories

Accessories are available from Customer Service, specialist retailers or online. You should only use original accessories as they are specially designed for your appliance.

Accessories are appliance-specific. When purchasing, always check for compatibility with your appliance model number (E no.). Page 14

You can find out which accessory is available for your appliance in our catalog, the online shop or the Customer Service.

www.bosch-home.com

Recirculation kit for 30" HEZVEUD302 models

Recirculation kit for 36" HEZVEUD362 models

7 Basic Operation

7.1 For better results

Follow these recommendations to achieve better ventilation results.

• Turn on the blower for about 5 minutes before cooking in order to establish air currents upward through the hood. Thus when heat, smoke, moisture, grease and cooking odors are produced, they will be carried outside instead of drifting into other rooms.
  Use the lower speed levels for normal use and the higher speed levels for strong odors or fumes.
  Drafts across the range or cooktop will reduce the effectiveness of the hood. Such drafts should be prevented when possible.
• Ventilation is done best where the only air currents are those created by the blower itself.
• Regular use of the hood while cooking helps keep the kitchen comfortable and less humid.
  Use a rear burner when browning or pan frying meat.
  For optimal performance, the width of the hood should equal that of the cooktop or rangelop or exceed it by 3'' (76 mm) on either side.

7.2 Turning the appliance on or off

1. Pressb.
   All functions turn on with the last saved settings.
2. To turn the appliance off pressb.

You can turn on the fan directly with the button, or with the button.

1. Press while the appliance is off.

The fan turns on with the last saved fan speed.
If there is no saved fan speed, the fan turns on with fan speed LOW.

1. To change the fan speed press repeatedly until the desired fan speed is reached.

Each time you press the fan speed increases to the next higher level.
- When the fan speed is set to HIGH, pressing will turn the fan off.

1. Press repeatedly until the fan turns off.
2. To save the current fan speed press and hold until the fan turns off.

7.5 Turning the light on or off

You can turn on the light directly with the button, or with the button.

1. Press once.
   The light turns on with the last saved light intensity.
   If there is no saved light intensity, the light turns on with intensity LOW.
2. To change the light intensity press again.
   The light intensity changes to HIGH.

3. You have two options to turn off the light:

4. Press repeatedly until the light turns off.

5. To save the light intensity, press and hold until the light turns off.

7.6 Automatic mode

With automatic mode, the hood control monitors the amount of heat emitted, and automatically turns the fan on or off.

To activate automatic mode, press while the appliance is turned off.
The button light turns on.
The fan starts automatically when heat from a cooking process is detected.
The fan speed is adjusted automatically.
- When no more heat is detected the fan turns off. The fan may run on for a short period of time until the cooking surface has cooled down sufficiently.

Notes

The button light turns off, when the appliance has been turned off for more than 3 minutes. The automatic mode remains active.
- The heat emitted from the cooking surface may change when you remove cookware from the cooking surface, or add cold food to the cookware. This means that the fan speed may be adjusted.

Changing the fan speed during automatic mode

You can adjust the fan speed manually while the automatic mode is active.

1. Press to adjust the fan speed.

The automatic mode is paused.
The button light turns off.

1. Press to turn the appliance off.

The automatic mode is reactivated.

Turning off automatic mode

Press and hold until the button light goes out.

7.7 Clean filter reminder

A timer monitors the hours the appliance has been in operation. When it is time to clean the filters, the light of the button will flash slowly for 30 seconds when you turn off the appliance.

1. Clean the filters and hood as described in this manual.
2. To reset the timer after cleaning, press and hold while it is flashing until the flashing stops.

7.8 Turning the button beep on or off

Requirement: The fan and lights are turned off.

Press and hold for 5 seconds.

7.9 Heat sensor

Your appliance is equipped with a heat sensor thermostat. This thermostat is a device that turns on or speeds up the blower if it senses excessive heat above the cooking surface.

If the blower is OFF - the thermostat turns on the blower at high speed.
If the blower is ON at a lower speed setting - the thermostat turns the blower up to HIGH speed.
- When the temperature level drops to normal, the blower returns to its original setting.

Notes

• When the heat sensor is activated, the fan key backlight flashes slowly and the fan speed cannot be changed.
• The heat sensor thermostat can start the blower even if the appliance is turned OFF. In this case it is not possible to turn the hood off with the control panel. If you must stop the blower you can use the main power switch.

"Turning off the main power switch", Page 10

8 Home Connect®

This appliance may be network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect® app, adjust its basic settings and monitor its operating status.

The Home Connect® services are not available in every country. The availability of the Home Connect® function depends on the availability of Home Connect® services in your country. You can find information on this at: www.home-connect.com.

The Home Connect® app guides you through the entire registration process. Follow the instructions in the Home Connect® app to implement the settings.

Tip: Follow the instructions in the Home Connect® app as well.

Notes

• Also note the safety information in this instruction manual and ensure that it is also observed when operating the appliance using the Home Connect® app.
• Operating the appliance on the appliance itself always takes priority. It is not possible to operate the appliance using the Home Connect® app during this time.
  In networked standby mode, the appliance requires a maximum of 2 watts.
  If you need your device's MAC address to connect to your home network, you can find this next to the rating plate. Page 14

8.1 Home Connect® settings

Adapt Home Connect® to your needs.

You can find the Home Connect® settings in the basic settings for your appliance. Which settings the display shows will depend on whether Home Connect® has been set up and whether the appliance is connected to your home network.

Setting up Home Connect®

Requirements

The appliance is connected to the power supply and is switched on.
- You have a mobile device with a current version of the iOS or Android operating system, e.g. a smartphone.
- The Home Connect® app is installed on your mobile device.
The appliance receives signals from the WLAN home network (Wi-Fi) at its installation location.
The mobile device and the appliance are within range of your home network's Wi-Fi signal.

1. Open the Home Connect® app and scan the following QR code.

1. Follow the instructions in the Home Connect® app.

8.2 Software update

Your appliance's software can be updated using the software update function, e.g. for the purposes of optimization, troubleshooting or security updates.

To do this, you must be a registered Home Connect® user, have installed the app on your mobile device and be connected to the Home Connect® server.

As soon as a software update is available, you will be informed via the Home Connect® app and will be able to start the software update via the app. Once the update has been successfully downloaded, you can start installing it via the Home Connect® app if you are in your home network (Wi-Fi). The Home Connect® app informs you once the installation is successful.

Notes

The software update consists of two steps.

• The first step is the download.

• The second step is the installation on your appliance.

• You can continue to use your appliance as normal while updates are downloading. Depending on your personal settings in the app, software updates can also be set to download automatically.

Installation takes a few minutes. You cannot use your appliance during installation.
We recommend that you install security updates as soon as possible.

8.3 Data Protection

Please read this information on data protection.

The first time your appliance is registered on a home network connected to the Internet, your appliance transmits the following types of data to the Home Connect® server (initial registration):

• Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).
• Security certificate of the Wi-Fi communication module (to ensure a secure data connection).
• The current software and hardware version of your home appliance.
  Status of any previous reset to factory settings.

This initial registration prepares the Home Connect® functions for use and is only required when you want to use the Home Connect® functions for the first time.

Note: Please note that the Home Connect® functions can only be used in conjunction with the Home Connect® app. Information on data protection can be retrieved in the Home Connect® app.

9 Cleaning and maintenance

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

9.1 Cleaning agents

You can obtain suitable cleaning products from Customer Service or the online shop.

NOTICE:

Unsuitable cleaning agents may damage the surfaces of the appliance.

• Do not use strong or abrasive cleaning agents.
• Do not use cleaning agents with a high alcohol content.
  Do not use hard scouring pads or cleaning sponges.
• Only use glass cleaners, glass scrapers or stainless steel care products if recommended in the cleaning instructions for the relevant part.
• Wash sponge cloths thoroughly before use.

9.2 Turning off the main power switch

WARNING

To avoid th risk of burns, DO NOT reach through fire or over hot surfaces to turn off the hood.

1. Remove the grease filters.

2. Turn the main power switch to the OFF position. The main power switch is located inside the hood behind the control panel.

Main power switch position	Function
I	ON
O OFF

9.3 Cleaning the grease filters

The grease filters filter the grease from the cooking vapors. Regularly cleaned grease filters help ensure a high level of grease separation.

WARNING

Grease deposits in the grease filter can ignite.

Clean the grease filter at least every two months.
- Never operate the appliance without the grease filter.

WARNING

Be sure the entire appliance (including the grease filters and light bulbs, if applicable) has cooled and grease has solidified before attempting to clean any part of the appliance.

WARNING

Do not reach inside the hood, there can be sharp points and hidden edges.

Removing the grease filters

NOTICE:

Falling grease filters may damage the cooktop below.

Grip below the grease filter with one hand.

1. Open the filter latch, then push the filter down ① and tilt it out ②

1. Remove the grease filters from the holders.

To prevent grease from dripping, hold the grease filter horizontally.

Cleaning the grease filters manually

Requirement: The grease filters have been removed.

1. Observe the information regarding the cleaning agents.
2. Soak the grease filter in hot soapy water.

Use special degreaser solvent for stubborn dirt. You can purchase degreaser from Customer Service or the online shop.

1. Use a brush to clean the grease filters.
2. Rinse the grease filters thoroughly.
3. Allow the grease filters to drip and dry.

Cleaning the grease filters in the dishwasher

Note: A slight discoloration is possible when cleaning the grease filters in the dishwasher. This does not affect the performance of the grease filters.

1. Observe the information regarding the cleaning agents.
2. Place the grease filters loosely into the dishwasher.

Do not clean heavily soiled grease filters with cookware. Use special degreaser solvent for stubborn dirt. You can purchase degreaser from Customer Service or the online shop.

1. Start the dishwasher. Select a temperature of no more than 160^ (70^)
2. Allow the grease filters to drip and dry.

Reinstalling the grease filters

NOTICE:

Falling grease filters may damage the cooktop below. Grip below the grease filter with one hand.

1. Insert the grease filters.
2. Fold the grease filters upwards and engage the locks.
3. Ensure that the locks engage.

9.4 Odor filters for recirculation mode

Odor filters bind smells in recirculation mode. Regularly replaced odor filters guarantee a high level of odor removal.

With normal use (approx. 1 hour a day), the odor filter must be replaced every 3 - 6 months. Replace it more often if your cooking style generates extra grease, such as frying and wok cooking. The odor filter cannot be cleaned or regenerated.

You can obtain odor filters from Customer Service or the online shop. Only use original odor filters.

"Accessories", Page 7

Replacing the odor filters

1. Remove the grease filter.

"Removing the grease filters", Page 10

1. Place the odor filter inside the frame of the grease filter.

The odor filter has a white stripe on one side. This "Clean Sense" indicator should be facing towards the cooking surface when the grease filter is installed.

1. Place the short end of the clip against the frame on the outside of the grease filter.

1. Rotate clip up and over frame until clip snaps in place over the odor filter.
2. Install the second clip on the opposite side.

6. Reinstall the grease filter.

Checking the odor filters

1. Remove the grease filters.

"Removing the grease filters", Page 10

1. Remove the filter clips and lift the odor filter from the grease filter to view the indicator strip.

2. The indicator strip has dotted lines. When the lines have turned to wide solid lines the odor filter is saturated and should be replaced.

Note: DO NOT immerse the odor filters in water or put them in the dishwasher.

9.5 Cleaning recommendations

Area Cleaning agents
Stainless steel	Warm soapy water: ■ Clean with a non-abrasive, non-sponge dish towel and dry with a clean, soft towel. ■ Clean stainless steel surfaces in the grain direction only. ■ Do not use cellulose sponges. Some sponges are processed with salt and can cause corrosion by leaving salt deposits on the metal. ■ Do not allow any cleaning compounds to remain in contact with stainless steel for extended periods. ■ Do not use chlorine-based cleaners. ■ To remove fingerprints and produce added shine, use a stainless steel cleaner or conditioner. The Bosch Stainless Steel Conditioner can be purchased online (US only) at: www.bosch-home.com/us/shop
Painted surfaces	Warm soapy water: ■ Clean with a non-abrasive, non-sponge dish towel and dry with a clean,soft towel. ■ Do not use stainless steel cleaners.
Aluminum and plastic	Glass cleaner: ■ Clean with a soft cloth.

Area Cleaning agents

Glass Glass cleaner:

Clean with a soft cloth. Do not use a glass scraper.

Controls Warm soapy water:

Clean with a non-abrasive, non-sponge dish towel and dry with a clean, soft towel.
- Risk of damage to electronics due to moisture penetration. Never clean controls with a wet cloth.
- Do not use stainless steel cleaners.

10 Troubleshooting

You can eliminate minor issues on your appliance yourself. Please read the information on eliminating issues before contacting Customer Service. This may avoid unnecessary repair visits.

WARNING

To avoid risk of injury from improper repairs, observe the following.

• Only qualified technicians or authorized service providers should perform repairs.

If the power cord of this appliance becomes damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service, or an authorized service provider in order to prevent injury.
Only genuine spare parts may be used to repair the appliance.
If the appliance has an issue, call Customer Service.

Issue Cause and troubleshooting
Noise during operation. Some noise is normal due to vibration and air movement. ► This is normal. There is no action required.
	Excessive noise can indicate an issue with installation. 1. Excessive noise could indicate one of the following issues: - Ductwork is too small / undersized - Ductwork is too large / oversized - Ductwork is loose - Transition is too small or is loose - Wood screws are not fully tightened - Loose screws in trim parts, etc. 2. Check the Installation Instructions to verify that the ductwork is the proper size. 3. Tighten screws.
Noise when the appliance is turned off.	The backflow flap on the outside of the duct wall cap moves with the wind. ► This is normal. There is no action required.
Lights and fan blower do not work. The circuit breaker has tripped. 1. Check circuit breaker or fuse box to your house. 2. Make sure there is proper electrical power to the appliance.
Fan blower does not work. The electric wiring is incorrectly connected. ► See the Installation Instructions for more information.
The hood causes the breaker to trip.	The electric wiring is incorrectly connected. ► See the Installation Instructions for more information.
	The circuit is not sufficient. ► See the Installation Instructions for more information.
The hood is not venting properly. The hood might be too high from the cooktop.
	The hood may not be centered above the cooktop.
	The make up air is not sufficient.
	The wind from opened windows or opened doors in the surrounding area is affecting the ventilation of the hood. ► Close all the windows and doors to eliminate the outside air flow.
	There is a blockage in the duct opening or ductwork. ► Remove all blockage from the ductwork or duct opening.
	Duct length might be too long, too many elbows, "back to back" elbows, or too small roof. ► See the Installation Instructions for more information.

11 Disposal

11.1 Disposal of your old appliance

Environmentally compatible disposal allows valuable raw materials to be recycled.

• Dispose of the appliance in an environmentally responsible manner.

Information about current disposal methods can be obtained from your specialist dealer or local authority.

12 Customer Service

With any warranty repair, we will make sure your appliance is repaired by an authorized service provider using genuine replacement parts. We use only genuine replacement parts for all repairs.

Detailed information on the warranty period and terms of warranty can be found in the Statement of Limited Product Warranty, from your retailer, or on our website.

If you contact Customer Service, you will need the model number (E-Nr.) and the production number (FD) of your appliance.

The LED light sources are available as a spare part and should only be replaced by an authorized service provider. USA:

1-800-944-2904

www.bosch-home.com/us/owner-support/get-support www.bosch-home.com/us/shop

CA:

1-800-944-2904

www.bosch-home.ca/en/service/get-support

www.bosch-home.ca/en/service/cleaners-and-accessories

For assistance with connecting to Home Connect®, you can also view instructions here:

www.home-connect.com/us/en/help-support/set-up

12.1 Model number (E-Nr.) and production number (FD)

You can find the model number (E-Nr.) and the production number (FD) on the appliance's rating plate.

Making a note of your appliance's details and the

Customer Service telephone number will enable you to find them again quickly.

12.2 Rating plate location

The data rating plate is located on the frame behind the filter. Remove the filter to view it (see figure below for an example).

Rating plate

13 STATEMENT OF LIMITED PRODUCT WARRANTY

13.1 What this warranty covers & Who it applies to

The limited warranty provided by BSH Home Appliances ("Bosch") in this Statement of Limited Product Warranty applies only to the Bosch appliance sold to you ("Product"), provided that the Product was purchased:

• For your normal, household (non-commercial) use, and has in fact at all times only been used for normal household purposes.
• New at retail from a BSH authorized dealer or directly from BSH (not a display, "as is", or previously returned model), and not for resale, or commercial use.
  Within the United States or Canada, and has at all times remained within the country of original purchase.

The warranties stated herein apply to the original purchaser of the product warranted herein and to each succeeding owner of the product purchased for ordinary home use during the term of the warranty.

Please make sure to register your Product; while not necessary to effectuate warranty coverage, it is the best way for Bosch to notify you in the unlikely event of a safety notice or product recall.

13.2 How long the warranty lasts

Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of the original delivery. The foregoing timeline begins to run upon the date of the original delivery, and shall not be stalled, tolled,

extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chips, dents, or other damage to the finish) of the Product, for a period of thirty (30) days from the date of delivery or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, "As Is", or "B" stock appliances.

13.3 Repair/replace as your exclusive remedy

During this warranty period, Bosch or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been manufactured with a defect in materials or workmanship. If reasonable attempts to repair the Product have been made without success, then Bosch will replace your Product (upgraded models may be available to you, in Bosch's sole discretion, for an additional charge). Nothing in this warranty requires damaged or defective parts to be replaced with parts of a different type or design than the original part. All removed parts and components shall become the property of Bosch at its sole option. All replaced and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended with respect to such parts. Bosch's sole liability and responsibility hereunder is to repair manufacturer-defective Product only, using a Bosch authorized service provider during normal business hours. For safety and property damage concerns, Bosch highly recommends that you do not attempt to repair the Product yourself, or use a non-authorized service provider; Bosch will have no responsibility or liability for damage resulting from repairs or work performed by a non-authorized service provider. Authorized service providers are those persons or companies that have been specially trained on Bosch products, and who possess, in Bosch's opinion, a superior reputation for customer service and technical ability (note that they are independent entities and are not agents, partners, affiliates or representatives of Bosch). Nevertheless, taking your product to be serviced by a repair shop that is not affiliated with or an authorized dealer of Bosch will not void this warranty. Also, using third-party parts will not void this warranty. Notwithstanding the foregoing, Bosch will not incur any liability, or have responsibility, for the Product if it is located in a remote area (more than 100 miles from an authorized service provider) or is reasonably inaccessible, hazardous, threatening, or treacherous locale, surroundings, or environment; in any such event, if you request, Bosch would still pay for labor and parts and ship the parts to the nearest authorized service provider, but you would still be fully liable and responsible for any travel time or other special charges by the service company,

assuming they agree to make the service call. Further, to the extent you have installed the Product in a difficult-to-access location or have otherwise installed temporary or permanent fixtures that create barriers to accessing or removing the Product, Bosch will not incur any liability for, or have responsibility, for work or costs associated with moving the Product or otherwise creating access to the Product in order to repair or replace it. All such costs shall be your sole responsibility.

13.4 Out of warranty product

Bosch is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, prorates, or Product replacement, once this warranty has expired.

13.5 Warranty exclusions

The warranty coverage described herein excludes all defects or damage that are not the direct fault of Bosch, including without limitation, one or more of the following:

Use of the Product in anything other than its normal, customary and intended manner (including without limitation, any form of commercial use, use or storage of an indoor product outdoors, use of the Product in conjunction with air or water-going vessels).
- Any party's willful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain, improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service (including selfperformed "fixing" or exploration of the appliance's internal workings).
- Adjustment, alteration or modification of any kind.
- A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.
Ordinary wear and tear, spills of food, liquid, grease accumulations, or other substances that accumulate on, in, or around the Product.
- Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
Service calls to correct the installation of your Product, to instruct you how to use your Product, to replace house fuses or correct house wiring or plumbing.
- Removal and replacement of trim or decorative panels that interfere with servicing the Product.
- Damage or defects caused by labor or parts installed by any non-authorized service provider, unless approved by Bosch before service is performed.

In no event shall Bosch have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures or objects around the Product. Also excluded from this warranty are

Products, on which the serial numbers have been altered, defaced, or removed; service visits to teach you how to use the Product, or visits where there is nothing wrong with the Product; correction of installation problems (you are solely responsible for any structure and setting for the Product, including all electrical, plumbing or other connecting facilities, for proper foundation/flooding, and for any alterations including without limitation cabinetry, walls, floors, shelving, etc.); and resetting of breakers or fuses. TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY SETS OUT YOUR EXCLUSIVE REMEDIES WITH RESPECT TO PRODUCT, WHETHER THE CLAIM ARISES IN CONTRACT OR TORT (INCLUDING STRICT LIABILITY, OR NEGLIGENCE) OR OTHERWISE. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTYES, WHETHER EXPRESS OR IMPLIED. ANY WARRANTY IMPLIED BY LAW, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE, SHALL BE EFFECTIVE ONLY FOR THE PERIOD THAT THIS EXPRESS LIMITED WARRANTY IS EFFECTIVE. IN NO EVENT WILL THE MANUFACTURER BE LIABLE FOR CONSEQUENTIAL, SPECIAL, INCIDENTAL, INDIRECT, "BUSINESS LOSS", AND/OR PUNITIVE DAMAGES, LOSSES, OR EXPENSES, INCLUDING WITHOUT LIMITATION TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELLING EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE DEFINITIVELY CAUSED EXCLUSIVELY BY BOSCH, OR OTHERWISE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

No attempt to alter, modify or amend this warranty shall be effective unless authorized in writing by an officer of BSH.

13.6 Obtaining warranty service

To obtain warranty service for your product, you should contact Bosch Customer Support at 1-800-944-2904 to schedule a repair.

13.7 Product information

For handy reference, copy the information below from the rating plate. Keep your invoice and/or delivery documents for warranty validation.

Model number (E-Nr.)

Production number (FD)

Date of delivery

Table des matieres

1 IMPORTANTES CONSIGNES DE SECURITE 18

www.P65Warnings.ca.gov

Configurer Home Connect

Exigence

www.bosch-home.com/us/owner-support/get-support

www.bosch-home.com/us/shop

CA:

1-800-944-2904

www.bosch-home.ca/en/service/get-support

www.bosch-home.ca/en/service/cleaners-and-accessories

www.home-connect.com/us/en/help-support/set-up

www.bosch-home.com/us/owner-support/get-support
www.bosch-home.com/us/shop
CA:

1-800-944-2904

www.bosch-home.ca/en/service/get-support
www.bosch-home.ca/en/service/cleaners-and-accessories Aquipodrarencntrarayuda para laconexion con
Home Connect:

www.home-connect.com/us/en/help-support/set-up

The Home Connect module is a communication device designed to provide communication between appliances and smart devices.

This module is integrated at the factory, under direct control of B/S/H Home Appliances Corporation, and is not user serviceable or upgradable.

At least 20cm separation distance should be maintained from device to user.

FCC COMPLIANCE STATEMENT

CAUTION: Changes or modifications not expressly approved could void your authority to use this equipment.

This device complies with Part 15 of the FCC Rules. Operation to the following two conditions (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

INDUSTRY CANADA STATEMENT

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

Thank you for being a Bosch customer!

Simply create a MyBosch account, then register your appliance.

You'll find a variety of customized information in MyBosch such as:

Discounts for filters, cleaners, accessories & parts
- Easy access to manuals & appliance specifications
- Easy access to part lists
- Customized offer for the Bosch Appliance Service Plan (sent by mail after appliance registration)

Register here:

www.bosch-home.com/us/owner-support/mybosch

BOSCH

HOMEAPPLIANCES

SERVICE

Looking for help?

You'll find it here.

No matter what, no matter when: Bosch is here to support you.

We're here to assist with usage instructions, cleaning tips, accessories & parts, troubleshooting, and repairs.

Find online resources such as FAQs, how-to-videos, manuals, warranties and authorized Bosch servicers at:

www.bosch-home.com/us/owner-support/get-support

Contact us:

Please have your Model Number (E-Nr) ready when contacting us.

1-800-944-2904

www.bosch-home.com/us/owner-support/contact-us

BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA 92614

USA

www.bosch-home.com

1-800-944-2904

© 2023 BSH Home Appliances Corporation
