USER MANUAL Mythos LCR65 DEFINITIVE TECHNOLOGY

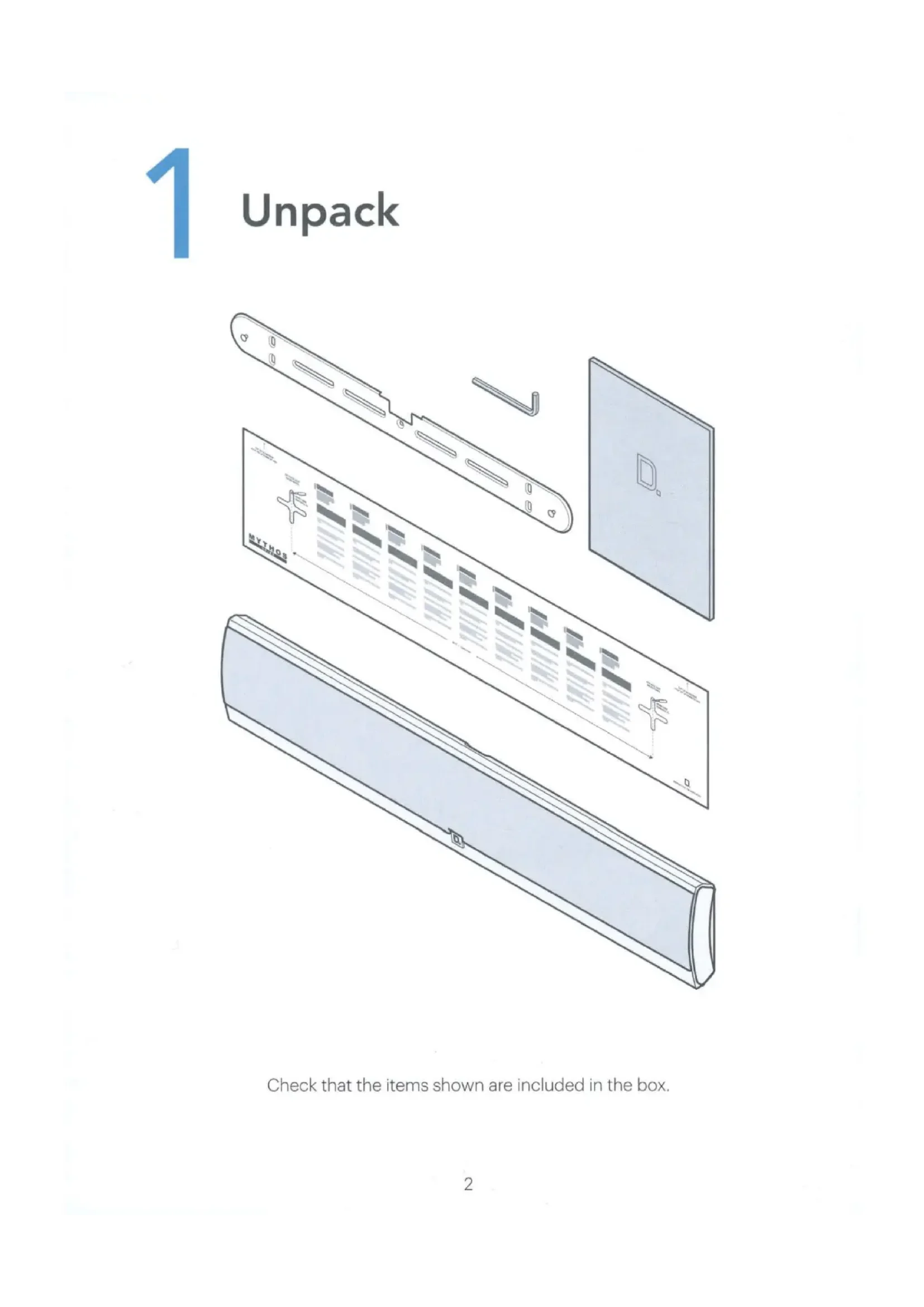

Check that the items shown are included

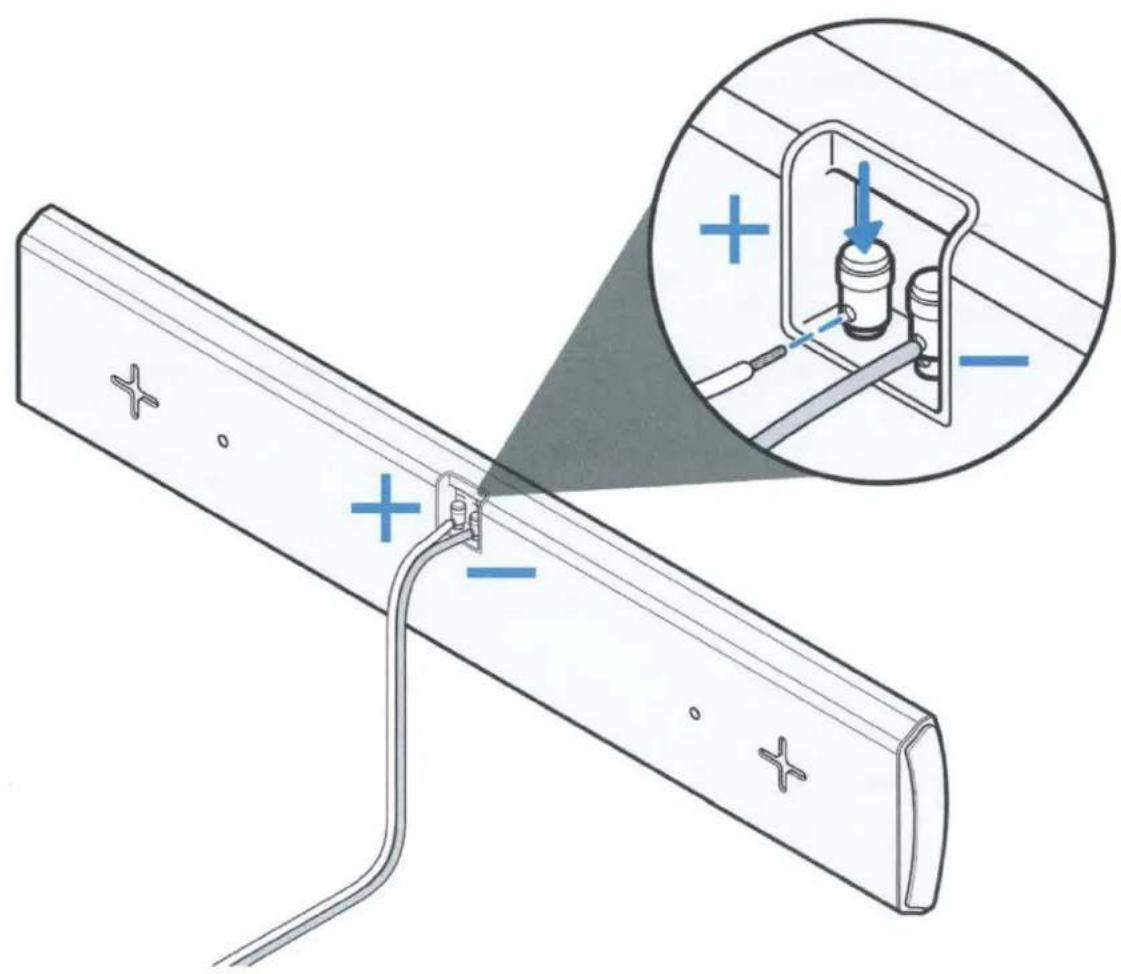

the box. 2Connect speaker wires

the terminals on the speaker

Strip about 3/8 in (10 mm)

insulation from each speaker wire.

expose the hole in the post.

Insert the bare wire through the

Make sure the wire does not touch any other terminal

Release the push terminal

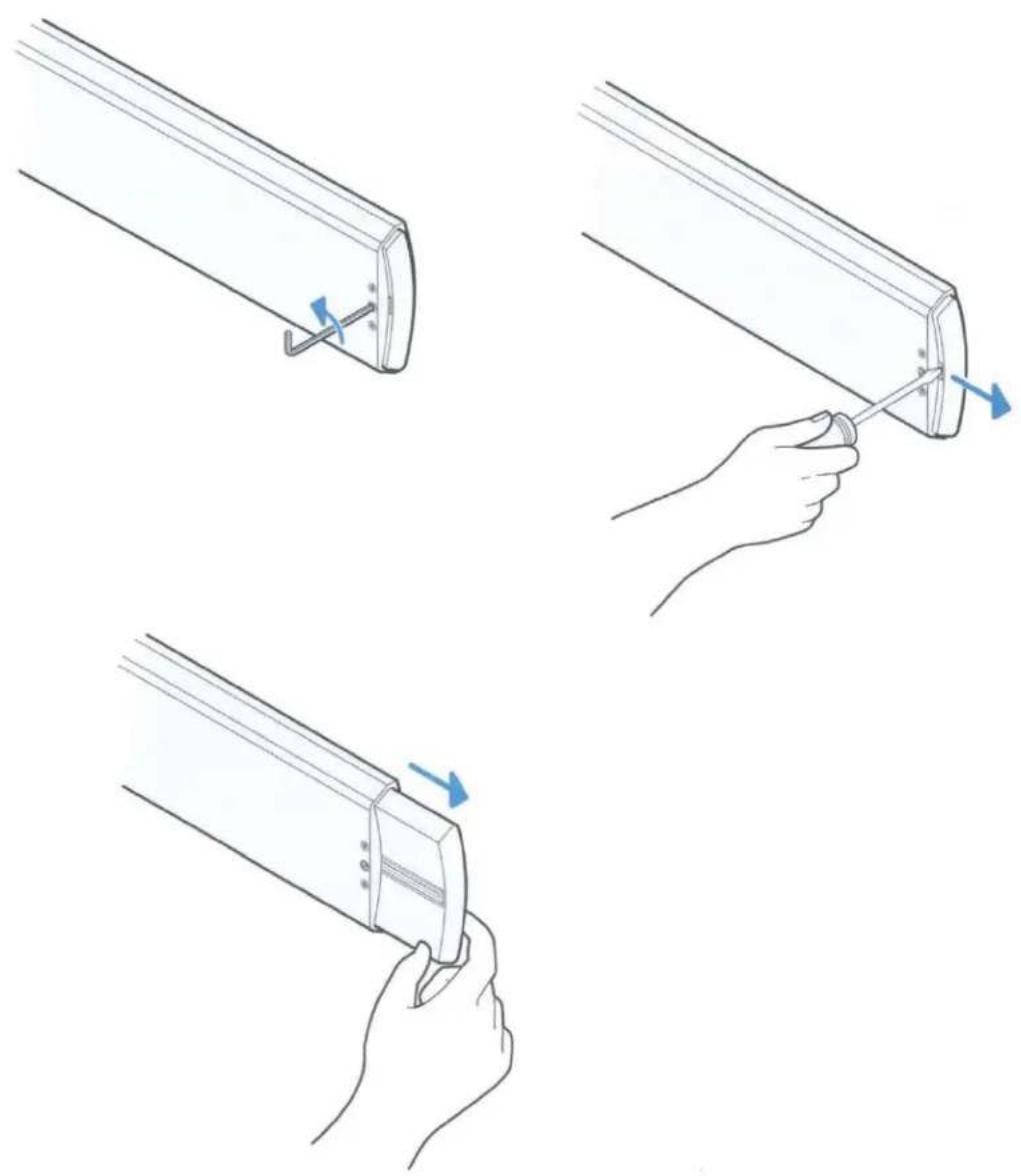

Repeat these steps for the other terminal. 4Adjust the speaker length The speaker has a pair

symmetrically adjustable extensions that you can adjust

your TV Use the included hex key

loosen the set screws on the back

the speaker, and slide the extensions so that the speaker

your TV After you adjust the extensions, tighten the screws to lock the extensions in place. Note:

recommend that you use a flat-head screwdriver

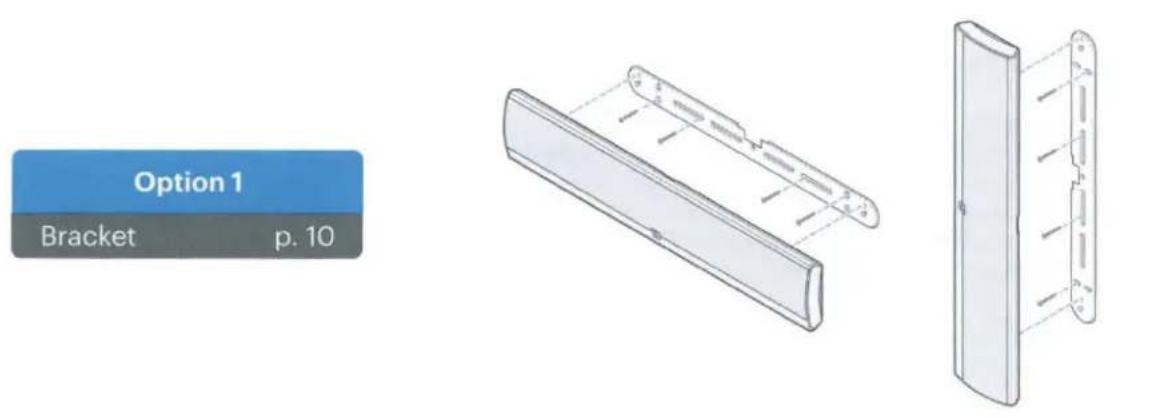

separate the extension from the sound bar. 6Choose your mounting method Option 1 Bracket p. 10 Option 2 No Bracket (Use Wall-Mounting Template)

mount the sound bar.

• - , -' • ,-.,"'f<J Mounting Option

locate and mark the studs on your wall. If you are not able

studs, use the appropriate wall anchors for your wall type.

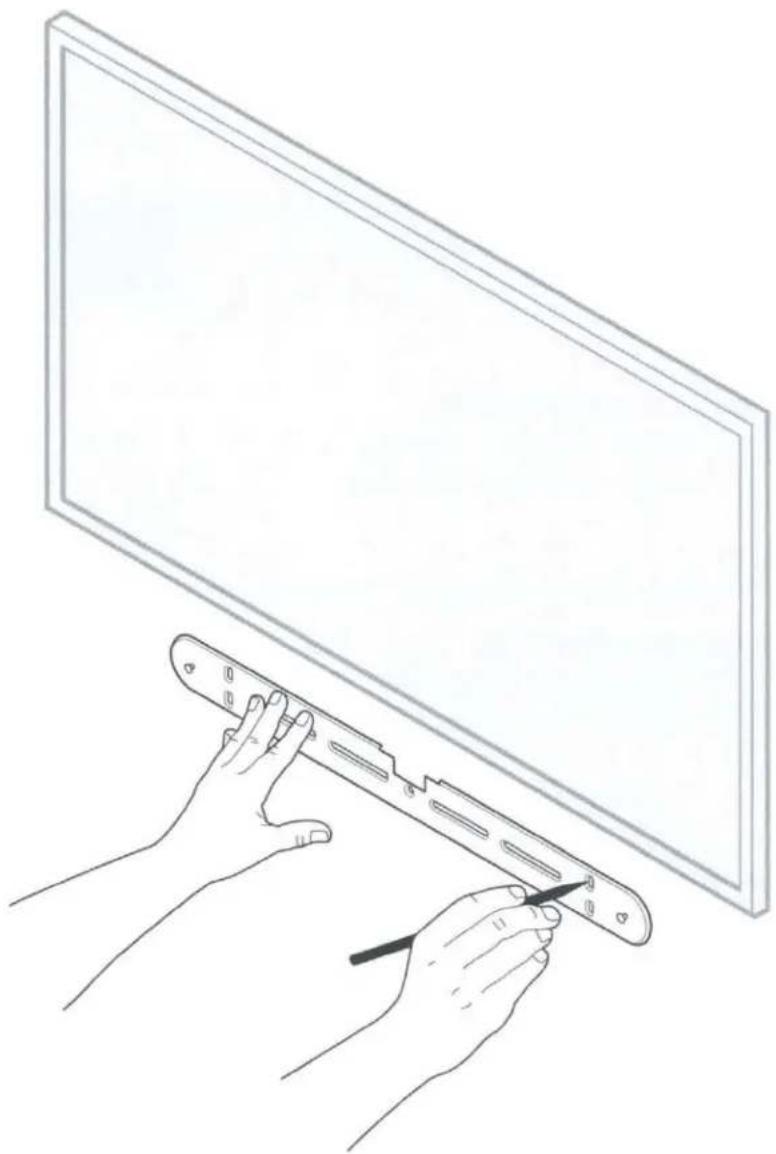

Place the wall-mounting bracket against the wall under your TV. Note: Make sure

leave enough space for the speaker

comfortably fit under your TV.

ocat ions where you will drill pilot holes. 10Mounting Option 1 Bracket

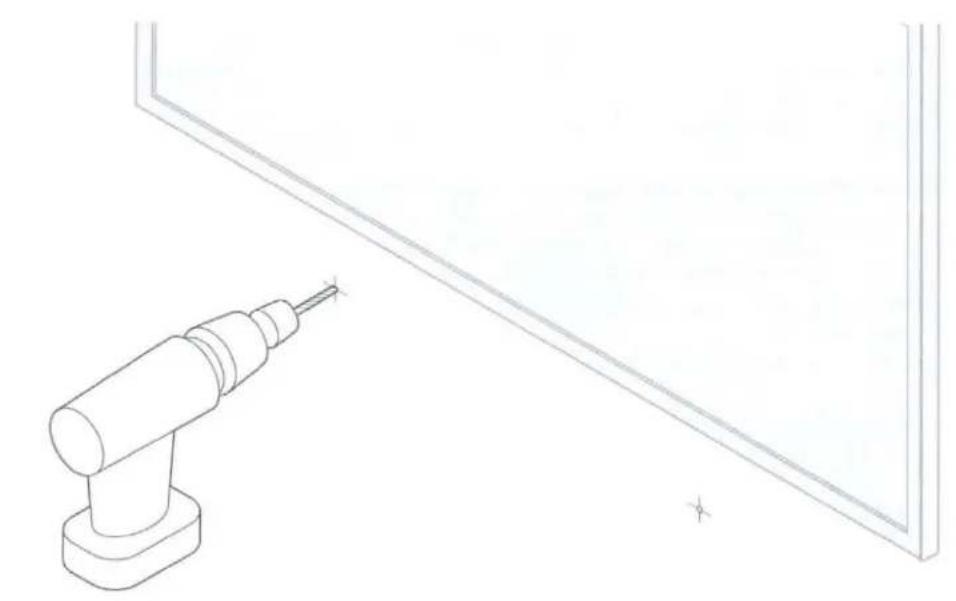

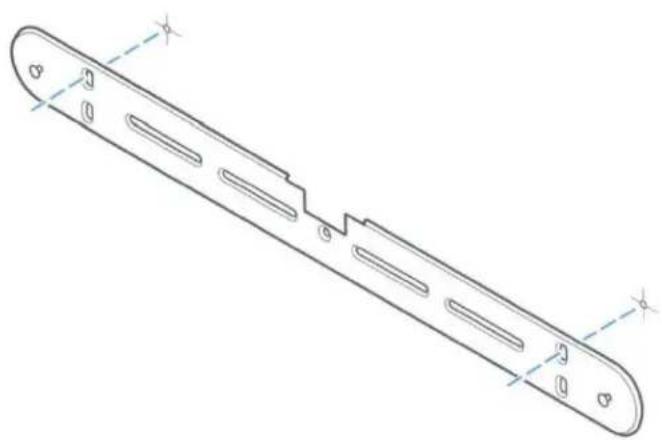

Drill pilot holes into the marked locations on the wall.

Align the holes on the wall-mounting bracket with the holes in the wal

12' Mounting Option 1 Bracket

Secure the wall brackets by placing 2 in. long screws into s tud

appro- priate size wall anchors. Use the mounting holes

possible. More screws can be used

needed for additional support.

Insert the screws into the wall through the wall-mounting bracket. Note: If none

into a wall stud, consider using wall an- chors (not included)

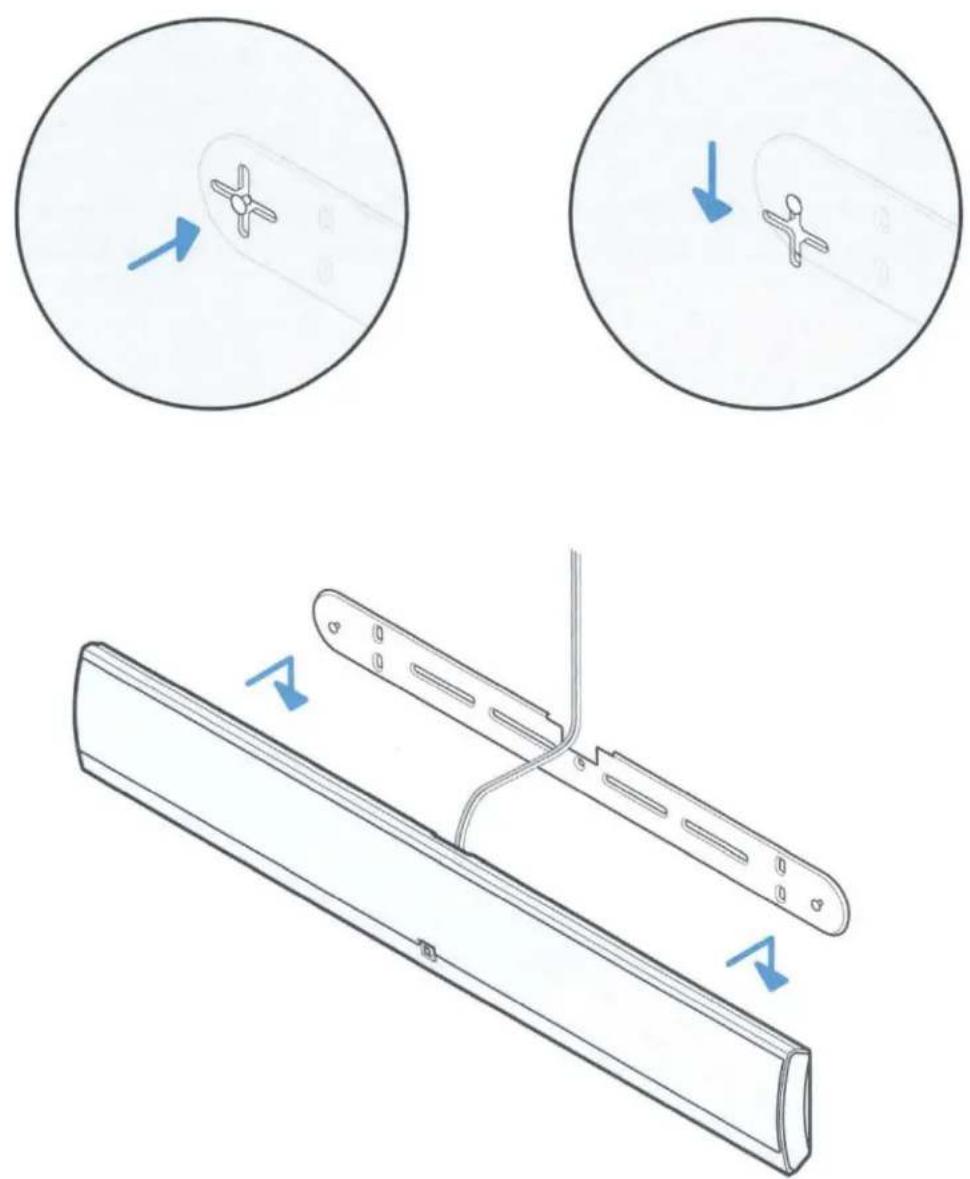

Align the speaker holes with the bracket hooks and then hang the speaker

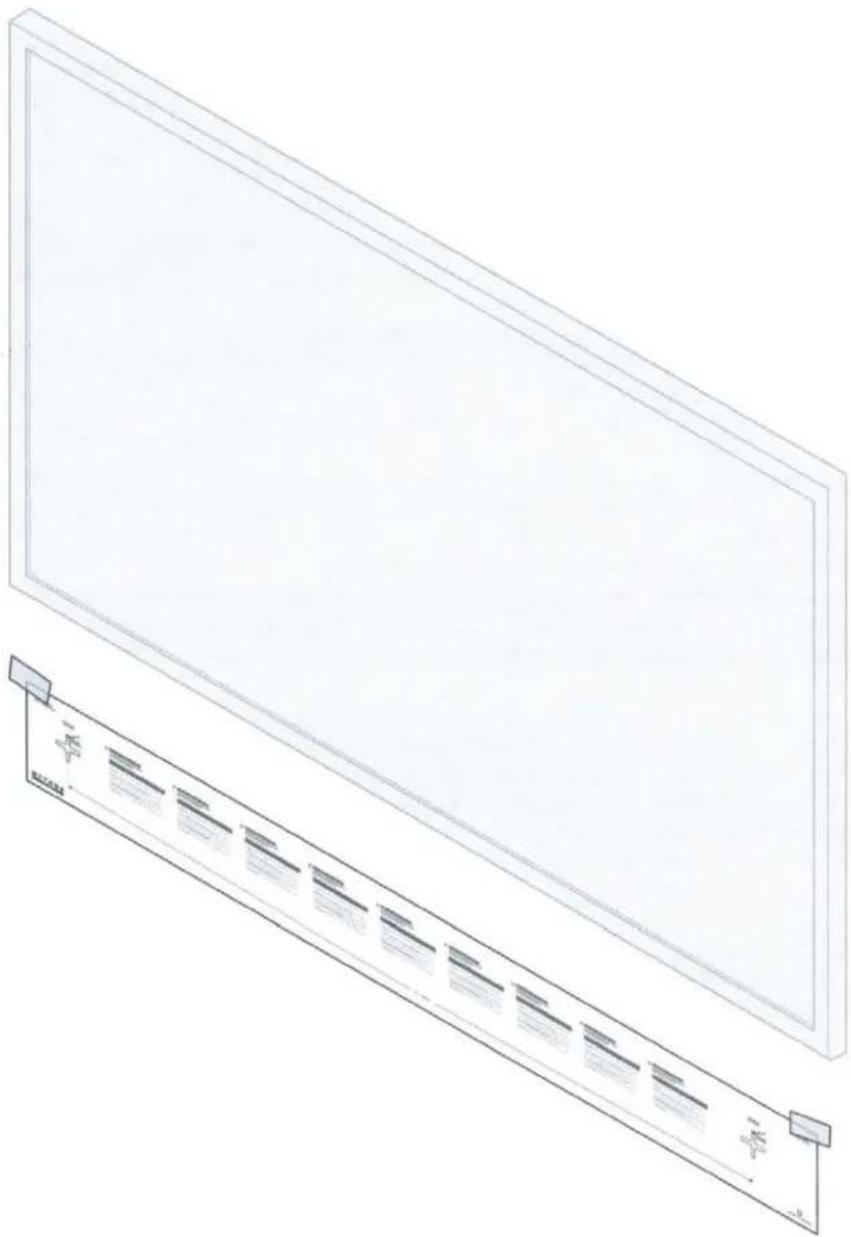

Bracket (Wall-Mounting Template) Follow the instructions on the included wall-mounting template to mount the sound bar

ll wi thout a mounting bracket. 16Connect the speaker

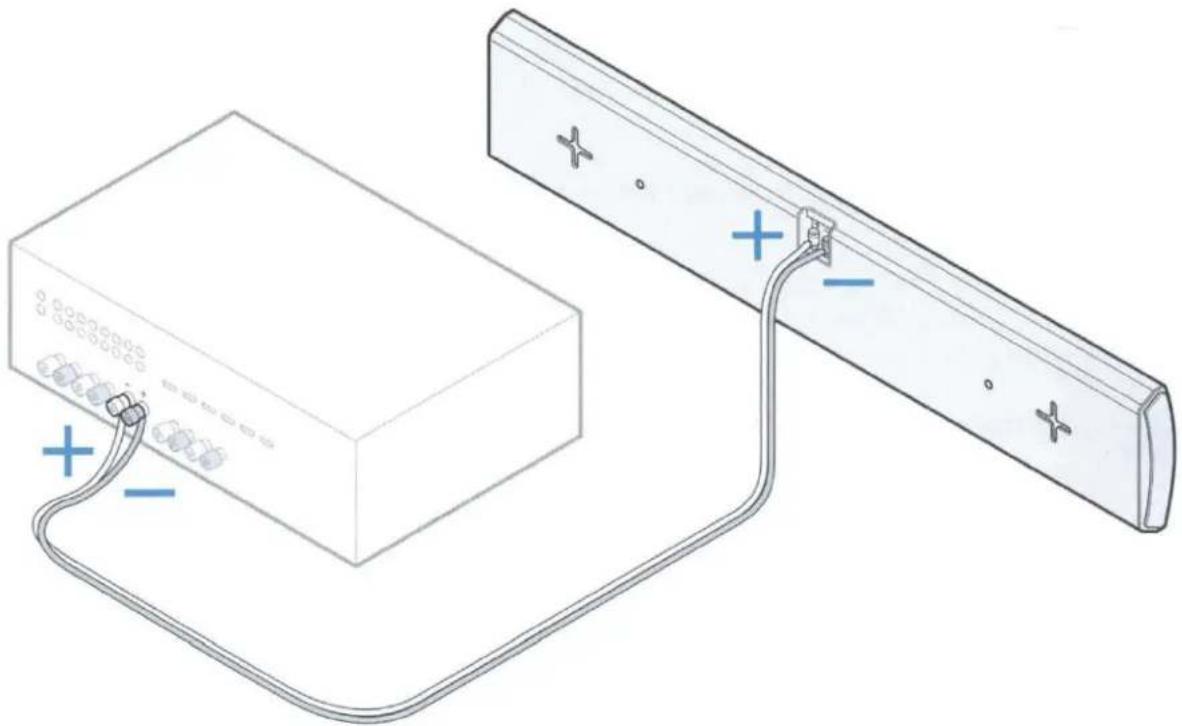

amplifier Connect the other ends

your amplifier. Ensure that the speaker

the receiver or amplifier +to+ and -

I I Set the crossover frequency on the receiver

higher. All lower frequencies should be sent

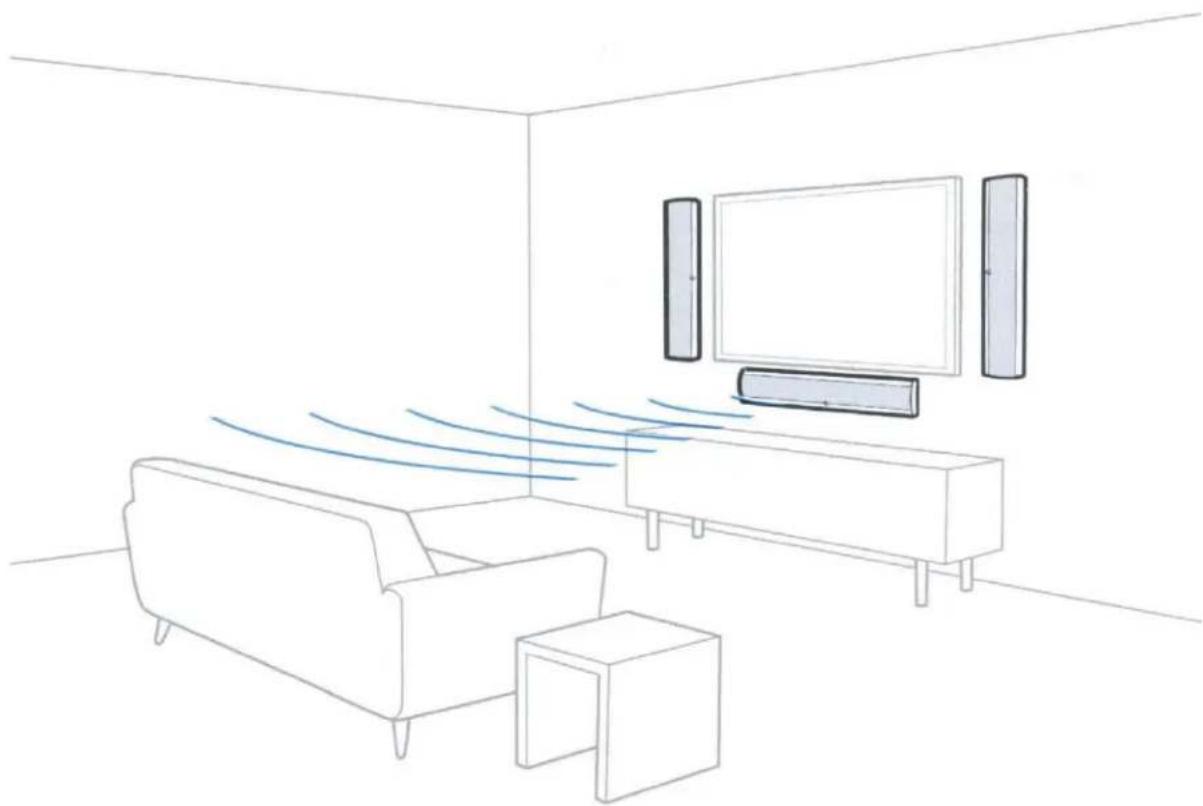

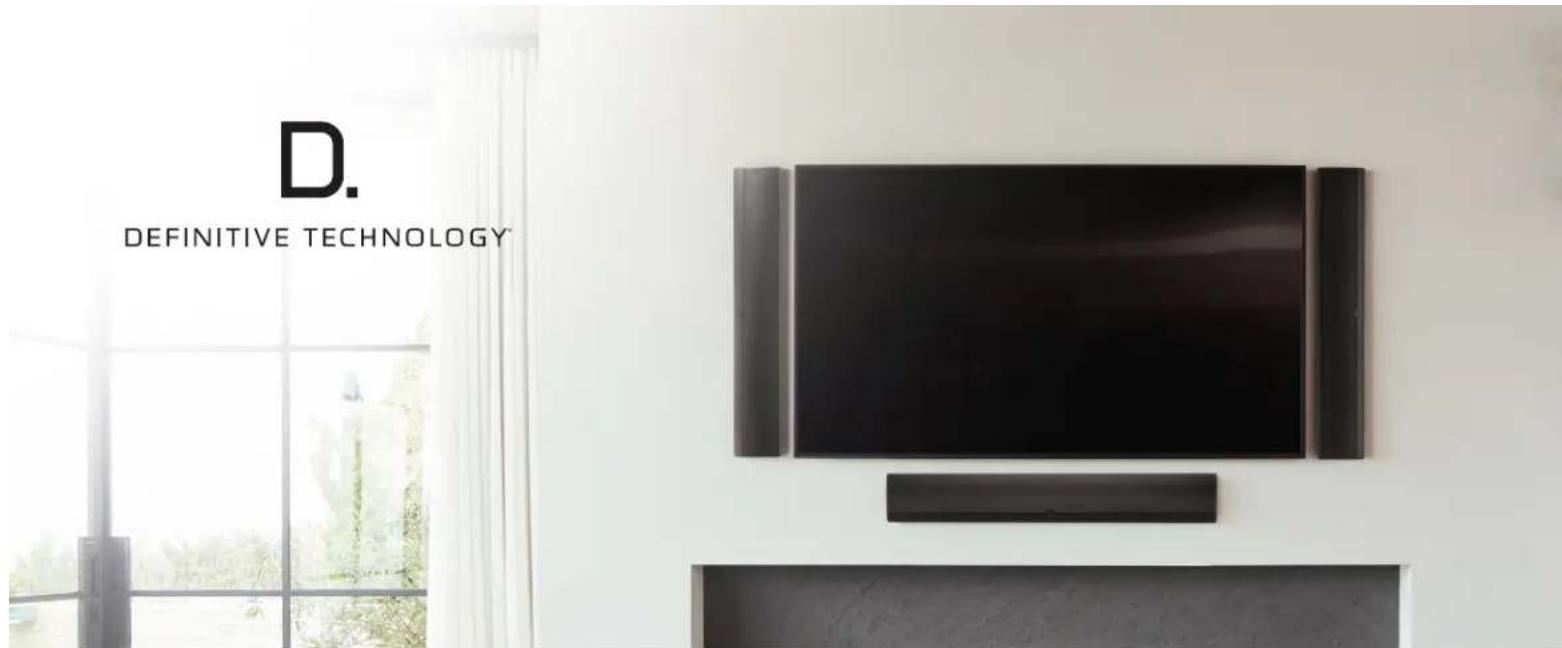

now complete! Adjust the settings on your amplifier, then listen

test the speaker sound and volume. If you mounted Mythos LCR speakers verti- cally, you can rotate the magnetic Definitive Technology "D. " logo

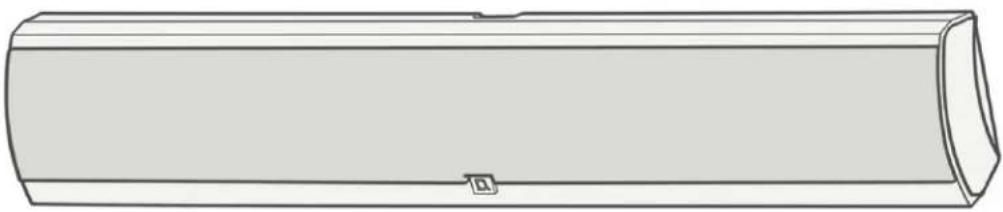

Series LCR on-wall speakers elevate home theater experiences indoors and out. Oering horizontal or vertical wall-mountable solutions for the left, center, or right channel, these low-proile speakers blend high-performance sound and designer aesthetics in a weather- protected, adjustable, rigid aluminum enclosure. Mythos Series LCR speakers are available in three models. PRODUCT FEATURES

• On-wall LCR home theater speakers blend premium sound and designer aesthetics

• IP66-rated weather-resistant design is suitable for use outdoors

• 3.5” XTDD woofers and midrange drivers produce balanced lows and mids

• 1” aluminum oxide dome tweeter delivers precise highs, vivid realism

• Precision crossovers optimize drivers for full, lifelike sound

• Mount vertically or horizontally (mount included) for a seamless system look

• Timbre-matched for cohesive sound alongside Deinitive Technology speakers KEY BENEFITS Slim Proile and Luxury Finishes Ultra-slim cabinet measures less than 2” deep and features clean, modern aesthetics; reined anodized aluminum inishes; and horizontal or vertical wall- mount compatibility. Symmetrically adjustable extensions expand up to 3.5” to aesthetically frame 65”, 75”, or 85”-class and larger television displays, for a lush look and a streamlined appearance alongside and under your TV. Acoustically Optimized Cabinet A highly rigid, tuned, aircraft-grade aluminum enclosure ensures the truest sound, uncolored by cabinet resonances, for pristine sonic reproduction. IP66-Rated Weather Protection Water- and dust-resistant construction means you can enjoy stunning home theater sound and high-resolution music outdoors. Multi-Driver Arrays Mythos LCR on-wall speakers feature 2- and 3-way driver arrays. Multiple-driver arrays improve driver performance and project robust, full-range sound over a wide area. XTDD Drivers Ultra-sti, 3.5” anodized aluminum dome woofers and midrange drivers eliminate breakup and broaden dispersion, for crisp, clear sound and a spacious, enveloping soundstage. Aluminum Oxide Dome Tweeter A 1”, rigid, well-damped Dymension

Series tweeter delivers smooth extended response, crisp transients, and pinpoint imaging, for cohesive, lifelike sound that draws you inside the action. Timbre-Matched Consistent sound across Deinitive Technology speakers gives you the lexibility to mix and match speakers to build the ultimate system or a starter system that can expand as your needs grow.definitivetechnology.com SPECIFICATIONS

LCR-65 LCR-7 5 LCR-85

Weight 10 lbs (4.3 kg) 12 lbs (5.5 kg) 14 lbs (6.18 kg) Color / Material Black anodized aluminum Black anodized aluminum Black anodized aluminum Grille Material Micro-perforated powder-coated steel Micro-perforated powder-coated steel Micro-perforated powder-coated steel Tweeter (1) 1 in. aluminum oxide dome (1) 1 in. aluminum oxide dome (1) 1 in. aluminum oxide dome Midrange – (2) 3.5 in. XTDD aluminum dome (2) 3.5 in. XTDD aluminum dome Woofer (4) 3.5 in. XTDD aluminum dome (4) 3.5 in. XTDD aluminum dome (6) 3.5 in. XTDD aluminum dome Number of Channels 1 1 1 Frequency Response 100 Hz–25 kHz (-10dB) 120 Hz–20 kHz (-3dB) 100 Hz–25 kHz (-10dB) 120 Hz–20 kHz (-3dB) 100 Hz–25 kHz (-10dB) 120 Hz–20 kHz (-3dB) Nominal Impedance 4Ω (8Ω compatible) 4Ω (8Ω compatible) 4Ω (8Ω compatible) Sensitivity 88dB (2.83V/1m) 88dB (2.83V/1m) 88dB (2.83V/1m) Recommended Ampliier Power 60W 60W 60W IP Rating (Ingress Protection) IP66 IP66 IP66 Warranty 5-year 5-year 5-year Included Accessories (1) Wall-mount bracket (1) Wall-mount bracket (1) Wall-mount bracket Mythos

LCR On-Wall SpeakerLimited 5-Year Warranty {United States and Canada) Definitive Technology, LLC (herein "Definitive") warrants to the original purchaser only that this Definitive Loudspeaker Product (the "Product") will be free from defects materials and workmanship for a limited period

five (5) years from the date original retail purchase from a Definitive Authorized Dealer. However. this Warranty will automatically terminate prior to the expiration

the five (5) years the original retail purchaser sells or otherwise transfers the Product to any other party. The original retail purchaser shall hereinaher be referred to "you:·

allow Definitive to offer the best possible warranty service, please visit the website the Product Registration Card(s) and fill out the form within ten (10) days the date purchase. Defective Products must shipped, together with proof purchase. prepaid insured to the Definitive Authorized Dealer from whom you purchased the Product, or

authorized service center. Products must

the original shipping container or its equivalent; in any case the risk loss damage transit to be borne by you. If upon examination at the Factory or Definitive Authorized Dealer

determined that the Product was defective materials or workmanship at any time during this Warranty period. Definitive or the Definitive Authorized Dealer will, at its option, repair or replace this Product at no additional charge, except

set forth below. All replaced parts and Products become the property Definitive. Products replaced or repaired under this warranty will be returned to you. within a reasonable time. freight prepaid. This warranty does not include service or parts to repair damage caused by accident, disaster. misuse, abuse, negligence. inadequate packing or shipping procedures. commercial use, voltage inputs excess the rated maximum the unit. cosmetic appearance cabinetry not directly attributable to defect materials or workmanship, or service, repair. or modification the Product which has not been authorized or approved by Definitive. This warranty shall terminate if the Serial number on the Product has been removed, tampered with or defaced. This warranty

all other expressed Warranties. If this Product defective materials or workmanship warranted above, your sole remedy shall repair or replacement provided above. no event will Definitive liable to you for any incidental, special, or consequential damages arising out

the use or inability to use the Product. even if Definitive or a Definitive Authorized Dealer has been advised the possibility such damages, or for any claim by any other party. Some states or provinces do not allow the exclusion or limitation

consequential damages. the above limitation and exclusion may not apply to you. All implied warranties on this Product are limited to the duration this expressed Warranty. Some states or provinces do not allow limitation

how long implied Warranty lasts, the above limitations may not apply to you. This Warranty gives you specific legal rights. and you also may have other rights which vary from state to state or province to province. Definitive has no liability for acts third parties. Definitive's liability, whether based on contract, tort, or any other theory, shall not exceed the purchase price of the Product for which a claim has been made. For U.S. warranty claims, the consumer agrees and consents that all disputes shall resolved accordance with California laws

San Diego County, California. Definitive reserves the right to modify this warranty statement

any time. This Warranty applies only to Products purchased

the United States America, its possessions, and U.S. and NATO armed forces exchanges and audio clubs, and Canada, except Quebec. Residents Quebec are governed

that province's consumer protection legislation. The Warranty terms and conditions applicable to Products purchased

other countries are available from the Definitive Authorized Distributors

such countries. Please see the warranty guide specific to Products purchased in countries or territories not referenced herein. Definitive Technology, LLC (ci-apres « Definitive

t for gn obiects into the u

not let 1nsec 1c1des, benzene, and thinner come

contact with the unit Never disassemble or dify the unit

Naked flame sources such

lit candles should not be placed on the unit

not place obiects /tiled with liquid

such vases, the unit. Disposal Equipment Only for European Union and countries with recycling sys

This marking indicates that this product should not

disposed with other household wastes throughout the

prevent possible harm to the environment or human health from uncontrolled waste disposal. recycle it responsibly to promote the sustainable reuse material resour

return your used device, please

the return and collection systems contact t retailer where the product was purc hased. They can take this product for environmental safe recycli ng.

;'\'J ~I, EU Declarations Conformity Hereby, Sound United, LLC declares that our product compli

declaration of conformity available at the following internet address: https://www.definitivetechnology.com/declarations-of- conformity. Sound United, LLC 5541 Fermi Court Car

Eindhoven The Netherlands UKCA Declarations Conformity

Hereby, Sound United, LLC declares that our product is

compliance with the following regulations: 2012 No. 3032, The Restriction

Elec trical and Electronic Equipment Regulations 2012 2013 No. 3113, The Waste Elec

ical and Electronic Equ ipment Regu lat

No. 2852, The REACH Enforcement Regulations 2008 2015 No. 1640, The Packaging (Essential Requirements) Regulations 2015

IEC62474:2019 The full text of the UKCA declaration conformity is avai lable at the following internet address: https://www.definitivetechnology.com/ declarations-of-conformity.
