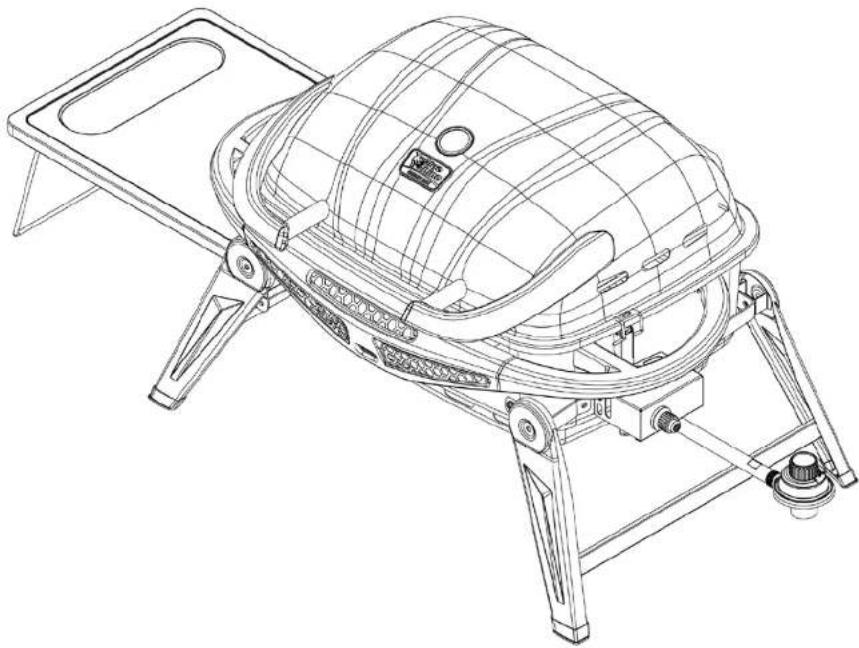

USER MANUAL GBT1508B Blue Rhino
Outdoor LP Gas / Charcoal Barbecue Grill
Model No. GBT1508B
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
(Outside any enclosure)
WARNING
FOR YOUR SAFETY:
- Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
- Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.
- Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or death.
- This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.
- Read and follow all warnings and instructions before assembling and using the appliance.
- Follow all warnings and instructions when using the appliance.
- Keep this manual for future reference.
DANGER
If you smell gas -
- Shut off gas to appliance.
- Extinguish any open flame.
-
Open lid.
-
If odor continues, keep away from the appliance and immediately call your fire department.
Failure to follow these instructions could result in fire or explosion which could cause property damage, personal injury or death.
WARNING
FOR YOUR SAFETY:
- Do NOT store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.
- An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
DANGER
Never operate this appliance unattended.
Table of Contents
Important Safeguards.

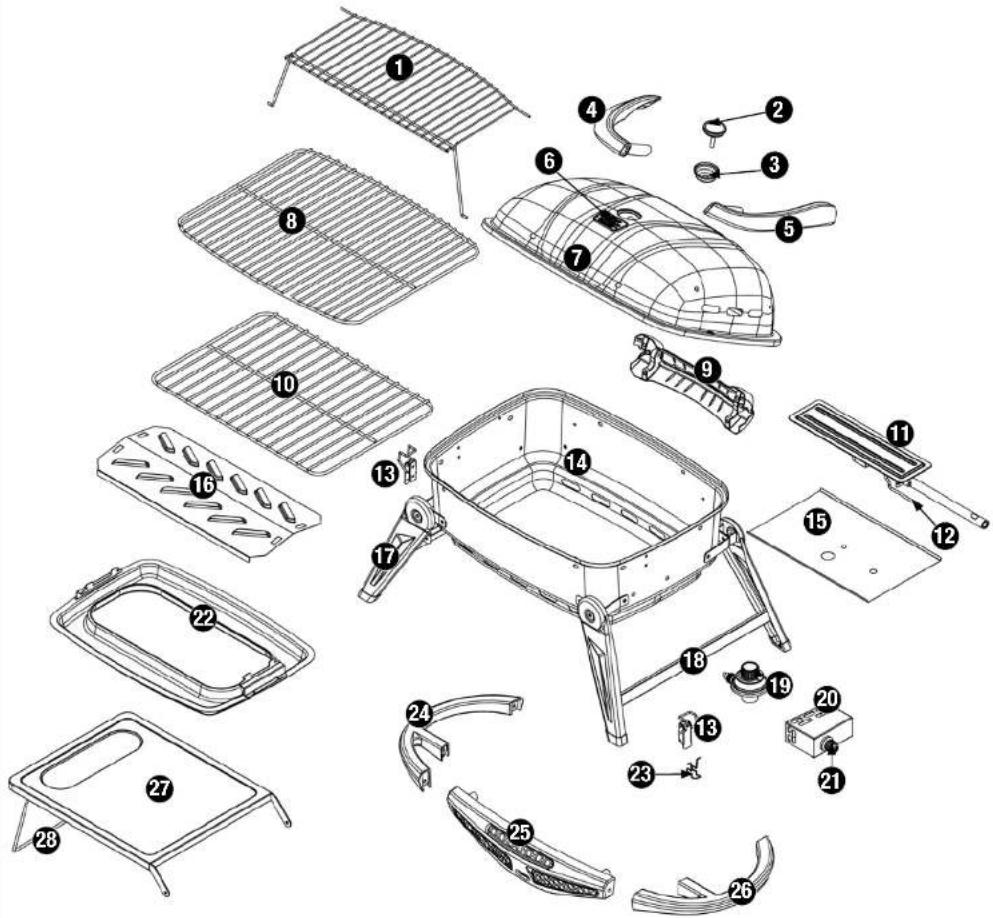

Expanded View & Hardware 5
Assembly Instructions 6
10
Operating Instructions 10
Cleaning and Care 11
Product Registration 12
Replacement Parts 12
Limited Warranty 12
Troubleshooting 13
The use and installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Storage and Handling of Liquefied Petroleum Gases, ANSI/ NFPA 58, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2, or the Standard for Recreational Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series, as applicable.
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
If you are assembling this unit for someone else, give this manual to them to read and save for future reference.
California Proposition 65: Combustion by-products produced when using this product contain chemicals known to the State of California to cause cancer, birth defects, and other reproductive harm.
California Proposition 65: Wash your hands after handling this product.
California Proposition 65: Handling the brass material on this product exposes you to lead, a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm.
Manufactured in China for: Blue Rhino Global Sourcing, Inc.
Winston-Salem, NC 27105 USA · 1.800.762.1142 · BlueRhin.com
© Blue Rhino Global Sourcing, Inc.
Blue Rhino® is a registered trademark of Blue Rhino Global Sourcing, Inc.
CrossFireTM Is a trademark of Blue Rhino Global Sourcing Inc. GBT1508B-EF-OM-F102
Made from 75% Bagasse
(environmentally friendly sugar
cane pulp by-product)
Important Safeguards - LP Gas
DANGER: Failure to follow the dangers, warnings and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property.
WARNING:
This grill is for outdoor use only, and should not be used in a building, garage or any other enclosed area.
Do NOT operate, light or use this appliance within ten feet (3.05m) of walls, structures or buildings.
For residential use only. This grill is NOT for commercial use.
This grill is not intended for and should never be used as a heater. TOXIC fumes can accumulate and cause asphyxiation.
This is NOT a tabletop grill. Therefore, do NOT operate this grill on any type of tabletop surface.
This grill is safety certified for use in the United States and/or Canada only. Do NOT modify for use in any other location. Modification will result in a safety hazard and will void your warranty.
This grill is for use with liquid propane (LP) gas only. The conversion to or attempted use of natural gas in this LP gas grill is dangerous, may cause bodily harm and will void your warranty.
Do NOT over heat this grill as this will damage the grill and could cause a fire or an explosion which can cause death, serious bodily injury or damage to property.
ALP gas characteristics:
a. LP gas is flammable and hazardous if handled improperly. Become aware of the characteristics before using any LP gas product.
b. LP gas is explosive under pressure, heavier than air, and settles and pools in low areas.
c. LP gas in its natural state has no odor. For your safety, an odorant is added that smells like rotten cabbage.
d. Contact with LP gas can cause freeze burns to skin.
Apartment dwellers: Check with management to learn the requirements and fire codes for using a LP gas grill in your apartment complex. If allowed, use outside on the ground floor with a ten foot (3.05 m) clearance from any structure. Do NOT use on or under balconies.
ALP gas cylinder needed to operate. Only cylinders marked "propane" may be used.
The LP gas cylinder must be constructed and marked in accordance with the Specifications for LP-gas Cylinders of the U.S. Department of Transportation (D.O.T.), Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods; or the National Standard of Canada, CAN/CSA-B339.
ALP gas cylinder must be arranged for vapor withdrawal.
Dented or rusted LP gas cylinders may be hazardous and should be checked by your LP gas supplier prior to use.
The LP gas cylinder should not be dropped or handled roughly.
LP gas cylinders must be stored outdoors out of the reach of children and must not be stored in a building, garage or any other enclosed area. Your cylinder must never be stored where temperatures can reach over 125^ .
Do NOT insert any tool or foreign object into the valve outlet or safety relief valve. You may damage the valve and cause a leak. Leaking propane may result in an explosion, fire, severe personal injury or death.
Do NOT block holes in sides, bottom or back of grill.
Never keep an LP gas cylinder in a hot car or trunk. Heat will cause the gas pressure to increase, which may open the relief valve and allow gas to escape.
Do NOT store a spare LP gas tank under or within 25 feet (7.62 m) of this appliance.
Never attempt to attach this grill to the self-contained LP gas system of a camper trailer, motor home or house.
The use of alcohol, prescription or non-prescription drugs may impair the consumer's ability to properly assemble or safely operate the appliance.
Strong odors, colds, sinus congestion, etc. may prevent the detection of propane. Use caution and common sense when testing for leaks.
NEVER use lighter fluid, lava rocks, gasoline, kerosene or alcohol with this product.
ANEVER use charcoal when using as a LP gas grill.
Your grill has been checked at all factory connections for leaks. Recheck all connections as described in the "Operating Instructions" section of the manual, as shipping can loosen connections.
Check for leaks even if your unit was assembled for you by someone else.
Do NOT operate if a gas leak is present. Gas leaks may cause a fire or explosion.
A You must follow all instructions in the "Checking for Leaks" section before operating. To prevent a fire or explosion hazard when testing for a leak:
a. Always perform a leak test before lighting the grill and each time the cylinder is connected for use.
b. No smoking. Do NOT use or permit sources of ignition in the area while conducting a leak test.
c. Conduct the leak test outdoors in a well-ventilated area.
d. Do NOT use matches, lighters, or a flame to check for leaks.
e. The use of alcohol, prescription or non-prescription drugs may impair the consumer's ability to properly assemble or safely operate the appliance.
f. Strong odors, colds, sinus congestion, etc. may prevent the detection of propane. Use caution and common sense when testing for leaks.
g. Do NOT use grill until any and all leaks are corrected. If you are unable to stop a leak, disconnect the LP gas supply. Call a gas appliance serviceman or your local LP gas supplier.
Do NOT store or use gasoline or other flammable liquids or vapors within 25 feet (7.62m) of this appliance.
Do NOT use in an explosive atmosphere. Keep grill area clear and free from combustible materials, gasoline and other flammable vapors and liquids.
Minimum clearance from sides and back of unit to combustible construction is 36 inches (91.4 cm). Do NOT use this appliance under any type of overhang or roof.
It is essential to keep the grill's regulator and valve assembly, burners and circulating air passages clean.
Inspect grill before each use.
Do NOT alter grill in any manner. Any alteration will void your warranty.
Do NOT use the grill unless it is COMPLETELY assembled and all parts are securely fastened and tightened.
This grill should be thoroughly cleaned and inspected on a regular basis.
Clean and inspect the hose before each use of the appliance. If there is evidence of abrasion, wear, cuts or leaks, the hose must be replaced prior to operation.
Use only the pressure regulator provided. Use only the replacement pressure regulator specified by Blue Rhino Global Sourcing, Inc.
Do NOT attempt to repair or alter the pressure regulator for any assumed defect. Any modification to this assembly will void your warranty and create the risk of a gas leak and fire. Use only authorized replacement parts supplied by manufacturer.
Use only Blue Rhino Global Sourcing, Inc. factory-authorized parts. The use of any part that is not factory-authorized can be dangerous and will void your warranty.
Do NOT operate this appliance without reading "Operating Instructions" in this manual.
Do NOT touch metal parts of grill until they have completely cooled to avoid burns, unless you are wearing protective gear (pot holders, gloves, BBQ mitts, etc.).
Do NOT install or use in or on boats or recreational vehicles (RV).
Do NOT use grill in a vehicle trunk, station wagon, mini-van or sport utility vehicle (SUV).
A When cooking, fire extinguishing materials should be readily accessible. In the event of an oil/grease fire, do NOT attempt to extinguish with water. Use type BC or ABC dry chemical fire extinguisher or smother with dirt, sand or baking soda.
Move gas hoses as far away as possible from hot surfaces and dripping hot grease.
ADo NOT use grill in high winds.
Never lean over the grill when lighting.
A Do NOT leave a lit grill unattended. Keep children and pets away from grill at all times.
Do NOT leave grill unattended while preheating or burning off food residue on high. If grill has not been cleaned, a grease fire can occur that may damage the product.
Do NOT place empty cooking vessels on the appliance while in operation.
Use caution when placing anything on the grill while the appliance is in operation.
Do NOT attempt to move grill when in use. Allow the grill to cool before moving or storing.
ALP gas cylinder must be properly disconnected and removed prior to moving this grill.
Storage of grill indoors is permissible only if the cylinder is disconnected, removed from the grill and properly stored outdoors.
Always open grill lid carefully and slowly as heat and steam trapped within grill can cause severe burns.
A Do NOT attempt to disconnect the gas regulator from the cylinder or any gas fitting while the grill is in use.
Disconnect LP gas tank when not in use.
Always place your grill on a hard, non-combustible, level surface. An asphalt or blacktop surface may not be acceptable for this purpose.
Do NOT use directly on wooden decks.
Move gas hoses as far away as possible from hot surfaces and dripping hot grease.
Keep all electrical cords away from a hot grill.
After a period of storage and/or non-use, check for leaks, burner obstructions and inspect for any abrasion, wear or cuts to the hose.
Failure to open lid while igniting the grill's burner(s), or not waiting five minutes to allow the gas to clear if the grill does not light, may result in an explosive flame-up.
Never operate grill without its heat plates installed.
Always use a meat thermometer to ensure food is cooked to a safe temperature.
Use protective gloves when assembling this product.
A Do NOT force parts together as this can result in personal injury or damage to the product.
Never cover entire cooking area with aluminum foil.
Always clean grill when switching from a charcoal grill to a gas grill.
ANEVER use as an LP gas grill and charcoal grill at the same time.
Deaths, serious injury or damage to property may occur if the above is not followed exactly.
Important Safeguards - Charcoal
DANGER: Failure to follow the dangers, warnings and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property.
WARNING:
This grill is for outdoor use only, and should NOT be used in a building, garage or any other enclosed area.
A Do NOT operate, light or use this appliance within ten feet (3.05 m) of walls, structures or buildings.
For residential use only. This grill is NOT for commercial use.
A Never use charcoal that has been pre-treated with lighter fluid. Use only a high grade plain charcoal, charcoal/wood mixture, lump charcoal or cooking wood. The conversion to or attempted use of any other fuel source in this charcoal grill is dangerous and will void your warranty.
This grill is NOT intended for and should never be used as a heater. TOXIC fumes can accumulate and cause asphyxiation.
A Do NOT use grill for indoor cooking. TOXIC carbon monoxide fumes can accumulate and cause asphyxiation.
This grill is safety certified for use in the United States and/or Canada only. Do NOT modify for use in any other location. Modification will result in a safety hazard and will void your warranty.
Apartment dwellers: Check with management to learn the requirements and fire codes for using a charcoal grill in your apartment complex. If allowed, use outside on the ground floor with a ten foot (3.05 m) clearance from any structure. Do NOT use on or under balconies.
Minimum clearance from sides and back of unit to combustible construction is 36 inches (91.4 cm). Do NOT use this appliance under any type of overhang or roof.
A Do NOT use gasoline, kerosene or alcohol for lighting.
A Do NOT use in an explosive atmosphere. Keep grill area clear and free from combustible materials, gasoline and other flammable vapors and liquids.
Do NOT over heat this grill as this will damage the grill and could cause a fire or an explosion which can cause death, serious bodily injury or damage to property.
Never use lava rocks, gasoline, kerosene or alcohol with this product.
Do NOT store or use gasoline or other flammable liquids or vapors within 25 feet (7.62m) of this appliance.
ANEVER use the gas grill to start the charcoal.
ANEVER use the ignition to start the charcoal.
Always disconnect and properly store the LP gas tank prior to using as a charcoal grill.
Do NOT block holes in sides or back of grill.
Inspect grill before each use.
Do NOT alter grill in any manner. Any alteration will void your warranty.
Do NOT build this model of grill in any built-in or slide-in construction. Ignoring this warning could cause a fire or an explosion that can damage property and cause serious bodily injury or death.
Do NOT use the grill unless it is COMPLETELY assembled and all parts are securely fastened and tightened.
This grill should be thoroughly cleaned and inspected on a regular basis.
Use only Blue Rhino Global Sourcing, Inc. factory-authorized parts. The use of any part that is not factory-authorized can be dangerous and will void your warranty.
Do NOT operate this appliance without reading "Operating Instructions" in this manual.
To avoid burns, do NOT touch metal parts of grill until they have completely cooled, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc.).
Never touch grates (charcoal, cooking or warming), ashes or coals to see if they are hot.
A Do NOT use on wooden decks, wooden furniture or other combustible surfaces.
This grill is NOT to be used in or on boats or recreational vehicles.
Position grill so wind cannot carry ashes to combustible surfaces. Do NOT use in high winds.
Never lean over the grill when lighting.
Do NOT leave a lit grill unattended. Keep children and pets away from grill at all times.
A Do NOT attempt to move grill when in use. Allow the grill to cool before moving or storing.
Do NOT leave grill unattended while preheating or burning off food residue.
When cooking, fire extinguishing materials should be readily accessible. In the event of an oil/grease fire, do NOT attempt to extinguish with water. Use type BC dry chemical fire extinguisher or smother with dirt, sand or baking soda.
Always open grill lid carefully and slowly as heat and steam trapped within grill can severely burn you.
If grill has not been cleaned, a grease fire can occur that may damage the product.
Do NOT place empty cooking vessels on the appliance while in operation.
Use caution when placing anything on the grill while the appliance is in operation.
Never add lighting fluid to hot or warm coals as a flashback may occur causing serious injury or damage to property.
Always place your grill on a hard, non-combustible level surface. An asphalt or blacktop surface may not be acceptable for this purpose.
Do NOT remove the ashes until they are completely and fully extinguished.
Live hot briquettes and coals can create a fire hazard.
Always empty the bottom bowl and grill after each use.
Do NOT place fuel (charcoal briquettes, wood or lump charcoal) directly into bottom of grill. Place fuel only on the charcoal pan/grid.
Do NOT allow charcoal to rest on the walls of grill. Doing so will greatly reduce the life of the metal and finish of your grill.
Check to make sure the air vents are free of debris and ash before using the grill.
Extinguished coals and ashes should be placed a safe distance from all structures and combustible materials.
A With a garden hose, completely wet the surface beneath and around grill to extinguish any ashes, coals or embers that may have fallen during the cooking or cleaning process.
The use of alcohol, prescription or non-prescription drugs may impair the consumer's ability to properly assemble and/or safely operate this grill.
Always wear protective gloves when adding fuel (charcoal briquettes, wood or lump charcoal) to retain desired heat level.
Keep all electrical cords away from a hot grill.
Always use a meat thermometer to ensure food is cooked to a safe temperature.
Never cover entire cooking area with aluminum foil.
Use protective gloves when assembling this product.
Do NOT force parts together as this can result in personal injury or damage to the product.
Do NOT touch ash receiver until grill has completely cooled, unless you are wearing protective gear.
Do NOT touch air vent or air vent handle until grill has completely cooled, unless you are wearing protective gear.
Deaths, serious injury or damage to property may occur if the above is not followed exactly.
Parts List
| 1 | Warming Rack | 55-24-757 |
| 2 | Temperature Gauge | 55-24-426 |
| 3 | Temperature Gauge Support* | 55-24-178 |
| 4 | Left Lid Handle | 55-24-758 |
| 5 | Right Lid Handle | 55-24-759 |
| 6 | Brand Plate* | 55-24-760 |
| 7 | Lid | 55-24-761 |
| 8 | Cooking Grid | 55-24-762 |
| 9 | Hinge Assembly | 55-24-763 |
| 10 | Charcoal Grid | 55-24-764 |
| 11 | Burner | 55-24-765 |
| 12 | Igniter Wire* | 55-24-766 |
| 13 | Lock (2) | 55-09-222 |
| 14 | Bottom Bowl | 55-24-767 |
| 15 | Heat Shield | 55-24-768 |
| 16 | Heat Plate | 55-24-769 |
| 17 | Left Leg* | 55-24-770 |
| 18 | Right Leg* | 55-24-771 |
| 19 | Regulator/Control Knob | 55-24-064 |
| 20 | Igniter Cover | 55-24-772 |
| 21 | Igniter Button* | 55-24-773 |
| 22 | Ash Pan | 55-24-774 |
| 23 | Side Shelf Lock | 55-24-775 |
| 24 | Left Side Handle | 55-24-776 |
| 25 | Front Handle Support | 55-24-777 |
| 26 | Right Side Handle | 55-24-778 |
| 27 | Side Shelf | 55-24-779 |
| 28 | Side Shelf Support* | 55-24-780 |
- Pre-assembled
Expanded View
Hardware
Tools Required for Assembly (Not Included)
| A | Screw | M4x10 Nickel Plated Phillips Truss Head | 4 pcs |
| B | Screw | M6x12 Nickel Plated Phillips Truss Head | 14 pcs |
| C | Screw | M6x15 Nickel Plated Phillips Truss Head | 4 pcs |
| D | Screw | M6x40 Nickel Plated Phillips Truss Head | 2 pcs |
| E | Wing Bolt | M6x8 Nickel Plated | 1 pc |
| F | Nut | M6 Nickel Plated | 2 pcs |
| G | Wing Nut | M4 Nickel Plated | 4 pcs |
| H | Washer | ø6.4 Aluminum | 21 pcs |
| I | Lock Washer | ø6.5 Nickel Plated | 21 pcs |
| J | AAA Battery 1 pc |
Assembly Instructions
For assistance, call 1,800 762 1142 toll-free. Ples
10.4.2.1.1.1.2.1.3.1.4.1.5.1.6.1.7.1.8.1.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93..
reference.
Note: The model number can be found on the back or side of the grill.
Assembly Tips:
- Select an area where you will assemble this product. To protect components, choose a smooth surface that's free of cracks or openings.
- Spread out all parts.
- Tighten all hardware connections by hand first. Then, before completing each step, go back and fully tighten all hardware. Be careful not to over-tighten. That could damage surfaces or strip threads.
- For best results, complete each step in the order presented.
After assembly you will need:
(1) Leak Detection Solution (instructions on how to make solution are included in "Operating Instructions" section)
(1) 14.1 oz or (1) 16.4 oz LP gas tank (not included)
(1) One bag of charcoal (not included)
Typical assembly is approximately 30 minutes.
2

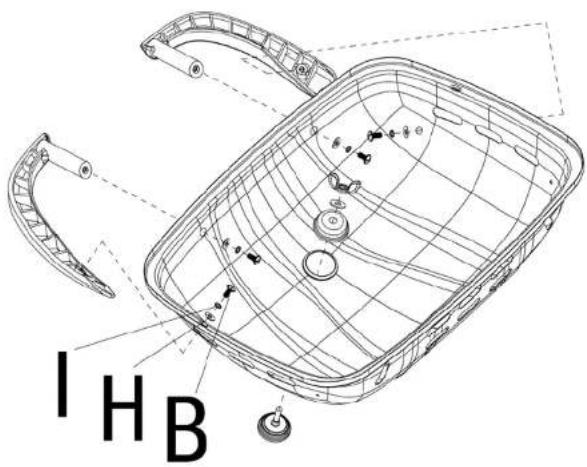

Attach Lid Handles and Temperature Gauge
B
1
H
X4
3

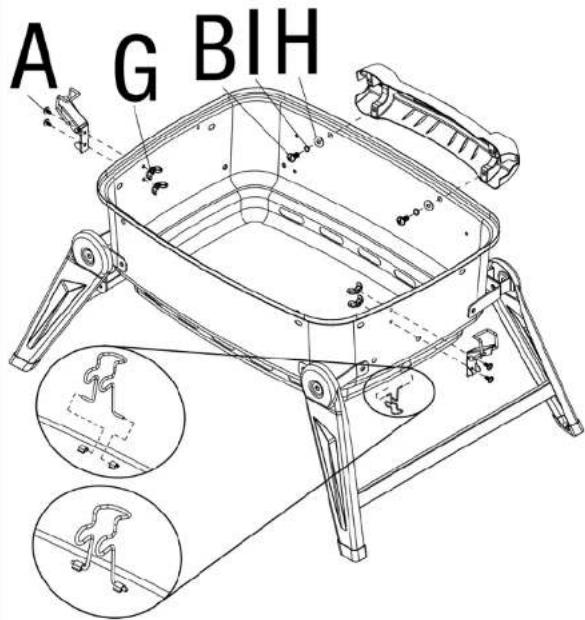

Attach Locks and Hinge
4

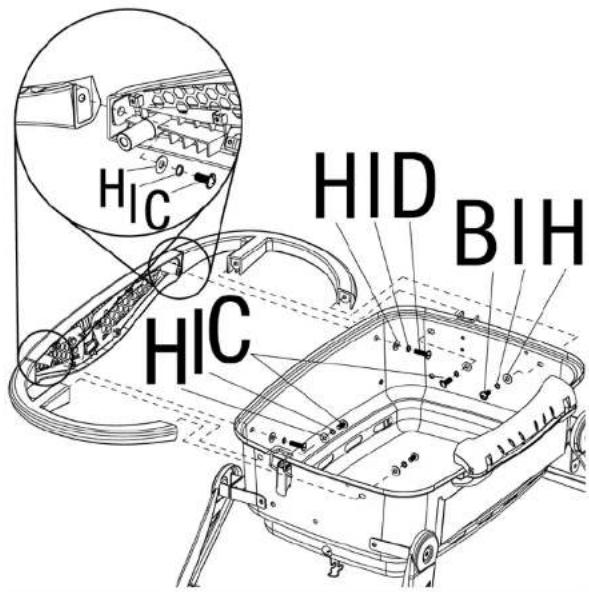

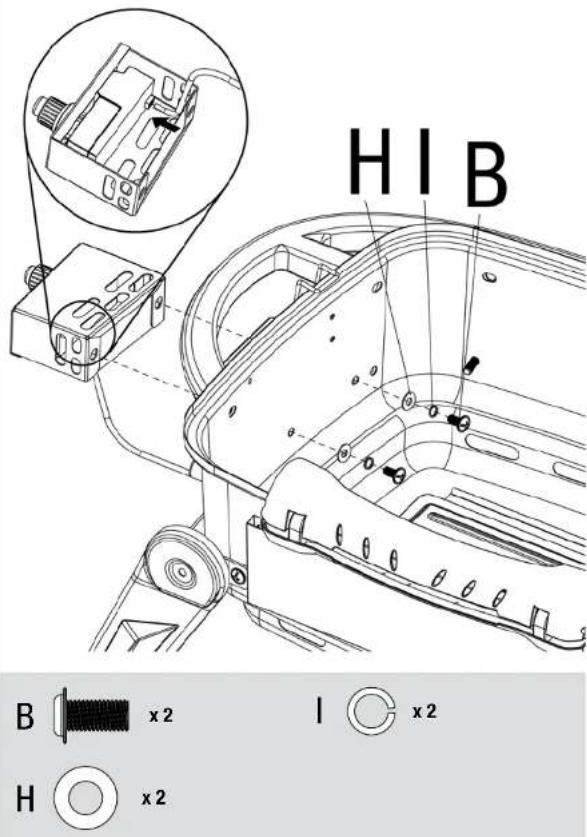

Attach Side Handle Assembly
x8
x2
5

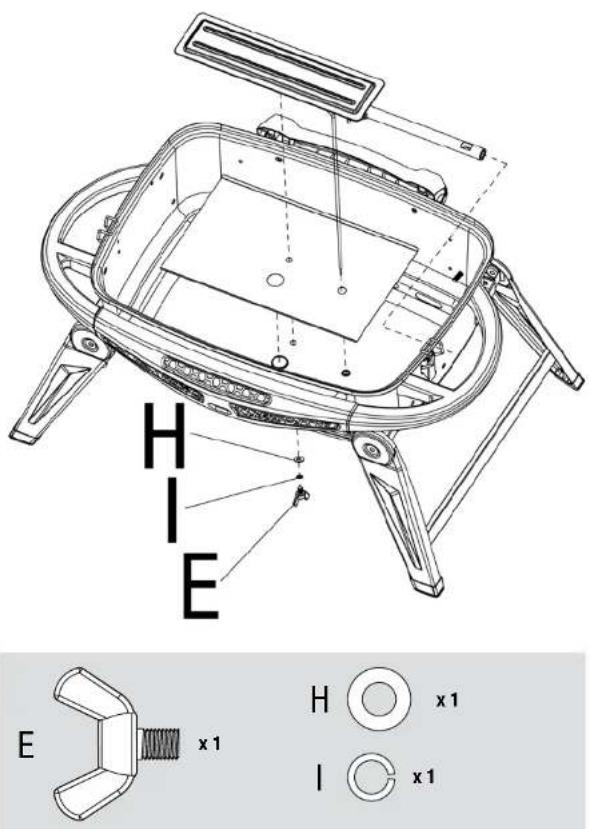

Attach Bottom Bowl Heat Shield, Burner and Igniter Wire
6
Attach igniter Assembly
7

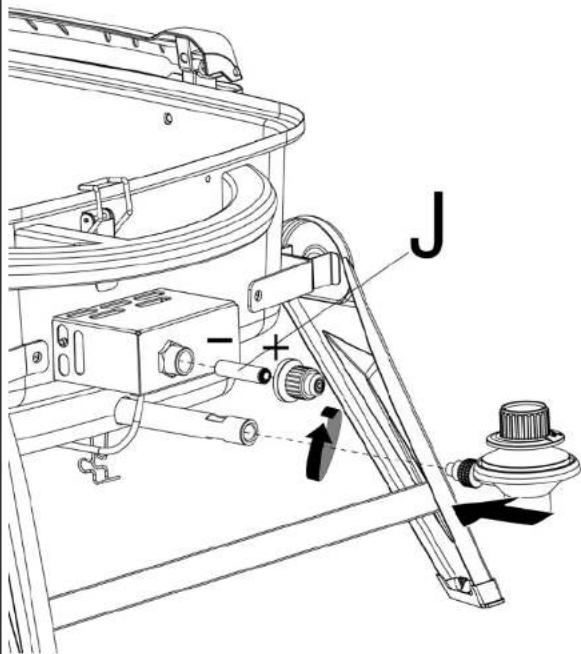

Insert AAA Battery (J) and Attach Regulator/Control
Knob
Note: Once attached, the regulator/control valve will freely rotate to accommodate for the LP gas tank.
8

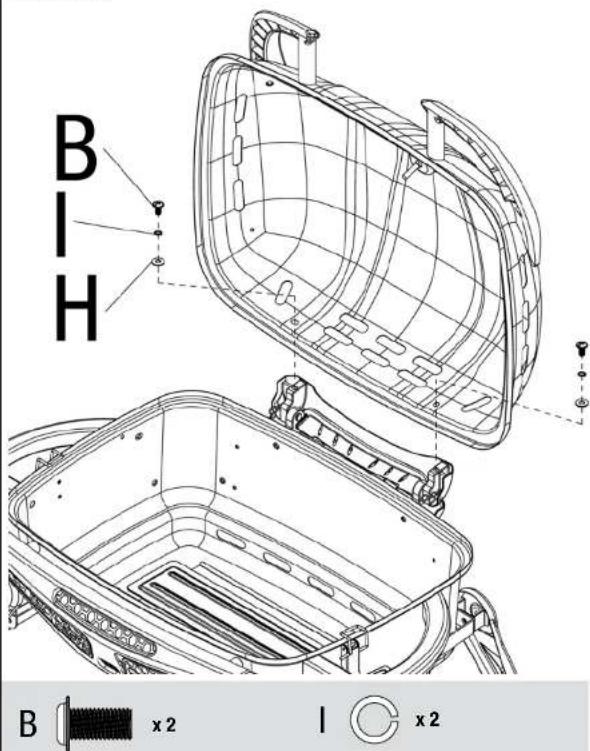

Attach Lid
Assembly Instructions (continued)
9

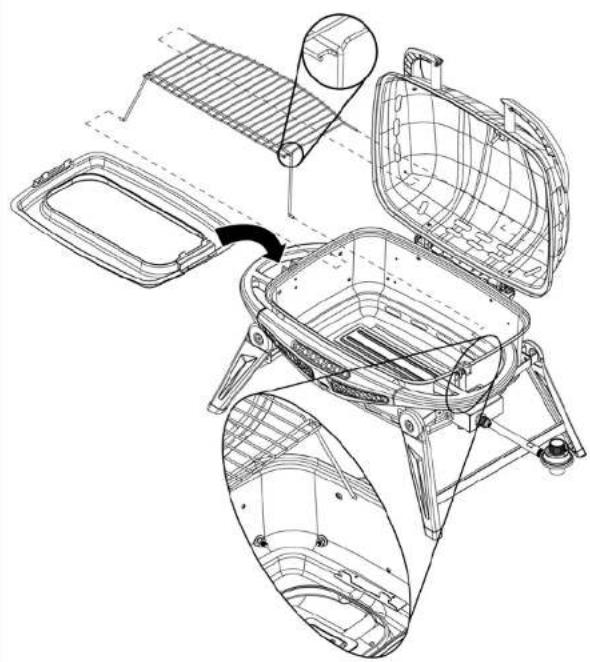

Insert Ash Pan and Warming Rack
10

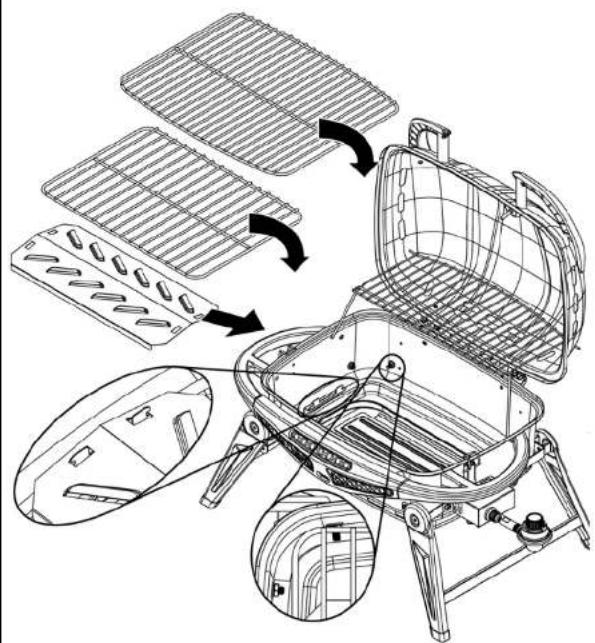

Insert Heat Plate, Charcoal Grid and Cooking Grid
11

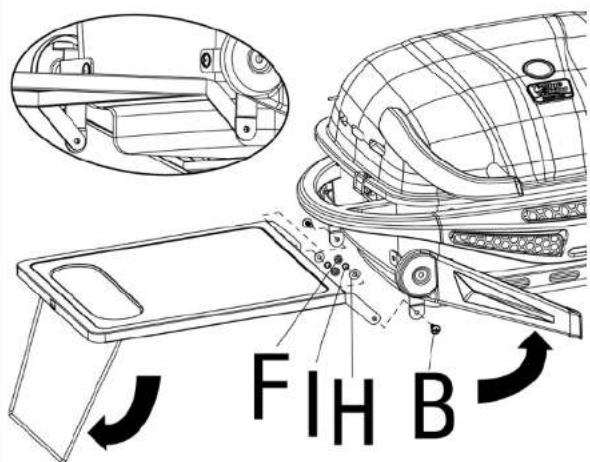

Attach Side Table
12
Lock Lid
Note: Lid must be locked before transporting grill.
Unlock Lid
Note: Always unlock and open lid before lighting grill.
13

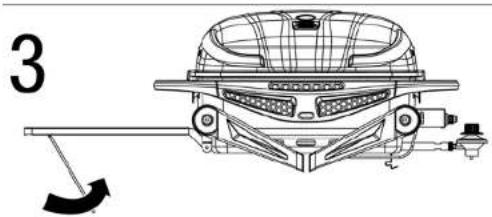

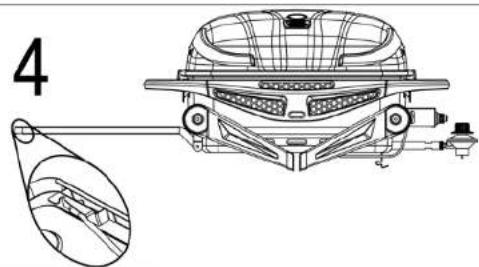

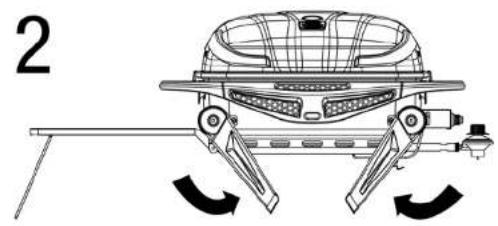

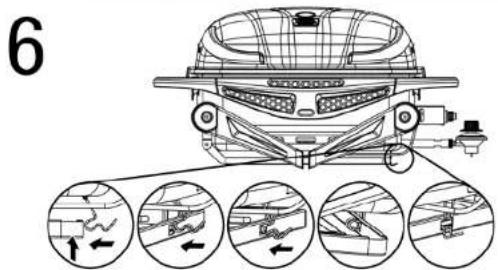

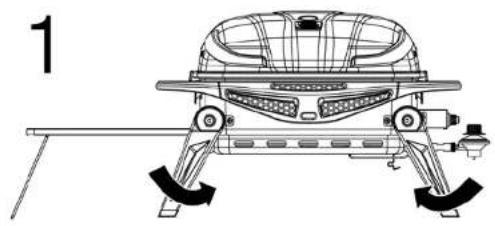

Fold Up Legs and Table
Note: Always lock lid before folding legs.

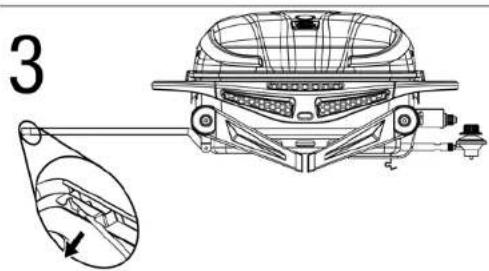

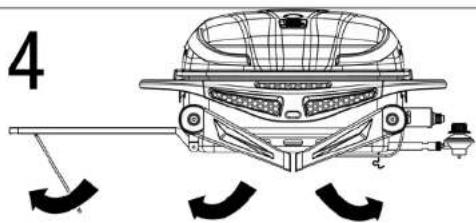

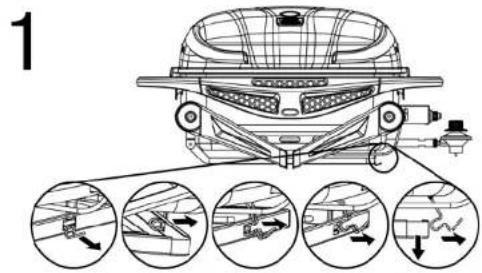

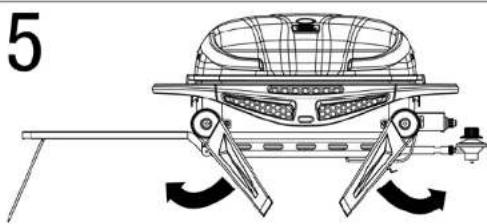

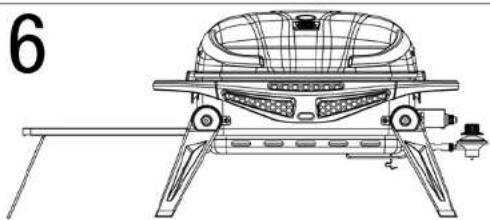

Unfold Table and Legs
Note: Always open legs completely and secure them in place before lighting grill.
Installing LP Gas Tank
When you choose to use propane, this grill is designed to operate with a 1 lb. 7.75 in. or 10.6 in. high disposable / 16.4 oz. or 14.1 oz. propane gas tank (DOT 39 Cylinder) (Figure 1).
DO NOT ATTEMPT TO REFILL ANY 1 lb. (16.4 oz. or 14.1 oz.) PROPANE GAS TANKS!
Connecting LP Gas Tank
Only cylinders marked "propane" may be used.
Note: 1 lb cylinders may form frost when near empty.
- Make sure the regulator/control knob is in the "OFF" position (Figure 2).
- Lubricate the threads of the regulator/control knob with petroleum jelly. Line up threads on LP gas tank with regulator/control knob.
- Insert and rotate LP gas tank clockwise until they fit snugly together. HAND TIGHTEN ONLY. Be careful not to crossthread when screwing in tank (Figure 3).
- Perform leak test per "Checking for Leaks" section.
Disconnecting LP Gas Tank
- Turn the regulator/control knob to the "OFF" position (Figure 2).
- Rotate LP gas tank counterclockwise until it is detached (Figure 4).
- Store the LP gas tank in a proper location, per instructions on the LP gas tank.
Operating Instructions
Checking for Leaks
Burner Connections
- Make sure the regulator/control knob is securely fastened to the burner. Note: The brass nut should be 14 to 12 turn past tight. The regulator will rotate 360^ even when the brass nut is tightened. If your unit was assembled for you, visually check the connection between the burner and regulator/ control knob (Figure 5).
WARNING: Failure to inspect this connection or follow these instructions could cause a fire or an explosion which can cause death, serious bodily injury or damage to property.
- If the burner and regulator/control knob do not fit properly or if you have any questions, please contact 1.800.762.1142 for assistance.
Tank/Gas Line Connection
- Make 2-3 oz. of leak detection solution by mixing one part liquid dishwashing soap with three parts water.
- Make sure regulator/control knob is in the OFF position (Figure 2).
- Apply the leak detection check solution on all "X" locations (Figure 5).
a. If any bubbles appear, remove the LP gas tank and reconnect, making sure the connection is secure.
b. If you continue to see bubbles after several attempts, remove the LP gas tank per "Disconnecting LP Gas Tank" section, and contact 1.800.762.1142 for assistance.
c. If no bubbles appear after one minute, turn regulator/control knob to the "OFF" position, wipe away solution and proceed.
First Use
- Make sure all labels, packaging and protective films have been removed from the grill.
- Remove manufacturing oils before cooking on this grill for the first time by operating the grill for at least 15 minutes on (HIGH) with the lid closed. This will "heat clean" the internal parts and dissipate odors.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Operating Instructions (continued)
Operating LP Gas Grill
Lighting Instructions
WARNING: Always clean grill when switching from a charcoal grill to a gas grill. Make sure burner ports are clean and clear from debris and ashes.
WARNING: NEVER use as an LP gas grill and charcoal grill at the same time.
CAUTION: Keep outdoor gas cooking appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids.
CAUTION: Do NOT obstruct the flow of combustion and ventilation air. CAUTION: Check and clean burner/venturi tubes for insects and insect nests. A clogged tube can lead to a fire.
CAUTION: Attempting to light the burner with the lid closed may cause an explosion.
CAUTION: Always open legs completely and secure in place before opening lid or lighting grill.
- Open lid.
- Check for obstructions of airflow to the burners. Spiders, insects and webs can clog the burner/ venturi tube. A clogged burner/venturi tube can lead to a fire.
-
Connect LP gas tank per "Connecting LP Gas Tank" section.
-
Push and turn the control knob to (HIGH).
-
Press the (ignitter) button and hold for up to 5 seconds to light burner.
- If ignition does not occur in 5 seconds, turn regulator/control knob to "OFF" position, wait 5 minutes and repeat lighting procedure.
- If igniter does not light burner, use a lit match to light burner manually.
a. Access the burner through the hole in bottom bowl or side as indicated (Figure 6).
b. Turn the regulator/control knob to LOW and position the lit match near side of the burner.
- After lighting, observe the burner flame. Make sure all burner ports are lit and flame height matches illustration (Figure 7).
Caution: If burner flame goes out during operation, immediately turn the regulator/control knob to "OFF" and open lid to let the gas clear for 5 minutes before re-lighting.
Turning Off
- Turn regulator/control knob to the "OFF" position (Figure 2). Note: A "poof" sound is normal as the last of the LP gas is burned.
- Disconnect LP gas tank per "Disconnecting LP Gas Tank" section.
Cooking
CAUTION: Do NOT leave grill unattended while preheating or burning off food residue on (HIGH). If grill has not been cleaned, a grease fire can occur.
- Open lid and ignite the side burner per "Lighting Instructions" section.
- Close lid and preheat grill on (HIGH).
- Adjust regulator/control knob to desired flame height.
- Wear protective gloves and use long handle tongs to place food onto cooking grids above the lit burner.
- With lid open or closed, cook until desired internal food temperatures are achieved.
- Turn grill off per "Turning Off" section.
Operating Charcoal Grill
Lighting Instructions
WARNING: NEVER use the gas grill to start the charcoal. WARNING: NEVER use the electronic ignition to start the charcoal.
WARNING: Always disconnect and properly store the LP gas tank prior to using as a charcoal grill.
CAUTION: NEVER use charcoal that has been pre-treated with lighter fluid. Use only a high grade plain charcoal, charcoal/wood mixture, lump charcoal or cooking wood.
CAUTION: Keep outdoor cooking appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids.
CAUTION: Check to make sure the air vents are free of debris and ash before using the grill.
Figure 7
Operating Instructions (continued) Cleaning and Care
CAUTION: Attempting to light the grill with the lid closed may cause an explosion.
CAUTION: When using a liquid starter, always check bottom bowl before lighting. Fluid can collect in the bottom bowl and could ignite, resulting in a fire.
Figure 8
CAUTION: Never add lighting fluid to hot or warm coals as flashback may oc damage to property.
Do NOT add more than 2.2 lbs. of charcoal.
- Open lid and vents.
- Make sure bottom bowl is empty.
- Remove cooking grid.
- Arrange charcoal briquettes or other fuel on the charcoal grid (Figure 8).
- Light per instructions on fuel package.
- Allow fuel time to ash into glowing coals before cooking.
Turning Off
- Allow charcoal to completely extinguish itself. WARNING: Do NOT use water to extinguish. This can be dangerous and cause damage.
- Dispose of the ashes in a proper location.
Controlling Flare-ups
CAUTION: Putting out grease fires by closing the lid is not possible.
- LP GAS: If a grease fire develops, turn regulator/control knob to "OFF." Do NOT use water on a grease fire. This can cause the grease to splatter and could result in serious burns, bodily harm or other damage.
CHARCOAL: Do NOT use water on a grease fire. This can cause the grease to splatter and could result in serious burns, bodily harm or other damage. - LP GAS: Do NOT leave grill unattended while preheating or burning off food residue on (HIGH). If grill has not been cleaned, a grease fire can occur that may damage the product.
CHARCOAL: Do NOT leave grill unattended while preheating or burning off food residue. If grill has not been cleaned, a grease fire can occur that may damage the product.
WARNING: When cooking, fire extinguishing materials should be readily accessible. In the event of an oil/grease fire, use type BC dry chemical fire extinguisher or smother with dirt, sand or baking soda. Do NOT attempt to extinguish with water.
Flare-ups are a part of cooking meats on a grill and add to the unique flavor of grilling. Excessive flare-ups can over-cook your food and be dangerous.
Important: Excessive flare-ups result from the build-up of grease in the bottom of your grill.
If a grease fire occurs, close the lid AND turn regulator/control knob to "Off," until the grease burns out. Use caution when opening the lid as sudden flare-ups may occur. If excessive flare-ups occur, do NOT pour water onto the flames.
Minimize Flare-ups:
- Trim excess fat from meats prior to cooking.
- Cook high fat content meats on (LOW) setting or indirectly.
- Ensure that your grill is on a hard, level, non-combustible surface and the grease is allowed to drain into a grease receptacle.
Cleaning and Care
CAUTION:
- LP GAS: All cleaning and maintenance should be done when grill is cool and with the fuel supply disconnected.
CHARCOAL: All cleaning and maintenance should be done when grill is cool and with the ashes properly disposed of. - Do NOT clean any grill part in a self-cleaning oven. The extreme heat will damage the finish.
- LP GAS: Do NOT enlarge valve orifices or burner ports when cleaning the valves or burners.
Notices
- This grill should be thoroughly cleaned and inspected on a regular basis.
- Abrasive cleaners will damage this product.
- Never use oven cleaner to clean any part of grill.
ontinued)
Before Each Use
LP Gas
- Keep the grill area clean and free from any combustible materials, gasoline, and other flammable vapors and liquids.
- Do NOT obstruct the flow of the combustion of LP gas and the ventilation of air.
- Keep the ventilation opening(s) of the LP gas tank area free and clear from debris.
- Visually check the burner flames to make sure your grill is working properly (Figure 9).
- See below for proper cleaning instructions.
- Check for obstructions of airflow to the burners. Spiders, insects and webs can clog the burner/ venturi tube. A clogged burner/venturi tube can lead to a fire.
Charcoal
- Keep the grill area free and clear from any combustible materials, gasoline, and other flammable vapors and liquids.
- See below for proper cleaning instructions.
Cleaning Surfaces
- Wipe surfaces clean with mild dishwashing detergent or baking soda mixed with water.
- For stubborn surfaces, use a citrus-based degreaser and a nylon scrubbing brush.
- Rinse clean with water.
- Allow to air dry.
Figure 9
Burner Flame Conditions
Use this chart to see if your burners need to be cleaned.
Normal: Soft blue flames with yellow tips between 1 in. -2 in. height.
Needs cleaning: Noisy with hard blue flames.
Has to be replaced: Wavy with yellow flames.
Cleaning Main Burner
- Turn off per "Turning Off" section.
- Disconnect LP gas tank per "Disconnecting LP Gas Tank" section.
- Remove regulator/control knob.
- Remove cooking grid, charcoal grid and heat plate.
- Disconnect wire from igniter, if applicable.
- Remove burner
- Remove all food residue and dirt from burner surface.
- Disconnect wire from spark electrode.
- Clean inlet of burner with small bottle brush or compressed air.
- Clean any clogged ports with a stiff wire (such as an opened paper clip).
- Inspect burner for any damage (cracks or holes). If damage is found, replace with a new burner from manufacturer.
- Reinstall burner. Reconnect igniter (if applicable), wind guard and regulator/control knob.
- Replace heat plate, charcoal grid and cooking grid.
- Connect LP gas tank per "Installing LP Gas Tank" section.
- Perform leak test per "Checking for Leaks" section.
Before Storing
LP Gas
- Turn off per "Turning Off" section.
- Disconnect LP gas tank per "Disconnecting LP Gas Tank" section.
- Clean all surfaces.
- Lightly coat the burner and cooking grid with cooking oil to prevent excess rusting.
- If storing the grill indoors, disconnect the LP tank per "Disconnecting LP Gas Tank" section.
- Place the protective cap cover on the LP tank and store the tank outdoors in a well-ventilated area out of direct sunlight.
- If storing the grill outdoors, cover the grill with a grill cover for protection from the weather.
Charcoal
- Turn off per "Turning Off" section.
- Wait for grill to fully cool.
- Clean all surfaces.
- Lightly coat the interior surfaces with cooking oil to prevent excess rusting. Do NOT coat charcoal grate or bottom bowl.
- If storing the grill outdoors, cover the grill with a grill cover for protection from the weather.
Product Registration
For faster warranty service, register your product immediately at BlueRhino.com/warranty or call 1.800.762.1142.
Replacement Parts
Replacement parts can be found at parts.BlueRhino.com or call 1.800.762.1142.
Limited Warranty
Blue Rhino Global Sourcing, Inc. ("Blue Rhino") warrants to the original retail purchaser of this product, and to no other person, that if this product is assembled, maintained, and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in such product shall be free from defects in material and workmanship. Blue Rhino may require reasonable proof of your date of purchase. Therefore, you should retain your sales slip or invoice. This Limited Warranty shall be limited to the repair or replacement of parts, which prove defective under normal use and service and which Blue Rhino shall determine in its reasonable discretion upon examination to be defective. Before returning any parts, you should contact Blue Rhino's Customer Care Department using the contact information listed below. If Blue Rhino confirms, after examination, a defect covered by this Limited Warranty in any returned part, and if Blue Rhino approves the claim, Blue Rhino will replace such defective part without charge. If you return defective parts, transportation charges must be prepaid by you. Blue Rhino will return replacement parts to the original retail purchaser, freight or postage prepaid.
This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, improper installation or improper maintenance or service by you or any third party, or failure to perform normal and routine maintenance on the product as set out in this owner's manual. In addition, the Limited Warranty does not cover damage to the finish, such as scratches, dents, discoloration, rust or other weather damage, after purchase.
This Limited Warranty is in lieu of all other express warranties. Blue Rhino disclaims all warranties for products that are purchased from sellers other than authorized retailers or distributors, including the warranty of merchantability or the warranty of fitness for a particular purpose. Blue Rhino ALSO DISCLAIMS ANY AND ALL IMPLIED WARRANTY, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Blue Rhino SHALL HAVE NO LIABILITY TO PURCHASER OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. Blue Rhino further disclaims any implied or express warranty of, and assumes no responsibility for, defects in workmanship caused by third parties.
This Limited Warranty gives the purchaser specific legal rights; a purchaser may have other rights depending upon where he or she lives. Some jurisdictions do not allow the exclusion or limitation of special, incidental or consequential damages, or limitations on how long a warranty lasts, so the above exclusion and limitations may not apply to everyone.
Blue Rhino does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and no such representations are binding on Blue Rhino.
Blue Rhino Global Sourcing, Inc.
Winston-Salem, North Carolina 27105 USA
1.800.762.1142
Troubleshooting
| Problem Possible Cause Prevention/Cure | ||
| Burner will not light using ignitor(if included) | LP gas tank is low or empty Replace LP gas tank | |
| LP gas leak | 1. Turn LP gas tank valve to "OFF" 2. Wait 5 minutes for gas to clear 3. Follow "Checking for Leaks" section | |
| Wires or electrode covered with cooking residue Clean wire | and/or electrode with rubbing alcohol | |
| Electrode and burners are wet Wipe dry with cloth | ||
| Electrode cracked or broken - sparks at crack Replacement | part(s) may be needed - contact Customer Care at 800.762.1142 | |
| Wire loose or disconnected | Reconnect wire or replacement part(s) may be needed - contact Customer Care at 800.762.1142 | |
| Wire is shorting (sparkling) between ignitor and electrode | Replacement part(s) may be needed - contact Customer Care at 800.762.1142 | |
| Bad ignitor Replacement part(s) may be needed - contact | Customer Care at 800.762.1142 | |
| Burner will not light with match | No gas flow | Check if LP gas tank is empty A. If empty, replace B. If LP gas tank is not empty, refer to "Sudden drop in gas flow or reduced flame height" below |
| LP gas tank is low or empty Replace LP gas tank | ||
| LP gas leak | 1. Turn LP gas tank valve to "OFF" 2. Wait 5 minutes for gas to clear 3. Follow "Checking for Leaks" section | |
| Coupling nut and regulator not fully connected | Turning the coupling nut about one-half to three-quarters additional turn until solid stop. Tighten by hand only-do NOT use tools | |
| Obstruction of gas flow Clear burner/venturi tube | ||
| Spider webs or insect nest in venturi Clean burner/venturi tube | tube | |
| Burner ports clogged or blocked Clean burner ports | ||
| Sudden drop in gas flow or reduced flame height | Out of gas | Replace LP gas tank |
| Irregular flame pattern - flame does not run the full length of burner | Burner ports are clogged or blocked | Clean burner ports |
| Flame is yellow or orange | New burner may have residual manufacturing oils | Operate grill for 15 minutes on (HIGH) with the lid closed |
| Spider webs or insect nest in burner/venturi tube | Clean burner/venturi tube | |
| Food residue, grease, etc. on burners | Clean burner | |
| Poor alignment of valve to burner/venturi tube | Ensure burner/venturi tube is properly engaged with valve | |
| Flame goes out | High or gusting winds | Do not use grill in high winds |
| Low on LP gas | Replace LP gas tank | |
| Overflow valve tripped | Refer to "Sudden drop in gas flow or reduced flame height," above | |
| Flare-up | Grease buildup | Remove and clean all grill parts per "Cleaning and Care" section |
| Excess fat in meat | Trim fat from meat before grilling | |
| Excessive cooking temperature | Adjust (lower) cooking temperature | |
| Persistent grease fire | Grease trapped by food buildup around burner system | 1. Turn control knob to "OFF" 2. Leave lid in closed position and let fire burn out 3. After grill cools, remove and clean all grill parts per "Cleaning and Care" section |
| Flashback (fire in burner tube(s)) | Burner and/or burner tubes are blocked | Clean burner and/or burner/venturi tube |
| Inside of lid is peeling (like paint peeling) | Baked on grease buildup has turned to carbon and is flaking off. | Clean all grill parts per "Cleaning and Care" section |
For more assistance, please visit us at BlueRhino.com or call 1.800.762.1142.
Blue Rhino Global Sourcing, Inc.
Blue Rhino Global Sourcing, Inc.
