USER MANUAL CN 18DSL HITACHI

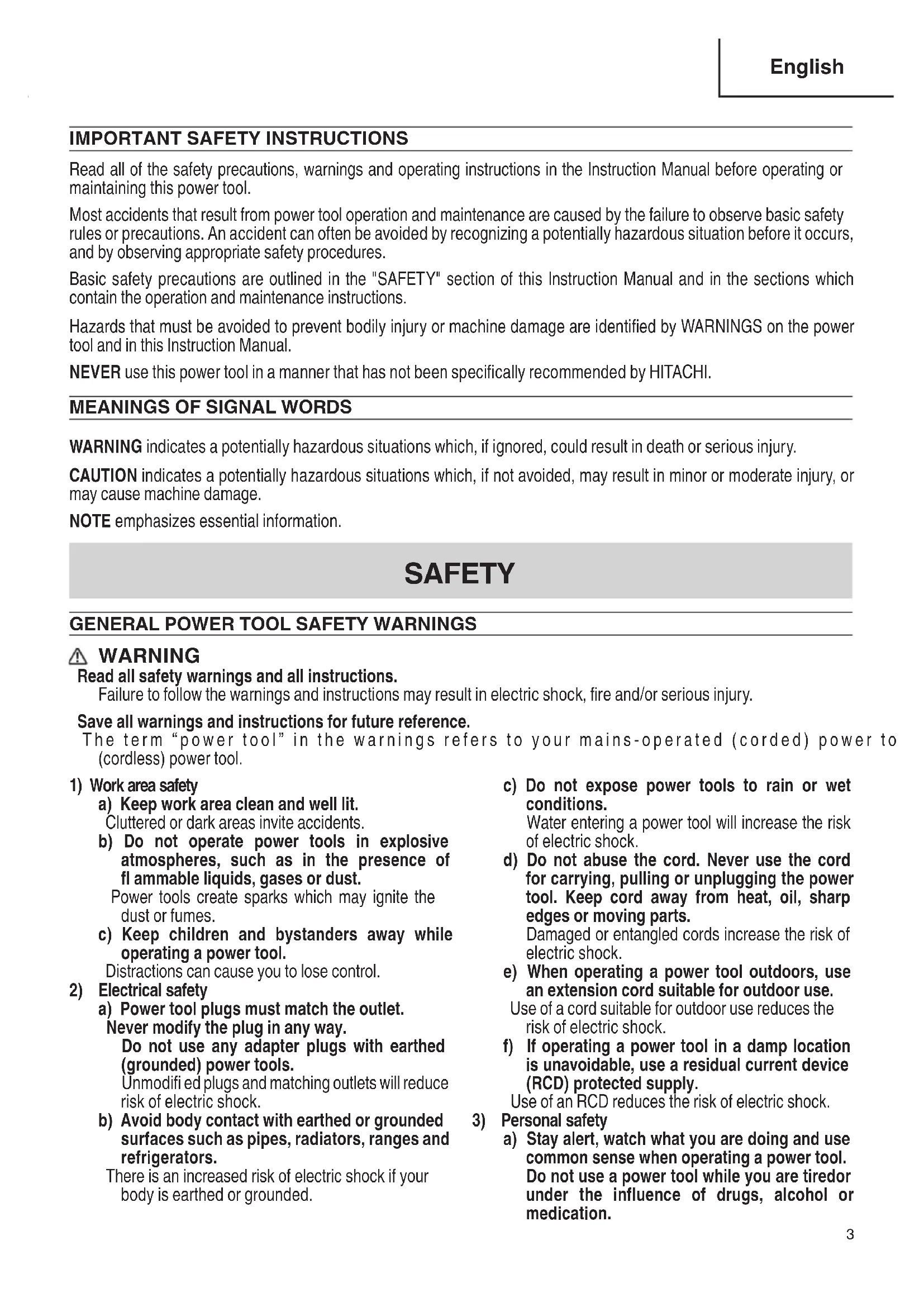

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

REMOVAL AND INSTALLATION METHOD

Read all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool. Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures. Basic safety precautions are outlined in the "SAFETY" section of this Instruction Manual and in the sections which contain the operation and maintenance instructions. Hazards that must be avoided to prevent bodily injury or machine damage are identifi ed by WARNINGS on the power tool and in this Instruction Manual. NEVER use this power tool in a manner that has not been specifi cally recommended by HITACHI.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury. CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information. SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tiredor under the infl uence of drugs, alcohol or medication. 000BookCN18DSLNA.indb3000BookCN18DSLNA.indb3 2016/06/3016:16:112016/06/3016:16:114 English A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations diff erent from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specifi ed by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack. b) Use power tools only with specifi cally designated battery packs. Use of any other battery packs may create a risk of injury and fi re. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fi re. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

a) Have your power tool serviced by a quali fi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. –WARNING– To reduce the risk of injury, user must read instruction manual. 000BookCN18DSLNA.indb4000BookCN18DSLNA.indb4 2016/06/3016:16:112016/06/3016:16:115 English

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

Lead from lead-based paints,

Crystalline silica from bricks and cement and other masonry products, and

Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to fi lter out microscopic particles.

Exposure to noise can cause hearing loss.

2. Hold power tools by insulated gripping surfaces

when performing an operation where the cutting tool may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

3. NEVER touch the tool bit with bare hands after

4. NEVER wear gloves made from materials likely to roll

up such as cotton, wool, cloth or string, etc.

5. NEVER touch moving parts.

NEVER place your hands, fi ngers or other body parts near the tool’s moving parts.

6. NEVER operate without all guards in place.

NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

Don’t force small tool or attachment to do the job of a heavy-duty tool. Don’t use tool for purpose not intended —for example— don’t use circular saw for cutting tree limbs or logs.

8. NEVER use a power tool for applications other

than those specifi ed. NEVER use a power tool for applications other than those specifi ed in the Instruction Manual.

9. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

10. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

11. Do not use power tools if the plastic housing or

handle is cracked. Cracks in the tool’s housing or handle can lead to electric shock. Such tools should not be used until repaired.

12. Blades and accessories must be securely

mounted to the tool. Prevent potential injuries to youself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

13. Keep motor air vent clean.

The tool’s motor air vent must be kept clean so that air can freely fl ow at all times. Check for dust build-up frequently.

14. NEVER use a tool which is defective or operating

abnormally. If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.

15. NEVER leave tool running unattended. Turn

power off . Don’t leave tool until it comes to a complete stop.

16. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

17. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents. Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

18. ALWAYS wear eye protection that meets the

requirement of the latest revision of ANSI Standard Z87.1.

19. Beware of sharp panel edges.

The edge of the plate just cut by the nibbler is very sharp. Take care in not getting hurt by the sharp edge. 000BookCN18DSLNA.indb5000BookCN18DSLNA.indb5 2016/06/3016:16:112016/06/3016:16:116 English

20. If shavings get into the machine, it will produce

problems or accidents. Do not place the machine on the shavings.

21. Shavings are hot immediately after they are cut.

NEVER touch them with bare hands.

22. Defi nitions for symbols used on this tool

WARNING Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions: Battery and battery charger are not included with this product

READ ALL INSTRUCTIONS

1. This manual contains important safety and operating

instructions for battery charger Model UC18YFSL.

2. Before using battery charger, read all instructions

and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

3. To reduce risk of injury, charge HITACHI rechargeable

battery type BSL18 series. Other type of batteries may burst causing personal injury and damage.

4. Do not expose battery charger to rain or snow.

5. Use of an attachment not recommended or sold by

the battery charger manufacturer may result in a risk of fi re, electric shock, or injury to persons.

6. To reduce risk of damage to electric plug and cord,

pull by plug when disconnecting battery charger.

7. Make sure cord is located so that it will not be stepped

on, tripped over, or otherwise subjected to damage or stress.

8. An extension cord should not be used unless

absolutely necessary. Use of improper extension cord could result in a risk of fi re and electric shock. If extension cord must be used make sure: a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger: b. That extension cord is properly wired and in good electrical condition; and c. That wire size is large enough for AC ampere rating of battery charger as specifi ed in Table 1. Table 1

AC input rating Ampere* AWG size of cord Equal to or greater than but less than Length of cord, feet (meter) 25 (7.5) 50 (15) 100 (30) 150 (45)

• If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating―for example: 1,250 watts = 10 amperes 125 volts

9. Do not operate battery charger with damaged cord or

plug-replace them immediately.

10. Do not operate battery charger if it has received a

sharp blow, been dropped, or otherwise damaged in any way; take it to a qualifi ed serviceman.

11. Do not disassemble battery charger; take it to a

qualifi ed serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fi re.

12. To reduce risk of electric shock, unplug charger from

receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk. 000BookCN18DSLNA.indb6000BookCN18DSLNA.indb6 2016/06/3016:16:112016/06/3016:16:117 English

BATTERY CHARGER You must charge the battery before you can use the power tool. Before using the model UC18YFSL battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual. CAUTION USE ONLY HITACHI BATTERY TYPE BSL1860. OTHER TYPES OF BATTERIES MAY BURST AND CAUSE INJURY! Follow these instructions to avoid the risk of injury: WARNING Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.

2. NEVER incinerate the battery, even if it is damaged or

is completely worn out. The battery can explode in a fi re.

3. NEVER short-circuit the battery.

4. NEVER insert any objects into the battery charger’s

air vents. Electric shock or damage to the battery charger may result.

5. NEVER charge outdoors. Keep the battery away

from direct sunlight and use only where there is low humidity and good ventilation.

6. NEVER charge when the temperature is below 32°F

(0°C) or above 104°F (40°C). Charging the battery at temperatures outside the range of 32°F – 104°F (0°C – 40°C) may prevent proper charging and reduce battery life.

7. NEVER connect two battery chargers together.

8. NEVER insert foreign objects into the hole for the

battery or the battery charger.

11. NEVER store the battery or battery charger in places

where the temperature may reach or exceed 104°F (40°C).

12. ALWAYS operate charger on standard household

electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.

13. ALWAYS wait at least 15 minutes between charges to

avoid ove rheating the charger.

14. ALWAYS disconnect the power cord from its

receptacle when the charger is not in use.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor

stops. In such case, charge it up immediately.

2. If the tool is overloaded, the motor may stop. In this

case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

3. If the battery is overheated under overload work, the

battery power may stop. In this case, stop using the battery and let the battery cool. After that, you can use it again. Furthermore, please heed the following warning and caution. WARNING In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the

During work make sure that swarf and dust do not fall on the battery.

Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.

Do not store an unused battery in a location exposed to swarf and dust.

Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

2. Do not pierce battery with a sharp object such as a

nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

3. Do not use an apparently damaged or deformed

4. Do not use the battery in reverse polarity.

5. Do not connect directly to an electrical outlets or car

cigarette lighter sockets.

6. Do not use the battery for a purpose other than those

7. If the battery charging fails to complete even when a

specifi ed recharging time has elapsed, immediately stop further recharging.

8. Do not put or subject the battery to high temperatures

or high pressure such as into a microwave oven, dryer, or high pressure container.

9. Keep away from fi re immediately when leakage or foul

10. Do not use in a location where strong static electricity

generates. 000BookCN18DSLNA.indb7000BookCN18DSLNA.indb7 2016/06/3016:16:112016/06/3016:16:118 English

SAVE THESE INSTRUCTIONS

AND OWNERS OF THIS TOOL!

11. If there is battery leakage, foul odor, heat generated,

discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use. CAUTION

1. If liquid leaking from the battery gets into your eyes,

do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye- problems.

2. If liquid leaks onto your skin or clothes, wash well with

clean water such as tap water immediately. There is a possibility that this can cause skin irritation.

3. If you fi nd rust, foul odor, overheating, discolor,

deformation, and/or other irregularities when using the battery for the fi rst time, do not use and return it to your supplier or vendor. WARNING If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fi re. Please observe the following matters when storing the battery.

Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.

Either install the battery in the power tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 1).

REGARDING LITHIUM-ION BATTERY

TRANSPORTATION When transporting a lithium-ion battery, please observe the following precautions. WARNING Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

Lithium-ion batteries that exceed a power output of 100Wh are considered to be in the freight classifi cation of Dangerous Goods and will require special application procedures.

For transportation abroad, you must comply with international law and the rules and regulations of the destination country. Power Output 2 to 3 digit number 000BookCN18DSLNA.indb8000BookCN18DSLNA.indb8 2016/06/3016:16:112016/06/3016:16:119 English FUNCTIONAL DESCRIPTION NOTE The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool. NEVER operate, or attempt any maintenance on the tool unless you have fi rst read and understood all safety instructions contained in this manual. Some illustrations in this Instruction Manual may show details or attachments that diff er from those on your own power tool.

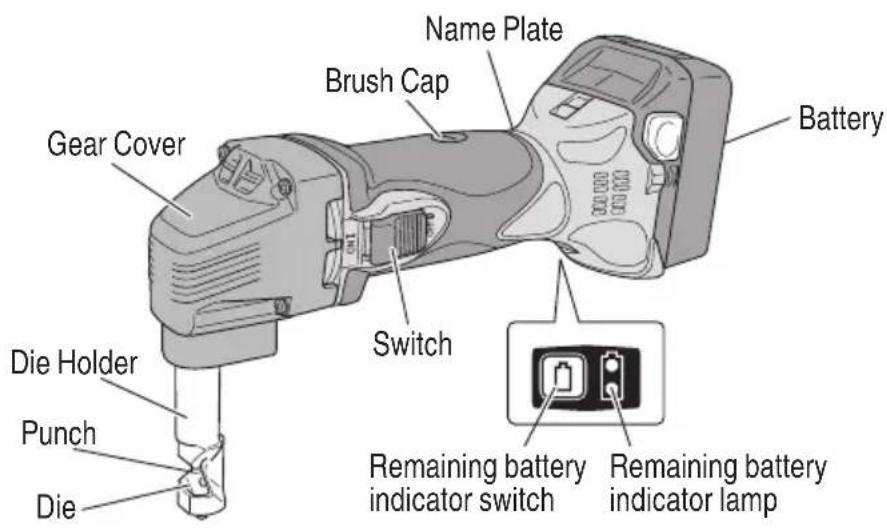

1. Cordless Nibbler (CN18DSL)

Battery and battery charger are not included with this product. Name Plate Battery Switch Punch Die Die Holder Gear Cover Remaining battery indicator switch Remaining battery indicator lamp Brush Cap

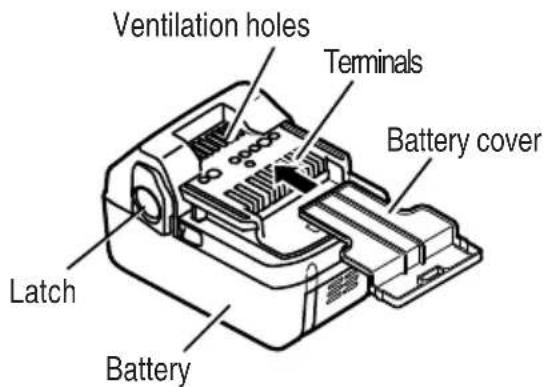

Battery (BSL1860) Latch Ventilation holes Terminals Battery cover Battery Fig. 1 000BookCN18DSLNA.indb9000BookCN18DSLNA.indb9 2016/06/3016:16:112016/06/3016:16:1110 English 2 Battery Charger (UC18YFSL) Battery and battery charger are not included with this product. Pilot lamp Guide rail Nameplate Cord Fig. 2 SPECIFICATIONS

Model CN18DSL Voltage 18 V Cutting capacity Mild steel plate (400 N / mm

) 1/16" (1.6 mm) Stainless steel plate (600 N / mm

) 3/32" (2.3 mm) Number of strokes at no load 2500 /min Minimum cutting radius 1-5/8" (40 mm) Width of nibbling groove 3/16" (5 mm) Weight 4.6 lbs (2.1 kg)

Cutting and pocket cutting mild steel, stainless steel, copper and aluminium plates corrugated plates and trapezoidal plates.

REMOVAL AND INSTALLATION METHOD

OF BATTERY Battery and battery charger are not included with this product.

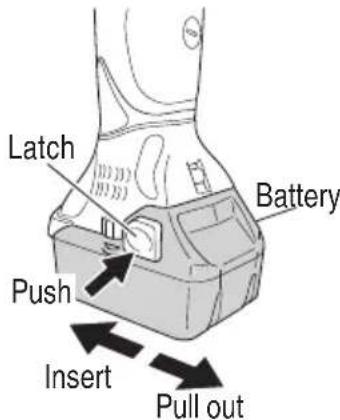

Hold the handle tightly and push the battery latch to remove the battery (See Fig. 3). CAUTION Never short-circuit the battery.

2. Battery installation

Insert the battery while observing its polarities (See Fig. 3). Latch Battery Push Pull out Insert Fig. 3 CHARGING METHOD Battery and battery charger are not included with this product. NOTE Before plugging into the receptacle, make sure the following points.

The power source voltage is stated on the nameplate.

The cord is not damaged. WARNING Do not charge at voltage higher than indicated on the nameplate. If charged at voltage higher than indicated on the nameplate, the charger will burn up.

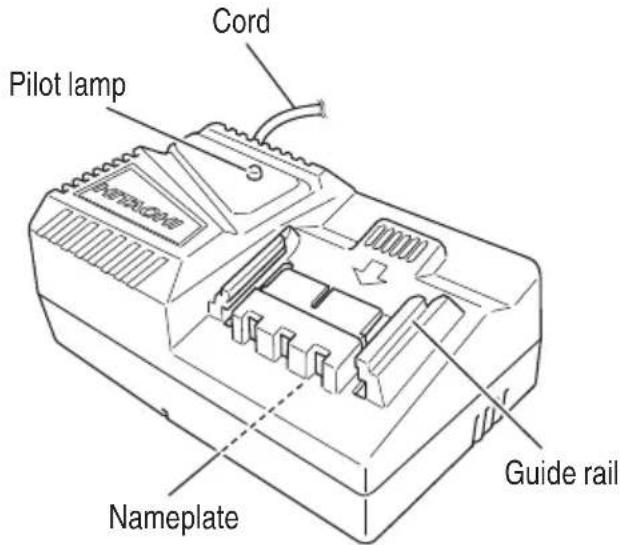

1. Connect the charger’s power cord to a receptacle.

When the power cord is connected, the charger’s pilot lamp will blink in red. (At 1-second intervals) WARNING Do not use the electrical cord if damaged. Have it repaired immediately.

2. Insert the battery into the charger.

Firmly insert the battery into the charger as shown in Fig. 4. Battery Pilot lamp Charger Fig. 4

When the battery is connected to the battery charger, charging will commence and the pilot lamp will light in red. (See Table 2) NOTE If the pilot lamp fl ikers in red, pull out the plug from the receptacle and check if the battery is properly mounted. When the battery is fully charged, the pilot lamp will blink in red slowly. (At 1-second intervals) (See Table 2) (1) Pilot lamp indication The indications of the pilot lamp will be as shown in Table 2, according to the condition of the charger or the rechargeable battery. 000BookCN18DSLNA.indb11000BookCN18DSLNA.indb11 2016/06/3016:16:112016/06/3016:16:1112 English Table 2 Indications of the pilot lamp Pilot lamp (red) Before charging Blinks Lights for 0.5 seconds. Does not light for

0.5 seconds. (off for 0.5 seconds)

While charging Lights Lights continuously Charging complete Blinks Lights for 0.5 seconds. Does not light for

0.5 seconds. (off for 0.5 seconds)

Overheat standby Blinks Lights for 1 second. Does not light for

0.5 seconds. (off for 0.5 seconds)

Battery overheated. Unable to charge. (Charging will commence when battery cools) Charging impossible Flickers Lights for 0.1 seconds. Does not light for

0.1 seconds. (off for 0.1 seconds)

Malfunction in the battery or the charger (2) Regarding the temperature of the rechargeable battery. The temperatures for rechargeable batteries are as shown in the Table 3, and batteries that have become hot should be cooled for a while before being recharged. Table 3 Recharging ranges of batteries Rechargeable battery Temperatures at which the battery can be recharged BSL1860 32°F – 104°F (0°C – 40°C) (3) Regarding recharging time (At 68°F (20°C)) Table 4 Charging time (At 20°C) Charger Battery UC18YFSL BSL1860 Approx. 90 min. NOTE The charging time may vary according to temperature and power source voltage.

4. Disconnect battery charger from the receptacle.

CAUTION Do not pull the plug out of the receptacle by pulling on the cord. Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

5. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger. NOTE After operation, pull out batteries from the charger fi rst, and then keep the batteries properly. CAUTION

When the battery charger has been continuosly used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights for 1 second, does not light for

0.5 seconds (off for 0.5 seconds). In such a case,

fi rst let the battery cool, then start charging.

When the pilot lamp fl ikers rapidly in red (at 0.2–second intervals), check for and take out any foreign objects in the charger's battery connector. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

Since the built-in micro computer takes about 3 seconds to confi rm that the battery being charged with charger is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged. 000BookCN18DSLNA.indb12000BookCN18DSLNA.indb12 2016/06/3016:16:112016/06/3016:16:1113 English

If the pilot lamp does not blink in red (every second) even though the charger cord is connected to the power, it indicates that the protection circuit of the charger may be activated. Remove the cord or plug from the power and then connect it again after 30 seconds or so. If this does not cause the pilot lamp to blink in red (every second), please take the charger to the Hitachi Authorized Service Center.

1. Preparing and checking the work environment

Make sure that the work site meets all the conditions laid forth in the precautions.

2. Checking the battery

Make sure that the battery is installed fi rmly. If it is at all loose it could come off and cause an accident.

Ensure that the power switch is in the OFF position. If the battery is installed while the power switch is in the ON position, the power tool will start operating immediately, which could cause a serious accident.

4. Checking the Accessory

Check to see if the application tool is a genuine component recommended by the manufacturer and that there are no cracks or other damage.

Check to see if the application tool is properly installed as instructed.

5. About remaining battery indicator

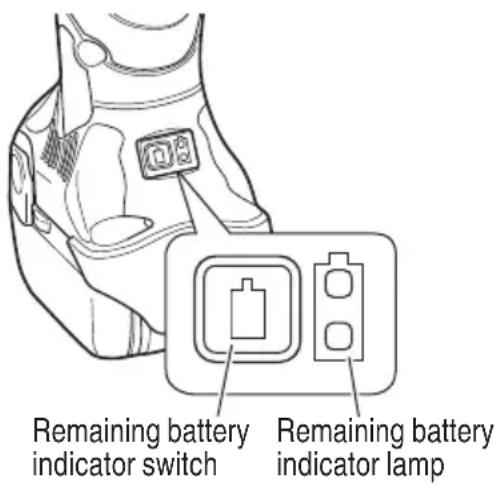

When pressing the remaining battery indicator switch, the remaining battery indicator lamp lights and the battery remaining power can be checked. (Fig. 5) When releasing your fi nger from the remaining battery indicator switch, the remaining battery indicator lamp goes off . The Table 5 shows the state of remaining battery indicator lamp and the battery remaining power. Table 5 State of lamp Battery Remaining Power The battery remaining power is enough. The battery remaining power is a half. The battery remaining power is nearly empty. Re-charge the battery soonest possible. As the remaining battery indicator shows somewhat diff erently depending on ambient temperature and battery characteristics, read it as a reference. Remaining battery indicator switch Remaining battery indicator lamp Fig. 5 NOTE

Do not give a strong shock to the switch panel or break it. It may lead to a trouble.

To save the battery power consumption, the remaining battery indicator lamp lights while pressing the remaining battery indicator switch. CAUTION: on lithium-ion battery To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. Therefore, if the tool is overloaded, the motor may stop. However, this is not the trouble but the result of protection function. In this case, release the switch of tool and eliminate the causes of overloading. CAUTION

When switching on the tool, make sure the application tool is not in contact with the material to be processed. Failure to do so may result in injury.

For cutting effi ciency, switch the speed of the application tool according to task conditions and materials to be cut.

Do not apply any unnecessary pressure when operating the tool. Doing so may damage the application tool.

After use, be sure not to place the tool near chips or sawdust before it comes to a full stop as the tool may suck in those particles. CUTTING WARNING

Be absolutely sure to keep the switch turned off and the battery removed to prevent any accident.

During operation, do not place your face or hands near the application tool of the unit. 000BookCN18DSLNA.indb13000BookCN18DSLNA.indb13 2016/06/3016:16:112016/06/3016:16:1114 English CAUTION

Never try to cut materials that are too large for the capacity of the machine since this may cause damage.

Applying cutting oil (spindle oil, machine oil, and so on) along the shearing line may decrease wear of the punch and die. Use care to prevent cutting oil adhering to the housing since the surface may be damaged.

Never touch the application tool immediately after use. The metal is hot and can easily burn your skin.

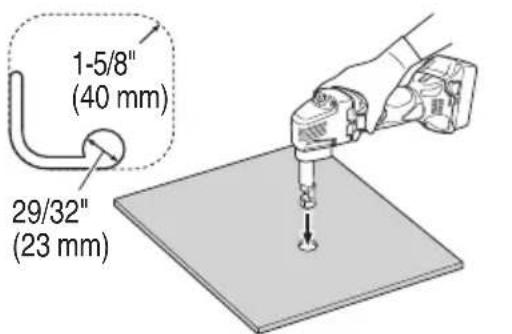

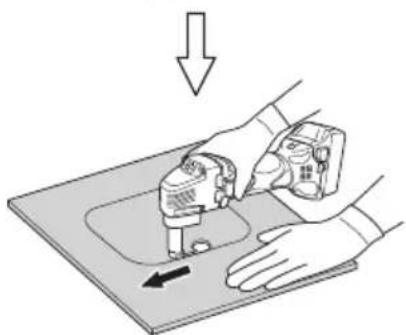

As shown in Fig. 6, hold the plates being cut parallel with the machine and apply a light force while cutting. When pocket cutting, make a hole 29/32” (23 mm) in diameter or larger, as shown in Fig. 7, and start cutting with the tip of the die holder. Switch Fig. 6 1-5/8" (40 mm) 29/32" (23 mm) Fig. 7

2. Cutting corrugated and trapezoidal plates

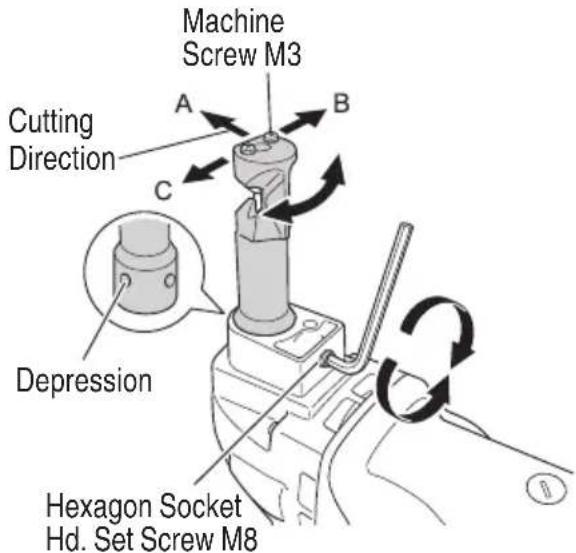

(1) The cutting direction of this machine can be rotated in 90° increments in 3 directions (A, B and C) (see Fig. 8) by loosening the M8 hexagon socket set screw mounting the die holder. Set the cutting direction in the B or C direction to cut trapezoidal plates. After that, securely tighten the M8 hexagon socket set screw. Machine Screw M3 Hexagon Socket Hd. Set Screw M8 Cutting Direction Depression Fig. 8 (2) Grip the machine fi rmly with both hands as shown in Fig. 9, align with the shape of the trapezoidal plate, push the machine forward until the die holder is at right angles as shown in Fig. 9 and make the cut. Die Holder Cutting Material Fig. 9 HOW TO REPLACE THE PUNCH AND DIE CAUTION Be sure to switch power OFF and disconnect the battery from the body when changing application tools.

1. Service life of the punch and die

Wear and damage to the cutting edges of the punch and die can greatly infl uence the cutting operation. Under normal usage, the service life of the punch and die is as shown in the table below. Replace the punch and die promptly when the end of the service life approaches. The punch and die should be replaced at the same time. 000BookCN18DSLNA.indb14000BookCN18DSLNA.indb14 2016/06/3016:16:112016/06/3016:16:1115 English Cutting materials Service life cutting lengths of punch and die 1/16” (1.6 mm) mild steel plates 1000 ft (300 m) 1/16” (1.6 mm) mild steel corrugated and trapezoidal plates 160 ft (50 m) 3/64” (1.2 mm) stainless steel plates 650 ft (200 m) When the machine is used according to the service life indicated in the above table, the punch will have abrasions as shown in the enlarged diagram of the worn punch tip in Fig. 10. This is when the punch and die should be replaced. Cutting Edge Wear due to abrasion Punch 0.01" (0.3 mm) Fig. 10 CAUTION If the punch and die are used longer than the specifi ed service life, the die holder will be subject to excessive stress and may break off . When a 1/16” (1.6 mm) mild steel trapezoidal plate is cut, wear will be especially quick. Replace the punch and die as soon as possible after reaching the service life.

2. Punch and die replacement (see Fig. 10)

CAUTION During the following operations, use care to prevent dirt adhering inside the gear cover, inside the die holder and around the piston. (1) Punch replacement (a) Loosen the M8 hexagon socket set screw mounting the die holder (see Fig. 8) and remove the die holder. (b) Loosen the M5 hexagon socket set screw fastening the punch to the piston and pull out the punch. (see Fig. 11) Die Die Holder Punch Gear Cover Machine Screw M3 Piston Hexagon Socket Hd. Set Screw M5 Fig. 11 (c) Insert the new punch while aligning the taper hole of the punch and the direction of the M5 hexagon socket set screw, then securely tighten the hexagon socket set screw (see Fig. 12). Taper Hole Hexagon Socket Hd. Set Screw M5 Punch Piston Fig. 12 (2) Die replacement Loosen the 2 machine screws and replace the die. (see Fig. 11) (3) Lubrication When the above replacement operations are completed, apply a suitable amount of machine oil to the sliding surfaces around the punch and die and operate the machine without a load. 000BookCN18DSLNA.indb15000BookCN18DSLNA.indb15 2016/06/3016:16:112016/06/3016:16:1116 English

Be sure to turned off the switch and pull out the battery.

1. Inspecting the application tool

Continued use of a dull or damaged application tool will result in reduced cutting effi ciency and may cause overloading of the motor. Replace the application tool with new one as soon as excessive abrasion is noted.

Loose screws are dangerous. Regularly inspect them and make sure they are tight. CAUTION Using this power tool with loosened, screws is extremely dangerous.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Inspecting the carbon brushes (Fig. 13)

The motor employs carbon brushes which are consumable parts. Since and excessively worn carbon brush can result in motor trouble, replace the carbon brush with new ones when it becomes worn to or near the “wear limit”. In addition, always keep carbon brushes clean and ensure that they slide freely within the brush holders. 0.12" (3 mm) 0.45" (11.5 mm) Wear limit Fig. 13 NOTE When replacing the carbon brush with a new one, be sure to use the Hitachi Carbon Brush Code No.

5. Replacing carbon brushes

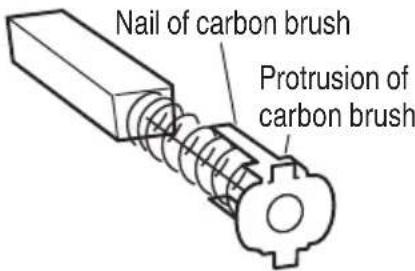

Take out the carbon brush by fi rst removing the brush cap and then hooking the protrusion of the carbon brush with a fl at head screw driver, etc., as shown in Fig. 15. When installing the carbon brush, choose the direction so that the nail of the carbon brush agrees with the contact portion outside the brush tube. Then push it in with a fi nger as illustrated in Fig. 16. Lastly, install the brush cap. Nail of carbon brush Protrusion of carbon brush Fig. 14 Fig. 15 Contact portion outside brush tube Fig. 16 CAUTION

Be absolutely sure to insert the nail of the carbon brush into the contact portion outside the brush tube. (You can insert whichever one of the two nails provided.)

Caution must be exercised since any error in this operation can result in the deformed nail of the carbon brush and may cause motor trouble at an early stage.

Dust may be removed with a soft cloth or a cloth dampened with soapy water. Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics. 000BookCN18DSLNA.indb16000BookCN18DSLNA.indb16 2016/06/3016:16:122016/06/3016:16:1217 English

7. Disposal of the exhausted battery

WARNING Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it´s useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste offi cials for details in your area for recycling options or proper disposal.

Storing in a place below 104°F (40°C) and out of the reach of children. NOTE Storing lithium-ion batteries Make sure the lithium-ion batteries have been fully charged before storing them. Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, signifi cantly reducing battery usage time or rendering the batteries incapable of holding a charge. However, signifi cantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to fi ve times. If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

9. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY.

10. Service parts list

CAUTION Repair, modifi cation and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center. This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. MODIFICATIONS Hitachi Power Tools are constantly being improved and modifi ed to incorporate the latest technological advancements. Accordingly, some parts may be changed without prior notice. Important notice on the batteries for the Hitachi cordless power tools Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modifi ed (such as disassembly and replacement of cells or other internal parts). 000BookCN18DSLNA.indb17000BookCN18DSLNA.indb17 2016/06/3016:16:122016/06/3016:16:1218 English ACCESSORIES WARNING ALWAYS use Only authorized HITACHI replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this tool. Contact HITACHI if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. NOTE Accessories are subject to change without any obligation on the part of the HITACHI. STANDARD ACCESSORIES CN18DSL (NN)

Hexagon bar wrench 2.5 mm (code No. 990666) .....................................................1 Battery, battery charger, plastic case and battery cover are not contained. OPTIONAL ACCESSORIES (sold separately)

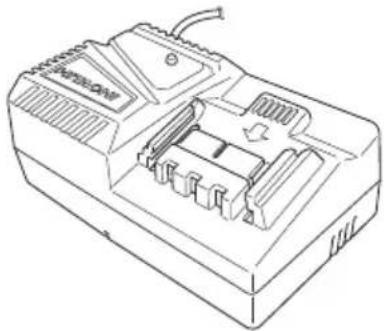

1. Battery 2. Battery Charger

4 ARMATURE AND PINION SET 1

9 CONNECTING ROD ASS'Y 1A

15 PUNCH 1 16 DIE HOLDER 1 17 DIE ASS'Y 1

23 HOUSING (A).(B) SET 1

Code No. C99717163 G Printed in China Issued by Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan Distributed by PO Box 970 Braselton, GA 30517 450 Export Blvd. Unit B, Mississauga ON L5S 2A4 000BookCN18DSLNA.indb56000BookCN18DSLNA.indb56 2016/06/3016:16:142016/06/3016:16:14
