USER MANUAL CWB 9441 WNHA BEKO

EN-FR-AR Hood User manual CWB 6441 XN CWB 6441 WNHA CWB 6441 XNHA CWB 6441 BNHA CWB 9441 XN CWB 9441 XNHA CWB 9441 WNHA 01M-8866623200-2121-05 01M-8808483200-2121-05 01M-8808493200-2121-05 01M-8808503200-2121-05 01M-8891303200-2121-05 01M-8808463200-2121-05 01M-8808473200-2121-05Please read this user manual first! Dear Valued Customer, Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual. Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual. Meanings of the Symbols Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situati-

ons concerning the security of life and property. Warning for danger of fire.

Warning for electric shock. Protection class against electric shock. Complies with the WEEE regulation. It does not contain PCB. This appliance has been manufactured in environmentally friendly modern plants without giving any harm to the nature.Davlumbaz / Kullanma Kılavuzu 3 / TR CONTENTS ENGLISH 04-11

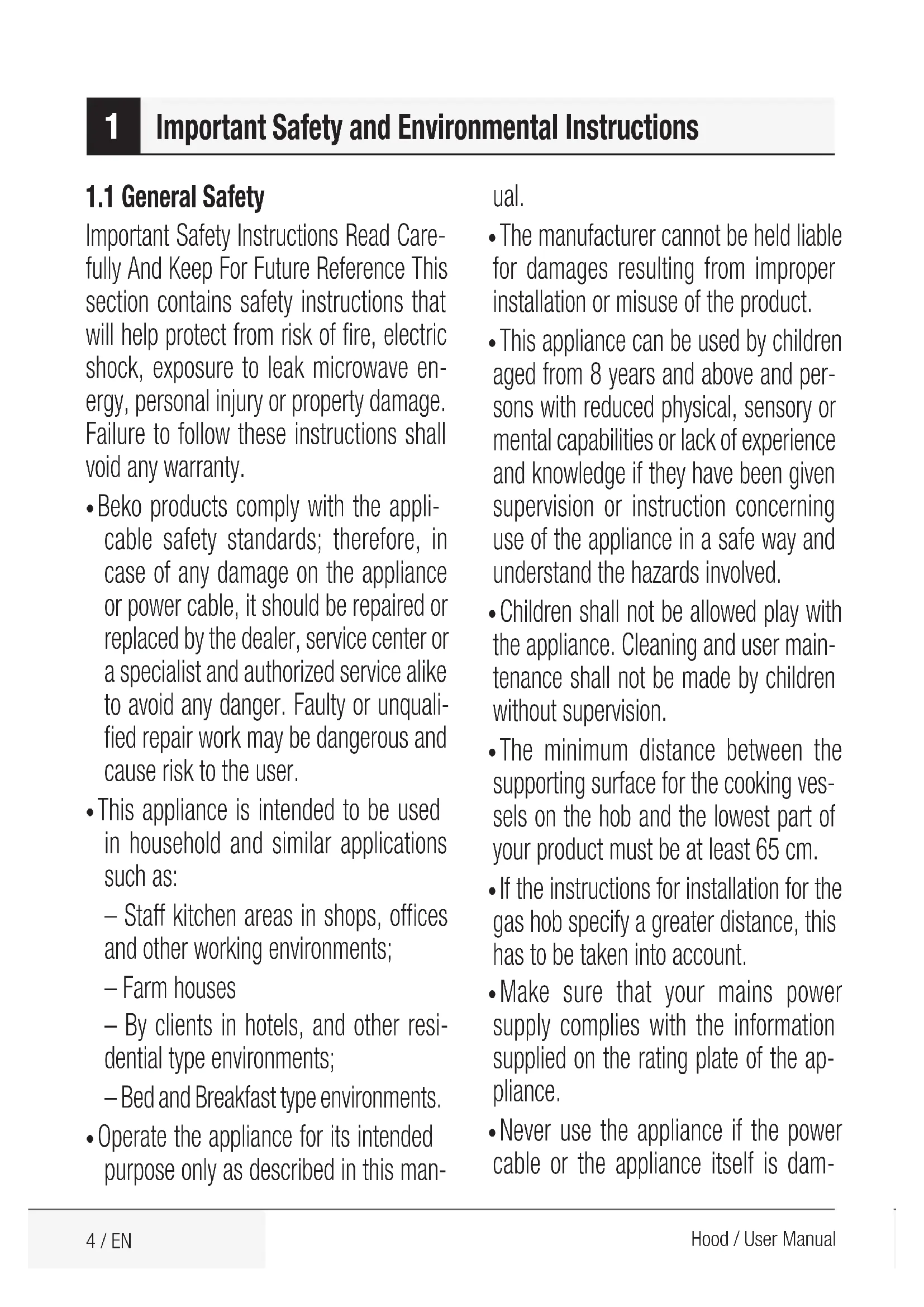

Important Safety Instructions Read Care- fully And Keep For Future Reference This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave en- ergy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

• Beko products comply with the appli- cable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unquali- fied repair work may be dangerous and cause risk to the user.

• This appliance is intended to be used in household and similar applications such as: – Staff kitchen areas in shops, offices and other working environments; – Farm houses – By clients in hotels, and other resi- dential type environments; – Bed and Breakfast type environments.

• Operate the appliance for its intended purpose only as described in this man- ual.

• The manufacturer cannot be held liable for damages resulting from improper installation or misuse of the product.

• This appliance can be used by children aged from 8 years and above and per- sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not be allowed play with the appliance. Cleaning and user main- tenance shall not be made by children without supervision.

• The minimum distance between the supporting surface for the cooking ves- sels on the hob and the lowest part of your product must be at least 65 cm.

• If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.

• Make sure that your mains power supply complies with the information supplied on the rating plate of the ap- pliance.

• Never use the appliance if the power cable or the appliance itself is dam-

Important Safety and Environmental InstructionsHood / User Manual 5 / EN aged.

• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.

• Use the appliance with a grounded out- let only.

WARNING: Do not connect the appli-

ance to the mains until the installation is fully complete.

• Place the appliance in a way so that the plug is always accessible.

• Do not touch the lamps if they have op- erated for a long time. They can burn your hands since they will be hot.

• Follow the regulations set out by com- petent authorities on discharge of the exhaust air (this warning is not appli- cable for use without flue).

• Operate your appliance after putting a pot, pan etc. on the hob. Otherwise, high heat may cause deformation in some parts of your product.

• Turn off the hob before taking the pot, pan etc. from it.

• Do not leave hot oil on the hob. Pans with hot oil may cause self combustion.

• Pay attention to your curtains and cov- ers since oil may catch fire while cook- ing food such as fries.

• Grease filter must be cleaned at least monthly. Carbon filter must be replaced at least every 3 months.

• Product shall be cleaned accordance with user manual. If cleaning was not carried out in accordance with user manual, there may be fire risk.

• Do not use non-fire-resistant filtering materials instead of the current filter.

• Only use the original parts or parts rec- ommended by the manufacturer.

• Do not operate the product without the filter and do not remove the filters while the product is running.

• In the event of be started any flame, de-energize your product and cooking appliances.

• In the event of be started any flame, cover the flame and never use water to extinguish.

• Unplug the appliance before each cleaning and when the appliance is not in use.

• The negative pressure in the environ- ment should not exceed 4 Pa (4 x 10 bar) while the hood for electric hob and appliances running on another type of

Important Safety and Environmental Instructions6 / EN Hood / User Manual energy but electricity operate simulta- neously.

• In the environment where the appliance is being used, the exhaust of devices running on fuel oil or gas, such as room heater must be absolutely isolated or device must be hermetical type.

• When connecting the flue, use pipes with a diameter of 120 or 150 mm. Pipe connection must be as short as possible and have as few elbows as possible. Danger of choking! Keep all the pack- aging materials away from children. CAUTION: Accessible parts may be- come hot when used with cooking ap- pliances.

• The product outlet must not be con- nected to air channels that include other smoke.

• The ventilation in the room may be in- sufficient when the hood for electric hob is used simultaneously with the devices operating on gas or other fuels (this may not apply to appliances that only discharge the air back into the room).

• Objects placed on the product may fall. Do not place any objects on the prod- uct.

• Do not flambe under the your product.

WARNING: Before installing the Hood,

remove the protective films.

• Never leave high naked flames under the hood when it is in operation

• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

1.2 Compliance with the WEEE Di-

rective and Disposing of the Waste Product: This product complies with EU WEEE Di- rective (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collec- tion point for recycling of electrical and electronic devices. To find these collection systems please contact to your local au- thorities or retailer where the product was puchased. Each household performs im- portant role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environ-

Important Safety and Environmental InstructionsHood / User Manual 7 / EN

Important Safety and Environmental Instructions ment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the prod- uct are manufactured from recy- clable materials in accordance with our National Environment Regula- tions. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.8 / EN Hood / User Manual ModelCWB 6441 XN - CWB 6441 WNHA - CWB 6441 XNHA - CWB 6441 BNHACWB 9441 XN - CWB 9441 XNHA - CWB 9441 WNHASupply Voltage and Frequ- ency 220-240V ~ 50 HzLamp Power (W) 2x4Motor Power (W) 125Air Flow (m³/h) – 3. Level 400Motor Insulation Class F SınıfıInsulation Class Class II

• You can start the hood by pressing the desired speed level key.(V1,V2,V3 )

• You can illuminate the cooking area by pressing the light key L (

• ( CWB 6441 XN ) Disconnect the hood from the mains supply. This appliance is equipped with 28 W spot LED lamps.

XNHA - CWB 9441 WNHA ) Disconnect the hood from the mains supply. This appliance is equipped with 4 W spot LED lamps.

3.1 Use of the Rocker Switch

The hood is equipped with a mechanical control.

• Pressing the “V1” - to turn the hood with a mi- nimum speed.

• Pressing the “V2” - turns the hood with an ave- rage speed.

• Pressing the “V3” - turns the hood at maximum speed. Higher speed means more air flow.

• Press the ‘‘L’’ - to turn on the lights. Repeat pressing the button to turn off the lighting.

3.2 Things to Do for Energy Saving

• Ensure sufficient air intake to make the hood operate efficiently and with low operation noise during cooking.

• Set the fan level according to the density of steam in kitchen. Use the high level only when needed. A lower fan level means less energy consumption.

• If dense smoke is expected in the kitchen, select a higher level of fan in advance. It is required to operate the hood much longer to remove the smoke already spread all over kitchen.

• Turn off the hood when not in use.

• Clean or replace the filter at intervals stated, thus, the efficiency of the ventilation is increased and the risk of fire is eliminated.

3.3 Operating the Hood

• Hood is equipped with a motor having various speed settings.

• For a better performance, we advise you to use low speeds in normal conditions, and high spe- eds when smell and vapors are intensified. Max: 28 W Lamp Power (W) Socket 28 E14 Voltage (V) Dimension (mm) ILCOS Code 220 – 240 104 x 35 HSGSB/UB-28-220-E14 Max: 4 W Lamp Power (W) Socket 4 E14 Voltage (V) Dimension (mm) ILCOS Code 220 – 240 107 x 37

240-E14-35/10010 / ENHood / User Manual Before replacing the light bulbs, disconnect the power supply of the hood. Do not touch the light bulbs when they are hot. Be careful not to touch the replaced light bulb directly with hands. You may procure lamps from Authorised Service Agents.

NOTE Please refer to page 31 for the installation guide

• The charcoal filter is not washable and cannot beregenerated, and must be replaced approximatelyevery 3 months of operation, or more frequently forparticularly heavy usage (W).- The Aluminium Grease Filters must be cleaned every months of operation.

WARNING Please read saffety instructions before setting up.

WARNING Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. 3 Using the Appliance 4 Cleaning and Maintenance - The Aluminium Grease Filters can be washedin the dish washer (Z).

N = 4x L = 8x I = 8x
