USER MANUAL Pro Style One IT2460 TEFAL

Illustration of a portable air purifier with a curved arm and base (no text or symbols)

PRO STYLE ONE - IT24****

www.tefal.com

B C A D* K* C1 F G E L* F G1 J H I2 I1 I3

* FR Selon le modèle / NL Afhankelijk van het model / DE Abhängig vom Modell / EN depending on model / EL Aváloya με το μοντέλο / TR Modele bağlı olarak / SV Beroende på modell / DA Afhængig af model / NO Avhengig av modell / FI Mallista riippuen / RU B зависимости от модели / UK Залежно від моделі / PL W zależności od modelu / CS V závislosti na modelu / BG B зависимост от модела / HU Modelltől függően / RO în funcție de model / SR Zavisno od modela / SK V závislosti od modelu / BS Ovisno o modelu / ET Oleneb mudelist / LV Atkaribā no modela / LT Priklausomai nuo modelio / SL Odvisno od modela / HR Ovisno o modelu / TH țăinədʒiun / AR حسب الموديل

1 ASSEMBLY

2 BEFORE USE

Diagram showing two electrical outlets with no visible text or symbols, indicating no protection or disapproval.

1,3L 440Z MAX

Illustration of a hand pressing down on a machine component with a close-up inset showing the switch (no text or symbols)

Line drawing of a men's blouse with collar and buttons, shown in profile view (no text or symbols)

3 ACCESSORIES (\*IN SOME MODELS ONLY)

Safety warning illustration showing no protection symbols for electrical outlets and a mechanical component labeled K*

Mechanical device with triangular component and lever mechanism (no visible text or symbols)

4 SCENARIO OF USE

Illustration of a desk lamp with adjustable arm and bulb (no text or symbols)

Diagram showing two electrical plug connections with labels and a numbered arrow indicating connection point 2

Camera control panel with no visible text or symbols on the main body, including a circular dial indicator and three icons (wide, low, light) without any readable text.

45 sec. 4

Illustration of a hand holding a small object near a shirt (no text or symbols)

Illustration of a man in a suit crossed out by a hand holding a gavel (no text or symbols present)

5 DURING USE

6 AFTER USE

Diagram showing two electrical plug connections with a wall socket and power outlet, no text or symbols present

Illustration of hands operating a mechanical device with an upward arrow indicating motion (no text or symbols)

6 AFTER USE

Illustration of hands cleaning a water tank with a valve, showing mechanical components and a downward arrow (no text or symbols)

Illustration of a hand using a tool to press down a machine component, with an inset showing a rotating knob (no text or symbols)

1h

7 DESCALING PROCEDURE

Diagram showing mechanical assembly steps with numbered labels and directional arrows indicating motion

Warning symbol for a mechanical device with no stop sign and warning triangle

Diagram showing a hand pressing down on a machine component with labeled parts and an inset highlighting the switch mechanism.

1 50% Water + 50% White Vinegar 2 1L 34 OZ 4

Illustration of a hand using a tool to clean or wash a surface, with a downward arrow indicating action (no text or symbols)

Illustration of hands operating a mechanical device with directional arrows indicating movement (no text or symbols)

7 DESCALING PROCEDURE

5 MINS.

Illustration of a hand using a vacuum cleaner to lift a cup (no text or symbols visible)

*5-6 times 9

step 1 to 9 * 5-6 times 10

1,3L 440Z MAX 11

Illustration of a hand using a tool to press down a device, with an inset showing a rotary knob (no text or symbols)

Diagram showing two electrical plug connections with labels and a numbered connection point '13'

Illustration of a mechanical device with a gear and a hand handle, accompanied by an hourglass icon (no text or symbols)

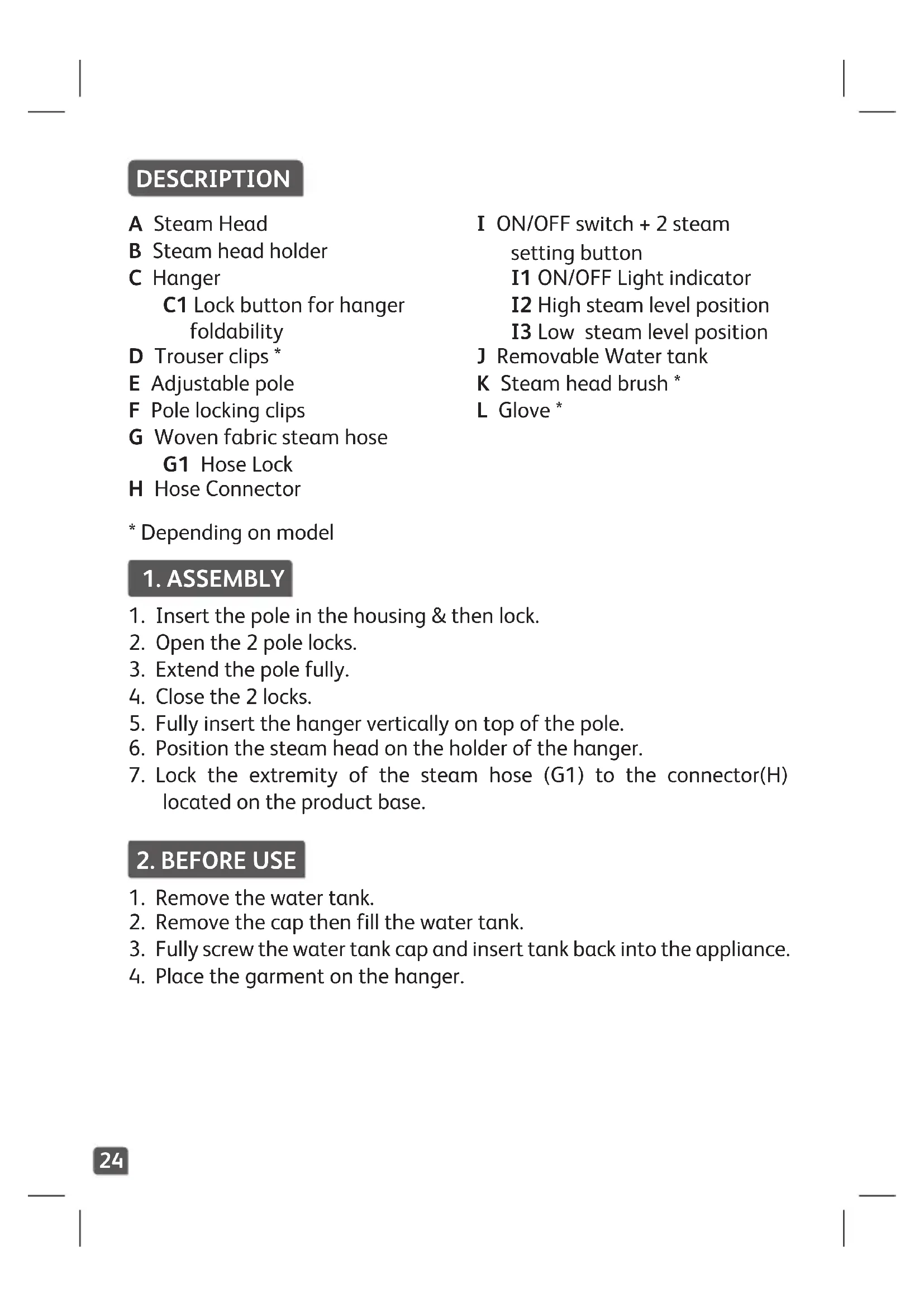

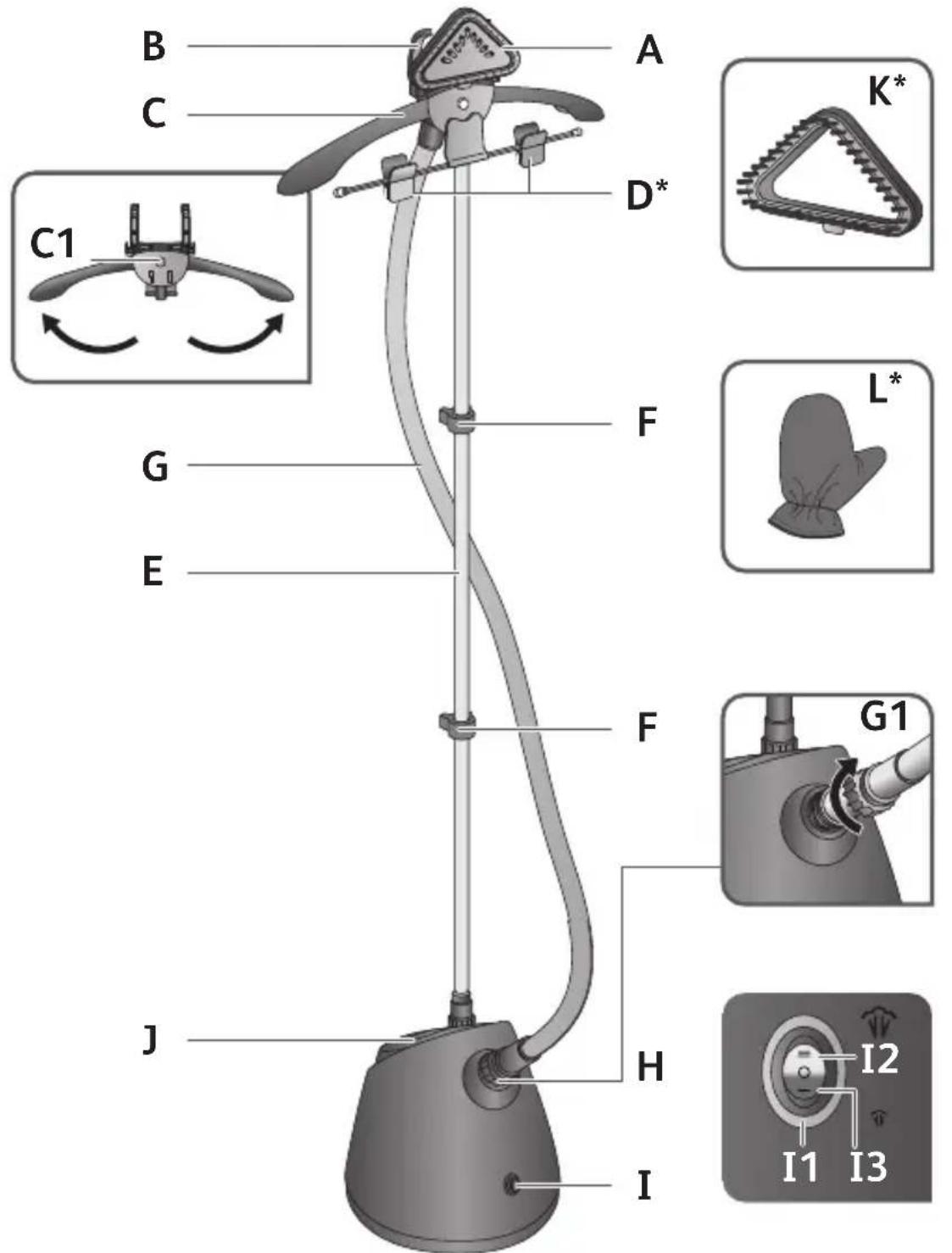

DESCRIPTION

A Steam Head
B Steam head holder
C Hanger

C1 Lock button for hanger foldability

D Trouser clips *
E Adjustable pole
F Pole locking clips
G Woven fabric steam hose

G1 Hose Lock

H Hose Connector

I ON/OFF switch + 2 steam setting button

I1 ON/OFF Light indicator
I2 High steam level position
I3 Low steam level position

J Removable Water tank
K Steam head brush *
L Glove *

* Depending on model

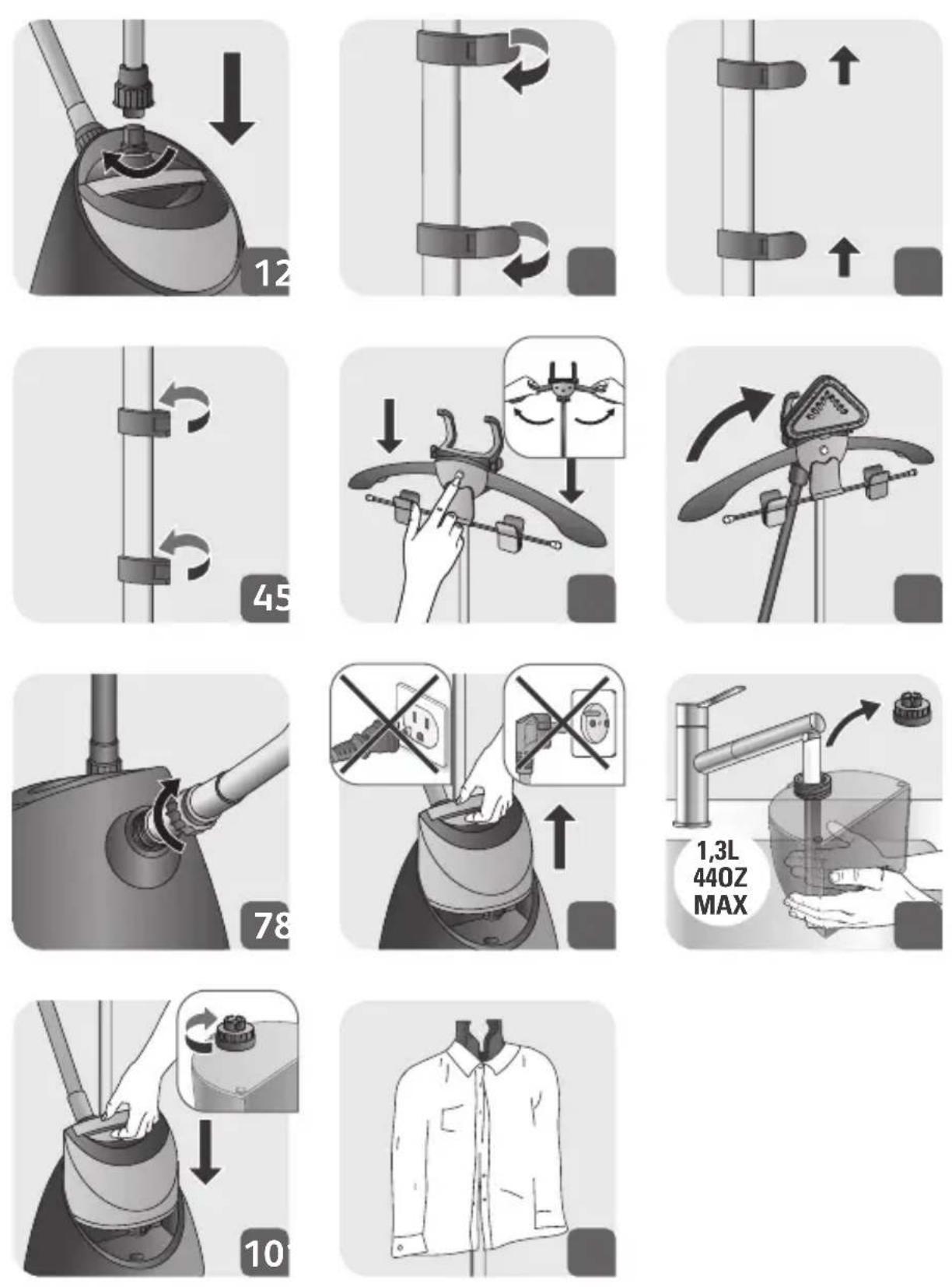

1. ASSEMBLY

1. Insert the pole in the housing & then lock.
2. Open the 2 pole locks.
3. Extend the pole fully.
4. Close the 2 locks.
5. Fully insert the hanger vertically on top of the pole.
6. Position the steam head on the holder of the hanger.
7. Lock the extremity of the steam hose (G1) to the connector(H) located on the product base.

2. BEFORE USE

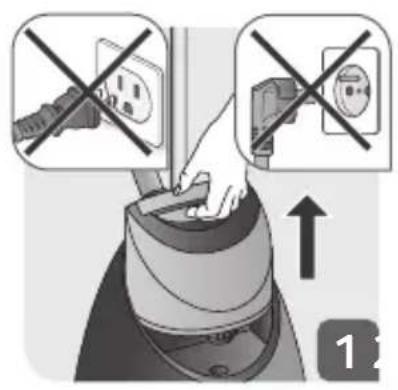

1. Remove the water tank.

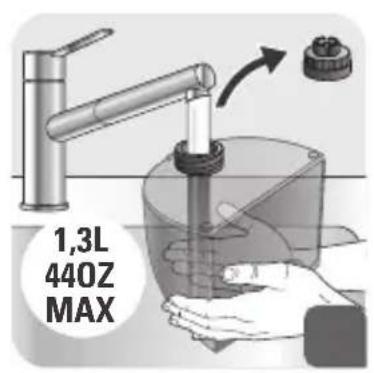

2. Remove the cap then fill the water tank.

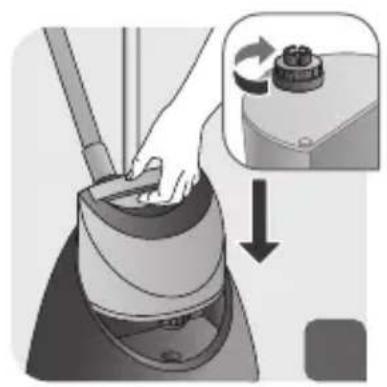

3. Fully screw the water tank cap and insert tank back into the appliance.
4. Place the garment on the hanger.

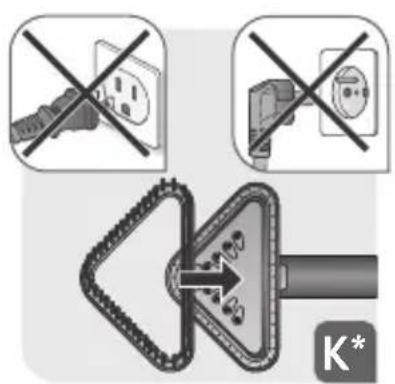

3. ACCESSORIES (\* IN SOME MODELS ONLY)

Make sure the appliance is unplugged and completely cool before attaching or removing accessories.

EN

K. The fabric brush opens the weaves of the fabrics for better steam penetration.

Attach the fabric brush to the steam head when appliance is unplugged and has cooled down.

D. The trouser clip should be clipped on the hanger. It helps to hold trousers, skirts and other clothes during steaming.

4. SCENARIO OF USE

1. Only operate the appliance on a floor clear of any materials which may obstruct the base of the steamer (flat and horizontal surface). Do not obstruct the openings on the lower part of the appliance. This appliance should not be used on very thick carpets or rugs.

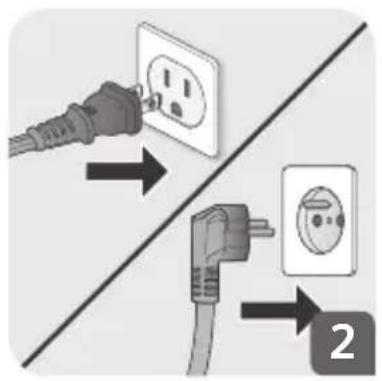

2. Plug in the appliance.
3. Press on the ON/OFF switch to turn the appliance ON or OFF.

Press on the highest position = for higher steam concentration. A red light will turn on.

Press on the lowest position for a lower steam concentration. A blue light will turn on.

Wait for 45 seconds before steaming.

If you want to turn OFF the appliance, press on the middle position Ⓞ The light indicator will turn off.

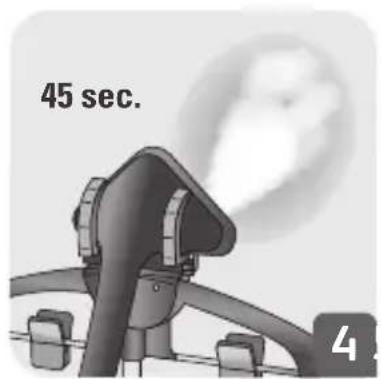

1. After 45 seconds approximately, steam will come out.

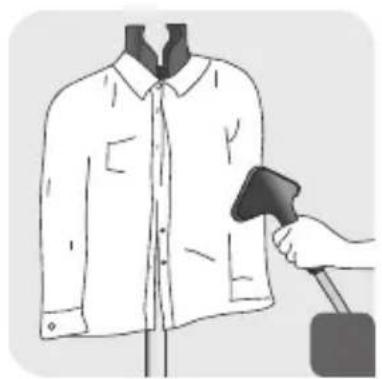

2. For optimal use, pass the steam jets on your garment from top to bottom.

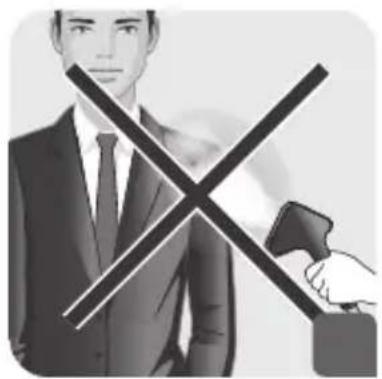

Warning: Never steam a garment while it is being worn.

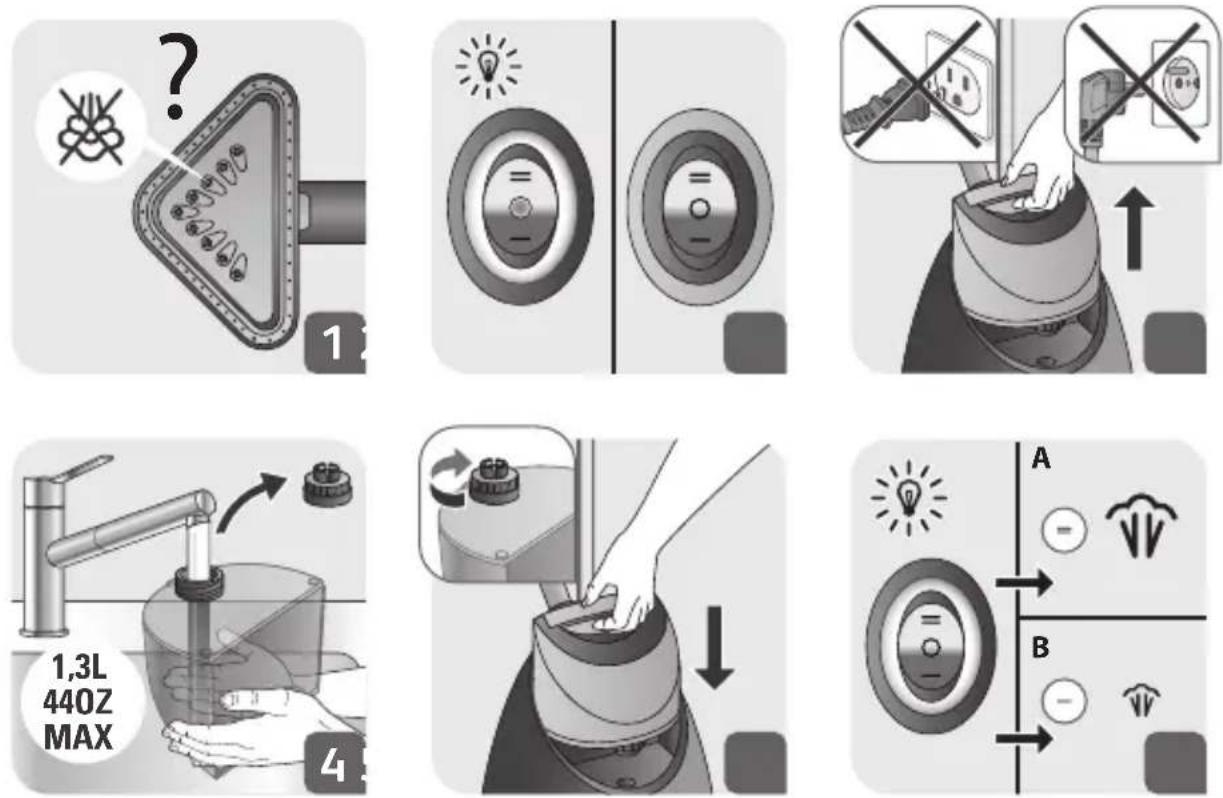

5. DURING USE

1. If steam is not coming out anymore, this can be due to low water level in tank.
2. Press the ON/OFF switch to the middle position and check that light is switched OFF.
3. Remove the water tank.
4. Remove the cap then fill the water tank.
5. Fully screw the water tank cap and insert tank back in appliance.
6. Press the ON/OFF switch and select your desired steam concentration. Check that light is switching on. Wait for 45 seconds before steaming.

6. AFTER USE

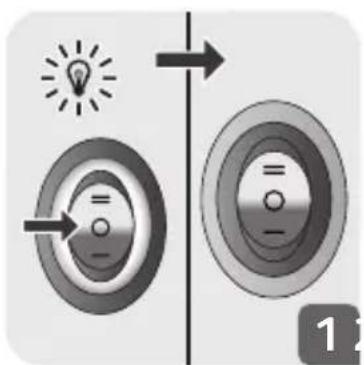

1. Press the ON/OFF switch to the middle position and check that light is switched OFF.

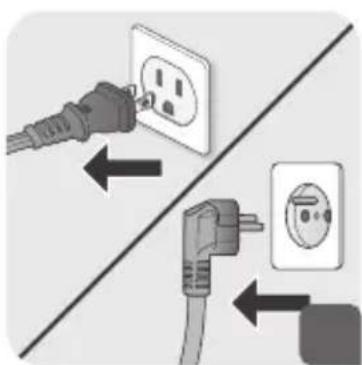

2. Unplug the appliance.

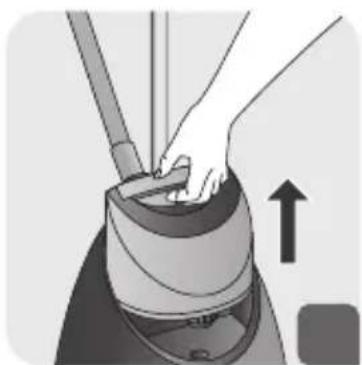

3. Remove the water tank.

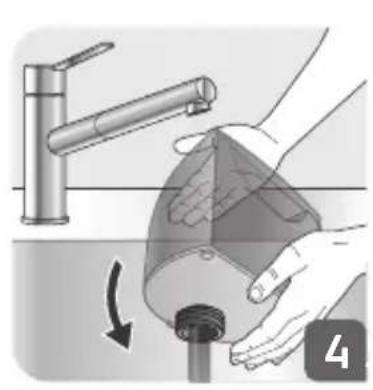

4. Unscrew the cap and then empty the water tank completely in a sink.

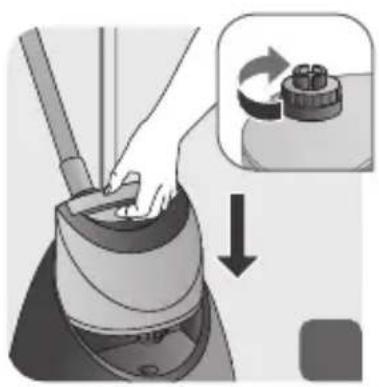

5. Screw back the cap and place the water tank back onto the appliance.
6. Wait for an hour for your appliance to cool before storing.

7. DESCALING PROCEDURE

This process should be made every 6 months or as soon as you feel that the performance of the appliance (steam output) is decreasing.

EN

WARNING! Wait an hour so that the appliance has completely cooled down.

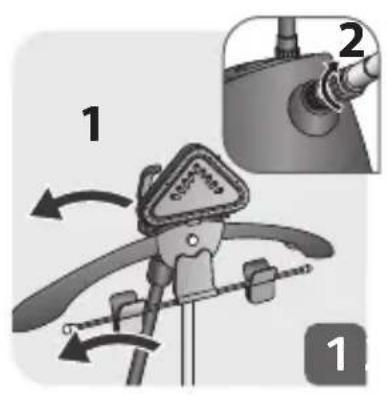

1. Remove the steam head from the hanger, unlock the locker and pull out the pole.

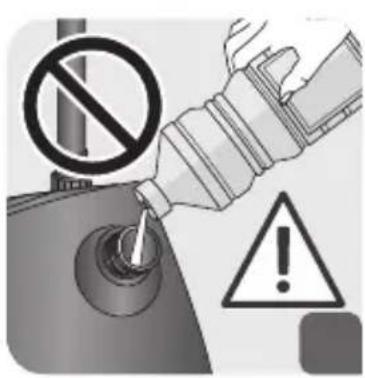

2. Never fill inside the pole connection (G1 / H).

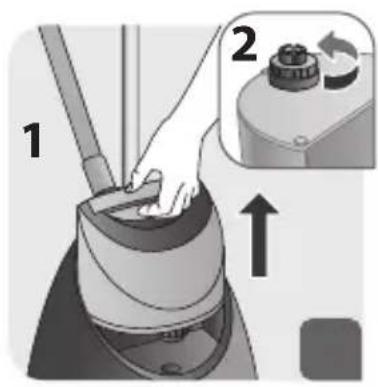

3. Remove the water tank and open its cap.

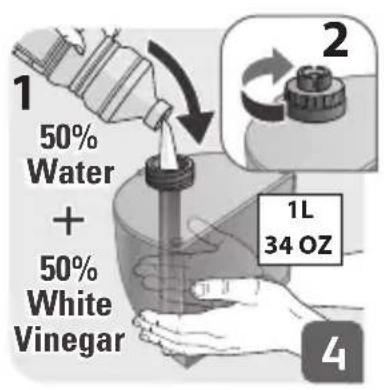

4. Fill the water tank with a mixed preparation of 500ml of vinegar and 500ml of water. Close the cap.
5. Descale the appliance by placing the water tank with the preparation of vinegar / water (cold appliance), back into the base.

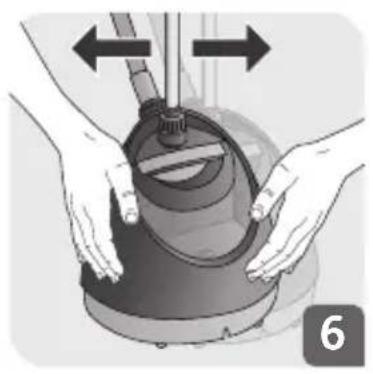

6. Gently shake the appliance.
7. Leave to soak for at least 5 minutes.

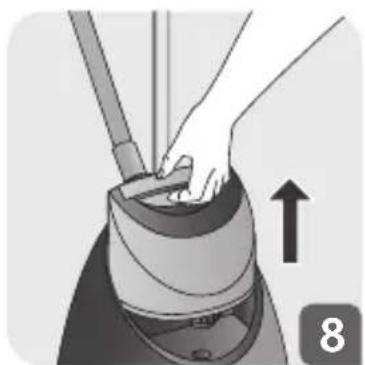

8. Remove the water tank from the base.

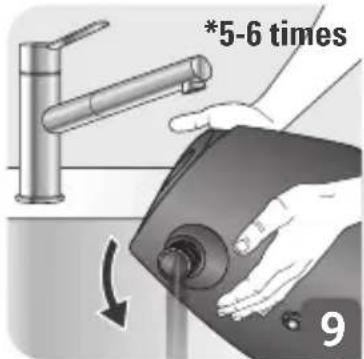

9. Vertically tilt the appliance to empty the water into the sink.
10. Repeat the procedure until there is no more water in the water tank (5-6 times).
11. Once completed, re-assemble the product (Step 1 to 7).

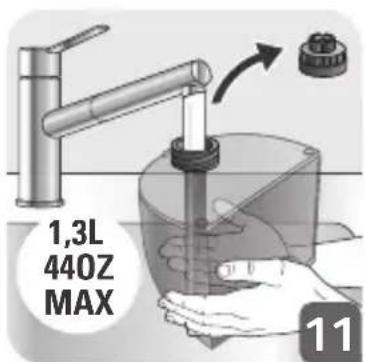

12. Remove the cap then fill the water tank with 1.3L of water.

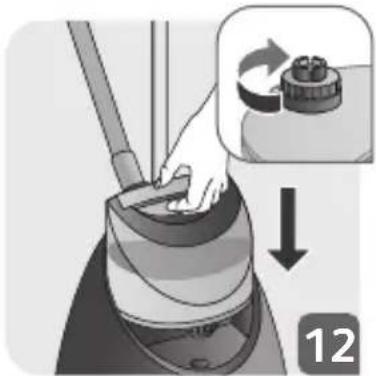

13. Re-assemble the water tank cap by screwing it in completely to ensure that it is watertight but do not over tighten it and insert the water tank back into the appliance.

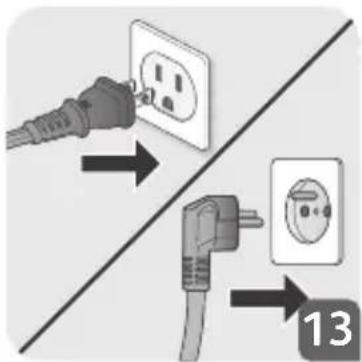

14. Plug in the appliance.
15. Let the appliance run until the water tank has completely emptied.

8. CLEANING

• Wait an hour so that the appliance has completely cooled down.
• Only use a damp sponge/cloth with water to clean the base.
• Only use a damp sponge/cloth with water to clean the steam head.
• Never use detergents when cleaning your appliance.
• Never wash or rinse appliance directly over a sink.
