SmoothTouch 76606 - Can opener HAMILTON BEACH - Free user manual and instructions

Product Type	Electric Can Opener
Brand	Hamilton Beach
Model	SmoothTouch 76606
Power Supply	120 V~, 60 Hz (polarized plug)
Power Cord Length	61 cm (24 in)
Opening Mechanism	Activation lever with under-rim cutting
Compatible Can Types	Standard cans and tab-lid cans
Automatic Shut-off	No, manual stop required after one full rotation
Motor	Lifetime lubricated, maintenance-free
Cord Storage	Compartment at the back of the unit
Included Parts	Scissors holder (depending on model)
Maintenance	Wipe the exterior with a damp cloth
Cleaning	Do not immerse in water
Safety	Polarized plug, locking lever, use under supervision
Warranty	1 year against defects in materials and workmanship
Usage	Household use only
Country of Manufacture	Not specified

Frequently Asked Questions - SmoothTouch 76606 HAMILTON BEACH

How to use the Hamilton Beach SmoothTouch 76606 can opener?

Make sure the activation lever is in the UNLOCK position and pulled up. Place the can against the face, the rim under the cutting mechanism. Lower the lever and hold it until the can makes a complete rotation. The motor does not stop automatically: raise the lever when the sound becomes higher. Gently lift the lid.

What types of cans can this can opener open?

It easily opens all standard cans as well as cans with tab lids. For cans with a dent or prominent seam, start cutting just below it or open the other end.

Does the can opener stop automatically?

No, the motor does not stop automatically and does not lift the lid. You must monitor the rotation and raise the lever as soon as the motor sound becomes higher, indicating the can is open.

How to clean the can opener?

Always unplug the appliance before cleaning. Wipe the exterior with a damp cloth. Never immerse the cord, plug, base, or motor in water or any other liquid.

What to do if the can opener does not work properly?

Check that the lever is in the UNLOCK position and the can is correctly positioned. If the problem persists, unplug the appliance and contact customer service. Do not attempt to repair the power cord yourself.

Can the can opener open pressurized or flammable cans?

No, never use the appliance to open pressurized cans (aerosol type) or containing flammable liquids like lighter fluid. This poses a risk of fire or explosion.

How to store the power cord?

After use, unplug the appliance. Push the cord into the small opening at the back of the can opener to store it. To release it, pull it upward then out of the appliance.

Is the can opener suitable for children?

This appliance is not intended for use by children. Keep the appliance and its cord out of reach of children and ensure close supervision if used near them.

What to do if the can does not rotate completely?

Check that the lever is properly lowered and held. If the can is dented or has an irregular rim, start cutting at a different spot. A single complete rotation is usually sufficient.

What is the warranty of the Hamilton Beach 76606 can opener?

The appliance is warranted for one year against any defects in materials and workmanship from the original date of purchase. The warranty does not cover normal wear, accidental damage, or misuse. Keep your receipt.

USER MANUAL SmoothTouch 76606 HAMILTON BEACH

hamiltonbeach.com For recipes, tips and product information.

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by children or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put cord, plug, base, or motor in water or other liquid.
6. Release the activation lever; then unplug from the outlet when not in use, before assembling or disassembling parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contacting moving parts.
8. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

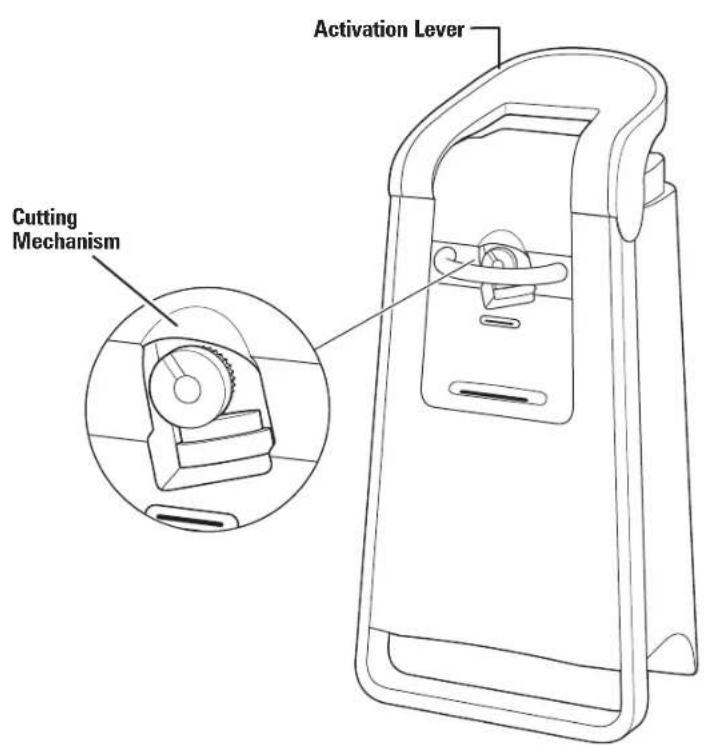

Parts and Features

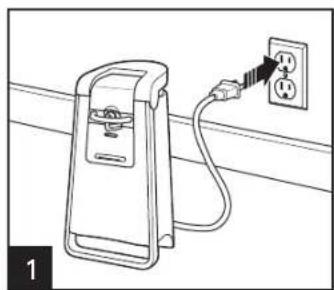

How to Use

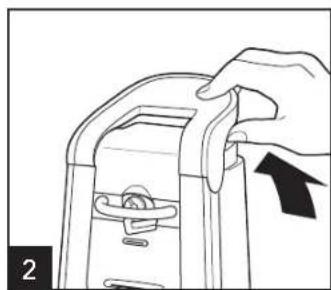

Make sure the activation lever is pulled all the way UP and in the UNLOCKED position.

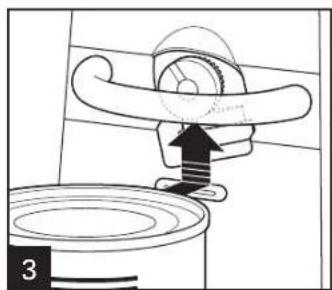

Place can against front of can opener and lift up until rim is under cutting mechanism.

Hold the lever down until the can has completed ONE ROTATION ONLY.

NOTES:

• The motor WILL NOT automatically stop or lift the lid when the can has opened.
• Allowing only one rotation reduces or prevents metal slivers.

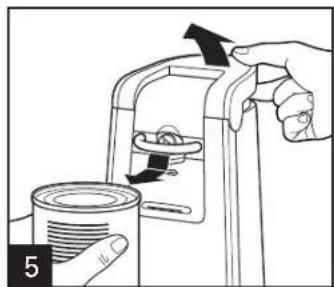

• When the motor sound shifts to a higher pitch, the can is open. Carefully lift the lid up to remove.
• Can opener has a 24-inch cord. Cord can be stored in the unit by pushing the cord in the small hole on the back of the unit. To pull the cord out, pull up then out.

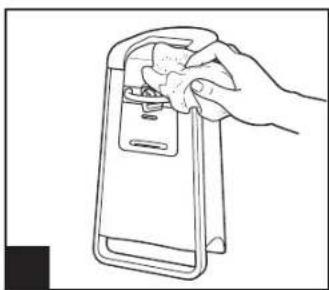

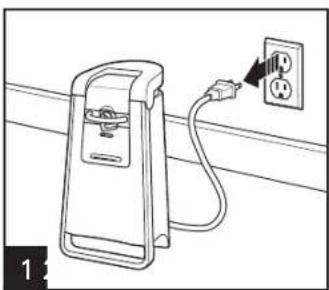

Care and Cleaning

1. Unplug unit. 2. Wipe outside with damp cloth. 3. Store cord in unit by pushing
in small hole.

TIPS:

DO NOT hold the can while the can is being opened.
- Some microwaveable can designs do not work with this can opener.
The can opener will easily open all standard-size cans and cans with pop-top lids.
If there is a bump, dent, or heavy seam in the rim of the can, open the other end of the can or start cutter just beyond it.
The motor of your can opener is permanently lubricated and will require no oiling.
- Cans only need one full rotation to open.

Visit hamiltonbeach.com for our complete line of products and Use and Care Guides - as well as delicious recipes, tips, and to register your product online!

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz ).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please write Hamilton Beach Brands, Inc., Customer Service Department, 4421 Waterfront Dr., Glen Allen, VA 23060, or visit hamiltonbeach.com/customer-service in the U.S. or hamiltonbeach.ca/ customer-service in Canada. For faster service, locate the model, type, and series numbers on your appliance.
