UXT5230ADW - Range hood MAYTAG - Free user manual and instructions

Product type	Under cabinet range hood
Brand	Maytag
Model	UXT5230ADW
Width	76.2 cm (30 inches)
Depth	25.4 cm (10 inches)
Height	15.2 cm (6 inches)
Net weight	Approximately 15 kg (33 lb)
Power supply	120 V, 60 Hz, 15-20 A, dedicated circuit
Venting type	Vertical (6 in round or 3 1/4 x 10 in rectangular) or rear (rectangular)
Recirculation mode	Possible with charcoal filter kit (optional)
Metal filters	Dishwasher safe
Charcoal filters	Ref. HCFLTUXT30 (2 per pack), replace every 120 hours of use
Minimum mounting height	61 cm (24 inches) above the range
Maximum mounting height	81.3 cm (32 inches) above the range
Minimum duct diameter	Round 15.2 cm (6 in) or rectangular 8.3 x 25.4 cm (3 1/4 x 10 in)
Sound level	Less than 65 dB (estimated)
Color	White
Material	Painted steel
Controls	Mechanical switches (on/off, speed)
Warranty	1 year parts and labor (standard)

Frequently Asked Questions - UXT5230ADW MAYTAG

How to install the Maytag UXT5230ADW range hood?

Installation should be done by a qualified professional. The hood mounts under a cabinet at a height of 61 to 81.3 cm above the range. Follow the provided installation guide for drilling, wiring (120 V, 60 Hz), and duct connection.

What are the possible venting modes?

The hood can be configured for vertical venting (6 inch round or 3 1/4 x 10 inch rectangular duct) or rear venting (rectangular). It can also be converted to recirculation with a charcoal filter kit.

How to clean the metal filters?

The metal filters are dishwasher safe. Remove them, clean with mild detergent, rinse and dry before replacing.

When should charcoal filters be replaced?

Charcoal filters must be replaced every 120 hours of use (about 2 to 3 months for daily cooking of 1 to 2 hours). Use reference HCFLTUXT30 (for 30-inch models) or HCFLTUXT36 (for 36-inch models).

What is the recommended mounting height?

The minimum height between the range and the bottom of the hood is 61 cm (24 inches) and the maximum height is 81.3 cm (32 inches). Respect these distances for optimal efficiency and safety.

What are the electrical specifications?

Power requirement: 120 V, 60 Hz on a dedicated 15-20 amp circuit with circuit breaker or time-delay fuse. Grounding is mandatory.

Can I use the hood without external ducting?

Yes, in recirculation mode. The air is filtered through charcoal filters and then returned to the kitchen. This mode is recommended only if external venting is not possible.

What accessories are included with the hood?

The hood comes with a round/rectangular duct transition adapter, a gasket, a rear cap, and a starting collar. Charcoal filters are sold separately.

Is the Maytag UXT5230ADW range hood noisy?

The estimated sound level is less than 65 dB, comparable to a normal conversation. Noise may vary depending on the selected speed.

What is the warranty for this hood?

The standard Maytag warranty is 1 year parts and labor. Keep the proof of purchase for any claim.

USER MANUAL UXT5230ADW MAYTAG

Safety Instructions....1

Mounting Heights.... 2

Ducting....3-7-9

Specifications....4

Installation....5-6

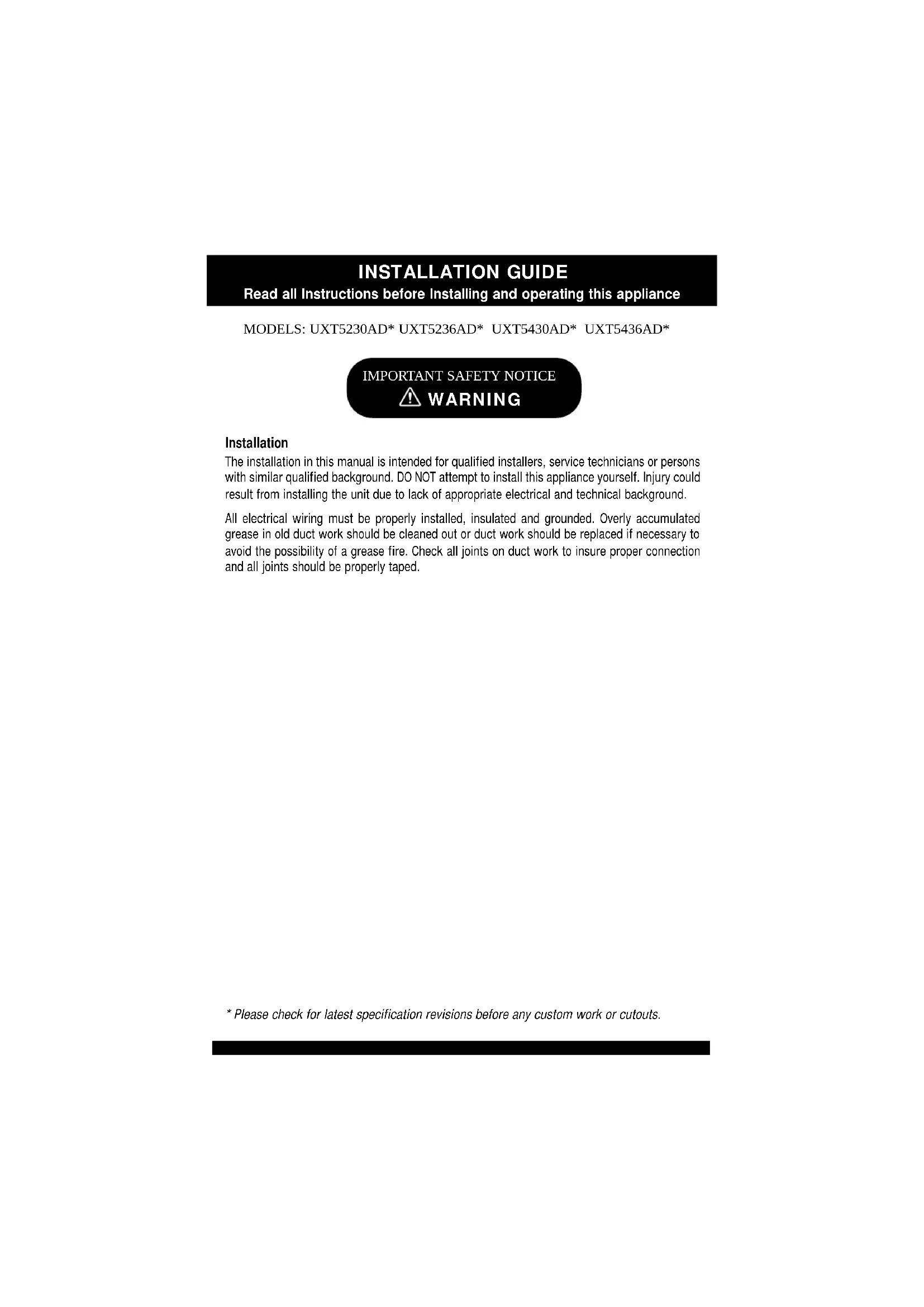

INSTALLATION GUIDE

Read all Instructions before Installing and operating this appliance

MODELS: UXT5230AD* UXT5236AD* UXT5430AD* UXT5436AD*

IMPORTANT SAFETY NOTICE

WARNING

Installation

The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. DO NOT attempt to install this appliance yourself. Injury could result from installing the unit due to lack of appropriate electrical and technical background.

All electrical wiring must be properly installed, insulated and grounded. Overly accumulated grease in old duct work should be cleaned out or duct work should be replaced if necessary to avoid the possibility of a grease fire. Check all joints on duct work to insure proper connection and all joints should be properly taped.

INSTALLATION

MOUNTING HEIGHTS

DUCTING

A minimum of 6" round or 3-1/4"x10" rectangular duct must be used to maintain maximum air flow efficiency.

Always use rigid-type metal ducts only.

Flexible ducts could restrict air flow by up to 50%.

Also use calculation (on right) to compute total available duct run when using elbows, transitions and caps.

ALWAYS, when possible, reduce the number of transitions and turns. If long duct run is required, increase duct size from 6" to 7 or 8". If a reducer is used, install a long reducer instead of a pancake reducer. Reduce duct size as far away from opening as possible.

If turns or transitions are required:

Install as far away from opening and as far apart, between 2, as possible.

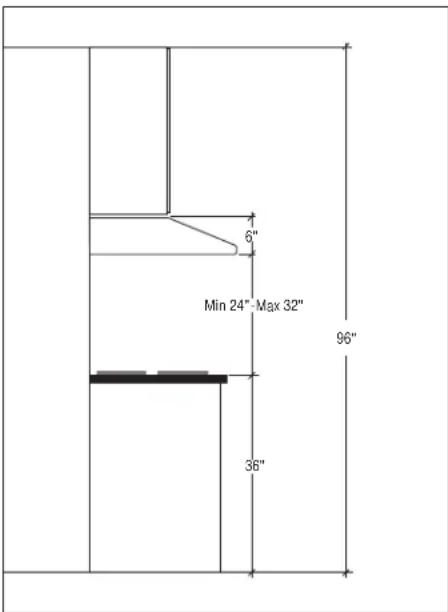

Minimum mounting height between range top to hood bottom should be no less than 24".

Maximum mounting height should be no higher than 32".

It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose performance and efficiency.

If available, also refer to range manufacturer's height clearance requirements and recommended hood mounting height above range.

*Minimum clearance of 24" hood above range height.

** Maximum clearance 32" hood above range height.

Minimum Duct Size:

Round:

6" minimum

Rectangular:

3-1/4"x10"

Duct Run Calculation:

Maximum run

6" or 3-1/4" x 10" duct	100 FT
Deduct:
each 90 Elbow used	15 FT
each 45 elbow used	9 FT
each 6" to 3/14 x 10" transition used	1 FT
each 3/14 x 10" to 6"
each 3/14 x 10" to 6" transition used	5 FT
Side Wall Cap w/ damper	30 FT
Roof Cap	30 FT

e.g.- 1 roof cap, 2x90 elbows, 1 45 elbow used:
= 30^ + 30^ + 9^ = 69^ used, 31^ available for straight duct runs.

INSTALLATION

DUCTING

WARNING FIRE HAZARD

NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside.

Use Metal ductwork only.

Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or DuctTape.

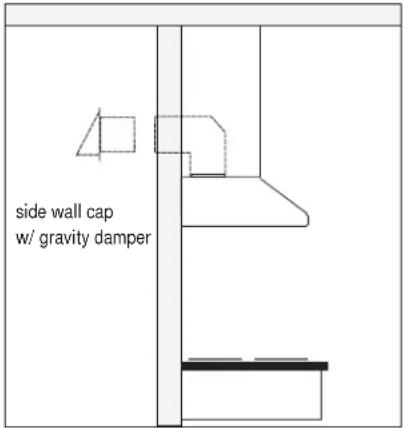

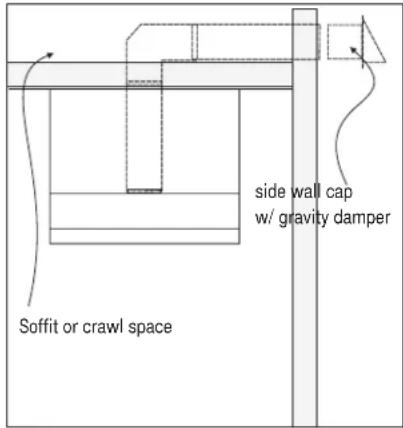

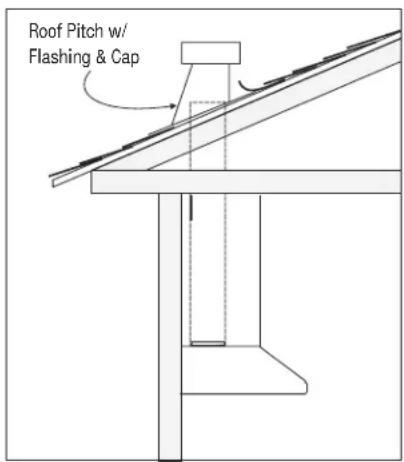

Some Ducting Options:

INSTALLATION

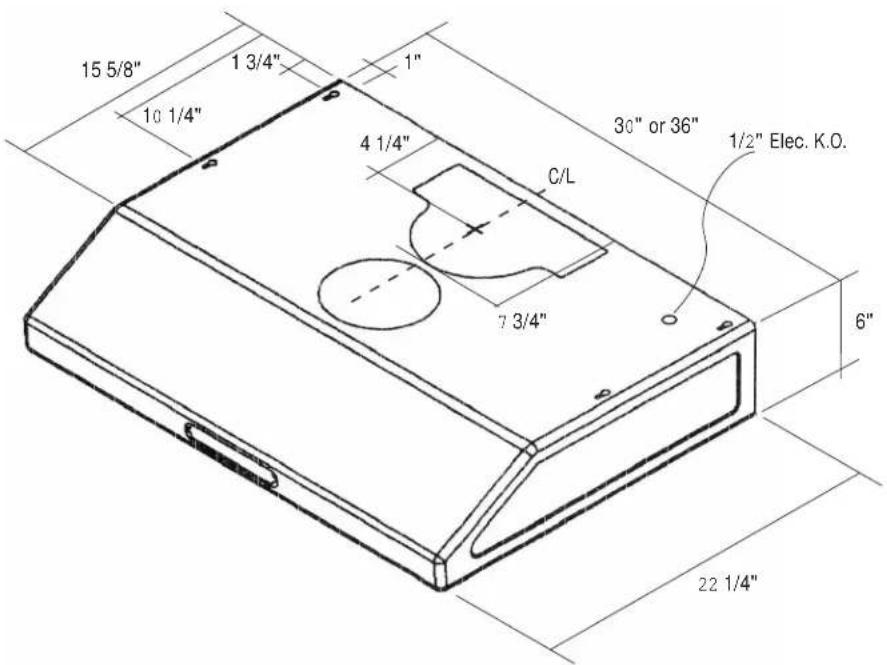

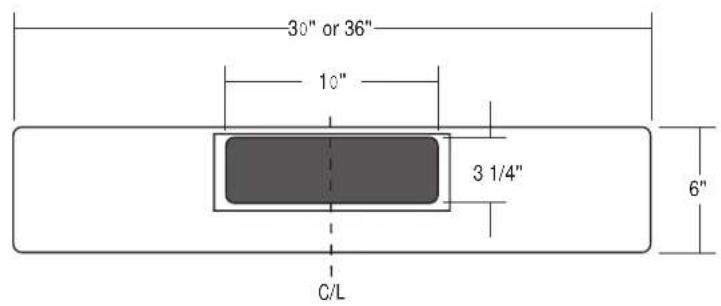

SPECIFICATIONS

INSTALLATION

MOUNTING THE RANGEHOOD

ELECTRICAL

WARNING

All Electrical work must be performed by qualified electrician or person with similar technical know how and background.

For personal safety, remove house fuse or open circuit breaker before beginning installation.

Do not use extension cord or adapter plug with this appliance.

Follow National electrical codes or prevailing local codes and ordinances.

Electrical Supply:

This appliance requires a 120V 60Hz electrical supply, connected to an individual, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire w/ ground. Please also refer Electrical Diagram labeled on product.

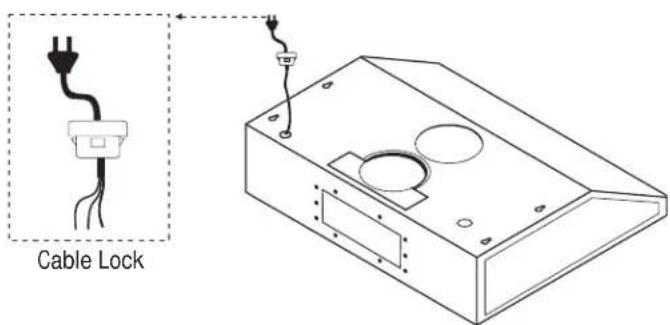

Cable Lock:

A cable locking connector (not supplied) might also required by local codes. Check with local requirements and codes, purchase and install appropriate connector if necessary.

INSTALLATION

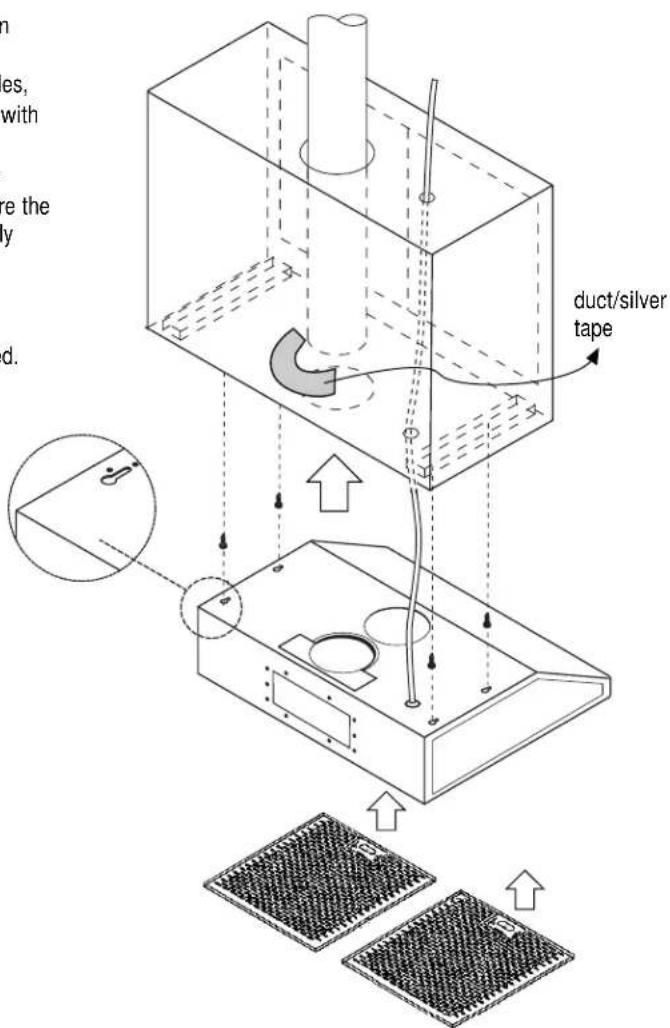

MOUNTING THE RANGEHOOD

1. This range hood is mounted under a kitchen cabinet unit.
2. Select preferred duct location on rear or top of unit. For ductless conversion, no ducting is required.
3. Begin installation by temporarily removing the diffuser and filter panels.
4. Temporarily position the range hood in the desired mounting location. Measure and mark the mounting holes, duct and electrical access locations with a pencil.
5. Drill/cut out the required openings for duct and electrical access; make sure the duct opening is large enough to apply duct tape.
6. Fasten mounting screws onto cabinet as marked, do not tighten, leaving half length of screws exposed.
7. Install electrical.
8. Hang hood onto screws through key holes, and tighten.
9. Install duct work and duct-tape.
10. Reinstall the difuser panels.
11. Power up hood and check for leaks around duct-tape.

INSTALLATION

7

CONVERTIBLE OPTIONS

This range hood is equipped with the option of a 6" vertical discharge, 3 1/4"x10" vertical discharge, or 3 1/4"x10" rear discharge. Additional accessories are provided to convert to either of the above discharge methods.

Convertible Options

Vertical discharge	6" round
Vertical discharge	3 1/4"x10"
Horizontal rear discharge	3 1/4"x10"

Convertible Accessories

Round to rectangular transition adaptor

Rectangular to round transition adaptor (pre-mounted)

Gasket (pre-mounted)

Rectangular rear cap (pre-mounted)

3 1/4"x10" starting collar

3 1/4"x10" Vertical Discharge

Close-up of a white mechanical component with a circular opening and mounting flanges (no text or symbols visible)

1. Remove pre-mounted 6" transition adaptor or duct opening. Leave attached gasket in its original place.

Close-up of a hand using a tool to cut or mark a component on a white surface, with no visible text or symbols.

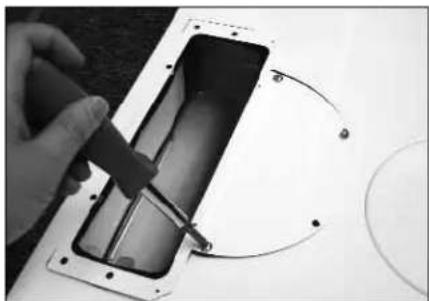

1. Place rectangular transition adaptor as shown over gasket and by first installing 4 screws on half round section.

Close-up of a hand using a tool to insert or install a black electronic component, with circular components visible (no text or symbols)

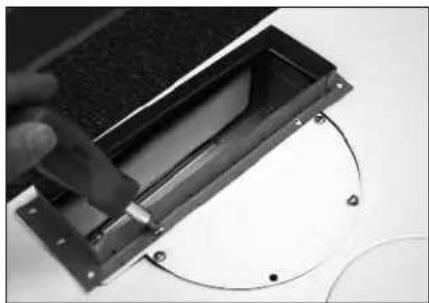

1. Mount the 3-1/4"x10" starting collar on top of transition piece with remaining screws.

INSTALLATION

CONVERTIBLE OPTIONS

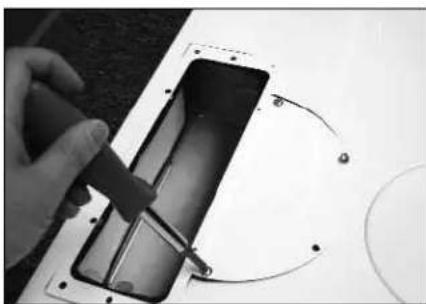

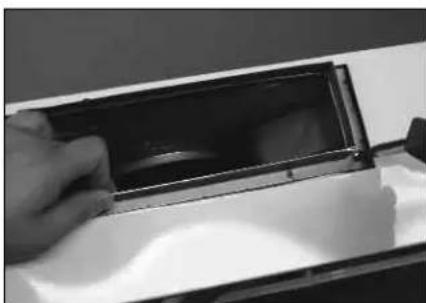

3 1/4"x10" Rear Discharge

Close-up of a hand holding a white plastic sheet with four small holes, against a plain background (no text or symbols visible)

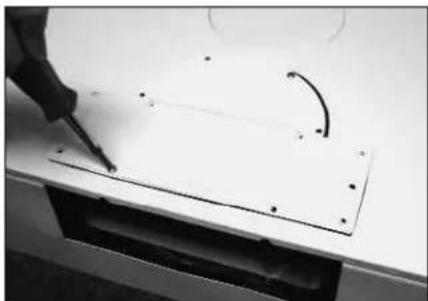

1. At rear of range hood, remove all screws on pre-mounted rear rectangular cap and remove cap.

Close-up of a white mechanical component with a circular opening and flange, mounted on a dark surface (no text or symbols visible)

1. Remove top pre-mounted transition piece. Leave attached gasket in its original place.

Close-up of a hand using a tool to cut a black rectangular object on a white surface, with curved lines and dots indicating motion or alignment (no text or symbols visible)

1. Mount rectangular transition piece at opening with gasket as shown.

Close-up of a screwdriver inserted into a white electronic device with a rectangular panel and mounting holes (no visible text or symbols)

1. Mount rectangular cap (previously removed) on top of transition adaptor.

Close-up of a hand holding a small object next to a dark rectangular device (no visible text or symbols)

1. Mount starting collar (provided) at rear discharge opening with gasket.

INSTALLATION

DUCTLESS CONVERSION

Ductless conversion is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a "purifying" hood rather than an exhaust hood. Fumes and exhaust from cooking are drawn and filtered by a set of optional Carbon Filters. The air is then purified and re-circulated back within the home.

We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct work, if possible. The hood is most effective and efficient as an Exhaust unit. Only when the exhaust option is not possible should you recourse to converting the hood into a "purifying"unit.

When converted to be a "purifying" unit, a Carbon Filters Kit is required. Order according to its Part number below. The standard Metal Filters are intended to capture residue from cooking and the optional Carbon Filters help to purify fumes exhausted from cooking for re-circulation.

Carbon Filters (Required)

1. Purchase ductless Carbon Filters Kit as follow:

Hood Model: Part No. Filters in pkg.

UXT5230AD* HCFLTUXT30 2 UXT5236AD* HCFLTUXT36 3

UXT5430AD* HCFLTUXT30 2 UXT5436AD* HCFLTUXT36 3

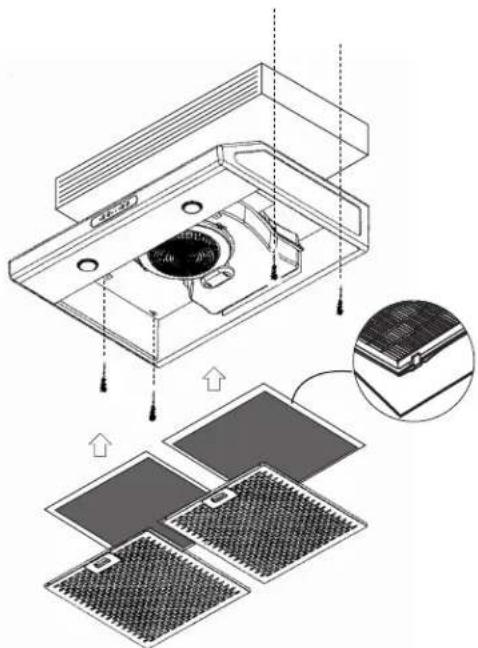

1. The ductless conversion housing must be installed prior to installation of the range hood.
2. Remove the diffuser panels on the hood.
3. Clip carbon filter onto bracket of diffuser panels.
4. Re-install diffuser panels.
5. Carbon Filters must be replaced after every 120 hours of use (or approximately every 2 to 3 months based on the average of 1-2hrs. of daily cooking time).
6. Refer installation manual provided with ductless carbon filters kit.
