USER MANUAL HCW9919FSGB HAIER

WARNING: Risk of fire/flammable material.

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

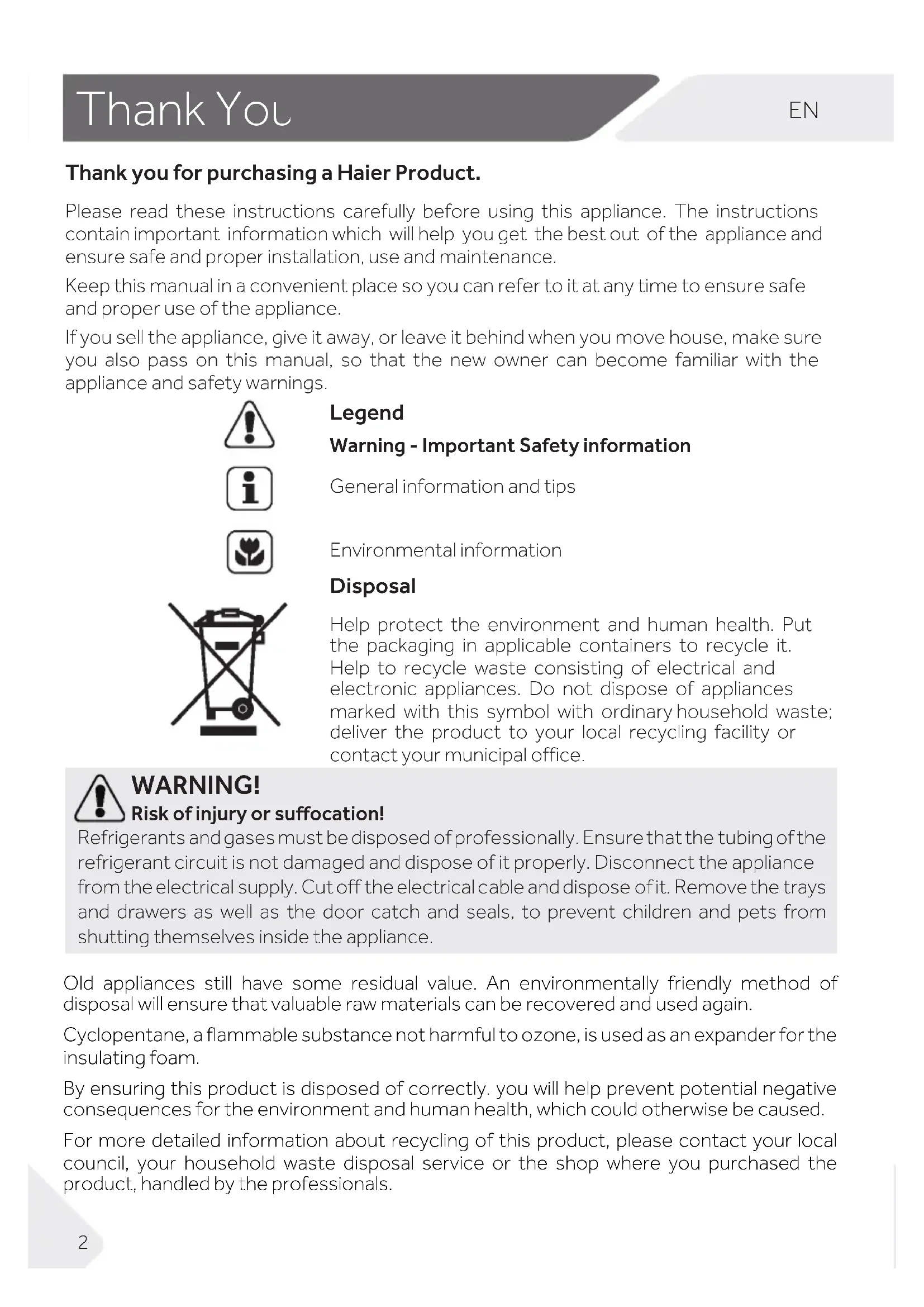

Thank You Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. Cyclopentane, a flammable substance not harmful to ozone, is used as an expander for the insulating foam. By ensuring this product is disposed of correctly. you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product, handled by the professionals. Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance. Keep this manual in a convenient place so you can refer to it at any time to ensure safe and proper use of the appliance. If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass on this manual, so that the new owner can become familiar with the appliance and safety warnings. Legend Warning - Important Safety information General information and tips Environmental information Disposal Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste consisting of electrical and electronic appliances. Do not dispose of appliances marked with this symbol with ordinary household waste; deliver the product to your local recycling facility or contact your municipal office. WARNING! Risk of injury or suffocation! Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged and dispose of it properly. Disconnect the appliance from the electrical supply. Cut off the electrical cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets from shutting themselves inside the appliance.EN

Content Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance. Keep this manual in a convenient place so you can refer to it at any time to ensure safe and proper use of the appliance. If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass on this manual, so that the new owner can become familiar with the appliance and safety warnings. Legend Warning - Important Safety information General information and tips Environmental information Disposal Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste consisting of electrical and electronic appliances. Do not dispose of appliances marked with this symbol with ordinary household waste; deliver the product to your local recycling facility or contact your municipal office. WARNING! Risk of injury or suffocation! Refrigerants and gases mustbe disposed ofprofessionally. Ensure thatthe tubing of the refrigerant circuit is not damaged and dispose of it properly. Disconnect the appliance from the electrical supply. Cutoff the electrical cable and dispose ofit. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets from shutting themselves inside the appliance. Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. Cyclopentane, a flammable substance not harmful to ozone, is used as an expander for the insulating foam. By ensuring this product is disposed of correctly. you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product, handled by the professionals. Accessories Check the accessories and literature in accordance with this list: spacer*3 Energy-label*1 Warranty card*1 Extended warranty card*1 User Manual*1 "OK" Sticker User Manual*1 Egg tray*2 Ice cube tray*2

Notice The list only show the key accessories. Other accessories in kind prevail.

Safety information Before switching on the appliance for the first time read the following safety hints!: WARNING! Before first use ► Make sure there is no transport damage. ► Remove all packaging and keep out of children's reach.

Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.

Handle the appliance always with at least two persons because it is heavy. Installation ► The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.

Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth. ► Do not install the appliance in d irect sunlight or in the near of heat sources (e.g. stoves, heaters).

Install and level the appliance in an area suitable for its size and use. ► Keep ventilation openings in the appliance or in the in- built structure clear of obstruction. ► Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician. ► The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor,

there may be an abnormal noise when operating. In such case,

automatic regulator shall be mounted. ► Do not use multi-plug adapters and extension cables. ► Do not locate multiple portable socket-outlets or port able power supplies at the rear of the appliance. ► Ensure that the power cable is not trapped by the refrigerator.

not step on the power cable.

Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.EN

Safety information Before switching on the appliance for the first time read the following safety hints!: WARNING! Before first use ► Make sure there is no transport damage. ► Remove all packaging and keep out of children's reach. ► Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient. ► Handle the appliance always with at least two persons because it is heavy. Installation ► The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance. ► Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth. ► Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters). ► Install and level the appliance in an area suitable for its size and use. ► Keep ventilation openings in the appliance or in the in-built structure clear of obstruction. ► Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician. ► The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted. ► Do not use multi-plug adapters and extension cables. ► Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. ► Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable. ► Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.

WARNING! Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible. ► Do not damage the refrigerant circuit. Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if the y have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. ► Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances.

Keep away children under 3 years of age from the appliance unless they are constantly supervised. ► Children shall not play with the appliance.

If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas. open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance.

Notice that the appliance is set for operation at a specific ambient range between 10 and 43°C The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range. ► Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water. ► Do not pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled away, or the appliance may topple. ► Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the refrigerator doors only when there are no children standing within the range of door movement.EN

WARNING! ► Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity. ► Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.

Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing. ► Check the condition of food if a warming in the freezer has taken place.

Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst ► Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollie s immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away!

Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands,

your hands may freeze onto the surface.

Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance. as frequent starting may damage the compressor.

Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning ► Make sure children are supervised if they carry out cleani ng and maintenance.

Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.EN

Safety information WARNING! ► Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity. ► Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures. ► Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing. ► Check the condition of food if a warming in the freezer has taken place. ► Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst ► Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away! ► Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface. ► Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance. as frequent starting may damage the compressor. ► Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning ► Make sure children are supervised if they carry out cleaning and maintenance. ► Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.

WARNING! ► Hold the plug, not the cable, when unplugging the appliance. ► Do not clean the appliance with hard brushes, wire brushes,

detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage. ► Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. ► If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. ► Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service. ► Eliminate the dust on the back of the unit at least once in the y ear to avoid hazard by fire, as well as increased energy consumption. ► Do not spray or flush the appliance during cleaning.► Do not use water spray or steam to clean the appliance.► Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.EN

Safety information Refrigerant gas information WARNING! ▶ T o avoid contamination of food, please respect the following in- structions: ▶ Opening the door for long periods can cause a signifi cant in- crease of the temperature in the compartments of the appli- ance. ▶ Clean regularly surfaces that can come in contact with food and accessible drainage systems. ▶ Clean water tanks if they have not been used for 48 h; fl ush the water system connected to a water supply if water has not been drawn for 5 days. ▶ Store raw meat and fi sh in suitable containers in the refrigera- tor/freezer, so that it is not in contact with or drip onto other food. To ensure the safe preservation of foodstuff s, instant food and raw meat / fi sh shall be stored separately. ▶ Two-star frozen-food compartments are suitable for storing pre- frozen food, storing or making ice cream and making ice cubes. ▶ One-, two- and three-star compartments are not suitable for the freezing of fresh food.

If the refrigerating appliance is left empty for long periods, switch off , defrost, clean, dry, and leave the door open to pre-vent mould developing within the appliance Children aged from 3 to 8 years are allowed to load and unload

refrigerating appliances The appliance contains flammable refrigerant ISOBUTAN (R600a).Make sure that the refrigerant circuit is not damaged during transport or installation. Leakage of refrigerant can cause eye damage or ignition. If damage has occurred, always keep the fire sources open, ventilate the room properly, and do not connect or disconnect the power cords of the appliance or any other appliance. Inform customer service. If your eyes come in contact with the refrigerant, rinse it immediately under running water and call the special eye center immediately.EN

Intended use Refrigerant gas information WARNING! The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service. In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist. Intended use This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use. Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims. Standards and directives This product meets the requirements of all applicable EC directives with the corresponding harmonised standards and UK standards, which provide for CE and UKCA marking. CAUTION! When you close the door, the vertical door strip on the left door should be bent inwards (1). If you try to close the left door and the vertical door strip is not bent (2), you should bend it first, otherwise the door strip will hit the fixing shaft or the right-hand door, causing damage to the door slip or leaking. There is a heating thread inside the frame. The temperature of the surface will rise slightly, which is normal and won't affect the function of appliance.EN

Notice Due to technical changes and different models, some of the illustrations in this manual may differ from your model. A: Refrigerator compartment 1 21.5 inch display 2 Vertical 3 Bottle rack 4 My zone cover plate 5 My zone drawers 6 Humidity zone cover plate 7 Humidity zone drawers 8 Refrigeration shelf 9 Back light 10 In-built camera B: Freezer compartment

11 Freezing compartment lamp 12 Sliding shelf 13 Freeze box 14 Freeze box C: Switch zone compartment 15 Lamp of variable temp. chamber 16 Tray 17 Switch zone drawer 18 Switch zone drawer 19 Tasto Smart Life* *This button has been integrated into the product in view of future development of Smart functions.EN

Use Notice Due to technical changes and different models, some of the illustrations in this manual may differ from your model. 4.Use Before first use ► Remove all packaging materials, including the foamed plastic housing and adhesive tape forsecuring accessories. Keep them out of the reach of children, and dispose them in an environmentally friendly manner. ► Check the Packing List for all items listed, and contact the Seller if there are any inconsistencies. ► Install the refrigerator in a location meeting all the following requirements:• Keep it away from heat sources and sunlight, and avoid places that are too damp and too cold• The refrigerator should be placed on solid ground. If greater height is required, a steady, hard, incombustible cushion block should be selected. If there is a slight sway, the adjustable black footing in the front of the whole refrigerator may be adjusted.- Turn clockwise to raise the refrigerator.- Turn counterclockwise to lower the refrigerator.1. If the two doors are uneven, the adjustable pad included in the bag may be used for fine tuning to make the two doors even:- Remove the adjustable pad and lift the lower door, then connect the pad to the chain shaft with pliers. - If the doors are still uneven, do not use force to install the refrigerator, to prevent scratching or damage to the decorative bar on the door.2. If the refrigeration door is uneven at the front, it may be fine-tuned by turning the adjustablebutton at the top of the door.► Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it. ► After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connecting it to the power supply. See INSTALLATION section. ► Precool the compartments at a high setting before loading with food. The Power-Freeze function will help to cool down the freezer compartment quickly.► The refrigerator, freezer and switch zone compartment temperature are automatically set to5° C, -18° C and -6° C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE.At least 10 cm from topAdjustableSpacerAt least 10 cm from left sideAt least 10 cm from rightsideAdjustable Foot

4.4 Adjusting temperature in the MyZone compartment (Zero Fresh, Quick Cool,

Fruits & Veg) Tap the Setting button on the home screen and adjust the temperature in the MyZone compartment by dragging the MyZone slider which to Zero Fresh, Quick Cool, Fruits & Veg: the factory default setting is Fruits & Veg. When you select the zero fresh function, in order to make your ingredients in the best storage environment the refrigerator will operate according to the setting, and the refrigeration room needs to be set at 1°C. First electrical connection When the refrigerator is connected to the power for the first time, the display will light up. Display off/on Display off: When the door is closed and the appliance is not used within a certain amount of time, the display will switch off automatically. Display lit: When the display is off, it will be lit if you touch any position, walk past the appliance, or open any door within human sensing range (with human sensing on). When the display is lit, the logo lamp on the top right of the refrigeration door will be lit, and vice versa.

4.1 Adjusting temperature in the refrigeration compartment (1 to 9°C)

Tap the Setting button on the home screen and adjust the temperature in the refrigeration compartment by dragging the Fridge slider between 1 and 9 °C.

4.2 Adjusting temperature in the SwitchZone compartment (5 to -20°C)

Tap the Setting button on the home screen and adjust the temperature in the SwitchZone compartment by dragging the SwitchZone slider between 5 and -20 °C.

4.3 Adjusting temperature in the freezer compartment (-15 to -23°C)

Tap the Setting button on the home screen and adjust the temperature in the freezer compartment by dragging the Freezer slider between -15 and -23 °C. WARNING! When the temperature is set, the system will automatically confirm and save the set temperature if no buttons are pressed within 5 seconds. Special refrigerator functions The special functions of the refrigerator are divided into four types: Super cool, Super freeze, AutoSet, and Holiday. Tap the function icon to turn on the function (the popup window will inform you that the function is selected; close it by tapping on the ”X" symbol in the top right corner) and tap it again to turn it off. If the functions are mutually exclusive, the original function will automatically be turned off.

In Super Cool mode, the refrigeration temperature is set to 1 °C. The Super Cool function will switch off automatically after 3 hours, and the refrigerator will run according to the latest setting before beginning Super Cool mode. When Super Cool is activated, the smart and holiday functions cannot be turned on at the same time.EN

4.4 Adjusting temperature in the MyZone compartment (Zero Fresh, Quick Cool,

Fruits & Veg) Tap the Setting button on the home screen and adjust the temperature in the MyZone compartment by dragging the MyZone slider which to Zero Fresh, Quick Cool, Fruits & Veg: the factory default setting is Fruits & Veg. When you select the zero fresh function, in order to make your ingredients in the best storage environment the refrigerator will operate according to the setting, and the refrigeration room needs to be set at 1°C.

The Super freeze function is designed to maintain the nutritional value of the food in the freezer. This function freezes food quickly. If you freeze a large amount of food at one time, it is recommended that you set the Super freeze function 24 hours in advance to lower the freezer temperature. When the food is added, the freezing speed of the freezer compartment is increased, and the food will be frozen quickly, effectively locking nutrients into the food and facilitating storage. The Super Freeze function switches off automatically after 50 hours; the freezer will then run according to the latest setting before entering Super Freeze mode.

4.7 AutoSet function

In AutoSet mode, refrigerating/freezing is set to 5 °C / -18 °C, respectively. In this mode, the temperature of the refrigerating compartment and the freezing compartment cannot be adjusted. If the Super Cool, Super Freeze or Holiday function is set, the AutoSet function automatically closes and exits.

4.8 Holiday function

The Holiday function is designed to facilitate long-term use of the refrigerating compartment. In Holiday mode, the refrigerating temperature is set to 17 °C, so that the refrigerator cannot cause odours due to excessive temperature and energy will be saved. WARNING! Please clear the refrigeration compartment before entering Holiday function to prevent food from deteriorating. When Holiday function is activated, the Auto Set and Super Cool functions cannot be activated at the same time.EN

Step 1 Download the hOn app from one of the following stores Step 2 Create an account on the hOn app, or log in if you already have an account Step 3 Follow pairing instructions in the hOn app

Use 7 My Zone drawers: MyZone slider supports Zero Fresh, Quick Cool, Fruits & Veg Tips on storing fresh food Storage in the refrigerator compartment ► Keep your fridge temperature below 5°C. ► Hot food must be cooled to room temperature before storing in the appliance. ► Food should be washed and dried before storing in the refrigerator. ► Food should be properly sealed before storage to prevent alteration of odour or taste. ► Do not store excessive quantities of food. Leave spaces between foods to allow cold air to flow around them for better and more homogeneous cooling. ► Foods eaten daily should be stored at the front of the shelf. ► Leave a gap between foods and the inner walls to allow air to flow. Be sure not to store food against the rear wall: food could freeze against the rear wall. Avoid direct contact of food (especially oily or acidic food) with the inner lining as oils and acids can erode the inner lining. Clean away oily and acidic substances whenever found. ► Defrost frozen food in the refrigerator storage compartment. This way, you can use the frozen food to lower the temperature in the compartment and save energy. ► Ripening of fruit and vegetables such as courgettes, melons, papaya, banana, pineapple, etc. can be accelerated in the refrigerator, and so it is not advisable to store these foods in the refrigerator. Ripening of very green fruit can, however, be accomplished for a certain period of time. Onions, garlic, ginger and other root vegetables should also be stored at room temperature. ► Unpleasant odours inside the fridge are a sign that something has spilled and cleaning is required. See CARE AND CLEANING. ► Different foods should be placed in different areas, according to their properties: Notice ► Please maintain a distance of more than 10 mm between food and air ducts or sensors to ensure the cooling effect. 1 Butter, cheese, etc. 2 Eggs, cans, canned food, spices, etc. 3 Drinks and bottled foods. 4 Pickled foods, canned food, etc. 5 Meat products, snack foods, pasta, canned food, milk, tofu, dairy etc. 6 Cooked meat, sausages, etc. 8 Humidity Zone drawers: Fruit, vegetables, salad, etc.EN

Use Storage in the freezer compartment ► Keep the freezer temperature at- 18°C. ► Switch on the Power-Freeze function 24 hours before freezing food; 4-6 hours will be sufficient for small quantities of food. ► Hot food must be cooled to room temperature before storing in the freezer compartment. ► Food cut into small portions will freeze faster and be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg ► It is best to pack food before putting it into the freezer. The outside of the packaging must be dry so that bags will not stick together. Packaging materials should be odour-free, airtight, non- poisonous and nontoxic. ► In order to prevent food from expiring, please make a note of the freezing date, time limit and name of the food on the packaging, according to the recommended storage periods for different foods. ► WARNING!: Acid, alkali, salt, etc. could erode the inside surface of the freezer. Do not place food containing these substances (such as seafood) directly on the inner surface of the freezer. Salt water in the freezer must be cleaned up immediately. ► Do not exceed the food storage times recommended by manufacturers. Take only the required amount of food out of the freezer. ► Consume defrosted food quickly. Defrosted food cannot be frozen again unless it is cooked first. ► Do not put excessive quantities of fresh food in the freezer compartment. Refer to the freezing capacity of the freezer - See TECHNICAL DATA or the data on the type plate. ► Food may be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on its properties (e.g., meat: 3-12 months, vegetables: 6-12 months) ► When freezing fresh food, avoid contact with food that is already frozen, as this may cause it to thaw. When storing commercially frozen foods, please follow these guidelines: ► Always follow the manufacturers' guidelines for the length of time you should store food in the freezer. Do not exceed these guidelines! ► Try to keep the length of time between purchase and storage as short as possible to preserve food quality. ► Buy frozen foods which have been stored at a temperature of -18 °C or below. ► Avoid buying food which has ice or frost on the packaging - This indicates that the products might have been partially defrosted and frozen again at some point. Temperature rises affect the quality of food. Notice ► Please maintain a distance of more than 10 mm between food and the air duct to ensure cooling.EN

Adjustable shelves The height of the shelves may be adjusted to suit your storage requirements.

1. To reposition a shelf, first remove it by lifting up its back

edge (1) and pulling it out (2).

2. To install it again, put it on the lugs on either side and push it

as far back as it will go, until the rear of the shelf is anchored inside the slots in the sides. Notice Ensure that all edges of the shelf are level. Removable door racks The door racks can be removed for cleaning: Place your hands on either side of the rack, lift it upwards (1) and pull it out (2). Perform the same steps in reverse order to put the door rack back in place. Notice When the appliance is switched on, it may take up to 12 hours for the correct temperatures to be reached.EN

Equipment Humidity zone drawer In this compartment the humidity level is higher than fridge compartment. It is controlled automatically by the system and is suitable to store fruits, vegetables, salads etc. My Zone drawer The My Zone slider may be set to Zero Fresh, Quick Cool, Fruits & Veg. When it is set to Zero Fresh, fresh foods can be stored. When it is set to Quick Cool, quick cooking foods can be stored. When it is set to Fruits & Veg, fruits and vegetables can be stored. Notice ► Do not remove the plastic covers inside the two zones; they maintain the humidity level.► Cold-sensitive fruits such as pineapple, avocado, bananas, grapefruits and vegetables suchas potatoes, aubergines, beans, cucumbers, zucchini and tomatoes and cheese should notbe stored in these two drawers. Switch Zone compartment The appliance is equipped with a Switch Zone compartment. The temperature can be set in degrees to suit the desired purpose. Storage temperature may be adjusted between -20 °C and +5°C.Storage temperature may be adjusted according to options available in appEN

Equipment Removable freezer drawer To remove the drawer, pull it out as far as it will go (1), then lift and remove (2). To insert the drawer, carry out the above steps in reverse order. Storing large items Large items such as frozen food can be stored after: ► removing the upper freezing tray and turning it 180°, or ► removing both upper freezing trays as well as the middle freezer drawer and storing the food directly on the shelf. The Light The Day Light column comes on when the door is opened. The performance of the light is not affected by any of the appliance’s other settings.EN

Energy conservation tips ► Make sure the appliance is properly ventilated (see INSTALLATION). ► Do not install the appliance in direct sunlight or near heat sources (e.g. stoves, heaters). ► Avoid unnecessarily low temperatures in the appliance. Energy consumption increases when the temperature setting in the appliance is lower. ► Functions like POWER- FREEZE consume more energy. ► Allow warm food to cool down before placing it in the appliance. ► Open the appliance door as little and as briefly as possible. ► Do not overfill the appliance to avoid obstructing the air flow. ► Keep air out of food packaging. ► Keep door seals clean so that the door always closes correctly. ► Defrost frozen food in the refrigerator storage compartment.EN

Care and cleaning Cleaning Clean the appliance when only little or no food is stored. The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors. WARNING!

► Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.

Do not spray or flush the appliance during cleaning.

Do not use water spray or steam to clean the appliance.

Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

Do not touch the inside surface of the freezer storage compartment, especially with wet hands

as your hands may freeze onto the surface. ► In case of heating check the condition of frozen goods.

Always keep the door gasket clean. ► Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent.

Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on. with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).

2. If there is liquid spiled, remove all the contaminated parts, directly rinse with the flow water,

dry and place it back into the fridge.

3. If there is spilled cream (such as the cream, melting ice cream), please remove all the

contaminated parts, put into the warm water with about 40 °C for some time, then rinse with the flow water, dry and place it back into the fridge.

4. In case some small part or component gets stucked inside of the fridge (between shelves or

drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service.► Rinse and dry with soft cloth.► Do not clean any of the parts of the appliance in a dishwasher. ► Allow at least 7 minutes before restarting the appliance as frequent starting may damage the compressor.7. Care and cleaning WARNING! Disconnect the appliance from the power supply before cleaning. Defrosting The refrigerator and freezer compartment are defrosted automatically; no manual operations are required.EN

Care and cleaning Non-use for a longer period If the appliance is not used for an extended period of time, and you will not use only the Holiday- function or the fridge off function for the refrigerator: ► Take out the food. ► Unplug the power cord. ► Empty and clean the watertank. ► Clean the appliance as described above. ► Keep the doors open to prevent the creation of bad odours inside. Notice Turn the appliance off only if strictly necessary. Moving the appliance

1. Remove all food and unplug the appliance.

2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.

3. Do not tilt the refrigerator more than 45° to avoid damaging the refrigerating system.

WARNING! ► Do not lift the appliance by its handles. ► Never place the appliance horizontally on the ground. Replacing the LED-lamps WARNING! Do not replace the LED lamp yourself; it must be replaced only by the manufacturer or an authorised service agent. The lamp adopts an LED light source to ensure low energy consumption and long service life. If there is any abnormality, please contact our customer service. See CUSTOMER SERVICE. Lamp parameters: Refrigerator compartment:12 V max 5 W Freezer compartment:12 V max 2 WEN

Troubleshooting Non-use for a longer period If the appliance is not used for an extended period of time, and you will not use only the Holiday- function or the fridge off function for the refrigerator: ► Take out the food. ► Unplug the power cord. ► Empty and clean the watertank. ► Clean the appliance as described above. ► Keep the doors open to prevent the creation of bad odours inside. Notice Turn the appliance off only if strictly necessary. Moving the appliance

1. Remove all food and unplug the appliance.

2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.

3. Do not tilt the refrigerator more than 45° to avoid damaging the refrigerating system.

WARNING! ► Do not lift the appliance by its handles. ► Never place the appliance horizontally on the ground.

Many common problems can be solved at home, without specific expertise. If you experience a problem with your appliance, please check all the possibilities listed below and follow the instructions before contacting our after-sales service. See CUSTOMER SERVICE. WARNING! ► Before performing any maintenance, deactivate the appliance and disconnect the plug from the mains socket. ► Electrical equipment should only be serviced by qualified electrical experts, because improper repairs can cause considerable damage. ► A damaged power supply unit should only be replaced by the manufacturer, the licensed service agent, or a similarly qualified person, in order to avoid a hazard. Problem Possible Cause Possible Solution The compressor does not work. The plug is not connected to the mains socket. Connect the mains plug. The appliance is performing a defrosting cycle This is normal during automatic defrosting The appliance runs frequently or runs for an excessively long period of time. The indoor or outdoor temperature is too high. In this case, it is normal for the appliance to run longer. The appliance has been powered off for some time. It normally takes 8 to 12 hours for the appliance to cool down completely. A door or drawer in the appliance is not closed tightly. Close the door/drawer and ensure the appliance is positioned on level ground and there is no food or container preventing the door from closing properly. A door or drawer has been opened too frequently or for too long. Do not open the door/drawer too frequently. The temperature setting for the freezer compartment is too low. Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable. The door/drawer seal is dirty, worn, cracked or mismatched. Clean the door/drawer seal or have customer service replace it. The required air circulation is not guaranteed. Ensure adequate ventilation. The inside of the refrigerator is dirty and/ or smelly. The inside of the refrigerator needs cleaning. Clean the inside of the refrigerator. Food with a strong odour is being stored in the refrigerator. Wrap the food thoroughly.EN

Troubleshooting Problem Possible Cause Possible Solution It is not cold enough inside the appliance. The temperature is set too high. Reset the temperature. Food has been placed in the refrigerator while still hot. Always cool down food before storing. Too much food has been stored at one time. Always store small quantities of food at a time. The goods are too close to each other. Leave a gap between foods to allow air to flow. A door/drawer of the appliance is not closed properly. Close the door/drawer. The door/drawer has been opened too frequently or for too long. Do not open the door/drawer too frequently. It is too cold inside the appliance. The temperature is set too low. The Power-Freeze function is activated or is running too long. Reset the temperature. Switch off the Power- Freeze function Moisture forms on the inside of the refrigerator compartment. The climate is too warm and too damp. Increase the temperature. The appliance door/drawer is not tightly closed. Close the door/drawer. The door/drawer has been opened too frequently or for too long. Do not open the door/drawer too frequently. Food containers or liquids have been left open. Let hot foods cool to room temperature and cover foods and liquids. Moisture accumulates on the outside surface of the refrigerator or between the doors/door and drawer. The climate is too warm and too damp. This is normal in a damp climate. and will change when the humidity decreases. The door/drawer is not closed tightly. The cold air in the appliance and the warm air outside it cause condensation to form. Ensure that the door/drawer is tightly shut. Excessive ice and frost in the freezer compartment. Food has not been adequately packaged. Always pack food well. The appliance door/drawer is not closed properly. Close the door/drawer. The door/drawer has been opened too frequently or for too long. Do not open the door/drawer too frequently. The door/drawer seal is dirty, worn, cracked or mismatched. Clean the door/drawer gasket or replace them by new ones. Something inside the refrigerator is preventing the door/drawer from closing properly. Reposition the shelves, door racks, or internal containers to allow the door/drawer to close. The sides of the cabinet and door strip get warm. - This is normal.EN

Troubleshooting Problem Possible Cause Possible Solution The appliance makes abnormal sounds.

• The appliance s not located on level ground.

• Adjust the feet to level the appliance.

• The appliance touches some object around it.

• Remove objects around the appliance. A slight sound is to be heard similar to that of flowing water.

• This is normal. You will hear an alarm beep.

• The fridge storage compartment door is open.

• Close the door or silence the alarm manually. You will hear a faint hum.

• The anti-condensation system is working

• This prevents condensation and is normal The interior lighting or cooling system does not work.

• Mains plug is not connected in the mains socket.

• Connect the mains plug.

• The power supply is not intact.

• Check the electrical supply to the room. Call the local electricity company!

• The LED-lamp is out of order.

• Please call the service for changing the lamp.

• To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/ Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance. Power interruption In the event of a power cut, food should remain safely cold for about 12 hours. Follow these tips during a prolonged power interruption, especially in summer: ► Open the door/drawer as few times as possible. ► Do not put additional food into the appliance during a power interruption. ► If prior notice of a power interruption is given and the interruption duration is longer than 12 hours, make some ice and put it in a container in the top of the refrigerator compartment. ► An inspection of the goods is required immediately after the interruption. ► As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks. Memory function during power interruption After restoration of power the appliance continues with the settings that were set before the power failure.EN

Installation Unpacking WARNING! ► The appliance is heavy. Always handle with at least two persons. ► Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner. ► Take the appliance out of the packaging. ► Remove all packaging materials. Environmental conditions The room temperature should always be between 10° C and 43° C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation. Ventilaton cross-section To achieve sufficient ventilation of the appliance for safety reasons

the information of the required ventilation cross sections must be observed

Aligning the appliance The appliance should be placed on a flat and solid surface.

Tilt the appliance slightly backwards.

Set the feet to the desired level. Make sure the distance to the wall on the hinge side is at least 100 mm for the door to open properly

Notice For a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance 10 cm 10 cm 10 cmEN

3. The stability can be checked by alternately bumping on the

diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp: possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the door. Fine tuning of the doors If the doors are not in one l evel, this mismatch can be remedied by following:

Using adjustable foot Rotate the adjustable foot according to the direction of arrow to turn up or down the foot

Open the upper door and lift it.

Carefully clip the spacer (enclosed in the accessory bag) in the white plastic ring of the middle hinge by hand or using tools like pliers. Do not scratch or bruise the door. Notice In the future use of refrigerator, doors uneven phenomenon may occur to the weight of stored food. Then please adjust according to the above methods.EN

3. The stability can be checked by alternately bumping on the

diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp: possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the door.

Fine tuning of the doors If the doors are not in one level, this mismatch can be remedied by following: A) Using adjustable foot Rotate the adjustable foot according to the direction of arrow to turn up or down the foot.

B) Using spacers ► Open the upper door and lift it. ► Carefully clip the spacer (enclosed in the accessory bag) in the white plastic ring of the middle hinge by hand or using tools like pliers. Do not scratch or bruise the door.

Notice In the future use of refrigerator, doors uneven phenomenon may occur to the weight of stored food. Then please adjust according to the above methods.

Waiting time To the maintenance free lubrication oil is located in the capsule of the compressor

This oil can get through the closed pipe system during slanting transport

Before connecting the appliance to the power supply you have to wait 2

5 hours so that the oil runs back into the capsule

Electrical connection Before each connection check if: ► power supply, socket and fusing are appropriate to the rating plate. ► the power socket is earthed and no multi-plug or extension. ► the power plug and socket are strictly according. Connect the plug to a properly installed household socket.

WARNING! To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).EN

Annual energy consumption (kWh/year)

Star rating Temperature of other compartments > 14°C Not applicable Frostfree system Yes Temperature rise time (h) 9 Freezing capacity (kg/24h) 10 Climate class SN-N-ST-T This appliance is intended to be used at an ambient temperature between: 10°C and 43°C. Airborne acoustical noise emissions (dB(A) re 1pW)

based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. Additional technical data Voltage / Frequency 220-240V ~ / 50Hz Input current (A) 2 Main fuse (A) 15 Coolant R600a Dimensions (H/W/D in mm) 1900 /905/697 RF frequency 2.4G 2.4 GHz ~ 2.4835 GHz RF frequency 5G 5.15~5.25GHz & 5.725~5.825GHz Max transmitted power of wireless 2.4G 18 dBm ± 1.5dB Max transmitted power of wireless 5G 17 dBm ± 2dB Switch zone volume (L) Trademark Haier Product information according to EU Regulation No. 1060/2010EN

Customer service Customer Lamp energy efficiency information Compartment Voltage max Power Energy efficiency class Model Refrigerator back lamp 12V 4W G HCW9919FSGB Freezer 12V 2. 25W G SwitchZone 12V 2. 25W G My Zone 12V 0. 5W / This product contains a light source in energy efficiency class G. Light source (LED only) replaceable by a professionalEN

Customer service Customer Service We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check section TROUBLESHOOTING. If you cannot find a solution there, please contact ► your local dealer or ► our European Call Service-Center (see listed phone numbers below) or ► the Service & Support area at www.haier.com where you can activate the service claim and also find FAQs. To contact our Service, ensure that you have the following data available. The information can be found on the rating plate. Model Serial No. Also check the Warranty Card supplied with the product in case of warranty. European Call Service-Center Country* Phone number Costs Haier Italy (IT)

max 20 Ct/Min all others Haier United Kingdom (UK)

• For other countries please refer to www.haier.com Haier Europe Trading S.r.l Branch UK Westgate House, Westgate, Ealing London, W5 1YYEN

Customer service Customer Service We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check section TROUBLESHOOTING. If you cannot find a solution there, please contact ► your local dealer or ► our European Call Service-Center (see listed phone numbers below) or ► the Service & Support area at www.haier.com where you can activate the service claim and also find FAQs. To contact our Service, ensure that you have the following data available. The information can be found on the rating plate. Model Serial No. Also check the Warranty Card supplied with the product in case of warranty. European Call Service-Center Country* Phone number Costs Haier Italy (IT)

• max 20 Ct/Min all others Haier United Kingdom (UK)

• For other countries please refer to www.haier.com Haier Europe Trading S.r.l Branch UK Westgate House, Westgate, Ealing London, W5 1YY *Duration of the guarantee of the refrigerating appliance: Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required. *The period of spare parts for the repair of the appliance: Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market. *For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance.CS Uživatelská příručka Chladnička-mraznička +&:)6*%'ÚNXMHPHYPĽHMVWHVLNRXSLOLY¼UREHN]QDÌN\+DLHU 3ĘHGSRXĽLW¬PVSRWĘHELÌHVLSR]RUQÚSĘHÌWÚWHW\WRSRN\Q\2EVDKXM¬GĮOHĽLW¨LQIRUPDFH NWHU¨ YP SRPRKRX FR QHMO¨SH Y\XĽ¬W VSRWĘHELÌ D ]DMLVWLW MHKR EH]SHÌQRX D VSUYQRX
