USER MANUAL HCR79F19EHMM HAIER

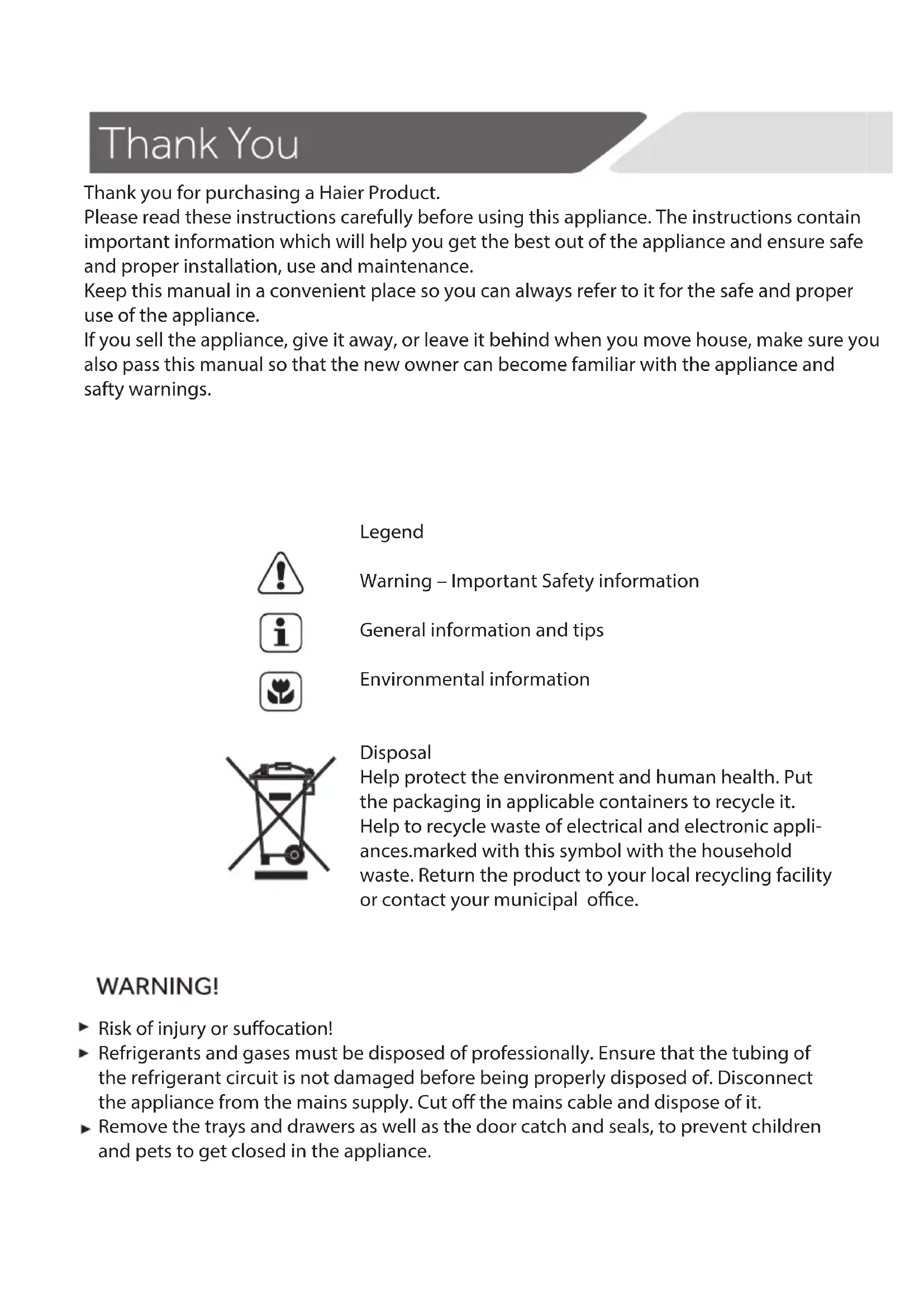

WARNING: Risk of fire/flammable material.

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by ingiting flammable material.

Accessories Check the accessories and literature in accordance with this list:

1Before switching on the appliance for the rst time read the following safety hints! Before rst use Make sure there is no transport damage. Remove all packaging and keep out of children´s reach. Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully ecient. Handle the appliance always with at least two persons because it is heavy. Installation The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance. Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth. Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters). Install and level the appliance in an area suitable for its size and use.

WARNING:Keep ventilation openings in the appliance or in the in-built

structure clear of obstruction. Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician. Connect the appliance to the electrical supply （220V-240V 50Hz) with the tted plug and lead . Abnormal voltage uctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted. Do not use multi-plug adapters and extension cables.

WARNING:Do not locate multiple portable socket-outlets or portable power

supplies at the rear of the appliance.

WARNING:When positioning the appliance, ensure the supply cord is not

trapped or damaged. 2Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.

WARNING:Do not damage the refrigerant circuit.

Daily use This appliance is not intended for use by persons (including children) with reduced physical,sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances. Keep away children under 3 years of age from the appliance unless they are constantly supervised. Children should be supervised to ensure that they do not play with the appli- ance. If cool gas or other inammable gas is leaking in the vicinity of the appliance, turn o the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance. Notice that the appliance is set for operation at a specic ambient range between 16 and 38℃. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range. Do not place unstable articles (heavy objects, containers lled with water) on top of the refrigerator, to avoid personal injury caused by falling or electric shock caused by contact with water. Do not pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled away, or the appliance may topple. Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your ngers. Open or close the refrigerator doors only when there are no children standing within the range of door movement. Do not store or use inammable, explosive or corrosive materials in the appli- ance or in the vicinity. 3Do not store explosive substances such as aerosol cans with a amma- ble propellant in this appliance. Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures. Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing. Check the condition of food if a warming in the freezer has taken place. Do not set unnecessarily low temperature in the refrigerator compart- ment. Minus temperatures may occur at high settings. Attention: Bottles can burst Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away! Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface. Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.

WARNING: Do not use electrical devices inside the food storage com-

partments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning Make sure children are supervised if they carry out cleaning and main- tenance. Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the com- pressor. 4Hold the plug, not the cable, when unplugging the appliance. Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage. Do not scrape o frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.

WARNING:Do not use mechanical devices or other means to accelerate the

defrosting process, other than those recommended by the manufacturer. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard. Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service. Eliminate the dust on the back of the unit at least once in the year to avoid hazard by re, as well as increased energy consumption. Do not spray or ush the appliance during cleaning. Do not use water spray or steam to clean the appliance. Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break. Refrigerant gas information The appliance contains the ammable refrigerant ISOBUTANE(R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open re sources, throughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appli- ance.Inform the customer service. In case of eyes get into contact with the refrigeran, rinse immediately it under running water and call imme- diately the eye specialist. 5This product contains ammable refrigerant isobutane (R600a) It is hazardous for anyone other than an Authorised Service Person to service this appliance. In Queensland – the authorized Service Person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants, to carry out Servicing or repairs which involve the removal of covers . The süðåòïìñçìæä÷èö÷ëèõèìöäõìöîòéĨõèöìñæèĩäððä¡ ble materials are used. Take care to avòìçæäøöìñêäĨõè åüìñêì÷ìñêĩäððäåïèðä÷èõìäï

Please abandon the refrigerator according to local regulators for it uses ammable blowing gas and refrigerant. Intended use This appliance is intended to be used in household and similar applications such as – sta kitchen areas in shops, oces and other working environments; – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments; – catering and similar non-retail applications. Changes or modications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Back light sourceBefore rst use Remove all packaging materials, keep them out of children`s reach and dispose them in an environmentally friendly manner. Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it. After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connect- ing it to the power supply. See Section INSTALLATION. Precool the compartments at high settings before loading with food. The function Super- Freeze helps to cool down the compartments quickly. The refrigerator temperature and freezer temperature are automatically set to5℃ and -18℃ respectively. These are the recommended settings. If desired, you can change these tempera- tures manually. Please see ADJUST THE TEMPERATURE. A Panel lock selector B Auto Set selector C Water On selector D Ice Maker mode selector E Super Freeze selector F Zone selector G Temperature adjustment button “+” H Temperature adjustment button “-” a Panel lock function b Auto Set function c Water On function d Ice maker mode e Super freeze function f Ice Boost mode g Temperature display h Fridge indicator i Freezer indicator j Water Filter alarm

edal For plumbed models Ice Maker Water bin bin 10The appliance is preset to the remomended temperature of 5 ℃（Refrigerator) and -18 ℃（Freezer）.Under normal ambient condition you need not to set a temperature. When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached. Sensor keys The buttons on the control panel are sensor keys, which already respond when lightly touched with the nger. Switch on /o the appliance The appliance is in operation as soon as it is connected to the power supply. When the refrigerator is rst powered on, the indicator “g” (Temperature display) illuminates. The fridge temperature and freezer temperature are automatically set to 5℃and -18℃ respectively. Maybe the panel lock is active. Îðó÷ü÷ëèäóóïìäñæèåèéòõèöúì÷æëìñêòģÊé÷èõöúì÷æëòé÷ëèäóóïìäñæèóøïï÷ëè power cord out of the power socket. 11Standby-mode Manual adjusting mode If you want to manually adjust the temperature of the appliance ,you can set the temperature via a temperature adjust button （refer to ADJUST THE TEMPERATURE）

Adjust the temperature The indoor temperatures are inuenced by the following factors: Ambient temperature Frequency of door opening Amount of stored foods Installation of the appliance Lock/unlock panel The display screen turns o automatically 30seconds after pressing a key .The display will be automatically locked.It lights up automatically when pressing any key or opening any door （Alarm does not light up the display screen） Door alarm Door alarm will trigger when door opens for long time or not closed properly, as a reminder. Under Lock state, long press key"A" for 3 secon- ds, the panel lock will be unlocked.

Adjust the temperature for Freezer Unlock the settings by long pressing key “A” for 3 seconds. Under unlock state, press key “F” (Zone selector) to toggle across compartments. When indicator “ i ” (Freezer indicator) lights up, press key “H” (Temperature adjustment button “-”) or key “G” (TTemperature adjustment button “+”) to adjust Freezer compartment temperature. Value displayed on indicator “g” decreas- es by 1 °C when key “H” is pressed each time. The

displayed on indicator “g” increases by 1 °C when key

seconds. Freezer compartment temperature can be adjusted from -14 °C to -24 °C with 1 °C incremental. Freezer temperature can't be adjusted under Super Freeze and lock state.14 Unlock the settings by long pressing key “A” for 3 seconds. Under unlock state, press key“F” (Zone selector) to toggle across compartments. When indicator “H” (Fridge indicator) lights up, press key “H” (Tempera- ture control “-”) or key “G” (Temperature control “+”) to adjust the fridge compartment temperature. Value displayed on indicator “g” decreases by 1 °C when key “H” is pressed each time. The display

displayed on indicator “g” increases by 1 °C when key

after a few seconds. Fridge compartment tempera- ture can be adjusted from 1 °C to 9 °C with 1 °C incremental. Adjust the temperature for Fridge Fridge temperature can't be adjusted under lock state.15 Super Freeze function Super Freeze function can freeze the fresh food as soon as possible to the core by accelerating the freezing to preserve the best nutritional value, appearance and taste of food. If you need to freeze a large amount of food once, it is recommended to set the Super Freeze function on ahead for 24 hours before the usage of freezer compart- ment. Under unlock state, press key “E” (Super Freeze selector), indicator “e” (Super freeze function) lights up, product enters Super Freeze mode. Product automatically exits Super Freeze mode after 50 hours of activation. For manually exiting Super Freeze mode, press key “E” (Super Freeze selector) under unlock state, indicator “e” (Super freeze function) goes o, product exits Super Freeze mode. Under Super Freeze mode, key “H” (Temperature control “-”) & key “G” (Temperature control “+”) are locked when freezer compartment is selected and freezer compart- ment temperature cannot be adjusted.16 Þñçèõøñïòæîö÷ä÷èóõèööîèüēÍĔ¤ÒæèÖäîèõðòçè öèïèæ÷òõ¥ìñçìæä÷òõēçĔ¤Òæèðäîèõðòçè¥ïìêë÷öøó óõòçøæ÷èñ÷èõöÒæèðäîèõðòçèÏòõèûì÷ìñêÒæè ðäîèõðòçèóõèööîèüēÍĔ¤ÒæèÖäîèõðòçè öèïèæ÷òõ¥øñçèõøñïòæîö÷ä÷èìñçìæä÷òõēçĔ¤Òæè ðäîèõìñçìæä÷òõ¥êòèöòģóõòçøæ÷èûì÷öÒæèðäîèõ mode. Ice maker The ice maker is o by default when the refrigerator is powered on for the rst time. The ice maker is designed to automatically dispense ice into the ice storage bin and it will stop when it detects the bin is full. The more ice you use, the more ice it makes.17 3 Sec.Ice Boost Þñçèõøñïòæîö÷ä÷èóõèööîèüēÍĔ¤ÒæèÖäîèõðòçè öèïèæ÷òõ¥éòõ#öèæòñçöìñçìæä÷òõēçĔ¤Òæèðäîèõðòçè¥ äñçìñçìæä÷òõēéĔ¤ÒæèËòòö÷ðòçè¥ïìêë÷øóäñçÒæèËòòö÷ function is enabled. Òñøñïòæîö÷ä÷èäñçøñçèõÒæèËòòö÷éøñæ÷ìòñóõèööîèü ēÍĔ¤ÒæèÖäîèõðòçèöèïèæ÷òõ¥éòõ#öèæòñçöäé÷èõ ëèäõìñêòñèåèèóìñêöòøñçÒñçìæä÷òõēéĔ¤ÒæèËòòö÷ ðòçè¥êòèöòģóõòçøæ÷èûì÷öÒæèËòòö÷éøñæ÷ìòñÊñçÒæè ðäîèõìñçìæä÷òõēçĔö÷ìïïïìêë÷öøóúì÷ëÒæèðäîèõéøñæ÷ìòñ still activated. Note: If the Ice maker is enabled before entering the Ice Boost function. When products exits Ice Boost function, Ice maker indicator “d” still lights up and Ice maker is still working normally; If the ice maker is disabled before entering the Ice Boost function, when product exits Ice Boost function, the Ice maker indicator “d” goes o and the ice maker stops working as well.18 Water Filter alarm

hearing one beeping sound, the indicator “c” (Water on indicator) lights up, Water on function is enabled, water will come out from the dispenser when you push the

function is disabled, water will not come out from the dispenser when you push the pedal. Water on function: Note: If the fridge compartment door is open, water will not dispense when pedal is pressed, even when the Water on function is enabled.19 Getting water from the dispenser

1. Place a glass underneath the water outlet.

2. Push it gently against the water dispenser pedal. Make

sure the glass is in line with the dispenser to prevent the water from splashing out

3. Water in the tray (B) should be removed in time,as it

could overow when the door opens and closes.

selector2021 Switch Zone compartment allows you to adjust the temperature between -18℃ to 5℃ according to the demand of food storage and provide you with further exibility in storage options for your convenience. -18°C For general frozen food items that require storage between 1 – 12 months . Meat, poultry, seafood, pre-cooked foods and leftovers, some fruits and vegetable, ice cream, and other frozen desserts. -7°C Allows easy portioning of food and the ability to heat, cook or serve foods straight from the compartment without waiting for it to thaw.

Meats, seafood, soups, sauces, pureed foods, bread, desserts and pastries. Note: Recommended for storage of creamy desserts such as ice cream. 0°C Providing the perfect storage zone for highly perishable food to ensure they retain their vital freshness and quality. Highly perishable meats, poultry and seafood. Alcoholic beverages such as beer. 5°C The ideal mode for fresh foods such as fruit and vegetables, dairy products, meats and drinks. Fruit and vegetables, dairy products, jams and chutneys/preserves, meats and drinks. Storage into the Switch Zone compartment22 Sup Storage into the freezer compartment23

Removable door racks The door racks can be removed for cleaning:

lace hands on each side of the õäæî lift it upwards ¤!¥ and pu ll it out ¤"¥. In order to insert the door rack the above steps are carr ied out in reverse order. ØÙÝÒØ×ÊÕØÔ¡temperature indicator

he temperature if the sign does not indicate ØÔ". When the appliance is switched òñ it may take up to !" hours for the correct tempera÷¡ ures to be reached.25 Make sure the appliance is properly ventilated (see INSTALLATION). Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves,heaters). Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set. Functions like Super- Freeze consume more energy. Allow warm food to cool down before placing it in the appliance. Open the appliance door as little and as briey as possible. Do not overll the appliance to avoid obstructing the air ow. Avoid air within the food packaging. Keep door seals clean so that the door always closes correctly. Defreeze frozen food in the fridge storage compartment. The most energy-saving conguration requires the appliance keep drawers, food box and shelves on factory-fresh condition, and food should be places as far as possible without blocking the air outlet of the duct. Energy saving tips26 Replacing the LED light ight by ight

27Cleaning the ice cube tray (Only for HRF680YPS/HRF680YPC) 1 Turn off the icemaker function via the display panel, hold down the handle of the icemaker, and use strength to pull out the icemaker.

2. Remove the icemaker assembly from the refrigerator and turn over the icemaker,

so that the ice cube tray is visible.

3. Pull the oval shaped fastener on the ice tray in the direction of arrow 1. Tilt the ice

tray upward and pull it out in the direction of arrow 2.

4. After cleaning the tray, put it back in, then firmly push in the icemaker, close the freezer

drawer, and switch on the icemaker function via the display panel. Icemaker usage precautions For newly installed appliance, you should wait for 24 hours. This will enable the freezer compartment to cool down, so that it can make ice.

• The ice machine will make 8 ice cubes each time; but the specific ice-making quantity will depend on the indoor temperature, frequency that the doors are opened, water pressure, freezer compartment temperature, etc.

• In order to ensure that the ice tray gets filled up with ice cubes, the ice tray should be frequently pulled out so that the ice cubes get evenly distributed.

• It is a normal phenomenon that some of the ice cubes will clump together during removing.

• When the freezer compartment reaches or is pelow-8 °C, the icemaker will start making ice (if you are just beginning to use the icemaker, or it has not been used to make ice in a long time, you should discard the first several ice cubes, so that impurities in the water l ine get run out.)

• The icemaker must be installed in the refrigerator through an authorized service agency.

• NEVER expose the water pipe to temperatures below 0°C to avoid freezing.

• Test the tubing for leaks by flushing the tube through with water, until the water runs clear.

• After the appliance has been sited into the location of your choice, make sure that the water tube is arranged so it does not incur damage through bends and kinks and is clear of any heat sources.

• Once the temperature inside the freezer is at -8°C ice production will begin.

• DO NOT touch the ice cube outlet with your hands, or any implements to avoid injury or damage. 28•The icemaker can only be supplied with water via the container on top of the left door unit. It can not be connected directly to an external drinking water supply.

• DO NOT manually add water - this is an automatic water system. If the ice maker is turned on but the appliance is not connected to water, the ice maker will not work。 If you occasionally hear unusual sounds in the refrigerator You may occasionally hear some "crunching" sounds, but these are just normal sounds that are emitted during ice making, so do not worry. If you do not often use ice cubes "Old" ice cubes will become cloudy, and will not taste fresh; therefore, please periodically clean the ice cube tray and wash it out with warm water. Before replacing the ice cube tray, be sure to cool it down, otherwise, ice will stick to other parts of the ice machine and affect the ice making function. If the icemaker in the freezer compartment is not used for a long time If not used for a long time, please remove the automatic icemaker and any residual ice cubes in t he ice storage compartment, wash the ice cube tray and the ice storage compartment with warm water, wipe them dry with a clean towel and put them somewhere else in order to increase storage space. The water reservoir should be removed, any residual water should be drained out. How the Icemaker Works The ice making capacity is 0.8kg/24 hours(this figure is the test result in lab under the 32°C ambient temperature condition). During the daily use of the appliance, due to the different ambient tempe- rature and water pressure, the ice making capacity may differ a little. Do not store ice cubes, which are produced during the first batch of cubes following appliance start up, or after a prolonged break. Discard these cubes. To allow the ice cube tray to fill to maximum capacity, you will need to manually arrange the ice cubes periodically. Some ice cubes may stick together when dropped into the storage box - you will need to separate these to allow maximum use of the icebox. Throw out the first few batches of ice cubes if you are making ice for the first time or have not made it for a long time. If the cubed ice becomes smaller, this may suggest that the filter is blocked from the impurities

Notice: Dimensions above are for reference only. Please make the object as the standard.

W1=1221mm W2=1534mm D1=660mm D2=1142mm34 Carefully clip the spacer ¤èñæïòöèç in the accessory baê¥ in the white plastic ring of the middle hinge by hand or using tools like pliers. Ío not scratch or bruise the door.35 Ice and Water Your Ice and Water and Automatic ice refrigerator must be installed by a qualified plumber or Haier trained and supported service technician as incorrect plumbing can lead to water leaks. Haier appliances does not accept responsibility for damage (including water damage) caused by faulty installation or plumbing.3637

-38*Duration of the guarantee of the refrigerating appliance• Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisiano legal warrantyrequired. *The period of spare parts for the repair of the appliance• Thermostats, temperature sensors, printed circuit boards and light sourcesare available for a minimum period of seven years after placing the last unit of the model on the market. Door handles, door hinges, traysand baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.
