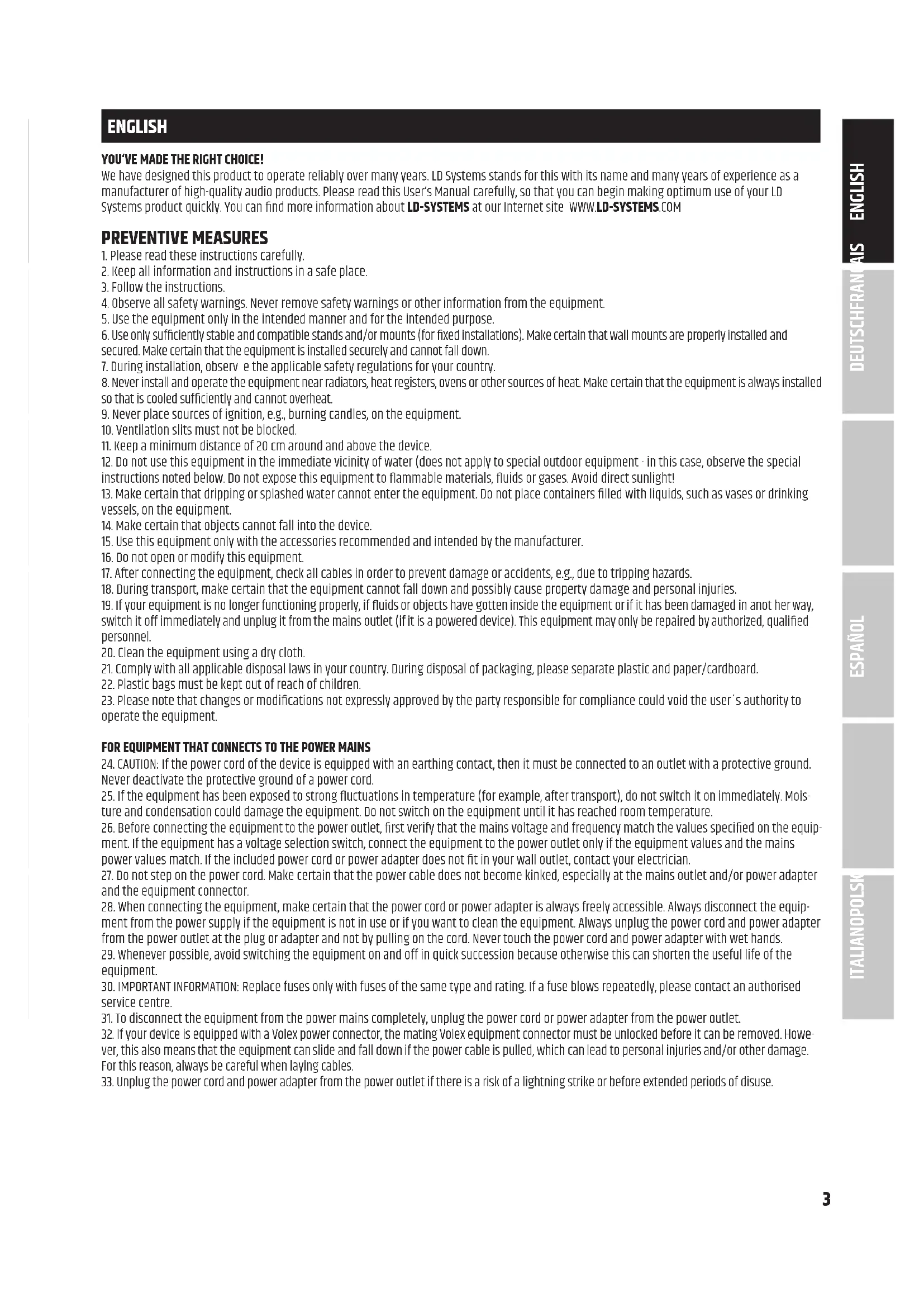

DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI ENGLISH YOU‘VE MADE THE RIGHT CHOICE! We have designed this product to operate reliably over many years. LD Systems stands for this with its name and many years of experience as a manufacturer of high-quality audio products. Please read this User‘s Manual carefully, so that you can begin making optimum use of your LD Systems product quickly. You can nd more information about LD-SYSTEMS at our Internet site WWW.LD-SYSTEMS.COM PREVENTIVE MEASURES

1. Please read these instructions carefully.

2. Keep all information and instructions in a safe place.

3. Follow the instructions.

4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.

5. Use the equipment only in the intended manner and for the intended purpose.

6. Use only sufciently stable and compatible stands and/or mounts (for xed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.

7. During installation, observ e the applicable safety regulations for your country.

8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufciently and cannot overheat.

9. Never place sources of ignition, e.g., burning candles, on the equipment.

10. Ventilation slits must not be blocked.

11. Keep a minimum distance of 20 cm around and above the device.

12. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below. Do not expose this equipment to ammable materials, uids or gases. Avoid direct sunlight! 13. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers lled with liquids, such as vases or drinking vessels, on the equipment.

14. Make certain that objects cannot fall into the device.

15. Use this equipment only with the accessories recommended and intended by the manufacturer.

16. Do not open or modify this equipment.

17. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards. 18. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries. 19. If your equipment is no longer functioning properly, if uids or objects have gotten inside the equipment or if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualied personnel.

20. Clean the equipment using a dry cloth.

21. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.

22. Plastic bags must be kept out of reach of children.

23. Please note that changes or modications not expressly approved by the party responsible for compliance could void the user´s authority to operate the equipment. FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS 24. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord. 25. If the equipment has been exposed to strong uctuations in temperature (for example, after transport), do not switch it on immediately. Mois- ture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature. 26. Before connecting the equipment to the power outlet, rst verify that the mains voltage and frequency match the values specied on the equip- ment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not t in your wall outlet, contact your electrician. 27. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector. 28. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equip- ment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands. 29. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment. 30. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service centre. 31. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet. 32. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed. Howe- ver, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables. 33. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.4 ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH CAUTION: To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts inside. Maintenance and repairs should be exclusively carried out by qualied service personnel. The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an electrical shock. The warning triangle with exclamation mark indicates important operating and maintenance instructions. Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot during operation. After use, wait for a cool-down period of at least 10 minutes before handling or transporting the device. Warning! This device is designed for use below 2000 metres in altitude. Warning! This product is not intended for use in tropical climates. CAUTION! HIGH VOLUMES IN AUDIO PRODUCTS! This device is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks. Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.5 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI INTRODUCTION Developed in Germany, the UHF Diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 meters in ideal conditions and are available in 5 frequency bands. Up to six U300® systems can be used simultaneously for each frequency band. Convenient one-touch synchronisation of transmitter and receiver via infrared facilitates fast, trouble-free wireless connection and the squelch function with pilot tone ensures fail-safe operation.

• Available with hand or pocket transmitter

• ASC infrared frequency synchronisation

• Fail-safe operation provided by pilot tone

• Up to 6 systems can be used simultaneously (up to 3 twin receivers)

• Belt-pack transmitter with gain control and status LED

• Dynamic hand-held microphone with status LED

• U500® microphone heads also suitable for U300® hand-held transmitter

• Available in the following frequencies:

Please note: The use of the wireless microphone system may require a license, depending on the country of use. For detailed information please contact the relevant authority in your country. Pilot tone The pilot tone function protects a wireless microphone system against interference, for example, unwanted signals from other radio transmission systems. The transmitter adds a second, inaudible signal (the pilot tone) to the actual signal which is to be transmitted. The receiver identies it as the matching pilot tone and frees the associated signal. Signals without a matching pilot tone remain muted. Included LDU30xHHD: Receiver plus hand-held transmitter with dynamic capsule (cardioid), power supply, 2 x AA batteries, audio cable, manual LDU30xBPH: Receiver plus pocket transmitter and headset (black), power supply, 2 x AA batteries, audio cable, manual LDU30xBPG: Receiver plus pocket transmitter and guitar cable, power supply, 2 x AA batteries, audio cable, manual LDU30xBPL: Receiver plus pocket transmitter and Lavalier microphone, power supply, 2 x AA batteries, audio cable, manual LDU30xBPW: Receiver plus pocket transmitter and clip-on microphone for wind instruments, power supply, 2 x AA batteries, audio cable, manual LDU30xHHD2: Twin receiver plus 2 x hand-held transmitters with dynamic capsules (cardioid), power supply, 4 x AA batteries, 2 x audio cables, rack kit, manual LDU30xBPH2: Twin receiver plus 2 x pocket transmitters and 2 x headsets (black), power supply, 4 x AA batteries, 2 x audio cables, rack kit, manual6 ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH

POWER On/off switch. Press and hold the button for approximately 1 seconds to turn the device on or off.

CHANNEL DISPLAY Illuminated LC display to show the radio channel.

CHANNEL + / - Push buttons to select the radio channel 01 to 12. To establish a wireless connection between the transmitter and the receiver, the radio frequency on both receivers must match (synchronisation process as described under point 6. ASC). Note: Both receivers cannot be set to the same radio channel on the twin receiver.

IR INTERFACE Infrared interface for synchronising the receiver’s radio channel with the transmitter.

ASC To synchronise the transmitter with the radio channel set in the receiver, position the infra-red port of the transmitter directly in line with the infra-red interface of the receiver and switch on the transmitter and receiver (distance about 10 cm, IR interface of the hand transmitter is below the status LED, IR interface of the pocket transmitter on the front side). Now press the ASC button to start the synchronisation process. A red LED indicator will light up in the window of the IR interface during the process. After a few seconds, the process is completed and one of the LED indicators ANTENNA A and B will light up (= wireless connection exists).

LEVEL INDICATOR 5-segment LED chain to display the audio signal level.

Indicator LEDs for the antenna systems A and B. The antenna system with the stronger radio signal is activated and the corresponding indicator LED lights up.

For optimum reception, please position the antennas in an upward-facing V-position.

DC SOCKET Low-voltage socket for the power supply to the device. Please use only the supplied mains adapter.

INSTRUMENT/LINE (UNBALANCED OUTPUT) Switch for level and impedance-matching to instruments or line inputs of an amplier or mixer. Using a suitable tool (e.g. a ballpoint pen), push the switch into the depressed INSTRUMENT position for connection to the input of an instrument amplier (guitar or bass amp) and for connection to the line-input of a mixer or amplier, select the non-depressed position LINE.

BALANCED OUTPUT Balanced audio output via 3-pin XLR jack.

Unbalanced audio output via 6.3mm jack socket (twin receiver only, mix of signals from channels 1 and 2).

INSTRUMENT/LINE MIX OUT (UNBALANCED OUTPUT) Switch for adjusting the level and impedance of the jack output to the instrument or line inputs of an amplier or mixer. Using a suitable tool (e.g. a ballpoint pen), push the switch into the depressed INSTRUMENT position for connecting the receiver to the input of an instrument amplier (guitar or bass amp). To connect to the line-input of a mixer or amplier, select the non-depressed position LINE.8 ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH

MICROPHONE HEAD The microphone head is interchangeable, the hand-held transmitter is compatible with the microphone heads from the LD U500® series, available separately.

ON / OFF On/off switch. Move the switch to the ON position to turn on the hand-held transmitter, and to the OFF position to turn it off.

STATUS LED If the charge status of the batteries is sufcient, the LED lights up green when the hand transmitter is switched on. If the LED lights up red, the charge status is weak. In this case, replace the batteries (2 x AA/LR6 type, alkaline). During the synchronisation process, the LED ashes green and amber.

IR INTERFACE Infra-red interface for synchronising the radio channel from receiver and transmitter.

To replace the batteries, open the hand transmitter battery compartment by rotating it anti-clockwise and pulling it from the housing. Remove the used batteries and replace with new batteries (AA), following the diagram in the battery compartment. Replace the battery compartment cover and rotate it clockwise to close the battery compartment. If the transmitter is not used for a long period, remove the batteries to avoid damage to the transmitter from leaking batteries.

BATTERY COMPARTMENT Battery compartment for two AA batteries. Please use only leak-proof brand products. HAND-HELD TRANSMITTER

Balanced audio output via 3-pole XLR socket (twin receiver only, mix of signals from channels 1 and 2).9 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI

IR INTERFACE Infra-red interface for synchronising the radio channel from receiver and transmitter.

INPUT 3-pin mini XLR socket to connect a headset, Lavalier or instrument microphone and guitar cable.

Switch to activate or deactivate the pocket transmitter (ON = transmitter is switched on, OFF = transmitter is switched off). In the STANDBY position, the transmitter is in operation but the audio signal is muted.

STATUS LED If the charge status of the batteries is sufcient, the LED lights up green when the pocket transmitter is switched on. If the LED lights up red, the charge status is weak. In this case, replace the batteries (2 x AA/LR6 type, alkaline). During the synchronisation process, the LED ashes green and amber.

MIC / 0dB / -10dB For setting the input sensitivity. Adjust the sensitivity so that an active signal (speech, vocals, guitar...) causes the amber-coloured level-LED on the receiver to light up. If the red PEAK LED lights up or ashes, reduce the sensitivity on the 3-position switch MIC/0dB/-10dB to the next lower value to prevent otherwise unwanted distortion. (Examples: Headset = MIC, guitar with passive pickups = 0dB, guitar with active pickups = -10dB).

BATTERY COMPARTMENT To replace the batteries, open the battery compartment of the pocket transmitter by simultaneously pressing both markers on the sides of the battery cover and opening it forwards. Remove the used batteries and replace with new batteries (AA/LR6, alkaline), following the diagram in the battery compartment. Replace the battery compartment cover on the housing and click it into place. If the transmitter is not used for a long period, remove the batteries to avoid damage to the transmitter from leaking batteries.10 ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH

ATTACHING THE POCKET TRANSMITTER

Attach the transmitter to a belt or strap as shown.

2,2k PIN ALLOCATION FOR MINI XLR CONNECTOR (POCKET TRANSMITTER) Guitar, bass and other high-impedance signal sources. Condenser microphone with internal pull-up resistor. Condenser microphone without internal pull-up resistor.11 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI TROUBLESHOOTING

PROBLEM SYMPTOM SOLUTION

No audio signal or level too low Receiver: No reception displayed on either antenna A or B. Check if the transmitter is turned on. Check the batteries in the transmitter. Receiver: Display lighting is switched off Check the power supply for the receiver and whether the receiver is switched on. Receiver: No reception displayed on either antenna A or B. Transmitter: Device is switched on. Charge status of the batteries is ok. Check whether radio frequency of the transmitter and the receiver are matching. Reduce the distance between transmitter and receiver. Ensure that there is a direct line of sight between the transmitter and the receiver. Ensure that the antennas on the receiver are posi- tioned in an upward V-shape. Receiver: Reception on antenna A or B is displayed. Increase the signal level or increase the input sensitivi- ty on the pocket transmitter. Distortion and interference Receiver: Radio signal is displayed Remove possible sources of interference (digital devices, other radio systems). Distorted sound Transmitter: Status LED is lit up red. Receiver: Peak LED on the receiver is lit. Replace the batteries in the transmitter. Reduce the signal level or reduce the input sensitivity on the pocket transmitter. OPTIONAL ACCESSORIES LDU500CH – microphone head with condenser capsule and hypercardioid pickup pattern (for hand-held transmitters, matt black) LDU500DH – microphone head with dynamic capsule and hypercardioid pickup pattern (for hand-held transmitters, matt black) LDU500CC – microphone head with condenser capsule and cardioid pickup pattern (for hand-held transmitters, matt silver) LDU500DC – microphone head with dynamic capsule and cardioid pickup pattern (for hand-held transmitters, matt silver) LDWS100MH3 – beige-coloured headset with condenser microphone (for pocket transmitters) LDWS100MH1 – black headset with condenser microphone (for pocket transmitters) LDWS1000MW – clip microphone for wind instruments (for pocket transmitters) LDWS100ML – Lavalier microphone (for pocket transmitters) LDWS100GC – guitar cable (for pocket transmitters) LDU300RK – 19" rack mounting kit for the installation of a single receiver (2 rack-mount brackets, 2 caps and 1 set of screws included).12 ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH

LDU500RK2 – 19" rack mounting kit for the installation of two single receivers (2 rack-mount brackets, 2 connectors and 1 set of screws included). Installation

1. Attach connectors (receiver A on the right-hand side, receiver B on the left-hand side).

2. Screw both receivers together.

3. Attach brackets (receiver A on the left-hand side, receiver B on the right-hand side).

Audio output level (balanced): +10dBu +10dBu +10dBu +10dBu +10dBu Audio output level (unbalanced): +7dBV/+2.5dBV (switchable line/ instrument) +7dBV/+2.5dBV (switchable line/ instrument) +7dBV/+2.5dBV (switchable line/ instrument) +7dBV/+2.5dBV (switchable line/ instrument) +7dBV/+2.5dBV (switchable line/ instrument) Controls: POWER, 2x + / - channel select, 2x ASC, 2x VOL Volume control, 2x switch INSTRUMENT/LINE POWER, 2x + / - channel select, 2x ASC, 2x VOL Volume control, 2x switch INSTRUMENT/LINE POWER, 2x + / - channel select, 2x ASC, 2x VOL Volume control, 2x switch INSTRUMENT/LINE POWER, 2x + / - channel select, 2x ASC, 2x VOL Volume control, 2x switch INSTRUMENT/LINE POWER, 2x + / - channel select, 2x ASC, 2x VOL Volume control, 2x switch INSTRUMENT/LINE Indicators: 2x 2 digit LC display, 2x 5-segment LED level meter, 2x antenna A / B LEDs 2x 2 digit LC display, 2x 5-segment LED level meter, 2x antenna A / B LEDs 2x 2 digit LC display, 2x 5-segment LED level meter, 2x antenna A / B LEDs 2x 2 digit LC display, 2x 5-segment LED level meter, 2x antenna A / B LEDs 2x 2 digit LC display, 2x 5-segment LED level meter, 2x antenna A / B LEDs Operating voltage: 12V DC, 500 mA 12V DC, 500 mA 12V DC, 500 mA 12V DC, 500 mA 12V DC, 500 mA Ambient temperature (in operation): 5°C to 40°C 5°C to 40°C 5°C to 40°C 5°C to 40°C 5°C to 40°C Relative humidity: 20% to 80% (non-condensing) 20% to 80% (non-condensing) 20% to 80% (non-condensing) 20% to 80% (non-condensing) 20% to 80% (non-condensing) Dimensions (W x H x D): 410 x 43 x 120mm 410 x 43 x 120mm 410 x 43 x 120mm 410 x 43 x 120mm 410 x 43 x 120mm Weight: 1.3 kg 1.3 kg 1.3 kg 1.3 kg 1.3 kg15 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI HAND-HELD TRANSMITTER Item number: LDU3047MD LDU3051MD LDU305MD LDU306MD LDU308MD Modulation: FM FM FM FM FM Frequency range: 470 - 490 MHz 514 - 542 MHz 584–608 MHz 655–679 MHz 823–832 MHz & 863–865 MHz Channels: 12 12 12 12 12 Microphone type: Dynamic Dynamic Dynamic Dynamic Dynamic Polar pattern: Cardioid Cardioid Cardioid Cardioid Cardioid Frequency response: 55–16000 Hz 55–16000 Hz 55–16000 Hz 55–16000 Hz 55–16000 Hz RF output power: 10 mW PEP 10 mW PEP 10 mW PEP 10 mW PEP 10 mW PEP Antenna gain: 0.5 dBi 0.5 dBi 0.5 dBi 0.5 dBi 0.5 dBi Controls: Power on/off Power on/off Power on/off Power on/off Power on/off Indicators: Status LED Status LED Status LED Status LED Status LED Power supply: 2 x AA batteries 2 x AA batteries 2 x AA batteries 2 x AA batteries 2 x AA batteries Operating time: up to 10 h (depending on batteries) up to 10 h (depending on batteries) up to 10 h (depending on batteries) up to 10 h (depending on batteries) up to 10 h (depending on batteries) Ambient temperature (in operation): 5°C to 40°C 5°C to 40°C 5°C to 40°C 5°C to 40°C 5°C to 40°C Relative humidity: 20% to 80% (non-condensing) 20% to 80% (non-condensing) 20% to 80% (non-condensing) 20% to 80% (non-condensing) 20% to 80% (non-condensing) Dimensions (L x Ø): 257 x 50 mm 257 x 50 mm 257 x 50 mm 257 x 50 mm 257 x 50 mm Weight (without batteries):

0.235 kg 0.235 kg 0.235 kg 0.235 kg 0.235 kg

Accessories included: 2 x AA batteries 2 x AA batteries 2 x AA batteries 2 x AA batteries 2 x AA batteries Features: infra-red frequency synchronisation, pilot tone, microphone head interchangeable infra-red frequency synchronisation, pilot tone, microphone head interchangeable infra-red frequency synchronisation, pilot tone, microphone head interchangeable infra-red frequency synchronisation, pilot tone, microphone head interchangeable infra-red frequency synchronisation, pilot tone, microphone head interchangeable

BODY PACK TRANSMITTER

Item number: LDU3047BP LDU3051BP LDU305BP LDU306BP LDU308BP Modulation: FM FM FM FM FM Frequency range: 470 - 490 MHz 514 - 542 MHz 584–608 MHz 655–679 MHz 823–832 MHz & 863–865 MHz Accessories included: Power adapter, audio cable, rack kit Power adapter, audio cable, rack kit Power adapter, audio cable, rack kit Power adapter, audio cable, rack kit Power adapter, audio cable, rack kit Features: Infrared frequency synchronisation, pilot tone Infrared frequency synchronisation, pilot tone Infrared frequency synchronisation, pilot tone Infrared frequency synchronisation, pilot tone Infrared frequency synchronisation, pilot tone16 ITALIANO POLSKI ESPAÑOL FRANCAIS DEUTSCHENGLISH

MICROPHONES FOR BODY PACK TRANSMITTER

Item number: LDWS100MH1 LDWS100ML LDWS1000MW Microphone type: Headset Lavalier microphone Wind instrument microphone Capsule: Back-electret condenser Back-electret condenser Back-electret condenser Polar pattern: Cardioid Cardioid Cardioid Frequency response: 20–20000 Hz 20–20000 Hz 20–18000 Hz Connector: 3-pin mini-XLR 3-pin mini-XLR 3-pin mini-XLR Accessories included: Foam windscreen Foam windscreen Foam windscreen Channels: 12 12 12 12 12 Input: 3-pin mini-XLR (low-Z + phantom power/high-Z) 3-pin mini-XLR (low-Z + phantom power/high-Z) 3-pin mini-XLR (low-Z + phantom power/high-Z) 3-pin mini-XLR (low-Z + phantom power/high-Z) 3-pin mini-XLR (low-Z + phantom power/high-Z) Frequency response: 25–16,000 Hz 25–16,000 Hz 25–16,000 Hz 25–16,000 Hz 25–16,000 Hz RF output power: 10 mW PEP 10 mW PEP 10 mW PEP 10 mW PEP 10 mW PEP Antenna gain: 0.5 dBi 0.5 dBi 0.5 dBi 0.5 dBi 0.5 dBi Controls: ON/STANDBY/OFF, MIC/0/-10 ON/STANDBY/OFF, MIC/0/-10 ON/STANDBY/OFF, MIC/0/-10 ON/STANDBY/OFF, MIC/0/-10 ON/STANDBY/OFF, MIC/0/-10 Indicators: Status LED Status LED Status LED Status LED Status LED Power supply: 2 x AA batteries 2 x AA batteries 2 x AA batteries 2 x AA batteries 2 x AA batteries Operating time: Up to 10 h (depending on batteries) Up to 10 h (depending on batteries) Up to 10 h (depending on batteries) Up to 10 h (depending on batteries) Up to 10 h (depending on batteries) Ambient temperature (in operation): 5°C to 40°C 5°C to 40°C 5°C to 40°C 5°C to 40°C 5°C to 40°C Relative humidity: 20% to 80% (non-condensing) 20% to 80% (non-condensing) 20% to 80% (non-condensing) 20% to 80% (non-condensing) 20% to 80% (non-condensing) Dimensions (W x H x D): 65 x 91 x 25 mm 65 x 91 x 25 mm 65 x 91 x 25 mm 65 x 91 x 25 mm 65 x 91 x 25 mm Weight (without batteries):

0.085 kg 0.085 kg 0.085 kg 0.085 kg 0.085 kg

Accessories included: 2 x AA batteries 2 x AA batteries 2 x AA batteries 2 x AA batteries 2 x AA batteries Features: infra-red frequency synchronisation, pilot tone infra-red frequency synchronisation, pilot tone infra-red frequency synchronisation, pilot tone infra-red frequency synchronisation, pilot tone infra-red frequency synchronisation, pilot tone17 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI

GUITAR CABLE FOR BODY PACK TRANSMITTER

Item number: LDWS100GC Connector 1: 3-pin mini-XLR Connector 2: 6.3 mm jack Cable length: 1.5 m

MANUFACTURER´S DECLARATIONS

CORRECT DISPOSAL OF THIS PRODUCT

(valid in the European Union and other European countries with a differentiated waste collection system) This symbol on the product, or on its documents indicates that the device may not be treated as household waste. This is to avoid environ- mental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity. Household users should contact either the retailer where they purchased this product, or their local government ofce, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial waste for disposal. FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation CE Compliance Adam Hall GmbH states that this product meets the following guidelines (where applicable): R&TTE (1999/5/EC) or RED (2014/53/EU) from June 2017 Low voltage directive (2014/35/EU) EMV directive (2014/30/EU) RoHS (2011/65/EU) The complete declaration of conformity can be found at www.adamhall.com. Furthermore, you may also direct your enquiry to info@adamhall.com.

EU DECLARATION OF CONFORMITY
