Product Type	AS-interface pneumatic interface (AirBox)
Brand	IFM
Model	AC5270
Power Supply	AS-interface (24 V DC) via yellow AS-i flat cable; separate AUX supply for AC5271
Number of Inputs	4 inputs (sensors) on M12 connectors
Number of Pneumatic Outputs	1 pneumatic output (5/3 solenoid valve)
Communication	AS-interface (AS-i) version 3.0, backward compatible
Max Number of Slaves per Master	62
Addressing	Default address 0; addressing via unit AC1144 and cable E70213; extended mode possible
Operating Pressure Range	3 to 8 bar
Protection Rating	IP67 (with sealing gaskets); IP65 if silencer is used
Required Compressed Air Quality	ISO 8573-1:2001 classes 6-3-1 (non-lubricated) or 6-3-4 (lubricated)
Pneumatic Connection	Rilsan tube, outer diameter according to CETOP RP 54 P
Electrical Connection	M12 connectors for sensors; yellow AS-i flat cable (and black for AUX)
LED Indicators	PWR LED (green): AS-i voltage; FAULT LED (red): communication error or peripheral fault; LED 2 (yellow): input switched; AUX LED (green): AUX supply (AC5271); LED 1 (yellow): PLC output logic state
Electromagnetic Compatibility	Industrial environment; ESD discharge ±4 kV contact, ±8 kV air (EN 61000-4-2)
Mounting	Flat cable orientation adjustable to 3 positions; base with cable guide
Maintenance	No repair possible; contact manufacturer in case of defect
Included Accessories	Protective cap for addressing socket (E73004)
Optional Accessories	Addressing unit AC1144, addressing cable E70213, sealing gasket E70413, pneumatic tubes

Frequently Asked Questions - AC5270 IFM

How to address the AC5270 module?

The default address is 0. You can address it with the addressing unit AC1144 via the addressing cable E70213. If you use extended addressing mode with a master of version 2.0, set parameter P3 to 1 and output bit D3 to 0.

What is the allowed operating pressure range?

The operating pressure range is 3 to 8 bar. Use outside this range or non-compliant compressed air may cause sealing defects or irreversible damage.

What types of compressed air are compatible?

The AirBox accepts non-lubricated compressed air (purity class 6-3-1 per ISO 8573-1:2001) and lubricated air (class 6-3-4). Once used with lubricated air, it must always be used with lubricated air.

What does a permanently lit red FAULT LED mean?

A steady red FAULT LED indicates an AS-i communication error: the slave is not participating in normal data exchange, for example if the address is 0.

What does a flashing red FAULT LED mean?

A flashing red FAULT LED signals a peripheral fault, such as an overload or short circuit of the sensor supply.

How to mount the AS-i flat cable?

Place the flat cable in the profiled guide of the base. The base allows orientation in three directions. Set the position (1, 2 or 3) on the base then on the upper part by turning the corresponding arrow with a screwdriver.

What is the protection rating of the AC5270?

The protection rating is IP67 if you use the sealing gasket for the flat cable end and cover unused connectors. If the AirBox is used with a silencer, the protection is IP65.

Can I use the AC5270 with a first generation AS-i master (version 2.0)?

Yes, but if the slave uses extended addressing mode, parameter P3 must be set to 1 and output bit D3 to 0. Additionally, an address between 1A and 31A must be assigned to this slave.

How to connect sensors?

Connect sensor connectors to M12 sockets. Cover unused sockets with protective caps (E73004). The tightening torque is 0.6 to 0.8 Nm.

What to do in case of malfunction?

The product cannot be repaired. In case of defect, please contact the manufacturer. No modifications are allowed.

USER MANUAL AC5270 IFM

Functions and features

maximum number of modules per master: 62
- AS-interface version 3.0, downward compatible
- connection to the pneumatic system via tube fitting, outside calibration according to CETOP standards RP 54 P
- operating pressure range 3...8 bar

Operation outside the indicated operating pressure range or use of incorrectly processed compressed air can cause permanent leaks and irreparable damage to the pneumatic components and may lead to malfunctioning.

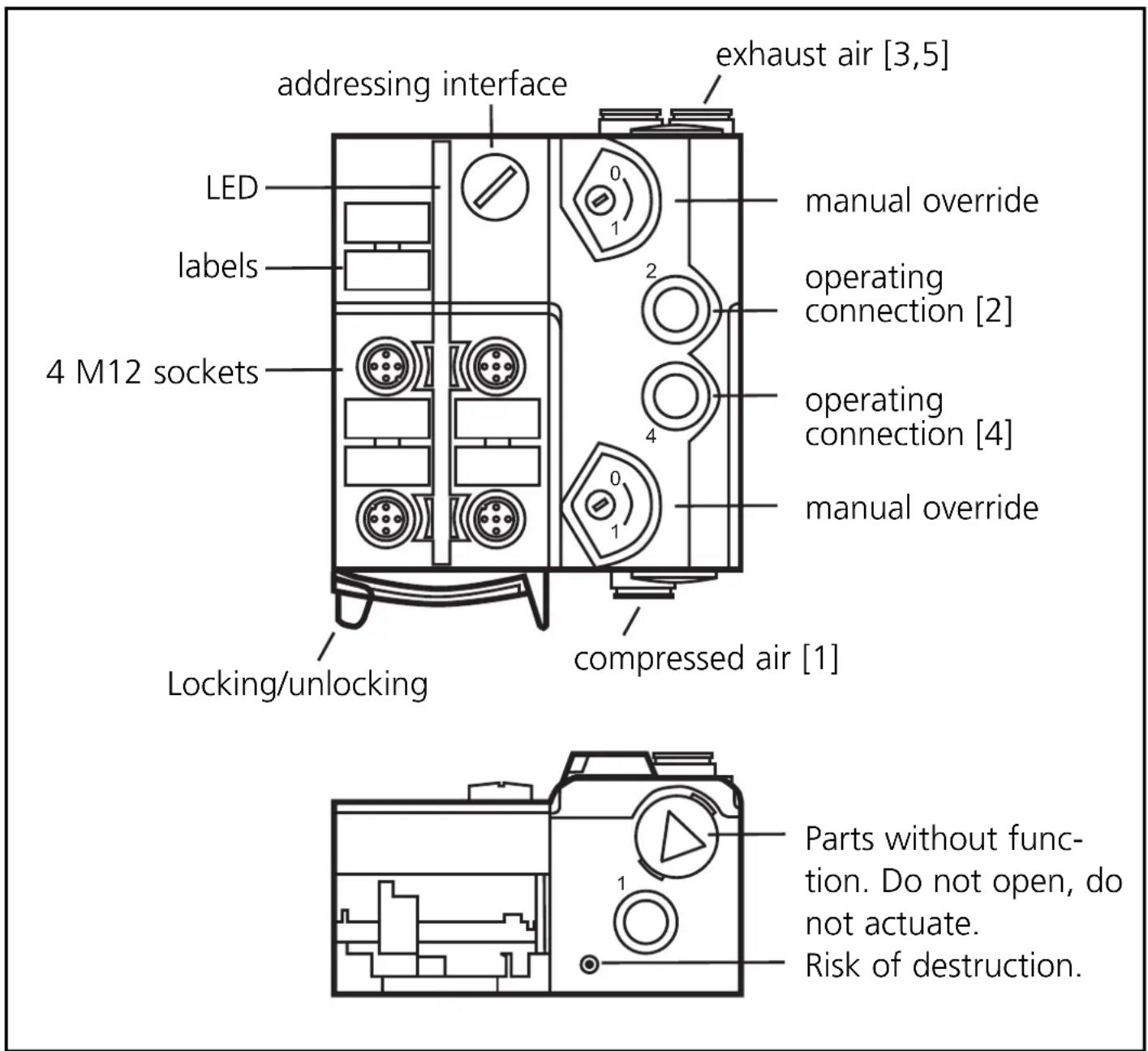

Operating and display elements

Installation

Notes on installation from page 26.

Addressing

At the factory the address is set to 0.

Addressing with the AC1144 addressing unit

When mounted and wired the module can be addressed with the addressing cable (E70213) via the implemented addressing interface.

If a slave with the extended addressing mode is used in combination with a master of the first generation (version 2.0), the parameter P3 must be 1 and the output bit D3 must be 0^ . The output bit D3 and

the parameter bit P3 must not be used. *

Default setting

If a slave with the extended addressing mode is used in combination with a master of the first generation (version 2.0), an address between 1A and 31A must be assigned to this slave.

Electrical connection

Connect the plugs of the sensors to the M12 sockets.

Cover the unused sockets with protective caps (E73004)*, the addressing socket with the supplied protective cap. Tightening torque 0.6...0.8 Nm.

To guarantee protection rating IP 67 you also have to

• use the flat cable end seal (E70413)* if the module is at the end of the cable line

• discharge exhaust air via the tube connection

• to be ordered separately

If the AirBox is operated with silencer, the protection rating is IP65.

AC5270

4 inputs / 1 pneumatic output (NO/NC selectable)

AS-i profile S-7.A.E / extended addressing mode: yes

Data bit D0 D1 D2 D3
Input 1 2 3 4
Socket I1/2 I1/2 I2 I3/4 I3/4	I4
Pin 4 2 4 4	2 4
Pneumatic output	2 4 -

AC5271

4 inputs / 1 pneumatic output (NO/NC selectable)

AS-i profile S-7.A.E / extended addressing mode: yes / AUX

Data bit D0 D1 D2 D3
Input 1 2 3 4
Socket I1/2 I1/2 I2 I3/4 I3/4	4 I4
Pin 4 2 4 4	2 4
Pneumatic output	2 4 -

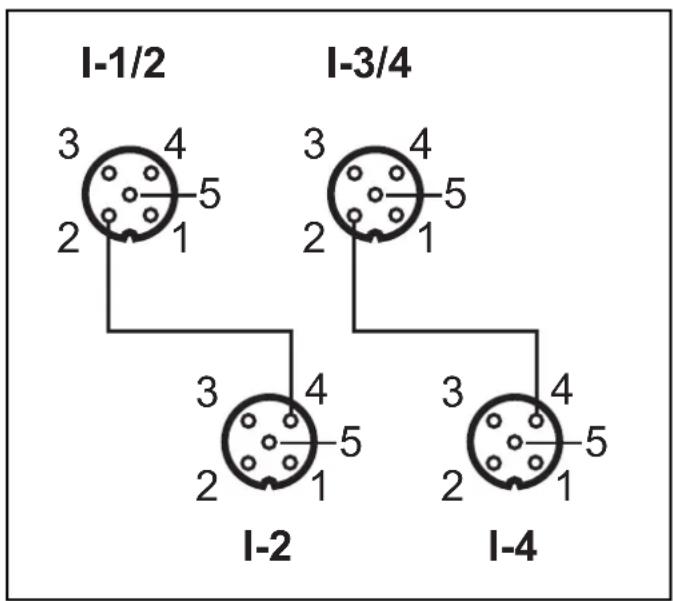

Inputs (Y-circuit)

Pneumatics

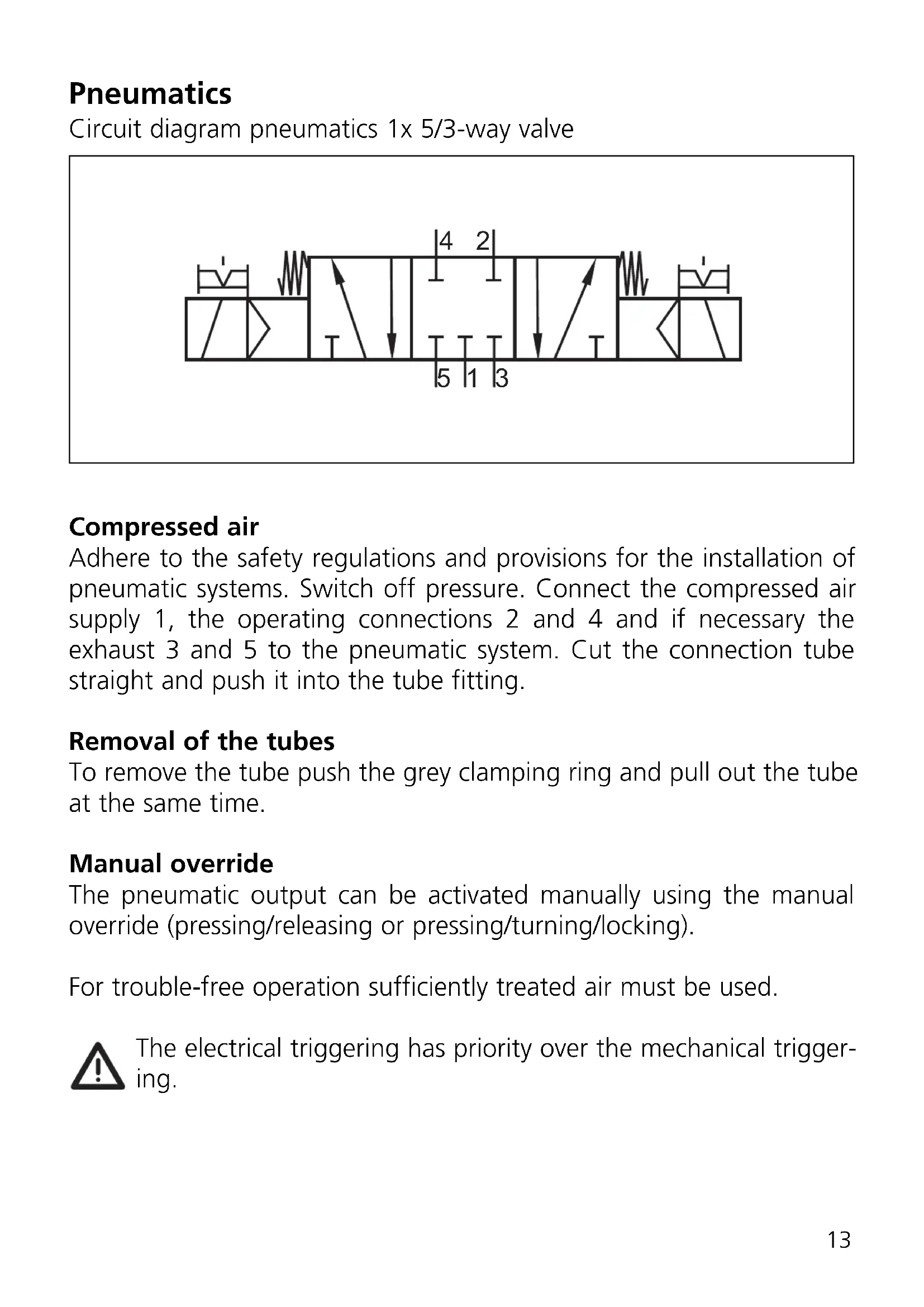

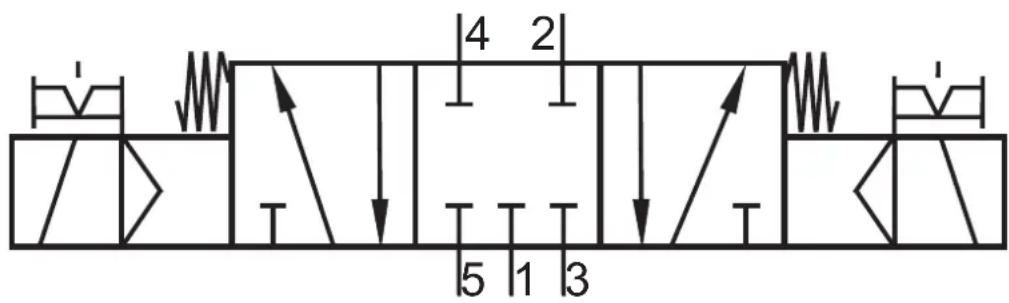

Circuit diagram pneutatics 1x 5/3-way valve

Compressed air

Adhere to the safety regulations and provisions for the installation of pneumatic systems. Switch off pressure. Connect the compressed air supply 1, the operating connections 2 and 4 and if necessary the exhaust 3 and 5 to the pneumatic system. Cut the connection tube straight and push it into the tube fitting.

Removal of the tubes

To remove the tube push the grey clamping ring and pull out the tube at the same time.

Manual override

The pneumatic output can be activated manually using the manual override (pressing/releasing or pressing/turning/locking).

For trouble-free operation sufficiently treated air must be used.

The electrical triggering has priority over the mechanical triggering.

Specification of the compressed air purity

According to ISO 8573-1: 2001 the air purity is divided into three classes:

1. The purity class of the solid particle content
2. The purity class for the humidity content
3. The purity class for the total oil content

The AirBoxes are suitable for non-lubricated compressed air of the purity classes 6-3-1 and for lubricated compressed air of the purity classes 6-3-4.

Meaning:

1. Solid particle contamination according to class 6: Max. particle size 5 m , max. particle density 5mg / m^3
2. Maximum water content according to class 3: Pressure dew point -20°C
3. Maximum total oil content according to class 1: for non-lubricated compressed air 0.01mg / m^3 Maximum total oil content according to class 4: for lubricated compressed air < 5mg / m^3 , this corresponds to approx. 1 oil drop / 4000 litres of air

Once the AirBox has been operated with lubricated air, it always has to be operated with lubricated air as the oil removes the initial lubrication.

Electromagnetic compatibility (EMC)

The AirBox is rated for operation in industrial environments. The test of the electrostatic discharge was carried out in accordance with EN 61000-4-2 with the following test levels:

• contact discharge ± 4kV
• air discharge ± 8kV

Special applications such as the conveying and distribution of bulk material can generate higher electrostatic charges.

To avoid electrostatic discharge the following remedial actions are possible, among others:

• Equalisation of potential according to the installation instructions

• Separate laying of

• signal and bus cables

• equipotential bonding conductors

• power cables

• Physical separation of the AirBox and all cables from all parts carrying or discharging electrostatic charges.

If these discharges are not avoided there is the danger of:

• injury to/incapacitation of operators and maintenance staff
• spark formation
• damage to the AirBox
• damage to the electrical equipment

Operation

Avoid build-up of dirt and dust on the upper and lower parts so that the locking mechanism is not affected.

Check the reliable functioning of the unit. Display by LEDs:

• LED 2 yellow: input switched
• LED PWR green: AS-i voltage supply ok
• LED FAULT red lights: AS-i communication error, slave does not participate in the „normal“ exchange of data, e.g. slave address 0
• LED FAULT red flashing: peripheral fault, e.g. overload or short circuit of the sensor supply

Important notes on LED AUX and LED 1

• LED AUX green: AUX voltage supply OK (AC5271) Application of the AUX voltage is only indicated if the AS-i voltage is also available.

• LED 1 yellow: Only indicates the logic state of the PLC outputs. The pneumatic output status does not necessarily correspond to the indicated status of LED 1.

• The pneumatic output status is not indicated on the unit.

Maintenance / repair

The unit must not be modified nor can it be repaired. In case of a fault please contact the manufacturer.

Technical data

Technical data and further information at www.ifm-electronic.com --> Select your country --> Data sheet direct

Orientation of the flat cable on delivery

Carefully place the yellow and optionally the black AS-i flat cable (AC5271) into the profile slot.

Mount the upper part.

With the supplied lower part the flat cable can be aligned in three directions.

For the requested direction place the flat cable guide (1) accordingly.

Settings at the lower part

Select the position 1, 2 or 3 depending on the requested flat cable alignment () .

A = Factory setting

Settings at the upper part

Then set the selected position at the upper part. To do so, turn the arrow to the corresponding number (figure D1 and D2).

Use a tool, e.g. a screwdriver (figure D1) or the yellow / black flat cable guide (figure D2).

Open the unit using a tool as shown (e.g. screwdriver).

Take care in laying the AS-i flat cable, the flat cable should be laid straight for about 15cm
