USER MANUAL Mustang Z46 TROY-BILT

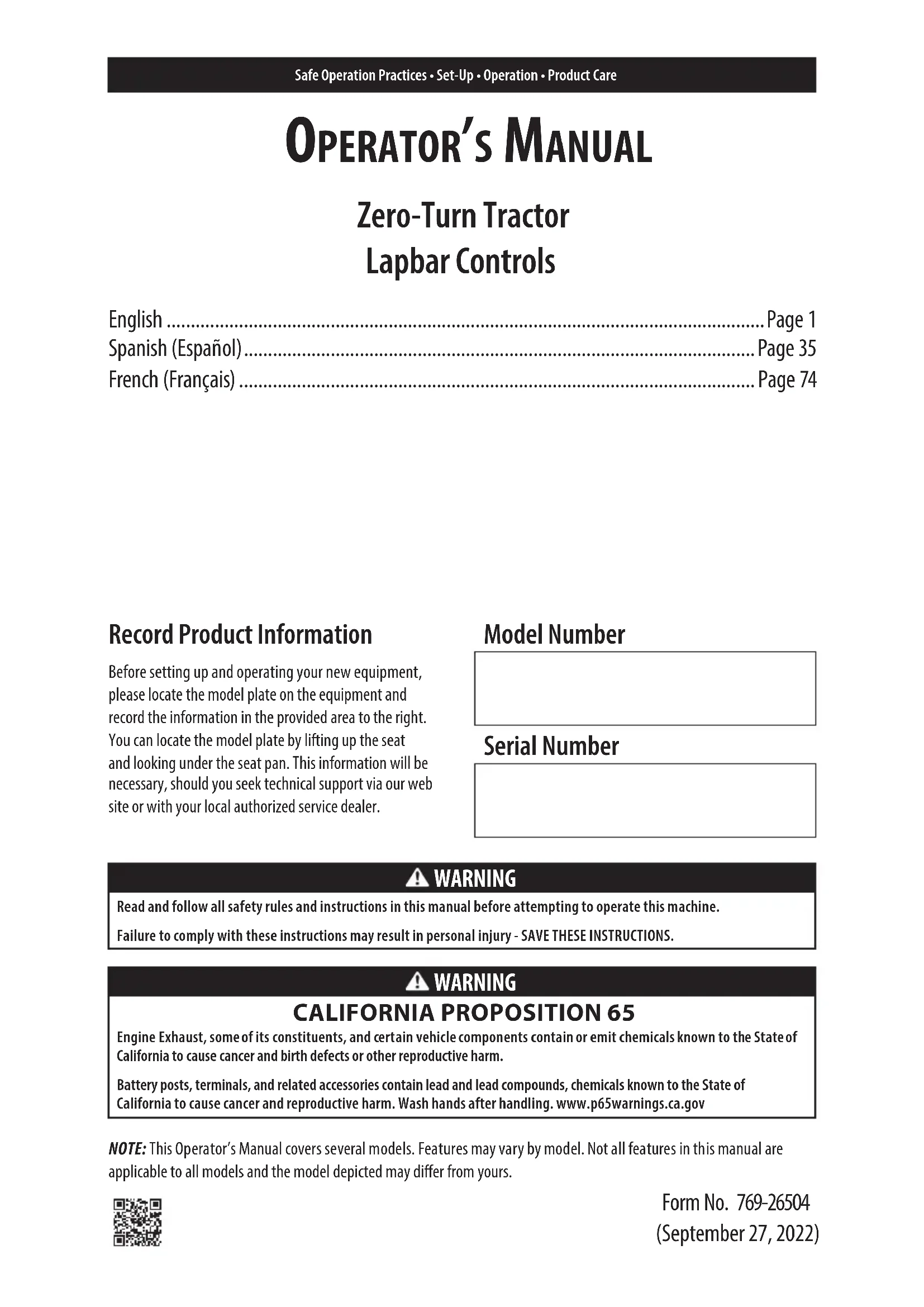

Safe Operation Practices • Set-Up • Operation • Product Care OperatOr’s Manual Zero-Turn Tractor Lapbar Controls NOTE: This Operator’s Manual covers several models. Features may vary by model. Not all features in this manual are applicable to all models and the model depicted may differ from yours. Record Product Information Before setting up and operating your new equipment, please locate the model plate on the equipment and record the information in the provided area to the right. You can locate the model plate by lifting up the seat and looking under the seat pan. This information will be necessary, should you seek technical support via our web site or with your local authorized service dealer. Model Number Serial Number English ............................................................................................................................Page 1 Spanish (Español) ..........................................................................................................Page 35 French (Français) ........................................................................................................... Page 74 Form No. 769-26504 (September 27, 2022) WARNING Read and follow all safety rules and instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury - SAVE THESE INSTRUCTIONS. WARNING CALIFORNIA PROPOSITION 65 Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling. www.p65warnings.ca.gov2

1. Thoroughly inspect the area where the tractor is to be used.

Remove all stones, sticks, wire, bones, toys, and other foreign objects which could be picked up and thrown by the blade(s). Thrown objects can cause serious personal injury.

2. To help avoid blade contact or a thrown object injury, keep

helpers at least 75 feet (23 meters) from the tractor while it is in operation. Keep bystanders, children, and pets inside during operation. Stop tractor if anyone enters the area.

3. Be aware of the tractor discharge direction and do not point

it at anyone. GENERAL OPERATION

1. Read, understand, and follow all instructions on the tractor

and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.

2. Be familiar with all controls and their proper operation. Know

how to stop the tractor and disengage them quickly.

3. Never allow children under 14 years of age to operate this

tractor. Children 14 and over should read and understand the instructions and safe operation practices in this manual and on the tractor and should be trained and supervised by an adult.

4. Never allow adults to operate this tractor without

5. If situations occur which are not covered in this manual, use

care and good judgment. Contact your customer service representative for assistance.

6. According to the U.S. Consumer Products Safety Commission

(CPSC) and the U.S. Environmental Protection Agency (EPA), this product has an estimated useful life of seven (7) years, under ordinary use conditions. At the end of its useful life, have the product inspected annually to ensure all mechanical and safety systems are operating properly, safely, and are not worn excessively. Failure to do so may result in accident, injury, or death.

4. Always wear safety glasses or safety goggles during

operation and while performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.

5. Wear sturdy, rough-soled work shoes and close-fitting slacks

and shirts. Loose fitting clothes, jewelry, and long hair can be caught in moving parts. Never operate this tractor in bare feet or sandals.

6. Never over fill fuel tank. Fill tank to no more than 1/2 inch

(13 mm) below bottom of filler neck to allow space for fuel expansion.

7. Replace gasoline cap and tighten securely.

8. Use only accessories and attachments approved for this

tractor by the tractor manufacturer. Read, understand, and follow all instructions provided with the approved accessory or attachment. OPERATING

1. Data indicates that operators, age 65 years and above, are

involved in a large percentage of tractor-related injuries. These operators should evaluate their ability to operate the tractor safely enough to protect themselves and others from serious injury.

2. Disengage blade(s) and move the drive control levers fully

outward to set the parking brake before attempting to start the engine.

3. Do not put hands or feet near rotating parts or under the

cutting deck. Contact with the blade(s) can amputate hands and feet.

4. Watch for holes, ruts, bumps, rocks, or other hidden objects.

Uneven terrain could overturn the tractor. Tall grass can hide obstacles.

5. Plan mowing pattern to avoid discharge of material toward

roads, sidewalks, helpers, and the like. Avoid discharging material against a wall or obstruction which may cause discharged material to ricochet back toward the operator. WARNING This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. When you see this symbol, HEED ITS WARNING! DANGER This machine was built to be operated according to the safe operation practices in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.3

SAFE OPERATION PRACTICES

6. Check overhead clearances carefully before driving under

low hanging tree branches, wires, door openings, etc., where the operator may be struck or pulled from the tractor, which could result in serious injury.

7. Never leave a running tractor unattended. Always turn off

blade(s), move drive control levers fully outward into park position, stop engine, and remove key before dismounting.

8. Disengage blade(s), move the drive control levers fully

outward to set the parking brake, stop engine, and wait until the blade(s) come to a complete stop before removing grass catcher, emptying grass, unclogging chute, removing any grass or debris, or making any adjustments.

9. Your tractor is designed to cut normal residential grass of a

height no more than 10 inches (25 cm). Do not attempt to mow through unusually tall, dry grass (e.g. pasture) or piles of dry leaves. Dry grass or leaves may contact the engine exhaust and/or build up on the tractor deck presenting a potential fire hazard.

10. Back up slowly. Always look down and behind before and

while backing to avoid a back-over accident.

11. Never carry passengers.

12. Stay at least 10 feet (3 meters) from drop-offs, ditches,

embankments, or the edge of water. The tractor could suddenly turn over if a wheel is over the edge of a cliff, ditch, or if an edge caves in.

13. A missing or damaged chute deflector can cause blade

contact or thrown object injuries.

14. Do not operate the tractor without the chute deflector or

entire grass catcher in its proper place.

15. Use extra care with grass catchers or other attachments.

These can change the stability of the tractor. Always follow the attachment manufacturer’s instructions.

16. Stop the blades when crossing gravel drives, walks, or roads

and while not cutting grass.

17. Watch for traffic when operating near or crossing roadways.

This tractor is not intended for use on any public roadway.

18. Mow only in daylight or good artificial light.

19. Do not operate the tractor while under the influence of

20. Slow down before turning. Operate the tractor smoothly.

Avoid erratic operation and excessive speed.

21. The muffler and engine become very hot and can cause

serious burn injuries. Do not touch. Allow the tractor to cool for five minutes before attempting any service.

22. Never run an engine indoors or in a poorly ventilated area.

Engine exhaust contains carbon monoxide, an odorless and deadly gas. SLOPE OPERATION

1. Slopes are a major factor related to loss of control and tip-

over accidents which can result in severe injury or death. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it.

2. For safety, measure any slope before using the tractor on

the sloped area. Use a slope measuring device in addition to the slope gauge included as part of this manual to measure slopes before operating this tractor on a sloped or hilly area. Smart phone applications can also be utilized to measure slopes. If the slope is greater than 15° (25%) as shown on the slope gauge or a slope measuring device, do not operate this tractor on that area or serious injury could result.

3. Do not mow on slopes greater than 15° (25%).

1. Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the tractor and the mowing activity. They do not understand the dangers. Never assume that children will remain where you last saw them.

2. Keep bystanders, children, and pets inside during operation

under the watchful care of a responsible adult other than the operator. Stop tractor if anyone enters the area.

3. Never carry children, even with the blade(s) shut off. They

may fall off or interfere with safe tractor operation, causing serious injury or death.

4. Children who have been given rides in the past could

suddenly appear in the mowing area for another ride and be run over or backed over by the tractor, causing serious injury or death.

6. To avoid back-over accidents, always look behind and down

7. Use extreme care when approaching blind corners, doorways,

shrubs, trees, or other objects that may block your vision of a child who may run into the path of the tractor.

8. Never allow children under 14 years of age to operate this

tractor. Children 14 and over should read and understand the instructions and safe operation practices in this manual and on the tractor and should be trained and supervised by an adult.

9. Do not allow any child to joy ride on the tractor. The tractor is

not a toy or a go-cart. Warn children that the tractor can be dangerous and they must stay away from it at all times.

10. Keep children away from hot or running engines. They can

suffer burns from a hot muffler.

11. Remove key when tractor is unattended to prevent

unauthorized operation. Make certain the key is inaccessible to small children.4

SAFE OPERATION PRACTICES

4. Do not mow up or down slopes, only mow across slopes

that are less than 15° (25%). Use low speeds and avoid sudden turns.

5. Do not mow on wet grass. Reduced traction could cause

sliding or a loss of control.

6. Do not operate tractor under any conditions where traction,

steering, or stability is in question. Tires could slide even if the wheels are stopped.

7. Avoid starting and stopping on slopes. Avoid making

sudden changes in speed or direction. Make turns slowly and gradually.

8. Use extra care while operating tractor with grass catcher

or other attachment(s). They can affect the stability of the tractor. Do not use grass catcher on slopes greater than 10° (17%).

9. Do not try to stabilize the tractor by putting a foot on

10. Keep all movement on slopes slow and gradual. Do not make

sudden changes in speed or direction. Rapid acceleration could cause the front of the tractor to lift and rapidly roll over backwards, which could cause serious injury or death. SLOPE GAUGE (BACK COVER) USE THE SLOPE GAUGE ON THE BACK COVER AS SHOWN TO DETERMINE IF A SLOPE IS TOO STEEP FOR SAFE OPERATION! To check the slope, proceed as follows:

1. Open manual to the back cover and fold along the

2. Locate a vertical object on or behind the slope (e.g. a pole,

building, fence, tree, etc.).

3. Align either side of the slope gauge with the object.

4. Adjust gauge up or down until the left corner touches

5. If there is a gap below the gauge, the slope is too steep for

2. Extinguish all cigarettes, cigars, pipes, and other sources

3. Use only an approved gasoline container.

4. Never remove gas cap or add fuel while the engine is hot

or running. Allow engine to cool at least five minutes before refueling.

5. Never fuel tractor indoors.

6. Never store the tractor or fuel container inside where there is

an open flame, spark, or pilot light as on a water heater, space heater, furnace, clothes dryer, or other gas appliances.

7. If gasoline is spilled, wipe it off the engine and equipment.

Clean up oil or fuel spillage and remove any fuel soaked debris. Move tractor to another area. Wait five minutes before starting the engine.

8. To reduce fire hazards, keep tractor free of grass, leaves, or

other debris build-up. Follow the Post-Operation Tractor Care instructions in the Product Care section.

9. The tractor is designed to cut normal residential grass of a

height no more than 10 inches (25 cm). Do not attempt to mow through unusually tall, dry grass (e.g., pasture) or piles of dry leaves. Dry grass or leaves may contact the engine exhaust and/or build up on the tractor deck presenting a potential fire hazard.

10. Never over fill fuel tank. Fill tank to no more than 1/2 inch

(13 mm) below bottom of filler neck to allow space for fuel expansion.

11. Replace gasoline cap and tighten securely. Do not operate

without fuel cap in place.

12. Allow tractor to cool at least five minutes before fueling

bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.

14. When practical, remove gas-powered equipment from

the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.

15. Keep the nozzle in contact with the rim of the fuel tank or

container opening at all times until fueling is complete. Do not use a nozzle lock-open device. HAULING

1. Use properly secured full width ramps for loading and

unloading tractor for transport.

2. Use extra care when loading or unloading the tractor into a

trailer or truck. This tractor should not be driven up or down ramp(s), because the tractor could tip over, causing serious personal injury. The tractor must be pushed manually on ramp(s) to load or unload properly. WARNING Slopes are a major factor related to slip and fall accidents which can result in severe injury or death. All slopes require extra caution. If you feel uneasy on the slope, do not mow it. Do not mow on slopes greater than 15° (25%). Do not mow up and down slopes, only mow across slopes.

1. To avoid personal injury or property damage use extreme care

in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes which can ignite. Wash your skin and change clothes immediately.5

schedule shown on the Maintenance Schedule chart in the Product Care section of this manual. If the safety interlock system does not function properly, have the tractor serviced professionally by an authorized dealer.

8. Never tamper with the safety interlock system or other safety

devices. Check their proper operation regularly.

9. Check the blade(s) and engine mounting bolt torque in

accordance with the Maintenance Schedule chart in this manual. Also, visually inspect blade(s) for damage (e.g., excessive wear, bent, cracked). Replace the blade(s) with the original equipment manufacturer’s (O.E.M.) blade(s) only.

10. Use of service parts which do not meet the original

equipment specifications may lead to improper performance and compromise safety.

11. Keep all nuts, bolts, and screws tight to be sure the

equipment is in safe working condition. Review the Maintenance Schedule chart in this manual for service interval information.

12. After striking a foreign object, stop the engine, remove the

key, and disconnect the spark plug wire(s) and negative battery cable to prevent unintended starting. Thoroughly inspect the tractor for any damage. Repair the damage before starting and operating.

13. Never attempt to make adjustments or repairs to the tractor

while the engine is running.

14. Grass catcher components and the chute deflector are subject

to wear and damage which could expose moving parts or allow objects to be thrown. Frequently check components and replace immediately with original equipment manufacturer’s (O.E.M.) parts only.

15. Maintain or replace safety and instruction labels,

16. Observe proper disposal laws and regulations for gas, oil, etc.

to protect the environment. TOWING

1. Do not tow a load that exceeds 250 lbs (113 kg) rolling weight

and never exceed 50 lbs (22 kg) tongue weight.

2. Do not attach towed equipment except at the hitch point of

3. Never allow children or others in or on towed equipment.

4. Do not tow on slopes greater than 5° (9%). On slopes, the

weight of the towed equipment may cause loss of traction, loss of control, and/or the ability to stop.

5. Always use extra caution when towing with a tractor capable

of making tight turns (e.g. “zero-turn” tractor). Make wide turns to avoid jack-knifing.

6. Travel slowly and allow extra distance to stop.

1. Keep machine in good working order. Do not use the tractor

until worn or damaged parts are replaced.

2. To avoid serious injury or death, do not modify engine in

any way. Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. Never tamper with factory setting of engine governor. Do not change the engine governor settings or over-speed the engine. The governor controls the maximum safe operating speed of the engine.

3. Tractor blades are sharp. Wrap the blade or wear gloves, and

use extra caution when servicing them.

4. Tractors with hydraulic pumps, hoses, or motors; and/or

diesel injection systems have fluid systems under pressure. Fluid escaping under pressure may have sufficient force to penetrate skin and cause serious injury. If fluid is injected into the skin, seek immediate medical attention. Keep body and hands away from pin holes or nozzles that eject fluid under high pressure. If a leak occurs, have the tractor immediately serviced by an authorized dealer.

5. Before cleaning, repairing, or inspecting, make certain the

blade(s) and all moving parts have stopped. Turn off the engine, remove the key, and disconnect the spark plug wire(s) and negative battery cable to prevent unintended starting.

6. Check to make sure the blades come to a complete stop in

not more than five seconds after disengaging the blade disengagement control per the schedule shown on the Maintenance Schedule chart in the Product Care section of this manual. Measure the stopping time with a stop watch. If the blades do not stop completely in less than five seconds, the tractor should be serviced professionally by an authorized dealer.

NOTICE REGARDING EMISSIONS

Engines which are certified to comply with California and federal EPA emission regulations for SORE (Small Off Road Equipment) are certified to operate on regular unleaded gasoline and may include the following emission control systems: Engine Modification (EM) and Three Way Catalyst (TWC), if so equipped. When required, models are equipped with low permeation fuel lines and fuel tanks for evaporative emission control. California models may also include a carbon canister. Please contact Customer Support for information regarding the evaporative emission control configuration for your model.

3. Raise the deck to the highest position for loading clearance.6

SAFE OPERATION PRACTICES

SPARK ARRESTOR WARNING This machine is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered, or grass- covered land unless the engine’s exhaust system is equipped with a spark arrestor meeting applicable local or state laws (if any). SAFETY SYMBOLS This table depicts and describes safety symbols that MAY APPEAR on this product. Symbol Description OPESymbol.com WARNING - READ THE OPERATOR’S MANUAL(S) - Read, understand, and follow all the safety rules and instructions in the manual(s) and on the tractor before attempting to operate this tractor. Failure to comply with this information may result in personal injury or death. Keep this manual in a safe location for future and regular reference. Using a Smart Phone, scan the QR code symbol to learn more information concerning the warnings contained on this tractor. You can also go to www.OPESymbol.com for more information. WARNING - AVOID THROWN OBJECTS INJURY - Keep helpers at least 75 feet (23 meters) from machine during operation. Remove all stones, sticks, wire, bones, toys, and other foreign objects which could be picked up and thrown by the blade(s). Do not operate the tractor without the discharge cover or entire grass catcher in its proper place.

WARNING - AVOID CHILD BACKOVER/RUNOVER/

BLADE INJURY - To avoid back-over accidents, always look behind and down for small children. Never carry children, even with the blade(s) shut off. Keep bystanders, children, and pets inside during operation under the watchful care of a responsible adult other than the operator. Stop tractor if anyone enters the area.

- Do not operate machine on a slope greater than 15° (25%). Do not mow up or down slopes, only mow across slopes that are less than 15° (25%). Use low speeds and avoid sudden turns on slopes. Stay at least 10 feet (3 meters) from drop-offs, ditches, embankments, or the edge of water. If a spark arrestor is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrestor for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131, Cleveland, Ohio 44136-0019.7

SAFE OPERATION PRACTICES

WARNING Your Responsibility—Restrict the use of this power machine to persons who read, understand, and follow the warnings and instructions in this manual and on the machine - SAVE THESE INSTRUCTIONS! Symbol Description >10in (25cm) WARNING - AVOID FIRES - Your tractor is designed to cut normal residential grass of a height no more than 10 inches (25 cm). Do not attempt to mow through unusually tall, dry grass (e.g., pasture), or piles of dry leaves. Allow tractor to cool at least five minutes before fueling or storing inside an enclosed garage or storage shed. WARNING - AVOID AMPUTATION INJURY - Do not put hands or feet near or under the cutting deck. Contact with the blade(s) can amputate hands and feet.

WARNING - AVOID AMPUTATION INJURY - Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade(s) can amputate hands and feet. Ensure that all safety devices (guards, shields, switches, etc.) are in place and working. Belt and/or blade spindle contact can crush or injure body parts. WARNING - AVOID CRUSH/PINCH POINT INJURY - Read, understand, and follow all the safety rules and instructions in the manual(s) and on the tractor before attempting to service this tractor. For foot lift models only, the deck lift system is spring-assisted and under tension. Always use the provided multi-tool (if equipped) to secure the lift system in the locked position before attempting to remove the mower deck. WARNING - REMOVE KEY - Always turn off blade(s), move the drive control levers outward into park position, stop engine, and remove key before dismounting. If you are leaving the tractor unattended, always remove the key to prevent unauthorized use by children or others. <50 lb (22 kg) <250 lb(113kg ) WARNING - AVOID TOWING RELATED INJURY - Do not tow a load that exceeds 250 lbs (113 kg) rolling weight and never exceed 50 lbs (22 kg) tongue weight. Never allow children or others in or on towed equipment. Do not tow on slopes greater than 5° (9%). On slopes, the weight of the towed equipment may cause loss of traction, loss of control, and/or loss of the ability to stop. Travel slowly and allow extra distance to stop.8 SET-UP NOTE: This Operator’s Manual covers several models. Tractor features may vary by model. Not all features in this manual are applicable to all tractor models and the tractor depicted may differ from yours. NOTE: All references in this manual to the left or right side and front or back of the tractor are from the operating position only. Exceptions, if any, will be specified. PREPARATION Remove the deck wash system nozzle adapter (if equipped) from the manual bag, store for future use. Manually Moving the Tractor HYDRO-GEAR TRANSMISSION (IF EQUIPPED)

1. To engage the transmission bypass rods, pull the rod back

(a) and into lower section of “J” slot (b). Repeat on opposite side (Figure 1).

2. After moving tractor, reverse Step 1 to disengage the

bypass rods. TUFF TORQ TRANSMISSION (IF EQUIPPED)

1. To engage the transmission bypass tabs, pull tab out. Repeat

on opposite side (Figure 2). Figure 2

2. After moving tractor, reverse Step 1 to disengage the

bypass tabs. Install Hitch (If necessary)

1. Locate hitch (a) and install on the rear of the frame using the

two hex washer screws (b) provided (Figure 3).

Figure 3 NOTE: Hitch and hex washer screws will be in the hardware pack. Reposition Upper Hoop (If necessary) Upper hoop may be positioned down for shipping purposes:

1. Remove the two hex washer screws (a) partially installed on

3. Secure hoop in place with the hex washer screws removed

in Step 1. Torque the hex washer screws to 159-239 in-lbs (18-27 N-m).9 SET-UP

INSTALL OPERATOR’S SEAT

Knob Adjust or Lever Adjust1. Cut any straps securing the seat assembly to the tractor. Remove all packing material.NOTE: Be careful not to cut the seat wiring harness.2. Install the seat onto the seat pan (a) using hardware provided (Figure 5).a. For a Knob Adjust seat insert bolts (b) in the rear holes and lock washer (c) and knobs (d) in the front. Tighten securely (Figure 5).

Figure 5b. For a Lever Adjust seat use flange lock nuts (a) and flat washers (b) (Figure 6).

Figure 63. If necessary, securely connect the seat switch wiring harness (a) to the seat switch (b) (Figure 7). Secure excess wire away from pinch points before continuing.

Figure 7NOTE: Tractor will not operate without the seat switch wiring harness connected.

POSITION LAPBAR DRIVE CONTROL LEVERS

The lapbar drive control levers can be adjusted up/down and forward/backward for the operator’s comfort. Three height positions are available and/or levers can be rotated forward or rearward using the knob.To adjust the lapbar drive control lever height, proceed as follows:1. Remove the two carriage screws (a) and two flange lock nuts (b) that secure the lapbar drive control lever (c) to the upper handle adjuster (d) (Figure 8).NOTE: The multi-tool (if equipped) can be used to make this adjustment.2. Move the lapbar drive control lever into one of three available heights and secure in place with the carriage screws and flange lock nuts (Figure 8).

Figure 810 SET-UP To adjust the lapbar drive control levers forward/rearward, proceed as follows:

2. Lift and rotate the lapbar drive control lever into the

3. Rotate the knob clockwise to secure the lapbar drive control

lever into position (Figure 9).

4. If the lapbars do not line up after making the knob

adjustment, loosen nuts (b), align lapbars and re-tighten nuts. Once this fine adjustment is made, the lapbars will align when using the knob adjustment (Figure 8 on page 9).

WARNING Never operate the mower deck without the chute deflector installed and in the down position. Attaching the Chute Deflector (If necessary)

1. Remove the keys attached with a zip tie to the chute bracket.

2. Remove the flange lock nut and hex screw from the deck.

3. Place the chute deflector on the deck, be sure to insert

the tabs on the chute deflector into the holes on the deck (Figure 10).

4. Slide the chute deflector toward the rear of the tractor until

the bolt hole in the chute deflector aligns with the hole in the deck (Figure 10).

5. Secure the chute deflector in place with the flange lock nut

and hex screw removed in Step 2. Tighten to 102-124 in-lbs (12-14 N-m). Skip ahead to Setting Deck Wheels (If equipped). Removing the Stop Bracket (If necessary)

1. If the chute is shipped attached and with a stop bracket

holding the chute upright, the stop brackets must be removed prior to operating the tractor.

2. Holding the chute deflector fully upward, remove the stop

bracket. Lower the chute deflector and discard the stop bracket (Figure 11). Figure 1111 SET-UP SETTING DECK WHEELS (IF EQUIPPED) NOTE: The deck wheels are an anti-scalp feature of the deck and are not designed to support the weight of the cutting deck.

1. Move the tractor to a level surface, preferably pavement.

2. Check tire pressure, adjust if necessary. See tire side wall for

proper tire pressure.

3. Make sure the deck is level side-to-side and properly pitched.

See the Product Care section for deck leveling information and instructions.

4. Place deck lift lever, knob or pin in the desired mowing height

position and lower deck.

5. Check the wheels for contact or excessive clearance with the

surface below. NOTE: The deck wheels should have between 1⁄4-1⁄2 inch (6.35-12.7 mm) clearance above the ground.

6. Remove the lock nut (a), gauge wheel (b) and shoulder screw

(c) from the deck (Figure 12).

7. Insert the shoulder screw into one of four index holes on

the deck wheel bracket. Allow a 1⁄4-1⁄2 inch (6.35-12.7 mm) clearance between the ground and gauge wheel.

8. Note the index hole used on previously adjusted wheel.

Repeat adjustment on opposite side to align both gauge wheels. NOTE: Refer to Adjustments section of this manual for more detail. BATTERY INFORMATION WARNING CALIFORNIA PROPOSITION 65 WARNING: Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling. WARNING Should battery acid accidentally splatter into the eyes or onto the skin, rinse the affected area immediately with clean cold water. Seek prompt medical attention. If acid spills on clothing, first dilute it with clean water, then neutralize with a solution of ammonia/water or baking soda/water. NEVER connect (or disconnect) battery charger clips to the battery while the charger is turned on, as it can cause sparks. Keep all sources of ignition (cigarettes, matches, lighters) away from the battery. The gas generated during charging can be combustible. As a further precaution, only charge the battery in a well ventilated area. Always shield eyes and protect skin and clothing when working near batteries. Batteries contain sulfuric acid and may emit explosive gases. Use extreme caution when handling batteries. Keep batteries out of the reach of children. The battery may present a risk of fire or chemical burn if misused. Do not open, disassemble, overheat, or incinerate the battery. CAUTION When attaching battery cables, always connect the POSITIVE (Red) wire to the terminal first, followed by the NEGATIVE (Black) wire. NOTE: The positive battery terminal is marked Pos. (+). The negative battery terminal is marked Neg. (–). Connecting Battery Cables WARNING Always connect the positive lead to the battery before connecting the negative lead. This will prevent sparking or possible injury from an electrical short caused by contacting the tractor body with tools being used to connect the cables. For shipping reasons the factory may leave both battery cables disconnected from the terminals. To connect the battery cables, proceed as follows: NOTE: Wiring harness should lay on top of battery hold down rod, otherwise damage to the wiring harness may result (Figure 16 on page 13).12 SET-UP

MODELS WITH LEAD-ACID BATTERY

1. If present, remove the plastic cover from the positive battery

terminal. Attach the red connector to the positive battery terminal (+) using the bolt (a) and hex nut (b) (Figure 13).

2. Position the red rubber boot (c) over the positive battery

terminal to help protect it from corrosion (Figure 13).

3. If present, remove the plastic cover from the negative battery

terminal and attach the black cable to the negative battery terminal (–) with the bolt (a) and hex nut (b) (Figure 13).

Figure 13 NOTE: If the battery is put into service after date shown on top/ side of battery, charge the battery as instructed in the Charging the Battery section, prior to operating.

MODELS WITH AGM BATTERY

1. Remove the hex screws (a) and square nuts (b) located either

on the end of the wiring harness or in the bag with this manual. Retain the hardware for later instructions (Figure 14 on page 12).

2. Position the red rubber boot over the positive battery

terminal to help protect it from corrosion (Figure 14 inset).

3. Remove the plastic cover (c), if present, from the positive

battery terminal (d) and attach the red cable (e) to the positive battery terminal (d) with one of the hex screws (a) and square nuts (b), from Step 1. Use a Philips screw driver (Figure 14).

4. Remove the plastic cover (c), if present, from the negative

battery terminal (f) and attach the black cable (g) to the negative battery terminal (f) with the remaining hex screw (a) and square nut (b) (Figure 14). NOTE: If the battery is put into service after date shown on top/ side of battery, charge the battery as instructed in the Charging the Battery section, prior to operating.

Figure 14 Battery Maintenance

• Some batteries are filled with battery acid and then sealed at the factory. However, even a “maintenance free” battery requires some maintenance to ensure its proper life cycle.

• Spray the terminals and exposed wire with a battery terminal sealer, or coat the terminals with a thin coat of grease or petroleum jelly, to protect against corrosion.

• Always keep the battery cables and terminals clean and free of corrosion.

• Some models are equipped with a battery containing a liquid electrolyte. Handle the battery with care and avoid tipping to prevent leakage. Battery Storage

• When storing the tractor for extended periods, disconnect the negative battery cable. It is not necessary to remove the battery.

• All batteries discharge during storage. Keep the exterior of the battery clean, especially the top. A dirty battery will discharge more rapidly.

• The battery must be stored with a full charge. A discharged battery can freeze sooner than a charged battery. A fully charged battery will store longer in cold temperatures than hot.

• Recharge the battery before returning to service. Although the tractor may start, the engine charging system may not fully recharge the battery.13 SET-UP Battery Removal WARNING Battery posts, terminals, and related accessories contain lead and lead compounds. Wash hands after handling. The battery is located beneath the seat frame. To remove the battery:

MODELS WITH LEAD-ACID BATTERY

1. Remove the hex cap screw and hex nut securing the black

negative battery lead to the negative battery post (marked NEG (-)). Move the cable away from the negative battery post.

2. Remove the hex cap screw and hex nut securing the red

positive battery lead to the positive battery post (marked POS (+)).

3. Remove the hex washer screw (a) securing the battery hold-

down rod (b) to the frame. Then flip the battery hold-down rod (b) up to free the battery (Figure 15).

4. Carefully lift the battery out of the tractor.

5. Install the battery by repeating the above steps in the

MODELS WITH AGM BATTERY

1. Remove the hex screw and square nut securing the black

negative battery lead to the negative battery post (marked NEG (-)). Move the cable away from the negative battery post.

2. Remove the hex screw and square nut securing the red

positive battery lead to the positive battery post (marked POS (+)).

3. Remove the hex washer screw (a) securing the battery hold

down rod (b) to the frame. Then flip the battery hold down rod (b) up to free the battery (Figure 16).

4. Carefully lift the battery out of the tractor.

5. Install the battery by repeating the above steps in the

reverse order. Charging the Battery Test and, if necessary, recharge the battery after the tractor has been stored for a period of time.

MODELS WITH LEAD-ACID BATTERY

• A voltmeter or load tester reading of 12.4 volts (DC) or lower across the battery terminals indicates that the battery needs to be charged.

• A lead-acid battery charger should be used. Recommended charge rate is 4A/14.7V.

• If your battery charger is automatic, charge the battery until the charger indicates that charging is complete. If the charger is not automatic, charge for no fewer than eight (8) hours. Models with AGM Battery

• An AGM battery charger should be used. Recommended charge rate is 1.1A/14.8V. IMPORTANT! Do NOT use an automotive charger.

• If your battery charger is automatic, charge the battery until the charger indicates that charging is complete. If the charger is not automatic, charge for no fewer than eight (8) hours.14 SET-UP

2. Slide the seat up or down into the desired position.

3. Replace the knobs into one of the four hole settings and

1. Push left and hold the seat adjustment lever to adjust the

2. Slide seat forward or rearward to desired position.

3. Release the adjustment lever. Ensure seat is locked into

position before operation (Figure 18). Figure 1815 OPERATION Each drive control lever controls the respective transmission. Consequently, these levers control all of the tractor’s movements. Driving and steering using these control levers is quite different from a conventional tractor and will take practice to master. Refer to Practice Operation (Initial use) section for further instructions.

B. DECK HEIGHT INDEX

If equipped with a deck lift handle: Each height index notch corresponds to approximately a 1⁄2 inch (12.7 mm) change in deck height (C in Figure 19). If equipped with a deck lift pedal and knob: Each rotation represents a 1⁄4 inch (6.35 mm) change in deck height. Positions range from 1 inch (2.5 cm) to 4-1/2 inches (11.4 cm) at the highest point (D1 and D2 in Figure 19). If equipped with a deck lift pedal and 15 position magnetic pin: Each position represents a 1⁄4 inch (6.35 mm) change in deck height. Positions range from 1 inch (2.5 cm) to 4-1/2 inches (11.4 cm) at the highest point (D1 and D3 in Figure 19). NOTE: This Operator’s Manual covers several models. Tractor features may vary by model. Not all features in this manual are applicable to all tractor models and the tractor depicted may differ from yours. NOTE: All references in this manual to the left or right side and front or back of the tractor are from the operating position only. Exceptions, if any, will be specified.

A. LAPBAR DRIVE CONTROL LEVERS

The RH (Right Hand) and LH (Left Hand) lapbar drive control levers are located on each side of the operator’s seat. The hinged levers pivot outward to permit the operator to sit in the seat or dismount. To start the tractor’s engine, the lapbar drive control levers must be fully out and in park position. When the lapbar drive control levers are fully outward, the parking brake is engaged.

C. DECK LIFT HANDLE IF EQUIPPED

The deck lift handle is used to raise and lower the mower deck. To lower the deck, pull the deck lift handle to the right out of the index notch and push downward. To raise the deck, pull upward. Ensure handle is fully positioned into the height index notch when the desired height is attained.

1. Deck Lift Pedal (If equipped) - The deck lift pedal is

located on the front, right corner of the platform. The pedal is used in conjunction with the deck lift knob (if equipped) or 15 position magnetic pin (if equipped) to raise and lower the mowing deck. Push forward on the deck lift pedal, rotate the deck lift knob or move the magnetic pin to the desired height and release the deck lift pedal.

2. Deck Lift Knob (If equipped) - The deck lift knob is

used in conjunction with the deck lift pedal (if equipped) to raise and lower the mowing deck. Push forward on the deck lift pedal, rotate the deck lift knob to the desired height and release the deck lift pedal.

3. 15 Position Magnetic Pin (If equipped) - The 15

position magnetic pin deck lift is used in conjunction with the deck lift pedal (if equipped) to raise and lower the mowing deck. Push forward on the deck lift pedal, place the magnetic pin in the desired height and release the deck lift pedal. NOTE: Amount of deck height change is dependent on depth of deck lift pedal press. The more height change needed, the more the deck lift pedal should be pushed forward.

E. POWER TAKEOFF PTO

Electric PTO (If equipped) The PTO switch operates the electric PTO clutch mounted on the bottom of the engine crankshaft. Pull the switch knob upward to engage the PTO clutch or push the knob downward to disengage the clutch. The PTO switch must be in the “OFF” position when starting the engine.

WARNING Never leave a running tractor unattended. Always disengage PTO, set parking brake, stop tractor, and remove the key to prevent unauthorized operation. The ignition switch has three positions: STOP — The engine and electrical system is turned off. RUN — The tractor electrical system is energized. START — The starter motor will turn over the engine. Release the key immediately when the engine starts. NOTE: To prevent accidental starting and/or battery discharge, remove key from the ignition switch when tractor is not in use.

G. TRANSMISSION BYPASS RODS/TABS

CAUTION Never tow your tractor. Towing the tractor with the rear wheels on the ground may cause severe damage to the transmissions.

1. Hydro-Gear Transmission (If

equipped) - The transmission bypass rods (one for each RH and LH transmission) are located on the rear of the tractor, next to the engine. When engaged, the two rods open a bypass within the hydrostatic transmissions, which allows the tractor to be pushed short distances by hand. Refer to the Set-Up section for additional instructions.

Transmission (If equipped) - The transmission bypass tabs (one for each RH and LH transmission) are located on the sides of the tractor, in front of the rear tires near the frame. When engaged, the two tabs open a bypass within the hydrostatic transmissions, which allows the tractor to be pushed short distances by hand. Refer to the Set-Up section for additional instructions.

The cup holder is located on the top of the console.

The storage tray is located to the rear of the console.

Turn the fill cap at least two clicks counter-clockwise and pull upward to remove. The fuel cap is tethered to the tractor to prevent its loss. Do not attempt to remove the cap from the tractor. Fill tank to 1/2 inch (12.7 mm) below the bottom of the filler neck, allowing some space in the tank for fuel expansion. Do not overfill the tank. Push the cap downward on the fuel tank fill neck and turn at least two clicks clockwise to tighten. Always re-install the fuel cap tightly onto the fuel tank after removing. WARNING Never fill the fuel tank when the engine is running. If the engine is hot from recently running, allow to cool for at least five minutes before refueling. Highly flammable gasoline could splash onto the engine and cause a fire.17 OPERATION K. HOUR METER AND LCD SERVICE MINDER (IF EQUIPPED) The hour meter and LCD service minder will remind the operator of maintenance intervals for changing the engine oil, air filter service, low engine oil pressure and low battery warnings. When the key is rotated out of the STOP position but is not in the START position, the hour meter and LCD service minder will briefly display the battery voltage, followed by the tractor’s accumulated hours. NOTE: When the ignition key is out of the STOP position the hourglass symbol is illuminated/blinks to indicate it is recording the hours of tractor operation, regardless of whether the engine has been started. Change Oil The LCD screen will alternate the letters “CHG”, followed by “OIL”, followed by “SOON”, followed by the meter’s accumulated time. “CHG/OIL/SOON/TIME” will alternate on the display for 7 minutes after the meter reaches 50 hours. This oil service minder interval will occur every 50 hours. Before the interval expires, change the engine oil as instructed in the Engine Operator’s Manual. Low Oil NOTE: The low oil pressure function only works if the engine is equipped with an oil pressure switch. The LCD screen will alternate the letters “LO” followed by “OIL”, followed by the meter’s accumulated time, which indicates the engine has low oil pressure. This is common when starting an engine. The indicator will remain active until the engine sufficiently builds pressure after starting. If it remains on with the engine at full speed and after a few minutes of operation, stop the tractor immediately and check the engine oil level and add as instructed in the Engine Operator’s Manual. If the oil level is correct and the indicator persists, contact an authorized service dealer. Low Battery At startup, the battery voltage will briefly display, then changes to accumulated hours. The letters “LO” followed by the letters “BATT” will display, followed by the meter’s accumulated time. “LO/BATT/TIME” is displayed on the LCD when the voltage drops below 11.5 volts. When this occurs, the battery is in need of a charge or the engine’s charging system is not generating sufficient amperage. Charge the battery as instructed in the Charging the Battery section of this manual or have the charging system checked by your local service dealer. Air Filter Service The LCD screen will display the letters “CLN” followed by the letters “AIR”, followed by “FILT”, followed by the meter’s accumulated time. “CLN/AIR/FILT/TIME” will alternate on the display for 7 minutes after the meter reaches 25 hours. This air filter service minder time interval will be every 25 hours. On intervals that are common with oil service, the oil message will be displayed first followed by the air filter message. L. THROTTLE/CHOKE CONTROL LEVER,

THROTTLE CONTROL OR ELECTRONIC

GOVERNOR CONTROL NOTE: When set in a given position, a uniform engine speed will be maintained.

1. Throttle/Choke Control Lever (If equipped) - Push

the throttle/choke control lever forward to increase the engine speed. The tractor is designed to operate with the throttle/choke control lever at full throttle (FAST) when the tractor is being driven and the mower deck is engaged. Pull the throttle/choke control lever rearward to decrease the engine speed. When starting the engine, push the control lever fully forward into the CHOKE position. After starting and warming the engine, move the control lever rearward until you feel it move past the choke detent. Throttle is not meant to control unit speed, throttle should remain in high speed while operating blades.

2. Throttle Control (If equipped) - Push the throttle

control lever forward to increase the engine speed. The tractor is designed to operate with the throttle control lever at full throttle (FAST) when the tractor is being driven and the tractor deck is engaged. Pull the throttle control lever rearward to decrease the engine speed.

3. Electronic Governor Control (If equipped) - When

set in a given position, a uniform engine speed will be maintained. The electronic governor control has various inputs for maintaining engine speed. Use CUT setting for optimal cutting performance in normal cutting conditions. Use POWER CUT setting for optimal cutting performance in heavy cutting conditions. M. CHOKE CONTROL (IF EQUIPPED) The choke control determines the position of the engine choke. Pull the knob out to choke the engine; push the knob in to open the choke.18 OPERATION

N. MULTI-TOOL (FOOT DECK LIFT

MODELS ONLY) The multi-tool is located on the left console for models with the 15 position magnetic pin and the front of the right console for all other models. The multi-tool can be used as a deck lift lockout, to remove the footpan bolt, adjust the height of the lapbar drive control levers, drive control lever stop adjustment and can be used as a removal tool with the 1/2 inch socket end. See the Product Care section for more information on multi-tool usage. HEADLIGHTS (NOT SHOWN/IF EQUIPPED) The headlights are located on the front of the frame. The headlights are ON whenever the ignition key is rotated out of the STOP position and OFF when the ignition key is moved to the STOP position.

SEAT ADJUSTMENT LEVER (NOT SHOWN/

IF EQUIPPED) The seat adjustment lever is located under the seat. The seat adjustment lever allows for adjustment forward or backward of the operator’s seat. Refer to the Set-Up section for instructions on adjusting the seat position. NOTE: If your tractor is not equipped with a seat adjustment lever, it can be adjusted using the knobs on the underside of the seat. Refer to the Set-Up section for instruction on adjusting the seat. OPERATION Before Operating Your Tractor

• Before operation, refer to the Maintenance Schedule chart located in this manual for regularly scheduled service items.

• This engine is certified to operate only on clean, fresh, unleaded gasoline. Fill only with clean, fresh, unleaded gasoline with a pump sticker octane rating of 87 or higher.

• Do not use gasoline left over from the previous season, to minimize gum deposits in the fuel system.

• Gasohol (up to 10% ethyl alcohol, 90% unleaded gasoline by volume) is an approved fuel. Other gasoline/alcohol blends are not approved.

• Methyl Tertiary Butyl Ether (MTBE) and unleaded gasoline blends (up to a maximum of 15% MTBE by volume) are approved fuels. Other gasoline/ether blends are not approved. Safety Interlock System WARNING Do not operate the tractor if the safety interlock system is malfunctioning. This system was designed for your safety and protection. This tractor is equipped with a safety interlock system for the protection of the operator. If the interlock system should ever malfunction, do not operate the tractor. Contact an authorized service dealer.

• The safety interlock system prevents the engine from cranking or starting unless the parking brake is engaged and the PTO switch is in the DISENGAGED (OFF) position.

• The engine will automatically shut OFF if the operator leaves the seat before engaging the parking brake.

• The engine will automatically shut OFF if the operator leaves the tractor’s seat with the PTO switch in the ENGAGED (ON) position, regardless of whether the parking brake is engaged. Checking the Safety Interlock Circuits Periodically check the safety interlock circuits to ensure they are working properly. If a safety circuit is not working as designed, contact an authorized service dealer to have the tractor inspected. Do NOT operate the tractor if any safety circuit is not functioning properly. To check the safety circuits, proceed as follows:

1. Pull the PTO upward to the ENGAGED (ON) position.

Momentarily turn the ignition switch to the START position; the engine should not crank.

2. With the tractor running move both lapbar drive control

levers fully inward in the neutral position; then lift upward from the operator’s seat. The engine should stop.

3. With both lapbar drive control levers fully outward in the

parking brake engaged position, engage the PTO. Lift upward from the operator’s seat; the engine should stop. Starting the Engine CAUTION The operator should be sitting in the tractor seat when starting the engine.

1. Operator should be sitting in the tractor seat with the lapbar

drive control levers fully out and in the park brake position (Figure 20). Refer to Practice Operation (Initial use) for further instructions. Control Levers Moved Outward and in the Park Brake Position Figure 2019 OPERATION

2. Make certain the PTO is in the “OFF” position. Move the choke

control or throttle/choke control into the full choke position. Move the throttle control to midway between its slow and fast positions on models with a separate choke control. NOTE: If the engine is warmed up, it may not be necessary to choke the engine.

3. Turn the key clockwise to the START position. After the engine

starts, release the key. It will return to the RUN position. CAUTION Do not hold the key in the START position for longer than ten seconds at a time. Doing so may cause damage to your engine’s electric starter.

4. As the engine warms up, gradually pull the throttle/choke

control lever rearward past the choke detent position or slowly disengage the choke on models with a separate choke. Do not use the choke position to enrich the fuel mixture, except as necessary to start the engine.

5. Allow the engine to run for a few minutes at mid-throttle

before putting the engine under load.

6. Observe the hour meter and LCD service minder (if equipped).

If the battery indicator light or oil pressure light come on, immediately stop the engine. Have the tractor inspected by your authorized service dealer. Cold Weather Starting When starting the engine at temperatures near or below freezing, ensure the correct viscosity motor oil is used in the engine and the battery is fully charged. Start the engine as follows:

1. Be sure the battery is in good condition. A warm battery has

much more starting capacity than a cold battery.

2. Use fresh winter grade fuel. Winter grade gasoline has higher

volatility to improve starting. Do not use gasoline left over from summer.

3. Follow the previous instruction for Starting the Engine.

Using Jumper Cables to Start Engine WARNING Batteries contain sulfuric acid and produce explosive gases. Make certain the area is well ventilated, wear gloves and eye protection, and avoid sparks or flames near the battery. If the battery charge is not sufficient to crank the engine, recharge the battery. If a battery charger is unavailable and the tractor must be started, the aid of a booster battery will be necessary. Connect the booster battery as follows:

1. Connect the end of one cable to the disabled tractor battery’s

positive terminal; then connect the other end of that cable to the booster battery’s positive terminal.

2. Connect one end of the other cable to the booster battery’s

negative terminal; then connect the other end of that cable to the frame of the disabled tractor, as far from the battery as possible.

3. Start the disabled tractor following the normal starting

instructions previously provided; then disconnect the jumper cables in the exact reverse order of their connection.

4. Have the tractor’s electrical system checked and repaired as

soon as possible to eliminate the need for jump starting. Stopping the Engine

1. Disengage the PTO.

2. Move lapbar drive control levers fully outward into the park

brake engaged position.

3. Move the throttle control to midway between the slow and

4. Turn the key to the STOP position and remove the key from

the ignition module. NOTE: Always remove the key from the ignition module to prevent accidental starting or battery discharge if the equipment is left unattended. Practice Operation (Initial use) Operating a zero-turn tractor is not like operating a conventional type riding tractor. Although and because a zero-turn tractor is more maneuverable, getting used to operating the lapbar drive control levers takes some practice. It is strongly recommended that you locate a reasonably large, level and open “practice area” where there are no obstructions, pedestrians or animals. You should practice operating the tractor for a minimum of 30 minutes. Carefully move (or have moved) the tractor to the practice area. When performing the practice session, the PTO should not be engaged. While practicing, operate the tractor at approximately 1⁄2-3⁄4 throttle and at less than full speed in both forward and reverse. Carefully practice maneuvering the tractor using the instructions in the following section Driving the Tractor. Practice until you are confident that you can safely operate the tractor.

WARNING Keep all movement of the lapbar drive control levers slow and smooth. Abrupt movement of the control levers can affect the stability of the tractor and could cause the tractor to flip over, which may result in serious injury or death to the operator.

1. Adjust the operator’s seat to the most comfortable position

that allows you to operate the controls. See Adjusting the Seat in the Set-Up section.20 OPERATION

2. Move the RH and LH lapbar drive control levers inward in the

neutral position which also disengages the parking brake (Figure 21). Control Levers Moved Inward and in Neutral Figure 21 NOTE: Lapbar drive control levers must be moved fully inward before pushing forward or backward to ensure brakes are fully disengaged. Parking the tractor on uneven terrain or a hill may cause the brakes to bind and not release fully. In this case the tractor will not drive when the lapbar drive control levers are moved. If this happens, move the lapbar drive control lever in the opposite direction slightly to take the load off the brakes and allow them to release fully. NOTE: If the lapbar drive control levers are not even in the neutral position, refer to Set-Up for instructions to adjust the lapbar drive control levers so that they are even.

3. Move the throttle to the full throttle position.

WARNING Always maintain a firm grip on the control levers. Do not release the control levers to slow or stop the tractor; move levers to neutral position using your hands.

4. To drive the tractor, firmly grasp the respective lapbar drive

control levers with your right and left hands and continue with Driving the Tractor Forward in the next section. Driving the Tractor Forward

1. Slowly and evenly move both lapbar drive control levers

forward. The tractor will start to move forward (Figure 22). Driving Forward Faster Slower Neutral Position Figure 22

2. As the lapbar drive control levers are pushed farther forward

the speed of the tractor will increase.

3. To slow the tractor move the drive control levers rearward

to attain the desired speed or move the lapbar drive control levers to the neutral position to stop the tractor. Turning the Tractor While Driving Forward WARNING Sharp turns can affect control of the tractor. ALWAYS slow the tractor before making sharp turns. To turn the tractor while driving forward, move the lapbar drive control levers as necessary so that one drive control lever is rearward of the other. The tractor will turn in the direction of the rearward drive control lever.

1. To turn to the left, move the left drive control lever rearward

of the right drive control lever (Figure 23). Forward Left Turn Figure 23

2. To turn to the right, move the right drive control lever

rearward of the left lever (Figure 24). Forward Right Turn Figure 24

3. The greater the distance between the two levers, the sharper

the tractor will turn.

4. To execute a “pivot turn”, move the turn side drive control

lever to the neutral position, while moving the other control lever forward. NOTE: Making a “pivot turn” on grass will greatly increase the potential for defacement of the turf.21 OPERATION Driving the Tractor in Reverse WARNING Always look behind and down on both sides of the tractor before backing up. Always look behind while traveling in the reverse direction. Mowing in reverse is not recommended.

1. Slowly and evenly move both lapbar drive control levers

rearward. The tractor will start to move in the reverse direction (Figure 25). Neutral Position Slower Faster Figure 25

2. As the lapbar drive control levers are pushed farther rearward

the speed of the tractor will increase.

3. To slow the tractor move the lapbar drive control levers

forward to attain the desired speed or move the lapbar drive control levers to the neutral position to stop the tractor. Turning While Driving Rearward To turn the tractor while driving rearward, move the lapbar drive control levers as necessary so that one drive control lever is forward of the other. The tractor will turn in the direction of the forward lapbar drive control lever.

1. To turn to the left while traveling in reverse, move the left

drive control lever forward of the right drive control lever (Figure 26). Rearward Left Turn Figure 26

2. To turn to the right while traveling in reverse, move the right

drive control lever forward of the left drive control lever (Figure 27). Rearward Right Turn Figure 27 NOTE: The greater the distance between the two lapbar drive control levers, the sharper the tractor will turn.

3. To execute a “pivot turn”, move the turn side drive control

lever to the neutral position, while moving the other drive control lever rearward. NOTE: Making a “pivot turn” on grass will greatly increase the potential for defacement of the turf. Executing a Zero Turn

1. Stop the forward or reverse motion of the tractor by moving

the two lapbar drive control levers to neutral.

2. To turn clockwise, move the left lapbar drive control lever

forward while simultaneously moving the right lapbar drive control lever rearward (Figure 28). Clockwise Zero Turn Figure 28

1. Move both lapbar drive control levers to the neutral position

to stop the motion of the tractor.

2. Push the PTO downward to the OFF position.

3. Use the deck lift knob, handle or pin to raise the deck to its

4. If dismounting the tractor, move the lapbar drive control

levers fully outward in the neutral position which also engages the parking brake, move the throttle control to midway between the slow and fast positions, turn the key to the STOP position and remove the key from the ignition module. WARNING Do not leave the seat of the tractor without disengaging the PTO and moving lapbar drive control levers fully outward into the park brake engaged position. If leaving the tractor unattended, turn the ignition key to the STOP position and remove key.

Engaging the PTO transfers power to the cutting deck or other (separately available) attachments. To engage the PTO:

1. Move the throttle to the FAST position.

2. Pull the PTO switch up/out into the ENGAGED (ON) position.

NOTE: When operating the tractor be certain that the throttle is always in the FAST position. Operating with the throttle at less than full throttle may lead to premature battery wear and a poor quality cut.

3. To disengage the PTO, push the PTO switch down/in to the

DISENGAGED (OFF) position. MOWING WARNING To help avoid blade contact or a thrown object injury, keep bystanders, helpers, children, and pets at least 75 feet (23 meters) from the machine while it is in operation. Stop machine if anyone enters the area. WARNING Make certain the area to be mowed is free of debris, sticks, stones, wire, or other objects that can be thrown by the rotating blades. NOTE: Do not engage the mower deck when lowered in grass. Premature wear and possible failure of the ‘V’ belt and PTO clutch will result. Fully raise the deck or move to a non-grassy area before engaging the mower deck.

• Mow across slopes, not up and down. If mowing a slope, start at bottom and work upward to ensure turns are made uphill.

• Do not mow at high ground speed, especially if a mulch kit or grass collector is installed.

• Do not cut the grass too short. Short grass is prone to weed growth and yellows quickly in dry weather.

• Always operate the tractor with the throttle in the FAST position while mowing.

• On the first pass pick a point on the opposite side of the area to be mowed. Follow the point to maintain a straight line.

• Engage the PTO and move the throttle control or throttle/ choke control to the FAST position.

• Lower the mower deck to the desired height setting.

• For best results it is recommended that the first two laps be cut with the discharge thrown towards the center. After the first two laps, reverse the direction to throw the discharge to the outside for the balance of cutting. This will give a better appearance to the lawn.

• Slowly and evenly push the RH and LH lapbar drive control levers forward to move the tractor forward and keep the tractor headed directly toward the alignment point. NOTE: The speed of the tractor will affect the quality of the mower cut. Mowing at full speed will adversely affect the cut quality. Control the ground speed with the lapbar drive control levers.

• Your tractor is designed to cut normal residential grass of a height no more than 10 inches (25 cm). Do not attempt to mow through unusually tall, dry grass (e.g., pasture) or piles of dry leaves. Dry grass or leaves may contact the engine exhaust and/or build up on the tractor.

• Do not attempt to mow heavy brush and weeds or extremely tall grass. Your tractor is designed to mow lawns, NOT clear brush.

• Keep the blades sharp and replace the blades when worn.

• When approaching the other end of the strip, slow down or stop before turning. A U-turn is recommended unless a pivot or zero turn is required.

• Align the mower with an edge of the mowed strip and overlap approximately 3 inches (7.6 cm).

• Direct the tractor on each subsequent strip to align with a previously cut strip.

• To prevent rutting or grooving of the turf, if possible, change the direction that the strips are mowed by approximately 45° for the next and each subsequent mowing. When stopping the tractor for any reason while on a grass surface, always:

• Move the RH and LH lapbar drive control levers fully outward into the park brake engaged position.

• Shut engine off and remove the key.

• Doing so will minimize the possibility of having your lawn ‘‘browned’’ by hot exhaust from your tractor’s running engine.23 PRODUCT CARE MAINTENANCE SCHEDULE WARNING Before performing any type of maintenance/service, disengage all controls and stop the engine. Wait until all moving parts have come to a complete stop. Disconnect the spark plug wire(s) and negative battery cable to prevent unintended starting. Always wear safety glasses during operation or while performing any adjustments or repairs. Before Each Use After First 5 Hours After First 50 Hours Every

Hours Prior to Storing See Engine Manual Check/Clean Engine Intake Screens & Cooling Fans # P P Check/Clean Exhaust Manifold, Muffler Pipe, & Muffler Shields # P P Check/Clean Top and Underside of Deck, Under & Around Spindle Covers, Belt Area # P P Check/Clean Around Fuses, Wiring &Wiring Harnesses # P P Check/Clean Around Transmission, Axle & Fans # P P Change Transmission Oil & Filter (Tuff Torq Transmission) P P Check Air Filter for Dirty, Loose or Damaged Parts

Check Engine Oil Level

Clean Battery Terminals P P Grease All Lubrication Points P P Check Engine Intake Screen/ Clean AsNeeded P P Check Blades/Sharpen or Replace AsNeeded P P Check Tire Pressure P P Check/Clean Underside of Deck P P Check Safety Interlock System P P Check Mower Blade Stop Time P P Inspect & Lube Deck Wheels P P Check Deck Level/Pitch P P Check Belts & Pulleys for Damage/Wear

Follow the Maintenance Schedule given below. This chart describes service guidelines only. Refer to the Engine Operator’s Manual for engine maintenance items listed in the table below. NOTE: Maintenance Schedule continues onto the next page.24 PRODUCT CARE Before Each Use After First 5 Hours After First 50 Hours Every

Hours Prior to Storing See Engine Manual Check Engine Mounting Bolt Torque (Tighten to 325-450 in-lbs (37-50 N-m)) P P P P Check Blade Mount Nut Torque (Tighten to 70-90 ft-lbs (95- 122 N-m)) P P P Check Spark Plug Condition & Gap P P P Engine Break-In Oil Change P P Change Engine Oil P P P Check Fuel System (Lines, Tank, Cap, Fittings) P P P P Check Spark Arrestor P P P P Replace Oil Filter P P P Clean or Change Air Filter P P Replace Fuel Filter P P Have Valve Lash Checked & Adjusted*

• -- Have this item performed by an authorized service dealer # -- Perform more often in dry conditions and/or when mulching NOTE: This Operator’s Manual covers several models. Tractor features may vary by model. Not all features in this manual are applicable to all tractor models and the tractor depicted may differ from yours.

POST-OPERATION TRACTOR CARE

After each operation of the tractor, to ensure safe operating conditions, refer to the Maintenance Schedule chart in this manual for proper tractor care. WARNING Failure to follow these recommendations may result in serious injury to yourself or others and may cause damage to the tractor.

CLEANING THE UNDERSIDE OF THE DECK

Deck Wash System (If equipped) Your tractor’s deck may be equipped with a water port on its surface as part of its deck wash system. Use the deck wash system to rinse grass clippings from the deck’s underside and prevent the buildup of corrosive chemicals. Complete the following steps AFTER EACH MOWING:

1. Attach the nozzle adapter to a standard garden hose

connected to a water supply.

2. Move the tractor to an area within reach of the hose where

the dispersal of wet grass clippings is acceptable. Disengage the PTO, engage the parking brake and stop the engine.

3. Pull back the lock collar (a) of the nozzle adapter (b) and push

the nozzle adapter onto the deck wash nozzle (c). Release the lock collar to lock the nozzle adapter on the deck wash nozzle (Figure 30).

Figure 3025 PRODUCT CARE

4. Turn on the water supply.

5. From the tractor operator’s seat, start the engine and engage

the PTO. Allow to run as needed. Disengage the PTO and stop the engine.

6. Turn off the water supply.

7. Pull back the lock collar of the nozzle adapter to disconnect

the nozzle adapter from the deck wash nozzle.

CLEANING THE TRACTOR

WARNING If the tractor has been recently run, the engine, muffler, and surrounding metal surfaces will be very hot and can cause burns to the skin. Let the engine cool for at least five minutes. Exercise caution to avoid burns. Your tractor must be cleaned after each use and under certain conditions, i.e. dry conditions and/or mulching situations, additional cleaning may be necessary. One of the best ways to keep your tractor running efficiently and to reduce fire risk is to regularly remove debris buildup from the tractor. Follow the recommendations below and contact your authorized dealer with any questions.

• Allow the machine to cool for at least five minutes in an open area before cleaning. NOTE: Using a pressure washer or garden hose is not recommended for cleaning your tractor other than to clean the underside of the deck. It may cause damage to electrical components, spindles, pulleys, bearings or the engine. The use of water will result in shortened life and reduce serviceability.

• Keep both sides of transmission cooling slots, exhaust manifold, around fuses, all wiring and harnesses, muffler pipe, muffler shield, engine intake screens and cooling fins, etc. clear of grass clippings and leaves (Figure 31). Figure 31

• Clean the top of the mower deck, under the spindle covers and belt area (Figure 32). Figure 32

• Clean around and near the transmission, axle and the fan area (Figure 33). Wheel not Shown for Clarity Figure 33

• Debris can accumulate anywhere on the tractor, especially on horizontal surfaces. Additional cleaning may be necessary when mowing in dry conditions or when mulching.

• Fuel leaks/spills, oil leaks/spills and excess lubrication can also become collection sites for debris. Immediate repair and cleaning up oil or fuel spills can help reduce fire hazards.

• In addition to cleaning the tractor before operating and storing, do not attempt to mow unusually tall grass (10 inches (25.4 cm) or higher), dry grass (e.g., pasture) or piles of dry leaves. Dry grass or leaves may contact the engine exhaust and/or build up on the mower deck presenting a potential fire hazard.26 PRODUCT CARE

• Allow the machine to cool in an open area for at least five minutes before storing.

• Do not park the tractor near any flammable materials (wood, cloth or chemicals) or any open flames or other potential source of ignition (furnace, water heater or any other type of heater).

• Remove all combustible materials from the tractor before storing. Empty cargo boxes, grass catchers or containers.

• Always shut off fuel flow when storing or transporting if tractor is equipped with a fuel shutoff.

• Check the fuel system (lines, tank, cap and fittings) per the Maintenance Schedule for cracks or leaks. Repair and clean as necessary. MAINTENANCE Removing the Floor Panel (If equipped) WARNING Do not operate tractor with floor panel removed. On some models, the floor panel can be removed for maintenance, service and cleaning. To remove the floor panel:

1. Using the multi-tool (if equipped) or a 1/2 inch socket,

remove the hex screw that secures the floor panel in place (1 in Figure 34).

2. Carefully lift the rear of the floor panel (2 in Figure 34).

3. Slide the floor panel rearward to free the front of the floor

panel (3 in Figure 34).

4. Lift it off the tractor (4 in Figure 34).

5. To place the floor panel back on the tractor, carefully put

the floor panel back in place and re-install the hex screw removed in Step 1. Torque to 108-132 in-lbs (12-15 N-m). Engine WARNING Allow machine to cool in an open area for at least five minutes before storing or refueling. Refer to the Engine Operator’s Manual for all engine maintenance procedures and instructions. NOTE: Maintenance, repair or replacement of the emission control devices and systems which are being done at owner’s expense may be performed by any engine repair establishment or individual. Warranty repairs must be performed by an authorized dealer. Changing the Engine Oil WARNING If the tractor has been recently run, the engine, muffler, and surrounding metal surfaces will be very hot and can cause burns to the skin. Let the engine cool for at least five minutes. Exercise caution to avoid burns. NOTE: The oil filter should be changed at every oil change interval. To complete an oil change, proceed as follows:

1. Locate the oil drain hose (a) on the side of the engine

2. Place an appropriate oil collection container with at least a

2.5 quart (2.37 liter) capacity below the opening of the oil

drain hose, to collect the used oil. Remove the oil fill cap/ dipstick (b) from the oil fill tube (Figure 35).

3. While holding the free end of the oil drain hose over the oil

collection container, unscrew the square head hose plug (c) from the end of the oil drain hose (Figure 35). Drain the engine oil into the collection container.

4. After draining the oil, wipe any residual oil from the oil drain

hose. Thread the square head hose plug into the oil drain hose fitting and tighten the square head hose plug to 16 ft-lbs (22 N-m).

5. Remove the oil filter (d) and drain into the collection

container (Figure 35).27 PRODUCT CARE

6. Replace the oil filter (d) and refill the engine with new oil

as instructed in the Engine Operator’s Manual (Figure 35 on page 26). NOTE: Place an absorbent towel beneath the oil filter to keep oil off the clutch. NOTE: Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment. NOTE: Maintenance, repair or replacement of the emission control devices and systems which are being done at owner’s expense may be performed by any engine repair establishment or individual. Warranty repairs must be performed by an authorized dealer. Lubrication WARNING Before lubricating, repairing, or inspecting, always disengage PTO, set parking brake, stop engine, and remove key to prevent unintended starting.

• Using a quality lubricating oil, lubricate all lubrication points. Refer to the Maintenance Schedule chart located in this manual for proper service intervals. Spark Arrestor Maintenance (If equipped) Spark arrestor assemblies must be inspected and cleaned periodically (see the Maintenance Schedule chart in this manual). Visually inspect the screen for tears, broken wires or loose welds. Replace the spark arrestor assembly if any of these conditions exist. If the screen is in good condition, clean the screen by brushing away loose dirt or carbon particles. Tires Keep the tires inflated to the recommended pressures. Improper inflation will shorten the tire service life. See the tire side wall for proper inflation pressures. Refer to Maintenance Schedule chart located in this manual for proper service intervals. Observe the following guidelines:

• Do not inflate a tire above the maximum pressure shown on the sidewall of the tire.

• Do not reinflate a tire that has been run flat or seriously under inflated. Have it inspected and serviced by a qualified tire mechanic. Hydrostatic Transmission Your zero-turn tractor is equipped with two hydrostatic pumps/ transaxles. Under normal operating conditions, the oil level in the expansion reservoirs does not need to be checked and no additional oil is needed.

CHANGING THE TRANSMISSION OIL AND FILTER

(TUFF TORQ TRANSMISSION) Please see your authorized service dealer for transmission oil and filter changes. OFF-SEASON STORAGE If your tractor is not going to be operated for an extended period of time (30 days or more), the tractor should be prepared for storage. Store the tractor in a dry and protected location. If stored outside, cover the tractor (including the tires) to protect it from the elements. The procedures outlined below should be performed whenever the tractor is placed in storage.

1. Change the engine oil and filter following the instructions

provided in this manual as well as the Engine Operator’s Manual provided with this tractor. WARNING Never store the tractor with fuel in the tank indoors or in poorly ventilated enclosures, where fuel fumes may reach an open flame, spark, or pilot light as on a furnace, water heater, clothes dryer, etc.

2. If storing the tractor for 30 days or more:

a. To prevent gum deposits from forming inside the engine’s carburetor and causing possible malfunction of the engine, the fuel system must be either completely emptied or the gasoline must be treated with a stabilizer to prevent deterioration. b. Using a fuel stabilizer for storage between 30 and 90 days:

• Read the product manufacturer’s instructions and recommendations.

• Add to clean, fresh gasoline the correct amount of stabilizer for the capacity (approximately 3 gallons) of the fuel system.

• Fill the fuel tank with treated fuel and run the engine for 2-3 minutes to get stabilized fuel into the carburetor.

• Fuel left in the fuel tank deteriorates and will cause serious starting problems. c. Emptying the fuel system for storage of more than 90 days:

• Prior to putting the tractor in storage, monitor fuel consumption with the goal of running the fuel tank empty.

• Run the engine until it begins to stall. Use the choke to keep the engine running until all fuel in the carburetor has been exhausted.

• Referring to the Engine Operator’s Manual, drain the fuel from the carburetor bowl.28 PRODUCT CARE

3. Clean the engine and the entire tractor thoroughly.

NOTE: Using a pressure washer or garden hose is not recommended for cleaning your tractor other than to clean the underside of the deck. It may cause damage to electrical components, spindles, pulleys, bearings or the engine. The use of water will result in shortened life and reduce serviceability.

4. Fully charge the battery, then disconnect the negative cable

at the battery to prevent possible discharge. Recharge the battery periodically when in storage. NOTE: Remove the battery if exposed to prolonged periods of sub-freezing temperatures. Store in a cool, dry location where temperatures are above freezing.

5. Lubricate all lubrication points.

REMOVING THE TRACTOR FROM STORAGE

1. Check the engine oil.

2. Fully charge the battery and inflate the tires to the

recommended pressure. See tire side wall for proper tire inflation pressure.

3. Fill the fuel tank with clean, fresh gasoline.

4. Start the engine and allow to idle for a few minutes to ensure

engine is operating properly.

5. Drive the tractor without a load to make certain all the tractor

systems are functioning properly. ADJUSTMENTS Adjusting Deck Lift Pedal

1. Set the deck to the transport position.

2. Remove the hex bolt, washer and hex nut near the center of

the pedal assembly (Figure 36). Figure 36

3. Position the pedal to the optimal position based on operator

preference (Figure 37). Figure 37

4. Re-install the hardware previously removed and torque the

nut to 28-35 ft-lbs (38-47 N-m) (Figure 36). Deck Leveling If the cutting deck appears to be mowing unevenly, leveling adjustments can be performed. WARNING If the tractor has been recently run, the engine, muffler, and surrounding metal surfaces will be very hot and can cause burns to the skin. Let the engine cool for at least five minutes. Exercise caution to avoid burns. WARNING Tractor blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them. LEVELING THE DECK (SIDE-TO-SIDE)

1. Place the deck lift handle, knob or pin in a middle mowing

position and rotate both outside blades so that they are perpendicular with the tractor.

2. Measure the distance from the outside of the left blade tip

to the ground and the distance from the outside of the right blade tip to the ground. Both measurements taken should be equal. If they are not, proceed to the next step.

3. Locate the adjustment bolts (a) on the left and right side of

the deck (Figure 38).

4. Loosen, but do not remove, the jam nuts (b) on the

adjustment bolt. Adjust either the right or left adjustment bolt up or down as necessary until the side-to-side heights are equal (Figure 38).

Figure 3829 PRODUCT CARE NOTE: Continue to check the front-to-back leveling as you make the side-to-side adjustment as the side-to-side adjustment can affect the front-to-back level. If necessary, adjust front-to-back as instructed in the next section.

5. When proper adjustment is achieved, re-tighten the jam nuts

(b). Tighten to 200 in-lbs (23 N-m) (Figure 38 on page 28). LEVELING THE DECK (PITCH/FRONT-TO-REAR) The front of the deck should be between 1⁄16-1⁄4 inch (2-6 mm) lower than the rear of the deck. Adjust if necessary as follows:

1. Park the tractor on a firm, level surface and place the deck lift

handle, knob or pin in a middle position.

2. Rotate the blade nearest the discharge chute so that it is

parallel with the tractor.

3. Measure the distance from the front of the blade tip to the

ground and the rear of the blade tip to the ground. The first measurement taken should be between 1⁄16-1⁄4 inch (2-6 mm) less than the second measurement.

4. Determine the approximate distance necessary for proper

adjustment and proceed, if necessary.

5. To raise the front of the deck, remove the end cap, loosen the

outer jam nut (a) then tighten (thread inward) the inner nut (b) against the front hanger bracket (Figure 39). When proper adjustment is achieved, re-tighten the outer jam nut (a) to 57 ft-lbs (77 N-m) and replace the end cap.

6. To lower the front of the deck, remove the end cap, loosen

the outer jam nut (a) then loosen (thread outward) the inner nut (b), away from the front hanger bracket (Figure 39). When proper adjustment is achieved, re-tighten the outer jam nut (a) to 57 ft-lbs (77 N-m) and replace the end cap. Adjusting the Deck Wheels WARNING Keep hands and feet away from the discharge opening of the cutting deck. NOTE: The deck wheels are an anti-scalp feature of the deck and are not designed to support the weight of the cutting deck. The deck wheels should be approximately 1⁄4-1⁄2 inch (6.35-12.7 mm) above the ground when the deck is set in the desired height setting. To adjust the deck wheels, see the Set-Up section for instructions. Lapbar Drive Control Lever Stop Adjustment When the lapbar drive control levers are both fully extended forward to the full-speed position and the tractor drifts left or right, the lapbar drive control lever stop adjustment can be adjusted to sync the wheel speeds. To perform the adjustment, proceed as follows:

1. Identify the side that the tractor is drifting to and adjust the

opposite lapbar drive control lever. If the tractor drifts right, adjust the left lapbar drive control lever down (decrease speed) and vice versa.

2. Locate the lapbar drive control lever stop adjustment bolts (a)

on the front of the seat frame (Figure 40). NOTE: The multi-tool (if equipped) can be used to make this adjustment.

3. To decrease the forward speed, turn the lapbar drive control

lever stop adjustment bolts (a) clockwise. To increase the forward speed, turn the lapbar drive control lever stop adjustment bolts (a) counter-clockwise. Turn the lapbar drive control lever stop adjustment bolts (a) in the necessary direction 1⁄4-turn at a time. After turning the lapbar drive control lever stop adjustment bolts (a), check the adjustment by driving the tractor (Figure 40).30 PRODUCT CARE

4. Continue the adjustment until the wheel speeds are in sync

and the tractor drives straight with the drive control levers fully extended forward in the full-speed position. NOTE: Make sure the bolts extend through the nuts on the frame to engage the locking feature. SERVICE Electrical System A fuse is installed to protect the tractor’s electrical system from damage caused by excessive amperage. Always use the same capacity fuse for replacement. If the electrical system does not function, check for a blown fuse. If you have a recurring problem with blown fuses, have the tractor’s electrical system checked by your authorized service dealer. Relays and Switches There are several safety switches in the electrical system. If a function of the safety interlock system described earlier is not functioning properly, have the electrical system checked by your authorized service dealer. Parking Brake Adjustment If the tractor does not come to a complete stop when the control levers are moved fully outward engaging the parking brake or if the tractor’s rear wheels can roll with the parking brake engaged (and the hydrostatic relief valve open), the brake is in need of adjustment. See your authorized service dealer to have the brake adjusted. Deck Removal Remove the tractor deck from the tractor as follows:

1. Move the tractor to a level surface, disengage the PTO, stop

the engine and place the RH and LH drive control levers fully outward into the park brake engaged position.

2. There are two methods for removing the belt, to remove the

belt by releasing belt tension go on to Step 3, to remove the belt by rolling the belt off the PTO pulley skip ahead to Step 4. WARNING Use caution to avoid pinching your fingers when rolling the belt off the PTO pulley.

3. Releasing belt tension with the idler pulley:

a. Using the deck lift handle, the deck lift pedal and knob or the deck lift pedal and pin, raise the deck to the position that provides the most horizontal run of the belt between the deck idler pulleys and the PTO pulley on the bottom of the engine (Figure 41). b. Working from the middle of the tractor, pivot the idler bracket (a) and movable idler pulley (b) rearward just far enough to lift the belt up and over the spindle pulley (Figure 41).

46/50/54/60 Inch Decks42 Inch Decks Figure 41 c. From beneath the rear of the tractor, slide the belt off of the PTO pulley on the bottom of the engine. d. Lower the deck into the lowest mowing position. e. Skip ahead to Step 5.

4. Rolling the belt off the PTO pulley:

a. Raise the deck to the highest position. b. Sitting behind the tractor facing forward, reach beneath the tractor to grasp the belt at the front of the PTO pulley. c. Pull the left side of the belt rearward and downward while manually turning the PTO pulley to the right until the belt rides out onto the edge of the lower sheave of the pulley. NOTE: If pulling the right side of the belt, turn the pulley left. d. While still holding the PTO belt (a) downward, continue turning the PTO pulley (b) until the PTO belt (a) is rolled off the PTO pulley (b) (Figure 42).

Figure 42 e. Lower the deck into the lowest mowing position. f. Move on to Step 5. WARNING The deck lift on tractors with the deck lift knob or pin is spring-assisted and under tension. Injury can occur if spring-assisted deck lift is released suddenly. Always use the multi-tool to secure the deck lift in place.31 PRODUCT CARE

5. On tractors equipped with the deck lift knob or pin, use the

deck lift pedal and deck lift knob or pin to place the deck in the lowest position and use the multi-tool (a) (if equipped) to lock the deck lift components in place as shown in Figure

43. On tractors with a deck lift handle, lower the deck into the

Figure 43 a. Remove the two bow-tie pins (a) from the clevis pins (b) that secure the lift link brackets (c) to the rear deck lift brackets (d) on the deck. Remove the clevis pins (b) (Figure 44).

Figure 44 b. Remove the third bow-tie pin (a) from the clevis pin (b) that secures the front deck control rod (c) to the front deck lift bracket (d). Remove the clevis pin (b) (Figure 45).

Figure 45 c. Carefully maneuver the deck out from beneath the tractor. Deck Installation Install the deck on the tractor as follows:

1. Carefully maneuver the deck under the tractor from the right

side, lining up the deck hanger brackets and the deck lift arms on deck lift rod/deck release pin tractors and align the lift link brackets and front deck control rod with the deck lift brackets on three-pin tractors.

2. Once the deck is under the tractor, move the deck to the

lowest mowing position. NOTE: To line the brackets up properly, it may be necessary to place a small block of wood under each side of the deck.

3. Re-install the applicable hardware for your tractor.

4. Make certain the ‘V’ belt is in the spindle pulleys on the deck;

then route the belt rearward beneath the tractor frame, above the transmission tube(s) (Hydro-Gear transmission) or cross-brace (Tuff Torq transmission), to the PTO pulley on the bottom of the engine.

5. Raise the deck to the highest position.

6. Make certain the belt is in the spindle pulleys of the deck and

that the backside of the belt is against both the fixed and movable idler pulleys.

7. Sitting behind the tractor, facing forward, make certain the

belt is not twisted; then reach beneath the tractor to grasp the belt and pull it toward the PTO pulley. WARNING Use caution to avoid pinching your fingers when rolling the belt off the PTO pulley.

8. Pull the right side of the PTO belt rearward and place the

narrow V-side of the PTO belt into the PTO pulley (Figure 42 on page 30).

9. While holding the PTO belt and PTO pulley together, rotate

the PTO pulley to the left (Figure 42 on page 30). Continue holding and rotating the PTO pulley and PTO belt until the PTO belt is fully rolled into the PTO pulley. NOTE: Before using the tractor double-check the belt routing to make sure that the belt has been routed properly.32 PRODUCT CARE Replacing the Belt

1. Remove the deck from beneath the tractor (refer to

2. Loosen, but do not remove the hardware on the right (a)

and left idler pulley (b). Refer to Page 32 for 42 inch decks (Figure 46), 46 inch decks (Figure 47), 50 and 54 inch decks (Figure 48) and 60 inch decks (Figure 49). NOTE: Take note of the position of the belt guards (c) to ensure they are properly re-installed. NOTE: On some decks it may be necessary to remove the spindle covers to remove and/or install the new belt. To remove the spindle covers, remove the screws securing them to the deck.

3. Carefully remove the belt from around the idler pulleys (a and

b) and the spindle pulleys (d).

4. Install the new belt as shown and re-install the belt covers.

5. Place the belt around the idler pulleys removed in Step 3 with

the ‘V’ side facing in. Once in place, re-install all the hardware and tighten the flange lock nut to secure the assembly.

6. Route the belt as shown and then re-install the deck (refer to

WARNING Before performing any maintenance, disengage the PTO and move the lapbar drive control levers fully outward into the park brake engaged position. If leaving the tractor unattended, turn the ignition key to the STOP position and remove key. Protect your hands by using heavy gloves when handling the blades. When servicing the tractor deck, be careful not to cut yourself on the sharpened blades. The cutting blades must be kept sharp at all times. Sharpen the cutting edges of the blades evenly so that the blades remain balanced and the same angle of sharpness is maintained. If the cutting edge of a blade has already been sharpened many times or if any metal separation is present, it is recommended that new blades be installed. New blades are available at your authorized dealer. Star-Blade System (If equipped) The blades may be removed as follows:

1. Remove the deck from beneath the tractor (refer to

Deck Removal) then gently flip the deck over to expose its underside.

2. Place a block of wood (c) between the deck housing and the

cutting edge of the blade (b) to help in breaking loose the hex nut (a) securing the blade (b). Use a 15/16 inch wrench to loosen the hex nut (a) (Figure 50).

3. When re-installing the blades, be sure they are installed so

that the wings are pointing upward toward the top of the deck.

4. Tighten the hex nuts (a) to 70-90 ft-lbs (95-122 N-m).

5. Re-install the deck (refer to Deck Installation).

S-Blade System (If equipped) The blades may be removed as follows:

1. Remove the deck from beneath the tractor (refer to

Deck Removal) then gently flip the deck over to expose its underside.

2. Place a block of wood (c) between the deck housing and the

3. When re-installing blades, be sure of the following

(Figure 51): a. Blades (b) are installed so that wings are pointing upward toward the top of the deck. b. Washer (d)* is placed between bottom of blade (b) and hex nut (a). IMPORTANT! Align “S” shaped cutout with matching “S” shape on spindle for secure fit.

4. Tighten hex nuts (a) to 70-90 ft-lbs (95-122 N-m).

5. Re-install the deck (refer to Deck Installation).

CHANGING THE TRANSMISSION DRIVE BELT

Several components must be removed and special tools used in order to change the tractor’s transmission drive belt. See your authorized service dealer to have the transmission drive belt replaced. TRACTOR CREEPING Creeping is the slight forward or backward movement of the tractor when the throttle is on and the speed control levers are in the neutral position. If your tractor creeps, see an authorized service dealer.34 PRODUCT CARE TROUBLESHOOTING WARNING Before performing any type of maintenance/service, disengage all controls and stop the engine. Wait until all moving parts have come to a complete stop. Disconnect the spark plug wire(s) and negative battery cable to prevent unintended starting. Always wear safety glasses during operation or while performing any adjustments or repairs. This section addresses minor service issues. To locate the nearest authorized service center consult the separate supplement sheet for contact information. Problem Cause Remedy Engine fails to start 1. PTO/Blade Engage knob engaged.

2. Parking brake not engaged.

3. Spark plug wire disconnected.

4. Throttle control lever not in correct

6. Blocked fuel line or fuel filter.

1. Place knob in disengaged (OFF) position.

2. Engage parking brake.

3. Connect wire to spark plug.

4. Place throttle lever to FAST position.

5. Fill tank with clean, fresh (less than 30 days

6. Replace fuel line. See a qualified service dealer.

Replace fuel filter.

7. Clean, adjust gap or replace plug.

8. Crank engine with throttle in FAST position.

Engine runs erratically 1. Tractor running with choke activated.

2. Spark plug wire loose.

3. Blocked fuel line or stale fuel.

4. Vent in gas cap plugged.

5. Water or dirt in fuel system.

6. Dirty air cleaner.

1. Check that the electric choke is working. See a

qualified service dealer.

2. Connect and tighten spark plug wire.

3. Replace fuel line. See a qualified service dealer.

Fill tank with clean, fresh gasoline and replace fuel filter.

4. Clear vent or replace cap if damaged.

5. Drain fuel tank. Refill with clean,

clean foam pre-cleaner. Engine overheats 1. Engine oil level low.

2. Air flow restricted.

1. Fill engine with proper amount and type of oil.

2. Clean grass clippings and debris from around

the engine’s cooling fins and blower housing. Engine hesitates at high RPMs

1. Spark plug gap set too close. 1. Remove spark plug and adjust gap.

clean pre-cleaner. Excessive vibration 1. Cutting blades loose or unbalanced.

Uneven cut 1. Deck not leveled properly.

1. Perform side-to-side deck adjustment.
