USER MANUAL ORCH111 Orima

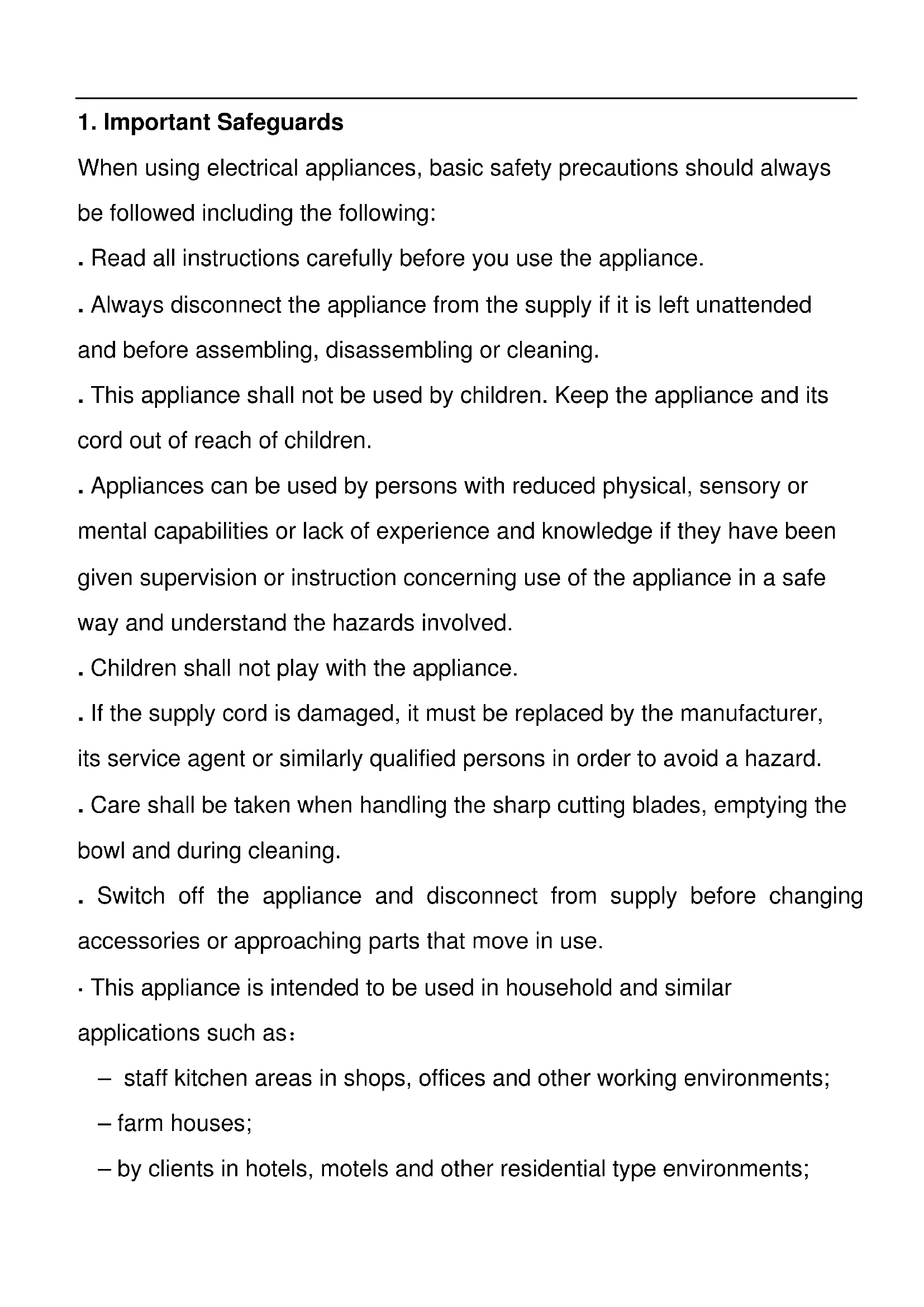

PLEASE READ AND SAVE THESE INSTRCTIONS TO ENSUSE THE SAFE USE OF THIS APPLIANCE.1. Important Safeguards When using electrical appliances, basic safety precautions should always be followed including the following: . Read all instructions carefully before you use the appliance. . Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning. . This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. . Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. . Children shall not play with the appliance. . If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. . Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning. . Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

• This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices and other working environments; – farm houses; – by clients in hotels, motels and other residential type environments;– bed and breakfast type environments. . Make sure your electricity supply is the same as the one shown on the appliance before plugging in. . Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment. . Never put the main body with the motor unit in water or other liquid or let the cord or plug get wet, you could get an electric shock. . Do not operate the appliance with wet hands. Make hands dry with cloth before plugging in. . Take special care when preparing food for babies, the elderly and infirm. . Always ensure that the chopper is thoroughly sterilized. . Never chop hot oil, fat. Please follow the processing guide. . Do not let the cord hang over edge of the table or counter. . Never let anybody trip over the power cord and attached cable. Don’t let the cord touch hot surfaces or hang down where a child could grab it. . Unplug from outlet when it is not in use, before moving the appliance or adding the food. . Do not use outdoors. . Blades are sharp. Handle carefully. . Never add ingredients to the chopper bowl while the machine is operating.

• The capacity of the ingredient does not exceed the maximum graduationof the chopper bowl.

• Do not continuously operate the blender too long. The motor may overheat. If the surface of the appliance has been very hot, it may need time to cool down. After reducing to the room temperature, the appliance can be operated again.

• The continuous operating time with the load must be less than 30 seconds when using the chopper, 120 seconds for the Emulsifying disc, furthermore, do not use the appliance to chop too hard ingredients.

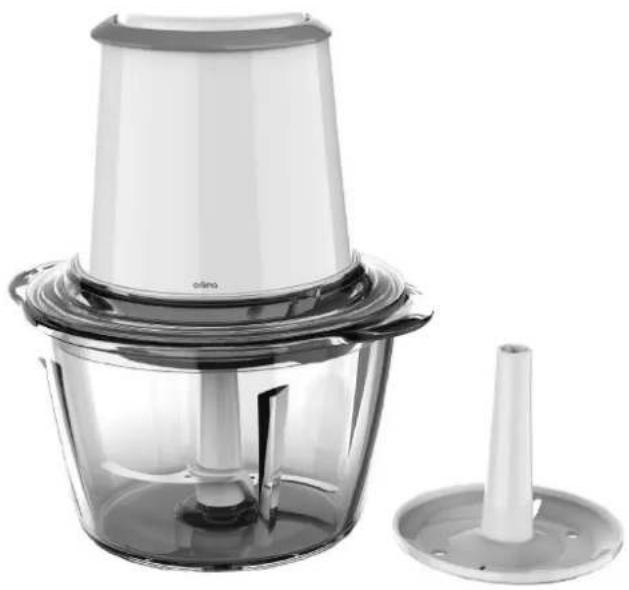

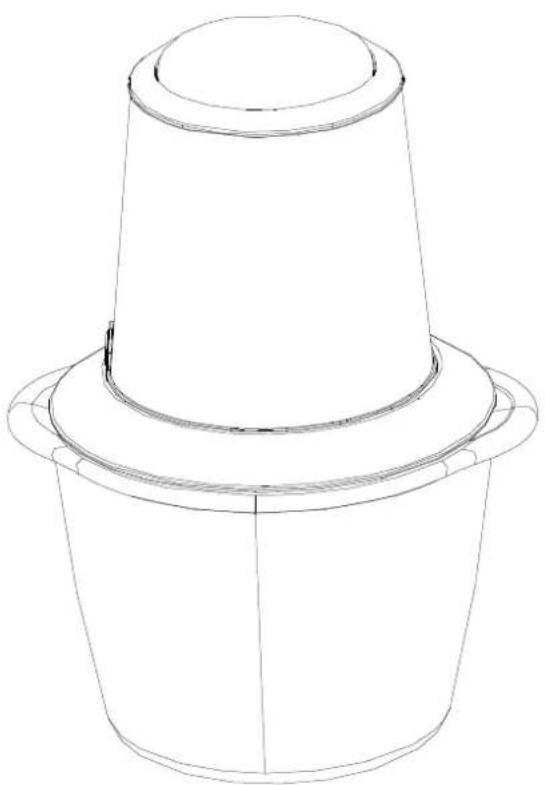

• Do not exceed the quantities and maximum time indicated in the operation guidelines or processing guide. . Take the blade unit off before cleaning. . Avoid contacting moving parts. . Keep fingers, hair, clothing and utensils away from moving parts. .This appliance must not be use against prescription.2. Description of Parts 1). metal cover 2). Decorative Ring 3). Main body (with motor unit) 4). Bottom 5). Power cord 6). Transparent lid 7). Sealing ring 8). Blade unit 9). Blade protective cover 10).Chopper bowl 11). Emulsifying disc

1Before using for the first time . Remove all packaging and take away the blade protective cover.

3. Operation Guidelines

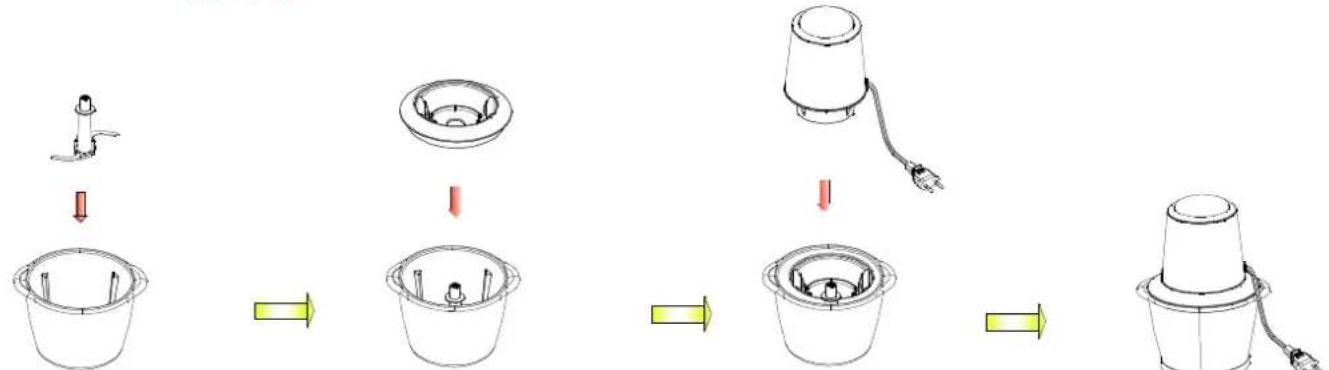

Caution: Blades are sharp. Handle carefully. To use the chopper . Remove the protective cover from the blade of the chopper. . Clean the transparent lid, blade unit and bowl of the chopper. . Fix the blade unit in the chopper bowl (Step 1). . Fill the food to the bowl (not more than the maximum indicated level). . Place the transparent lid onto the chopper bowl (Step 2). Fit the main body onto the transparent lid of the chopper (Step 3). Step 1 Step 2 Step 3 . Check if the power cord is not damaged and the main body is in place. . Make sure your electricity supply is the same as the one shown on the appliance. . Plug in, press the top cover downwards with one hand, slightly hold the handle of chopper bowl with the other hand while operating, the appliance starts running. . After you have completed chopping, Release the top cover, then unplug from outlet. . Warning: The continuous operating time must be less than 30 seconds. . If your chopper gets blocked, first stop and unplug before clearing. . After use, unplug and dismantle the main body and the transparent lid in sequence (Step4-5), take the blade unit out of the bowl by holding the plastic shaft (Step 3), then pour out the food. Step 4 Step 5 Step 6. The edges of the blade is very sharp, do not touch them. . Always switch off and unplug before cleaning. Please refer to the instruction in the “care and cleaning”. To use the emulsifying disc of food processor . Clean the transparent lid, emulsifying disc and bowl of the chopper. . Place the emulsifying disc into the food bowl. . Fill the food to the bowl (not more than the specified quantity.). . Place the transparent lid onto the chopper bowl. Fit the main body onto the transparent lid of the chopper. . Check if the power cord is not damaged and the main body is in place. . Make sure your electricity supply is the same as the one shown on the appliance. . Plug in, press the top cover downwards with one hand, slightly hold the handle of chopper bowl with the other hand while operating, the appliance starts running. . After you have completed emulsifying, Release the top cover, then unplug from outlet. . Warning: The continuous operating time must be less than 120 seconds. . If your chopper gets blocked, first stop and unplug before clearing. . After use, unplug and dismantle the main body and the transparent lid in sequence, take the emulsifying disc out of the bowl, then pour out the food. . Always switch off and unplug before cleaning. Please refer to the instruction in the “care and cleaning”.

The chopper Food Max. time Max. Quantity beef pieces (size 20mm x 20mm x20mm), almonds.. 30 seconds 300g egg white or other liquids. 120 seconds 150g

6. Care and cleaning

. Always switch off and unplug before cleaning. . Take the main body and the transparent lid off. Caution: Take care when cleaning the blades as they are extremely sharp. Note: Do not clean the main body of the chopper in the dishwasher.The chopper . The main body can only be wiped with a damp cloth, then dry. . Never immerse in water or other liquid or use abrasives. . The transparent lid, chopper bowl, emulsifying disc and the blade unit can be washed in water with cleaning agent. . Unplug, let it cool down. . Wash and rinse thoroughly with water, then dry. . Reattach the protective cover to the blade. Storage . Store in a cool, dry and ventilating place.

1. Any other servicing should be performed by an authorized service representative.

2. Do let the appliance rest at least 2 minutes between 2 running cycles! After operating 3 cycles

continuously, the appliance needs to cool down to the room temperature to restart.

3. Never misuse this appliance. Care is needed when handling cutting blades, especially when

removing the blade unit from the bowl and during cleaning.

4. Always reattach the protective cover to the blades after cleaning.

Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.Manual Instrucciones Picadora Orima Modelo: ORCH 111 220-240V 50/60Hz 350W
