USER MANUAL WS 7049 TECHNOLINE

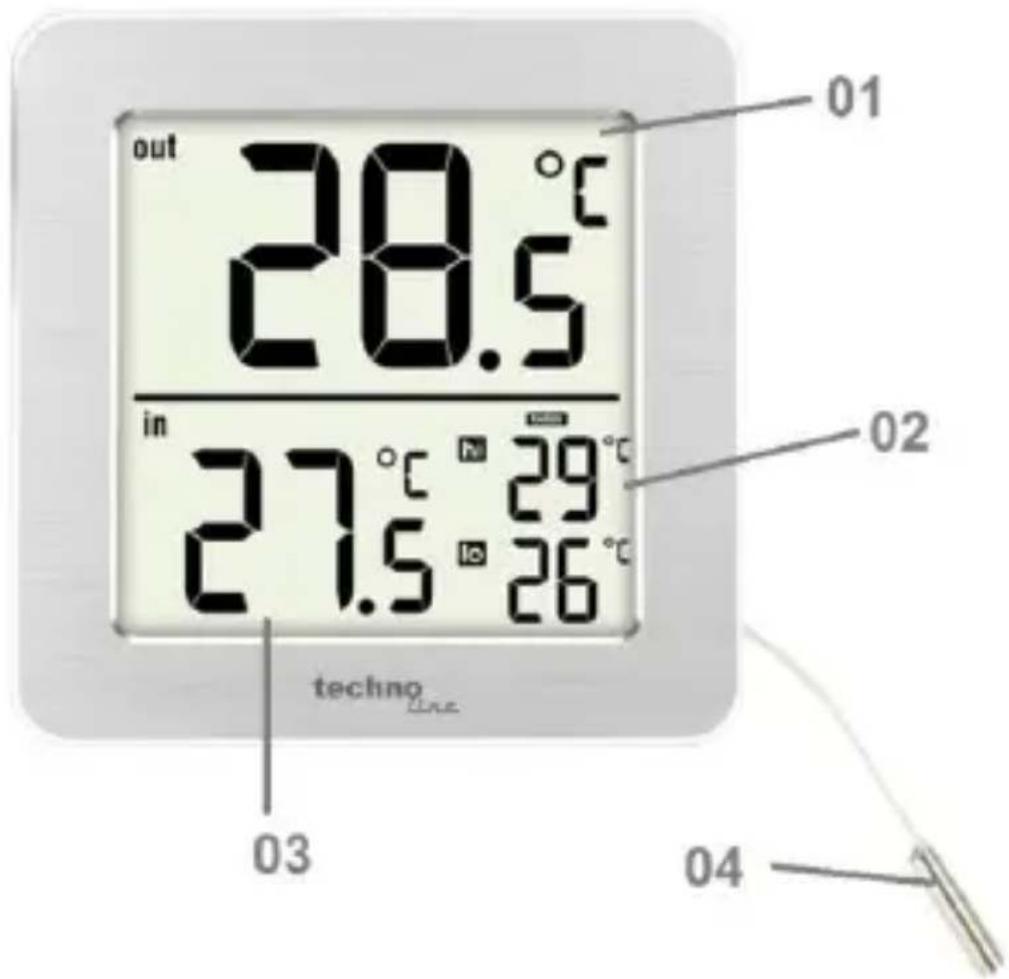

01 - Outdoor temperature
02- Hi/Lo temperature / time
03 - Indoor temperature
04 - Outdoor temperature probe
EN1
Functions:
Quartz clock with manual time setting.
Temperature alternatively in ^ C or ^
12/24 hour time display.
Thermometer: Indoor measurement ranges: 0^ (32^) +50^ (122^) Outdoor measurement ranges: -40^ (-40^) +70^ (158^)
Display Low/Hi In/Outdoor Temperature
Battery: 1 x CR2032 (not Included).
Initial operation:
- Open the battery compartment on the rear side of the product and insert a CR2032 battery (included). Pay attention to observe the correct polarity. Close the battery compartment again.
EN2
- When you insert the battery, all the icon on the LCD display will briefly light up for 3 seconds.
Manual time setting:
- Press and hold "SET" for about 3 seconds and hour is flashing. Press the "UP" or "DOWN" button to set the correct hour.
- Press "SET" again to confirm your setting and the Minute is flashing. Now use "UP" or "DOWN" buttons to set the correct minute.
- Press "SET" again to confirm and end your setting and to enter the clock mode.
In time mode, press "DOWN" button to set the 12/24 hour time display.
Notes:
After 30 seconds without pressing any button, the clock switches automatically from Set Mode to Normal Time Mode.
In 12 hour time display mode, the symbol “PM” is displayed for afternoon hours.
^ / ^ temperature display:
The temperature is displayed either in ^ C or ^ F . Press the "SET" button to switch between the ^ C or ^ F .
Hi/Lo temperature mode:
In time display mode, press the "UP" button for about 3 seconds to switch to Hi /Lo temperature mode.
In Hi/Lo temperature mode, press the "UP" button for about 3 seconds to switch to the time display mode.
Notes:
The value displayed under Hi is the maximum value measured by the unit since the last initial operation or reset by removing batteries. Lo is the
EN4
minimum value measured during the same time.
Press and hold the "DOWN" button while in Hi /Lo temperature mode to reset Hi/Lo memory.
IN/OUT temperature display:
The indoor temperature or outdoor temperature is displayed on the LCD.
Press the "UP" button allows you to switch between the individual models:
outdoor above and indoor below / outdoor below and indoor above
Precautions
- Do not subject the unit to excessive force or shock.
- Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
- Do not immerse in water.
- Avoid contact with any corrosive materials.
EN5
- Do not dispose this unit in a fire as it may explode.
- Do not open the inner back case or tamper with any components of this unit.
Batteries safety warnings
- Use only alkaline batteries, not rechargeable batteries.
Install batteries correctly by matching the polarities (+ / - ) - Always replace a complete set of batteries.
- Never mix used and new batteries.
- Remove exhausted batteries immediately.
- Remove batteries when not in use.
- Do not recharge and do not dispose of batteries in fire as the batteries may explode.
- Ensure batteries are stored away from metal objects as contact may cause a short circuit.
- Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
- Keep all batteries out of reach from children. They are a choking
EN6
hazard.
Use the product only for its intended purpose!
Consideration of duty according to the battery law
Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your
dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!
Consideration of duty according to the law of electrical devices
This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre.
This applies to all countries of the European Union, and to other EN7
European countries with a separate waste collection system.
