EB122158 - Egg cooker Emerio - Free user manual and instructions

USER MANUAL EB122158 Emerio

6. Plaque chauffante

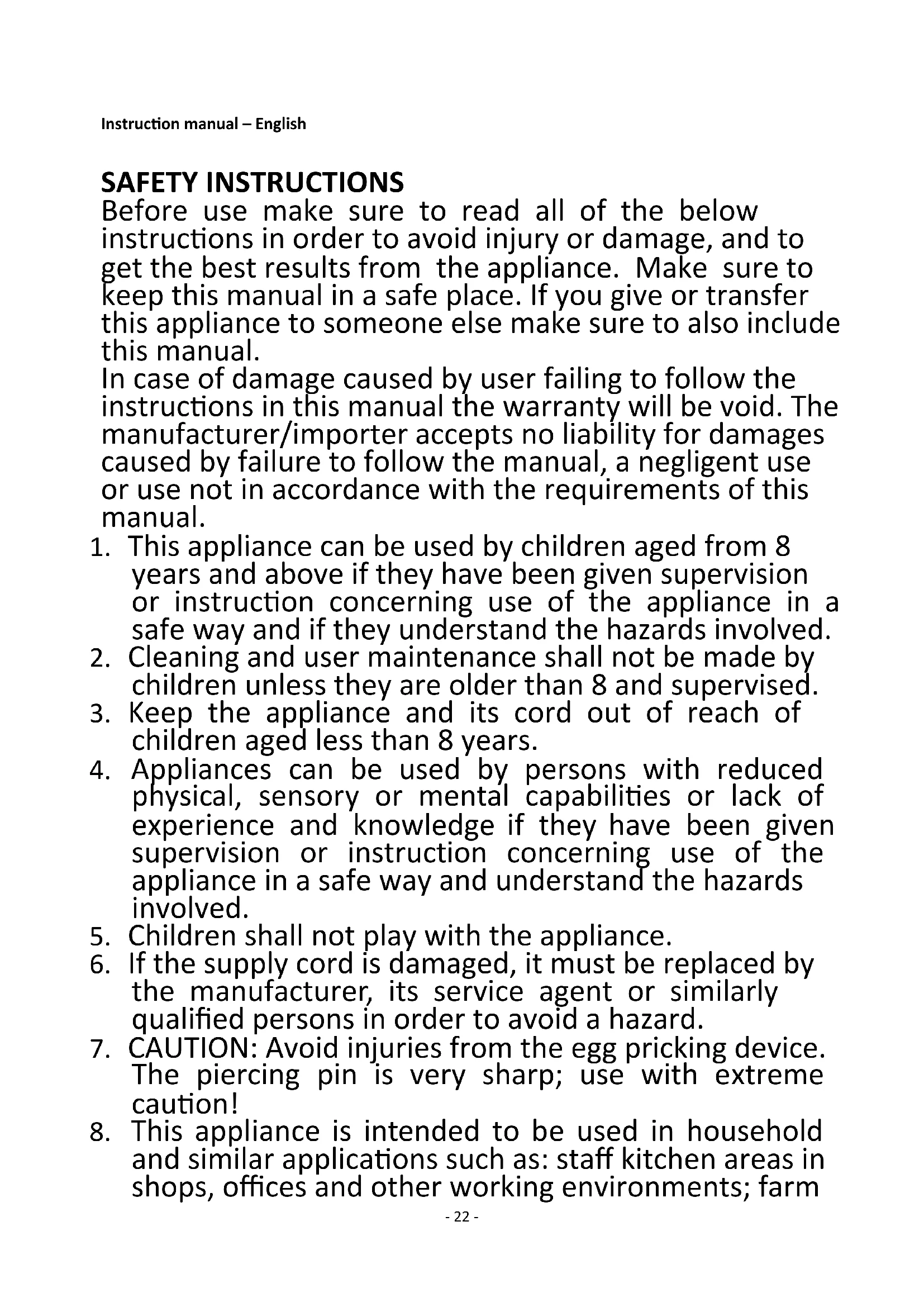

1. This appliance can be used by children aged from 8

years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

2. Cleaning and user maintenance shall not be made by

children unless they are older than 8 and supervised.

3. Keep the appliance and its cord out of reach of

children aged less than 8 years.

4. Appliances can be used by persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

5. Children shall not play with the appliance.

6. If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

7. CAUTION: Avoid injuries from the egg pricking device.

The piercing pin is very sharp; use with extreme caution!

8. This appliance is intended to be used in household

and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm- 23 - houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.

9. Warning: Potential risk of injuries from misuse.

10. The heating element surface is subject to residual

11. Before inserting the plug into the mains socket, please

check that the voltage and frequency comply with the specifications on the rating label.

12. Disconnect the mains plug from the socket when the

appliance is not in use and before cleaning.

13. Ensure that the mains cable is not hung over sharp

edges and keep it away from hot objects and open flames.

14. Do not immerse the appliance or the mains plug in

water or other liquids. There is danger to life due to electric shock!

15. To remove the plug from the plug socket, pull the plug.

Do not pull the power cord.

16. Do not touch the appliance if it falls into water.

Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

17. Do not plug or unplug the appliance from the

electrical outlet with a wet hand.

18. Never attempt to open the housing of the appliance,

or to repair the appliance yourself. This could cause electric shock.

19. Never leave the appliance unattended during use.

20. This appliance is not designed for commercial use. It

is for household use only. Do not use outdoors.

21. Do not use the appliance for other than intended use.

22. Do not wind the cord around the appliance and do not

23. Regarding the instructions for cleaning, please refer

to the below paragraph of the manual.

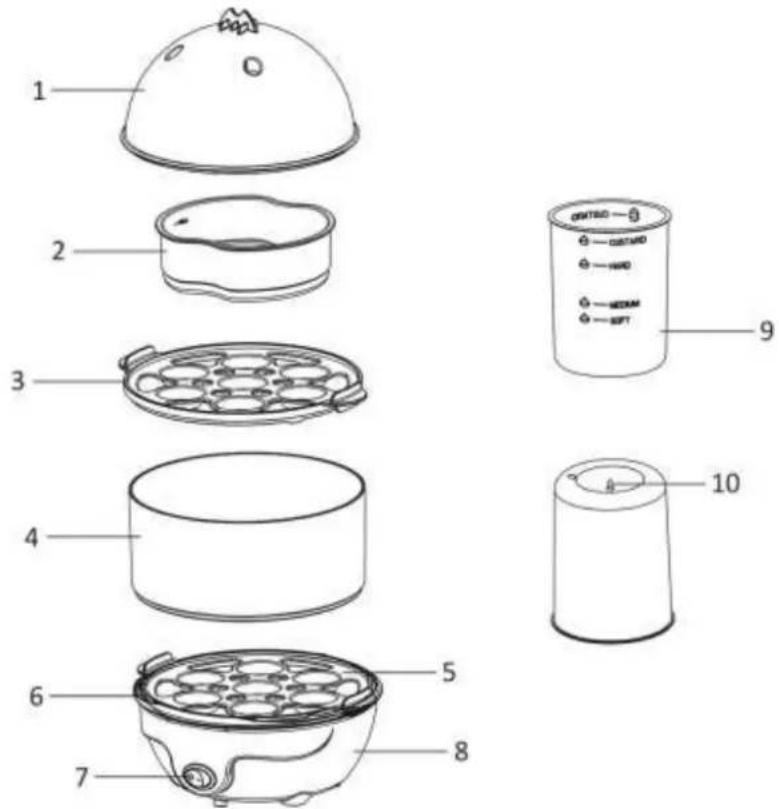

7. On/off switch and indicator light

10. Egg piercer (on the bottom of the measuring cup)

BEFORE THE FIRST USE

Please clean the appliance completely. Put the attachments such as the cover, egg trays, measuring cup, etc. into the water (adding the proper cleanser) and clean them. Fill the appliance with a measuring cup of water, assemble all parts and begin to operate without eggs. When the water is boiling, discard the water. Extreme caution must be used when moving an appliance containing hot liquids. Never immerse the base in the water for cleaning. Wipe the appearance of the base and the heating plate with a mild and damp cloth or cleaner, never use a poisonous cleaner. Measuring cup: There are two sides of the marks on the measuring cup. One side of the marks is for using one layer of the egg tray, marked with “SOFT”, “MEDIUM”, “HARD” and “CUSTARD”; the other side of the marks is for using two layers of the egg trays, marked with “MEDIUM”, “HARD” and “CUSTARD”. Chose the correct side for reference when using the measuring cup.- 25 -

HOW TO USE YOUR EGG BOILER

1. Fill the heating plate with the required amount of cold water, using the measuring cup. The graduations on

the measuring cup correspond to the amount of water required to obtain 1 to 14 soft, medium or hard- boiled eggs. Choose “SOFT”, “MEDIUM” or “HARD” for reference. For example: If you want to boil some eggs and the eggs must be tender, please fill the measuring cup with water to the mark “SOFT”.

2. Place the egg tray above the heating plate.

3. Use the egg piercer to prick a small aperture into the big end of each egg. The piercing pin is very sharp, use

with extreme caution. This prevents the eggshells bursting during boiling.

4. Put the eggs onto the egg tray by the small end facing downwards. Close the cover.

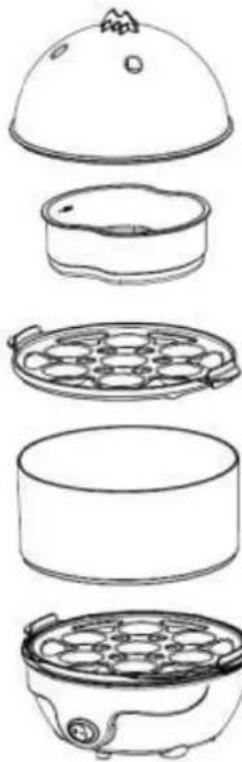

Note: Each egg tray can hold up to 7 eggs. If you only need to boil 7 eggs, the use of the bottom egg tray will be enough. Remove the upper egg tray and the egg tray separator during boiling. (See reference pic. A) If you need to boil more than 7 eggs, use the egg tray separator to assemble two layers of the egg trays. (See reference pic. B) A B

5. Plug in the appliance and press the on/off switch to position “I”. The indicator light will be illuminated.

6. A buzzer sounds when the eggs are ready.

7. Press the on/off switch to position “O” and unplug the appliance.

8. Put the boiled eggs into the cool water rapidly so that peeled easily; egg is at its peak flavor immediately

Warning: After eggs are finished cooking, please switch off and plug off the appliance. Otherwise, the thermostat

inside the appliance will be reset automatically when the appliance is cooled down. The appliance will continue to heat with energy waste and safety risk. Steaming egg custard

1. Break two eggs into the custard bowl, add 1~2g salt and other ingredient and some oil. Mix smoothly.

2. Add the water into the mixture up to the level “Max” indicated on the inside of the custard bowl. Mix

3. Fill the measuring cup with water to the mark “CUSTARD” and then pour the water into the heating plate.

4. Place the egg tray over the heating plate. Put the custard bowl on the egg tray, making sure the position is

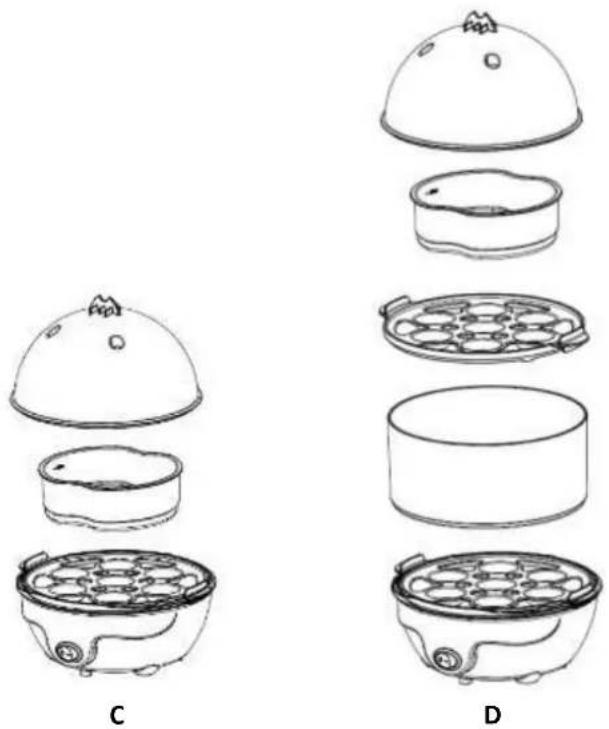

balanced. Put on the cover. (See reference pic. C)

5. Plug in the appliance and turn on the switch.

6. A buzzer sounds when the eggs are finished.

7. Turn off the switch. Wait for 30 seconds.

8. Take out the custard bowl and serve.

Note: If you want to boil the eggs and steam the egg custard at the same time, please put the eggs to be boiled on the bottom layer of the egg tray and put the custard bowl on the upper layer of the egg tray. (See reference pic. D) Additionally, take reference of the mark “CUSTARD” when using the measuring cup to fill the heating plate with water.- 26 - C D CLEANING INSTRUCTIONS Always unplug the appliance and allow cooling before cleaning. Wash the attachments in hot soapy water, rinse and dry completely. However, the heating plate which is fixed to the bottom of the appliance can only be cleaned with a moistened towel. Do not clean any part with abrasive cleaners, metal scouring pads or scouring powder. Do not immerse the appliance in water! When excessive scales are deposited on the heating plate, normal household vinegar can be used to remove the scales. Dilute the vinegar with water (add 1 part vinegar to 10 parts of water). Pour the solution onto the heating plate. Allow soaking for about 30 minutes. Then pour away the liquid. Wipe the heating plate clean with a moistened towel. SAFETY MEASURES The appliance should not be used when:

1. The cable is damaged.

2. The appliance can be visually seen damaged.

3. The appliance has been dropped onto the floor, even if visible damage is not seen.

Do not use the appliance except as stated in this manual. TECHNICAL DATA Operating voltage : 220-240V ~ 50-60Hz Power consumption: 350W

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.- 27 - Emerio Deutschland GmbH Lerchenweg 3 40789 Monheim am Rhein Deutschland Customer service: T: +49 (0) 3222 1097 600 E: info.de@emerio.eu
