QUICK START GUIDE

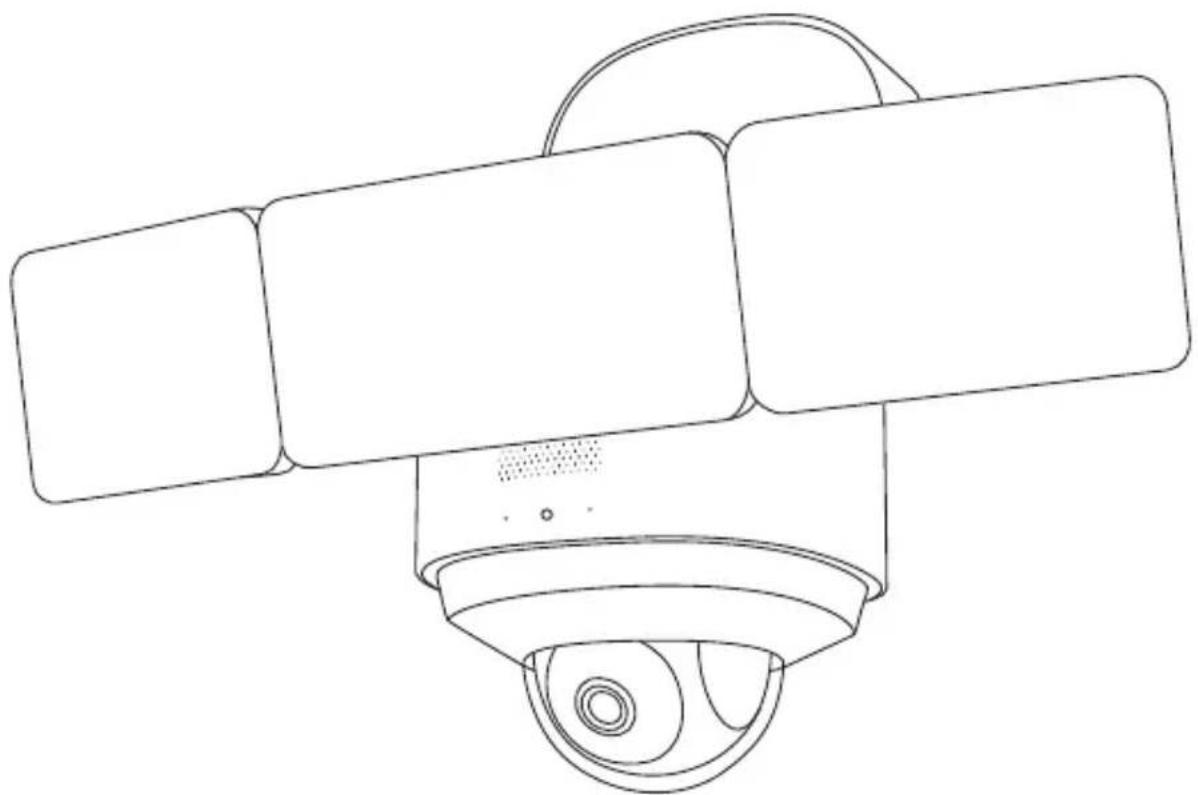

EUFY FLOODLIGHT CAM 2 PRO

Line drawing of a surveillance camera with three rectangular panels mounted on a circular base (no text or symbols)

English

Deutsch

Español

Français

Italiano

Nederlands 1

Portuguese 5

لعرّية

169

Table of Contents

SAFETY INSTRUCTIONS 02

WHAT'S IN THE BOX 02

PRODUCT OVERVIEW 03

DECLARATIONS 04

POWERING ON YOUR FLOODLIGHT CAMERA 06

SETTING UP THE FLOODLIGHT CAMERA 07

PREPARING FLOODLIGHT CAMERA FOR INSTALLATION 08

INSTALLING THE JUNCTION BOX 09

MOUNTING YOUR FLOODLIGHT CAMERA 12

ADJUSTING THE LIGHTING ANGLE 21

NOTICE 24

SAFETY INSTRUCTIONS

• Disconnect power at the fuse or circuit breaker before installing.
• Do not install the product near flammable surfaces.
• To avoid risk of shock, injury or death, always be cautious when working with electricity.
• Consult a licensed electrician if you are uncomfortable working with electrical wiring.
  ■ Make sure the Floodlight Camera is properly grounded.
• Floodlight Camera must be installed on a wall and on a UL-listed junction box.

WHAT'S IN THE BOX

Simple line drawing of a surveillance camera with lens and screen (no text or symbols)

eufy Floodlight Cam 2 Pro (T8423)

Charging Cable

Installation Hook & String

Central Screw

Central Screw Cap Plate Screws Junction box

002 EN

Required (not included):

Crosshead Screwdriver

USB Power Adapter (5V/1A)

Power Drill (15/64 mm)

PRODUCT OVERVIEW

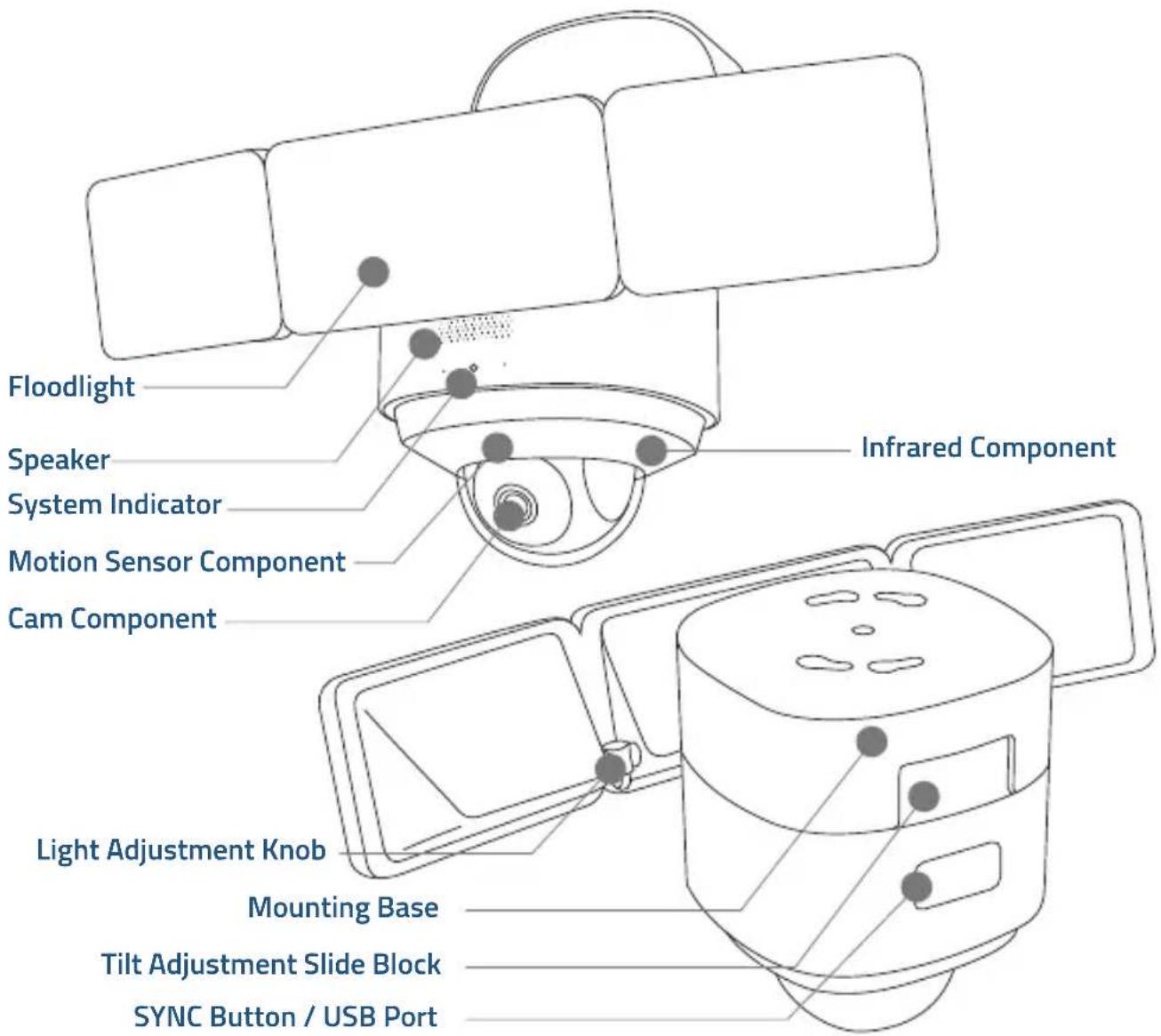

Floodlight Speaker System Indicator Motion Sensor Component Cam Component Infrared Component Light Adjustment Knob Mounting Base Tilt Adjustment Slide Block SYNC Button / USB Port

EN 003

DECLARATIONS

IP65-rated dustproof and waterproof

This product meets IP65 (dustproof and waterproof) requirements.

For dustproof testing, the product was vacuumed and placed in a dust box. After 8 hours of testing, no dust was found in the product.

For waterproof testing, the product was sprayed by a nozzle with an inner diameter of 6.3mm, and water flow of 12.5 L/min. After the test, the product operated normally with no water found inside.

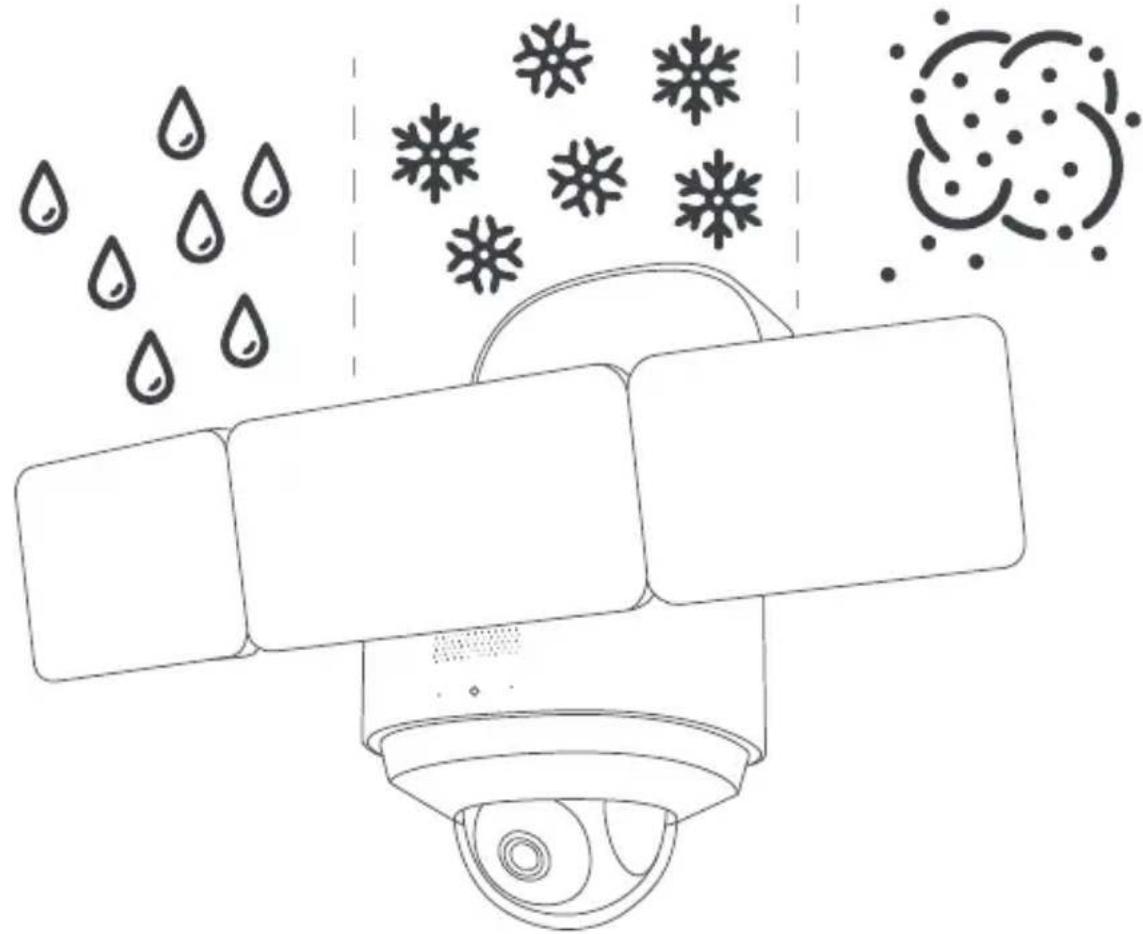

Diagram of a surveillance camera with water droplets and snowflake symbols (no text or labels)

Anti-corrosion

The metal surface of the product is galvanized, and can survive continuous exposure to salt spray at 35^ + / - 2^ (relative humidity: 90% -95% ) with a salt concentration of 5% NaCl for 48 hours in the salt spray test.

Load-bearing tests

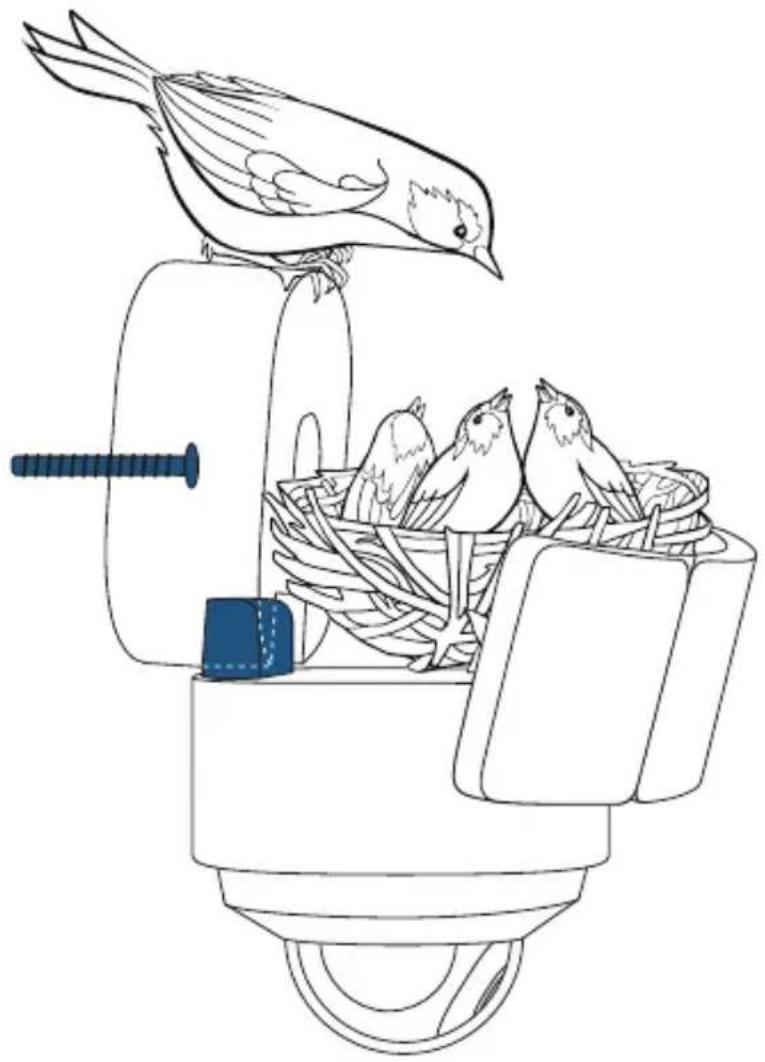

The L-shaped bracket and center screw of the product are made of SUS304 steel and have passed industrial-grade outdoor reliability and durability tests.

NOTE: The total weight of the product is 2.2kg (4.9lbs), and the L-shaped bracket and center screw is strong enough to carry a load of 10kg (22lbs).

Line drawing of a bird feeding into a nest with three chicks, mounted on a cylindrical platform (no text or symbols)

10kg

POWERING ON YOUR FLOODLIGHT CAMERA

To avoid scratching the Floodlight Camera, do not peel off the protective film for the time being.

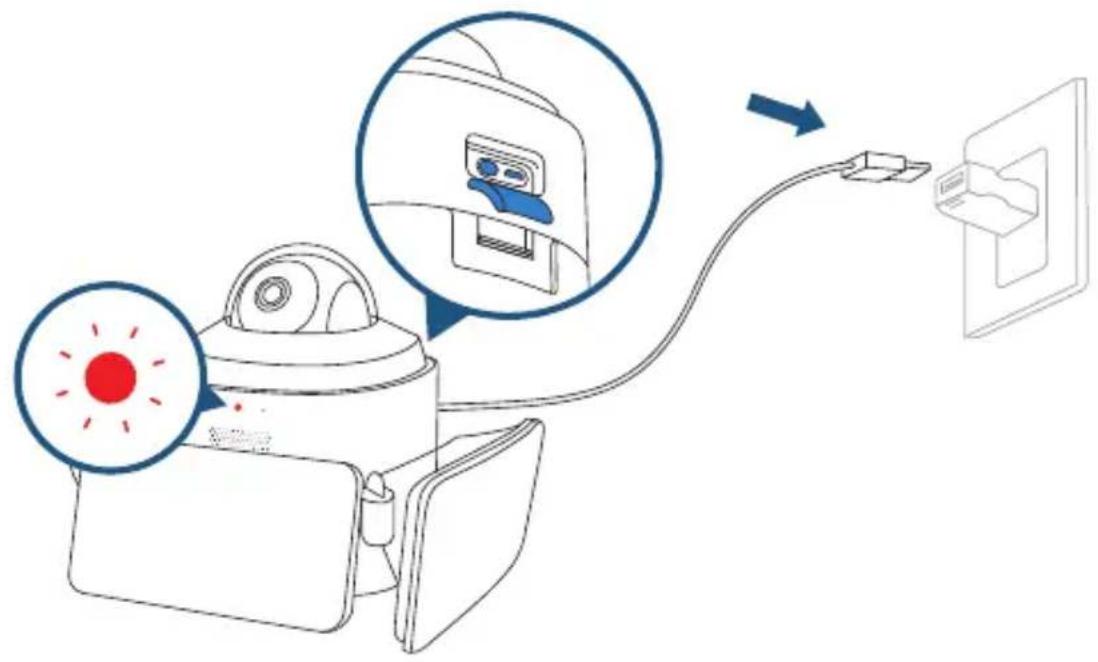

Put your Floodlight Camera in the direction as illustrated on a table, and open the USB port cover. Connect the device to a power source inside your home using the micro USB charging cable and a power adapter (5V/1A, not provided). Wait 1 minute or until the LED indicator blinks red.

Diagram illustrating a medical device connected to a wall-mounted device via a cable, with an icon highlighting the sun symbol.

The Floodlights will only light up when in wired power mode. The USB-powered connection is used for setting up the camera safely inside your home.

SETTING UP THE FLOODLIGHT CAMERA

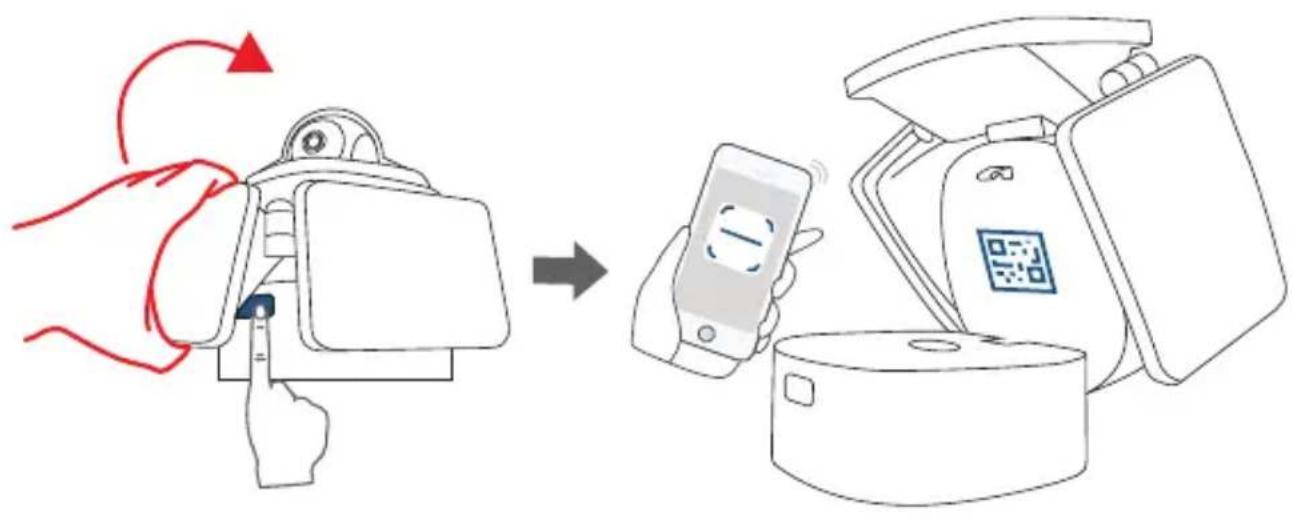

Push and hold the button to open the mounting base and find a QR Code.

Download the eufy Security app from the App Store (iOS devices) or Google Play (Android devices).

Gray shield icon with a circular refresh symbol inside, no text or numbers present.

Download on the App Store

GET IT ON Google Play

Log in or sign up for a eufy Security account, then follow the on-screen instructions to complete the setup.

Make sure you can livestream video from Floodlight Camera before mounting.

If the Floodlight Camera LED keeps blinking red, it means the floodlight is not connected to the Internet. Please make sure the Wi-Fi signal is strong at the desired location. You may consider moving the wireless router closer to Floodlight Camera or using a Wi-Fi range extender.

PREPARING FLOODLIGHT CAMERA FOR INSTALLATION

1. Unplug the power adapter. Close the mounting base and USB port cover.

Diagram showing a medical device connected to a device with an arrow indicating connection, including a magnified inset of the device.

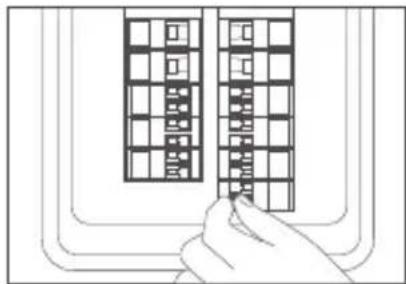

1. Shut down the circuit breaker in your house. Switch on/off the lights to make sure the electricity in your house is properly shut off.

Line drawing of a hand inserting a grid into a rectangular panel (no text or symbols)

To avoid risk of shock, injury or death, always be cautious when working with electricity.

INSTALLING THE JUNCTION BOX

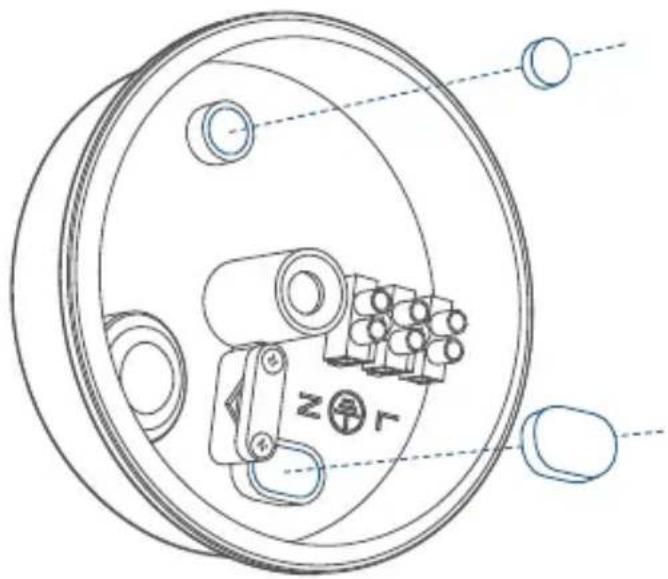

1. Remove the rubber plugs indicated in the illustration below.

Technical line drawing of a mechanical component with no visible text or symbols

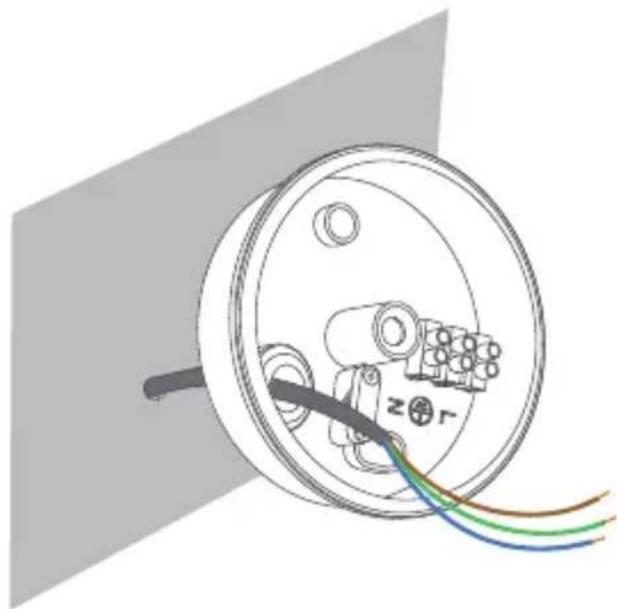

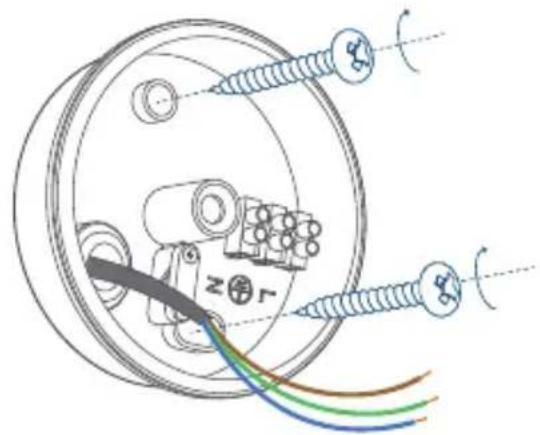

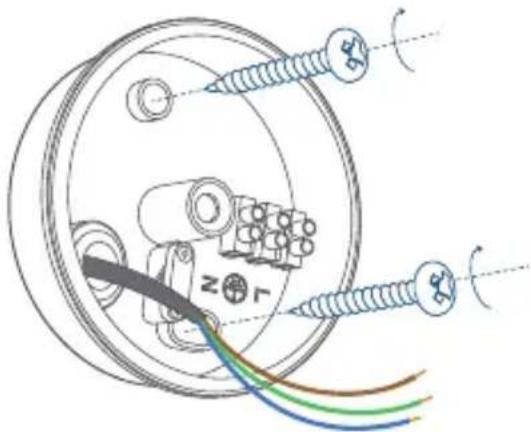

1. Run the existing wire through the hole.

Diagram of a circular electrical component with wires and connectors, no text or symbols present

If you don't have existing wires outdoors, contact a licensed electrician to run the wires.

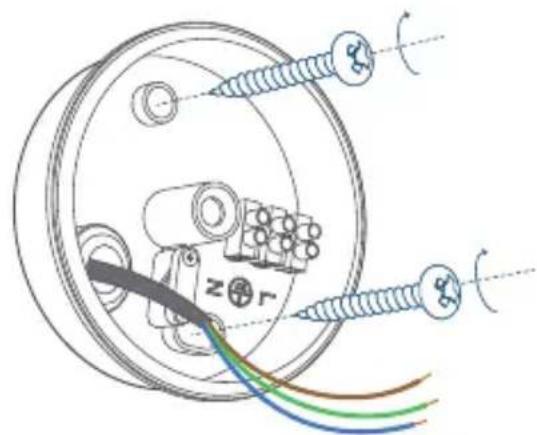

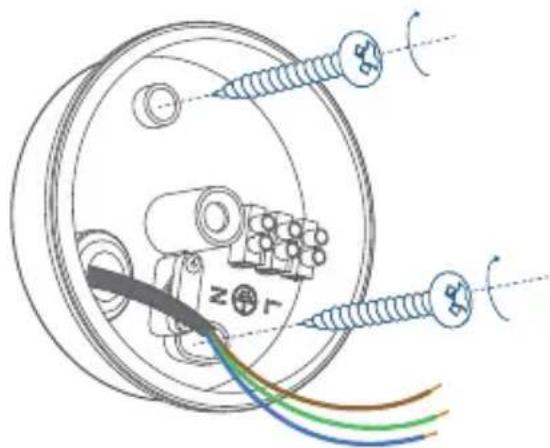

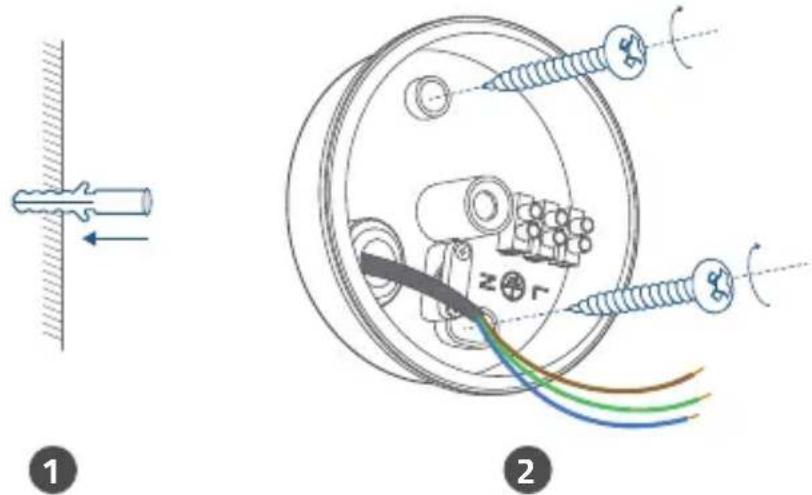

1. Install the junction box:

2. Orient the two mounting holes vertically to ensure stable mounting.

3. On wooden walls, DO NOT pre-drill holes. Use the screws provided to fix the junction box onto the wall.

Technical diagram of a mechanical assembly with labeled components and colored wires, likely illustrating a cable or wiring connection.

- On walls that are made out of hard materials, such as stucco, brick, or concrete, drill holes with a 15/64 inch (6 mm) drill bit, and then insert the anchors provided into the holes. Use the screws provided to fix the junction box on the wall.

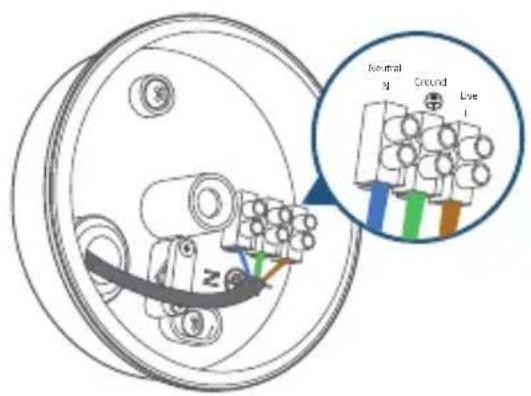

1. Unscrew the bolt with a flat-head screwdriver. Connect the Neutral (blue) / Ground (green / green and yellow) / Live (brown) wire to the Neutral / Ground / Live wire connector in the junction box respectively. Secure the wires tightly to prevent wires from falling.

Neutral g Ground Loe z

1

Technical line drawing of a mechanical component with a rod inserted into a circular housing (no text or symbols)

2

MOUNTING YOUR FLOODLIGHT CAMERA

To ensure the best motion detection range, we recommend installing the Floodlight Camera within 2-3 meters of the ground.

You can hang Floodlight Camera upside down or install it vertically on the wall. Select the installation method that best suits the position of your junction box.

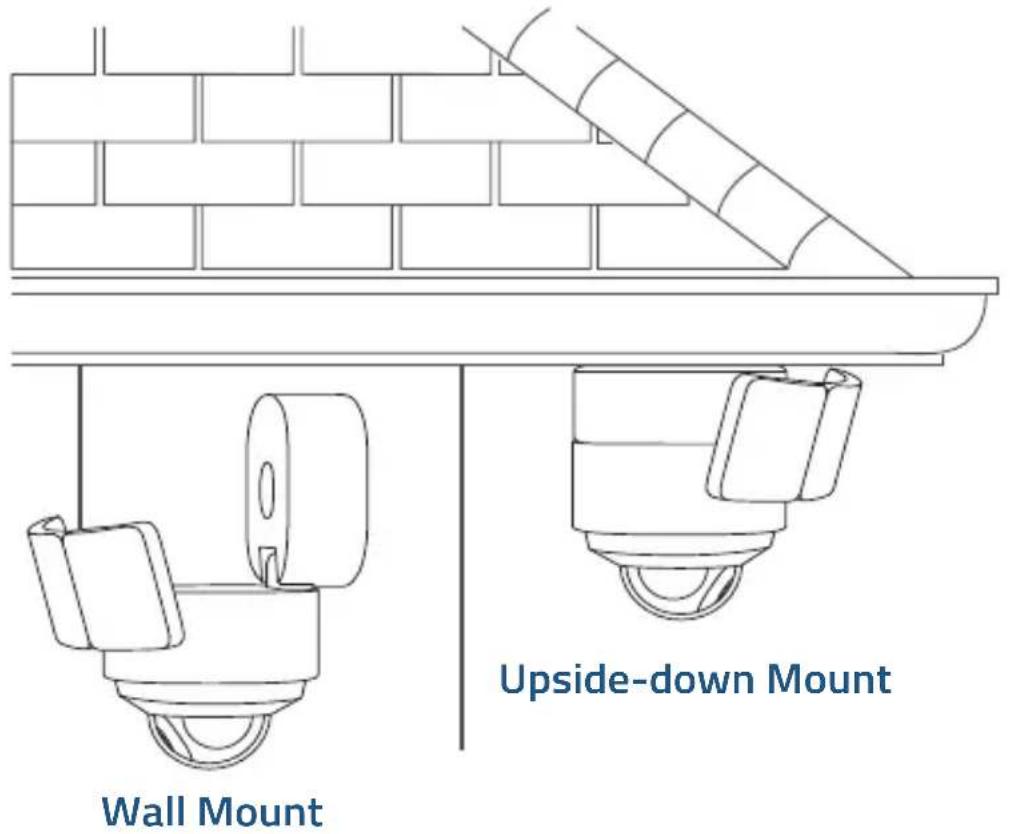

Upside-down Mount Wall Mount

Mount Floodlight Camera onto a Wall

STEP 1. Before Mounting

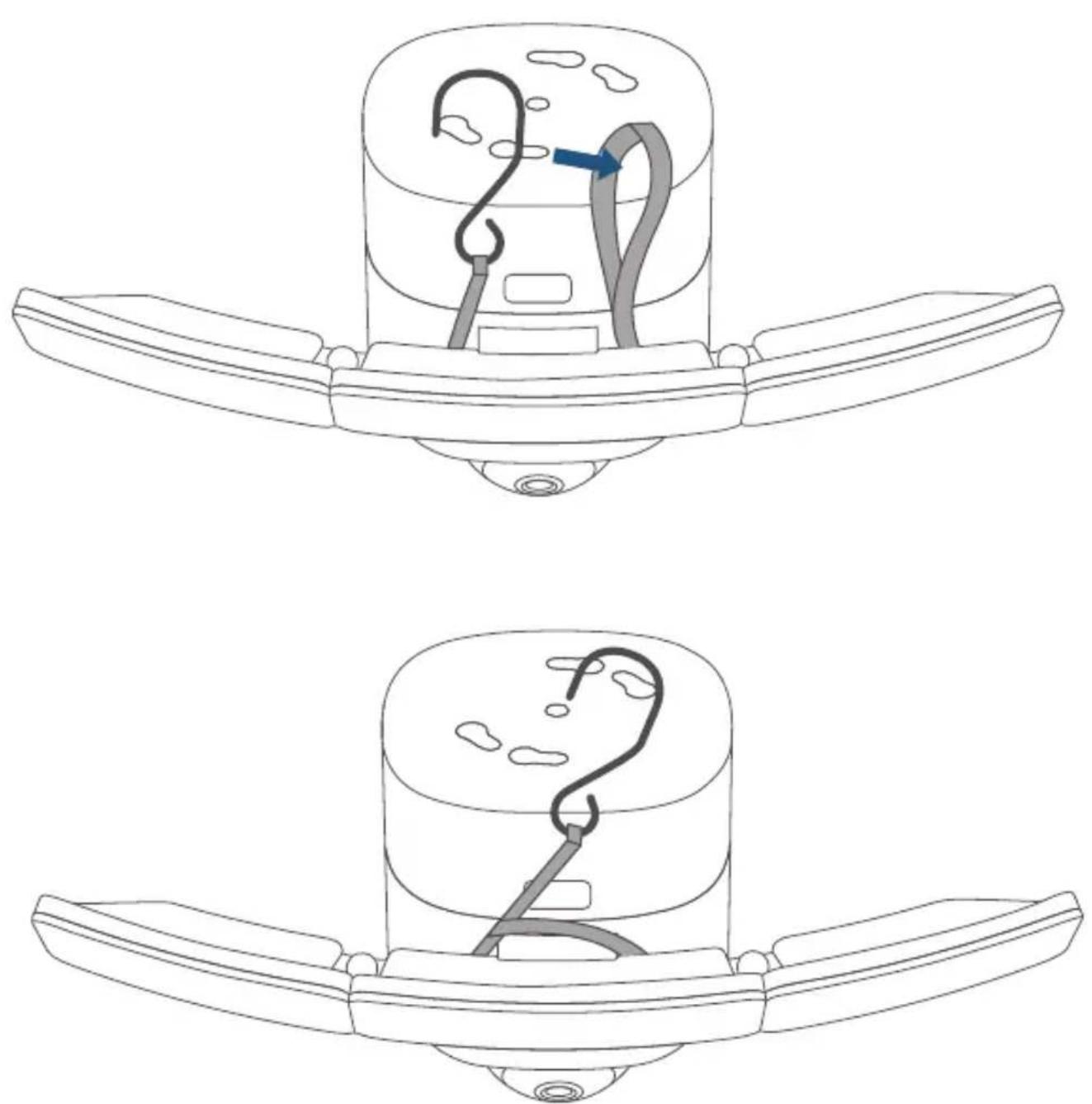

1. Pass the hook through the other end of the string as illustrated.

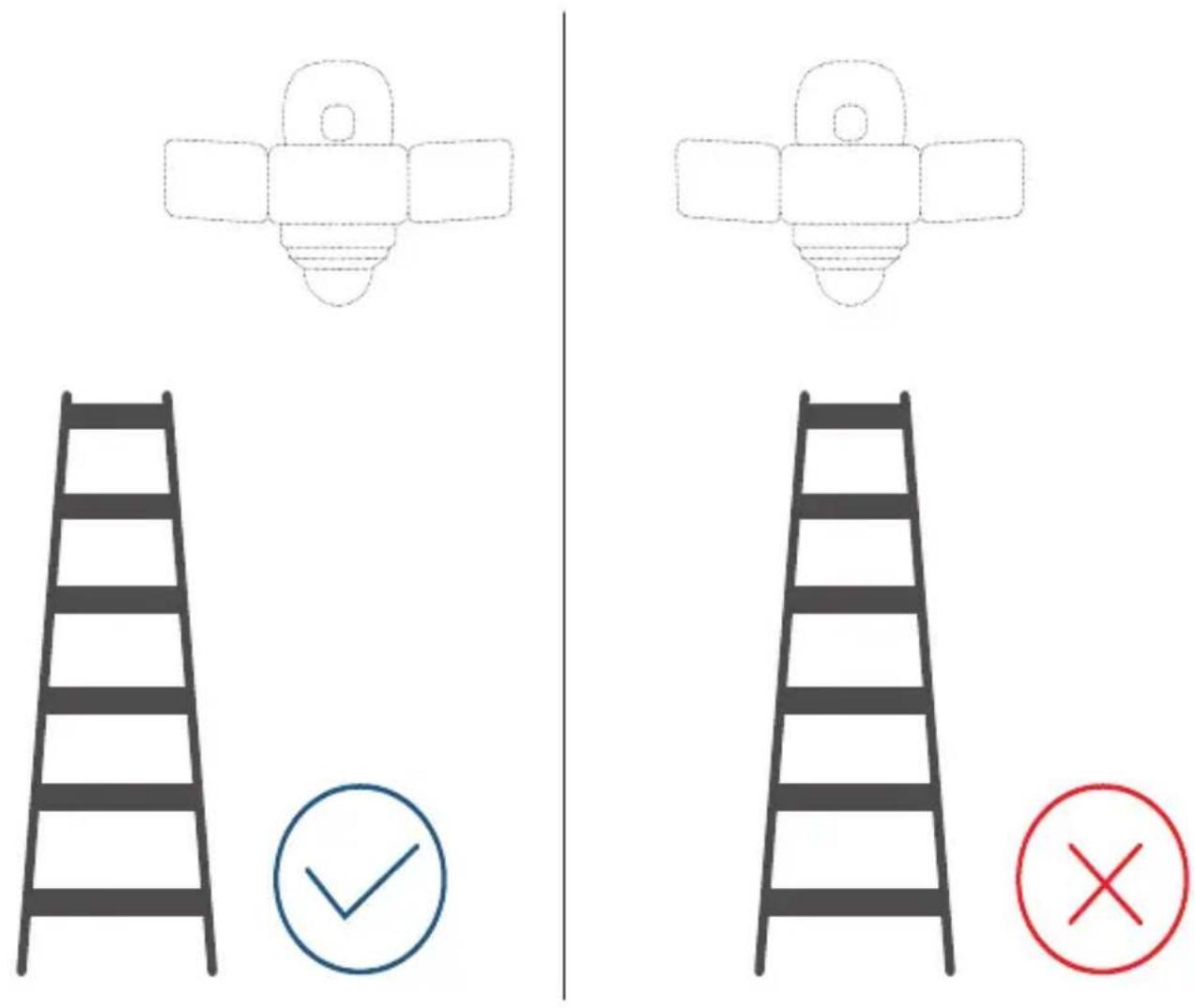

1. You need a ladder to mount your Floodlight Camera on the wall. Make sure you do not place your ladder right under the Floodlight Camera. Place it to the lower left or right of the Floodlight Camera as illustrated below to avoid obstructing your view while mounting.

Diagram showing two identical ladder arrangements with check and cross symbols, likely illustrating a basic voting or selection scenario.

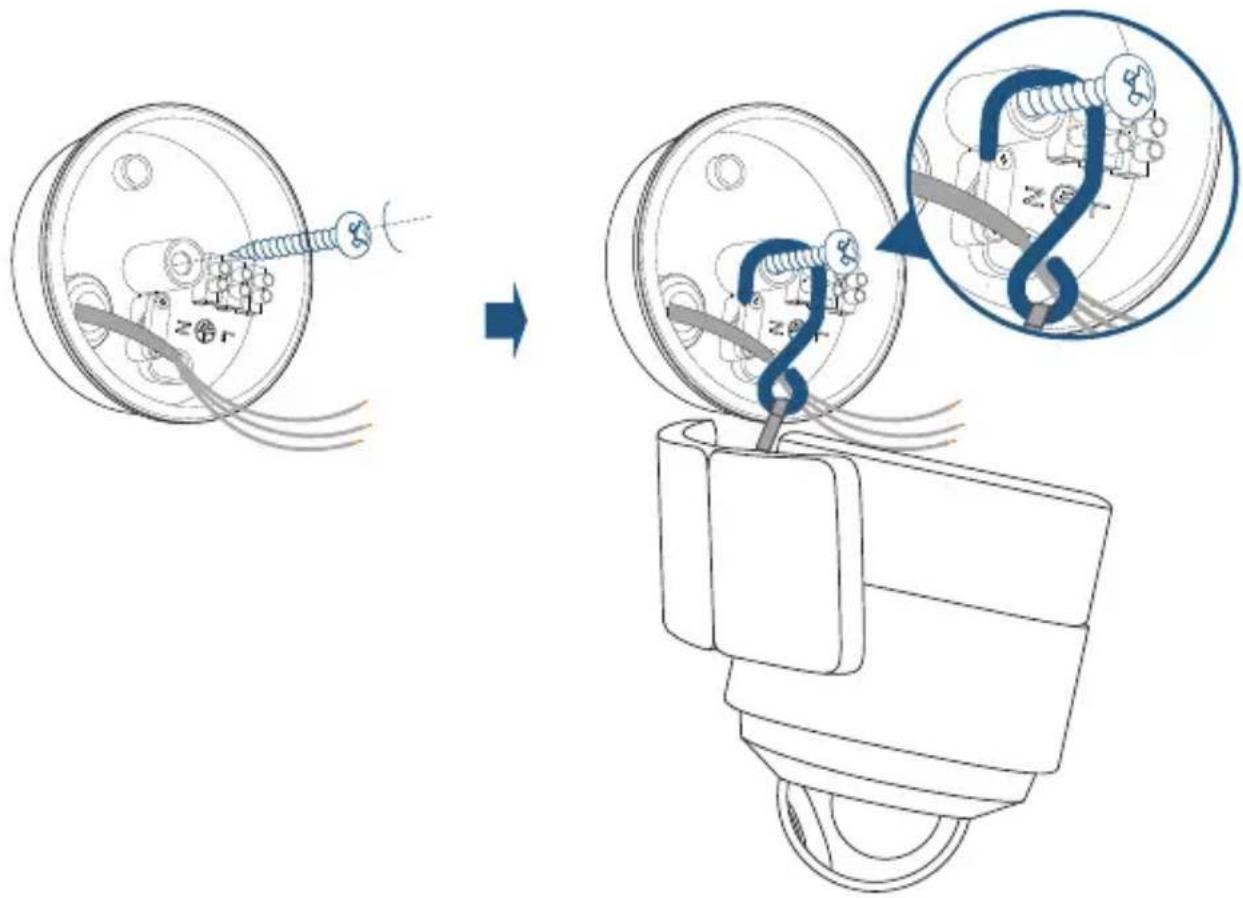

1. Screw part of the central screw through the center of the Junction box and leave the screw long enough to hang the Floodlight Camera using the provided hook.

Diagram illustrating the process of a mechanical or electrical component before and after transformation, with labeled parts and magnified views.

STEP 2. Connect Wires

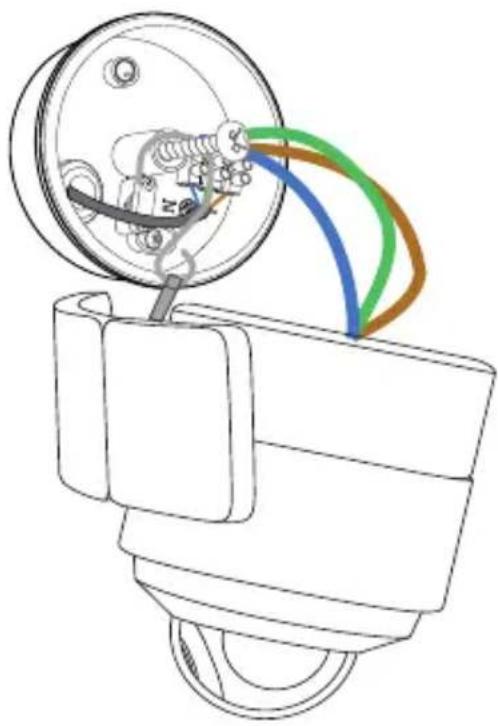

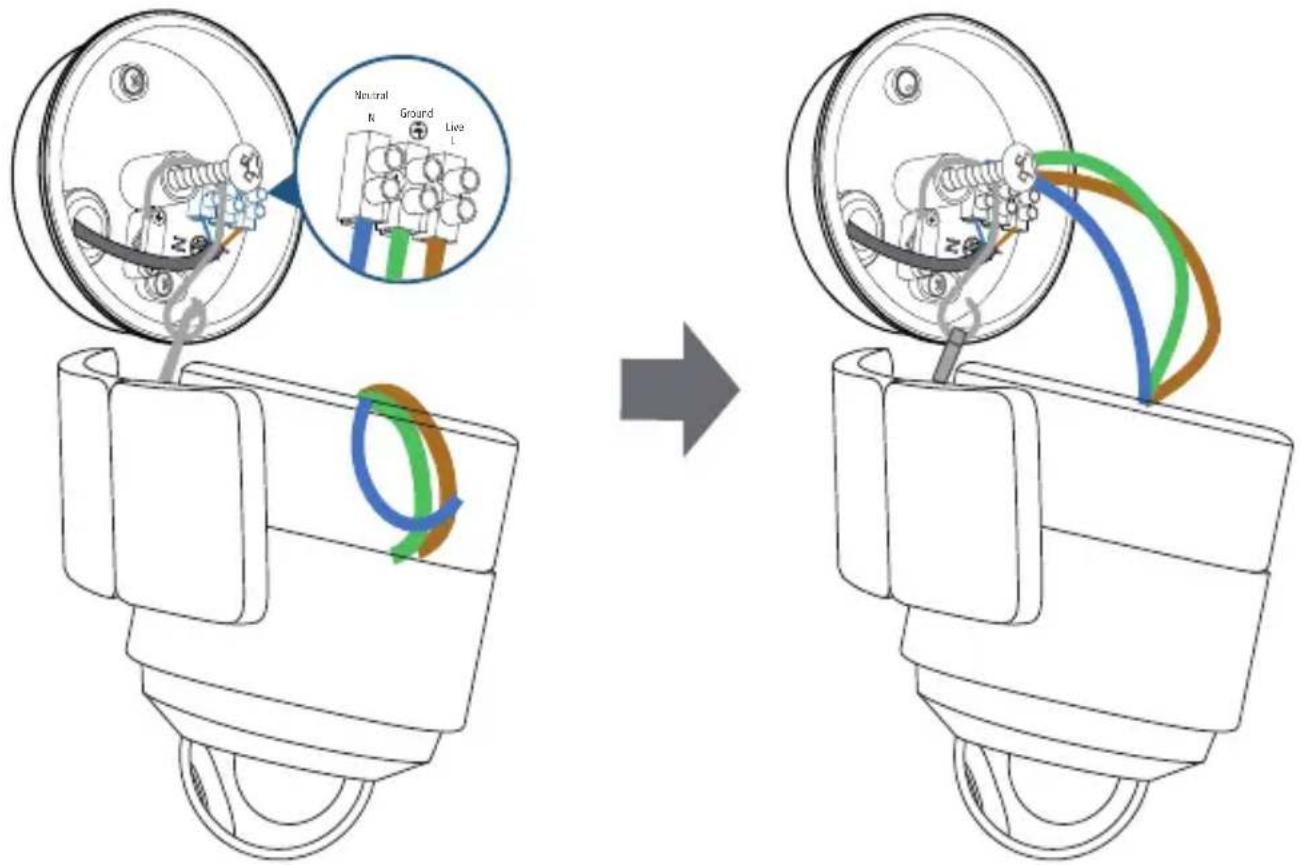

1. Connect the ground wire from the Floodlight Camera to the ground wire from the wire connector in the junction box.

2. Connect the live / neutral wire from the Floodlight Camera to the live / neutral wire from the wire connector in the junction box respectively.

Neutral R Ground Live L ze

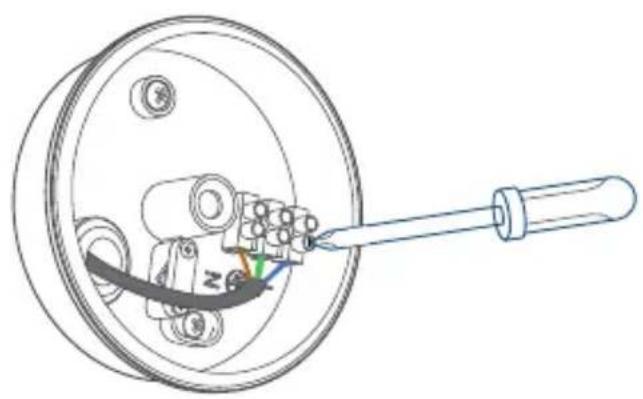

1. Secure the wires with a screwdriver.
2. Hold the Floodlight Camera, and remove the hook, strings, and central screw from the junction box.

• If you have problems with the proper operation of Flood-light Camera, consult a licensed technician.
• Green / green and yellow, brown and blue wires must connect to the matching colors. Never cross connect.

STEP 3. Mount the Floodlight Camera

1. Press the button to open the mounting base.

Line drawing of a mechanical device with a blue arrow indicating rotation and red arrow indicating clockwise motion (no text or symbols)

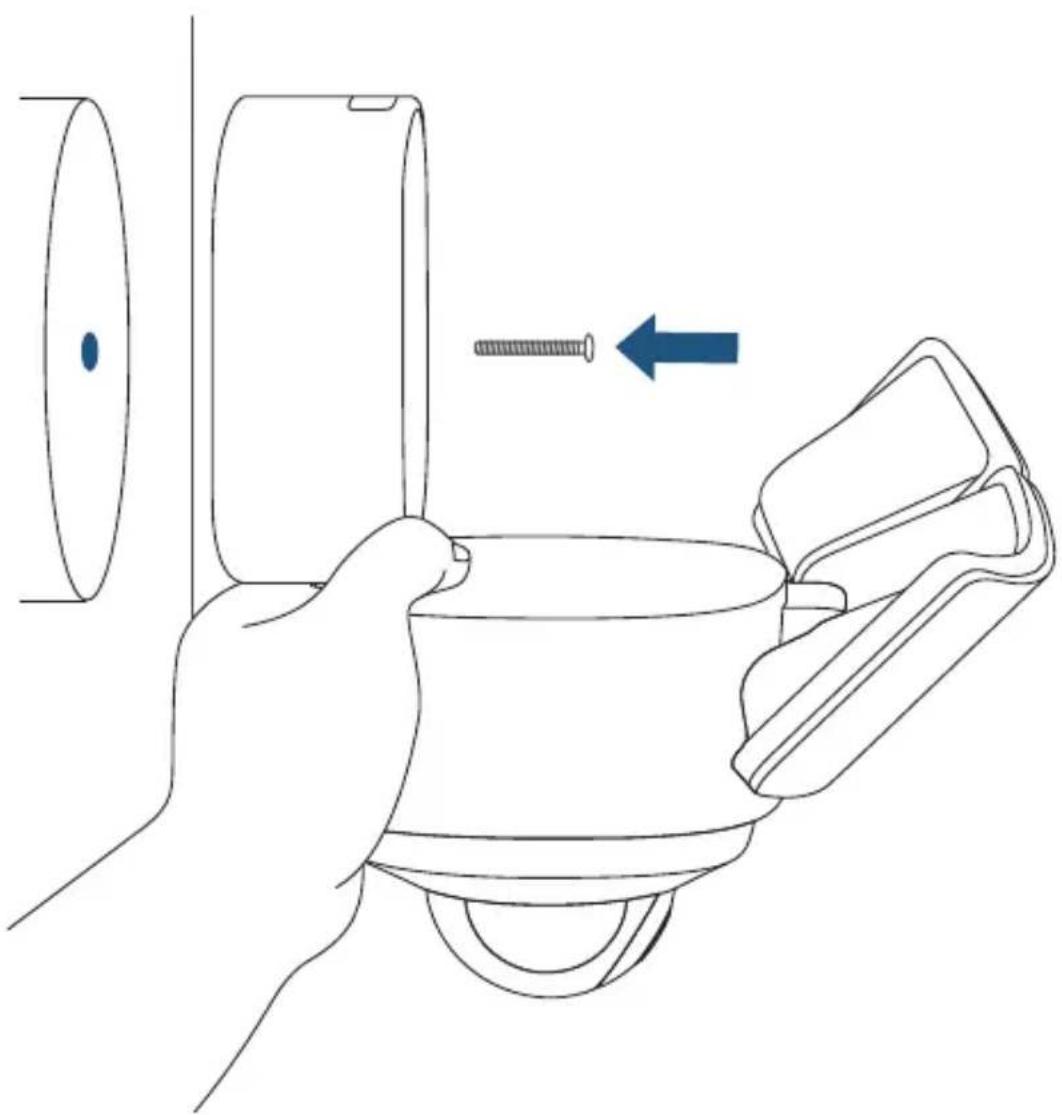

1. Hold the mounting base, and insert the central screw through the center of the mounting base and screw it tightly. Use the central screw cap to cover the central screw to prevent it from rusting.

2. Cover the central screw with the provided cap.

Line drawing of a hand holding a cup with a screw being inserted, showing a blue arrow indicating direction (no text or symbols)

Side view makes it easier for you to align the screws.

1. Adjust the angle as mentioned in the section "Adjusting the Lighting Angle" to get the best view.
2. Remove the label and protective film on the Floodlight.
3. Switch on the main circuit breaker in the house.

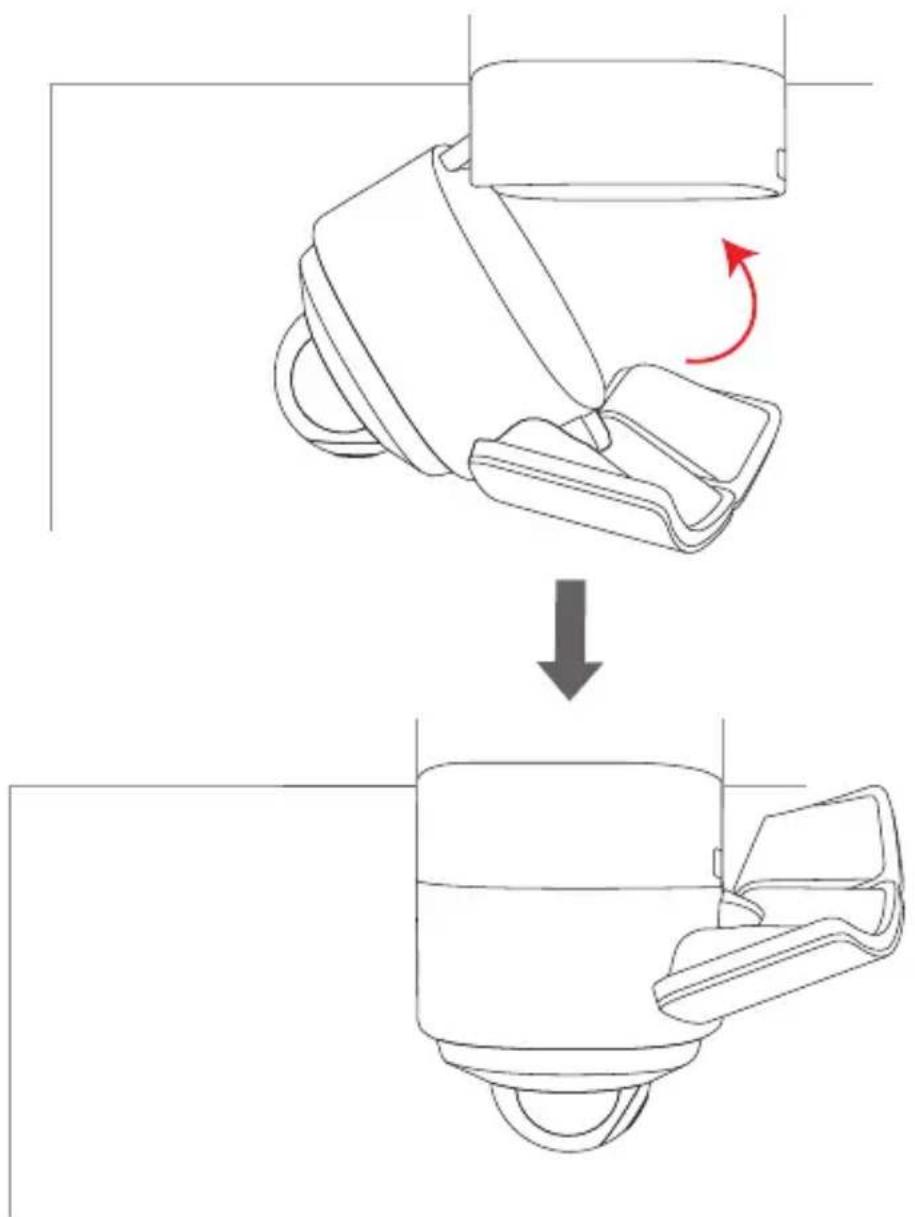

Mount Floodlight Camera on the Ceiling

1. Follow steps mentioned in the section "Mount Floodlight Camera onto a Wall" to choose the place for mounting and connecting wires.
2. Insert the central screw through the center of the mounting base and screw it tightly.
3. Cover the central screw with the provided cap.

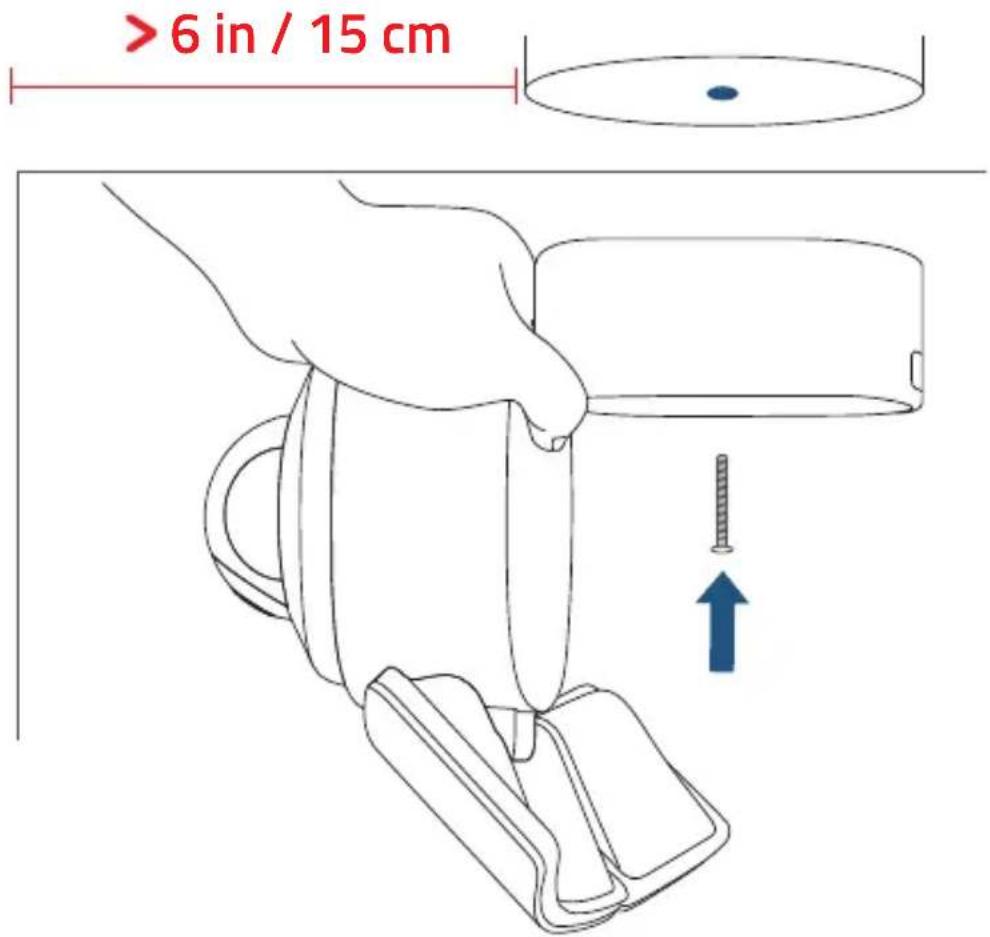

>6 in / 15 cm

Make sure you place the Floodlight Camera more than 6 in / 15 cm away from a side wall.

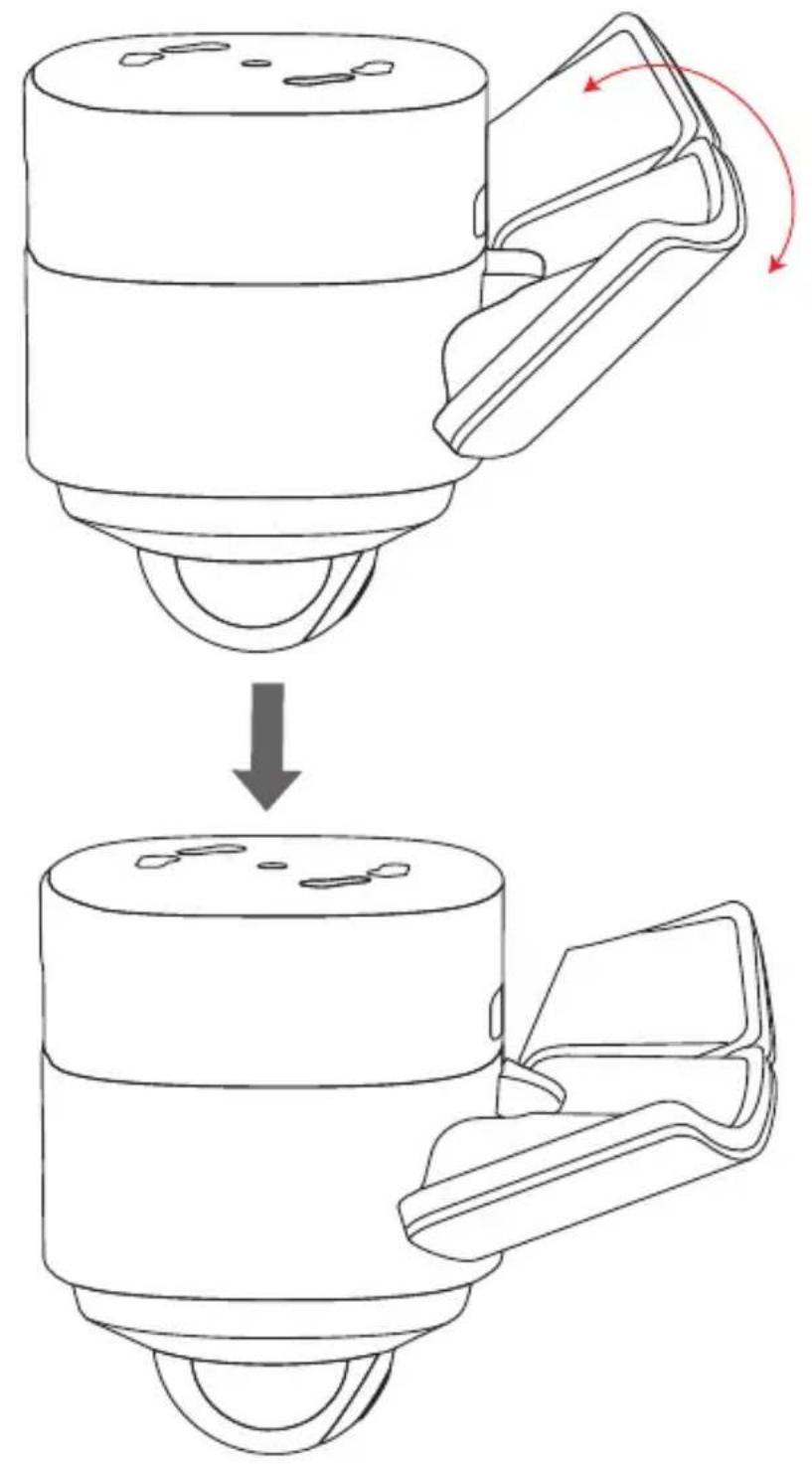

1. Snap the camera onto its base.

1. Adjust the angle as mentioned in the section "Adjusting the Lighting Angle" to get the best view.
2. Remove the label and protective film on the Floodlight.
3. Switch on the main circuit breaker in the house.

In case Floodlight Camera is not powered on, switch off the circuit breaker before checking the wiring of Floodlight Camera. To avoid risk of shock, injury or death, always be cautious when working with electricity. Remember, do hire a professional electrician if you're uncomfortable working with electrical wiring.

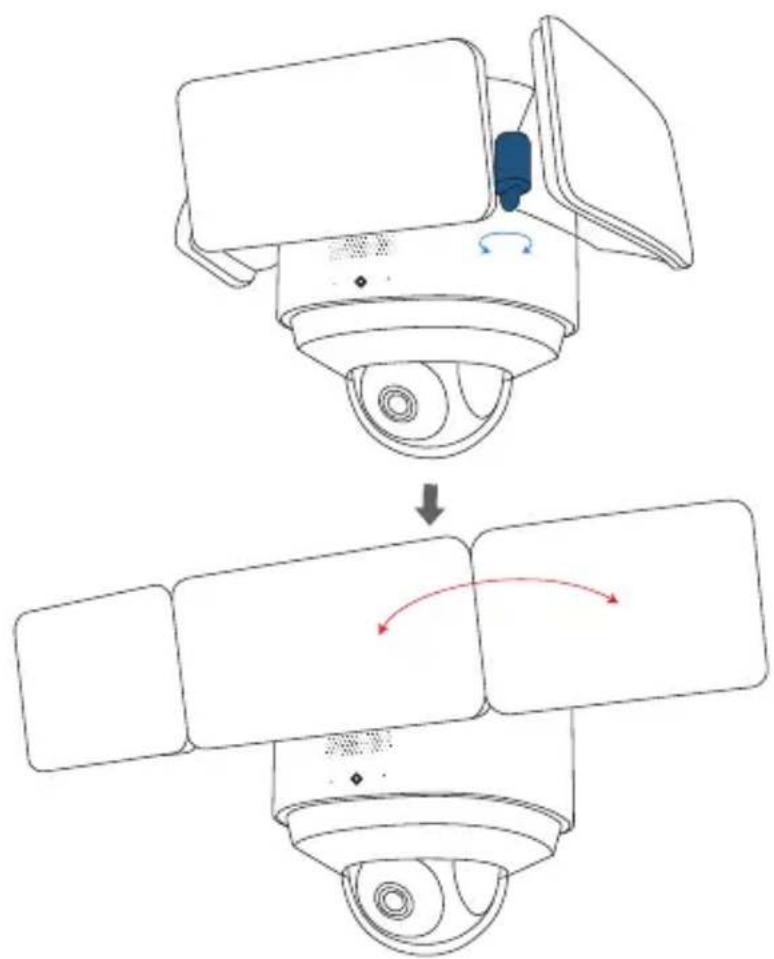

1. Turn the knobs counter-clockwise to extend the Floodlight. Adjust the Floodlight horizontally and then tighten the knobs by turning them clockwise.

1. Manually pull down the Floodlight in the middle.


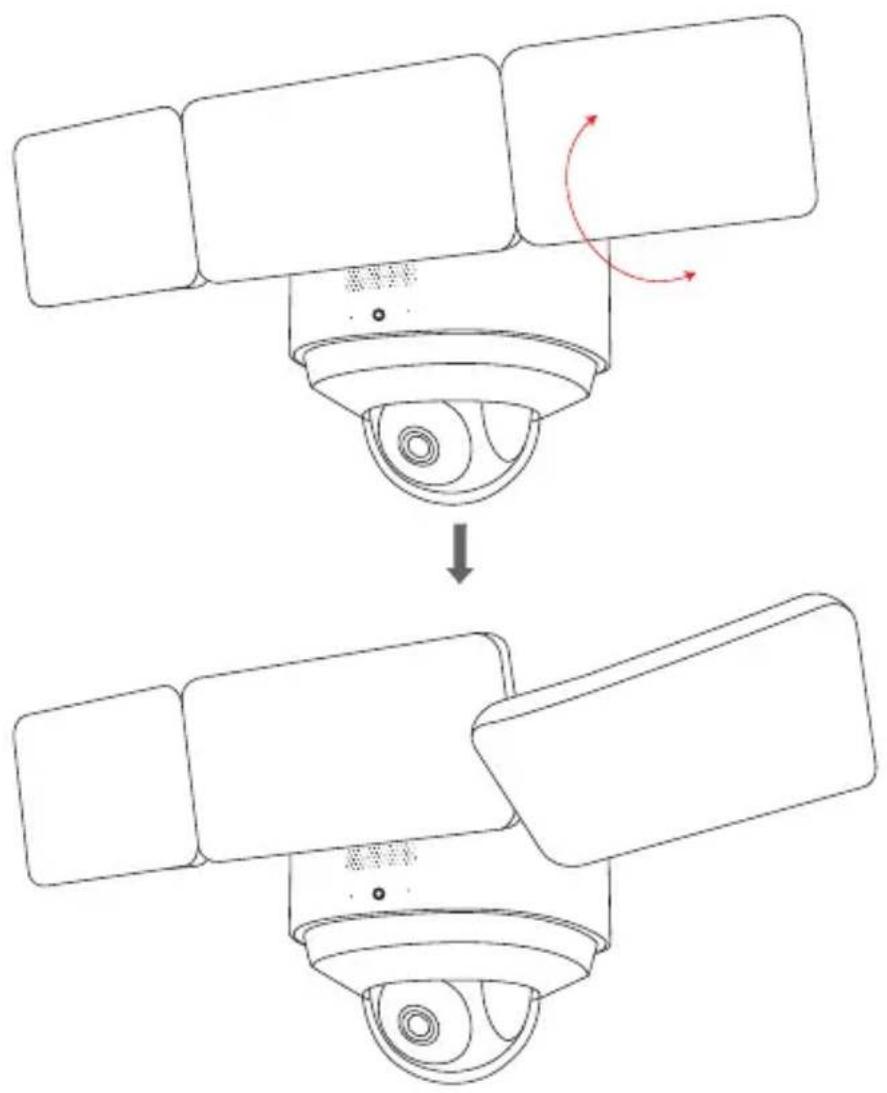

1. Manually pull down the Floodlight on the side.

To check whether Floodlight Camera is operating, confirm the LED indicator has turned solid white.

For troubleshooting, check the Help section in the eufy Security app. Refer to the app page for what the LED indicator status lights mean.

NOTICE

This product complies with the radio interference requirements of the European Community.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the Web site https://uk.eufylife.com/

Due to the used enclosure material, the product shall only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited.

Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshine or too wet environment.

The suitable temperature for the product and accessories is -20^-60^ .

Please place the device in an environment that has a normal room temperature and good ventilation. It is recommended to charge the device in an environment with a temperature that ranges from 5^ C\~ 25^ C.

RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d=20 cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintain a 20cm distance between the device and human body.

CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

Wi-Fi Operating Frequency Range: 2412\~2472MHz for EU;

Wi-Fi Max Output Power: 19.85 dBm(EIRP for 2.4G).

Bluetooth Operating Frequency Range: 2402\~2480 MHz;

Bluetooth Max Output Power: 4.81 dBm(EIRP).

This product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that the product type T8423 is in compliance with Radio Equipment Regulations 2017. The full text of the UK declaration of conformity is available at the following internet address: https://uk.eufylife.com

Anker Technology (UK) Ltd I Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B11 2AA, United Kingdom
