USER MANUAL WAG54GX2 LINKSYS

A Division of Cisco Systems, Inc.

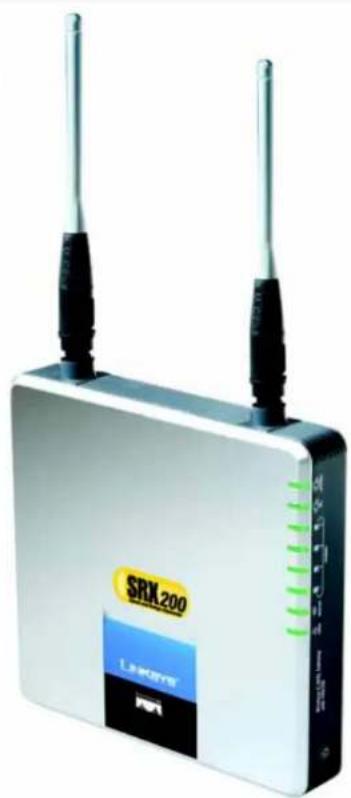

Exterior view of a SRM 200 wireless router with two antennas and ports (no readable text or symbols beyond branding)

2,4 GHz 802.11g

Wireless-G

WIRELESS

ADSL Gateway with SRX200

User Guide

Model No. WAG54GX2 (EU)

Wireless-G ADSL Gateway with SRX200

Copyright and Trademarks

Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.

How to Use this Guide

Your Guide to the Wireless-G ADSL Gateway with SRX200 has been designed to make understanding networking with the Gateway easier than ever. Look for the following items when reading this User Guide:

This checkmark means there is a Note of interest and is something you should pay special attention to while using the Gateway.

This exclamation point means there is a Caution or Warning and is something that could damage your property or the Gateway.

This question mark provides you with a reminder about something you might need to do while using the Gateway.

In addition to these symbols, there are definitions for technical terms that are presented like this:

word: definition.

Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this:

Figure 0-1: Sample Figure Description

Figure numbers and descriptions can also be found in the "List of Figures" section in the "Table of Contents".

WAG54GX2-EU-UG-50811NC JL

Wireless-G ADSL Gateway with SRX200

Chapter 1: Introduction 1

Welcome 1

What's in this User Guide? 2

Chapter 2: Planning Your Network 4

The Gateway's Functions 4

IP Addresses 4

Chapter 3: Getting to Know the Wireless-G ADSL Gateway with SRX200 6

Ports and Reset Button on Side Panel 6

LEDs on Side Panel 7

Chapter 4: Connecting the Wireless-G ADSL Gateway with SRX200 8

Overview 8

Wired Connection to a Computer 9

Wireless Connection to a Computer 10

Chapter 5: Setting up the Wireless-G ADSL Gateway with SRX200 11

Overview 11

Using the Setup Wizard 11

Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200 24

Overview 24

How to Access the Web-based Utility 26

The Setup Tab 26

The Wireless Tab 35

The Security Tab 42

The Access Restrictions Tab 49

The Applications and Gaming Tab 51

The Administration Tab 58

The Status Tab 63

Appendix A: Troubleshooting 67

Common Problems and Solutions 67

Frequently Asked Questions 75

Appendix B: Wireless Security 82

Security Precautions 82

Security Threats Facing Wireless Networks 82

Wireless-G ADSL Gateway with SRX200

Appendix C: Finding the MAC Address and IP Address for Your

Ethernet Adapter 85

Windows 98 or Me Instructions 85

Windows 2000 or XP Instructions 86

Appendix D: Upgrading Firmware 87

Appendix E: Glossary 88

Appendix F: Specifications 95

Appendix G: Warranty Information 97

Appendix H: Regulatory Information 98

Appendix I: Contact Information 105

Wireless-G ADSL Gateway with SRX200

Figure 2-1: Network 4

Figure 3-1: Ports and Reset Button on Side Panel 6

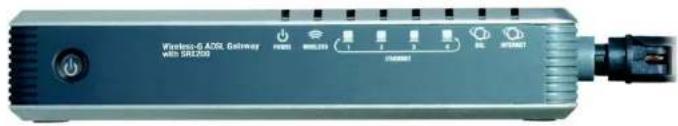

Figure 3-2: LEDs on Side Panel 7

Figure 4-1: Connect the ADSL Line 9

Figure 4-2: Connect a PC 9

Figure 4-3: Connect the Power 9

Figure 4-4: Connect the ADSL Line 10

Figure 4-5: Connect the Power 10

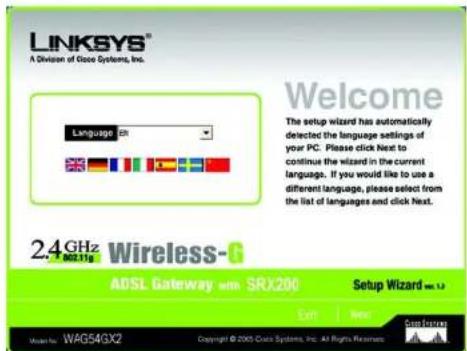

Figure 5-1: Setup Wizard's Welcome - Language Selection Screen 11

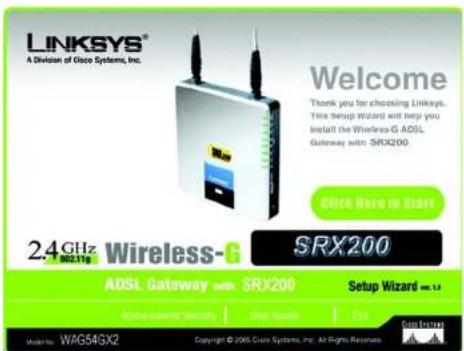

Figure 5-2: Setup Wizard's Welcome - Start Wizard Screen 11

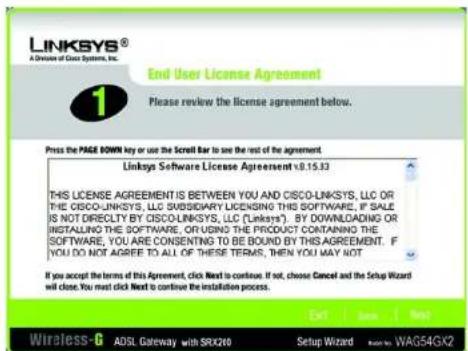

Figure 5-3: Setup Wizard's License Agreement Screen 12

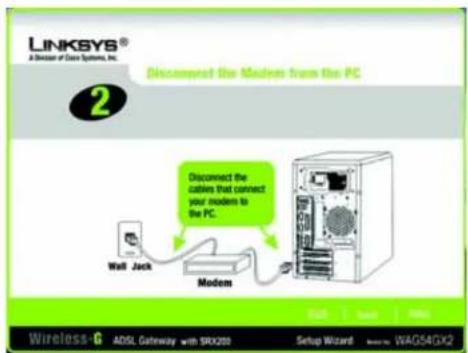

Figure 5-4: Setup Wizard's Disconnect the Modem from the PC and ADSL Wall Jack Screen 12

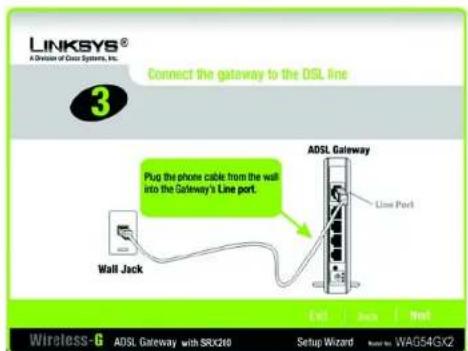

Figure 5-5: Setup Wizard's Connect the Gateway to the ADSL Wall Jack Screen 13

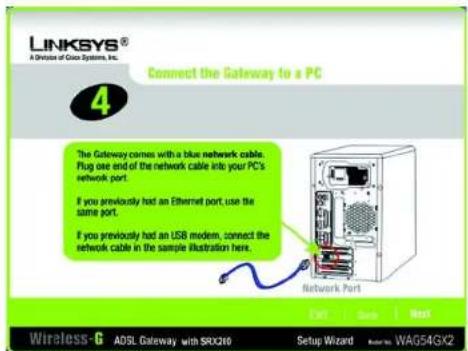

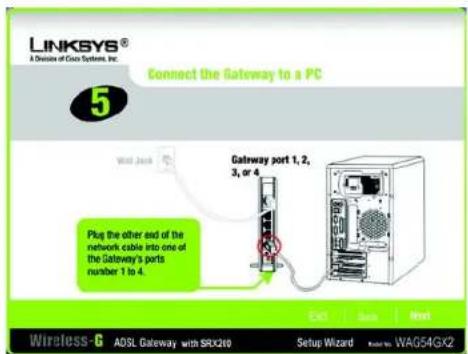

Figure 5-6: Setup Wizard's Connect a Network Cable to a PC Screen 13

Figure 5-7: Setup Wizard's Connect the Network Cable to the Gateway Screen 14

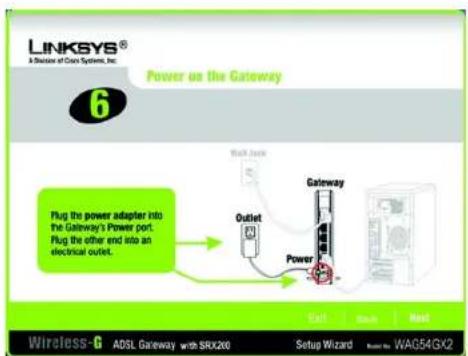

Figure 5-8: Setup Wizard's Power on the Gateway Screen 14

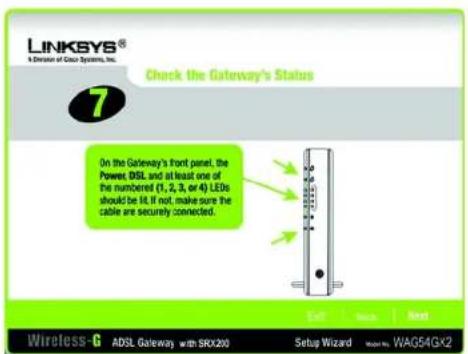

Figure 5-9: Setup Wizard's Check the Gateway's Status Screen 15

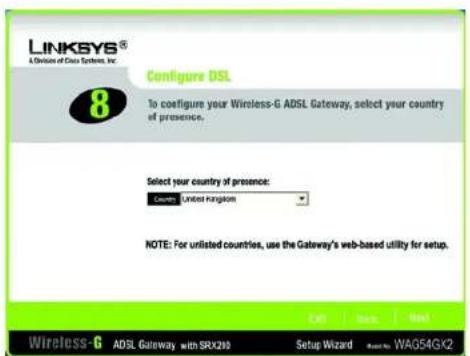

Figure 5-10: Setup Wizard's Select Your Country Screen 15

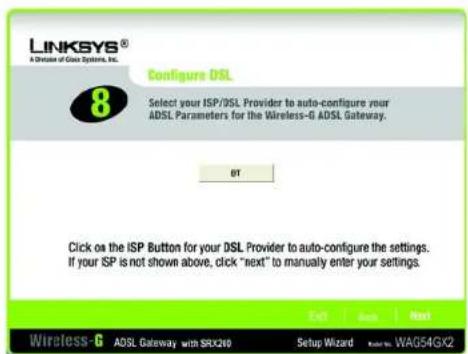

Figure 5-11: Setup Wizard's Select Your Internet Service Provider Screen (UK) 16

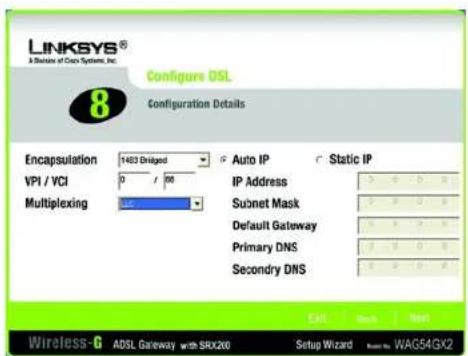

Figure 5-12: Setup Wizard's Configure DSL - 1483 Bridged Screen 16

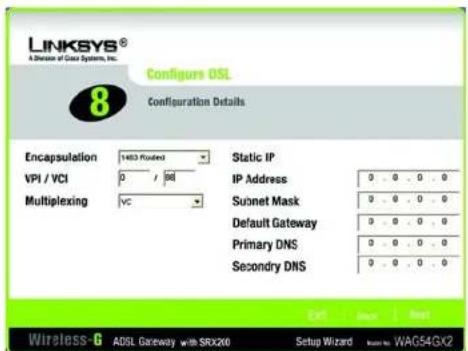

Figure 5-13: Setup Wizard's Configure DSL - 1483 Routed Screen 17

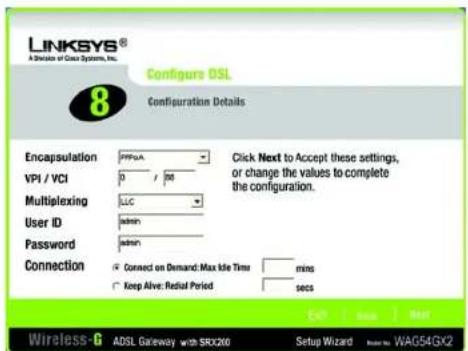

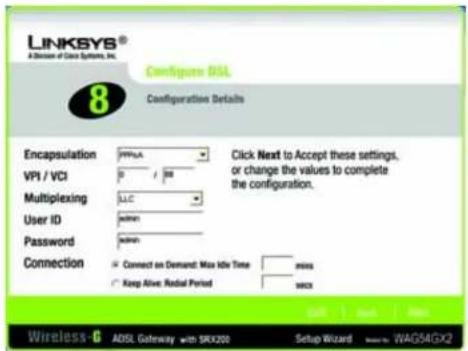

Figure 5-14: Setup Wizard's Configure DSL - PPPoA Screen 17

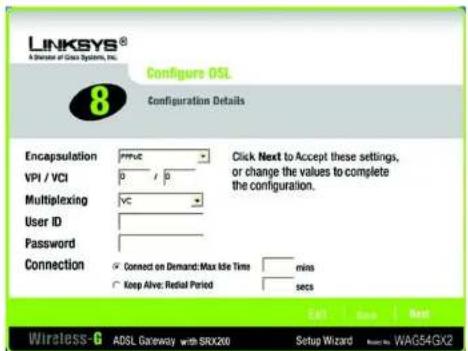

Figure 5-15: Setup Wizard's Configure DSL - PPPoE Screen 18

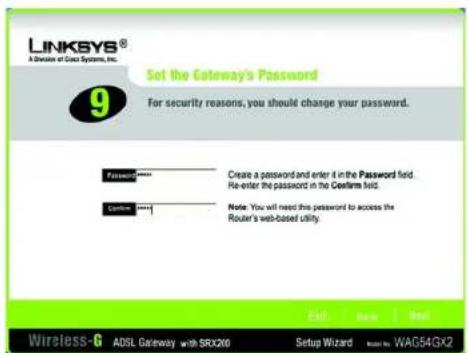

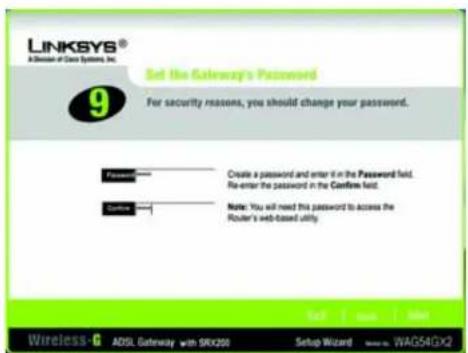

Figure 5-16: Setup Wizard's Set the Gateway's Password Screen 18

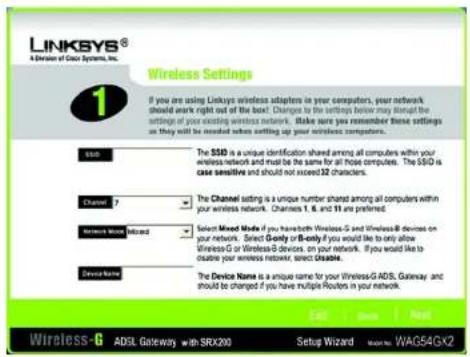

Figure 5-17: Setup Wizard's Wireless Settings Screen 19

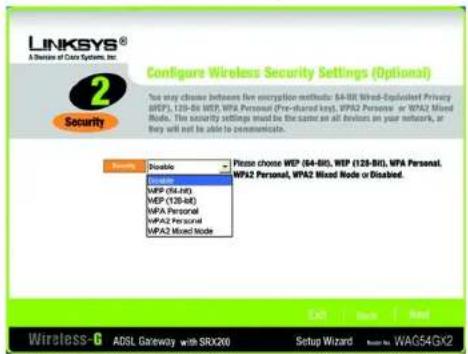

Figure 5-18: Setup Wizard's Configure Wireless Security Settings Screen 19

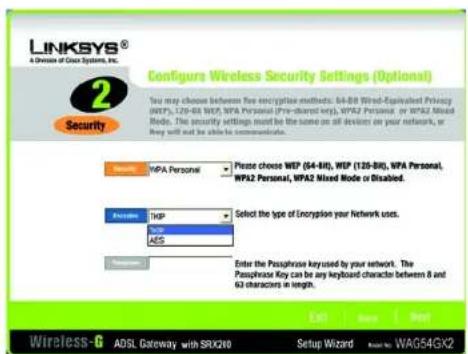

Figure 5-19: Setup Wizard's Wireless Security - WPA Personal Screen 20

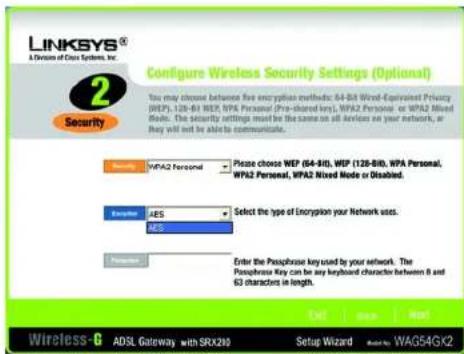

Figure 5-20: Setup Wizard's Wireless Security - WPA2 Personal Screen 20

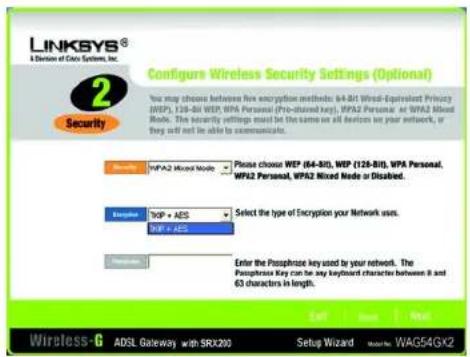

Figure 5-21: Setup Wizard's Wireless Security - WPA2 Mixed Mode Screen 21

Figure 5-22: Setup Wizard's Wireless Security - WEP (64-Bit) Screen 21

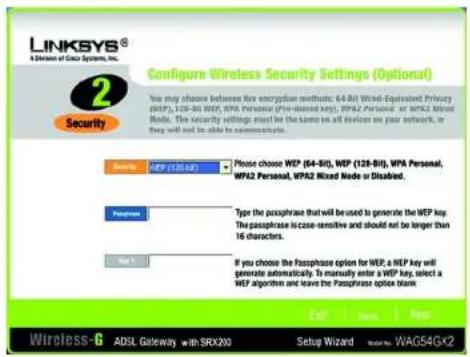

Figure 5-23: Setup Wizard's Wireless Security - WEP (128-Bit) Screen 22

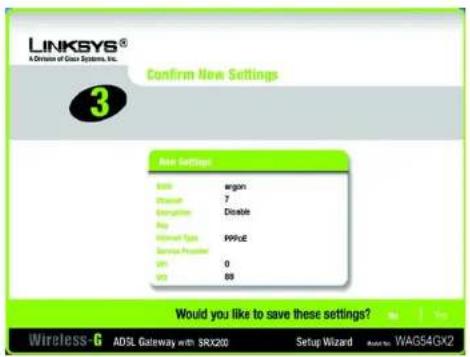

Figure 5-24: Setup Wizard's Confirm New Settings Screen 22

Wireless-G ADSL Gateway with SRX200

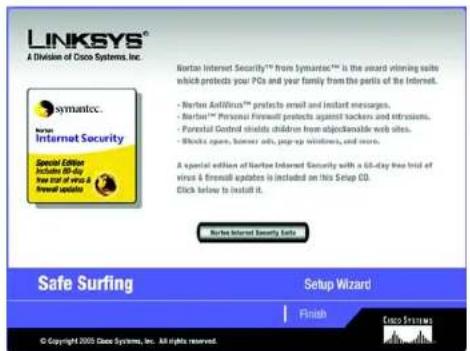

Figure 5-25: Setup Wizard's Safe Surfing Screen 23

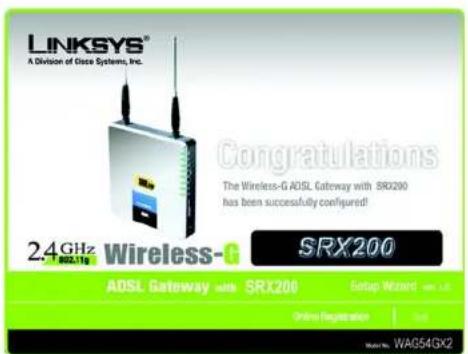

Figure 5-26: Setup Wizard's Congratulations Screen 23

Figure 6-1: Login Screen 26

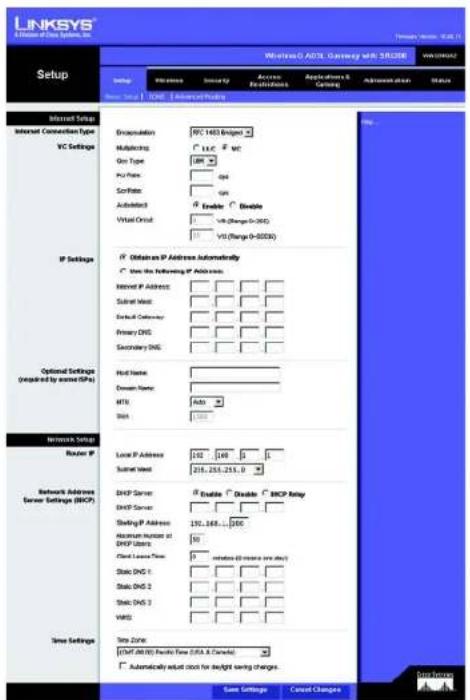

Figure 6-2: Basic Setup 26

Figure 6-3: RFC 1483 Bridged 27

Figure 6-4: RFC 1483 Routed 28

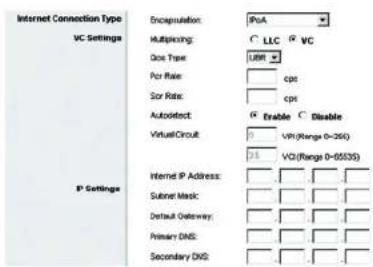

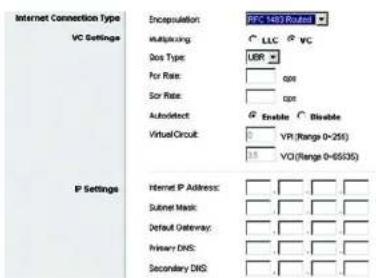

Figure 6-5: IPoA 28

Figure 6-6: RFC 2516 PPPoE 29

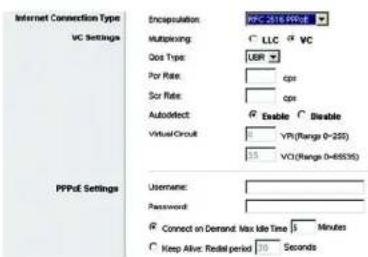

Figure 6-7: RFC 2364 PPPoA 29

Figure 6-8: Bridged Mode Only 30

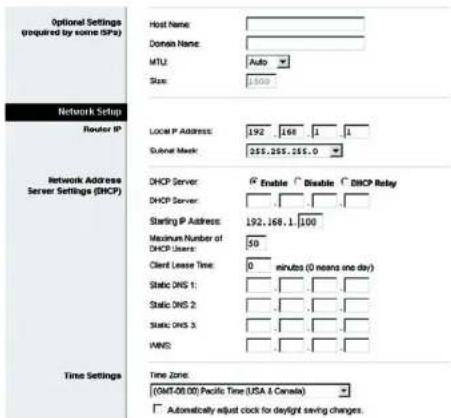

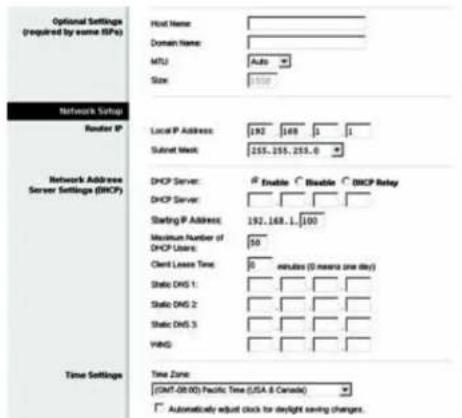

Figure 6-9: Optional Settings 30

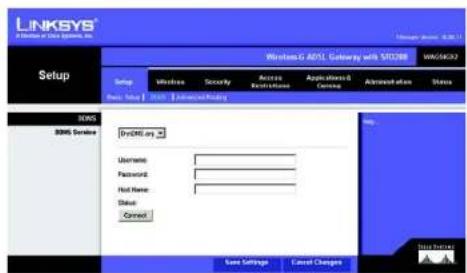

Figure 6-10: DDNS - DynDNS.org 32

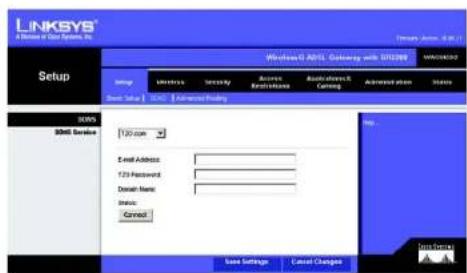

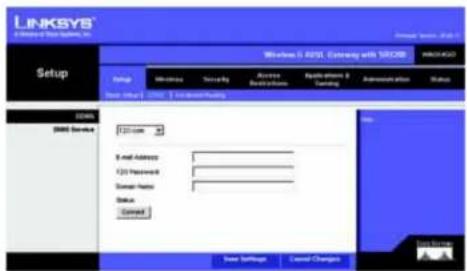

Figure 6-11: DDNS - TZO.com 32

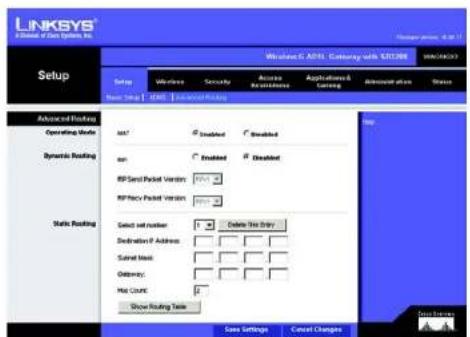

Figure 6-12: Advanced Routing 33

Figure 6-13: Routing Table 34

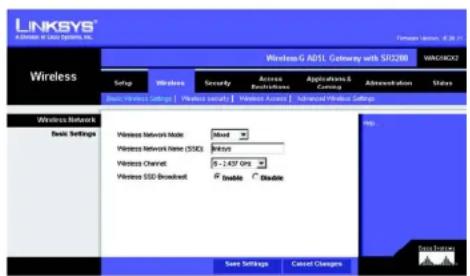

Figure 6-14: Basic Wireless Settings 35

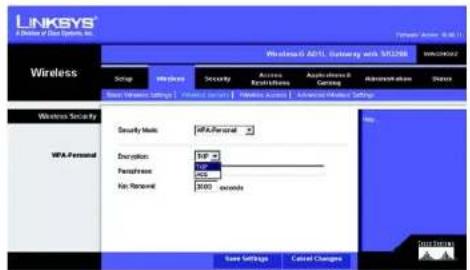

Figure 6-15: Wireless Security - WPA-Personal 36

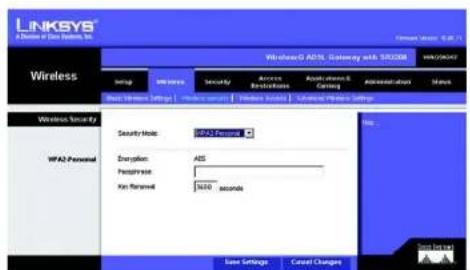

Figure 6-16: Wireless Security - WPA2-Personal 36

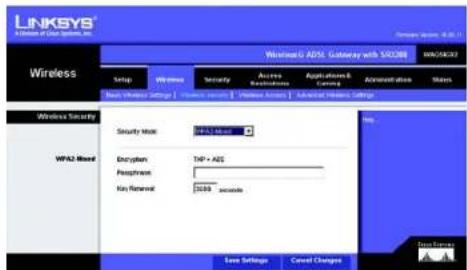

Figure 6-17: Wireless Security - WPA2-Mixed 37

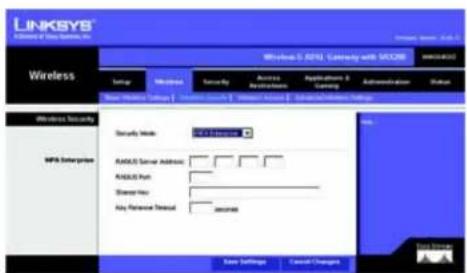

Figure 6-18: Wireless Security - WPA Enterprise 37

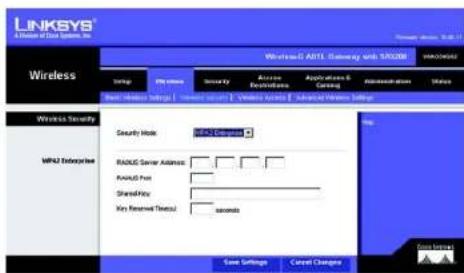

Figure 6-19: Wireless Security - WPA2 Enterprise 38

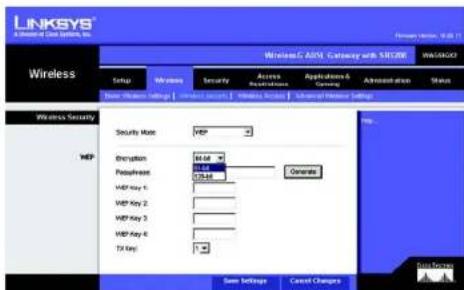

Figure 6-20: Wireless Security - WEP 38

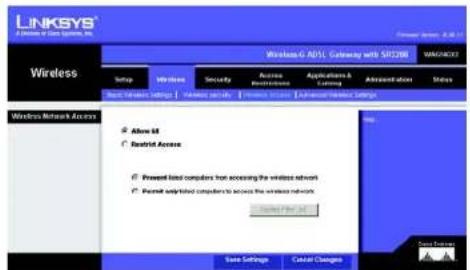

Figure 6-21: Wireless Access 39

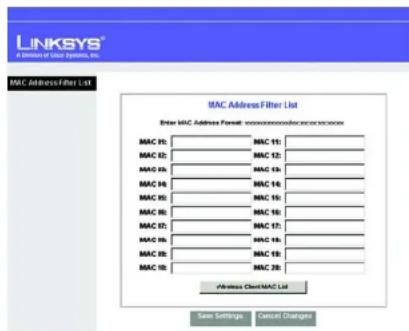

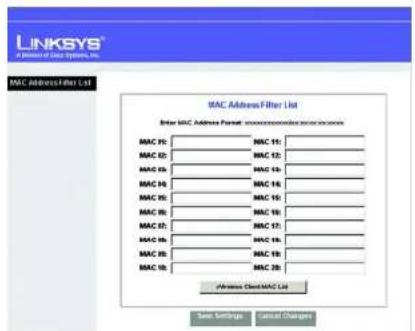

Figure 6-22: MAC Address Filter List 39

Figure 6-23: Wireless Client MAC List 39

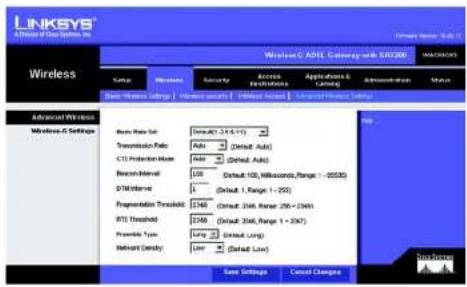

Figure 6-24: Advanced Wireless Settings 40

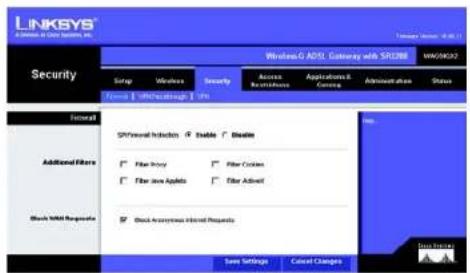

Figure 6-25: Firewall 42

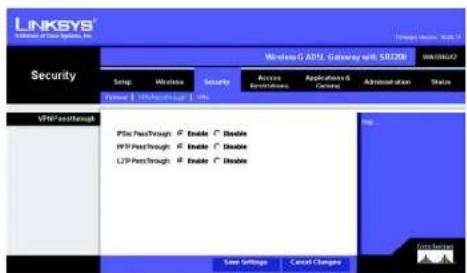

Figure 6-26: VPN Passthrough 43

Figure 6-27: VPN 44

Figure 6-28: VPN Settings Summary 44

Figure 6-29: Key Exchange Method - Auto (IKE) 45

Figure 6-30: Key Exchange Method - Manual 46

Figure 6-31: VPN Log 46

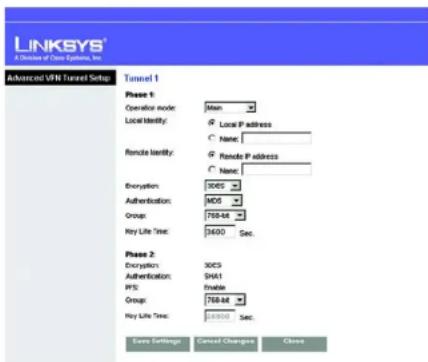

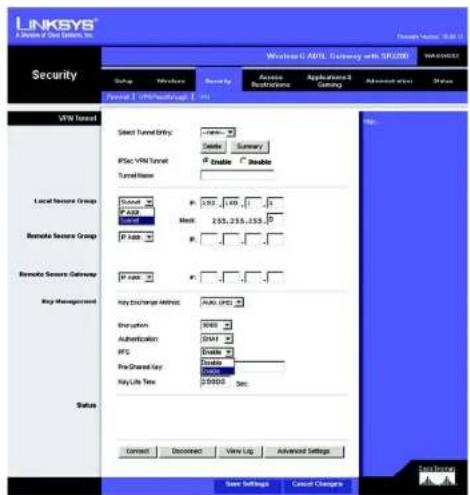

Figure 6-32: Advanced VPN Tunnel Setup 47

Wireless-G ADSL Gateway with SRX200

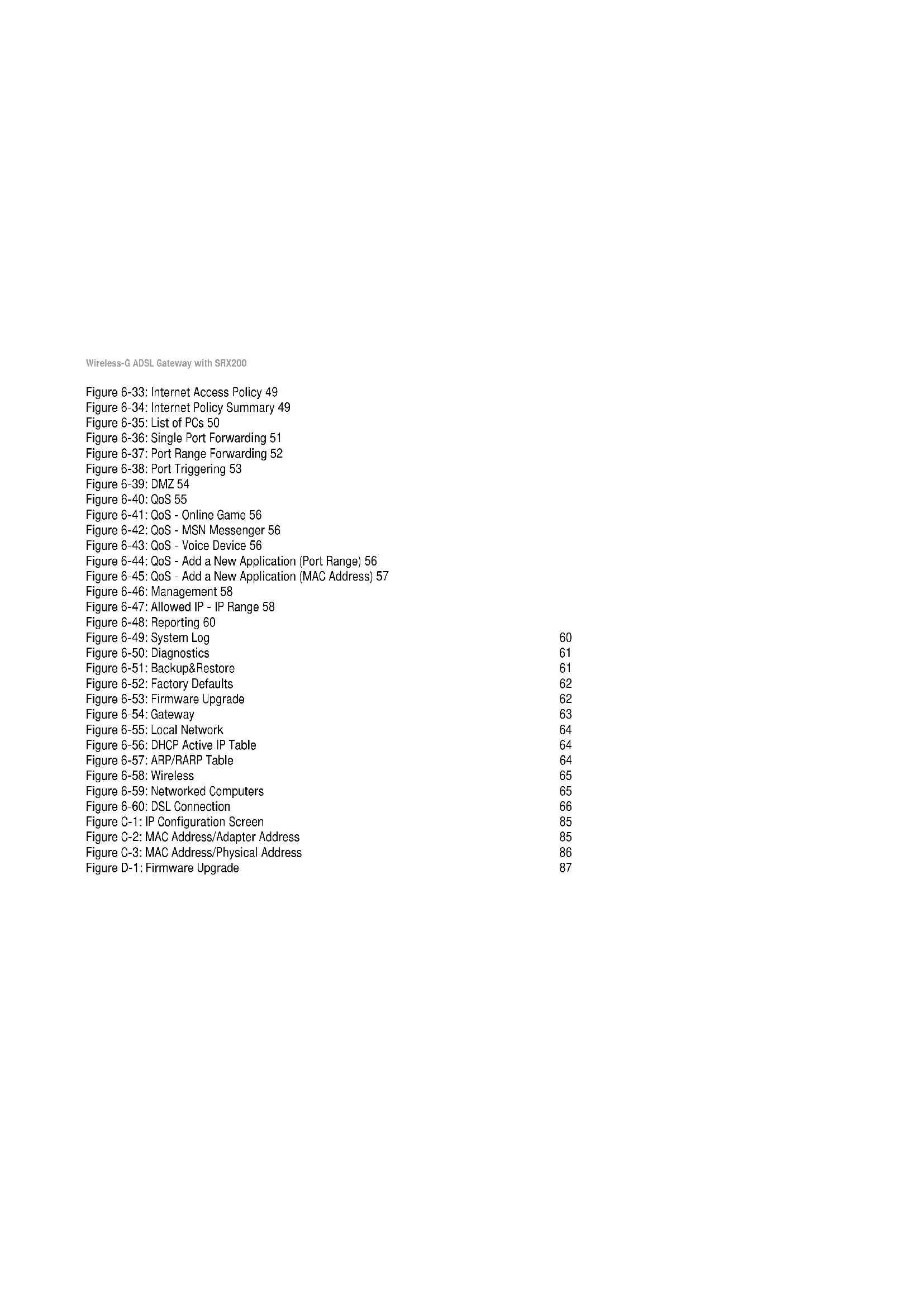

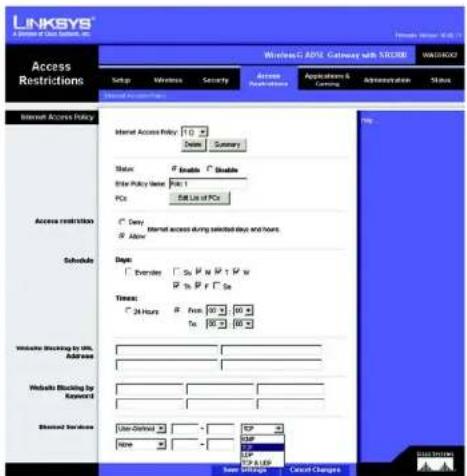

Figure 6-33: Internet Access Policy 49

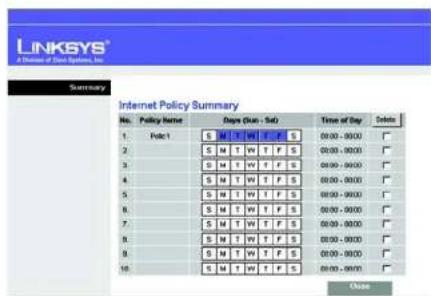

Figure 6-34: Internet Policy Summary 49

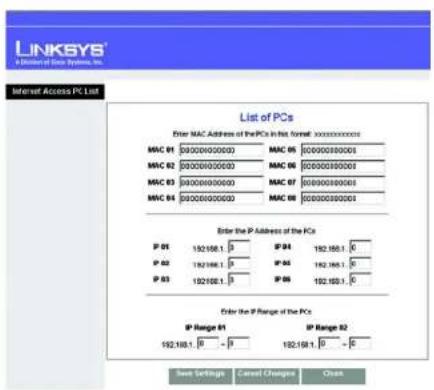

Figure 6-35: List of PCs 50

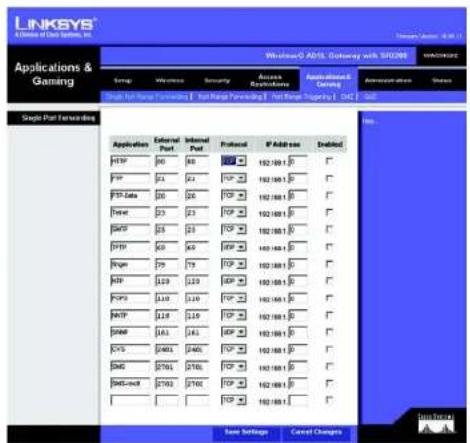

Figure 6-36: Single Port Forwarding 51

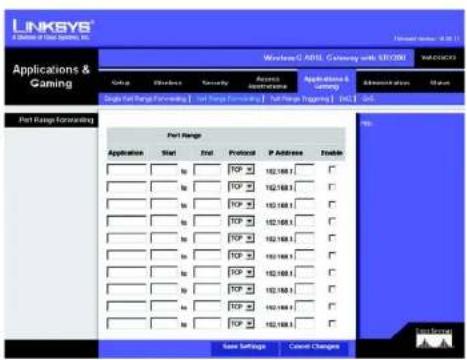

Figure 6-37: Port Range Forwarding 52

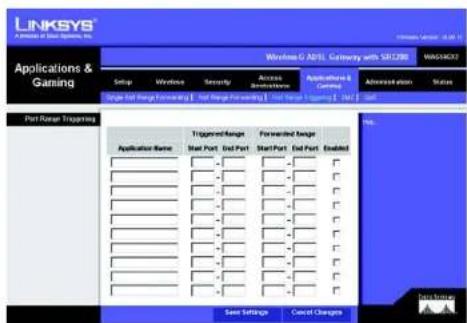

Figure 6-38: Port Triggering 53

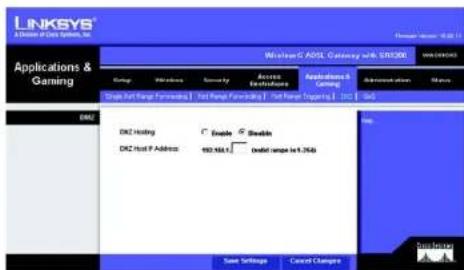

Figure 6-39: DMZ 54

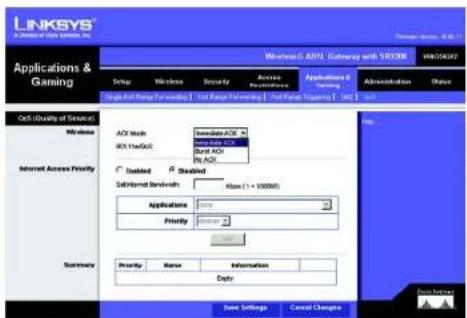

Figure 6-40: QoS 55

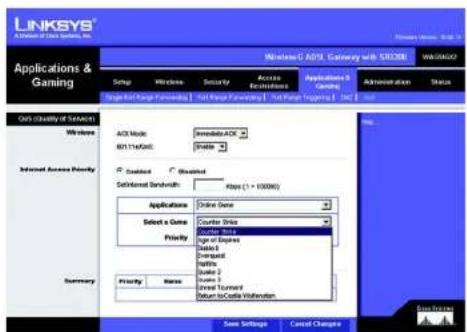

Figure 6-41: QoS - Online Game 56

Figure 6-42: QoS - MSN Messenger 56

Figure 6-43: QoS - Voice Device 56

Figure 6-44: QoS - Add a New Application (Port Range) 56

Figure 6-45: QoS - Add a New Application (MAC Address) 57

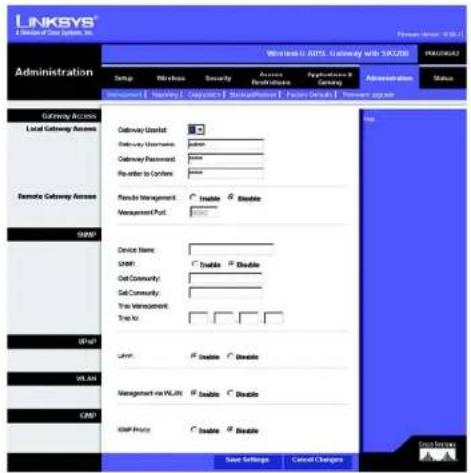

Figure 6-46: Management 58

Figure 6-47: Allowed IP - IP Range 58

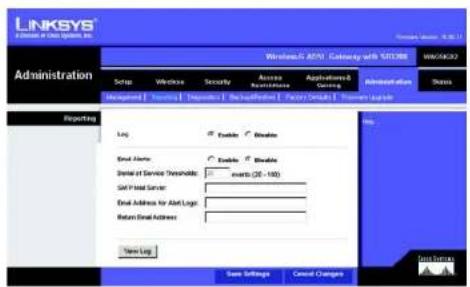

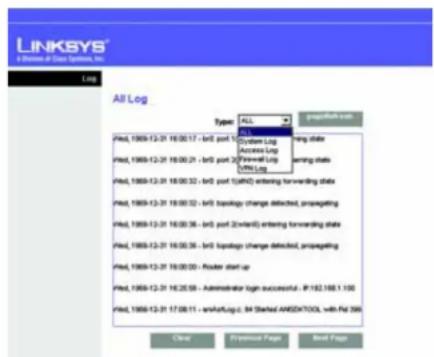

Figure 6-48: Reporting 60

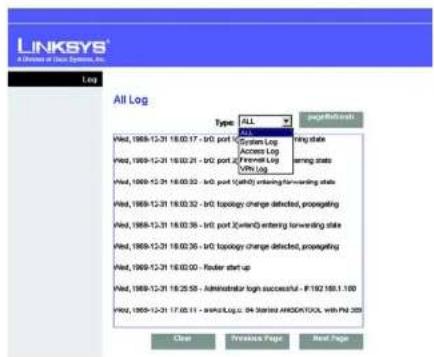

Figure 6-49: System Log 60

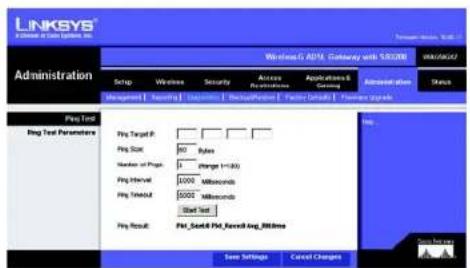

Figure 6-50: Diagnostics 61

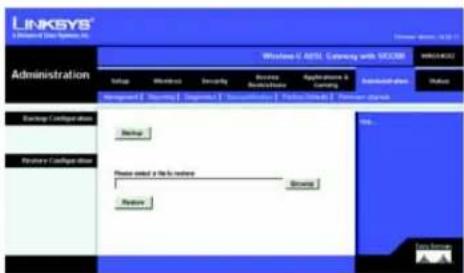

Figure 6-51: Backup&Restore 61

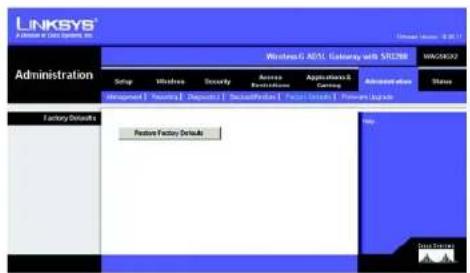

Figure 6-52: Factory Defaults 62

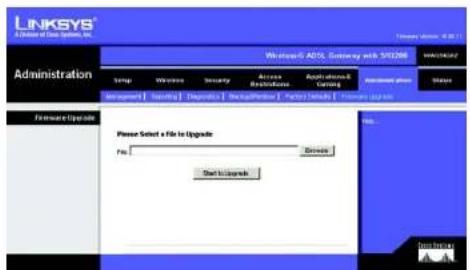

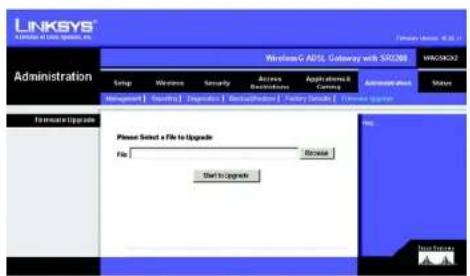

Figure 6-53: Firmware Upgrade 62

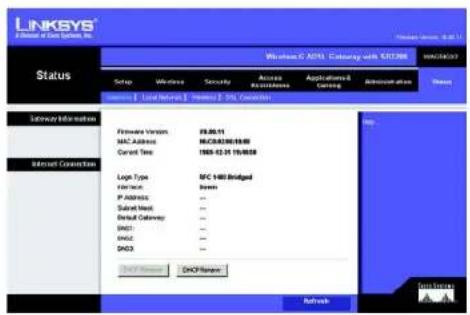

Figure 6-54: Gateway 63

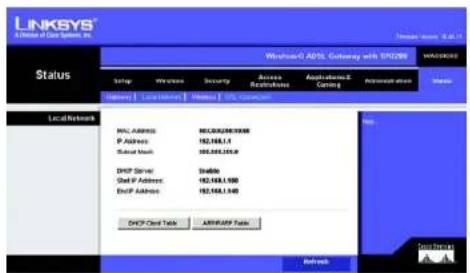

Figure 6-55: Local Network 64

Figure 6-56: DHCP Active IP Table 64

Figure 6-57: ARP/RARP Table 64

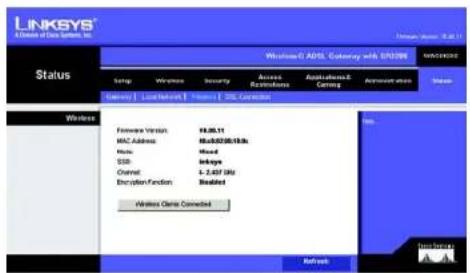

Figure 6-58: Wireless 65

Figure 6-59: Networked Computers 65

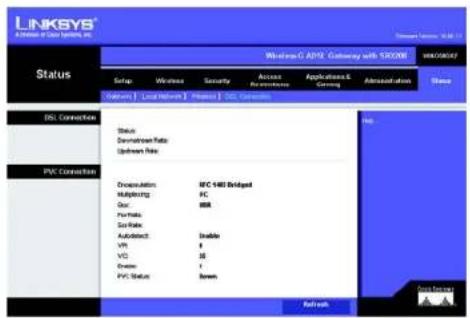

Figure 6-60: DSL Connection 66

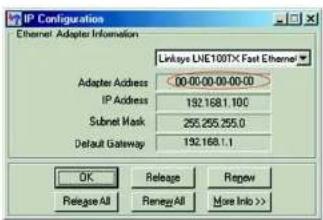

Figure C-1: IP Configuration Screen 85

Figure C-2: MAC Address/Adapter Address 85

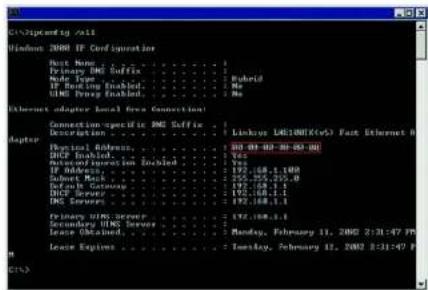

Figure C-3: MAC Address/Physical Address 86

Figure D-1: Firmware Upgrade 87

Wireless-G ADSL Gateway with SRX200

Welcome

Thank you for choosing the Wireless-G ADSL Gateway with SRX200. This Gateway will provide your computers with a high-speed Internet connection as well as resources, including files and printers.

How does the Gateway do all of this? By connecting the Internet, as well as your computers and peripherals, to the Gateway, then the Gateway can direct and control communications for your network. Plus, since the Gateway is wireless, Internet access can be shared over the wireless broadcast as well as the wired network.

The Wireless-G ADSL Gateway with SRX200 combines smart antenna technology with standards-based, Wireless-G (802.11g) networking. By overlaying the signals of two Wireless-G compatible radios, the "Multiple In, Multiple Out" (MIMO) technology effectively doubles the data rate. Unlike ordinary wireless networking technologies that are confused by signal reflections, MIMO actually uses these reflections to increase the range and reduce "dead spots" in the wireless coverage area. The robust signal travels farther, maintaining wireless connections up to two times farther than standard Wireless-G. And the farther away you are, the more advantage you get—the higher data rate and reflection-friendly technology can yield up to six times more throughput than Wireless-G in some situations. The Gateway avoids interference by dynamically switching to the clearest channel available. Even your standard Wireless-G and -B equipment will work better when communicating with SRX-enabled devices.

To protect your data and privacy, WPA encryption provides greater wireless security opportunities while the whole network is protected through a Stateful Packet Inspection (SPI) firewall and NAT technology. In addition, you can safeguard your family with parental control features such as Internet access restrictions and keyword blocking. These security features, as well as the Gateway's other settings, are accessed through the easy-to-use, browser-based utility.

But what does all of this mean?

Networks are useful tools for sharing Internet access and computer resources. You can access one printer from different computers and access data located on another computer's hard drive. Networks are even used for playing multiplayer video games. So, networks not only are useful in homes and offices, but also can be fun.

PCs on a wired network create a LAN, or Local Area Network. They are connected with Ethernet cables, which is why the network is called "wired". PCs equipped with wireless cards or adapters can communicate without cumbersome cables. By sharing the same wireless settings, within their transmission radius, they form a wireless network. This is sometimes called a WLAN, or Wireless Local Area Network. Since the Gateway has wireless capabilities, it can bridge your wired and wireless networks, letting them communicate with each other.

Chapter 1: Introduction Welcome

802.11b: an IEEE wireless networking standard that specifies a maximum data transfer rate of 11Mbps and an operating frequency of 2.4GHz.

802.11g: an IEEE wireless networking standard that specifies a maximum data transfer rate of 54Mbps, an operating frequency of 2.4GHz, and backward compatibility with 802.11b devices.

wpa (wi-fi protected access): a wireless security protocol using TKIP (Temporal Key Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.

spi (stateful packet inspection) firewall: a technology that inspects incoming packets of information before allowing them to enter the network.

firewall: Security measures that protect the resources of a local network from intruders.

nat (network address translation): NAT technology translates IP addresses of a local area network to a different IP address for the Internet.

network: a series of computers or devices connected for the purpose of data sharing, storage, and/or transmission between users

Ian (local area network): The computers and networking products that make up the network in your home or office.

Wireless-G ADSL Gateway with SRX200

With your networks all connected, wired, wireless, and the Internet, you can now share files and Internet access—and even play games. All the while, the Wireless-G ADSL Gateway with SRX200 protects your networks from unauthorized and unwelcome users.

Linksys recommends using the Setup CD-ROM for first-time installation of the Gateway. If you do not wish to run the Setup Wizard on the Setup CD-ROM, then use the instructions in this Guide to help you connect the Gateway, set it up, and configure it to bridge your different networks. These instructions should be all you need to get the most out of the Wireless-G ADSL Gateway with SRX200.

What's in this User Guide?

This user guide covers the steps for setting up and using the Wireless-G ADSL Gateway with SRX200.

• Chapter 1: Introduction This chapter describes applications of the Wireless-G ADSL Gateway with SRX200 and this User Guide.
  • Chapter 2: Planning Your Network This chapter describes the basics of networking.
• Chapter 3: Getting to Know the Wireless-G ADSL Gateway with SRX200 This chapter describes the physical features of the Gateway.
  • Chapter 4: Connecting the Wireless-G ADSL Gateway with SRX200 This chapter instructs you on how to connect the Gateway to your network.
• Chapter 5: Setting up the Wireless-G ADSL Gateway with SRX200 This chapter explains how to set up the Gateway using its Setup Wizard.
• Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200 This chapter explains how to configure the Gateway's settings using its Web-based Utility.
• Appendix A: Troubleshooting This appendix describes some problems and solutions, as well as frequently asked questions, regarding installation and use of the Wireless-G ADSL Gateway with SRX200.
• Appendix B: Wireless Security This appendix explains the risks of wireless networking and some solutions to reduce the risks.
• Appendix C: Finding the MAC Address and IP Address for your Ethernet Adapter. This appendix describes how to find the MAC address for your computer's Ethernet adapter so you can use the MAC filtering and/or MAC address cloning feature of the Gateway.

Chapter 1: Introduction What's in this User Guide?

Wireless-G ADSL Gateway with SRX200

• Appendix D: Upgrading Firmware
This appendix instructs you on how to upgrade the firmware on the Gateway if you should need to do so.
- Appendix E: Glossary
This appendix gives a brief glossary of terms frequently used in networking.
- Appendix F: Specifications
This appendix provides the technical specifications for the Gateway.
- Appendix G: Warranty Information
This appendix supplies the warranty information for the Gateway.
• Appendix H: Regulatory Information
This appendix supplies the regulatory information regarding the Gateway.
- Appendix I: Contact Information
This appendix provides contact information for a variety of Linksys resources, including Technical Support.

Wireless-G ADSL Gateway with SRX200

◆◆◆□▼◆□ ◆★◆◆■■■\* \*□◆□ ☆※▼D □□\*

The Gateway's Functions

A Gateway is a network device that connects two networks together.

In this instance, the Gateway connects your Local Area Network (LAN), or the group of computers in your home or office, to the Internet. The Gateway processes and regulates the data that travels between these two networks.

The Gateway's NAT feature protects your network of computers so users on the public, Internet side cannot "see" your computers. This is how your network remains private. The Gateway protects your network by inspecting every packet coming in through the Internet port before delivery to the appropriate computer on your network. The Gateway inspects Internet port services like the web server, ftp server, or other Internet applications, and, if allowed, it will forward the packet to the appropriate computer on the LAN side.

Remember that the Gateway's ports connect to two sides. The LAN ports connect to the LAN, and the ADSL port connects to the Internet. The LAN ports transmit data at 10/100Mbps.

IP Addresses

What's an IP Address?

IP stands for Internet Protocol. Every device on an IP-based network, including computers, print servers, and Gateways, requires an IP address to identify its "location," or address, on the network. This applies to both the Internet and LAN connections. There are two ways of assigning an IP address to your network devices. You can assign static IP addresses or use the Gateway to assign IP addresses dynamically.

Static IP Addresses

A static IP address is a fixed IP address that you assign manually to a computer or other device on the network. Since a static IP address remains valid until you disable it, static IP addressing ensures that the device assigned it will always have that same IP address until you change it. Static IP addresses must be unique and are commonly used with network devices such as server computers or print servers.

Chapter 2: Planning Your Network The Gateway's Functions

2.4GHz 802.1TB 2.4GHz 802.1TB Internet

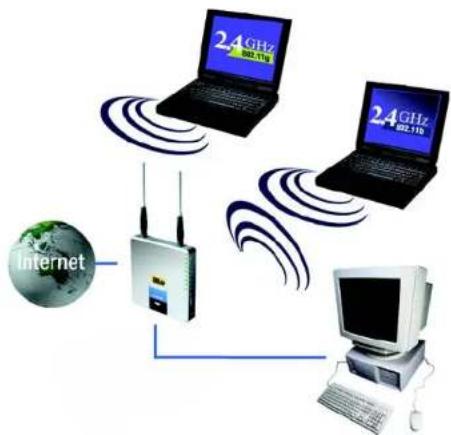

Figure 2-1: Network

ip (internet protocol): a protocol used to send data over a network

NOTE: Since the Gateway is a device that connects two networks, it needs two IP addresses—one for the LAN, and one for the Internet. In this User Guide, you'll see references to the "Internet IP address" and the "LAN IP address."

Since the Gateway uses NAT technology, the only IP address that can be seen from the Internet for your network is the Gateway's Internet IP address. However, even this Internet IP address can be blocked, so that the Gateway and network seem invisible to the Internet—see the Security - Firewall tab in "Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200."

Wireless-G ADSL Gateway with SRX200

Since you use the Gateway to share your DSL Internet connection, contact your ISP to find out if they have assigned a static IP address to your account. If so, you will need that static IP address when configuring the Gateway. You can get that information from your ISP.

Dynamic IP Addresses

A dynamic IP address is automatically assigned to a device on the network, such as computers and print servers. These IP addresses are called "dynamic" because they are only temporarily assigned to the computer or device. After a certain time period, they expire and may change. If a computer logs onto the network (or the Internet) and its dynamic IP address has expired, the DHCP server will automatically assign it a new dynamic IP address.

DHCP (Dynamic Host Configuration Protocol) Servers

Computers and other network devices using dynamic IP addressing are assigned a new IP address by a DHCP server. The computer or network device obtaining an IP address is called the DHCP client. DHCP frees you from having to assign IP addresses manually every time a new user is added to your network.

A DHCP server can either be a designated computer on the network or another network device, such as the Gateway. By default, the Gateway's DHCP Server function is enabled.

If you already have a DHCP server running on your network, you must disable one of the two DHCP servers. If you run more than one DHCP server on your network, you will experience network errors, such as conflicting IP addresses. To disable DHCP on the Gateway, see the DHCP section in "Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200."

Wireless-G ADSL Gateway with SRX200

Image displaying a row of various symbols and decorative patterns, including stars, squares, and triangles.

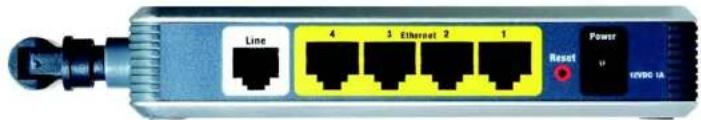

Ports and Reset Button on Side Panel

The Gateway's ports and Reset button are located on a side panel.

Line 4 3 Ethernet 2 1 Reset Power UYESC IA

Figure 3-1: Ports and Reset Button on Side Panel

Line The Line port connects to the ADSL line.

Ethernet (1-4) The Ethernet ports connect to your computers and other network devices.

Reset Button There are two ways to reset the Gateway's factory defaults. Either press the Reset Button for approximately five seconds, or restore the defaults from the Factory Defaults screen of the Administration tab in the Gateway's Web-based Utility.

Power The Power port is where you will connect the power adapter.

IMPORTANT: Resetting the Gateway to factory defaults will erase all of your settings (including Internet connection, wireless, and other settings) and replace them with the factory defaults. Do not reset the Gateway if you want to retain these settings.

Wireless-G ADSL Gateway with SRX200

LEDs on Side Panel

The Gateway's LEDs, which indicate network activity, are located on the other side panel.

Wireless-6 AOSL Channel with SRL250

Figure 3-2: LEDs on Side Panel

(POWER) button When you want to power the Gateway on or off, push this button.

POWER Green. The POWER LED lights up when the Gateway is powered on.

WIRELESS Green. The WIRELESS LED lights up whenever there is a successful wireless connection. If the LED is flashing, the Gateway is actively sending or receiving data to or from one of the devices on the network.

ETHERNET (1-4) Green. The ETHERNET LED serves two purposes. If the LED is continuously lit, the Gateway is successfully connected to a device through the Ethernet port. If the LED is flashing, it is an indication of any network activity.

DSL Green. The DSL LED lights up whenever there is a successful DSL connection. The LED flashes while the Gateway is establishing the ADSL connection.

INTERNET Green. The INTERNET LED lights up green when an Internet connection to the Internet Service Provider (ISP) is established. The INTERNET LED lights up red when the connection to the ISP fails.

Wireless-G ADSL Gateway with SRX200

Collection of symbolic and stylized text symbols, including square, circle, asterisk, star, and arrow symbols in a row.

Overview

The installation technician from your ISP should have left the setup information for the modem with you after installing your broadband connection. If not, you can call your ISP to request that data.

After you have the setup information you need for your specific type of Internet connection, you can begin installation and setup of the Gateway.

If you want to use a computer with an Ethernet adapter to configure the Gateway, continue to "Wired Connection to a Computer." If you want to use a computer with a wireless adapter to configure the Gateway, continue to "Wireless Connection to a Computer."

Wireless-G ADSL Gateway with SRX200

Wired Connection to a Computer

1. Make sure that all of your network's hardware is powered off, including the Gateway and all computers.
2. Connect a phone cable from the Line port on the Gateway's side panel to the wall jack of the ADSL line. A small device called a microfilter (not included) may be necessary between each phone and wall jack to prevent interference. Contact your ISP if you have any questions.

NOTE: A small device called a microfilter (not included) may be necessary between each phone and wall jack to prevent interference. Contact your ISP if you have any questions.

IMPORTANT: For countries that have phone jacks with RJ-11 connectors, make sure to only place the microfilters between the phone and the wall jack and not between the Gateway and the wall jack or your ADSL will not connect.

For countries that do not have phone jacks with RJ-11 connectors (e.g. France, Sweden, Switzerland, United Kingdom, etc.), except for ISDN users, the microfilter has to be used between the Gateway and the wall jack, because the microfilter will have the RJ-11 connector.

Annex B users (E1 and DE versions of the Gateway) must use the included network cable to connect the Gateway to the wall jack or NTBA device. If you require splitters or special jacks, please contact your service provider.

1. Connect one end of an Ethernet network cable to one of the Ethernet ports (labeled 1-4) on the back of the Gateway, and the other end to an Ethernet port on a computer.

Repeat this step to connect more computers, a switch, or other network devices to the Gateway.

1. Connect the power adapter to the Gateway's Power port, and then plug the power adapter into a power outlet.

NOTE: You should always plug the Gateway's power adapter into a power strip with surge protection.

The Power LED on the front panel will light up green as soon as the power adapter is connected properly. The Power LED will flash for a few seconds, and then it will be solidly lit when the self-test is complete. If the LED flashes for one minute or longer, see "Appendix A: Troubleshooting."

1. Power on one of your computers that is connected to the Gateway.

Go to "Chapter 5: Setting up the Wireless-G ADSL Gateway with SRX200."

Chapter 4: Connecting the Wireless-G ADSL Gateway with SRX200 Wired Connection to a Computer

Close-up of a network switch device with four Ethernet ports and a USB port (no visible text or labels)

Figure 4-1: Connect the ADSL Line

Close-up of a network switch with Ethernet ports and a blue cable (no visible text or symbols)

Figure 4-2: Connect a PC

Close-up of a network switch device with ports and a power button (no visible text or symbols)

Figure 4-3: Connect the Power

Wireless-G ADSL Gateway with SRX200

Wireless Connection to a Computer

If you want to use a wireless connection to access the Gateway, follow these instructions:

1. Make sure that all of your network's hardware is powered off, including the Gateway and all computers.
2. Connect a phone cable from the Line port on the Gateway's back panel to the wall jack of the ADSL line. A small device called a microfilter (not included) may be necessary between each phone and wall jack to prevent interference. Contact your ISP if you have any questions.

NOTE: A small device called a microfilter (not included) may be necessary between each phone and wall jack to prevent interference. Contact your ISP if you have any questions.

IMPORTANT: For countries that have phone jacks with RJ-11 connectors, make sure you only place the microfilters between the phone and the wall jack and not between the Gateway and the wall jack or your ADSL will not connect.

For countries that do not have phone jacks with RJ-11 connectors (e.g. France, Sweden, Switzerland, United Kingdom, etc.), except for ISDN users, the microfilter has to be used between the Gateway and the wall jack, because the microfilter will have the RJ-11 connector.

Annex B users (E1 and DE versions of the Gateway) must use the included network cable to connect the Gateway to the wall jack or NTBA device. If you require splitters or special jacks, please contact your service provider.

1. Connect the power adapter to the Power port, and then plug the power adapter into a power outlet.

NOTE: You should always plug the Gateway's power adapter into a power strip with surge protection.

The Power LED on the front panel will light up green as soon as the power adapter is connected properly. The Power LED will flash for a few seconds, and then it will be solidly lit when the self-test is complete. If the LED flashes for one minute or longer, see "Appendix A: Troubleshooting."

1. Power on one of the computers on your wireless network(s).
2. For initial access to the Gateway through a wireless connection, make sure the computer's wireless adapter has its SSID set to linksys (the Gateway's default setting), and its wireless security is disabled. After you have accessed the Gateway, you can change the Gateway and this computer's adapter settings to match your usual network settings.

Go to "Chapter 5: Setting up the Wireless-G ADSL Gateway with SRX200."

Chapter 4: Connecting the Wireless-G ADSL Gateway with SRX200 Wireless Connection to a Computer

Close-up of a network switch with four Ethernet ports and a USB port, no visible text or symbols on the device body.

Figure 4-4: Connect the ADSL Line

Close-up of a network switch device with ports and a USB port, showing no visible text or symbols on the main body.

Figure 4-5: Connect the Power

NOTE: You should always change the SSID from its default, linksys, and enable wireless security.

Wireless-G ADSL Gateway with SRX200

◆◆◆◆□▼◆□ ×+ \*◆▼◆■◆ ◆□ ▼◆◆ ★◆◆◆▲▲☆ ◇◆◆◆◆▼◆D ◆◆◆◆ ◆◆◆◆◆

Overview

The Wireless-G ADSL Gateway with SRX200 Setup Wizard will guide you through the installation procedure. It will go through the instructions for configuring the Gateway's network and wireless settings.

Using the Setup Wizard

1. Insert the Setup Wizard CD-ROM into your CD-ROM drive. The Setup Wizard should run automatically, and the Welcome screen should appear. If it does not, click the Start button and choose Run. In the field that appears, enter D:\setup.exe (if "D" is the letter of your CD-ROM drive).

2. The Setup Wizard will automatically detect the language setting of your PC; if it does not, select one of the available languages from the Language drop-down menu. On the initial Welcome screen, click the Next button if you want to proceed with the Setup Wizard using the current language. If you want to use a different language, select the appropriate language, and then click the Next button.

3. On the following Welcome screen, click the Click Here to Start button. These are your other choices:

Norton Internet Security - Click the Norton Internet Security button to install the Norton Internet Security software program.

User Guide - Click the User Guide button to open the PDF file of this User Guide.

Exit - Click the Exit button to exit the Setup Wizard.

LINKSYS® A Division of Grace Systems, Inc. Language: 23 Welcome The setup wizard has automatically detected the language settings of your PC. Please click Next to continue the wizard in the current language. If you would like to use a different language, please select from the list of languages and click Next. 2.4 GHz Wireless- ADSL Gateway wms SRX200 Setup Wizard wms 1.2 Model No: WAG54GX2 Copyright © 2000 Casia Systems, Inc. All Rights Reserved

Figure 5-1: Setup Wizard's Welcome - Language Selection Screen

LINKSYS® A Division of Cisco Systems, Inc. Welcome Thank you for choosing Linksys. This Setup Wizard will help you install the Wireless-G ADSL Gateway with: SRX200 Click here in Start 24 GHz Wireless-G SRX200 ADSL Gateway wim. SRX200 Setup Wizard wim.1.3 WAG54GX2 Copyright © 2006 Cisco Systems, Inc. All Rights Reserved

Figure 5-2: Setup Wizard's Welcome - Start Wizard Screen

Chapter 5: Setting up the Wireless-G ADSL Gateway with SRX200 Overview

Wireless-G ADSL Gateway with SRX200

1. After reading the License Agreement, click the Next button if you accept, or click the Exit button to end the installation. Click the Back button go back to the previous screen.

LINKSYS® A Division of Cisco Systems, Inc. End User License Agreement Please review the license agreement below. Press the PAGE DOWN key or use the Scroll Bar to see the rest of the agreement. Linksys Software License Agreement v.15.33 THIS LICENSE AGREEMENT IS BETWEEN YOU AND CISCO-LINKSYS, LLC OR THE CISCO-LINKSYS, LLC SUBSIDIARY LICENSING THIS SOFTWARE, IF SALE IS NOT DIRECTLY BY CISCO-LINKSYS, LLC ("Linksys"). BY DOWNLOADING OR INSTALLING THE SOFTWARE, OR USING THE PRODUCT CONTAINING THE SOFTWARE, YOU ARE CONSENTING TO BE BOUND BY THIS AGREEMENT. IF YOU DO NOT AGREE TO ALL OF THESE TERMS, THEN YOU MAY NOT If you accept the terms of this Agreement, click Next to continue. If not, choose Cancel and the Setup Wizard will close. You must click Next to continue the installation process. Wireless-6 ADSL Gateway with SRX20 Setup Wizard WAG54GX2

Figure 5-3: Setup Wizard's License Agreement Screen

1. The Setup Wizard will ask you to disconnect your broadband modem from your PC and the ADSL wall jack. After you have done so, click the Next button.

LINKSYS® A Division of Biosystems, Inc. 2 Disconnect the Modem from the PC Wall Jack Modem Disconnect the cables that connect your modem in the PC. Wireless-6 ADSL Gateway with SPUC20 Setup Wizard Basic to WA054GX2

Figure 5-4: Setup Wizard's Disconnect the Modem from the PC and ADSL Wall Jack Screen

Wireless-G ADSL Gateway with SRX200

1. The Setup Wizard will ask you to connect the Gateway to the ADSL wall jack. After you have done so, click the Next button.

LINKSYS® A Division of Geo Systems, Inc. Connect the gateway to the DSL line 3 Plug the phone cable from the wall into the Gateway's Line port. Wall Jack ADSL Gateway Line Port Wireless-6 ADSL Gateway with SRXC20 Setup Wizard WAG54GX2

Figure 5-5: Setup Wizard's Connect the Gateway to the ADSL Wall Jack Screen

1. The Setup Wizard will ask you to connect a network cable to your PC. After you have done so, click the Next button.

LINKSYS® A Division of Geo Systems, Inc. Connect the Gateway to a PC 4 The Gateway comes with a blue network cable. Plug one end of the network cable into your PC's network port. If you previously had an Ethernet port, use the same port. If you previously had an USB modem, connect the network cable in the sample illustration here. Network Port Wireless-6 ADSL Gateway with SRX20 Setup Wizard WAG54GX2

Figure 5-6: Setup Wizard's Connect a Network Cable to a PC Screen

Wireless-G ADSL Gateway with SRX200

1. The Setup Wizard will ask you to connect the other end of the network cable to the Gateway.

Then you can also connect additional PCs to the Gateway.

After you have done so, click the Next button.

LINKSYS® A Division of Coo System, Inc. Connect the Gateway to a PC 5 Wall Jack Gateway port 1, 2, 3, or 4 Plug the other end of the network cable into one of the Gateway's ports number 1 to 4. Wireless-6 ADSL Gateway with SRX20 Setup Wizard WAG54GK2

Figure 5-7: Setup Wizard's Connect the Network Cable to the Gateway Screen

1. The Setup Wizard will ask you to power on the Gateway. After you have done so, click the Next button.

LINKSYS® A Division of Class Systems, Inc. Power as the Gateway 6 Plug the power adapter into the Gateway's Power port. Plug the other end into an electrical outlet. Exit Add Remove Reset Wireless-6 ADSL Gateway with SRX200 Setup Wizard WAG54GX2

Figure 5-8: Setup Wizard's Power on the Gateway Screen

Wireless-G ADSL Gateway with SRX200

1. Make sure the Gateway's Power, DSL, and numbered LEDs (depending on the number of PCs connected) are lit on its front panel. After you have done so, click the Next button.

LINKSYS® A Division of Color Systems, Inc. Check the Gateway's Status 7 On the Gateway's front panel, the Power, DSL and at least one of the numbered (1, 2, 3, or 4) LEDs should be hit. If not, make sure the cable are securely connected. Wireless-6 ADSL Gateway with SRX200 Setup Wizard WAG54G-X2

Figure 5-9: Setup Wizard's Check the Gateway's Status Screen

1. You will be asked where you reside. Select the appropriate country from the drop-down menu. Then click the Next button.

NOTE: If your country is not listed, then use the Gateway's Web-based Utility to configure your settings. Refer to "Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200" for instructions.

LINKSYS® A Division of Data Systems, Inc. Configure DSL To configure your Wireless-G ADSL Gateway, select your country of presence. Select your country of presence: Count: Unlisted kingdom NOTE: For unlisted countries, use the Gateway's web-based utility for setup.

Figure 5-10: Setup Wizard's Select Your Country Screen

Wireless-G ADSL Gateway with SRX200

1. The Internet Service Providers (ISPs) for your country will be listed. (The on-screen options will vary depending on which country you selected on the previous screen.) Click the button for your ISP.

If your ISP is not listed, click the Next button to manually enter your settings.

1. If applicable, the Setup Wizard will automatically detect the Encapsulation type you use: 1483 Bridged, 1483 Routed, PPPoA, or PPPoE. To manually enter your settings, select your Encapsulation type: 1483 Bridged, 1483 Routed, PPPoA, or PPPoE.

NOTE: If your Encapsulation type is IPoA or Bridged Mode Only, you will have to use the Gateway's Web-based Utility to configure it. Refer to "Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200" for instructions.

Proceed to the appropriate section for your Encapsulation type.

1483 Bridged

If you selected your ISP, then the Setup Wizard will automatically select the Encapsulation, VPI, VCI, and Multiplexing settings. Then select the appropriate IP setting for your DSL connection.

If you need to manually enter your settings, use this screen.

VPI/VCI - If you need to manually enter your settings, enter the VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier) settings provided by your ISP.

Multiplexing - If you need to manually enter your settings, select LLC or VC, depending on your ISP.

Auto IP - If you are using a dynamic IP address, then click the Auto IP radio button.

Static IP - If you are using a static IP address, then click the Static IP radio button. Complete the IP Address, Subnet Mask, Default Gateway, Primary DNS (Domain Name System), and Secondary DNS fields. (You need to enter at least one DNS server IP address.)

Click the Next button to continue or the Back button to return to the previous screen.

LINKSYS® A Division of Good Systems, Inc. Configure DSL Select your ISP/DSL Provider to auto-configure your ADSL Parameters for the Wireless-G ADSL Gateway. BT Click on the ISP Button for your DSL Provider to auto-configure the settings. If your ISP is not shown above, click "next" to manually enter your settings. Edit Next Next Wireless-G ADSL Gateway with SRX20 Setup Wizard WAG54GK2

Figure 5-11: Setup Wizard's Select Your Internet Service Provider Screen (UK)

LINKSYS® A Division of Cross Systems, Inc. Configure DSL Configuration Details Encapsulation 1403 Drigeed Auto IP Static IP VPI / VCI 0 / 90 IP Address Multiplexing LLC SuSnet Mask Default Gateway Primary DNS Secondary DNS Wireless-6 ADSL Gateway with SRX200 Setup Wizard WAG54GX2

Figure 5-12: Setup Wizard's Configure DSL - 1483 Bridged Screen

Wireless-G ADSL Gateway with SRX200

1483 Routed

If you selected your ISP, then the Setup Wizard will automatically select the Encapsulation, VPI, VCI, and Multiplexing settings. Then enter the appropriate IP settings for your DSL connection.

If you need to manually enter your settings, use this screen.

VPI/VCI - If you need to manually enter your settings, enter the VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier) settings provided by your ISP.

Multiplexing - If you need to manually enter your settings, select LLC or VC, depending on your ISP.

Static IP - Complete the IP Address, Subnet Mask, Default Gateway, Primary DNS (Domain Name System), and Secondary DNS fields. (You need to enter at least one DNS server IP address.)

Click the Next button to continue or the Back button to return to the previous screen.

PPPoA

If you selected your ISP, then the Setup Wizard will automatically select the Encapsulation, VPI, VCI, and Multiplexing settings. Then enter the User ID and Password for your DSL connection.

If you need to manually enter your settings, use this screen.

VPI/VCI - If you need to manually enter your settings, enter the VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier) settings provided by your ISP.

Multiplexing - If you need to manually enter your settings, select LLC or VC, depending on your ISP.

User ID and Password - Enter the User ID and Password provided by your ISP.

Connection - Select Keep Alive if you always want to be connected to your ISP, or select Connect on Demand if you are charged for the time that you are connected to your ISP.

Keep Alive - For this option, the Gateway will keep the Internet connection active. In the Redial Period field, specify how often you want the Gateway to check the Internet connection (the default is 5 minutes).

Connect on Demand - If you select this option, the Gateway will terminate your Internet access after all online applications have been closed for a specified period of time, which you can specify in the Max Idle Time field (the default is 30 seconds).

Click the Next button to continue or the Back button to return to the previous screen.

Chapter 5: Setting up the Wireless-G ADSL Gateway with SRX200 Using the Setup Wizard

LINKSYS® A Division of Coser Systems, Inc. 8 Configures DSL Configuration Details Encapsulation 1463 Floxed Static IP VPI / VCI 0 / [a] IP Address 0 . 0 . 0 . 0 Multiplexing VC Sunnet Mask 0 . 0 . 0 . 0 Default Gateway 0 . 0 . 0 . 0 Primary DNS 0 . 0 . 0 . 0 Secondary DNS 0 . 0 . 0 . 0 Wireless-6 ADSL Gateway with SRX20 Setup Wizard WAG54GX2

Figure 5-13: Setup Wizard's Configure DSL - 1483 Routed Screen

LINKSYS® A Division of Clear Systems, Inc. Configure DSL 8 Configuration Details Encapsulation VPI / VCI Multiplexing User ID Password Connection Click Next to Accept these settings, or change the values to complete the configuration. Connect on Demand: Max Idle Time mins Keep Alive: Redial Period secs Wireless-6 ADSL Gateway with SRCX0 Setup Wizard WAG54GX2

Figure 5-14: Setup Wizard's Configure DSL - PPPoA Screen

Wireless-G ADSL Gateway with SRX200

PPPoE

If you selected your ISP, then the Setup Wizard will automatically select the Encapsulation, VPI, VCI, and Multiplexing settings. Then enter the User ID and Password for your DSL connection.

If you need to manually enter your settings, use this screen.

VPI/VCI - If you need to manually enter your settings, enter the VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier) settings provided by your ISP.

Multiplexing - If you need to manually enter your settings, select LLC or VC, depending on your ISP.

User ID and Password - Enter the User ID and Password provided by your ISP.

Connection - Select Keep Alive if you always want to be connected to your ISP, or select Connect on Demand if you are charged for the time that you are connected to your ISP.

Keep Alive - For this option, the Gateway will keep the Internet connection active. In the Redial Period field, specify how often you want the Gateway to check the Internet connection (the default is 5 minutes).

Connect on Demand - If you select this option, the Gateway will terminate your Internet access after all online applications have been closed for a specified period of time, which you can specify in the Max Idle Time field (the default is 30 seconds).

Click the Next button to continue or the Back button to return to the previous screen.

1. The Gateway provides a Web-based Utility you can use for configuring the Gateway from any networked PC. Access to the Utility is protected by a password.

Password - The default password is admin. Change it to a password of your choice.

Confirm - Enter the password again in the Confirm field.

Click the Next button to continue or the Back button to return to the previous screen.

LINKSYS® A Series of Class Systems, Inc. Configure DSL Configuration Details 8 Encapsulation P/PC Click Next to Accept these settings, or change the values to complete the configuration. VPI / VCI p / p Multiplexing VC User ID Password Connection Connect on Demand: Max Idle Time minns Keep Alive: Redial Period secs Wireless-6 ADSL Gateway with SRX20 Setup Wizard WAG54GX2

Figure 5-15: Setup Wizard's Configure DSL - PPPoE Screen

LINKSYS® A Division of Geo Systems, Inc. Set the Gateway's Password For security reasons, you should change your password. Password **** Custom **** Create a password and enter it in the Password field. Re-enter the password in the Confirm field. Note: You will need this password to access the Router's web-based utility. Edit None Web Wireless-6 ADSL Gateway with SRX20 Setup Wizard WAG54GX2

Figure 5-16: Setup Wizard's Set the Gateway's Password Screen

Wireless-G ADSL Gateway with SRX200

1. The Setup Wizard will ask you to enter the settings for your wireless network.

SSID - In the SSID field, enter the name of your wireless network. The SSID must be identical for all devices in the network. The default setting is linksys (all lowercase).

NOTE: An SSID is the network name shared by all devices in a wireless network. Your network's SSID should be unique to your network and identical for all devices within the network.

Channel - Select the operating channel for your wireless network. All of your wireless devices will use this channel to communicate.

Network Mode - From the Network Mode drop-down menu, select the wireless standards running on your network. If you have both 802.11g and 802.11b devices in your network, keep the default setting. Mixed. If you have only 802.11g devices, select G-Only. If you have only 802.11b devices, select B-Only. If you want to disable your wireless network, select Disable.

Device Name - Enter a name for the Gateway in the Device Name field.

Click the Next button to continue or the Back button to return to the previous screen.

1. Select the method of security you want to use: WPA Personal, WPA2 Personal, WPA2 Mixed Mode, WEP (64-Bit), or WEP (128-Bit). WPA stands for Wi-Fi Protected Access, and WEP stands for Wired Equivalent Privacy. WPA is a stronger security method than WEP, and WPA2 is a stronger version of WPA. Proceed to the appropriate section for your security method.

If you do not want to use any wireless security method, select Disabled and then click the Next button. Proceed to step 17.

NOTE: If you want to use WPA Enterprise or WPA2 Enterprise security, select Disabled and then click the Next button. After you have finished the Setup Wizard, use the Gateway's Web-based Utility to configure your wireless security settings. Refer to "Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200" for instructions.

Chapter 5: Setting up the Wireless-G ADSL Gateway with SRX200 Using the Setup Wizard

LINKSYS® A Division of Clean Systems, Inc. 1 Wireless Settings If you are using Linksys wireless adapters in your computers, your network showed work right out of the boot. Changes to the settings below may through the settings of your existing wireless network. Make sure you remember these settings as they will be resolved when setting up your wireless computers. SOSI The SSD is a unique identification shared among all computers within your wireless network and must be the same for all those computers. The SSD is case sensitive and should not exceed 32 characters. Channel 7 The Channel setting is a unique number shared among all computers within your wireless network. Channels 1, 6, and 11 are preferred. Network Mode Wizard Select Mixed Mode if you have Wireless-G and Wireless-B devices on your network. Select Gooby or B-only if you would like to only allow Wireless-G or Wireless-B devices on your network. If you would like to create your wireless network, select Enable. Device Name The Device Name is a unique name for your Wireless-G ADS, Gateway, and should be changed if you have multiple Protocols in your network. WIRELESS-6 ADSL Gateway with SRX200 Setup Wizard WAG54GX2

Figure 5-17: Setup Wizard's Wireless Settings Screen wpa (wi-fi protected access): a wireless security protocol using TKIP (Temporal Key Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.

wep (wired equivalent privacy): a method of encrypting network data transmitted on a wireless network for greater security.

LINKSYS® A Device of Class Systems, Inc. Configure Wireless Security Settings (Optional) 2 Security Please choose Web (64-BG), WEP (128-BG), MPA Personal, WPA2 Personal, WPA2 Mixed Node or Disabled. Disable MFP (54-HG) WEP (128-HG) MPA Personal WPA2 Personal WPA2 Mixed Node Add: New Send: Wireless-6 ADSL Gateway with SRX200 Setup Wizard WAG54GX2

Figure 5-18: Setup Wizard's Configure Wireless Security Settings Screen

Wireless-G ADSL Gateway with SRX200

WPA Personal

Encryption - Select the type of algorithm you want to use, TKIP or AES.

Passphrase - Enter a Passphrase, also called a pre-shared key, of 8 to 63 characters. The longer and more complex your Passphrase is, the more secure your network will be.

Click the Next button to continue or the Back button to return to the previous screen.

WPA2 Personal

Encryption - AES is automatically selected for WPA2 Personal mode.

Passphrase - Enter a Passphrase, also called a pre-shared key, of 8 to 63 characters. The longer and more complex your Passphrase is, the more secure your network will be.

Click the Next button to continue or the Back button to return to the previous screen.

encryption: encoding data transmitted in a network.

LINKSYS® A Device of Clear Systems, Inc. Configure Wireless Security Settings (Optional) You may choose between five encryption methods: 54-BI Wind-Equivalent Privacy (WIP), 120-BI, WIP, WPA Personal (Pre-charged here), WPA2 Personal, or WPA2 Mixed Mode. The security settings must be the same on all devices on your network, or they will not be able to communicate. Security: WPA Personal Please choose WIP (54-BI), WIP (120-BI), WPA Personal, WPA2 Personal, WPA2 Mixed Mode or Disabled. Choose: WIP AES Select the type of Encryption your Network uses. Enter the Posphorus keyused by your network. The Posphorus Key can be any keyboard character between 8 and 63 characters in length. Wireless-6 ADSL Gateway with SRXC0 Setup Wizard WAG54GX2

Figure 5-19: Setup Wizard's Wireless Security - WPA Personal Screen

LINKSYS® A Division of Class Systems, Inc. Configure Wireless Security Settings (Optional) You may choose between five encryption methods: 64-84 Wi-Fi Equivalent Privacy (WEPI, 120-80 WEP, WPA Personal (Pre-shared key), WPA2 Personal, or WPA2 Mixed Tools). The security settings must be the same on all devices on your network, or they will not be able to communicate. Security WPA2 Personal Please choose WEP (64-84), WEP (120-80), WPA Personal, WPA2 Personal, WPA2 Mixed Mode or Disabled. Example: AES Select the type of Encryption your Network uses. AES Proposition Enter the Phosphose key used by your network. The Phosphose Key can be any keyboard character between 8 and 63 characters in length. Wireless-8 ADSL Gateway with SRX200 Setup Wizard WAG54GK2

Figure 5-20: Setup Wizard's Wireless Security - WPA2 Personal Screen

Wireless-G ADSL Gateway with SRX200

WPA2 Mixed Mode

Encryption - TKIP + AES is automatically selected so both methods can be used.

Passphrase - Enter a Passphrase, also called a pre-shared key, of 8 to 63 characters. The longer and more complex your Passphrase is, the more secure your network will be.

Click the Next button to continue or the Back button to return to the previous screen.

LINKSYS® A Division of Class Systems, Inc. Configure Wireless Security Settings (Optional) You may choose between free encryption methods: 64-B1 Wi-Fi Equivalent Privacy WEP, 128-B1 WEP, WPS Personal (Priv-stated key), WPAS Personal, at WPAS Mixed Mode. The security settings must be the same on all devices on your network, or they will not be able to communicate. Please choose WIP (84-B10, WIP (128-B10, WPS Personal, WPAS Personal, WPAS Mixed Mode or Disabled). Select the type of Encryption your Network uses. WIP + AES Enter the Phosphase key used by your network. The Phosphase Key can be any keyboard character between 8 and 63 characters in length. Wireless-6 ADSL Gateway with SRX200 Setup Wizard Washing WAG54GK2

Figure 5-21: Setup Wizard's Wireless Security - WPA2 Mixed Mode Screen

WEP (64-Bit)

Enter a passphrase or WEP key.

Passphrase - Enter a passphrase in the Passphrase field, so a WEP key is automatically generated. The passphrase is case-sensitive and should not be longer than 16 alphanumeric characters. It must match the passphrase of your other wireless network devices and is compatible with Linksys wireless products only. (If you have any non-Linksys wireless products, enter the WEP key manually on those products.)

Key 1 - The WEP key you enter must match the WEP key of your wireless network. For 64-bit encryption, enter exactly 10 hexadecimal characters. Valid hexadecimal characters are "0" to "9" and "A" to "F".

Click the Next button to continue or the Back button to return to the previous screen.

LINKSYS® A Division of Class Systems, Inc. Configure Wireless Security Settings (Optional) You may choose between five encryption methods: 54-RB Wind-Equivalent Privacy WEP, 128-50 WEP, WPA Personal (PRT-shared key, WFPA2 Personal, or WFPA2 Mixed Mode). The security settings must be the same on all devices on your network, or they will not be able to communicate. Please choose WEP (54-BI), WEP (128-BI), WPA Personal, WFPA2 Personal, WFPA2 Mixed Mode or Disabled. Type the paphrase that will be used to generate the NEP key. The paphrase is case-sensitive and should not be longer than 16 characters. If you choose the Paphrase option for NEP, a WEP key will generate automatically. It manually enter a WEP key, select a WEP algorithm and lower the Paphrase option blank. Wireless-6 ADSL Gateway with SRX200 Setup Wizard WA54GX2

Figure 5-22: Setup Wizard's Wireless Security - WEP (64-Bit) Screen

Wireless-G ADSL Gateway with SRX200

WEP (128-Bit)

Enter a passphrase or WEP key.

Passphrase - Enter a passphrase in the Passphrase field, so a WEP key is automatically generated. The passphrase is case-sensitive and should not be longer than 16 alphanumeric characters. It must match the passphrase of your other wireless network devices and is compatible with Linksys wireless products only. (If you have any non-Linksys wireless products, enter the WEP key manually on those products.)

Key 1 - The WEP key you enter must match the WEP key of your wireless network. For 128-bit encryption, enter exactly 26 hexadecimal characters. Valid hexadecimal characters are "0" to "9" and "A" to "F".

Click the Next button to continue or the Back button to return to the previous screen.

LINKSYS® A Division of Cyber Systems, Inc. Configure Wireless Security Settings (Optional) You may choose between key encryption methods: 64-BI World-Equivalent Privacy (WEP), 128-BI WEP, WPA Personal (Pre-owned Key), WPA2 Personal or WPA2 Mixed Node. The security settings must be the same on all devices on your network, or they will not be able to communicate. Security WEP (128-BI) Please choose WEP (64-BI), WEP (128-BI), WPA Personal, WPA2 Personal, WPA2 Mixed Node or Disabled. Password Type the passphrase that will be used to generate the WEP key. The passphrase is case-sensitive and should not be longer than 16 characters. Key: If you choose the Passphrase option for WEP, a WEP key will generate automatically. To manually enter a WEP key, select a WEP algorithm and leave the Passphrase option team. Wireless-6 ADSL Gateway with SRX200 Setup Wizard WAG54GX2

Figure 5-23: Setup Wizard's Wireless Security - WEP (128-Bit) Screen

1. The Setup Wizard will ask you to review your settings before it saves them. Click the Yes button if you are satisfied with your settings, or click the No button if you do not want to save your new settings.

LINKSYS® A Division of Geo Systems, Inc. Confirm New Settings 3 New Settings SOSI argon Chaser 7 Extrusion Disable Rig Internet Type PPPeE Service Provider SP 0 VSS 88 Would you like to save these settings? Wireless-6 ADSL Gateway with SRX20 Setup Wizard WAG54GX2

Figure 5-24: Setup Wizard's Confirm New Settings Screen

Wireless-G ADSL Gateway with SRX200

1. After the settings have been saved, the Safe Surfing screen will appear. Click the Norton Internet Security Suite button to install the special edition of Norton Internet Security on your computer, or click the Finish button to complete the Setup Wizard.

LINKSYS® A Division of Cisco Systems, Inc. Symantec Rearner Internet Security Special Edition Includes 60-day free trial of virus & General updates Norton Internet Security™ is the award-winning suite which protects your PCs and your family from the parts of the Internet. - Norton AntiVirus™ protects email and instant messages. - Norton™ Personal Firewall protects against attackers and intrusions. - Parental Control shields children from objectionable web sites. - Shock space, server ads, pop-up windows, and more. A special edition of Norton Internet Security with a 60-day free trial of virus & Firewall updates is included on this Setup CD. Click below to install it. Norton Internet Security Early Safe Surfing Setup Wizard Finish © Copyright 2003 Cisco Systems, Inc. All rights reserved.

Figure 5-25: Setup Wizard's Safe Surfing Screen

1. The Congratulations screen will appear. Click the Online Registration button to register the Gateway, or click the Exit button to exit the Setup Wizard.

Congratulations! The installation of the Wireless-G ADSL Gateway with SRX200 is complete.

If you want to make advanced configuration changes, proceed to "Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200."

LINKSYS® A Division of Cisco Systems, Inc. Congratulations The Wireless-G ADSL Gateway with SRX200 has been successfully configured! 2.4 GHz Wireless-G SRX200 ADSL Gateway with SRX200 Setup Wizard Online Registration WAG54GX2

Figure 5-26: Setup Wizard's Congratulations Screen

Wireless-G ADSL Gateway with SRX200

◆◆◆□▼◆□ ×+ ◆□■◆◆□■◆ ▼◆★ ★◆□★●▲▲☆ ☆◆☆ ★◆▼◆D ◆■ ▶◆\*

Overview

Follow the steps in this chapter and use the Gateway's web-based utility to configure the Gateway. This chapter will describe each web page in the Utility and each page's key functions. The utility can be accessed via your web browser through use of a computer connected to the Gateway. For a basic network setup, most users only have to use the following screens of the Utility:

• Basic Setup. On the Basic Setup screen, enter the settings provided by your ISP.
• Management. Click the Administration tab and then the Management tab. The Gateway's default username and password is admin. To secure the Gateway, change the default username and password.

There are seven main tabs: Setup, Wireless, Security, Access Restrictions, Applications & Gaming, Administration, and Status. Additional tabs will be available after you click one of the main tabs. Click Help for more information.

Setup

• Basic Setup. Enter the Internet connection and network settings on this screen.
• DDNS. To enable the Gateway's Dynamic Domain Name System (DDNS) feature, complete the fields on this screen.
• Advanced Routing. On this screen, you can alter NAT and routing configurations.

Wireless

• Basic Wireless Settings. You can choose your wireless network settings on this screen.
• Wireless Security. Configure your wireless security settings on this screen.
• Wireless Access. This screen lets you control access to your wireless network.
• Advanced Wireless Settings. On this screen you can access the advanced wireless network settings.

HAVE YOU: Enabled TCP/IP on your computers? Computers communicate over the network with this protocol. Refer to Windows Help for more information on TCP/IP.

NOTE: For added security, you should change the username and password through the Administration tab.

Wireless-G ADSL Gateway with SRX200

Security

• Firewall. Use this screen to enable/disable the firewall, set up filters, and block anonymous Internet requests.
  • VPN Passthrough. You can enable or disable Virtual Private Network (VPN) Passthrough on this screen.
• VPN. Use this screen to configure up to five VPN tunnels.

Access Restrictions

- Internet Access Policy. This screen allows you to control the Internet usage and traffic on your local network.

Applications & Gaming

- Single Port Range Forwarding. Use this screen to set up common services or applications that require forwarding on a single port.

- Port Range Forwarding. To set up public services or other specialized Internet applications that require forwarding on a range of ports, use this screen.

- Port Triggering. To set up triggered ranges and forwarded ranges for Internet applications, click this tab.

- DMZ. To allow one local computer to be exposed to the Internet for use of special-purpose services, use this screen.

- QoS. Use Quality of Service (QoS) to assign different priority levels to different types of data transmissions.

Administration

• Management. On this screen, alter Gateway access, Simple Network Management Protocol (SNMP), Universal Plug and Play (UPnP), wireless management, and IGMP proxy settings.
• Reporting. If you want to view or save activity logs, click this tab.
  • Diagnostics. Use this screen to run a Ping test.
• Backup&Restore. On this screen, you can back up or restore the Gateway's configuration.
• Factory Defaults. If you want to restore the Gateway's factory default settings, use this screen.
• Firmware Upgrade. Click this tab if you want to upgrade the Gateway's firmware.

vpn (virtual private network): a security measure to protect data as it leaves one network and goes to another over the Internet.

Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200 Overview

Wireless-G ADSL Gateway with SRX200

Status

• Gateway. This screen provides status information about the Gateway.
- Local Network. This provides status information about the local network.
- Wireless. This screen provides status information about the wireless network.
- DSL Connection. This screen provides status information about the DSL connection.

How to Access the Web-based Utility

To access the web-based utility, launch Internet Explorer or Netscape Navigator, and enter the Gateway's default IP address, 192.168.1.1, in the Address field. Then press Enter.

A login screen will appear (Windows XP users will see a similar screen). Enter admin (the default user name) in the User Name field, and enter admin (the default password) in the Password field. Then click the OK button.

The Setup Tab

The Basic Setup Tab

The first screen that appears is the Basic Setup tab. This tab allows you to change the Gateway's general settings. Change these settings as described here and click the Save Settings button to save your changes, or click the Cancel Changes button to cancel your changes. Click Help for more information.

Internet Setup

• Internet Connection Type. The Gateway supports six Encapsulation methods: RFC 1483 Bridged, RFC 1483 Routed, IPoA, RFC 2516 PPPoE, RFC 2364 PPPoA, and Bridged Mode Only. Select the appropriate type of encapsulation from the drop-down menu. Each Basic Setup screen and available features will differ depending on what type of encapsulation you select.
• VC Settings. You will configure your Virtual Circuit (VC) settings in this section.
  • Multiplexing: Select LLC or VC, depending on your ISP.
• QoS Type: Select from the drop-down menu: CBR (Continuous Bit Rate) to specify fixed bandwidth for voice or data traffic; UBR (Unspecific Bit Rate) for application that are none-time sensitive, such as e-mail; or VBR (Variable Bite Rate) for bursty traffic and bandwidth-sharing with other applications.

Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200 How to Access the Web-based Utility

Name Network Password Please type your user name and password. Size: 192.1681.1 Reads User Name: admin Password: "" Save this password in your password list OK Cancel

Figure 6-1: Login Screen

LINKSYS A Division of Data Systems, Inc. Network Address: 801.0 Setup Network GADL Currency with SICRSD WELCOME Setup Internet Security Access No. of the Access Application & Gaming Address plan Status User: Total None User/Networking Internet Setup Internet Connection Type VC Settings Engrupulation MFC H403 Project Multiplicating ○ LLC ○ WC On Type OK Pur Plans: opt Scan Rate: opt Automated ○ Enable ○ Enable Virtual Circuit: Vdc (Range 0-200) ○ Vdc (Range 0-5000) IP Settings ○ Obtain an IP Address Automatically ○ Use the following IP Address: Internet IP Address: □ □ □ Submit Host: □ □ □ Default Connection: □ □ □ Primary DNS: □ □ □ Secondary DNS: □ □ □ Optional Settings Used Host: ■ Domain Name: MTU: Add: Disk: Network Setup Router IP Local IP Address: 102 160 5 1 Submit Host: 216..255..255..0 Network Address Server Settings (BXP) DHCP Server: ○ Enable ○ Enable ○ DHCP Relay DHCP Server: □ □ □ Sharing IP Address: 192..168...100%DC Maximum Number at DHCP Users: 50 Client Launch Time: ● includes (or contains any data) Static DNS 1: □ □ □ Static DNS 2: □ □ □ Static DNS 3: Wells: Time Settings Temp Zone: (OMT:88.00) Pacific Time:50Hz & Cancel: ○ Automatically adjust costs for daylight saving charges. Save Settings Cancel Changes

Figure 6-2: Basic Setup

Wireless-G ADSL Gateway with SRX200

• Pcr Rate: For the Peak Cell Rate, divide the DSL line rate by 424 to get the maximum rate the sender can send cells. Enter the rate in the field (if required by your service provider).
• Scr Rate: The Sustain Cell Rate sets the average cell rate that can be transmitted. The SCR value is normally less than the PCR value. Enter the rate in the field (if required by your service provider).
• Autodetect: Select Enable to have the settings automatically entered, or select Disable to enter the values manually.
• Virtual Circuit: These fields consist of two items: VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier). Your ISP will provide the correct settings for these fields.

- IP Settings. Follow the instructions in the section for your type of encapsulation.

RFC 1483 Bridged

Dynamic IP

IP Settings. Select Obtain an IP Address Automatically if your ISP says you are connecting through a dynamic IP address.

Static IP

If you are required to use a permanent (static) IP address to connect to the Internet, then select Use the following IP Address.

• Internet IP Address. This is the Gateway's IP address, when seen from the WAN, or the Internet. Your ISP will provide you with the IP Address you need to specify here.
• Subnet Mask. This is the Gateway's Subnet Mask. Your ISP will provide you with the Subnet Mask.
• Default Gateway. Your ISP will provide you with the default Gateway Address, which is the ISP server's IP address.
• Primary DNS (Required) and Secondary DNS (Optional). Your ISP will provide you with at least one DNS (Domain Name System) Server IP Address.

Internet Connection Type VC Settings Encapsulation: RFC 1483 Bridged * Multiprocessing: LLC @ VC Gas Type: UBR Por Rate: cps Sor Rate: cps Autodetect: Enable Disable Virtual Circuit: VCI (Range 0-255) VCI (Range 0-65535) IP Settings Obtain an IP Address Automatically: Use the following IP Address: Internet IP Address: Subset Mask: Default Gateway: Primary DNS: Secondary DNS:

Figure 6-3: RFC 1483 Bridged

Wireless-G ADSL Gateway with SRX200

RFC 1483 Routed

If you are required to use RFC 1483 Routed, then select RFC 1483 Routed.

• Internet IP Address. This is the Gateway's IP address, when seen from the WAN, or the Internet. Your ISP will provide you with the IP Address you need to specify here.
• Subnet Mask. This is the Gateway's Subnet Mask. Your ISP will provide you with the Subnet Mask.
• Default Gateway. Your ISP will provide you with the default Gateway Address, which is the ISP server's IP address.
• Primary DNS (Required) and Secondary DNS (Optional). Your ISP will provide you with at least one DNS (Domain Name System) Server IP Address.

IPoA

If you are required to use IPoA (IP over ATM), then select IPoA.

• Internet IP Address. This is the Gateway's IP address, when seen from the WAN, or the Internet. Your ISP will provide you with the IP Address you need to specify here.
• Subnet Mask. This is the Gateway's Subnet Mask. Your ISP will provide you with the Subnet Mask.
• Default Gateway. Your ISP will provide you with the default Gateway Address, which is the ISP server's IP address.
• Primary DNS (Required) and Secondary DNS (Optional). Your ISP will provide you with at least one DNS (Domain Name System) Server IP Address.

Internet Connection Type WC Settings Encapsulation: RPC 1403 Routes enuating ○ LLC ○ VC Dos Type: USB Por Rate: □ qps Scr Rate: □ qps Autodetect ○ Enable ○ Enable Virtual Circuit: 0 YPI(Range 0-255) 3.5 VCI(Range 0-65535) P Settings Internet IP Address: Submit Mask: Default Gateway: Primary DNS: Secondary DNS:

Figure 6-4: RFC 1483 Routed

Internet Connection Type VC Settings Encapsulation: PoA Multipicking: LLC VC Goss Type: URR Por Rate: cps Sor Rate: cps Autodetect: G Enable C Enable Virtual Circuit: VPI(Range 0-256) VCI(VI/Range 0-65535) IP Settings Internet IP Address: Subnet Mask: Default Gateway: Primary DNS: Secondary DNS:

Figure 6-5: IPoA

Wireless-G ADSL Gateway with SRX200

RFC 2516 PPPoE

Some DSL-based ISPs use PPPoE (Point-to-Point Protocol over Ethernet) to establish Internet connections. If you are connected to the Internet through a DSL line, check with your ISP to see if they use PPPoE. If they do, you will have to enable PPPoE.

• User Name and Password. Enter the User Name and Password provided by your ISP.
• Connect on Demand: Max Idle Time. You can configure the Gateway to disconnect the Internet connection after it has been inactive for a specified period of time (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the Gateway to automatically re-establish your connection as soon as you attempt to access the Internet again. To use this option, click the Connect on Demand radio button. In the Max Idle Time field, enter the number of minutes you want to have elapsed before your Internet connection terminates.
• Keep Alive: Redial Period. If you select this option, the Gateway will periodically check your Internet connection. If you are disconnected, then the Gateway will automatically re-establish your connection. To use this option, click the Keep Alive radio button. In the Redial Period field, specify how often you want the Gateway to check the Internet connection. The default Redial Period is 30 seconds.

RFC 2364 PPPoA

Some DSL-based ISPs use PPPoA (Point-to-Point Protocol over ATM) to establish Internet connections. If you are connected to the Internet through a DSL line, check with your ISP to see if they use PPPoA. If they do, you will have to enable PPPoA.

• User Name and Password. Enter the User Name and Password provided by your ISP.
• Connect on Demand: Max Idle Time. You can configure the Gateway to disconnect the Internet connection after it has been inactive for a specified period of time (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the Gateway to automatically re-establish your connection as soon as you attempt to access the Internet again. To use this option, click the Connect on Demand radio button. In the Max Idle Time field, enter the number of minutes you want to have elapsed before your Internet connection terminates.

Keep Alive: Redial Period. If you select this option, the Gateway will periodically check your Internet connection. If you are disconnected, then the Gateway will automatically re-establish your connection. To use this option, click the Keep Alive radio button. In the Redial Period field, specify how often you want the Gateway to check the Internet connection. The default Redial Period is 30 seconds.

Internet Connection Type VC Settings Encapsulation: PPF 2018-05-07 Multiplexing: LLC VC Qos Type: UBR Por Rate: cps Scr Rate: cps Autobject: Enable Enable Virtual Circuit: YPI(Range 0-255) 15 VCI(Range 0-49535) PPPoE Settings Username: Password: Connect on Demand: Max Idle Time 5 Minutes Keep Alive: Redal period 10 Seconds

Figure 6-6: RFC 2516 PPPoE

IMPORTANT: For Connect on Demand to work correctly, close all Internet applications or the Gateway may not drop the connection depending on how often the application tries to get on the Internet (e.g., chat programs).

Internet Connection Type VC Settings Encapsulation: Multiplicating: Gao Type: Por Rate: Scr Rate: Autodetect: Virtual Circuit: Username: Passengers: Connect on Demand: Max Idle Time 5 Minutes Keep Alive: Redal period 10 Seconds PPPoA Settings

Figure 6-7: RFC 2364 PPPoA

Wireless-G ADSL Gateway with SRX200

Bridge Mode Only

If you are using your Gateway as a bridge, which makes the Gateway act like a stand-alone modem, select Bridge Mode Only. All NAT and routing settings are disabled in this mode.

Optional Settings (required by some ISPs)

• Host Name and Domain Name. These fields allow you to supply a host and domain name for the Gateway. Some ISPs require these names as identification. You may have to check with your ISP to see if your broadband Internet service has been configured with a host and domain name. In most cases, you can leave these fields blank.
• MTU and Size. The MTU (Maximum Transmission Unit) setting specifies the largest packet size permitted for network transmission. Select Manual and enter the value desired in the Size field. It is recommended that you leave this value in the 1200 to 1500 range. By default, MTU is configured automatically.

Network Setup

- Router IP. The values for the Gateway's Local IP Address and Subnet Mask are shown here. In most cases, keeping the default values will work.

• Local IP Address. The default value is 192.168.1.1.
• Subnet Mask. The default value is 255.255.255.0.

- Network Address Server Settings (DHCP). Configure the Gateway's Dynamic Host Configuration Protocol (DHCP) settings in this section.

• DHCP Server. A Dynamic Host Configuration Protocol (DHCP) server automatically assigns an IP address to each computer on your network for you. Unless you already have one, it is highly recommended that you leave the Gateway enabled as a DHCP server. You can also use the Gateway in DHCP Relay mode. (This setting is not available for all Encapsulation types.)
• DHCP Server. If you enable the DHCP Relay mode for the DHCP Server setting, enter the IP address for the DHCP relay server in the fields provided. (This setting is not available for all Encapsulation types.)
• Starting IP Address, Enter a value for the DHCP server to start with when issuing IP addresses. This value must be 192.168.1.2 or greater, because the default IP address for the Gateway is 192.168.1.1.
• Maximum Number of DHCP Users. Enter the maximum number of users/clients that can obtain an IP address. The number will vary depending on the starting IP address entered.

Internet Connection Type VC Settings Encapsulation: Bridge Mode Only Multiprocessing: LLC VC Qoq Type: UBR Por Rate: cps Sor Rate: cps Autodetect: Enable Enable Virtual/Circuit: 0 VCI(Range 0-256) 15 VCI(Range 0-65335)

Figure 6-8: Bridged Mode Only

Optional Settings (required by some ISPs) Host Name: Domina Name: MTU: Size: 1500 Network Setup Router IP Local P Address: 192 168 1 1 Subnet Mask: 255.255.255.0 Network Address Server Settings (DHCP) DHCP Server: Enable Disable DHCP Relay DHCP Server: Starting P Address: 192.168.1.100 Maximum Number of DHCP Users: 50 Client Lease Time: 0 minutes (G means one day) Static DNS 1: Static DNS 2: Static DNS 3: FWS: Time Zone: (OMT-08.00) Pacific Time (USA & Canada) Automatically adjust clock for daylight saving changes.

Figure 6-9: Optional Settings

Wireless-G ADSL Gateway with SRX200

• Client Lease Time. The Client Lease Time is the amount of time a computer will be allowed connection to the Gateway with its current dynamic IP address. Enter the amount of time, in minutes, that the computer will be “leased” this dynamic IP address.
• Static DNS 1-3. The Domain Name System (DNS) is how the Internet translates domain or website names into Internet addresses or URLs. Your ISP will provide you with at least one DNS Server IP Address. You can enter up to three DNS Server IP Addresses here. The Gateway will use these for quicker access to functioning DNS servers.
• WINS. The Windows Internet Naming Service (WINS) converts NetBIOS names to IP addresses. If you use a WINS server, enter that server's IP address here. Otherwise, leave this field blank.
• Time Setting. Select the appropriate time zone for the Gateway's location. If desired, check the Automatically adjust clock for daylight saving changes checkbox.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

Wireless-G ADSL Gateway with SRX200

The DDNS Tab

The Gateway offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP address. It is useful when you are hosting your own website, FTP server, or other server behind the Gateway.

Before you can use this feature, you need to sign up for DDNS service at DynDNS.org or TZO.com.

DDNS

DDNS Service. If your DDNS service is provided by DynDNS.org, then select DynDNS.org from the drop-down menu. If your DDNS service is provided by TZO.com, then select TZO.com from the drop-down menu. To disable DDNS Service, select Disabled.

DynDNS.org

• User Name, Password, and Host Name. Enter the User Name, Password, and Host Name of the account you set up with DynDNS.org.
• Status. The status of the DDNS service connection is displayed here.
• Connect. Click the Connect button to start the DDNS service connection.

TZ0.com

• E-mail Address, Password, and Domain Name. Enter the E-mail Address, Password, and Domain Name of the account you set up with TZO.
• Status. The status of the DDNS service connection is displayed here.
• Connect. Click the Connect button to start the DDNS service connection.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

LINKSYS® A Division of Cloud Server, Inc. Setup Windows: AOSL Gateway with TCP208 Win/CSX3 Setup Windows Security Access Restrictions Application & Clearing Administration Status Basic Setup Import Advanced Results BOKS BOKS Server [OutDO] any Username: Password: Host Name: Status: Connect Save Settings Cancel Changes Data Settings

Figure 6-10: DDNS - DynDNS.org

LINKSYS® A Division of City System, Inc. Setup Microsoft SQL Server with 572388 Status: 100% Name: Windows Security: Access Accession: Accession & Accession Status E-mail Address: 123 Password: Domain Name: Status: Connect Save Settings Cancel Changes Data Settings

Figure 6-11: DDNS - TZO.com

Wireless-G ADSL Gateway with SRX200

The Advanced Routing Tab

The Advanced Routing screen allows you to configure the NAT, dynamic routing, and static routing settings.

Advanced Routing

- Operating Mode. In this section, you will configure the Gateway's general routing settings.

- NAT. NAT is a security feature that is enabled by default. It enables the Gateway to translate IP addresses of your local area network to a different IP address for the Internet. To disable NAT, click the Disabled radio button.

- Dynamic Routing. With Dynamic Routing you can enable the Gateway to automatically adjust to physical changes in the network's layout. Using RIP, the Gateway determines the network packets' route based on the fewest number of hops between the source and the destination. The RIP protocol regularly broadcasts routing information to other Gateways on the network.

- RIP. If you have multiple routers, you may want to use the Routing Information Protocol (RIP) so the routers can exchange routing information with each other. To use RIP, select the Enabled radio button. Otherwise, keep the default, Disabled.

- RIP Send Packet Version. Select the protocol version you want, RIPv1 or RIPv2.

- RIP Recv Packet Version. Select the protocol version you want, RIPv1 or RIPv2.

- Static Routing. If the Gateway is connected to more than one network, it may be necessary to set up a static route between them. A static route is a pre-determined pathway that network information must travel to reach a specific host or network. To create a static route, change the following settings:

- Select set number. Select the number of the static route from the drop-down menu. The Gateway supports up to 20 static route entries. If you need to delete a route, then select the entry and click the Delete This Entry button.

- Destination IP Address. The Destination IP Address is the address of the remote network or host to which you want to assign a static route. Enter the IP address of the host for which you wish to create a static route. If you are building a route to an entire network, be sure that the network portion of the IP address is set to 0.

- Subnet Mask. Enter the Subnet Mask (also known as the Network Mask), which determines which portion of an IP address is the network portion, and which portion is the host portion.

LINKSYS A Bissell or Data Systems, Inc. Setup Windows C: ADSL Ordering with TCP298 WIN/0003 Setup Wireless Security Accounts Availability Applications & Settings Accession Show Setup Tools Advanced Routing Operating Mode SAT Enabled Restricted Dynamic Routing on Enabled Restricted RP-Send Packet Version: SAT RP-Tency Packet Version: SAT Static Routing Select set number 1 Delete No Entry Destination P Address: Submit Next: Geometry: Hot Count: Show Routing Table Save Settings Cancel Changes

Figure 6-12: Advanced Routing

Wireless-G ADSL Gateway with SRX200

• Gateway. Enter the IP address of the gateway device that allows for contact between the Gateway and the remote network or host.
• Hop Count. Hop Count is the number of hops to each node until the destination is reached (16 hops maximum). Enter the Hop Count in the field provided.

- Show Routing Table. Click the Show Routing Table button to open a screen displaying how data is routed through your local network. For each route, the Destination LAN IP address, Subnet Mask, Gateway, and Interface are displayed. Click the Refresh button to update the information. Click the Close button to return to the previous screen.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

LINKSYS® A Division of Data Systems, Inc. Routing Table Routing Table Entry List DestinationLAN IP Submit Mask Gateway Interface 192.1601.0 255.255.255.0 0:0:3.0 LAN 239.0.00 255.0.0.0 0:0:3.0 LAN Close

Figure 6-13: Routing Table

Wireless-G ADSL Gateway with SRX200

The Wireless Tab

The Basic Wireless Settings Tab

This screen allows you to choose your wireless network mode and wireless security.

Wireless Network

• Wireless Network Mode. If you have 802.11g and 802.11b devices in your network, then keep the default setting, Mixed. If you have only 802.11g devices, select G-Only. If you have only 802.11b devices, select B-Only. If you want to disable wireless networking, select Disabled.
• Wireless Network Name (SSID). Enter the name for your wireless network into the field. The SSID is the network name shared among all devices in a wireless network. It must be identical for all devices in the wireless network. It is case-sensitive and must not exceed 32 alphanumeric characters, which may be any keyboard character. Linksys recommends that you change the default SSID (linksys) to a unique name of your choice.
• Wireless Channel. Select the appropriate channel from the list provided to correspond with your network settings. All devices in your wireless network must use the same channel in order to function correctly. Wireless computers or clients will automatically detect the wireless channel of the Gateway.
• Wireless SSID Broadcast. When wireless computers or clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the Gateway. To broadcast the Gateway's SSID, keep the default setting, Enable. If you do not want to broadcast the Gateway's SSID, then select Disable.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

LINKSYS® A Division of SLS Systems, Inc. Wireless Wireless G ADSL Comnergy with 57200 WHCHNOO Setup Wireless Security Access Basicelines Applications & Camping Administration States Basic Settings Wireless Settings Wireless Network Mode: Mixed Wireless Network Name (SSD): Inflows Wireless Channel: $ -2.437 Opt Wireless SSD Broadcast Disable Disable Save Settings Cancel Changes Data Options

Figure 6-14: Basic Wireless Settings

Wireless-G ADSL Gateway with SRX200

The Wireless Security Tab

The Wireless Security settings configure the security of your wireless network. There are six wireless security options supported by the Gateway: WPA-Personal, WPA2-Personal, WPA2-Mixed, WPA Enterprise, WPA2 Enterprise, and WEP. WPA stands for Wi-Fi Protected Access, which is a security standard stronger than WEP (Wired Equivalent Privacy) encryption. WPA2 is a more advanced, more secure version of WPA. WPA Enterprise and WPA2 Enterprise use a RADIUS (Remote Authentication Dial-In User Service) server for authentication. These are briefly discussed here. For detailed instructions on configuring wireless security for the Gateway, turn to "Appendix B: Wireless Security."

If you want to disable wireless security, select Disable from the drop-down menu for Security Mode.

- Security Mode. Select the mode you want your network to use, WPA-Personal, WPA2-Personal, WPA2-Mixed, WPA Enterprise, WPA2 Enterprise, or WEP. If you have devices using WPA-Personal and WPA2-Personal, select WPA2-Mixed.

WPA-Personal

• Encryption. Select the method you want to use, TKIP or AES. (AES is a stronger encryption method than TKIP.)
• Passphrase. Enter the key shared by the Gateway and your other network devices. It must have 8 to 63 characters.
• Key Renewal. Enter the Key Renewal period, which tells the Gateway how often it should change the dynamic encryption keys.

When you have finished making changes to this screen, click the Save Settings button to save the changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

WPA2-Personal

• Encryption. AES is automatically selected.
• Passphrase. Enter the key shared by the Gateway and your other network devices. It must have 8 to 63 characters.
• Key Renewal. Enter the Key Renewal period, which tells the Gateway how often it should change the dynamic encryption keys.

When you have finished making changes to this screen, click the Save Settings button to save the changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200 The Wireless Tab

LINKSYS A Division of Data Systems, Inc. Primary Server: 8.0.1.1 Wireless Wireless AD11 (Setting with TCP258) WPC Setup Wireless Security Access Restrictions Auto-access & Gaming Allocation Options Basic Wireless Settings | Required Security | Wireless Address | Advanced Wireless Settings Wireless Security WPA Personal Security Mask: WPA Personal Encryption: SHP Peripherals: SHP No Personal: 30001 seconds Save Settings Cancel Changes Save Settings Add Settings

Figure 6-15: Wireless Security - WPA-Personal

IMPORTANT: If you are using wireless security, always remember that each device in your wireless network MUST use the same wireless security method and shared key, or else the network will not function correctly. If you have devices using WPA-Personal and WPA2-Personal, you should use WPA2-Mixed. You may mix between WPA and WPA2 Enterprise, but not between Personal and Enterprise, Personal and WEP, or Enterprise and WEP.

LINKSYS A Division of Data Systems, Inc. Wireless Wireless OS ADSL Security with TCP/COM http://www.10.10.1 Setup Wireless Security Access Restrooms Accessories & Carry Administration Name Basic Wireless Settings Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: Wireless Service: WFA2 Personal: Security Note: WFA2 Personal: Everplan: AES Phonefile: Xin Personal: N450 seconds SaaS Settings... Cancel Changes... No... Send Settings...

Figure 6-16: Wireless Security - WPA2-Personal

Wireless-G ADSL Gateway with SRX200

WPA2-Mixed

• Encryption. TKIP + AES is automatically selected so both methods are available.
• Passphrase. Enter the key shared by the Gateway and your other network devices. It must have 8 to 63 characters.
• Key Renewal. Enter the Key Renewal period, which tells the Gateway how often it should change the dynamic encryption keys.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

WPA Enterprise

WPA Enterprise features WPA used with a RADIUS server. (This method should only be used when the Gateway is connected to a RADIUS server.)

• RADIUS Server Address. Enter the IP address of the RADIUS server.
  • RADIUS Port. Enter the port number of the RADIUS server.
• Shared Key. Enter the key shared between the Gateway and its RADIUS server.
• Key Renewal Timeout. Enter the Key Renewal period, which tells the Gateway how often it should change the dynamic encryption keys.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

LINKSYS A Division of Cloud Systems, Inc. Wireless Wireless: ADSL Gateway with S1208 S1208/2023 Setup Wireless Security Access Accessories Application & Carry Administration States Wireless Security Security Mask: TNP+AES WPA2-Mixed Encryption: TCP + AES Pepphens: Key Renewal: 50000 seconds Temp Settings Cancel Changes No. Free Updates

Figure 6-17: Wireless Security - WPA2-Mixed

LINKSYS A Division of Data Systems, Inc. Wireless Windows: iOS Server with 31/2006 Settings Setup Pre Setup Security Access Revisions Applications & Coping Administration Status Basic Features Settings | We're the security | Windows Assets | Security Services Settings Wireless Security MWA Enterprise Security Work MWA Enterprise RADIUS Server Address: ARIDUS Port: Shared Key: Key Reserve Threshold: seconds Data Security Save Settings Cancel Changes

Figure 6-18: Wireless Security - WPA Enterprise

Wireless-G ADSL Gateway with SRX200

WPA2 Enterprise

WPA2 Enterprise features WPA2 used with a RADIUS server. (This method should only be used when the Gateway is connected to a RADIUS server.)

• RADIUS Server Address. Enter the IP address of the RADIUS server.
• RADIUS Port. Enter the port number of the RADIUS server.
• Shared Key. Enter the key shared between the Gateway and its RADIUS server.

- Key Renewal Timeout. Enter the Key Renewal period, which tells the Gateway how often it should change the dynamic encryption keys.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

WEP

• Encryption. Select the appropriate level of encryption, 64-bit or 128-bit. A higher level of encryption is more secure.
• Passphrase. Instead of manually entering WEP keys, you can enter a Passphrase. It is case-sensitive and should not be longer than 32 alphanumeric characters. (This Passphrase function is compatible with Linksys wireless products only and cannot be used with Windows XP Zero Configuration. If you want to communicate with non-Linksys wireless products or Windows XP Zero Configuration, make a note of the WEP keys generated, and enter the appropriate one manually in the wireless computer or client.) If you want to use a Passphrase, then enter it in the Passphrase field and click the Generate button.
• WEP Keys 1-4. If you are not using a Passphrase, then manually enter a set of values. (Do not leave a key field blank, and do not enter all zeroes; they are not valid key values.) If you are using 40/64-bit WEP encryption, the key must be exactly 10 hexadecimal characters in length. If you are using 128-bit WEP encryption, the key must be exactly 26 hexadecimal characters in length. Valid hexadecimal characters are "0"-"9" and "A"-"F"
• TX Key. To indicate which WEP key to use, select a default Transmit (TX) Key number.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

LINKSYS® A Division of Data Systems, Inc. Wireless Bluetooth® ASTL Security with TCP208 Security Host: WINS-Compass RADIUS Server Advanced: Advanced Port: ShareView: Key Reserved (Threat): seconds Save Settings Cancel Changes Access Options Status Wireless Security WINS-Compass Wireless Security WINS-Compass Wireless Security WINS-Compass Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Security

Figure 6-19: Wireless Security - WPA2 Enterprise

LINKSYS A Software CS Security, Inc. Wireless Setup Windows Security Access Applications 5 Administration Status Wireless Security WEP Security Host: WEP Encryption: 64-bit Perpivest: 32-bit WEP Key 1: WEP Key 2: WEP Key 3: WEP Key 4: TX Key: Generate Save Settings Cancel Changes Win Churnty

Figure 6-20: Wireless Security - WEP

Wireless-G ADSL Gateway with SRX200

The Wireless Access Tab

Wireless Network Access

Wireless Network Access. Select Allow All you want all computers to have access to the wireless network. To restrict access to the network, select Restrict Access, and then select Prevent to block access for the designated computers or Permit only to permit access for the designated computers. Click the Update Filter List button, and the Mac Address Filter List screen will appear.

Enter the MAC addresses of the computers you want to designate. To see a list of MAC addresses for wireless computers or clients, click the Wireless Client MAC List button.

The Wireless Client List screen will list MAC addresses for your wireless devices. Click the Refresh button to get the most up-to-date information. To add a specific computer to the Mac Address Filter List, click the Enable MAC Filter checkbox and then the Update Filter List button. Click the Close button to return to the MAC Address Filter List screen.

On the MAC Address Filter List screen, click the Save Settings button to save this list, or click the Cancel Changes button to remove your entries.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

LINKSYS® A Division or Data Systems, Inc. Wireless Wireless & ADSL Controls with SITZOR MAGNICO Setup Wireless Security Access Revisions Applications & Listing Administration Stores Wireless Network Access Above M Restricted Access Present limited computers from accessing the wireless network Present only listed computers to access the wireless network Created Print List Data Settings Cancel Changes

Figure 6-21: Wireless Access

LINKSYS® A Department of Mac Systems, Inc. MAC Address Pin List MAC Address Filter List Enter MAC Address Format: 100000000000000000000000000000000000000000000000000000000000000000000000000000000000 MAC 91: MAC 92: | MAC 93: MAC 94: | MAC 95: MAC 96: | MAC 98: MAC 99: | MAC 101: MAC 102: | MAC 103: MAC 104: | MAC 106: MAC 107: | MAC 111: MAC 112: | MAC 114: MAC 115: | MAC 117: MAC 118: | MAC 121: MAC 122: | MAC 124: MAC 125: | MAC 127: MAC 128: | MAC 131: MAC 132: | MAC 134: MAC 135: | MAC 137: MAC 138: | MAC 141: MAC 142: | MAC 144: MAC 145: | MAC 147: MAC 148: | MAC 151: MAC 152: | MAC 154: MAC 155: | MAC 157: MAC 158: | MAC 161: MAC 162: | MAC 164: MAC 165: | MAC 167: MAC 168: | MAC 171: MAC 172: | MAC 174: MAC 175: | MAC 177: MAC 178: | MAC 181: MAC 182: | MAC 184: MAC 185: | MAC 187: MAC 188: | MAC 191: MAC 192: | MAC 194: MAC 195: | MAC 197: MAC 198: | MAC 201: MAC 202: | *Wireless Check MAC List Save Settings Cancel Charges

Figure 6-22: MAC Address Filter List

LINKSYS® A Division of Data Systems, Inc. Wireless Client List Wireless Client MAC List MAC Address Under MAC Title Barbell Drive List Close

Figure 6-23: Wireless Client MAC List

Wireless-G ADSL Gateway with SRX200

The Advanced Wireless Settings Tab

You can access the advanced wireless features on this screen.

Advanced Wireless

Wireless-G Settings

This tab is used to set up the Gateway's advanced wireless functions. These settings should only be adjusted by an expert administrator as incorrect settings can reduce wireless performance.

• Basic Rate Set. The Basic Rate Set is a series of rates at which the Gateway can transmit. (If you want to specify the Gateway's actual rate of data transmission, configure the Transmission Rate setting.) The Gateway will advertise its Basic Rate Set to the other wireless devices in your network, so they know which rates will be supported. The Gateway will also advertise that it will automatically select the best rate for transmission. In most cases, you should keep the default setting, Default (1-2-5.5-11). Other options are 1-2Mbps, for use with older wireless technology, and All, when the Gateway can transmit at all wireless rates.
• Transmission Rate. The rate of data transmission should be set depending on the speed of your wireless network. You can select from a range of transmission speeds, or you can select Auto to have the Gateway automatically use the fastest possible data rate and enable the Auto-Fallback feature. Auto-Fallback will negotiate the best possible connection speed between the Gateway and a wireless client. The default is Auto.
• CTS Protection Mode. CTS (Clear-To-Send) Protection Mode should remain set to its default, Auto, so when your Wireless-G products are not able to transmit to the Gateway in an environment with heavy 802.11b traffic, the CTS Protection Mode will be used. This function boosts the Gateway's ability to catch all Wireless-G transmissions but will severely decrease performance.
• Beacon Interval. A beacon is a packet broadcast by the Gateway to synchronize the wireless network. Beacon Interval. The default value is 100. Enter a value between 1 and 65,535 milliseconds. The Beacon Interval value indicates the frequency interval of the beacon. A beacon is a packet broadcast by the Gateway to synchronize the wireless network.
• DTIM Interval. This value, between 1 and 255, indicates the interval of the Delivery Traffic Indication Message (DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages. When the Gateway has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. Its clients hear the beacons and awaken to receive the broadcast and multicast messages. The default value is 1.
• Fragmentation Threshold. This value specifies the maximum size for a packet before data is fragmented into multiple packets. If you experience a high packet error rate, you may slightly increase the Fragmentation

LINKSYS A Division of Data System, Inc. Windows C: ADSL Catalogs with CLKRS MACHINES Wireless Setup Windows Security Access Transistencies Applications & Settings Administration Status Basic Wireless Settings | Internet security | Windows Access | Linked Wireless Settings Advanced Networks Windows C Settings Basic Rate Set Default (2.45-5.11) Transmission Rate Auto Default (Auto) CTS Protection Mode 400 Default (Auto) Reason Internal 108 Default (108, Miscellaneous, Range 1 - 2030) DTM Internet 1 Default (1, Range 1 - 203) Fragmentation Threshold 246 Default (246, Lower 206 - 2349) RTI Threshold 246 Default (246, Range 1 - 2347) Prevent Type: Low Default (Low) Network Density: Low Default (Low) Saw Settings Cancel Changes Data Settings

Figure 6-24: Advanced Wireless Settings

Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200 The Wireless Tab

Wireless-G ADSL Gateway with SRX200

Threshold. Setting the Fragmentation Threshold too low may result in poor network performance. Only minor reduction of the default value is recommended. In most cases, it should remain at its default value of 2346.

• RTS Threshold. If you encounter inconsistent data flow, only minor modifications are recommended. If a network packet is smaller than the preset RTS threshold size, the RTS/CTS mechanism will not be enabled. The Gateway sends Request to Send (RTS) frames to a particular receiving station and negotiates the sending of a data frame. After receiving an RTS, the wireless station responds with a Clear to Send (CTS) frame to acknowledge the right to begin transmission. This value should remain at its default setting of 2346.
• Preamble Type. The preamble defines the length of the CRC block for communication between the Gateway and a roaming wireless client. (High network traffic areas should use the shorter preamble type.) Select the appropriate preamble type, Long (default) or Short.
• Network Density. This determines the Gateway's transmission and reception range. Select one of these settings, Low (greater range), Medium (mid-range), or High (lower range). The Low setting is recommended when you have few wireless networks in your area, while the High setting is recommended when you have a lot of wireless network traffic in your area. You can also use the Medium setting if you want a mid-range setting. The default setting is Low.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

Wireless-G ADSL Gateway with SRX200

The Security Tab

The Firewall Tab

You can enable or disable the firewall, select filters to block specific Internet data types, and block anonymous Internet requests. Use these features to enhance the security of your network.

Firewall

- SPI Firewall Protection. The Stateful Packet Inspection (SPI) firewall feature enhances the security of your network. To use this feature, click Enable. If you do not want to use the firewall, click Disable.

Additional Filters

• Filter Proxy. Use of WAN proxy servers may compromise the Gateway's security. Denying Filter Proxy will disable access to any WAN proxy servers. To enable proxy filtering, click the checkbox.
• Filter Cookies. A cookie is data stored on your computer and used by Internet sites when you interact with them. To enable cookie filtering, click the checkbox.
• Filter Java Applets. Java is a programming language for websites. If you deny Java Applets, you run the risk of not having access to Internet sites created using this programming language. To enable Java Applet filtering, click the checkbox.
• Filter ActiveX. ActiveX is a programming language for websites. If you deny ActiveX, you run the risk of not having access to Internet sites created using this programming language. To enable ActiveX filtering, click the checkbox.

Block WAN Requests

- Block Anonymous Internet Requests. This keeps your network from being "pinged" or detected and reinforces your network security by hiding your network ports, so it is more difficult for intruders to discover your network. Select Block Anonymous Internet Requests to block anonymous Internet requests or de-select it to allow anonymous Internet requests.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

LINKSYS AVERAGE & OCEAN SYSTEMS, INC. Security Windows 6 ADSL Category with SPC388 MAGNOS Setup Wireless Security Access Recruitment Applications & Growth Administration Status Form1 Modelling Type Network SIP/Forward Induction Enable Disable Additional Filters Fiber Incry Fiber Codes Fiber Java AppInfo Fiber Active Block MMS Programs Check Anonymous Internet Requests Save Settings Cancel Changes OK Cancel Options

Figure 6-25: Firewall

Wireless-G ADSL Gateway with SRX200

The VPN Passthrough Tab

Virtual Private Networking (VPN) is a security measure that basically creates a secure connection between two remote locations. Configure these settings so the Gateway will permit VPN tunnels to pass through.

VPN Passthrough

• IPSec Passthrough. Internet Protocol Security (IPSec) is a suite of protocols used to implement secure exchange of packets at the IP layer. To allow IPSec Passthrough, click the Enable button. To disable IPSec Passthrough, click the Disable button.
• PPTP Passthrough. Point-to-Point Tunneling Protocol Passthrough is the method used to enable VPN sessions to a Windows NT 4.0 or 2000 server. To allow PPTP Passthrough, click the Enable button. To disable PPTP Passthrough, click the Disable button.
• L2TP Passthrough. Layering 2 Tunneling Protocol Passthrough is an extension of the Point-to-Point Tunneling Protocol (PPTP) used to enable the operation of a VPN over the Internet. To allow L2TP Passthrough, click the Enable button. To disable L2TP Passthrough, click the Disable button.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

LINKSYS Security Wireless G ADSL Gateway with 51208 WireBLOGO Setup Wireless Security Access Receivations Applications & Ceiling Administration Status Power | Unleaching | 1% VSP PassThrough PSP PassThrough a Enable c Enable VPP PassThrough a Enable c Enable LTP PassThrough a Enable c Enable Load Settings Cancel Changes Auto Server

Figure 6-26: VPN Passthrough

Wireless-G ADSL Gateway with SRX200

The VPN Tab

Virtual Private Networking (VPN) is a security measure that basically creates a secure connection between two remote locations. Configure these settings so the Gateway will create VPN tunnels, up to a maximum of five.

VPN Tunnel

• Select Tunnel Entry. To establish this tunnel, select new. To modify the settings for a tunnel, select the tunnel you wish to modify.
• Delete. To delete a tunnel, select it from the drop-down menu and click the Delete button.
• Summary. To see the settings for a tunnel, select it from the drop-down menu and click the Summary button.
• IPSec VPN Tunnel. Select Enable to activate the current VPN tunnel. Otherwise, select Disable.
• Tunnel Name. Once the tunnel is enabled, enter the name of the tunnel. Unique names allow you to identify multiple tunnels. The name you give on this end does not have to match the name used at the remote end of the tunnel.

Local Secure Group

The Local Secure Group is the computer(s) on your local network that can access the tunnel. From the drop-down menu, select IP Addr. or Subnet.

• IP Addr. Select IP Addr. if you want to designate a specific computer. Then enter the computer's IP address in the /P field.
• Subnet. Select Subnet if you want to include the entire network for the tunnel. Then enter the Gateway's IP address in the IP field and subnet mask in the Mask field.

Remote Secure Group

The Remote Secure Group is the computer(s) on the remote end of the tunnel; these are the computers that can access the tunnel. From the drop-down menu, select IP Addr., Subnet, or Any.

• IP Addr. Select IP Addr. if you want to designate a specific computer. Then enter the computer's IP address in the /IP field.
• Subnet. Select Subnet if you want to include the entire network for the tunnel. In the IP field, enter the IP address of the remote VPN device, such as a router, and enter its subnet mask in the Mask field.

Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200 The Security Tab

LINKSYS A Division of Our Security, Inc. Security Worksheet: AFTL Setting with SPC200 WS-00000 Setup Windows Security Access Restrictions Applications & Coding Access details Status Panel 1: VFTL Setting 1 VFTL Tunnel Select Tunnel Entry: Enable Summary IPSec VFTL Tunnel Enable Enable Tunnel Name Local Secure Group Signal P.823 Meta 235,255,255,255 Remote Secure Group IP node IP node Remote Secure Gateway Key Management Any Exchange Method: Audio, GPS Authentication: None Authentication: None IFS Pre Shared Key: Enable Key Life Time: 24:00:00 Sec Status Connect Discount View Up Advanced Settings Save Settings Cancel Change Data Security

Figure 6-27: VPN

LINKSYS® A Division of Cine Systems, Inc. VMH Settings Summary No. Tunnel Name Local Group Remote Group Remote Gateway Security Method 1 Tunnel 1 162 1601.1.4 / 255 255 255.6 162 160.1.200 162 160.1.168 3DES RANKSYS

Figure 6-28: VPN Settings Summary

Wireless-G ADSL Gateway with SRX200

- Any. Select Any if you want the Gateway to accept requests from any IP address.

Remote Secure Gateway

The Remote Secure Gateway is the VPN device on the remote end of the VPN tunnel. The remote VPN device can be a VPN router, VPN server, or computer with VPN client software that supports IPSec. From the drop-down menu, select IP Addr. or Any.

• IP Addr. Select IP Addr. if you want to designate a static IP address. Then enter the VPN device's IP address in the IP field.
• Any. Select Any if you want the Gateway to accept requests from any IP address.

Key Management

- Key Exchange Method. Select Auto (IKE) or Manual for the Key Exchange Method. Both ends of a VPN tunnel must use the same mode of key management. The two methods are described below. After you have selected the method, the settings available on this screen may change, depending on the selection you have made.

Auto (IKE)

IKE is an Internet Key Exchange protocol used to negotiate key material for Security Association (SA). IKE uses the Pre-Shared Key to authenticate the remote IDE peer.

• Encryption. When you select Auto (IKE), 3DES (168-bit) encryption is automatically selected. The same type of encryption must be used by the VPN device at the remote end of the tunnel.
• Authentication. Select one of the two authentication methods available, SHA1 or MD5. MD5 is a one-way hashing algorithm that produces a 128-bit digest. SHA is a one-way hashing algorithm that produces a 160-bit digest. SHA1 is recommended because it is more secure. Make sure both ends of the VPN tunnel use the same authentication method.
• PFS. PFS (Perfect Forward Secrecy) ensures that the initial key exchange and IKE proposals are secure. To use PFS, select Enable. Otherwise, select Disable.
• Pre-Shared Key. Enter a series of numbers or letters in the Pre-Shared Key field. Based on this word, which MUST be entered at both ends of the tunnel, a key is generated to scramble (encrypt) the data being transmitted over the tunnel, where it is unscrambled (decrypted). You may use any combination of up to 24 numbers or letters in this field. No special characters or spaces are allowed.
• Key Life Time. You may select to have the key expire at the end of a time period of your choosing. Enter the number of seconds you'd like the key to be useful, or leave it blank for the key to last indefinitely.

Key Management Key Exchange Method: Auto (KB) Encryption: 30ES Authentication: SHA1 PPS: Enbase Pre-Shared Key: Enable Key Life Time: 28800 Sec. Status Correct Disconnect View Log Advanced Settings

Figure 6-29: Key Exchange Method - Auto (IKE)

Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200

The Security Tab

Wireless-G ADSL Gateway with SRX200

Manual

If you select Manual, you generate the key yourself, and no key negotiation is needed. Basically, manual key management is used in small static environments or for troubleshooting purposes.

• Encryption Algorithm. When you select Manual, 3DES (168-bit) encryption is automatically selected. The same type of encryption must be used by the VPN device at the remote end of the tunnel.
• Encryption Key. This field specifies a key used to encrypt and decrypt IP traffic. The Encryption Key is 48-bit, so you should enter a key of 24 ASCII characters. Make sure both ends of the VPN tunnel use the same Encryption Key.
• Authentication Algorithm. Select a method of authentication, MD5 or SHA1. This determines how the ESP packets are validated. MD5 is a one-way hashing algorithm that produces a 128-bit digest. SHA is a one-way hashing algorithm that produces a 160-bit digest. SHA1 is recommended because it is more secure. Make sure both ends of the VPN tunnel use the same authentication method.
• Authentication Key. This field specifies a key used to authenticate IP traffic. Enter a key of hexadecimal values. If MD5 is selected, the Authentication Key is 32-bit, so you should enter 16 ASCII characters. If SHA is selected, the Authentication Key is 40-bit, so you should enter a key of 20 ASCII characters. Make sure both ends of the VPN tunnel use the same Authentication Key.
• Inbound and Outbound SPI (Security Parameter Index). SPI is carried in the ESP (Encapsulating Security Payload Protocol) header and enables the receiver and sender to select the SA, under which a packet should be processed. Hexadecimal values is acceptable, and the valid range is 100\~ffffff. Each tunnel must have a unique Inbound SPI and Outbound SPI. No two tunnels share the same SPI. The Incoming SPI here must match the Outgoing SPI value at the other end of the tunnel, and vice versa.

Status

The status information for the Gateway's VPN tunnels is displayed here.

If you selected Manual, then you will have one button available. Click the View Log button to see the activity logs.

If you selected Auto (IKE), then you will have four buttons available. Click the Connect button to start the VPN connection. Click the Disconnect button to terminate the VPN connection. Click the View Log button to see the activity logs. Click the Advanced Settings button to configure the advanced settings of the VPN tunnel.

Key Management Key Exchange Method: Manual Encryption Algorithn: 3DES (3DES: 24 ASCI) Encryption Key: Authentication Algorithn: SHA1 (MDS: 18 ASCI SHA1: 26 ASCI) Authentication Key: Inbound SPI : (HEX 100.FFFFFFFF) Outbound SPI : (HEX 100.FFFFFFFF) Status Connect Discovered View Log Advanced Settings

Figure 6-30: Key Exchange Method - Manual

LINKSYS® A Discount of Data Systems, Inc. Log VPN Log Type: VWU.log populations Clear Preview Page Next Page

Figure 6-31: VPN Log

Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200 The Security Tab

Wireless-G ADSL Gateway with SRX200

Advanced VPN Tunnel Setup

Click the Advanced Settings button, and the Advanced VPN Tunnel Setup screen will appear.

These advanced IPSec settings are for advanced users.

Phase 1

Phase 1 is used to create a security association (SA), often called the IKE SA. After Phase 1 is completed, Phase 2 is used to create one or more IPSec SAs, which are then used to key IPSec sessions.

Operation Mode. There are two modes: Main and Aggressive, and they exchange the same IKE payloads in different sequences. Main mode is more common; however, some people prefer Aggressive mode because it is faster. Main mode is for normal usage and includes more authentication requirements than Aggressive mode. Main mode is recommended because it is more secure. No matter which mode is selected, the VPN Router will accept both Main and Aggressive requests from the remote VPN device.

Local Identity. Select the Local IP address or Name radio button. If you select Local IP address, then the Gateway's Internet IP address will be used. If you select Name, enter the Fully Qualified Domain Name (FQDN) of the Gateway in the field provided, so its current IP address can be located via DDNS.

Remote Identity. Select the Remote IP address or Name radio button. If you select Remote IP address, then the Internet IP address of the remote VPN device will be used. If you select Name, enter the Fully Qualified Domain Name (FQDN) of the remote VPN device in the field provided, so a current IP address can be located via DDNS.

Encryption. For encryption or decryption of ESP packets. 3DES (168-bit) encryption is automatically selected.

Authentication. Select the method used to authenticate ESP packets. There are two choices: MD5 and SHA1. SHA1 is recommended because it is more secure.

Group. There are three Diffie-Hellman Groups to choose from: 768-bit, 1024-bit, and 1536-bit. Diffie-Hellman refers to a cryptographic technique that uses public and private keys for encryption and decryption.

Key Life Time. In the Key Lifetime field, you may optionally select to have the key expire at the end of a time period of your choosing. Enter the number of seconds you'd like the key to be used until a re-key negotiation between each endpoint is completed.

Phase 2

Encryption. The encryption method selected in Phase 1 will be displayed.

Authentication. The authentication method selected in Phase 1 will be displayed.

Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200

The Security Tab

LINKSYS Advanced VH Tunnel Setup Tunnel 1 Phase 1: Operator mode: Main Local Identity: R Local IP address ○ Name: Remote Identity: R Remote IP address ○ Name: Encryption: MSYS Authentication: MS5 Group: 768-bit Key Life Tree: 34000 Sec. Phase 2: Encryption: 30CS Authentication: SHA1 PFS: Enable Group: 768-bit Key Life Tree: 00900 Sec. Save Settings Cancel Changes Close

Figure 6-32: Advanced VPN Tunnel Setup

Wireless-G ADSL Gateway with SRX200

PFS. The status of the PFS (Perfect Forward Secrecy) feature will be displayed.

Group. There are three Diffie-Hellman Groups to choose from: 768-bit, 1024-bit, and 1536-bit. Diffie-Hellman refers to a cryptographic technique that uses public and private keys for encryption and decryption.

Key Life Time. In the Key Lifetime field, you may optionally select to have the key expire at the end of a time period of your choosing. Enter the number of seconds you'd like the key to be used until a re-key negotiation between each endpoint is completed.

When you have finished making changes to this screen, click the Save Settings button to save the changes, or click the Cancel Changes button to undo your changes.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

Wireless-G ADSL Gateway with SRX200

The Access Restrictions Tab

The Internet Access Policy Tab

The Internet Access Policy screen allows you to block or allow specific kinds of Internet usage. You can set up Internet access policies for specific computers and block websites by URL address or keyword.

Internet Access Policy

Internet Access Policy. Access can be managed by a policy. Use the settings on this screen to establish an access policy (after the Save Settings button is clicked). Selecting a policy from the drop-down menu will display that policy's settings. To delete a policy, select that policy's number and click the Delete button. To view all the policies, click the Summary button. (Policies can be deleted from the Summary screen by selecting the policy or policies and clicking the Delete button. To return to the Internet Access screen, click the Close button.)

Status. Policies are disabled by default. To enable a policy, select the policy number from the drop-down menu, and click the radio button beside Enable.

To create an Internet Access policy:

1. Select a number from the Internet Access Policy drop-down menu.
2. To enable this policy, click the radio button beside Enable.
3. Enter a Policy Name in the field provided.

LINKSYS A License or Our Security. Inc. Access Restrictions Wireless: ADE Cations with SECRET WAGSACO Setup Wireless Security Access Parameters Applications & Ceiling Administration Status Internet Access Policy Internet Access Policy: 10 Down Summary Status: Enable Enable Enter Policy Name: PC1.1 PCs: 568 List of PCs Access restriction: ✓ Dery ✓ Empty Internet access during selected days and hours. ✓ Alone Schedule Days: ✓ Everyday ☐ Su W ☐ T W ☐ No P F ☐ Se Time: ✓ 34 Hours ☐ From: 50/2 50/2 ☐ Se: 50/2 50/2 Website Blocking by SSL: Address: Website Blocking by Keyword: Blended Services: Use-Defined - None - TCP/IP TCP/IP TCP/IP TCP/IP Save Settings Cancel Changes

Figure 6-33: Internet Access Policy

LINKSYS® A Series of Online Options, Inc. Summary Internet Policy Summary No. Policy Name Dates (Sub - Sat) Time of Day Details 1. Polc 1 S M T W T F S 00:00 - 00:00 2. S M T W T F S 00:00 - 00:00 3. S M T W T F S 00:00 - 00:00 4. S M T W T F S 00:00 - 00:00 5. S M T W T F S 00:00 - 00:00 6. S M T W T F S 00:00 - 00:00 7. S M T W T F S 00:00 - 00:00 8. S M T W T F S 00:00 - 00:00 9. S M T W T F S 00:00 - 00:00 10. S M T W T F S 00:00 - 00:00 Close

Figure 6-34: Internet Policy Summary

Wireless-G ADSL Gateway with SRX200

1. Click the Edit List of PCs button to select which PCs will be affected by the policy. The List of PCs screen will appear. You can select a PC by MAC Address or IP Address. You can also enter a range of IP Addresses if you want this policy to affect a group of PCs. After making your changes, click the Save Settings button to apply your changes or Cancel Changes to cancel your changes. Then click the Close button to exit this screen.
2. Click the appropriate option, Deny or Allow, depending on whether you want to block or allow Internet access for the PCs you listed on the List of PCs screen.
3. Decide which days and what times you want this policy to be enforced. Select the individual days during which the policy will be in effect, or select Everyday. Then enter a range of hours and minutes during which the policy will be in effect, or select 24 Hours.
4. If you want to block websites with specific URL addresses, enter each URL in a separate field next to Website Blocking by URL Address.
5. If you want to block websites using specific keywords, enter each keyword in a separate field next to Website Blocking by Keyword.
6. You can filter access to various services accessed over the Internet, such as FTP or telnet, by selecting services from the drop-down menus next to Blocked Services. The port numbers and protocol for the selected service will be automatically displayed.
   If the service you want is not listed, select User-Defined. Enter its port numbers in the fields provided. Then select its protocol, ICMP, TCP, UDP, or TCP & UDP from the drop-down menu.
7. Click the Save Settings button to save the policy's settings. To undo the policy's settings, click the Cancel Changes button. Click Help for more information.

LINKSYS® i Station of Deep Systems, Inc. Internet Access PC List List of PCs Enter MAC Address of the PCs in Net format: xxxxxxxxxxxxxxx MAC 01 0000000000000000000000000000000000000000000000000000000000000000000000000000000000 MAC 02 000000000000000000000000000000000000000000000000000000 MAC 03 089999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999 MAC 04 182168.1.5 182168.1.5 182168.1.5 182168.1.5 182168.1.5 182168.1.5 182168.1.5 182168.1.5 182168.1.5 182168.1.5 Enter the P Address of the PCs P 51 152168.1.5 152168.1.5 152168.1.5 152168.1.5 152168.1.5 152168.1.5 152168.1.5 P 62 1782168.1.5 1782168.1.5 1782168.1.5 1782168.1.5 1782168.1.5 1782168.1.5 P 63 182168.1.5 182168.1.5 182168.1.5 182168.1.5 182168.1.5 Enter the P Range of the PCs IP Range 51 IP Range 52 152:55:5: - 5 152:55:5: - 5 Start Settings Cancel Changes Class

Figure 6-35: List of PCs

Wireless-G ADSL Gateway with SRX200

The Applications and Gaming Tab

The Single Port Range Forwarding Tab

Use the Single Port Range Forwarding screen when you want to open a specific port so users on the Internet can see the servers behind the Gateway (such servers may include FTP or e-mail servers). When users send this type of request to your network via the Internet, the Gateway will forward those requests to the appropriate computer. Any computer whose port is being forwarded should have its DHCP client function disabled and should have a new static IP address assigned to it because its IP address may change when using the DHCP function.

Single Port Forwarding

• Application. Enter the name of the application in the field provided.
  • External Port and Internal Port. Enter the External and Internal Port numbers.
• Protocol. Select the protocol you wish to use for each application: TCP or UDP.
• IP Address. Enter the IP Address of the appropriate computer.
• Enabled. Click Enabled to enable forwarding for the chosen application.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

LINKSYS A Division of Data Systems, Inc. Applications & Gaming Windows® AP15. Ordering with SPXOS MACROWERS Group: Winners Security Access Applications Application & Services Administration Status With To-Home Locations: 2000 Hand Forwarding: 1000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Single Part Forwarding Application External Part Internal Part Protocol IP Address Included FTP 86 88 TCP 192-1981 D FTP 64 64 TCP 192-1981 D FTP-Data 36 36 TCP 192-1981 D FTP 23 23 TCP 192-1981 D SMTP 23 23 TCP 192-1981 D FTP 69 69 TCP 192-1981 D Google 79 79 TCP 192-1981 D FTP 129 129 TCP 192-1981 D POP3 119 119 TCP 192-1981 D POP 119 119 TCP 192-1981 D SNMP 161 161 TCP 192-1981 D CVS 2481 2481 TCP 192-1981 D SMC 2761 2761 TCP 192-1981 D SMC-out 2763 2763 TCP 192-1981 D ... Save Settings Cancel Changes Test Tools

Figure 6-36: Single Port Forwarding

Wireless-G ADSL Gateway with SRX200

The Port Range Forwarding Tab

The Port Range Forwarding screen sets up public services on your network, such as web servers, ftp servers, e-mail servers, or other specialized Internet applications. (Specialized Internet applications are any applications that use Internet access to perform functions such as videoconferencing or online gaming. Some Internet applications may not require any forwarding.)

When users send this type of request to your network via the Internet, the Gateway will forward those requests to the appropriate computer. Any computer whose port is being forwarded should have its DHCP client function disabled and should have a new static IP address assigned to it because its IP address may change when using the DHCP function.

Port Range Forwarding

• Application. Enter the name of the application in the field provided.
• Start and End. Enter the starting and ending numbers of the port range you wish to forward.
• Protocol. Select the protocol you wish to use for each application: TCP, UDP, or Both.
• IP Address. Enter the IP Address of the appropriate computer.
• Enable. Click the Enable checkbox to enable forwarding for the chosen application.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

LINKSYS® A Division of Our Spenders, Inc. Forward Direction: 0.00.11 Applications & Gaming Wireless (A) ADSL Colouring with SPROU SINOCOSO Status Wireless Security Access Repetitive Applications & Licensing Allocation Status Single Net Range Forecasting | Net Range Forecasting | Net Range Logging | FAD - 0-6 Port Range Forecasting Port Range Application Start End Protocol P Address Enable IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP IP No. Load Settings Cancel Changes

Figure 6-37: Port Range Forwarding

Wireless-G ADSL Gateway with SRX200

The Port Triggering Tab

Port Triggering is used for special applications that can request a port to be opened on demand. For this feature, the Gateway will watch outgoing data for specific port numbers. The Gateway will remember the IP address of the computer that sends a transmission requesting data, so that when the requested data returns through the Gateway, the data is pulled back to the proper computer by way of IP address and port mapping rules.

Port Range Triggering

• Application. Enter the name you wish to give each application.
• Triggered Range. Enter the starting and ending port numbers of the Triggered Range.
• Forwarded Range. Enter the starting and ending port numbers of the Forwarded Range.
• Enabled. Click the Enabled checkbox to enable port triggering for the chosen application.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

LINKSYS A Software & Server Options, Inc. Applications & Gaming Networks & ADSL Category with SIC208 MASCOS Setup Wireless Security Access Accessories Applications & Gaming Addressation Notes Stage Net Range Functioning | Start Range Functioning | End Range Functioning | Total Port Range Trigaining Triguen Range Forwarded Range Application Name Start Port End Port Start Port End Port Enabled - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - + - + - + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + - Sales Settings Cancel Changes Data Settings

Figure 6-38: Port Triggering

Wireless-G ADSL Gateway with SRX200

The DMZ Tab

The DMZ screen allows one local user to be exposed to the Internet for use of a special-purpose service such as Internet gaming and videoconferencing through DMZ Hosting. DMZ hosting forwards all the ports for one computer at the same time, which differs from Port Range Forwarding, which can only forward a maximum of 10 ranges of ports.

DMZ

• DMZ Hosting. This feature allows one local user to be exposed to the Internet for use of a special-purpose service such as Internet gaming and videoconferencing. To use this feature, select Enable. To disable DMZ, select Disable.
• DMZ Host IP Address. To expose one computer, enter the computer's IP address. To get the IP address of a computer, refer to "Appendix C: Finding the MAC Address and IP Address for Your Ethernet Adapter."

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

LINKSYS A Division of Data Systems, Inc. Applications & Gaming NetworkS DOS Gateway with 351200 Access Specifications Applications & Gaming Database Single Net Range Framework | Net Range Framework | Net Range Framework | DSC - Get DSC DSC Hosting Example: Example DSC Host P Address 992.964.1 DSC range in 1.264 Save Settings Cancel Changes Menu History

Figure 6-39: DMZ

Wireless-G ADSL Gateway with SRX200

The QoS Tab

QoS (Quality of Service)

QoS ensures better service to high-priority types of network traffic, which may involve demanding, real-time applications, such as Internet phone calls or videoconferencing.

Wireless

• ACK Mode. This setting prioritizes QoS for users who also have ACK Mode enabled. Users with Immediate ACK (the default setting) will experience reliable connectivity for normal network use. Burst ACK is faster but less reliable and may also affect long-range wireless performance. The No ACK setting disables the ACK feature. Clients utilizing ACK must have their wireless adapter on the same setting as the Gateway. This is normally used in a multicast broadcast like video. Do not use this unless you are an advanced user.
• 802.11e/QoS. QoS will be enabled by default to provide the best performance for your wireless connection. Select Disable to improve performance for a mixed wireless network.

Internet Access Priority

In this section, you can set priority based on Application, Port Range, or MAC Address. There are four priories you can set: High, Medium, Normal, or Low.

• Enabled/Disabled. To limit outgoing bandwidth for the QoS policies in use, select Enabled. Otherwise, select Disabled.
• Set Internet Bandwidth. This setting allows you to limit the outgoing bandwidth for the QoS policies in use, so you can control how much bandwidth a particular application is allowed to use. Enter the bandwidth in the field.
• Application. With this option you can select None, Online Game, MSN Messenger, YAHOO Messenger, Skype, Voice Device, Add a New Application, or select from the list of applications you want to set. To create a new entry, select Add a New Application, and refer to the Add a New Application section.
• Priority. Select High, Medium, Normal, or Low for the bandwidth priority you need for the application you selected. Don't set all applications to High, because this will defeat the purpose of allocating the available bandwidth. If you want to select below normal bandwidth, select Low. Depending on the application, a few attempts may be needed to set the appropriate bandwidth priority. Once you have made your selection, click Add to add to the Summary list.

LINKSYS A Division of Data Systems, Inc. Applications & Gaming Microsoft SQL Server with SECTOR HAGSOME Setup Wireless Security Access Accessories Applications & Gaming Administration Value Single Net Range Forwarding 1 Net Range Forwarding 2 Net Range Projecting 3 Net Out Quality Status Wireless iOS Node MacOS iOS HostOut MacOS Bord AOS MacOS Updated Disabled SubInternal Bandwidth: Klass (1 = 100000) Applications: Priority: Priority: Name: Information: Daily Summary Data Settings Control Changes Add Options

Figure 6-40: QoS

Wireless-G ADSL Gateway with SRX200

Online Game

Selecting Online Game will display the Select a Game drop-down menu, which will list a few common pre-configured games. Select the game from the list, and then select its priority.

MSN Messenger

Select its priority from the drop-down menu, and click Add.

YAHOO Messenger

Select its priority from the drop-down menu, and click Add.

Skype

Select its priority from the drop-down menu, and click Add.

Voice Device

Enter the name of your network device in the Enter a Name field, enter its MAC Address, select its priority from the drop-down menu, and click Add.

Add a New Application

Enter a Name Enter any name to indicate the name of the entry.

Category Select from Port Range or MAC Address for the Gateway to use to set the bandwidth priority.

Port Range If you selected Port Range, then this category will be available. It allows you to enter the port range(s) that the application will be using. For example, if you want to allocate bandwidth for FTP, you can enter 21-21. If you need services for an application that uses from 1000 to 1250, you enter 1000-1250 as your settings. Port numbers can range from 1 to 65535. Check your application's documentation for details on the service ports used.

You can define up to three ranges for this bandwidth allocation. For each port range, designate the protocol type(s): TCP, UDP, or Both.

MAC Address If you selected MAC Address, then this category will be available. Enter the 12 hexadecimal digit MAC Address to represent the device you want to set as a bandwidth priority. This is a unique identifier for your network device. When the Gateway identifies the device entered, the Gateway will allocate the priority set for that entry. Check the device's documentation to obtain the MAC Address.

LINKSYS A:\Users\Cloud Services, Inc. Applications & Gaming Windows (AOS) Category with SICOSB Setup Wireless Security Access Settings Applications & Gaming Administration Status Size Set Range Functioning Set Range Functioning Set Range Properties 1 Size Out Quality of SMART Wireless Internet Access Priority Created Connected SetInternet Bandwidth: Kases (1 - 100000) Applications Delete Game Select a Game Counter Strike Counter Print Sign or Replace Done Imprompt Helps Make 2 Make 3 Create Turnoff Return to Cella Web Development Priority Name Save Settings Cancel Change Summary Save Settings Cancel Change

Figure 6-41: QoS - Online Game

Figure 6-42: QoS - MSN Messenger

Applications Enter a Name MAC Address: 002100100100100100 Priority: Medium Add

Figure 6-43: QoS - Voice Device

Applications Enter a New Application Category Port Range Port Range (Optional) (Optional) Priority Medus Add

Figure 6-44: QoS - Add a New Application (Port Range)

Wireless-G ADSL Gateway with SRX200

Priority Select the bandwidth priority for the application you selected. Select High. Medium, Normal, or Low for the bandwidth, but don't set all applications to High. Once you have made your selection, click Add to add to the Summary list.

Summary

Priority This displays the bandwidth allocation priority of High, Medium, Normal, or Low, that you set for the application.

Name This displays the application name or the entries you entered to be allocated.

Information This displays the Port Range or MAC Address entered when you added a new application. If a pre-configured application was selected, there will be no valid entry shown in this section.

Remove This button allows you to remove the application entry. To remove the entry, click the Remove button. To save the configuration, click the Save Settings button. Otherwise, to cancel, click the Cancel Changes button.

When finished making your changes on this tab, click the Save Settings button to save these changes. or click the Cancel Changes button to undo your changes. Click Help for more information.

Applications Add a New Application Enter a Name Category MAC Address MAC Address 00:00:00:00:00:00 Priority Medium Add

Figure 6-45: QoS - Add a New Application (MAC Address)

Wireless-G ADSL Gateway with SRX200

The Administration Tab

The Management Tab

The Management screen allows you to change the Gateway's access settings as well as configure the SNMP (Simple Network Management Protocol), UPnP (Universal Plug and Play), and WLAN management features.

Gateway Access

Local Gateway Access. To ensure the Gateway's security, you will be asked for your password when you access the Gateway's Web-based Utility. The default username and password is admin.

• Gateway Userlist. Select the number of the user from the drop-down menu.
• Gateway Username. Enter the default username, admin. It is recommended that you change the default username to one of your choice.
• Gateway Password. It is recommended that you change the default password, admin, to one of your choice.
• Re-enter to confirm. Re-enter the Gateway's new Password to confirm it.

Remote Gateway Access. This feature allows you to access the Gateway from a remote location, via the Internet.

- Remote Management. This feature allows you to manage the Gateway from a remote location via the Internet. To enable Remote Management, click Enable.

IMPORTANT: Enabling remote management allows anyone with your password to configure the Gateway from somewhere else on the Internet.

- Management Port. Enter the port number you will use to remotely access the Gateway.

SNMP

SNMP is a popular network monitoring and management protocol.

• Device Name. Enter the name of the Gateway.
• SNMP. To enable SNMP, click Enable. To disable SNMP, click Disable.
- Get Community. Enter the password that allows read-only access to the Gateway's SNMP information.

Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200 The Administration Tab

LINKSYS 2.1 Section of Data System, Inc. Administration Setup Wireless Security Access Instructions Applications & Access Administration Status Settings | Security | Copyright | Breakthrough | Filter Details | Response scope Customity Access Local Gateway Access Gateway Usualist Gateway Usualist: Gateway Password: No order to Content: Remote Gateway Access Remote Management: Enable Enable Management Port: SNRST Device Name: SNRST: Enable Enable Get Community: Get Community: True Management: True No: SNRST Local: Load: View Our Management via VLJN: Enable Enable User Price: Enable Enable Save Settings Cancel Changes Data Service

Figure 6-46: Management

Wireless-G ADSL Gateway with SRX200

• Set Community. Enter the password that allows read/write access to the Gateway's SNMP information.
• Trap Management: Trap to. Enter the IP address of the remote host computer that will receive the trap messages.

UPnP

UPnP allows Windows Me and XP to automatically configure the Gateway for various Internet applications, such as gaming and videoconferencing.

- UPnP. To enable UPnP, click Enable. Otherwise, click Disable.

WLAN

- Management via WLAN. This feature allows the Gateway to be managed by a wireless computer on the local network when it logs into the Gateway's Web-based Utility. To enable this feature, click Enable. Otherwise, click Disable.

IGMP

- IGMP Proxy. If your multimedia application or device is not working properly behind the Gateway, then you can use the IGMP Proxy feature to allow multicast traffic through the Gateway. To use this feature, click Enable. Otherwise, click Disable.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

Wireless-G ADSL Gateway with SRX200

The Reporting Tab

The Reporting screen provides you with a log of all incoming and outgoing URLs or IP addresses for your Internet connection. It also provides logs for VPN and firewall events.

Reporting

- Log. To enable log reporting, click Enable.

Email Alerts

• E-Mail Alerts. To enable E-Mail Alerts, click Enable.
  • Denial of Service Thresholds. Enter the number of Denial of Service attacks that will trigger an e-mail alert.
• SMTP Mail Server. Enter the IP address of the SMTP server.
• E-Mail Address for Alert Logs. Enter the e-mail address that will receive alert logs.
• Return E-Mail address. Enter the return address for the e-mail alerts.

To view the logs, click the View Logs button. A new screen will appear. From the drop-down menu, select which log you want to view: ALL, Access Log, or Firewall Log. Click the pageRefresh button to refresh the information. Click the Clear button to clear the log information. Click the Previous Page button to go to the previous page of information. Click the Next Page button to move to the next page of information.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

LINKSYS Microsoft Internet Systems Inc. Administration Windows 5. API / Category with HTTP WIN/SQLX2 Setup Wireless Security Access Restrictions Applications & Setting Administration Status Management | Security | Deposition | Backpropagation | Policy Details | Server Update Respecting Log Enable Enable Email Header Enable Enable Email of Service Terminals events (30 - 100) SAP Web Server - Email Address for Alert Logis - Return Email Address Save Log Size Settings Cancel Changes Data Settings

Figure 6-48: Reporting

LINKSYS A Software in Data Systems, Inc. Log All Log Type: ALL URL: Filed, 1988-12-31 16:00:17 - b/o port 1 Filed, 1988-12-31 16:00:21 - b/o port 2 Filed, 1988-12-31 16:00:32 - b/o port 3 (eNet) entering forwarding state Filed, 1988-12-31 16:00:32 - b/o topology change detected, prompting Filed, 1988-12-31 16:00:36 - b/o port 4 (eNet) entering forwarding state Filed, 1988-12-31 16:00:36 - b/o topology change detected, prompting Filed, 1988-12-31 16:00:00 - Router start up Filed, 1988-12-31 16:25:58 - Administrator log successful - IP:192.160.1.100 Filed, 1988-12-31 17:00:11 - wntLog.c:\o-Starter AROON\TOOL with PN 209 Close Previous Page Next Page

Figure 6-49: System Log

Wireless-G ADSL Gateway with SRX200

The Diagnostics Tab

Use this screen to run ping tests and display test results.

Ping Test

Ping Test Parameters

• Ping Target IP. Enter the IP address that you want to ping. This can be either a local (LAN) IP or an Internet (WAN) IP address.
• Ping Size. Enter the size of the packet.
  • Number of Pings. Enter the number of times that you want to ping.
• Ping Interval. Enter the ping interval (how often the target IP address will be pinged) in milliseconds.
• Ping Timeout. Enter the ping timeout (how long before the ping test times out) in milliseconds.

Click the Start Test button to start the Ping Test.

- Ping Result. The results of the ping test will be shown here.

When finished making your changes on this tab, click the Save Settings button to save these changes, or click the Cancel Changes button to undo your changes. Click Help for more information.

The Backup&Restore Tab

The Backup&Restore tab allows you to back up and restore the Gateway's configuration file.

Backup Configuration

To back up the Gateway's configuration file, click the Backup button. Then follow the on-screen instructions.

Restore Configuration

To restore the Gateway's configuration file, click the Browse button. Then follow the on-screen instructions to locate the file. After you have selected the file, click the Restore button.

Click Help for more information.

LINKSYS 4.0 System: i3a Systems, Inc. Administration WinlessG ADS Gateway with 5/2/2018 File:///GDS/ Setup Wireless Security Access Protechnics Applications & Gaming Administration Status Management: Selecting L - Descriptive L - DataPrimer L - Parler GNDL L - Provider upgrade Play Test Play Test Parameters Play Target P: Play Slot: Marker on Page: Play Interval: Play Total Play Result: Play Sett Test Play Result: Play_SandP PM_ScoreB Avg_Millions Save Settings Cancel Changes No. Save History

Figure 6-50: Diagnostics

LINKSYS® A Division of Clear Systems, Inc. Administration Windows 6.0 ADSL Server with SR1208 Status: No/No/No/No Setup Wireless Security Access Accessories Applications & Security Administrative Status Management | Security | Windows | Web Administration | Security Details | Downloads Program Backup Configurations Backup Restore a Configuration Please select a file restore: Browse Restore Data Services

Figure 6-51: Backup&Restore

Wireless-G ADSL Gateway with SRX200

The Factory Defaults Tab

If you want to restore the Gateway's factory default settings, then use this screen.

Factory Defaults

Restore Factory Defaults. If you wish to restore the Gateway to its factory default settings and lose all your settings, click Restore Factory Defaults. Then follow the on-screen instructions. Click Help for more information.

The Firmware Upgrade Tab

Use this screen to upgrade the Gateway's firmware.

Firmware Upgrade

To upgrade the Gateway's firmware:

1. Download the Gateway's firmware upgrade file from www.linksys.com/international.
2. Extract the file on your computer.
3. On the Firmware Upgrade screen, click the Browse button to find the firmware upgrade file.
4. Double-click the firmware file that you have downloaded and extracted.
5. Click the Start to Upgrade button, and follow the on-screen instructions.

Click Help for more information.

LINKSYS® A Division or Data System, Inc. Administration Warehouse: ADSC Facility with $57288 WIN/2003 Setup Wireless Security Access Restrictives Applications & Gaming Administration Status Management | Security | Project | Subsidiaries | User Interface | Features & Jobs Factory Defaults Feature Factory Defaults Data Source

Figure 6-52: Factory Defaults

LINKSYS A UNTON AT 300 SPONS, INC. Administration Windows C: ADSL Galaxy with SICNN MACSICO Setup Wireless Security Access Accessories Applications & Carry Administration Status Management | Security | Upgrade | Installation | Safari Security | Complete Upgrade Hardware Upgrade Please Select a File to Upgrade File: Browse Start to Upgrade Help Takeaway

Figure 6-53: Firmware Upgrade

Wireless-G ADSL Gateway with SRX200

The Status Tab

The Gateway Tab

This screen displays information about the Gateway and its Internet connection.

Gateway Information

This section displays the Gateway's Firmware Version, MAC Address, and Current Time.

Internet Connection

This section shows the following information: Login Type, Interface, IP Address, Subnet Mask, Default Gateway, and DNS 1, 2, and 3 server IP addresses.

DHCP Renew. If available, click the DHCP Renew button to replace the Gateway's current IP address with a new IP address.

DHCP Release. If available, click the DHCP Release button to delete the Gateway's current IP address.

Click the Refresh button if you want to refresh the displayed information. Click Help for more information.

LINKSYS A Bissette or Data System, Inc. Status Setup C: ADSL Cataloging with 637388 MACS2002 Setup Info version Forward Version MAC Address Current Time Log Type EPC-1480 Bridge System P Address Send Event Default Gateway DNS1 DNS2 DNS3 OK/Cancel OK/Cancel Refresh Data Storage

Figure 6-54: Gateway

Wireless-G ADSL Gateway with SRX200

The Local Network Tab

This screen displays information about the Gateway's local network.

Local Network

This screen displays the following: the local Mac Address, IP Address, Subnet Mask, DHCP Server, Start IP Address, and End IP Address.

To view the DHCP Client Table, click the DHCP Client Table button. To view the ARP/RARP Table, click the ARP/RARP Table button.

DHCP Clients Table. The DHCP Active IP Table shows the current DHCP Client data. You will see the computer name, IP address, MAC address, and expiration time of the dynamic IP address for the clients using the DHCP server. (This data is stored in temporary memory and changes periodically.) Click the Refresh button if you want to refresh the displayed information. To delete a client from the DHCP server, select the client, and then click the Delete button. Click the Close button to return to the Local Network screen.

ARP/RARP Table. An ARP request is a request sent by the Gateway asking clients with IP addresses for their MAC addresses, so the Gateway can map IP addresses to MAC addresses. RARP is the reverse of ARP. The ARP/RARP Table shows the current data for the local network clients of the Gateway. You will see their IP addresses and MAC addresses. (This data is stored in temporary memory and changes periodically.) Click the Refresh button if you want to refresh the displayed information. Click the Close button to return to the Local Network screen.

Click the Refresh button if you want to refresh the displayed information. Click Help for more information.

LINKSYS® A Division of Our System, Inc. Status Windows-A: APDSL Gateway with SPDDR MACROWDS Setup Windows Security Access Access Restrictions Applications& Gaining Accession area Share Support Cancel Support Options Local Network Local Network MAC Address RECEIVED/SPDDR P Address 182.968.1.1 Global Host 305.000.000.0 DHCP Server Stable Gated P Address 182.968.1.00 DHCP Address 182.968.1.00 DHCP Client Table ARBIAPP Tools Network

Figure 6-55: Local Network

LINKSYS A Chapter ID: Data Systems, Inc. DHCP Active IP Table DHCP Active IP Tables DHCP Server IP Address Client Base Name IP Address RAC Address Square DHCPSEL.M 192/485.1/46 8628E207648E4 8 Refresh Delete Close

Figure 6-56: DHCP Active IP Table

LINKSYS A Series of Data Systems, Inc. AIR RAMP Table AIR RAMP Table IF Address MAC Address Data

Figure 6-57: ARP/RARP Table

Wireless-G ADSL Gateway with SRX200

The Wireless Tab

This screen displays information about the Gateway's wireless network.

Wireless

This screen displays the following: the Wireless Firmware Version, MAC Address, Mode, SSID, Channel, and Encryption Function.

Click the Wireless Clients Connected button to view a list of the wireless clients connected to the Gateway, along with their computer names, IP addresses, and MAC addresses. Click the Refresh button if you want to refresh the displayed information. Click the Close button to return to the Wireless screen.

Click the Refresh button if you want to refresh the displayed information. Click Help for more information.

LINKSYS A Division of Data System, Inc. Status Wireless Setup Wireless Security Access Accessories Applications & Gaming Accessories Status Internet Internet DSL Connection Wireless Forewire Version 16.06.11 MAC Address 86.632796/16.06 Home Mixed Subsea Channel L-2.437 Site Encryption Function Enabled Wireless Genes Connected Refresh Data Service

Figure 6-58: Wireless

Figure 6-59: Networked Computers

Wireless-G ADSL Gateway with SRX200

The DSL Connection Tab

This screen shows information about the DSL connection.

DSL Status

This section shows the following: Status, Downstream Rate, and Upstream Rate.

PVC Connection

This section displays the following information: Encapsulation, Multiplexing, QoS, Pcr Rate, Scr Rate, Autodetect, VPI, VCI, Enable status, and PVC Status.

Click the Refresh button if you want to refresh the displayed information. Click Help for more information.

LINKSYS A Division of Data Systems, Inc. Status Setup Wireless Security Access Network Services Applications & Gaming Administration Status OSL Connection Status Download Rate Upstream Rate PVC Connection Cronosulation MILKMPing Gas Portfolio SoRoRate Autobatch: VPS VG Green: PVC Status IFC 1483 Bridged IFC HRR Enable I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I Nephew

Figure 6-60: DSL Connection

Wireless-G ADSL Gateway with SRX200

\*□□※■※■ ☆+ \*□□◆○※▲※□□▼※■※

This appendix consists of two parts: "Common Problems and Solutions" and "Frequently Asked Questions." Provided are possible solutions to problems that may occur during the installation and operation of the Gateway. Read the descriptions below to help you solve your problems. If you can't find an answer here, check the Linksys international website at www.linksys.com/international.

Common Problems and Solutions

1. I need to set a static IP address on a computer.

You can assign a static IP address to a computer by performing the following steps:

• For Windows 98 and Me:

1. Click Start, Settings, and Control Panel. Double-click Network.
2. In The following network components are installed box, select the TCP/IP-> associated with your Ethernet adapter. If you only have one Ethernet adapter installed, you will only see one TCP/IP line with no association to an Ethernet adapter. Highlight it and click the Properties button.
3. In the TCP/IP properties window, select the IP address tab, and select Specify an IP address. Enter a unique IP address that is not used by any other computer on the network connected to the Gateway. Make sure that each IP address is unique for each computer or network device.
4. Click the Gateway tab, and in the New Gateway prompt, enter 192.168.1.1, which is the default IP address of the Gateway. Click the Add button to accept the entry.
5. Click the DNS tab, and make sure the DNS Enabled option is selected. Enter the Host and Domain names (e.g., John for Host and home for Domain). Enter the DNS entry provided by your ISP. If your ISP has not provided the DNS IP address, contact your ISP to get that information or go to its website for the information.
6. Click the OK button in the TCP/IP properties window, and click Close or the OK button for the Network window.
7. Restart the computer when asked.

- For Windows 2000:

1. Click Start, Settings, and Control Panel. Double-click Network and Dial-Up Connections.
2. Right-click the Local Area Connection that is associated with the Ethernet adapter you are using, and select the Properties option.
3. In the Components checked are used by this connection box, highlight Internet Protocol (TCP/IP), and click the Properties button. Select Use the following IP address option.
4. Enter a unique IP address that is not used by any other computer on the network connected to the Gateway.
5. Enter the Subnet Mask, 255.255.255.0.
6. Enter the Default Gateway, 192.168.1.1 (Gateway's default IP address).

Appendix A: Troubleshooting

Common Problems and Solutions

Wireless-G ADSL Gateway with SRX200

1. Toward the bottom of the window, select Use the following DNS server addresses, and enter the Preferred DNS server and Alternative DNS server (provided by your ISP). Contact your ISP or go on its website to find the information.
2. Click the OK button in the Internet Protocol (TCP/IP) Properties window, and click the OK button in the Local Area Connection Properties window.
3. Restart the computer if asked.

- For Windows XP:

The following instructions assume you are running Windows XP with the default interface. If you are using the Classic interface (where the icons and menus look like previous Windows versions), please follow the instructions for Windows 2000.

1. Click Start and Control Panel.
2. Click the Network and Internet Connections icon and then the Network Connections icon.
3. Right-click the Local Area Connection that is associated with the Ethernet adapter you are using, and select the Properties option.
4. In the This connection uses the following items box, highlight Internet Protocol (TCP/IP). Click the Properties button.
5. Enter a unique IP address that is not used by any other computer on the network connected to the Gateway.
6. Enter the Subnet Mask, 255.255.255.0.
7. Enter the Default Gateway, 192.168.1.1 (Gateway's default IP address).
8. Toward the bottom of the window, select Use the following DNS server addresses, and enter the Preferred DNS server and Alternative DNS server (provided by your ISP). Contact your ISP or go on its website to find the information.
9. Click the OK button in the Internet Protocol (TCP/IP) Properties window. Click the OK button in the Local Area Connection Properties window.

2. I want to test my Internet connection.

A. Check your TCP/IP settings.
For Windows 98, Me, 2000, and XP:
- Refer to Windows Help for details. Make sure Obtain IP address automatically is selected in the settings. For Windows NT 4.0:
- Click Start, Settings, and Control Panel. Double-click the Network icon.
- Click the Protocol tab, and double-click on TCP/IP Protocol.
- When the window appears, make sure you have selected the correct Adapter for your Ethernet adapter and set it for Obtain an IP address from a DHCP server.
- Click the OK button in the TCP/IP Protocol Properties window, and click the Close button in the Network window.
- Restart the computer if asked.
B. Open a command prompt.

Appendix A: Troubleshooting

Common Problems and Solutions

For Windows 98 and Me:

- Click Start and Run. In the Open field, type in command. Press the Enter key or click the OK button.

For Windows NT, 2000, and XP:

- Click Start and Run. In the Open field, type cmd. Press the Enter key or click the OK button. In the command prompt, type ping 192.168.1.1 and press the Enter key.

- If you get a reply, the computer is communicating with the Gateway.

- If you do NOT get a reply, please check the cable, and make sure Obtain an IP address automatically is selected in the TCP/IP settings for your Ethernet adapter.

C. In the command prompt, type ping followed by your Internet or WAN IP address and press the Enter key. The Internet or WAN IP Address can be found on the Status screen of the Gateway's web-based utility. For example, if your Internet or WAN IP address is 1.2.3.4, you would enter ping 1.2.3.4 and press the Enter key.

- If you get a reply, the computer is connected to the Gateway.

- If you do NOT get a reply, try the ping command from a different computer to verify that your original computer is not the cause of the problem.

D. In the command prompt, type ping www.yahoo.com and press the Enter key.

- If you get a reply, the computer is connected to the Internet. If you cannot open a webpage, try the ping command from a different computer to verify that your original computer is not the cause of the problem.

- If you do NOT get a reply, there may be a problem with the connection. Try the ping command from a different computer to verify that your original computer is not the cause of the problem.

3. I am not getting an IP address on the Internet with my Internet connection.

- Refer to "Problem #2, I want to test my Internet connection" to verify that you have connectivity.

1. Make sure you are using the right Internet connection settings. Contact your ISP to see if your Internet connection type is RFC 1483 Bridged, RFC 1483 Routed, RFC 2516 PPPoE, RFC 2364 PPPoA, Bridged Mode Only, or IPoA. Please refer to the Setup section of "Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200" for details on Internet connection settings.

2. Make sure you have the right cable. Check to see if the Gateway column has a solidly lit ADSL LED.

3. Make sure the cable connecting from your Gateway's ADSL port is connected to the wall jack of the ADSL service line. Verify that the Status page of the Gateway's web-based utility shows a valid IP address from your ISP.

4. Turn off the computer and Gateway. Wait 30 seconds, and then turn on the Gateway, and computer. Check the Status tab of the Gateway's web-based utility to see if you get an IP address.

4. I am not able to access the Setup page of the Gateway's web-based utility.

- Refer to "Problem #2, I want to test my Internet connection" to verify that your computer is properly connected to the Gateway.

1. Refer to "Appendix C: Finding the MAC Address and IP address for Your Ethernet Adapter" to verify that your computer has an IP Address, Subnet Mask, Gateway, and DNS.

2. Set a static IP address on your system; refer to "Problem #1: I need to set a static IP address."

3. Refer to "Problem #10: I am a PPPoE user, and I need to remove the proxy settings or the dial-up pop-up window."

5. I can't get my Virtual Private Network (VPN) working through the Gateway.

Access the Gateway's web interface by going to http://192.168.1.1 or the IP address of the Gateway, and go to the Security tab. Make sure you have IPsec passthrough and/or PPTP pass-through enabled.

• VPNs that use IPSec with the ESP (Encapsulation Security Payload known as protocol 50) authentication will work fine. At least one IPSec session will work through the Gateway; however, simultaneous IPSec sessions may be possible, depending on the specifics of your VPNs.
• VPNs that use IPSec and AH (Authentication Header known as protocol 51) are incompatible with the Gateway. AH has limitations due to occasional incompatibility with the NAT standard.
• Change the IP address for the Gateway to another subnet to avoid a conflict between the VPN IP address and your local IP address. For example, if your VPN server assigns an IP address 192.168.1.X (X is a number from 1 to 254) and your local LAN IP address is 192.168.1.X (X is the same number used in the VPN IP address), the Gateway will have difficulties routing information to the right location. If you change the Gateway's IP address to 192.168.2.1, that should solve the problem. Change the Gateway's IP address through the Setup tab of the web interface.
• If you assigned a static IP address to any computer or network device on the network, you need to change its IP address accordingly to 192.168.2.Y (Y being any number from 1 to 254). Note that each IP address must be unique within the network.
• Your VPN may require port 500/UDP packets to be passed to the computer that is connecting to the IPSec server. Refer to "Problem #7, I need to set up online game hosting or use other Internet applications" for details.
• Check the Linksys international website for more information at www.linksys.com/international.

6. I need to set up a server behind my Gateway and make it available to the public.

To use a server like a web, ftp, or mail server, you need to know the respective port numbers they are using. For example, port 80 (HTTP) is used for web; port 21 (FTP) is used for FTP, and port 25 (SMTP outgoing) and port 110 (POP3 incoming) are used for the mail server. You can get more information by viewing the documentation provided with the server you installed.

- Follow these steps to set up port forwarding through the Gateway's web-based utility. We will be setting up web, ftp, and mail servers.

1. Access the Gateway's web-based utility by going to http://192.168.1.1 or the IP address of the Gateway. Go to the Applications and Gaming => Port Range Forwarding tab.
2. Enter any name you want to use for the Customized Application.
3. Enter the External Port range of the service you are using. For example, if you have a web server, you would enter the range 80 to 80.
4. Check the protocol you will be using, TCP and/or UDP.
5. Enter the IP address of the computer or network device that you want the port server to go to. For example, if the web server's Ethernet adapter IP address is 192.168.1.100, you would enter 100 in the

Wireless-G ADSL Gateway with SRX200

field provided. Check "Appendix C: Finding the MAC Address and IP Address for Your Ethernet Adapter" for details on getting an IP address.

1. Check the Enable option for the port services you want to use. Consider the example below:

Customized Application External Port TCP UDP IP Address Enable

Web server 80 to 80 X 192.168.1.100 X

FTP server 21 to 21 X 192.168.1.101 X

SMTP (outgoing) 25 to 25 X 192.168.1.102 X

POP3 (incoming) 110 to 110 X 192.168.1.102 X

When you have completed the configuration, click the Save Settings button.

7. I need to set up online game hosting or use other Internet applications.

If you want to play online games or use Internet applications, most will work without doing any port forwarding or DMZ hosting. There may be cases when you want to host an online game or Internet application. This would require you to set up the Gateway to deliver incoming packets or data to a specific computer. This also applies to the Internet applications you are using. The best way to get the information on what port services to use is to go to the website of the online game or application you want to use. Follow these steps to set up online game hosting or use a certain Internet application:

1. Access the Gateway's web interface by going to http://192.168.1.1 or the IP address of the Gateway. Go to the Applications and Gaming => Port Range Forwarding tab.
2. Enter any name you want to use for the Customized Application.
3. Enter the External Port range of the service you are using. For example, if you want to host Unreal Tournament (UT), you would enter the range 7777 to 27900.
4. Check the protocol you will be using, TCP and/or UDP.
5. Enter the IP address of the computer or network device that you want the port server to go to. For example, if the web server's Ethernet adapter IP address is 192.168.1.100, you would enter 100 in the field provided. Check "Appendix C: Finding the MAC Address and IP Address for Your Ethernet Adapter" for details on getting an IP address.
6. Check the Enable option for the port services you want to use. Consider the example below:

Customized Application	External Port	TCP	UDP	IP Address	Enable
UT	7777 to 27900	X	X	192.168.1.100	X
Halflife	27015 to 27015	X	X	192.168.1.105	X
PC Anywhere	5631 to 5631		X	192.168.1.102	X
VPN IPSEC	500 to 500		X	192.168.1.100	X

When you have completed the configuration, click the Save Settings button.

8. I can't get the Internet game, server, or application to work.

If you are having difficulties getting any Internet game, server, or application to function properly, consider exposing one computer to the Internet using DeMilitarized Zone (DMZ) hosting. This option is available when an application requires too many ports or when you are not sure which port services to use. Make sure you disable all the forwarding entries if you want to successfully use DMZ hosting, since forwarding has priority over DMZ hosting. (In other words, data that enters the Gateway will be checked first by the forwarding settings. If the port number that the data enters from does not have port forwarding, then the Gateway will send the data to whichever computer or network device you set for DMZ hosting.)

• Follow these steps to set DMZ hosting:

1. Access the Gateway's web-based utility by going to http://192.168.1.1 or the IP address of the Gateway. Go to the Applications and Gaming => DMZ tab. Click Enabled and enter the IP of the computer.

2. Check the Port Forwarding pages and disable or remove the entries you have entered for forwarding. Keep this information in case you want to use it at a later time.

- Once completed with the configuration, click the Save Settings button.

9. I forgot my password, or the password prompt always appears when I am saving settings to the Gateway.

- Reset the Gateway to factory default by pressing the Reset button for 10 seconds and then releasing it. If you are still getting prompted for a password when saving settings, then perform the following steps:

1. Access the Gateway's web-based utility by going to http://192.168.1.1 or the IP address of the Gateway. Enter the default username and password admin, and click the Administrations => Management tab.

2. Enter a different password in the Gateway Password field, and enter the same password in the second field to confirm the password.

3. Click the Save Settings button.

10. I am a PPPoE user, and I need to remove the proxy settings or the dial-up pop-up window.

If you have proxy settings, you need to disable these on your computer. Because the Gateway is the gateway for the Internet connection, the computer does not need any proxy settings to gain access. Please follow these directions to verify that you do not have any proxy settings and that the browser you use is set to connect directly to the LAN.

• For Microsoft Internet Explorer 5.0 or higher:

1. Click Start, Settings, and Control Panel. Double-click Internet Options.

2. Click the Connections tab.

3. Click the LAN settings button and remove anything that is checked.

4. Click the OK button to go back to the previous screen.

5. Click the option Never dial a connection. This will remove any dial-up pop-ups for PPPoE users.

Wireless-G ADSL Gateway with SRX200

• For Netscape 6 or higher:

1. Start Netscape Navigator, and click Edit, Preferences, Advanced, and Proxies.
2. Make sure you have Direct connection to the Internet selected on this screen.
3. Close all the windows to finish.

11. To start over, I need to set the Gateway to factory default.

Hold the Reset button for 10 seconds and then release it. This will return the Internet settings, password, forwarding, and other settings on the Gateway to the factory default settings. In other words, the Gateway will revert to its original factory configuration.

12. I need to upgrade the firmware.

In order to upgrade the firmware with the latest features, you need to go to the Linksys international website and download the latest firmware at www.linksys.com/international.

- Follow these steps:

1. Go to the Linksys international website at http://www.linksys.com/international and select your region or country.
2. Click the Products tab and select the Gateway.
3. On the Gateway's webpage, click Firmware, and then download the latest firmware for the Gateway.
4. To upgrade the firmware, follow the steps in the Administration section found in "Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200."

13. The firmware upgrade failed, and/or the Power LED is flashing.

The upgrade could have failed for a number of reasons. Follow these steps to upgrade the firmware and/or make the Power LED stop flashing:

• If the firmware upgrade failed, use the TFTP program (it was downloaded along with the firmware). Open the pdf that was downloaded along with the firmware and TFTP program, and follow the pdf's instructions.
• Set a static IP address on the computer; refer to "Problem #1, I need to set a static IP address." Use the following IP address settings for the computer you are using:

IP Address: 192.168.1.50

Subnet Mask: 255.255.255.0

Gateway: 192.168.1.1

- Perform the upgrade using the TFTP program or the Gateway's web-based utility through its Administration tab.

14. My DSL service's PPPoE is always disconnecting.

PPPoE is not actually a dedicated or always-on connection. The DSL ISP can disconnect the service after a period of inactivity, just like a normal phone dial-up connection to the Internet.

- There is a setup option to "keep alive" the connection. This may not always work, so you may need to re-establish connection periodically.

Appendix A: Troubleshooting

Common Problems and Solutions

Wireless-G ADSL Gateway with SRX200

1. To connect to the Gateway, go to the web browser, and enter http://192.168.1.1 or the IP address of the Gateway.
2. Enter the username and password, if asked. (The default username and password is admin.)
3. On the Setup screen, select the option Keep Alive, and set the Redial Period option at 30 (seconds) (this will keep the connection to the ISP and will not disconnect.
4. Click the Save Settings button. Click the Status tab, and click the Connect button.
5. You may see the login status display as Connecting. Press the F5 key to refresh the screen, until you see the login status display as Connected.
6. Click the Save Settings button to continue.

- If the connection is lost again, follow steps 1-6 to re-establish connection.

15. I can't access my e-mail, web, or VPN, or I am getting corrupted data from the Internet.

The Maximum Transmission Unit (MTU) setting may need to be adjusted. By default, the MTU is set automatically.

- If you are having some difficulties, perform the following steps:

1. To connect to the Gateway, go to the web browser, and enter http://192.168.1.1 or the IP address of the Gateway.
2. Enter the username and password, if asked. (The default username and password is admin.)
3. Look for the MTU option, and select Manual. In the Size field, enter 1492.
4. Click the Save Settings button to continue.

- If your difficulties continue, change the Size to different values. Try this list of values, one value at a time, in this order, until your problem is solved:

1462
1400
1362
1300

16. The Power LED flashes continuously.

The Power LED lights up when the device is first powered up. In the meantime, the system will boot up itself and check for proper operation. After finishing the checking procedure, the LED remains steady to show that the system is working fine. If the LED continues to flash after this time, the device is not working properly. Try to flash the firmware by assigning a static IP address to the computer, and then upgrade the firmware. Try using the following settings, IP Address: 192.168.1.50 and Subnet Mask: 255.255.255.0.

17. When I enter a URL or IP address, I get a time-out error or am prompted to retry.

• Check if other computers work. If they do, ensure that your computer's IP settings are correct (IP Address, Subnet Mask, Default Gateway, and DNS). Restart the computer that is having a problem.
• If the computers are configured correctly, but still not working, check the Gateway. Ensure that it is connected and powered on. Connect to it and check its settings. (If you cannot connect to it, check the LAN and power connections.)

Appendix A: Troubleshooting

Common Problems and Solutions

Wireless-G ADSL Gateway with SRX200

• If the Gateway is configured correctly, check your Internet connection (DSL/cable modem, etc.) to see if it is working correctly. You can remove the Gateway to verify a direct connection.
• Manually configure the TCP/IP settings with a DNS address provided by your ISP.
• Make sure that your browser is set to connect directly and that any dial-up is disabled. For Internet Explorer, click Tools, Internet Options, and then the Connection tab. Make sure that Internet Explorer is set to Never dial a connection. For Netscape Navigator, click Edit, Preferences, Advanced, and Proxy. Make sure that Netscape Navigator is set to Direct connection to the Internet.

18. I'm trying to access the Gateway's Web-based Utility, but I do not see the login screen. Instead, I see a screen saying, "404 Forbidden."

If you are using Windows Explorer, perform the following steps until you see the Web-based Utility's login screen (Netscape Navigator will require similar steps):

1. Click File. Make sure Work Offline is NOT checked.

2. Press CTRL + F5. This is a hard refresh, which will force Windows Explorer to load new webpages, not cached ones.

- Click Tools. Click Internet Options. Click the Security tab. Click the Default level button. Make sure the security level is Medium or lower. Then click the OK button.

Frequently Asked Questions

What is the maximum number of IP addresses that the Gateway will support?

The Gateway will support up to 253 IP addresses.

Is IPSec Passthrough supported by the Gateway?

Yes, it is a built-in feature that is enabled by default.

Where is the Gateway installed on the network?

In a typical environment, the Gateway is installed between the ADSL wall jack and the LAN.

Does the Gateway support IPX or AppleTalk?

No. TCP/IP is the only protocol standard for the Internet and has become the global standard for communications. IPX, a NetWare communications protocol used only to route messages from one node to another, and AppleTalk, a communications protocol used on Apple and Macintosh networks, can be used for LAN to LAN connections, but those protocols cannot connect from the Internet to a LAN.

Does the LAN connection of the Gateway support 100Mbps Ethernet?

The Gateway supports 100Mbps over the auto-sensing Fast Ethernet 10/100 switch on the LAN side of the Gateway.

Appendix A: Troubleshooting

Frequently Asked Questions

Wireless-G ADSL Gateway with SRX200

What is Network Address Translation and what is it used for?

Network Address Translation (NAT) translates multiple IP addresses on the private LAN to one public address that is sent out to the Internet. This adds a level of security since the address of a computer connected to the private LAN is never transmitted on the Internet. Furthermore, NAT allows the Gateway to be used with low cost Internet accounts when only one TCP/IP address is provided by the ISP. The user may have many private addresses behind this single address provided by the ISP.

Does the Gateway support any operating system other than Windows 98SE, Windows Millennium, Windows 2000, or Windows XP?

Yes, but Linksys does not, at this time, provide technical support for setup, configuration or troubleshooting of any non-Windows operating systems.

Does the Gateway support ICQ send file?

Yes, with the following fix: click ICQ menu -> preference -> connections tab->, and check I am behind a firewall or proxy. Then set the firewall time-out to 80 seconds in the firewall setting. The Internet user can then send a file to a user behind the Gateway.

I set up an Unreal Tournament Server, but others on the LAN cannot join. What do I need to do?

If you have a dedicated Unreal Tournament server running, you need to create a static IP for each of the LAN computers and forward ports 7777, 7778, 7779, 7780, 7781, and 27900 to the IP address of the server. You can also use a port forwarding range of 7777 \~ 27900. If you want to use the UT Server Admin, forward another port (Port 8080 usually works well but is used for remote admin. You may have to disable this.) Then in the [UWeb.WebServer] section of the server.ini file, set the ListenPort to 8080 (to match the mapped port above) and ServerName to the IP assigned to the Gateway from your ISP.

Can multiple gamers on the LAN get on one game server and play simultaneously with just one public IP address?

It depends on which network game or what kind of game server you are using. For example, Unreal Tournament supports multi-login with one public IP.

How do I get Half-Life: Team Fortress to work with the Gateway?

The default client port for Half-Life is 27005. The computers on your LAN need to have "+clientport 2700x" added to the HL shortcut command line; the x would be 6, 7, 8, and on up. This lets multiple computers connect to the same server. One problem: Version 1.0.1.6 won't let multiple computers with the same CD key connect at the same time, even if on the same LAN (not a problem with 1.0.1.3). As far as hosting games, the HL server does not need to be in the DMZ. Just forward port 27015 to the local IP address of the server computer.

Appendix A: Troubleshooting

Frequently Asked Questions

Wireless-G ADSL Gateway with SRX200

The web page hangs; downloads are corrupt, or nothing but junk characters are being displayed on the screen. What do I need to do?

Force your Ethernet adapter to 10Mbps or half duplex mode, and turn off the "Auto-negotiate" feature of your Ethernet adapter as a temporary measure. (Please look at the Network Control Panel in your Ethernet adapter's Advanced Properties tab.) Make sure that your proxy setting is disabled in the browser. Check our website at www.linksys.com/international for more information.

If all else fails in the installation, what can I do?

Reset the Gateway by holding down the reset button until the Power LED fully turns on and off. Reset your DSL modem by powering the unit off and then on. Obtain and flash the latest firmware release that is readily available on the Linksys international website, www.linksys.com/international.

How will I be notified of new Gateway firmware upgrades?

All Linksys firmware upgrades are posted on the Linksys international website at www.linksys.com/international, where they can be downloaded for free. To upgrade the Gateway's firmware, use the Administration tab of the Gateway's web-based utility. If the Gateway's Internet connection is working well, there is no need to download a newer firmware version, unless that version contains new features that you would like to use.

Will the Gateway function in a Macintosh environment?

Yes, but the Gateway's setup pages are accessible only through Internet Explorer 4.0 or Netscape Navigator 4.0 or higher for Macintosh.

I am not able to get the web configuration screen for the Gateway. What can I do?

You may have to remove the proxy settings on your Internet browser, e.g., Netscape Navigator or Internet Explorer. Check with your browser documentation, and make sure that your browser is set to connect directly and that any dial-up is disabled. For Internet Explorer, click Tools, Internet Options, and then the Connection tab. Make sure that Internet Explorer is set to Never dial a connection. For Netscape Navigator, click Edit, Preferences, Advanced, and Proxy. Make sure that Netscape Navigator is set to Direct connection to the Internet.

What is DMZ Hosting?

Demilitarized Zone (DMZ) allows one IP address (computer) to be exposed to the Internet. Some applications require multiple TCP/IP ports to be open. It is recommended that you set your computer with a static IP if you want to use DMZ Hosting. To get the LAN IP address, see "Appendix C: Finding the MAC Address and IP Address for Your Ethernet Adapter."

If DMZ Hosting is used, does the exposed user share the public IP with the Gateway?

No.

Does the Gateway pass PPTP packets or actively route PPTP sessions?

The Gateway allows PPTP packets to pass through.

Appendix A: Troubleshooting

Frequently Asked Questions

Wireless-G ADSL Gateway with SRX200

Is the Gateway cross-platform compatible?

Any platform that supports Ethernet and TCP/IP is compatible with the Gateway.

How many ports can be simultaneously forwarded?

Theoretically, the Gateway can establish 520 sessions at the same time, but you can only forward 10 ranges of ports.

What are the advanced features of the Gateway?

The Gateway's advanced features include Advanced Wireless settings, Filters, Port Forwarding, Routing, and DDNS.

How can I check whether I have static or DHCP IP Addresses?

Consult your ISP to obtain this information.

How do I get mIRC to work with the Gateway?

Under the Port Forwarding tab, set port forwarding to 113 for the computer on which you are using mIRC.

Can the Gateway act as my DHCP server?

Yes. The Gateway has DHCP server software built-in.

Can I run an application from a remote computer over the wireless network?

This will depend on whether or not the application is designed to be used over a network. Consult the application's documentation to determine if it supports operation over a network.

What is the IEEE 802.11g standard?

It is one of the IEEE standards for wireless networks. The 802.11g standard allows wireless networking hardware from different manufacturers to communicate, provided that the hardware complies with the 802.11g standard. The 802.11g standard states a maximum data transfer rate of 54Mbps and an operating frequency of 2.4GHz.

What is the IEEE 802.11b standard?

It is one of the IEEE standards for wireless networks. The 802.11b standard allows wireless networking hardware from different manufacturers to communicate, provided that the hardware complies with the 802.11b standard. The 802.11b standard states a maximum data transfer rate of 11Mbps and an operating frequency of 2.4GHz.

Wireless-G ADSL Gateway with SRX200

What IEEE 802.11b and 802.11g features are supported?

The product supports the following IEEE 802.11b and IEEE 802.11g functions:

• CSMA/CA plus Acknowledge protocol
• Multi-Channel Roaming
• Automatic Rate Selection
- RTS/CTS feature
- Fragmentation
• Power Management

It also supports OFDM technology for 802.11g networking.

What is ad-hoc mode?

When a wireless network is set to ad-hoc mode, the wireless-equipped computers are configured to communicate directly with each other, peer-to-peer without the use of an access point.

What is infrastructure mode?

When a wireless network is set to infrastructure mode, the wireless network is configured to communicate with a network through a wireless access point.

What is roaming?

Roaming is the ability of a portable computer user to communicate continuously while moving freely throughout an area greater than that covered by a single access point. Before using the roaming function, the computer must make sure that it is the same channel number with the access point of dedicated coverage area.

To achieve true seamless connectivity, the wireless LAN must incorporate a number of different functions. Each node and access point, for example, must always acknowledge receipt of each message. Each node must maintain contact with the wireless network even when not actually transmitting data. Achieving these functions simultaneously requires a dynamic RF networking technology that links access points and nodes. In such a system, the user's end node undertakes a search for the best possible access to the system. First, it evaluates such factors as signal strength and quality, as well as the message load currently being carried by each access point and the distance of each access point to the wired backbone. Based on that information, the node next selects the right access point and registers its address. Communications between end node and host computer can then be transmitted up and down the backbone.

As the user moves on, the end node's RF transmitter regularly checks the system to determine whether it is in touch with the original access point or whether it should seek a new one. When a node no longer receives acknowledgment from its original access point, it undertakes a new search. Upon finding a new access point, it then re-registers, and the communication process continues.

Appendix A: Troubleshooting

Frequently Asked Questions

Wireless-G ADSL Gateway with SRX200

What is the ISM band?

The FCC and their counterparts outside of the U.S. have set aside bandwidth for unlicensed use in the ISM (Industrial, Scientific and Medical) band. Spectrum in the vicinity of 2.4 GHz, in particular, is being made available worldwide. This presents a truly revolutionary opportunity to place convenient high-speed wireless capabilities in the hands of users around the globe.

What is Spread Spectrum?

Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband transmission, but the trade-off produces a signal that is, in effect, louder and thus easier to detect, provided that the receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is not tuned to the right frequency, a spread-spectrum signal looks like background noise. There are two main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).

What is DSSS? What is FHSS? And what are their differences?

Frequency-Hopping Spread-Spectrum (FHSS) uses a narrowband carrier that changes frequency in a pattern that is known to both transmitter and receiver. Properly synchronized, the net effect is to maintain a single logical channel. To an unintended receiver, FHSS appears to be short-duration impulse noise. Direct-Sequence Spread-Spectrum (DSSS) generates a redundant bit pattern for each bit to be transmitted. This bit pattern is called a chip (or chipping code). The longer the chip, the greater the probability that the original data can be recovered. Even if one or more bits in the chip are damaged during transmission, statistical techniques embedded in the radio can recover the original data without the need for retransmission. To an unintended receiver, DSSS appears as low power wideband noise and is rejected (ignored) by most narrowband receivers.

Will the information be intercepted while it is being transmitted through the air?

WLAN features two-fold protection in security. On the hardware side, as with Direct Sequence Spread Spectrum technology, it has the inherent security feature of scrambling. On the software side, WLAN offers the encryption function (WEP) to enhance security and access control.

What is WEP?

WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 64-bit or 128-bit shared key algorithm, as described in the IEEE 802.11 standard.

What is a MAC Address?

The Media Access Control (MAC) address is a unique number assigned by the manufacturer to any Ethernet networking device, such as a network adapter, that allows the network to identify it at the hardware level. For all practical purposes, this number is usually permanent. Unlike IP addresses, which can change every time a computer logs onto the network, the MAC address of a device stays the same, making it a valuable identifier for the network.

Appendix A: Troubleshooting

Frequently Asked Questions

Wireless-G ADSL Gateway with SRX200

How do I reset the Gateway?

Press the Reset button on the back panel for about ten seconds. This will reset the Gateway to its default settings.

How do I resolve issues with signal loss?

There is no way to know the exact range of your wireless network without testing. Every obstacle placed between the Gateway and a wireless computer will create signal loss. Lead glass, metal, concrete floors, water and walls will inhibit the signal and reduce range. Start with the Gateway and your wireless computer in the same room and move it away in small increments to determine the maximum range in your environment.

You may also try using different channels, as this may eliminate interference affecting only one channel.

I have excellent signal strength, but I cannot see my network.

Wireless security is probably enabled on the Gateway, but not on your wireless adapter (or vice versa). Verify that the same wireless security settings are being used on all devices of your wireless network.

How many channels/frequencies are available with the Gateway?

There are eleven available channels, ranging from 1 to 11, in most of North, Central, and South America. There are thirteen available channels, ranging from 1 to 13, in most of Europe. There may be additional channels available in other regions, subject to the regulations of your region and/or country.

If your questions are not addressed here, refer to the Linksys international website. www.linksys.com/international.

Wireless-G ADSL Gateway with SRX200

\*□□■■■+★□□□▲\*\*◆□▼

Linksys wants to make wireless networking as safe and easy for you as possible. The current generation of Linksys products provide several network security features, but they require specific action on your part for implementation. So, keep the following in mind whenever you are setting up or using your wireless network.

Security Precautions

The following is a complete list of security precautions to take (at least steps 1 through 5 should be followed):

1. Change the default SSID.
2. Disable SSID Broadcast.
3. Change the default password for the Administrator account.
4. Enable MAC Address Filtering.
5. Change the SSID periodically.
6. Use the highest encryption algorithm possible. Use WPA if it is available. Please note that this may reduce your network performance.
7. Change the WEP encryption keys periodically.

For information on implementing these security features, refer to “Chapter 6: Configuring the Wireless-G ADSL Gateway with SRX200.”

Security Threats Facing Wireless Networks

Wireless networks are easy to find. Hackers know that in order to join a wireless network, wireless networking products first listen for "beacon messages". These messages can be easily decrypted and contain much of the network's information, such as the network's SSID (Service Set Identifier). Here are the steps you can take:

Change the administrator's password regularly. With every wireless networking device you use, keep in mind that network settings (SSID, WEP keys, etc.) are stored in its firmware. Your network administrator is the only person who can change network settings. If a hacker gets a hold of the administrator's password, he, too, can change those settings. So, make it harder for a hacker to get that information. Change the administrator's password regularly.

Appendix B: Wireless Security Security Precautions

NOTE: Some of these security features are available only through the network gateway, router, or access point. Refer to the gateway, router, or access point's documentation for more information.

Wireless-G ADSL Gateway with SRX200

SSID. There are several things to keep in mind about the SSID:

1. Disable Broadcast
2. Make it unique
3. Change it often

Most wireless networking devices will give you the option of broadcasting the SSID. While this option may be more convenient, it allows anyone to log into your wireless network. This includes hackers. So, don't broadcast the SSID.

Wireless networking products come with a default SSID set by the factory. (The Linksys default SSID is "linksys".) Hackers know these defaults and can check these against your network. Change your SSID to something unique and not something related to your company or the networking products you use.

Change your SSID regularly so that any hackers who have gained access to your wireless network will have to start from the beginning in trying to break in.

MAC Addresses. Enable MAC Address filtering. MAC Address filtering will allow you to provide access to only those wireless nodes with certain MAC Addresses. This makes it harder for a hacker to access your network with a random MAC Address.

WEP Encryption. Wired Equivalent Privacy (WEP) is often looked upon as a cure-all for wireless security concerns. This is overstating WEP's ability. Again, this can only provide enough security to make a hacker's job more difficult.

There are several ways that WEP can be maximized:

1. Use the highest level of encryption possible
2. Use "Shared Key" authentication
3. Change your WEP key regularly

WPA. Wi-Fi Protected Access (WPA) is the newest and best available standard in Wi-Fi security. WPA2 is the newer version of Wi-Fi Protected Access with stronger encryption than WPA. WPA gives you a choice of two encryption methods: TKIP (Temporal Key Integrity Protocol), which utilizes a stronger encryption method and incorporates Message Integrity Code (MIC) to provide protection against hackers, and AES (Advanced Encryption System), which utilizes a symmetric 128-Bit block data encryption. WPA Enterprise and WPA2 Enterprise use a RADIUS (Remote Authentication Dial-In User Service) server for authentication.

IMPORTANT: Always remember that each device in your wireless network MUST use the same encryption method and encryption key or your wireless network will not function properly.

Wireless-G ADSL Gateway with SRX200

WPA Personal. Select the type of algorithm, TKIP or AES, enter a password in the Passphrase field of 8-63 characters, and enter a Group Key Renewal period time between 0 and 99,999 seconds, which instructs the Gateway or other device how often it should change the encryption keys.

WPA2 Personal. WPA2 gives you one encryption method, AES, with dynamic encryption keys. Enter a Passphrase of 8-63 characters. Then enter a Group Key Renewal period, which instructs the Gateway how often it should change the encryption keys.

WPA2 Mixed Mode. WPA2 Mixed Mode gives you TKIP+AES encryption. Enter a Passphrase of 8-63 characters. Then enter a Group Key Renewal period, which instructs the Gateway how often it should change the encryption keys.

WPA Enterprise. This method is WPA used in coordination with a RADIUS server. Enter the IP address and port number of the RADIUS server. Then enter the key shared between the Gateway and its RADIUS server. Then enter a Key Renewal Timeout period, which instructs the Gateway how often it should change the encryption keys.

WPA2 Enterprise. This method is WPA2 used in coordination with a RADIUS server. Enter the IP address and port number of the RADIUS server. Then enter the key shared between the Gateway and its RADIUS server. Then enter a Key Renewal Timeout period, which instructs the Gateway how often it should change the encryption keys.

Implementing encryption may have a negative impact on your network's performance, but if you are transmitting sensitive data over your network, encryption should be used.

These security recommendations should help keep your mind at ease while you are enjoying the most flexible and convenient technology Linksys has to offer.

Wireless-G ADSL Gateway with SRX200

Collection of symbolic and stylized symbols including stars, asterisks, and squares with various fill patterns

This section describes how to find the MAC address for your computer's Ethernet adapter so you can use the MAC filtering feature of the Gateway. You can also find the IP address of your computer's Ethernet adapter. This IP address is used for the Gateway's filtering, forwarding, and/or DMZ features. Follow the steps in this appendix to find the adapter's MAC or IP address in Windows 98, Me, 2000, or XP.

Windows 98 or Me Instructions

1. Click Start and Run. In the Open field, enter winipcfg. Then press the Enter key or the OK button.
2. When the IP Configuration screen appears, select the Ethernet adapter you have connected to the Gateway via a CAT 5 Ethernet network cable. See Figure C-1.
3. Write down the Adapter Address as shown on your computer screen (see Figure C-2). This is the MAC address for your Ethernet adapter and is shown in hexadecimal as a series of numbers and letters.

The MAC address/Adapter Address is what you will use for MAC filtering. The example in Figure D-2 shows the Ethernet adapters's MAC address as 00-00-00-00-00-00. Your computer will show something different.

The example in Figure C-2 shows the Ethernet adapter's IP address as 192.168.1.100. Your computer may show something different.

NOTE: The MAC address is also called the Adapter Address.

IP Configuration Ethernet Adapter Information Linkaye LINE100TX Fast Ethernet Linkaye LINE 100TX Fast Ethernet Ad PPP Adapter Adapters Address IP Address 192.168.1.45 Subnet Mask 255.255.255.0 Default Gateway 192.168.1.254 OK Release Review Release All Rename All More Info >>

Figure C-1: IP Configuration Screen

IP Configuration Ethernet Adapter Information Linkeye LINE100TX Fast Ethernet Adapter Address 00:00:00:00:00 IP Address 192.168.1.100 Subnet Mask 255.255.255.0 Default Gateway 192.168.1.1 OK Release Repeat Release All Rename All More Info >

Figure C-2: MAC Address/Adapter Address

Appendix C: Finding the MAC Address and IP Address for Your Ethernet Adapter Windows 98 or Me Instructions

Wireless-G ADSL Gateway with SRX200

Windows 2000 or XP Instructions

1. Click Start and Run. In the Open field, enter cmd. Press the Enter key or click the OK button.

NOTE: The MAC address is also called the Physical Address.

1. At the command prompt, enter ipconfig /all. Then press the Enter key.
2. Write down the Physical Address as shown on your computer screen (Figure C-3); it is the MAC address for your Ethernet adapter. This appears as a series of numbers and letters.

The MAC address/Physical Address is what you will use for MAC filtering. The example in Figure C-3 shows the Ethernet adapters's MAC address as 00-00-00-00-00-00. Your computer will show something different.

The example in Figure C-3 shows the Ethernet adapter's IP address as 192.168.1.100. Your computer may show something different.

Windows 2000 IP Configuration Port Name : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Primary DNS Cuffix : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Type Type : 1. Hybrid IP Docking Enabled : No UING Proxy Enabled : No (Internet adapter Local New Connection) Connection specific DNS Cuffix : Linker: UIC100016(e) Fast Ethernet 0 Ethernet Browser : 100.00.00.00.00.00 UDP Enabled : Yes Network Infrastructure Enabled : 197.108.1.100 IP MD63 : 197.108.1.100 Server Back : 197.108.1.100 Default Gateway : 197.108.1.1 UDP Server : 197.108.1.1 DNS Server : 197.108.1.1 Primary UICS Server : 197.108.1.1 Secondary UICS Server : Monday, February 11, 2002 2:31:47 PM Launch System : 197.108.1.1 Lease Options : Sunday, February 11, 2002 2:31:47 PM

Figure C-3: MAC Address/Physical Address

Wireless-G ADSL Gateway with SRX200

\*□□※■※■◆+※□※□※※■◆□○○○○

To upgrade the Gateway's firmware:

1. Download the Gateway's firmware upgrade file from www.linksys.com/international.
2. Extract the file on your computer.
3. Open the Gateway's Web-based Utility and click the Administration tab.
4. Click the Firmware Upgrade tab.
5. Click the Browse button to find the extracted file, and then double-click it.
6. Click the Upgrade button, and follow the on-screen instructions.

LINKSYS A Division of Data Systems, Inc. Administration Microsoft 9. ADSL Servering with SPC208 Setup Windows Security Access Administrative Applications & Gaming Implementation Status Management | Security | Diagnosis | Authentication | Security (Note) | Summary (Note) Hardware Upgrade Please Select a File to Upgrade: File Send to Upgrade Yes... Send to Upgrade

Figure D-1: Firmware Upgrade

Wireless-G ADSL Gateway with SRX200

星□□※■※☆ + ☆□▲▲□

802.11b - A wireless networking standard that specifies a maximum data transfer rate of 11Mbps and an operating frequency of 2.4GHz.

802.11g - A wireless networking standard that specifies a maximum data transfer rate of 54Mbps, an operating frequency of 2.4GHz, and backward compatibility with 802.11b devices.

Access Point - A device that allows wireless-equipped computers and other devices to communicate with a wired network. Also used to expand the range of a wireless network.

Adapter - A device that adds network functionality to your PC.

Ad-hoc - A group of wireless devices communicating directly with each other (peer-to-peer) without the use of an access point.

AES (Advanced Encryption Standard) - A security method that uses symmetric 128-bit block data encryption.

Backbone - The part of a network that connects most of the systems and networks together, and handles the most data.

Bandwidth - The transmission capacity of a given device or network.

Beacon Interval - Data transmitted on your wireless network that keeps the network synchronized.

Bit - A binary digit.

Boot - To start a device and cause it to start executing instructions.

Bridge - A device that connects different networks.

Broadband - An always-on, fast Internet connection.

Browser - An application program that provides a way to look at and interact with all the information on the World Wide Web.

Buffer - A shared or assigned memory area that is used to support and coordinate different computing and networking activities so one isn't held up by the other.

Byte - A unit of data that is usually eight bits long

Wireless-G ADSL Gateway with SRX200

Cable Modem - A device that connects a computer to the cable television network, which in turn connects to the Internet.

CSMA/CA (Carrier Sense Multiple Access/Collision Avoidance) - A method of data transfer that is used to prevent data collisions.

CTS (Clear To Send) - A signal sent by a wireless device, signifying that it is ready to receive data.

Daisy Chain - A method used to connect devices in a series, one after the other.

Database - A collection of data that is organized so that its contents can easily be accessed, managed, and updated.

DDNS (Dynamic Domain Name System) - Allows the hosting of a website, FTP server, or e-mail server with a fixed domain name (e.g., www.xyz.com) and a dynamic IP address.

Default Gateway - A device that forwards Internet traffic from your local area network.

DHCP (Dynamic Host Configuration Protocol) - A networking protocol that allows administrators to assign temporary IP addresses to network computers by "leasing" an IP address to a user for a limited amount of time. Instead of assigning permanent IP addresses.

DMZ (Demilitarized Zone) - Removes the Router's firewall protection from one PC, allowing it to be "seen" from the Internet.

DNS (Domain Name Server) - The IP address of your ISP's server, which translates the names of websites into IP addresses.

Domain - A specific name for a network of computers.

Download - To receive a file transmitted over a network.

DSL (Digital Subscriber Line) - An always-on broadband connection over traditional phone lines.

DSSS (Direct-Sequence Spread-Spectrum) - Frequency transmission with a redundant bit pattern resulting in a lower probability of information being lost in transit.

DTIM (Delivery Traffic Indication Message) - A message included in data packets that can increase wireless efficiency.

Dynamic IP Address - A temporary IP address assigned by a DHCP server.

Wireless-G ADSL Gateway with SRX200

EAP (Extensible Authentication Protocol) - A general authentication protocol used to control network access. Many specific authentication methods work within this framework.

EAP-PEAP (Extensible Authentication Protocol-Protected Extensible Authentication Protocol) - A mutual authentication method that uses a combination of digital certificates and another system, such as passwords.

EAP-TLS (Extensible Authentication Protocol-Transport Layer Security) - A mutual authentication method that uses digital certificates.

Encryption - Encoding data transmitted in a network.

Ethernet - A networking protocol that specifies how data is placed on and retrieved from a common transmission medium.

Finger - A program that tells you the name associated with an e-mail address.

Firewall - A set of related programs located at a network gateway server that protects the resources of a network from users from other networks.

Firmware - The programming code that runs a networking device.

Fragmentation -Breaking a packet into smaller units when transmitting over a network medium that cannot support the original size of the packet.

FTP (File Transfer Protocol) - A protocol used to transfer files over a TCP/IP network.

Full Duplex - The ability of a networking device to receive and transmit data simultaneously.

Gateway - A device that interconnects networks with different, incompatible communications protocols.

Half Duplex - Data transmission that can occur in two directions over a single line, but only one direction at a time.

Hardware - The physical aspect of computers, telecommunications, and other information technology devices.

HTTP (HyperText Transport Protocol) - The communications protocol used to connect to servers on the World Wide Web.

Infrastructure - A wireless network that is bridged to a wired network via an access point.

IP (Internet Protocol) - A protocol used to send data over a network.

IP Address - The address used to identify a computer or device on a network.

Appendix E: Glossary

Wireless-G ADSL Gateway with SRX200

IPCONFIG - A Windows 2000 and XP utility that displays the IP address for a particular networking device.

IPSec (Internet Protocol Security) - A VPN protocol used to implement secure exchange of packets at the IP layer.

ISM band - Radio bandwidth utilized in wireless transmissions.

ISP (Internet Service Provider) - A company that provides access to the Internet.

LAN - The computers and networking products that make up your local network.

LEAP (Lightweight Extensible Authentication Protocol) - A mutual authentication method that uses a username and password system.

MAC (Media Access Control) Address - The unique address that a manufacturer assigns to each networking device.

Mbps (MegaBits Per Second) - One million bits per second; a unit of measurement for data transmission.

mIRC - An Internet Relay Chat program that runs under Windows.

Multicasting - Sending data to a group of destinations at once.

NAT (Network Address Translation) - NAT technology translates IP addresses of a local area network to a different IP address for the Internet.

Network - A series of computers or devices connected for the purpose of data sharing, storage, and/or transmission between users.

NNTP (Network News Transfer Protocol) - The protocol used to connect to Usenet groups on the Internet.

Node - A network junction or connection point, typically a computer or work station.

OFDM (Orthogonal Frequency Division Multiplexing) - Frequency transmission that separates the data stream into a number of lower-speed data streams, which are then transmitted in parallel to prevent information from being lost in transit.

Packet - A unit of data sent over a network.

Passphrase - Used much like a password, a passphrase simplifies the WEP encryption process by automatically generating the WEP encryption keys for Linksys products.

PEAP (Protected Extensible Authentication Protocol) - A mutual authentication method that uses a combination of digital certificates and another system, such as passwords.

Appendix E: Glossary

Wireless-G ADSL Gateway with SRX200

Ping (Packet INternet Groper) - An Internet utility used to determine whether a particular IP address is online.

POP3 (Post Office Protocol 3) - A standard mail server commonly used on the Internet.

Port - The connection point on a computer or networking device used for plugging in cables or adapters.

Power over Ethernet (PoE) - A technology enabling an Ethernet network cable to deliver both data and power.

PPPoE (Point to Point Protocol over Ethernet) - A type of broadband connection that provides authentication (username and password) in addition to data transport.

PPTP (Point-to-Point Tunneling Protocol) - A VPN protocol that allows the Point to Point Protocol (PPP) to be tunneled through an IP network. This protocol is also used as a type of broadband connection in Europe.

Preamble - Part of the wireless signal that synchronizes network traffic.

RADIUS (Remote Authentication Dial-In User Service) - A protocol that uses an authentication server to control network access.

RJ-45 (Registered Jack-45) - An Ethernet connector that holds up to eight wires.

Roaming - The ability to take a wireless device from one access point's range to another without losing the connection.

Router - A networking device that connects multiple networks together.

RTS (Request To Send) - A networking method of coordinating large packets through the RTS Threshold setting.

Server - Any computer whose function in a network is to provide user access to files, printing, communications, and other services.

SMTP (Simple Mail Transfer Protocol) - The standard e-mail protocol on the Internet.

SNMP (Simple Network Management Protocol) - A widely used network monitoring and control protocol.

Software - Instructions for the computer. A series of instructions that performs a particular task is called a "program".

SOHO (Small Office/Home Office) - Market segment of professionals who work at home or in small offices.

SPI (Stateful Packet Inspection) Firewall - A technology that inspects incoming packets of information before allowing them to enter the network.

Wireless-G ADSL Gateway with SRX200

Spread Spectrum - Wideband radio frequency technique used for more reliable and secure data transmission.

SSID (Service Set Identifier) - Your wireless network's name.

Static IP Address - A fixed address assigned to a computer or device that is connected to a network.

Static Routing - Forwarding data in a network via a fixed path.

Subnet Mask - An address code that determines the size of the network.

Switch - 1. A data switch that connects computing devices to host computers, allowing a large number of devices to share a limited number of ports. 2. A device for making, breaking, or changing the connections in an electrical circuit.

TCP (Transmission Control Protocol) - A network protocol for transmitting data that requires acknowledgement from the recipient of data sent.

TCP/IP (Transmission Control Protocol/Internet Protocol) - A set of instructions PCs use to communicate over a network.

Telnet - A user command and TCP/IP protocol used for accessing remote PCs.

TFTP (Trivial File Transfer Protocol) - A version of the TCP/IP FTP protocol that has no directory or password capability.

Throughput - The amount of data moved successfully from one node to another in a given time period.

TKIP (Temporal Key Integrity Protocol) - a wireless encryption protocol that provides dynamic encryption keys for each packet transmitted.

Topology - The physical layout of a network.

TX Rate - Transmission Rate.

UDP (User Datagram Protocol) - A network protocol for transmitting data that does not require acknowledgement from the recipient of the data that is sent.

Upgrade - To replace existing software or firmware with a newer version.

Upload - To transmit a file over a network.

URL (Uniform Resource Locator) - The address of a file located on the Internet.

Wireless-G ADSL Gateway with SRX200

VPN (Virtual Private Network) - A security measure to protect data as it leaves one network and goes to another over the Internet.

WAN (Wide Area Network)- The Internet.

WEP (Wired Equivalent Privacy) - A method of encrypting network data transmitted on a wireless network for greater security.

WINIPCFG - A Windows 98 and Me utility that displays the IP address for a particular networking device.

WLAN (Wireless Local Area Network) - A group of computers and associated devices that communicate with each other wirelessly.

WPA (Wi-Fi Protected Access) - a wireless security protocol using TKIP (Temporal Key Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.

Wireless-G ADSL Gateway with SRX200

\*□□※■※I ◆+ \*□※※※※※▼□■▲

Model Number WAG54GX2

Standards IEEE 802.11g, IEEE 802.11b, IEEE 802.3u, IEEE 802.3, g.992.1 (g.dmt), g.992.2 (g.lite) g.992.3, g.992.5, T1.413i2, Annex A (FR, EU, UK versions of the product)

Ports Power, ADSL, Ethernet (1-4)

Button Reset, Power

Cabling Type CAT 5 UTP

LEDs Power, Wireless, Ethernet (1-4), DSL, Internet

Number of Antennas 2

Antenna Connector Type Fixed (not removable)

RF Pwr (EIRP) in dBm 802.11b: 18, 802.11g: 16, 802.11g MiMo: 17

Antenna Gain in dBi 3.3

UPnP able/cert Able

Wireless-G ADSL Gateway with SRX200

Security Features Password protected configuration for web access

PAP and CHAP authentication

Denial of Service (DoS) Prevention

URL filtering, and keyword, Java, ActiveX, Proxy, Cookie blocking

ToD filter (Blocks Access by Time

VPN Passthrough for IPSec, PPTP, and L2TP Protocols

128, 64 bits WEP with Passphrase WEP key generation

SSID Broadcast Disable

Access restriction by MAC and IP addresses

Support IPSec VPN Terminal, up to 5 tunnels

Support WPA and WPA2

WEP Key Bits 64, 128

Dimensions 140 mm x 140 mm x 27 mm

$$ (5, 5 1 ^ {\prime \prime} \times 5, 5 1 ^ {\prime \prime} \times 1, 0 6 ^ {\prime \prime}) $$

Unit Weight 0,27 kg (9,60 oz.)

Power 12VDC 1A

Certifications CE

Operating Temp. 32°\~104°F (0°\~40°C)

Storage Temp. -4°\~158°F (-20°\~70°C)

Operating Humidity 10\~85% Non-Condensing

Storage Humidity 5\~90% Non-Condensing

Wireless-G ADSL Gateway with SRX200

Collection of black and white geometric symbols including stars, squares, and circles (no text or labels)

Linksys warrants to You that, for a period of three years (the "Warranty Period"), your Linksys Product will be substantially free of defects in materials and workmanship under normal use. Your exclusive remedy and Linksys' entire liability under this warranty will be for Linksys at its option to repair or replace the Product or refund Your purchase price less any rebates. This limited warranty extends only to the original purchaser.

If the Product proves defective during the Warranty Period call Linksys Technical Support in order to obtain a Return Authorization Number, if applicable. BE SURE TO HAVE YOUR PROOF OF PURCHASE ON HAND WHEN CALLING. If You are requested to return the Product, mark the Return Authorization Number clearly on the outside of the package and include a copy of your original proof of purchase. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE. You are responsible for shipping defective Products to Linksys. Linksys pays for UPS Ground shipping from Linksys back to You only. Customers located outside of the United States of America and Canada are responsible for all shipping and handling charges.

ALL IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THE WARRANTY PERIOD. ALL OTHER EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF NON-INFRINGEMENT, ARE DISCLAIMED. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to You. This warranty gives You specific legal rights, and You may also have other rights which vary by jurisdiction.

This warranty does not apply if the Product (a) has been altered, except by Linksys, (b) has not been installed, operated, repaired, or maintained in accordance with instructions supplied by Linksys, or (c) has been subjected to abnormal physical or electrical stress, misuse, negligence, or accident. In addition, due to the continual development of new techniques for intruding upon and attacking networks, Linksys does not warrant that the Product will be free of vulnerability to intrusion or attack.

TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL LINKSYS BE LIABLE FOR ANY LOST DATA, REVENUE OR PROFIT, OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES. REGARDLESS OF THE THEORY OF LIABILITY (INCLUDING NEGLIGENCE), ARISING OUT OF OR RELATED TO THE USE OF OR INABILITY TO USE THE PRODUCT (INCLUDING ANY SOFTWARE), EVEN IF LINKSYS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL LINKSYS' LIABILITY EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT. The foregoing limitations will apply even if any warranty or remedy provided under this Agreement fails of its essential purpose. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to You.

This Warranty is valid and may be processed only in the country of purchase.

Please direct all inquiries to: Linksys, P.O. Box 18558, Irvine, CA 92623.

Wireless-G ADSL Gateway with SRX200

Collection of black and white geometric symbols including stars, squares, circles, and triangles (no text or labels)

FCC Statement

This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or devices
• Connect the equipment to an outlet other than the receiver's
• Consult a dealer or an experienced radio/TV technician for assistance

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Industry Canada (Canada)

This device complies with Canadian ICES-003 and RSS210 rules.

Wireless-G ADSL Gateway with SRX200

Compliance Information for 2.4-GHz Wireless Products Relevant to the EU and Other Countries Following the EU Directive 1999/5/EC (R&TTE Directive)

Declaration of Conformity with Regard to the EU Directive 1999/5/EC (R&TTE Directive)

Česky [Czech]:	Toto zařizení je v souladu se základními požadavky a ostatními odpovidajícimi ustanoveními Směrnice 1999/5/EC.
Dansk [Danish]:	Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante bestemmelser i Direktiv 1999/5/EF.
Deutsch [German]:	Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren entsprechenden Vorgaben der Richtlinie 1999/5/EU.
Eesti [Estonian]:	See seade vastab direktivi 1999/5/EÜ olulistele nõutele ja teistele asjakohastele sítetele.
English:	This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Español [Spanish]:	Este equipo cumple con los requisitos esenciales asi como con otras disposiciones de la Directiva 1999/5/CE.
Ελλιρνική [Greek]:	Autóç o εξοπλισμός είναι σε συμμόρρωση με τις ουστάδεις απαιτίρειας και άλλες σχεπικές διοτάξεις της Οδηγίας 1999/5/EC.
Français [French]:	Cet appareil est conforme aux exigences essentielles et aux autres dispositions pertinentes de la Directive 1999/5/EC.
Íslenska [Icelandic]:	Petta tæki er samkvemt gruunkrõfum og óðrum viðeigandi ákvaðum Tilskipunar 1999/5/EC.
Italiano [Italian]:	Questo apparato è conforme ai requisiti essenziali ed agli altri principi sanciti dalla Direttiva 1999/5/CE.
Latviski [Latvian]:	Śi iekárta atbilst Direktivas 1999/5/EK böttiskajäm prasibám un citiem ar to saivītrajiem noteikuniem.
Lietuvių [Lithuanian]:	Śis įrenginys tenkina 1999/5/EB Direktyvos esminius reikalavirus ir kitas śios direktyvos nuostatas.
Nederlands [Dutch]:	Dit apparaat voldoet aan de essentiele eisen en andere van toepassing zijnde bepalingen van de Richtlijn 1999/5/EC.
Malti [Maltese]:	Dan l-apparat huwa konformi mai-ħtigiet essenzjali u l-provedimenti l-ohra rilevanti tad-Direttiva 1999/5/EC.
Magyar [Hungarian]:	Ez a készülék teljesiti az alapvető követelményeket és más 1999/5/EK irányelvben meghatározott vonatkozó rendelkezéseket.

Appendix H: Regulatory Information

Wireless-G ADSL Gateway with SRX200

Norsk[Norwegian]:	Dette utstyret er i samsvar med de grunnleggende krav og andre relevante bestenmelser i EU-direktiv 1999/5/EF.
Polski[Polish]:	Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi warunkami określonymi Dyrektywą UE: 1999/5/EC.
Portugues[Portuguese]	Este equipamento está em conformidade com os requisitos essenciais e outras provisões relevantes da Direktiva 1999/5/EC.
Slovensko[Slovenian]:	Ta naprava je skladaa z bistvenimi zahtevami in ostalimi relevantnimi pogoji Direktive 1999/5/EC.
Slovensky[Slovak]:	Toto zariadenie je v zhode so základnymi požiadavkami a inými prisluálnymi nariadeniami direktiv: 1999/5/EC.
Suomi[Finnish]:	Tamá laite täyttaa direktiivin 1999/5/EY olennaiset vaatimukset ja on siina asetettujen muiden laitetta koskevien määräysten mukainen.
Svenska[Swedish]:	Denna utrustning ár i överensstämmelse med de väsentliga kraven och andra relevanta bestämnelser i Direktiv 1999/5/EC.

NOTE: For all products, the Declaration of Conformity is available through one or more of these options:
- A pdf file is included on the product's CD.
• A print copy is included with the product.
- A pdf file is available on the product's webpage. Visit www.linksys.com/international and select your country or region. Then select your product.
If you need any other technical documentation, see the "Technical Documents on www.linksys.com/international" section, as shown later in this appendix.

The following standards were applied during the assessment of the product against the requirements of the Directive 1999/5/EC:

• Radio: EN 300 328
• EMC: EN 301 489-1, EN 301 489-17
- Safety: EN 60950

Wireless-G ADSL Gateway with SRX200

CE Marking

For the Linksys Wireless-B and Wireless-G products, the following CE mark, notified body number (where applicable), and class 2 identifier are added to the equipment.

CE 0560 ! or CE 0678 ! or CE !

Check the CE label on the product to find out which notified body was involved during the assessment.

National Restrictions

This product may be used in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

The Belgian Institute for Postal Services and Telecommunications (BIPT) must be notified of any outdoor wireless link having a range exceeding 300 meters. Please check http://www.bipt.be for more details.

Wireless-G ADSL Gateway with SRX200

France

In case the product is used outdoors, the output power is restricted in some parts of the band. See Table 1 or check http://www.art-telecom.fr/ for more details.

Table 1: Applicable Power Levels in France

Location Frequency Range (MHz) Power (EIRP)
Indoor (No restrictions) 2400-2483.5 100 mW (20 dBm)
Outdoor 2400-2454	2454-2483.5	100 mW (20 dBm)10 mW (10 dBm)

Italy

This product meets the National Radio Interface and the requirements specified in the National Frequency Allocation Table for Italy. Unless operating within the boundaries of the owner's property, the use of this 2.4 GHz Wireless LAN product requires a 'general authorization'. Please check with http://www.comunicazioni.it/it/ for more details.

This product is designed for indoor usage only. Outdoor usage is not recommended.

This product is designed for use with the standard, integral or dedicated (external) antenna(s) that is/are shipped together with the equipment. However, some applications may require the antenna(s), if removable, to be separated from the product and installed remotely from the device by using extension cables. For these applications, Linksys offers an R-SMA extension cable (AC9SMA) and an R-TNC extension cable (AC9TNC). Both of these cables are 9 meters long and have a cable loss (attenuation) of 5 dB. To compensate for the attenuation, Linksys also offers higher gain antennas, the HGA7S (with R-SMA connector) and HGA7T (with R-TNC connector). These antennas have a gain of 7 dBi and may only be used with either the R-SMA or R-TNC extension cable.

Combinations of extension cables and antennas resulting in a radiated power level exceeding 100 mW EIRP are illegal.

Wireless-G ADSL Gateway with SRX200

Power Output of Your Device

To comply with your country's regulations, you may have to change the power output of your wireless device. Proceed to the appropriate section for your device.

NOTE: The power output setting may not be available on all wireless products. For more information, refer to the documentation on your product's CD or http://www.linksys.com/international.

Wireless Adapters

Wireless adapters have the power output set to 100% by default. Maximum power output on each adapter does not exceed 20 dBm (100 mW); it is generally 18 dBm (64 mW) or below. If you need to alter your wireless adapter's power output, follow the appropriate instructions for your computer's Windows operating system:

Windows XP

1. Double-click the Wireless icon in your desktop's system tray.
2. Open the Wireless Network Connection window.
3. Click the Properties button.
4. Select the General tab, and click the Configure button.
5. In the Properties window, click the Advanced tab.
6. Select Power Output.
7. From the pull-down menu on the right, select the wireless adapter's power output percentage.

Windows 2000

1. Open the Control Panel.
2. Double-click Network and Dial-Up Connections.
3. Select your current wireless connection, and select Properties.
4. From the Properties screen, click the Configure button.
5. Click the Advanced tab, and select Power Output.
6. From the pull-down menu on the right, select the wireless adapter's power setting.

If your computer is running Windows Millennium or 98, then refer to Windows Help for instructions on how to access the advanced settings of a network adapter.

Wireless Access Points, Routers, or Other Wireless Products

If you have a wireless access point, router or other wireless product, use its Web-based Utility to configure its power output setting (refer to the product's documentation for more information).

Wireless-G ADSL Gateway with SRX200

Technical Documents on www.linksys.com/international

Follow these steps to access technical documents:

1. Browse to http://www.linksys.com/international.
2. Click the region in which you reside.
3. Click the name of the country in which you reside.
4. Click Products.
5. Click the appropriate product category.
6. Select a product.
7. Click the type of documentation you want. The document will automatically open in PDF format.

NOTE: If you have questions regarding the compliance of these products or you cannot find the information you need, please contact your local sales office or visit http://www.linksys.com/international for more details.

Wireless-G ADSL Gateway with SRX200

Need to contact Linksys?

Visit us online for information on the latest products and updates to your existing products at:

http://www.linksys.com/international

If you experience problems with any Linksys product, you can e-mail us at:

In Europe E-mail Address
Austria [e-mail]
Belgium [e-mail]
Denmark [e-mail]
France [e-mail]
Germany [e-mail]
Italy [e-mail]
Netherlands [e-mail]
Norway [e-mail]
Portugal [e-mail]
Spain [e-mail]
Sweden [e-mail]
Switzerland [e-mail]
United Kingdom & Ireland [e-mail]

Outside of Europe E-mail	Address
Asia Pacific	[e-mail] (English only)
Latin America	[e-mail] or [e-mail]
Middle East & Africa	[e-mail] (English only)
U.S. and Canada	[e-mail]

Appendix I: Contact Information

LINKSYS®

A Division of Cisco Systems, Inc.

Exterior view of a SRM 200 wireless router with two antennas (no visible text or symbols on body)

2,4 GHz 802.11g

Wireless-G

Benutzerhandbuch

WIRELESS

Wireless-G ADSL-Gateway mlt SRX200

Collection of symbolic and stylized icons including stars, circles, and symbols in a row

Wireless-0 ASSL Gateway with SRU250

Collection of symbolic and decorative symbols including stars, arrows, and circles with various line styles

Übersicht

Close-up of a network switch device with four Ethernet ports and a USB cable (no visible text or labels)

Close-up of a network switch with Ethernet ports and a blue cable (no visible text or symbols)

Close-up of a network switch device with ports and a power button (no visible text or symbols)

Wireless-G ADSL-Gateway mlt SRX200

Front view of a network switch with ports and a cable connector (no visible text or symbols)

Close-up of a network switch device showing ports and a USB port (no readable text or symbols)

LINKSYS® A Division of Good Systems, Inc. Language: 23 Welcome The setup wizard has automatically detected the language settings of your PC. Please click Next to continue the wizard in the current language. If you would like to use a different language, please select from the list of languages and click Next. 2.4 GHz Wireless- ADSL Gateway wim SRX200 Setup Wizard wim 1.2 Model No: WAG54GX2 Copyright © 2005 Good Systems, Inc. All Rights Reserved Copy Express

LINKSYS® A Division of Cisco Systems, Inc. Welcome Thank you for choosing Linksys. This Setup Wizard will help you install the Wireless-G ADSL Gateway with SRX200 Click here in Start 2.4 GHz Wireless-G SRX200 ADSL Gateway with SRX200 Setup Wizard Setup Wizard WAG54GX2 Copyright © 2001 Cisco Systems, Inc. All Rights Reserved

LINKSYS® A Division of Cisco Systems, Inc. End User License Agreement Please review the license agreement below. Press the PAGE DOWN key or use the Scroll Bar to use the rest of the agreement. Linksys Software License Agreement v8.15.33 THIS LICENSE AGREEMENT IS BETWEEN YOU AND CISCO-LINKSYS, LLC OR THE CISCO-LINKSYS, LLC SUBSIDIARY LICENSING THIS SOFTWARE, IF SALE IS NOT DIRECTLY BY CISCO-LINKSYS, LLC (Linksys). BY DOWNLOADING OR INSTALLING THE SOFTWARE, OR USING THE PRODUCT CONTAINING THE SOFTWARE, YOU ARE CONSENTING TO BE BOUND BY THIS AGREEMENT. IF YOU DO NOT AGREE TO ALL OF THESE TERMS, THEN YOU MAY NOT. If you accept the terms of this Agreement, click Next to continue. If not, choose Cancel and the Setup Wizard will close. You must click Next to continue the installation process.

LINKSYS® A Device Of Color Systems, Inc. Disconnect the Modem from the PC 2 Connect the cables that connect your modem in the PC. Wall Jack Modem Connect the cables that connect your modem in the PC. Edit: audio Next Wireless-6 ADSL Gateway with SRXC20 Setup Wizard 🐎 1 WAG54GX2

LINKSYS® A Division of Class Systems, Inc. Connect the gateway to the DSL line 3 Plug the phone cable from the wall into the Gateway's Line port. Wall Jack ADSL Gateway Line Port Wireless-6 ADSL Gateway with SRXC20 Setup Wizard Rngr by: WAG54GX2

LINKSYS® A Division of Geo Systems, Inc. Connect the Gateway to a PC 4 The Gateway comes with a blue network cable. Plug one end of the network cable into your PC's network port. If you previously had an Ethernet port, use the same port. If you previously had an USB modem, connect the network cable in the sample illustration here. Network Port Wireless-G ADSL Gateway with SRX20 Setup Wizard WAG54GX2

LINKSYS® A Devices of Cox System, Inc. Connect the Gateway to a PC 5 WILL Jack Gateway port 1, 2, 3, or 4 Plug the other end of the network cable into one of the Gateway's ports number 1 to 4. Edit Next Next Wireless-6 ADSL Gateway with SRX20 Setup Wizard WAG54GX2

LINKSYS® A Division of Cox Systems, Inc. 6 Power on the Gateway Plug the power adapter into the Gateway's Power port. Plug the other end into an electrical outlet. Exit Menu Next Wireless-6 ADSL Gateway with SRX200 Setup Wizard WAG54GX2

LINKSYS® A Division of Cisco Systems, Inc. Check the Gateway's Status 7 On the Gateway's front panel, the Power, DSL and at least one of the numbered (1, 2, 3, or 4) LEDs should be hit. If not, make sure the cable are securely connected. Edit Next Next Wireless-6 ADSL Gateway with SRX200 Setup Wizard WAG54G-X2

LINKSYS® A Division of Class Systems, Inc. Configure DSL To configure your Wireless-6 ADSL Gateway, select your country of presence. Select your country of presence: Count United Kingdom NOTE: For unlisted countries, use the Gateway's web-based utility for setup.

LINKSYS® A Division of Geo Systems, Inc. Configure DSL Select your ISP/DSL Provider to auto-configure your ADSL Parameters for the Wireless-G ADSL Gateway. BT Click on the ISP Button for your DSL Provider to auto-configure the settings. If your ISP is not shown above, click "next" to manually enter your settings. Edit Next Next Wireless-G ADSL Gateway with SRX260 Setup Wizard WA054GX2

LINKSYS® A Division of Cross Systems, Inc. Configure DSL Configuration Details Encapsulation 1483 Enriged Auto IP Static IP VPI / VCI 0 / 96 IP Address Multiplexing LLC Subnet Mask Default Gateway Primary DNS Secondary DNS Wireless-6 ADSL Gateway with SRX20 Setup Wizard WAG54GX2

LINKSYS® A Device of Cos Systems, Inc. Configure DSL 8 Configuration Details Encapsulation 1483 Routed VPI / VCI 0 / 00 Multiplexing VC Static IP IP Address 0 . 0 . 0 . 0 Sunet Mask 0 . 0 . 0 . 0 Default Gateway 0 . 0 . 0 . 0 Primary DNS 0 . 0 . 0 . 0 Secondary DNS 0 . 0 . 0 . 0 Exit : None Next Wireless-G ADSL Gateway with SRX260 Setup Wizard WAG54GX2

LINKSYS® A Division of Class Systems, Inc. Configure DSL 8 Configuration Details Encapsulation PPPUA Click Next to Accept these settings, VPI / VCI 0 / 98 Multiplexing LLC User ID admin Password admin Connection Connect on Demand: Max Idle Time min Keep Alive: Redial Period secs Wireless-6 ADSL Gateway with SRX26 Setup Wizard WAG54GX2

LINKSYS® A Division of Class Systems, Inc. Configure DSL Configuration Details 8 Encapsulation PFFUC Click Next to Accept these settings, or change the values to complete the configuration. VPI / VCI 0 / 0 Multiplexing VC User ID Password Connection Connect on Demand: Max Idle Time secs Keep Alive: Redial Period mins Wireless-G ADSL Gateway with SRX260 Setup Wizard WAG54GX2

LINKSYS® A Device of Class Systems, Inc. Set the Gateway's Password For security reasons, you should change your password. Password ****** Confirm ****** Create a password and enter it in the Password field. Re-enter the password in the Confirm field. Note: You will need this password to access the Router's web-based utility. Wireless-6 ADSL Gateway with SRX20 Setup Wizard WAG54GX2

LINKSYS® A Division of Cass Systems, Inc. 1 Wireless Settings If you are using Linksys wireless adapters in your computers, your network should work right out of the best. Changes to the settings below may through the settings of your existing wireless network. Make sure you remember these settings as they will be needed when setting up your wireless computers. SSO The SSO is a unique identification shared among all computers within your wireless network and must be the same for all those computers. The SSD is case sensitive and should not exceed 32 characters. Channel 7 The Channel setting is a unique number shared among all computers within your wireless network. Channels 1, 6, and 11 are preferred. Service Name: Indus00 Select Mixed Mode If you have both Wireless-G and Wireless-B devices on your network. Select Gordy or B-Boy if you would like to only allow Wireless-G or Wireless-B devices on your network. If you would like to create your wireless network, select Grade. Device Name The Device Name is a unique name for your Wireless-G ADSL Gateway and should be changed if you have multiple Routers in your network. Setup Wizard WAG54GX2

LINKSYS® 4 Devices of Core Systems, Inc. 2 Security Configure Wireless Security Settings (Optional) You may choose between five encryption methods: 54-B8 Wind-Equivalized Privacy (MEP), 126-B8 WEP, MPA Personal (Pre-shared key), WPA2 Personal or WPA2 Mixed Node. The security settings must be the same as all devices on your network, or they will not be able to communicate. Please choose WEP (54-B8), WEP (126-B8), MPA Personal, WPA2 Personal, WPA2 Mixed Node or Disabled. Wireless-6 ADSL Gateway with SRX20 Setup Wizard WAG54GX2

LINKSYS® A Devion of Cox Systems, Inc. Configure Wireless Security Settings (Optional) 2 Security Please choose wireless security methods: 64-80 WIP-Equivalent Privacy WEPT, 120-80 WEP, WPA Personal (Pre-shared key), WPA2 Personal, or WPA2 Mixed Tools. The security settings must be the same on all devices on your network, or they will not be able to communicate. Choose WPA Personal Please choose WIP (64-80), WIP (120-80), WPA Personal, WPA2 Personal, WPA2 Mixed Mode or Disabled. Select the type of Encryption your Network uses. IcG AES Enter the Phosphose keyed by your network. The Phosphose Key can be any keyboard character between 8 and 53 characters in length. Wireless-6 ADSL Gateway with SRX20 Setup Wizard WAG54GX2

LINKSYS® & Division of Geo Systems, Inc. Configure Wireless Security Settings (Optional) You may choose between first encryption methods: 54-BI Wi-Fi Equivalent Privacy (WEP), 124-BI WEP, WPA Personal (Pre-stated key, WPA Personal, or WPA Mixed Node). The security settings must be the same on all devices on your network, or they will not be able to communicate. Security: WPA2 Personal Please choose WEP (84-BI), WEP (128-BI), WPA Personal, WPA2 Personal, WPA2 Mixed Node or Disabled. Example: AES ABC Choose: Enter the Phosphase key used by your network. The Phosphase Key can be any keyboard character between 8 and 63 characters in length. Wireless-6 ADSL Gateway with SRX200 Setup Wizard WAG54GX2

LINKSYS® A Division of Color Systems, Inc. 2 Security Configure Wireless Security Settings (Optional) You may choose between five encryption methods: 64-80 Wind-Equivalent Privacy (WEP), 120-60 WEP, WPA Personal (Pre-channel log), WPZA Personal, or WPZA Mixed Mode. The security settings must be the name on all devices on your network, or they will not be able to communicate. Security HPA2 Mixed Mode Please choose WEP (54-80), WIP (120-80), WPA Personal, WPZA Personal, WPZA Mixed Mode or Disabled. Enable WIP + AES Select the type of Encryption your Network uses. WIP + AES Parameters Enter the Poophase key used by your network. The Poophase Key can be any keyboard character between 8 and 63 characters in length. Wireless-8 ADSL Gateway with SRX210 Setup Wizard WAG54GX2

LINKSYS® A Division of Data Systems, Inc. 2 Secure Configure Wireless Security Settings (Optional) You may choose between the encryption method: 64-bit WEP Equivalent Privacy (WEP), 124-bit WEP, WPA Personal (Pre-shared key), WPA Personal or WPA2 Mixed Mode. The security settings must be the same on all devices on your network, or they will not be able to communicate. Security REP (54-81) Please choose WEP (64-80), WEP (124-80), WPA Personal, WPA2 Personal, WPA2 Mixed Mode or Disabled. Response: Type the passphrase that will be used to generate the WEP key. The passphrase is case-sensitive and should not be longer than 16 characters. Key 1: If you choose the Passphrase option for WEP, a WEP key will generate automatically. To manually enter a WEP key, select a WEP algorithm and leave the Passphrase option blank. Edit... Next... Wag54GX2 Wireless-6 ADSL Gateway with SRX200 Setup Wizard Rear No: WAG54GX2

LINKSYS® A Devian of Cos Systems, Inc. 2 Security Configure Wireless Security Settings (Optional) You will choose between first generation methods: 84-88 Wind-Equivalent Privacy (WEP), 128-80 WEP, WPA Personal (Pre-charged key), WPA2 Personal, or WPA2 Mixed Mode. The security settings must be the same on all devices on your network, or they will not be able to communicate. Please choose WEP (54-84), WEP (128-84), WPA Personal, WPA2 Personal, WPA2 Mixed Mode or Disabled. Type the pasphrase that will be used to generate the WEP key. The pasphrase is case-sensitive and should not be longer than 16 characters. Key 1 If you choose the Pasphrase option for WEP, a WEP key will generate automatically. To manually order a WEP key, select a WEP algorithm and leave the Pasphrase option blank. Edit Next Help Wireless-6 ADSL Gateway with SRX210 Setup Wizard WAG54GK2

LINKSYS® A Divider of Cosc Systems, Inc. Confirm New Settings 3 New Settings SOS ergon Glosser 7 Discharge Disable Rig Internet Type PPPzE System Properties 0 08 Would you like to save these settings? Wireless-6 AOSL Gateway with SRX200 Setup Wizard WAG54GX2

LINKSYS® A Division of Cisco Systems, Inc. Nortes Internet Security™ from Symantec™ is the award-winning suite which protects your PCs and your family from the perils of the Internet. - Norton Antifirst™ protects email and instant messages. - Norton™ Personal Firewall protects against hackers and avnusions. - Parental Control shields children from objectionable web sites. - Blocks spars, masked ads, popup windows, and stars. A special edition of Norton Internet Security with a 50-day free trial of virus & Firewall updates is included on this Setup DD. Click below to install it. Norton Internet Security Daily Safe Surfing Setup Wizard Finish Cisco Systems © Copyright 2005 Cisco Systems, Inc. All rights reserved.

LINKSYS® A Division of Cisco Systems, Inc. Congratulations The Wireless-G ADSL Gateway with SRX200 has been successfully configured! 2.4 GHz Wireless-6 SRX200 ADSL Gateway with SRX200 Setup Wizard Online Registration WAG54GX2

Collection of symbolic and stylized icons including stars, squares, triangles, stars, and circles with various colors and symbols.

Übersicht

Internet Connection Type VC Settings Incapulation: Multiplexing: Size Type: Por Rate: Scr Rate: Autodetect: Virtual Circuit: IP Settings Internet IP Address: Subset Mask: Default Gateway: Primary DNS: Secondary DNS:

Internet Connection Type VC Settings Encapsulation: PUA Multiprocessing: LLC VC Qoq Type: UBR Por Rate: cps Scr Rate: cps Autodetect: Enable Disable Virtual/Circuit: VPI (Range 0-255) VCI (Range 0-65535) IP Settings Internal IP Address: Subnet Mask: Default Gateway: Primary DNS: Secondary DNS:

Abbildung 6-5: IPoA

Internet Connection Type VC Settings Encapsulation: PFC 264 RFPoA Multiplexing: ○ LLC ○ VC Gas Type: UBR Por Rate: ○ cps Scr Rate: ○ cps Autodetect: ● Enable ○ Disable Virtual Circuit: 0 VPI(Range 0-250) 15 VCI(Range 0-6535) PPPoA Settings Username: Perceverint: ● Connect on Demand Max Idle Time: 5 Minutes ○ Keep Alive: Redial period: 10 Seconds

Optional Settings (required by some SPs) Host Name: Domain Name: MTU: Auto Size: 1500 Network Setup Router IP Local IP Address: 192.168.1.1 Subnet Music: 255,255,355.0 Network Address Server Settings (DHCP) DHCP Server: Enable Disable DHCP Relay DHCP Server: Starting IP Address: 192.168.1.100 Maximum Number of DHCP Users: 50 Client Lease Time: 0 minutes (0 means one day) Static DNS 1: Static DNS 2: Static DNS 3: WINS: Time Settings Time Zone: (OMT-08.00) Pacific Time (USA & Canada) Automatically adjust clock to daylight saving changes.

LINKSYS® A BIOS of the system, Inc. Setup Wireless iOS Provider with SECTOR WIN/CHS Setup Wireless Security Access Restriction Applications & Carry Administration Status BOSI - Windows Provider BOSI Services [WinCHS.org] Username: Password: Host Name: Status: Connect Save Settings Cancel Changes Data Sources

LINKSYS A Section of Data System, Inc. Setup Wireless: AOSL Ordering with TCP/USB Setup Wireless Security Access Restrictions Application & Clearing Advanced access Status Basic Setup: Windows | Advanced Pricing BOMS Services 120.com E-mail Address: 123-Forwarded: Default Name: Status: Connect Save Settings Cancel Changes Help Takeaway OK

LINKSYS A Series or Data System, Inc. Windows C: AHTML Category with TCP588 Setup Wireless Security Access Access Availability Applications & Settings Accession Show Add Options Add Existing Advection Routing Operating Mode 0x7 a Enabled b Enabled Dynamic Routing on c Enabled d Enabled RP Send Packet Version: RP New Packet Version: Static Routing Select set number 3 Delete New Array Destination F Address: Signal Event: Binary: Map Count: Show Routing Time Save Settings Cancel Changes

LINKSYS® A Division of Data Systems, Inc. Routing Table Routing Table Entry List DestinationLAN IP 192.1681.0 239.0.00 Submit Mask 355.0.00 Gateway 0.0.30 0.0.30 Interface LAN LAN Close

LINKSYS® A Division of Our Network, Inc. Wireless Windows 6 ADSL Security with TCP208 Network Settings Basic Settings Wireless Network Mode: Solid Wireless Network Name (SNE): InNYS Wireless Channel: <1.45F GPS Wireless SSD Broadcast: Double Double Save Settings Cancel Change Data Services

LINKSYS® A Division of Data Systems, Inc. Wireless Wireless G-ADYL Gateway with SFR2088 WAV00402 Setup Wireless Security Access Application & Carry Aggregation Status Basic Values Settings | Refining Search | Validity Options | Advanced Networks Settings Wireless Security Security Mode: WPA-Personal Encryption: SNP Penorphism: SNP Van Renewal: 3000 seconds Data Features Save Settings Cancel Changes

LINKSYS A Division of Data Systems, Inc. Copyright Version 02.01.17 Wireless Wireless O ADSL Gateway with SPDDR WAGS3040 Setup Wireless Security Access Bestifications Authentication & Carlsing Administration Status Basic Settings Options Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Safety Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Security Wireless Service

LINKSYS® A Division of Class System, Inc. Wireless Wireless G ADSL Gateway with 572286 MACS3020 Setup Wireless Security Access Restrictions Applications & Carry Administration Status Book Media Settings | Home screen | Web News Articles | Advanced Media Settings Wireless Security Security Note: WPA2-M8.00 Encryption: TCP + AES Passphone: Key Renewal: 5000 seconds No. Save Settings Cancel Changes Save Settings

LINKSYS® A Division of Data System, Inc. Wireless WattsG ADTL Gateway with 201208 WWA54900 Settings Wireless Security Access Restrictions Applications & Settings Administration Status Basic Security Settings | Security Security | Windows Access | Advanced Security Settings Wireless Security WTA Enterprise Security Note: WTA Enterprise RADUS Sensor Address: RADUS Port: Shared Key: Key Renewal Timeout: SASADIS Data Survey Save Settings Cancel Changes

LINKSYS A Software Of Our System, Inc. Wireless WiFi2 Security WiFi2 Security RNAU6 Server Advanced SharePrice: Key Reserved (Thermal) Security Home: WiFi2 Compuers RADIUS Server Advanced RADIUS Fee: SharePrice: Key Reserved (Thermal) Save Settings Cancel Changes Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings Send Settings

Wireless-G ADSL-Gateway mlt SRX200

LINKSYS® A Division of Data Systems, Inc. Wireless Wireless G ADYL Gateway with S01200 WINS/NOX Setup Wireless Security Access Restrictions Applications & Settings Administration Status Best Wireless Settings Wireless Security Wireless Access Advanced Wireless Settings Wireless Network Access Allow M Restrict Access Present listed computers from accessing the wireless network Pensuit only listed computers to access the wireless network Closed Port List No... Data Exuma Save Settings Cancel Changes

Abbildung 6-21: „Wireless Access“ (Wireless-Zugriff)

LINKSYS® A Series of Cram Wireless, Inc. MAC Address Filter List MAC Address Filter List Enter MAC Address Format: www.nacemaccess.com MAC 01: MAC 02: MAC 02: MAC 03: MAC 03: MAC 04: MAC 04: MAC 05: MAC 05: MAC 06: MAC 06: MAC 07: MAC 07: MAC 08: MAC 08: MAC 09: MAC 09: MAC 10: MAC 10: MAC 11: MAC 11: MAC 12: MAC 12: MAC 13: MAC 13: MAC 14: MAC 14: MAC 15: MAC 15: MAC 16: MAC 16: MAC 17: MAC 17: MAC 18: MAC 18: MAC 19: MAC 19: MAC 20: Add to MAC List Save Settings Cancel Changes

LINKSYS® A Division of Corp Systems, Inc. Wireless Client List Wireless Client MAC List Refresh MAC Address Enable MAC Filter Update Filter List Close

Wireless-G ADSL-Gateway mlt SRX200

LINKSYS® AVERAGE & DATA SYSTEMS, INC. Security Wireless: ADSL Category with SPDDR WAGROS Setup Wireless Security Access Revisions Applications & Settings Administration Status Name | UserCount | Info Forward SPDFinancial Induction Enable Enable Additional Filters Filter Proxy Filter Codes Filter Java Apps Filter Address Block Wild Regulate Select Aerospace Fixed Requests Save Settings Cancel Changes No. Save History

LINKSYS A Direction of Data Systems, Inc. Windows G ADSL Gateway with SIO208 WAGA02 Security Setup Wireless Security Access Remainee Applications & Carry Administration Status Power | 1634-500Hz VSP PassThrough P5pc PassThrough # Enable C Enable RFP PassThrough # Enable C Enable L2P PassThrough # Enable C Enable Save Settings Cancel Changes MP Data Sources

Abbildung 6-26: „VPN Passthrough“ (VPN-Passthrough)

LINKSYS® A Division of Data Systems, Inc. Copyright © 2018.07.03 Security Network E: AFOL Server with SIRI200 Setup VMware Security Access Restrictions Applications & Gaming Administrators Status Form 1: VPS/Service/Temp VFM Tunnel Select Tunnel Bitro: Enable Summary IPSec VFM Tunnel Disable Disable Tunnel Name: Local Secure Group Standard FADD Metric 255, 255, 255, 0 Remote Secure Group IP rate: IP : ____ Remote Secure Gateway IP rate: IP : ____ Key Management Any Exchange Method: Auto-IPS Encryption: ANSI Authentication: SPS Enable Pre-Shared Use: Enable Key Life Time: 20000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Status Connect Discounted View Up Advanced Settings Save Settings Cancel Changes Help Security

Abbildung 6-27: VPN

LINKSYS® A Division of One Network, Inc. VMV Software Summary No. Tanned Name Local Group Remote Group Remote Gateway Security Method 1 Tunnel 1 192 168.1.2 / 192 168.1.200 192 168.1.168 3/ES Service

Key Management Key Exchange Method: Auto (KO) Encryption: 30ES Authentication: SHA1 PTS: Enable Pre-Shared Key: Disable Key Life Time: 28800 Sec. Status Connect Disconnect View Log Advanced Settings

LINKSYS® A Division of Color Systems, Inc. Log VPN Log Type: WWW.log page numbers Clear Previous Page Next Page

LINKSYS T Division of Data Systems, Inc. Advanced VPN Tunnel Setup Tunnel 1 Phase 1: Operation mode: Main Local Identity: Local P address Name: Remote Identity: Remote P address Name: Encryption: ISOES Authentication: NDS Group: 760-bit Key Life Time: 3650 Sec. Phase 2: Encryption: ISOES Authentication: SHAS IPS: Enable Group: 760-bit Key Life Time: 19500 Sec. Save Settings Cancel Changes Close

Wireless-G ADSL-Gateway mlt SRX200

LINKSYS A License or Good Service, Inc. Access Restrictions Windows C: ADS2. Customary with STORE WAGSACO Setup Wireless Security Access Restrictions Approvals & Settings Administration Status Internet Access Policy Internet Access Policy: 10 Deals Summary Status: Enable Enable Order Policy Name: PC1.1 PCs: Still List of PC1 Access restriction: Deny Internet access during selected days and hours. None Schedule Days: Everyday: Su W T Su Ts W T Times: 34 Hours: From: 50 50 Te: 50 50 Vehicle Blocking by SSL Address Website Blocking by Keyword Blended Services Use-Defined - None - TCP/IP TCP/IP TCP/IP TCP/IP Save Settings Cancel Changes

LINKSYS® A Series of Data Systems, Inc. Summary Internet Policy Summary No. Policy Name Days (Jun - Sat) Time of Day Details 1. Policy 1 S M T W T F S 00:00 - 00:00 2. S M T W T F S 00:00 - 00:00 3. S M T W T F S 00:00 - 00:00 4. S M T W T F S 00:00 - 00:00 5. S M T W T F S 00:00 - 00:00 6. S M T W T F S 00:00 - 00:00 7. S M T W T F S 00:00 - 00:00 8. S M T W T F S 00:00 - 00:00 9. S M T W T F S 00:00 - 00:00 10. S M T W T F S 00:00 - 00:00 Close

LINKSYS A Division of Use Systems, Inc. Applications & Gaming Port Range Forwarding Port Range Application Start End Protocol P Address Disable IP 102.168.3 □ IP 102.168.3 □ IP 102.168.3 □ IP 102.168.3 □ IP 102.168.3 □ IP 102.168.3 □ IP 102.168.3 □ IP 102.168.3 □ AP 102.168.3 □ AP 102.168.3 □ AP 102.168.3 □ Save Settings Cancel Changes

LINKSYS A Network & NASL Server, Inc. Applications & Gaming NetworkS & NASL Category with SP1208 WAVACHS Setup Wireless Security Access Settings Applications & Camping Addressation Notes Stage Not Range Forwarding | Start Range Forwarding | End Range Targeting | On Port Range Trapping Trapped Range Forwarded Range Application Base Start Port End Port Start Port End Port Enabled - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - + Sales Settings Cancel Changes Data Summary

LINKSYS A Division of Data Systems, Inc. Applications & Gaming Network C: ADSL. Cataloging w/0.15208 NetworkS Group Wireless Security Access Specifications Applications & Gaming Administration Status Start for Range Functioning | Start Range Functioning | Start Range Info | Start - Get DXZ DXZ Hostg Enable Disable DXZ Host P Address 492.436 L Initial range w/1.256 Stop Settings Control Change Log: Data Service

Abbildung 6-39: DMZ

QoS (Quality of Service)

LINKSYS A:\Users\Data Systems, Inc. Applications & Gaming Microsoft SQL Server with SECTRII WAGROSCE Setup Wireless Security Access Accession Applications & Gaming Administration Status Single Net Regular Functioning Net Regular Functioning Net Regular Functioning Add Out Quality of Service Wireless iOS Node Android AOS 80% Headset Android AOS Bord AOS Bord AOS Tsdated Disabled SetInternal Bandwidth: Hass (1 = 100000) Applications: Priority: Priority: Name: Information: Entry Summary Save Settings Cancel Changes

Abbildung 6-40: QoS

LINKSYS Application & Gaming Applications & Gaming Windows© AOSL Gateway with 512KB Setup Setup Settings Security Access Accession Applications & Control Administration Status Size for Range Forecasting | Add Range Forecasting | Add Rate Targeting | Add Out Quality of SAMSOS Wireless ACS Mode: Incomplete AOS 80.116/0000: Update Enabled Closed SetInternet Bandwidth: Class (1 = 10000) Applications Online Genre Select a Game Counter Order Priority Counter Title Sign or Express Default Timestamp Helps Schedule 2 Schedule 3 Stream Turnout Return to Cella Webmaster Summary Priority None Save Settings Cancel Changes OKS

Applications Voice Device Enter a Name MAC Address 00:00:00:00:00:00 Priority Medium Add

Applications Enter a name Category Port Range Port Range (Optional) (Optional) Priority Medium Add

Applications Add a New Application Enter a Name Category MAC Address MAC Address 00:00:00:00:00:00 Priority Medium Add

LINKSYS A Division of Data System, Inc. Administration Settings: AUTO Gateway WITH SOLUTION Status Setup Wireless Security Access Reconciliation Application & Routing Administration Local Gateway Access Gateway Usualist: Gateway Usualist: Gateway Password: No order to Confirm: Remote Gateway Access Remote Management: Enable Enable Management Port: Device Name: Sleep: Enable Enable Cell Community: Cell Community: Tree Management: Tree To: Link: Enable Enable Management via PLAN: Enable Enable IGAP Proxy: Enable Enable Save Settings Cancel Changes Finish Settings

LINKSYS 2.0000 of Cix Systems, Inc. Administration Wireless LAN: Customary with SRT288 WINS3KX2 Setup Wireless Security Access Receivations Applications & Serving Administration Status Management Options Deposits Breakthroughs Factory Details Review Upgrade Reporting Log Enable Enable Email Header Enable Enable Detail of Service Thresholds events (35-100) Self-Host Server: Email Address for Alert Log: Return Email Address: Save Log Load Settings Cancel Changes Help from Policy

LINKSYS® A Division of C++ Solutions, Inc. Log All Log Type: ALL Page Refresh Web, 1968-12-31 16:00:17 - b/o port System Log Access Log Formal Log VH Log Wid, 1968-12-31 16:00:32 - b/o port (c):b@o) entering forwarding state Wid, 1968-12-31 16:00:32 - b/o topology change detected, propagating Wid, 1968-12-31 16:00:36 - b/o port (z):v@o) entering forwarding state Wid, 1968-12-31 16:00:36 - b/o topology change detected, propagating Wid, 1968-12-31 16:00:00 - Router start up Wid, 1968-12-31 16:25:50 - Administrator log successful - IP 192.168.1.100 Wid, 1968-12-31 17:00:11 - v@a/Log.c. @ started .r#S#D#TOOL with Pd 269 Clear Previous Page Next Page

LINKSYS® 6.0 Server / CS Systems, Inc. Administration Windows\ADSL Gateway with SP2008 Setup Wireless Security Access Receivables Applications & Gaming Administration Status Management: [ ] [ ] [ ] [ ] [ ] [ ] [ ] Ping Test Parameters Ping Target P: Ping Slot: 90 Bytes Worker at Ping: 5 (Range 1=30) Ping Interval: 1000 Millacoustic Ping Total: 1000 Millacoustic Ping Result: PM_Sand/PM_Sand/Avg_Millions Hold Save Settings Cancel Changes Data Survey

LINKSYS A Division of 320 Systems, Inc. Administration Windows / iOS Server with SR1200 Setup Wireless Security Access Security Applications & Security Administrator Status Management | Summary | Upgrade | Validation | Policy Details | Download Status Backup Configuration Backup Features Configuration Please select a file to restore: Browse Browse Data History

LINKSYS® A Division of Data Systems, Inc. Administration Windows: iOS Gateway with 5/2/200 Setup VMware Security Access Restrictions Applications & Settings Administration Status Management Services | Support | Security | Network Service | Server Grids Factory Defaults Feature Factory Defaults Data Series

LINKSYS® A ORDER OF SCSB, BISCUIT, INC. Administration Windows 6 ADSL Gateway with SCSMB Add to Upgrade Please Select a file to Upgrade File: Browse Send to Upgrade Status Active Upgrade Help OK Cancel

LINKSYS 6.1 Server 6.1 System, Inc. Status Setup Info version Hardware Version: 15.00.11 MAC Address: MAC8389015840 Current Time: 1993-12-31 15:00:00 Log Type: RFC-1002 Enginebd EnerSec: None P Address: — Send Event: — Default Gateway: — DNS1: — DNS2: — DNS3: — TCP Server DHCP Server Network

LINKSYS A Division of Our System, Inc. Status Windows® ADSL Gateway with SPDDR MACDOS Setup Windows Security Access Access Acode Application & Gaming Administration Status Local Network MAC Address NACKS&GMSM P Address 182.968.1.1 Global Host 50.000.000.00 DHSP Server Enable Unit P Address 182.968.1.00 Unit P Address 182.968.1.00 DHCP Client Table ARWAPP Tools Refresh OK/Cancel

LINKSYS® A Division or Data Systems, Inc. DHCP Active IP Table DHCP Active IP Tables DHCP Server IP Address Client Job Name: IP Address: MAC Address: Square 06920513 192748.1.140 8626067b/868644 8 Browse Delete Cover

LINKSYS Connect to Open Services Inc. ARP/RARP Table ARP/RARP Table P Address MIC Address Finish

LINKSYS A Division of Data Systems, Inc. Status Wireless Setup Wireless Security Access Accessories Applications & Gaming Annuance Status System | Line Network | Security | SQL Connection Wireless Network Version 16.30.11 MAC Address 86.42.05/16.3n Home Mixed Emails Channel S-2.437 Site Encryption Function Enabled Admissions Grids Connected Win: Return Data Service

LINKSYS A Software - 032 Systems, INC Status: Windows C: API2. Customary with SRY200 Setup Wireless Security Access No. 1/2/2000 Access & Services / Network / Web Services / TS Connection Status: Downloaded Rate Updown Rate PVC Connection Documentation IPC 1483 Bridged Multiplexing IPC Gas IRR Portfolio So-Rate Autobduct: Enable VR IP VG SE Dram: 1 PVC Status: Screen Network

Wireless-G ADSL-Gateway mlt SRX200

Wireless-G ADSL-Gateway mlt SRX200

Wireless-G ADSL-Gateway mlt SRX200

Wireless-G ADSL-Gateway mlt SRX200

Wireless-G ADSL-Gateway mlt SRX200

Wireless-G ADSL-Gateway mlt SRX200

Wireless-G ADSL-Gateway mlt SRX200

Wireless-G ADSL-Gateway mlt SRX200

Wireless-G ADSL-Gateway mlt SRX200

Wireless-G ADSL-Gateway mlt SRX200

Wireless-G ADSL-Gateway mlt SRX200

LINKSYS A Division of Data Systems, Inc. Administration Windows® ADXL Servering with 5/12/2016 Setup VMware Security Access Settings Applications & Settings Application Group Status Management | Testing | Upgrade | Downloads | Tools | Update | Software Update Hardware Upgrade Please Select a File to Upgrade File: Remove Start to Upgrade File... Save Settings

Wireless-G ADSL-Gateway mlt SRX200

WEP-Schlüssel 64 Bit, 128 Bit

Abmessungen 140 mm x 140 mm x 27 mm

Gewicht 0,27 kg

Wireless-G ADSL-Gateway mlt SRX200

Row of abstract geometric symbols including stars, triangles, and circles (no text or labels)

FCC-Bestimmungen

This product may be used in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Collection of black and white geometric symbols including stars, squares, circles, and asterisks (no text or labels)

A Division of Cisco Systems, Inc.

Exterior view of a SRX 200 wireless router with two antennas and a blue LAKSYS logo (no readable text beyond branding)

2,4 GHz 802.11g

Sans fil - G

Sans fil

Onglet Setup (Configuration) 26

Onglet Wireless (Sans fil) 35

Figure 5-16 : Ecran Set the Gateway's Password

Figure 5-19 : Ecran Wireless Security - WPA Personal

Figure 5-20 : Ecran Wireless Security - WPA2 Personal

Figure 5-22 : Ecran Wireless Security - WEP (64-Bit)

Figure 6-4 : RFC 1483 Routed 28

Figure 6-5 : IPoA 28

Figure 6-6 : RFC 2516 PPPoE 29

Figure 6-7 : RFC 2364 PPPoA 29

Figure 6-8 : Bridged Mode Only (Bridged Mode uniquement) 30

Figure 6-26 : VPN Passthrough (Intercommunication VPN) 43

Figure 6-27 : VPN 44

Figure 6-46 : Management (Gestion) 58

Figure 6-48 : Reporting (Rapports) 60

Collection of various symbols and shapes including stars, circles, triangles, and crosses, arranged in a grid-like pattern.

Line 4 3 Ethernet 2 1 Reset Power 1280C 1A

Wireless-6 AML Gateway with ESR200

Collection of symbolic and stylized icons including stars, circles, squares, and symbols in black, white, and gray.

Présentation

Front view of a network switch device with ports and a USB port (no visible text or symbols)

Close-up of a network switch with ports and a blue cable (no visible text or symbols)

Close-up of a network switch device with ports and a USB cable (no visible text or symbols)

Close-up of a network switch device with multiple Ethernet ports and a USB port (no visible text or symbols)

Close-up of a network switch device with ports and a power button (no visible text or symbols)

Collection of symbolic icons including stars, circles, squares, and triangles with various colors and shapes

Présentation

LINKSYS® A Division of Cisco Systems, Inc. Language ON Welcome The setup wizard has automatically detected the language settings of your PC. Please click Next to continue the wizard in the current language. If you would like to use a different language, please select from the list of languages and click Next. 2.4 GHz Wireless- ADSI Gateway www.SRX200 Setup Wizard vs.10 WAGS4GX2 Copyright © 2001 Cisco Systems, Inc. All Rights Reserved.

LINKSYS® A Division of Class Systems, Inc. Welcome Thank you for accessing Linksys. This Setup Wizard will help you install the Wireless-G ADSL Gateway with SRX200 WINSING LIST START! 2.4 GHz Wireless- SRX200 ADSL Gateway www.SRX200 Setup Wizard WAG54GX2 Copyright © 2005 Cross Systems, Inc. All Rights Reserved.

Figure 5-2 : Ecran Welcome - Start Wizard (Bienvenue - Lancer l'assistant) de l'assistant de configuration

LINKSYS® A Division of Color Systems, Inc. End Use License Agreement Please review the license agreement below. Press the PAGE DOWN key or use the Scroll Bar to see the rest of the agreement. Linksys Software License Agreement v.8.15.03 THIS LICENSE AGREEMENT IS BETWEEN YOU AND CISCO-LINKSYS, LLC OR THE CISCO-LINKSYS, LLC SUBSIDIARY LICENSING THIS SOFTWARE, IF SALE IS NOT DIRECTLY BY CISCO-LINKSYS, LLC ("Linksys"). BY DOWNLOADING OR INSTALLING THE SOFTWARE, OR USING THE PRODUCT CONTAINING THE SOFTWARE. YOU ARE CONSENTING TO BE BOUND BY THIS AGREEMENT. IF YOU DO NOT AGREE TO ALL OF THESE TERMS, THEN YOU MAY NOT If you accept the terms of this Agreement, click Next to continue. If not, choose Cancel and the Setup Wizard will close. You must click Next to continue the installation process.

Figure 5-3 : Ecran License Agreement (Accord de licence) de l'assistant de configuration

LINKSYS® A Division of Data Systems, Inc. 2 Disconnect the Modems from the PC Connect the cables that connect your modem to the PC. Wall Jack Modem Wireless 6 ADSL Gateway with SRX200 Setup Wizard WAG54G42

LINKSYS® A Division of Cable Systems, Inc. 3 Connect the gateway to the DSL line Plug the phone cable from the wall into the Gateway's Line port. AdSL Gateway Line Port Wall Jack 400-1200 Wireless-6 ADSL Gateway with SRX200 Setup Wizard WAGS4GX2

LINKSYS® A Division Of Data Systems, Inc. Connect the Gateway to a PC The Gateway comes with a blue network cable. Plug one end of the network cable into your PC's network port. If you previously had an Ethernet port, use the same port. If you previously had an USB modem, connect the network cable in the sample illustration here. Network Port Wireless 6 ADSL Gateway with SRX201 Setup Wizard WAG54GX2

LINKSYS® A Division of Data Systems, Inc Connect the Gateway to a PC 5 Gateway port 1, 2, 3, or 4 Plug the other end of the network cable into one of the Gateway's ports number 1 to 4. Wireless: ADSL Gateway with SRX200 Setup Wizard: WAG54GX2

LINKSYS® A Decision Of Color Systems, Inc. Power on the Gateway 6 Plug the power adapter into the Gateway's Power port. Plug the other and into an electrical outlet. Gateway Power Wireless: 6 A20L Gateway with SRX200 Setup Wizard WAG54GX2

LINKSYS® A Division of Color Systems, Inc. Check the Gateway's Status 7 On the Gateway's front panel, the Power, DSL and at least one of the numbered (1, 2, 3, or 4) LEDs should be it. If not, make sure the cable are securely connected. Wireless 6 ADSL Gateway with SRX200 Setup Wizard www.WAG54GX2

LINKSYS® A Device of Clear Systems, Inc. Configure DSL To configure your Wireless-6 ADSL Gateway, select your country of presence. Select your country of presence: Counts United Kingdom NOTE: For unlisted countries, use the Gateway's web-based utility for setup. Wireless-6 ADSL Gateway with SRX200 Setup Wizard WAG54DX2

LINKSYS® A Decision of Data Systems, Inc. Configure DSL Select your ISP/DSL Provider to auto-configure your ADSL Parameters for the Wireless-G ADSL Gateway. OK Click on the ISP Button for your DSL Provider to auto-configure the settings. If your ISP is not shown above, click "next" to manually enter your settings. Wireless 6 ADSL Gateway with SRX200 Setup Wizard WAG54GX2

LINKSYS® A Division of Color Systems, Inc. Configure DSL Configuration Details Encapsulation 1403 Designed Auto IP Static IP VPI / VCI IP Address Subnet Mask Default Gateway Primary DNS Secondary DNS Multiplexing

Figure 5-12 : Ecran Configure DSL - 1483 Bridged (Configuration DSL - 1483 Bridged) de l'assistant de configuration

LINKSYS® A Decision of Color Systems, Inc. Configure DNS 8 Configuration Details Encapsulation 1483 Routed Static IP VPI / VCI 0 / mm IP Address Multiplexing VC Subnet Mask Default Gateway Primary DNS Secondary DNS Wireless 6 ADSL Gateway with SRX200 Setup Wizard WAG54GX2

Figure 5-13 : Ecran Configure DSL - 1483 Routed (Configuration DSL - 1483 Routed) de l'assistant de configuration

LINKSYS® A Decision of Class Systems, Inc. Configure DSL 8 Configuration Details Encapsulation VPI / VCI Multiplexing LLC User ID Password Connection Connect on Demand: Max Idle Time Keep Alive: Radial Period Click Next to Accept these settings, or change the values to complete the configuration. Wireless 6 ADSL Gateway with SRX200 Setup Wizard WAG54GX2

Figure 5-14 : Ecran Configure DSL - PPPoA (Configuration DSL - PPPoA) de l'assistant de configuration

LINKSYS® A Division of Cloud Systems, Inc. 8 Configure SSL Configuration Details Encapsulation VPI / VCI Multiplexing User ID Password Connection Connect on Demand: Max Idle Time Keep Alive: Redial Period Click Next to Accept these settings, or change the values to complete the configuration. Wireless 6 ADSL Gateway with SRX20 Setup Wizard www.WAG54GX2

Figure 5-15 : Ecran Configure DSL - PPPoE (Configuration DSL - PPPoE) de l'assistant de configuration

LINKSYS® A Division of Color Systems, Inc. Set the Gateway's Password For security reasons, you should change your password. Password Create a password and enter it in the Password field. Re-enter the password in the Canfire field. Connection Note: You will need this password to access the Router's web-based utility. Wireless - iOS ADSL Gateway with SRX200 Setup Wizard www.WAG54GX2

LINKSYS® A Division of Core Systems, Inc. Wireless Settings 1 If you are setting Linuxless wireless adapters in your computers, your network should work implicitly out of the best. I change in the settings before must choose the settings of your wireless network. Make save you passwords these settings as they will be needed when setting up your wireless components. SDD The SDD is a unique identification shared among computers within your wireless network and must be safe for all these computers. The SDD is safe sensitive and should not secure 32 characters. Channel 7 The Channel setting is a unique number shared among all computers within your wireless network. Channels 1 & 6 and 10 are patterned. Select Wizard Mode: If you have both Windows 8 or Windows 8 devices on your network. Select Web Only or Web Only if you would like to only allow Windows 8 or Windows 8 devices. If you would like to select channels, then any wireless network selected channel. Device Name: The Device Name is a unique name for your wireless ADSL Gateway, and should be changed if you have multiple users in your network. Wireless 6 ADSL Gateway with SRCCB Setup Wizard - WAG5402Q

LINKSYS® 6 Division of Data Systems, Inc. 2 Configure Wireless Security Settings (Optional) This may choose between the connection certificate (BA-80) with Equipment. Using JNPS, 128-bit MSP, MP2 Personal (Pre-shared text), MP42 Personal, or MP62/Block Reads. The recent settings must be the same as all devices per your network, or they will not be able to see recommendations. Windows Create Power chains: MSP (BA-80), MSP (128-80), MP2 Personal, MP42 Personal, MP62 Mixed Work or Disabled. MSP (BA-80) MSP (128-80) MP2 Personal MP42 Personal MP62 Mixed Mode Wireless - G ADSL Gateway with SIM200 Setup Wizard WAS5402Q

LINKSYS® A Division of Clear Systems, Inc. Configure Wireless Security Settings (Optional) You do choose between free encryption linksets: 54-BI Wild Equivalent Filtering (WISP), 126-BI Wild WPS Personal, Pho-channel loop, WPS2 Personal or WPS3 Wild Mode. The security settings must be the same on all divisions on your network, or they will not be able to communicate. Please choose WSP (54-BI), WSP (126-BI), WPS Personal, WPS2 Personal, WPS2 Wild Mode or Disabled. Select the type of Encryption your Network uses. Select the Penphouse key used by your network. The Penphouse Key can be any keyboard character between 8 and 63 characters in length. Enter the Penphouse key used by your network. The Penphouse Key can be any keyboard character between 8 and 63 characters in length. Wireless-8 ADSL Gateway with SRX200 Setup Wizard WAGS4GX2 2 Security

LINKSYS® A Decision of Data Systems, Inc. Configure Wireless Security Settings (Optional) 2 Security Please choose WSP (54-56), WSP (128-56), MPS Personal, MPA2 Personal, MPA2 Mixed Mode or Disabled. Select the type of Encryption your network uses. AES AES Enter the Penphouse key used by your network. The Penphouse Key can be any keyboard character between 8 and 63 characters in length. Wireless 6 ADSL Gateway with SRX200 Setup Wizard WAG54GX2

LINKSYS® A Division of Class Systems, Inc. Configure Wireless Security Settings (Option) No long selected antennas that encryption certificates. 54-bit Mixed Equipped Windows (80PS), 120-80 WSP, MPS Personnel (Pre-channel log), WPA2 Personnel, or WPA2 Mixed Mode. The security settings must be the same as all declines on your network, or May will not be able to transmit. Please choose WSP (84-85), WSP (120-85), MPS Personnel, WPA2 Personal, WPA2 Mixed Mode or Disabled. Choose: TWP + AES Select the type of Encryption your Network uses. PhuPulse + AES Enter the Phosphorus key used by your network. The Phosphorus key can be any keyboard character between 8 and 63 characters in length. Wireless -6 AOSL Gateway with SRX200 Setup Wizard WAG54GX2

LINKSYS® A Division of Color Systems, Inc. Configure Wireless Security Settings (Optional) 2 Security Please choose wireless security settings: S4-85 Wind Serviceless Privacy (HSP), 128-82 WEP, MPA Personal, (free-shaped keys, MPA2 Personal, or MPA3 Mixed Wep). The security settings must be the source as all devices are post-network, or You will not be able to communicate. Browse WEP (84-86) Please choose WEP (84-86), WEP (128-85), MPA Personal, MPA2 Personal, MPA3 Mixed Mode or Disabled. Purpose Type the pocsynase that will be used to generate the WEP key. The pocsynase is cause-sensitive and should not be longer than 16 characters. Help! If you choose the Pocsynase option for WEP, a WEP key will generate automatically. To manually enter a WEP key, outlet a WEP algorithm and leaves the Pocsynase option blank. Wireless - 6 AOSL Gateway with SRC200 Setup Wizard WAG54GX2

Figure 5-22 : Ecran Wireless Security - WEP (64-Bit) (Sécurité sans fil - WEP (64 bits)) de l'assistant de configuration

LINKSYS® A Decision of Data Systems, Inc. Configure Wireless Security Settings (Optional) 2 Security Please choose WEP (84-B15, WEP (128-B15, WPS Personal, WPA2 Personal, WPA2 Mixed Mode or Disabled). Specify the phosphrase that will be used to generate the WEP key. The phosphrase is case-sensitive and should not be longer than 10 characters. If you choose the Posphrase option for WEP, a WEP key will generate automatically. To manually enter a WEP key, select a WEP algorithm and leave the Posphrase option blank. Wireless G ADSL Gateway with SRX200 Setup Wizard WAGS4GX2

LINKSYS® A Division of Data Systems, Inc. 3 Confirm New Settings New Settings orgn 7 Double PVH2 0 85 Would you like to save these settings? Wireless: ADSL Gateway with SRQ200 Setup Wizard: WAG54GX2

LINKSYS® A Division of Cross Systems, Inc. Symantec Internet Security Special Edition Includes 80-day Free Info of video & Default updates Market Internet Security™ from Symantec™ is the award selective suite which protects your PCs and your family from the parts of the Internet. - Norton Antiflith™ products email and instant messages. - Norton™ Personal Firewall products against bankers and infrosters. - Parental Control shields additional how objectable with stores. - Shock spasm, Banner wifi, pop-up wireless, and more. A special edition of Norton Internet Security with a 40-day free trial of virus & Firewall updates is included on this Setup ID. Click below to install it. Market Internet Security Tools Safe Surfing Setup Wizard Finish Cout Surfing © Copyright 2001 Open Systems, Inc. All rights reserved.

LINKSYS® A Division of Cisco Systems, Inc. Congratulations The Wireless-G.AOSL Gateway with SRX200 has been successfully configured! 2.4 GHz Wireless-6 SRX200 ADSL Gateway with SRX200 Setup Wizard up to 12 Online Regulator WAG54GX2

Figure 5-26 : Ecran Congratulations (Félicitations) de l'assistant de configuration

Collection of various geometric and symbolic icons, including stars, circles, squares, and triangles with various line styles.

Présentation

Onglet Setup (Configuration)

Onglet Basic Setup (Configuration de base)

Name: the mail of the packet reference Enter your mail - Default of your mail to the packet Size: 102.168.11 Destination: Send all information: Send the packet: .... □ Logarithm can not be sent to your mail from the mail to the packet OK Amount

LINKSYS Setup - BXP1.0000 (USB) 10000 Setup Network Settings Internet TCP Internet Connection Type OC Settings Disconnection: BXP1.0000 (RGB) Multiplexing: LLC BXP Data Type: BXP Data Rate: 126 Data Rate: 89 Automatic: Enable Enable Virtual Data: 126 (Change: 20%) BXP (Change: 40,000) IP Settings ✓ Write and IP Address Automatically ✓ Use the following IP Address: Internal IP Address: Subtotal Node: Default Subtotal: Primary DNS: Secondary DNS: Optional Settings Integrated by source (SPs): Host Name: Domain Name: MFS: Data: Network Settings Router IP Server IP Address: 126, 126, 5, 5 Subtotal Node: 126, 126, 221, 6 Software Address Server Settings (SICF) DNSF Server: Enable Enable BXP DNSF Server: 126, 126, 5, 5 Starting IP Address: 126, 126, 5, 5 Maximum User(s) of DNSF using: Client User Time: 9 minutes (3 minutes one sec) State DNS F: 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, State DNS F: 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, State DNS F: 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1 State Settings Time Zone: DNSF (BXP) Active Time (LED & Console) Automatically adjust clock to daylight swing charges Data Settings Cancel Changes

Figure 6-2 : Basic Setup (Configuration de base)

Internet Connection Type VC Settings Encapsulation: FFC 1483 Bridged ▼ Multipling: ○ LLC ▼ VC Goc Type: LBP ▼ For Rate: ○ cpu Scr Rate: ○ cpu Automated: ▼ Enable ▼ Enable Virtual Circuit: ■ VR (Range 0-205) □ □ VD (Range 0-6553G) IP Settings ■ Obtain an IP Address Automatically ○ Use the following IP Address: Internet IP Address: □ □ □ □ Subset Mask: □ □ □ □ Default Address: □ □ □ □ Primary DNS: □ □ □ □ Secondary DNS: □ □ □ □

Figure 6-3 : RFC 1483 Bridged

Figure 6-4 : RFC 1483 Routed

Internet Connection Type VC Settings Encapsulation: PoA Multiplexing C LLC G VC Gas Type: USP Por Rate: 10000 Ser Rate: 10000 Autoselect: G Enable C Enable Virtual Circuit: VCI (Range 0-255) VCI (Range 0-65535) IP Settings Internal IP Address: Submit Mask: Default Gateway: Primary DNS: Secondary DNS:

Figure 6-5 : IPoA

Internet Connection Type WC Settings Encapsulation: 100% CI-100% Multiplexing: LLC VC Geo Type: LBR Por Rate: cps Scr Rate: cps AutoSelect: Enable Enable Virtual Circuit: VR (Range 0-255) VO (Range 0-65035) PPVeE Settings Username: Password: Connect on Demand, Max Idle Time 5 Minutes Keep Alive, Radial period 10 Seconds

Figure 6-6 : RFC 2516 PPPoE

Internet Connection Type WC Settings Encapsulation: WC - Data Privacy Multiplexing: LLC VC Gor Type: URR Por Rate: cpc Sor Rate: cpc Autotected: Enable Enable Virtual Circuit: VR (Range 0-205) VCI: VCI (Range 0-66535) FPFoA Settings Username: Password: Connect on Demand, Max Idle Time 5 Minutes Keep Alive. Radial period Decorate

Figure 6-7 : RFC 2364 PPPoA

Bridged Mode Only (Bridged Mode uniquement)

Figure 6-8 : Bridged Mode Only (Bridged Mode uniquement)

Optional Settings (required by some ISPs) Host Name: Domain Name: MTU Size: 100 Network Setup Router IP Local IP Address: 192 168 1 1 Subset Week: 255.255.255.0 Network Address Server Settings (DHCP) DHCP Server: Enable Enable DHCP Relay DHCP Server: Starting IP Address: 192.168.1.100 Maximum Number of DHCP Users: 50 Client Leave Time: 0 minutes (0 means one day) Static DNS 1: Static DNS 2: Static DNS 3: VANG: Time Settings Time Zone: (OMT-00 X0) Pacific Time (USA & Canada) Automatically adjust clock for daylight saving changes.

LINKSYS A Software Setup System Setup LinkSYS: AOSL Connection with SECURE Status Network Security Access Restrictions Digital access & Coding Administration Status New Step 1 New Settings Network Service LinkSYS.org Network Password User Name Status Connect Data Settings Cancel Changes Log Display OK

Figure 6-10 : DDNS - DynDNS.org

LINKSYS A Software Setup - No. 10 Setup Windows 3 ADSL Operating with RECOR Status: Normal Setup Windows Security Access Distributions Apache access & SaaS External access Status DNS Microsoft Service 121.com E-mail Address: 121 Password: Domain Name: Default: Connect New Settings Cancel Changes Data Server

LINKSYS Adoption of Data Centers, Inc. Setup Windows 2. ADSL Clearing with SIMES MECHANIC Settings Windows Security Access No exception Applications & Settings Administration Status Active Settings Dynamic Settings Operating Mode: MAC Enabled Standard Dynamic Setting: AV Enabled Standard RF Select Packet Version: AV RF Select Packet Version: Static Setting: Select net number: 3 Disable True Data Destination: IP Address: Cancel Method: Delivery: Map Clock: Show Setting Tools Save Settings Cancel Changes

LINKSYS Wireless Wireless E-ADSL Cabling with LXXX Setup Wireless Security Access Restructuring Applications & Cabling Administration Status Basic Settings Wireless Name Wireless Wireless Network Name (USB) Wireless Wireless Channel 1.427 Mbps Wireless USB Broadcast Enable Disable Save Settings Cancel Changes

Figure 6-14 : Basic Wireless Settings (Paramètres sans fil de base)

LINKSYS A Connection of Data Systems Wireless Windows & API Gateway with 80008 PRO:4520 Setup Wireless Security Access Application & Administration Value Data Security Settings | Security Details | Internet Security & Exchange Settings Wireless Security Secure Code MPI-Personal Encryption: 16.9 Peripherals: 32.0 Key Networks 20008 seconds Size Settings Cancel Changes Data Security

Figure 6-15 : Wireless Security - WPA-Personal (Sécurité sans fil - WPA-Personal)

LINKSYS Microsoft Internet Explorer Inc. Wireless Windows & Windows Connection with TCP/IP Network Security Security Details MOSI Security Encryption: MOS Phosphorus: Yes/Received: 20000 seconds Data Settings Cancel Changes Win Email Win Data Win Security

Figure 6-16 : Wireless Security - WPA2-Personal (Sécurité sans fil - WPA2-Personal)

LINKSYS Wireless Windows 5. MP3C Catalog with TCP/IP Network Security Security Mask MP3C Mixed Encryption MP + ABS Peripherals Key Timestamp 00:00 - seconds Data Settings Cancel Changes

Figure 6-17 : Wireless Security - WPA2-Mixed (Sécurité sans fil - WPA2-Mixed)

LINKSYS Wireless & USB, Clearing with SECS Wireless Security MFS Enterprise Security Details USB Server Address ANSS US Showt No Any Personal Security Access Settings Cancel Changes Data Settings Cancel Changes

Figure 6-18 : Wireless Security - WPA Enterprise (Sécurité sans fil - WPA entreprise)

LINKSYS A BIOS & Other Systems, Inc. Wireless Windows 3.0 OS/1. Extending web: 547288 Network Security Access Restrictions Applications & Coding Administration Status Wireless Security Wireless Security WAF2 Sectors Security Home WAF2 Sectors WAF2 Server Address Android Port Spreadkey My Personal Desktop Access Save Settings Cancel Changes Data Review

LINKSYS Liketown Of Data Security, Inc. Wireless Wireless: USB Control & 95% CI Security Mode: 400 Description: 61.00 % Phosphatid: 2.00 % HPF key 1: HPF key 2: HPF key 3: HPF key 4: 75 key: Generate Save Settings Cancel Changes Data Settings Cancel Changes

Figure 6-20 : Wireless Security - WEP (Sécurité sans fil - WEP)

LINKSYS A Division of Data Systems Wireless Windows (C:\BPS\ Networking with UNIX) Settings Windows Security Access Applications Applications & Coding Administration Status New Internet Settings New Internet Settings New Internet Settings Internet New Internet Settings Wireless Network Access Allow all Control Access Present file computer has accessing the wireless network Panel only listed computers to access the wireless network Data Settings Cancel Changes

LINKSYS A Software For Systems, Inc. Wireless Client List Wireless Client MAC List MAC Address Updates MAC Filter Updates (File 1.0) Options Options Options Options

Figure 6-23 : Wireless Client MAC List (Liste MAC des clients sans fil)

LINKSYS © Security © Privacy Security Security Setup Wireless Security Access Networks Applications & Testing Administration Status Default IP-Forward Protection Enable Enable Additional Filters Fiber Style Fiber Codes Fiber Store Applies Fiber Address Book With Responsible Book Relationship Internal Requests Save Settings Cancel Change

Onglet VPN Passthrough (Intercommunication VPN)

VPN Passthrough (Intercommunication VPN)

LINKSYS & Section of Ship System, Inc. Security Route Utilities Security Access Restrictions Applications & Carriers Administration Value Forward | US Airways | US VPN PassThrough PLAC PassThrough # Double C Double MPL PassThrough # Double C Double L2LP PassThrough # Double C Double Save Settings Customer Changes Data Drivers

Figure 6-26 : VPN Passthrough (Intercommunication VPN)

VPN Tunnel (Tunnel VPN)

LINKSYS A Direction of Data Systems, Inc. Security Windows C: USB Connection with SECTOR MIMEBOOK Setup Wireless Security Data Network Options Application & Coding Accession Plan Value Select Tunnel Entry Delete Summary USB VIB Tunnel Enable Disable Tunnel Name: Local Secure Group Deselect 100 100 100 100 Update Host: 155-255-255-255 Remote Secure Group F Select F Select F Select Key Exchange Method: Auto (RFS) Authentication: Auto Authentication: Auto PTS: Update Pre-Drop Control: Update Key Life Time: 3:00:00 Time Status Connect Download View Log Advanced Settings Sales Settings Cancel Changes Sales Summary

Figure 6-27 : VPN

LINKSYS® A Division of the Tunnel, Inc. 10% Settings Summary No. Tumet Name Local Group Remote Group Remote Callergy Security Method 1 Tunnel 1 182 168 1.1 / 259 205 200.0 182 168 1.200 182 168 1.100 38/5 Access

Key Management Key Exchange Method: Auto (JKE) Encryption: JOES Authentication: SPA1 PFS: Enable Pre-Shared Key: Enable Key Life Time: 25800 Sec. Status Connect Discount View Log Advanced Settings

LINKSYS® A Section of LinkSYS, Inc. VPN Leg Type: VPNLog Browse... Close Browse Page Next Page

LINKSYS® A Section Of Data System, No. Advanced XTM Tunnel Setup Tunnel 1 Phase 1: Operation mode: Main Local Identity: R Local P address Name: Remote Identity: R Remote P address Name: Encryption: DOSS Authentication: DOS Group: FND-68 Key Life Time: $600 Sec. Phase 2: Encryption: DOSS Authentication: Shift MPS: Enable Group: FND-68 Key Life Time: Sec. Select Settings Cancel Changes Close

Figure 6-32 : Advanced VPN Tunnel Setup (Configuration avancée du tunnel VPN)

LINKSYS Access Restrictions Windows 1. APIE, Catering with TRIMES Status: All Access Security Access Access Policy: Details: Summary Status: Enable Enable Enter Policy Name: Web-1 File: SQL List of PCs Access restrictions: □ Dery □ None Schedule: □ Enzymes □ No □ or □ Yes □ or □ No □ or □ Yes □ or Status: □ No Yes □ Yes □ or □ No □ or □ Yes □ or Website Ordering by URL Address: Website Ordering by Password: Blocked Services: Close Options: Down: Down: New Settings Center Changes

LINKSYS® A Discount 2 Data System, Inc. Summary Internet Policy Summary No. Policy Name Date (Start - End) Time of Day Status 1. Policy 1 S M T W I F S 00:00 - 00:00 2. S W I W I F S 00:00 - 00:00 3. S W I W I F S 00:00 - 00:00 4. S W I W I F S 00:00 - 00:00 5. S W I W I F S 00:00 - 00:00 6. S W I W I F S 00:00 - 00:00 7. S W I W I F S 00:00 - 00:00 8. S W I W I F S 00:00 - 00:00 9. S W I W I F S 00:00 - 00:00 10. S W I W I F S 00:00 - 00:00

Port Range Forwarding (Transfert de connexion)

LINKSYS® Application & Gaming NetworkS, ADSL, Catering with SICOSB 8001-8233 Setup Wireless Security Resource Restructuring Application & Gaming Administered Status Big Data Replacement: 1.00000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Port Range Application Start End Protocol If Address Default Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range Port Range

Figure 6-37 : Port Range Forwarding (Transfert de connexion)

LINKSYS A Division of Data Security, Inc. Applications & Gaming Windows 6.001. Calendar with TCP/IP Status Wireless Security Resource Services Applications & Gaming Administrator Status Start Start Range: Forward Start Range Start Part: End Part: Enabled Application Name: Start Part: End Part: Start Part: End Part: Enabled Save Settings Cancel Changes

LINKSYS AVERAGE OF Your Gaming, Inc. Applications & Gaming Bluetooth 1.2010, Liking with 507388 WIN:6433 Language Maintenance Security Resource Hardware Application & Geometry Accession Status Status Single For Target Locations: 1.1000000000000000000000000000000000000000000000000000000000000000000000000000000 COM COM Loading Disable Disable COM Import IP Address: YRC: 198.1.1 Used range to 1/2/2016 Show Settings Cancel Changes

Figure 6-39 : DMZ

LINKSYS Application & Gaming Windows 1: ASSL Server with TCP200 Network Internet Gaming Data Classified Services Networks Internal Access Priority Summary ACM Mode 800 Format Installed A3C Bord A3C Bord A3C Installed Dai Internal Bandwidth Max (2.4x 450000) Applications: Priority: Priority None Information Results Data Settings Cancel Changes

LINKSYS Application & Gaming NetworkS. AOSV Community with 50000 Status: Unknown Security: Unknown Access: Unknown Information & Settings: Unknown Administration: Unknown Default Security Options: Default Security Options ACM Mode: Immediate ACP WIN Field: Delete Enabled: Cancelled Sub-Internal Security: Apps (1) = 100000 Applications: Online Name Select a Genre Cluster Size Priority: Cluster Size Sign of Options Done: Command: Help: Delete: Done: Create: Create Support Return to Cyclic Preferences Priority: None Summary Data Settings Cancel Changes

Applications Enter a Name MAC Address 001(001.00:00:00:00) Priority Medium Add

Applications Add a new Application Enter a Name Category Port Range Port Range (Optional) (Optional) Priority Medium Add

Applications Add a new Application Enter a Name Category MAC Address 00:00:00:00:00:00 Priority Medium Add

Figure 6-45 : QoS - Add a New Application (QS - Ajout d'une nouvelle application) - MAC Address (Adresse MAC)

Onglet Administration

Onglet Management (Gestion)

LINKSYS Administration Windows C: AFLC, Category visit SP308 Status: 12/14/21 Setup Internet Security Access Access Scheme Applications & Learning Administration Status Management & Planning & Comparison & Documentation & Policy Details & Transfer Address Gateway Access Local Gateway Access Gateway Control Gateway Coordinate Gateway Protocol Air order to Contact Remote Gateway Access Remote Management Management Port Enable Disable GOVP Device Name: Drive: Get Community: Get Community: Play Management: Play By: GOVP Enable Disable Management via GPS Enable Disable GOVP Status: Enable Disable

Figure 6-46 : Management (Gestion)

Onglet Reporting (Rapports)

Reporting (Rapports)

LINKSYS® Lecture of Data System, Inc. Administration Log Wireless Security Access Receivables Applications & Learning Administration Status Management: Setting 1 Description 2 Authentication 3 Refer to Email 4 Security System Reporting Log Enable Disable Send History Enable Disable Send or Service Telephone: Enable (20 - 100) Send Mail Address Send Address for Mail Logs Send Mail Address Cancel Log Cancel Settings Cancel Changes Data Summary

Figure 6-48 : Reporting (Rapports)

LINKSYS® 3 Windows 9.0 Log Splice, Inc. Log All Log Type: FILL System Log Access Log Forward Log VMX Log Filed, 1969-12-31 16:00:17 - Incl port 1 Filed, 1969-12-31 16:00:24 - Incl port 2 Filed, 1969-12-31 16:00:32 - Incl port 3 (Incl) entering forwarding data Filed, 1969-12-31 16:00:32 - Incl topology change detected, prospecting Filed, 1969-12-31 16:00:36 - Incl port 4 (Incl) entering forwarding data Filed, 1969-12-31 16:00:36 - Incl topology change detected, prospecting Filed, 1969-12-31 16:00:30 - Router start-up Filed, 1969-12-31 16:25:58 - Administrator login successful. IP:182.188.1.190 Filed, 1969-12-31 17:08:11 - waharLog: a4 Stalled ANDEXTOOL with Fid 398 Clear Previous Page Next Page

Ping Test (Test Ping)

Ping Test Parameters (Paramètres de test Ping)

LINKSYS Aircraft & Data Systems Inc. Administration Windows 3. API Control with TCP/IP Setup Window Security Access Reconstructed Applications & Clearing Application Date Status Management | Running | Command | Misinformation | User Interface | Server Style Ping Test Ping Test Parameters Ping Target: Ping Size: 0% Button Number of Pigs: 0 (Change 1=10) Ping Interval: 2000 MHz/second Ping Threshold: 5000 MHz/second Ping Event: PM_Board PM_Board Ping_Midney Save Settings Cancel Changes

Figure 6-50 : Diagnostics

LINKSYS® A Software Administration Administration Windows / AOSL Server with SICOM Setup Windows Security Resource Instructions Application & Language Database/Group Status Command: [ Closing ] [ Support ] [ Installation ] [ Administration ] [ Server Group ] Backup Please select a Web to restore Browse Restore Data Review

Figure 6-51 : Backup&Restore (Sauvegarde et restauration)

LINKSYS A Division of Data Systems Inc. Administration Windows 2. ADSL (Command: w10.0738) Settings Settings Security Access Security Copyrights Copyrights & Access Settlements Status Management Security Access Security Maintenance Maintenance Factory Defaults System Parameters Details No.... Data Services DATA

LINKSYS® Administration Microsoft SQL Server 100% OFF Status Introduction Security Access Application Google phone & scanning Administration path Default Management | Access | Upgrade | Implementation | Download (check) | Security Status Please Select a File to Upgrade File Delete Check for Upgrade OK... Save As... Add As... Remove As... Edit As... Help As... Save As... Add As...

LINKSYS Accession of Data Systems, Inc. Status Windows 5. ABTL Clustering with 197308 MAC Address: MACS200000000 P Address: 162.968.5.3 Serial Mail: 266.265.264.0 DHCP Server: Enable Send P Address: 162.968.5.300 Send P Address: 162.968.5.300 DHCP Cloud Name: ADHCPCloud Name Network

Figure 6-55 : Local Network (Réseau local)

LINKSYS DINCF Active IP Table DINCF Active IP Table DINCF Active IP Address Client Name: IP Address: MAC Address: MUNAL ID: 102.168.1.549 MUNALID:102.168.1.549 8 Login Delete Close

Figure 6-56 : DHCP Active IP Table (Tableau IP active DHCP)

LINKSYS® ASP-XASP Table ASP-XASP Table P Address MAC Address Closa

Figure 6-57 : ARP/RARP Table (Tableau ARP RARP)

LINKSYS Aflacade Of Systems Inc Status Windows: iOS 10.00 GB Settings: Windows Security Services & Accessories: Applications & Accessories: Software Networks: Windows Server 16.00 GB MAC Address: 96.432.50 Units Mode: Mixed USB: Settings Channel: 8.247 GHz Encryption Function: Modest Allow Access Connection Refresh

Figure 6-58 : Wireless (Sans fil)

PVC Connection (Connexion PVC)

LINKSYS Software & Data Security Status: BPC 1003, Customing with TCP2008 Status: Default Status: Downloaded Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP addresses Status: IP addresses Status: IP addresses Status: IP addresses Status: IP addresses Status: IP addresses Status: IP addresses Status: IP addresses Status: IP addresses Status: IP addresses Status: IP addresses Status: IP addresses Status: IP addresses Status: IP addresses Status: IP addresses Status: IP addresses Status: IP addresses Status: IP addresses Status: IP addresses Status: IP addresses Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP地址 Status: IP地址 Status: IP地址 Status: IP地址 Status: IP地址 Status: IP地址 Status: IP地址 Status: IP地址 Status: IP地址 Status: IP地址 Status: IP地址 Status: IP地址 Status: IP地址 Status: IP地址 Status: IP地址 Status: IP地址 Status: IP地址 Status: IP地址 Status: IP地址 Status: IP地址 Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP address Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: IP Address, Status: BPC 1003 Network

LINKSYS Microsoft SQL Server 6.0.1.2008 Administration Windows X: AOSL Server with VCOM Setup Attendance Security Access No DevOps Application & Learning Administration Value Management & Account & Programs & Interactive & Topic needs Internet Explorer Please Select a File to Upgrade File Remove Start to Upgrade Help Data Review

Ports Power (Alimentation), ADSL, Ethernet (1-4)

Bouton Reset (Réinitialisation), Power (Alimentation)

Voyants Power (Alimentation), Wireless (Sans fil), Ethernet (1-4), DSL, Internet

Nombre d'antennes 2

This device complies with Canadian ICES-003 and RSS210 rules.

This product may be used in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

The Belgian Institute for Postal Services and Telecommunications (BIPT) must be notified of any outdoor wireless link having a range exceeding 300 meters. Please check http://www.bipt.be for more details.

In case the product is used outdoors, the output power is restricted in some parts of the band. See Table 1 or check http://www.art-telecom.fr/ for more details.
