USER MANUAL RF24BTR1 DCS

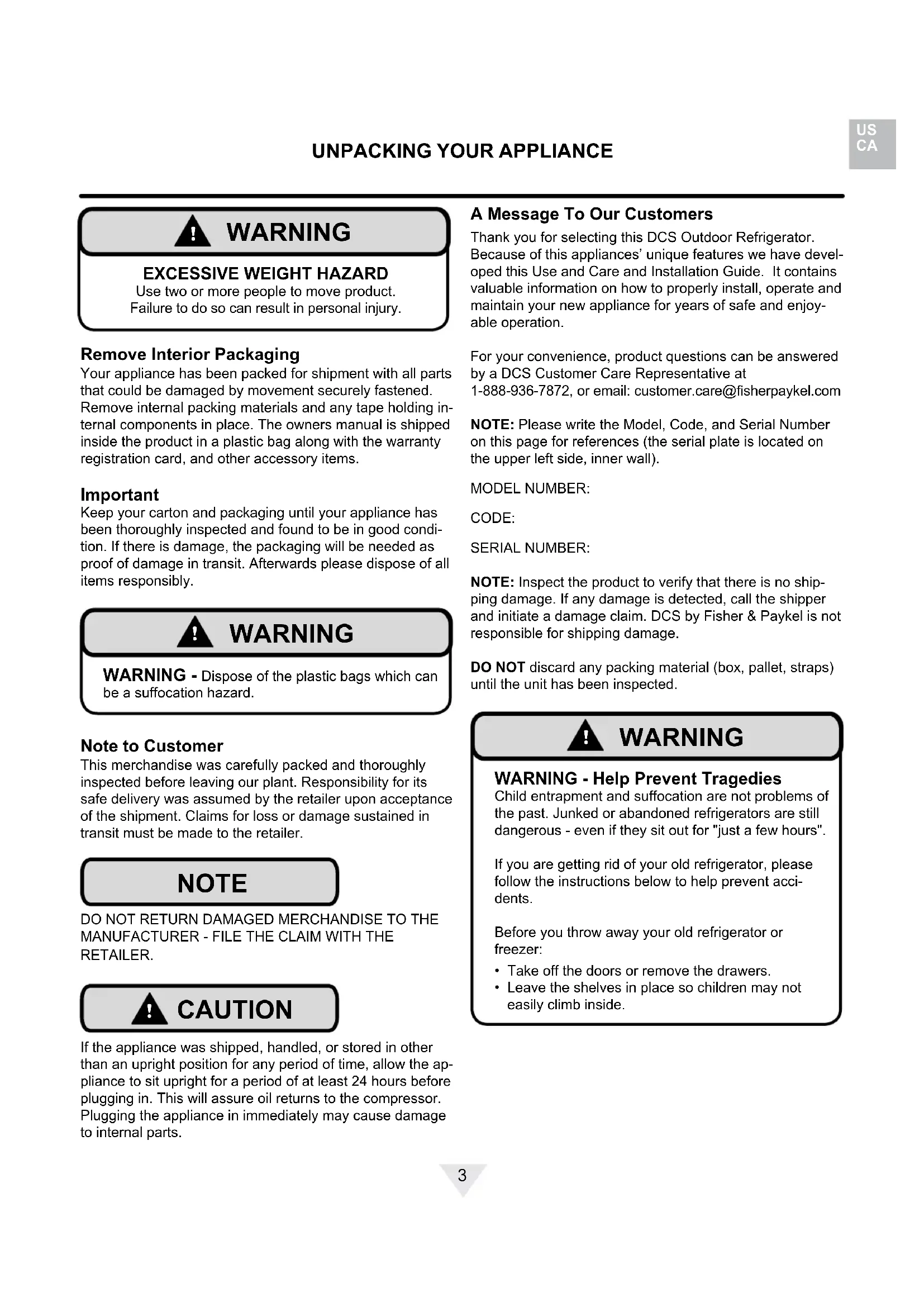

Important Safety Instructions Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situa-tions that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operat-ing this appliance. Recognize Safety Symbols, Words, and Labels.

WARNING WARNING - You can be killed or seriously injured if you do not follow these instructions. CAUTION-Hazards or unsafe practices which could re- sult in personal injury or property / product damage. NOTE-Important information to help assure a problem free installation and operation. CONTENTS State of California Proposition 65 Warnings:WARNING: This product contains one or more chemicals known to the State of California to cause cancer.WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.3 A Message To Our Customers Thank you for selecting this DCS Outdoor Refrigerator. Because of this appliances’ unique features we have devel-oped this Use and Care and Installation Guide. It contains valuable information on how to properly install, operate and maintain your new appliance for years of safe and enjoy-able operation.For your convenience, product questions can be answered by a DCS Customer Care Representative at 1-888-936-7872, or email: [e-mail]: Please write the Model, Code, and Serial Number on this page for references (the serial plate is located on the upper left side, inner wall).MODEL NUMBER: CODE:SERIAL NUMBER:NOTE: Inspect the product to verify that there is no ship-ping damage. If any damage is detected, call the shipper and initiate a damage claim. DCS by Fisher & Paykel is not responsible for shipping damage.DO NOT discard any packing material (box, pallet, straps) until the unit has been inspected.

WARNING WARNING - Help Prevent Tragedies Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous - even if they sit out for "just a few hours".If you are getting rid of your old refrigerator, please follow the instructions below to help prevent acci-dents.Before you throw away your old refrigerator or freezer:• Take off the doors or remove the drawers.• Leave the shelves in place so children may not easily climb inside.

Remove Interior Packaging Your appliance has been packed for shipment with all parts that could be damaged by movement securely fastened. Remove internal packing materials and any tape holding in-ternal components in place. The owners manual is shipped inside the product in a plastic bag along with the warranty registration card, and other accessory items. Important Keep your carton and packaging until your appliance has been thoroughly inspected and found to be in good condi-tion. If there is damage, the packaging will be needed as proof of damage in transit. Afterwards please dispose of all items responsibly.

WARNING WARNING - Dispose of the plastic bags which can be a suffocation hazard. Note to Customer This merchandise was carefully packed and thoroughly inspected before leaving our plant. Responsibility for its safe delivery was assumed by the retailer upon acceptance of the shipment. Claims for loss or damage sustained in transit must be made to the retailer. NOTE DO NOT RETURN DAMAGED MERCHANDISE TO THE MANUFACTURER - FILE THE CLAIM WITH THE RETAILER.

CAUTION If the appliance was shipped, handled, or stored in other than an upright position for any period of time, allow the ap-pliance to sit upright for a period of at least 24 hours before plugging in. This will assure oil returns to the compressor. Plugging the appliance in immediately may cause damage to internal parts.

EXCESSIVE WEIGHT HAZARD

Use two or more people to move product.Failure to do so can result in personal injury.

UNPACKING YOUR APPLIANCE4

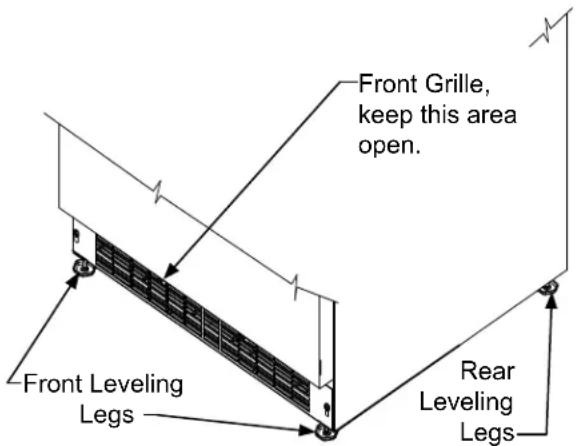

Figure 1Front Leveling LegsFront Grille, keep this area open.Rear Leveling Legs Select Location The proper location will ensure peak performance of your appliance. We recommend a location where the unit will be out of direct sunlight and away from heat sources. To ensure your product performs to specications, the recom-mended installation location temperature range is from 55 to 115°F (13 to 46°C). Cabinet Clearance Ventilation is required from the bottom front of the appli-ance. Keep this area open and clear of any obstructions. Adjacent cabinets and counter top can be installed around the appliance as long as the front grille remains unobstructed. Front Grille Do not obstruct the front grille. The openings within the front grille allow air to ow through the condenser heat ex-changer. Restrictions to this air ow will result in increased energy usage and loss of cooling capacity. For this reason it is important this area not be obstructed and the grille openings kept clean (See Figure 1). The use of a custom made grille is not recommended as it may restrict air ow.

INSTALLING YOUR APPLIANCE

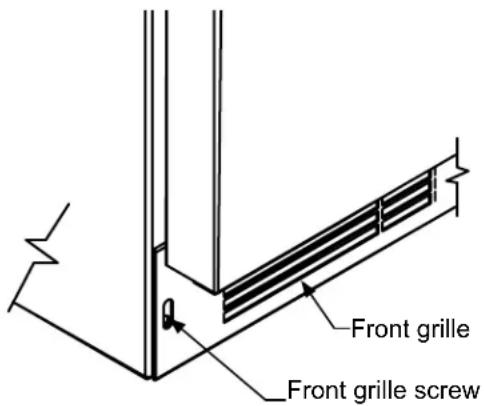

Leveling Legs Adjustable legs at the front and rear corners of the appli-ance should be set so the unit is rmly positioned on the oor and level from side to side and front to back. The overall height of your appliance may be adjusted between the minimum, 33 ⁄4" (85.7 cm), by turning the leveling leg in (CW ↷) and the maximum, 34 ⁄4" (88.3 cm) by turning the leveling leg out (CCW ↶).To adjust the leveling legs, place the appliance on a solid surface and protect the oor beneath the legs to avoid scratching the oor. With the assistance of another person, lean the appliance back to access the front leveling legs. Raise or lower the legs to the required dimension by turning the legs. Repeat this process for the rear by tilting the appli-ance forward using caution. On a level surface check the appliance for levelness and adjust accordingly.The front grille screws may be loosened and the grille ad-justed to the desired height. When adjustment is complete tighten the two front grille screws. (See Figure 2).Figure 2Front grille screwFront grille5 NOTE Figure 5

Ground Fault Circuit Interrupters (GFCI) are prone to nui-sance tripping which will cause the appliance to shut down. GFCI’s are generally not used on circuits with power equip-ment that must run unattended for long periods of time, un-less required to meet local building codes and ordinances. Electrical Connection A grounded 115 volt, 15 amp dedicated circuit is required.This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in accor-dance with the National Electrical Code and applicable lo-cal codes and ordinances (see Figure 5). If the circuit does not have a grounding type receptacle, it is the responsibility and obligation of the customer to provide the proper power supply. The third ground prong should not, under any cir-cumstances, be cut or removed.

INSTALLING YOUR APPLIANCE

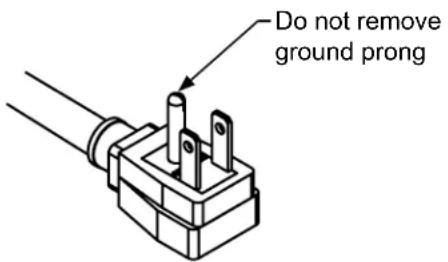

Figure 3Figure 4Do not removeground prong Electrical Shock Hazard

• Do not use an extension cord with this appliance. They can be hazardous and can degrade product performance.• This appliance should not, under any circumstanc-es, be installed to an un-grounded electrical supply.• Do not remove the grounding prong from the power cord. (See Figure 3).• Do not use an adapter. (See Figure 4).• Do not splash or spray water from a hose on the appliance. Doing so may cause an electrical shock, which may result in severe injury or death.

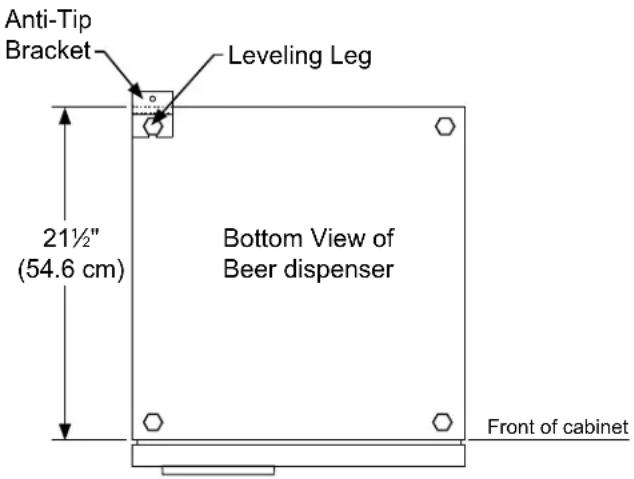

Figure 6Bottom View ofBeer dispenser Anti-TipBracketLeveling LegFront of cabinet

⁄2"(54.6 cm) Step by step instructions for locating the position of the bracket: 1) Decide where you want to place the beer dispenser. Slide it into place, being careful not to damage the oor, leaving 1" (2.5 cm) of clearance from the rear wall to allow room for the anti-tip bracket.

2) Raise the rear leveling legs approximately

⁄4" (6 mm) to allow engagement with the anti-tip bracket. Level the unit by adjusting all the leveling legs as required. Turning the leveling leg counterclockwise will raise the unit and clock-wise will lower the unit.3) Make sure the beer dispenser is in the desired location, then mark on the oor the rear and side corner of the cabi-net where the anti-tip bracket will be installed. If the instal-lation does not allow marking the rear corner of the cabinet, then make temporary lines on the oor marking the front corner of the cabinet, excluding the door. Slide the beer dispenser out of the way. From the temporary line extend the sidewall line back 21 ⁄2" (54.6 cm) as shown in Figure 6. 4) Align the anti-tip bracket to the marks on the oor so the side of the bracket lines up with the side of the cabinet mark, and the "V" notches on the anti-tip bracket line up with the end of the 21 ⁄2" (54.6 cm) line (Rear of cabinet line).5) Fasten the anti-tip bracket to the oor using the supplied screw. (See Figure 7).6) Slide the cabinet back into position, making sure the rear cabinet leveling leg slides under the anti-tip bracket engag-ing the slot. Floor Mount Installation The anti-tip bracket is to be located on the oor in the left or right rear corner of the beer dispenser as shown in Figure 6.

WARNING If your refrigerator is not located under a counter top (free standing), you must use an anti-tip device installed as per these instructions. If the refrigerator is removed from its location for any reason, make sure that the device is properly engaged with the anti-tip bracket when you push the refrigerator back into the original location. If the device is not properly engaged, there is a risk of the refrigerator tipping over, with the potential for property damage or personal injury. If installing on a concrete oor, concrete fasteners are required, (not included with the anti-tip kit).Any nished ooring should be protected with appropriate material to avoid damage when moving the unit.7 NOTE

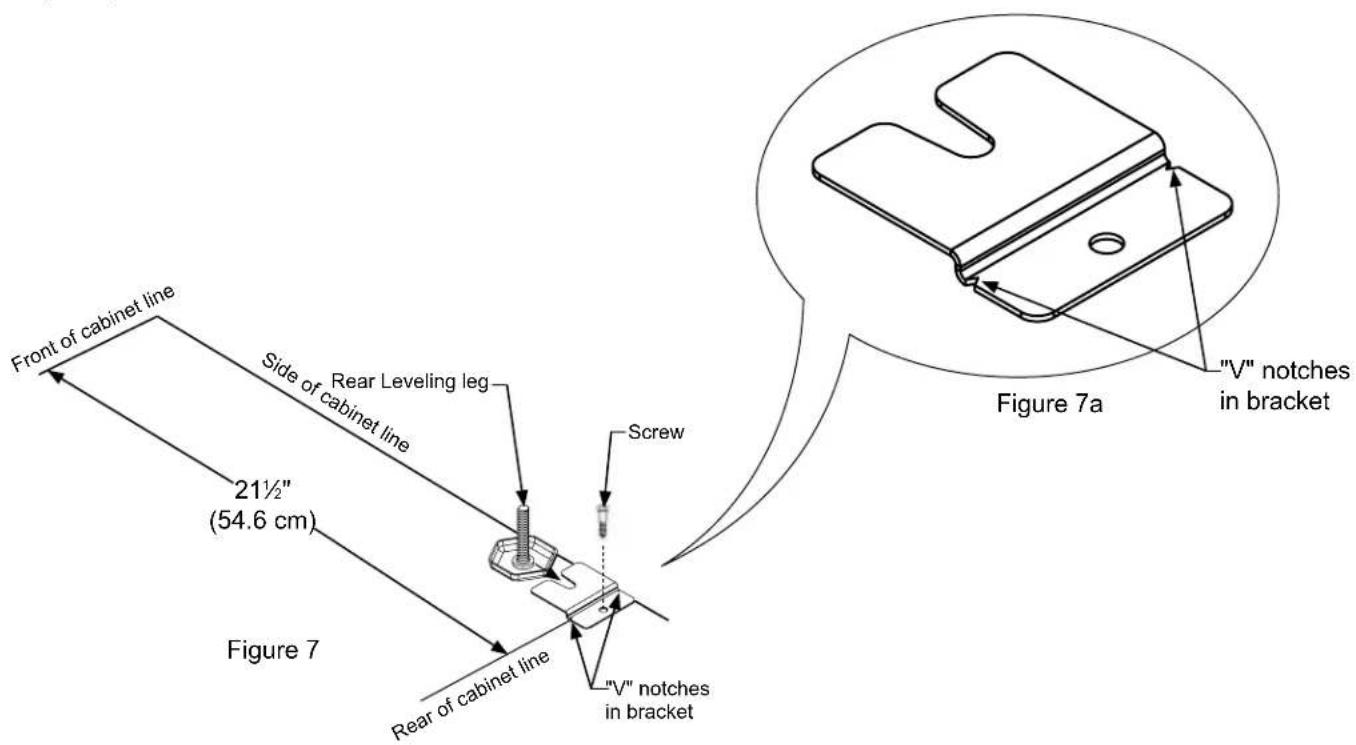

"V" notchesin bracket "V" notches in bracket When the oor mounted anti-tip bracket is used the mini- mum adjusted height of the cabinet is increased by

⁄8" (9 mm). Figure 7 Front of cabinet lineRear of cabinet line Figure 7a

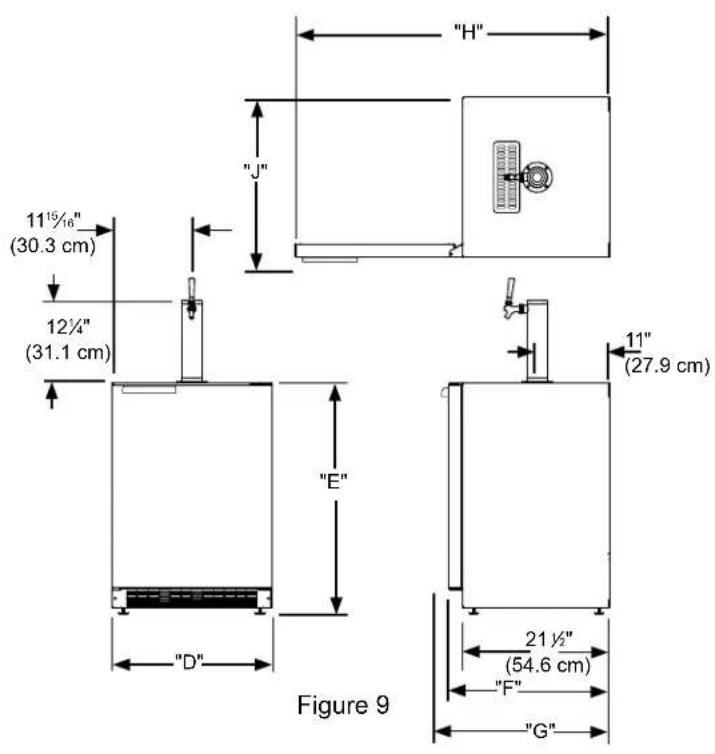

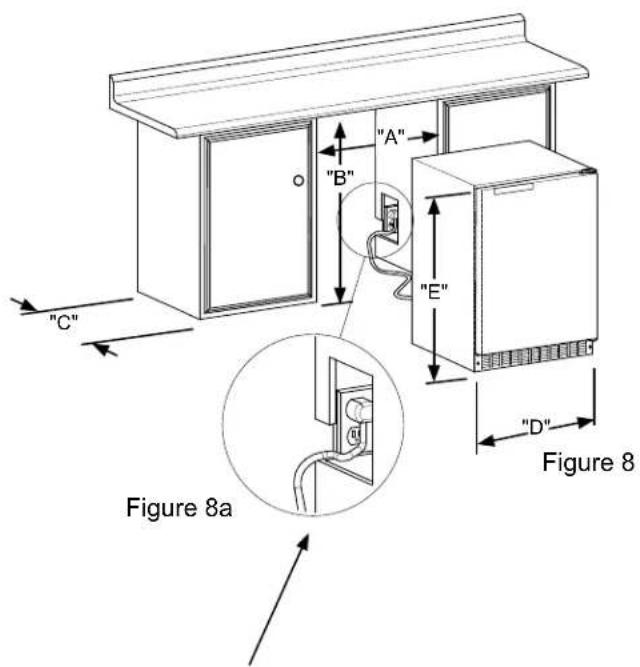

⁄2" (54.6 cm) Rear Leveling legScrewSide of cabinet line8 "A" "B" "C" "D" "D" "E" "E" "H" "G" "F" "J" If necessary to gain clearance inside the rough-in opening a hole can be cut through the adjacent cabi- net and the power cord routed through this hole to a power outlet. Another way to increase the available opening depth is to recess the power outlet into the rear wall to gain the thickness of the power cord plug.

ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS

MODEL "A" "B" "C" "D" "E" "F" "G" "H" "J" All Models

⁄4" (61.6 cm) 24 ½" (62 cm) (with optional DCS side trim kit) **34" to 35" (86.4 to 88.9 cm)

⁄4" (85.7 to 88.3 cm)

• Depth dimension of rough-in opening may vary depend- ing on each individual installation. To recess entire door "F" dimension plus 1" (2.5 cm) for thickness of power cord plug is required. ** Minimum rough-in opening required is to be larger than the adjusted height of the cabinet. *** A grounded 15 amp dedicated circuit is required. Follow all local building codes when installing electrical and appli- ance. PRODUCT DIMENSIONS Figure 8a9

• Temperature Sensor Fault: If the control-ler detects that the temperature sensor is not properly functioning, a temperature sensor alarm will sound in one (1) second intervals. "E1" will ash on the display panel and the Alarm LED located at the top left of the display below the word "Alarm" will be illuminated.

• High and Low Temperature Alarm: If your unit reaches an unacceptable temperature outside of your set-point, the alarm will sound in (1) second intervals. The display panel will ash either "Hi" or "Lo" depending upon the condition and the Alarm LED light at the top left of the display below the word "Alarm" will be illuminat-ed. These alarms indicate that the compartment tempera-ture has moved 10° or more from the set point for more than 1 hour duration. The alarm will remain active until the condition is corrected. NOTE During initial appliance start-up, the high temperature alarm may sound until the interior temperature reaches set point. The high temperature alarm can also occur if the door re-mains open during an extended period of time (i.e. cleaning or door ajar alarm condition), high usage or loading with warm product. After a high temperature alarm condition check all perishables to ensure they are safe for consumption. Alarm Mute Press any key to mute the audible portion of an alarm. NOTE This action will only mute the alarm. If the condition that caused the alarm continues, the alarm code will continue to ash and will sound for 20 seconds every 60 minutes. Starting your beer dispenser Plug the beer dispenser power cord into a wall outlet. Your beer dispenser will begin cooling after power is applied.If your beer dispenser does not start, check that the beer dis-penser is turned on and the set temperature is cold enough. Turning your beer dispenser ON or OFF If the beer dispenser is on, the beer dispenser temperature will be shown on the display. To turn the beer dispenser off, press and hold the "ON/OFF" button for three seconds. "OFF" will appear on the display. If the beer dispenser is not on, "OFF" will be shown on the display. To turn the beer dispenser on, press and hold the "ON/OFF" button for three seconds. The beer dispenser temperature will be shown on the display. Set temperature To set the beer dispenser temperature, press and hold the "SET" button. When the "SET" button is pressed, the display will show the set temperature. While holding the "SET" button, press the "WARMER" or "COLDER" buttons to adjust set temperature. Beer dispenser operation The available temperature range of the beer dispenser is 34 to 46°F (1 to 8°C). It may take up to 24 hours for your beer dispenser to reach desired temperature. This will depend on amount of content loaded and number of door opening and closings. For best results allow beer dispenser to "pull down" to desired set temperature before loading. Once contents are loaded, allow at least 48 hours for temperature to stabilize before making any adjustments to the set temperature. Alarms Your digital display function will monitor beer dispenser function and alert you with a series of audible and visual alarms.

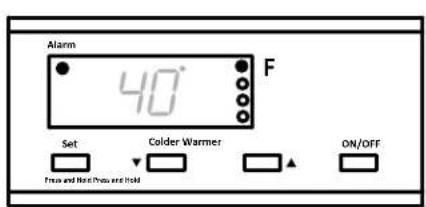

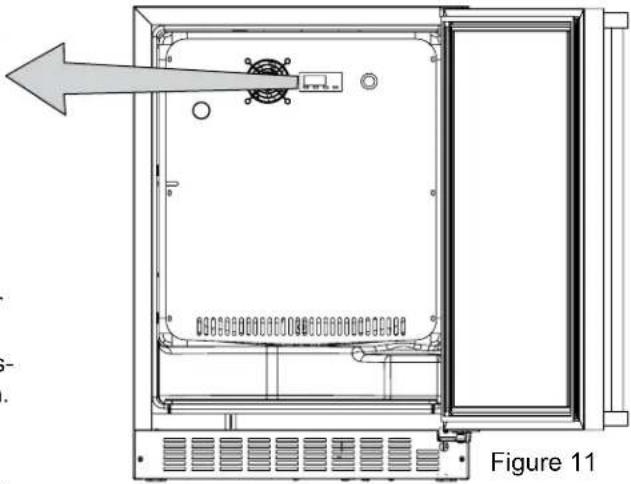

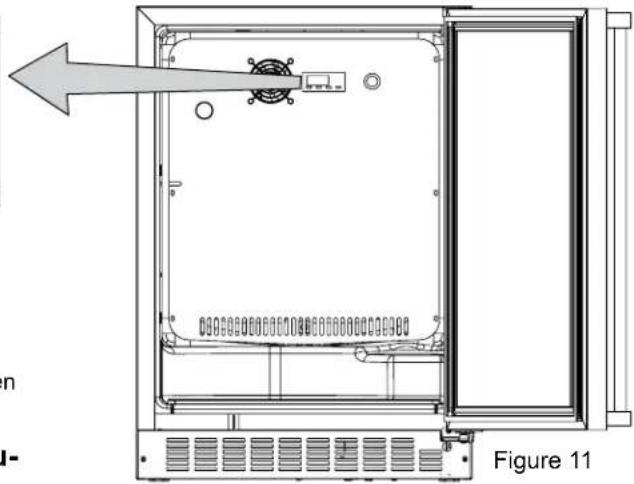

• Door Ajar Alarm: If the door has been left open for over ve minutes, the alarm will sound in one second intervals. The display panel will ash "do" and the Alarm LED located at the top left of the display below the word "Alarm" will be illuminat-ed. This will stop as soon as the door is closed. Set Colder WarmerON/OFFPress and Hold Press and HoldAlarm Figure 11Figure 10close-up of control10

USING YOUR BEER DISPENSER

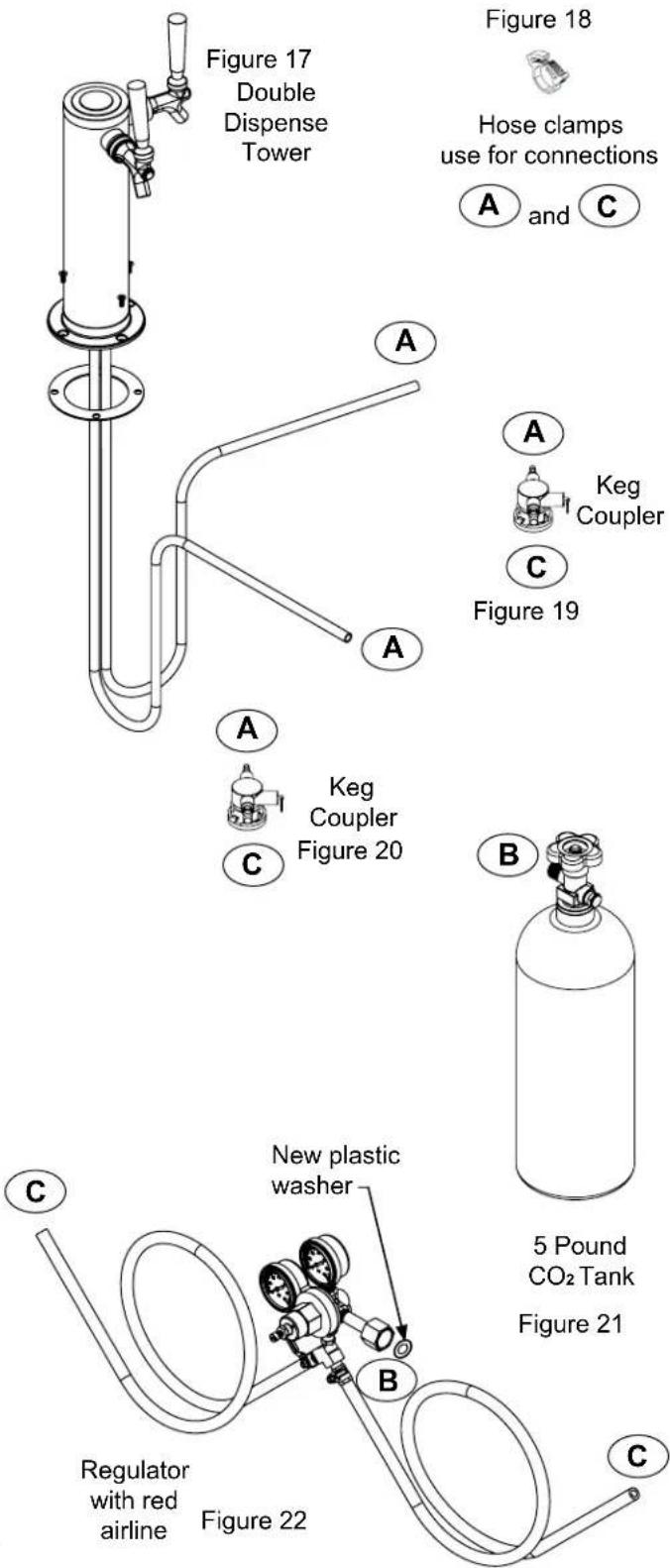

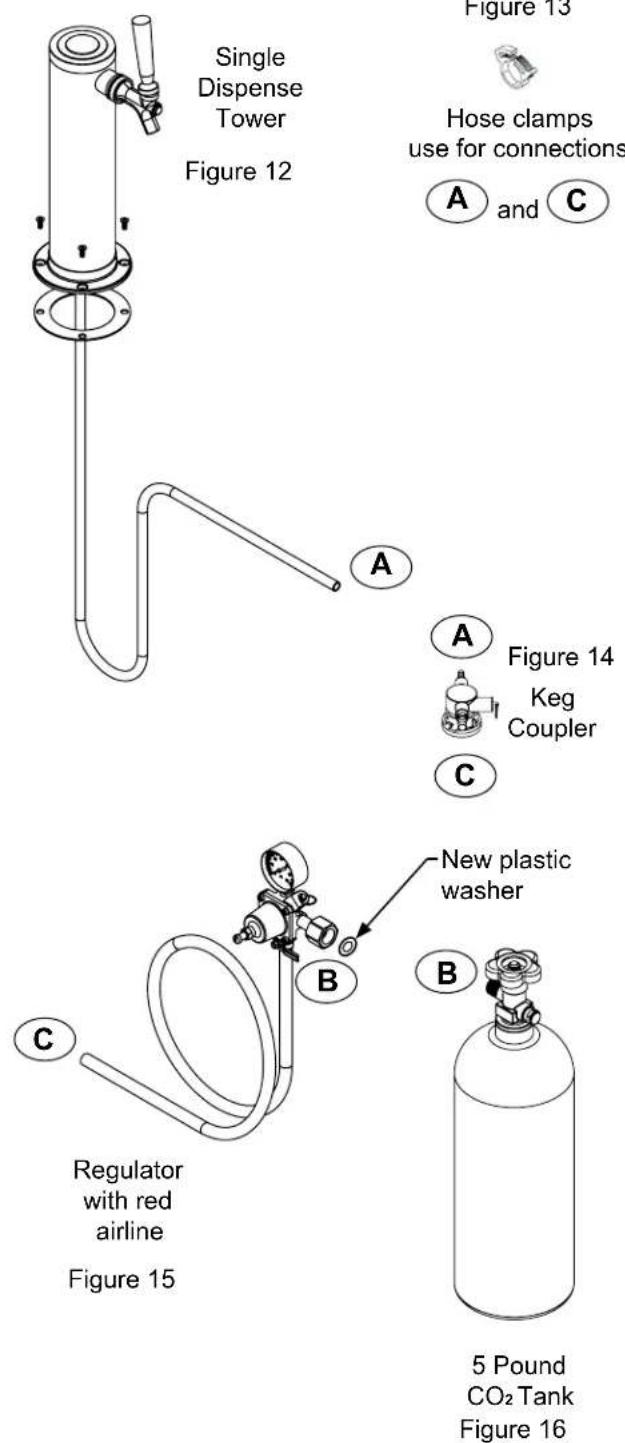

Tap Equipment and Assembly Your dispensing kit includes the following parts: Polished stainless steel tower with clear beer line (single or double dispense) Tower Gasket Phillips oval head screws Knob for Tower (Faucet Handle) Keg coupler(s) CO2 regulator with red gas line(s) attached Empty 5 pound CO2 tank Plastic clamp(s) large and small Faucet wrench Tools required for installation: Flat bladed screwdriver Phillips screwdriver Pliers Adjustable wrench or a 1 ⁄8" open end wrench

⁄4"(23.5 cm)17"(43.2 cm)17" to 17 ⁄4"(43.2 to 43 cm)Gallons 5.16 7.75 15.5#12 ounce Glasses60 82 163This beer dispensing unit will support ⁄2 barrel or ⁄4 bar-rel. The double draft tower units can support two sixth ( ⁄6) barrels of beer. See chart below for quantity of beer in each barrel size.Table ATable BKeg Size#of kegs per 5 pound CO2 Tank5 gallon Corny 15 to 221/6 barrel 14 to 211/4 Barrel 10 to 141/2 Barrel 5 to 7CO2 can be dangerous. If it becomes difcult to breathe and/or your head starts to ache, a high concentration of carbon dioxide may be present. Leave the area immediately.• The CO2 tank must always be connected to the regulator. Never connect the tank to the keg.• The CO2 tank must be securely mounted in the upright position. Secure it with the chain pro-vided.• Never drop or throw the CO2 tank.• Keep the CO2 tank away from heat.• Ventilate the area after a CO2 leak.

WARNING 1. Remove shelving and packaged components from the interior of the refrigerator before beginning the assem-bly process. 2. Take your empty 5 pound CO2 tank to your local gas supply dealer to be lled. You can usually nd them in your "yellow pages" under "Welding Supply" or "Fire Protection". One 5 pound tank can process many kegs (see table "B") Your dealer should supply you with a new plastic washer every time the tank is lled. This washer is used at the regulator to tank connection. See Figure 15 and 22 on page 11. Replace the old washer with the new one whenever the tank is relled.3. Tower mounting (if you are installing the unit under a counter skip to step 4). If you are mounting the tower directly to the top of the refrigerator, rst remove the four screws from the top of the refrigerator. Remove the foam plug from the large hole in the top of the refrigera-tor. Feed the clear beer line through the tower gasket and the large hole in the refrigerator top. Align the 4 holes in the tower with the 4 holes in the refrigerator top and secure the tower with the 4 screws removed previously. Skip to step 5.

Regulator with red airline Regulator with red airline Keg Coupler Keg Coupler Keg Coupler Single Dispense Tower Double Dispense Tower

Hose clamps use for connections and

Hose clamps use for connections and A A Single Dispense Tower Kit Connect to ,etc........ A A Double Dispense Tower Kit Connect to ,etc........ Figure 12 Figure 13 Figure 14 Figure 19 Figure 20 Figure 22 Figure 18 Figure 16 Figure 17 New plastic washer New plastic washer

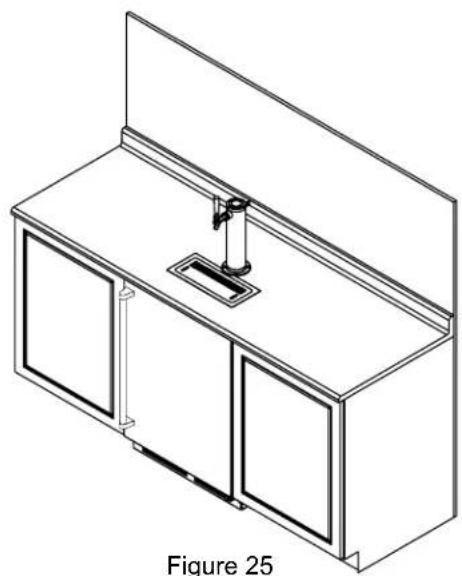

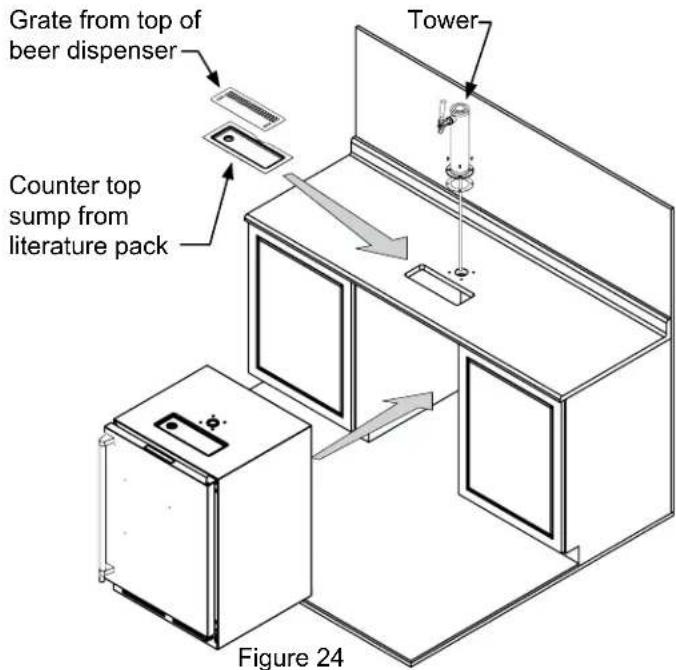

4. If you are installing your keg refrigerator under a

counter you will need to drill 5 holes in the counter top to mount the tower. The rst hole is a 1

⁄2" diameter hole located at the center of the tower for the beer line, locate approximately 13

⁄2" (34.3 cm) from the front edge of the counter top (based on a counter top depth of 25

⁄16"). Next drill the 4 tower mounting holes per the dimensions in Figure 23. The hole diameter is dependent on the counter top material and if screw anchors are required. The screws supplied are in the literature pack and are a #10 x 1" type AB stainless steel screw. Mark and cut the rectangular cutout for the drain sump. After the holes are drilled and the keg refrigerator is in place under the counter top feed the beer line through the tower gasket, the 1

⁄2" hole in the counter top and the hole in the top of the keg refrigerator. Mount the tower to the counter top with the 4 screws provided. Place the counter top drain sump, from the literature pack, in the rectangular hole with the radius cutout to the rear around the tower and place the grate in the sump.

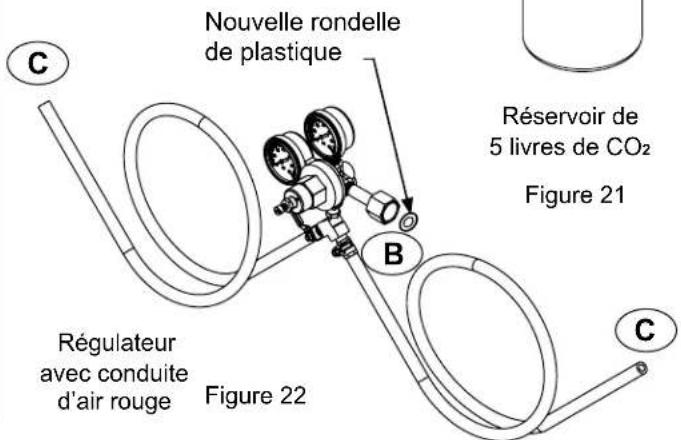

5. Mount the regulator to the CO

use the new plastic washer you received from the gas supply company. Note that the regulator has left hand threads and has to be turned counterclockwise to tighten. Tighten with the adjustable wrench or the 1

⁄8" open end wrench.

6. Connect the red air line(s) from the regulator to the

large air line tting on the keg coupler with a large hose clamp (connection

7. Connect the clear beer line from the tower to the small

air line tting on the keg coupler with a small hose clamp (connection

CAUTION The cutout dimensions shown in Figure 23 are based on a 25

⁄16" (64.3 cm) deep counter top. Your counter top may be different than this and require other front to back dimen- sioning. Refer to the product dimensions on page 8 when determining the required dimensions. Grate from top of beer dispenser Counter top sump from literature pack Rear of counter top

⁄8" (16.2 cm) ⁄4" (6 mm)radii,typical

⁄16" (64.3 cm)Diameter to suit

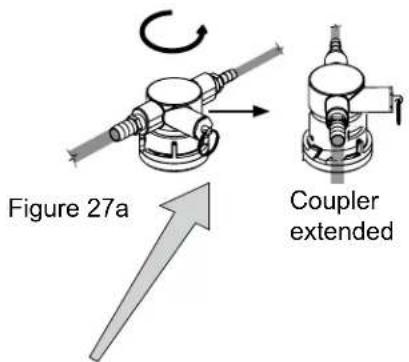

Figure 27 Figure 27a Rotate the top of the coupler coun- ter clockwise to extend the coupler to the to the "OFF"position. Coupler extended

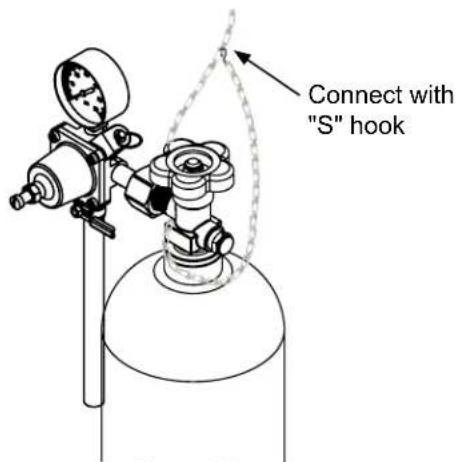

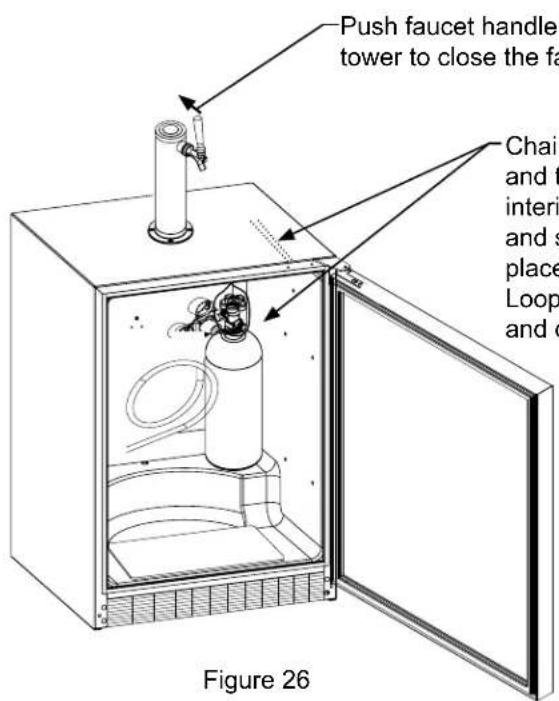

2 tank in the corner of the refrigerator as shown in Figure 26 and secure with the chain. Close the faucet handle on the tower.

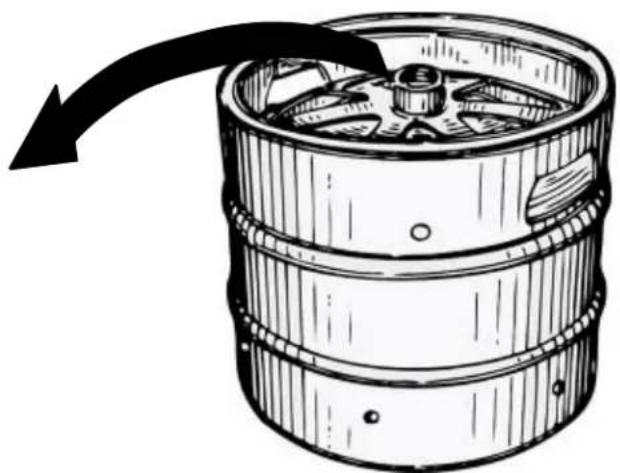

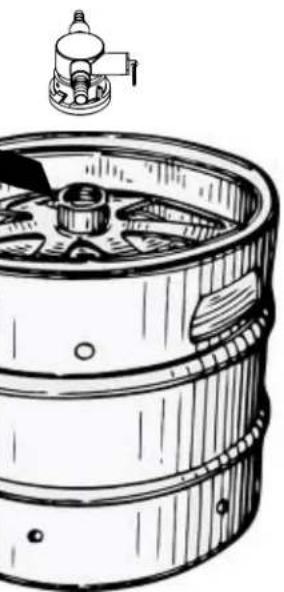

9. Hooking up the keg coupler to the keg: Verify the cou-

pler is in the "OFF" position (see Figure 27a).Align the lugs on the keg with the corresponding openings on the keg coupler and turn clockwise until the coupler stops (about 90°). Push down and twist the top of the coupler clockwise to allow gas to enter the keg. Figure 26 Chain-The chain is fastened and taped to the top of the interior liner. Remove the tape and secure the CO 2 tank in place in the back right corner. Loop chain around top of tank and connect with "S" hook. Push faucet handle back toward tower to close the faucet Figure 26a Connect with "S" hook

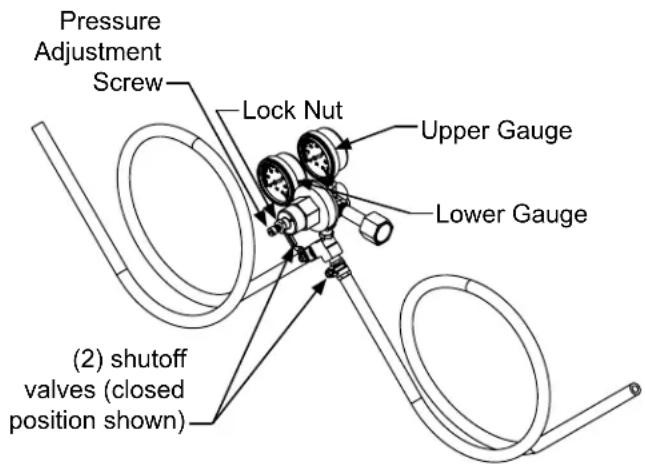

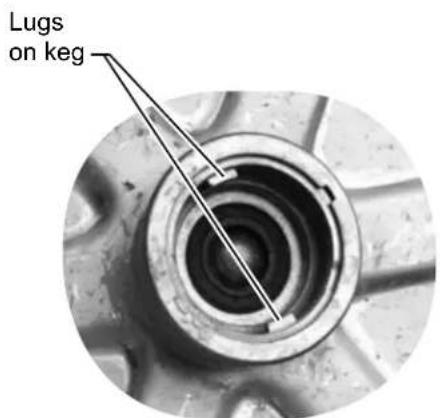

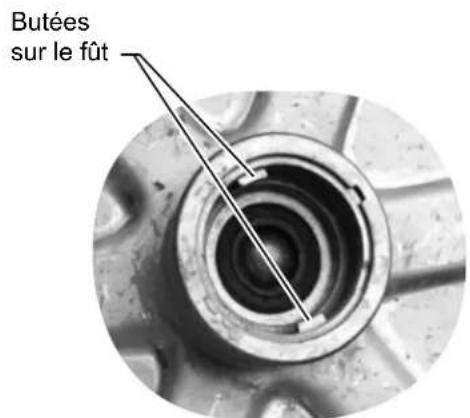

Lugs on keg Figure 27b14 CO2 Regulator (Double Dispense Tower) Your beer dispenser comes equipped with a 5 pound CO2 tank and a dual gauge regulator. The lower gauge should be reading approximately 750 psi (52 bar) when the tank is properly lled and the tank is not in the refrigerator (at room temperature). The tank will read less when chilled. Use this lower gauge as an indicator of how much CO2 you have left in the tank. The upper gauge reads the pressure being supplied to the beer keg. Follow the procedure below to adjust the pres- sure to 12 - 14 psi (0.8 to 1 bar) for lager beer or 9 - 12 psi (0.6 to 0.8 bar) for ale's. To adjust the pressure (Upper Gauge):

1. Close the shutoff valves at the bottom of the regulator.

2. Be sure the faucet handle is closed on the tower (see

3. Loosen the lock nut by turning ↶ counterclockwise us-

⁄2" open end wrench until loose, this will allow adjustment of the pressure adjustment screw.

4. With the at bladed screwdriver turn the adjustment

screw ↷ clockwise to increase the pressure or ↶ coun- terclockwise to decrease the pressure.

5. Open the shutoff valve on the bottom of the regula-

tor. The gauge reading may drop but will return very quickly.

6. Pull the ring on the keg coupler to allow the gas to ow

8. Tighten the locknut with the

⁄2" open end wrench by turning clockwise ↷. CO2 Regulator (Single Dispense Tower) Your beer dispenser comes equipped with a 5 pound CO2 tank and a single gauge regulator. The gauge reads the pressure being supplied to the beer keg. Follow the pro- cedure below to adjust the pressure to 12 - 14 psi (0.8 to 1 bar) for lager beer or 9 - 12 psi (0.6 to 0.8 bar) for ale's. To adjust the pressure (Single Gauge):

1. Close the shutoff valve at the bottom of the regulator.

2. Be sure the faucet handle is closed on the tower (see

3. Loosen the lock nut by turning ↶ counterclockwise us-

⁄2" open end wrench until loose, this will allow adjustment of the pressure adjustment screw.

4. With the at bladed screwdriver turn the adjustment

screw ↷ clockwise to increase the pressure or ↶ coun- terclockwise to decrease the pressure.

5. Open the shutoff valve on the bottom of the regula-

tor. The gauge reading may drop but will return very quickly.

6. Pull the ring on the keg coupler to allow the gas to ow

8. Tighten the locknut with the

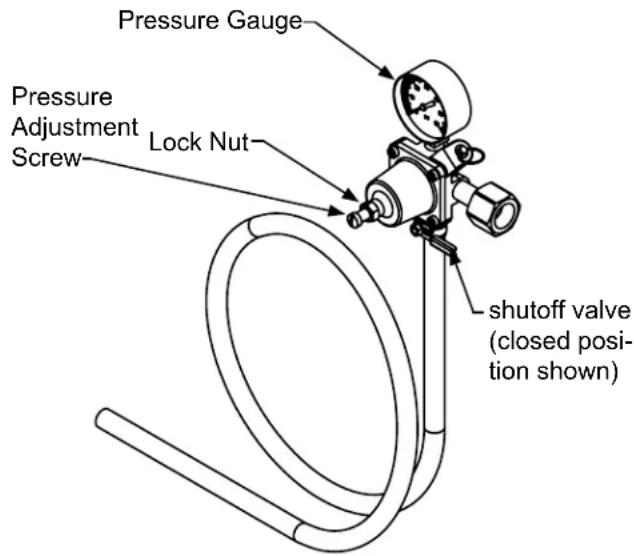

⁄2" open end wrench by turning clockwise ↷. Ring on keg coupler Figure 29 (Regulator for Single Dispense Tower) Figure 30 (Regulator for Double Dispense Tower) Figure 28 (2) shutoff valves (closed position shown) Upper Gauge Pressure Gauge Lower Gauge Pressure Adjustment Screw Lock Nut

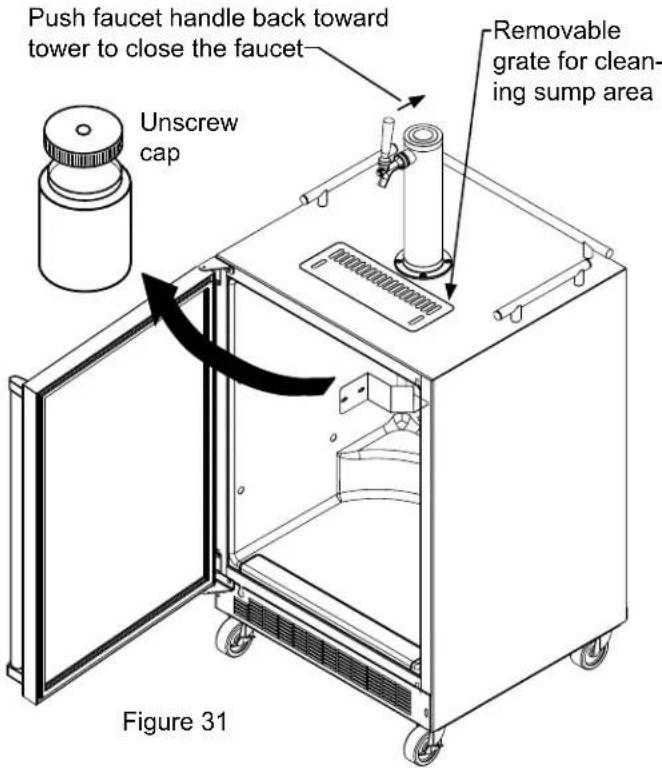

Pressure Adjustment Screw Lock Nut shutoff valve (closed posi- tion shown)15 Figure 31 Drain kit (All Models): The drain kit is shipped in place and ready to use. To empty: Pull drain hose out of bottle cap, remove bottle from unit, unscrew cap and dis- card waste and rinse bottle. Reinstall bottle in unit. Unscrew cap Removable grate for clean- ing sump area Cleaning the drain sump: On a free standing beer dispenser remove the grate from in front of the tower, clean with soap and water and dry before reinstalling. Clean the sump area with soapy water and dry. (See gure 31). On a built in beer dispenser remove the grate and coun- ter top sump, clean with soap and water and dry before reinstalling. Clean the sump area with soapy water and dry. (See Figure 32). Counter top sump Clean and dry sump area Figure 32 Push faucet handle back toward tower to close the faucet USING YOUR BEER DISPENSER AND CARE AND CLEANING

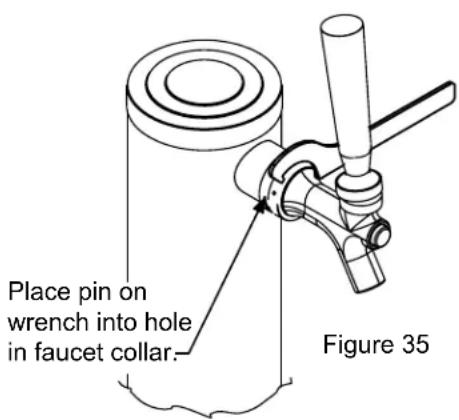

CA16 Faucet Cleaning Turn off the gas supply with the shutoff valve(s) under the regulator (see Figure 29 or 30) and open the faucet to re-lieve the pressure. To remove the faucet from the tower use the spanner wrench provided. Place the pin on the wrench into the hole on the faucet collar and turn clockwise ↷ to remove the faucet. (See Figure 35). Remove the knurled cap from the faucet body just below the handle and pull the handle assembly from the faucet. This will allow the shaft to be removed from the back of the faucet, see Figure 36.Soak all faucet parts in hot water or a solution of hot water and a sanitizing solution. Do not use soap. Rinse thorough-ly with clean water.Reassemble faucet, assemble faucet to tower (be sure faucet is in off position), and turn on gas valve.Figure 35Figure 36After removing the handle the shaft will slide out the back of the faucetUnscrew knurled cap on faucet body and remove handle assemblyPlace pin on wrench into hole in faucet collar.

Cleaning Remove the keg coupler from the keg if necessary. Close the gas valve(s) below the regulator, remove both the red gas line(s) and clear beer line(s) from the keg coupler(s) by remov-ing the plastic hose clamps (See Figure 33). Soak and brush the keg coupler in hot water or a sanitizing solution. Rinse thoroughly with clean water. Dry all parts and reassemble. Cleaning and Maintaining Dispensing System The dispensing system needs to be cleaned between usage to prevent spoilage and/or foul taste in your beer.Figure 34Figure 33Hose clamps can be released by a lateral movement to the head.

CAUTION SHOCK HAZARD: Disconnect electrical power from the appliance before cleaning with soap and water.

Cabinet The stainless steel cabinet can be washed with either a mild soap and water and thoroughly rinsed with clear water. NEVER use abrasive scouring cleaners. Dry thoroughly with a terry towel. Interior Wash interior compartment with mild soap and water. Do NOT use an abrasive cleaner, solvent, polish cleaner or undiluted detergent. Care of Appliance 1. Avoid leaning on the door, you may bend the door hinges or tip the appliance.2. Exercise caution when sweeping, vacuuming or mop-ping near the front of the appliance. Damage to the grille can occur.3. Periodically clean the interior of the appliance as needed. In the Event of a Power Failure If a power failure occurs, try to correct it as soon as pos-sible. Minimize the number of door openings while the power is off so as not to adversely affect the appliance's temperature. Front Grille Be sure that nothing obstructs the required air ow openings in front of the cabinet. At least once or twice a year, brush or vacuum lint and dirt from the front grille area (see page 4).17

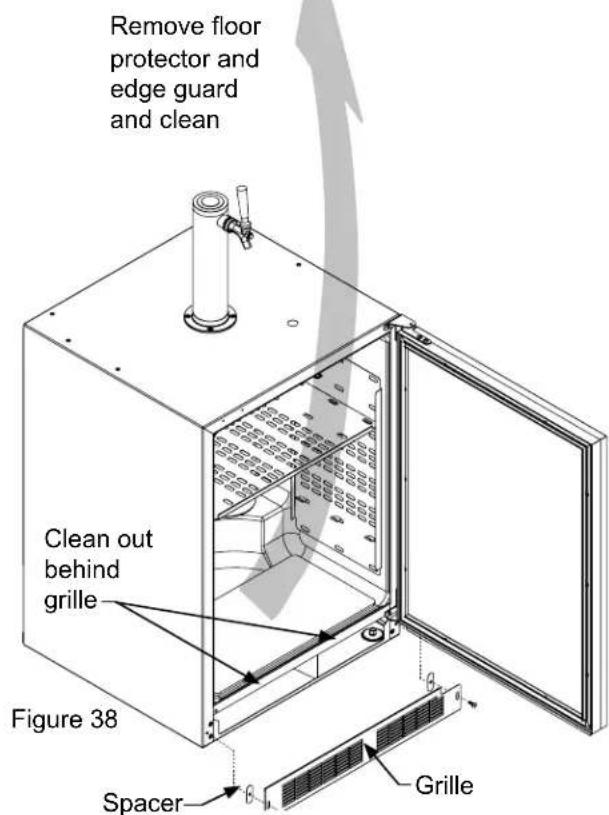

Long term storage / winterization: 1. Time to Winterize, when the daily low ambient tempera-ture is at or below 38°F (3.3°C).2. Turn unit off, (see page 9).3. Remove all contents.4. If necessary, move the unit so you can gain access to the rear of the product.5. Unplug the unit from the power outlet.6. It is also recommended that the power to the outlet be turned-off if the circuit is not required for other items during the Winter season.7. Shut-off CO tank valve.8. Drain beer line(s)9. Disassemble faucet and clean, (see page 16).10. Soak and clean Sankey Low-Boy tap, (see page 16).11. When cleaning unit pay particular attention to any cracks and crevices that may have accumulated dirt and debris.12. Remove the front toe-grille, (see Figures 37 and 38), and use a brush and vacuum to clean dirt and debris from beneath the unit.13. Thoroughly clean the toe-grille and re-install on the unit.14. Remove the rear access cover, (see Figure 39), and use a brush and vacuum to clean dirt and debris from the machine compartment.15. Thoroughly clean the rear access cover and re-install on the unit.16. Wipe down all interior surfaces with anti-bacterial cleaner to be followed with clean rinse water to remove any residual chemicals which could cause staining. Do not use any abrasive cleaners or scouring pads.

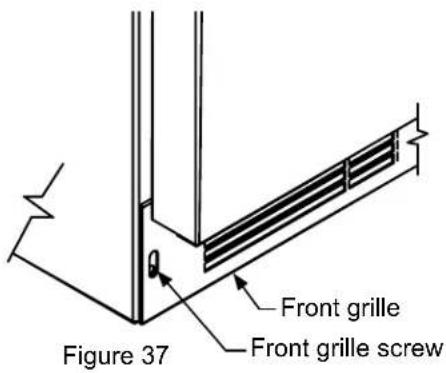

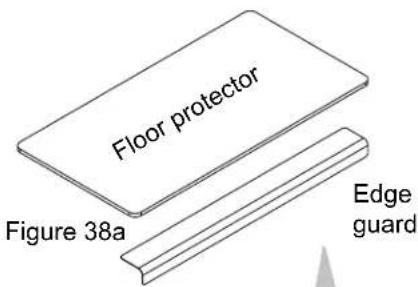

CAUTION Operating of the unit at ambient temperatures below the recommended Winterization temperature will void your war-ranty.a. Remove keg coupler (sankey tap), (see page 16).b. Remove faucet on tower, (see page 16).c. Beer lines will gravity drain.d. Clean beer line tubing.• If the plastic defrost drain pan located under the compressor contains water, use a sponge to remove as much water as possible• Remove plastic oor protector and stainless steel lower edge guard to clean underneath.Front grille screwFront grilleFigure 37Remove oorprotector andedge guardand cleanFloor protector Edge guardFigure 38Figure 38aGrilleSpacerClean out behind grille18

Start-Up After Long-Term Storage:

1. Connect the unit to electrical power.

2. If stored outside, it is recommended that the unit again

be thoroughly inspected per the storage instructions above to address any dirt or debris from the weather and/or animals/insects.

3. Turn unit on and conrm your desired control settings.

4. Allow 24-hrs for the unit to stabilize before loading

17. Leave door open and allow to completely dry out be-

18. Thoroughly clean the door gasket with anti-bacterial

cleaner to be followed with clean rinse water to remove any residual chemicals.

19. Thoroughly clean the exterior with a cleaner approved

for stainless steel . Do not use any abrasive cleaners or scouring pads.

20. Any mounting hardware / fasteners that are showing

signs of corrosion should be replaced.

21. Once the exterior has been thoroughly cleaned, you

may want to apply a coating of car wax to help protect against spotting from moisture, dirt, and debris that may accumulate on the surfaces during the Winteriza- tion period. After completion of the above, you may choose to store the unit indoors, although this is not required. Remove 11 screws from around the perimeter of the access cover with a

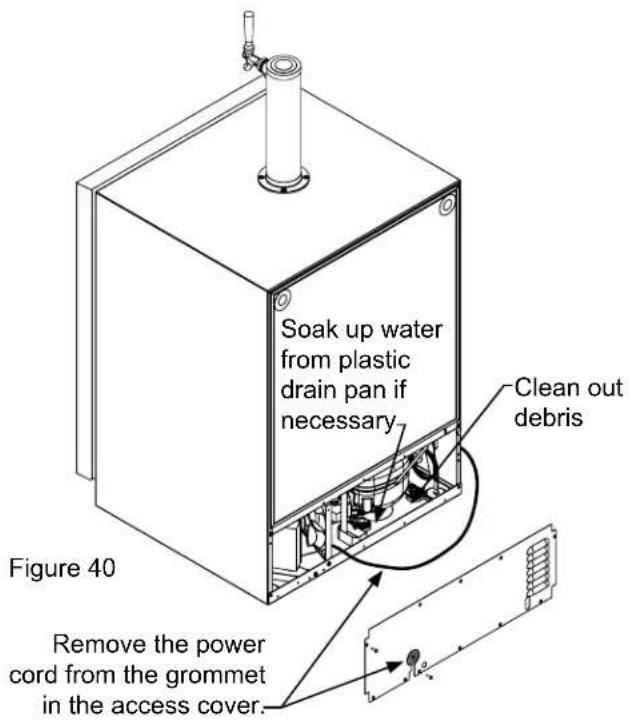

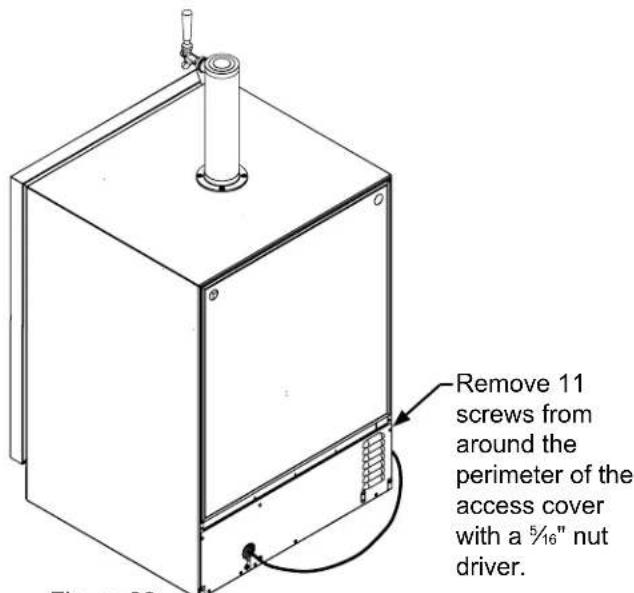

⁄16" nut driver. Figure 39 Figure 40 Remove the power cord from the grommet in the access cover. Soak up water from plastic drain pan if necessary Clean out debris19

Background Stainless steel does not stain, corrode, or rust as easily as ordinary steel, but it is not stain or corrosion proof. Stain- less steels can discolor or corrode if not maintained prop- erly. Stainless steels differ from ordinary carbon steels by the amount of chromium present. It is this chromium that provides an invisible protective lm on the surface called chrome-oxide. This protective chrome-oxide lm on the surface can be damaged or contaminated, which may result in discoloration, staining, or corrosion of the base metal. Care & Cleaning Routine cleaning of the stainless steel surfaces will serve to greatly extend the life of your product by removing contami- nants. This is especially important in coastal areas which can expose the stainless to severe contaminants such as halide salts, (sodium chloride). It is strongly recommended to periodically inspect and thor- oughly clean crevices, weld points, under gaskets, rivets, bolt heads, and any locations where small amounts of liquid could collect, become stagnant, and concentrate contami- nates. Additionally, any mounting hardware that is showing signs of corrosion should be replaced. Frequency of cleaning will depend upon the installation location, environmental, and usage conditions. Choosing a Cleaning Product The choice of a proper cleaning product is ultimately that of the consumer, and there are many products from which to choose. Depending upon the type of cleaning and the degree of contamination, some products are better than others. Typically the most effective and efcient means for routine cleaning of most stainless steel products is to give the sur- faces a brisk rubbing with a soft cloth soaked in warm water and a gentle detergent, or mild mixture of ammonia. Rub- bing should, to the extent possible, follow the polish lines of the steel, and always insure thorough rinsing after cleaning. Although some products are called "stainless steel clean- ers," some may contain abrasives which could scratch the surface, (compromising the protective chrome-oxide lm), and some many contain chlorine bleach which will dull, tarnish or discolor the surface if not completely removed. After the stainless surfaces have been thoroughly cleaned, a good quality car wax may be applied to help maintain the nish. Note: Stainless steel products should never be installed, or stored in close proximity to chlorine chemicals. Whichever cleaning product you chose, it should be used in strict accordance with the instructions of the cleaner manufacturer.20

The following suggestions will minimize the cost of operating your refrigeration appliance.

1. Do not install your appliance next to a hot appliance

(cooker, dishwasher, etc.), heating air duct, or other heat sources.

2. Install product out of direct sunlight.

3. Ensure the front grille vents at front of appliance be-

neath door are not obstructed and kept clean to allow ventilation for the refrigeration system to expel heat.

4. Plug your appliance into a dedicated power circuit. (Not

shared with other appliances).

5. When initially loading your new product, or whenever

large quantities of warm contents are placed within refrigerated storage compartment, minimize door openings for the next 12 hours to allow contents to pull down to compartment set temperature.

6. Maintaining a relatively full storage compartment will

require less appliance run time than an empty compart- ment.

7. Ensure door closing is not obstructed by contents

stored in your appliance.

8. Allow hot items to reach room temperature before plac-

9. Minimize door openings and duration of door openings.

10. Use the warmest temperature control set temperature

that meets your personal preference and provides the proper storage for your stored contents.

11. When on vacation or away from home for extended pe-

riods, set the appliance to warmest acceptable tem- perature for the stored contents.

12. Set the control to the “off” position if cleaning the

appliance requires the door to be open for an extended period of time.21

• Never attempt to repair or perform maintenance on the appliance until the main electrical power has been disconnected. Turning the appliance control "OFF" does not remove electrical power from the unit's wiring.• Replace all parts and panels before operating.

WARNING Electrocution Hazard Before You Call for Service If the appliance appears to be malfunctioning, read through this manual rst. If the problem persists, check the trouble-shooting guide below. Locate the problem in the guide and refer to the cause and its remedy before calling for service. The problem may be something very simple that can be solved without a service call. However, it may be required to contact your dealer or a qualied service technician.

TROUBLESHOOTING AND OBTAINING SERVICE

Problem Possible Cause RemedyAppliance not cold enough(See “Adjusting the temperature" on page 9)• Control set too warm• Content temperature not stabi-lized.• Excessive usage or prolonged door openings.• Airow to front grille blocked.

• Door gasket not sealing properly.• Adjust temperature colder. Al-low 24 hours for temperature to stabilize.• Allow temperature to stabilize for at least 24 hours.• Airow must not be obstructed to front grille. See “clearances” on page 4.• Replace door gasket.Appliance too cold(See “Adjusting the Temperature” on page 9)• Control set too cold• Door gasket not sealing properly.• Adjust temperature warmer. Allow 24 hours for temperature to stabilize.• Replace door gasket.Noise or Vibration • Appliance not level• Fan hitting tube obstruction.• Level appliance, see “Leveling Legs” on page 4.• Contact a qualied service techni-cian.Appliance will not run. • Appliance turned off• Power cord not plugged in.• No power at outlet.• Turn appliance on. See “Starting your appliance” on page 9.• Plug in power cord.• Check house circuit. How to Obtain Service: For warranty service, please contact your local service provider or DCS Customer Care at [phone]. Before you call, please have the following information ready:

• Model Number (the serial plate is located on the upper left side, inner wall).• Serial Number (the serial plate is located on the upper left side, inner wall).• Code (the serial plate is located on the upper left side, inner wall).• Date of installation• A brief description of the problemYour satisfaction is of the utmost importance to us. If a problem cannot be resolved to your satisfaction, please write or email us at:Write:Fisher & Paykel and DCSAppliances Inc695 Town Centre Drive, Suite #180 Costa MesaCA 92626-1902 USA Email: [e-mail]22

WARRANTY Limited Warranty When you purchase any new DCS Refrigeration Product, you automatically receive a Two Year Limited Warranty covering parts and labor for servicing within the 48 mainland United States, Hawaii, Washington, D.C. and Canada. In Alaska the Limited Warranty is the same except that you must pay to ship the Product to the service shop or for the service technician’s travel to your home. Products for use in Canada must be purchased through the authorized Canadian distribution channel to ensure regulatory compliance. You receive an additional Three Year Limited Warranty (for a total of Five Years) covering parts for the sealed refrigeration system (compressor, evaporator, condenser, lter dryer, and connecting tubing) within the 48 mainland United States, Hawaii, Washington, D.C. and Canada. In Alaska the Limited Warranty for the sealed refrigeration system is the same except that you must pay to ship the Product to the service shop or the service technician’s travel to your home. If the product is installed in a motor vehicle, boat or similar mobile facility, you receive the same two year warranty, but you must bring the vehicle, boat or mobile facility containing the product to the service shop at your expense, or pay the service technicians to travel to the location of the product. Fisher & Paykel Undertakes to: Repair without cost, with limited expectations described herein, to the owner either for material or labor any part of the Product, the serial number of which appears on the Product, which is found to be defective. In Alaska, you must pay to ship the Product to the service shop or for the service technician’s travel to your home. If we are unable to repair a defective part of the Product af- ter a reasonable number of attempts, at our option we may replace the part or the Product, or we may provide you a full refund of the purchase price of the Product (not includ- ing installation or other charges). This warranty extends to the original purchaser and any succeeding owner of the Product during the term of war- ranty, for products purchased for ordinary single-family home use. All service under this Limited Warranty shall be provided by Fisher & Paykel Appliances Inc. or its Authorized DCS Service Agent during normal business hours. There is no warranty for commercial purchase or use. Limited Warranty How Long Does this Limited Warranty Last? Our liability under this Limited Warranty expires Two Years from the date of purchase of the Product by the rst consumer. Our liability for repair of defects in any sealed refrigeration system (compressor, evaporator, condenser, lter dryer, and connecting tubing) extends an additional Three Years, for a total of Five Years from the date of purchase of the Product by the rst consumer. Our liability under any implied warranties, including the implied warranty of merchantability (an unwritten warranty that the Product is t for ordinary use) also expires Two Years (or such longer period as required by applicable law) from the date of purchase of the Product by the rst con- sumer. Some states do not allow limitations on how long an implied warranty lasts, so this limit on implied warranties may not apply to you. Fisher & Paykel will honor any warranty required by the law of the particular country or state in which the product is sold. This Warranty Does Not Cover Service calls that are not related to any defect in the Product. The cost of a service call will be charged if the problem is not found to be a defect of the Product. For example:

1. Correct faulty installation of the Product.

2. Instruct you how to use the Product.

3. Replace house fuses, reset circuit breakers, correct

house wiring or plumbing, or replace light bulbs.

4. Correct fault(s) caused by the user.

5. Change the set-up of the Product.

6. Unauthorized modications of the Product.

7. Noise and vibration that is considered normal e.g.

drain sounds, regeneration noises and user warning beeps.

8. Correcting damage caused by pests e.g. rats, cock-

9. Used in commercial applications.

Defects caused by factors other than:

1. Normal domestic use or

2. Use in accordance with the Product’s Use and Care

WARRANTY Defects to the Product caused by accident, neglect, misuses, re, ood or Act of God. The cost of repairs carried out by non-autho- rized repairers or the cost of correcting such unauthorized repairs. Travel Fees and associated charges incurred when the product is installed in a location with limited or restricted access.(i.e. airplane ights, ferry charges, isolated geographic areas). Normal recommended maintenance as set forth in the Product’s Use and Care Guide. If you have an installation problem contact your dealer or installer. You are responsible for providing adequate electrical, exhausting and other connection facilities. This product has been designed for use in a normal domestic (residential) environment. This product is not designed for commercial use (whatsoever). Any commercial use by a customer will terminate/affect this products limited warranty. We are not responsible for consequential or incidental damages (including without limita- tion the cost of repairing or replacing other property damaged if the Product is defective or any of your expenses caused if the Product is defective). Some states do not allow the exclusion or limitation of incidental or conse- quential damages, so the above limitation or exclusion may not apply to you. How to get service Please read this Use and Care Guide. If you then have any questions about operating the Product, need the name of your local DCS Authorized Service Agent, or believe the Product is defective and wish service under this Limited Warranty, please contact your dealer or call us at: TOLL FREE 1-888-936-7872 or contact us through our web site: www.dcsappliances.com You may be required to provide reasonable proof of the date of purchase of the Product before the Product will be serviced under this Limited Warranty.

Commercial use This warranty applies to appliances used in residential ap- plications; it does not cover their use in commercial situa- tions. No other warranties This Limited Warranty is the complete and exclusive agree- ment between you and Fisher & Paykel Appliances Inc. regarding any defect in the Product and no other express warranty has been made or will be made on behalf of Fisher & Paykel. None of our employees (or our Authorized Service Agents) are authorized to make any addition or modication to this Limited Warranty. Warrantor: Fisher & Paykel Appliances, Inc. If you need further help concerning this Limited Warranty, or to make a claim under this warranty, please call us at the above number, or write to: Fisher & Paykel and DCS Appliances Inc 695 Town Centre Drive, Suite #180 Costa Mesa CA 92626-1902 USA This Limited Warranty gives you specic legal rights, and you may also have other rights which vary from country to country and from state to state. Fisher & Paykel Appliances Inc. is a leading manufacturer of premium quality cooking and specialty appliances under the Fisher & Paykel and DCS brands. C.24 REMARQUE
